Minerals 2019, 9(9), 538; https://doi.org/10.3390/min9090538

Article
Geochemistry, Zircon U-Pb Geochronology and Hf-O Isotopes of the Banzhusi Granite Porphyry from the Xiong’ershan Area, East Qinling Orogen, China: Implications for Petrogenesis and Geodynamics
by 1,2,3, 3,4,*, 3,4 and 1,2
1
Development and Research Center, China Geological Survey, Beijing 100037, China
2
National Geological Archives, Beijing 100037, China
3
School of Earth Sciences and Resources, China University of Geosciences Beijing, Beijing 100083, China
4
State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Received: 21 July 2019 / Accepted: 3 September 2019 / Published: 5 September 2019

Abstract

:
The Banzhusi granite porphyry is located in the Xiong’ershan area, East Qinling orogenic belt (EQOB). This study presents an integrated whole-rock geochemistry and zircon U-Pb-Hf-O isotope analysis of the Banzhusi granite porphyry. These rocks have metaluminous, high-K alkali-calcic and shoshonitic features and show significant enrichment in light rare earth elements (LREEs) over heavy rare earth elements (HREEs) with negative Eu anomalies. These samples are also greatly enriched in Rb, Ba, K, Pb, Th and U and depleted in Nb, Ta, P and Ti, and they mostly overlap the ranges of the Taihua Group tonalite–trondhjemite–granodiorite (TTG) gneiss. Magmatic zircons from three samples of the Banzhusi granite porphyry yield U-Pb ages of 125.1 ± 0.97 Ma, 128.1 ± 1.2 Ma and 128.2 ± 1.3 Ma. The Hf-O isotope features of zircons from the three samples are very similar (δ18Ozircon = 4.84‰ to 6.51‰, εHf(t) = −26.9 to −14.4). The co-variations of geochemical and isotopic data in these granite porphyries imply that the Banzhusi granite porphyry resulted from the mixing of the partially melted Taihua Group and mantle-derived material in a post-collisional setting from 128–125 Ma.
Keywords:
geochemistry; zircon U-Pb geochronology; zircon Hf-O isotopes; Banzhusi granite porphyry; East Qinling

1. Introduction

In the East Qinling orogenic belt (EQOB), late Mesozoic granitoid plutons are widely distributed (Figure 1) [1,2,3,4]. Most late Mesozoic granitoids are spatially, temporally and genetically correlated with Mo, Au and Ag-Pb-Zn mineralization in the EQOB [2,5,6,7]. However, the petrogenesis and magma source of these Late Jurassic to Early Cretaceous granitoids remain under debate. The diverse sources of late Mesozoic magmatism include (1) a mixture between partial melting of the lower crust or Archaean-Palaeoproterozoic metamorphic crystalline basement of the North China Craton (NCC) and mantle material [8,9,10,11,12] and (2) partial melting of continental crust of the Yangtze Craton (YC) that subducted beneath the southern margin of the NCC [13,14,15,16]. The Banzhusi granite porphyry is located in the eastern part and represents the largest intrusion in the eastern Xiong’ershan area. Previous studies have shown that the Banzhusi granite porphyry was formed at 129 Ma, which correspond to Late JurassicEarly Cretaceous magmatic activity [17,18]. The Banzhusi granite porphyry shows C-type adakitic features with high Sr and low Yb and Y, which indicates that the magma source originated from partial melting of the thickened crust [17]. However, much previous evidence has suggested that the late Mesozoic magmatism in the Xiong’ershan area was the product of crust-mantle interactions [8,12,19]. Whether the Banzhusi granite porphyry has the same magma sources with the input of mantle materials is unknown.
Zircon is a common accessory mineral that can forcefully resist the effects of later geological activities. Therefore, zircon U-Pb-Hf-O isotopes provide insights into the emplacement ages, the magma sources, the physico-chemical conditions of magma and the petrogenetic processes of granitoids [25,26]. In the present study, we measured the whole-rock geochemistry and in situ zircon U-Pb-Hf-O isotopes for the Banzhusi granite porphyry from the Xiong’ershan area in order to (1) precisely determine the emplacement ages of the granite porphyry and (2) decipher the magma source, petrogenesis and tectonic implications.

2. Geological Setting

The Xiong’ershan area is situated along the border of the North Qingling Belt and the Huaxiong Blockin the Qinling orogenic belt (QOB) [27] and consists of two lithospheric units (late Neoarchean-Palaeoproterozoic Taihua Group and Palaeoproterozoic Xiong’er Group, Figure 1) [20,28]. A suite of biotite-plagioclase gneisses, plagioclase-amphibole gneisses, amphibolites, granulites and quartz schists constitute the Taihua Group [29,30,31,32,33,34]. The Xiong’er Group has been classified as a low-grade, low-strain metamorphosed volcanic sequence that unconformably overlies the Taihua Group, and its lithology consists of basaltic andesite and andesite, with minor dacite and rhyolite [35,36,37,38,39,40,41,42]. In the Xiong’ershan area, magmatic events can be divided into three periods: (i) Palaeoproterozoic magmatism represented by the Xiong’er Group volcanic rocks [39]; (ii) Triassic alkaline magmatism that formed the Mogou granite porphyry, which is exposed as several elliptic syenite stocks [28]; (iii) late Mesozoic magmatism is the most important magmatic event mainly exposed as granite plutons and granite porphyries (Figure 1b) [21]. Late Mesozoic magmatism is closely associated with the most important regional metallogenic events, including orogenic gold lode deposits [43,44]; porphyry, quartz-vein and carbonatite-vein Mo deposits [45,46,47,48]; breccia pipe-hosted gold deposits [49,50,51]; and hydrothermal vein-type Au and Ag-Pb-Zn deposits [52,53].
The Banzhusi granite porphyry occupies approximately 31 km2 and mainly intruded into the Paleoproterozoic Xiong’er Group (Figure 1c). The southern and southeastern parts of the Banzhusi granite porphyry are covered by Cenozoic sandy clays and marls. The Banzhusi granite porphyry is grey or light red in color with a typical porphyritic texture. The phenocrysts of granite porphyry mainly consist of 25–40% quartz, plagioclase and K-feldspar. The matrix minerals are made up of quartz (15–30%), plagioclase (10–20%), amphibole (5%) and biotite (<5%). The accessory minerals present a consistent suite that includes magnetite, apatite, titanite, zircon and pyrite (Figure 2).

3. Sampling and Analytical Methods

3.1. Samples

Eight representative samples were collected along the section line that cuts across the Banzhusi granite porphyry and used for lithogeochemical analyses and petrographic studies (BZS-1, location: 34°15′47″N, 112°9′31″E; BZS-2, location: 34°16′20″N, 112°8′31″E; BZS-3, location: 34°16′21″N, 112°8′31″E; BZS-4, location: 34°17′13″N, 112°6′40″E; BZS-5 and BZS-6, location: 34°17′20″N, 112°6′17″E; BZS-7, location: 34°17′58″N, 112°6′33″E; BZS-8, location: 34°18′5″N, 112°6′32″E, BZS is an abbreviation of Banzhusi). Samples BZS-1, BZS-4, BZS-5, BZS-6, BZS-7 and BZS-8 were collected from border of the exposed intrusion and BZS-2 and BZS-3 were collected from core of the exposed intrusion. Zircon U-Pb geochronology and Hf-O isotope analyses were performed on samples BZS-1, BZS-2 and BZS-6.

3.2. Whole-Rock Geochemistry

Samples were prepared by clearing away the weathered surfaces and then grinding to ~200 mesh. Subsequently, lithogeochemical analyses were carried out using standard X-ray fluorescence (XRF), although the FeO content was analyzed with the potassium bichromate titrimetric method at the Analytical Laboratory of the Beijing Research Institute of Uranium Geology. The precision and accuracy for most major oxides were better than 2% (5% for MnO and P2O5). Almost all corrected values of trace elements had uncertainties within 5% (10% for Zr, Hf, Nb and Ta). The detailed analytical method was described by [54,55].

3.3. Zircon U-Pb Analysis

Samples BZS-1, BZS-2 and BZS-6 were crushed and sieved for separating zircon grains at the Langfang Honesty Geological Services Co., Ltd., China. The polished mounts were imaged under cathodoluminescence (CL).
Zircon U-Pb isotopes were analyzed on single ablation spots at the National Research Centre for Geoanalysis, Chinese Academy of Geological Sciences. A NWR193UC laser system (Elemental Scientific Lasers, Bozeman, MT, USA) operating at a wavelength of 193 nm and consisting of 35 mm spot diameters was employed for the laser ablation at a constant repetition rate of 10 Hz and a fluence of 8 J/cm2. Each analysis incorporated a background acquisition lasting approximately 20 s (gas blank), which was followed by data acquisition from the sample for 40 s. The ablated material was carried in He and then mixed with N and Ar before being introduced to the inductively coupled plasma (ICP) source of an Agilent 7900 quadrupole inductively coupled plasma mass spectrometry (ICP-MS, Agilent, Santa Clara, CA, USA). Standard zircons 91500 (1062.4 ± 0.4 Ma) [56] and Plesovice (337.13 ± 0.37 Ma) [57] were used as the primary reference materials for the U-Pb geochronology. GJ1 [58] was used as a secondary standard. The instrumental conditions and data acquisition were similar to those described by [54]. Concordia plots and weighted mean ages were obtained using Isoplot 4.15.

3.4. Zircon Lu-Hf Analysis

In situ zircon Hf isotope measurements were performed using a New Wave UP213 laser-ablation microprobe attached to a Neptune multi-collector inductively coupled plasma mass spectrometry (MC-ICP-MS, Thermo Finnegan, San Jose, CA, USA) at the Institute of Geology, Chinese Academy of Geological Sciences, Beijing, China. The measurements were performed on the same zircon grains previously analyzed for U-Pb isotopes using a beam size of 55 mm, a laser pulse frequency of 8–10 Hz, and a laser beam energy density of 10 J/cm2. Helium was used as an ablation carrier gas with an ablation time of 60 s. The primary reference material used for monitoring accuracy and precision of internally corrected Hf isotope ratios was zircon 91500 (0.282306 ± 0.000008 using 179Hf/177Hf = 0.7325) [59]. GJ1 (0.282000 ± 0.000005) [58] was used as a secondary standard. The instrumental conditions and data acquisition were similar to those described by [54].
Based on a decay constant value of 1.865 × 10−11 year−1 for 176Lu [60], the present-day 176Hf/ 177Hf and 176Lu/ 177Hf of the depleted mantle are 0.28325 and 0.0384, respectively [61]. The depleted mantle Hf model age (single-stage model age, TDM1) was calculated in reference to the depleted-mantle source with the present-day 176Hf/177Hf ratio of 0.28325 and 176Lu/177Hf ratio of 0.0384 [61]. The “crust” Hf model age (two-stage model, TDM2) was calculated with respect to the average continental crust with a 176Lu/177Hf value of 0.015 [62].

3.5. Zircon O Isotope Analysis

In situ zircon O isotopes were measured using a Cameca 1280 microprobe via secondary ion mass spectrometry (SIMS) at the Centre for Microscopy, Characterisation and Analysis (CMCA) at the University of Western Australia. The beam size was 15 μm in diameter, and the 133Cs + primary ion beam was accelerated at 10 kV, with a current intensity of −2.5 nA to −3.0 nA. Charge compensation of the Au-coated (30 μm) samples was accomplished using a normal incidence electron flood gun. The instrumental mass fractionation was corrected using the zircon reference materials Laura and Temora 2 [63]. The 91500, Penglai [64], BR266 [65] and GJ1 standards were analyzed 28 times as secondary reference materials. The analytical procedures and conditions and data acquisition were described in [66].

4. Results

4.1. Whole-Rock Geochemistry

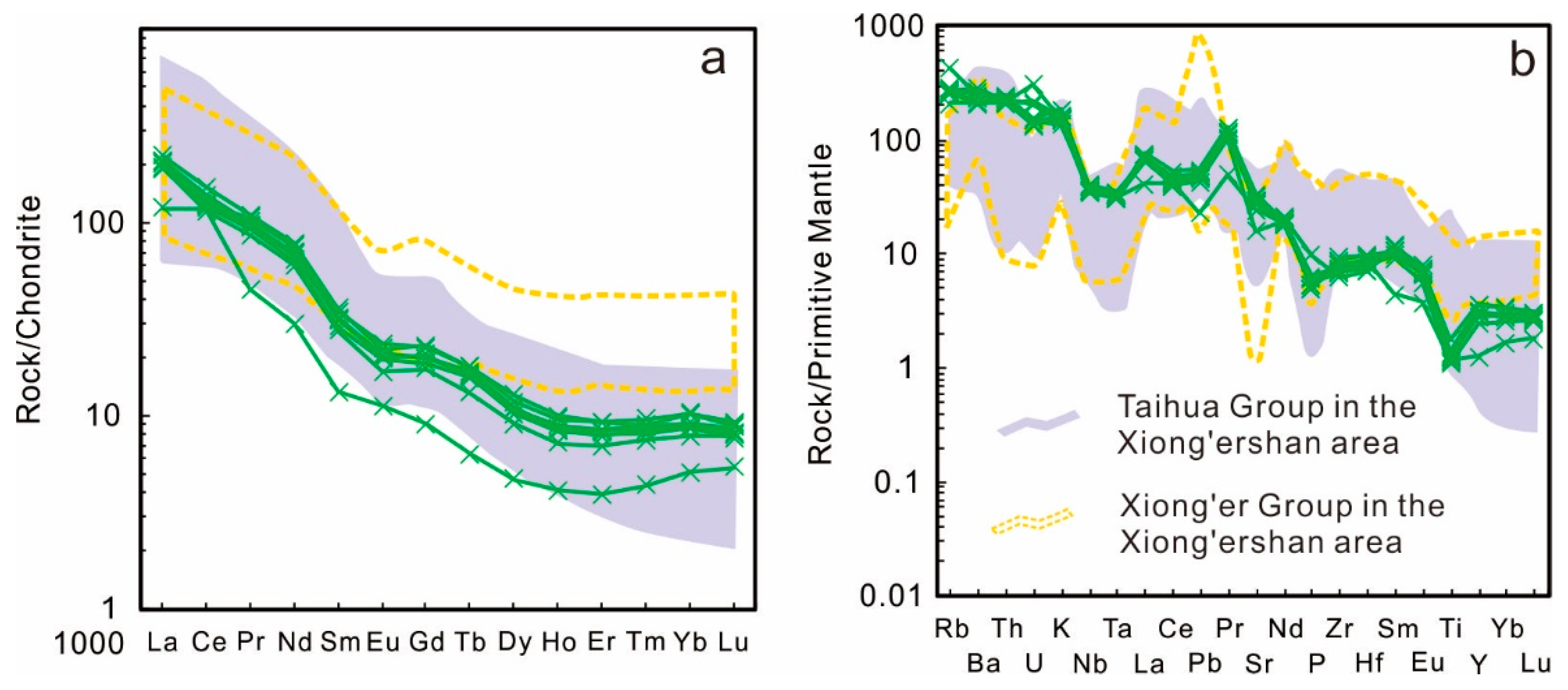

The major and trace element analytical data of eight samples from the Banzhusi granite porphyry are listed in Table 1 and illustrated in Figure 3 and Figure 4.

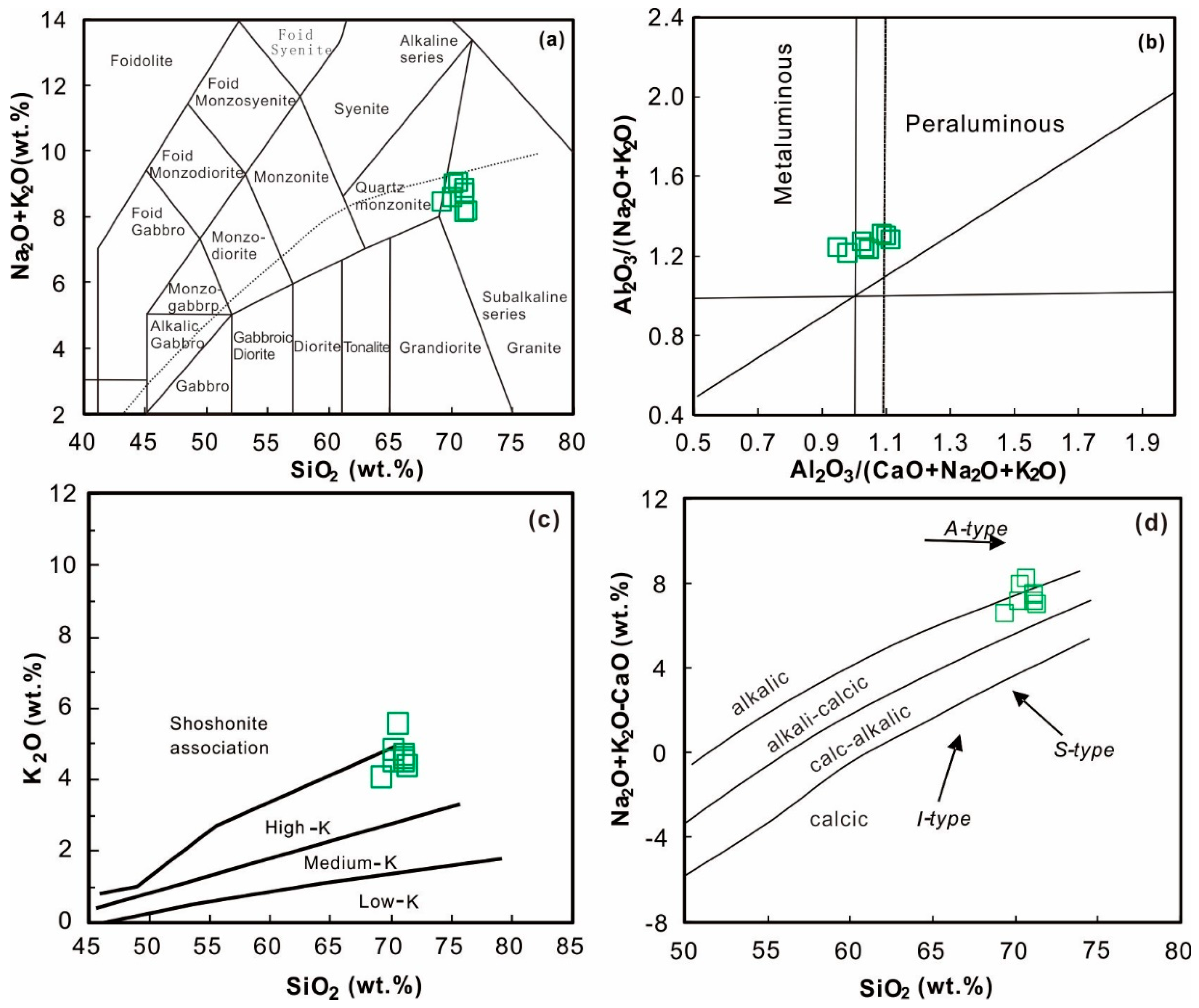

The Banzhusi granite porphyries show elevated SiO2 (69.2 to 71.3 wt. %), Na2O (3.5 to 4.4 wt. %), K2O (4.1 to 5.6 wt. %), Al2O3 (14.1 to 15.1 wt. %), Sr (77 to 1015 ppm) and Ba (86.4 to 2293 ppm), moderate CaO (1.0 to 2.0 wt. %), K2O/Na2O (0.9 to 1.6), A/CNK (0.9 to 1.1) and Sr/Y (17.8 to 89.4) but low contents of MgO (0.24 to 0.67 wt. %) and FeOT (1.85 to 3.08 ppm). These rocks are high-K alkali-calcic rocks (Figure 5) that show metaluminous features (Figure 5c). The total rare earth element (ΣREE) values are between 46.7 ppm and 257.5 ppm, with light REE (LREE)/heavy REE (HREE) ratios of 11.6 to 23.8, (La/Yb)N of 9.0 to 37.0, δCe of 0.86 to 0.93 and δEu of 0.66 to 1.1. The samples are LREE-enriched with slightly negative Eu anomalies (Figure 4).

4.2. Zircon U-Pb Ages

Sample BZS-1 has a translucent brown, euhedral and short prismatic shape zircon population, which have a length of 100 to 150 μm and are dominated by oscillatory zoning, indicating a magmatic origin. The results yield a weighted mean 206Pb/238U age of 125.1 ± 0.97 Ma (MSWD = 1.4, Figure 5b), which represents the crystallization age of the granite porphyry.
Sample BZS-2 also has a translucent light-brown to colorless, euhedral to subhedral zircon population with a length of 150–200 μm (Figure 5c). All zircons show oscillatory zoning or heterogeneous fractured features, suggesting a magmatic origin. All 13 zircons from sample BZS-2 are concordant with 206Pb/238U ages ranging from 126 to 130 Ma (Table 2), thus yielding a weighted mean age of 128.1 ± 1.2 Ma (MSWD = 1.7, Figure 5d). This weighted mean age is interpreted to represent the crystallization age of the granite porphyry.
The granite porphyry (Sample BZS-6) contains abundant euhedral- and long prismatic-shaped zircon population, which are translucent and colorless to brown. In the CL images, the euhedral- to short prismatic-shaped grains show a length of 50 - 150 μm and a length to width ratio of 3:1 to 1:1. These grains show obvious oscillatory zoning in the CL images (Figure 5e), suggesting a magmatic origin. Fifteen spots were analyzed on the representative zircon grains from BZS-6 (Table 2). These spots have concordant ages; a weighted mean 206Pb/238U age of 128.2 ± 1.3 Ma (MSWD = 2.1) was obtained, which is regarded as the crystallization age of the granite porphyry (Figure 5f).

4.3. Zircon Lu-Hf Isotope Compositions

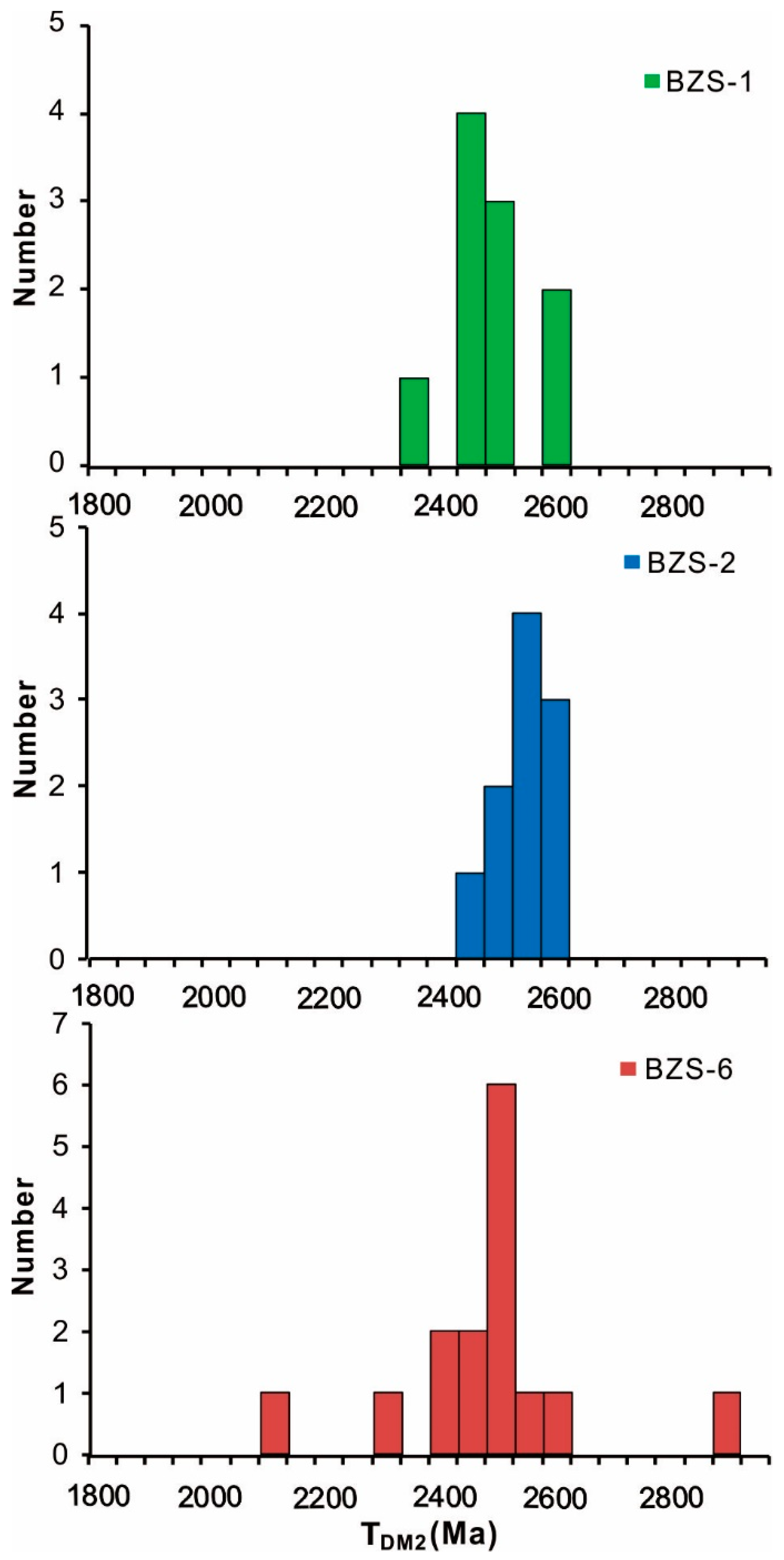

The Hf isotope analyses on representative zircons from BZS-1 have low 176Lu/177Hf (0.000699 to 0.001490) and homogeneous 176Hf/177Hf ratios ranging from 0.281932 to 0.282288. These results yield εHf(t) values of −21.8 to −19.2 and fLu/Hf values of −0.97 to −0.96 (Figure 6, Table 3). The crustal model ages (TDM2) vary from 2400 Ma to 2563 Ma (Figure 7). Zircon crystals from BZS-2 yield Lu-Hf isotope features similar to those of BZS-1, and they show low 176Lu/177Hf ratios of 0.000699 to 0.001490 with a homogeneous 176Hf/177Hf ratios of 0.281932 to 0.282288, and have εHf(t) values ranging from −26.9 to −14.4 and fLu/Hf of −0.98 to −0.96. The TDM2 ages range from 2099 to 2889 Ma (Figure 7). Compared with BZS-1, magmatic zircons from BZS-6 yield similar 176Lu/ 177Hf ratios (0.000699 to 0.001490) and 176Hf/177Hf ratios (0.281932 to 0.282288), but more variable TDM2 ages (2099 to 2889 Ma) and εHf (t) values (−26.9 to −14.4) (Figure 6 and Figure 7). The fLu/Hf values are between −0.98 and −0.96 (Table 3).

4.4. Zircon O Isotope Compositions

The results of the SIMS oxygen isotope analyses of zircons are presented in Figure 8 and Table 4. Zircon grains from BZS-1 have δ18Ozircon values ranging from 4.84‰ to 5.85‰ (mean 5.31 ± 0.37‰, n = 11). Zircon grains from the BZS-2 have δ18Ozircon values ranging from 5.26‰ to 5.75‰ and a weighted mean δ18Ozircon of 5.51 ± 0.37‰ (n = 10). Zircon grains from BZS-6 have δ18Ozircon values ranging from 4.94‰ to 6.51‰, displaying a weighted mean δ18Ozircon of 5.55 ± 0.35‰ (n = 10).

5. Discussion

5.1. Petrogenesis of the Banzhusi Granite Porphyry

The Banzhusi granite porphyry is characterized by high-K alkalic-calc and metaluminous to slightly peraluminous features (A/CNK ratios = 0.93–1.17, Figure 3). All samples have negative Eu anomalies (δEu = 0.661.1; Table 1) and show significant enrichments in LREEs over HREEs on normalized diagrams ([La/Yb]N = 9.0–37.0; Figure 4a). The granite porphyry samples are enriched in Rb, Ba, K, Pb, Th and U, and moderately depleted in Nb, Ta, P and Ti compared to the primitive mantle, exhibiting distinct crustal source characteristics (Figure 4b). The data mostly overlap the ranges of metamorphic rocks from the Taihua Group but show a range and pattern distinct from those of the volcanic successions from the Xiong’er Group. The geochemical data of these samples from the Banzhusi granite porphyry suggest that they were mainly generated from partial melting of the Taihua Group.
The samples BZS-1, BZS-2 and BZS-6 from the Banzhusi granite porphyry have highly evolved εHf(t) values ranging from −18.3 to −22.2, −21.8 to −19.2 and −26.9 to −14.4, which present old TDM2 ages ranging from 2341 to 2580 Ma, 2400 to 2563 Ma and 2099 to 2889 Ma, respectively (Table 3; Figure 6 and Figure 7). The Hf isotope features suggest that the parental magma of the Banzhusi granite porphyry originated from an old crustal source. The Taihua Group, as the regional metamorphic crystalline basement, formed between 2.84 Ga and 2.19 Ga and presents TDM2 ages of 2.6–3.2 Ga [29], whereas the Paleoproterozoic Xiong’er Group volcanic rocks formed at 1.83–1.74 Ga and presents TDM2 ages mainly from 1.55 to 2.86 Ga [37,38,39,41]. Hence, we propose that the parental magma of the Banzhusi granite porphyry was dominantly derived from a crustal source in the Taihua Group based on the comparable formation ages of the Taihua Group and the TDM2 ages in this study.
Mantle zircons are generally accepted to have a narrow range of δ18O values averaging 5.3 ± 0.6‰ (2σ) [74,75,76]. The δ18Ozircon values of less than 6.5‰ form from melts that contain minor to negligible sedimentary components, whereas δ18Ozircon values higher than 6.5‰ signify supracrustal contributions [77,78,79,80,81,82]. However, the zircon δ18Ozircon values of samples BZS-1, BZS-2 and BZS-6 range from 4.84‰ to 5.85‰, 5.26‰ to 5.75‰ and 4.94‰ to 6.51‰ (Figure 8), respectively, indicating the contribution from the mantle or mantle-derived sources during zircon growth. The combination of zircon Hf-O isotopes of the Banzhusi granite porphyry indicates that the magma source was originally derived from ancient continental crust together with the nonnegligible involvement of mantle-derived magmas (Figure 6, Figure 7 and Figure 8). Hence, our zircon O isotope data provide robust new evidence for the contribution of mantle-derived magmas in the origin of the Banzhusi granite porphyry.

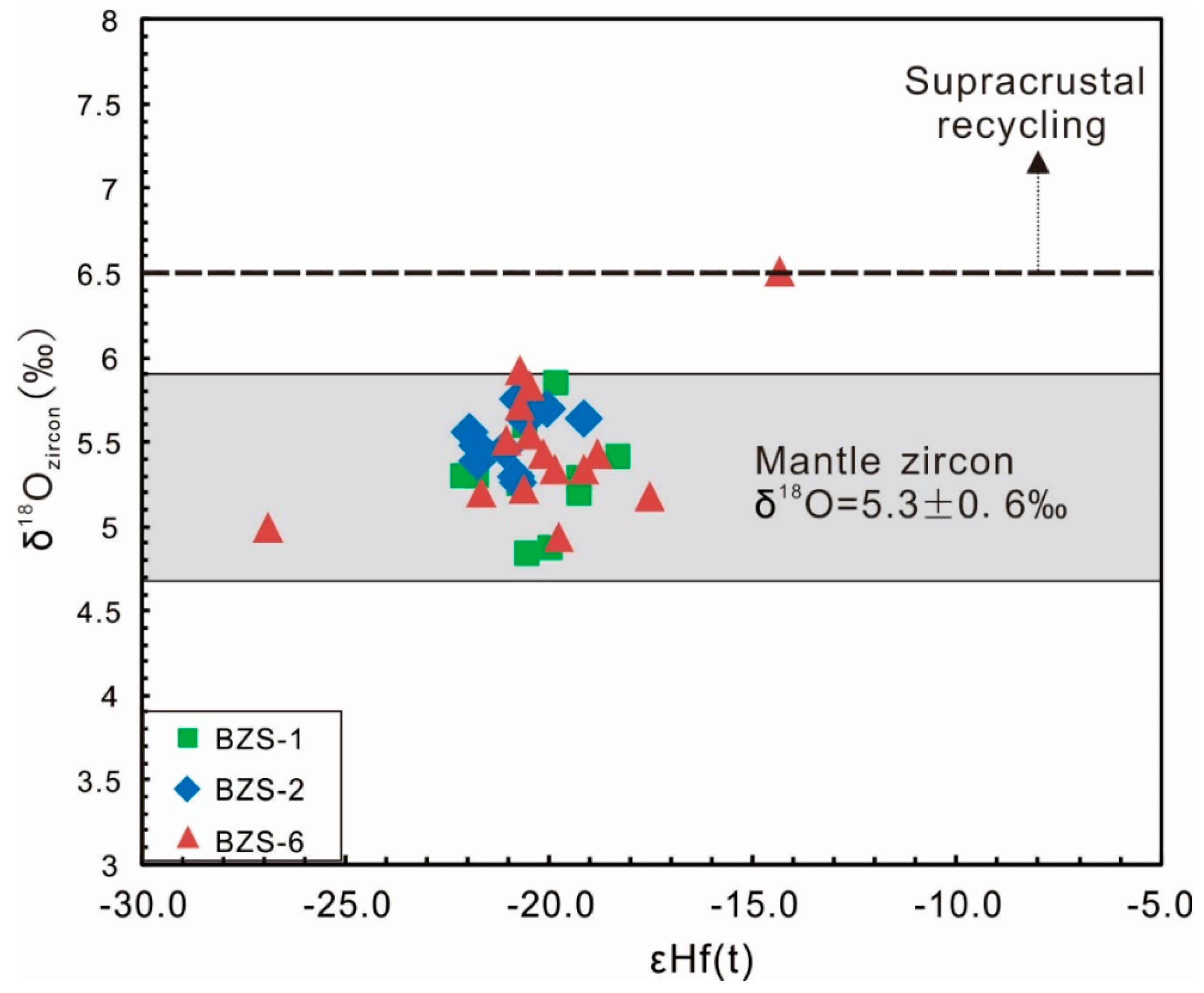

The diagrams of εHf(t) versus δ18Ozircon and the integrated oxygen isotope reservoir of the Earth (Figure 8) also suggest mixed sources from the Taihua Group and mantle-derived magmas. The low δ18Ozircon values could be inherited from parental magmas. Relatively low δ18Ozircon fluids or melts can be generated through metasomatism of the lower crust or mantle degassing in post-collisional extensional settings [83,84,85]. The addition of low δ18Ozircon fluids or melts into the lower crust could accelerate the melting of the refractory Taihua Group. The required heat could be provided by underplating of hot asthenospheric mantle [86].

5.2. Relationship between the Banzhusi Granite Porphyry and Mineralization

Zircons from samples BZS-1, BZS-2 and BZS-6 of the Banzhusi granite porphyry analyzed by LA-ICP-MS in this study yielded weighted mean 206Pb/238U ages of 125.1 ± 0.97 Ma, 128.1 ± 1.2 Ma and 128.2 ± 1.3 Ma, respectively. These ages are consistent with previous zircon U-Pb ages from a recent study [18], indicating that the Banzhusi granite porphyry was formed contemporaneously with the widespread late Mesozoic magmatism in the Xiong’ershan area [21].
The late Mesozoic magmatic plutons and granite porphyries in the Xiong’ershan area include the Wuzhangshan, Haoping, Jinshanmiao, Haopinggou, Heyu and Taishanmiao granite plutons and the Leimengou, Banzhusi, Qiyugou and Shiyaogou granite porphyries. Available published data have provided good constraints for the crystallization age of these plutons and granite porphyries [2,12,18,19,21,42,55,87,88,89,90,91,92]. The late Mesozoic magmatic event in the Xiong’ershan area principally proceeded for 60 Ma, and we suggest that three main magmatic events occurred from 177–153 Ma (Wuzhangshan pluton) [89,90], 145–125 Ma (most of the plutons and granite porphyries mentioned above except for the Wuzhangshan and Taishanmiao granite plutons) [2,18,19,21,42,55,87,88,89,90,91,92] and 125–115 Ma (Taishanmiao pluton) [12].
In this study, the zircon U-Pb data obtained from the Banzhusi granite porphyry are consistent with the regional Mo, Au, Pb, Zn, and Ag mineralization ages of 133–125 Ma [42]. Based on previous studies, three main mineralization events during the late Mesozoic have been identified in the Xiong’ershan area (i.e., 160–142 Ma, 133–125 Ma and 125–115 Ma) [21]. The formation age (128–125 Ma) of the Banzhusi granite porphyry is contemporaneous with the second episode of magmatism and metallogeny, indicating that the granite porphyry and metallogenesis were probably generated under a unified geodynamic setting.

5.3. Geodynamic Implications

To date, previous researchers have proposed four tectonic models for the late Mesozoic evolution of the EQOB. (i) During the late Mesozoic, the NCC was still subducting southward and the YC was still subducting northward beneath the Qinling orogen. Accordingly, late Mesozoic magmatism was related to the syn-collisional setting, and the subsequent post-collisional magmatism continued after the Early Cretaceous [27,93]. (ii) Li [94] and Yang et al. [95,96] proposed a second model that suggested a post-collisional evolution for the EQOB during the late Mesozoic. Therefore, late Mesozoic post-collisional granitoids were distributed in the EQOB after the Triassic collision between the NCC and YC [95,96,97]. (iii) The third model considered that the Palaeo-Pacific slab was subducted northwestward beneath East China during the late Mesozoic [4,48,98]. iv) Li et al. [1] proposed a new viewpoint that the collision between the NCC and YC occurred at circa 195–160 Ma, which led to the thickening of the lower continental crust, and the subsequent post-collisional magmatism continued until circa 125 Ma. Therefore, the main controversy in the above models is the shifted timing of the tectonic systems of the Qingling orogenic belt from a compressional regime to an extensional regime.

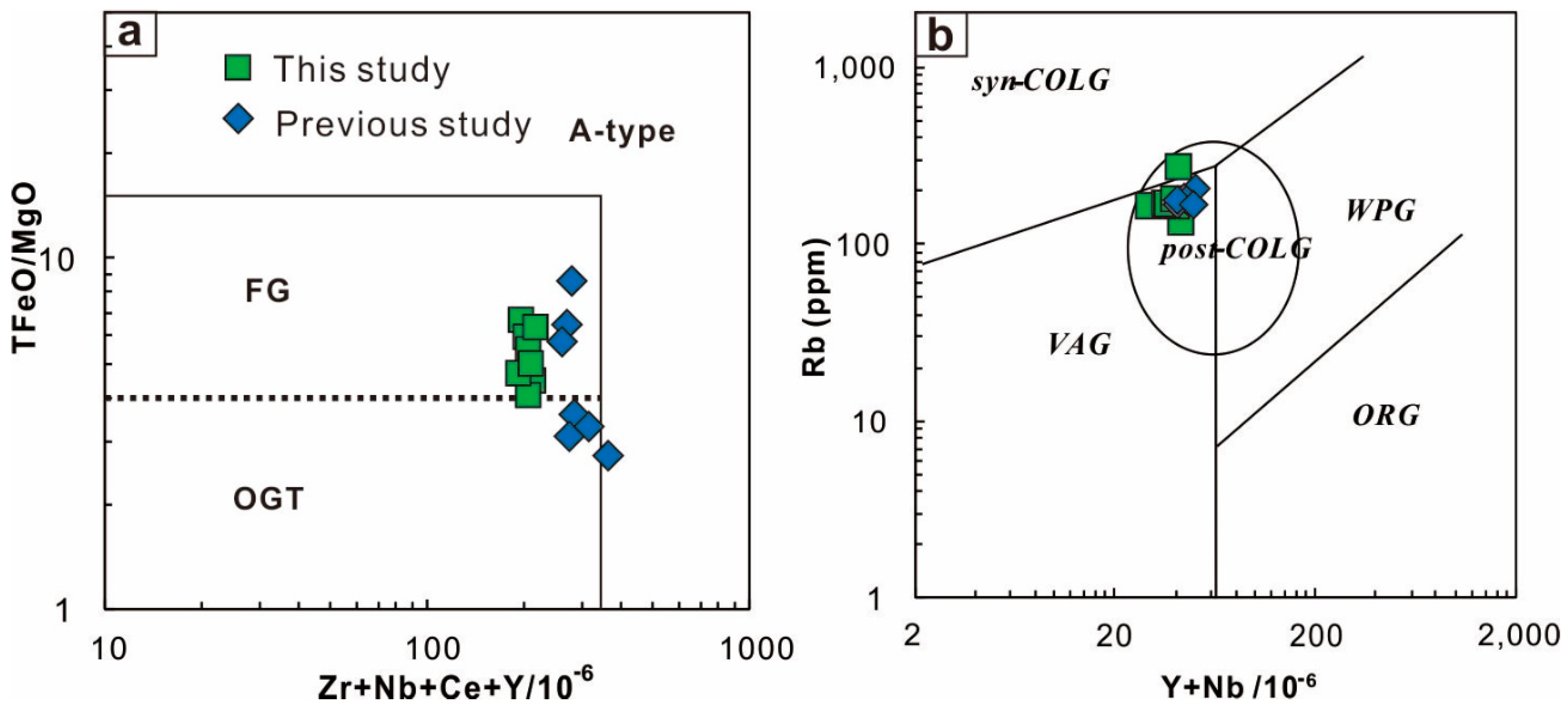

As shown in Figure 9a, few samples plot in the unfractionated M-, I- and S-type granite field (OGT), and most of the samples plot in the fractionated felsic granite field (FG). All samples plot in the post-collisional granite (post-COLG) field in Figure 9b. The above features suggest that the granite porphyry was emplaced in a post-collisional setting. The Banzhusi granite porphyry samples all plot in the post-COLG field and exhibit emplacement ages of 128–125 Ma, thus implying that the tectonic transition from a syn-collisional to a post-collisional setting could have accomplished at circa 128–125 Ma. In addition, the abovementioned zircon Hf-O isotope features (low εHf(t) and δ18Ozircon values) of the Banzhusi granite porphyry imply lithospheric thinning with a significant input of upwelling mantle-derived materials, which resulted in the partial melting of the lower crust in this period. Dong et al. [99] proposed that the Qinling orogenic belt evolved to orogenic collapse during the Late Cretaceous to Palaeogene after the intense compression and denudation during the Late Jurassic to Early Cretaceous. Therefore, the QOB evolved orogenic collapse event is restricted to the Early Cretaceous by the emplacement age (128–125 Ma) of the Banzhusi granite porphyry.

6. Conclusions

(1) The zircon U-Pb data show that three samples of the Banzhusi granite porphyry yield emplacement ages of 125.1 ± 0.97 Ma, 128.1 ± 1.2 Ma and 128.2 ± 1.3 Ma.
(2) Whole-rock geochemistry and zircon Hf-O isotopes indicate that the parental magma of the Banzhusi granite porphyry was mainly sourced from partial melting of the Taihua Group mixed with non-negligible mantle-derived materials.
(3) The Early Cretaceous (128–125 Ma) granitoid magmatism in the Xiong’ershan area likely occurred due to the evolved orogenic collapse event in the Qinling orogenic belt.

Author Contributions

B.W. and X.H. carried out the whole-rock geochemistry analysis, zircon U-Pb dating and Hf-O isotope analysis and processed the data, drew the diagrams and finished the manuscript. J.L. and L.T. reviewed the manuscript and corrected the language.

Funding

This study was supported financially by the National Key Research and Development Program of China (2016YFC0600504), the Open Research Project from the State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences (E71180115), the Fundamental Research Funds for the Central Universities (2652017276 and 2652017218) and the Geological Survey Project (121201004000172605 and 202003000000180709).

Acknowledgments

Christopher Spencer, Heejin Jeon and Yu Zhao are appreciated for their support during SIMS zircon O isotope analyses. The team members from the China University of Geosciences Beijing provided valuable assistance in the field.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Li, N.; Chen, Y.J.; Santosh, M.; Pirajno, F. Late Mesozoic granitoids in the Qinling Orogen, Central China, and tectonic significance. Earth-Sci. Rev. 2018, 182, 141–173. [Google Scholar] [CrossRef]
  2. Mao, J.; Xie, G.; Pirajno, F.; Ye, H.; Wang, Y.; Li, Y.; Xiang, J.; Zhao, H. Late Jurassic–Early Cretaceous granitoid magmatism in Eastern Qinling, central-eastern China: SHRIMP zircon U-Pb ages and tectonic implications. Aust. J. Earth Sci. 2010, 57, 51–78. [Google Scholar] [CrossRef]
  3. Wang, C.; Deng, J.; Bagas, L.; Wang, Q. Zircon Hf-isotopic mapping for understanding crustal architecture and metallogenesis in the Eastern Qinling Orogen. Gondwana Res. 2017, 50, 293–310. [Google Scholar] [CrossRef]
  4. Yang, F.; Xue, F.; Santosh, M.; Wang, G.; Kim, S.W.; Shen, Z.; Jia, W.; Zhang, X. Late Mesozoic magmatism in the East Qinling Orogen, China and its tectonic implications. Geosci. Front. 2019, 10, 1803–1821. [Google Scholar] [CrossRef]
  5. Mao, J.; Xie, G.; Bierlein, F.; Qü, W.; Du, A.; Ye, H.; Pirajno, F.; Li, H.M.; Guo, B.; Li, Y. Tectonic implications from Re-Os dating of Mesozoic molybdenum deposits in the East Qinling-Dabie orogenic belt. Geochim. Cosmochim. Acta 2008, 72, 4607–4626. [Google Scholar] [CrossRef]
  6. Stein, H.; Markey, R.; Morgan, J.; Du, A.; Sun, Y. Highly precise and accurate Re-Os ages for molybdenite from the East Qinling molybdenum belt, Shaanxi Province, China. Econ. Geol. 1997, 92, 827–835. [Google Scholar] [CrossRef]
  7. Cao, M.; Yao, J.; Deng, X.; Yang, F.; Mao, G.; Mathur, R. Diverse and multistage Mo, Au, Ag-Pb-Zn and Cu deposits in the Xiong’er Terrane, East Qinling: From Triassic Cu mineralization. Ore Geol. Rev. 2017, 81, 565–574. [Google Scholar] [CrossRef]
  8. Li, N.; Chen, Y.J.; Pirajno, F.; Gong, H.J.; Mao, S.D.; Ni, Z.Y. LA-ICP-MS zircon U-Pb dating, trace element and Hf isotope geochemistry of the Heyu granite batholith, eastern Qinling, central China: Implications for Mesozoic tectono-magmatic evolution. Lithos 2012, 142, 34–47. [Google Scholar] [CrossRef]
  9. Li, D.; Han, J.; Zhang, S.; Yan, C.; Cao, H.; Song, Y. Temporal evolution of granitic magmas in the Luanchuan metallogenic belt, east Qinling Orogen, central China: Implications for Mo metallogenesis. J. Asian Earth Sci. 2015, 111, 663–680. [Google Scholar] [CrossRef]
  10. Zhang, Y.; Cao, H.; Xu, M.; Zhang, S.; Tang, L.; Wang, S.; Pei, Q.; Cai, G.; Shen, T. Petrogenesis of the late Mesozoic highly fractionated I-type granites in the Luanchuan district: Implications for the tectono-magmatic evolution of eastern Qinling. Geosci. J. 2017, 22, 1–20. [Google Scholar] [CrossRef]
  11. Zhang, Y.; Zhang, S.; Xu, M.; Jiang, X.; Li, J.; Wang, S.; Li, D.; Cao, H.; Zou, H.; Fang, Y. Geochronology, geochemistry, and Hf isotopes of the Jiudinggou molybdenum deposit, Central China, and their geological significance. Geochem. J. 2015, 49, 321–342. [Google Scholar] [CrossRef]
  12. Wang, C.; Chen, L.; Bagas, L.; Lu, Y.; He, X.; Lai, X. Characterization and origin of the Taishanmiao aluminous A-type granites: Implications for Early Cretaceous lithospheric thinning at the southern margin of the North China Craton. Int. J. Earth Sci. 2016, 105, 1563–1589. [Google Scholar] [CrossRef]
  13. Bao, Z.; Zeng, Q.; Zhao, T.; Yuan, Z. Geochemistry and petrogenesis of the ore-related Nannihu and Shangfanggou granite porphyries from east Qinling belt and their constraints on the molybdenum mineralization. Acta Petrol. Sin. 2009, 25, 2523–2536. [Google Scholar]
  14. Bao, Z.; Xiong, M.; Li, Q. Mo-rich source and protracted crystallization of Late Mesozoic granites in the East Qinling porphyry Mo belt (central China): Constraints from zircon U/Pb ages and Hf-O isotopes. J. Asian Earth Sci. 2018, 160, 322–333. [Google Scholar] [CrossRef]
  15. Bao, Z.; Wang, C.Y.; Zhao, T.; Li, C.; Gao, X. Petrogenesis of the Mesozoic granites and Mo mineralization of the Luanchuan ore field in the East Qinling Mo mineralization belt, Central China. Ore Geol. Rev. 2014, 57, 132–153. [Google Scholar] [CrossRef]
  16. Bao, Z.; Sun, W.; Zartman, R.E.; Yao, J.; Gao, X. Recycling of subducted upper continental crust: Constraints on the extensive molybdenum mineralization in the Qinling-Dabie orogen. Ore Geol. Rev. 2017, 81, 451–465. [Google Scholar] [CrossRef]
  17. Liang, T.; Lu, R.; Luo, Z. Geochemical features and its geologic implications of Banzhusi granitic porphyry in Xiongershan of western Henan Province. Geol. Surv. Res. 2016, 39, 15. (In Chinese) [Google Scholar]
  18. Liang, T.; Bai, F.J.; Luo, Z.H.; Lu, X.X.; Lu, R.; Xu, S.T.; Cheng, J.L. LA-ICP-MS zircon U-Pb dating and its geological implications of Banzhusi granitic porphyry in Xiongershan of western Henan Province. Northwestern Geol. 2014, 47, 41–50. (In Chinese) [Google Scholar]
  19. Han, Y.; Zhang, S.; Pirajno, F.; Zhou, X.; Zhao, G.; Qü, W.; Liu, S.; Zhang, J.; Liang, H.; Yang, K. U-Pb and Re-Os isotopic systematics and zircon Ce4+/Ce3+ ratios in the Shiyaogou Mo deposit in eastern Qinling, central China: Insights into the oxidation state of granitoids and Mo (Au) mineralization. Ore Geol. Rev. 2013, 55, 29–47. [Google Scholar] [CrossRef]
  20. Cao, H.W.; Zhang, S.T.; Santosh, M.; Zheng, L.; Tang, L.; Li, D.; Zhang, X.H.; Zhang, Y.H. The Luanchuan Mo-W-Pb-Zn-Ag magmatic–hydrothermal system in the East Qinling metallogenic belt, China: Constrains on metallogenesis from C-H-O-S-Pb isotope compositions and Rb-Sr isochron ages. J. Asian Earth Sci. 2015, 111, 751–780. [Google Scholar] [CrossRef]
  21. Deng, J.; Gong, Q.; Wang, C.; Carranza, E.J.M.; Santosh, M. Sequence of Late Jurassic–Early Cretaceous magmatic-hydrothermal events in the Xiong’ershan region, Central China: An overview with new zircon U-Pb geochronology data on quartz porphyries. J. Asian Earth Sci. 2014, 79, 161–172. [Google Scholar] [CrossRef]
  22. Hu, X.K.; Tang, L.; Zhang, S.T.; Santosh, M.; Spencer, C.J.; Zhao, Y.; Cao, H.W.; Pei, Q.M. In situ trace element and sulfur isotope of pyrite constrain ore genesis in the Shapoling molybdenum deposit, East Qinling Orogen, China. Ore Geol. Rev. 2019, 105, 123–136. [Google Scholar] [CrossRef]
  23. Tang, L.; Hu, X.K.; Santosh, M.; Zhang, S.T.; Spencer, C.J.; Jeon, H.; Zhao, Y.; Cao, H.W. Multistage processes linked to tectonic transition in the genesis of orogenic gold deposit: A case study from the Shanggong lode deposit, East Qinling, China. Ore Geol. Rev. 2019, 111, 102998. [Google Scholar] [CrossRef]
  24. Zhao, Y.; Pei, Q.M.; Zhang, S.T.; Guo, G.H.; Li, J.J.; Liu, W.G.; Hu, X.K.; Song, K.R.; Wang, L. Formation timing and genesis of M adiu fluorite deposit in East Qinling, China: Constraints from fluid inclusion, geochemistry, and H-O-Sr-Nd isotopes. Geol. J. 2019, 2019, 1–18. [Google Scholar] [CrossRef]
  25. Wang, F.; Liu, S.A.; Li, S.; He, Y. Contrasting zircon Hf-O isotopes and trace elements between ore-bearing and ore-barren adakitic rocks in central-eastern China: Implications for genetic relation to Cu-Au mineralization. Lithos 2013, 156, 97–111. [Google Scholar] [CrossRef]
  26. Wang, F.; Liu, S.A.; Li, S.; Akhtar, S.; He, Y. Zircon U-Pb ages, Hf-O isotopes and trace elements of Mesozoic high Sr/Y porphyries from Ningzhen, eastern China: Constraints on their petrogenesis, tectonic implications and Cu mineralization. Lithos 2014, 200, 299–316. [Google Scholar] [CrossRef]
  27. Dong, Y.; Santosh, M. Tectonic architecture and multiple orogeny of the Qinling Orogenic Belt, Central China. Gondwana Res. 2016, 29, 1–40. [Google Scholar] [CrossRef]
  28. Tang, L.; Zhang, S.T.; Yang, F.; Santosh, M.; Li, J.J.; Kim, S.W.; Hu, X.K.; Zhao, Y.; Cao, H.W. Triassic alkaline magmatism and mineralization in the Xiong’ershan area, East Qinling, China. Geol. J. 2019, 54, 143–156. [Google Scholar] [CrossRef]
  29. Huang, X.L.; Wilde, S.A.; Yang, Q.J.; Zhong, J.W. Geochronology and petrogenesis of gray gneisses from the Taihua Complex at Xiong’er in the southern segment of the Trans-North China Orogen: Implications for tectonic transformation in the Early Paleoproterozoic. Lithos 2012, 134, 236–252. [Google Scholar] [CrossRef]
  30. Huang, X.L.; Niu, Y.; Xu, Y.G.; Yang, Q.J.; Zhong, J.W. Geochemistry of TTG and TTG-like gneisses from Lushan-Taihua complex in the southern North China Craton: Implications for late Archean crustal accretion. Precambrian Res. 2010, 182, 43–56. [Google Scholar] [CrossRef]
  31. Tang, L.; Santosh, M.; Dong, Y.; Tsunogae, T.; Zhang, S.; Cao, H. Early Paleozoic tectonic evolution of the North Qinling orogenic belt: Evidence from geochemistry, phase equilibrium modeling and geochronology of metamorphosed mafic rocks from the Songshugou ophiolite. Gondwana Res. 2016, 30, 48–64. [Google Scholar] [CrossRef]
  32. Tang, L.; Santosh, M.; Dong, Y. Tectonic evolution of a complex orogenic system: Evidence from the northern Qinling belt, central China. J. Asian Earth Sci. 2015, 113, 544–559. [Google Scholar] [CrossRef]
  33. Yu, X.; Liu, J.; Li, C.; Chen, S.; Dai, Y. Zircon U-Pb dating and Hf isotope analysis on the Taihua Complex: Constraints on the formation and evolution of the Trans-North China Orogen. Precambrian Res. 2013, 230, 31–44. [Google Scholar] [CrossRef]
  34. Xu, X.; Griffin, W.L.; Ma, X.; O’Reilly, S.Y.; He, Z.; Zhang, C. The Taihua group on the southern margin of the North China craton: Further insights from U-Pb ages and Hf isotope compositions of zircons. Mineral. Petrol. 2009, 97, 43. [Google Scholar] [CrossRef]
  35. He, Y.; Zhao, G.; Sun, M.; Xia, X. SHRIMP and LA-ICP-MS zircon geochronology of the Xiong’er volcanic rocks: Implications for the Paleo-Mesoproterozoic evolution of the southern margin of the North China Craton. Precambrian Res. 2009, 168, 213–222. [Google Scholar] [CrossRef]
  36. He, Y.; Zhao, G.; Sun, M. Geochemical and isotopic study of the Xiong’er volcanic rocks at the southern margin of the North China Craton: Petrogenesis and tectonic implications. J. Geol. 2010, 118, 417–433. [Google Scholar] [CrossRef]
  37. Peng, P.; Zhai, M.; Ernst, R.E.; Guo, J.; Liu, F.; Hu, B. A 1.78 Ga large igneous province in the North China craton: The Xiong’er Volcanic Province and the North China dyke swarm. Lithos 2008, 101, 260–280. [Google Scholar] [CrossRef]
  38. Wang, X.L.; Jiang, S.Y.; Dai, B.Z. Melting of enriched Archean subcontinental lithospheric mantle: Evidence from the ca. 1760 Ma volcanic rocks of the Xiong’er Group, southern margin of the North China Craton. Precambrian Res. 2010, 182, 204–216. [Google Scholar] [CrossRef]
  39. Wang, C.; He, X.; Carranza, E.J.M.; Cui, C. Paleoproterozoic volcanic rocks in the southern margin of the North China Craton, central China: Implications for the Columbia supercontinent. Geosci. Front. 2019, 10, 1543–1560. [Google Scholar] [CrossRef]
  40. Zhao, T.P.; Zhou, M.F.; Zhai, M.; Xia, B. Paleoproterozoic rift-related volcanism of the Xiong’er Group, North China craton: Implications for the breakup of Columbia. International Geol. Rev. 2002, 44, 336–351. [Google Scholar] [CrossRef]
  41. Zhao, T.; Zhai, M.; Xia, B.; Li, H.; Zhang, Y.; Wan, Y. Zircon U-Pb SHRIMP dating for the volcanic rocks of the Xiong’er Group: Constraints on the initial formation age of the cover of the North China Craton. Chin. Sci. Bull. 2004, 49, 2495–2502. [Google Scholar] [CrossRef]
  42. Zhao, T.; Meng, L.; Gao, X.; Jin, C.; Wu, Q.; Bao, Z. Late Mesozoic felsic magmatism and Mo-Au-Pb-Zn mineralization in the southern margin of the North China Craton: A review. J. Asian Earth Sci. 2018, 161, 103–121. [Google Scholar] [CrossRef]
  43. Chen, Y.J.; Pirajno, F.; Qi, J.P. The Shanggong gold deposit, Eastern Qinling Orogen, China: Isotope geochemistry and implications for ore genesis. J. Asian Earth Sci. 2008, 33, 252–266. [Google Scholar] [CrossRef]
  44. Mao, J.; Goldfarb, R.J.; Zhang, Z.; Xu, W.; Qiu, Y.; Deng, J. Gold deposits in the Xiaoqinling–Xiong’ershan region, Qinling Mountains, central China. Miner. Depos. 2002, 37, 306–325. [Google Scholar] [CrossRef]
  45. Deng, X.H.; Chen, Y.J.; Pirajno, F.; Li, N.; Yao, J.M.; Sun, Y.L. The geology and geochronology of the Waifangshan Mo-quartz vein cluster in eastern Qinling, China. Ore Geol. Rev. 2017, 81, 548–564. [Google Scholar] [CrossRef]
  46. Deng, X.H.; Chen, Y.J.; Bagas, L.; Zhou, H.Y.; Yao, J.M.; Zheng, Z.; Wang, P. Isotope (S-Sr-Nd-Pb) constraints on the genesis of the ca. 850 Ma tumen Mo–F deposit in the Qinling Orogen, China. Precambrian Res. 2015, 266, 108–118. [Google Scholar] [CrossRef]
  47. Huang, D.; Hou, Z.; Yang, Z.; Li, Z.; Xu, D. Geological and geochemical characteristics, metallogenetic mechanism and tectonic setting of carbonatite vein-type Mo (Pb) deposits in the East Qinling molybdenum ore belt. Acta Geol. Sin. 2009, 83, 1968–1984. [Google Scholar]
  48. Mao, J.; Pirajno, F.; Xiang, J.; Gao, J.; Ye, H.; Li, Y.; Guo, B. Mesozoic molybdenum deposits in the east Qinling-Dabie orogenic belt: Characteristics and tectonic settings. Ore Geol. Rev. 2011, 43, 264–293. [Google Scholar] [CrossRef]
  49. Chen, Y.J.; Pirajno, F.; Li, N.; Guo, D.S.; Lai, Y. Isotope systematics and fluid inclusion studies of the Qiyugou breccia pipe-hosted gold deposit, Qinling Orogen, Henan province, China: Implications for ore genesis. Ore Geol. Rev. 2009, 35, 245–261. [Google Scholar] [CrossRef]
  50. Fan, H.R.; Hu, F.F.; Wilde, S.A.; Yang, K.F.; Jin, C.W. The Qiyugou gold-bearing breccia pipes, Xiong’ershan region, central China: Fluid-inclusion and stable-isotope evidence for an origin from magmatic fluids. Int. Geol. Rev. 2011, 53, 25–45. [Google Scholar] [CrossRef]
  51. Tian, Y.; Sun, J.; Ye, H.; Mao, J.; Wang, X.; Bi, M.; Xia, X. Genesis of the Dianfang breccia-hosted gold deposit, western Henan Province, China: Constraints from geology, geochronology and geochemistry. Ore Geol. Rev. 2017, 91, 963–980. [Google Scholar] [CrossRef]
  52. Li, Z.K.; Li, J.W.; Zhao, X.F.; Zhou, M.F.; Selby, D.; Bi, S.J.; Sui, J.X.; Zhao, Z.J. Crustal-extension Ag-Pb-Zn veins in the Xiong’ershan District, Southern North China craton: Constraints from the Shagou deposit. Econ. Geol. 2013, 108, 1703–1729. [Google Scholar] [CrossRef]
  53. Li, Z.K.; Li, J.W.; Cooke, D.R.; Danyushevsky, L.; Zhang, L.; O’Brien, H.; Lahaye, Y.; Zhang, W.; Xu, H.J. Textures, trace elements, and Pb isotopes of sulfides from the Haopinggou vein deposit, southern North China Craton: Implications for discrete Au and Ag-Pb-Zn mineralization. Contrib. Mineral. Petrol. 2016, 171, 99. [Google Scholar] [CrossRef]
  54. Pei, Q.M.; Zhang, S.T.; Hayashi, K.I.; Cao, H.W.; Li, D.; Tang, L.; Hu, X.K.; Li, H.X.; Fang, D.R. Permo-Triassic granitoids of the Xing’an-Mongolia segment of the Central Asian Orogenic Belt, Northeast China: Age, composition, and tectonic implications. Int. Geol. Rev. 2018, 60, 1172–1194. [Google Scholar] [CrossRef]
  55. Cao, J.; Ye, H.; Chen, X.; He, W.; Wang, P. Geochemistry, zircon U-Pb age, and Lu-Hf isotope of the granite porphyry in Leimengou Mo deposit in the east Qinling Molybdenum ore belt, China. Minerals 2018, 8, 293. [Google Scholar] [CrossRef]
  56. Wiedenbeck, M.; Hanchar, J.M.; Peck, W.H.; Sylvester, P.; Valley, J.; Whitehouse, M.; Kronz, A.; Morishita, Y.; Nasdala, L.; Fiebig, J. Further characterisation of the 91500 zircon crystal. Geostand. Geoanalytical Res. 2004, 28, 9–39. [Google Scholar] [CrossRef]
  57. Sláma, J.; Košler, J.; Condon, D.J.; Crowley, J.L.; Gerdes, A.; Hanchar, J.M.; Horstwood, M.S.; Morris, G.A.; Nasdala, L.; Norberg, N. Plešovice zircon—A new natural reference material for U-Pb and Hf isotopic microanalysis. Chem. Geol. 2008, 249, 1–35. [Google Scholar] [CrossRef]
  58. Morel, M.L.A.; Nebel, O.; Nebel-Jacobsen, Y.J.; Miller, J.S.; Vroon, P.Z. Hafnium isotope characterization of the GJ-1 zircon reference material by solution and laser-ablation MC-ICPMS. Chem. Geol. 2008, 255, 231–235. [Google Scholar] [CrossRef]
  59. Woodhead, J.D.; Hergt, J.M. A preliminary appraisal of seven natural zircon reference materials for in situ Hf isotope determination. Geostand. Geoanalytical Res. 2005, 29, 183–195. [Google Scholar] [CrossRef]
  60. Scherer, E.; Münker, C.; Mezger, K. Calibration of the lutetium-hafnium clock. Science 2001, 293, 683–687. [Google Scholar] [CrossRef]
  61. Griffn, W.L.; Pearson, N.J.; Belousova, E.; Jackson, S.E.; van Achterbergh, E.; O’Reilly, S.Y.; Shee, S.R. The Hf isotope composition of cratonic mantle: LAM-MC-ICPMS analysis of zircon megacrysts in kimberlites. Geochim. Cosmochim. Acta 2000, 64, 133–147. [Google Scholar] [CrossRef]
  62. Griffin, W.L.; Wang, X.; Jackson, S.E.; Pearson, N.J.; O’Reilly, S.Y.; Xu, X.; Zhou, X. Zircon chemistry and magma mixing, SE China: In-situ analysis of Hf isotopes, Tonglu and Pingtan igneous complexes. Lithos 2002, 61, 237–269. [Google Scholar] [CrossRef]
  63. Black, L.P.; Kamo, S.L.; Allen, C.M.; Davis, D.W.; Aleinikoff, J.N.; Valley, J.W.; Mundil, R.; Campbell, I.H.; Korsch, R.J.; Williams, I.S. Improved 206Pb/238U microprobe geochronology by the monitoring of a trace-element-related matrix effect; SHRIMP, ID-TIMS, ELA-ICP-MS and oxygen isotope documentation for a series of zircon standards. Chem. Geol. 2004, 205, 115–140. [Google Scholar] [CrossRef]
  64. Li, X.H.; Long, W.G.; Li, Q.L.; Liu, Y.; Zheng, Y.F.; Yang, Y.H. Penglai zircon megacrysts: A potential new working reference material for microbeam determination of Hf-O isotopes and U-Pb age. Geostand. Geoanalytical Res. 2010, 34, 117–134. [Google Scholar] [CrossRef]
  65. Stern, R.A. A New Isotopic and Trace-Element Standard for the Ion Microprobe: Preliminary Thermal Ionization Mass Spectrometry (TIMS) U-Pb and Electron-Microprobe Data; Natural Resources Canada, Geological Survey of Canada: Ottawa, Australia, 2001. [Google Scholar]
  66. Spencer, C.J.; Cavosie, A.J.; Raub, T.D.; Rollinson, H.; Jeon, H.; Searle, M.P.; Miller, J.A.; McDonald, B.J.; Evans, N.J. Evidence for melting mud in Earth’s mantle from extreme oxygen isotope signatures in zircon. Geology 2017, 45, 975–978. [Google Scholar] [CrossRef]
  67. Middlemost, E.A. Naming materials in the magma/igneous rock system. Earth-Sci. Rev. 1994, 37, 215–224. [Google Scholar] [CrossRef]
  68. Irvine, T.; Baragar, W. A guide to the chemical classification of the common volcanic rocks. Can. J. Earth Sci. 1971, 8, 523–548. [Google Scholar] [CrossRef]
  69. Rudnick, R.L.; Gao, S. Composition of the continental crust. Treatise Geochem. 2003, 3, 659. [Google Scholar]
  70. Gill, J.B. Orogenic Andesites and Plate Tectonics; Springer Science & Business Media: Berlin, Germany, 2012. [Google Scholar]
  71. Peccerillo, A.; Taylor, S. Geochemistry of Eocene calc-alkaline volcanic rocks from the Kastamonu area, northern Turkey. Contrib. Mineral. Petrol. 1976, 58, 63–81. [Google Scholar] [CrossRef]
  72. Frost, B.R.; Barnes, C.G.; Collins, W.J.; Arculus, R.J.; Ellis, D.J.; Frost, C.D. A geochemical classification for granitic rocks. J. Petrol. 2001, 42, 2033–2048. [Google Scholar] [CrossRef]
  73. Sun, S.S.; McDonough, W.F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes. Geol. Soc., Lond., Spec. Publ. 1989, 42, 313–345. [Google Scholar] [CrossRef]
  74. Valley, J.; Lackey, J.; Cavosie, A.; Clechenko, C.; Spicuzza, M.; Basei, M.; Bindeman, I.; Ferreira, V.; Sial, A.; King, E. 4.4 billion years of crustal maturation: Oxygen isotope ratios of magmatic zircon. Contrib. Mineral. Petrol. 2005, 150, 561–580. [Google Scholar] [CrossRef]
  75. Valley, J. Oxygen isotopes in zircon. Rev. Mineral. Geochem. 2003, 53, 343–385. [Google Scholar] [CrossRef]
  76. Valley, J.W.; Kinny, P.D.; Schulze, D.J.; Spicuzza, M.J. Zircon megacrysts from kimberlite: Oxygen isotope variability among mantle melts. Contrib. Mineral. Petrol. 1998, 133, 1–11. [Google Scholar] [CrossRef]
  77. Cavosie, A.; Valley, J.; Wilde, S. Magmatic δ18O in 4400–3900 Ma detrital zircons: A record of the alteration and recycling of crust in the Early Archean. Earth Planet. Sci. Lett. 2005, 235, 663–681. [Google Scholar] [CrossRef]
  78. Fu, B.; Mernagh, T.P.; Kita, N.T.; Kemp, A.I.; Valley, J.W. Distinguishing magmatic zircon from hydrothermal zircon: A case study from the Gidginbung high-sulphidation Au-Ag-(Cu) deposit, SE Australia. Chem. Geol. 2009, 259, 131–142. [Google Scholar] [CrossRef]
  79. Hawkesworth, C.; Kemp, A. Using hafnium and oxygen isotopes in zircons to unravel the record of crustal evolution. Chem. Geol. 2006, 226, 144–162. [Google Scholar] [CrossRef]
  80. Hawkesworth, C.J.; Dhuime, B.; Pietranik, A.; Cawood, P.; Kemp, A.; Storey, C. The generation and evolution of the continental crust. J. Geol. Soc. 2010, 167, 229–248. [Google Scholar] [CrossRef]
  81. Kemp, A.; Hawkesworth, C.; Foster, G.; Paterson, B.; Woodhead, J.; Hergt, J.; Gray, C.; Whitehouse, M. Magmatic and crustal differentiation history of granitic rocks from Hf-O isotopes in zircon. Science 2007, 315, 980–983. [Google Scholar] [CrossRef]
  82. Kemp, A.; Hawkesworth, C.; Paterson, B.; Kinny, P. Episodic growth of the Gondwana supercontinent from hafnium and oxygen isotopes in zircon. Nature 2006, 439, 580. [Google Scholar] [CrossRef]
  83. Eiler, J.M.; Farley, K.A.; Valley, J.W.; Stolper, E.M.; Hauri, E.H.; Craig, H. Oxygen isotope evidence against bulk recycled sediment in the mantle sources of Pitcairn Island lavas. Nature 1995, 377, 138. [Google Scholar] [CrossRef]
  84. Eiler, J.M.; McInnes, B.; Valley, J.W.; Graham, C.M.; Stolper, E.M. Oxygen isotope evidence for slab-derived fluids in the sub-arc mantle. Nature 1998, 393, 777. [Google Scholar] [CrossRef]
  85. Macpherson, C.G.; Dreher, S.T.; Thirlwall, M.F. Adakites without slab melting: High pressure differentiation of island arc magma, Mindanao, the Philippines. Earth Planet. Sci. Lett. 2006, 243, 581–593. [Google Scholar] [CrossRef]
  86. Xue, S.; Xu, Y.; Ling, M.X.; Kang, Q.Q.; Jiang, X.Y.; Sun, S.J.; Wu, K.; Zhang, Z.K.; Luo, Z.B.; Liu, Y.L. Geochemical constraints on genesis of Paleoproterozoic A-type granite in the south margin of North China Craton. Lithos 2018, 304, 489–500. [Google Scholar] [CrossRef]
  87. Gao, X.Y.; Zhao, T.P.; Bao, Z.W.; Yang, A.Y. Petrogenesis of the early Cretaceous intermediate and felsic intrusions at the southern margin of the North China Craton: Implications for crust–mantle interaction. Lithos 2014, 206, 65–78. [Google Scholar] [CrossRef]
  88. Yao, J.M.; Zhao, T.P.; Li, J.; Sun, Y.; Yuan, Z.L.; Chen, W.; Han, J. Molybdenite Re-Os age and zircon U-Pb age and Hf isotope geochemistry of the Qiyugou gold system, Henan Province. Acta Petrol. Sin. 2009, 25, 374–384. (In Chinese) [Google Scholar]
  89. Lai, X.R. Mesozoic Granitoids Constraints on Gold Mineralization in the Xiong’ershan-Waifangshan Region. Master’s Thesis, China University of Geosciences Beijing, Beijing, China, 2015. (In Chinese). [Google Scholar]
  90. Nie, Z.R.; Wang, X.X.; Ke, C.H.; Yang, Y.; Lv, X.Q. Age, geochemistry and petrogenesis of Huashan granitonid pluton on the southern margin of the North China Block. Geol. Bull. China 2015, 34, 1502–1516. (In Chinese) [Google Scholar]
  91. Xiao, E.; Jian, H.; Zunzhong, Z.; BaoZhang, D.; YanFen, W.; HaiYong, L. Petrogeochemistry, zircon U-Pb dating and Lu-Hf isotopic compositions of the Haoping and Jinshanmiao granites from the Huashan complex batholith in eastern Qinling Orogen. Acta Petrol. Sin. 2012, 28, 4031–4046. (In Chinese) [Google Scholar]
  92. Li, Y.; Mao, J.; Liu, D.; Wang, Y.; Wang, Z.; Wang, Y.; Li, X.; Zhang, Z.; Guo, B. SHRIMP zircon U-Pb and molybdenite Re-Os datings for the Leimengou porphyry molybdenum deposit, western Henan and its geological implication. Geol. Rev. 2006, 52, 122–131. (In Chinese) [Google Scholar]
  93. Zhang, Z.; Yang, X.; Dong, Y.; Zhu, B.; Chen, D. Molybdenum deposits in the eastern Qinling, central China: Constraints on the geodynamics. Int. Geol. Rev. 2011, 53, 261–290. [Google Scholar] [CrossRef]
  94. Li, Z.K. Metallogenesis of the Silver-Lead-Zinc Deposits Along the Southern Margin of the North China Craton. Ph.D. Thesis, China University of Geosciences Wuhan, Wuhan, China, 2013. (In Chinese). [Google Scholar]
  95. Yang, Y.F.; Chen, Y.J.; Pirajno, F.; Li, N. Evolution of ore fluids in the Donggou giant porphyry Mo system, East Qinling, China, a new type of porphyry Mo deposit: Evidence from fluid inclusion and H-O isotope systematics. Ore Geol. Rev. 2015, 65, 148–164. [Google Scholar] [CrossRef]
  96. Yang, Y.F.; Li, N.; Chen, Y.J. Fluid inclusion study of the Nannihu giant porphyry Mo-W deposit, Henan Province, China: Implications for the nature of porphyry ore-fluid systems formed in a continental collision setting. Ore Geol. Rev. 2012, 46, 83–94. [Google Scholar] [CrossRef]
  97. Harris, N.B.; Pearce, J.A.; Tindle, A.G. Geochemical characteristics of collision-zone magmatism. Geol. Soc., Lond., Spec. Publ. 1986, 19, 67–81. [Google Scholar] [CrossRef]
  98. Pirajno, F.; Zhou, T. Intracontinental porphyry and porphyry-skarn mineral systems in Eastern China: Scrutiny of a special case “Made-in-China”. Econ. Geol. 2015, 110, 603–629. [Google Scholar] [CrossRef]
  99. Dong, Y.; Yang, Z.; Liu, X.; Sun, S.; Li, W.; Cheng, B.; Zhang, F.; Zhang, X.; He, D.; Zhang, G. Mesozoic intracontinental orogeny in the Qinling Mountains, central China. Gondwana Res. 2016, 30, 144–158. [Google Scholar] [CrossRef]
  100. Whalen, J.B.; Currie, K.L.; Chappell, B.W. A-type granites: Geochemical characteristics, discrimination and petrogenesis. Contrib. Mineral. Petrol. 1987, 95, 407–419. [Google Scholar] [CrossRef]
  101. Pearce, J. Sources and settings of granitic rocks. Episodes 1996, 19, 120–125. [Google Scholar]

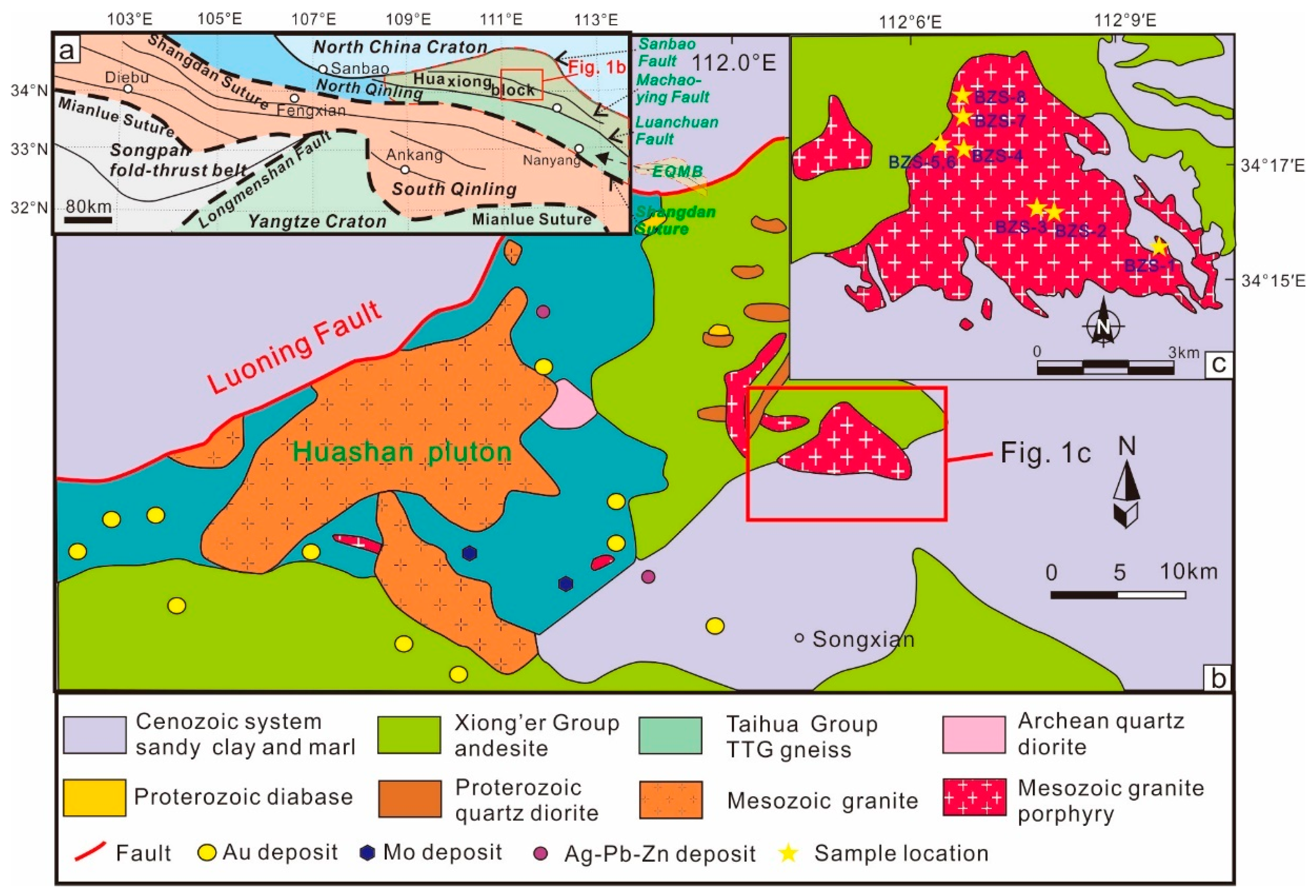

Figure 1. Tectonic framework of the Qinling orogen (a), geology and distribution of intrusions in the Xiong’ershan area (b) and geological map of the Banzhusi granite porphyry (c) (Modified after [17,18,20,21,22,23,24]).
Figure 1. Tectonic framework of the Qinling orogen (a), geology and distribution of intrusions in the Xiong’ershan area (b) and geological map of the Banzhusi granite porphyry (c) (Modified after [17,18,20,21,22,23,24]).
Minerals 09 00538 g001
Figure 2. Photographs of representative samples from the Banzhusi granite porphyry. (a,b) Macroscopic Banzhusi granite porphyry with quartz, plagioclase and K-feldspar phenocrysts. (c) Photomicrographs of the granite porphyry, showing a mineral assemblage of K-feldspar + plagioclase + quartz + biotite, plane-polarized light. (d) Photomicrographs of the granite porphyry, showing a fine-grained granular matrix of K-feldspar + plagioclase + quartz, with K-feldspar + plagioclase + quartz phenocrysts; cross-polarized light. Abbreviations: Amp, amphibole; Bt, biotite; Kfs, K-feldspar; Pl, plagioclase; Qtz, quartz.
Figure 2. Photographs of representative samples from the Banzhusi granite porphyry. (a,b) Macroscopic Banzhusi granite porphyry with quartz, plagioclase and K-feldspar phenocrysts. (c) Photomicrographs of the granite porphyry, showing a mineral assemblage of K-feldspar + plagioclase + quartz + biotite, plane-polarized light. (d) Photomicrographs of the granite porphyry, showing a fine-grained granular matrix of K-feldspar + plagioclase + quartz, with K-feldspar + plagioclase + quartz phenocrysts; cross-polarized light. Abbreviations: Amp, amphibole; Bt, biotite; Kfs, K-feldspar; Pl, plagioclase; Qtz, quartz.
Minerals 09 00538 g002
Figure 3. Geochemical classification of granitoids from the Banzhusi granite porphyry. (a) Total alkali-silica diagram [67], where the dashed line separating the alkaline series from the subalkaline series is from [68]. (b) Al2O3/(Na2O + K2O) versus Al2O3/(CaO + Na2O + K2O) plot [69]. (c) K2O versus SiO2 diagram (modified from [70,71]). (d) SiO2 versus Na2O + K2O − CaO [72].
Figure 3. Geochemical classification of granitoids from the Banzhusi granite porphyry. (a) Total alkali-silica diagram [67], where the dashed line separating the alkaline series from the subalkaline series is from [68]. (b) Al2O3/(Na2O + K2O) versus Al2O3/(CaO + Na2O + K2O) plot [69]. (c) K2O versus SiO2 diagram (modified from [70,71]). (d) SiO2 versus Na2O + K2O − CaO [72].
Minerals 09 00538 g003
Figure 4. Chondrite-normalized rare earth element (REE) patterns (a) and primitive mantle-normalized multi-element diagrams (b) for granitoids from the Banzhusi granite porphyry. Whole-rock data for the Taihua Group and Xiong’er Group are shown for comparison [30,36]. Chondrite and primitive mantle normalizing values are from [73].
Figure 4. Chondrite-normalized rare earth element (REE) patterns (a) and primitive mantle-normalized multi-element diagrams (b) for granitoids from the Banzhusi granite porphyry. Whole-rock data for the Taihua Group and Xiong’er Group are shown for comparison [30,36]. Chondrite and primitive mantle normalizing values are from [73].
Minerals 09 00538 g004
Figure 5. Cathodoluminescence images of representative analysed zircons with in situ U-Pb-Hf and O isotope data and zircon U-Pb concordia diagrams for Sample BZS-1 (a,b), Sample BZS-2 (c,d) and Sample BZS-6 (e,f) from the Banzhusi granite porphyry. Abbreviations: MSWD, weighted mean square.
Figure 5. Cathodoluminescence images of representative analysed zircons with in situ U-Pb-Hf and O isotope data and zircon U-Pb concordia diagrams for Sample BZS-1 (a,b), Sample BZS-2 (c,d) and Sample BZS-6 (e,f) from the Banzhusi granite porphyry. Abbreviations: MSWD, weighted mean square.
Minerals 09 00538 g005
Figure 6. Variations in the initial εHf values versus the U-Pb ages of the zircons from the Banzhusi granite porphyry. Data include zircons from the Taihua Group [30] and Xiong’er Group [38].
Figure 6. Variations in the initial εHf values versus the U-Pb ages of the zircons from the Banzhusi granite porphyry. Data include zircons from the Taihua Group [30] and Xiong’er Group [38].
Minerals 09 00538 g006
Figure 7. Histograms of the TDM2 ages for the zircons from the Banzhusi granite porphyry.
Figure 7. Histograms of the TDM2 ages for the zircons from the Banzhusi granite porphyry.
Minerals 09 00538 g007
Figure 8. Combined zircon Hf-O isotope diagram from the Banzhusi granite porphyry. The range of δ18O values of mantle zircons is from [74,75,76].
Figure 8. Combined zircon Hf-O isotope diagram from the Banzhusi granite porphyry. The range of δ18O values of mantle zircons is from [74,75,76].
Minerals 09 00538 g008
Figure 9. Geochemical discrimination diagrams of TFeO/MgO versus Zr + Nb + Ce + Y (a) [100] and Rb versus Y + Nb (b) [101] of the Banzhusi granite porphyry. A previous study was conducted by [17]. Abbreviations: A-type, A-type granites; FG, fractionated felsic granites; OGT, unfractionated M-, I- and S-type granites; syn-COLG = syn-collisional granite; post-COLG = post-collisional granite; VAG = volcanic arc granite; WPG = within-plate granite; ORG = ocean ridge granite.
Figure 9. Geochemical discrimination diagrams of TFeO/MgO versus Zr + Nb + Ce + Y (a) [100] and Rb versus Y + Nb (b) [101] of the Banzhusi granite porphyry. A previous study was conducted by [17]. Abbreviations: A-type, A-type granites; FG, fractionated felsic granites; OGT, unfractionated M-, I- and S-type granites; syn-COLG = syn-collisional granite; post-COLG = post-collisional granite; VAG = volcanic arc granite; WPG = within-plate granite; ORG = ocean ridge granite.
Minerals 09 00538 g009
Table 1. X-ray fluorescence whole-rock major oxide and trace element compositions for the Banzhusi granite porphyry.
Table 1. X-ray fluorescence whole-rock major oxide and trace element compositions for the Banzhusi granite porphyry.
Analysis NameBZS-01BZS-02BZS-03BZS-04BZS-05BZS-06BZS-07BZS-08
wt. %
SiO271.3 70.2 71.1 69.2 70.2 71.1 70.6 71.1
TiO20.25 0.29 0.23 0.38 0.28 0.26 0.27 0.27
Al2O314.5 15.0 14.1 14.5 14.8 14.6 15.1 14.7
ΣFe2O31.85 2.24 2.11 3.08 2.37 2.11 1.99 2.17
MnO0.04 0.05 0.04 0.08 0.08 0.06 0.04 0.07
MgO0.24 0.33 0.42 0.67 0.38 0.39 0.28 0.38
CaO1.29 1.20 1.10 2.03 1.57 1.59 0.96 1.34
Na2O3.79 4.18 3.63 4.37 4.08 4.18 3.49 4.13
K2O4.41 4.87 4.54 4.11 4.54 4.72 5.61 4.65
P2O50.12 0.14 0.11 0.21 0.13 0.12 0.11 0.12
LOI1.69 1.05 2.05 0.84 1.11 0.45 1.06 0.57
Total99.4 99.5 99.5 99.5 99.5 99.5 99.5 99.5
K2O/Na2O1.16 1.17 1.25 0.94 1.11 1.13 1.61 1.13
A/CNK1.08 1.04 1.10 0.94 1.02 0.98 1.11 1.03
ppm
Li13.4 14.4 23.1 29.9 18.7 16.9 11.2 16.5
Be3.67 3.81 3.69 3.62 3.41 3.82 3.17 3.87
Sc2.30 2.55 2.23 3.10 2.24 2.37 2.51 2.54
V31.4 32.4 20.7 31.4 28.9 28.7 25.3 27.1
Cr3.53 2.48 1.77 1.63 2.04 1.96 1.61 2.69
Co2.21 2.15 2.34 3.24 2.54 2.12 2.22 2.56
Ni2.10 1.77 2.28 2.21 2.39 1.87 2.29 2.97
Cu5.23 3.79 4.51 4.58 5.14 3.85 3.83 3.95
Zn43.8 43.8 34.9 51.6 64.9 55.9 41.6 41.0
Ga21.7 22.2 18.5 23.9 21.5 23.1 24.8 25.9
Rb163172168131163169267180
Ba14221971150014601836169616541704
Th19.518.319.317.918.117.620.719.6
U4.262.793.183.076.494.513.22.83
Nb24.525.825.527.727.424.928.726.4
Ta1.271.321.261.361.351.241.421.32
La28.249.344.852.649.44847.346
Ce72.477.169.792.884.874.576.680.5
Pb4.199.747.9210.19.348.638.848.87
Pr13.734.427.535.43228.931.131.6
Sr513708335609666615599583
Nd24.525.825.527.727.424.928.726.4
Sm1.965.094.055.314.784.284.664.65
Zr91.782.910569.279.477.397.488.7
Hf2.612.543.012.182.222.452.922.77
Eu0.631.320.951.251.151.111.131.18
Gd1.794.453.464.553.943.754.113.97
Tb0.230.650.470.650.610.570.560.59
Dy1.152.882.223.142.72.512.652.65
Y5.715.911.116.314.312.913.513.6
Ho0.220.530.390.540.460.450.460.49
Er0.621.481.111.481.351.31.261.35
Tm0.110.220.190.240.210.200.210.22
Yb0.821.651.261.661.421.391.41.47
Lu0.130.220.200.230.200.200.190.22
(La/Yb)N23.320.324.221.523.623.523.021.3
Sr/Y90.044.530.237.446.647.744.442.9
δEu1.010.830.760.760.780.830.770.82
Notes: A/CNK = Al2O3/(Na2O + K2O + CaO); LOI = loss on ignition; δEu = 2 × Eun/(Smn + Gdn).
Table 2. In situ LA-ICP-MS zircon U-Pb isotope compositions for the Banzhusi granite porphyry.
Table 2. In situ LA-ICP-MS zircon U-Pb isotope compositions for the Banzhusi granite porphyry.
Analysis NameElement (ppm)Th/UIsotope RatioRhoApparent Age (Ma)
PbThU207Pb/206Pb207Pb/235U206Pb/238U207Pb/235U206Pb/238U
BZS-1-012665011320.570.0505330.0018590.1355010.0046760.0192540.0002210.332712941231
BZS-1-02174937230.680.0503860.0019480.1358740.0051040.0193500.0002220.305212951241
BZS-1-03143145780.540.0504990.0020870.1374200.0053680.0196480.0002560.333813151252
BZS-1-04162926760.430.0497980.0020240.1354770.0052200.0196140.0002290.302612951251
BZS-1-06186737030.960.0472510.0022560.1272760.0059980.0193940.0002180.238712251241
BZS-1-07224299590.450.0469120.0017790.1271510.0047050.0195280.0002190.303012241251
BZS-1-08194687670.610.0494770.0018630.1375430.0050170.0201260.0002680.364413141282
BZS-1-10123734980.750.0497490.0024280.1329290.0062980.0194070.0002270.246312761241
BZS-1-11153246470.500.0482850.0023010.1329570.0064720.0201160.0003190.325912761282
BZS-1-12228078830.910.0472370.0019850.1261300.0052760.0193400.0002100.259212151231
BZS-1-13134775040.950.0496920.0026240.1334910.0068550.0197110.0002810.277812761262
BZS-1-14112594780.540.0514860.0026920.1400420.0073210.0196850.0002690.261813371262
BZS-1-15113164550.690.0485870.0025130.1348400.0070110.0201830.0003110.296212861292
BZS-1-16174337290.590.0498020.0020150.1391230.0061240.0199950.0002590.294013251282
BZS-1-18164026880.580.0496900.0022160.1358450.0060200.0198120.0002530.288312951262
BZS-1-19225739470.600.0515850.0017700.1390850.0048880.0194010.0002110.309613241241
BZS-2-01122264970.460.0475910.0023910.1297690.0062340.0197440.0002350.247212461261
BZS-2-02153575960.600.0521070.0023360.1443210.0061850.0201170.0002470.287013751282
BZS-2-032556810320.550.0491760.0015520.1367770.0042310.0200690.0002380.383513041282
BZS-2-05174056910.590.0481430.0021720.1363410.0061350.0204460.0002790.303813051302
BZS-2-06113484410.790.0492140.0025110.1363900.0068390.0201430.0002940.290713061292
BZS-2-10122495320.470.0466560.0022250.1257310.0057670.0197330.0002260.249812051261
BZS-2-11142835780.490.0527840.0022590.1453800.0062700.0200940.0002650.305813861282
BZS-2-13225789440.610.0464940.0015070.1262620.0039940.0197510.0002190.351212141261
BZS-2-14236009670.620.0498270.0018290.1380440.0049840.0201680.0002670.366613141292
BZS-2-15112564550.560.0493650.0021830.1400350.0062080.0204990.0002740.301013361312
BZS-2-18226268910.700.0500850.0018670.1373040.0050950.0197960.0001980.269413151261
BZS-2-19235079670.520.0489890.0017940.1415480.0055140.0207310.0002600.322513451322
BZS-2-2028107310471.030.0472550.0016810.1333250.0047840.0203100.0002400.328812741302
BZS-6-01153776110.620.0514030.0031050.1454020.0086400.0204880.0002670.219213881312
BZS-6-02164766760.700.0487840.0019940.1340770.0055340.0197740.0002480.303912851262
BZS-6-03153276180.530.0468710.0020940.1303830.0057020.0200590.0002460.280112451282
BZS-6-04143165850.540.0478320.0020890.1360390.0061580.0204250.0002640.285313061302
BZS-6-05183767900.480.0484420.0024390.1317130.0056150.0197320.0002380.283012651262
BZS-6-07208357291.150.0533780.0023000.1502170.0061120.0204050.0002370.285614251301
BZS-6-08112504690.530.0468940.0023710.1259930.0061300.0195660.0002580.271012061252
BZS-6-0951732000.860.0484170.0032860.1356700.0087450.0202090.0003580.275212981292
BZS-6-1092113800.550.0499780.0024510.1376230.0064300.0199870.0002780.297613161282
BZS-6-11132215840.380.0498550.0022170.1364930.0061840.0197320.0002700.301613061262
BZS-6-1391733810.450.0498810.0028670.1398700.0071890.0205170.0002680.254613361312
BZS-6-142451510120.510.0505600.0018870.1431870.0051960.0203580.0002300.311813651301
BZS-6-153183913160.640.0501430.0018700.1383700.0050080.0198840.0002280.317213241271
BZS-6-18132305860.390.0522140.0020240.1501910.0056370.0208160.0002830.361714251332
BZS-6-20153256490.500.0484630.0020060.1328160.0054310.0197440.0002180.270612751261
Table 3. In situ La-MC-ICP-MS zircon Hf isotope compositions for the Banzhusi granite porphyry.
Table 3. In situ La-MC-ICP-MS zircon Hf isotope compositions for the Banzhusi granite porphyry.
Analysis NameAge (Ma)176Yb/177Hf176Lu/177Hf176Hf/177Hf(176Hf/177Hf)iεHf(0)εHf(t)TDM1 (Ma)TDM2 (Ma)fLu/Hf
BZS-1-011230.0282600.0004200.0010240.0000200.2820740.0000420.282072−24.68−22.0816612580−0.97
BZS-1-021240.0396500.0007500.0015090.0000640.2821820.0000800.282179−20.86−18.2815302341−0.95
BZS-1-031250.0361800.0006800.0012830.0000220.2820820.0000350.282079−24.40−21.7616612562−0.96
BZS-1-041250.0268600.0002500.0009790.0000060.2821150.0000370.282113−23.23−20.5816022487−0.97
BZS-1-061240.0372000.0013000.0013520.0000630.2821340.0000510.282131−22.56−19.9615912447−0.96
BZS-1-071250.0308200.0007000.0011300.0000360.2821530.0000460.282150−21.89−19.2615552404−0.97
BZS-1-081280.0378100.0003600.0013440.0000150.2821360.0000370.282133−22.49−19.8015882440−0.96
BZS-1-101240.0324000.0013000.0010370.0000290.2821120.0000420.282110−23.34−20.7116092495−0.97
BZS-1-111280.0422900.0006500.0015380.0000290.2821520.0000350.282148−21.93−19.2515742405−0.95
BZS-1-121230.0319000.0015000.0012360.0000450.2821180.0000410.282115−23.13−20.5316092483−0.96
BZS-2-011260.0300700.0009400.0010930.0000380.2821300.0000450.282127−22.70−20.0415862454−0.97
BZS-2-021280.0281000.0010000.0010300.0000420.2821060.0000300.282104−23.55−20.8316172505−0.97
BZS-2-031280.0371100.0009000.0013290.0000240.2821090.0000450.282106−23.45−20.7616252500−0.96
BZS-2-051300.0289000.0020000.0011170.0000940.2821120.0000460.282109−23.34−20.5816122491−0.97
BZS-2-061290.0384800.0008300.0014760.0000460.2820810.0000350.282077−24.44−21.7516712563−0.96
BZS-2-101260.0408000.0021000.0014480.0000700.2820820.0000330.282079−24.40−21.7716692562−0.96
BZS-2-111280.0339700.0006300.0012950.0000350.2821080.0000390.282105−23.48−20.7916252502−0.96
BZS-2-131260.0346700.0009100.0013510.0000510.2821000.0000410.282097−23.76−21.1216392522−0.96
BZS-2-141290.0338900.0002800.0014100.0000170.2821540.0000380.282151−21.86−19.1615662400−0.96
BZS-2-151310.0286600.0005700.0011000.0000250.2820730.0000300.282070−24.72−21.9516662578−0.97
BZS-6-011310.0227000.0004100.0006990.0000100.2819320.0000450.281930−29.71−26.9118422889−0.98
BZS-6-021260.0319300.0008600.0011560.0000530.2821110.0000300.282108−23.38−20.7116152496−0.97
BZS-6-031280.0286900.0007900.0010320.0000250.2821160.0000420.282114−23.20−20.4916032483−0.97
BZS-6-041300.0409000.0022000.0014900.0001200.2821540.0000350.282150−21.86−19.1315692400−0.96
BZS-6-051260.0324600.0005100.0011350.0000180.2821110.0000290.282108−23.38−20.7116142496−0.97
BZS-6-071300.0346000.0011000.0010420.0000570.2822880.0000270.282285−17.12−14.3613632099−0.97
BZS-6-081250.0368000.0011000.0013680.0000200.2821030.0000460.282100−23.66−21.0416362516−0.96
BZS-6-091290.0338900.0007400.0011650.0000220.2821360.0000490.282133−22.49−19.7715812439−0.96
BZS-6-101280.0311000.0021000.0012240.0000880.2822000.0001300.282197−20.23−17.5414932298−0.96
BZS-6-111260.0336000.0025000.0012300.0000760.2821350.0000360.282132−22.53−19.8715852443−0.96
BZS-6-131310.0289000.0017000.0010350.0000520.2821240.0000550.282121−22.92−20.1415922464−0.97
BZS-6-141300.0291700.0009500.0010410.0000420.2820810.0000420.282078−24.44−21.6816522560−0.97
BZS-6-151270.0229000.0004100.0007950.0000130.2821120.0000400.282110−23.34−20.6315992492−0.98
BZS-6-181330.0355600.0009100.0012040.0000320.2821140.0000330.282111−23.27−20.4716132486−0.96
BZS-6-201260.0323000.0011000.0011630.0000320.2821640.0000450.282161−21.50−18.8415412378−0.96
Table 4. In situ secondary ion mass spectrometry (SIMS) zircon oxygen isotope compositions for the Banzhusi granite porphyry.
Table 4. In situ secondary ion mass spectrometry (SIMS) zircon oxygen isotope compositions for the Banzhusi granite porphyry.
Analysis NameRaw dataDrift CorrectedSIMS Corrected Ratiosδ18Ozircon
18O/16O1σ Initial in Relative (%)18O/16O18/16O
BZS-1-012.02 × 10−31.11 × 10−22.02 × 10−32.24 × 10−72.02 × 10−33.71 × 10−75.300.37
BZS-1-022.02 × 10−31.23 × 10−22.02 × 10−32.48 × 10−72.02 × 10−33.87 × 10−75.410.39
BZS-1-032.02 × 10−31.18 × 10−22.02 × 10−32.38 × 10−72.02 × 10−33.80 × 10−75.290.38
BZS-1-042.02 × 10−37.51 × 10−32.02 × 10−31.52 × 10−72.02 × 10−33.33 × 10−75.600.33
BZS-1-052.02 × 10−39.52 × 10−32.02 × 10−31.92 × 10−72.02 × 10−33.53 × 10−74.870.35
BZS-1-062.02 × 10−31.04 × 10−22.02 × 10−32.10 × 10−72.02 × 10−33.63 × 10−75.290.36
BZS-1-072.02 × 10−39.64 × 10−32.02 × 10−31.95 × 10−72.02 × 10−33.55 × 10−75.850.35
BZS-1-082.02 × 10−31.50 × 10−22.02 × 10−33.03 × 10−72.02 × 10−34.24 × 10−75.250.42
BZS-1-092.02 × 10−31.06 × 10−22.02 × 10−32.14 × 10−72.02 × 10−33.65 × 10−75.190.36
BZS-1-102.02 × 10−31.15 × 10−22.02 × 10−32.32 × 10−72.02 × 10−33.76 × 10−74.840.38
BZS-1-112.02 × 10−31.39 × 10−22.02 × 10−32.80 × 10−72.02 × 10−34.07 × 10−75.550.41
BZS-2-012.02 × 10−36.77 × 10−32.02 × 10−31.37 × 10−72.02 × 10−33.26 × 10−75.690.33
BZS-2-022.02 × 10−36.87 × 10−32.02 × 10−31.39 × 10−72.02 × 10−33.27 × 10−75.290.33
BZS-2-032.02 × 10−31.23 × 10−22.02 × 10−32.47 × 10−72.02 × 10−33.86 × 10−75.260.38
BZS-2-042.02 × 10−31.79 × 10−22.02 × 10−33.61 × 10−72.02 × 10−34.67 × 10−75.630.47
BZS-2-052.02 × 10−31.29 × 10−22.02 × 10−32.60 × 10−72.02 × 10−33.94 × 10−75.390.39
BZS-2-062.02 × 10−36.74 × 10−32.02 × 10−31.36 × 10−72.02 × 10−33.26 × 10−75.480.33
BZS-2-072.02 × 10−39.23 × 10−32.02 × 10−31.86 × 10−72.02 × 10−33.50 × 10−75.750.35
BZS-2-082.02 × 10−36.72 × 10−32.02 × 10−31.36 × 10−72.02 × 10−33.26 × 10−75.460.32
BZS-2-092.02 × 10−31.30 × 10−22.02 × 10−32.63 × 10−72.02 × 10−33.96 × 10−75.630.40
BZS-2-102.02 × 10−37.79 × 10−32.02 × 10−31.57 × 10−72.02 × 10−33.35 × 10-75.550.33
BZS-6-012.02 × 10−39.58 × 10−32.02 × 10−31.93 × 10−72.02 × 10−33.54 × 10−75.000.35
BZS-6-022.02 × 10−31.09 × 10−22.02 × 10−32.21 × 10−72.02 × 10−33.70 × 10−75.920.37
BZS-6-032.02 × 10−31.05 × 10−22.02 × 10−32.11 × 10−72.02 × 10−33.64 × 10−75.830.36
BZS-6-042.02 × 10−39.24 × 10−32.02 × 10−31.86 × 10−72.02 × 10−33.50 × 10−75.340.35
BZS-6-052.02 × 10−38.34 × 10−32.02 × 10−31.68 × 10−72.02 × 10−33.41 × 10−75.710.34
BZS-6-062.02 × 10−31.07 × 10−22.02 × 10−32.16 × 10−72.02 × 10−33.67 × 10−76.510.37
BZS-6-072.02 × 10−37.53 × 10−32.02 × 10−31.52 × 10−72.02 × 10−33.33 × 10−75.510.33
BZS-6-082.02 × 10−38.72 × 10−32.02 × 10−31.76 × 10−72.02 × 10−33.44 × 10−74.940.34
BZS-6-092.02 × 10−31.10 × 10−22.02 × 10−32.22 × 10-72.02 × 10−33.70 × 10−75.170.37
BZS-6-102.02 × 10−31.06 × 10−22.02 × 10−32.13 × 10-72.02 × 10−33.65 × 10−75.350.36
BZS-6-112.02 × 10−31.26 × 10−22.02 × 10−32.54 × 10-72.02 × 10−33.90 × 10−75.430.39
BZS-6-122.02 × 10−31.33 × 10−22.02 × 10−32.69 × 10-72.02 × 10−34.00 × 10−75.210.40
BZS-6-132.02 × 10−39.15 × 10−32.02 × 10−31.85 × 10-72.02 × 10−33.49 × 10−75.230.35
BZS-6-142.02 × 10−31.34 × 10−22.02 × 10−32.69 × 10-72.02 × 10−34.00 × 10−75.550.40
BZS-6-152.02 × 10−31.37 × 10−22.02 × 10−32.77 × 10-72.02 × 10−34.05 × 10−75.430.40

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
