Water 2019, 11(11), 2347; https://doi.org/10.3390/w11112347

Article
Simulation of Climate Change Impact on A Coastal Aquifer under Arid Climate. The Tadjourah Aquifer (Republic of Djibouti, Horn of Africa)
1
University of Poitiers, UMR CNRS 7285, 5 rue Albert Turpain, 86073 Poitiers CEDEX 9, France
2
CERD (Center of Studies and Research of Djibouti), PoB 486, Djibouti 999057, Republic of Djibouti
*
Author to whom correspondence should be addressed.
Received: 27 September 2019 / Accepted: 6 November 2019 / Published: 8 November 2019

Abstract

:
The Republic of Djibouti has an area of 23,000 km2, a coastline 370 km long and a population of 820,000 inhabitants. It experiences an arid climate characterized by high daytime temperatures and low and irregular rainfall (average of 140 mm/year), resulting in continuous periods of drought. These difficult climatic conditions and the absence of perennial surface water have progressively led to an intensive exploitation of groundwater to meet increasing water demands in all sectors (drinking water, agriculture and industries). In coastal areas, seawater intrusion constitutes a significant additional risk of groundwater degradation. This study is focused on the coastal aquifer of Tadjourah which supplies water to the city of Tadjourah, currently comprising 21,000 inhabitants. The main objective of this work is to assess the current resources of this aquifer; its capacity to satisfy, or not, the projected water demands during coming years; and to analyze its vulnerability to seawater intrusion within the frame of climate change. Three RCPs (Representative Concentration Pathway) were used to simulate different climate scenarios up to 2100. The simulated rainfall series allowed to deduce the aquifer recharge up to 2100. The code Seawat was used to model seawater intrusion into the aquifer, using the recharge data deduced from the climate scenarios. The results indicate that the risk of contamination of the Tadjourah coastal aquifer by seawater intrusion is high. The long-term and sustainable exploitation of this aquifer must take into consideration the impact of climate change.
Keywords:
coastal aquifer; modeling; Seawat; climate change; seawater intrusion; Tadjourah; Djibouti

1. Introduction

Water resources in coastal aquifers are intensely exploited given the widespread social and economic development of coastal areas around the world [1]. In these coastal areas, groundwater is often the only water resource of acceptable quality. When these areas are within arid to semi-arid climate, groundwater in this context is the only available water resource. This resource is crucial and unique [2,3,4] but is already under high pressure given the needs and demands that are constantly increasing [5,6,7]. As a result, coastal aquifers experience a very high exploitation of their resources, often leading to uncontrolled overexploitation, the consequences of which can be dramatic.
All coastal aquifers naturally undergo a saltwater intrusion, due to the difference in density between freshwater and saltwater [8,9]. When the water budget of coastal aquifers becomes unbalanced due to various causes (over-exploitation, recharge decrease due to climate change impact, etc.), the seawater wedge may significantly progress inland and contaminate the exploitation wells [10,11,12,13,14]. So the most important consequence of any lack of management of these aquifers is the degradation of the quality of the underground resources due to excessive seawater intrusion. In such cases, the lack of management can lead to a limitation of the exploitation of the coastal aquifers, even the cessation of the exploitation. In these regions, the impact of climate change combined with water scarcity and quality degradation are aggravating factors [15] and a serious threat to growth and stability of the regional social system. Effective management strategies are an imperative for optimal water use in coastal aquifers, in order to control seawater intrusion and respond to water demands in the framework of social and economic development of these coastal regions. For this purpose, numerical modeling of aquifers constitutes a critical tool [16] which permits to analyze the aquifers’ reactions to various stresses.
This problem is analyzed based on the case of the coastal aquifer of Tadjourah located in the Republic of Djibouti (RoD), in the Horn of Africa. The RoD has an area of 23,000 km2, a coastline 370 km long and a population of 820,000 inhabitants (census 2009) (Figure 1). As generally is the case in Africa [17], population concentration is increasing in coastal areas in RoD. The RoD experiences an arid climate characterized by high daytime temperatures and low and irregular rainfall (average of 140 mm/year), resulting in continuous periods of drought. There is no perennial surface water. These difficult climatic conditions and the absence of perennial surface water have progressively led to an intensive exploitation of groundwater, with currently around 20 to 22 million m3 per year in 2015. Signs of such overexploitation are expressed by the drastic lowering of some groundwaters and the deterioration of their quality [4]. The coastal aquifer under study supplies water to the city of Tadjourah, currently comprising 21,000 inhabitants [18]. In the near future, the city of Tadjourah is expected to experience significant development, with a substantial increase in tourist, port and agricultural activities, with the result that water needs will be increasing considerably. The projections point to a doubling of water demand by 2030, compared to 2012 [18].
The main objective of this work is to assess the current resources of this aquifer, its capacity to satisfy (or not) the projected water demands during coming years, and to analyze its vulnerability to seawater intrusion within the frame of climate change. The approach developed in this study can be broken down as follows:
-
simulate rainfall series up to 2100 at the scale of RoD using climate scenarios made available by IPCC;
-
deduce groundwater recharge based on the simulated rainfall series;
-
model the studied aquifer, using the recharge series as the input;
-
analyze the aquifer reaction to the climate scenarios.

2. Materials and Methods

2.1. Study Area

2.1.1. Geological Setting

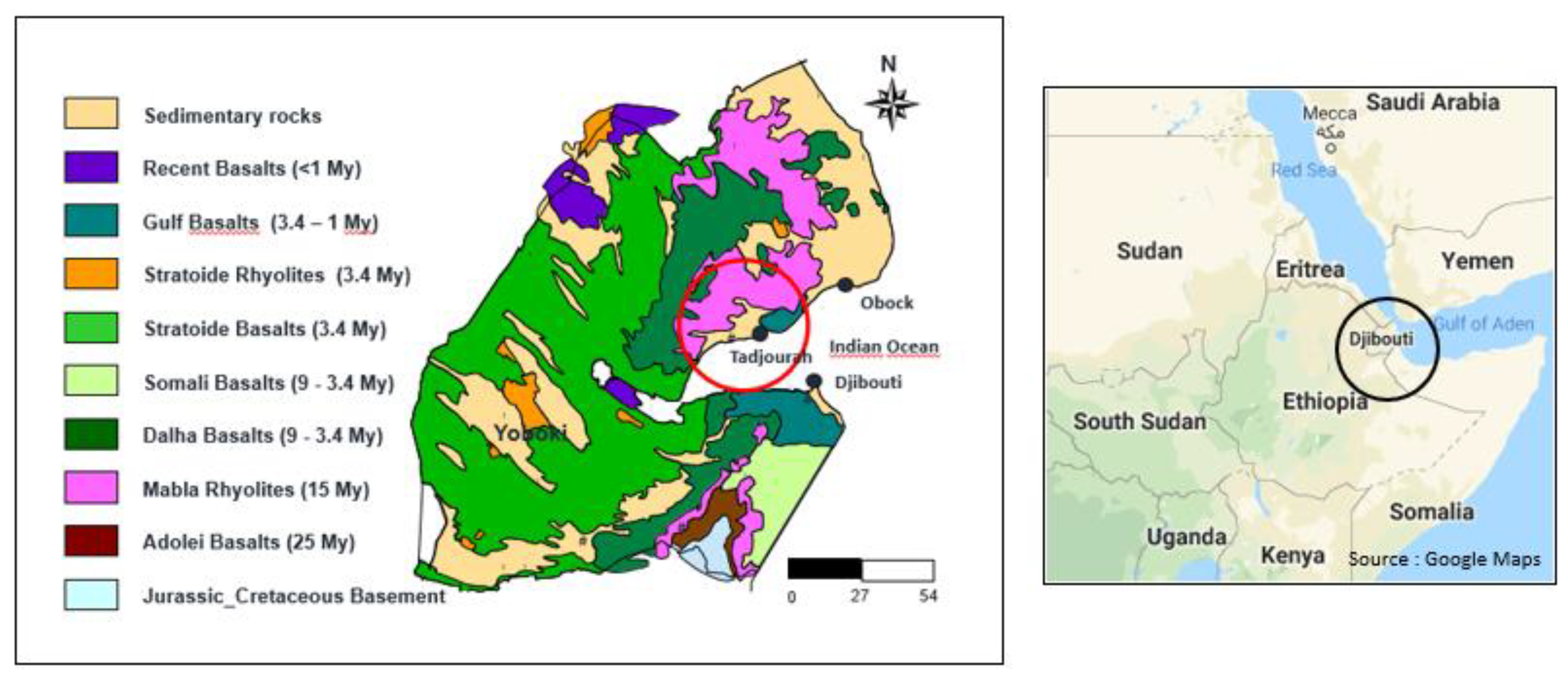

The geodynamic context of the RoD is marked by the separation of the tectonic plates of Arabia, Africa and Somalia delimited by the East African rifts, the Red Sea and the Gulf of Aden. The functioning of this system for 30 million years has set up many volcanic series. Given this geodynamic situation, volcanic rocks, consisting mainly of basalts and some rhyolitic formations, cover most of the territory (80%), with sedimentary formations remaining small (Figure 1). These two types of rock form aquifers whose water resources are intensively exploited to satisfy the needs of the country.

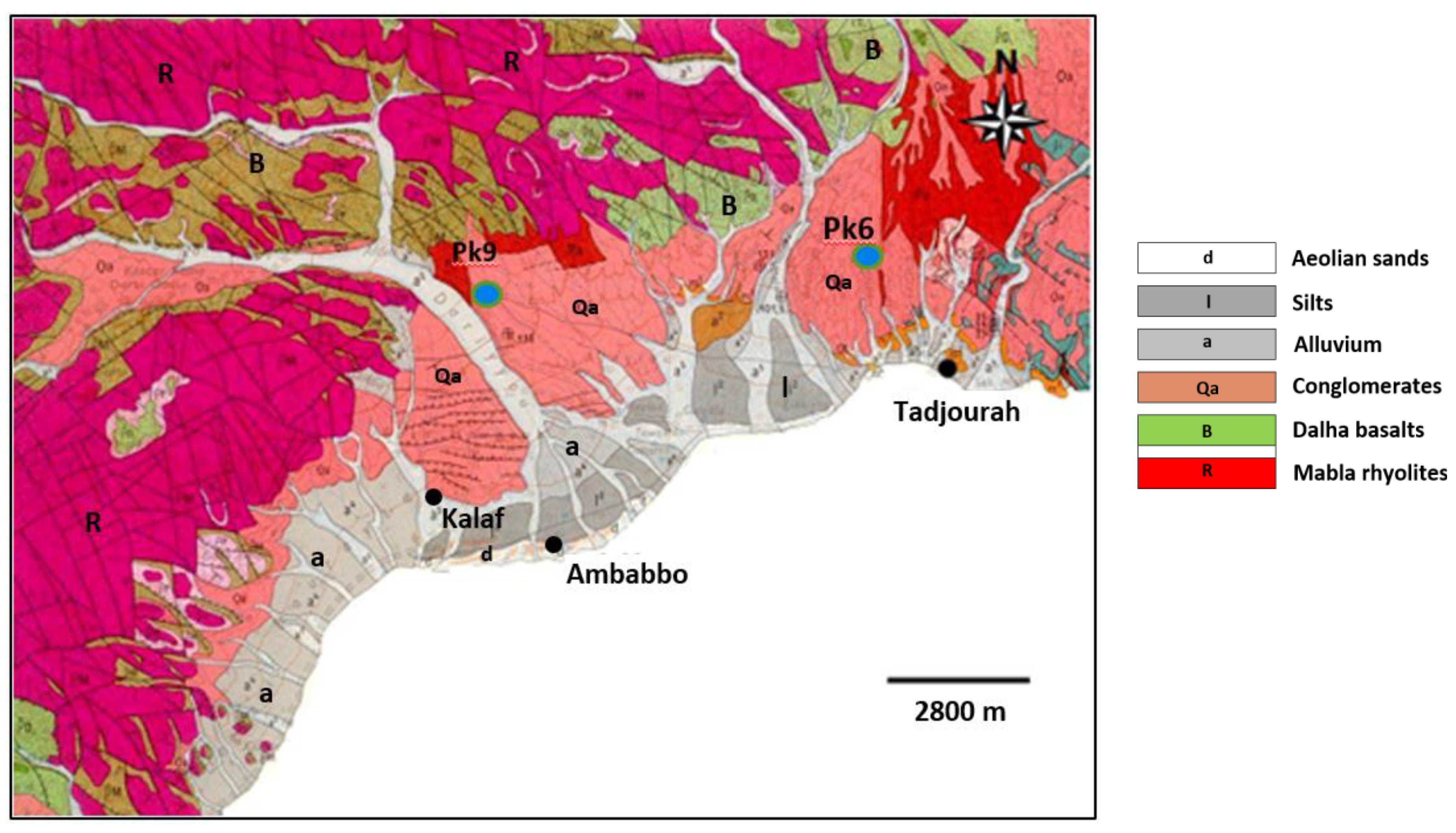

This work focuses on the alluvial aquifer Tadjourah, located on the north shore of the Gulf of Tadjourah. The coastal plain is spread over 30 km along the coast with a width varying between 2 and 6 km and has an area of about 80 km2. It is the largest coastal plain in the country after the Obock plain. To the south, it is bounded by the sea, to the north and west by the Goda Massif formed of Mabla rhyolites and Dalha basalts, and to the east by outcrops of recent basalts (Figure 2).
The conglomerates, arranged in terraces at several levels, consist of coarse materials, sand and gravel. These conglomeratic formations, of Upper Pliocene to Middle Pleistocene, constitute the coastal aquifer of Tadjourah. The Goda Massif north of Tadjourah is the most watered area in the country, with an average of 200 mm rainfall per year. On the plain, the water points are spread over the coastal area and are clustered around Tadjourah, Ambabbo and Kalaf.

2.1.2. Hydrography

The plain of Tadjourah is drained by two main wadis: Dariyyou and Walwale (Figure 2). Wadi Dariyyou originates in the Goda Massif, draining peaks of nearly 1300 m altitude. After a course of 30 km it flows into the sea around Ambabbo with a delta of 4–5 km wide. The total watershed of this wadi is 185 km2 in area. Wadi Walwale has its source on the Dadar Massif at more than 1000 m of altitude and flows into the sea to the West of Tadjourah, by a delta of 5 km wide, after a course of more than 40 km. The watershed of this wadi with an area of 215 km2 is, with that of Dariyyou, the origin of alluvial terraces characteristic of the plain. Between these two main alluvial cones, flows a series of small wadis with courses sub-parallel between them and originating on the surrounding mountains.

2.1.3. Hydrogeology

The aquifer is composed of coarse sediments consisting mainly of rhyolitic and basaltic conglomerates. The thickness of the sedimentary formations was determined by geoelectric surveys [20,21,22] validated using the lithological sections of the wells. As a result, the average thickness of alluvial formations is of the order of 200m. These formations are based on a substratum formed by volcanic formations. The contact between the sediments of the plain and the Goda Massif is constituted by a fault. Geophysical prospections also identified the freshwater–seawater interface in the Ambabbo sector. These investigations showed that the seawater intrusion is relatively important and could penetrate several hundreds of meters inland. The available piezometric data, collected when the aquifer is not in exploitation, allowed to map the groundwater flow (Figure 3). The piezometric map shows quite clearly that the aquifer is supplied from the upstream limit formed by the contact with the volcanic formations of Mount Goda. The geochemistry of the Tadjourah aquifer pointed out the relevance of inflow from the volcanic formations of the Goda mountains upstream of the plain [23]. Relatively high hydraulic gradients are displayed along the coastline.
A thorough analysis of aquifer recharge conditions in the RoD, done by the BGR (Bundesanstalt für Geowissenschaften und Rohstoffe, Germany [21]), showed that the average rate of infiltration to aquifers ranges between 3% to 5% of the raw precipitations. Due to the arid climate context, the losses by ET (Evapotranspiration) are very important. This essential outcome of the BGR was confirmed by later works [24,25,26,27]. Based on the results of the BGR, the CERD (Centre d’Etudes et de Recherche de Djibouti—Center for Studies and Research of Djibouti) was able to estimate some components of the water balance of the Tadjourah aquifer, including recharge and inputs from the upstream boundary [23] (Table 1). Recharge was estimated based on an average annual rainfall of 200 mm. Inflow from the upstream boundary was estimated using the transmissivity of the volcanic rocks.

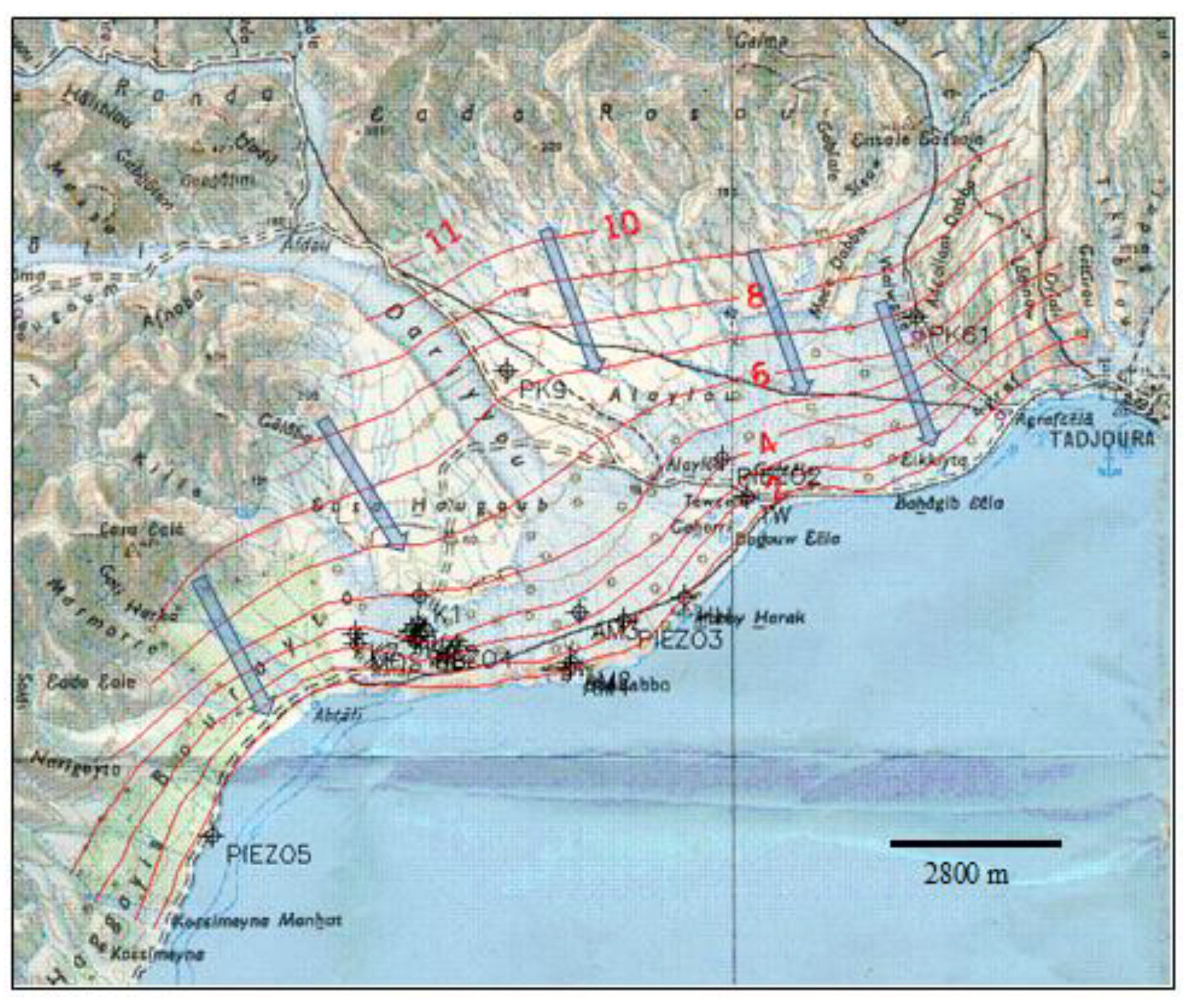

As we are dealing with a coastal aquifer, the groundwater flow is of variable density and the seashore does not constitute a simple outflow boundary of the system because of seawater intrusion into the aquifer. Two components, outflow and inflow, should be differentiated on this boundary. Field estimation of these components is quite difficult as it would require equipment which are not available in the RoD (e.g., wells along the coastline drilled up to the aquifer bottom).
The transmissivity of the aquifer was estimated by pumping tests [23] at the wells PK6 and PK9 (Table 2). These transmissivity values (T, m2/d) were used to derive the initial hydraulic conductivities (K, m/d) for modeling purposes. The hydraulic conductivity field over the entire aquifer was determined by calibrating the numerical model. The storage parameters (storage coefficient S, specific storage Ss, porosity n) were estimated by reference to the literature and adjusted during calibration of the model.

2.1.4. Exploitation of the Aquifer

The city of Tadjourah is supplied with water by the alluvial aquifer. The well Pk6, 3 kilometers from Tadjourah, is located on the cone of the Wadi Magalle-Walwallé. This well taps the aquifer at an average discharge rate of 1440 m3/d, an average annual volume of 450,000 m3. Nine kilometers from Tadjourah, another well (Pk9), set up for the Tadjourah mineral water plant, is located on the high alluvial terraces of Wadi Dariyyou and exploits the aquifer at an average discharge of 1200 m3/day. The cumulative volume abstracted on both wells amounts to approximately 960,000 m3/year.
The exploitation of this aquifer raises the question of the sustainability of the resource, conditioned in particular by the equilibrium of the freshwater–seawater interface. This condition is vital to avoid degradation of the quality of groundwater by seawater intrusion, which may be caused by over-exploitation of the resource and/or by a change in climatic factors.

2.1.5. Meteorological Data

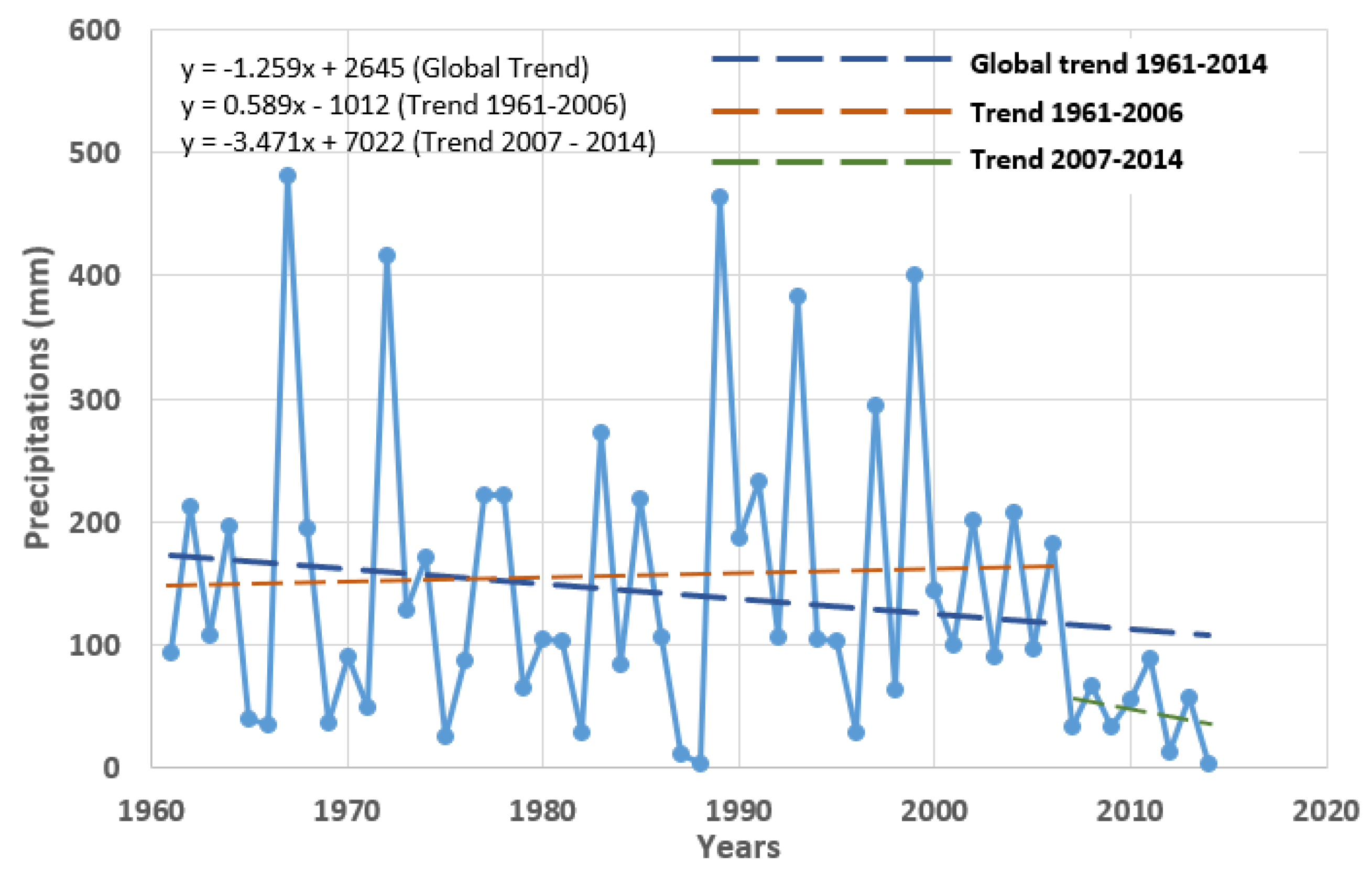

The most complete meteorological data set is measured at the DIA station (Djibouti International Airport). Annual precipitation values over the period 1961–2014 are shown in Figure 4 and the statistics in Table 3.
The minimum value of the annual rainfall (3 mm/year) is very low, showing that the RoD has drastic dry years. The maximum value is 483 mm/year. The coefficient of variation of the whole series is 84%, revealing a strong inter-annual variability of the precipitation. The downward trend in precipitation is well marked in Figure 4, when considering the whole series.
The series can be divided in two segments 1961–2006 and 2007–2014, the last 8 years depicting a dramatic decrease in rainfall. Statistics of these sub-series are given in Table 2. These sub-series trend lines are shown in Figure 4. Paradoxically, the trend line of the period 1961–2006 shows a slight increase in precipitation. This positive trend in precipitation is caused by a few extreme high rainfalls. These extreme events in rainfall, which reverse the general downward trend, were noted in other areas under arid/semi-arid climate, like Algeria [28]. The role of such extreme events in enhancing groundwater recharge in arid/semi-arid environments has been commented on in several studies [29,30,31,32]. Accordingly, these extreme events should be taken into account as their role in groundwater recharge in an arid context can be significant.

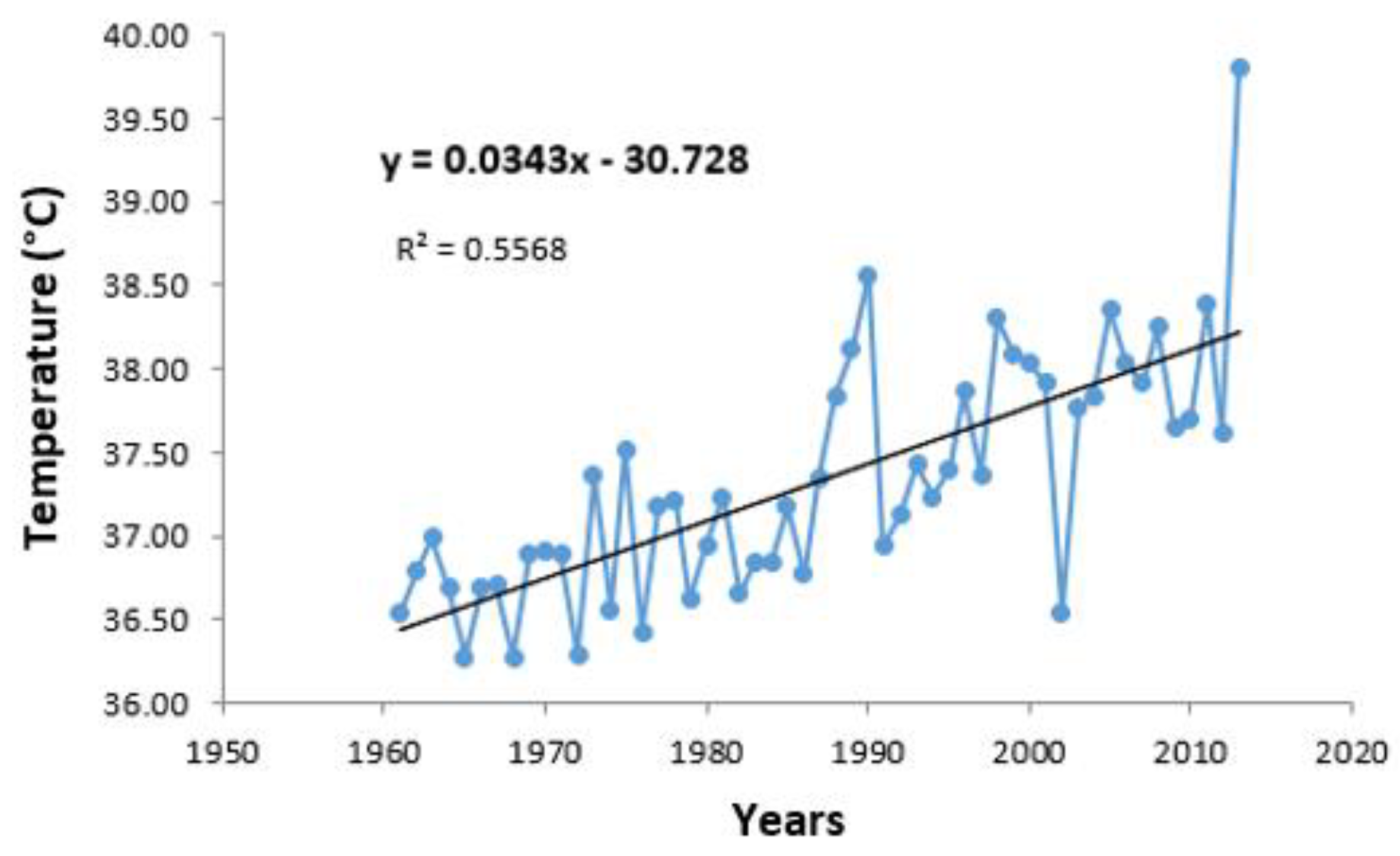

The temperature data show a marked upward trend (Figure 5).

2.2. Climate Change Scenarios

In general, climate predictions (P, T) are established at large scales using global climate models (GCMs) that incorporate the components required for climate representation: (i) Atmospheric component; (ii) Oceanic component; and (iii) External components (forcings) to the climate system: greenhouse gases and aerosols. This last component (forcings) is uncertain because it is linked to human activities. Several climate scenarios were thus elaborated based on projected greenhouse gases emissions. The issue of uncertainty associated with the global scenarios is widely debated in the literature related to Water Sciences [33,34,35,36].
On a global scale, it is difficult to consider local weather phenomena. However, scenarios on future climate change at the local level are essential for socio-economic actors to conduct impact studies of climate change (hydrology, agriculture, ...). There are different methods of downscaling that can reduce the results of GCMs (Global Climate Models) to a finer scale. These results can then be used in climate change impact studies. In this study, the downscaling of global climate scenarios at the RoD scale was done in collaboration with the IGAD-CPAC (Inter-Governmental Authority on Development—Climate Prediction and Application Center) in Nairobi (Kenya).

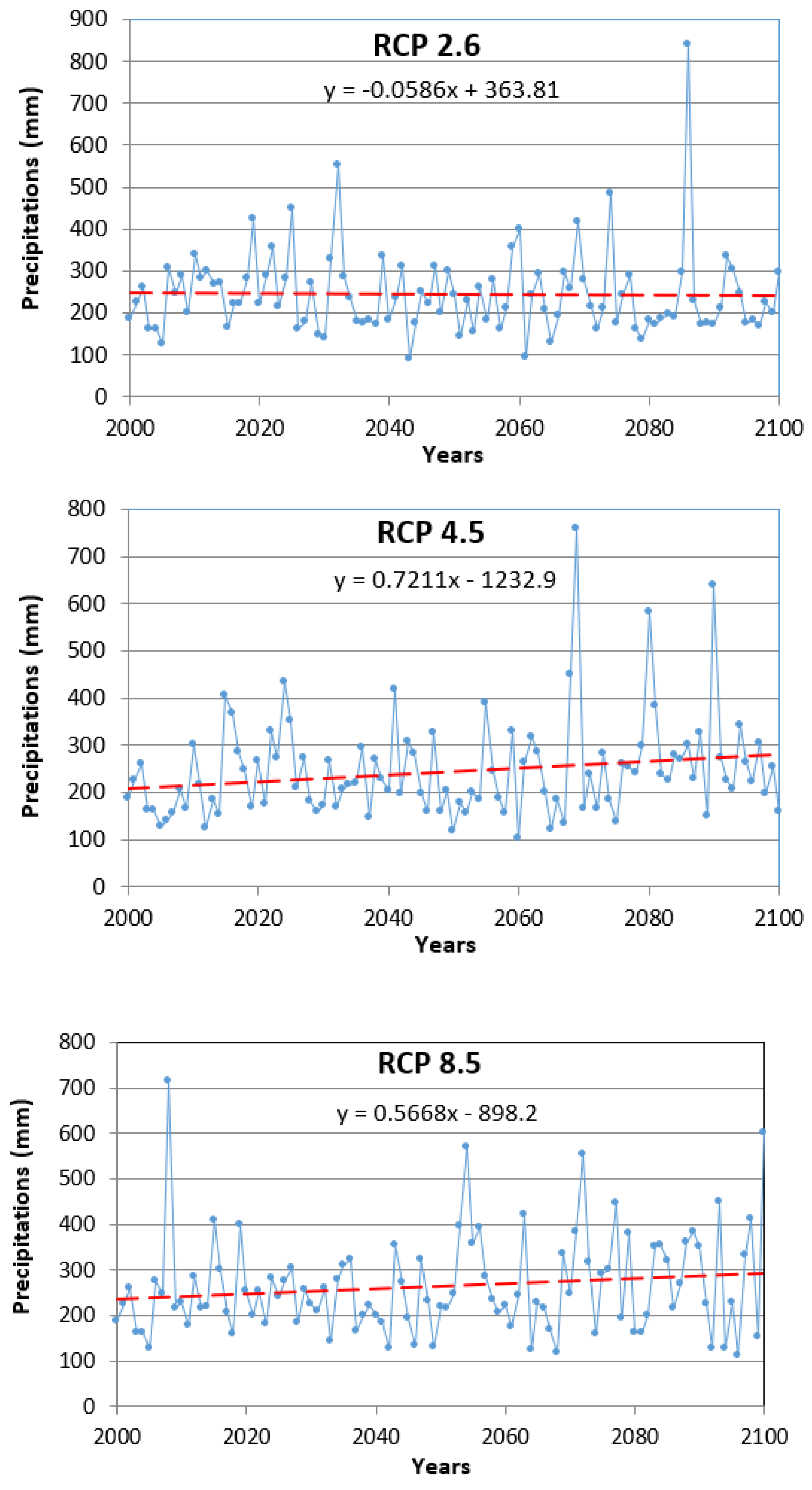

Three RCPs (Representative Concentration Pathway) scenarios for the evolution of greenhouse gas concentration in the 21st century (RCP2.6, RCP4.5, RCP8.5) were simulated. A RCP scenario is used to model the future climate. In AR5 (IPCC 5th Assessment Report, [37]), based on different hypotheses concerning the quantity of greenhouse gases that will be emitted in the coming years (period 2000–2100), each RCP scenario gives a probabilistic variant of the climate that would result from the emission level chosen as the working hypothesis. The statistics of the three scenarios are reported in Table 4.
These results show that statistically the three scenarios are comparable. The statistics remain close for the three scenarios. In particular, the arithmetic averages of the three scenarios show no significant difference (the confidence intervals overlap widely). The simulated maximums are very high for the three scenarios. The results of the three scenarios are shown in Figure 6. It can be noted that all the three scenarios generate very exceptional rains greater than 500 mm (return period > 100 years).
The trends (linear model) calculated on the results of the three scenarios show a slight decrease for the RCP 2.6 scenario. On the other hand, there is an upward trend for scenarios 4.5 and 8.4. Such a paradoxical trend in the context of the RoD is caused by the exceptional rains generated by these scenarios. The maximum rainfall observed during 1961 to 2014 is 481 mm/year. Scenario RCP 2.6 generates a single exceptional annual rainfall (P = 820 mm in 2088), while scenarios RCP 4.5 and RCP 8.5 generate several such exceptional annual rainfalls.
As exceptional rain events have a significant role in the recharge of arid zone aquifers, the climate scenarios (RCP 4.5 and RCP 8.6) generating several extreme episodes have not been retained. The scenario RCP 2.6, generating a single extreme episode, was used in forthcoming modeling. The recharge series deduced from the rainfall series simulated under the scenarion RCP 2.6. was used in the numerical simulation of the Tadjourah coastal aquifer to analyze the impact of climate change. The code used in this study to model the aquifer is the SEAWAT code. This approach which combines climate scenarios and hydrologic models is more and more applied to assess the future behaviour of groundwater [38,39,40,41] as groundwater requirements for drinking, agriculture and industrial uses are dramatically increasing worldwide.

2.3. The SEAWAT Software

The coastal Tadjourah aquifer has been modeled using Seawat software [42]. Seawat is used to simulate three-dimensional, variable-density, transient ground-water flow in porous media. It was designed by combining the well-known flow code Modflow [43] and mass-transport code MT3DMS [44] to solve the coupled flow and solute-transport equations. The code uses the concept of Equivalent Freshwater Head in a groundwater salted environment. A thorough description of this concept is provided by the authors of this code [42]. Briefly, at any point N in the 3D salted groundwater environment, the freshwater head is defined as:
h f =   P N ρ f g +   Z n
where hf is equivalent freshwater head (L), PN is pressure at point N (ML−1T−2), ρf is density of freshwater (ML−3), g is acceleration due to gravity (LT−2), and ZN is elevation of point N (L). At the same point N, the actual head expressed in terms of the salted aquifer is written:
h =   P N ρ g +   Z n
where h is head (L), and ρ is density of saline groundwater at point N (ML−3). Flow and mass transport equations are written in SEAWAT in terms of equivalent fresh water (see [42]). Solving these equations provides solutions in terms of equivalent fresh water. Conversion is required between field data (h) and equivalent fresh data and can be made with the use of the following expressions:
h f =   ρ ρ f   h   ρ ρ f ρ f Z   and   h   =   ρ f ρ   h f   +   ρ ρ f ρ Z
where Z is elevation (L). These equations are obtained by eliminating pressure between Equations (1) and (2) and solving for the respective head value [42]). The Seawat code has been successfully used to simulate and solve the issue of seawater intrusion in freshwater aquifers in many cases worldwide [45,46,47,48,49,50,51,52].

3. Results and Discussions

3.1. Conceptual Model of the Aquifer

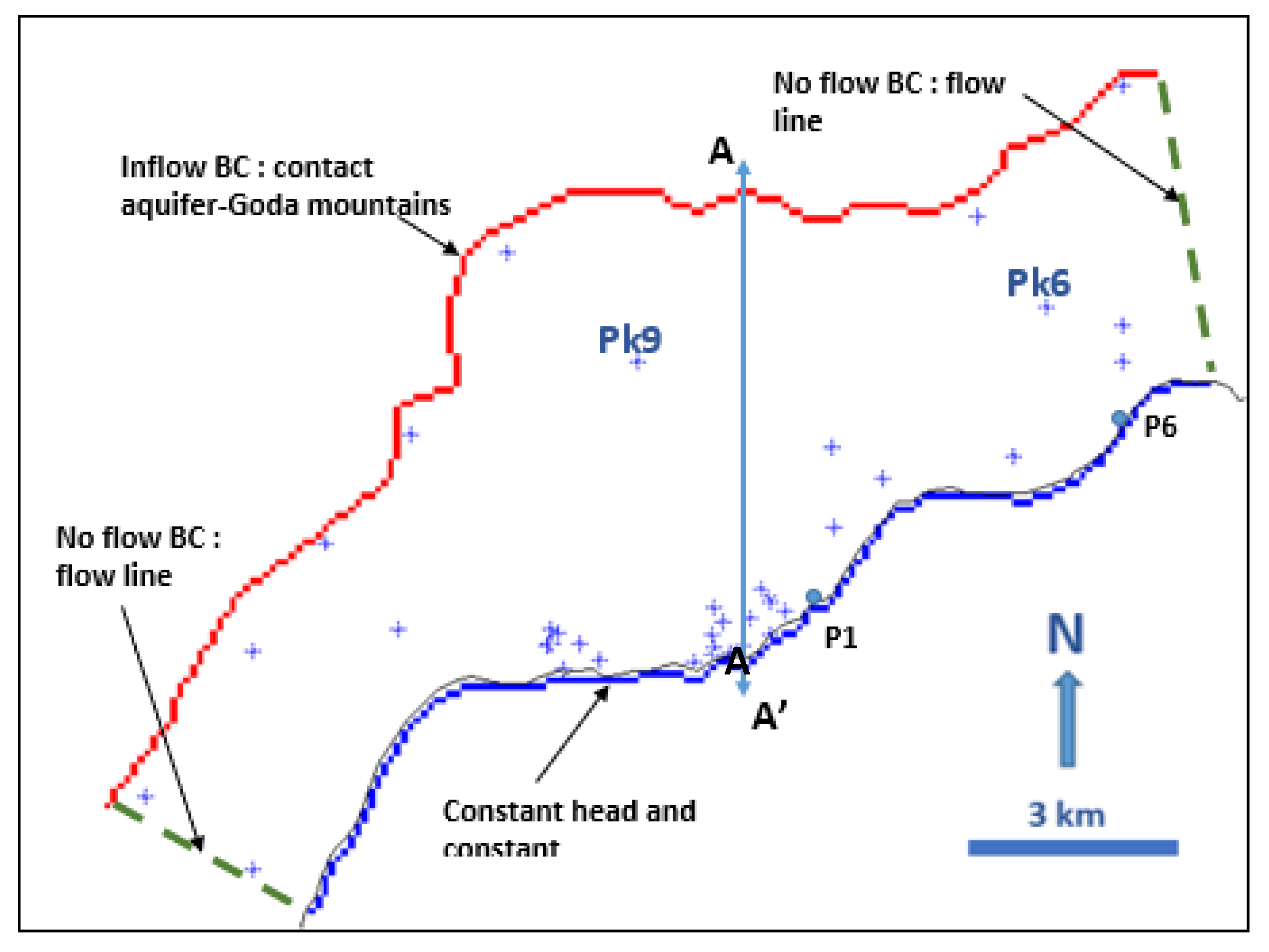

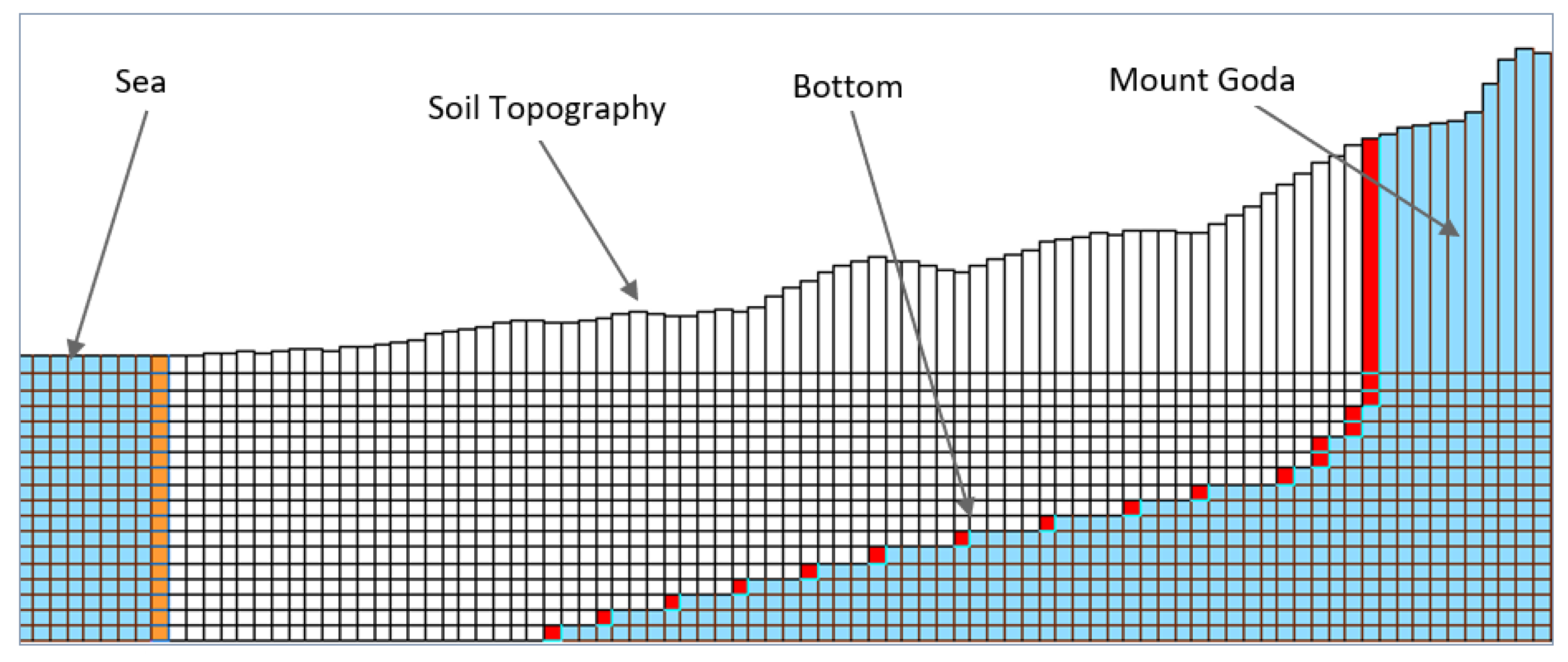

The alluvial aquifer of Tadjourah is unconfined, characterized by an unsaturated zone and a saturated zone constituting the groundwater. The groundwater is of variable density, given the seawater intrusion. The top of the aquifer is represented by the topographic surface of the plain. An ASTER DEM, with a resolution of 90m × 90m, was used to obtain this topography. An average value of 200 m, derived from geophysical prospecting, was used to represent the thickness of the aquifer. Numerical models of coastal aquifers are 3D multi-layered models to simulate seawater intrusion. They are thus discretized jointly on the horizontal and vertical planes. Vertical discretization is performed at a finer scale than horizontal discretization in order to correctly simulate seawater intrusion. In the case of the Tadjourah aquifer, the discretization scales are as follows: (i) For the horizontal discretization, the precision of the ASTER DEM has been kept, i.e., elementary cells of dimensions 90m × 90m; (ii) For vertical discretization, a cell height of 10m was selected, except for the first layer of the model, whose top is represented by the topographic surface. The model has 18 layers and is discretized with a total of 109,441 cells. The boundary conditions (BC) are shown in Figure 7: (i) The contact with Mount Goda in layer 1 is represented by an inflow BC. For layers 2 to 18, the upstream BC is also an inflow BC; (ii) the downstream limit with the sea is a fixed head BC (sea level) and constant concentration BC (35 kg/m3); (iii) the lateral limits are represented by no flow BCs and correspond to flowlines. The wadis, given their particularity (intermittent streams), are integrated as recharge areas. Figure 8 shows a NS vertical section through the model.

3.2. Calculation of the Equilibrium State

An equilibrium state of the freshwater-saltwater interface was first sought corresponding to the situation prevailing before exploitation of the wells Pk6 and Pk9. The equilibrium state of the freshwater–saltwater interface was investigated by introducing zero initial concentration throughout the aquifer and running the model over a long period of time (100 years) to reach a steady state of concentrations in the aquifer. Two fictitious monitoring piezometers, P1 and P6 (Figure 7), were placed near the coast along flowlines passing by PK6 and PK9 wells to follow the evolution of the concentrations in the aquifer. The diagrams Concentration vs. Time below (Figure 9) show the evolutions of the concentrations on these piezometers in the first layer of the model.

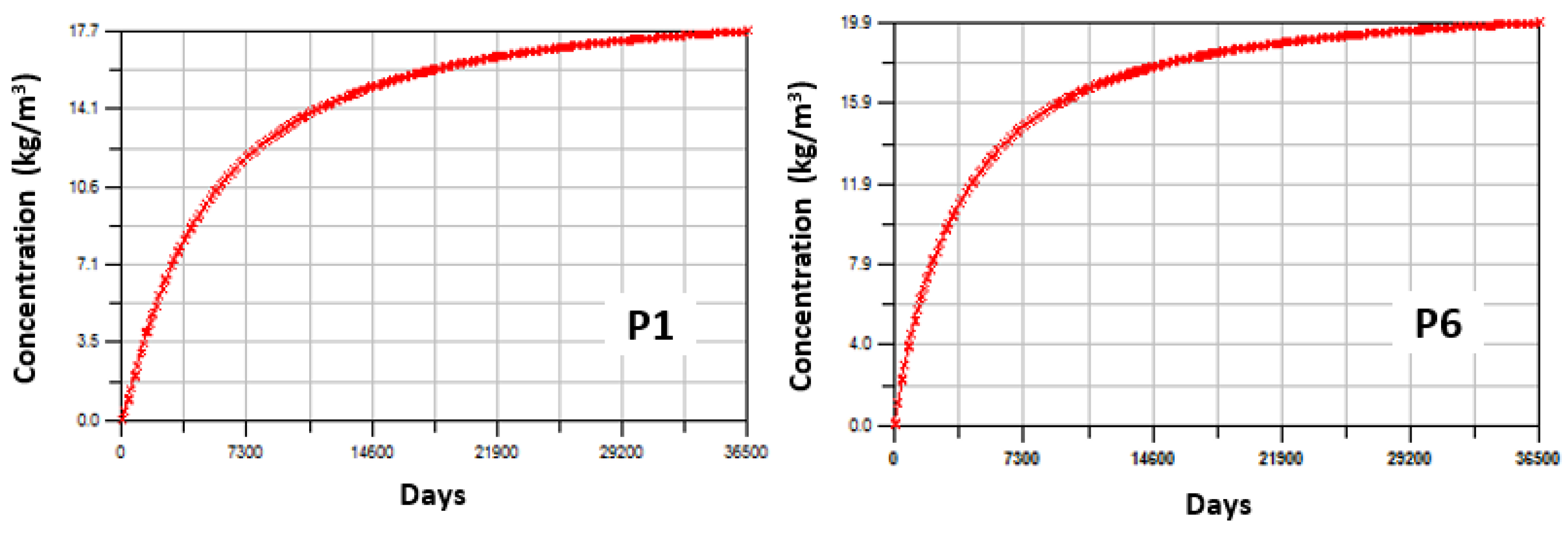

It is plausible to consider that equilibrium is reached as the concentration stabilizes at P1 and P6 piezometers located very close to the shore. The concentrations can still evolve because of dispersion/diffusion phenomena, but do not call into question the freshwater–saltwater equilibrium. The wells Pk6 and Pk9 are not affected.

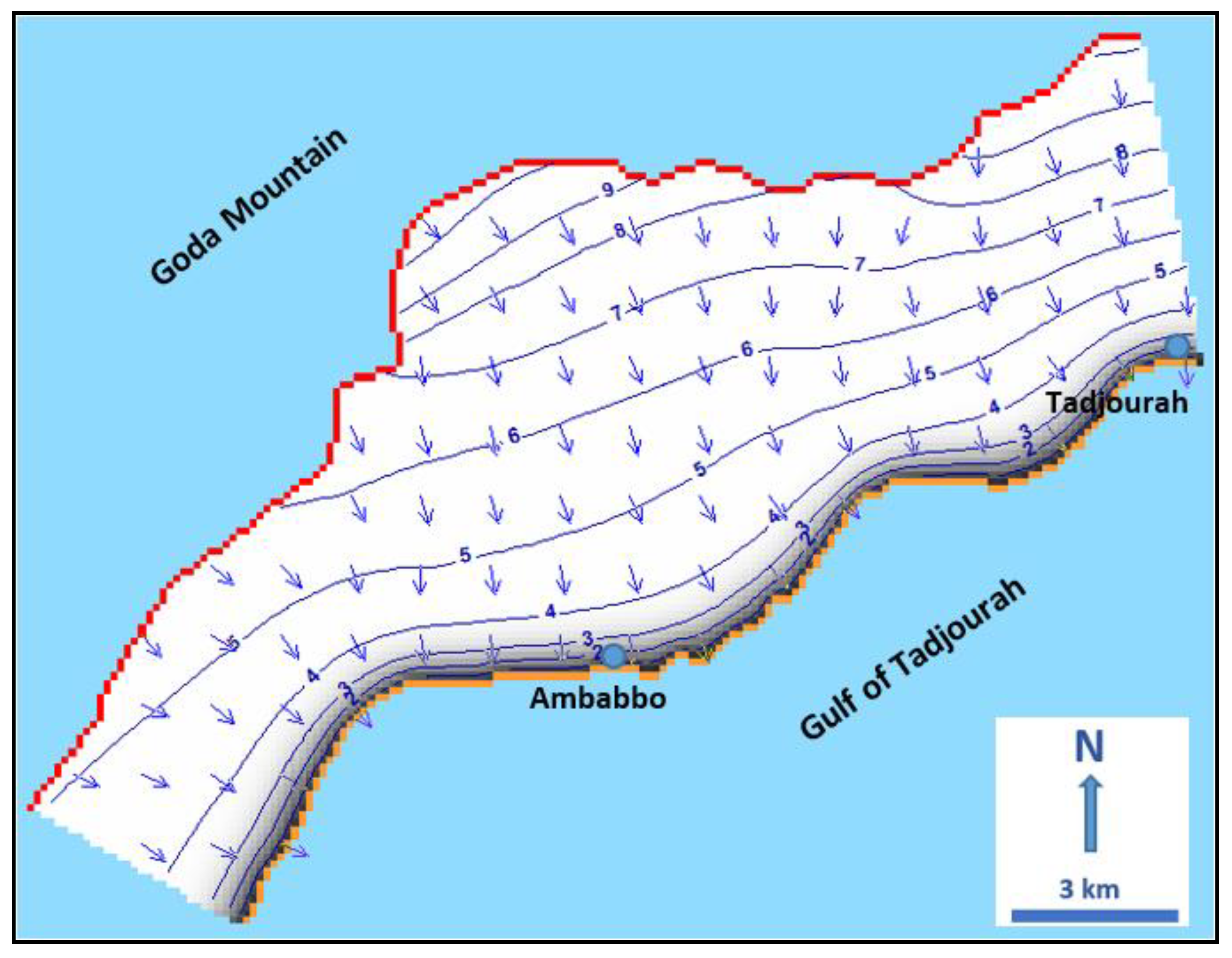

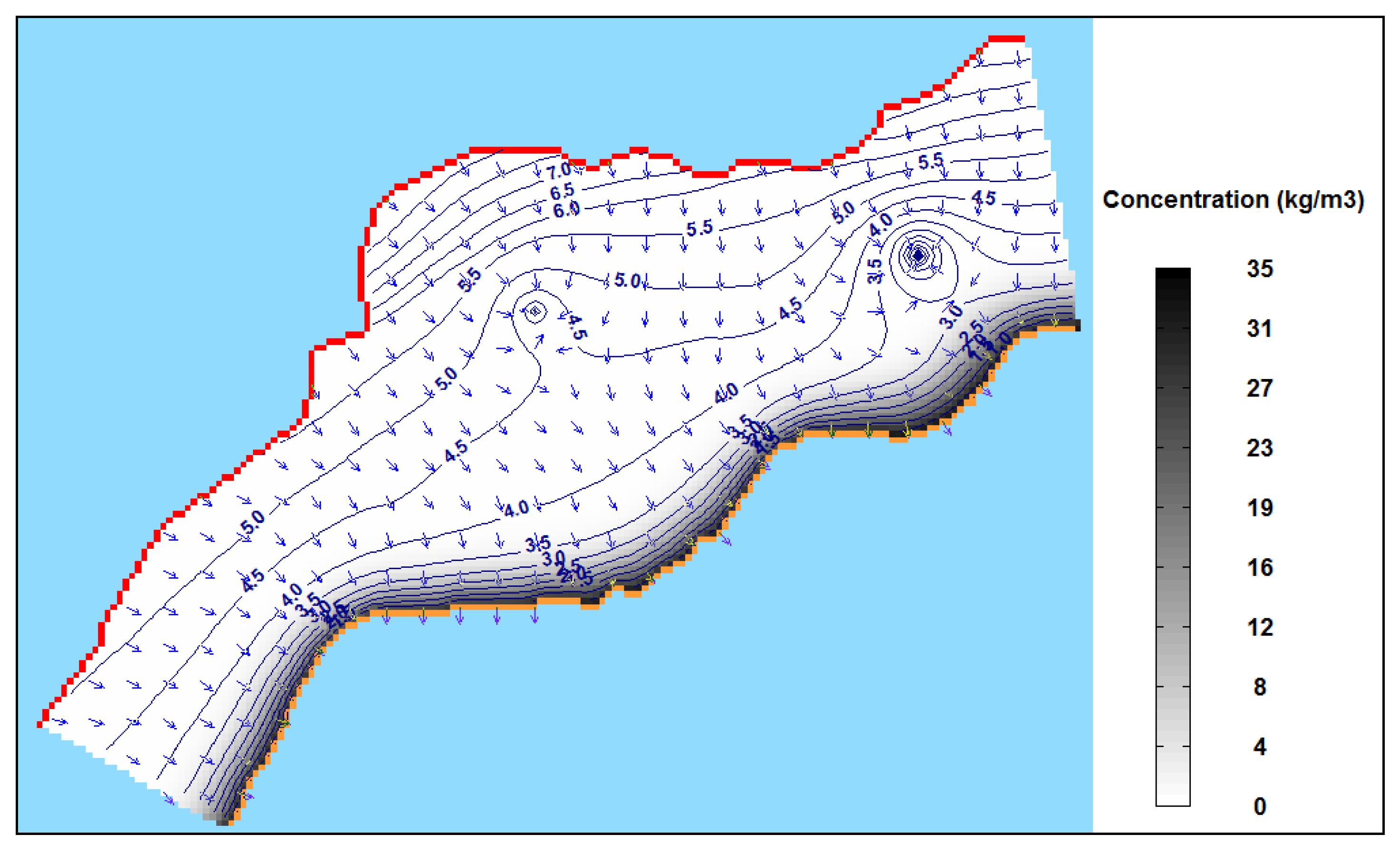

The simulated piezometry related to this pseudo-steady equilibrium status and the water balance of the aquifer are shown in Figure 10 and Table 5 respectively. The simulated piezometry corresponds well to the observed piezometry. In particular, the gradients are well respected. The high gradients existing near the shore are correctly simulated. For further evaluation of the model calibration, additional measures [52] are provided in Appendix A: The scatterplot of measured heads vs. simulated heads (Figure A1), the determination coefficient (R2), the mean error (ME), the mean absolute error (MAE), and the root mean squared error (RMSE) (Table A1). The frequency distribution of the errors is given in Figure A2. The determination coefficient is high (R2 = 0.94) indicating that measured and simulated heads are well correlated. Values of other calibration measures (ME = 0.16 m; MAE = 0.45 m; RMSE = 0.54 m) indicate that the average error in calibrating the model is low. The distribution diagram (Figure A2) shows that the errors are random. Overall, the model is quite well calibrated on the observed general flow pattern.
The annual surface recharge represents a volume of 648,000 m3/year which is in adequation with field estimation (see Table 1). The average annual rainfall over the Tadjourah aquifer in 2000 is 182 mm/year. The recharge therefore represents a rate of 4.9% of the average annual precipitation. This is in the order of magnitude of the estimates for other areas of the RoD. The upstream limit inflow is 2.26 × 106 m3/year and agrees with field estimation (see Table 1). This component contributes significantly to the aquifer water balance. The inflows and outflows on the boundary corresponding to the sea, caused by the difference in density, are well differentiated in this water balance. The groundwater is in pseudo-steady state (Sum of the inputs # sum of the outputs).

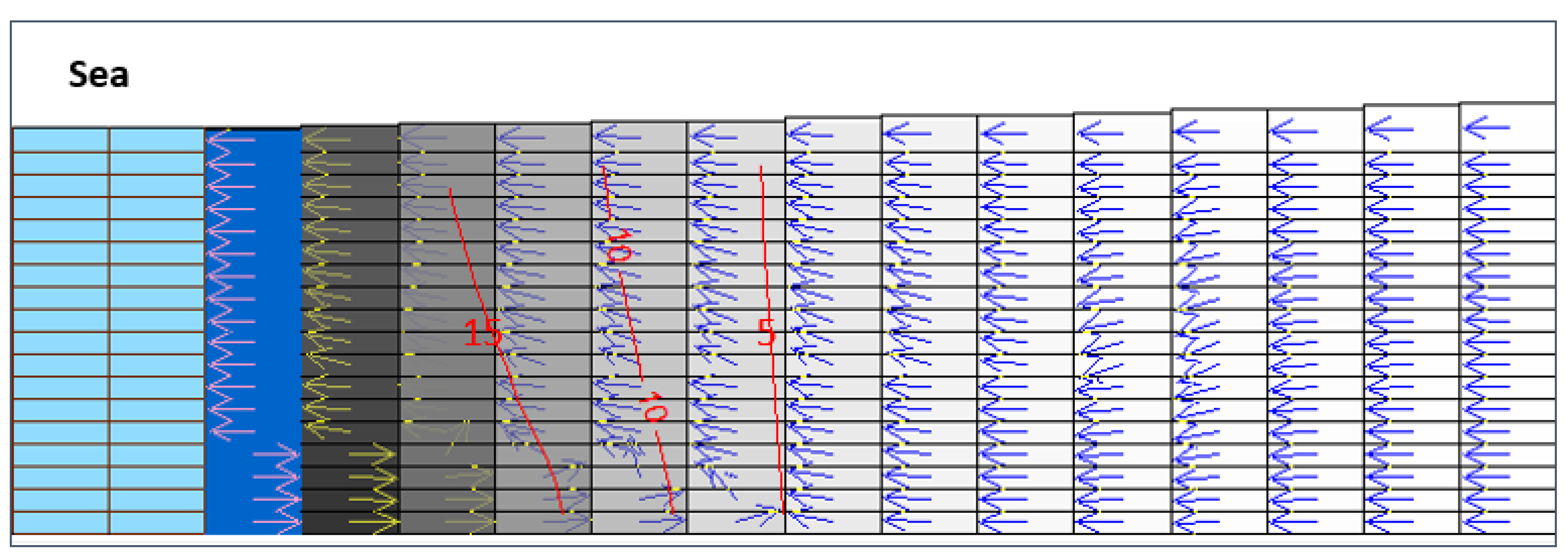

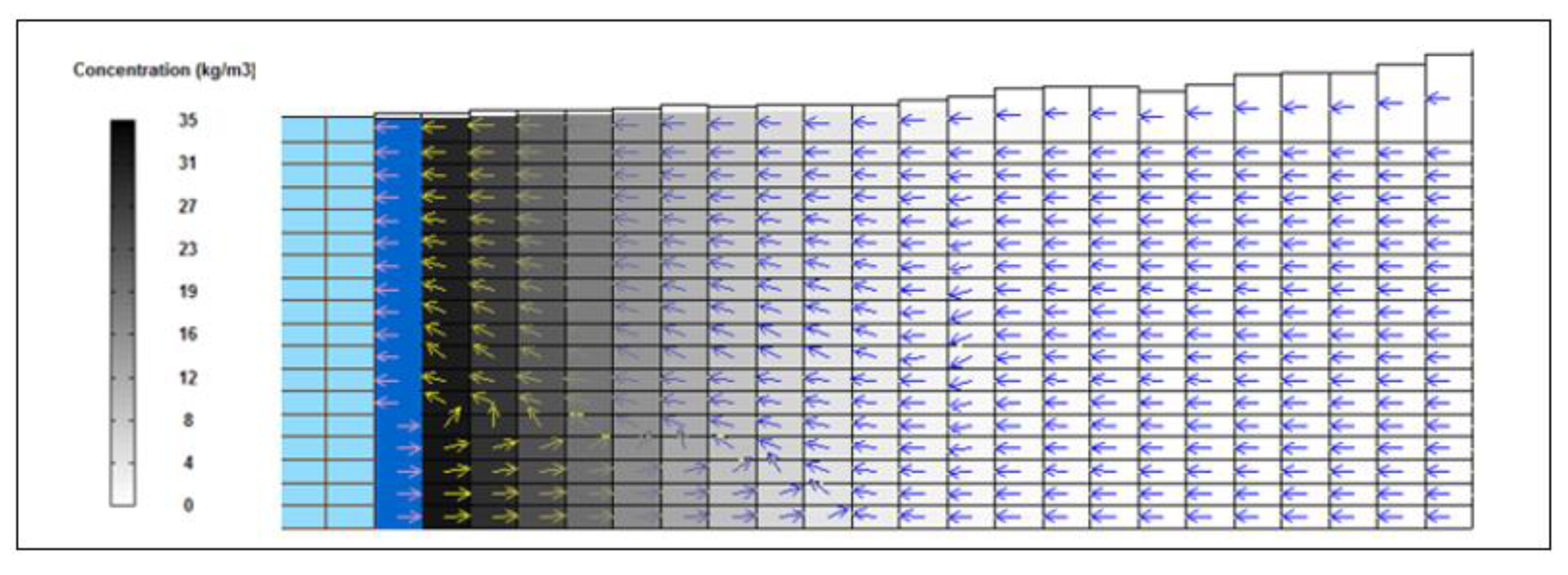

Figure 11 shows the status of this interface in the aquifer in the Ambabbo area. The aquifer is contaminated by seawater for several hundred meters inland, which is consistent with the results of the geophysical survey [22]. One should keep in mind that this equilibrium state is calculated in the absence of any exploitation of the aquifer. Areas of PK6 and PK9 wells are not affected by seawater intrusion.
Adding the inflow through the upstream boundary and the surface recharge gives an average annual renewable resources of this aquifer of: 2,910,000 m3/year. Present water requirements, as stated above, amount on average to 960,000 m3/year, which represent 33% of the aquifer renewable resources. This ratio is reasonable and theoretically the aquifer has the potential to provide such a quantity of water without being in a state of overexploitation. However, the impact of climate change must be taken into account before drawing any conclusion regarding the sustainability of the aquifer.

3.3. Simulation of Climate Change Impact up to 2100 under RCP Scenarios 2.6, 4.5 and 8.5.

The exploitation rates of the aquifer at the wellfields Pk6 and Pk9 were kept constant throughout the simulation period 2001 to 2100. The objective is therefore to test the sustainability of the exploitation of the aquifer at these exploitation rates: Pk6 at 1440 m3/d and Pk9 at 1200 m3/d.

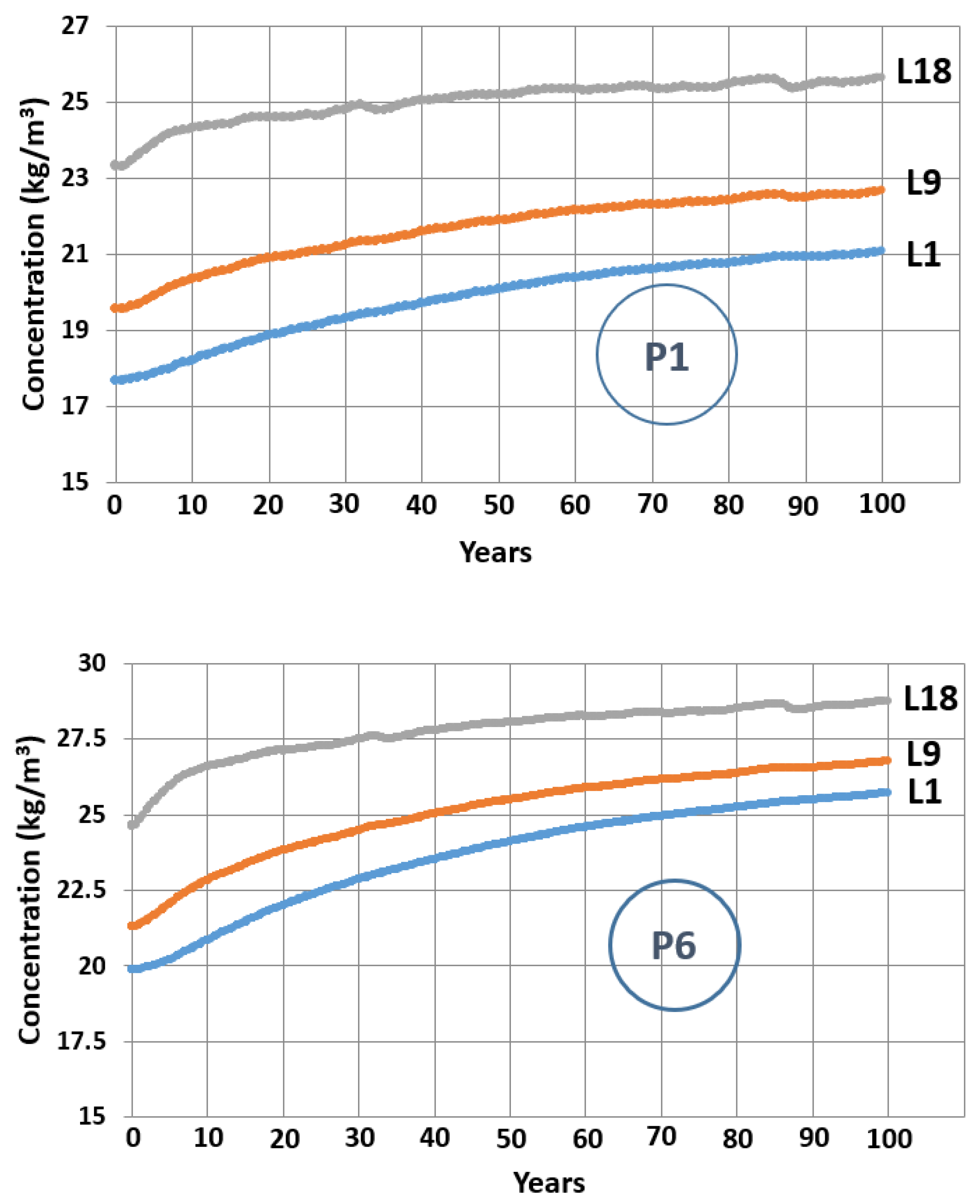

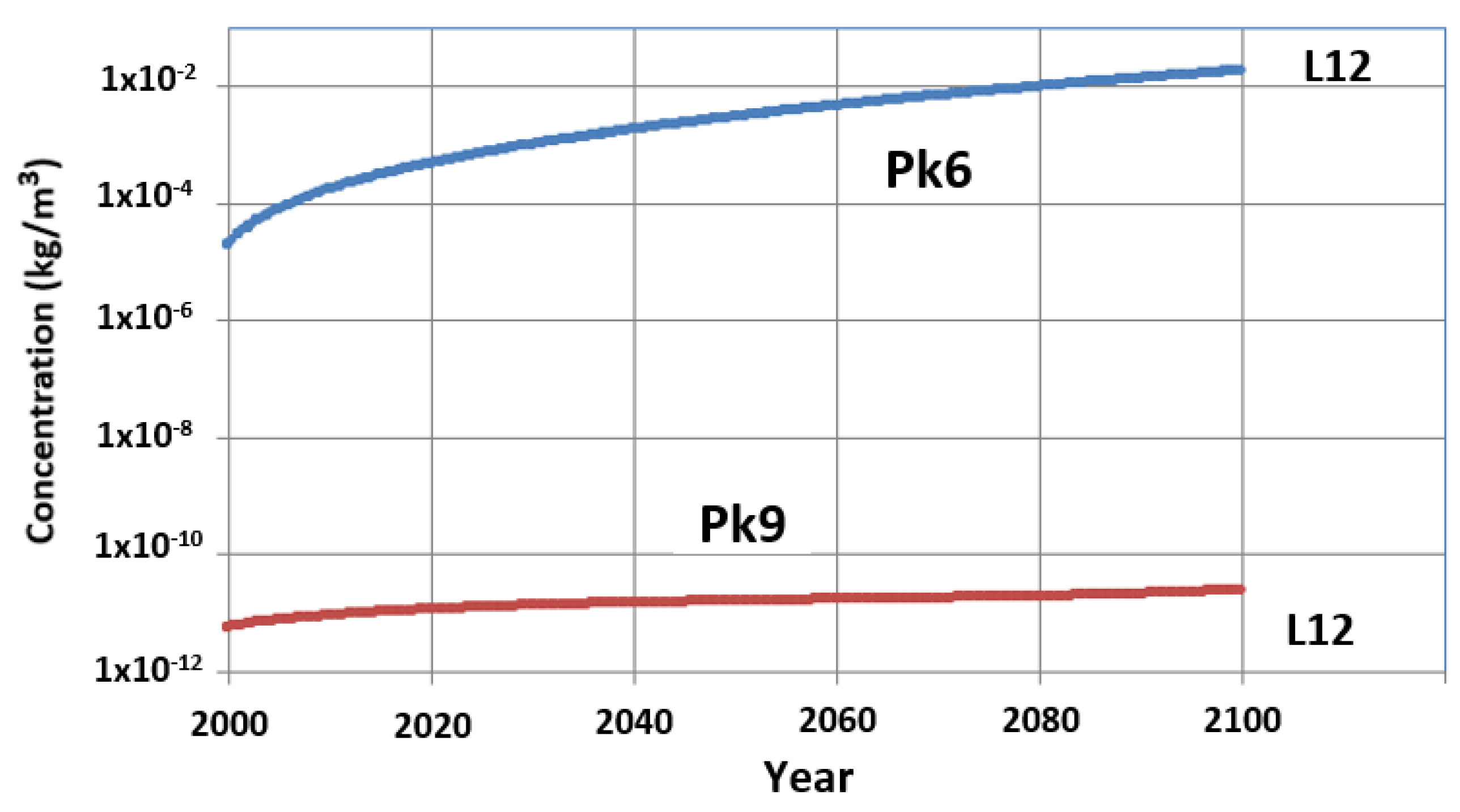

The concentration evolution from 2001 to 2100, on piezometers P1, P6 (100m from the coast), and at the wells Pk9 and Pk6 are represented in Figure 12 and Figure 13 for RCP 2.6, in Appendix B for RCP 4.5 (Figure A3 and Figure A4) and Appendix C for RCP 8.5 (Figure A10 and Figure A11). Under all three scenarios, near the coast (P1 and P6 piezometers), the concentration trend is increasing in both piezometers and the seawater intrusion continues to advance during the simulation period (2001–2100), over the entire height of the aquifer (Figure 12, Figure A3 and Figure A10). There is no stabilization of the concentrations. The well Pk9 remains untouched (Figure 13, Figure A4 and Figure A11). The well Pk6 is affected by saltwater contamination. The concentration trend is increasing at this well and its value at the end of the simulation time is about 18 g/m3 under all scenarios.

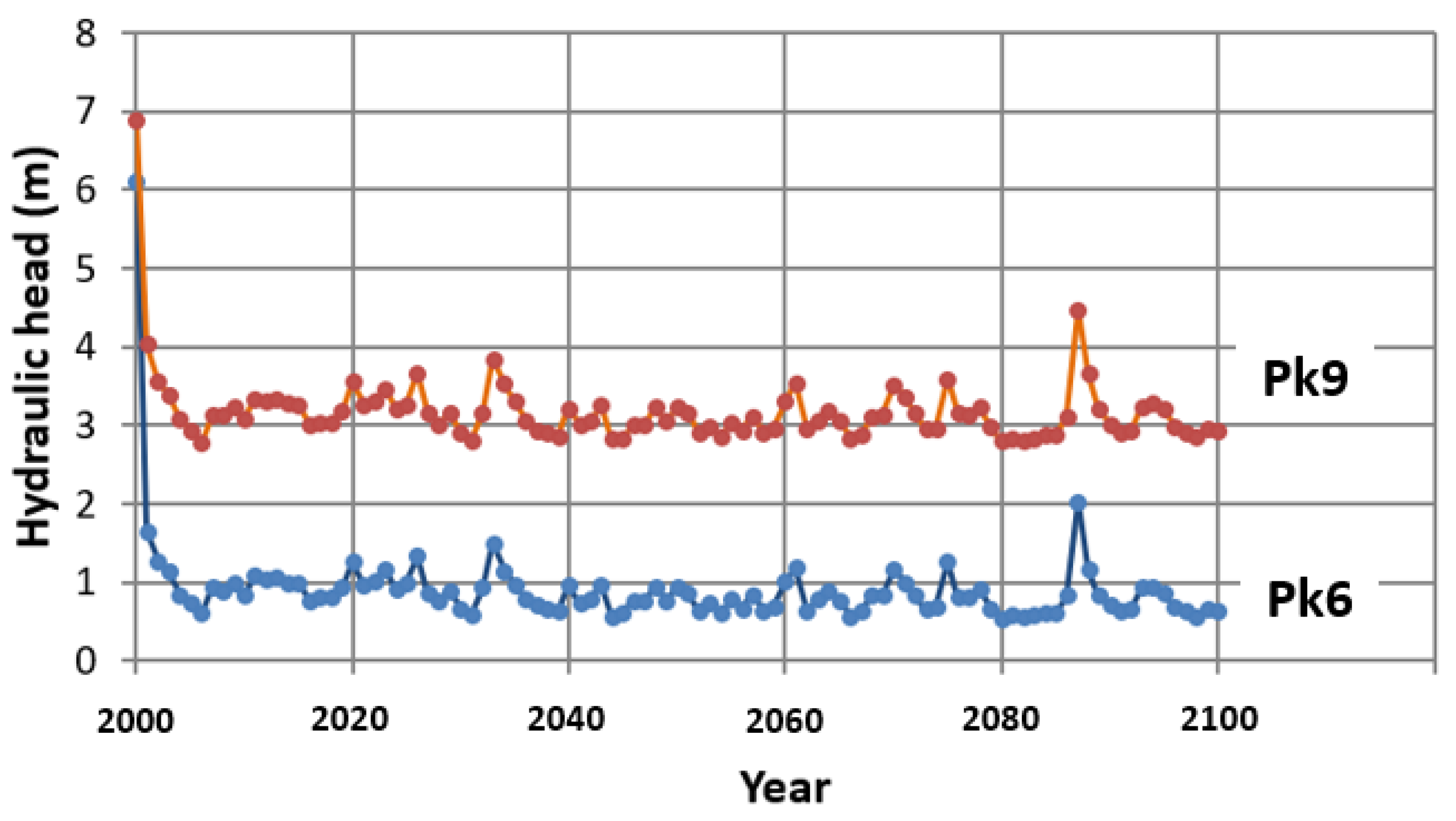

Piezometric variations at Pk9 and Pk6 are shown in Figure 14 (RCP 2.6), B3 and C3 (scenarios RCP 4.5 and 8.5). In both wells, the pumping provokes a large drawdown at the beginning of the simulation. Impacts of the exceptional rainfalls simulated in each scenario are clearly depicted in these figures, as they provoke significant piezometric rising. However, the drawdowns tend towards a stabilization at both wells under all three scenarios. At the end of the simulation time, the hydraulic head at both sites is low and is only a few meters above sea level (3 m at Pk9 and < 1 m at Pk6). All three scenarios lead to the same conclusion. It is clear that under these conditions, no increase in the exploitation of the groundwater can be recommended.

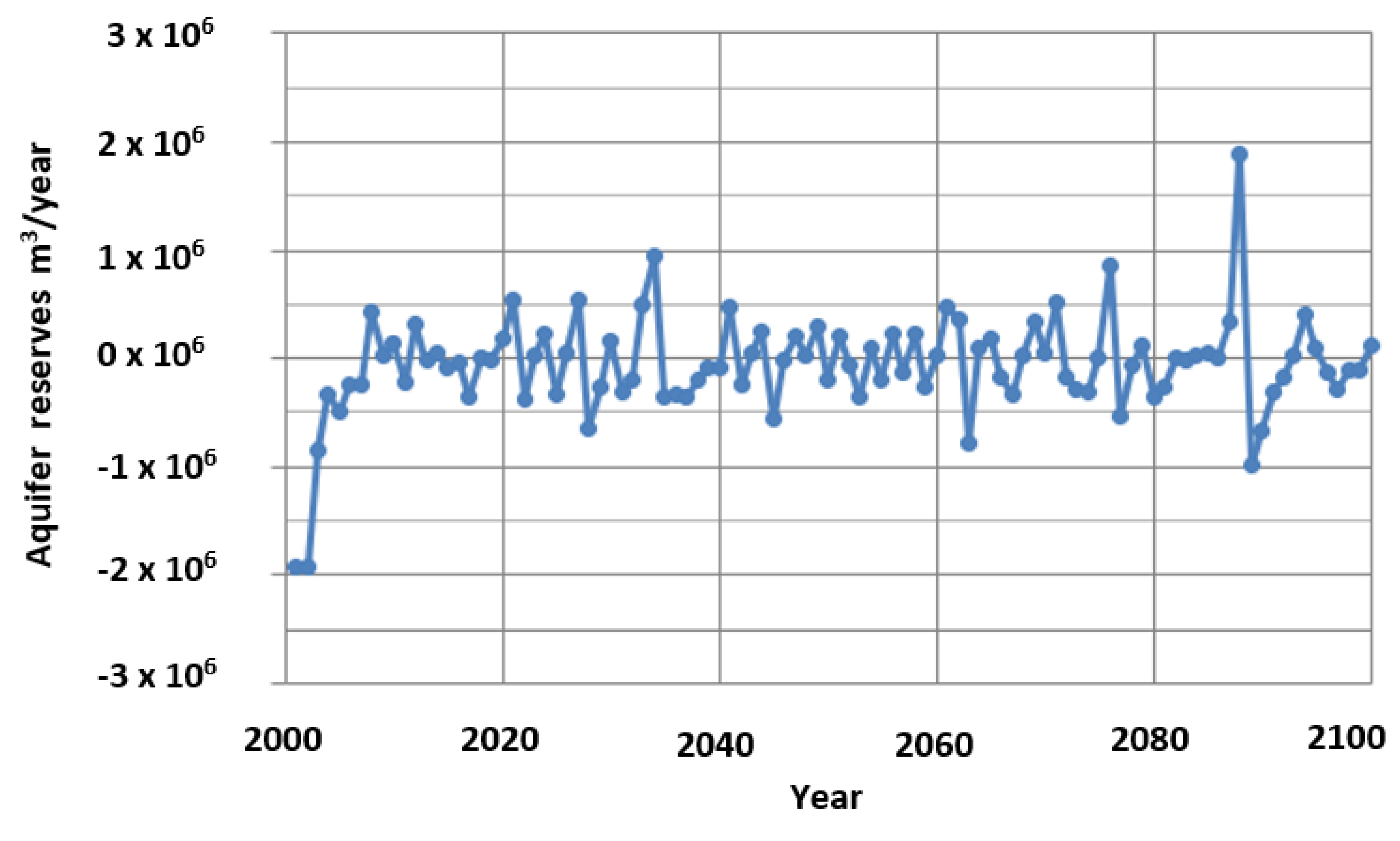

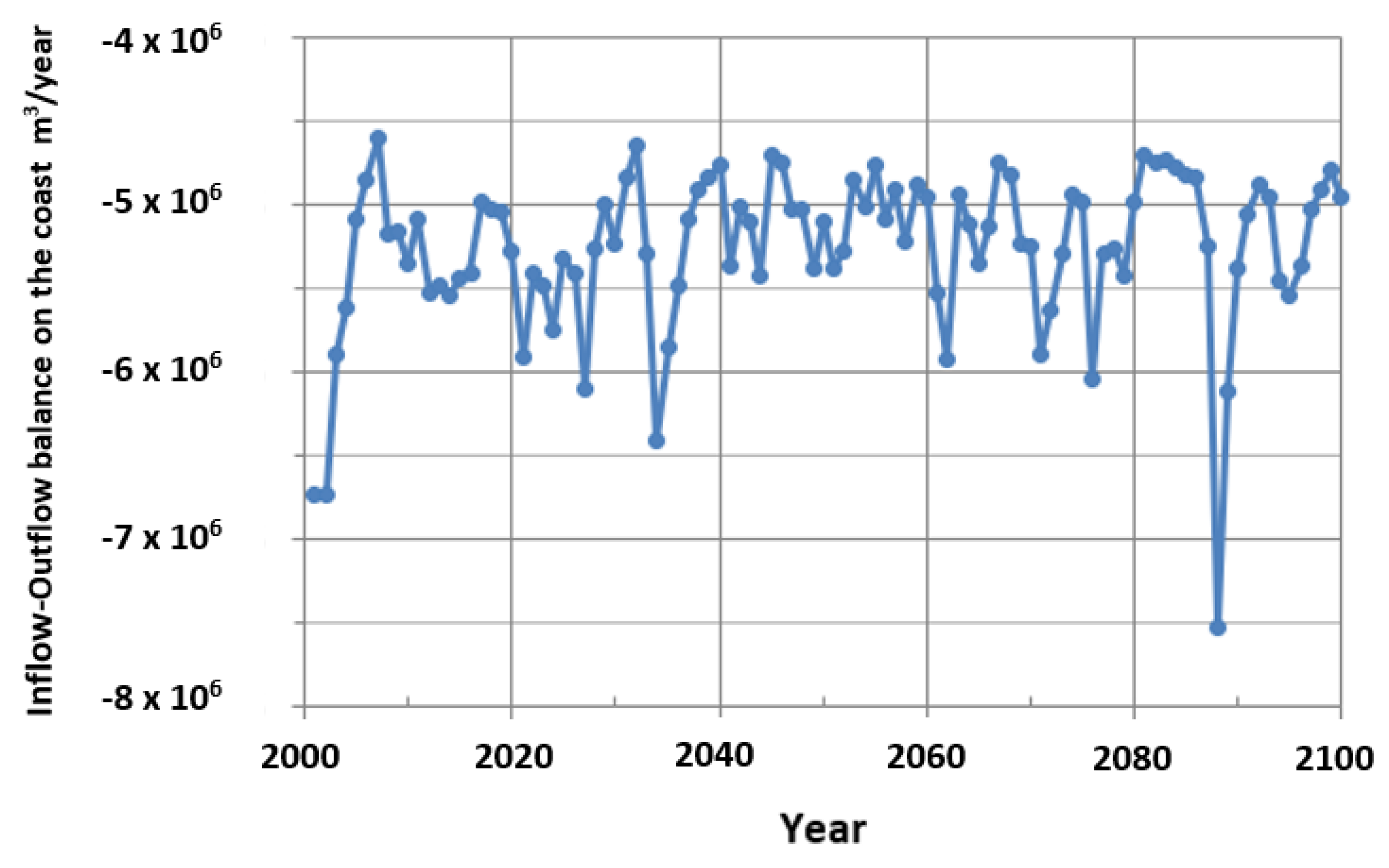

The variation of the aquifer reserves and the balance inputs/outputs on the coastline are shown in Figure 15 and Figure 16 (RCP 2.6), B4 and B5 (RCP 4.5), and C4 and C5 (RCP 8.5). Under all three scenarios, the reserves fluctuate around zero value, showing that the aquifer is not in permanent destocking situation. Reserves are stored during exceptional recharge episodes but run out quickly. Figure 16 shows that the inputs/outputs that occur on the coast, which are caused (in part) by the difference in density between freshwater and saltwater, play an important role in the variation of the aquifer reserves. The same remark can be drawn from Figure A7 (RCP 4.5) and C5 (RCP 8.5). The situation of the seawater intrusion in 2100, in the area near Ambabbo, is reproduced in Figure 17 (RCP 2.6), B6 (RCP 4.5), C6 (RCP 8.5). Comparing these Figures with Figure 11, clearly shows that the seawater intrusion worsened during the period 2001–2100. In all three scenarios, the penetration of the deep salted wedge marks an advance inland of more than 300 m. The groundwater piezometry in 2100 and the concentration at the surface (Layer 1) are reproduced in Figure 18 (RCP 2.6), B7 (RCP 4.5), and C7 (RCP 8.5). The piezometric depressions due to pumping are well evidenced. The seawater intrusion at the surface also appears clearly under the three scenarios.
The results of the three scenarios lead to the same conclusions. Recall that the average annual rainfall simulated by these three scenarios is quite comparable. The difference between the three scenarios is due to the appearance of exceptional rainfall events whose number and years of occurrence are not the same for the three scenarios. These results show that climate change will have negative impacts on this aquifer and that seawater intrusion poses a real threat to the sustainability of these resources. In this work, we mainly considered the impact of climate change on precipitation and thus on the recharge of the aquifer system. It should be noted that at this stage some uncertainties are involved in the calculation of global warming within climate scenarios. The rise in sea level due to climate change should also be taken into account.
In some parts of the world, predictions of sea level rise can be quite large. In the United States, on the California coast, the sea-level rise forecasts, depending on the scenarios, can reach 1.5 m/century compared to 1990 [53,54]. On the Djiboutian coast, simulations of climate scenarios predict a sea level rise of 8 cm to 39 cm [55], much less important than in other regions of the globe. The uncertainty associated with these forecasts also remains important. In addition, the impact of sea level rise occurs away from the coastline, where the water table is more affected by pumping and recharge rates than the increase or decrease in the sea level [56]. Given these considerations and in order not to exaggerate the uncertainty associated with modeling results, sea level rise has not been considered in the modeling work.

4. Summary and Conclusions

The objective of this work was to analyze the response of the Tadjourah coastal aquifer (Republic of Djibouti) to climate change over the period 2001–2100 and to predict its potential to meet water demands. This aquifer is used for drinking water supply in the city of Tadjourah. Given the future development of the urban population and the economic activities of this region, water needs will increase drastically. To study the impact of climate change on the functioning of this coastal aquifer, three scenarios of the IPCC have been implemented: RCP 2.6, RCP 4.5 and RCP 8.5. The scenario RCP 2.6 simulates, during 2001–2100, a rainfall series with a downward trend, comparable to what one observes currently. Scenarios RCP 4.5 and 8.5 simulate rainfall with a slight upward trend. The three scenarios simulate exceptional rainfall events. These exceptional events are more numerous in scenarios RCP 4.5 and RCP 8.5, causing this paradoxical upward trend. The precipitations simulated by these scenarios were used to estimate the recharge of the aquifer and simulate its functioning over the period 2001–2100, using a 3D numerical model integrating the freshwater–saltwater interface. The aquifer is exploited using two wells, Pk6 and Pk9. At equilibrium, the model reproduces well the observed piezometry of the aquifer in steady state and without exploitation. Running the model under the three scenarios resulted in the same conclusions. The simulations showed that seawater intrusion does not stabilize but continues to advance. There is no stabilization of the concentrations in the aquifer. In 2100, the exploitation of well Pk9 is still spared by the seawater intrusion. On the other hand, Pk6 well is affected by salt contamination. All these results show that the aquifer is in a critical situation. No increase in the exploitation of the groundwater can be envisaged. Maintaining current exploitation by both Pk6 and Pk9 wells requires a thorough monitoring of the seawater intrusion advance. For this purpose, the situation of Pk6 well is more serious than that of Pk9 well.
The results of this study demonstrate that understanding the impacts of climate changes on groundwater resources, and specifically in coastal aquifers, is crucial for water resources management. Although these results are not entirely certain, given the uncertainties associated with climate scenarios, such an approach, associating climate scenarios and numerical modeling of aquifers, proves useful for understanding the future reactions of hydrogeological systems and to envisage measurements of adaptation and protection of the water resources. For the coastal aquifer of Tadjourah, the study shows that the risk of contamination of this system by seawater intrusion is high. It is expected that end-users will positively consider this study to preserve the long-term exploitation of this aquifer as part of the sustainable management of its water resources.

Author Contributions

Conceptualization, M.R., M.J. and A.H.-G.; methodology, M.R., M.J. and A.H.-G.; software, M.R.; validation, M.R.; formal analysis, M.R.; investigation, M.R., M.J. and A.H.-G.; resources, M.R., M.J. and A.H.-G.; data curation, M.R., M.J., A.H.-G.; writing—review and editing, M.R.; visualization, M.R.; supervision, M.R.; project administration, M.R., M.J. and A.H.-G.; funding acquisition, M.R., M.J. and A.H.-G.

Funding

This research was funded by the Ministère de l’Habitat, de l’Urbanisme et de l’Environnement of the Republic of Djibouti.

Acknowledgments

The authors would like to thank the IGAD-CPAC (Inter-Governmental Authority on Development-Climate Prediction and Application Center) in Nairobi, for their collaboration in climate scenarios simulations. The author also acknowledges the comments by 3 anonymous reviewers which helped to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A. Calibration of the Model

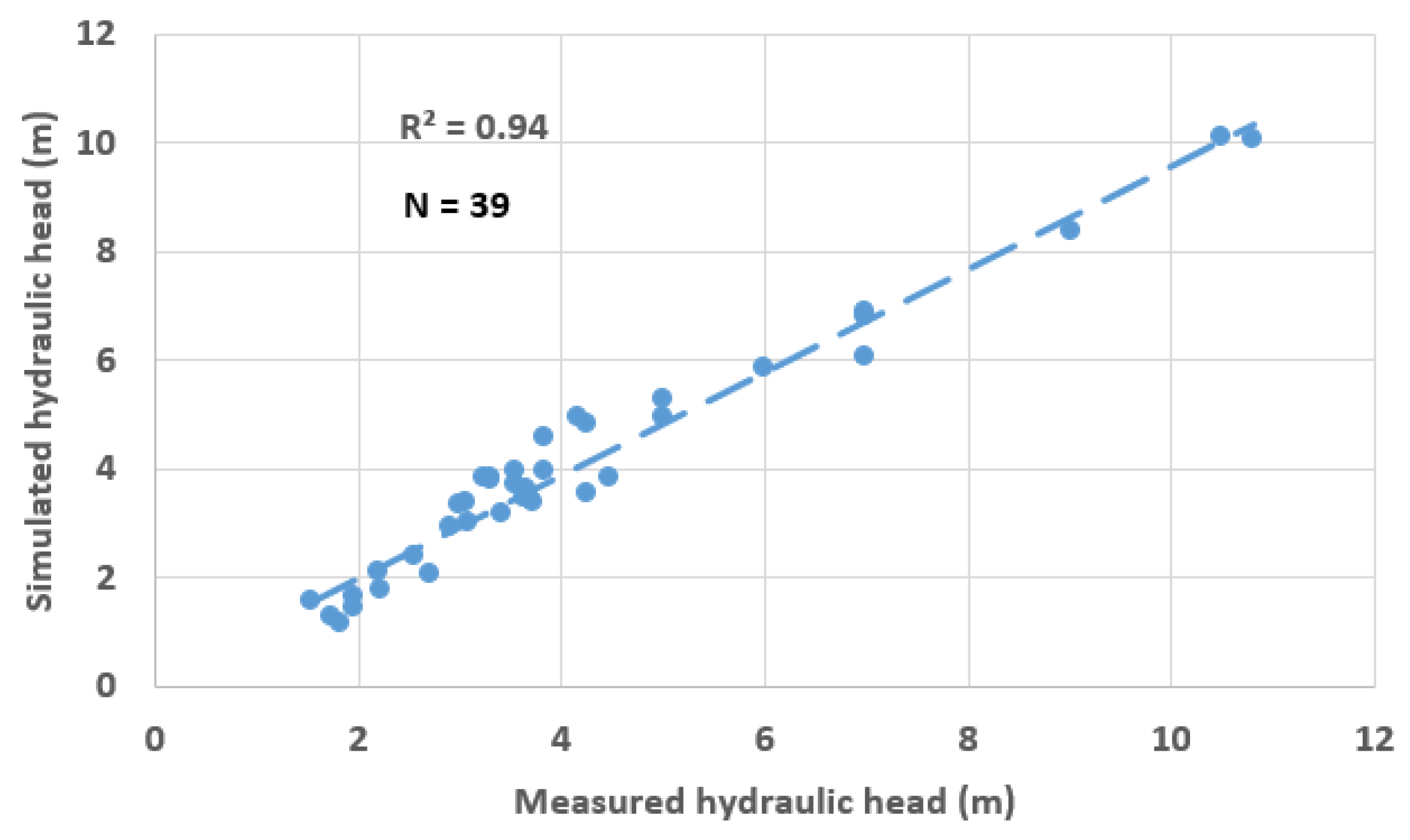

Figure A1. Simulated hydraulic head vs. Measured hydraulic head.
Figure A1. Simulated hydraulic head vs. Measured hydraulic head.
Water 11 02347 g0a1
Table A1. Model calibration statistics.
Table A1. Model calibration statistics.
Determination CoefficientMean Error (m)Mean Absolute Error (m)Root Mean Square Error (m)
0.940.160.450.54
Figure A2. Distribution of the errors.
Figure A2. Distribution of the errors.
Water 11 02347 g0a2

Appendix B. Simulation of Climate Change Impact up to 2100 under RCP Scenario 4.5

Figure A3. Concentrations variation at monitoring piezometers P1 and P6 (100 m from the coast) under RCP scenario 4.5. L1: layer 1; L9: layer 9; L18: layer 18.
Figure A3. Concentrations variation at monitoring piezometers P1 and P6 (100 m from the coast) under RCP scenario 4.5. L1: layer 1; L9: layer 9; L18: layer 18.
Water 11 02347 g0a3

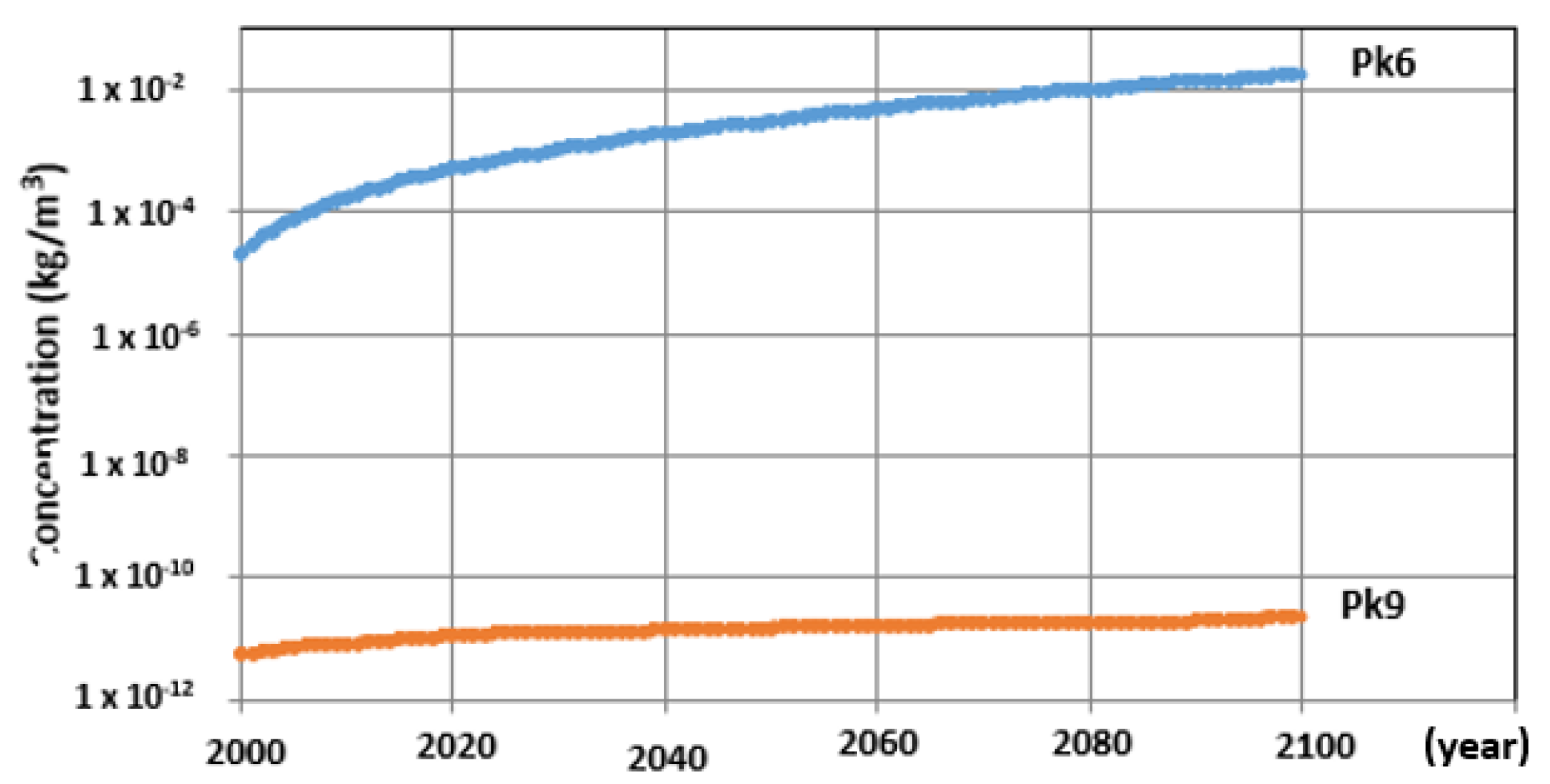

Figure A4. Concentrations variation at wells Pk6 and Pk9 under RCP scenario 4.5.
Figure A4. Concentrations variation at wells Pk6 and Pk9 under RCP scenario 4.5.
Water 11 02347 g0a4

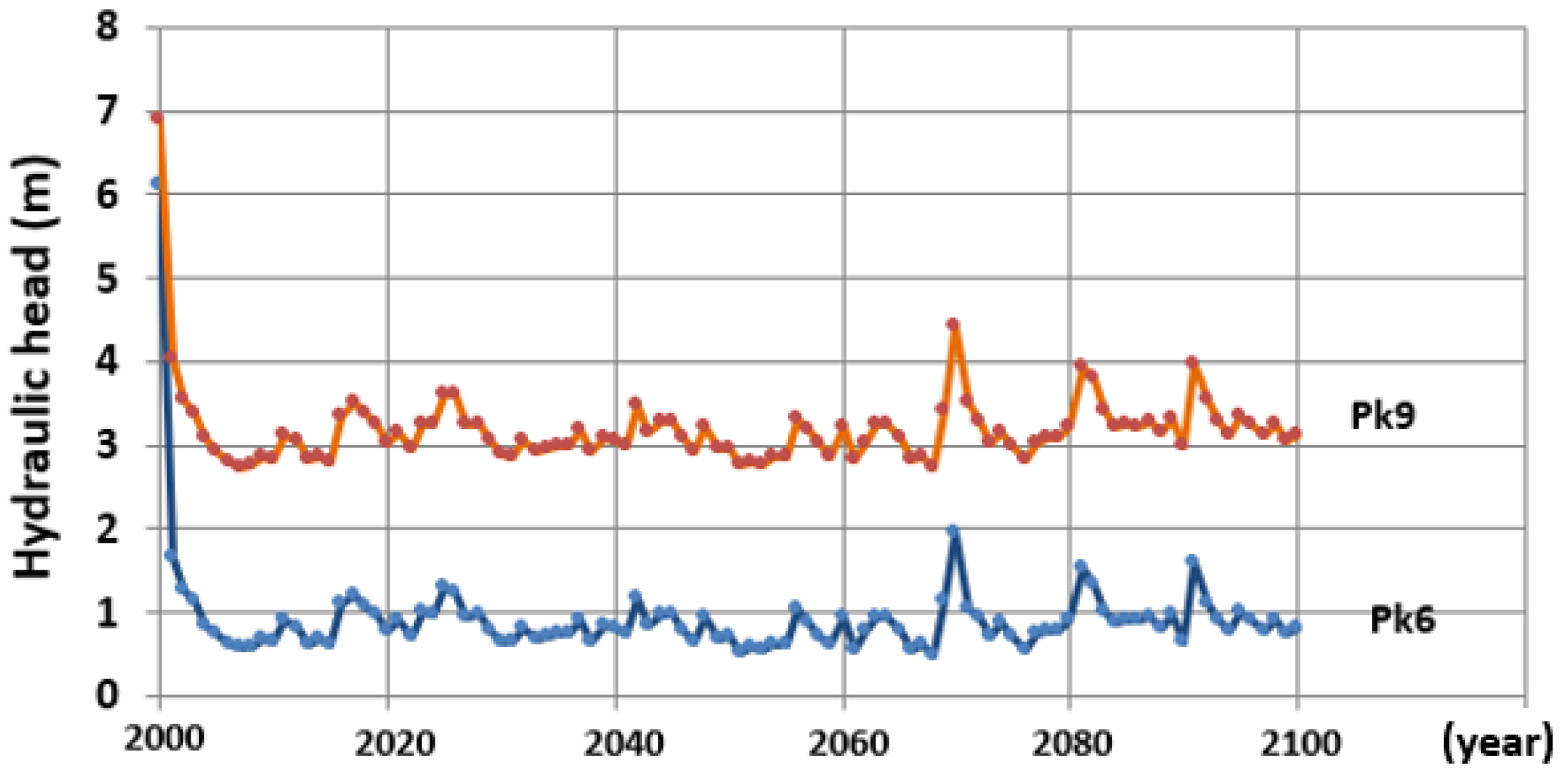

Figure A5. Piezometric variations at wells Pk9 and Pk6 from 2001 to 2100 under scenario RCP 4.5.
Figure A5. Piezometric variations at wells Pk9 and Pk6 from 2001 to 2100 under scenario RCP 4.5.
Water 11 02347 g0a5

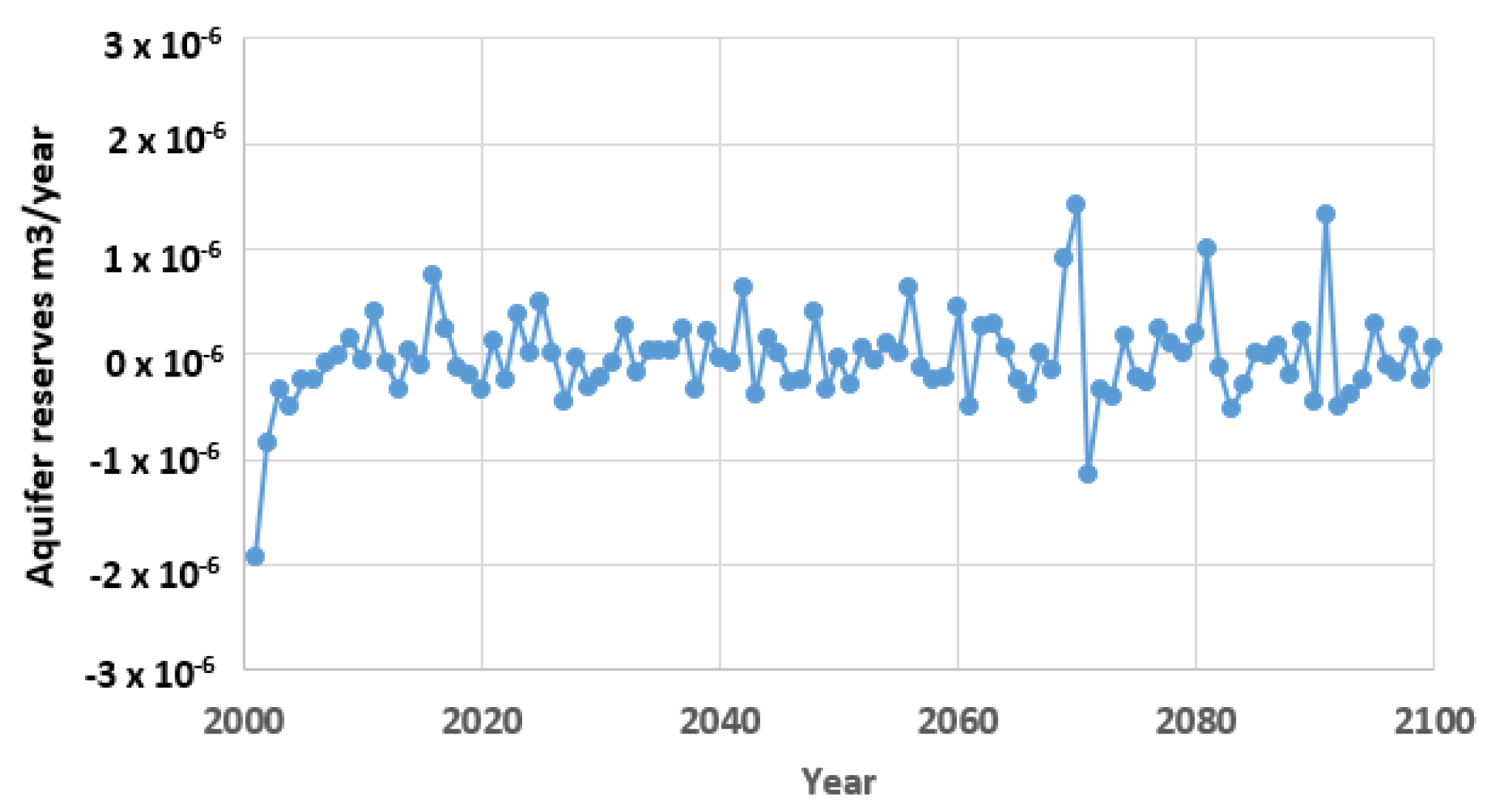

Figure A6. Changes in aquifer reserves from 2001 to 2100 under scenario RCP 4.5.
Figure A6. Changes in aquifer reserves from 2001 to 2100 under scenario RCP 4.5.
Water 11 02347 g0a6

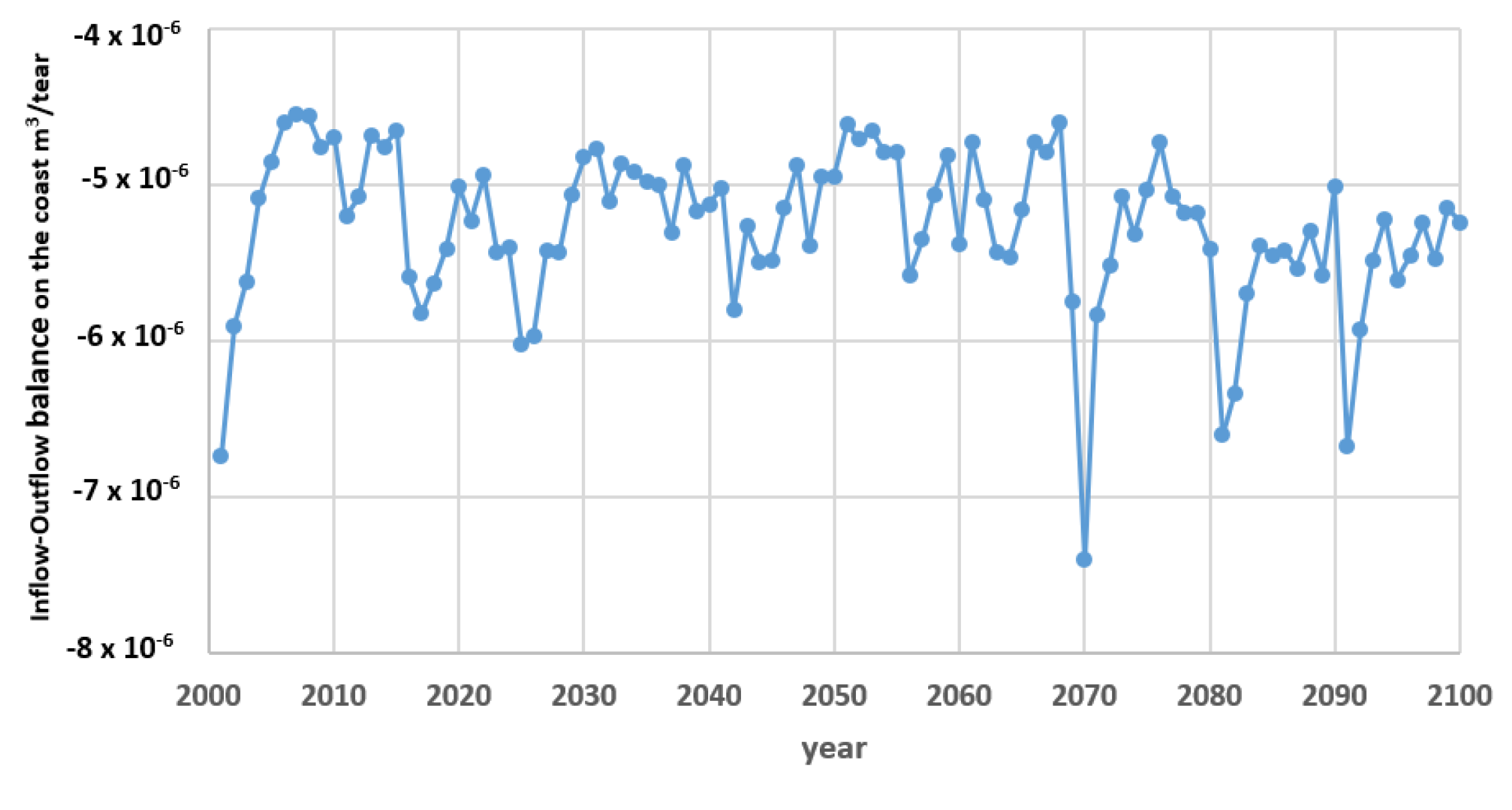

Figure A7. Inputs/Outputs balance on the coast from 2001 to 2100 under scenario RCP 4.5.
Figure A7. Inputs/Outputs balance on the coast from 2001 to 2100 under scenario RCP 4.5.
Water 11 02347 g0a7

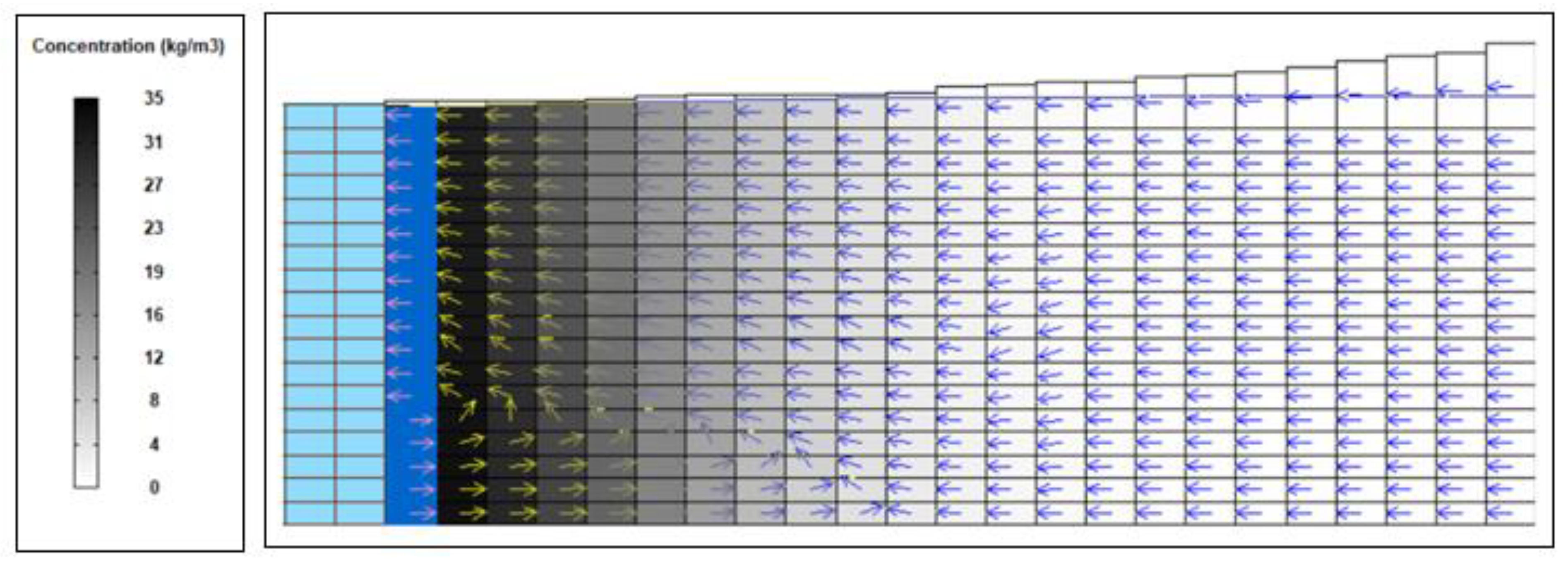

Figure A8. Location of the seawater intrusion in the area of Ambabbo locality in 2100 under scenario RCP 4.5. NS vertical section. Concentration in kg/m3.
Figure A8. Location of the seawater intrusion in the area of Ambabbo locality in 2100 under scenario RCP 4.5. NS vertical section. Concentration in kg/m3.
Water 11 02347 g0a8

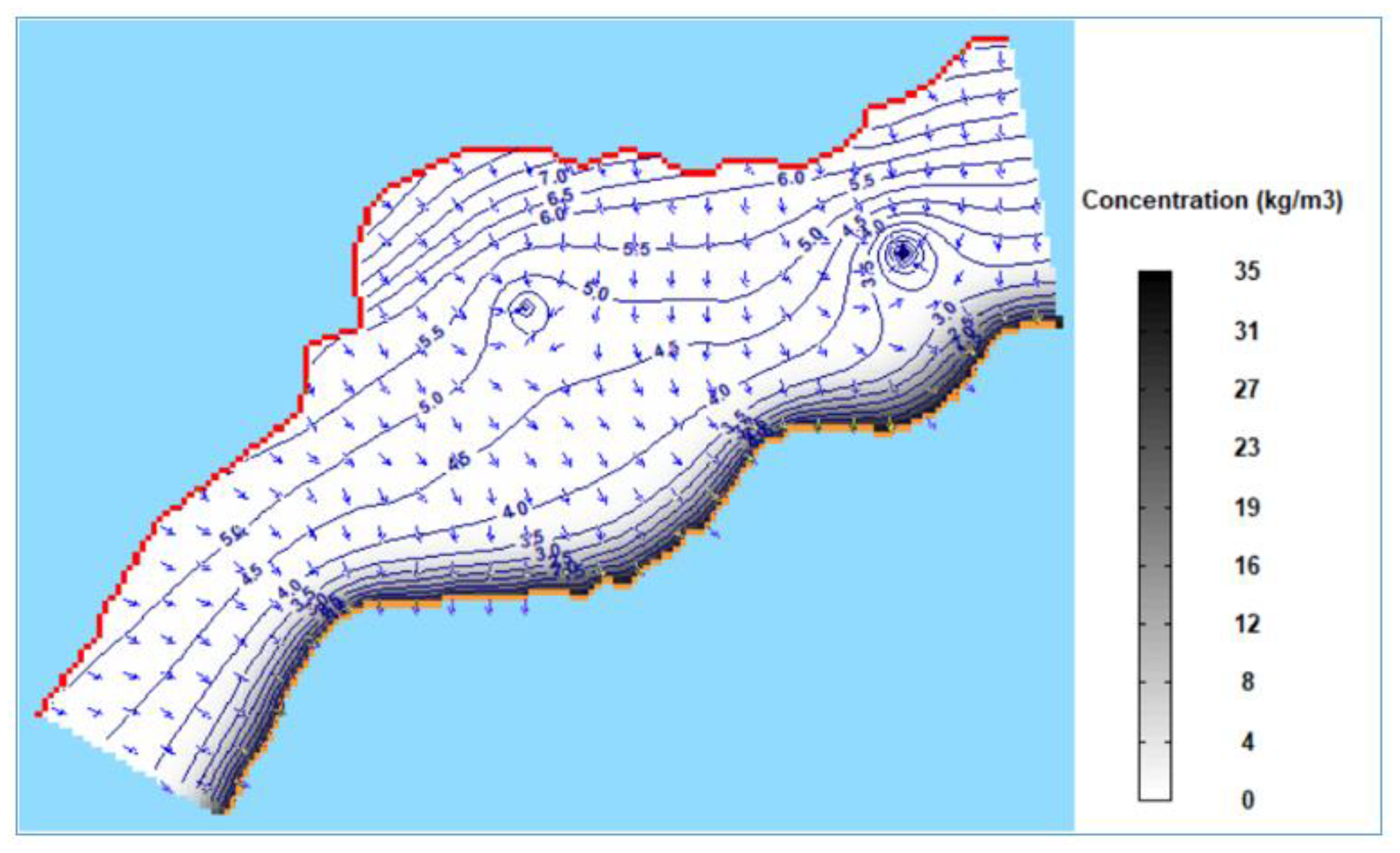

Figure A9. Groundwater piezometry in 2100 and concentration at the surface in layer 1 under the RCP 4.5 scenario.
Figure A9. Groundwater piezometry in 2100 and concentration at the surface in layer 1 under the RCP 4.5 scenario.
Water 11 02347 g0a9

Appendix C. Simulation of Climate Change Impact up to 2100 under RCP Scenario 8.5

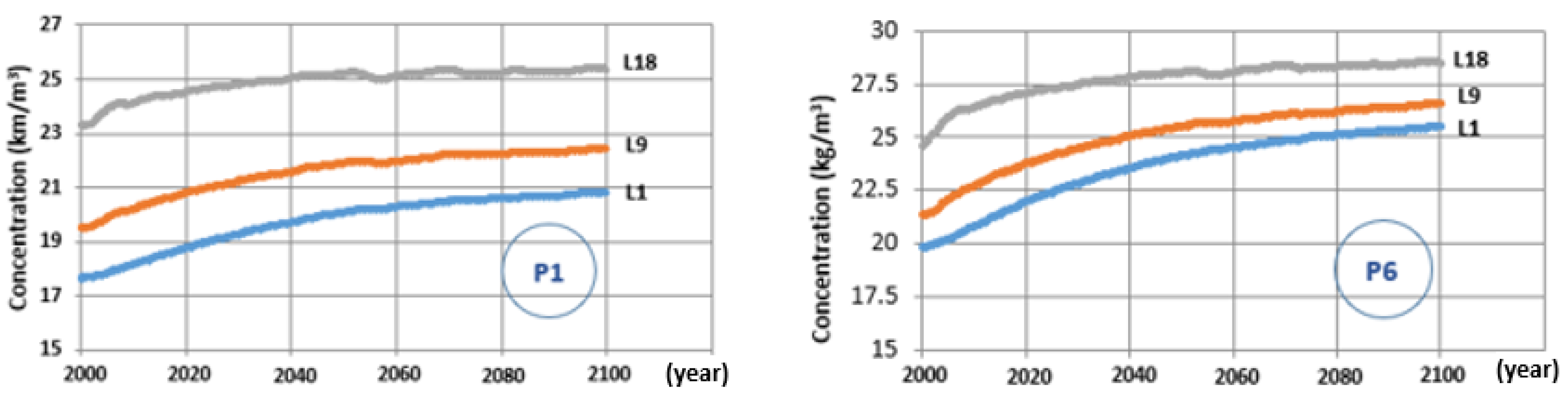

Figure A10. Concentrations variation at monitoring piezometers P1 and P6 (100 m from the coast) under RCP scenario 8.5. L1: layer 1; L9: layer 9; L18: layer 18.
Figure A10. Concentrations variation at monitoring piezometers P1 and P6 (100 m from the coast) under RCP scenario 8.5. L1: layer 1; L9: layer 9; L18: layer 18.
Water 11 02347 g0a10
Figure A11. Concentrations variation at wells Pk6 and Pk9 under RCP scenario 8.5.
Figure A11. Concentrations variation at wells Pk6 and Pk9 under RCP scenario 8.5.
Water 11 02347 g0a11

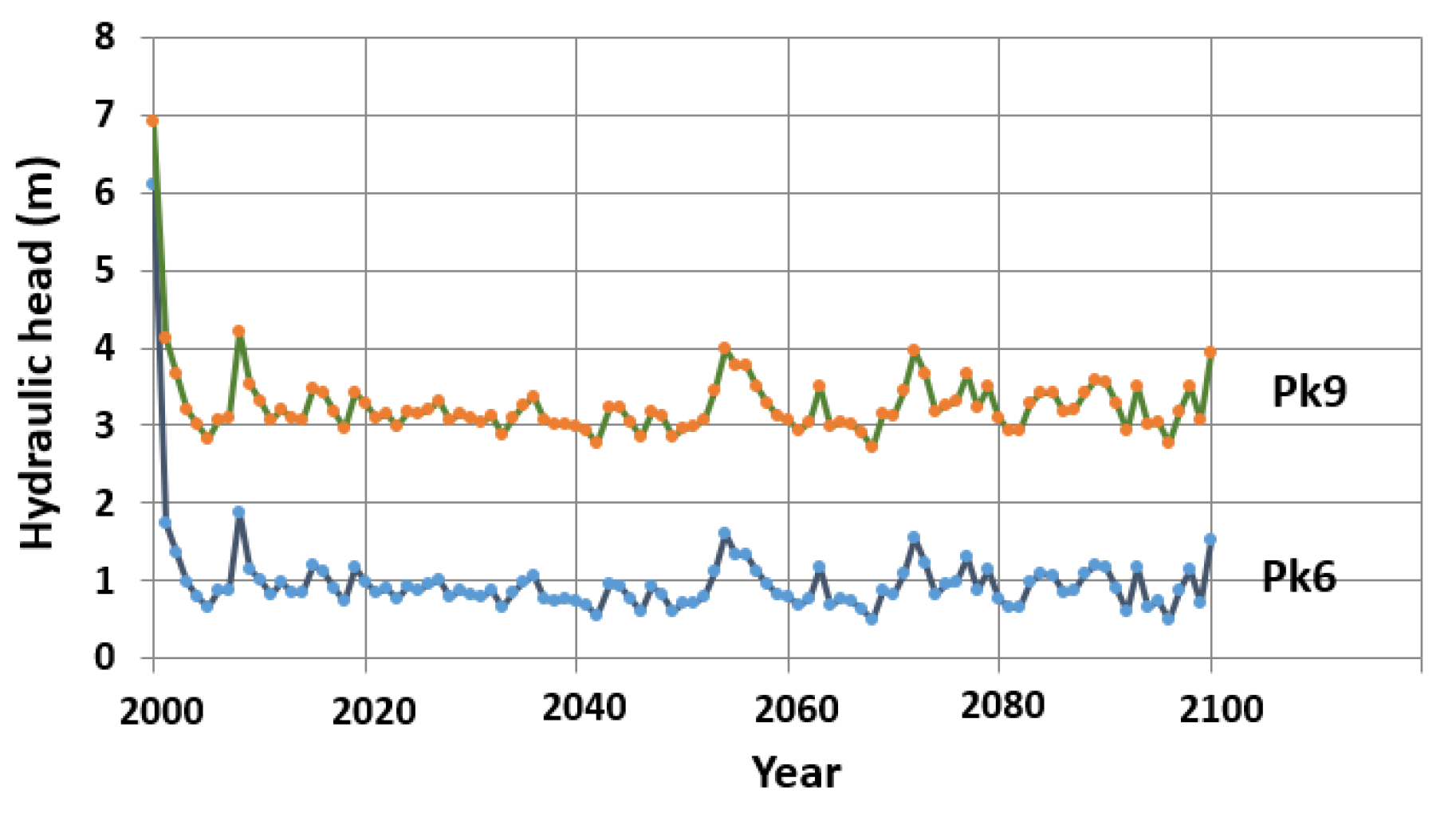

Figure A12. Piezometric variations at wells Pk9 and Pk6 from 2001 to 2100 under scenario RCP 8.5.
Figure A12. Piezometric variations at wells Pk9 and Pk6 from 2001 to 2100 under scenario RCP 8.5.
Water 11 02347 g0a12

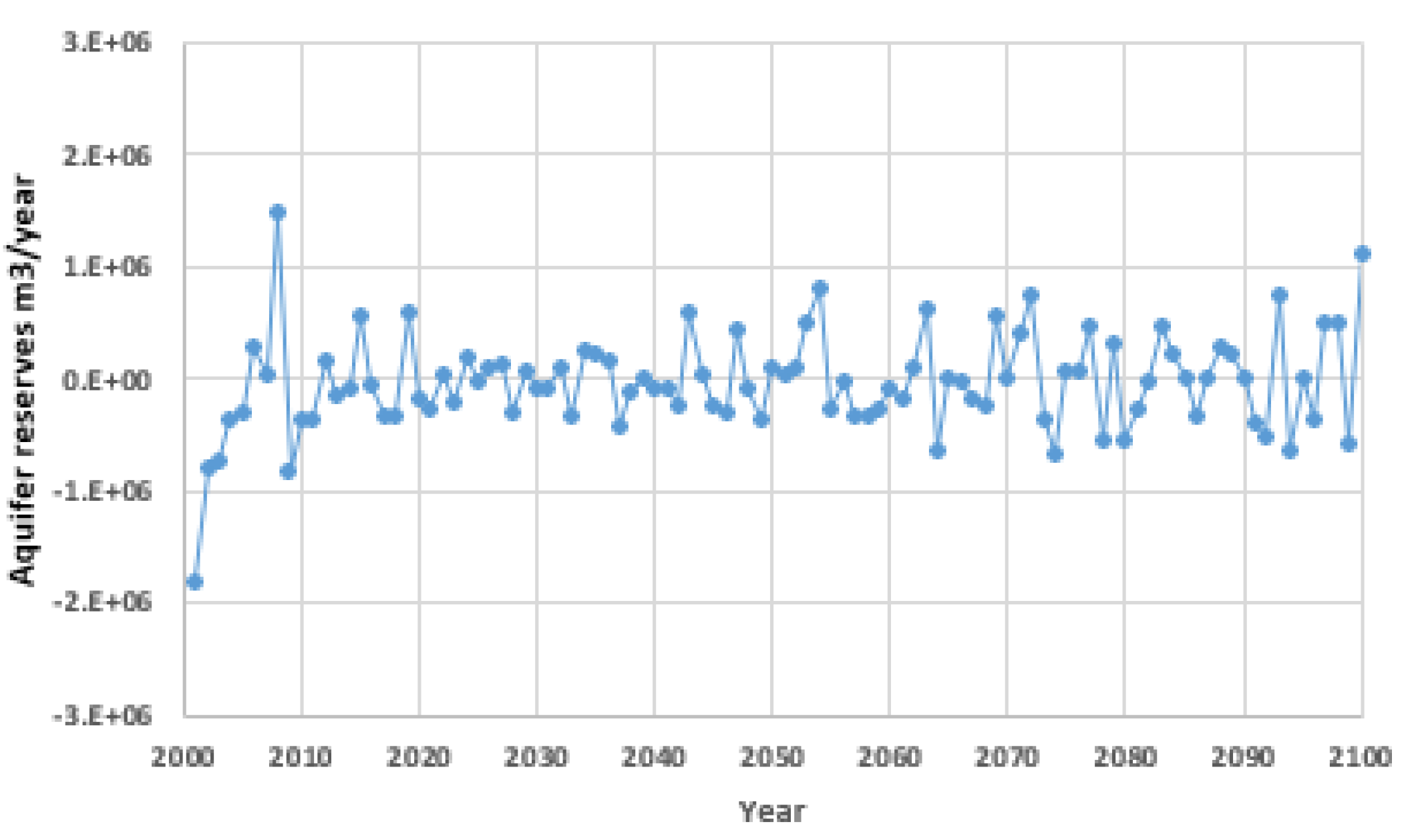

Figure A13. Changes in aquifer reserves from 2001 to 2100 under scenario RCP 8.5.
Figure A13. Changes in aquifer reserves from 2001 to 2100 under scenario RCP 8.5.
Water 11 02347 g0a13

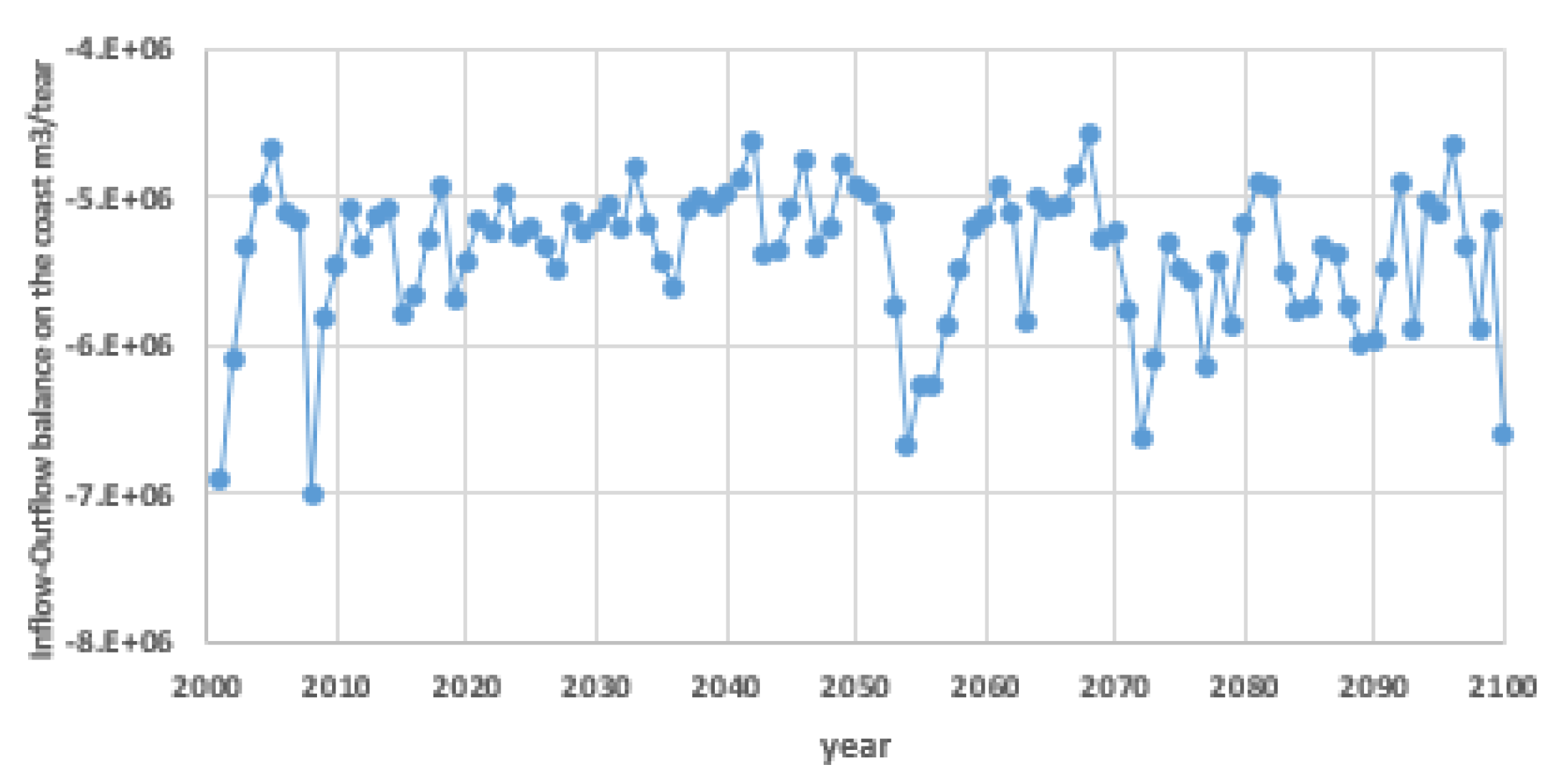

Figure A14. Inputs/Outputs balance on the coast from 2001 to 2100 under scenario RCP 8.5.
Figure A14. Inputs/Outputs balance on the coast from 2001 to 2100 under scenario RCP 8.5.
Water 11 02347 g0a14

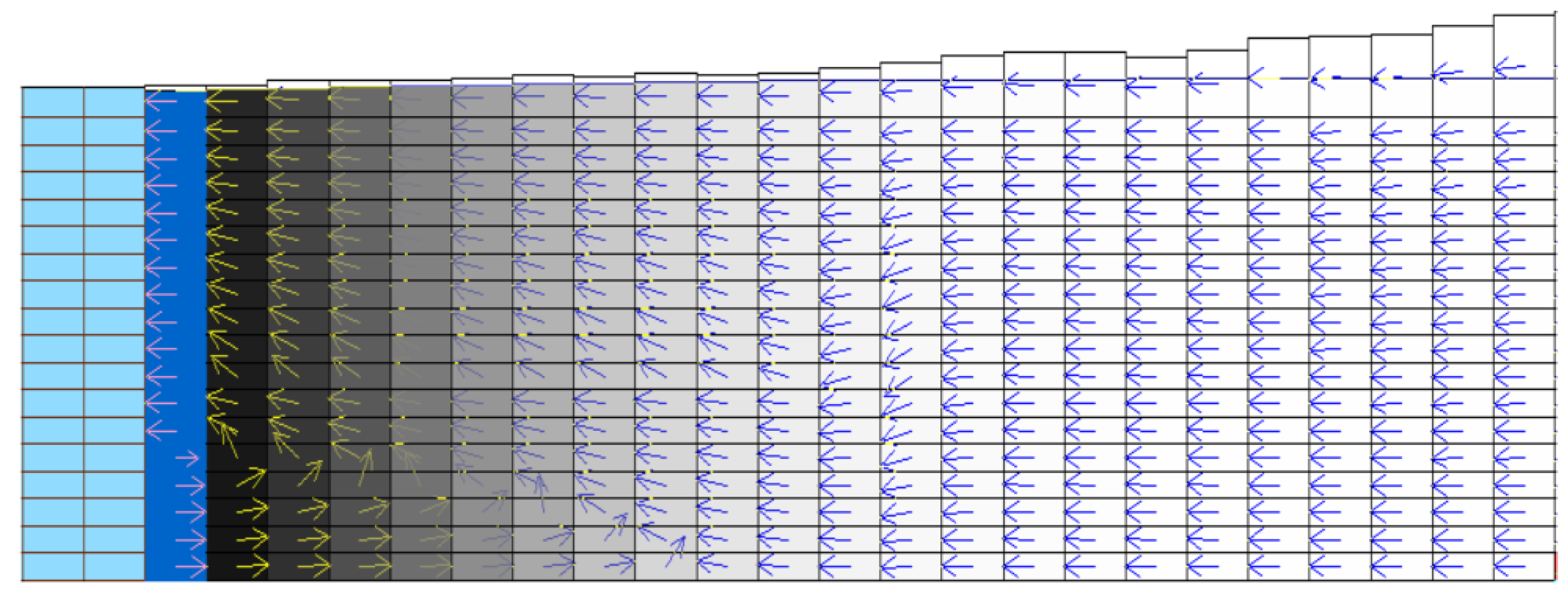

Figure A15. Location of the seawater intrusion in the area of Ambabbo locality in 2100 under scenario RCP 8.5. NS vertical section. Concentration in kg/m3 (Concentration scale in Figure 7).
Figure A15. Location of the seawater intrusion in the area of Ambabbo locality in 2100 under scenario RCP 8.5. NS vertical section. Concentration in kg/m3 (Concentration scale in Figure 7).
Water 11 02347 g0a15

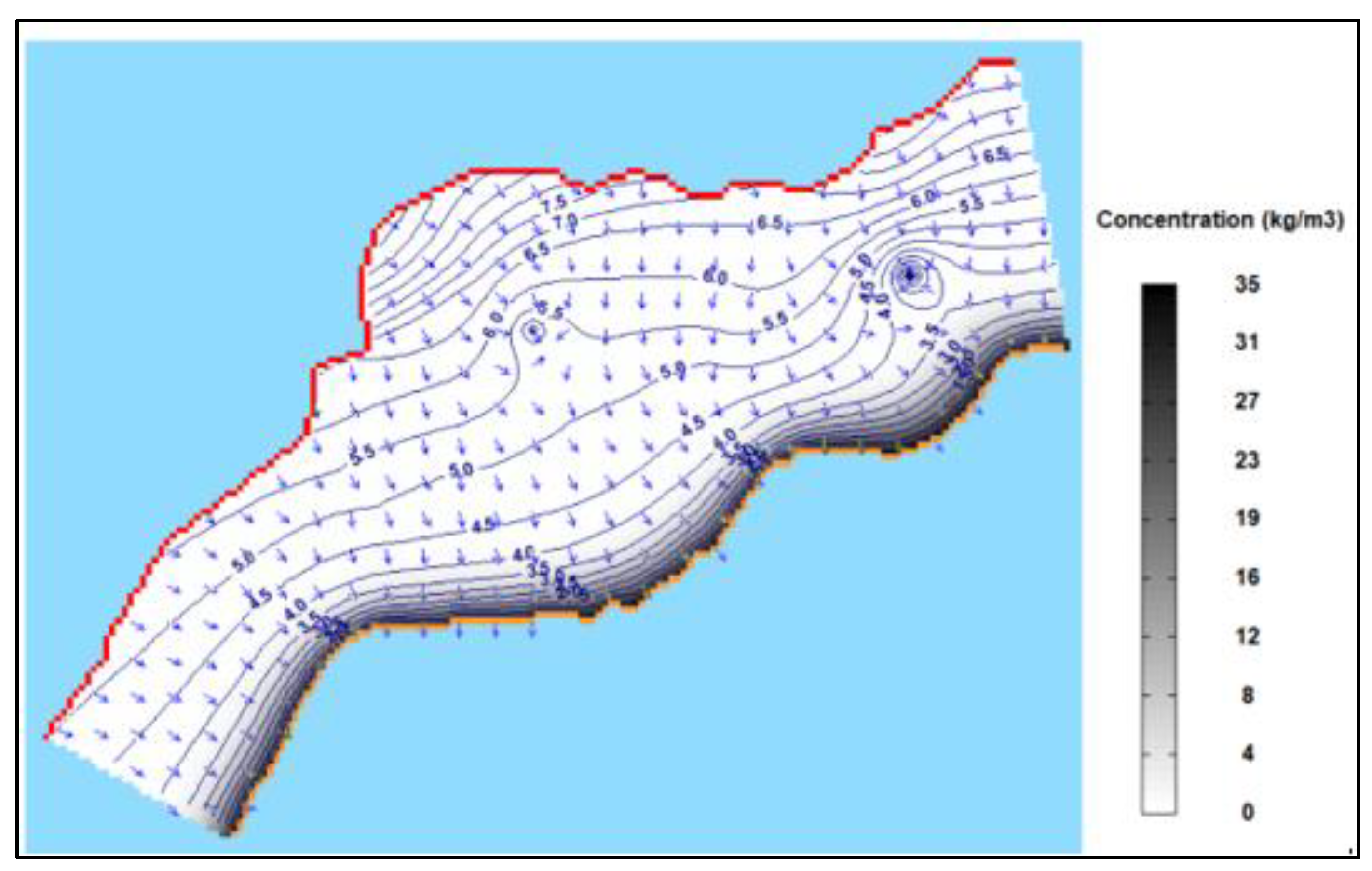

Figure A16. Groundwater piezometry in 2100 and concentration at the surface in layer 1 under the RCP 8.5 scenario.
Figure A16. Groundwater piezometry in 2100 and concentration at the surface in layer 1 under the RCP 8.5 scenario.
Water 11 02347 g0a16
