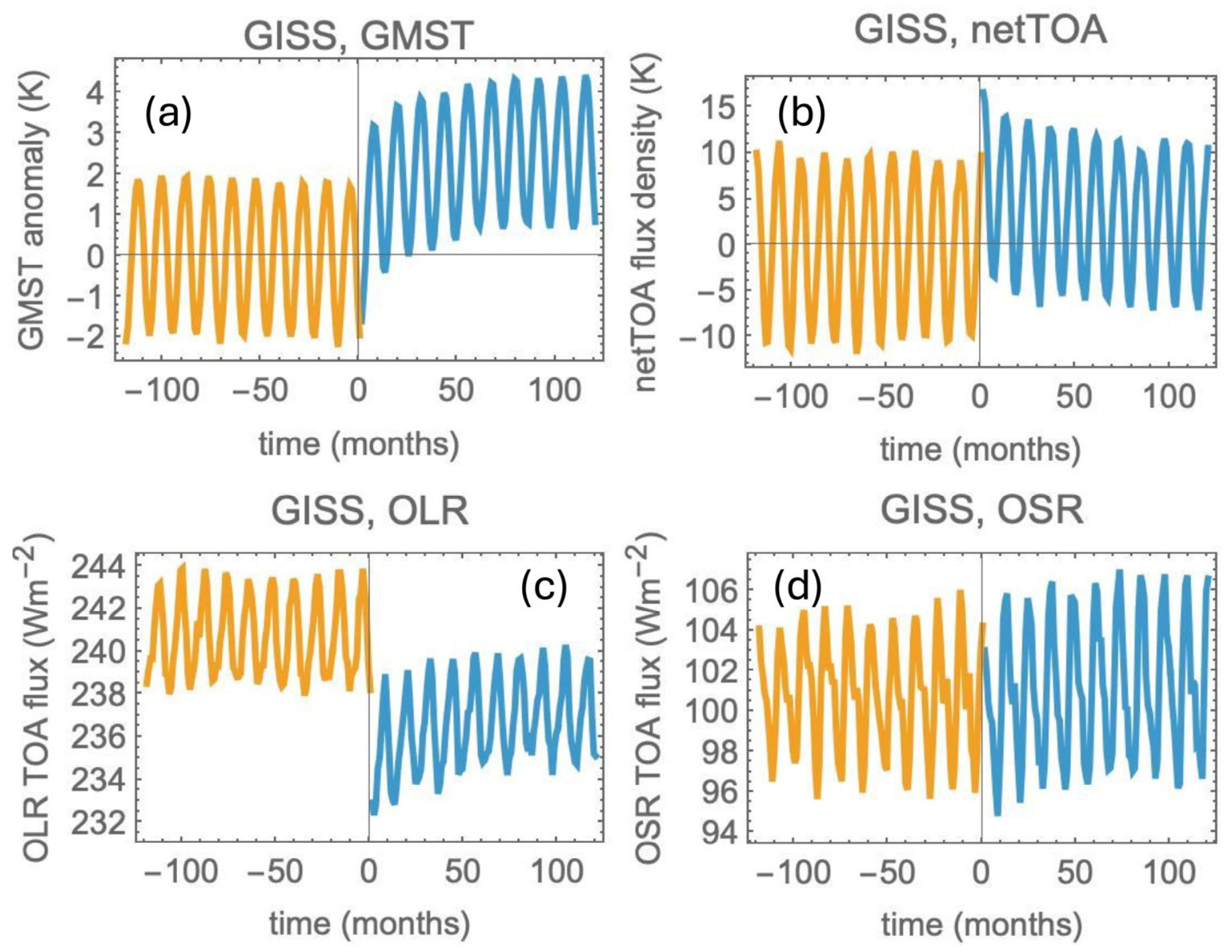

Figure 1.
Monthly global mean surface temperature and radiation fluxes for the GISS-E2-R model 10 years prior to, and 10 years after, a quadrupling of atmospheric CO2 concentration at . The curves for are retrieved from the pi-control run and, for , from the forced simulations. Panel (a) shows the global mean surface temperature (GMST) anomaly, i.e., the difference between the actual temperature and the time average over the control run. Panel (b) shows net top-of-the atmosphere flux density (netTOA), panel (c) the outgoing longwave radiation flux density (OLR), and panel (d) the outgoing shortwave radiation flux density (OSR).
Figure 1.
Monthly global mean surface temperature and radiation fluxes for the GISS-E2-R model 10 years prior to, and 10 years after, a quadrupling of atmospheric CO2 concentration at . The curves for are retrieved from the pi-control run and, for , from the forced simulations. Panel (a) shows the global mean surface temperature (GMST) anomaly, i.e., the difference between the actual temperature and the time average over the control run. Panel (b) shows net top-of-the atmosphere flux density (netTOA), panel (c) the outgoing longwave radiation flux density (OLR), and panel (d) the outgoing shortwave radiation flux density (OSR).

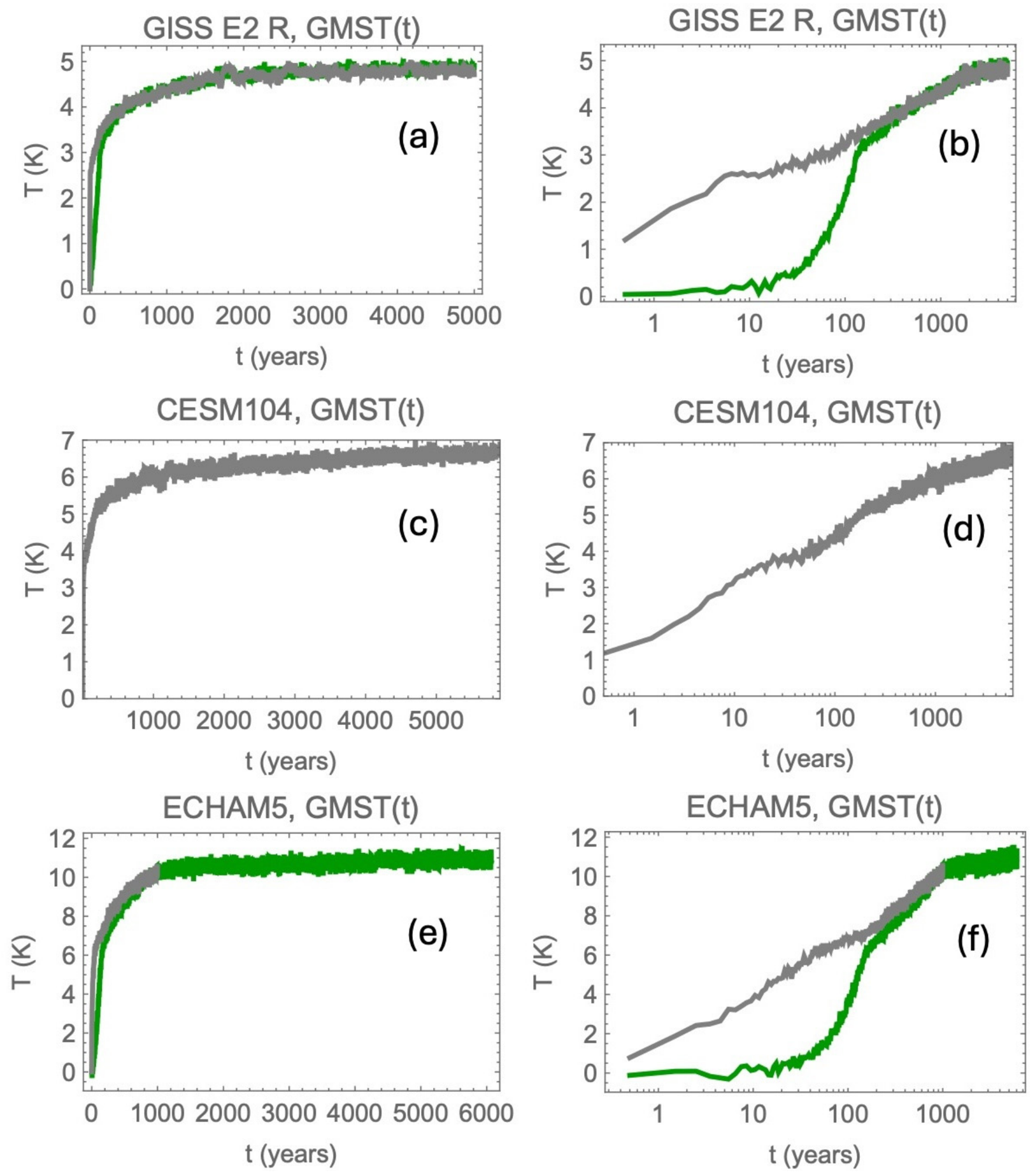

Figure 2.
Panel (a) shows the GMST anomaly evolution for the GISS model after onset of abrupt 4xCO2 (grey) and 1 percent increase to 4xCO2 (green). Panel (b) shows the same in a plot with logarithmic time scale. Panels (c,d) show the same for abrupt 4xCO2 for the CESM model, and panels (e,f) for the ECHAM model. The CESM model does not have 1 percent run, and the ECHAM abrupt CO2 run is only 1000 years long.
Figure 2.
Panel (a) shows the GMST anomaly evolution for the GISS model after onset of abrupt 4xCO2 (grey) and 1 percent increase to 4xCO2 (green). Panel (b) shows the same in a plot with logarithmic time scale. Panels (c,d) show the same for abrupt 4xCO2 for the CESM model, and panels (e,f) for the ECHAM model. The CESM model does not have 1 percent run, and the ECHAM abrupt CO2 run is only 1000 years long.

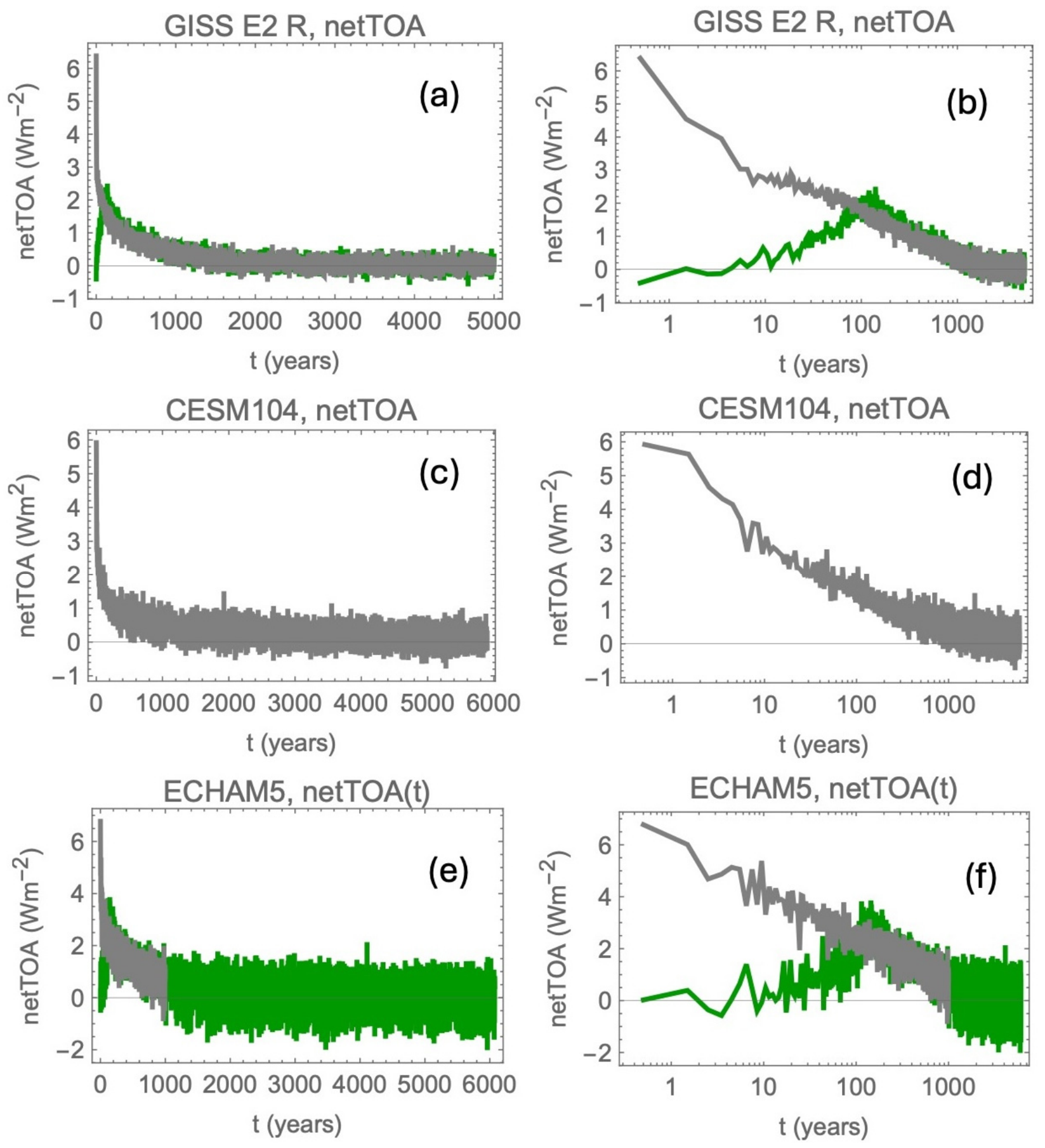

Figure 3.
Panel (a) shows the netTOA anomaly evolution for the GISS model after onset of abrupt 4xCO2 (gray) and 1 percent increase to 4xCO2 (green). Panel (b) shows the same in a plot with logarithmic time scale. Panels (c,d) show the same for abrupt 4xCO2 for the CESM model, and panels (e,f) for the ECHAM model.
Figure 3.
Panel (a) shows the netTOA anomaly evolution for the GISS model after onset of abrupt 4xCO2 (gray) and 1 percent increase to 4xCO2 (green). Panel (b) shows the same in a plot with logarithmic time scale. Panels (c,d) show the same for abrupt 4xCO2 for the CESM model, and panels (e,f) for the ECHAM model.

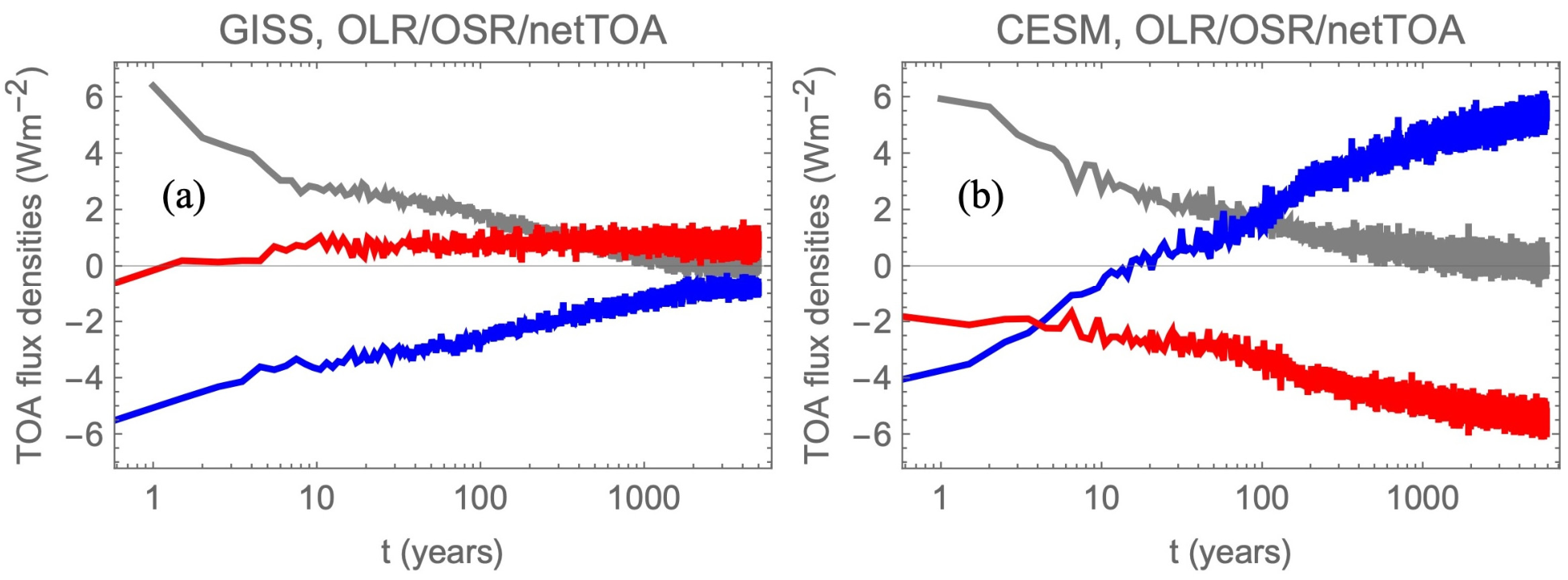

Figure 4.
Blue: outgoing long-wave radiation flux density anomaly (OLR). Red: outgoing short-wave radiation (OSR). Grey: net top-of-the atmosphere incoming flux density (netTOA). Panel (a) is for GISS, panel (b) is for CESM. Note that netTOA+OLR+OSR = 0.
Figure 4.
Blue: outgoing long-wave radiation flux density anomaly (OLR). Red: outgoing short-wave radiation (OSR). Grey: net top-of-the atmosphere incoming flux density (netTOA). Panel (a) is for GISS, panel (b) is for CESM. Note that netTOA+OLR+OSR = 0.

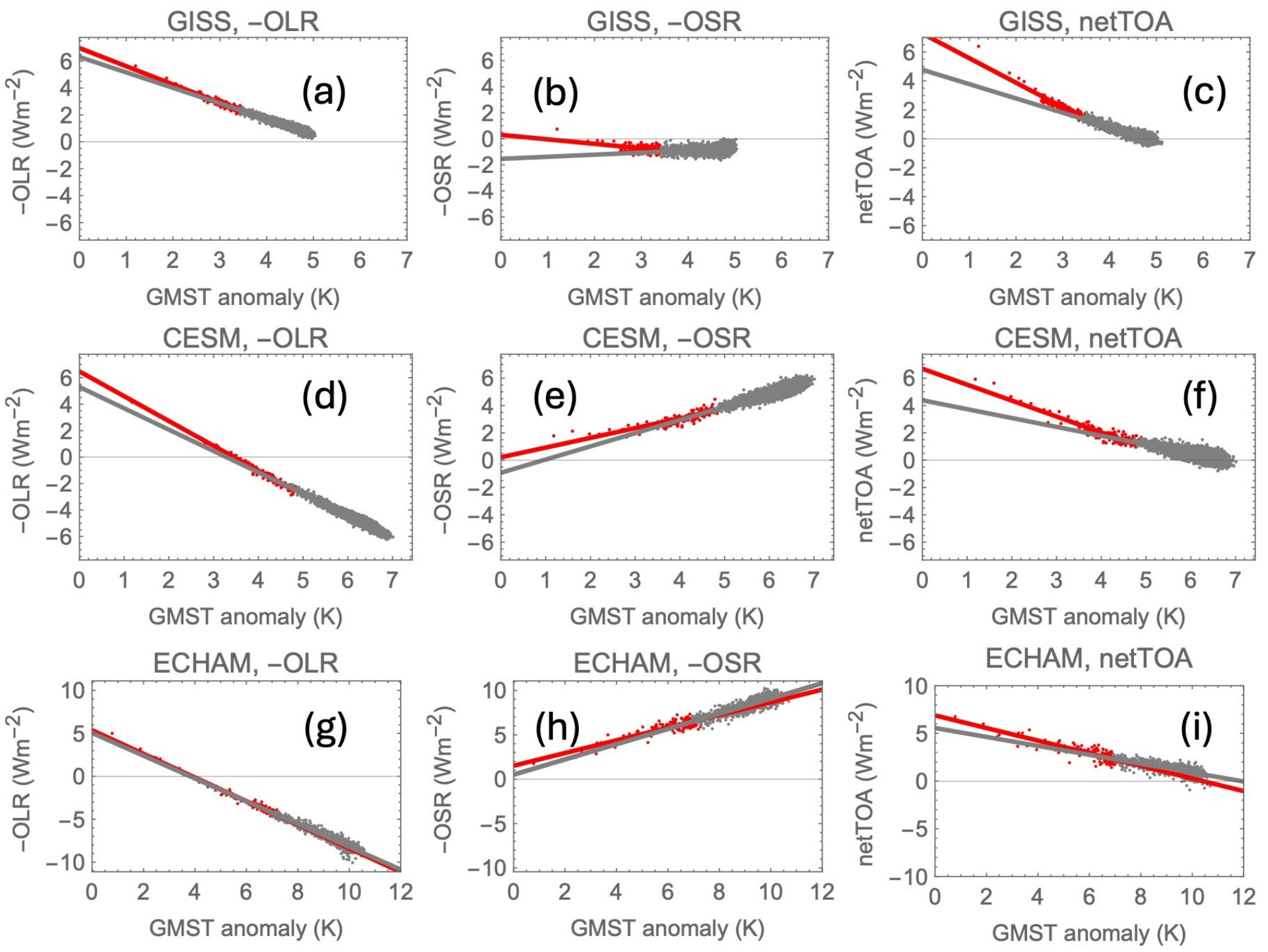

Figure 5.
The points are top-of-the atmosphere fluxes versus temperature in the GISS-E2-R, CESM104, and ECHAM5 models, respectively. The red points are for the years yr, and the grey for yr. The straight lines are the linear regression to these points sets. Panels (a,d,g) show the incoming longwave flux density anomalies (OLR), and panels (b,e,h) show the incoming short-wave flux density anomalies (OSR). The sum of these anomalies is the net top-of-the-atmosphere flux anomaly (), which is plotted in panels (c,f,i).
Figure 5.
The points are top-of-the atmosphere fluxes versus temperature in the GISS-E2-R, CESM104, and ECHAM5 models, respectively. The red points are for the years yr, and the grey for yr. The straight lines are the linear regression to these points sets. Panels (a,d,g) show the incoming longwave flux density anomalies (OLR), and panels (b,e,h) show the incoming short-wave flux density anomalies (OSR). The sum of these anomalies is the net top-of-the-atmosphere flux anomaly (), which is plotted in panels (c,f,i).

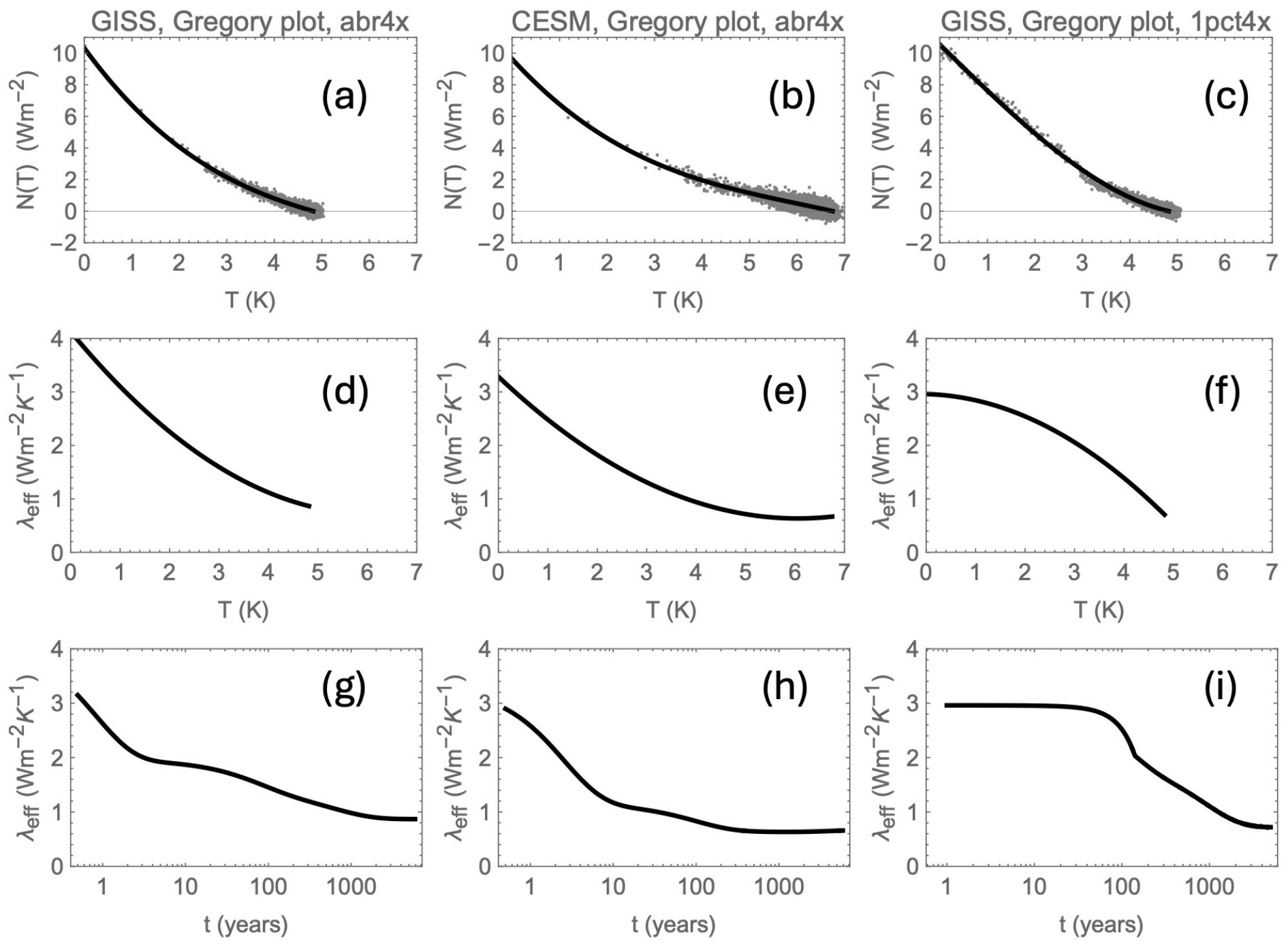

Figure 6.
The grey points in panel (
a,
b) are Gregory plots for abr4x runs in GISS-E2-R and CESM104, respectively, and the black curves are third-order polynomial least-square fits to those plots. Panel (
c) shows the generalized Gregory plot (see text) and third-order polynomial fit to the 1pct4x run in GISS-E2-R. Panels (
d–
f) show the effective feedback parameter
for the cases in (
a–
c), respectively. Panels (
g–
i) display the same feedback parameter as in (
d–
f) as function of time;
, if
is the three-box PE described in the upcoming
Section 3.2.
Figure 6.
The grey points in panel (
a,
b) are Gregory plots for abr4x runs in GISS-E2-R and CESM104, respectively, and the black curves are third-order polynomial least-square fits to those plots. Panel (
c) shows the generalized Gregory plot (see text) and third-order polynomial fit to the 1pct4x run in GISS-E2-R. Panels (
d–
f) show the effective feedback parameter
for the cases in (
a–
c), respectively. Panels (
g–
i) display the same feedback parameter as in (
d–
f) as function of time;
, if
is the three-box PE described in the upcoming
Section 3.2.

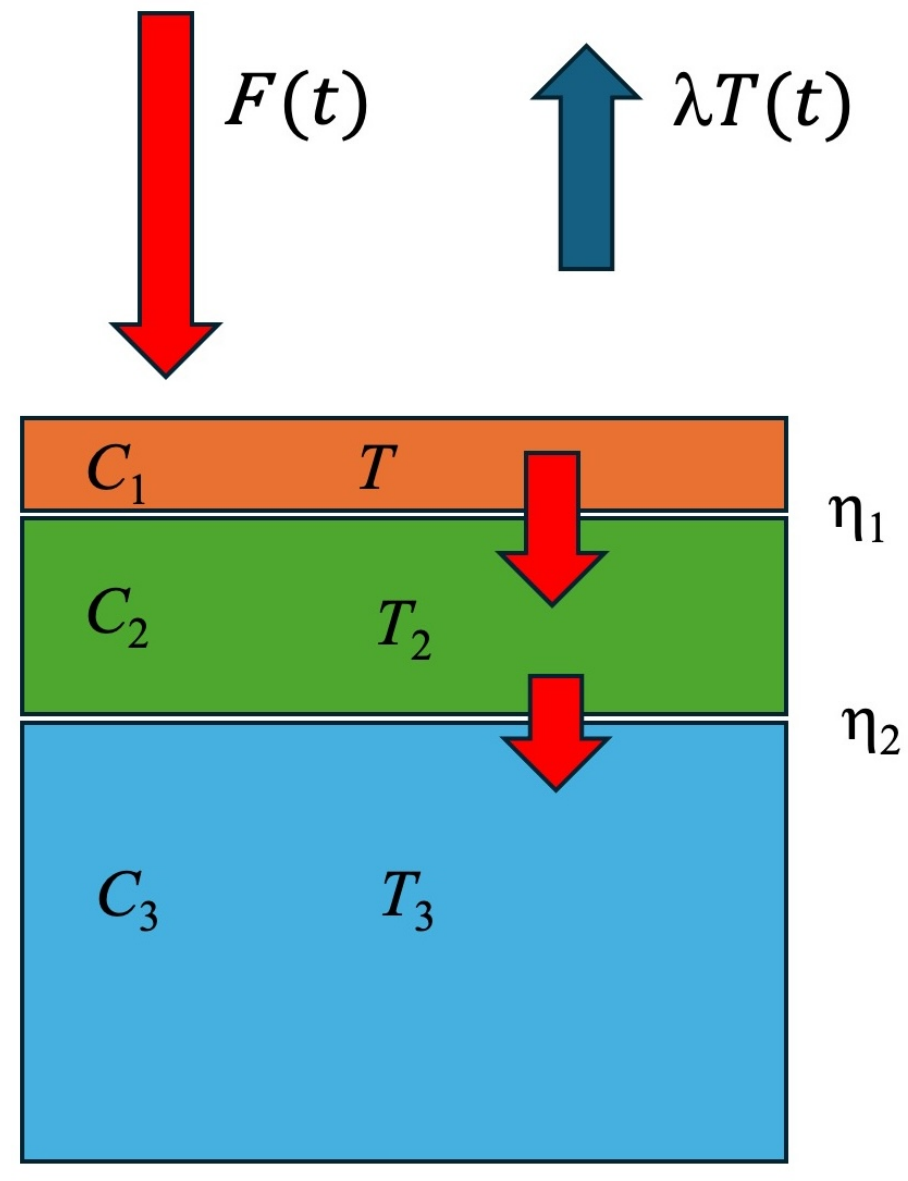

Figure 7.
A schematic sketch of the three-box model. Top, red arrow represents shortwave incoming radiation, blue arrow is outgoing longwave radiation. The red arrows between layers signify heat transport between them.
Figure 7.
A schematic sketch of the three-box model. Top, red arrow represents shortwave incoming radiation, blue arrow is outgoing longwave radiation. The red arrows between layers signify heat transport between them.

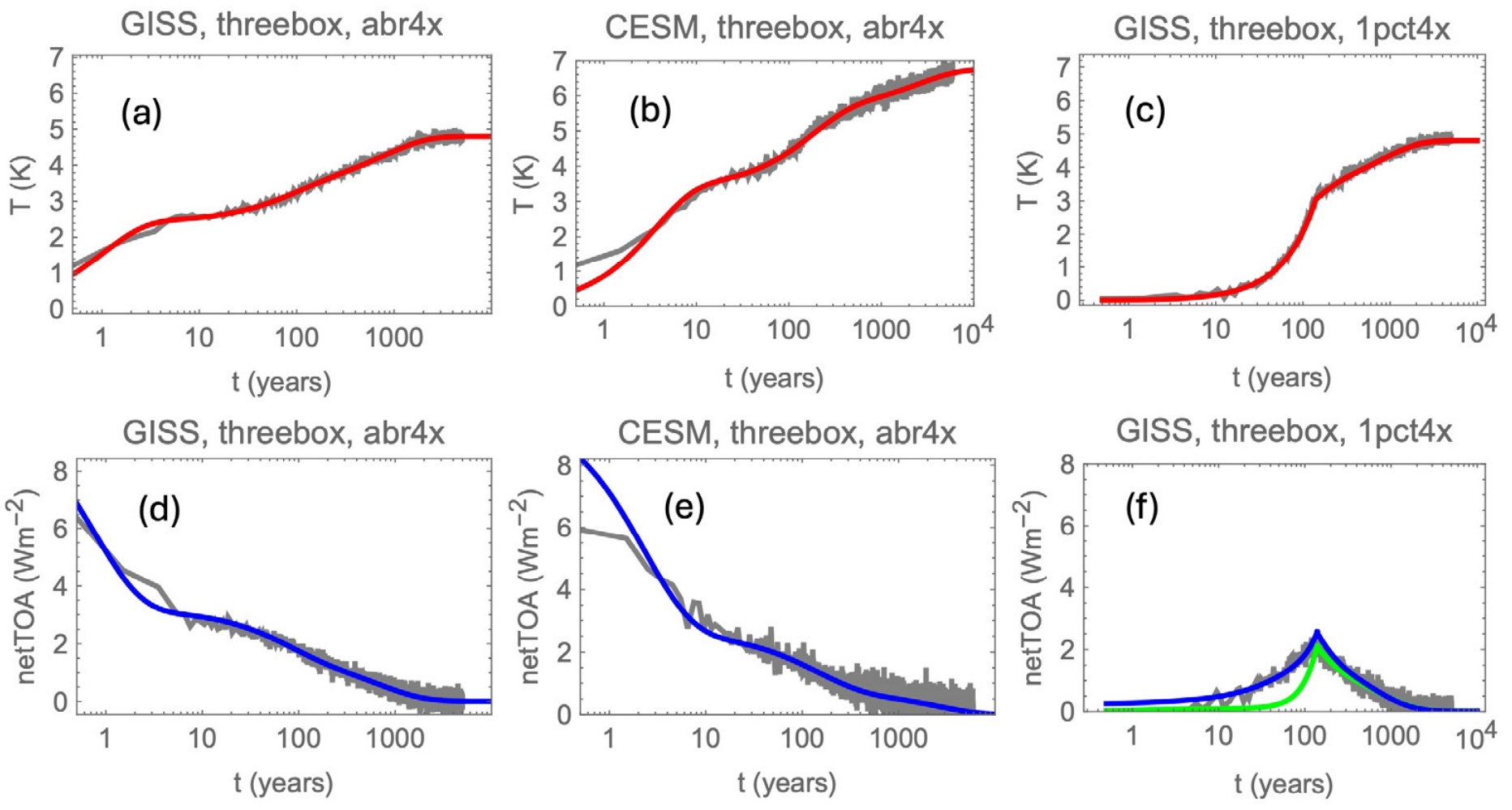

Figure 8.
Grey curves are data from the CCM models; GMST(t) and netTOA(t). Red, blue, and green curves are fitted PEM curves; T(t) and . Panels (a,b) are GMST(t) and T(t) for abrupt 4xCO2 scenario in GISS-E2-R and CESM104, respectively. Panels (d,e) are netTOA(t) and for this scenario and models. Panels (c,f) show the GMST(t) and T(t), and net TOA(t) and , respectively, for the 1pct4x scenario in GISS-E2-R. Green curve in panel (d) is estimated with CCM data from the abr4x scenario.
Figure 8.
Grey curves are data from the CCM models; GMST(t) and netTOA(t). Red, blue, and green curves are fitted PEM curves; T(t) and . Panels (a,b) are GMST(t) and T(t) for abrupt 4xCO2 scenario in GISS-E2-R and CESM104, respectively. Panels (d,e) are netTOA(t) and for this scenario and models. Panels (c,f) show the GMST(t) and T(t), and net TOA(t) and , respectively, for the 1pct4x scenario in GISS-E2-R. Green curve in panel (d) is estimated with CCM data from the abr4x scenario.

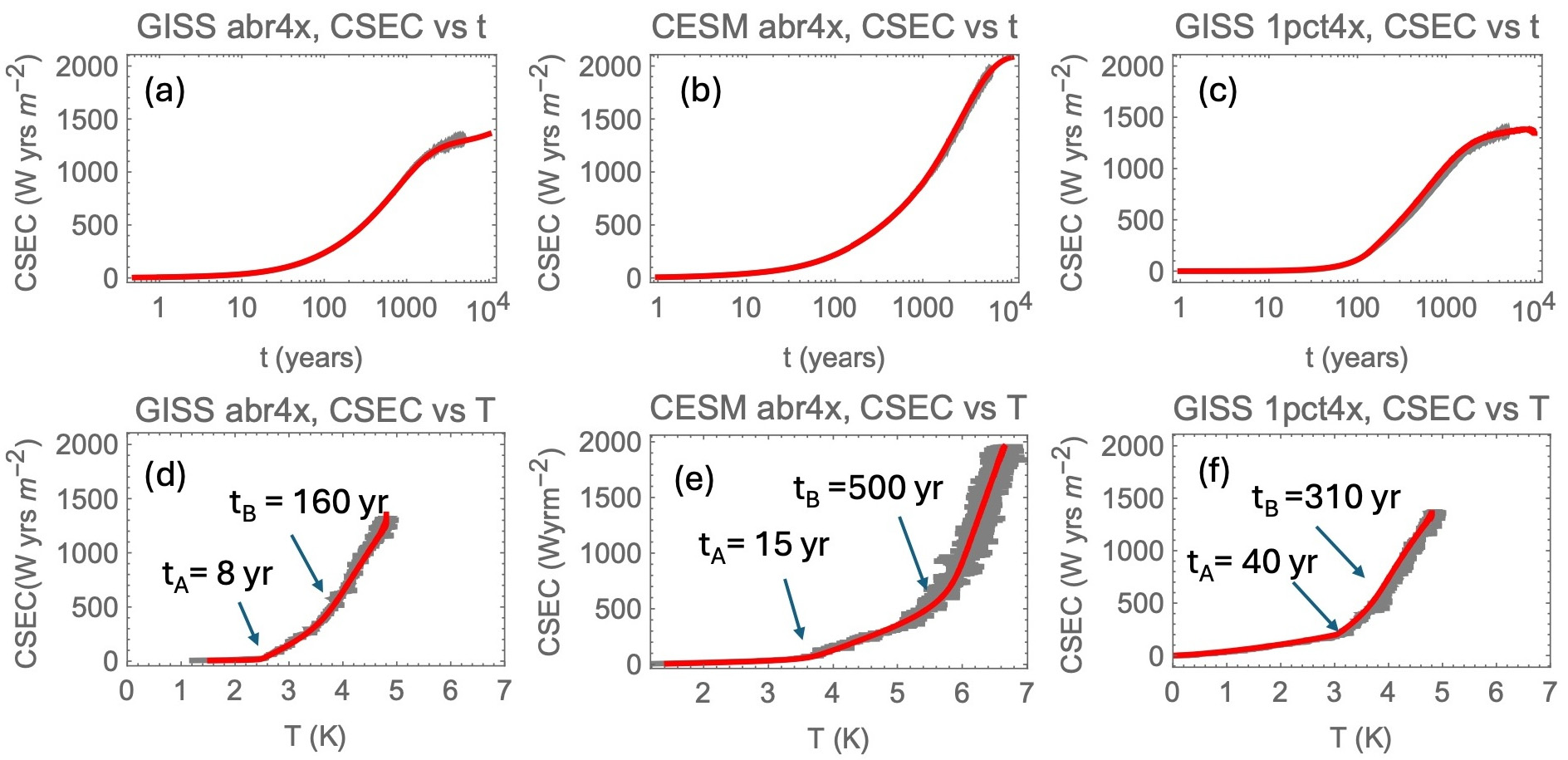

Figure 9.
The figure shows the evolution of the accumulated radiation flux density, i.e., the increase in climate system energy content (CSEC) in the GISS abr4x, GISS 1pct4x, and CESMabr4x runs, respectively. Grey curves are data from the CCM runs, and red curves are PE fits. Panels (a–c) show CSEC (grey) and (red) versus time t. Panels (d–f) show CSEC versus GMST (grey points) and versus T(t) (red), using that T(t) is known. The mapping is used to identify the times of the breaks in the CSEC(T) curves indicated by the arrows in panels (d–f).
Figure 9.
The figure shows the evolution of the accumulated radiation flux density, i.e., the increase in climate system energy content (CSEC) in the GISS abr4x, GISS 1pct4x, and CESMabr4x runs, respectively. Grey curves are data from the CCM runs, and red curves are PE fits. Panels (a–c) show CSEC (grey) and (red) versus time t. Panels (d–f) show CSEC versus GMST (grey points) and versus T(t) (red), using that T(t) is known. The mapping is used to identify the times of the breaks in the CSEC(T) curves indicated by the arrows in panels (d–f).

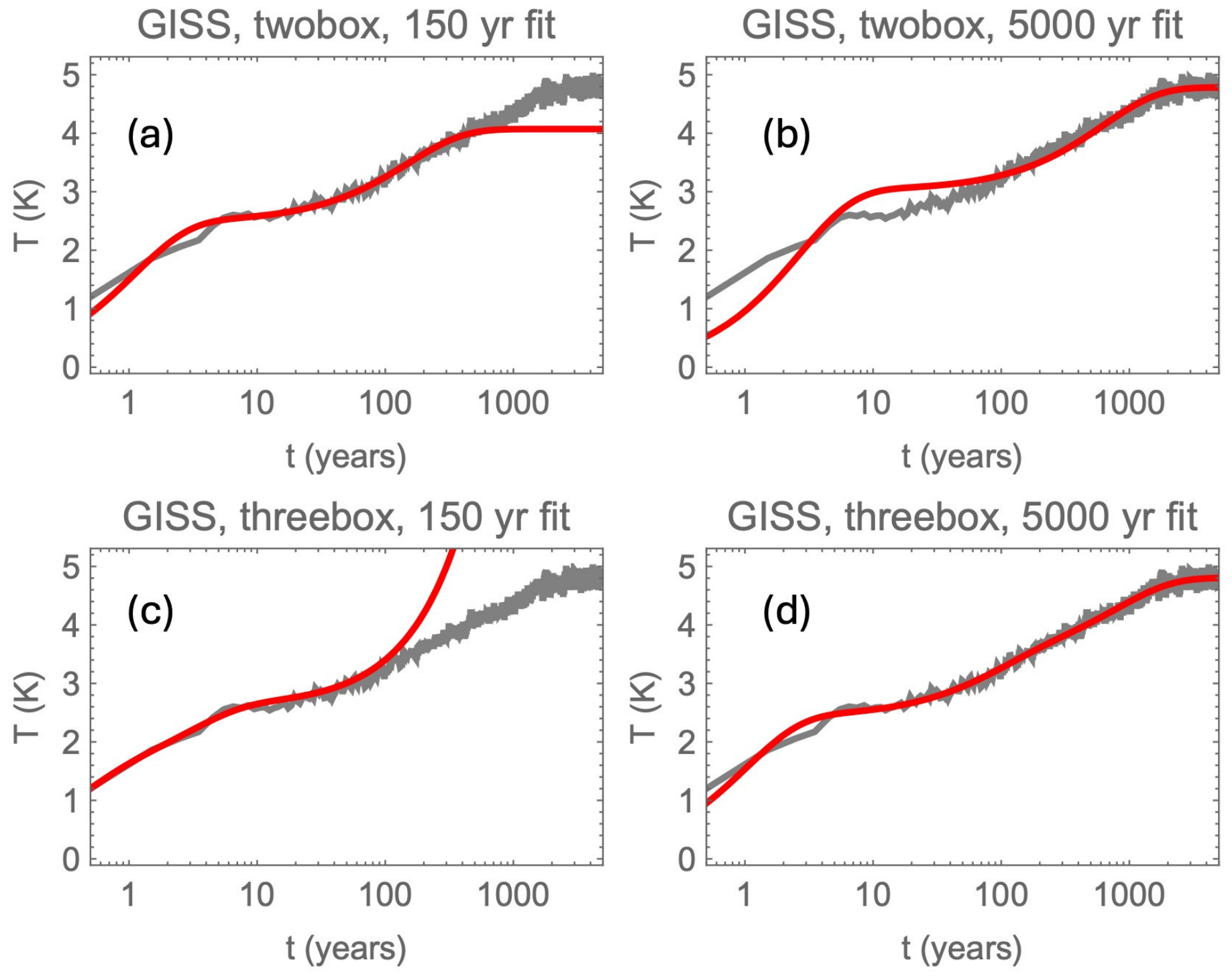

Figure 10.
In all panels, the grey curve presents the GMST for the abrupt4x run for the GISS-E2-R model. The red curves show T(t) for the fitted PE. Panel (a) shows a two-box model fitted to the first 150 years of GISS data. Panel (b) for the two-box model fitted to all 5000 years of GISS data. Panel (c) for the three-box model fitted to 150 years of GISS data. Panel (d) for the three-box model fitted to all 5000 years of GISS data.
Figure 10.
In all panels, the grey curve presents the GMST for the abrupt4x run for the GISS-E2-R model. The red curves show T(t) for the fitted PE. Panel (a) shows a two-box model fitted to the first 150 years of GISS data. Panel (b) for the two-box model fitted to all 5000 years of GISS data. Panel (c) for the three-box model fitted to 150 years of GISS data. Panel (d) for the three-box model fitted to all 5000 years of GISS data.

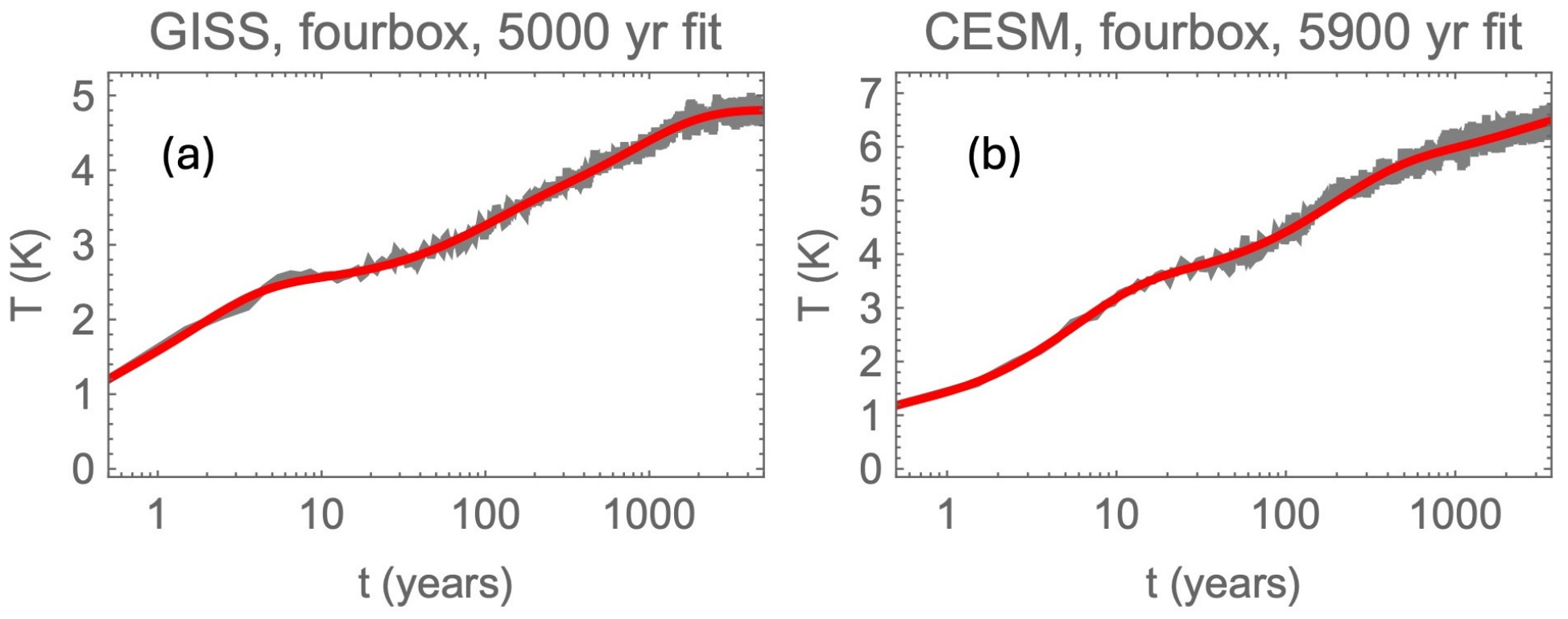

Figure 11.
Panel (a) shows results for GISS-E2-R, panel (b) for CESM104. In both panels, the grey curve presents the GMST for the abrupt4x run for the respective CCMs. The red curves show T(t) for the respective four-box PEs fitted to the full length of the temperature records.
Figure 11.
Panel (a) shows results for GISS-E2-R, panel (b) for CESM104. In both panels, the grey curve presents the GMST for the abrupt4x run for the respective CCMs. The red curves show T(t) for the respective four-box PEs fitted to the full length of the temperature records.

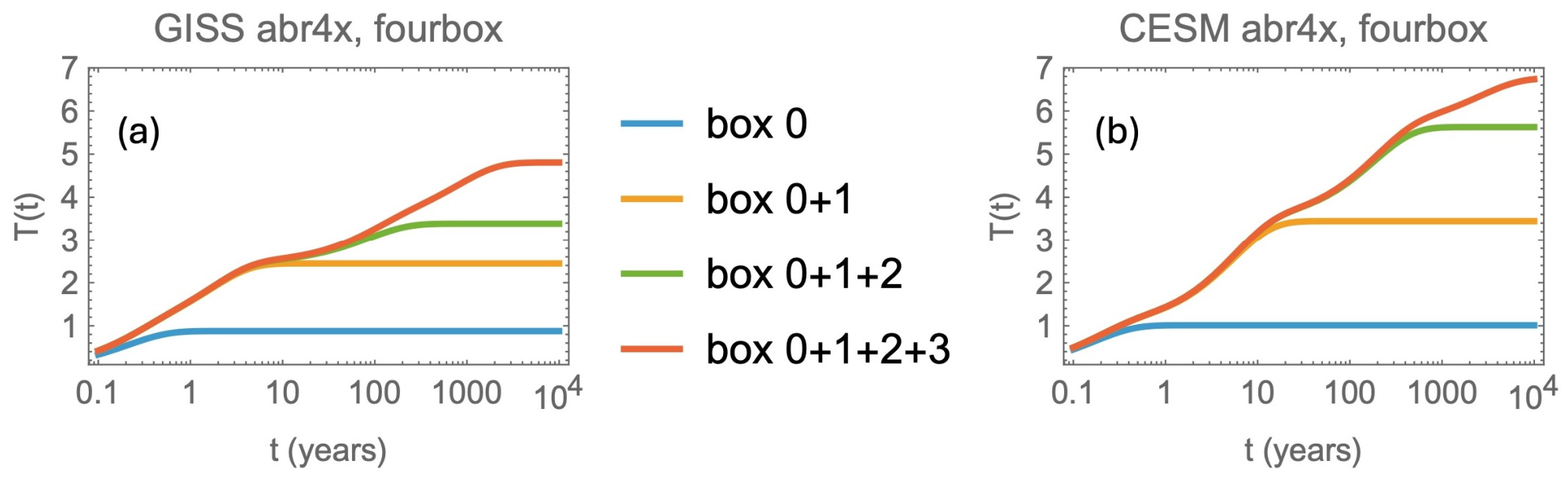

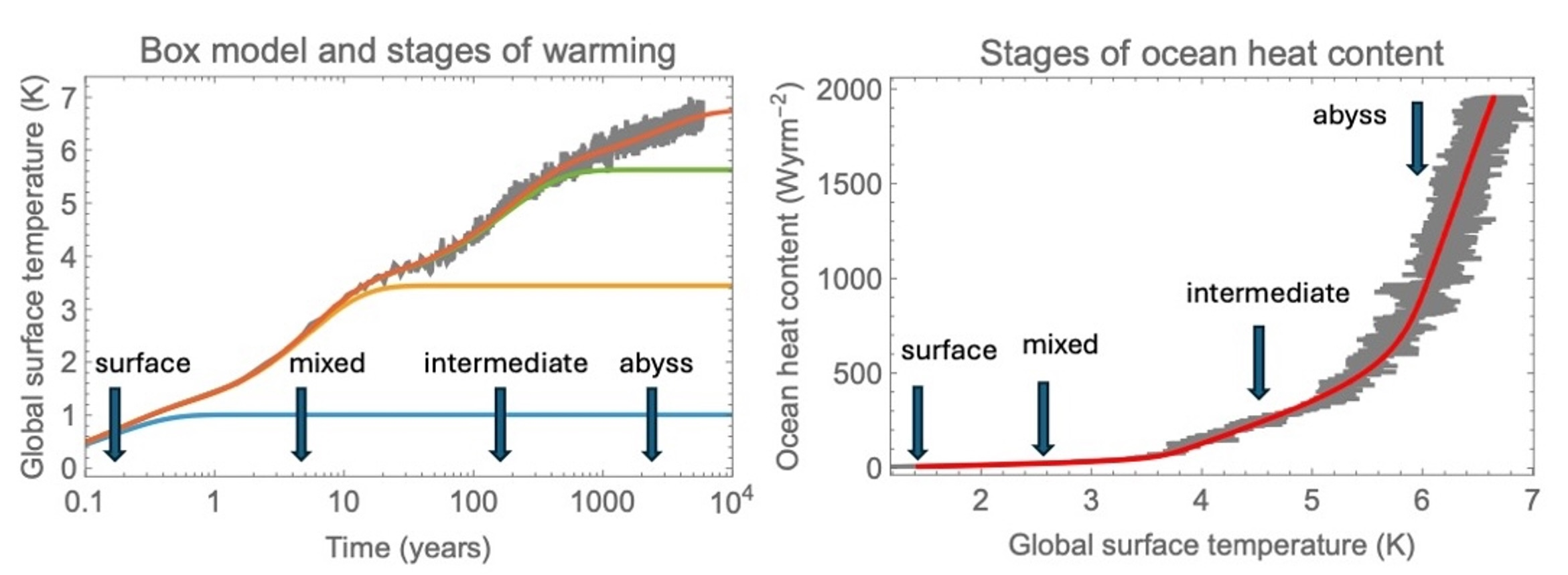

Figure 12.
The curves show for (blue), (orange), (green), and (red), where the parameters are those estimated from the four-box model fitted to the full abr4x record for the GISS model in panel (a) and CESM in panel (b).
Figure 12.
The curves show for (blue), (orange), (green), and (red), where the parameters are those estimated from the four-box model fitted to the full abr4x record for the GISS model in panel (a) and CESM in panel (b).

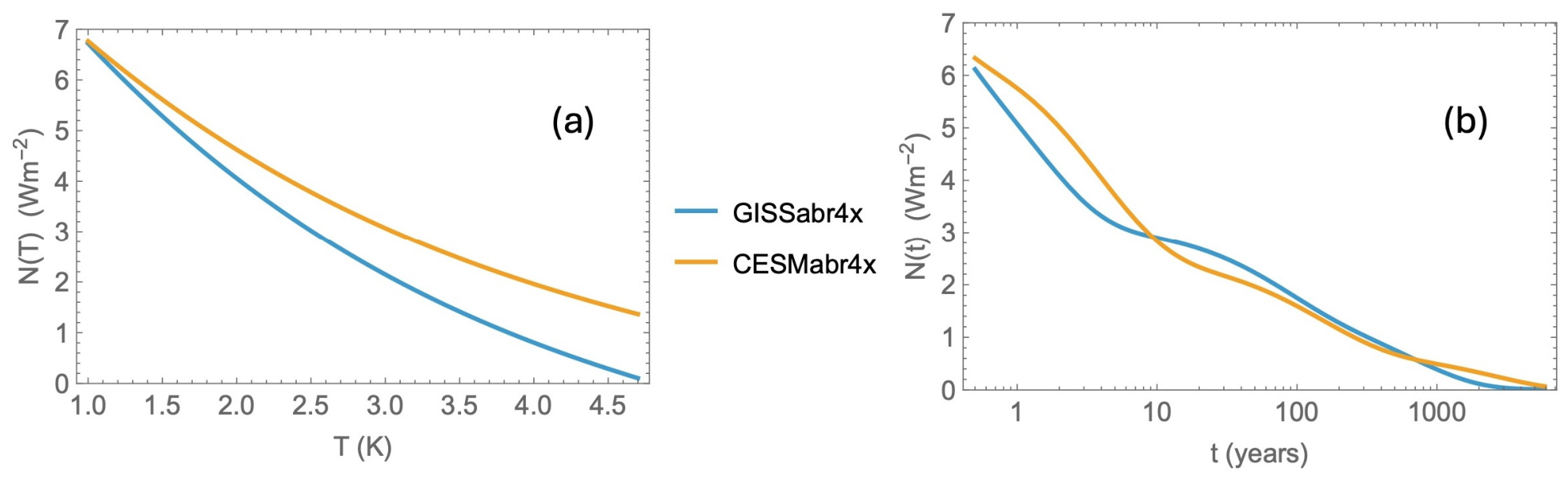

Figure 13.
Panel (a) shows versus surface temperature T when fitted to the abr4xCO2 simulations for GISS-E2-R and CESM104 models, respectively. Panel (b) shows the same versus time t.
Figure 13.
Panel (a) shows versus surface temperature T when fitted to the abr4xCO2 simulations for GISS-E2-R and CESM104 models, respectively. Panel (b) shows the same versus time t.

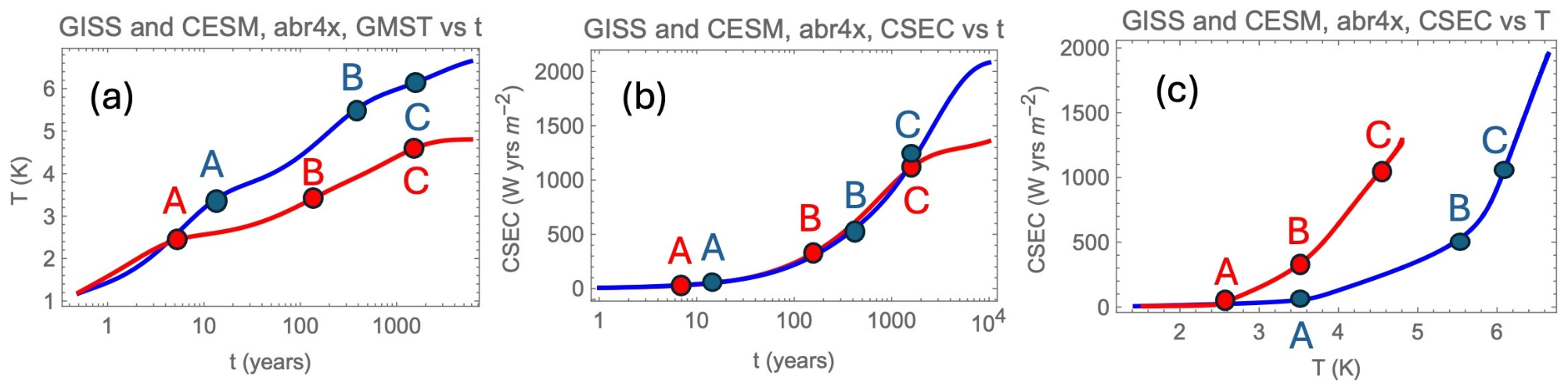

Figure 14.
Evolution of the surface temperature and accumulated energy in the climate system for abr4x according to the fitted PEs for GISS (red) and CESM (blue). Panel (a) shows temperature versus time, panel (b) shows accumulated energy versus time, and panel (c) shows accumulated energy versus temperature. The PE curves have been plotted up to 104 years to embody the full equilibration of the PEM for CESM. The points marked A and B signify transitions where the slope of the curves in panel (c) change, indicating increased The point C signifies the time after which the netTOA fluxes in the GISS and CESM simulation diverge; the GISS simulation equilibrates more rapidly than CESM.
Figure 14.
Evolution of the surface temperature and accumulated energy in the climate system for abr4x according to the fitted PEs for GISS (red) and CESM (blue). Panel (a) shows temperature versus time, panel (b) shows accumulated energy versus time, and panel (c) shows accumulated energy versus temperature. The PE curves have been plotted up to 104 years to embody the full equilibration of the PEM for CESM. The points marked A and B signify transitions where the slope of the curves in panel (c) change, indicating increased The point C signifies the time after which the netTOA fluxes in the GISS and CESM simulation diverge; the GISS simulation equilibrates more rapidly than CESM.

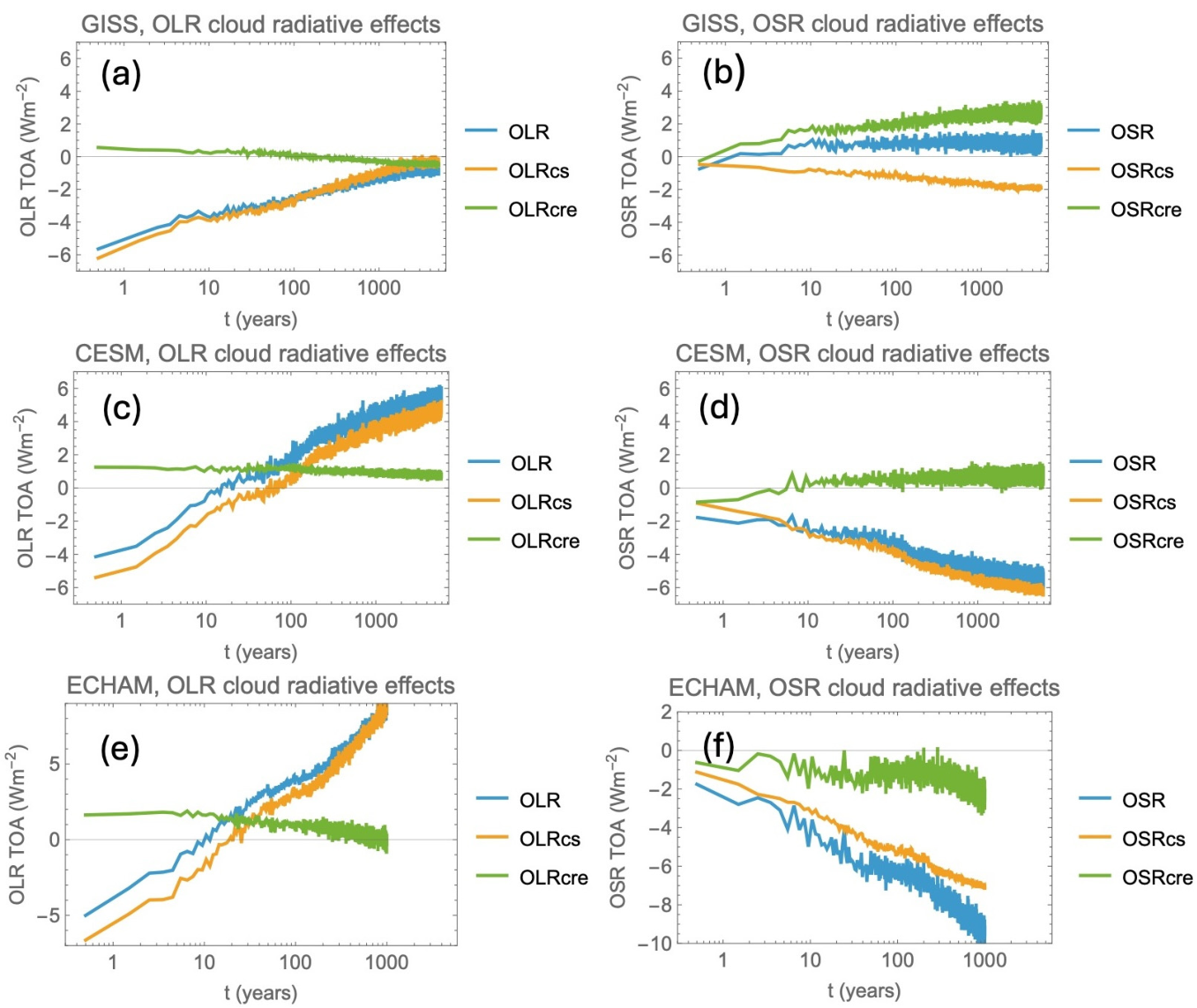

Figure 15.
The figure shows the all-sky outgoing radiation, the clear-sky outgoing radiation flux density, and their difference—the cloud radiation effect. Panel (a) shows the longwave fluxes and panel (b) the shortwave fluxes for the GISS model. Panels (c,d) show the same for the CESM model, and (e,f) for ECHAM.
Figure 15.
The figure shows the all-sky outgoing radiation, the clear-sky outgoing radiation flux density, and their difference—the cloud radiation effect. Panel (a) shows the longwave fluxes and panel (b) the shortwave fluxes for the GISS model. Panels (c,d) show the same for the CESM model, and (e,f) for ECHAM.

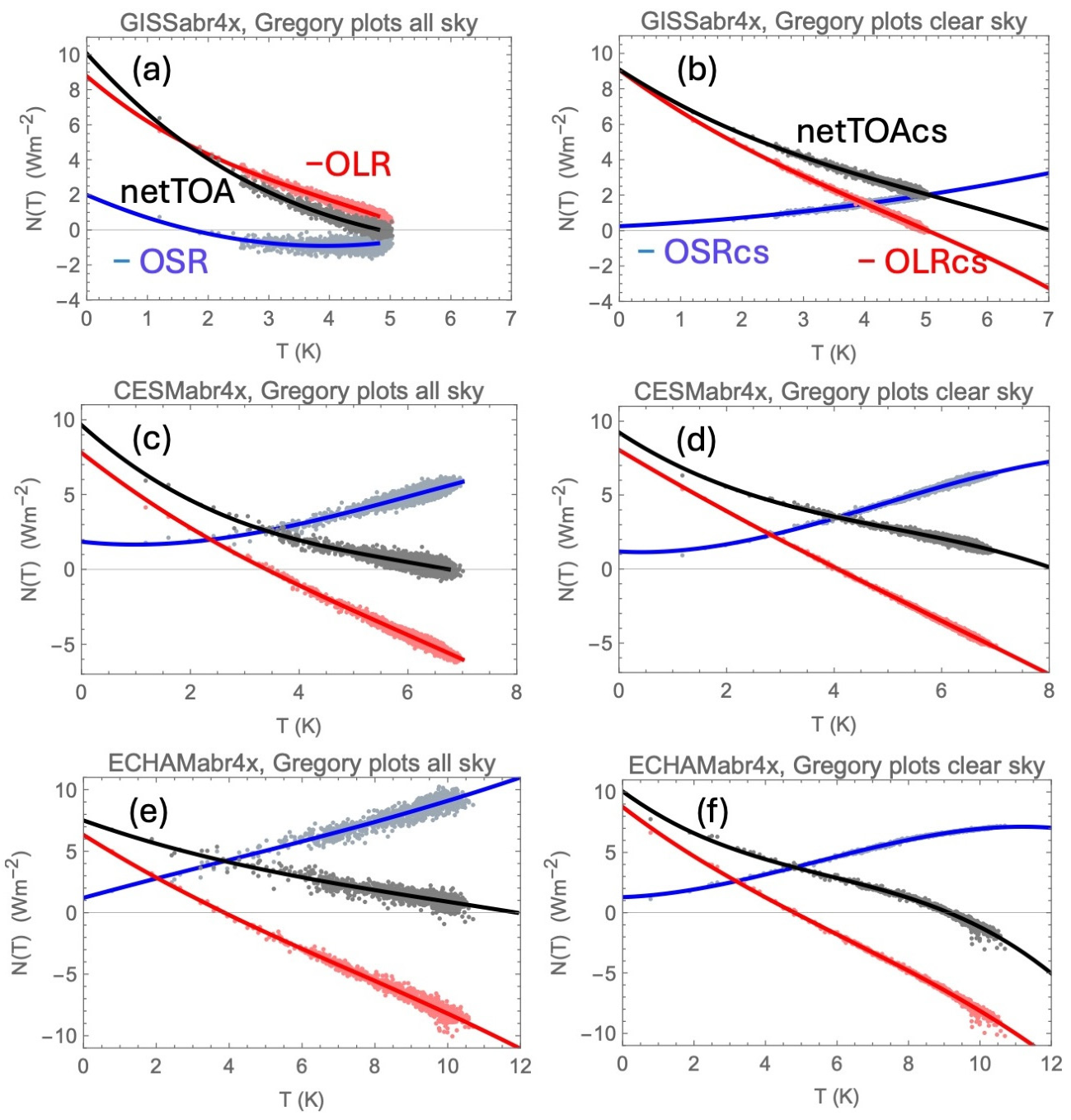

Figure 16.
The figure shows Gregory plots and polynomial fits for netTOA and netTOAcs (black), OLR and OLRcs (red), and OSR and OSRcs (blue). Panels (a,c,e) depict the all-sky fluxes and (b,d,f) the clear-sky fluxes. Note that OLR and OSR are given with negative signs, i.e., as incoming fluxes, such that their sum is the netTOA.
Figure 16.
The figure shows Gregory plots and polynomial fits for netTOA and netTOAcs (black), OLR and OLRcs (red), and OSR and OSRcs (blue). Panels (a,c,e) depict the all-sky fluxes and (b,d,f) the clear-sky fluxes. Note that OLR and OSR are given with negative signs, i.e., as incoming fluxes, such that their sum is the netTOA.

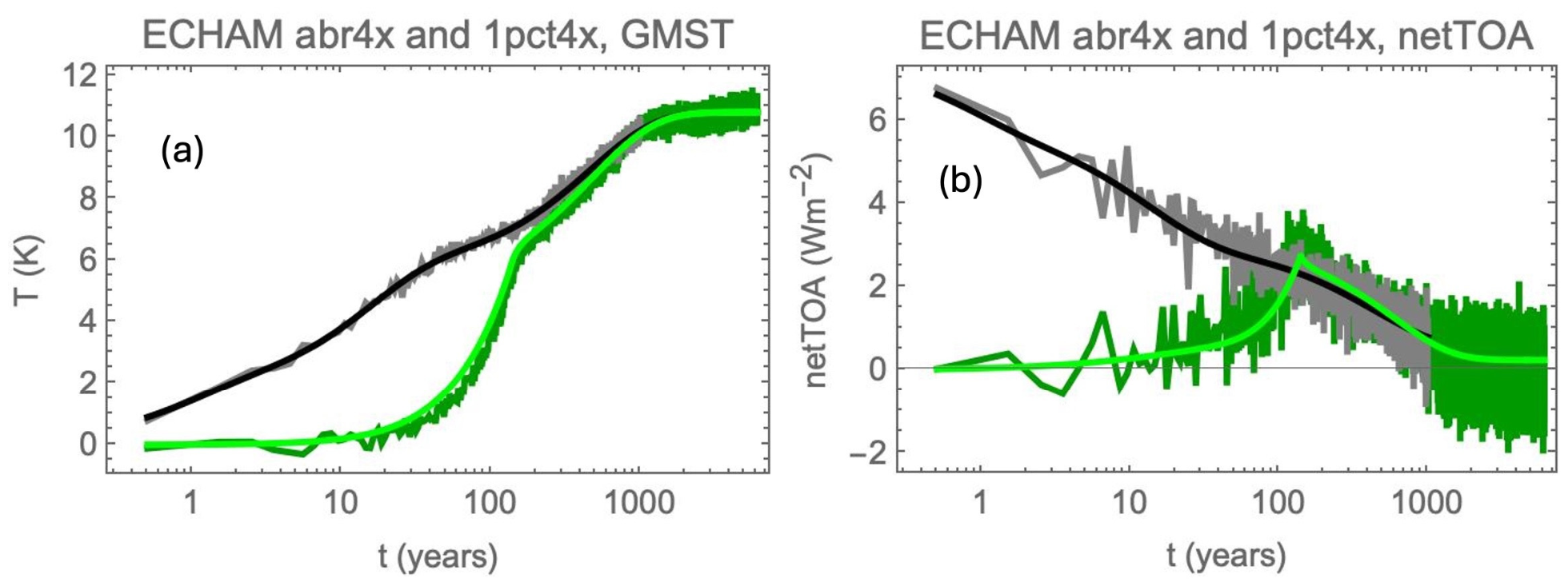

Figure 17.
Panel (
a) shows GMST and panel (
b) netTOA for the ECHAM model. The grey curves are CCM data for the 1000 yr abr4x CCM run. The dark green curves are CCM data for the 6080 yr 1pct4x run. The smooth black curves are three-box fits to the abr4x run. The light green curves are fits using PE parameters from the abr4x run and the same method as used for
Figure 8c,f.
Figure 17.
Panel (
a) shows GMST and panel (
b) netTOA for the ECHAM model. The grey curves are CCM data for the 1000 yr abr4x CCM run. The dark green curves are CCM data for the 6080 yr 1pct4x run. The smooth black curves are three-box fits to the abr4x run. The light green curves are fits using PE parameters from the abr4x run and the same method as used for
Figure 8c,f.
Table 1.
Variables from CCMs and their corresponding PE variables employed in this paper.
Table 1.
Variables from CCMs and their corresponding PE variables employed in this paper.
| | CCM Variable | PE Variable |
|---|
| Global mean surface air temperature | GMST(t) | T(t) |
| Net incident top-of-the atmosphere flux density | netTOA(t) | FTOA(T(t)) |
| Outgoing longwave radiation | OLR(t) | FOLR(T(t)) |
| Outgoing shortwave radiation | OSR(t) | FOSR(T(t)) |
| Incident shortwave radiation (from the sun) | ISR(t) | FISR(T(t)) |
| Outgoing longwave feedback radiation | Not directly diagnosed | |
| Climate system energy content (increase) | CSEC(t) | E(t) |
Table 2.
Response times tm and new equilibrium temperatures Tm for the three boxes fitted to 5000 abr4x run in GISS-E2-R and 5900 yr abr4x run in CESM104.
Table 2.
Response times tm and new equilibrium temperatures Tm for the three boxes fitted to 5000 abr4x run in GISS-E2-R and 5900 yr abr4x run in CESM104.
| | t1 (yr) | t2 (yr) | t3 (yr) | T1 (K) | T2 (K) | T3 (K) |
|---|
| GISS E2 R | 1.0 | 83 | 800 | 2.4 | 1.0 | 1.4 |
| CESM104 | 3.5 | 170 | 2500 | 3.4 | 2.2 | 1.1 |
Table 3.
The times (tA, tB) and temperatures (TA, TB) of regime shift in energy uptake, and effective heat capacities Ceff (A), Ceff (B), and Ceff (C) in the corresponding regimes.
Table 3.
The times (tA, tB) and temperatures (TA, TB) of regime shift in energy uptake, and effective heat capacities Ceff (A), Ceff (B), and Ceff (C) in the corresponding regimes.
| | tA (yr) | tB (yr) | TA (K) | TB (K) | Ceff (A) (W yr m−2K−1) | Ceff (B) (W yr m−2K−1) | Ceff (C) (W yr m−2K−1) |
|---|
| GISSabr4x | 8 | 160 | 2.5 | 3.5 | 32 | 290 | 780 |
| GISS1pct4x | 40 | 310 | 3.0 | 3.7 | 82 | 420 | 750 |
| CESMabr4x | 15 | 500 | 3.5 | 5.7 | 18 | 230 | 1570 |
Table 4.
Response times ti and new equilibrium temperatures Ti for the four boxes fitted to 5000 abr4x run in GISS-E2—and 5900 yr abr4x run in CESM104. The new box with the very short response time has parameters t0 and T0.
Table 4.
Response times ti and new equilibrium temperatures Ti for the four boxes fitted to 5000 abr4x run in GISS-E2—and 5900 yr abr4x run in CESM104. The new box with the very short response time has parameters t0 and T0.
| | t0 (yr) | t1 (yr) | t2 (yr) | t3 (yr) | T0 (K) | T1 (K) | T2 (K) | T3 (K) |
|---|
| GISS-E2-R | 0.21 | 1.7 | 85 | 800 | 0.9 | 1.6 | 0.9 | 1.4 |
| CESM104 | 0.16 | 5.4 | 180 | 2600 | 1.0 | 2.4 | 2.2 | 1.1 |
Table 5.
Shows values of hypothetical ECS =
T/2, where
T is the point where curves in
Figure 16 cross the
T-axis. The first column presents the ECS values obtained as solution to OLRcs(
T) = 0, which can be perceived as the ECS if no clouds and surface albedo change were present, i.e., the pure greenhouse effect. Second column: ECS given by OLR(
T) = 0; no cloud or surface albedo, but effect of clouds on longwave radiation. Third column: ECS given by netTOAcs = 0; clear sky but presence of surface albedo changes. Fourth column: ECS given by netTOA(
T) = 0; presence of clouds and surface albedo change, i.e., the actual ECS. The percentages in brackets are percent change of ECS relative to the first column.
Table 5.
Shows values of hypothetical ECS =
T/2, where
T is the point where curves in
Figure 16 cross the
T-axis. The first column presents the ECS values obtained as solution to OLRcs(
T) = 0, which can be perceived as the ECS if no clouds and surface albedo change were present, i.e., the pure greenhouse effect. Second column: ECS given by OLR(
T) = 0; no cloud or surface albedo, but effect of clouds on longwave radiation. Third column: ECS given by netTOAcs = 0; clear sky but presence of surface albedo changes. Fourth column: ECS given by netTOA(
T) = 0; presence of clouds and surface albedo change, i.e., the actual ECS. The percentages in brackets are percent change of ECS relative to the first column.
| | OLRcs = 0: Clear Sky, No Surface Albedo Change | OLR = 0: No Albedo Change, Longwave Cloud Effect | netTOAcs = 0: Clear Sky, Surface Albedo | netTOA = 0: Clouds, Surface Albedo |
|---|
| GISS | 2.5 | 2.7 (+8%) | 3.5 (+40%) | 2.4 (−4%) |
| CESM | 2.0 | 1.7 (−15%) | 4.0 (+100%) | 3.4 (+70%) |
| ECHAM | 2.4 | 1.9 (−20%) | 4.6 (+92%) | 6.0 (+150%) |
