Agronomy 2018, 8(8), 153; doi:10.3390/agronomy8080153

Diallel Analysis for Morphological and Biochemical Traits in Tomato Cultivated under the Influence of Tomato Leaf Curl Virus
Instituto de Conservación y Mejora de la Agrodiversidad Valenciana, Universitat Politècnica de València, 46022 Valencia, Spain
Department of Vegetable Science, Punjab Agricultural University, Ludhiana 141004, India
Author to whom correspondence should be addressed.
Received: 18 July 2018 / Accepted: 17 August 2018 / Published: 19 August 2018


Eloquent information about the genetic basis of inheritance is important for any breeding program. Therefore, a diallel study was conducted under the influence of tomato leaf curl virus (TLCV) disease, using the eleven advanced lines of tomato. Firstly, information regarding percent disease index (PDI) was determined via artificial screening with viruliferous whiteflies. Later, these lines were crossed in a half diallel mating design to produce fifty-five one-way hybrids. These hybrids and parental genotypes were evaluated for morphological and biochemical traits under open field conditions. Using the Griffing approach (Method II and Model I), the basis of the inheritance of traits was determined. Furthermore, a Bayesian model was applied to the total yield descriptor. Correlation data indicated that total yield was not correlated with any other trait. The significant general combining ability (GCA) and specific combining ability (SCA) values indicate exploitable genetic variation. The broad-sense heritability values were larger than narrow-sense heritability, showing that selection will be efficient for the improvement of these traits. Hybrid combinations H23, H42 and H49 can be considered efficient for the selection of multiple traits, including yield. Overall, this study provides useful information regarding the genetics of important traits of tomato under TLCV infestation.
tomato; TLCV; combining ability; resistance breeding; hybrid development; diallel analysis; Griffing approach; Bayesian

1. Introduction

Tomato (Solanum lycopersicum L.) is among the most cultivated plants; hence, the efforts toward its genetic improvement date back to the last century and are still enduring through traditional breeding and genomics-based approaches [1,2]. Tomatoes are well acclimatized and bred to yield under extreme climatic conditions like drought and frost [3,4,5]. However, insect pests and diseases are still big challenges for the successful production of tomatoes. Worldwide, approximately around 146 viruses belonging to 33 different genera are reported to infect tomato plant [6,7]. Among them, the genus Begomovirus causes huge economic losses to tomato production. Belonging to this genus, a DNA virus known as the tomato leaf curl virus (TLCV) is a serious disease of tomato, and its incidence can easily result in up to a 90 percent yield loss of the tomato crop [8,9].
Tomato production especially of the autumn season crop in Northern India and the summer season crop of Southern India is susceptible to a high incidence of tomato leaf curl virus (TLCV) disease [10]. TLCV is transmitted by whitefly (Bemisia tabaci Genn.) in a circulative and persistent manner [11]. Hitherto, in North India, tomato leaf curl New Delhi virus, a strain of TLCV reported from the New Delhi region of India, has an extensive distribution and also infects several other vegetable crops, e.g., eggplant, squash and pepper [12]. As a response to TLCV infection, plant leaves shows symptoms like curling of leaf margins, shrinking and thickening of the leaf surface, while the overall plant becomes stunted in growth, with few and misshaped fruits [11]. Extensive efforts in the form of phenotypic screening have been made in order to identify resistant genotypes. In this respect, artificial cage inoculation using viruliferous whiteflies is the most competent and reliable method to carry out the screening for TLCV disease. However, with artificial screening, the plant gives a stronger reaction response than it might give under the field conditions [13,14].
Tomatoes are an important source of nutraceuticals like vitamins (C, K, B6, etc.), phenolic acids and minerals (folate, manganese, etc.). All of these are vital for human health and body development [15,16]. Particularly, its fruits contain one of the important dietary carotenoids, known as lycopene, important for the prevention of chronic diseases like breast, lung and prostate cancer [17,18,19]. The lycopene content (mg100−1 g) of tomato varies based on genotypes’ genetic makeup, cultivation environment, disease pressure and genotype-by-environment interactions [20]. The nutraceutical properties of tomato fruit have industrialized the processing of tomatoes; commonly, tomatoes are processed as juice, ketchup, paste and sauce [21]. These biochemical aspects of the tomato fruit have become an important goal of tomato breeding programs [22,23].
Hybrid development is a successful approach for vegetable improvement, especially for solanaceous vegetables. Furthermore, to chalk out a breeding strategy for successful cultivation under TLCV infestation, it is important to have information about the inheritance of traits under the prevailing conditions. Therefore, estimation general combining ability (GCA) and the specific combining ability (SCA) are important for genetic enhancement of the crop. However, the amount of variation in GCA and SCA values does not totally rest on gene effects; it also involves the gene structure of the parents involved [24]. Diallel mating design based on the general linear model framed by Griffing [25] is a popular choice and widely-accepted tool for the identification of the hybrid combinations of interest in tomato and in other members of Solanaceae [26,27,28]. Previously, studies indicated that leaf characteristics and foliar pubescence affect the feeding preferences of whiteflies [29,30]. Sometimes, Griffing’s method is not adequate in the case of missing data, imbalance and outliers under the situations where chances of bias are too high to avoid. This is especially true with experiments carried out under disease pressure conditions [31,32].
The use of more rigorous Bayesian methods overcomes these limitations [33,34]. The BayesDiallel approach uses a Markov chain Monte Carlo (MCMC) sampling distribution, which in turn provides greater flexibility, which further improves the biological interpretability of the results. Therefore, in this study, the parameter of the total yield (kg plant−1) was investigated with this Bayesian approach. The Bayesian approach is not popular among the plant breeding community because of calculation limitations and the complexity of the statistics involved [35]. However, the different models based on the Bayesian approach provide a more vigorous and detailed analysis of highly variable and complex traits like yield. Acquaintance with the genetics of important morphological traits under tomato leaf curl virus infestation conditions will be helpful for carrying out efficient selection and breeding.
Therefore, the objectives of this study were to determine the GCA, SCA and heritability of tomato genotypes crossed in a half diallel mating design. Further, the BayesDiallel approach was used to provide a more comprehensive analysis of diallel data generated for the total yield. By applying the BayesDiallel approach the first time on the total yield data of the diallel cross under TLCV conditions along with Griffing’s method, we aim to estimate the combining ability and the heritability estimates precisely and to suggest a robust approach aimed at tomato TLCV resistance breeding.

2. Materials and Methods

2.1. Plant Material and Artificial Screening

Eleven advanced lines of tomato developed at the Punjab Agricultural University (coordinates at 30°54′14.8856″ N 75°49′0.4822″ E), Ludhiana, India, were artificially screened for resistance to TLCV disease during 2011–2012. The artificial screening of seedlings (~2–3 week old) was carried out by challenging 25 plants of each of the eleven genotypes with viruliferous whiteflies reared on the TLCV disease-affected plant; the detailed method is provided elsewhere [26]. The disease reaction of genotypes was scored on the scale, where 0%–10% is resistant (R), >10%–30% moderately resistant (MR), >30%–70% susceptible (S) and >70%–100% highly susceptible (HS) [36,37]. Further, the potential disease incidence (PDI) was measured as the (number of infected plants/total number of plants) × 100. The eleven genotypes were crossed in a diallel mating design during February–March 2012, resulting in fifty-five one way F1 hybrids. Thereafter, for the first cross combination, H1 is referred to as the first cross in the half diallel, i.e., H1 (P1 × P2), and so on, until the last cross as H55 (P10 × P11) (Table 1). The 11 parental genotypes and 55 one-way hybrids were evaluated under the whitefly infestation conditions during August 2012 in a randomized complete block design. Each entry was replicated twice, and each replication accommodated 15 plants. Plant production practices were exercised as per the Package of Practices, and no chemical treatment was used to control the whiteflies. Data were recorded on 13 central plants leaving one plant on either side of the row.

2.2. Characterization and Data Analysis

Total yield (kg plant−1) and marketable yield (kg plant−1) were determined on a per plant basis, i.e., by dividing the harvest by the number of plants. Fruit weight (g) was estimated as the average weight per fruit of the ten-fruit sample collected at the red ripe stage. Five fruits per replication were used to measure the equatorial diameter, locules, pericarp thickness and polar diameter. The polar diameter of cut fruits was measured as the distance between the stalk end and the blossom end. Conversely, the equatorial diameter was measured as the transversal distance of the fruit. Locules were determined as the separate cavities identified in the fruit after opening it horizontally. Pericarp thickness was measured from the center of the fruit. These fruit-based morphometric measurements were recorded with the help of the Vernier caliper.
Three biochemical parameters were estimated included dry matter, lycopene and total soluble solids (TSS) using three samples for each replication. Each sample was constituted of five red ripe fruits. Dry matter percentage was measured as the change of weight before and after oven drying at 70 °C and was calculated based on the formula 100 × (dry weight/fresh weight). TSS content of fruits was determined with the help of a hand refractometer (RA-130-KEM, Kyoto Electronics Manufacturing Co., Ltd., Kyoto, Japan). The readings were recorded as Brix (0–32 °C) at room temperature. Lycopene content was determined by the method suggested elsewhere [38]. The optical densities of processed extracts for the lycopene content were recorded at 505 nanometers (nm) using Spectronic 20 (Thermo Fisher Scientific, Waltham, MA, USA). The combining abilities were estimated based on Griffing’s Method II (parental genotypes and one-way hybrids) with Model I (fixed effect) [25]. The diallel calculations were performed with the help of the package AGD-R (analysis of genetic designs with the R software package) Version 4.0 [39]. Baker’s ratio was estimated using the formula, Baker ratio = 2MSGCA/2MSGCA + MSSCA [35]. Pearson coefficients of correlation (r) and their p-values were calculated and plotted using the package corrplot [40]. The chart. Correlation (r) function within the PerformanceAnalytics package was used to generate scatter plots and histograms along with detailed information regarding correlations [41].

2.3. Bayesian Model-Based Analysis of Total Yield

The R package BayesDiallel was used for the Bayesian model-based analysis of total yield data [34]. Briefly, we used the “Bab” model in the BayesDiallel package; this model includes an overall effect of being inbred (B), which is a fixed effect that captures an additive component (a), and a measure of parent-specific inbred deviation (b), which is any additional deviation of an inbred parent from the F1 hybrids that is not captured by the fixed effect ‘B’. Also, the “Bab” model was applied using an MCMC Gibbs sampler with five chains, 10,000 iterations and a burn-in of 1000 [35]. The model is based on the following equation:
y i = μ + mother j [ i ] + father k [ i ] + pair ( j k ) [ i ] + ε i
where pair(jk)[i] is a deviation specific to the mother-father pair(jk).
In the “Bab” model, this pair is calculated as a strain-specific inbred penalty bj βinbred; i.e., βinbred:
pair ( j k ) = I ( j = k ) + ( b j + β inbred ) ( a )   b j   ~ N   ( 0 , τ b 2 )
where τ b 2 = 0 implies a constant inbred penalty [34].

3. Results and Discussion

3.1. Artificial Screening

Artificial screening with viruliferous whiteflies provided a dissimilar percent of disease incidence (PDI) values for each genotype (Figure 1). The 6minimum PDI% was recorded in P4 (29.2%, MR), whereas the maximum was recorded with the P1 (100%, HS) (Figure 1). All eleven parental genotypes exhibited TLCV symptoms after 60 days of artificial inoculation with viruliferous whiteflies. On the TLCV disease scale, two lines showed mild resistance (MR); in contrast, three were highly susceptible (HS), while the rest were susceptible (Figure 1). Under field conditions, parents and hybrids showed a wide variation in the PDI values (Figure 2). In the case of parents, PDI ranged from 7.0%–100%; whereas, for hybrids, the PDI percentage ranged from 5.4%–85.6%. Furthermore, twelve hybrids showed less than 10% (R) of PDI (Figure 2).
Earlier studies have shown that as compared to a natural field environment screening of genotypes for TLCV, artificial screening is more useful as it ensures a uniform disease infection and leaves few chances for a susceptible plant to escape infection due to non-preference and loss of whiteflies’ infectivity. However, 100% disease incidence is also common with the artificial inoculation method [13,42]. The artificial screening method using whiteflies is commonly applied to find out the reaction of tomato lines to TLCV disease [43,44,45]. Previously, the cultivated accessions and the landraces of tomato exhibited a varying range of the disease symptoms, but lacked complete resistance [46]. However, wild relatives of tomato, e.g., S. chmielewskii, S. habrochaites and S. pimpinellifolium, were found resistant even with artificial screening [14]. The differences in the results of the field-based screening method could also be due to the difference in virus strain, vector genotype or altered feeding conditions [47,48].

3.2. Variation in Parents and Hybrids

The mean performance of parents and their hybrids for all studied characteristics is provided in Table S1. The magnitude of the mean squares of genotypes indicated that there were significant differences among the genotypes for all morphological characteristics studied, pointing out the presence of genetic variability (Table 2). Similarly, significant GCA and SCA effects for all measured traits were detected (p ≤ 0.01). The lowest value of the Baker ratio was noted for polar diameter (0.56); while the highest was recorded for the fruit weight (0.90) (Table 2). This indicated that the non-additive gene effects were more prevalent for the characteristics under investigation. In general, the GCA variance was higher than that of SCA variance for the characteristics studied. The broad-sense heritability values were higher (above 0.9) than the narrow-sense heritability (below 0.4) (Table 2).
A higher magnitude of additive gene effects is useful for the development of pure-lines and to proceed with selection = based breeding approaches. Non-additive gene effects are used for the development of hybrids. In previous studies, the presence of both additive and non-additive gene action was reported for most of the characteristics studied in tomato. For example, additive gene action was reported to control yield and its component traits in tomato [49,50]. In contrast, non-additive gene action was reported to control many traits in tomato [51,52]. Similarly, the additive and the non-additive inheritance of biochemical traits like dry matter, lycopene and TSS were also reported [53,54].

3.3. Bayesian Model-Based Estimates and Predictions of Total Yield

Both GCA and SCA contributed to the total yield, showing that both additive and non-additive effects were significant. However, GCA values for the total yield were higher than the SCA values (Table 2). The predicted means further revealed this with the BayesDiallel Bab model (Figure 3).
The fixed and individual strain additive effects were more stable and less dispersed than the parent of origin and inbreeding effect (Figure 4); justifying a large amount of GCA component identified. The parental genotypes P1, P5 and P9 showed a negative parent of origin and inbreeding effects (Figure 4). The observed vs expected values were found different for some hybrid combinations (Figure 3). This could be attributed to the fact that whiteflies have a preference for some genotypes. The virulence affected the degree, and plant reaction to the disease contributed to such effects [55,56].
Likewise, under TLCV disease pressure, the Bayesian approach helped in the determination of heritable and non-heritable components influencing the total yield. This precise determination can be used to determine the most appropriate breeding strategy for maximizing the genetic gain. Overall, this variance projection approach (VarP) is more precise in providing the information about inheritance classes that will affect the future experiments if these eleven parental genotypes are used again [57]. The total yield included the additive effect (VarP[a] = 0.24), while the effect of non-additive variance was in the form of inbred penalty (VarP[B] = 0.07), and the noise was 58.97 for the total yield (Figure 5, Table 3). Previously, in the case of cross-pollinated carrots, it was found that the influence of non-additive variation was largely due to the overall inbred penalty (non-additive effects), which contributed significantly to canopy height, shoot biomass and root biomass [35].

3.4. GCA and SCA Estimates

Estimates of general combining ability are presented in Table 4. The estimates of GCA were highly significant for all the characteristics studied. P2 expressed the highest GCA effect (0.346) for the dry matter content. For equatorial diameter, P4 was the best general combiner with the estimates of 0.273. Regarding fruit weight, P5 (9.596) was the best general combiner followed by P8 (8.453) and P7 (7.770) (Table 4). The genotype with the highest CGA effects for the number of locules is P2 (0.355) followed by P8 (0.350) and P4 (0.261). The genotypes with above average GCA effects for lycopene content included P3 (0.454), P6 (0.427) and P9 (0.213) (Table 4). The highest GCA effects for marketable yield of 0.188 were recorded in genotype P2, followed by P11 and P10. For pericarp thickness, P8 (0.115) had the highest GCA effects. For polar diameter, the highest GCA effects were observed in P7 (0.263); while for total yield, P10 (0.215), P11 (0.164) and P6 (0.154) had high GCA effects. Likewise, the GCA effects of 0.195 and 0.152 were recorded for TSS content in the parents P8 and P1, respectively.
The results of specific combining ability estimates are given in Table S2. The crosses with the highest SCA effects for dry matter content were H22 (1.343), H9 (0.986) and H17 (0.903). The highest SCA effects of 1.386, 1.179 and 1.097 were recorded in the crosses H46, H35 and H23, respectively, for the equatorial diameter. For fruit weight, the highest positive SCA effects were observed in crosses H17 (26.728), H35 (26.639) and H16 (23.633). For locule number, crosses H34, H43 and H46 had the highest SCA effects of 1.551, 1.289 and 1.217, respectively. Similarly, the highest SCA estimates for the lycopene content were recorded in the crosses H30 (1.724), H24 (1.617) and H14 (1.460), in that order. For marketable yield, crosses H49 (1.649), H23 (1.134) and H32 (0.918) recorded the highest SCA values. Likewise, for pericarp thickness, H29 (0.218), H42 (0.166) and H25 (0.140) were significant. Crosses H3 (1.589), H34 (1.283) and H35 (1.005) possessed the highest SCA values for the polar diameter. In the case of total yield, H49, H23 and H42 with values of 1.539, 1.157 and 0.917 recorded the highest SCA effects, respectively. For the TSS content, crosses with the highest SCA effects included H49 (1.017), H26 (0.961) and H28 (0.928). Hybrid combinations H23, H35, H42, H46 and H49 were found to be good specific combiners for more than one trait (Figure 6). However, none of the hybrids exhibited significant SCA effects for all the traits. The information about the SCA and GCA is crucial for maximizing the genetic gain. These results agree with the results reported in the previous studies under stress and under natural conditions [22,58,59,60].

3.5. Correlations

A total of 14 correlations were found to be significant (p < 0.05) (Figure 7). One of the correlations was absolute (0.966), that between total yield and marketable yield. Locule number was found to be correlated with fruit weight (0.43), equatorial diameter (0.32), dry matter (0.31) and TSS (0.17); while the fruit weight was correlated with equatorial diameter (0.54), locules (0.43), pericarp thickness (0.28) and polar diameter (0.27). Previous research works conducted on tomato showed similar results. In this direction, a high correlation was noticed between fruit yield, fruit weight and pericarp thickness [61,62]. However, it is worth mentioning that no correlation was found between yield and any of the morphological and biochemical traits. Tomato plant yield under TLCV pressure is independent of any morphological and biochemical trait. Likewise, earlier, it was shown that under salt stress, plants’ survival and yield are independent of each other [63].

4. Conclusions

During the past few decades, breeding for tomato leaf curl virus resistance has been a major focus for the resistance breeding programs in tomato. Therefore, breeding efforts have been made to combine significant resistance to TLCV with important fruit quality and yield traits. The diallel mating design is a popular choice as it helps in the identification of parents with good GCA effects and hybrids with good SCA effects. Additionally, it provides the important information on gene action and inheritance of the traits. In this study, we evaluated morphological and biochemical traits of interest for tomato breeding under leaf curl virus pressure. The high diversity in the material was confirmed by GCA and SCA values for all traits. This showed the significance of both the additive and the non-additive effects in the inheritance of the traits evaluated. Furthermore, we have dissected the inheritance of total yield using the Bayesian approach. It was shown that total yield was more dependent on additive variance than the non-additive variance. Overall, this information will be useful to design and develop breeding programs aiming to improve TLCV resistance along with a respectable combination of important traits. The moderately resistant and high yielding parents (P4 and P9) and hybrids (H23, H42, and H49) could be used for resistance breeding in tomato.

Supplementary Materials

The following are available online at, Table S1: The mean performance of parents and their hybrids for all studied characteristics. Table S2: Detailed data of specific combining ability of fifty-five one-way F1 hybrids.

Author Contributions

P.K. and M.S.D. conceived of and designed the project. M.S.D. supervised the study. P.K. performed the experiments. P.K. analyzed the data. P.K. wrote the paper. M.S.D. corrected the final draft. Both authors read and approved the final manuscript.


This research received no external funding.


P.K. is thankful to the anonymous reviewers for their careful reading of the manuscript and for providing insightful suggestions. P.K. would also like to thank Sarah Diane Turner for her help with the BayesDiallel package. Authors are also grateful to the members of advisory committee.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Kalloo, G. Genetic Improvement of Tomato; Springer Science & Business Media: Berlin, Germany, 2012; ISBN 978-3-642-84275-7. [Google Scholar]
  2. Víquez-Zamora, M.; Vosman, B.; van de Geest, H.; Bovy, A.; Visser, R.G.; Finkers, R.; van Heusden, A.W. Tomato breeding in the genomics era: Insights from a SNP array. BMC Genom. 2013, 14, 354. [Google Scholar] [CrossRef] [PubMed]
  3. Hossain, M.A.; Wani, S.H.; Bhattacharjee, S.; Burritt, D.J.; Tran, L.-S.P. Drought Stress Tolerance in Plants, Vol 1: Physiology and Biochemistry; Springer: Berlin, Germany, 2016; ISBN 978-3-319-28899-4. [Google Scholar]
  4. Jacobsen, S.-E.; Jensen, C.R.; Liu, F. Improving crop production in the arid Mediterranean climate. Field Crop. Res. 2012, 128, 34–47. [Google Scholar] [CrossRef]
  5. Jensen, C.R.; Battilani, A.; Plauborg, F.; Psarras, G.; Chartzoulakis, K.; Janowiak, F.; Stikic, R.; Jovanovic, Z.; Li, G.; Qi, X.; et al. Deficit irrigation based on drought tolerance and root signalling in potatoes and tomatoes. Agric. Water Manag. 2010, 98, 403–413. [Google Scholar] [CrossRef]
  6. Gupta, S.K.; Thind, T.S. Disease Problems in Vegetable Production; Scientific Publishers: New Delhi, India, 2012; ISBN 978-93-86347-51-0. [Google Scholar]
  7. Xu, C.; Sun, X.; Taylor, A.; Jiao, C.; Xu, Y.; Cai, X.; Wang, X.; Ge, C.; Pan, G.; Wang, Q.; et al. Diversity, distribution, and evolution of tomato viruses in China uncovered by small RNA sequencing. J. Virol. 2017, 91, 1–14. [Google Scholar] [CrossRef] [PubMed]
  8. Picó, B.; Díez, M.J.; Nuez, F. Viral diseases causing the greatest economic losses to the tomato crop. II. The tomato yellow leaf curl virus—A review. Sci. Hortic. 1996, 67, 151–196. [Google Scholar] [CrossRef]
  9. Saxena, S.; Tiwari, A.K. Begomoviruses: Occurrence and Management in Asia and Africa; Springer: Singapore, 2017; ISBN 978-981-10-5984-1. [Google Scholar]
  10. Gaikwad, K.A.; Cheema, D.S.; Sharma, A.; Dhaliwal, M.S. Reactioofelitetomato (Solanumly copersicum L.) germplasm against tomato leaf curl virus disease. Acta. Hortic. 2011, 157–161. [Google Scholar] [CrossRef]
  11. Moriones, E.; Praveen, S.; Chakraborty, S. Tomato leaf curl new delhi virus: An emerging virus complex threatening vegetable and fiber crops. Viruses 2017, 9, 264. [Google Scholar] [CrossRef] [PubMed]
  12. Sharma, N.; Prasad, M. An insight into plant–Tomato leaf curl New Delhi virus interaction. Nucleus 2017, 60, 335–348. [Google Scholar] [CrossRef]
  13. Picó, B.; Díez, M.J.; Nuez, F. Evaluation of whitefly-mediated inoculation techniques to screen lycopersicon esculentum and wild relatives for resistance to tomato yellow leaf curl virus. Euphytica 1998, 101, 259–271. [Google Scholar] [CrossRef]
  14. Singh, R.K.; Rai, N.; Singh, M.; Saha, S.; Singh, S.N. Detection of tomato leaf curl virus resistance and inheritance in tomato (Solanum lycopersicum L.). J. Agric. Sci. 2015, 153, 78–89. [Google Scholar] [CrossRef]
  15. Díez, M.J.; Nuez, F. Tomato. In Vegetables II; Handbook of Plant Breeding; Springer: New York, NY, USA, 2008; pp. 249–323. ISBN 978-0-387-74108-6. [Google Scholar]
  16. Kaushik, P.; Andújar, I.; Vilanova, S.; Plazas, M.; Gramazio, P.; Herraiz, F.J.; Brar, N.S.; Prohens, J. Breeding vegetables with increased content in bioactive phenolic acids. Molecules 2015, 20, 18464–18481. [Google Scholar] [CrossRef] [PubMed]
  17. Arias, R.; Lee, T.-C.; Logendra, L.; Janes, H. Correlation of lycopene measured by HPLC with the L*, a*, b* color readings of a hydroponic tomato and the relationship of maturity with color and lycopene content. J. Agric. Food Chem. 2000, 48, 1697–1702. [Google Scholar] [CrossRef] [PubMed]
  18. Palozza, P.; Simone, R.E.; Catalano, A.; Mele, M.C. Tomato lycopene and lung cancer prevention: From experimental to human studies. Cancers 2011, 3, 2333–2357. [Google Scholar] [CrossRef] [PubMed]
  19. Wei, M.Y.; Giovannucci, E.L. Lycopene, Tomato Products, and Prostate Cancer Incidence: A Review and Reassessment in the PSA Screening Era. Available online: (accessed on 1 April 2012).
  20. Des Marais, D.L.; Hernandez, K.M.; Juenger, T.E. Genotype-by-environment interaction and plasticity: Exploring genomic responses of plants to the abiotic environment. Ann. Rev. Ecol. Evol. Syst. 2013, 44, 5–29. [Google Scholar] [CrossRef]
  21. Beckles, D.M. Factors affecting the postharvest soluble solids and sugar content of tomato (Solanumly copersicum L.) fruit. Postharvest Biol. Technol. 2012, 63, 129–140. [Google Scholar] [CrossRef]
  22. Acharya, B.; Dutta, S.; Dutta, S.; Chattopadhyay, A. Breeding tomato for simultaneous improvement of processing quality, fruit yield, and dual disease tolerance. Int. J. Veg. Sci. 2018, 1–17. [Google Scholar] [CrossRef]
  23. Panthee, D.R.; Perkins-Veazie, P.; Anderson, C.; Ibrahem, R. Diallel analysis for lycopene content in the hybrids derived from different colored parents in tomato. Am. J. Plant Sci. 2015, 6, 1483. [Google Scholar] [CrossRef]
  24. Shattuck, V.I.; Christie, B.; Corso, C. Principles for Griffing’s combining ability analysis. Genetica 1993, 90, 73–77. [Google Scholar] [CrossRef]
  25. Griffing, B. Concept of general and specific combining ability in relation to diallel crossing systems. Aust. J. Biol. Sci. 1956, 9, 463–493. [Google Scholar] [CrossRef]
  26. Hanson, P.M.; Licardo, O.; Hanudin; Wang, J.-F.; Chen, J. Diallel analysis of bacterial wilt resistance in tomato derived from different sources. Plant Dis. 1998, 82, 74–78. [Google Scholar] [CrossRef]
  27. Kaushik, P.; Plazas, M.; Prohens, J.; Vilanova, S.; Gramazio, P. Diallel genetic analysis for multiple traits in eggplant and assessment of genetic distances for predicting hybrids performance. PLoS ONE 2018, 13, e0199943. [Google Scholar] [CrossRef] [PubMed]
  28. Do Rêgo, E.R.; do Rêgo, M.M.; Finger, F.L.; Cruz, C.D.; Casali, V.W.D. A diallel study of yield components and fruit quality in chilli pepper (Capsicum baccatum). Euphytica 2009, 168, 275–287. [Google Scholar] [CrossRef]
  29. Taggar, G.K.; Gill, R.S. Preference of whitefly, Bemisiatabaci, towards black gram genotypes: Role of morphological leaf characteristics. Phytoparasitica 2012, 40, 461–474. [Google Scholar] [CrossRef]
  30. Toscano, L.C.; Boiça, A.L., Jr.; Leal, A.; Maruyama, W.I. Nonpreference of whitefly for oviposition in tomato genotypes. Sci. Agr. 2002, 59, 677–681. [Google Scholar] [CrossRef]
  31. Wu, H.X.; Matheson, A.C. Analysis of half-diallel mating design with missing crosses: Theory and SAS program for testing and estimating GCA and SCA fixed effects. Silvae Genet. 2000, 49, 130–137. [Google Scholar]
  32. Xiang, B.; Li, B. A new mixed analytical method for genetic analysis of diallel data. Can. J. For. Res. 2001, 31, 2252–2259. [Google Scholar] [CrossRef]
  33. Greenberg, A.J.; Hackett, S.R.; Harshman, L.G.; Clark, A.G. A hierarchical bayesian model for a novel sparse partial diallel crossing design. Genetics 2010, 185, 361–373. [Google Scholar] [CrossRef] [PubMed]
  34. Lenarcic, A.B.; Svenson, K.L.; Churchill, G.A.; Valdar, W. A general bayesian approach to analyzing diallel crosses of inbred strains. Genetics 2012, 190, 413–435. [Google Scholar] [CrossRef] [PubMed]
  35. Turner, S.D.; Maurizio, P.L.; Valdar, W.; Yandell, B.S.; Simon, P.W. Dissecting the genetic architecture of shoot growth in carrot (Daucus carota L.) using a diallel mating design. Genes Genom. Genet. 2018, 8, 411–426. [Google Scholar] [CrossRef] [PubMed]
  36. Banerjee, M.K. Kalloo Inheritance of tomato leaf curl virus resistance in Lycopersicon hirsutum f. Glabratum. Euphytica 1987, 36, 581–584. [Google Scholar] [CrossRef]
  37. Sharma, O.P.; Mahajan, R.; Singh, S. Field reaction of some root-knot resistant tomato varieties and hybrids to tobacco mosaic and tobacco leaf curl viruses. Indian J. Mycol. Plant Pathol. 1984, 14, 148–150. [Google Scholar]
  38. Maria Alda, L.; Gogoaşă, I.; Bordean, D.-M.; Gergen, I.; Alda, S.; Moldovan, C.; Niţă, L. Lycopene content of tomatoes and tomato products. J. Agroaliment. Proc. Technol. 2009, 15, 540–542. [Google Scholar]
  39. Rodríguez, F.; Alvarado, G.; Pacheco, Á.; Crossa, J.; Burgueño, J. AGD-R (Analysis of Genetic Designs with R for Windows) Version 4.0. Available online: (accessed on 11 June 2015).
  40. Wei, T.; Simko, V.; Levy, M.; Xie, Y.; Jin, Y.; Zemla, J. Corrplot: Visualization of a Correlation Matrix. Available online: (accessed on 17 October 2017).
  41. Peterson, B.G.; Carl, P.; Boudt, K.; Bennett, R.; Ulrich, J.; Zivot, E.; Cornilly, D.; Hung, E.; Lestel, M.; Balkissoon, K.; et al. Performance Analytics: Econometric Tools for Performance and Risk Analysis. Available online: (accessed on 2 March 2018).
  42. Lapidot, M.; Ben-Joseph, R.; Cohen, L.; Machbash, Z.; Levy, D. Development of a scale for evaluation of tomato yellow leaf curl virus resistance level in tomato plants. Phytopathology 2006, 96, 1404–1408. [Google Scholar] [CrossRef] [PubMed]
  43. Ambawat, S.; Sharma, P.; Yadav, N.R.; Yadav, R.C. MYB transcription factor genes as regulators for plant responses: An overview. Physiol. Mol. Biol. Plants 2013, 19, 307–321. [Google Scholar] [CrossRef] [PubMed]
  44. Gaikwad, K.A.; Sharma, A.; Cheema, D.S. Molecular detection and characterization of leaf curl virus infecting tomato in punjab, India. Acta. Hortic. 2011, 153–156. [Google Scholar] [CrossRef]
  45. Lapidot, M.; Friedmann, M.; Lachman, O.; Yehezkel, A.; Nahon, S.; Cohen, S.; Pilowsky, M. Comparison of resistance level to tomato yellow leaf curl virus among commercial cultivars and breeding lines. Plant Dis. 1997, 81, 1425–1428. [Google Scholar] [CrossRef]
  46. Pérez-De-Castro, A.; Campos, G.; Julián, O.; Dueñas, F.; Álvarez, M.; Martínez-Zubiaur, Y.; Díez, M.J. Evaluation under diverse conditions of a differential host reaction scale to tomato yellow leaf curl virus in tomato. Phytopathol. Mediterr. 2017, 56, 50–61. [Google Scholar] [CrossRef]
  47. Fereres, A.; Peñaflor, M.F.G.V.; Favaro, C.F.; Azevedo, K.E.X.; Landi, C.H.; Maluta, N.K.P.; Bento, J.M.S.; Lopes, J.R.S. Tomato infection by whitefly-transmitted circulative and non-circulative viruses induce contrasting changes in plant volatiles and vector behaviour. Viruses 2016, 8, 225. [Google Scholar] [CrossRef] [PubMed]
  48. Channarayappa, C.; Shivashankar, G.; Muniyappa, V.; Frist, R.H. Resistance of lycopersicon species to bemisiatabaci, a tomato leaf curl virus vector. Can. J. Bot. 1992, 70, 2184–2192. [Google Scholar] [CrossRef]
  49. Farzane, A.; Nemati, H.; Aroiee, H.; Mirshamsi, A.; Vahdati, N. The estimate of combining ability and heterosis for yield and yield components in tomato (Lycopersicon esculentum Mill.). J. Biol. Environ. Sci. 2012, 6, 129–134. [Google Scholar]
  50. Shalaby, T.A. Mode of gene action, heterosis and inbreeding depression for yield and its components in tomato (Solanumly copersicum L.). Sci. Hortic. 2013, 164, 540–543. [Google Scholar] [CrossRef]
  51. Shankar, A.; Reddy, R.V.S.K.; Sujatha, M.; Pratap, M. Combining ability and gene action studies for yield and yield contributing traits in tomato (Solanumly copersicum L.). Helix 2012, 6, 431–435. [Google Scholar]
  52. Govindarasu, P.; Muthukrishnan, C.R.; Irulappan, I. Combining-ability for yield and its components in tomato. Sci. Hortic. 1981, 14, 125–130. [Google Scholar] [CrossRef]
  53. Dufera, J.T.; Mohammed, W.; Hussien, S.; Kumar, V. Genetic analysis for fruit yield and quality attributes in some processing and fresh market tomato genotypes. Int. J. Veg. Sci. 2018, 24, 227–235. [Google Scholar] [CrossRef]
  54. Kumar, R.; Srivastava, K.; Singh, N.P.; Vasistha, N.K.; Singh, R.K.; Singh, M.K. Combining ability analysis for yield and quality traits in tomato (Solanumly copersicum L.). J. Agric. Sci. 2013, 5, 213–218. [Google Scholar] [CrossRef]
  55. Bleeker, P.M.; Diergaarde, P.J.; Ament, K.; Guerra, J.; Weidner, M.; Schütz, S.; de Both, M.T.J.; Haring, M.A.; Schuurink, R.C. The role of specific tomato volatiles in tomato-whitefly interaction. Plant Physiol. 2009, 151, 925–935. [Google Scholar] [CrossRef] [PubMed]
  56. Maluta, N.K.P.; Fereres, A.; Lopes, J.R.S. Settling preferences of the whitefly vector Bemisiatabaci on infected plants varies with virus family and transmission mode. Entomol. Exp. Appl. 2017, 165, 138–147. [Google Scholar] [CrossRef]
  57. Crowley, J.J.; Kim, Y.; Lenarcic, A.B.; Quackenbush, C.R.; Barrick, C.J.; Adkins, D.E.; Shaw, G.S.; Miller, D.R.; de Villena, F.P.-M.; Sullivan, P.F.; et al. Genetics of adverse reactions to haloperidol in a mouse diallel: A drug-placebo experiment and Bayesian causal analysis. Genetics 2014, 196, 321–347. [Google Scholar] [CrossRef] [PubMed]
  58. Lunt, K.A.; Roux, C.Z.; Blokpoel, I.; Booyse, M. Inheritance of flavour in six tomato (Lycopersicone sculentum) varieties. S. Afr. J. Plant Soil 1999, 16, 113–117. [Google Scholar] [CrossRef]
  59. Pandiarana, N.; Chattopadhyay, A.; Seth, T.; Shende, V.D.; Dutta, S.; Hazra, P. Heterobeltiosis, potence ratio and genetic control of processing quality and disease severity traits in tomato. N. Z. J. Crop Hortic. Sci. 2015, 43, 282–293. [Google Scholar] [CrossRef]
  60. Souza, L.M.D.; Paterniani, M.E.A.; Melo, P.C.T.D.; Melo, A.M.D. Diallel cross among fresh market tomato inbreeding lines. Hortic. Bras. 2012, 30, 246–251. [Google Scholar] [CrossRef]
  61. Kumar, D.; Kumar, R.; Kumar, S.; Bhardwaj, M.L.; Thakur, M.C.; Kumar, R.; Thakur, K.S.; Dogra, B.S.; Vikram, A.; Thakur, A.; et al. Genetic variability, correlation and path coefficient analysis in tomato. Int. J. Veg. Sci. 2013, 19, 313–323. [Google Scholar] [CrossRef]
  62. De Souza, L.M.; Melo, P.C.T.; Luders, R.R.; Melo, A.M. Correlations between yield and fruit quality characteristics of fresh market tomatoes. Hortic. Bras. 2012, 30, 627–631. [Google Scholar] [CrossRef]
  63. Rao, E.S.; Kadirvel, P.; Symonds, R.C.; Ebert, A.W. Relationship between survival and yield related traits in Solanum pimpinellifolium under salt stress. Euphytica 2013, 190, 215–228. [Google Scholar] [CrossRef]

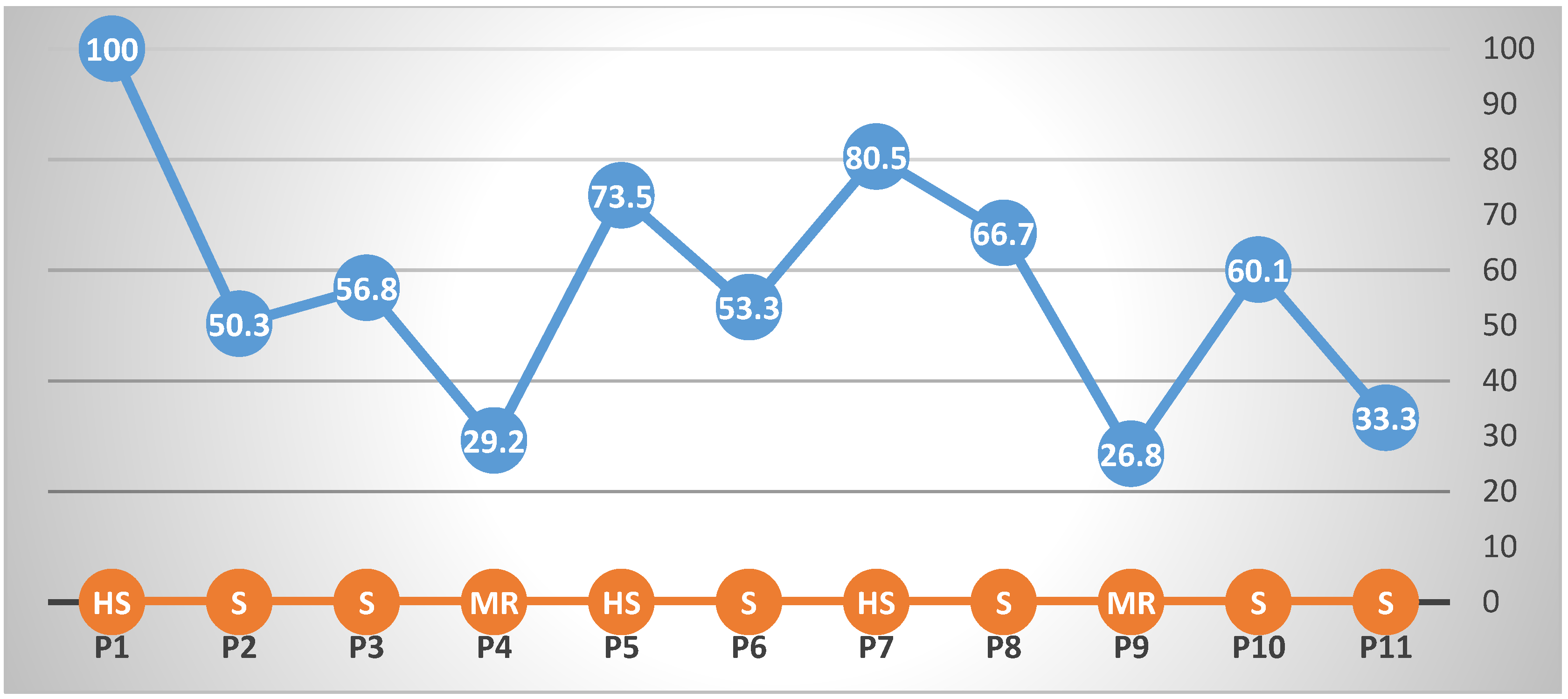

Figure 1. The percent disease incidence (PDI) reaction of parents to TLCV along with the grading scale (x-axis), where HS = Highly Susceptible, MR = Moderately Resistant and S = Susceptible.
Figure 1. The percent disease incidence (PDI) reaction of parents to TLCV along with the grading scale (x-axis), where HS = Highly Susceptible, MR = Moderately Resistant and S = Susceptible.
Agronomy 08 00153 g001
Figure 2. The percent disease incidence (PDI) reaction of parents and the hybrid cross combinations to TLCV infestation under field conditions.
Figure 2. The percent disease incidence (PDI) reaction of parents and the hybrid cross combinations to TLCV infestation under field conditions.
Agronomy 08 00153 g002

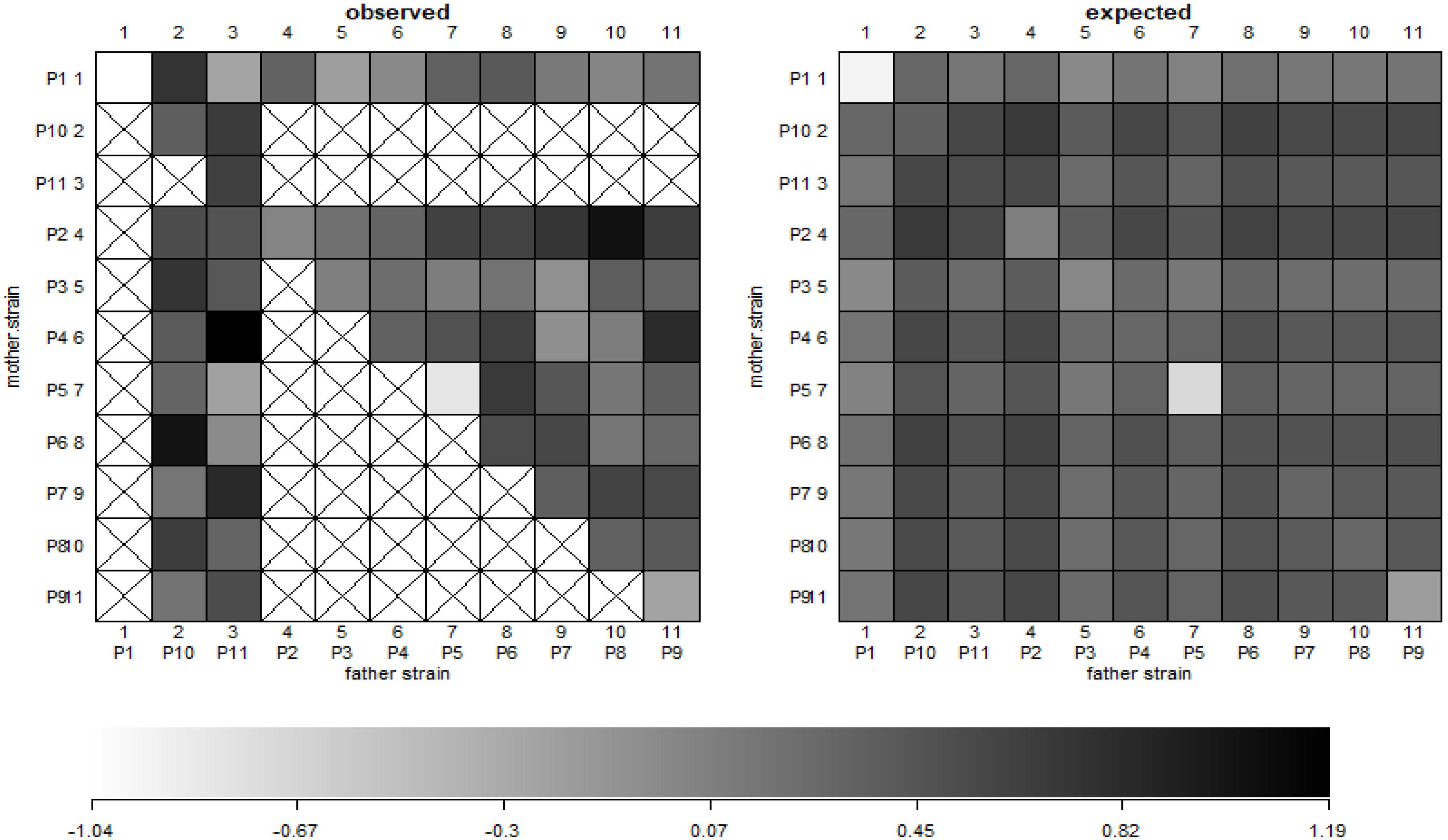

Figure 3. Total yield data of 55 hybrids and 11 parental genotypes in a half diallel. The left is for parental (P1–P11), with crossed boxes indicating the missing data (as half diallel was used) and the shaded box representing the values based on the horizontal scale (below). The right side graph shows predictive means based on the Bab diallel model on the scale of (−1.04–1.19).
Figure 3. Total yield data of 55 hybrids and 11 parental genotypes in a half diallel. The left is for parental (P1–P11), with crossed boxes indicating the missing data (as half diallel was used) and the shaded box representing the values based on the horizontal scale (below). The right side graph shows predictive means based on the Bab diallel model on the scale of (−1.04–1.19).
Agronomy 08 00153 g003
Figure 4. Highest posterior density (HDP) intervals of parent-specific additive effects, parent of origin and inbreeding effect of the 11 parents studied.
Figure 4. Highest posterior density (HDP) intervals of parent-specific additive effects, parent of origin and inbreeding effect of the 11 parents studied.
Agronomy 08 00153 g004

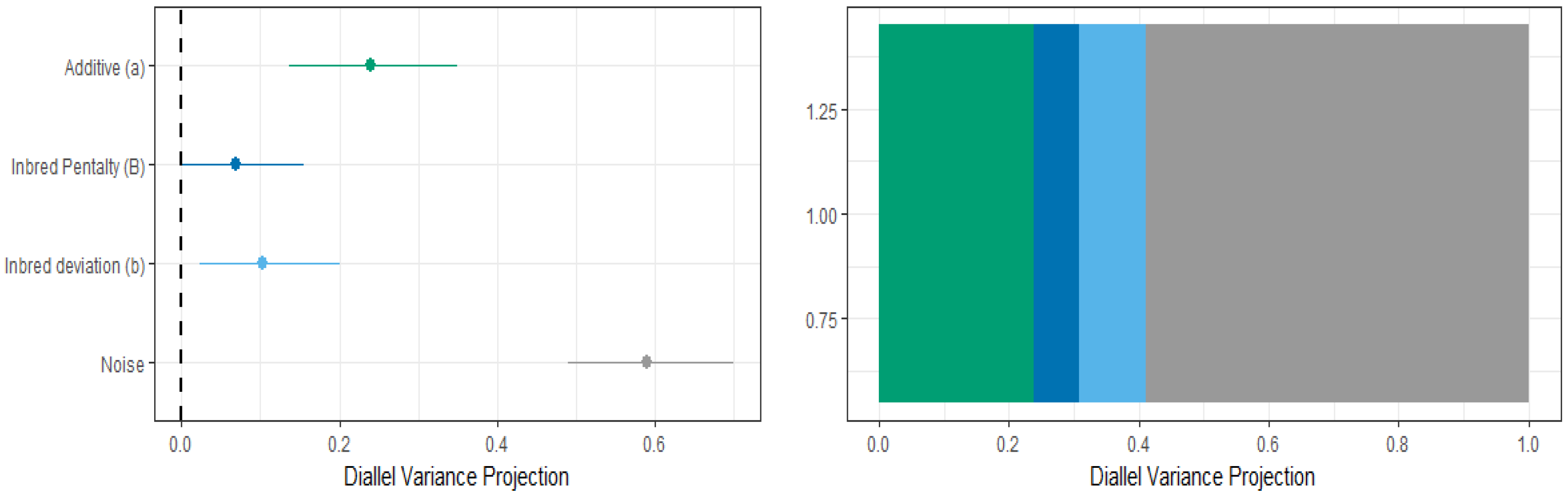

Figure 5. Diallel variance projections of the genetic architecture for total yield.
Figure 5. Diallel variance projections of the genetic architecture for total yield.
Agronomy 08 00153 g005
Figure 6. Promising hybrid cross combinations identified based on SCA values, under leaf curl virus infestation.
Figure 6. Promising hybrid cross combinations identified based on SCA values, under leaf curl virus infestation.
Agronomy 08 00153 g006

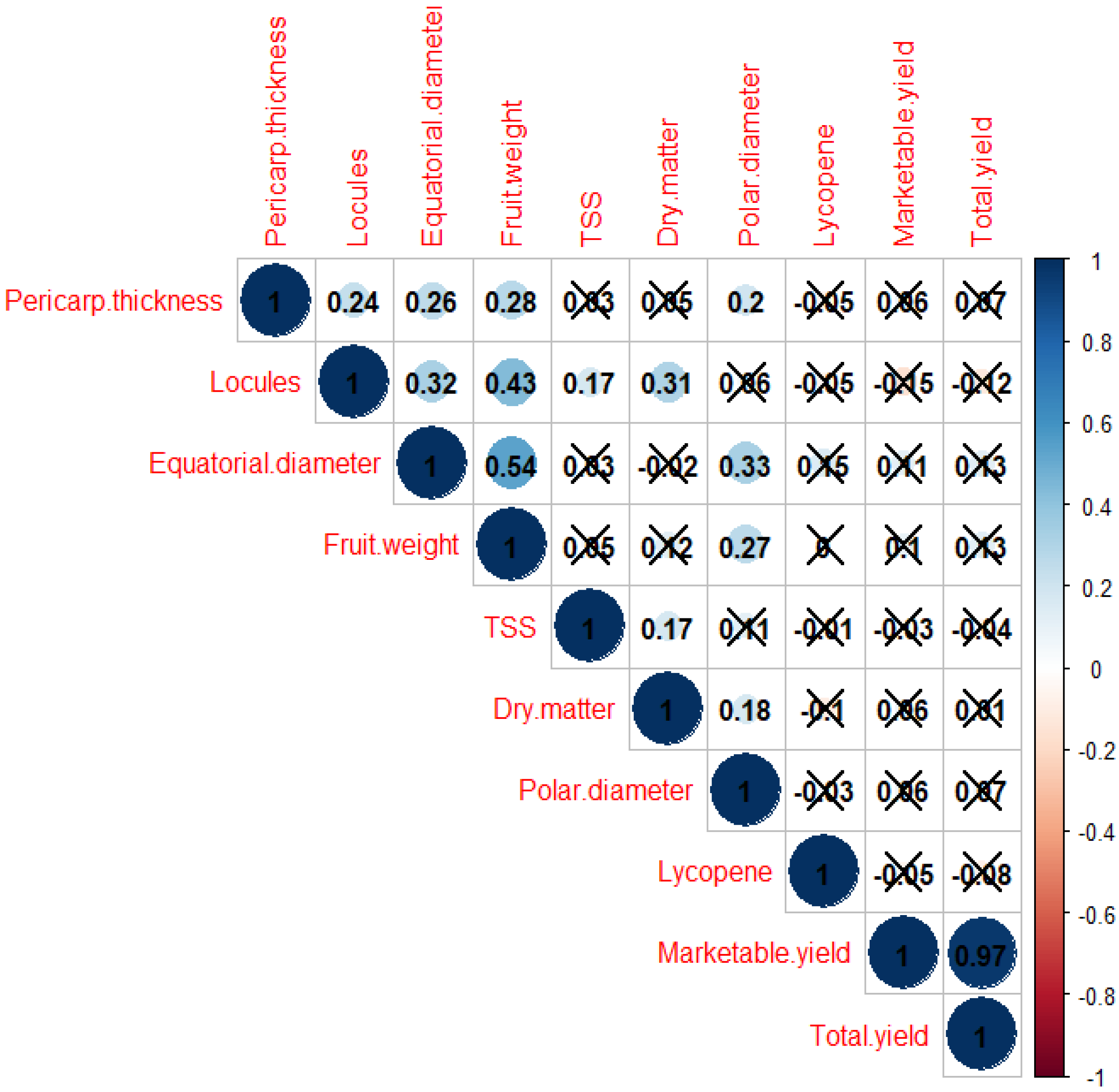

Figure 7. Pearson’s correlation coefficients with significant values at p < 0.05.
Figure 7. Pearson’s correlation coefficients with significant values at p < 0.05.
Agronomy 08 00153 g007
Table 1. Representation of the cross or hybrid combinations (55 in total) developed as a result of the half-diallel mating design.
Table 1. Representation of the cross or hybrid combinations (55 in total) developed as a result of the half-diallel mating design.
P2 H11H12H13H14H15H16H17H18H19
P3 H20H21H22H23H24H25H26H27
P4 H28H29H30H31H32H33H34
P5 H35H36H37H38H39H40
P6 H41H42H43H44H45
P7 H46H47H48H49
P8 H50H51H52
P9 H53H54
P10 H55
Table 2. Analysis of variance for general combining ability (GCA) and specific combining ability (SCA) for the ten descriptors in tomato under leaf curl virus conditions including the Baker ratio, narrow sense (h2) and broad sense heritabilities (H2).
Table 2. Analysis of variance for general combining ability (GCA) and specific combining ability (SCA) for the ten descriptors in tomato under leaf curl virus conditions including the Baker ratio, narrow sense (h2) and broad sense heritabilities (H2).
Source of VariationGenotypes aGCA aSCA aErrorBaker Ratioh2H2
Degree of freedom65105565
Dry matter0.38 ***0.66 ***0.33 ***0.110.800.220.95
Equatorial diameter0.68 ***0.87 ***0.65 ***0.010.730.170.97
Fruit weight964.97 ***2755.90 ***639.35 ***31.900.900.380.94
Locules0.87 ***1.48 ***0.76 ***0.020.800.220.96
Lycopene1.58 ***1.91 ***1.51 ***0.010.720.160.95
Marketable yield0.55 ***0.71 ***0.52 ***0.010.730.170.96
Pericarp thickness0.03 ***0.05 ***0.03 ***0.070.770.200.95
Polar diameter0.83 ***0.55 ***0.88 ***0.010.560.100.97
Total yield0.56 ***0.91 ***0.50 ***0.010.780.220.96
TSS0.35 ***0.28 ***0.36 ***0.010.610.100.94
a, ***, **, * indicate significant at p < 0.001, p < 0.01 or p < 0.05, respectively.
Table 3. Diallel variance projection approach (VarP) for the tomato total yield trait.
Table 3. Diallel variance projection approach (VarP) for the tomato total yield trait.
Diallel Inheritance ClassMean2.50%25%50%75%97.50%
Inbred penalty (B)6.760.114.096.429.1015.22
Additive (a)23.9713.7120.2823.9527.5834.64
Inbred deviation (b)10.312.337.0910.0313.1620.25
Total variance explained41.0330.3137.4541.1844.7251.15
Unexplained variance58.9748.8555.2858.8262.5569.69
Table 4. The estimates of general combining ability (GCA) for the parent genotypes (11) for the ten descriptors studied under the influence of leaf curl virus.
Table 4. The estimates of general combining ability (GCA) for the parent genotypes (11) for the ten descriptors studied under the influence of leaf curl virus.
ParentDry Matter aEquatorial Diameter aFruit Weight aLocules aLycopene aMarketable Yield aPericarp Thickness aPolar Diameter aTotal Yield aTSS a
P10.091 ***−0.201 ***−12.458 ***−0.022 ***−0.121 ***−0.333 ***−0.009 ns0.061 *−0.366 ***0.152 ***
P20.346 ***−0.181 ***6.773 ***0.355 ***−0.415 ***0.188 ***0.003 ns−0.020 ns0.151 ***−0.048 *
P3−0.105 ***−0.098 ***−15.122 ***−0.298 ***0.454 ***−0.133 ***−0.007 ns−0.061 *−0.206 ***0.010 ns
P4−0.121 ***0.273 ***8.495 ***0.261 ***−0.086 **0.048 ns−0.002 ns0.025 ns0.089**−0.168 ***
P5−0.067 **0.137 ***9.596 ***−0.085 **−0.061 *−0.180 ***−0.016 *0.177 ***−0.207 ***0.034 ns
P6−0.178 ***0.041 ns−0.690 ns−0.273 ***0.427 ***0.161 ***−0.038 ***−0.257 ***0.154 ***−0.071 **
P70.021 ns0.195 ***7.770 ***−0.089 **0.106 ***0.012 ns0.018 *0.263 ***0.032 ns0.023 ns
P80.170 ***0.168 ***8.453 ***0.350 ***−0.169 ***0.018 ns0.115 ***−0.039 ns0.023 ns0.195 ***
P90.033 ns−0.045 ns4.867 ***0.126 ***0.213 ***−0.070 **0.029 ***−0.178 ***−0.050 *−0.011 ns
P10−0.185 ***0.007 ns−0.081 ns−0.120 ***−0.215 ***0.141 ***−0.035 ***0.060 *0.215 ***−0.098 ***
P11−0.003 ns−0.296 ***−17.605 ***−0.205 ***−0.132 ***0.148 ***−0.058 ***−0.032 ns0.164 ***−0.019 ns
a, ***, **, *, ns, indicate significant at p < 0.001, p < 0.01, p < 0.05, and nonsignificant, respectively.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (
Agronomy EISSN 2073-4395 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
