Next Article in Journal
Bond Strength of Pretreated SFRC CAD/CAM Blocks: Comparison of Two SBS Test Methods
Previous Article in Journal
The Influence of Polymer Fibers on the Properties of Foam Concrete with a Complex Nanomodifying Additive: Finite Element Analysis and Experimental Study


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Polymers
Volume 18
Issue 8
10.3390/polym18080989
polymers-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Co-Pyrolysis of Polyolefins and Silicone Rubber: Effects on Mass Balancing, Product Distribution, and Potential Siloxane Recovery

by
Lukas Eigenschink
1,2,*,
Wolfgang Eder
3,
Matthias Mastalir
3,
Michael Harasek
2 and
Christian Paulik
1
1
Institute for Chemical Technology of Organic Materials, Johannes Kepler University Linz, Altenberger Straße 69, 4040 Linz, Austria
2
Institute of Chemical, Environmental and Bioscience Engineering, Vienna University of Technology (TU Wien), Getreidemarkt 9/166, 1060 Vienna, Austria
3
OMV Downstream GmbH, Mannswörther Straße 28, 2320 Schwechat, Austria
*
Author to whom correspondence should be addressed.
Polymers 2026, 18(8), 989; https://doi.org/10.3390/polym18080989
Submission received: 26 March 2026 / Revised: 11 April 2026 / Accepted: 16 April 2026 / Published: 18 April 2026
(This article belongs to the Section Polymer Chemistry)
Browse Figures
Versions Notes

Abstract

Co-pyrolysis of polyolefins (LDPE, PP, PS) mixed with silicone rubber (SR) was investigated using a laboratory-scale pyrolysis apparatus to evaluate product composition, synergistic interactions, and siloxane recovery potential. Synergistic effects were assessed by comparing experimental mass balances and product distributions with calculated values derived from individual polymer pyrolysis. Co-pyrolysis resulted in a reduction in liquid yield and an increase in gaseous products and solid residue compared to calculated values, with liquid yields decreasing by up to ≈15 wt% at high SR content. This shift was accompanied by an enrichment in lighter hydrocarbons in both phases, reaching up to a ≈18% relative increase at high SR content, and by a redistribution towards smaller cyclic siloxanes. Chromatographic analysis confirmed that no new compounds were formed, but the proportion of low molecular weight species increased with silicone content. These effects are attributed to the distinct thermal behavior of the polymers, as silicone rubber does not melt but becomes brittle, allowing molten polyolefins to infiltrate surface cracks and prolong residence time, thereby promoting secondary cracking. Furthermore, recovery of hexamethylcyclotrisiloxane (D3), the primary silicone pyrolysis product, was demonstrated from the liquid co-pyrolysis products via solvent-assisted filtration using ethanol, achieving purities above 99.5% and recovery rates up to ≈75% compared to other possible methods. These findings provide insights into co-pyrolysis behavior and offer a basis for developing strategies for the recovery of siloxane and advanced recycling of mixed polymer waste.

1. Introduction

The global proliferation of plastic waste presents a significant environmental and technological challenge. Global plastic production exceeded 400 million metric tons in 2022 [1] and is projected to reach approximately 884 million metric tons by 2050 [2]. This anticipated growth will significantly increase the volume of mixed plastic waste, complicating recycling processes due to the diverse chemical compositions and thermal behaviors of different polymers. Conventional mechanical recycling methods are often inefficient or infeasible for mixed or contaminated plastic streams, leading to a growing interest in thermochemical approaches, such as pyrolysis [3]. Pyrolysis offers a promising route for converting plastic waste into valuable chemical feedstocks and fuels, but its effectiveness is highly dependent on the nature of the polymers involved and their interactions during thermal degradation [4].
Among polymers present in post-consumer and industrial waste, polyolefins (PO), primarily polyethylene (LDPE, HDPE, LLDPE), polypropylene (PP), and polystyrene (PS) are the most abundant, owing to their extensive use in packaging, automotive components, and consumer goods [5]. Collectively, they account for approximately 50 wt% of global plastic production [6]. These materials are characterized by high hydrogen-to-carbon ratios and relatively simple hydrocarbon backbones, which make them suitable candidates for pyrolytic conversion into liquid hydrocarbons and gaseous fuels [7,8,9,10]. However, the presence of non-polyolefin materials in mixed waste streams introduces complexity into the pyrolysis process and could alter the product distribution and yield [11,12,13,14].
Silicone rubbers (SRs), particularly polydimethylsiloxane (PDMS)-based, are widely used in medical devices, kitchenware, electronics, sealants, and high-performance coatings due to their thermal stability, flexibility, and chemical inertness [15]. Silicone rubbers are frequently incorporated into polymer formulations as processing aids to improve flow characteristics during extrusion and molding and are also added to enhance flame retardancy and modify combustion behavior due to their thermal stability and inert residue formation [16]. Their incorporation into consumer and industrial products often results in silicone-containing waste being co-disposed with polyolefins. Despite their prevalence, the pyrolytic behavior of silicones, especially in mixed polymer systems, remains underexplored. This gap in knowledge is important, as silicones exhibit distinct degradation pathways compared to hydrocarbon-based polymers [17], potentially influencing the yield and composition of pyrolysis products when processed together.
During co-pyrolysis of mixed polymer streams, interactive effects between components may redirect degradation routes, leading to substantial shifts in the composition and distribution of degradation products. At the same time, co-pyrolysis can be beneficial by reducing the apparent activation energy, thereby lowering the required reaction temperature or enhancing the formation of target products through alternative reaction pathways. These synergistic effects are particularly advantageous, as they enable the direct processing of mixed plastic feeds without the need for complete separation into individual polymer types [11,14,18,19,20]. While co-pyrolysis of different polymers [21,22], waste material [23,24], and additives [25] have been studied, the behavior of silicone–polyolefin mixtures under pyrolytic conditions is not well understood. Investigating these interactions is essential for optimizing thermochemical recycling processes and improving the recovery of valuable compounds from mixed plastic waste.
One of the key degradation products of PDMS-based silicones during pyrolysis is hexamethylcyclotrisiloxane (D3), a cyclic trimer formed through backbiting reactions [17]. D3 is a commercially valuable compound used as a precursor in the synthesis of silicone elastomers, resins, and surfactants [26,27,28]. Its recovery from waste streams not only adds economic value to the pyrolysis process but also supports circular economy principles by enabling the reuse of silicone-derived materials. However, the formation and recovery of D3 in the presence of polyolefins have not been systematically studied, and it remains unclear how co-pyrolysis conditions affect its formation, the possibility of recovery, and yield.
This study aims to address these gaps by investigating the co-pyrolysis behavior of silicone rubber and polyolefins under controlled thermal conditions. Through a series of individual and mixed pyrolysis experiments, we examine the influence of polymer interactions on product distribution, with a particular focus on the effect on mass balancing, gaseous and liquid product distribution, and the recovery of D3. By comparing the pyrolysis profiles of pure and blended polymers, we seek to identify potential synergistic effects and assess the feasibility of selective recovery of valuable compounds from mixed plastic waste. The findings contribute to a deeper understanding of mixed polymer pyrolysis and offer insights into the development of more efficient recycling technologies for complex waste streams.

2. Materials and Methods

2.1. Material

PS (product type: Polystyrene Crystal 1540, Mw = 366,847 g mol−1, Mn = 62,030 g mol−1) was purchased from TotalEnergies (Brussels, Belgium). LDPE (Mw ~110,000 g mol−1, average Mn ~35,000 g mol−1) and PP (Mw ~250,000 g mol−1, average Mn ~67,000 g mol−1) were provided by Sigma Aldrich (St. Lous, MO, USA). The polyolefins were provided additive-free as white pellets. Silicone rubber, ultra-high molecular weight polydimethylsiloxane (UHMW-PDMS) of the product type Genioplast® Pellet S, was provided as opaque pellets containing approx. 70 wt% silicone polymer and 30 wt% fumed silica by Wacker Chemie AG (Munich, Germany). Genioplast® Pellet S was chosen because one of its applications is its use as a processing aid in polyolefins. In addition, this choice reflects industrial practice, as commercially available silicone rubbers typically contain inorganic fillers. Before the pyrolysis experiments and mixing of the polymers, all the polymers were ground mechanically. For polymer mixtures, the ground polymers were physically combined and mixed by repeated stirring. A homogeneous mixture was obtained as the melting of the polyolefin facilitated effective component dispersion. Hexamethylcyclotrisiloxane (D3, 98%) was provided by Sigma Aldrich (St. Louis, MO, USA).

2.2. Laboratory Pyrolysis

The pyrolysis was conducted in a static N2 atmosphere using a laboratory-scale batch reactor implemented using standard glassware. A total of 10 g of the pure polymers and PO:SR mixtures with three varying mass ratios were used. To ensure reproducibility, the pyrolysis of each pure polymer was conducted in three independent experimental runs. The polymer mixtures were placed stationary in a round-bottom flask (flask 1) and heated using a high-power external thermal source applied directly to the wall of flask 1. The reactor temperature was measured at the outer surface of the flask, using an infrared pyrometer. The effective heating rate was calculated to be approximately 40 °C s−1. This heating rate is comparable to industrial reactors, classified in the range of intermediate to fast pyrolysis [29,30]. The reactor was heated to a maximum temperature of 600 °C and maintained at this temperature for 10 min, after which no further gas evolution was observed. The residue fraction remained in flask 1, whereas the evolved gas was cooled through a distillation condenser (20 °C), leading to solid, liquid, and wax products being collected in another round-bottom flask (flask 2). The gaseous products, which are non-condensable at 20 °C, were collected in a gas sample bag. For the mass balancing, the yield of the gaseous fraction was calculated through the difference between the mass of the sample and the liquid/solid/wax products, together with the residue. The arithmetic mean of individual polymer yield profiles served as the basis for calculating an expected mass balance for co-pyrolyzed mixtures, enabling comparative analysis. A final pyrolysis temperature of 600 °C was selected because the primary decomposition of LDPE, PP [31], and PS [32] typically occurs in the range of 400–480 °C, whereas the thermal degradation of silicone rubber extends over a broader interval of approximately 400–600 °C [33], with a peak decomposition temperature near 550 °C. The peak degradation temperatures (Table S1) and degradation intervals of the used polymers were tested by TGA, which is depicted in Figures S1–S5. Choosing 600 °C in combination with a high heating rate ensures substantial overlap between the degradation regimes of the polyolefins and the silicone rubber, thereby enabling a more precise investigation of potential synergistic effects. In contrast, significantly slower heating rates could reduce the extent of such interactions and thus diminish observable synergy effects.

2.3. Isolation of Hexamethylcyclotrisiloxane (D3)

The liquid co-pyrolysis products obtained from all experiments (mass ratio 1:1) were subjected to vacuum distillation. Under the applied conditions (200 mbar, 50 °C), the D3-rich fractions were isolated predominantly as colorless crystalline solids accompanied by small amounts of colorless liquid. The distillates were subsequently cooled to 4 °C for 1 h and decanted. The resulting crystalline sample was then purified either by washing at 4 °C or by recrystallization, which involved dissolution at the boiling point of the respective solvent followed by cooling to 4 °C for 1 h. For solvent-assisted filtration, the sample was filtered using a 0.2 µm PTFE syringe filter with precooled solvent (4 °C). All purified materials, obtained via washing, recrystallization, or solvent-assisted filtration, were finally dried under vacuum (4 mbar, 10 min). To assess the recovery of D3, distillation fractions from the pure polyolefin pyrolysis products were obtained at 200 mbar and 55 °C and mixed with varying amounts of D3. The samples were heated to 70 °C to ensure complete dissolution of D3, after which they were processed using the same procedures applied to distillation fractions obtained from PO:SR pyrolysis.

2.4. Gas Chromatography–Mass Spectrometry (GC-MS)

The obtained liquid products were diluted with dichloromethane and subsequently analyzed by GC-MS. The products were separated using a gas chromatograph (Thermo Finnigan Trace GC, Thermo Fisher Scientific, San Jose, CA, USA) equipped with a capillary column (Rtx-5MS 5% diphenyl, 95% dimethylpolysiloxane, 30 m × 0.25 mm inner diameter × 0.25 µm film thickness) using a 1.5 mL min−1 He flow. Entering the inlet (280 °C, split flow 50 mL min−1, split ratio 33), the sample was separated using a temperature program starting at 40 °C and held for 1 min, which was followed by a heating rate of 15 °C min−1 to 300 °C, which was held for 10 min. The mass spectra were recorded using a PolarisQ iontrap mass spectrometer (Thermo Finnigan) under 70 eV electron ionization in a m/z range of 50–800 at 1.96 scans sec−1. The compounds detected through GC-MS were identified using the NIST library, reference substances, and literature data.

2.5. Gas Chromatography–Flame Ionization Detector–Thermal Conductivity Detector (GC-FID-TCD)

The gaseous products were analyzed according to OENORM15984 (2022) [34] with a Fast RGA—Refinery Gas Analyzer (Agilent 7890A, Santa Clara, CA, USA) for the detection of hydrocarbons, CO, CO2, N2, O2, and H2 equipped with a capillary column (HayeSep Q 35 m × 320 µm × 8 µm). Entering the inlet (200 °C, split flow 767 mL min−1, split ratio 150), the sample was separated using a temperature program starting at 80 °C and was held for 2 min, followed by a heating rate of 35 °C min−1 to 185 °C, which was held for 2 min. The compounds were quantified using a thermal conductivity detector (TCD) and flame ionization detector (FID) using reference substances.

2.6. Nuclear Magnetic Resonance Spectroscopy (NMR)

To identify silicon compounds formed during pyrolysis, in addition to GC-MS, NMR spectroscopy was performed. NMR spectra were recorded using a Bruker Avance 400 (400 MHz) in CDCl3. CDCl3 was stored over silver foil and filtered through a short plug of basic alumina just before use. All chemical shifts are reported in ppm and were referenced externally to Si(CH3)4 for 29Si-NMR.

3. Results and Discussion

This study investigates the pyrolysis behavior of pure polymers and their mixtures, with emphasis on mass balance, product composition, and phase distribution. Additionally, methods for the isolation of D3 are also discussed. In order to yield PO and SR pyrolysis products and to study potential synergistic effects, the pure polymers and polymer blends were pyrolyzed on a laboratory scale. The liquid and gaseous pyrolysis products were characterized, and through the pure polymer pyrolysis data, the mass balancing and product distribution were calculated and compared to the experimental data.

3.1. Effects on Mass Balancing

To assess potential synergistic effects during co-pyrolysis, PO and SR were first subjected to individual pyrolysis experiments. Table 1 illustrates the relative product yields obtained from the separate pyrolysis of PO and SR at 600 °C. LDPE and PP generate high amounts of waxy products (≈90 wt%), small amounts of residue (<1 wt%), and moderate amounts of gaseous products (≈10 wt%). PS generated low quantities of gaseous products and residue, but in contrast, high amounts of liquid products (98.8 wt%). SR pyrolysis similarly yielded low amounts of gaseous products but produced substantial quantities of liquid/crystalline material (47.6 wt%) and solid residue (48.8 wt%). This behavior is attributed to the high filler content (30 wt% fumed silica) and the formation of silicone-based residues following side-chain elimination reactions. This observation is consistent with literature reports describing the formation of silica-rich residues during the pyrolysis of PDMS-based silicone rubbers [35,36]. For analytical consistency, the combined fraction of crystalline, liquid, and waxy products is classified as the liquid phase.
Figure 1 illustrates the comparison between experimental and calculated product distributions derived from pure polymer pyrolysis data, obtained during the co-pyrolysis of PO and SR at varying mass ratios. In all cases, co-pyrolysis resulted in higher yields of gaseous products and solid residue than predicted, accompanied by a corresponding reduction in liquid yield. This effect becomes increasingly pronounced in mixtures containing a higher proportion of SR (66 wt%). This deviation could be attributed to intensified cracking reactions that favor the formation of lighter hydrocarbons under pyrolytic conditions. The phenomenon is likely driven by the distinct thermal behaviors and interactions of the polymer components. Polyolefins undergo melting during pyrolysis, whereas SR-based materials do not melt due to being chemically crosslinked [36], but instead become brittle and develop surface fissures, a phenomenon observed during pyrolysis experiments. The molten polymer may infiltrate these cracks, effectively increasing its residence time within the pyrolysis zone. This prolonged exposure promotes secondary thermal degradation, leading to the formation of lower molecular weight hydrocarbons. The effect is particularly pronounced in PP, whose pyrolysis products exhibit a high degree of substitution. These branched hydrocarbons are more volatile than their linear counterparts, resulting in a substantial increase in the gaseous fraction compared to LDPE. In contrast, PS primarily produces aromatic hydrocarbons that remain largely in the liquid phase. Although some cracking to smaller fragments occurs, this does not significantly enhance gaseous product formation. Prolonged exposure not only increases the gaseous fraction but also promotes solid residue formation, with all polymers exhibiting comparable behavior.

3.2. Analysis of Gaseous Products

The gas phase signatures of the individual polymers reveal very different degradation products. SR pyrolysis is characterized by an overwhelming formation of methane, accompanied by hydrogen and only minor amounts of short-chained olefins, reflecting the preferential cleavage of methyl substituents and the formation of silicon-rich residues. In contrast, polypropylene (PP) produces a gas mixture dominated by propene, consistent with β-scission of its tertiary carbon backbone, alongside notable amounts of C5 and smaller C2–C3 hydrocarbons. When PP is co-pyrolyzed with SR, the gas composition progressively shifts toward the profile typical of silicone degradation, but the shift is smaller than calculated. Methane and hydrogen increase only modestly, whereas certain hydrocarbons, particularly ethene and iso-butene, rise far more strongly than expected. The pronounced formation of branched olefins confirms the assumption that co-pyrolysis promotes secondary cracking reactions, leading to the formation of lighter hydrocarbons, evident by the rapid decrease in n-pentane. The gas composition and calculated gas composition of PP and SR mixtures are depicted in Figure 2.
A similar pattern emerges for LDPE. While its pyrolysis typically yields a broad distribution of C2–C4 hydrocarbons, increasing SR content systematically enriches the gas phase in methane and, more strikingly, in ethene. The strong ethene enhancement, despite expectations of a decline, points to intensified chain scission and accelerated cracking toward the lighter olefins. Furthermore, the concurrent rise in 1,3-butadiene indicates that co-pyrolysis also reshapes the distribution of other light hydrocarbons, although the specific processes responsible for this increase remain uncertain. Other hydrocarbons generally follow expected dilution trends, though often at different rates, underscoring that the interaction between SR and polyolefins is subtle but sufficient to reshape the distribution of light gases. The main experimental and calculated gaseous products of LDPE and SR mixtures are depicted in Figure 3. Gaseous products only formed in minor amounts (<1 wt%), which follow the calculated trend, and are included in Figure S5.
Overall, the deviations from calculated yields can be attributed to the addition of SR, which promotes the formation of lighter hydrocarbons and unsaturated species during co-pyrolysis and an overall increase in gaseous products. Consequently, the gaseous fraction becomes enriched in polyolefin-derived cracking products, while the dominant species still reflect the degradation pathways of the respective polyolefins, since no new compounds formed during co-pyrolysis could be detected. SR forms only minor amounts of gaseous products during pyrolysis; hence, the experimental yield differs greatly from the calculated yield for the main compounds. Overall, increased SR content produces significantly higher amounts of monomer than calculated, making it ideal for monomeric recovery. Due to the low amounts of gaseous products being formed during the pyrolysis of PS and PS:SR mixtures, no analysis of the gaseous products could be conducted.

3.3. Effect on Liquid Product Distribution

Co-pyrolysis of PS with increasing SR content markedly influences the distribution of liquid products, as demonstrated in Figure 4. The identified pyrolysis products are consistent with those reported in the literature; however, at comparable temperatures, a higher proportion of dimeric and trimeric species was observed in the present study. This effect is most likely attributable to the different operating conditions [37,38,39]. As the proportion of SR rises, the formation of low molecular weight compounds increases, while the yields of dimers and trimers decline. Styrene yield grows significantly from 52.0% at 100 wt% PS to 67.2% at 33 wt% PS, and α-methylstyrene shows a similar positive correlation, increasing from 2.5% to 7.2%. These trends indicate that SR promotes depolymerization reactions, favoring monomer and substituted monomer formation. Conversely, higher oligomers decrease substantially, with dimers falling from 16.8% to 14.0% and trimers from 15.4% to 3.4%. Minor aromatic species exhibit mixed behavior: toluene decreases from 12.0% to 5.2%, whereas ethylbenzene and cumene show slight increases. Overall, SR addition shifts PS pyrolysis toward lighter, monomeric products at the expense of oligomer formation, a feature that may benefit processes targeting monomer recovery.
The pyrolysis products of LDPE and PP were classified according to their carbon number, reflecting similarities in physicochemical properties, and they are summarized in Figure 5. Furthermore, the products were subdivided into three distinct fractions (light, medium, and heavy) based on their carbon number and their respective response to SR addition. Although PP produces significantly more highly substituted hydrocarbons than LDPE, the influence of SR addition on the fraction distribution remains similar for both polymers. The results are summarized in Table 2. The liquid and gaseous products obtained from the pyrolysis of the pure polymers are consistent with literature reports for LDPE [25,40,41] and PP [42,43,44] at comparable conditions. While the types of products identified and the predominant species are similar, differences in quantitative product yields are observed, most likely due to variations in operating conditions. Analysis of the liquid pyrolysis products of PP mixtures indicates that the addition of SR promotes the formation of light hydrocarbons (C7–C13), with their proportion increasing from 20.4% to 38.5%. The most abundant compound in this fraction, C9, rises markedly from 8.3% to 17.5%. In contrast, the yield of medium hydrocarbons (C14–C25) is higher for pure PP pyrolysis than for co-pyrolysis products, decreasing from 43.6% to 34.5% upon SR addition. The heavy fraction (>C25) shows no consistent trend, varying between 27.1% and 37.4%. Interestingly, in the heavy fraction of pure PP pyrolysis, C3n+1 compounds occur in greater abundance compared to C3n species.
The co-pyrolysis of LDPE with SR exhibits a similar hydrocarbon profile to that of pure LDPE, with no new compounds detected. However, as observed for PP co-pyrolysis, SR addition shifts the product distribution toward shorter-chain hydrocarbons. The light fraction (C7–C13) increases from 25.9% to 32.8%, with the major component, C10, rising from 4.2% to 6.3%. The medium fraction (C14–C25) decreases from 58.8% to 52.3%, while the heavy fraction remains relatively unchanged, ranging from 14.9% to 15.6%. Overall, similar to PP co-pyrolysis, LDPE products shift toward lighter hydrocarbons, accompanied by a reduction in medium-chain compounds. In contrast, the pyrolysis of LDPE and PP does not exhibit substantial differences in the yield of higher hydrocarbons, whereas PS shows a pronounced decrease. It is important to note that siloxane-derived products were not included in this quantitative comparison, as the focus was placed on hydrocarbon-based species originating from the PO component.

3.4. Effect on Silicone Rubber Product Distribution

During pyrolysis, SR predominantly decomposes into cyclic oligomers, with the major products being D3–D5, while larger cyclic siloxanes are formed only in minor quantities. The siloxane distribution observed during the pyrolysis of pure silicone rubber is consistent with literature data at comparable temperatures, with D3 identified as the dominant product and progressively lower yields observed for larger cyclic siloxanes [41,45]. During co-pyrolysis, no additional compounds are formed; however, the yield of siloxane compounds decreases relative to the calculated values, suggesting an increased formation of silicone-derived solid residue, as their contribution to the gaseous phase remains negligible. This effect is most pronounced during co-pyrolysis with LDPE, less evident with PP, and minimal in PS:SR mixtures. The distribution of individual cyclic siloxanes is also affected. The presence of polyolefins during pyrolysis enhances the formation of D3 while reducing the yield of higher cyclic siloxanes (D5–D8), whereas no clear trend is observed for D4. These observations indicate that, similar to hydrocarbon formation, co-pyrolysis favors the generation of smaller molecular species. This phenomenon is consistently observed across all investigated polyolefins (LDPE, PP, and PS). Enhanced D3 production under co-pyrolysis conditions streamlines separation steps, thereby increasing recovery efficiency and achievable yields. Figure 6 illustrates the siloxane yield for PS:SR mixtures, as LDPE and PP mixtures exhibit similar trends.
Overall, the calculated siloxane yield in the liquid fraction aligns well with experimental measurements. As an example, for PS, this trend is evident across all PS:SR ratios. The experimental yields for siloxanes in the liquid product are 19.9% (1:2), 30.0% (1:1), and 48.5% (2:1), while the corresponding calculated yields are 19.2%, 32.6%, and 48.7%, respectively. The systematic decrease in the experimental values suggests that part of the SR does not convert into volatile siloxanes but instead contributes to the higher amount of solid residue. The GC-MS spectra and data of all liquid products are depicted in Figures S5–S18 and Tables S2–S4 of the Supplementary Material.

3.5. Mechanistic Interactions Between Polyolefins and Silicone Rubber

The thermal degradation pathways of polyolefins have been widely investigated and are predominantly governed by radical mechanisms. LDPE and PP degrade predominantly via free-radical chain reactions initiated by random C–C bond scission along the polymer backbone. The resulting macroradicals undergo β-scission, hydrogen abstraction, and radical recombination, producing mainly aliphatic hydrocarbons. While LDPE favors a broad distribution of linear and branched alkenes and alkanes due to secondary C–C scission, PP degrades more readily at tertiary carbon sites, often yielding higher fractions of low molecular weight olefins, such as propene [46,47]. In contrast, PS decomposes primarily via a radical depolymerization mechanism enabled by the stabilization of benzyl radicals by the aromatic ring. Secondary reactions produce alkyl-substituted aromatics, such as toluene and ethylbenzene. Hydrogen transfer reactions account for the production of dimer and trimer [48,49]. The principal degradation pathways of PDMS proceed either through a cyclic transition state or via radical chain scission accompanied by side-chain elimination (Figure 7) [17].
GC–MS and 29Si-NMR analyses show that co-pyrolysis of polyolefins with silicones does not generate additional liquid or gaseous products beyond those formed by the individual polymers, indicating that the dominant degradation pathways remain essentially unchanged. Silicone can generate reactive radicals at elevated temperatures through cleavage of the Si-C bond, leading to the formation of short-chained gaseous hydrocarbons [50]. The hydrocarbon radicals could take part in the degradation mechanism of polyolefins. However, radical formation is only minor, which is evident by the low amounts of gaseous products (3.6 wt%) during pure SR pyrolysis. An interaction of siloxane radicals with radicals generated from PO during degradation appears unlikely, as 29Si-NMR analysis revealed no additional signals across different mass ratios examined. This implies that strong mechanistic interactions between the polymers are most likely only minimal. The product distribution of the liquid fraction reveals that increasing SR content promotes the formation of lighter hydrocarbons and smaller siloxane rings. These significant shifts in the product distributions are, therefore, more plausibly attributed to differences in the thermal properties of SR and polyolefins, leading to an increased residence time rather than to significant mechanistic interactions during pyrolysis. NMR spectra of the liquid products are provided in Figures S19 and S20.

3.6. Recovery of Hexamethylcyclotrisiloxane (D3) from Liquid Pyrolysis Products

The isolation of D3 from mixtures containing various cyclic siloxanes together with hydrocarbons is challenging due to their chemical similarity. Pure siloxane mixtures are typically separated by distillation under ambient or atmospheric pressure; however, while several techniques aim to reduce siloxane content in complex matrices, such as pyrolysis oils [51,52,53], no established methods for selective isolation are reported in the literature.
D3 offers a unique opportunity for separation because of its relatively high melting point (64 °C) and low boiling point (134 °C). Hydrocarbons formed during polyolefin pyrolysis exhibit boiling points close to that of D3 but remain liquid at room temperature. Co-pyrolysis with polyolefins further enhances this potential, as the yield of D3 increases with higher polyolefin content. Nevertheless, the concurrent formation of lighter hydrocarbons complicates isolation. Co-pyrolysis products were initially fractionated by vacuum distillation. These fractions generally contain D3 along with hydrocarbons of similar boiling points, such as C8 and C9 aliphatic and olefinic species for LDPE, 2,4-dimethylheptadiene (137 °C), iso-C9 derivatives, and trimethylcyclohexane derivatives for PP and ethylbenzene (136 °C) and styrene (145 °C) for PS. Occasionally, larger cyclic siloxanes, such as D4 (174 °C), are also found in these fractions due to their high vapor pressure [54]. Recovery is more challenging for PS and PP systems because they produce larger quantities of hydrocarbons with boiling points close to D3 in comparison to LDPE, which is further enhanced during co-pyrolysis, although isolation remains feasible.
The solid part of D3-rich fractions (71.4% D3, 20.6% C7–11, 8.0% D4) obtained by vacuum distillation (200 mbar, 55 °C) of the liquid PP:SR co-pyrolysis products were separated from the remaining liquid phase by decantation, followed by purification using various solvents through washing, solvent-assisted filtration or recrystallization, and subsequent removal of the solvent under reduced pressure. All purification steps were performed at 4 °C to minimize the solubility of D3 in the hydrocarbon matrix and solvents, since purification at room temperature decreased the product yield significantly. For high recovery rates, D3, the used amount of solvent should be minimal; therefore, a solvent:distillation fraction weight ratio of 1:5 for washing and solvent-assisted filtration and a ratio of 1:4 for recrystallization for clear phase separation were chosen. Preliminary screening of solvent-to-distillate ratios outside the range of 1:5–1:4 with n-pentane showed either insufficient phase separation (1:6) or excessive D3 losses due to solubility at higher solvent volumes (1:3); therefore, only the optimized ratios were investigated systematically. As summarized in Table 3, solvent-assisted filtration consistently produced the highest purities and recovery rates, which can be attributed to the short solvent solid contact time that minimizes dissolution of D3 crystals. Ethanol and acetonitrile, in particular, afforded purities above 97% and high yields above 88%. Filtration without the addition of solvent yielded only moderate purities (79%), indicating the necessity of a solvent for the removal of liquid hydrocarbons. Washing resulted in moderate purities and yields, with more polar solvents such as ethanol, acetonitrile, and acetone performing best due to their limited ability to solubilize apolar D3, whereas DCM showed reduced purity and yield, likely because of good solubility properties towards D3. Recrystallization produced higher purities than washing but suffered from significantly reduced yields, as the larger solvent volumes increased D3 solubility and thus material loss. For highly polar solvents such as ethanol and acetonitrile, no separate liquid phase formed, preventing recrystallization entirely. Overall, the data reflects a clear polarity-dependent solubility trend in which polar solvents provide superior removal of hydrocarbon matrix and other siloxane compounds, while non-polar solvents such as n-pentane or diethyl ether dissolve D3 more readily and, therefore, reduce recovery. These results highlight solvent-assisted filtration as the most efficient and scalable purification strategy, combining high purity with high yield, while washing and recrystallization offer a simpler but less selective alternative.
Solvent-assisted filtration was also performed for a D3-rich distillation fraction containing high amounts of higher siloxane compounds derived from the LDPE:SR liquid co-pyrolysis product. The increase in the solvent:distillation fraction weight ratio to 1:4 led to higher purities (>99.5%) of the product, with losses of D3 yield. Furthermore, the drying conditions have been optimized, since longer drying times decrease D3 recovery due to its high vapor pressure. High concentrations of D4 in the distillation fraction could present a challenge for the isolation of D3. Due to its relatively high melting point (17 °C) [54], D4 remains solid at 4 °C and can only be separated in small quantities. Table 4 summarizes the yields and purities of solvent-assisted D3 fractions obtained after vacuum distillation.
Using vacuum distillation and solvent-assisted filtration with ethanol and optimized drying times on the pyrolysis product of LDPE:SR (1:1), 12.0 wt% D3 could be recovered (75.4% of theoretical yield determined by GC-MS) in high purity (>99.5%).
To evaluate D3 recovery with solvent-assisted filtration using ethanol (weight ratio of 1:4 solvent:distillation fraction), pure D3 was added in varying amounts to distilled pyrolysis products of LDPE, PP, and PS. Recovery was successful up to a D3 content of ≥40 wt% within a hydrocarbon matrix of ≤60 wt%. At higher hydrocarbon contents, crystallization at 4 °C did not occur, rendering purification via prior crystallization impossible. Although recovery remains feasible at D3 concentrations as low as 40 wt%, the yield decreases sharply when the hydrocarbon fraction exceeds 40 wt% due to increased solubility of D3 in the hydrocarbon matrix, which limits its separation. The recovery yields of D3 mixed with a distilled LDPE fraction under these conditions are summarized in Table 5. The mixture with distilled fractions of PP and PS indicated only negligible differences in D3 recovery yield or crystallization.
The recovery of D3 with the methods discussed is only possible due to its relatively high melting point. In contrast, D4 (m.p. 17 °C, b.p. 174 °C) could not be separated using the same technique, as no crystallization was observed at 4 °C, even in distillation fractions containing approximately 90% D4. Nevertheless, separation of D4 may be technically feasible at lower temperatures, where crystallization could occur, given that hydrocarbons with similar boiling points exhibit significantly lower melting points (e.g., C10H32: m.p. −30 °C, b.p. 174 °C; α-methylstyrene: m.p. −23 °C, b.p. 166 °C). For cyclic siloxanes larger than D4, such as D5 (m.p. −38 °C, b.p. 210 °C), isolation by crystallization alone appears highly unlikely due to the substantial gap between boiling and melting points, combined with the relatively higher melting points of hydrocarbons in the same boiling range (e.g., C12H26: m.p. −10 °C, b.p. 216 °C) [54].

4. Conclusions

Pyrolysis of polyolefins (LDPE, PP, PS) and silicone rubber mixtures was conducted in a laboratory-scale apparatus to evaluate product composition, synergistic interactions, and the potential for siloxane recovery. Co-pyrolysis of polyolefins with silicone rubber exhibited clear synergistic effects, characterized by a reduction in liquid product yield and an increase in gaseous products and solid residue with rising silicone rubber content. This effect was most pronounced for PP and marginal for PS. The gaseous fraction during the co-pyrolysis of silicone with LDPE and PP deviated from predictions, calculated from the pure polymer pyrolysis data, showing a higher proportion of lighter hydrocarbons. Chromatographic analysis of liquid products revealed no formation of new compounds; however, an increased presence of lighter hydrocarbons and smaller cyclic siloxanes was observed, particularly at higher silicone concentrations. These trends are attributed to the distinct thermal properties of the polymers, while molecular-level interactions during degradation appear to be only minimal. Silicone rubbers do not melt but become brittle, allowing molten polyolefins to penetrate surface cracks, thereby prolonging the residence time and promoting secondary cracking.
Recovery of the main product of silicone pyrolysis, hexamethylcyclotrisiloxane (D3), was demonstrated to be feasible during the co-pyrolysis of polyolefins and silicone rubber. Solvent-assisted filtration at 4 °C for the distillation fraction containing at least 40 wt% D3 was the most promising method, with polar solvents, like ethanol or acetonitrile, yielding high purity and significant quantities. Other methods, like washing or recrystallization, exhibit a significant decrease in purity and yield. While recovery of D4 may be possible at lower temperatures, isolation of larger cyclic siloxanes is unlikely with the methods discussed due to their low melting points relative to hydrocarbons in the same boiling range.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym18080989/s1, Figure S1: TGA of LDPE, Figure S2: TGA of PP, Figure S3: TGA of PS, Figure S4: TGA of silicone rubber, Figure S5: Comparison of experimental (exp.) and calculated (calc.) gaseous product composition during the pyrolysis of LDPE and silicone rubber, Figure S6: LDPE:silicone rubber 1:2 liquid pyrolysis product GC-MS data, Figure S7: LDPE:silicone rubber 1:1 liquid pyrolysis product GC-MS data, Figure S8: LDPE:silicone rubber 2:1 liquid pyrolysis product GC-MS data, Figure S9: LDPE liquid pyrolysis product GC-MS data, Figure S10: PP:silicone rubber 1:2 liquid pyrolysis product GC-MS data, Figure S11: PP:silicone rubber 1:1 liquid pyrolysis product GC-MS data, Figure S12: PP:silicone rubber 2:1 liquid pyrolysis product GC-MS data, Figure S13: PP liquid pyrolysis product GC-MS data, Figure S14: PS:silicone rubber 1:2 liquid pyrolysis product GC-MS data, Figure S15: PS:silicone rubber 1:1 liquid pyrolysis product GC-MS data, Figure S16: PS:silicone rubber 2:1 liquid pyrolysis product GC-MS data, Figure S17: PS liquid pyrolysis product GC-MS data, Figure S18: Silicone rubber liquid pyrolysis product GC-MS data, Figure S19: 29Si-NMR spectra of liquid LDPE:silicone rubber co-pyrolysis product, Figure S20: 29Si-NMR spectra of liquid silicone rubber co-pyrolysis product, Table S1: Peak degradation temperature (TP) of PO and SR, Table S2: Hydrocarbon composition of liquid LDPE:silicone rubber co-pyrolysis products, Table S3: Hydrocarbon distribution of liquid PP:silicone rubber co-pyrolysis products, Table S4: Siloxane distribution of liquid polyolefin:silicone rubber co-pyrolysis products.

Author Contributions

Conceptualization, L.E.; methodology, L.E.; formal analysis, L.E.; investigation, L.E.; resources, C.P. and M.M.; writing—original draft preparation, L.E.; writing—review and editing, W.E., M.M., M.H. and C.P.; visualization, L.E.; supervision, C.P.; funding acquisition, C.P. All authors have read and agreed to the published version of the manuscript.

Funding

The author received research funding from OMV Downstream GmbH.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

Wolfgang Eder and Matthias Mastalir were employed by OMV Downstream GmbH. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as potential conflicts of interest. The funding sponsors had no role in the design of the study; the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

The following abbreviations are used in this manuscript:
HDPEHigh-density polyethylene
LDPELow-density polyethylene
LLDPELinear low-density polyethylene
PDMSPolydimethylsiloxane
POPolyolefin
PPPolypropylene
PSPolystyrene
SRSilicone rubber
UHMWUltra-high molecular weight
DxCyclic siloxanes, whereas x is the number of repeating -Si(CH3)2O- units
CyGeneral formula for hydrocarbons; here: linear hydrocarbons if not stated otherwise
DCMDichloromethane
b.p.Boiling point
m.p.Melting point
FIDFlame ionization detector
FTIRFourier transform infrared spectroscopy
GCGas chromatography
MSMass spectrometry
NMRNuclear magnetic resonance
TCDThermal conductivity detector

References

  1. Nayanathara Thathsarani Pilapitiya, P.G.C.; Ratnayake, A.S. The world of plastic waste: A review. Clean. Mater. 2024, 11, 100220. [Google Scholar] [CrossRef]
  2. Dokl, M.; Copot, A.; Krajnc, D.; Fan, Y.V.; Vujanović, A.; Aviso, K.B.; Tan, R.R.; Kravanja, Z.; Čuček, L. Global projections of plastic use, end-of-life fate and potential changes in consumption, reduction, recycling and replacement with bioplastics to 2050. Sustain. Prod. Consum. 2024, 51, 498–518. [Google Scholar] [CrossRef]
  3. Ragaert, K.; Delva, L.; Van Geem, K. Mechanical and chemical recycling of solid plastic waste. Waste Manag. 2017, 69, 24–58. [Google Scholar] [CrossRef]
  4. Qureshi, M.S.; Oasmaa, A.; Pihkola, H.; Deviatkin, I.; Tenhunen, A.; Mannila, J.; Minkkinen, H.; Pohjakallio, M.; Laine-Ylijoki, J. Pyrolysis of plastic waste: Opportunities and challenges. J. Anal. Appl. Pyrolysis 2020, 152, 104804. [Google Scholar] [CrossRef]
  5. Dai, L.; Zhou, N.; Lv, Y.; Cheng, Y.; Wang, Y.; Liu, Y.; Cobb, K.; Chesssn, P.; Lei, H.; Ruan, R. Pyrolysis technology for plastic waste recycling: A state-of-the-art review. Prog. Energy Combust. Sci. 2022, 93, 101021. [Google Scholar] [CrossRef]
  6. Bidwai, S. Polyolefin Market Volume and Forecast 2025 to 2034. Available online: https://www.towardschemandmaterials.com/insights/polyolefin-market (accessed on 23 March 2026).
  7. Dai, L.; Lata, S.; Cobb, K.; Zou, R.; Lei, H.; Chen, P.; Ruan, R. Recent advances in polyolefinic plastic pyrolysis to produce fuels and chemicals. J. Anal. Appl. Pyrolysis 2024, 180, 106551. [Google Scholar] [CrossRef]
  8. Faust, K.; Denifl, P.; Hapke, M. Recent Advances in Catalytic Chemical Recycling of Polyolefins. ChemCatChem 2023, 15, e202300310. [Google Scholar] [CrossRef]
  9. Ekici, E.; Yildiz, G.; Yildiz, M.J.; Kalinowska, M.; Şeker, E.; Wang, J. Continuous flow pyrolysis of virgin and waste polyolefins: A comparative study, process optimization and product characterization. Front. Chem. Sci. Eng. 2024, 18, 70. [Google Scholar] [CrossRef]
  10. Zou, L.; Xu, R.; Wang, H.; Wang, Z.; Sun, Y.; Li, M. Chemical recycling of polyolefins: A closed-loop cycle of waste to olefins. Natl. Sci. Rev. 2023, 10, nwad207. [Google Scholar] [CrossRef]
  11. Li, Y.; Kang, S.; Han, W.; Yin, F. Synergistic Effects Between Mixed Plastics and Their Impact on Pyrolysis Behavior and Pyrolysis Products. Molecules 2024, 29, 6059. [Google Scholar] [CrossRef]
  12. Dewi, W.N.; Zhou, Q.; Mollah, M.; Yang, S.; Issslankoon, I.M.S.K.; Chaffee, A.; Zhang, L. Synergistic interaction between scrap tyre and plastics for the production of sulphur-free, light oil from fast co-pyrolysis. Waste Manag. 2024, 179, 99–109. [Google Scholar] [CrossRef]
  13. Yang, J.; Rizkiana, J.; Widayatno, W.B.; Karnjanakom, S.; Kaewpanha, M.; Hao, X.; Abudula, A.; Guan, G. Fast co-pyrolysis of low density polyethylene and biomass residue for oil production. Energy Convers. Manag. 2016, 120, 422–429. [Google Scholar] [CrossRef]
  14. Shao, Y.; Xia, Y.; Wang, S.; Wang, J.; Wang, Y.; Liu, Z.; Lou, F.; Lei, J.; Huang, Q. Comparative Study on the Synergistic Co-Pyrolysis of Plastics and Rubber Waste: Thermal Behavior and Product Distributions. Waste Biomass Valorization 2025, 16, 6359–6371. [Google Scholar] [CrossRef]
  15. Andriot, M.; DeGroot, J.; Meeks, R.; Gerlach, E.; Jungk, M.; Wolf, A.; Corning, D.; Cray, S.; Easton, T.; Mountney, A.; et al. Silicones in Industrial Applications. In Inorganic Polymers; De Jaeger, R., Gleria, M., Eds.; Dow Corning Corporation: Midland, MI, USA, 2009; 161p. [Google Scholar]
  16. Huber, P.; Kaiser, W. Silicone fluids: Synthesis, properties and applications. J. Synth. Lubr. 1986, 3, 105–120. [Google Scholar] [CrossRef]
  17. Thomas, T.H.; Kendrick, T.C. Thermal analysis of polydimethylsiloxanes. I. Thermal degradation in controlled atmospheres. J. Polym. Sci. Part A-2 Polym. Phys. 1969, 7, 537–549. [Google Scholar] [CrossRef]
  18. Yao, Z.; Tong, J.; Huang, C.; Kumar, S.; Xu, S.; Li, H.; Wang, H.; Chen, Y.; Manić, N.; Pejic, L.M.; et al. Integrating kinetics, thermodynamics, and compensation effects of cellulose conversion with bimetallic oxygen carriers. J. Anal. Appl. Pyrolysis 2026, 194, 107570. [Google Scholar] [CrossRef]
  19. Xing, B.; Hu, Y.; Wang, S. Study of synergistic effects in co-pyrolysis of biomass and plastics from the perspective of phase reactions. J. Anal. Appl. Pyrolysis 2025, 186, 106951. [Google Scholar] [CrossRef]
  20. Li, G.; Lai, X.; Gong, J.; Zhang, T.; Xu, K.; Feng, Z.; Yao, X. Synergistic Mechanisms and Product Regulation in the Co-Pyrolysis of Biomass and Food Packaging Waste: A Study Based on Reaction Kinetics and GHG Calculation. Foods 2026, 15, 1098. [Google Scholar] [CrossRef]
  21. Liu, S.; Wu, H.; Li, Y.; Yin, F.; Liang, D. Research on the co-pyrolysis kinetic and synergistic effect of waste PP and LDPE mixed plastics. J. Polym. Res. 2024, 31, 132. [Google Scholar] [CrossRef]
  22. Ji, G.; Chu, Y.; Huang, P.; Lu, B.; Jin, Y. Study on the Pyrolysis Characteristics and Kinetics of Plastic Solid Waste. Kinet. Catal. 2025, 66, 175–200. [Google Scholar] [CrossRef]
  23. Ekici, E.; Joka Yildiz, M.; Kalinowska, M.; Wang, J.; Yildiz, G. Co-pyrolysis of waste wind turbine blades in a molten polyolefin medium. J. Anal. Appl. Pyrolysis 2025, 190, 107143. [Google Scholar] [CrossRef]
  24. Zhang, H.; Tian, B.; Yan, X.; Bai, Y.; Gao, J.; Li, X.; Xie, Q.; Yang, Y.; Li, Y.-W. Copyrolysis of Waste Cartons and Polyolefin Plastics under Microwave Heating and Characterization of the Products. ACS Omega 2023, 8, 7331–7343. [Google Scholar] [CrossRef] [PubMed]
  25. Radhakrishnan, H.; Mohammed, A.A.B.A.; Coffman, I.; Bai, X. Influence of functional additives, fillers, and pigments on thermal and catalytic pyrolysis of polyethylene for waste plastic upcycling. Green Chem. 2025, 27, 5861–5882. [Google Scholar] [CrossRef]
  26. Barnes, Q.; Longuet, C.; Ganachaud, F. Cationic Polymerization of Hexamethylcyclotrisiloxane in Excess Water. Molecules 2021, 26, 4402. [Google Scholar] [CrossRef]
  27. Goff, J.; Kimble, E.; Arkles, B. Living Polymerization Routes to Siloxane Macromers and Higher Order Silicone Structures. In Progress in Silicones and Silicone-Modified Materials; ACS Symposium Series; American Chemical Society: Washington, DC, USA, 2013; Volume 1154, pp. 59–78. [Google Scholar]
  28. Fuchise, K.; Kobayashi, T.; Sato, K.; Igarashi, M. Organocatalytic ring-opening polymerization of cyclotrisiloxanes using silanols as initiators for the precise synthesis of asymmetric linear polysiloxanes. Polym. Chem. 2020, 11, 7625–7636. [Google Scholar] [CrossRef]
  29. Jerzak, W.; Acha, E.; Li, B. Comprehensive Review of Biomass Pyrolysis: Conventional and Advanced Technologies, Reactor Designs, Product Compositions and Yields, and Techno-Economic Analysis. Energies 2024, 17, 5082. [Google Scholar] [CrossRef]
  30. Talwar, P.; Agudelo, M.A.; Nanda, S. Pyrolysis process, reactors, products, and applications: A review. Energies 2025, 18, 2979. [Google Scholar] [CrossRef]
  31. Das, P.; Tiwari, P. Thermal degradation kinetics of plastics and model selection. Thermochim. Acta 2017, 654, 191–202. [Google Scholar] [CrossRef]
  32. Nishizaki, H.; Yoshida, K.; Wang, J.H. Comparative study of various methods for thermogravimetric analysis of polystyrene degradation. J. Appl. Polym. Sci. 1980, 25, 2869–2877. [Google Scholar] [CrossRef]
  33. Kim, E.S.; Kim, E.J.; Shim, J.H.; Yoon, J.-S. Thermal stability and ablation properties of silicone rubber composites. J. Appl. Polym. Sci. 2008, 110, 1263–1270. [Google Scholar] [CrossRef]
  34. OENORM EN 15984; Petroleum Industry and Products—Determination of Composition of Refinery Heating Gas and Calculation of Carbon Content and Calorific Value—Gas Chromatography Method. Austrian Standards International: Vienna, Austria, 2022.
  35. Hajj, R.; Brunel, R.; Sonnier, R.; Longuet, C.; Ganachaud, F. Silicone-recycled pyrolyzed fillers for enhanced thermal-and flame-resistant silicone elastomers. Polym. Degrad. Stab. 2022, 200, 109947. [Google Scholar] [CrossRef]
  36. Ren, Z.; Mujib, S.B.; Singh, G. High-Temperature Properties and Applications of Si-Based Polymer-Derived Ceramics: A Review. Materials 2021, 14, 614. [Google Scholar] [CrossRef]
  37. Zayoud, A.; Dao Thi, H.; Kusenberg, M.; Eschenbacher, A.; Kresovic, U.; Alderweireldt, N.; Djokic, M.; Van Geem, K.M. Pyrolysis of end-of-life polystyrene in a pilot-scale reactor: Maximizing styrene production. Waste Manag. 2022, 139, 85–95. [Google Scholar] [CrossRef]
  38. Williams, P.T.; Williams, E.A. Product Composition from the Fast Pyrolysis of Polystyrene. Environ. Technol. 1999, 20, 1109–1118. [Google Scholar] [CrossRef]
  39. Maafa, I.M. Pyrolysis of Polystyrene Waste: A Review. Polymers 2021, 13, 225. [Google Scholar] [CrossRef]
  40. Williams, P.T.; Williams, E.A. Fluidised bed pyrolysis of low density polyethylene to produce petrochemical feedstock. J. Anal. Appl. Pyrolysis 1999, 51, 107–126. [Google Scholar] [CrossRef]
  41. Shin, T.; Hajime, O.; Chuichi, W. Part 2—Pyrograms and Thermograms of 163 High Polymers, and MS Data of the Major Pyrolyzates. In Pyrolysis–GC/MS Data Book of Synthetic Polymers; Shin, T., Hajime, O., Chuichi, W., Eds.; Elsevier: Amsterdam, The Netherlands, 2011; pp. 7–335. [Google Scholar]
  42. Moldoveanu, S.C. Chapter 6 Polymers with saturated carbon chain backbone. In Techniques and Instrumentation in Analytical Chemistry; Moldoveanu, S.C., Ed.; Elsevier: Amsterdam, The Netherlands, 2005; Volume 25, pp. 185–437. [Google Scholar]
  43. Park, C.; Lee, J. Pyrolysis of polypropylene for production of fuel-range products: Effect of molecular weight of polypropylene. Int. J. Energy Res. 2021, 45, 13088–13097. [Google Scholar] [CrossRef]
  44. Kailas, T.G.; Dutta, S.; Madav, V. Characterization of Polypropylene Pyrolysis Oil (PPO) Obtained by High-Temperature Pyrolysis of End-of-Life Polypropylene. In Proceedings of the 1st National Conference on Climate Resilience and Environmentally Sustainable Technologies, Surathkal, India, 27 February–1 March 2025; Springer: Singapore, 2026; pp. 12–25. [Google Scholar]
  45. Ballistreri, A.; Garozzo, D.; Montaudo, G. Mass spectral characterization and thermal decomposition mechanism of poly(dimethylsiloxane). Macromolecules 1984, 17, 1312–1315. [Google Scholar] [CrossRef]
  46. Aboulkas, A.; El Harfi, K.; El Bouadili, A. Thermal degradation behaviors of polyethylene and polypropylene. Part I: Pyrolysis kinetics and mechanisms. Energy Convers. Manag. 2010, 51, 1363–1369. [Google Scholar] [CrossRef]
  47. Bockhorn, H.; Hornung, A.; Hornung, U.; Schawaller, D. Kinetic study on the thermal degradation of polypropylene and polyethylene. J. Anal. Appl. Pyrolysis 1999, 48, 93–109. [Google Scholar] [CrossRef]
  48. Faravelli, T.; Pinciroli, M.; Pisano, F.; Bozzano, G.; Dente, M.; Ranzi, E. Thermal degradation of polystyrene. J. Anal. Appl. Pyrolysis 2001, 60, 103–121. [Google Scholar] [CrossRef]
  49. Wall, L.A.; Straus, S.; Flynn, J.H.; McIntyre, D.; Simha, R. The Thermal Degradation Mechanism of Polystyrene1. J. Phys. Chem. 1966, 70, 53–62. [Google Scholar] [CrossRef]
  50. Wang, J.; Li, G.; Zhang, Z.; Huang, Q.; Niu, B.; Zhang, Y.; Long, D. Detailed insights of polydimethylsiloxane (PDMS) degradation mechanism via ReaxFF MD and experiments. Chem. Eng. J. 2024, 488, 150728. [Google Scholar] [CrossRef]
  51. Giri, A.; Emamjomeh, O.; Cuoq, F.; Wong, K.S. Removal of Silicones and Other Impurities in Pyrolysis Oil Using Silica gel Matrices. U.S. Patent 19/116,039, 10 October 2023. [Google Scholar]
  52. Williams, S.; Hu, L. Siloxane Removal Systems and Methods. U.S. Patent 12/311,314, 29 January 2021. [Google Scholar]
  53. Sharma, A.; Cuoq, F.; Liu, Z.; Bibalan, S.F.; Rao, S. Methods for Removal of Silicon and Chloride Contaminants from Mixed Plastic Waste Based Pyrolysis Oil. U.S. Patent 18/714,758, 24 October 2024. [Google Scholar]
  54. Lide, D.R. CRC Handbook of Chemistry and Physics, 86th ed.; Taylor & Francis: Abingdon, UK, 2005. [Google Scholar]

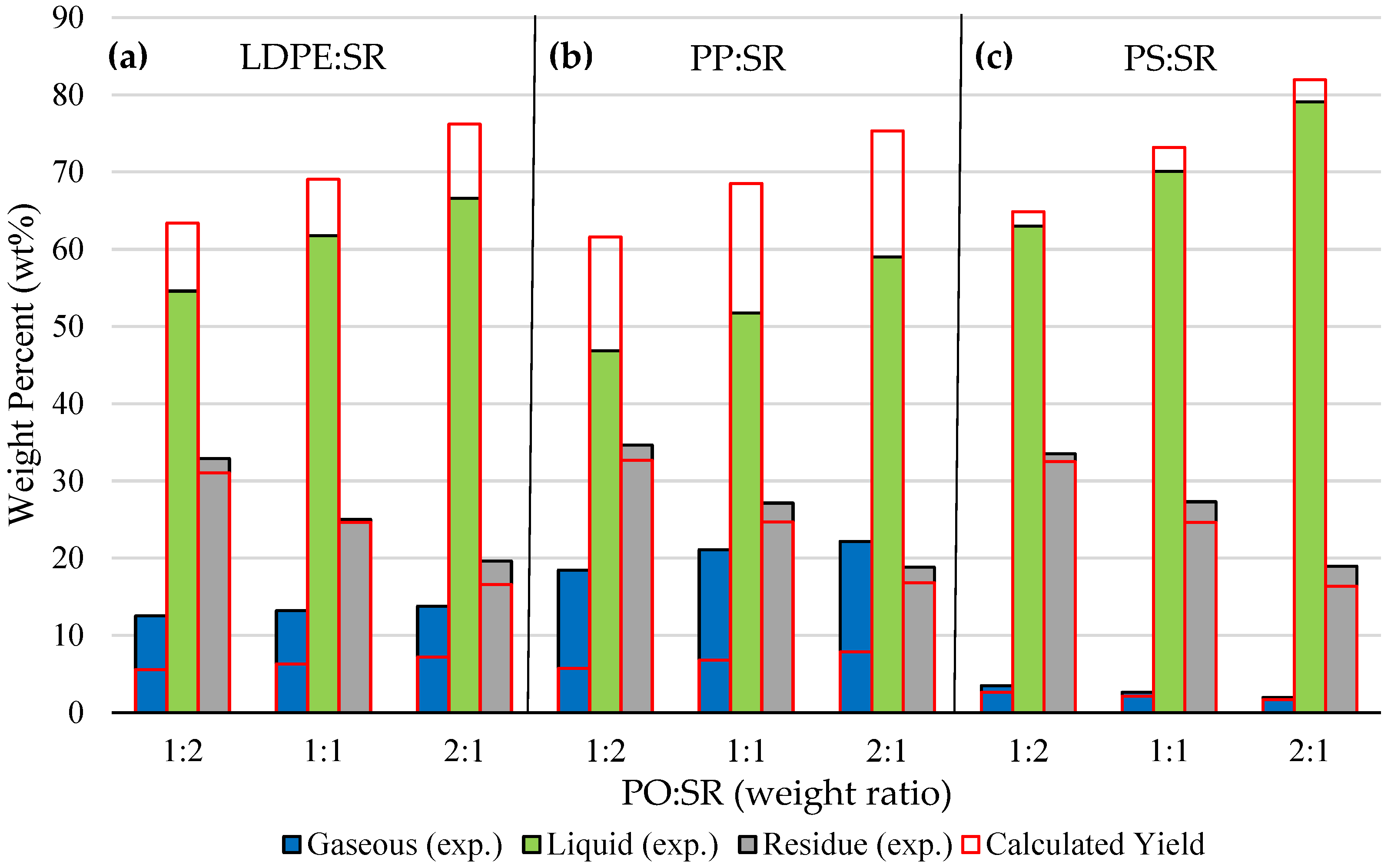

Polymers 18 00989 g001
Figure 1. Experimental product distribution of LDPE:SR (a), PP:SR (b), and PS:SR (c) co-pyrolysis in different mass ratios. Calculated yields are based on pure polymer pyrolysis data.
Figure 1. Experimental product distribution of LDPE:SR (a), PP:SR (b), and PS:SR (c) co-pyrolysis in different mass ratios. Calculated yields are based on pure polymer pyrolysis data.
Polymers 18 00989 g001
Polymers 18 00989 g002
Figure 2. Comparison of experimental gaseous product composition during the pyrolysis of PP and SR. Calculated yields are based on pure polymer pyrolysis data.
Figure 2. Comparison of experimental gaseous product composition during the pyrolysis of PP and SR. Calculated yields are based on pure polymer pyrolysis data.
Polymers 18 00989 g002

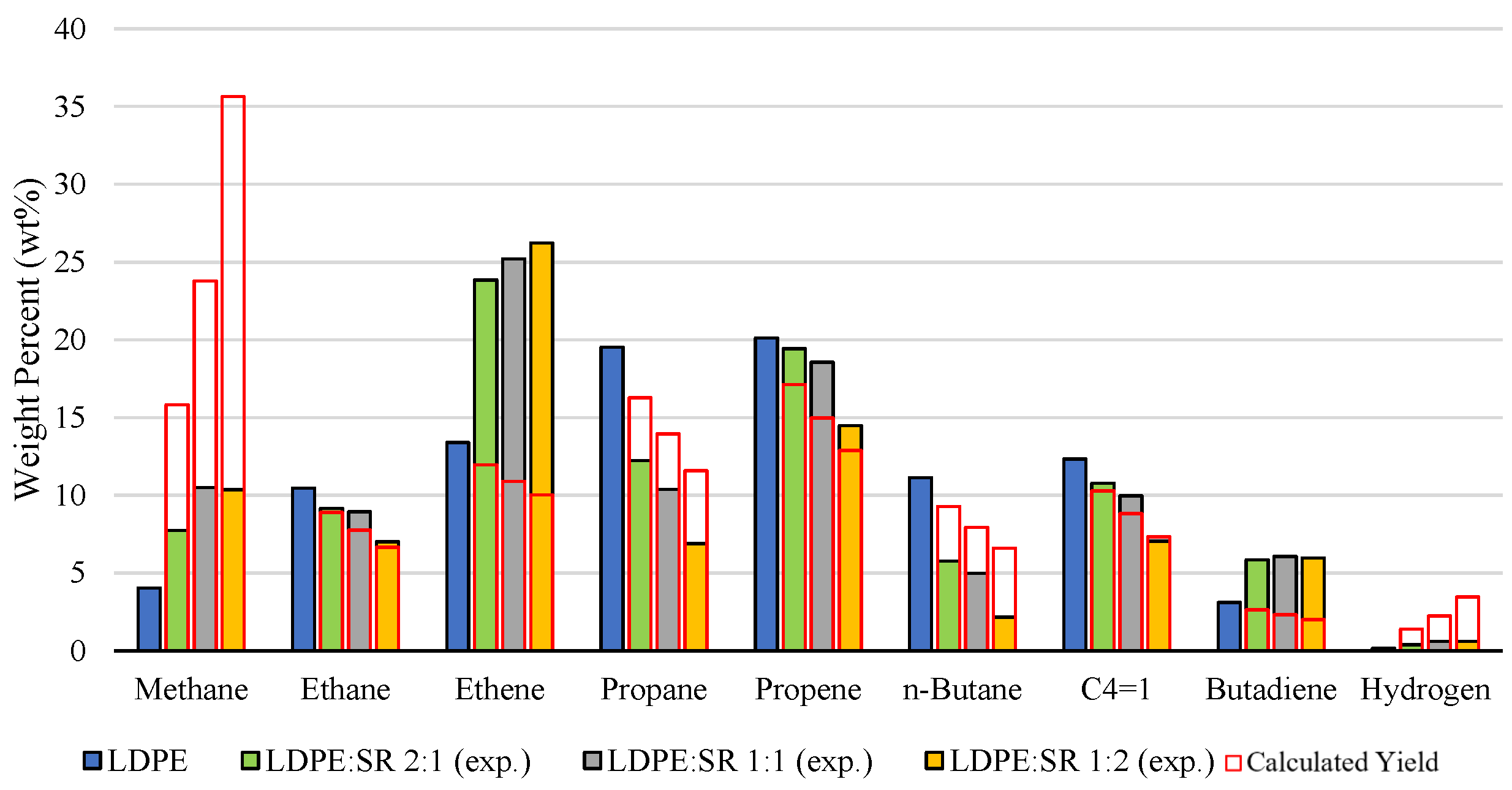

Polymers 18 00989 g003
Figure 3. Comparison of experimental (exp.) gaseous product composition during the pyrolysis of LDPE and SR. Calculated yields are based on pure polymer pyrolysis data.
Figure 3. Comparison of experimental (exp.) gaseous product composition during the pyrolysis of LDPE and SR. Calculated yields are based on pure polymer pyrolysis data.
Polymers 18 00989 g003

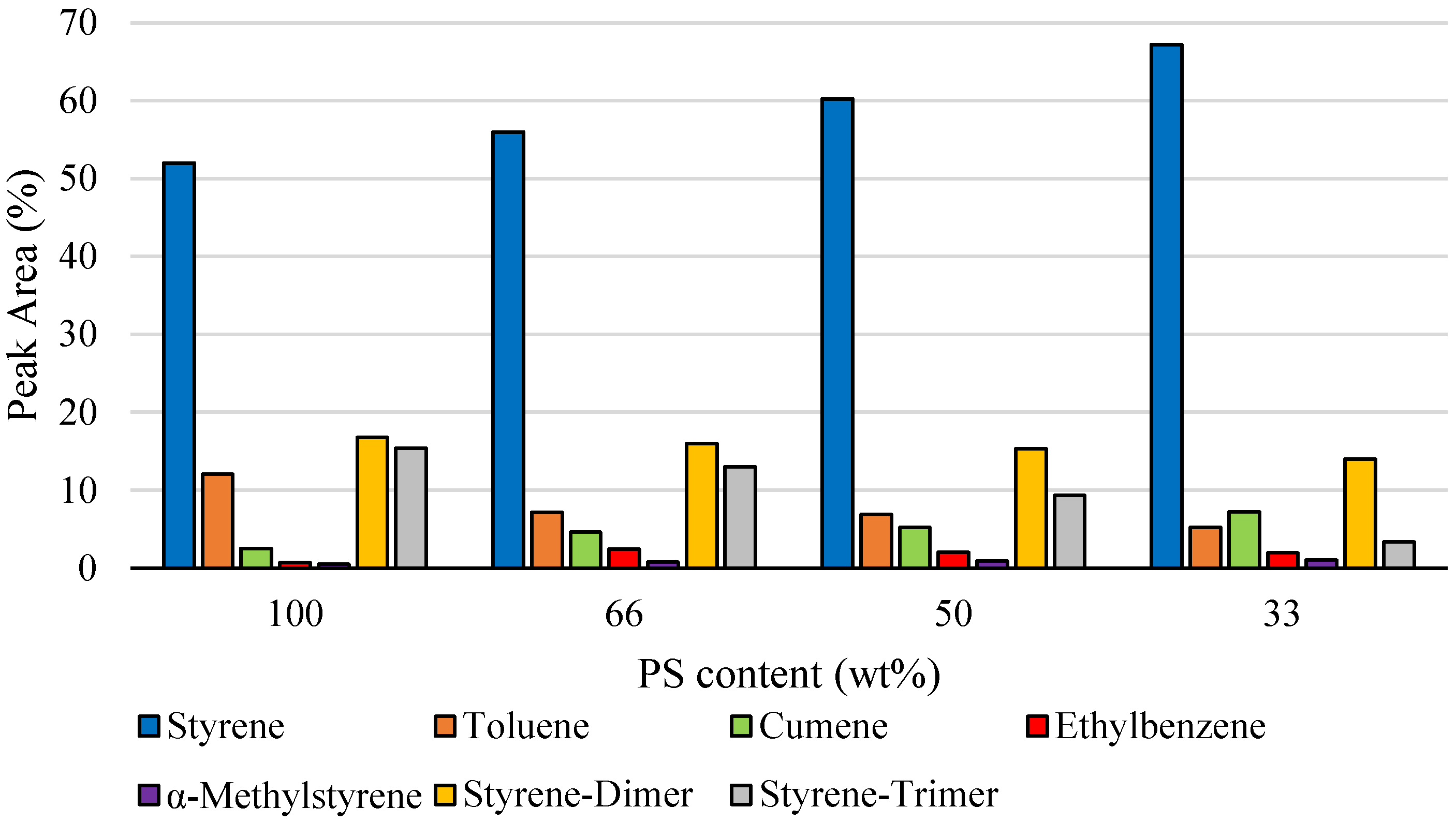

Polymers 18 00989 g004
Figure 4. Quantitative analysis of main compounds generated during PS:SR co-pyrolysis (siloxanes excluded).
Figure 4. Quantitative analysis of main compounds generated during PS:SR co-pyrolysis (siloxanes excluded).
Polymers 18 00989 g004
Polymers 18 00989 g005

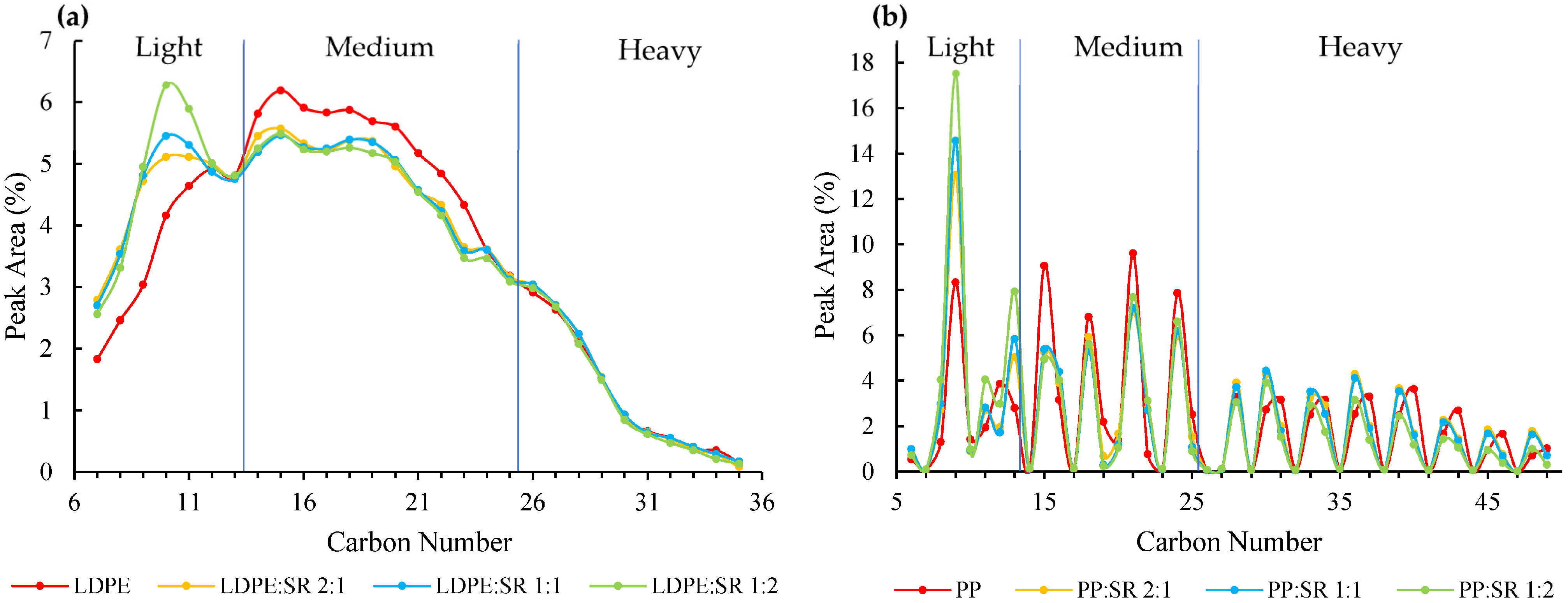

Figure 5. Product distribution of (a) LDPE:SR and (b) PP:SR mixtures. LDPE generates a broad spectrum of hydrocarbons spanning numerous chain lengths, whereas PP produces a narrow distribution dominated by C3n species, accompanied by only small amounts of C3n+1 hydrocarbons.
Figure 5. Product distribution of (a) LDPE:SR and (b) PP:SR mixtures. LDPE generates a broad spectrum of hydrocarbons spanning numerous chain lengths, whereas PP produces a narrow distribution dominated by C3n species, accompanied by only small amounts of C3n+1 hydrocarbons.
Polymers 18 00989 g005
Polymers 18 00989 g006
Figure 6. Yield of cyclic siloxanes in liquid pyrolysis products of PS:SR (hydrocarbons excluded).
Figure 6. Yield of cyclic siloxanes in liquid pyrolysis products of PS:SR (hydrocarbons excluded).
Polymers 18 00989 g006

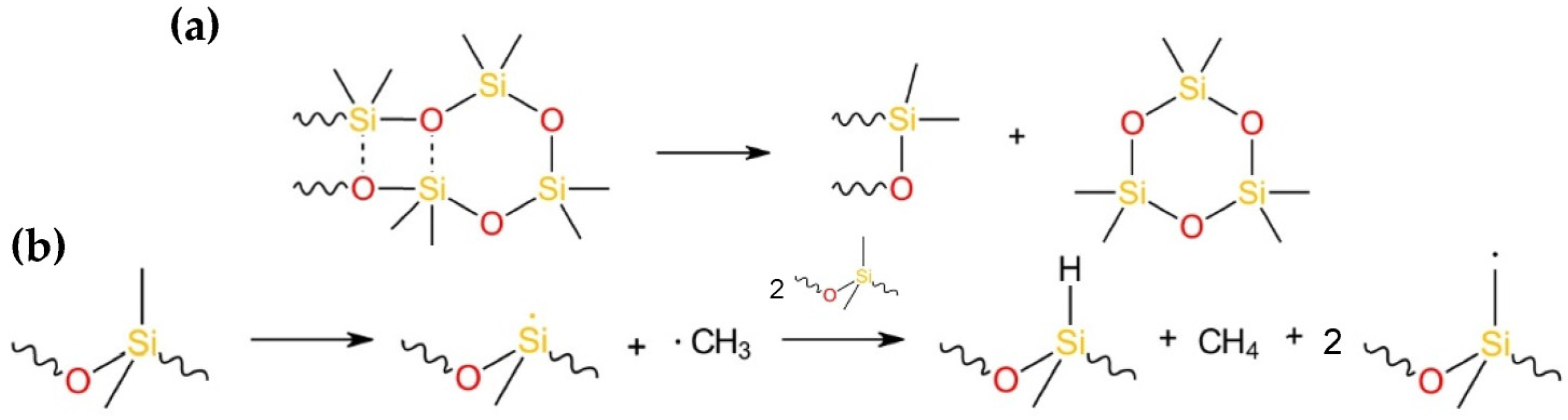

Polymers 18 00989 g007
Figure 7. Formation of cyclic siloxanes through a cyclic transition state (a) and radical side chain elimination reaction (b) during PDMS degradation [17].
Figure 7. Formation of cyclic siloxanes through a cyclic transition state (a) and radical side chain elimination reaction (b) during PDMS degradation [17].
Polymers 18 00989 g007
Table 1. Mass balancing of pure polymer pyrolysis for LDPE, PP, PS, and SR at 600 °C.
Table 1. Mass balancing of pure polymer pyrolysis for LDPE, PP, PS, and SR at 600 °C.
GaseousLiquidResidue
wt%wt%wt%
LDPE9.02 ± 0.2190.59 ± 0.180.39 ± 0.05
PP10.35 ± 0.2688.93 ± 0.280.72 ± 0.03
PS0.71 ± 0.0498.83 ± 0.060.46 ± 0.04
SR3.59 ± 0.0947.64 ± 0.2148.76 ± 0.28
Table 2. Product distribution of LDPE/PP:SR liquid co-pyrolysis products classified into light, medium, and heavy fractions according to hydrocarbon chain length (siloxanes excluded).
Table 2. Product distribution of LDPE/PP:SR liquid co-pyrolysis products classified into light, medium, and heavy fractions according to hydrocarbon chain length (siloxanes excluded).
Polymer Ratio (wt%)Peak Area (%)
LDPESRLight (C7–C13)Medium (C14–C25)Heavy (>C25)
100025.962.012.1
663431.156.612.3
505031.456.112.5
346632.855.411.8
PPSRLight (C7–C13)Medium (C14–C25)Heavy (>C25)
100020.443.536.1
663427.634.937.5
505030.034.036.0
346638.533.827.7
Table 3. Yield and purity of recovered D3 from a hydrocarbon-rich D3 distillation fraction obtained from the liquid product of PP:SR (1:1) at 200 mbar and 55 °C by washing, recrystallization, and solvent-assisted filtration.
Table 3. Yield and purity of recovered D3 from a hydrocarbon-rich D3 distillation fraction obtained from the liquid product of PP:SR (1:1) at 200 mbar and 55 °C by washing, recrystallization, and solvent-assisted filtration.
WashingSolvent-Assisted FiltrationRecrystallization
PurityYield (Based on D3)PurityYield (Based on D3)PurityYield (Based on D3)
(%)(%)(%)(%)(%)(%)
n-Pentane89.779.588.882.890.343.5
Dichloromethane62.854.291.968.077.237.6
Diethyl ether77.773.393.581.485.042.6
Acetone79.684.294.386.686.046.3
Acetonitrile70.483.597.188.8no phase separation
Ethanol84.881.198.696.5no phase separation
No solvent--78.8---
Table 4. Yields and composition of solvent-assisted filtration of siloxane-rich D3 distillation fractions obtained from the liquid product of LDPE:SR (1:1) at 200 mbar and 55 °C.
Table 4. Yields and composition of solvent-assisted filtration of siloxane-rich D3 distillation fractions obtained from the liquid product of LDPE:SR (1:1) at 200 mbar and 55 °C.
DryingCompositionYield (Based on D3) (wt%)
Distillation fraction-63.8% D3, 14.7% C6–C12, 21.2% D4, 0.26% D5, 0.1% D6-
n-Pentane4 mbar, 5 min99.9% D3, 0.1% D452.0
Dichloromethane4 mbar, 5 min99.9% D3, 0.1% D442.0
Diethyl ether4 mbar, 5 min99.9% D3, 0.1% D4, 0.1% C850.4
Acetone4 mbar, 5 min99.8% D3, 0.2% D459.9
Acetonitrile4 mbar, 10 min99.8 D3, 0.1% C6–C12, 0.1% D477.4
Ethanol4 mbar, 10 min99.9% D3, 0.1% D4 and D587.1
Only filtration4 mbar, 10 min86.0% D3, 10.0% D4, 3.7% C6–C12, 0.3% D5-
Table 5. Recovery yield of D3 from mixtures of D3 and distilled LDPE pyrolysis fractions (200 mbar, 55 °C).
Table 5. Recovery yield of D3 from mixtures of D3 and distilled LDPE pyrolysis fractions (200 mbar, 55 °C).
D3LDPE Distilled FractionYield (Based on D3)
(wt%)(wt%)(wt%)
89.810.297.4
79.620.491.0
69.031.085.9
60.839.283.2
50.149.952.5
40.559.526.6
<40.5>59.5no recovery possible
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Eigenschink, L.; Eder, W.; Mastalir, M.; Harasek, M.; Paulik, C. Co-Pyrolysis of Polyolefins and Silicone Rubber: Effects on Mass Balancing, Product Distribution, and Potential Siloxane Recovery. Polymers 2026, 18, 989. https://doi.org/10.3390/polym18080989

AMA Style

Eigenschink L, Eder W, Mastalir M, Harasek M, Paulik C. Co-Pyrolysis of Polyolefins and Silicone Rubber: Effects on Mass Balancing, Product Distribution, and Potential Siloxane Recovery. Polymers. 2026; 18(8):989. https://doi.org/10.3390/polym18080989

Chicago/Turabian Style

Eigenschink, Lukas, Wolfgang Eder, Matthias Mastalir, Michael Harasek, and Christian Paulik. 2026. "Co-Pyrolysis of Polyolefins and Silicone Rubber: Effects on Mass Balancing, Product Distribution, and Potential Siloxane Recovery" Polymers 18, no. 8: 989. https://doi.org/10.3390/polym18080989

APA Style

Eigenschink, L., Eder, W., Mastalir, M., Harasek, M., & Paulik, C. (2026). Co-Pyrolysis of Polyolefins and Silicone Rubber: Effects on Mass Balancing, Product Distribution, and Potential Siloxane Recovery. Polymers, 18(8), 989. https://doi.org/10.3390/polym18080989

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
