Synthesis and Characterization of Alkali Metal Ion-Binding Copolymers Bearing Dibenzo-24-crown-8 Ether Moieties

by
Da-Ming Wang
,
Yuji Aso
,
Hitomi Ohara
and
Tomonari Tanaka
*
Department of Biobased Materials Science, Graduate School of Science and Technology, Kyoto Institute of Technology, Kyoto 606-8585, Japan
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(10), 1095; https://doi.org/10.3390/polym10101095
Submission received: 23 August 2018 / Revised: 28 September 2018 / Accepted: 28 September 2018 / Published: 2 October 2018
Browse Figures
Versions Notes

Abstract

:
Dibenzo-24-crown-8 (DB24C8)-bearing copolymers were synthesized by radical copolymerization using a DB24C8-carrying acrylamide derivative and N-isopropylacrylamide monomers. The cloud point of the resulting copolymers changed in aqueous solution in the presence of cesium ions. In addition, the 1H NMR signals of DB24C8-bearing copolymers shifted in the presence of alkali metal. This shift was more pronounced following the addition of Cs+ compared to Rb+, K+, Na+, and Li+ ions due to recognition of the Cs+ ion by DB24C8.

Graphical Abstract

1. Introduction

The general population is exposed to few cesium compounds, which are mildly toxic due to the chemical similarity of cesium and potassium [1,2]. Radiocesium is a common component of nuclear fission products. Radioactive waste treatment gained importance following the crisis at the Fukushima Daiichi Nuclear Power Plant in Japan in 2011. In particular, the radiocesium isotopes 134Cs and 137Cs, which have half-lives of 2.1 years and 30.2 years, respectively, pose significant long-term human health concerns [3], but the development of efficient and selective reagents for adsorbing cesium from aqueous environments remains challenging [4].
Crown ethers are macrocyclic compounds with the unique property of binding specific metal ions in their cavity, depending on the size of the cavity [5,6]. For example, large 24-crown-8 ethers can bind specific metal ions, including cesium [7,8,9,10,11,12,13], and are used to extract cesium from aqueous environments [14], to form cesium ion-imprinted polymer nanoparticles [2], and to adsorb and immobilize cesium in inorganic silica material [15]. We therefore predicted that the incorporation of a 24-crown-8 ether into a synthetic polymer backbone would provide a useful material capable of the molecular recognition of specific metal ions such as cesium.
Poly (N-isopropylacrylamide) (PNIPAM) is well-known as a temperature-responsive polymer and has a cloud point in water of around 32 °C. Hydrogen bonds form between water and the amide groups below the cloud point, making PNIPAM solutions transparent. In contrast, when the solution temperature is above the cloud point, the hydrogen bonds collapse and an aggregation forms. The incorporation of hydrophilic or hydrophobic co-monomers allows the cloud point of copolymers to be tuned. The attractive and tunable properties of PNIPAM has resulted in the synthesis of many copolymers and hydrogels using PNIPAM which are used in various applications such as drug delivery and recyclable absorbents [16,17,18,19,20,21,22,23].
Several PNIPAM linear copolymers containing benzo-18-crown-6 [17,24,25], benzo-12-crown-4 [25], benzo-15-crown-5 [25], and dibenzo-18-crown-6 monomers [26] have been, reported and exhibit both temperature-responsive and ion-recognition properties (i.e., their cloud points change in response to specific metal ions). These reports provide valuable information for designing and applying crown ether-based ion-responsive materials to various applications. For example, a selective and efficient methodology is required for removing metal ions from aqueous environments. To our knowledge, there has been no report of PNIPAM modified with the hydrophobic dibenzo-24-crown-8 (DB24C8) monomer. DB24C8 can recognize metal ions, including cesium, and thus the incorporation of DB24C8 into PNIPAM may provide a copolymer that is responsive to Cs+. In this paper we describe the synthesis of a new class of copolymers consisting of PNIPAM and DB24C8 using radical copolymerization with a DB24C8-carrying monomer. The properties of the resulting copolymers were investigated in the presence of various metal ions, including Cs+.

2. Materials and Methods

2.1. Materials

N-Isopropylacrylamide (NIPAM) was purchased from Wako Pure Chemical Industries (Osaka, Japan) and used after recrystallization from n-hexane. Acrylamide (AAM) and 2,2′-azobis(isobutyronitrile) (AIBN) were purchased from Nacalai Tesque Inc. (Kyoto, Japan). 2-Carboxydibenzo-24-crown-8 (1) was synthesized according to the reported procedure [27,28,29]. All other reagents were commercially available and used without further purification.

2.2. Measurements

1H NMR spectra were recorded on a Bruker AVANCE 300 MHz or AVANCE II 600 MHz and the spectra were recorded at 300 K. Mass spectra were taken on a Bruker microTOF or amazon SL mass spectrometer. IR spectra were recorded on a JASCO FT/IR-4600 spectrometer. Gel permeation chromatography (GPC) measurements were conducted using a system consisting of a JASCO PU-2089 pump, a CO-2065 column oven, an RI-2031 refractive index detector, and a Shodex KD-804 (8.0 mm × 300 mm) column. DMF containing 10 mM LiBr was used as the eluent at a flow rate of 0.5 mL min−1 at 50 °C. Poly(methyl methacrylate) samples were used as standards. Transmittance was recorded using a JASCO V-550 UV-vis spectrometer. A 0.5 wt % polymer aqueous solution was filtered through a membrane filter (0.45 µm), then the transmittance of the sample solution was measured in a quartz cell (cell length: 10 mm) at 500 nm while heating at a rate of 0.5 °C min−1.

2.3. Synthesis of DB24C8 Monomer

N-(2-Carboxydibenzo-24-crown-8)-succinimide (2) [28,29]

To a stirred solution of 2-carboxydibenzo-24-crown-8 (1) (478 mg, 0.970 mmol) and N-hydroxysuccinimide (113 mg, 0.980 mmol) in DMF (20 mL) was added dicyclohexylcarbodiimide (263 mg, 1.27 mmol). After addition, the reaction mixture was stirred at room temperature for 48 h. The solution was filtered by suction filtration to filter off white precipitate and the filtrate was evaporated in vacuo. The crude product was purified by silica gel column chromatography (MeOH:CH2Cl2 = 1:19) and recrystallized with isopropanol to afford compound 2 as a white solid (443.6 mg, yield 82%). Rf 0.2 (MeOH:CH2Cl2 = 1:19); 1H NMR (300 MHz, CDCl3) δ 7.78 (dd, J = 8.5, 1.9 Hz, 1H), 7.55 (d, J = 1.9 Hz, 1H), 6.91–6.85 (m, 5H), 4.23–4.14 (m, 8H), 3.97–3.83 (m, 16H), 2.90 (s, 4H); 13C NMR (75 MHz, CDCl3) δ 169.4, 161.5, 154.6, 148.9, 148.6, 125.6, 121.44, 121.39, 117.2, 114.7, 114.0, 112.0, 71.6, 71.4, 71.3, 70.0, 69.6, 69.5, 69.4, 69.3, (some carbons are hidden into these peaks) 25.7; ESI-MS: m/z 612.30 (M + Na)+, calcd. for C29H35NO12Na: 612.21.

2-[(2-Aminoethyl) carbamoyl]dibenzo-24-crown-8 (3)

N-(2-Carboxydibenzo-24-crown-8) succinimide (586 mg, 0.990 mmol) in CH3CN (12 mL) was added to ethylene diamine (1.20 g, 20.0 mmol) in CH3CN (8 mL) solution. After addition, the mixture was stirred at room temperature for 2 h. Then the solution was filtered to remove precipitate and washed with CH3CN. The filtrate was evaporated in vacuo to afford crude compound 3 as a pale yellow solid without further purification.

2-(1,6-Dioxo-2,5-diaza-7-oxamyl)dibenzo-24-crown-8 (4)

Acryloyl chloride (0.15 mL, 1.84 mmol) was added to a mixture of crude compound 3 and triethylamine (0.27 mL, 1.94 mmol) in CH2Cl2 (6 mL) solution at 0 °C. After addition, the resulting mixture was stirred at 0 °C for 1 h, and then stirred at room temperature for 19 h. The reaction was quenched by saturated sodium bicarbonate solution (6 mL) and diluted with CH2Cl2. After extraction, the water layer was re-extracted with CH2Cl2. The combined organic layer was washed with saturated NaCl aqueous solution, dried over MgSO4, filtered, and evaporated in vacuo. The crude product was purified by silica gel column chromatography (MeOH:CH2Cl2 = 1:19) to afford compound 4 as a white solid (396.7 mg, two steps yield 68%). Rf 0.15 (MeOH:CH2Cl2 = 1:9); IR (KBr) 3294, 3082, 2931, 2873, 1658, 1629, 1602, 1594, 1582, 1543, 1507 cm−1; 1H NMR (600 MHz, CDCl3) δ 7.42 (s, 1H), 7.39 (d, J = 1.8 Hz, 1H), 7.35 (dd, J = 8.3, 1.8 Hz, 1H), 6.93 (s, 1H), 6.89–6.85 (m, 4H), 6.82 (d, J = 8.3 Hz, 1H), 6.26 (dd, J = 17.0, 1.0 Hz, 1H), 6.14 (dd, J = 17.0, 10.3 Hz, 1H), 5.62 (dd, J = 10.3, 1.0 Hz, 1H), 4.19–4.13 (m, 8H), 3.92–3.90 (m, 8H), 3.83–3.82 (m, 8H), 3.54 (s, 4H) (Figure S1 (Supplementary Materials)); 13C NMR (150 MHz, CDCl3) δ 168.0, 167.1, 151.7, 148.9, 148.5, 130.7, 126.8, 126.6, 121.5, 120.4, 114.2, 112.7, 112.6, 71.3, 71.24, 71.21, 71.20, 69.9, 69.8, 69.7, 69.41, 69.38, 69.34, 69.31, 41.1, 40.0 (Figure S2 (Supplementary Materials)); ESI-MS: m/z 611.212 (M + Na)+, calcd. for C30H40N2O10Na: 611.258.

2.4. Synthesis of DB24C8-Bearing Copolymers

All copolymers were synthesized by free-radical copolymerization using AIBN as an initiator in dimethyl sulfoxide (DMSO) as a solvent. Total monomer concentration was 1.0 M and the molar ratio of AIBN in the total monomer was 1 mol %. NIPAM, DB24C8 monomer (4), and AAM were dissolved in 1.5 mL DMSO in a glass tube. The resulting solution was degassed by at least three freeze–thaw cycles, then the glass tube was filled with nitrogen and heated at 70 °C for 24 h. The products were purified by dialysis (Spectra/Por 7 MWCO 1000, Spectrum Laboratories, Inc., Rancho Dominguez, California, CA, USA) against deionized water and freeze-dried to give copolymers. 1H NMR spectra are shown in Figures S3–S11 (Supplementary Materials).

2.5. Binding Test of Copolymers with Metal Ions by 1H NMR

A DMSO-d6 solution (750 μL) containing P7 or P9 (7.5 mg) and a D2O solution (100 μL) containing alkali metal chloride (0.0143 mmol of LiCl, CsCl for P7, 0.0243 mmol of LiCl, NaCl, KCl, RbCl, CsCl for P9) were mixed to form copolymer–metal ion solution in DMSO-d6:D2O = 7.5:1 v/v and recorded. For the competition test, a DMSO-d6 solution (450 μL) containing P9 (4.5 mg) and a D2O solution (60 μL) containing cesium chloride (0.0146 mmol, 2.5 mg) and other alkali metal chlorides (NaCl or KCl) were mixed and recorded on a Bruker AVANCE II 600 MHz.

3. Results and Discussion

3.1. Synthesis of DB24C8-Bearing Copolymers

The DB24C8-carrying AAM derivative was synthesized as outlined in Scheme 1. First, the succinimide ester derivative of DB24C8 (2) was obtained from the carboxylic acid-functionalized DB24C8 (1) using a literature procedure [29,30]. Next, the activated ester of DB24C8 (2) was reacted with excess ethylenediamine to obtain compound 3, followed by reaction with acryloyl chloride to yield 2-(1,6-dioxo-2,5-diaza-7-oxamyl)dibenzo-24-crown-8 (4) as a monomer used for synthesizing the DB24C8-bearing copolymers. A radical copolymerization reaction was carried out using 4, NIPAM, and AAM as monomers, and AIBN as an initiator (Scheme 2). The series of DB24C8-bearing copolymers obtained using various well-controlled feed ratios is summarized in Table 1.

3.2. Cloud Points Analysis of DB24C8-Bearing Copolymers

The cloud points of copolymers in water were determined by turbidity experiments conducted at various temperatures. Figure 1 shows the change in transmittance of the synthesized copolymer solutions with temperature. The cloud point of each copolymer changed sharply following the incorporation of a small amount of DB24C8 monomer. For example, the introduction of 2.9% and 4.2% DB24C8 monomer, generating P2 and P3, resulted in the cloud point decreasing from 31.1 °C (P1: PNIPAM) to 23.0 °C (P2) and 16.5 °C (P3), respectively (Figure 1a). The introduction of 15% AAM as a hydrophilic co-monomer resulted in an increase in the cloud point compared with in the absence of AAM. An increase in DB24C8 monomer to 2.4% and 5.0% resulted in the cloud points of the P6 and P7 copolymers containing AAM decreasing from 42.4 °C (P5: without DB24C8) to 28.9 °C (P6) and 16.2 °C (P7), respectively (Figure 1b). The cloud point of P8, containing 7.6% DB24C8 monomer, was estimated to decrease to approximately 4–5 °C, as the sample did not solidify even upon refrigeration. The cloud point of P9, containing 10.5% DB24C8 monomer, is likely lower than that of P8, and could be around 0 °C as estimated by the observation of copolymer solution in an ice bath.

3.3. Cesium Ion Binding to the DB24C8-Bearing Copolymers

We investigated the cloud points of P7 and P8 in aqueous solution with/without Cs+, and the results are shown in Table 2 and Figure 2. The cloud point of P7 (DB24C8 = 5.0%) increased slightly (0.7 °C; 16.2→16.9 °C) in the presence of Cs+, whereas a larger cloud point shift (approximately 4–5 °C) was observed for P8 (DB24C8 = 7.6%). The increase in cloud point in the presence of Cs+ may be due to repulsion between charged DB24C8-Cs+ complexes and an increase in hydrophilicity, as observed with PNIPAM bearing 18-crown-6 ether binding specific metal ions such as Pb2+ and Ba2+ [25]. An increase in DB24C8 monomer resulted in an increased cloud point shift, suggesting that the cloud point shift with P9, which contains a higher percentage of DB24C8 (10.5%), would be larger than that of P7 in the presence of Cs+.
Next, we investigated the binding properties of copolymers bearing DB24C8 with various alkali metal ions using 1H NMR. The addition of Cs+ to copolymer solution resulted in a clear shift in the aromatic and methylene proton signals at 6.9 and 4.0 ppm, respectively, attributed to DB24C8 (Figure 3c and Figure 4f), compared to in the absence of alkali metal (Figure 3a and Figure 4a). No signal shift was observed following the addition of Li+ (Figure 3b and Figure 4b). The addition of the alkali metal ions K+, Rb+, and Cs+ resulted in gradual signal shifts of DB24C8, which increased with increasing ion size (Figure 4d–f; chemical shift changes (Δδ) are summarized in Table 3 and Table S1 (Supplementary Materials), suggesting that the binding affinity of copolymer bearing DB24C8 for alkali metal ion increases as the size of the ion increases. These trends of chemical shift change were similar to the results in the literature [7]. The Δδ of P9 (Δδ = 0.037) was larger than that of P7 (Δδ = 0.028) in the presence of Cs+, suggesting that the binding affinity for Cs+ of the higher DB24C8-content copolymer P9 (DB24C8 = 10.5%) was higher than that of the lower DB24C8-content copolymer P7 (DB24C8 = 5.0%). Copolymer bearing DB24C8 P9 exhibited the strongest binding for the large alkali metal ion Cs+ in the series of alkali metal ions tested in this study. The cavity diameter of DB24C8 is estimated to be about 4.5–5.0 Å [31,32], and is thus suitable for recognizing Cs+ (which has a diameter of 3.34 Å) [33]. Theoretically, P9 can absorb 87 mg-Cs/g-copolymer if a crown ether molecule fully forms 1:1 binding with cesium ion.
Competition tests of Cs+ with other alkali metal ions were performed to investigate the binding selectivity of DB24C8 in the copolymer (Figures S12 and S13 (Supplementary Materials)). Table 4 shows the Δδ of methylene protons of DB24C8 in the copolymer P9. The addition of Cs+ to the copolymer solution in the presence of other Na+ and K+ ions resulted in clear shifts in the methylene proton signal at 4.0 ppm. Clear signal shifts were observed with high Na+ or K+ (CsCl:NaCl or KCl = 1:5). These results indicate that the binding affinity of DB24C8 in the copolymer is higher for Cs+ than that of Na+ and K+, suggesting that this adsorption system can remove Cs+ from an environment also including Na+ and K+.

4. Conclusions

Copolymers bearing DB24C8 were synthesized by radical copolymerization using a DB24C8-carrying AAM derivative and NIPAM as a monomer substrate. The cloud points of the copolymers decreased following the incorporation of a low content of hydrophobic DB24C8. The use of 15% hydrophilic AAM increased the cloud points of the DB24C8 copolymers. These copolymers bound alkali metal ions in aqueous solution, and the binding affinity was dependent on the size of the alkali metal ion. Our findings suggest that DB24C8-bearing polymers hold promise for adsorbing and removing cesium from the environment when used in conjunction with membrane separation including ultrafiltration, or with precipitation by centrifugation above the cloud point in which condition the NIPAM-based copolymers aggregate.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/10/10/1095/s1, Figures S1–S11: NMR spectra of 4 and P1–P9, Figures S12 and 13: competition tests using P9 by 1H NMR analysis, Table S1: Chemical shifts (δ) and their changes (Δδ) of methylene protons of DB24C8 in P7 in the presence of alkali metal salt.

Author Contributions

T.T. conceived the project, designed the experiments, directed the research; D.M.W. performed the experiment; D.M.W. and T.T. wrote the paper; Y.A. and H.O. contributed to interpretation of data and reviewed the manuscript. All authors discussed the results and edited the manuscript.

Acknowledgments

We would like to thank David Nielsen (Arizona State University, USA) for helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yin, J.; Hu, Y.; Yoon, J. Fluorescent probes and bioimaging: Alkali metals, alkaline earth metals and pH. Chem. Soc. Rev. 2015, 44, 4619–4644. [Google Scholar] [CrossRef] [PubMed]
  2. Shamsipur, M.; Rajabi, H.R. Flame photometric determination of cesium ion after its preconcentration with nanoparticles imprinted with the cesium-dibenzo-24-crown-8 complex. Microchim. Acta 2013, 180, 243–252. [Google Scholar] [CrossRef]
  3. Choi, T.A.; Costes, S.V.; Abergel, R.J. Understanding the health impacts and risks of exposure to radiation. In Reflections on the Fukushima Daiichi Nuclear Accident: Toward Social-Scientific Literacy and Engineering Resilience; Ahn, J., Carson, C., Jensen, M., Juraku, K., Nagasaki, S., Tanaka, S., Eds.; Springer: London, UK, 2015; pp. 259–281. ISBN 978-3-319-12089-8. [Google Scholar]
  4. Yu, H.-R.; Hu, J.-Q.; Liu, Z.; Ju, X.-J.; Xie, R.; Wang, W.; Chu, L.-Y. Ion-recognizable hydrogels for efficient removal of cesium ions from aqueous environment. J. Hazard. Mater. 2017, 323, 632–640. [Google Scholar] [CrossRef] [PubMed]
  5. Pedersen, C.J. The Discovery of Crown Ethers (Noble Lecture). Angew. Chem. Int. Ed. 1988, 27, 1021–1027. [Google Scholar] [CrossRef]
  6. Gokel, G.W.; Leevy, W.M.; Weber, M.E. Crown ethers: Sensors for ions and molecular scaffolds for materials and biological models. Chem. Rev. 2004, 104, 2723–2750. [Google Scholar] [CrossRef] [PubMed]
  7. Sakata, Y.; Kobayashi, S.; Akine, S. Two-step modulation of ion recognition using a bis(saloph)-macrocyclic host having a 24-crown-8-like cavity. Chem. Commun. 2017, 53, 6363–6366. [Google Scholar] [CrossRef] [PubMed]
  8. Takeda, Y. The solvent extraction of uni- and bivalent metal picrates by dibenzo-24-crown-8. Bull. Chem. Soc. Jpn. 1979, 52, 2501–2504. [Google Scholar] [CrossRef]
  9. Shamsipur, M.; Rounaghi, G.; Popov, A.I. Sodium-23, cesium-133 and thallium-205 NMR study of sodium, cesium and thallium complexes with large crown ethers in nonaqueous solutions. J. Solut. Chem. 1980, 9, 701–714. [Google Scholar] [CrossRef]
  10. Shinkai, S.; Kinda, H.; Manabe, O. Photoresponsive complexation of metal cations with an azobenzene-crown-azobenzene bridge immobilized in polymer supports. J. Am. Chem. Soc. 1982, 104, 2933–2934. [Google Scholar] [CrossRef]
  11. Tawarah, K.M.; Mizyed, S.A. A conductance study of the association of alkali cations with 1,13-dibenzo-24-crown-8 in acetonitrile. J. Solut. Chem. 1989, 18, 387–401. [Google Scholar] [CrossRef]
  12. Srivastava, S.K.; Gupta, V.K.; Dwivedi, M.K.; Jain, S. Caesium PVC–crown (dibenzo-24-crown-8) based membrane sensor. Anal. Proc. Incl. Anal. Commun. 1995, 32, 21–23. [Google Scholar] [CrossRef]
  13. Rofouei, M.K.; Taghdiri, M.; Shamsipur, M.; Alizadeh, K. 133Cs NMR study of Cs+ ion complexes with dibenzo-24-crown-8, dicyclohexano-24-crown-8 and dibenzo-30-crown-10 in binary acetonitrile-nitromethane mixtures. J. Solut. Chem. 2010, 39, 1350–1359. [Google Scholar] [CrossRef]
  14. Vibhute, R.G.; Khopkar, S.M. Solvent extraction separation of cesium with dibenzo-24-crown-8 from picrate solution. J. Radioanal. Nucl. Chem. 1991, 152, 487–496. [Google Scholar] [CrossRef]
  15. Awual, M.R.; Yaita, T.; Taguchi, T.; Shiwaku, H.; Suzuki, S.; Okamoto, Y. Selective cesium removal from radioactive liquid waste by crownether immobilized new class conjugate adsorbent. J. Hazard. Mater. 2014, 278, 227–235. [Google Scholar] [CrossRef] [PubMed]
  16. Nakayama, M.; Okano, T.; Winnik, F.M. Poly(N-isopropylacrylamide)-based smart surfaces for cell sheet tissue engineering. Mater. Matters 2010, 5, 56. [Google Scholar]
  17. Irie, M.; Misumi, Y.; Tanaka, T. Stimuli-responsive polymers: Chemical induced reversible phase separation of an aqueous solution of poly(N-isopropylacrylamide) with pendent crown ether groups. Polymer 1993, 34, 4531–4535. [Google Scholar] [CrossRef]
  18. Qiu, Y.; Park, K. Environment-sensitive hydrogels for drug delivery. Adv. Drug Deliv. Rev. 2001, 53, 321–339. [Google Scholar] [CrossRef]
  19. Yi, R.; Ye, G.; Lv, D.; Chen, J. Novel thermo-responsive hydrogel microspheres with calixcrown host molecules as cross-links for highly specific binding and controllable release of cesium. RSC Adv. 2015, 5, 55277–55284. [Google Scholar] [CrossRef]
  20. Cheng, J.; Shan, G.; Pan, P. Temperature and pH-dependent swelling and copper(II) adsorption of poly(Nisopropylacrylamide) copolymer hydrogel. RSC Adv. 2015, 5, 62091–62100. [Google Scholar] [CrossRef]
  21. Deng, M.; Wang, Y.; Men, G.; Shang, H.; Jiang, S. Reusable highly sensitive and selective fluorescent sensor for Hg2+ detection in water based on a thermoresponsive copolymer. Sens. Actuators B Chem. 2016, 234, 609–615. [Google Scholar] [CrossRef]
  22. Tanaka, T.; Okamoto, M. Reversible Temperature-responsive and Lectin-recognizing Glycosylated Block Copolymers Synthesized by RAFT Polymerization. Polym. J. 2018, 50, 523–531. [Google Scholar] [CrossRef]
  23. Tanaka, T.; Okamoto, M. Lectin and Temperature Dual-responsive Glycosylated Block Copolymers Synthesized by Consecutive RAFT Polymerization Reactions. Bull. Chem. Soc. Jpn. 2018, 91, 727–777. [Google Scholar] [CrossRef]
  24. Zhang, B.; Ju, X.-J.; Xie, R.; Liu, Z.; Pi, S.-W.; Chu, L.-Y. Comprehensive effects of metal ions on responsive characteristics of P(NIPAM-co-B18C6Am). J. Phys. Chem. B 2012, 116, 5527–5536. [Google Scholar] [CrossRef] [PubMed]
  25. Yu, H.-R.; Hu, J.-Q.; Lu, X.-H.; Ju, X.-J.; Liu, Z.; Xie, R.; Wang, W.; Chu, L.-Y. Insights into the effects of 2:1 “sandwich-type” crown-ether/metal-ion complexes in responsive host-guest systems. J. Phys. Chem. B 2015, 119, 1696–1705. [Google Scholar] [CrossRef] [PubMed]
  26. Ju, X.-J.; Chu, L.-Y.; Mi, P.; Song, H.; Lee, Y.M. Synthesis and characterization of a novel thermo-sensitive copolymer of N-isopropylacrylamide and dibenzo-18-crown -6-diacrylamide. Macromol. Rapid Commun. 2006, 27, 2072–2077. [Google Scholar] [CrossRef]
  27. Liu, D.; Wang, D.; Wang, M.; Zheng, Y.; Koynov, K.; Auernhammer, G.K.; Butt, H.-J.; Ikeda, T. Supramolecular organogel based on crown ether and secondary ammoniumion functionalized glycidyl triazole polymers. Macromolecules 2013, 46, 4617–4625. [Google Scholar] [CrossRef]
  28. Iqbal, P.; Rawson, F.J.; Ho, W.K.-W.; Lee, S.-F.; Leung, K.C.-F.; Wang, X.; Beri, A.; Preece, J.A.; Ma, J.; Mendes, P.M. Surface molecular tailoring using pH-switchable supramolecular dendron-ligand assemblies. ACS Appl. Mater. Interfaces 2014, 6, 6264–6274. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, D.-M.; Tanaka, T.; Aoki, T.; Aso, Y.; Minami, H.; Ohara, H. Synthesis of dibenzo-24-crown-8 conjugated chitosan with different amide bond coupling methods. Lett. Org. Chem. 2018, 15, 214–220. [Google Scholar] [CrossRef]
  30. Jones, J.W.; Bryant, W.S.; Bosman, A.W.; Janssen, R.A.J.; Meijer, E.W.; Gibson, H.W. Crowned dendrimers: pH-responsive pseudorotaxane formation. J. Org. Chem. 2003, 68, 2385–2389. [Google Scholar] [CrossRef] [PubMed]
  31. Alizadeh, N.; Roomiani, A. Kinetic study of charge transfer complexes of iodine with some crown ethers in nonaqueous solvents. J. Chil. Chem. Soc. 2012, 57, 1130–1133. [Google Scholar] [CrossRef]
  32. Chamsaz, M.; Rounaghi, G.H.; Sovizi, M.R. Polarographic study of the interaction of Tl+, Pb2+ and Cd2+ cations with 18-crown-6 in binary non-aqueous solvents. Russ. J. Inorg. Chem. 2005, 50, 413–417. [Google Scholar]
  33. Pedersen, C.J. Cyclic polyethers and their complexes with metal salts. J. Am. Chem. Soc. 1967, 89, 7017–7036. [Google Scholar] [CrossRef]
Polymers 10 01095 sch001 550

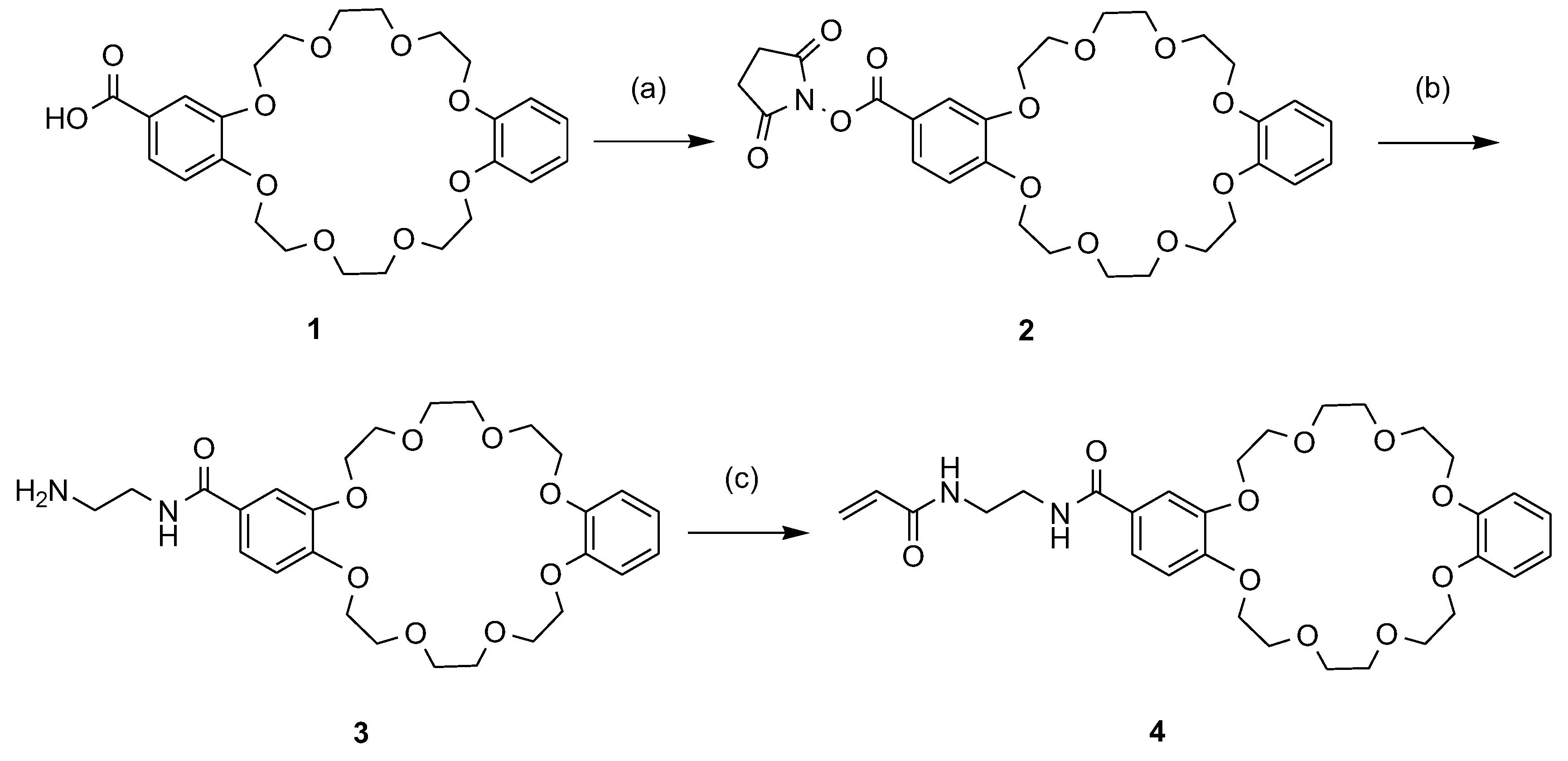

Scheme 1. Synthesis of dibenzo-24-crown-8 (DB24C8) monomer. (a): N-Hydroxysuccinimide, dicyclohexylcarbodiimide, DMF, r.t., 48 h, 82%; (b): Ethylenediamine, CH3CN, r.t., 2 h; (c): Acryloyl chloride, triethylamine, CH2Cl2, 0 °C–r.t., 20 h, 68% (two steps (b,c)).
Scheme 1. Synthesis of dibenzo-24-crown-8 (DB24C8) monomer. (a): N-Hydroxysuccinimide, dicyclohexylcarbodiimide, DMF, r.t., 48 h, 82%; (b): Ethylenediamine, CH3CN, r.t., 2 h; (c): Acryloyl chloride, triethylamine, CH2Cl2, 0 °C–r.t., 20 h, 68% (two steps (b,c)).
Polymers 10 01095 sch001
Polymers 10 01095 sch002 550
Scheme 2. Synthesis of copolymer bearing DB24C8. NIPAM: N-isopropylacrylamide; AAM: acrylamide; AIBN: 2,2′-azobis(isobutyronitrile); DMSO: dimethyl sulfoxide.
Scheme 2. Synthesis of copolymer bearing DB24C8. NIPAM: N-isopropylacrylamide; AAM: acrylamide; AIBN: 2,2′-azobis(isobutyronitrile); DMSO: dimethyl sulfoxide.
Polymers 10 01095 sch002
Polymers 10 01095 g001 550
Figure 1. Transmittance of copolymers (0.5 wt %) in water.
Figure 1. Transmittance of copolymers (0.5 wt %) in water.
Polymers 10 01095 g001
Polymers 10 01095 g002 550
Figure 2. Transmittance of copolymers (0.5 wt %) in water in the absence/presence of CsCl.
Figure 2. Transmittance of copolymers (0.5 wt %) in water in the absence/presence of CsCl.
Polymers 10 01095 g002
Polymers 10 01095 g003 550
Figure 3. 1H NMR spectra of P7 in the presence of alkali metal salt: (a) None; (b) LiCl; (c) CsCl.
Figure 3. 1H NMR spectra of P7 in the presence of alkali metal salt: (a) None; (b) LiCl; (c) CsCl.
Polymers 10 01095 g003
Polymers 10 01095 g004 550

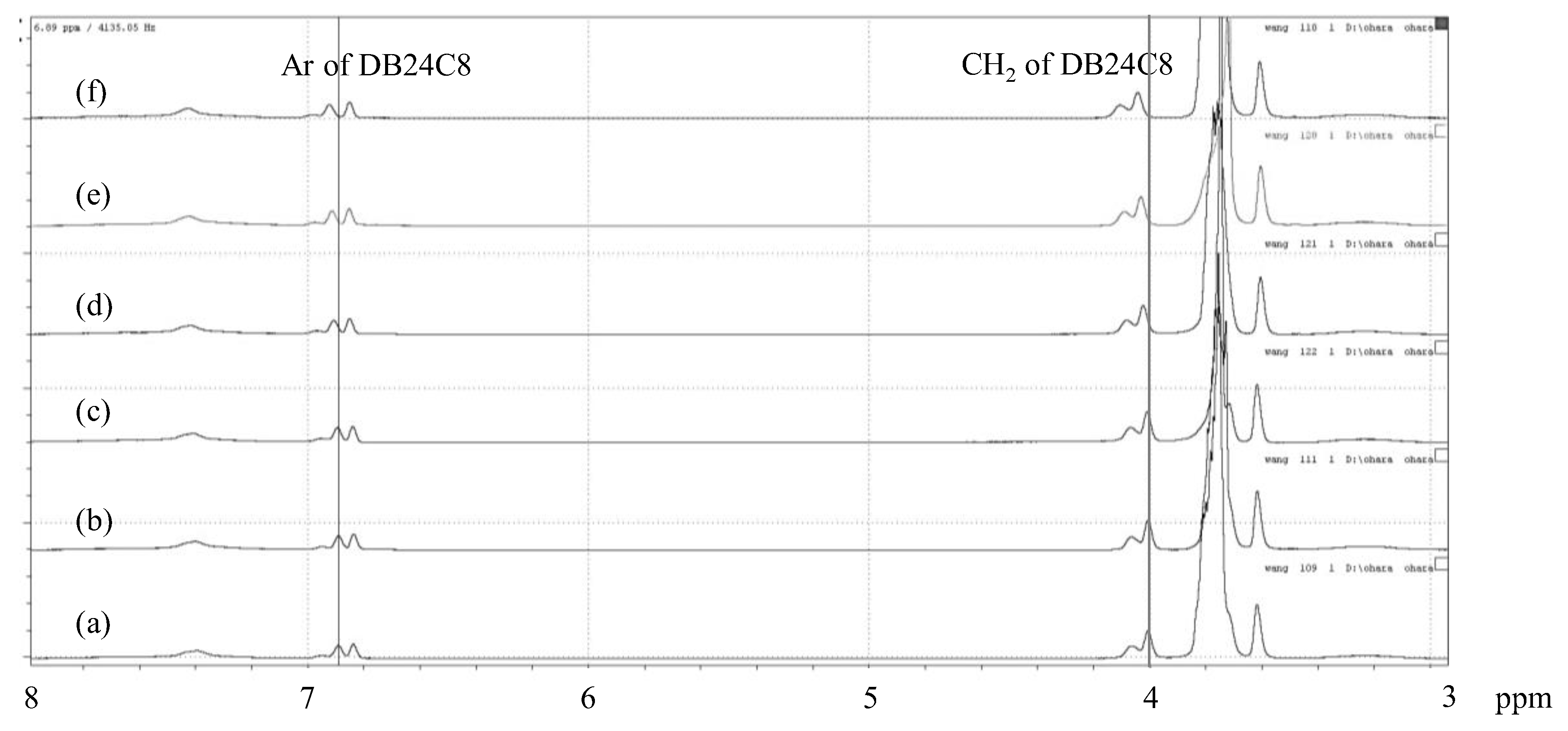

Figure 4. 1H NMR spectra of P9 in the presence of alkali metal salt: (a) None; (b) LiCl; (c) NaCl; (d) KCl; (e) RbCl; (f) CsCl.
Figure 4. 1H NMR spectra of P9 in the presence of alkali metal salt: (a) None; (b) LiCl; (c) NaCl; (d) KCl; (e) RbCl; (f) CsCl.
Polymers 10 01095 g004
Table
Table 1. Synthesis of copolymers bearing DB24C8.
Table 1. Synthesis of copolymers bearing DB24C8.
PolymerFeed Molar Ratio of NIPAM/4/AAMConv (%) aYield (%) bMw c (×10−3)Mw/Mn cMolar Ratio of NIPAM/4/AAM in Polymer a
P1100/0/097941672.87100/0/0
P297.0/3.0/092952481.6297.1/2.9/0
P395.0/5.0/082631582.4395.8/4.2/0
P493.5/6.5/095762102.0293.7/6.3/0
P585.0/0/1597891662.9383.3/0/16.7
P682.0/3.0/1598802441.5485.7/2.4/11.9
P780.0/5.0/1587941972.0085.6/5.0/9.4
P877.5/7.5/1598841762.9581.7/7.6/10.7
P975.0/10/1585931272.4782.6/10.5/6.9
a Determined by 1H NMR; b Isolated yield; c Determined by GPC.
Table
Table 2. Cloud point values of P7, P8, and P9 with/without Cs+ in water.
Table 2. Cloud point values of P7, P8, and P9 with/without Cs+ in water.
PolymerWithout Cs+ (°C)With Cs+ (°C)
P716.216.9
P84–5 a9.2
P9−3–0 b0–1 b
a Estimated by the observation of copolymer solution in a refrigerator (approximately 4 °C); b Estimated by the observation of copolymer solution in an ice bath.
Table
Table 3. Chemical shifts (δ) and their changes (Δδ) of methylene protons of DB24C8 in P9 in the presence of alkali metal salt.
Table 3. Chemical shifts (δ) and their changes (Δδ) of methylene protons of DB24C8 in P9 in the presence of alkali metal salt.
NoneLi+Na+K+Rb+Cs+
Cation diameter (Å) [33]-1.201.902.662.963.34
δ (ppm)4.0054.0064.0084.0224.0304.042
Δδ (ppm)-0.0010.0030.0170.0250.037
Table
Table 4. Chemical shifts (δ) and their changes (Δδ) of methylene protons of DB24C8 in P9 in the competition test.
Table 4. Chemical shifts (δ) and their changes (Δδ) of methylene protons of DB24C8 in P9 in the competition test.
NoneNaClKClCsClCsCl + NaCl (CsCl:NaCl = 1:1)CsCl + NaCl (CsCl:NaCl = 1:5)CsCl + KCl (CsCl:KCl = 1:1)CsCl + KCl (CsCl:KCl = 1:5)
δ (ppm)4.0054.0084.0224.0424.0434.0404.0474.054
Δδ (ppm)-0.0030.0170.0370.0380.0350.0420.049
