Next Article in Journal
Focusing of Microcrystals and Liquid Condensates in Acoustofluidics
Previous Article in Journal
Hierarchical Core/Shell Structured [email protected](OH)2 Nanospheres as Binder-Free Electrodes for High Performance Supercapacitors
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle
Crystals 2019, 9(2), 119; https://doi.org/10.3390/cryst9020119

A Combined Experiment and Crystal Plasticity FEM Study of Microstructure and Texture in Aluminium Processed by Reverse and Unidirectional Accumulative Roll-Bonding

School of Mechanical, Materials, Mechatronic and Biomedical Engineering, University of Wollongong, Wollongong, NSW 2522, Australia
*
Authors to whom correspondence should be addressed.
Received: 23 January 2019 / Revised: 15 February 2019 / Accepted: 21 February 2019 / Published: 24 February 2019
(This article belongs to the Section Crystalline Materials)
  |
PDF [2187 KB, uploaded 24 February 2019]
  |

Abstract

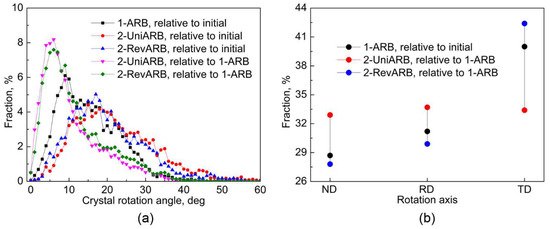

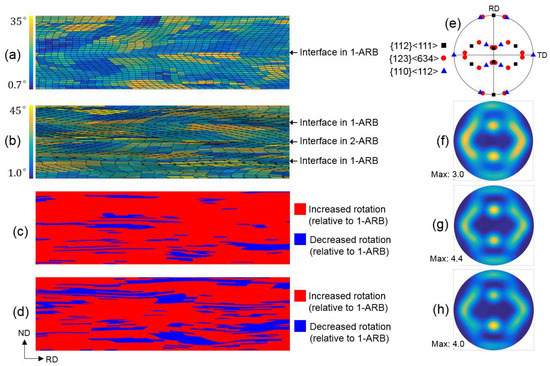

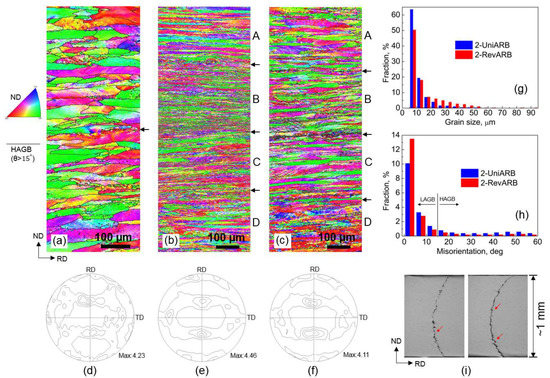

In this report, reverse accumulative roll-bonding (ARB) was conducted for the first time. It was found that the microstructure after reverse ARB was relatively coarser than that after unidirectional ARB, and texture intensity was slightly weaker. In addition to the experimental study, the crystal plasticity finite element method was applied to the ARB-processed polycrystalline aluminium. The simulation followed the real deformation of reverse ARB and unidirectional ARB, and the predictions were validated by the experimental observations. Compared to the second cycle of unidirectional ARB, the crystal orientations (after the first cycle) were relatively unstable during the second cycle of reverse ARB, which is believed to be the reason for the relatively coarser microstructure after reverse ARB. View Full-Text
Keywords: accumulative roll-bonding (ARB); reverse ARB; crystal plasticity FEM; crystal rotation accumulative roll-bonding (ARB); reverse ARB; crystal plasticity FEM; crystal rotation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, H.; Lu, C.; Tieu, K. A Combined Experiment and Crystal Plasticity FEM Study of Microstructure and Texture in Aluminium Processed by Reverse and Unidirectional Accumulative Roll-Bonding. Crystals 2019, 9, 119.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
