Structural Variations in Manganese Halide Chain Compounds Mediated by Methylimidazolium Isomers

by
Ceng Han
,
David B. Cordes
,
Alexandra M. Z. Slawin
and
Philip Lightfoot
*
School of Chemistry and EaStChem, University of St Andrews, St Andrews KY16 9ST, UK
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(10), 930; https://doi.org/10.3390/cryst10100930
Submission received: 25 September 2020 / Revised: 8 October 2020 / Accepted: 10 October 2020 / Published: 13 October 2020
(This article belongs to the Special Issue Coordination Polymers: Structure, Bonding and Applications)
Browse Figures
Versions Notes

Abstract

:
The structures of two new hybrid organic–inorganic manganese halide compounds [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O) ([1MiH] = 1-methylimidazolium, [4MiH] = 4-methylimidazolium) have been determined by single crystal X-ray diffraction. Both are composed of one dimensional [MnCl3(H2O)]n− edge-sharing octahedral chains. The structures are compared to the previously reported isomeric analogue [2MiH]MnCl3(H2O) ([2MiH] = 2-methylimidazolium), and three closely related compounds. The variations in packing of the inorganic chains are shown to be influenced by hydrogen bonding abilities of the imidazolium or related moieties. Both new compounds show intense red luminescence at ambient temperature under UV irradiation.

1. Introduction

The past decade has witnessed much progress in the exploratory study of hybrid inorganic–organic compounds, many of which are related to the perovskite family [1,2]. Such compounds are of interest due to their versatile chemical and physical properties, such as photoluminescence, electronic and photophysical properties [3,4,5]. In particular, hybrid manganese halide perovskite-related materials have been developed [6,7] because they show significant magnetic, ferroelectric or luminescent properties [8,9,10]. Conventional perovskites have a general formula ABX3 and the first classical perovskite, CaTiO3 consists of a unique framework of corner-sharing TiO6 octahedra with interstitial Ca2+ cations [11]. There are many types of perovskite-related materials, for example two-dimensional layered perovskites, which can be regarded as being derived from ‘slicing’ the perovskite ABX3 through vertices of the BX6 octahedra and inserting additional species between these layers [12,13]. Examples amongst manganese halides are (CH3NH3)2MnCl4 [14] and (NH3CH2CH2NH3)MnCl4 [15]. Recently, our group has reported the first layered fluoroperovskite compound, (enH2)MnF4 (en = ethylenediamine (C2H8N2)) [16], containing an interlayer organic cation.
Up to now, Xiong’s group reported a series of one-dimensional (1D) organic–inorganic hybrid Mn2+ hexagonal perovskite compounds, where the cations occupy the free cavities enclosed by the face-sharing octahedral chains. These compounds exhibit interesting phase transitions, for example, (pyrrolidinium)MnCl3 [17] and (R)- and (S)-3-(fluoropyrrolidinium)MnCl3 [18], which have ferroelectric and fluorescence properties. Interestingly, (2-methylimidazolium)MnCl3(H2O) ([2MiH]MnCl3(H2O)) [19,20] (2-aminopyridinium)MnCl3(H2O) [21], (pyrazolium)MnCl3(H2O) [22], and (pyridinium)MnCl3(H2O) [23] also adopt a 1D chain structure type, but the octahedra are edge-sharing and, consequently, the structure cannot be regarded as perovskite-like. According to these studies, the luminescence of manganese (II) halide hybrids can be assigned to the 4T1g(G) → 6A1g(S) electronic transition of Mn2+. Both edge-sharing and face-sharing octahedral Mn2+ ions tend to emit red luminescence [17,18,20,23], whereas, the corner-sharing octahedral Mn2+ ions tend to a somewhat higher energy orange emission (581 nm) [10]. However, if a Mn atom is surrounded by four ligands to form an independent MnX42− tetrahedral unit, then the weak field strength of tetrahedral coordinated Mn2+ exhibits typically green emission (≈520 nm) [24,25]. The different interactions of the Mn2+ ions can affect luminescence and leads to the 1D organic–inorganic hybrid Mn2+ compounds having potential applications not only in optical devices but also in luminescent thermometers and resistance sensors, and so on [17,18,26].
As part of our exploratory search for novel perovskite-related hybrids we have discovered several new compounds which adopt chain structures, structurally unrelated to perovskite, but with similar ABX3-type compositions [27,28]. Compared with the various studies of manganese halide materials based on the hexagonal perovskite and layered perovskite structures, the present work focusses on the much less common 1D edge-sharing octahedral chain structure type. Here, we present two new 1D edge-sharing octahedral chain structure compounds, [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O) ([1MiH] = 1-methylimidazolium, [4MiH] = 4-methylimidazolium).

2. Experimental Section

2.1. Chemicals

Manganese chloride tetrahydrate (MnCl2·4H2O, 98%), hydrochloric acid (HCl, 36%, w/w aqueous solution), ethanol absolute (C2H5OH, 99.99%), 1-methylimidazole (C4N2H6, 99%), and 4-methylimidazole (C4N2H6, 98%) were purchased from Alfa Aesar, Lancashire, UK. All chemicals were directly used without further purification.

2.2. Synthesis

For [1MiH]MnCl3(H2O), (C4N2H7MnCl3(H2O)), 1-methylimidazole (246.3 mg, 3 mmol) and manganese chloride tetrahydrate (MnCl2·4H2O) (197.9 mg, 1 mmol) were dissolved in concentrated HCl (1 mL) and ethanol (1 mL). With slow evaporation of the solution, pale pink prismatic crystals were obtained after several days. The powder X-ray diffraction is given in Figure S1.
For [4MiH]MnCl3(H2O), (C4N2H7MnCl3(H2O)), 4-methylimidazole (164.2 mg, 2 mmol) and manganese chloride tetrahydrate (MnCl2·4H2O) (197.9 mg, 1 mmol) were dissolved in concentrated HCl (1 mL) and ethanol (1 mL). With slow evaporation of the solution, pale pink block-shaped crystals were obtained after 1 week. The powder X-ray diffraction is given in Figure S2.

2.3. Characterisation

Single crystal X-ray diffraction data were collected at 173 and 298 K on a Rigaku SCXMini diffractometer using Mo-Kα radiation. The same [1MiH]MnCl3(H2O) crystal was run at both 173 and 298 K. The [4MiH]MnCl3(H2O) crystal used for the 173 K structure was found to be twinned, but the data were processed to account for the twin law ( − 1 0 − 0.209 0.001 − 1.001 0 0 0 1 ) . The refined twin fraction was 0.21 (2). The [4MiH]MnCl3(H2O) crystal used for the 298 K structure achieved good refinements. The data were collected using Rigaku CrystalClear software [29]. Data processed (including correction for Lorentz, polarisation and absorption) using either CrystalClear or CrysAlisPro [30]. Structures were solved by dual-space methods using SHELXT [31] and refined by full-matrix least-squares on F2 using SHELXL-2018/3 [32] incorporated in the WINGX package [33]. All the hydrogen atoms were treated as riding atoms and all non-H atoms were refined anisotropically. CrystalMaker [34] was used in preparing Figure 1, Figure 2 and Figure 3.
Crystalline powders of the two samples were measured on a PANalytical EMPYREAN X-ray diffractometer using Cu Kα1 (λ = 1.5406 Å) radiation in the range of 3–70°. Excitation and steady-state emission spectra were recorded at 298 K using an Edinburgh Instruments F980 fluorimeter. All the samples for the steady-state measurements were excited at 352 nm using a Xenon lamp.

3. Results and Discussion

The single-crystal X-ray structures suggest no phase transitions in the regime 173 < T < 298 K, with only slight changes in molecular geometry between the two temperatures, so the crystallographic details for the two new compounds will be discussed based on the structures at 173 K. Crystallographic details of the structures at 298 K are provided in the Supplementary Materials. Crystallographic parameters for the two compounds at 173 K are given in Table 1. Both structures are composed of one dimensional [MnCl3(H2O)]n− edge-sharing octahedral chains, separated by the imidazolium moieties. In each case there is one crystallographically unique Mn site and one imidazolium moiety. The significant distortions of the MnCl3(H2O) octahedra are shown in Figure 1. For [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O), respectively, the Mn-Cl bond lengths are in the ranges of 2.5109(9)−2.5784(9) and 2.5278(5)−2.5633(5) Å, the Mn-O bond lengths are 2.240(2) and 2.1993(12) Å. The Cl-Mn-Cl bond angles are in the ranges of 87.41(3)−94.46(3) and 87.319(15)−92.635(16)°, the O-Mn-Cl bond angles are in the ranges of 85.64(6)−87.03(6) and 85.58(4)−91.72(4)°, the Mn-Cl-Mn bond angles are in the ranges of 90.73(2)−92.90(2) and 92.032(16)−92.145(16)° at 173 K.
The same type of [MnCl3(H2O)]n− edge-sharing octahedral chain is also seen in the related structure containing an isomeric cation, [2MiH]MnCl3(H2O). Moreover, that analogue also crystallises in space group P21/c, and has unit cell metrics at 293 K, a = 8.9890(18) Å, b = 14.612(3) Å, c = 7.2748(15) Å, β = 93.86(3)°, which are clearly similar to those of [4MiH]MnCl3(H2O) at 173 K (Table 1). However, in the case of [2MiH]MnCl3(H2O) the crystal structure was determined at both 293 and 173 K, and found to display a structural phase transition of order–disorder type around 220 K; ordering of the imidazolium moieties at low temperature leads to a tripling of the a-axis. In each of the present cases there is no unit cell tripling at 173 K. Given that each of the three members of this methylimidazolium-based family is based on the same type of inorganic chain, it is of interest to compare both the intra-chain distortions and the nature of the crystal packing of these chains, which is evidently mediated by the shape and hydrogen bonding propensities of the different imidazolium isomers. A comparison of the intra-chain distortions is provided in Table 2. We also include here the three further analogues, which contain the same type of [MnCl3(H2O)]n− chain, but different cyclic amines; these are discussed briefly at the end of this section. Each of the structures show a similar level of octahedral distortion, and a significant underbonding of the apical Cl ligand. This is compensated in each case by strong H-honding from the water ligand of a neighbouring chain to the apical Cl (Table 3).
First, comparing the three methylimidazolium compounds, each structure has one unit cell axis of ≈7.3 Å, which describes the chain repeat distance of two edge-shared octahedra. The other unit cell metrics differ significantly between the [1MiH] and [2MiH]/[4MiH] compounds reflecting the different packing of inorganic chains between the two unit cell types. Packing of each structure along the chain direction, and perpendicular to this, is shown in Figure 2 and Figure 3. It can be seen from Figure 2 and Figure 3 that in the case of the [1MiH] compound there is no opportunity for inter-chain H-bonding mediated by the imidazole moiety; the single available N-H donor only forms a single N-H---Cl and N-H---O interaction to one neighbouring chain. In contrast, both [2MiH] and [4MiH] analogues do take the opportunity to pack in a similar fashion, due to the availability of additional N-H---Cl interactions to bridge neighbouring chains. The packing of neighbouring chains along the c-axis in the latter two compounds (Figure 2) therefore occurs in a ‘parallel’ arrangement, whereas the corresponding chains in [1MiH] exhibit a ‘tilt’ around the chain direction (b-axis) relative to each other.
As mentioned above, there are three further closely related compounds reported, which contain the same inorganic chains but different cyclic amine cations, viz., (2-aminopyridinium)MnCl3(H2O) [21], (pyrazolium)MnCl3(H2O) [22] and (pyridinium)MnCl3(H2O) [23]. Again, each of these crystal structures has a unit cell axis of ≈7.3 Å, describing the chain repeat distance of two edge-shared octahedra. The details of the unit cell metrics, crystal symmetry, and comparative crystal structure plots for these three analogues are given in Table S1 and Figure S3. Interestingly, the pyridinium analogue has essentially the same structural architecture as the [1MiH] compound introduced here: there is hydrogen bonding to only one inorganic chain. The pyrazolium and 2-aminopyridinium analogues have enhanced H-bonding opportunities, which lead to expanded unit cells (effectively doubled unit cell volumes) caused by ‘out-of-phase’ tilting of adjacent octahedral chains along the chain axis.
A previous study of the [2MiH] compound [20] highlighted an unusual property of a reversible optoelectronic phase transition, accompanied by both dielectric and photoluminescent switching effects. Although the present compounds do not display any structural phase transitions in the temperature regime studied here, both compounds do show intense red luminescence at ambient temperature under UV irradiation, similar to that observed in (CH6N3)2MnCl4 [38] and (CH3)4NMnCl3 [39]. Both of those compounds feature face-sharing, rather than edge-sharing, units of MnCl6 octahedra. The excitation and emission spectra of the two compounds were investigated (Figure 4). As can be seen, both compounds display similar excitation spectra monitored at 620 nm. All the excitation spectra of the two compounds contain six sharp peaks, at around 527, 447, 418, 367, 352, 331 nm, and are comparable to the excitation spectra of [2MiH]MnCl3(H2O) [20], in which the most intense band at 352 nm serves as an excitation wavelength. Emission spectra were recorded at this excitation wavelength. The emission spectra revealed that all two compounds featured similar peaks at 630 and 632 nm for [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O), respectively. Such interesting red luminescence is produced by the 4T1g(G) → 6A1g(S) transition (i.e., (t2g)3(eg)2 → (t2g)4(eg)1 electronic transition [17,40]) and similar emission energies have been reported in complexes of octahedrally coordinated Mn2+ ions in both edge-sharing and face-sharing environments [41]. In the case of corner-sharing octahedral Mn2+ ions, this tends to a somewhat higher energy orange emission (581 nm) [10], while those compounds with Mn2+ ions in the tetrahedral environment usually display green emissions (≈520 nm) [42,43,44].

4. Conclusions

In conclusion, we prepared two new compounds composed of one dimensional [MnCl3(H2O)]n− edge-sharing octahedral chains. Each of the structures was discussed in detail in terms of octahedral distortions, crystal packing and H-bonding environments. These new examples were also compared, structurally, to the previously reported analogue [2MiH]MnCl3(H2O) and three further related compounds containing the same type of inorganic chain but different molecular cations. It can be seen that subtle changes in H-bonding opportunities, caused by key changes in the chemical nature of the molecular cations, leads to variations in the nature of packing of the inorganic chains. The preliminary photophysical properties were studied by their excitation and emission spectra: both new compounds exhibit intense red luminescence under a UV excitation. Further studies of related compounds are therefore merited in order to ascertain more specific structural details that may govern their luminescence properties and may also be exploited for triggering phase transitions, and consequent switchable physical properties, in this family of materials.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4352/10/10/930/s1, Figure S1. Raw and calculated PXRD data for [1MiH]MnCl3(H2O) at room temperature; Figure S2. Raw and calculated PXRD data for [4MiH]MnCl3(H2O) at room temperature Figure S3. Unit cell packing and hydrogen bonding interactions along the chain direction for (a) (2-aminopyridinium)MnCl3(H2O) (298 K) along the c-axis, (b) (pyrazolium)MnCl3(H2O) (100 K) along the a-axis and (c) (pyridinium)MnCl3(H2O) (153 K) along the b-axis; Table S1. Unit cell parameters for (2-aminopyridinium)MnCl3(H2O) (298 K), (pyrazolium)MnCl3(H2O) (100 K) and (pyridinium)MnCl3(H2O) (153 K); Table S2: Crystallographic data for the two compounds at 298 K; Table S3: Hydrogen bonds for the two compounds at 298 K; Table S4. Selected bond lengths (Å) and bond angles (°) versus temperature for [1MiH]MnCl3(H2O); Table S5: Selected bond lengths (Å) and bond angles (°) versus temperature for [4MiH]MnCl3(H2O).

Author Contributions

C.H. carried out all the synthesis and further characterisation, and some of the single-crystal X-ray diffraction crystallography. D.B.C. and A.M.Z.S. assisted with some of the single crystal X-ray data collection. P.L. coordinated the project and writing of the paper, with the approval of all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of St Andrews and the China Scholarship Council (studentship to CH), grant number “201806050003”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Protesescu, L.; Yakunin, S.; Bodnarchuk, M.I.; Krieg, F.; Caputo, R.; Hendon, C.H.; Yang, R.X.; Walsh, A.; Kovalenko, M.V. Nanocrystals of cesium lead halide perovskites (CsPbX3, X = Cl, Br, and I): Novel optoelectronic materials showing bright emission with wide color gamut. Nano Lett. 2015, 15, 3692–3696. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wang, C.L.; Song, Z.N.; Li, C.W.; Zhao, D.W.; Yan, Y.F. Low-Bandgap mixed Tin-Lead perovskites and their applications in all-perovskite tandem solar cells. Adv. Funct. Mater. 2019, 29, 1808801. [Google Scholar] [CrossRef]
  3. Mao, L.; Ke, W.; Pedesseau, L.; Wu, Y.; Katan, C.; Even, J.; Wasielewski, M.R.; Stoumpos, C.C.; Kanatzidis, M.G. Hybrid Dion–Jacobson 2D lead iodide perovskites. J. Am. Chem. Soc. 2018, 140, 3775–3783. [Google Scholar] [CrossRef] [PubMed]
  4. Stoumpos, C.C.; Cao, D.H.; Clark, D.J.; Young, J.; Rondinelli, J.M.; Jang, J.I.; Hupp, J.T.; Kanatzidis, M.G. Ruddlesden–Popper hybrid lead iodide perovskite 2D homologous semiconductors. Chem. Mater. 2016, 28, 2852–2867. [Google Scholar] [CrossRef]
  5. Jacobsson, T.J.; Schwan, L.J.; Ottosson, M.; Hagfeld, A.; Edvinsson, T. Determination of thermal expansion coefficients and locating the temperature-induced phase transition in methylammonium lead perovskites using x-ray diffraction. Inorg. Chem. 2015, 54, 10678–10685. [Google Scholar] [CrossRef] [PubMed]
  6. Sourisseau, C.; Lucazeau, G. Vibrational study of phase transitions in (NH3(CH2)3NH3)MnCl4. J. Raman Spectrosc. 1979, 8, 311–319. [Google Scholar] [CrossRef]
  7. Park, S.H.; Oh, I.H.; Park, S.; Park, Y.B.; Kim, J.H.; Huh, Y.D. Canted antiferromagnetism and spin reorientation transition in layered inorganic–organic perovskite (C6H5CH2CH2NH3)2MnCl4. Dalton Trans. 2012, 41, 1237–1242. [Google Scholar] [CrossRef] [PubMed]
  8. Kojima, N.; Ban, T.; Tsujikawa, I. Magnon sideband of the 4T2g (4D) state in the quasi two-dimensional antiferromagnet (C2H5NH3)2MnCl4. J. Phys. Soc. 1978, 44, 923–929. [Google Scholar] [CrossRef]
  9. Ye, H.Y.; Zhou, Q.; Niu, X.; Liao, W.Q.; Fu, D.W.; Zhang, Y.; You, Y.M.; Wang, J.; Chen, Z.N.; Xiong, R.G. High-temperature ferroelectricity and photoluminescence in a hybrid organic–inorganic compound:(3-Pyrrolinium)MnCl3. J. Am. Chem. Soc. 2015, 137, 13148–13154. [Google Scholar] [CrossRef]
  10. Lv, X.H.; Liao, W.Q.; Li, P.F.; Mao, C.Y.; Zhang, Y. Dielectric and photoluminescence properties of a layered perovskite-type organic–inorganic hybrid phase transition compound: NH3(CH2)5NH3MnCl4. J. Mater. Chem. C 2016, 4, 1881–1885. [Google Scholar] [CrossRef]
  11. Kay, H.F.; Bailey, P.C. Structure and properties of CaTiO3. Acta Crystallogr. 1957, 10, 219–226. [Google Scholar] [CrossRef]
  12. Saparov, B.; Mitzi, D.B. Organic–inorganic perovskites: Structural versatility for functional materials design. Chem. Rev. 2016, 116, 4558–4596. [Google Scholar] [CrossRef] [PubMed]
  13. Yu, Y.; Zhang, D.D.; Yang, P.D. Ruddlesden–Popper phase in two-dimensional inorganic halide perovskites: A plausible model and the supporting observations. Nano Lett. 2017, 17, 5489–5494. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Van Amstel, W.D.; De Jongh, L.J. Magnetic measurements on (CH3NH3)2MnCl4, a quasi two-dimensional Heisenberg antiferromagnet. Solid State Commun. 1972, 11, 1423–1429. [Google Scholar] [CrossRef]
  15. Arend, H.; Tichy, K.; Baberschke, K.; Rys, F. Chloride perovskite layer compounds of [NH3(CH2)nNH3] MnCl4 formula. Solid State Commun. 1976, 18, 999–1003. [Google Scholar] [CrossRef]
  16. Li, T.; Clulow, R.; Bradford, A.J.; Lee, S.L.; Slawin, A.M.Z.; Lightfoot, P. A hybrid fluoride layered perovskite, (enH2)MnF4. Dalton Trans. 2019, 48, 4784–4787. [Google Scholar] [CrossRef] [Green Version]
  17. Zhang, Y.; Liao, W.Q.; Fu, D.W.; Ye, H.Y.; Chen, Z.N.; Xiong, R.G. Highly efficient red-light emission in an organic–inorganic hybrid ferroelectric:(pyrrolidinium) MnCl3. J. Am. Chem. Soc. 2015, 137, 4928–4931. [Google Scholar] [CrossRef]
  18. Ai, Y.; Chen, X.G.; Shi, P.P.; Tang, Y.Y.; Li, P.F.; Liao, W.Q.; Xiong, R.G. Fluorine Substitution Induced High T c of Enantiomeric Perovskite Ferroelectrics:(R)-and (S)-3-(Fluoropyrrolidinium)MnCl3. J. Am. Chem. Soc. 2019, 141, 4474–4479. [Google Scholar] [CrossRef]
  19. Hachuła, B.; Pędras, M.; Nowak, M.; Kusz, J.; Pentak, D.; Borek, J. The crystal structure and spectroscopic properties of catena-(2-methylimidazolium bis (μ2-chloro)-aqua-chloromanganese (II)). J. Serbian Chem. Soc. 2011, 76, 235–247. [Google Scholar] [CrossRef]
  20. Guo, Q.; Zhang, W.Y.; Chen, C.; Ye, Q.; Fu, D.W. Red-light emission and dielectric reversible duple opto-electronic switches in a hybrid multifunctional material:(2-methylimidazolium)MnCl3(H2O). J. Mater. Chem. C 2017, 5, 5458–5464. [Google Scholar] [CrossRef]
  21. Su, C.W.; Wu, C.P.; Chen, J.D.; Liou, L.S.; Wang, J.C. Synthesis and structural characterization of two chain complexes of Mn (II) containing 2-aminopyridinium. Inorg. Chem. Commun. 2002, 5, 215–219. [Google Scholar] [CrossRef]
  22. Adams, C.J.; Kurawa, M.A.; Orpen, A.G. Coordination chemistry in the solid state: Reactivity of manganese and cadmium chlorides with imidazole and pyrazole and their hydrochlorides. Inorg. Chem. 2010, 49, 10475–10485. [Google Scholar] [CrossRef]
  23. Li, C.Y.; Bai, X.W.; Guo, Y.C.; Zou, B.S. Tunable emission properties of manganese chloride small single crystals by pyridine incorporation. ACS Omega 2019, 4, 8039–8045. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Bai, X.; Zhong, H.Z.; Chen, B.K.; Chen, C.; Han, J.B.; Zeng, R.S.; Zou, B.S. Pyridine-modulated Mn ion emission properties of C10H12N2MnBr4 and C5H6NMnBr3 single crystals. J. Phys. Chem. C 2018, 122, 3130–3137. [Google Scholar] [CrossRef]
  25. Chen, S.Q.; Gao, J.M.; Chang, J.Y.; Zhang, Y.; Feng, L. Organic-inorganic manganese (II) halide hybrids based paper sensor for the fluorometric determination of pesticide ferbam. Sens. Actuators B Chem. 2019, 297, 126701. [Google Scholar] [CrossRef]
  26. Jiang, C.; Zhong, N.; Luo, C.; Lin, H.; Zhang, Y.; Peng, H.; Duan, C.G. (Diisopropylammonium)2 MnBr4: A multifunctional ferroelectric with efficient green-emission and excellent gas sensing properties. Chem. Commun. 2017, 53, 5954–5957. [Google Scholar] [CrossRef]
  27. Guo, Y.Y.; Yang, L.J.; Lightfoot, P. Three new lead iodide chain compounds, APbI3, templated by molecular cations. Crystals 2019, 9, 616. [Google Scholar] [CrossRef] [Green Version]
  28. Guo, Y.Y.; Lightfoot, P. Structural diversity of lead halide chain compounds, APbX3, templated by isomeric molecular cations. Dalton Trans. 2020, 49, 12767–12775. [Google Scholar] [CrossRef]
  29. Rigaku. CrystalClear; Rigaku Corporation: Tokyo, Japan, 2014. [Google Scholar]
  30. Rigaku Oxford Diffraction. CrysAlisPro v1.171.40.40a.; Rigaku Corporation: Oxford, UK, 2015. [Google Scholar]
  31. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A Found. Crystallogr. 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  32. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  33. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Cryst. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  34. Palmer, D.C. CrystalMaker; Agilent Technologies Ltd.: Yarnton, Oxfordshire, UK, 2014. [Google Scholar]
  35. Lufaso, M.W.; Woodward, P.M. Jahn-Teller distortions, cation ordering and octahedral tilting in perovskites. Acta Crystallogr. Sect. B Struct. Sci. 2004, 60, 10–20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Robinson, K.; Gibbs, G.V.; Ribbe, P.H. Quadratic Elongation: A Quantitative Measure of Distortion in Coordination Polyhedra. Science 1971, 172, 567–570. [Google Scholar] [CrossRef] [PubMed]
  37. Brese, N.E.; O’Keeffe, M. Bond-valence parameters for solids. Acta Cryst. B 1991, 47, 192–197. [Google Scholar] [CrossRef]
  38. Sen, A.; Swain, D.; Row, T.N.G.; Sundaresan, A. Unprecedented 30 K hysteresis across switchable dielectric and magnetic properties in a bright luminescent organic–inorganic halide (CH6N3)2MnCl4. J. Mater. Chem. C. 2019, 7, 4838–4845. [Google Scholar] [CrossRef] [Green Version]
  39. Nataf, L.; Rodríguez, F.; Valiente, R. Spectroscopic and luminescence properties of (CH3)4NMnCl3: A sensitive Mn2+-based pressure gauge. High Press Res. 2009, 29, 653–659. [Google Scholar] [CrossRef]
  40. Orgel, L.E. Phosphorescence of solids containing the manganous or ferric ions. J. Chem. Phys. 1955, 23, 1958. [Google Scholar] [CrossRef]
  41. Qin, Y.Y.; She, P.F.; Huang, X.M.; Huang, W.; Zhao, Q. Luminescent manganese (II) complexes: Synthesis, properties and optoelectronic applications. Coord. Chem. Rev. 2020, 416, 213331. [Google Scholar] [CrossRef]
  42. Barreda-Argueso, J.A.; Nataf, L.; Rodriguez-Lazcano, Y.; Aguado, F.; Gonzalez, J.; Valiente, R.; Rodriguez, F.; Wilhelm, H.; Jephcoat, A.P. Bulk and molecular compressibilities of organic–inorganic hybrids [(CH3)4N]2MnX4 (X = Cl, Br); role of intermolecular interactions. Inorg. Chem. 2014, 53, 10708–10715. [Google Scholar] [CrossRef]
  43. Chen, J.; Zhang, Q.; Zheng, F.K.; Liu, Z.F.; Wang, S.H.; Wu, A.Q.; Guo, G.C. Intense photo-and tribo-luminescence of three tetrahedral manganese (II) dihalides with chelating bidentate phosphine oxide ligand. Dalton Trans. 2015, 44, 3289–3294. [Google Scholar] [CrossRef]
  44. Xu, L.J.; Lin, X.S.; He, Q.Q.; Worku, M.; Ma, B.W. Highly efficient eco-friendly X-ray scintillators based on an organic manganese halide. Nat. Commun. 2020, 11, 1–7. [Google Scholar] [CrossRef] [PubMed]
Crystals 10 00930 g001 550
Figure 1. The nature of the distortions within the [MnCl3(H2O)] chains in (a) [1MiH]MnCl3(H2O) and (b) [4MiH]MnCl3(H2O) at 173 K. In each case, Cl(3) is a terminal ligand, and the other Cl ligands are bridging, along the chain direction. Symmetry transformations used to generate equivalent atoms: #1 −x−1, y+1/2, −z−3/2; #2 −x−1, y−1/2, −z−3/2 ([1MiH]MnCl3(H2O)). #1 x, −y+1/2, z+1/2; #2 x, −y+1/2, z−1/2 ([4MiH]MnCl3(H2O)).
Figure 1. The nature of the distortions within the [MnCl3(H2O)] chains in (a) [1MiH]MnCl3(H2O) and (b) [4MiH]MnCl3(H2O) at 173 K. In each case, Cl(3) is a terminal ligand, and the other Cl ligands are bridging, along the chain direction. Symmetry transformations used to generate equivalent atoms: #1 −x−1, y+1/2, −z−3/2; #2 −x−1, y−1/2, −z−3/2 ([1MiH]MnCl3(H2O)). #1 x, −y+1/2, z+1/2; #2 x, −y+1/2, z−1/2 ([4MiH]MnCl3(H2O)).
Crystals 10 00930 g001
Crystals 10 00930 g002 550

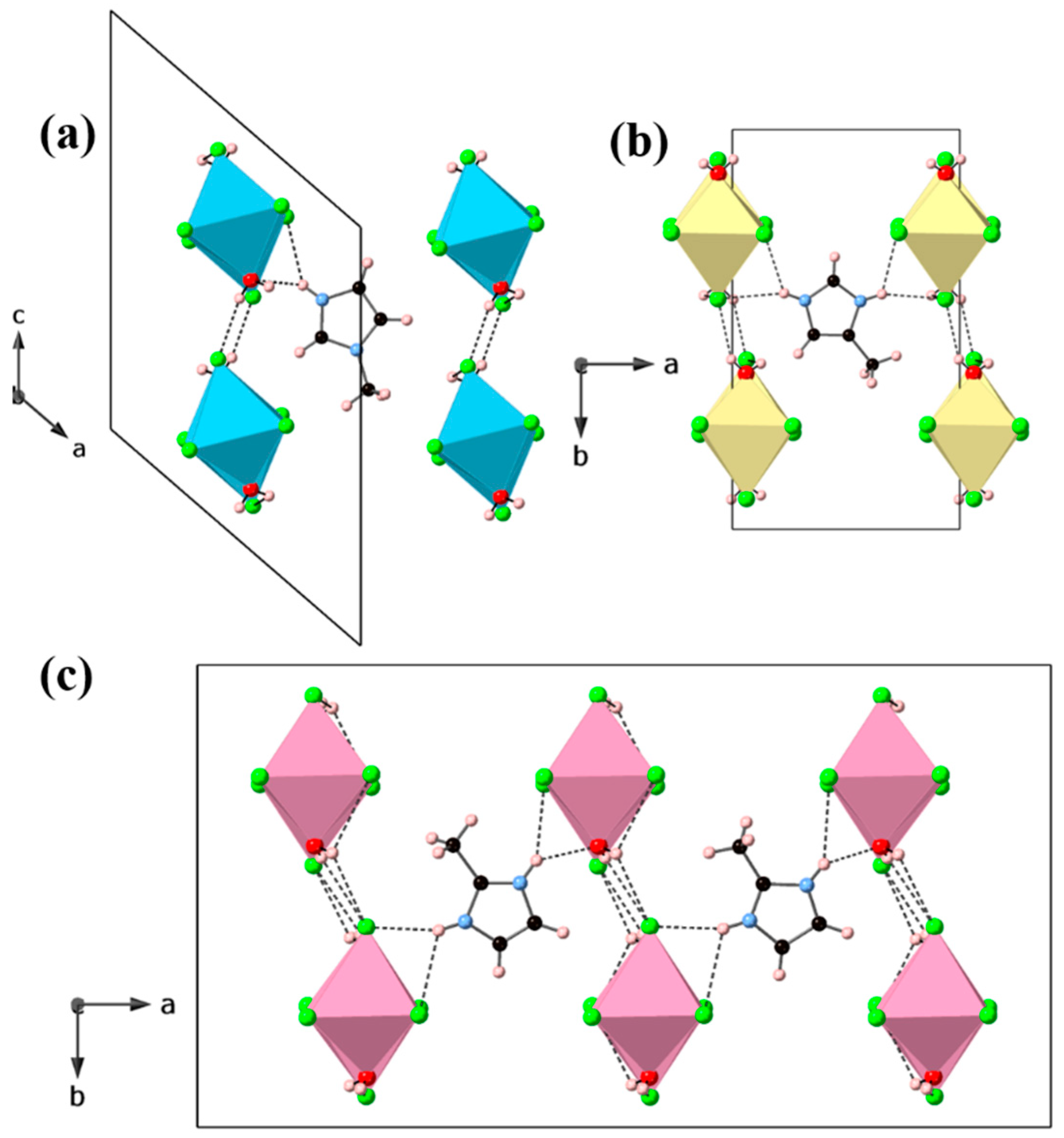

Figure 2. Unit cell packing and hydrogen bonding interactions along the chain direction for (a) [1MiH]MnCl3(H2O) along the b-axis, (b) [4MiH]MnCl3(H2O) along the c-axis and (c) [2MiH]MnCl3(H2O) along the c-axis at 173 K [20].
Figure 2. Unit cell packing and hydrogen bonding interactions along the chain direction for (a) [1MiH]MnCl3(H2O) along the b-axis, (b) [4MiH]MnCl3(H2O) along the c-axis and (c) [2MiH]MnCl3(H2O) along the c-axis at 173 K [20].
Crystals 10 00930 g002
Crystals 10 00930 g003 550
Figure 3. Unit cell packing and hydrogen bonding interactions perpendicular to the chain direction for (a) [1MiH]MnCl3(H2O) along the a-axis, (b) [4MiH]MnCl3(H2O) along the b-axis and (c) [2MiH]MnCl3(H2O) along the b-axis at 173 K [20].
Figure 3. Unit cell packing and hydrogen bonding interactions perpendicular to the chain direction for (a) [1MiH]MnCl3(H2O) along the a-axis, (b) [4MiH]MnCl3(H2O) along the b-axis and (c) [2MiH]MnCl3(H2O) along the b-axis at 173 K [20].
Crystals 10 00930 g003
Crystals 10 00930 g004 550

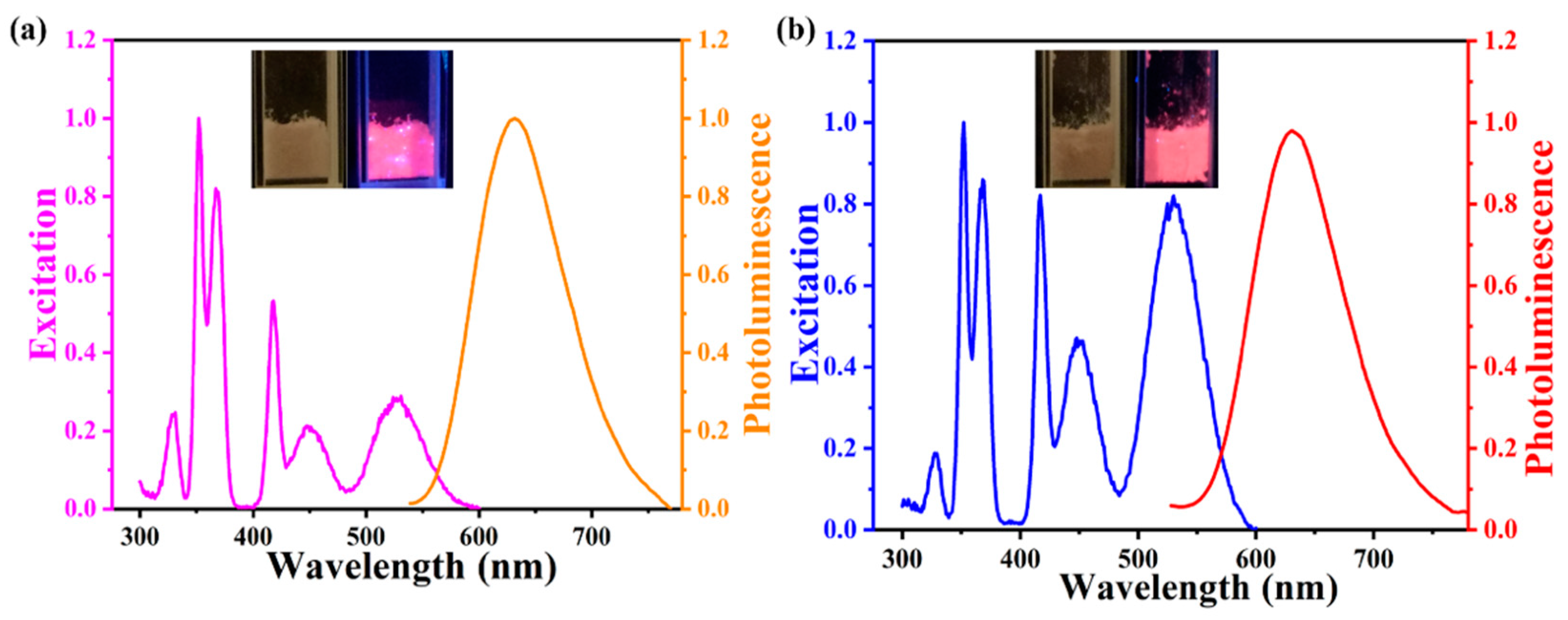

Figure 4. The excitation and emission spectra at room temperature of (a) [1MiH]MnCl3(H2O), and (b) [4MiH]MnCl3(H2O). The insets of both (a,b) show pale pink crystals under ambient light and a bright pink glow under UV.
Figure 4. The excitation and emission spectra at room temperature of (a) [1MiH]MnCl3(H2O), and (b) [4MiH]MnCl3(H2O). The insets of both (a,b) show pale pink crystals under ambient light and a bright pink glow under UV.
Crystals 10 00930 g004
Table
Table 1. Crystal structure data for [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O) at 173 K.
Table 1. Crystal structure data for [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O) at 173 K.
Compound[1MiH]MnCl3(H2O)[4MiH]MnCl3(H2O)
FormulaC4N2H7MnCl3(H2O)C4N2H7MnCl3(H2O)
Formula weight262.42262.42
Crystal systemMonoclinicMonoclinic
Space groupP21/cP21/c
a/Å11.6861 (6)8.6344 (6)
b/Å7.2891 (4)15.1238 (6)
c/Å14.7870 (9)7.3164 (3)
β/°130.932 (3)95.069(5)
V/Å3951.59 (10)951.68 (9)
Z44
Measured ref115439328
Independent ref3115
[R(int) = 0.053]		2565
[R(int) = 0.0315]
GOOF1.0591.028
Final R indices (I > 2σ(I))R1 = 0.0513
wR2 = 0.0953		R1 = 0.0318
wR2 = 0.0651
Table
Table 2. Calculated bond length distortions, bond angle variance and bond valence sums for [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O) at 173 K, and previously reported [2MiH]MnCl3(H2O) (173 K) [20], (2-aminopyridinium)MnCl3(H2O) (298 K) [21], (pyrazolium)MnCl3(H2O) (100 K) [22] and (pyridinium)MnCl3(H2O) (153 K) [23].
Table 2. Calculated bond length distortions, bond angle variance and bond valence sums for [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O) at 173 K, and previously reported [2MiH]MnCl3(H2O) (173 K) [20], (2-aminopyridinium)MnCl3(H2O) (298 K) [21], (pyrazolium)MnCl3(H2O) (100 K) [22] and (pyridinium)MnCl3(H2O) (153 K) [23].
CompoundΔd (×104)σ2∑v (Mn)∑v (Cl1)∑v (Cl2)∑v (Cl3)∑v (O1)
[1MiH]MnCl3(H2O)20.9212.241.930.610.690.360.27
[4MiH]MnCl3(H2O)27.156.521.930.660.660.310.30
[2MiH]MnCl3(H2O)21.4616.531.980.610.740.360.27
(2-aminopyridinium)MnCl3(H2O)33.859.221.930.640.600.360.32
(pyrazolium)MnCl3(H2O)24.727.221.990.720.630.340.29
(pyridinium)MnCl3(H2O)22.7710.691.950.600.700.370.27
Note: The bond length distortion was calculated using equation Δ d = ( 1 6 ) ∑   [ d n − d d ] 2 [35], where d is the average Mn-Cl and Mn-O bond distance and dn are the six individual bond distances. The bond angle variance of each octahedron from the ideal 90° of an undistorted structure was calculated using equation σ 2 =   ∑ i = 1 12 ( σ i − 90 ) 2 11 [36], where σi is the individual Cl-Mn-Cl and O-Mn-Cl angle. The bond valence was calculated using equatio v i j = e x p ( R 0 − d b ) [37], where d is the individual bond length, R0 is a constant for a particular bond type, here R0 = 2.133 Å for the Mn-Cl bond and R0 = 1.753 Å for the Mn-O bond, and b = 0.37 Å, a universal constant. The bond valence sum ∑ vis the summation of the individual bond valences.
Table
Table 3. Hydrogen bonds for [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O) at 173 K, and previously reported [2MiH]MnCl3(H2O) at 173 K (Å and °) [20].
Table 3. Hydrogen bonds for [1MiH]MnCl3(H2O) and [4MiH]MnCl3(H2O) at 173 K, and previously reported [2MiH]MnCl3(H2O) at 173 K (Å and °) [20].
CompoundD-H…Ad(D-H)d(H…A)d(D…A)∠(DHA)
[1MiH]MnCl3(H2O)N2-H2…Cl1#10.882.543.256(3)139.1
N2-H2…O10.882.383.018(4)129.9
O1-H1B…Cl3#20.952.563.171(2)122.6
O1-H1A…Cl3#30.952.323.201(2)154.0
[4MiH]MnCl3(H2O)O1-H1A…Cl3#30.952.413.227(2)144.0
O1-H1B…Cl3#20.952.543.177(2)124.2
N1-H1…Cl1#10.882.823.363(2)121.8
N1-H1…Cl30.882.473.263(2)149.9
N2-H2…Cl2#40.882.653.279(2)129.1
N2-H2…Cl3#50.882.633.349(2)140.0
[2MiH]MnCl3(H2O)N1-H1B···O20.882.252.959(11)138
N1-H1B···Cl50.882.663.362(9)137
N2-H2B···Cl80.882.303.125(9)157
N2-H2B···Cl90.882.983.496(8)119
N3-H3A···O3#70.882.252.831(10)137
N3-H3A···Cl9#70.882.803.417(8)143
N4-H4D···Cl40.882.363.168(8)154
N4-H4D···Cl50.882.993.518(9)120
O1—H1C···Cl1#10.852.673.180(6)128
O1—H1D···Cl80.852.703.152(6)122
O2—H2C···Cl4#10.852.603.174(7)126
O2—H2D···Cl4#50.852.593.143(6)124
O3—H3B···Cl8#20.852.643.160(7)129
O3—H3C···Cl1#60.852.733.185(6)122
Note: Symmetry transformations used to generate equivalent atoms: #1 −x−1, y−1/2, −z−3/2; #2 −x−1, y+1/2, −z−3/2; #3 x, −y+1/2, z−1/2 ([1MiH]MnCl3(H2O)). #1 x, −y+1/2, z+1/2; #2 x, −y+1/2, z−1/2; #4 x−1, −y+1/2, z−1/2; #5 x−1, y, z ([4MiH]MnCl3(H2O)).#7 x, y−1, z; #1 x, −y+1/2, z−1/2; #5 −x+1, y+1/2, −z+1/2; #2 x, −y+3/2, z+1/2; #6 x, y+1, z; ([2MiH]MnCl3(H2O)).
