High-Pressure Structural Behavior and Equation of State of Kagome Staircase Compound, Ni₃V₂O₈

Abstract

We report on high-pressure synchrotron X-ray diffraction measurements on Ni₃V₂O₈ at room-temperature up to 23 GPa. According to this study, the ambient-pressure orthorhombic structure remains stable up to the highest pressure reached in the experiments. We have also obtained the pressure dependence of the unit-cell parameters, which reveals an anisotropic compression behavior. In addition, a room-temperature pressure–volume third-order Birch–Murnaghan equation of state has been obtained with parameters: V₀ = 555.7(2) ų, K₀ = 139(3) GPa, and K₀′ = 4.4(3). According to this result, Ni₃V₂O₈ is the least compressible kagome-type vanadate. The changes of the crystal structure under compression have been related to the presence of a chain of edge-sharing NiO₆ octahedral units forming kagome staircases interconnected by VO₄ rigid tetrahedral units. The reported results are discussed in comparison with high-pressure X-ray diffraction results from isostructural Zn₃V₂O₈ and density-functional theory calculations on several isostructural vanadates.

1. Introduction

Metal orthovanadates with formula M₃V₂O₈, where M is a divalent metal, have been the focus of research in recent years, mainly because of their optical, dielectric, and magnetic properties [1,2,3,4]. These properties make the M₃V₂O₈ family of compounds useful in several technological applications, from photocatalytic water splitting [3] to light-emitting diodes [5] and ion batteries [6]. In addition, compounds such as Co₃V₂O₈ and Ni₃V₂O₈ have very interesting magnetic and ferroelastic properties [2], which are intimately related to the presence of kagome staircase two-dimensional (2D) magnetic layers [2].

M₃V₂O₈ compounds are also intriguing from a crystallographic perspective [7,8]. They share a particular type of crystal structure, which is shown schematically in Figure 1. The structure is orthorhombic (space group Cmca, No. 64) with eight formula units per unit cell. In the crystal structure, the M atoms are octahedrally coordinated by oxygen atoms (see Figure 1a). In particular, the MO₆ octahedral units exhibit an edge-sharing pattern, forming a quasi-planar kagome staircase (see Figure 1b), which, in the case of Ni₃V₂O₈, results in inequivalent super-exchange interactions within the magnetic lattice [9]. Consequently, an anisotropic magnetic coupling develops in the stair-like kagome layers, leading to the emergence of multiple temperature-induced magnetic phase transitions [9]. The kagome staircases are separated by VO₄ tetrahedral units, giving the M₃V₂O₈ family of compounds a pseudo-two-dimensional layered characteristic, which, as discussed below, leads to an anisotropic compressional behavior when an external pressure is applied.

AVO₄ orthovanadates, where A is a trivalent atom, have been extensively studied under high-pressure (HP) conditions [10,11]. As a result, first-order phase transitions, involving large volume changes, have been discovered at pressures below 10 GPa (for instance, the zircon-scheelite and zircon-monazite transitions in alkaline earth vanadates [10,11]). Many of these transitions lead to interesting phenomena such as a collapse of the electronic band gap [12]. In contrast, very little effort has been dedicated to study kagome staircase orthovanadates under HP. Indeed, only two works can be found in the literature [7,9]. One of them reports powder X-ray diffraction (XRD) data on Zn₃V₂O₈ up to 15 GPa [7]. No phase transition was detected and an anisotropic response to compression was determined. The second one reports the influence of pressure on the magnetic properties of Ni₃V₂O₈ up to 2 Gpa [9]. Therefore, despite the interesting physics involved, the HP behavior of M₃V₂O₈ orthovanadates is an underexplored research area.

Here, we report a study of the HP behavior of the structural properties of Ni₃V₂O_8. The information obtained from such studies can form a foundation for future studies on the influence of pressure in physical properties, including magnetic properties. We have performed synchrotron powder XRD experiments in Ni₃V₂O₈ up to 23 Gpa at ambient temperature, thereby obtaining information on the structural stability of compressibility of the compound. The rest of the paper is organized as follows. Section 2 is devoted to the description the experimental methods. In Section 3, the results are reported and discussed in comparison with Zn₃V₂O₈ and other isostructural M₃V₂O₈ vanadates. Concluding remarks are given in Section 4.

2. Materials and Methods

Powder samples of Ni₃V₂O₈ were synthesized via a solid-state reaction starting from NiO (99.995% purity) and V₂O₅ (99.9% purity). The starting reagents were obtained from Alfa Aesar (Tewksbury, MA, United States). They were mixed meticulously and subsequently heated in an Al₂O₃ crucible in air at 800 °C for 16 h. The product was then ground and pressed into a pellet, to be afterward sintered at 900 °C for an additional 16 h. The obtained sample was finally ground manually in an agate mortar to obtain a micron size powder. In order to characterize it, we performed powder XRD measurements using a X’Pert Pro diffractometer from Panalytical (Almelo, The Netherlands) with Cu K_α1 radiation (λ = 1.5406 Å). The measurements were performed in the angular range 10° < 2θ < 70°, by continuous scanning with a step size of 0.02° and total step time of 200 s.

Angle-dispersive X-ray diffraction experiments at room-temperature and high pressure were performed at beamline I15 of the Diamond Light Source using a membrane-type diamond-anvil cell (DAC) with diamond-culet sizes of 450 μm in diameter and monochromatic X-rays of λ = 0.42466 Å. The X-ray beam was focused down to 10 × 10 µm². A rocking (±10°) of the DAC was used to improve the homogeneity of the Debye rings. A fine powder of Ni₃V₂O₈ was loaded in a 150 μm hole of a rhenium gasket pre-indented to a 40 μm thickness. One grain of Cu was loaded together with the sample and used as internal standard for pressure determination. For this purpose, we used the equation of state (EOS) determined by Dewaele et al. under hydrostatic conditions [13]. A 16:3:1 methanol–ethanol–water (MEW) mixture was used as a pressure-transmitting medium [14,15]. The powder XRD patterns were collected using a Pilatus 2M detector (DECTRIS, Baden, Switzerland) and transformed into one-dimensional patterns using the DIOPTAS suite [16]. The sample-to-detector distance was measured following standard procedure from the diffraction rings of LaB₆.

3. Results and Discussion

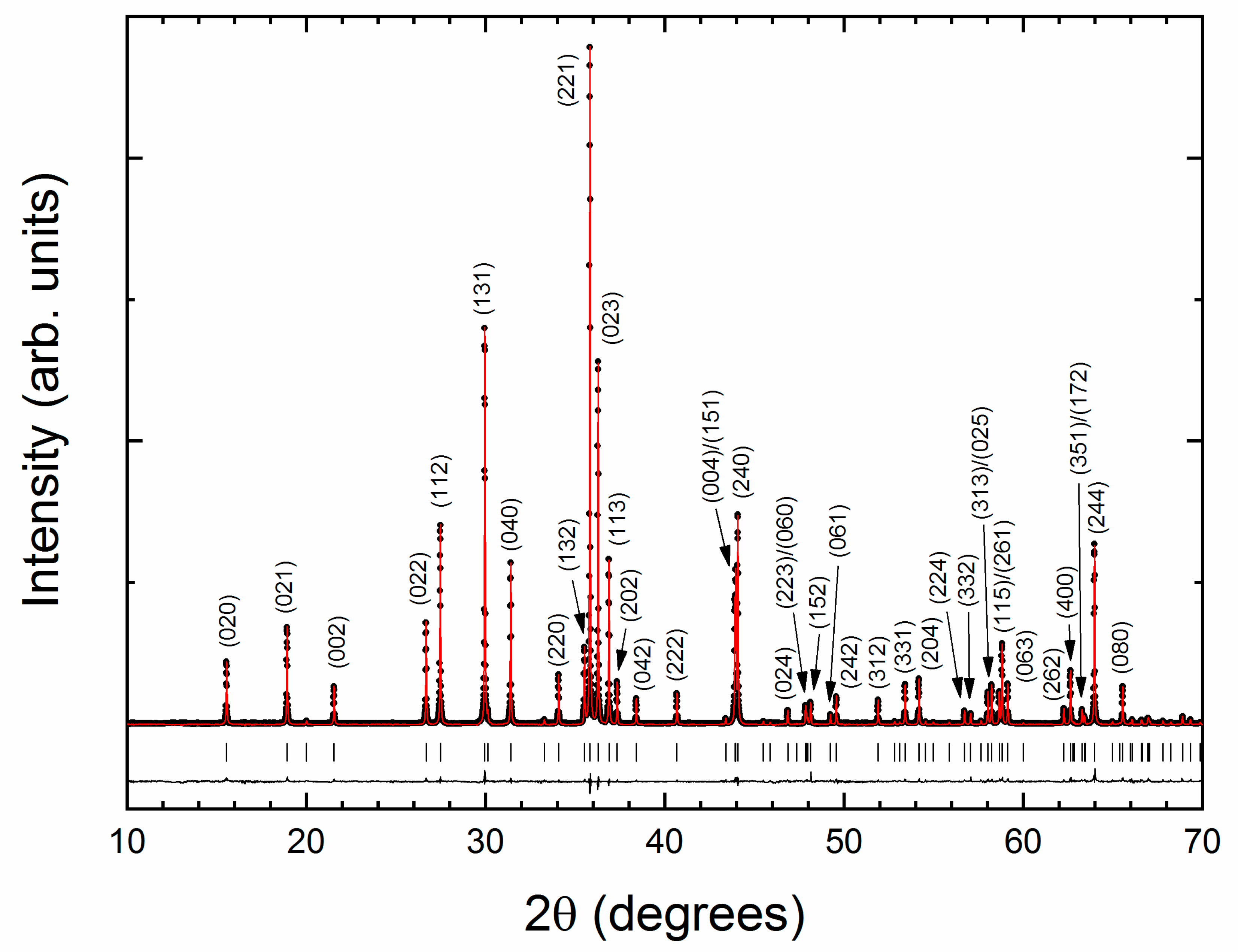

The results of the ambient-conditions XRD measurements are shown in Figure 2. All of the observed reflections can be accounted for by the orthorhombic crystal structure reported in the literature (space group Cmca, No. 64) [17], leading to small residuals (see Figure 2) and converging to small R-factors: R_p = 2.39% and R_WP = 3.79%. The resulting unit-cell parameters were a = 5.928(4) Å, b = 11.384(6) Å, and c = 8.241(5) Å, which agree to within 0.1% of literature values [17]. The obtained atomic positions are reported in

Table 1. Fractional coordinates of atoms in the crystal structure of Ni₃V₂O₈.

Atom	Wyckoff Position	x	y	z
Ni1	4a	0	0	0
Ni2	8e	0.25	0.1319(4)	0.25
V	8f	0	0.3766(5)	0.1191(5)
O1	8f	0	0.2491(9)	0.2302(9)
O2	8f	0	0.0011(9)	0.2445(9)
O3	16g	0.2663(9)	0.1193(9)	0.0009(9)

, being also in good agreement with the literature [17].

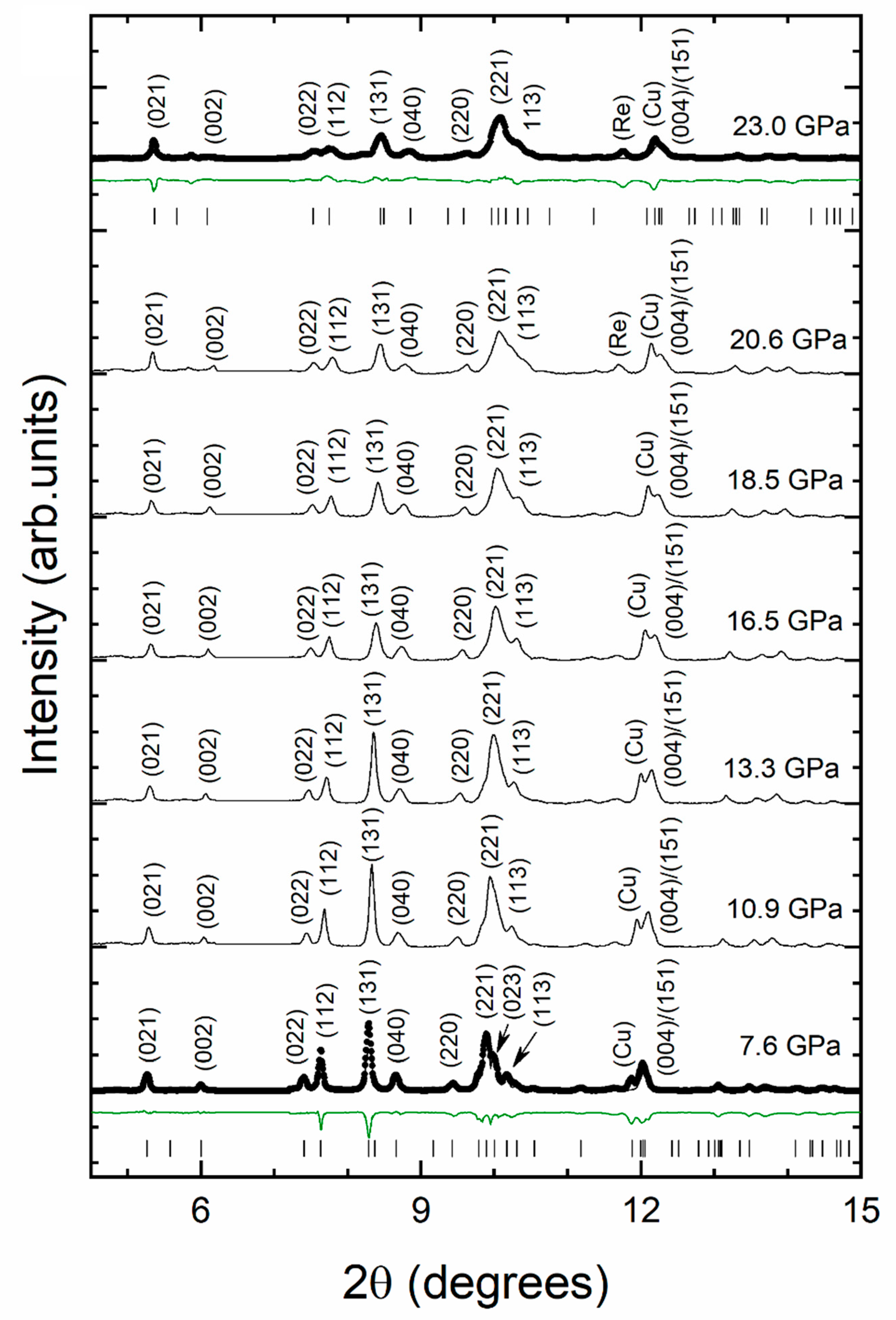

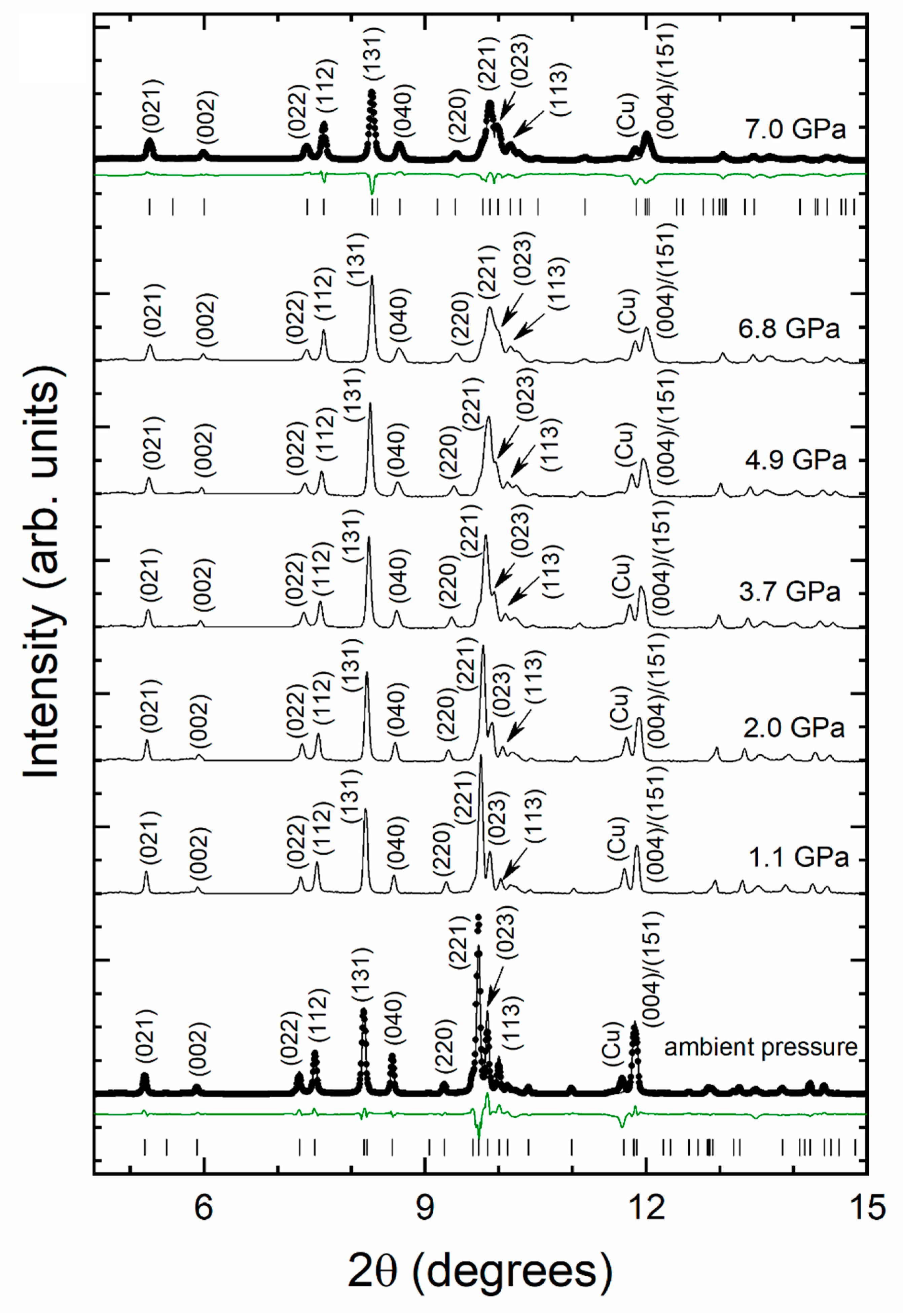

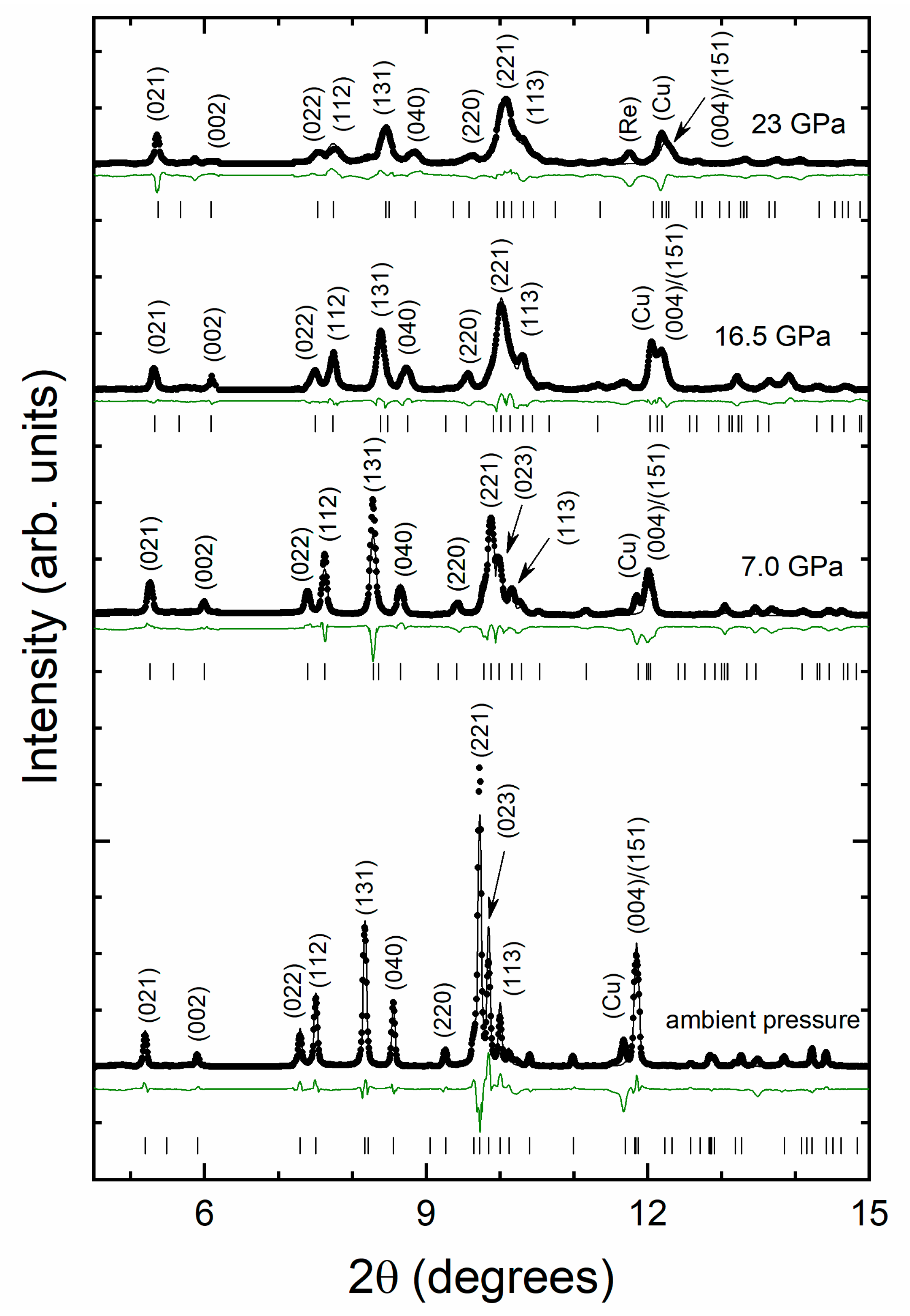

Figure 3, Figure 4 and Figure 5 show sequential integrated XRD patterns acquired up to 23 GPa on compression of Ni₃V₂O₈. In Figure 3, it can be seen that over the complete pressure range of the experiments, all the reflections can be assigned to the known orthorhombic structure of Ni₃V₂O₈ and to Cu (the pressure marker), which is supported by a profile matching analysis using the Le Bail method. Therefore, no phase transition is observed in Ni₃V₂O₈ up to 23 GPa. More details of the HP X-ray patterns can be seen in Figure 4 and Figure 5. Figure 4 shows results for P ≤ 7 GPa and Figure 5 shows results from 7.6 to 23 GPa. Beyond 20 GPa, we detected the presence of one extra reflection originating from the Re gasket, which appears because of the reduction in the size of the sample chamber. The data in Figure 3 and Figure 4 show a change of relative peak intensities under increasing compression. This is related to the development of preferred crystallite orientation relative to the X-ray beam. Under compression, we also observe that the position of peaks indexed as 0k0 is less sensitive to pressure, and that they move less towards higher angles than the rest of the peaks. This can be observed in Figure 4 by comparing the pressure evolution of peaks identified with planes (131) and (040), since the (131) peak approaches the stationary (040) peak. As we will discuss below, this observation is rooted in the non-isotropic behavior of Ni₃V₂O₈. Another consequence of the anisotropic behavior is the gradual merging of peaks; for instance, those identified with planes (221) and (023). Their merging under compression can be seen in Figure 3, Figure 4, and Figure 5. In addition, beyond 7.6 GPa, we have observed a gradual broadening of the peaks (Figure 5), which is related to the gradual loss of quasi-hydrostaticity [15,18].

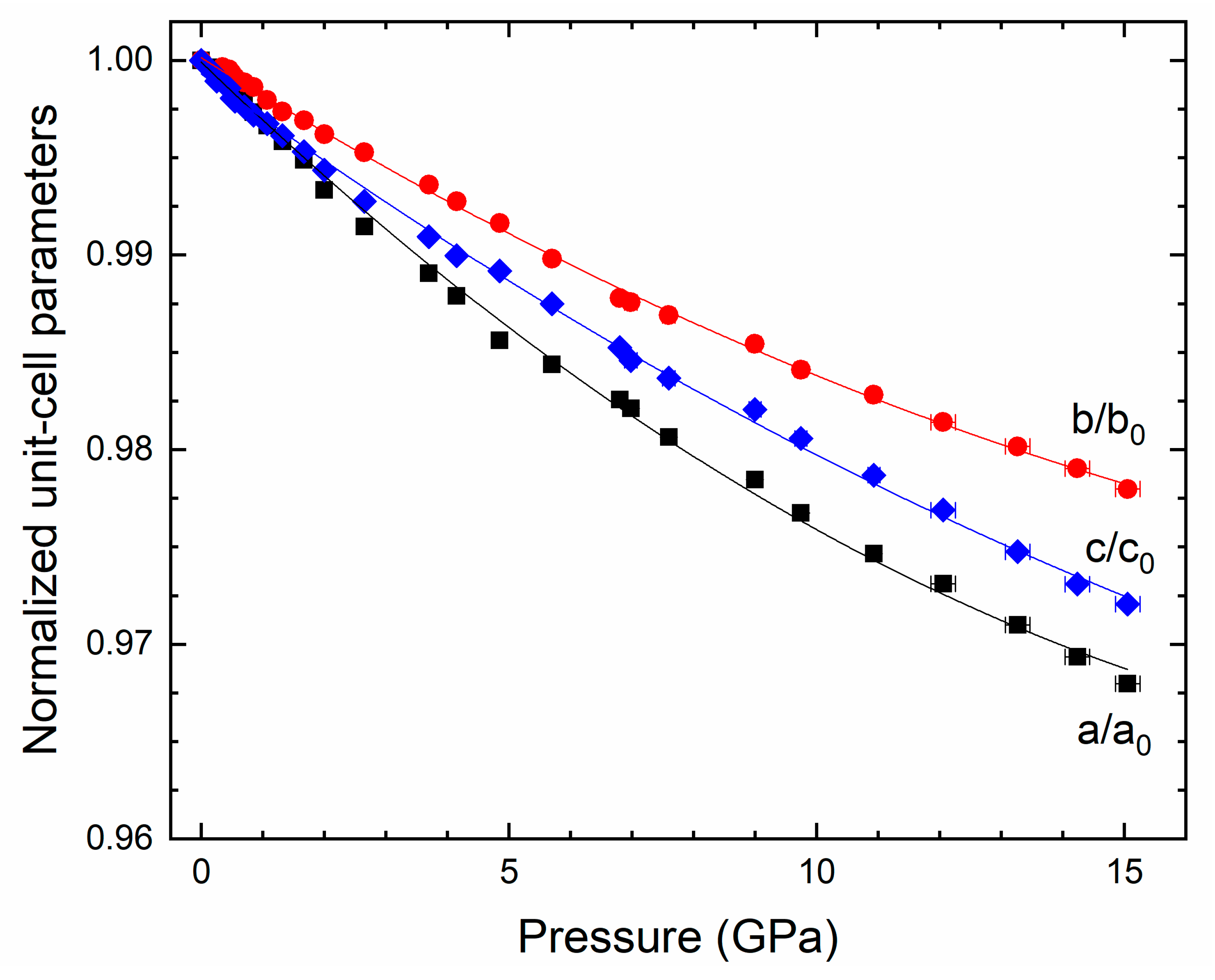

Through performing Le Bail refinements of the powder XRD patterns, we have obtained the pressure dependence of the unit-cell parameters. The XRD patterns at all pressures can be identified with the ambient-pressure orthorhombic structure of Ni₃V₂O₈; however, the XRD patterns measured at pressures higher than 15.1 GPa have been excluded from this analysis due to the partial overlap of the Cu peak used to determine pressure with a diffraction peak from the sample (see Figure 5), because this could lead to inaccuracies in the pressure determination larger than 0.2 GPa. The unit-cell parameters as a function of pressure are shown in Figure 6. This information is important for modeling the suppression of ferroelectricity by pressure in Ni₃V₂O₈ [9]. The response of the crystal structure to compression is clearly non-isotropic, with the b and a axes, respectively, having the smallest and largest compressibility. The anisotropic compressibility observed Ni₃V₂O₈ is fully compatible with the anisotropic thermal expansion of the same compound [9]. Both results can be rationalized based on the layered characteristic of the kagome staircase in the crystal structure and the relative compressibilities of the constituent polyhedra, as discussed below.

From the hydrostatic pressure range of our experiments (P ≤ 7.6 GPa), we have determined the linear compressibilities at ambient pressure, ${\kappa }_x=-\frac{1}{x}\frac{\partial x}{\partial P}$, where x represents the unit cell lengths a, b, or c. The linear compressibilities are summarized in

Table 2. Linear compressibilities at zero pressure (left) and room-temperature equation of state (EOS) parameters of Ni₃V₂O₈. The center (right) column shows the converged fitting parameters for the third-order Birch–Murnaghan EOS for P ≤ 7.6 (15.1) GPa. V₀ is the ambient-pressure volume. K₀ is the bulk modulus. K₀′ is the pressure derivative of the bulk modulus.

$\kappa$a = 2.7(1) 10−3 GPa−1	V0 = 555. 7(2) Å3	V0 = 555.5(2) Å3
$\kappa$b = 1.79(6) 10−3 GPa−1	K0 = 139(3) GPa	K0 = 118(1) GPa
$\kappa$c = 2.33(5) 10−3 GPa−1	K0′ = 4.4(3)	K0′ = 11.1(9)

, where it can be seen that they increase following the sequence $\kappa$_b < $\kappa$_c < $\kappa$_a. The a and c-axes have larger compressibilities than the b-axis by approximate factors of 1.5 and 1.3, respectively. A similar behavior has previously been observed in Zn₃V₂O₈.

The reason for the anisotropic behavior of Ni₃V₂O₈ and Zn₃V₂O₈ (and probably all isomorphic vanadates) might be related to the kagome layered characteristic of the crystal structure. It is well-known that in other ternary oxides, such as NiWO₄ and ZnWO₄ [19], the pressure-induced changes in crystal structure are largely determined by the NiO₆ and ZnO₆ octahedral units because of their large compressibility relative to the VO₄ tetrahedron. The much smaller VO₄ tetrahedron has been determined from the study of many different vanadates to be an essentially rigid unit, which, due to V 3d - O 2p hybridization [20], changes little under compression [10]. As we have already described (see Figure 1), the crystal structure of M₃V₂O₈ compounds is composed of 2D kagome staircases of compressible MO₆ octahedra, which therefore constitute compressible layers that lie perpendicular to the b-axis. In between these layers of NiO₆ and ZnO₆ octahedra, there are located the less compressible VO₄ tetrahedra, which are arranged to form pillars between the kagome layers, reducing the compressibility along the b-axis. In fact, the in-plane effective bulk modulus [21] for kagome layers is 132 GPa, and the effective bulk modulus in the perpendicular direction is 186 GPa. Thus, the layered characteristic of the crystal structure of kagome-type vanadates provides a rational explanation to their anisotropic behavior under compression. The present results suggest that it is not unreasonable to speculate that anisotropic compressibility would be a finger print of the broad family of kagome-type compounds. Such anisotropic behavior is expected to affect super-exchange interactions between magnetic atoms, thereby modifying the temperature of different magnetic transitions. This would modify the Néel temperature as reported for Ni₃V₂O₈ [9]. By extrapolating the result reported by Chaudhury et al. [9], it can be speculated that under compression the Néel temperature can be increased from 9.8 K at ambient pressure to a temperature close to 15 K at 20 GPa.

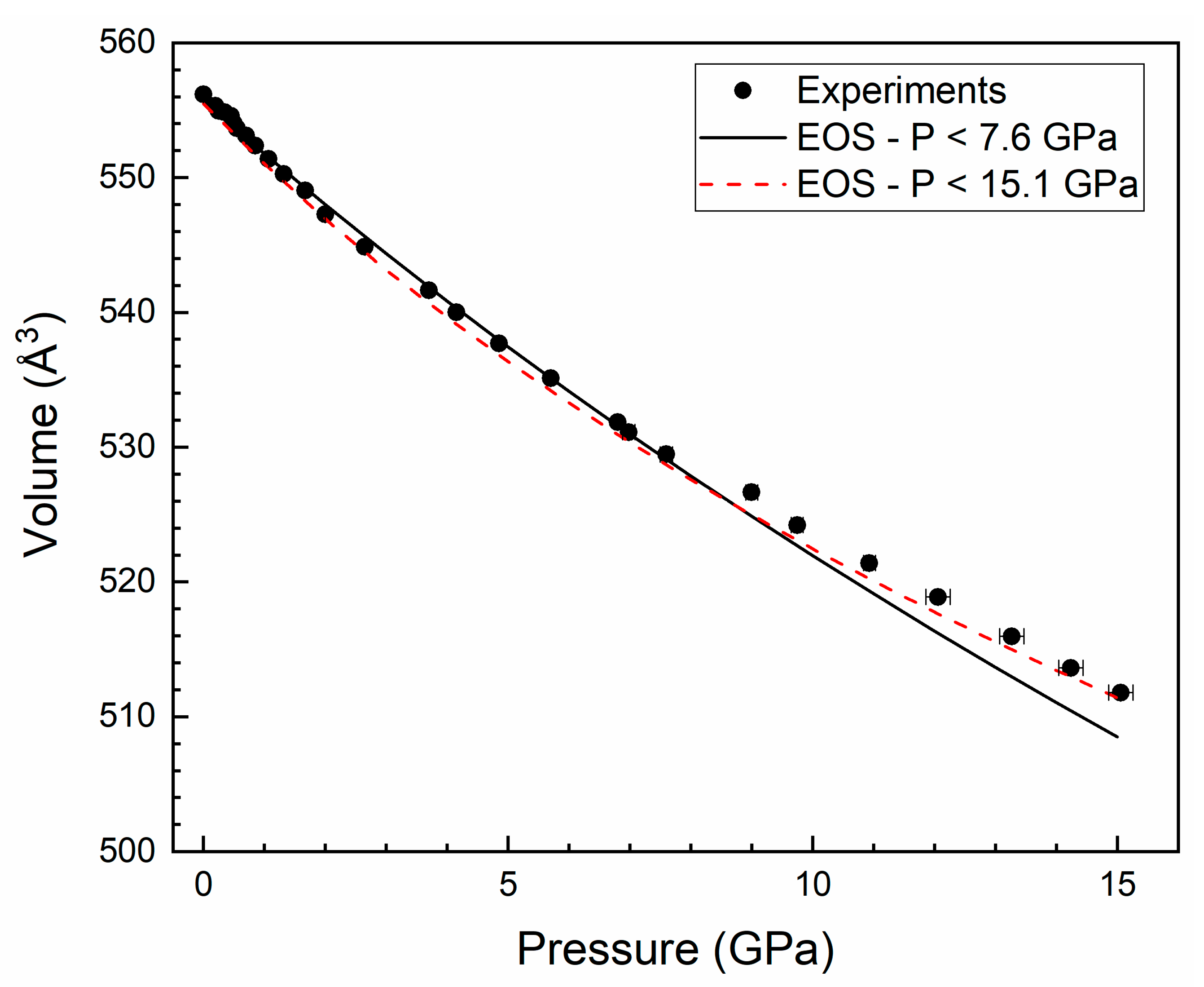

The unit-cell volume of Ni₃V₂O₈ as a function of pressure is shown in Figure 7. The results show an apparent change in compressibility at 7.6 GPa, which cannot be related to a phase transition, since the XRD data provide no evidence for it up to the maximum pressure investigated (23 GPa). A similar behavior has been recently reported in other ternary oxides near this pressure [22]. The apparent change in compressibility is in fact related to the known hydrostatic limit for MEW [15]. Fitting a third-order Birch–Murnaghan (BM) EOS [23] (using EosFit [24]) in the hydrostatic regime (P ≤ 7.6 GPa) gives the parameters given in the central column of Table 2. To illustrate the importance of constraining EOS fits to hydrostatic data, for comparison, we also fitted the EOS with all data up to 15.1 GPa, leading to the values given in the right column of Table 2. The inclusion of non-hydrostatic data leads to an underestimation of the ambient pressure bulk modulus (K₀) and to an unusual large pressure derivative (K₀′ = 11.1(9)).

We will now comment on the bulk modulus of Ni₃V₂O₈ within the context of other M₃V₂O₈ vanadates [25,26] using the bulk moduli summarized in

Table 3. Unit-cell volume, V₀, and bulk modulus, K₀, of different M₃V₂O₈ compounds.

Compound	V0 (Å3)	Experimental K0 (GPa)	Empirical K0 (GPa)	DFT K0 (GPa)
Ni3V2O8	555.5(3)	139(3) a	140 c
Ni3V2O8	562.64			130.4–131.2 b
Mg3V2O8	576.92		132 c
Co3V2O8	578.96		131 c
Zn3V2O8	585.1(1)	120(2) d	128 c
Cu3V2O8	586.95		127 c	95–110 e
Mn3V2O8	622.1		115 c	89.7–93 b

^a Calculated from X-ray diffraction (XRD) measurements here reported. ^b Density-functional theory (DFT) calculations [25]. ^c Obtained using the empirical model described in the text. ^d From previous XRD experiments [7]. ^e DFT calculations [26].

. In Table 3, it can be seen that Ni₃V₂O₈ is the most incompressible compound within M₃V₂O₈ family of isomorphic vanadates. For the discussion, based on the fact that NiO₆ units are more compressible than rigid VO₄ units [10,19], we will assume that the bulk modulus of Ni₃V₂O₈ is mainly determined by the average Ni-O distance ($d_{Ni-o}$) at ambient pressure and the formal charge of Ni ($Z_{Ni}$). Such an empirical approximation works very well for ternary oxides [27,28], whereby the estimated bulk modulus is given by $B_E=\frac{610 Z_{Ni}}{d_{Ni-O}{}^3}$. Using this approximation, a bulk modulus of 140 GPa is obtained for Ni₃V₂O₈, which agrees within errors with the experimental value obtained from the hydrostatic-pressure regime (139(3) GPa). This suggests that the bulk modulus obtained from density-functional theory (DFT) calculations (130.4–131.2 GPa, given in Table 3) has been underestimated by ~7% of the experimental value determined here. This fact is probably related to the overestimation of the ambient-pressure volume by DFT calculations [29], which is a typical feature of the general-gradient approximation used in previous computer simulations [25,26].

By using the same empirical approximation, we have estimated the bulk modulus for other M₃V₂O₈ vanadates, which are summarized in Table 3 for comparison with the literature. For example, in the case of Zn₃V₂O₈, the estimated bulk modulus is consistent with the fact that this compound has an experimentally determined bulk modulus smaller than that for Ni₃V₂O₈, which indicates that the approximation can be also applied to other kagome-type vanadates. In performing the empirical approximations summarized in Table 3, we found that DFT calculations have also underestimated the bulk modulus of Cu₃V₂O₈ and Mn₃V₂O₈. Using the empirical approximation, which works well for the studied vanadates, we can predict bulk moduli of 132 and 131 GPa for Mg₃V₂O₈ and Co₃V₂O₈, respectively, which have not yet been investigated under compression. The conclusions reported in this work may be also applicable to isomorphic arsenates [30], to (Ni,Mg)₃(VO₄)₂ solid solutions [31], and to hydrated kagome-structured vanadates, such as Cu₃V₂O₇(OH)₂·2H₂O volborthite [32]. For the particular case of Ni₃As₂O₈, a bulk modulus of 205 GPa is predicted from the empirical model used in this work.

4. Conclusions

Through synchrotron powder X-ray diffraction measurements, we have determined that at ambient temperature the orthorhombic kagome staircase crystal structure of Ni₃V₂O₈ is stable at least up to 23 GPa, the maximum pressure achieved in present experiments. We have also found that the response to compression is anisotropic. The compressibility of the b-axis is approximately 40% lower than the compressibility of the other axes. This special direction is perpendicular to the kagome layers, and the compression along the b-axis is the smallest due to the presence of incompressible VO₄ tetrahedral units, which interconnect the kagome staircases of NiO₆ octahedra. From the pressure dependence of the unit-cell volume we fitted a third-order Birch–Murnaghan equation of state, giving a bulk modulus of 139(3) GPa, which is the largest among isostructural M₃V₂O₈ vanadates. A systematic comparison of bulk moduli in isomorphic M₃V₂O₈ vanadates is made based on an empirical method for predicting bulk moduli in ternary oxides. The results are consistent with those determined from experimental data here for Ni₃V₂O₈ and previously for Zn₃V₂O₈ [7]. Therefore, we also present predicted bulk moduli of M₃V₂O₈ compounds not studied yet under high pressure, Co₃V₂O₈ and Mg₃V₂O₈.
