Total Oxidation of Dichloromethane over Silica Modified Alumina Catalysts Washcoated on Ceramic Monoliths
Faculty of Technology, Environmental and Chemical Engineering, University of Oulu, P. O. Box 4300, FI-90014 Oulu, Finland
Thule Institute, P. O. Box 7300, FI-90014 Oulu, Finland
Institute of Chemistry of Poitiers, Materials and Natural Resources, CNRS-UMR 7285, University of Poitiers B27, Rue Michel Brunet, CEDEX 9, 86073 Poitiers, France
Laboratory of Catalysis and Corrosion of Materials (LCCM), Department of Chemistry, Faculty of Sciences, University of Chouaïb Doukkali El Jadida, BP 20, 24000 El Jadida, Morocco
Author to whom correspondence should be addressed.
Received: 8 July 2018 / Accepted: 17 August 2018 / Published: 20 August 2018
Silica modified alumina was used in this study for coating of a cordierite monolith substrate with two different channel densities. The performance of the prepared monolith catalysts was evaluated in catalytic total oxidation of dichloromethane before and after Pt impregnation. The characteristics similar to the powder form catalysts were kept rather successfully after washcoating the monolith as evidenced by electron microscopy (FESEM) and N2 physisorption. A dichloromethane (DCM) conversion of higher than 80% at 500 °C was reached over all the catalysts with 200 cpsi. The maximum conversion was obtained with the catalyst containing 10 mol % of silica. The total amount of major byproducts (CO, CH3Cl and CH2O) were slightly decreased by increasing the silica loading, and remarkably after Pt impregnation. After impregnation of Pt, the HCl yields were increased for two samples with the higher loading of silica (10 and 15 mol %) and reached the maximum when silica loading was 10%. Even though Pt impregnation did not significantly affect the DCM conversion, it improved the selectivity. Comparison between the two substrates (200 and 600 cpsi) evidenced that the key parameters of the monolith influencing the DCM oxidation are low value of open fraction area, hydraulic diameter, thermal integrity factor and high value of mechanical integrity factor and geometric surface area.
Keywords:alumina-silica oxide; cordierite; CVOC abatement; dichloromethane; sol-gel method
Dichloromethane (DCM) belongs to the group of chlorinated volatile organic compounds (CVOC). DCM is a transparent liquid, which has a soft sweet odor and it evaporates easily in normal conditions [1,2,3]. DCM is rather widely used in industry as paint stripper and remover, the propellant in aerosols, in film coatings, as a degreasing agent in the electronics industry, for blowing of polyurethane foam, but also as a metal-cleaning solvent and in the decaffeination process of coffee and tea [1,2,3,4]. It has been reported that the average indoor concentration of DCM is about three times higher than the outdoor values (below 5 µg m−3) [3,5]. Since the people in industrial countries spend most of their time indoors, the health effects of DCM should not be forgotten. The effects of DCM on human health depend largely on the exposure time. It can cause irritation of the skin, eyes, respiratory tract and it can lower the consciousness and cause dermatitis. DCM can also affect the central nervous system and the liver and it can be carcinogenic [6,7,8].
Catalytic oxidation is one of the possible technologies for the treatment of CVOCs. The advantage of catalytic oxidation is the lower energy needed for the CVOC treatment compared with thermal oxidation. In addition, the catalytic material can be tailored in such a way that it efficiently oxidizes CVOCs into the wanted oxidation products without formation of harmful byproducts, such as dioxins. Different types of catalysts have been tested for DCM oxidation such as alumina [9,10,11,12,13,14,15,16,17,18,19,20], titania [21,22,23,24], and ceria-based catalysts [7,11,25]. In addition, MgO [26,27] and zeolites [28,29,30,31,32,33] have been considered. Depending on the study, these oxides are used alone or mixed with other oxides, such as zirconium, magnesium, copper, silicon oxides, and others. These earlier studies also provide knowledge on the effects of experimental conditions such as space velocity (GHSV), DCM concentration or water addition on the DCM oxidation, but also on the beneficial properties of the catalysts, such as the acidity of the support [8,10,16,30]. From the noble metals, the most frequently used metal for oxidation purposes, Pt, was found to be more active than Pd in DCM oxidation . We have earlier studied DCM oxidation over Pt catalysts supported on Al2O3, TiO2, CeO2 and MgO (in powder form) . From these studied catalysts, Pt/Al2O3 was found to be the most active and selective. From the practical point of view, when the powder form catalyst is presenting a high performance in the abatement of an air pollutant at laboratory scale, it should be modified in an applicable form for industrial use. This can be performed for example by coating the catalytic material on a monolith.
In this work, silica modified alumina catalysts washcoated on ceramic monoliths (made mainly of synthetic cordierite) was used to approach the final use of the catalyst. The cordierite monoliths (2(MgO)·2(Al2O3)·5(SiO2)) are often used in industrial applications due to their numerous advantages, such as low pressure drop (large open frontal area; OFA) , insensitivity to temperature changes due to almost zero thermal expansion coefficient , lower price than that of metallic monoliths and their greater resistance in aggressive reaction media. Cordierite allows also good bonding between the substrate and coating materials . Furthermore, precious metals present in the coating materials cannot be introduced to the cordierite substrate and the monolith material cannot migrate to the coating phase, even in severe conditions such as reducing atmosphere or in the presence of sulphur compounds. The low thermal expansion coefficient of the cordierite substrate offers a resistance to thermal shock and good stability of washcoat., Cordierite substrate has higher melting point than 1450 °C [39,40]. For these reasons, the cordierite monolith was chosen as the catalyst substrate in this study. In this work, the cordierite monoliths were washcoated by alumina-silica with different loadings of silica (SiO2) before impregnation of Pt. The prepared samples were characterized and tested in DCM oxidation to find out the information relevant to the industrial application of the studied materials. The goal of the washcoating was to preserve the beneficial properties of powder form catalyst after washcoating it on a monolith substrate.
2. Results and Discussion
The main part of the characterization was made for the sol used for monoliths’ washcoating. Before characterization the same calcination procedure was done for the sol than for the washcoated monoliths. Later, these calcined sols are called as ‘catalyst powders’. After preparation of sol, washcoating and calcining the monoliths, Pt was added on the washcoated monoliths by wet impregnation. Pt-impregnated monoliths were further calcined and reduced before the testing. Pt was not impregnated on the catalyst powders. The details on the catalyst preparation and washcoating procedure of the monoliths are given at the end of this paper.
2.1. Characterisation of Catalyst Powders
To verify the success of the preparation, the compositions of the doped and calcined alumina samples were determined by XRF technique. The molar ratio of alumina and silica in AlSix powders are presented in Table 1. A good agreement between the targeted and analysed amounts can be observed based on the analysis results.
The textural and structural properties of AlSix samples in powder forms are summarized in Table 2. High surface areas were obtained for all the prepared samples. Doping alumina by a small amount of silica enhanced the surface area and porous volume when Si/Al molar ratio was increased. However, the total porous volume and pore diameter remained quite similar, around 0.4 cm3 g−1 and 5 nm for the mixed oxides, respectively. The N2-adsorption-desorption isotherms of the AlSix (x: 5, 10, 15) powder samples exhibited isotherm of Type IV indicating the presence of mesoporous material according to the International Union of Pure and Applied Chemistry (IUPAC). The H2-type hysteresis loop is specific for relatively large pores with a narrow opening (neck of bottle) or clusters of small spheroidal particles [41,42]. The isotherm of AlSi15 sample is shown in Figure 1 as an example. The other AlSix samples showed similar characteristics.
In order to identify the crystalline phases and estimate the crystallite size, XRD analyses were performed for all AlSix samples. All the diffractogram patterns (Figure 2) show the presence of a γ-phase of alumina (ICDD: 00-50-0741) accompanied with a significant part of an amorphous phase, probably containing silica in accordance with diffractogram of pure silica, which exhibits such amorphous phase. The crystallite size of the prepared materials (basically for γ-Al2O3), estimated by the Scherrer equation, are very small accordingly to the high-developed specific surface area (Table 2).
The temperature-programmed desorption of NH3 allows quantifying the total amount of acid sites existing on the surface of the studied materials. Based on the earlier results, distinction between the weak, medium and strong acid sites can also be made by using desorption temperature. However, it is not possible to identify the nature of the acidic sites i.e., Lewis and Brønsted acid sites [43,44]. In our case, the total amount of acid sites is rising up with increasing the SiO2 loading. AlSi15 (0.61 mmol g−1) is presenting the highest amount of acidity followed by AlSi10 (0.55 mmol g−1) and AlSi5 (0.52 mmol g−1) (calculated based on Figure 3). This result can be explained by the fact that alumina is amphoteric or slightly acidic and silica presents Brønsted acid sites , which leads to acidic mixed oxides.
2.2. Characterization of the Monolith Catalysts
The geometric parameters of the studied cordierite monoliths having two different channel densities (200 and 600 cpsi) were determined by using the channel size (d) and the wall thickness (e) as reported by Cybulski et al.  (Figure 4) as follows:
Number of channel per surface, n = (25.4/dch)2 [cpsi]
Geometric surface area: GSA [mm−1] = 4n(dch − ech)
Open fraction area, OFA = n(dch − ech)2
Hydraulic diameter, Dh [mm] = 4(OFA/GSA)
Thermal Integrity Factor, TIF = dch/ech
Mechanical Integrity Factor, MIF = ech2/(dch(dch − ech))
The geometric parameters for the used cordierite monoliths are summarized in Table 3.
Earlier, Gulati  reported for exhaust gas abatement, that the ideal monolith should present high value of GSA, OFA, TIF and MIF and low Dh. The highest GSA and channel density lead to the highest conversion, a high value of OFA and large Dh give low back pressure, and for optimal mechanical and thermal durability, the monolith requires a high value of MIF and TIF. In the current study, the 600 cpsi sample presents higher GSA, MIF and lower OFA, TIF and Dh than the 200 cpsi sample. Since the studied reaction is rather fast, we expect higher GSA to be beneficial for the reaction, according to Roy et al. .
The amount of the coated AlSix layer on the monoliths was used in calculation of the mass of the platinum precursor required to have 1 wt % of Pt per gram of washcoat in the final catalyst. The amount of the washcoat deposited on the monoliths reached around 10 wt % and 18 wt % for 200 and 600 cpsi samples, respectively. The monoliths are then denoted 200Mx and 600Mx, where 200 and 600 represent the channel densities and x is the molar amount of SiO2 to Al2O3.
The XRD diffractograms of the coated monoliths showed only the characteristic peaks of the cordierite substrate (ICDD 00-048-1600) and thus it is difficult to distinguish the reflections of AlSix washcoat. As powder samples, the N2-physisorption of all washcoated monoliths exhibit isotherms of Type IV characteristic of mesoporous material, and hysteresis Type H2. Results show that the coated monoliths present an average surface area around 30 m2 per gram of coated monolith while the SBET of uncoated monolith is only 10 m2 g−1, demonstrating the successful deposition of AlSix on the monolith. The specific surface areas of monolith samples, expressed per gram of washcoat, remain high—in the 200–300 m2 g−1 range for all AlSix monolithic samples (Table 4). The difference in specific surface area between powder and monolith samples is probably due to the heterogeneity of the washcoated layer and/or due to the fact that ceramic samples were broken before analysis, which leads to some loss of the washcoat affecting the accuracy of the measurement. The pore sizes and pore volumes expressed by gram of washcoat are close to those obtained for powder samples. These results pointed out that the textural properties of the powder are kept similar after washcoating the powder on the monolith substrate.
The FESEM images of a virgin (Figure 5a) and coated monoliths (Figure 5b) show clearly that the washcoating of AlSix on the surface of the ceramics was successful. The layer deposited, having around 4 µm of thickness, is relatively homogeneous with small cracks probably due to the viscosity of the sol used for the washcoating and the thermal treatments. However, by comparing the semi-quantitative EDS analysis of the uncoated and coated monoliths, the results gathered in Table 5 and Figure 5d evidenced the presence of a very low amount of magnesium on the surface of washcoated monolith, which proves the major presence of AlSi10 covering all the cordierite surface.
2.3. Activity Tests
The activity test results are presented only for the monolith catalysts. The DCM light-off curves (conversion vs. temperature) for the monolith catalysts having 200 cpsi are shown in Figure 6. As it can be seen, there are no large differences between the monoliths, when DCM conversion is considered. The conversion of more than 80% over all the monolith catalysts is reached at 500 °C. The exact values for conversion at 500 °C and T50 are given in Table 6. The increase in the loading of silica, nor the addition of 1 wt % of Pt, do not seem to improve the DCM conversion significantly. 200M10 was able to oxidize slightly more DCM than the other samples. Since the different samples give very similar results in terms of DCM conversion, hereafter, HCl and by-products are discussed to evaluate the catalysts performance more clearly.
Figure 7 shows the HCl yields reached over the catalysts Pt200Mx and 200Mx during the DCM oxidation. HCl is one of the wanted final products, and high HCl formation gives an indication on catalyst stability (Cl does not remain on the catalyst surface). In addition, water vapor was added to feed mixture to improve HCl formation instead of formation of Cl2 according to Deacon reaction [34,35]. In this case, the differences are slightly more visible than in the case of DCM conversion. The highest HCl yield was observed for Pt200M10 (75%) and the lowest for Pt200M5 with 50% yield. The addition of Pt improved the HCl formation for all, except for 200M5 catalysts. This small difference might be due to differences in Pt loadings on the monoliths. Unfortunately, we were not able to quantify the Pt content on the monolith reliably to verify this assumption.
Figure 8 presents the major byproducts formed over the coated monoliths during DCM oxidation. These are carbon monoxide (CO), methyl chloride (CH3Cl) and formaldehyde (CH2O). The other chlorinated byproducts, such as tetrachloroethylene (C2Cl4), chloroform (CHCl3) and trichloroethylene (C2HCl3) were present in trace amounts reaching maximum of 5 ppm (the detection limit of the used analysis was ~2 ppm). CO was observed to be the major byproduct over washcoated monoliths (without Pt). After Pt impregnation, due to improved oxidation of DCM, the CO amount was decreased to an insignificant level in accordance to its transformation into CO2. The amounts of CH3Cl and CH2O were also diminished after Pt impregnation. These results are in agreement with our previous results related to DCM oxidation over a Pt catalyst impregnated on simple oxides . The comparison between different catalysts to each other (based on Figure 8) revealed that the CH3Cl formation was highest over 200M5 (~470 °C) (Figure 8a) followed by 200M15 (~500 °C) (Figure 8c) and 200M10 (~480 °C) (Figure 8b). After impregnation of Pt, the decrease in CH3Cl formation was relatively more significant than that of CH2O. According to earlier studies, CH3Cl is formed on Lewis acid sites while CH2O is formed on Brønsted sites [18,29,30,35]. If this is true, after Pt impregnation, the availability of Lewis acid sites might have been affected.
The results obtained are in agreement with previous studies, where the oxidation of DCM was suggested to proceed via two steps [10,16,28,29,30,35]. The first reaction step is proposed to occur on the support in the presence of steam and it results in the formation of formaldehyde (CH2O) and methyl chloride (CH3Cl) depending on the type of the acid sites present on the surface, as described before. In our study, we observed the formation of the same major byproducts. The second step of the reaction is then the conversion of the formed byproducts to CO2, H2O and HCl on the Pt sites. In our case, the same observation was evidenced. Furthermore, before Pt impregnation, an increase in the amount of silica on alumina decreases slightly the total amount of formed byproducts and improves the HCl yield. This may have a relation to increasing acidity while increasing the silica loading. Table 6 summarizes the conversions of DCM, yields of HCl, amounts of byproducts formed at 500 °C and at T50 of DCM oxidation. In the view of DCM conversion and HCl yield, the Pt200M10 catalyst showed slightly better performance than the other catalysts, and thus it was used for comparison with a monolith having cell density of 600 cpsi.
Figure 9 displays the light-off curves of DCM over both monoliths with 200 cpsi (200M10) and with 600 cpsi (600M10) coated with AlSi10 before and after the Pt impregnation. As can be seen, the 600M10 catalysts are able to convert DCM more efficiently than 200M10. This is due to a higher geometric surface area of 600M10 than that of 200M10, which allows better contact of DCM with active sites. However, it is good to note, that 600M10 has slightly more washcoat (in grams) on the monolith than 200M10. After impregnation of Pt, a slight decrease in DCM conversion was observed over both types of monoliths. This may be due to the modification of the surface of the washcoat or quality of washcoat after Pt impregnation.
HCl production (Figure 10) over monoliths with 600 cpsi is higher than over monoliths with 200 cpsi. Pt addition has no significant effect on the HCl formation, except at 500 °C for Pt200M10. It is clear that the increase in channel density (high GSA) also increases the DCM conversion and thus HCl yield.
The same remarks than for the monoliths with 200 cpsi can be made for the monoliths with 600 cpsi in terms of by-products formation. The main by-products are CO, CH2O and CH3Cl. The results shown in Figure 11a illustrate that the formation of by-products over coated monoliths is significantly decreased and/or disappeared after the impregnation of Pt. The comparison of the yields of by-products over both the coated monoliths 200M10 and 600M10 are shown in Figure 11b. It is clear that 600M10 gives higher amount of by-products than 200M10 since it gives also the higher conversion of DCM at corresponding temperature. At temperature superior to 400 °C, the CH2O formation was higher over 200M10 than 600M10, which is due to more complete oxidation of DCM at lower temperature range with 600M10. As it can be seen from Figure 11, formation of CH3Cl and CH2O have already reached the maxima at around 455 and 440 °C, respectively, and started to react further towards complete oxidation products. After impregnation of Pt, the amount of by-products was lower over Pt600M10 compared to the Pt200M10 catalyst (figure not shown).
In general, DCM conversion and HCl yields were higher over the 600M10 samples than over 200M10 at 500 °C. However, if the production of HCl, CO, CH2O and CH3Cl at T50 and at 500 °C are considered (Table 7), 200M10 produces less by-products than 600M10 (except for CH2O over Pt200M10 at T50 and 200M10 at 500 °C). As earlier, Pt improved the total oxidation, and the by-product formation was lowest over Pt600M10. The by-product amounts were decreased by 90 and 95% after impregnation over 200M10 and 600M10, respectively. The 600M10 catalyst, in general, has better performance than that of 200M10. A part of the better performance might be due to higher real mass of washcoat on 600Mx, however, similar higher mass was calculated for Pt200M15 that did not improve its performance significantly (See Table 6 before).
Finally, according to our results and based on the values presented in Table 3, the key parameters for high performance of monoliths, in our experimental conditions, are low values of OFA, Dh and TIF in addition to high values of MIF and GSA. These were achieved with the substrate having cell density of 600 cpsi.
3. Materials and Methods
3.1. Preparation of (Al2O3)1−x(SiO2)x
The (Al2O3)1−x(SiO2)x samples were prepared by modifying the procedure described by Nijhas et al. . The starting materials were Disperal P2 (AlOOH, 260 m2 g−1, Sasol Germany, Hamburg, Germany), urea (NH2CONH2, Sigma Aldrich, St. Louis, MO, USA), 0.3 M of nitric acid (HNO3, Merck, Kenilworth, NJ, USA) with the molar ratio of 2/1/5, and tetraethylorthosilicate (Si (OCH2CH3)4, TEOS, Sigma Aldrich St. Louis, MO, USA). The amount of urea was dissolved step by step in HNO3 (0.3 M) under high-speed stirring (1600 rpm) at room temperature. After that, the needed amount of TEOS to obtain the desired amount of SiO2 was added to the solution followed by the continuous addition of a corresponding amount of Disperal P2 in small quantities. A white viscous sol was obtained after 2 h of vigorous stirring. The prepared ((Al2O3)1−x(SiO2)x) samples were denoted as AlSix where x is the molar ratio of silica added to alumina. The molar ratio of silica used was 5, 10 and 15%. One part of the obtained sol was used in washcoating of the monoliths and the other part of the same sol was saved in a powder form for analysis purposes.
3.2. Honeycomb Monoliths
The honeycomb monoliths, used in this study, were cordierites with the chemical formula of Mg2Al4Si5O18 (14% MgO, 35% Al2O3 and 51% SiO2). They were provided by Corning Company (Germany). In this study, we used a cylindrical monolith with two different channel densities (200 and 600 cpsi). The monoliths used had the diameter of 10 mm and length of 30 mm selected based on the reactor dimensions.
To clean and eliminate the impurities from the channels, the monoliths were immersed in concentrated nitric acid (65%) for 1 h. After that, they were washed carefully with ultrapure water followed by drying in a ventilated oven at 100 °C. The dried monoliths were calcined at 300 °C for 1 h with 1 °C min−1 as the rate for the temperature to minimize the thermal stress during the treatment. This treatment of monoliths aims at increasing slightly the surface area of monoliths and also to decrease the thermal expansion coefficient (CTE) [40,48]. These uncoated monoliths are called as substrates.
The pre-treated substrates were washcoated with a viscous sol of AlSix (preparation described before) during 1h. Afterwards, the washcoated monoliths were flushed carefully with a low flow of N2 to remove the excess of gel from the surface and the channels of monoliths. Then, the monoliths were let to mature at room temperature overnight.
After maturation, the powders and washcoated monoliths were calcined at 120 °C for 1 h and then at 500 °C for 2 h with 1 °C min−1 temperature rise. This thermal profile was used to avoid cracks in the coated phase on the monoliths. The calcined and washcoated monoliths are denoted with yMx where y is the channel density (200 or 600) and x is the silica loading.
3.3. Deposition of the Active Phase
The target amount of active phase was 1 wt % of Pt per 1 g of washcoat mass (AlSix) on the monoliths. The hexachloroplatinic acid (H2PtCl6·xH2O, Alfa Aesar, 99.9%, Ward Hill, MA, USA) was used as the precursor in this step. Firstly, the corresponding mass of hexachloroplatinic acid to achieve the target composition was dissolved in a minimum amount of distilled water. Afterwards, the washcoated and calcined monoliths were immersed in the solution of the precursor of Pt and left under mechanical stirring overnight. Finally, the excess of solvent was evaporated on a sand bath at 60 °C.
The Pt-impregnated monolith catalysts (denoted by PtyMx, y is the channel density (200 or 600) and x is the amount of silica added to alumina) were calcined at 500 °C for 2h. After calcination, the catalysts were reduced under a hydrogen flow diluted in nitrogen (60 mL·min−1 of H2 and 100 mL·min−1 of N2) at 250 °C for 1 h and then at 500 °C for 2 h. The temperature rate during calcination and reduction steps was 5 °C min−1.
3.4. Characterisation of the Powder and Monolith Catalysts
The X-ray diffraction data of the powder and coated monolith supports were collected using a SIEMENS D5000 XRD diffractometer (SIEMENS, Munich, Germany), as explained in , using Cu radiation with a wavelength of λCu = 0.15406 nm and the samples were scanned in a range of 2θ from 5° to 90° with the step size of 0.04° and step time of 2s. The diffraction patterns obtained were compared with the library data from JCPDS. Data handling was carried out using the software package HighScore.
Specific surface areas and pore volumes for the prepared powder and monolith catalysts were determined by nitrogen adsorption–desorption isotherms at −196 °C, using an ASAP 2020 instrument (Micrometrics, Norcross, GA, USA). The surface area was calculated using the BET equation and pore size distribution was determined by using the BJH method. Prior to adsorption experiments, the samples were degassed under a vacuum at 350 °C for 2 h.
XRF analyses were done for AlSix powders by a PANalytical Axios-MAX apparatus (PANalytical, Almelo, The Netherlands) equipped with a rhodium anode as a standard. In order to enhance sensitivity, the power was fixed at 3 kW (60 kV, 50 mA). Prior to the analysis, the samples were diluted in X-ray flux 66/34 (Lithium Tetraborate 66%/Lithium Metaborate 34%, PANalytical) followed by melting this mixture at 1150 °C (PANalytical-Eagon 2) to obtain a glass disc.
The total acidity measurements of the powder-form catalysts were performed using the temperature programmed desorption of ammonia (NH3-TPD) by an AutoChem II 2920 (Micromeritics, Norcross, GA, USA) device. Prior to analysis, the sample (about 110 mg) was pre-treated with He at 500 °C. After pre-treatment, adsorption of 15% NH3 in He is done at room temperature for 60 min and followed by flushing with He for 30 min to eliminate the physisorbed ammonia . The NH3 desorption was carried out from RT to 500 °C (5 °C min−1) for the powder-form AlSix. The concentration of desorbed NH3 was analysed by a TCD detector. The total acidity of samples was determined by integration of the area between 50–500 °C by AutoChem software.
The FESEM images for monoliths were obtained by a Field Emission Scanning Electron Microscope ZEISS ULTRA PLUS (ZEISS, Oberkochen, Germany) equipped with an Energy-Dispersive X-ray Spectrometer (EDS) at an accelerating voltage of 15.0 kV. Prior taking images, the monoliths were cut to fit in the FESEM chamber and carbonized. This analysis was done to verify the morphology of the coated phase and its composition.
3.5. Catalytic Oxidation of Dichloromethane
DCM oxidation experiments were carried out in a fixed-bed continuous flow reactor operating under atmospheric pressure explained in detail in references [26,49]. The gas analysis during the experiments was carried out with the Gasmet DX-4000N FTIR analyser (Gasmet Technologies, Helsinki, Finland).
The DCM (supplied by Sigma Aldrich; purity 99.8%, St. Louis, MO, USA) concentration used during the experiments was 500 ppm. In all the activity tests performed, 1.5 vol % of water was used to ensure the sufficient selectivity towards HCl [8,20,50]. The flow of the reaction mixture (DCM in air) was set to be 1.02 L·min−1 in all the experiments.
The gas hourly space velocity (GHSV) over the monoliths used in this study was about 30500 h−1. This value is very close to the industrially used GHSV in VOC treatment . The temperature range during the light-off test was from 100 to 500 °C with 5 °C min−1 as the heating rate. The tests were always repeated at least once to verify the results. Based on the repetition, we can roughly estimate the relative error of the experiment to be less than 5%. Prior to the experiment, the samples were wrapped with quartz wool to avoid their displacement inside the reactor when the gas flow was switched on. The quartz wool also minimized the slip flow inside the reactor. The DCM conversions and HCl yields were calculated as follows:where is the inlet DCM concentration, and are the outlet concentrations of DCM and of HCl obtained as a function of temperature (T).
The main aim of this work was to discover how well a catalyst powder will keep its characteristics after washcoating on a monolith substrate. Thus, three mixtures of Al2O3 and SiO2 oxides were prepared and washcoated on a cordierite monolith. The activities and selectivities of the monolith catalysts were studied before and after Pt (1 wt %) impregnation in dichloromethane (DCM) total oxidation.
It was observed that the selected preparation procedure was successful since ~10 wt % and 18 wt % loadings of washcoat were obtained for 200 cpsi and 600 cpsi monoliths, respectively. The success of washcoating was also evidenced by the FESEM-EDS analysis. N2 physisorption demonstrated that the specific surface areas and the diameter as well as the volume of the pores determined for the sol were kept at the similar levels after washcoating of substrates.
The acidity of the support, and especially type of acid sites are affecting the formation of reaction byproducts in DCM oxidation. We observed that the total acidity of the washcoat (without Pt) was increasing with increased silica loading. Similarly, specific surface area was increased. When these two parameters were improved, the total amount of major byproducts (CO, CH2O and CH3Cl) was decreased and HCl yield was increased. The addition of Pt improved the total oxidation in most of the cases.
The 200M10 monolith exhibited high conversion of DCM, and in addition, high HCl yield was obtained over Pt200M10, thus it was selected for the comparison with 600 cpsi monolith. The comparison between the two types of substrates (200 and 600 cpsi) showed that the latter presented better performance than 200M10. That is an evidence, in our experimental conditions, that the low value of OFA, Dh and TIF and the high value of MIF and GSA are the key parameters influencing DCM oxidation. These were found with the monolith with 600 cpsi.
Z.A. made the major part of the preparation, characterization, evaluation of the performance of the catalyst in DCM oxidation, literature survey and was responsible on the writing of the paper. A.D. made some material preparation and helped in characterization discussion. T.N. and S.P. were assisting to perform the activity tests and helped during the writing of this paper. M.Z. perform the characterisation of the monoliths and contributed to the discussion of the characterisation results for this paper. L.P.-R. contributed in the organization, and characterization of materials as well as discussion of the results. M.B., R.B., S.O. and R.L.K. are the supervisors of the doctoral thesis of Z.A., R.B., S.O. and R.L.K. also contributed in planning for the work related to the publication, evaluation of the results and/or helping during the writing of this paper.
The authors are grateful to Jorma Penttinen and Markus Riihimäki, whose were helping during this work in the characterization of the samples. The staff of the Center of Microscopy and Nanotechnology (University of Oulu, Finland) and Institute of Chemistry of Poitiers, Materials and natural resources (University of Poitiers, France) are acknowledged for the characterization as well. The work was done with the financial support of PHC Volubilis (No. 24618ZJ), and Oulu University Scholarship Foundation (Yliopiston Apteekin rahasto).
Conflicts of Interest
The authors declare no conflict of interest.
- CEPA. Priority Substances List Assessment Report: Dichloromethane. Available online: http://www.hc-sc.gc.ca/ewh-semt/alt_formats/hecs-sesc/pdf/pubs/contaminants/psl1-lsp1/dichloromethane/dichloromethane-eng.pdf (accessed on 26 May 2014).
- ATSDR. Toxicological Profile for Methylene Chloride. Available online: http://www.atsdr.cdc.gov/ToxProfiles/tp14.pdf (accessed on 1 May 2016).
- WHO. Dichloromethane. Available online: http://www.euro.who.int/__data/assets/pdf_file/0013/123061/AQG2ndEd_5_7Dichloromethane.pdf (accessed on 31 October 2016).
- EPA. Toxicological Review of Dichloromethane. Available online: http://www.epa.gov/iris/toxreviews/0070tr.pdf (accessed on 31 October 2016).
- Air Quality Guidelines for Europe. Available online: http://www.euro.who.int/__data/assets/pdf_file/0005/74732/E71922.pdf (accessed on 3 October 2013).
- The International Chemical Safety Cards. Available online: http://www.cdc.gov/niosh/ipcsneng/neng0058.html (accessed on 12 May 2014).
- Matějová, L.; Topka, P.; Kaluža, L.; Pitkäaho, S.; Ojala, S.; Gaálová, J.; Keiski, R.L. Total oxidation of dichloromethane and ethanol over ceria–zirconia mixed oxide supported platinum and gold catalysts. Appl. Catal. B Environ. 2013, 142–143, 54–64. [Google Scholar] [CrossRef]
- Pitkäaho, S.; Nevanperä, T.; Matejova, L.; Ojala, S.; Keiski, R.L. Oxidation of dichloromethane over Pt, Pd, Rh, and V2O5 catalysts supported on Al2O3, Al2O3–TiO2 and Al2O3–CeO2. Appl. Catal. B Environ. 2013, 138–139, 33–42. [Google Scholar] [CrossRef]
- Ran, L.; Qin, Z.; Wang, Z.; Wang, X.; Dai, Q. Catalytic decomposition of CH2Cl2 over supported Ru catalysts. Catal. Commun. 2013, 37, 5–8. [Google Scholar] [CrossRef]
- Van Den Brink, R.W.; Mulder, P.; Louw, R.; Sinquin, G.; Petit, C.; Hindermann, J. Catalytic Oxidation of Dichloromethane on γ-Al2O3: A Combined Flow and Infrared Spectroscopic Study. J. Catal. 1998, 180, 153–160. [Google Scholar] [CrossRef]
- Chen, Q.-Y.; Li, N.; Luo, M.-F.; Lu, J.-Q. Catalytic oxidation of dichloromethane over Pt/CeO2–Al2O3 catalysts. Appl. Catal. B Environ. 2012, 127, 159–166. [Google Scholar] [CrossRef]
- Wang, Y.; Liu, H.; Wang, S.-Y.; Luo, M.-F.; Lu, J. Remarkable enhancement of dichloromethane oxidation over potassium-promoted Pt/Al2O3 catalysts. J. Catal. 2014, 311, 314–324. [Google Scholar] [CrossRef]
- Van Den Brink, R.W.; Mulder, P.; Louw, R. Catalytic combustion of chlorobenzene on Pt/γ-Al2O3 in the presence of aliphatic hydrocarbons. Catal. Today 1999, 54, 101–106. [Google Scholar] [CrossRef]
- Padilla, A.M.; Corella, J.; Toledo, J.M. Total oxidation of some chlorinated hydrocarbons with commercial chromia based catalysts. Appl. Catal. B Environ. 1999, 22, 107–121. [Google Scholar] [CrossRef]
- Corella, J.; Toledo, J.M.; Padilla, A.M. On the selection of the catalyst among the commercial platinum-based ones for total oxidation of some chlorinated hydrocarbons. Appl. Catal. B Environ. 2000, 27, 243–256. [Google Scholar] [CrossRef]
- Wang, L.; Sakurai, M.; Kameyama, H. Catalytic oxidation of dichloromethane and toluene over platinum alumite catalyst. J. Hazard. Mater. 2008, 154, 390–395. [Google Scholar] [CrossRef] [PubMed]
- Gu, Y.; Yang, Y.; Qiu, Y.; Sun, K.; Xu, X. Combustion of dichloromethane using copper–manganese oxides supported on zirconium modified titanium-aluminum catalysts. Catal. Commun. 2010, 12, 277–281. [Google Scholar] [CrossRef]
- Maupin, I.; Pinard, L.; Mijoin, J.; Magnoux, P. Bifunctional mechanism of dichloromethane oxidation over Pt/Al2O3: CH2Cl2 disproportionation over alumina and oxidation over platinum. J. Catal. 2012, 291, 104–109. [Google Scholar] [CrossRef]
- Martino, M.; Rosal, R.; Sastre, H.; Díez, F.V. Hydrodechlorination of dichloromethane, trichloroethane, trichloroethylene and tetrachloroethylene over a sulfided Ni/Mo-alumina catalyst. Appl. Catal. B Environ. 1999, 20, 301–307. [Google Scholar] [CrossRef]
- Papenmeier, D.M.; Rossin, J.A. Catalytic Oxidation of Dichloromethane, Chloroform, and Their Binary Mixtures over a Platinum Alumina Catalyst. Ind. Eng. Chem. Res. 1994, 33, 3094–3103. [Google Scholar] [CrossRef]
- Wu, M.; Ung, K.C.; Dai, Q.; Wang, X. Catalytic combustion of chlorinated VOCs over VOx/TiO2 catalysts. Catal. Commun. 2012, 18, 72–75. [Google Scholar] [CrossRef]
- Aristizábal, B.; González, C.A.; Barrio, I.; Montes, M.; Montes de Correa, C. Screening of Pd and Ni supported on sol–gel derived oxides for dichloromethane hydrodechlorination. J. Mol. Catal. A Chem. 2004, 222, 189–198. [Google Scholar] [CrossRef]
- Martínez, T.L.M.; Montes de Correa, C.; Odriozola, J.A.; Centeno, M.A. Synthesis and characterization of xerogel titania modified with Pd and Ni. J. Mol. Catal. A Chem. 2006, 253, 252–260. [Google Scholar] [CrossRef]
- Windawi, H.; Zhang, Z.C. Catalytic destruction of halogenated air toxins and the effect of admixture with VOCs. Catal. Today 1996, 30, 99–105. [Google Scholar] [CrossRef]
- Dai, Q.; Wang, X.; Lu, G. Low-temperature catalytic destruction of chlorinated VOCs over cerium oxide. Catal. Commun. 2007, 8, 1645–1649. [Google Scholar] [CrossRef]
- El Assal, Z.; Pitkäaho, S.; Ojala, S.; Maache, R.; Bensitel, M.; Pirault-Roy, L.; Brahmi, R.; Keiski, R.L. Total Oxidation of Dichloromethane Over Metal Oxide Catalysts. Top. Catal. 2013, 56, 679–687. [Google Scholar] [CrossRef]
- Van Der Avert, P.; Weckhuysen, B.M. Low-temperature catalytic destruction of CCl4, CHCl3 and CH2Cl2 over basic oxides. Phys. Chem. Chem. Phys. 2004, 6, 5256–5262. [Google Scholar] [CrossRef]
- Pinard, L.; Mijoin, J.; Magnoux, P.; Guisnet, M. Dichloromethane transformation over bifunctional PtFAU catalysts. Influence of the acidobasicity of the zeolite. Comptes Rendus Chim. 2005, 8, 457–463. [Google Scholar] [CrossRef]
- Pinard, L.; Mijoin, J.; Magnoux, P.; Guisnet, M. Oxidation of chlorinated hydrocarbons over Pt zeolite catalysts 1-mechanism of dichloromethane transformation over PtNaY catalysts. J. Catal. 2003, 215, 234–244. [Google Scholar] [CrossRef]
- Pinard, L.; Mijoin, J.; Ayrault, P.; Canaff, C.; Magnoux, P. On the mechanism of the catalytic destruction of dichloromethane over Pt zeolite catalysts. Appl. Catal. B Environ. 2004, 51, 1–8. [Google Scholar] [CrossRef]
- Koyer-Gołkowska, A.; Musialik-Piotrowska, A.; Rutkowski, J.D. Oxidation of chlorinated hydrocarbons over Pt–Pd-based catalyst. Part 1. Chlorinated methanes. Catal. Today 2004, 90, 133–138. [Google Scholar] [CrossRef]
- Gutierrez-ortiz, J.; López-Fonseca, R.; Aurrekoetxea, U.; González-Velasco, J. Low-temperature deep oxidation of dichloromethane and trichloroethylene by H-ZSM-5-supported manganese oxide catalysts. J. Catal. 2003, 218, 148–154. [Google Scholar] [CrossRef]
- López-Fonseca, R.; de Rivas, B.; Gutiérrez-Ortiz, J.I.; Aranzabal, A.; González-Velasco, J.R. Enhanced activity of zeolites by chemical dealumination for chlorinated VOC abatement. Appl. Catal. B Environ. 2003, 41, 31–42. [Google Scholar] [CrossRef]
- Pitkäaho, S.; Ojala, S.; Maunula, T.; Savimäki, A.; Kinnunen, T.; Keiski, R.L. Oxidation of dichloromethane and perchloroethylene as single compounds and in mixtures. Appl. Catal. B Environ. 2011, 102, 395–403. [Google Scholar] [CrossRef]
- El Assal, Z.; Ojala, S.; Pitkäaho, S.; Pirault-Roy, L.; Darif, B.; Comparot, J.-D.; Bensitel, M.; Keiski, R.L.; Brahmi, R. Comparative study on the support properties in the total oxidation of dichloromethane over Pt catalysts. Chem. Eng. J. 2017, 313, 1010–1022. [Google Scholar] [CrossRef]
- Heck, R.M.; Gulati, S.; Farrauto, R.J. The application of monoliths for gas phase catalytic reactions. Chem. Eng. J. 2001, 82, 149–156. [Google Scholar] [CrossRef]
- Cybulski, A.; Moulijn, J.A. Structured Catalysts and Reactors, 2nd ed.; Cybulski, A., Moulijn, J.A., Eds.; Marcel Dekker: New York, NY, USA, 1998; ISBN 0824799216. [Google Scholar]
- Giroux, T.; Hwang, S.; Liu, Y.; Ruettinger, W.; Shore, L. Monolithic structures as alternatives to particulate catalysts for the reforming of hydrocarbons for hydrogen generation. Appl. Catal. B Environ. 2005, 56, 95–110. [Google Scholar] [CrossRef]
- Williams, J.L. Monolith structures, materials, properties and uses. Catal. Today 2001, 69, 3–9. [Google Scholar] [CrossRef]
- Avila, P.; Montes, M.; Miró, E.E. Monolithic reactors for environmental applications. Chem. Eng. J. 2005, 109, 11–36. [Google Scholar] [CrossRef]
- Sing, K.S.W. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity. Pure Appl.Chem. 1982, 54, 2201–2218. [Google Scholar] [CrossRef]
- Thommes, M. Physical Adsorption Characterization of Nanoporous Materials. Chem. Ing. Tech. 2010, 82, 1059–1073. [Google Scholar] [CrossRef]
- Berteau, P.; Delmon, B. Modified Aluminas: Relationship between activity in 1-butanol dehydration and acidity measured by NH3 TPD. Catal. Today 1989, 5, 121–137. [Google Scholar] [CrossRef]
- Keshavarz, A.R.; Rezaei, M.; Yaripour, F. Preparation of nanocrystalline γ-Al2O3 catalyst using different procedures for methanol dehydration to dimethyl ether. J. Nat. Gas Chem. 2011, 20, 334–338. [Google Scholar] [CrossRef]
- Saad, F.; Comparot, J.D.; Brahmi, R.; Bensitel, M.; Pirault-Roy, L. Influence of acid-base properties of the support on the catalytic performances of Pt-based catalysts in a gas-phase hydrogenation of acetonitrile. Appl. Catal. A Gen. 2017, 544, 1–9. [Google Scholar] [CrossRef]
- Roy, S.; Heibel, A.K.; Liu, W.; Boger, T. Design of monolithic catalysts for multiphase reactions. Chem. Eng. Sci. 2004, 59, 957–966. [Google Scholar] [CrossRef]
- Nijhuis, T.A.; Kreutzer, M.T.; Romijn, A.C.J.; Kapteijn, F.; Moulijn, J.A. Monolithic catalysts as efficient three-phase reactors. Chem. Eng. Sci. 2001, 56, 823–829. [Google Scholar] [CrossRef]
- Jiahai, B.; Lucun, G. Effects of Chemical Treatments on Thermal Expansion Properties of Cordierite Ceramics. J. Wuhan Univ. Technol. Sci. Ed. 2006, 21, 100–103. [Google Scholar] [CrossRef]
- Pitkäaho, S.; Matejova, L.; Ojala, S.; Gaalova, J.; Keiski, R.L. Oxidation of perchloroethylene—Activity and selectivity of Pt, Pd, Rh, and V2O5 catalysts supported on Al2O3, Al2O3-TiO2 and Al2O3-CeO2. Appl. Catal. B Environ. 2012, 113–114, 150–159. [Google Scholar] [CrossRef]
- De Rivas, B.; López-Fonseca, R.; Gutiérrez-Ortiz, M.A.; Gutiérrez-Ortiz, J.I. Role of water and other H-rich additives in the catalytic combustion of 1,2-dichloroethane and trichloroethylene. Chemosphere 2009, 75, 1356–1362. [Google Scholar] [CrossRef] [PubMed]
- Ojala, S. Catalytic Oxidation of Volatile Organic Compounds and Malodorous Organic Compounds. Ph.D. Thesis, University of Oulu, Oulu, Finland, 2005. [Google Scholar]
Figure 1. N2-adsorption-desorption isotherms for AlSi15 support (filled symbols indicate adsorption, open symbols indicate desorption).
Figure 2. XRD Diffractograms of powder catalysts AlSix, where x is 5, 10 and 15 mol % of silica.

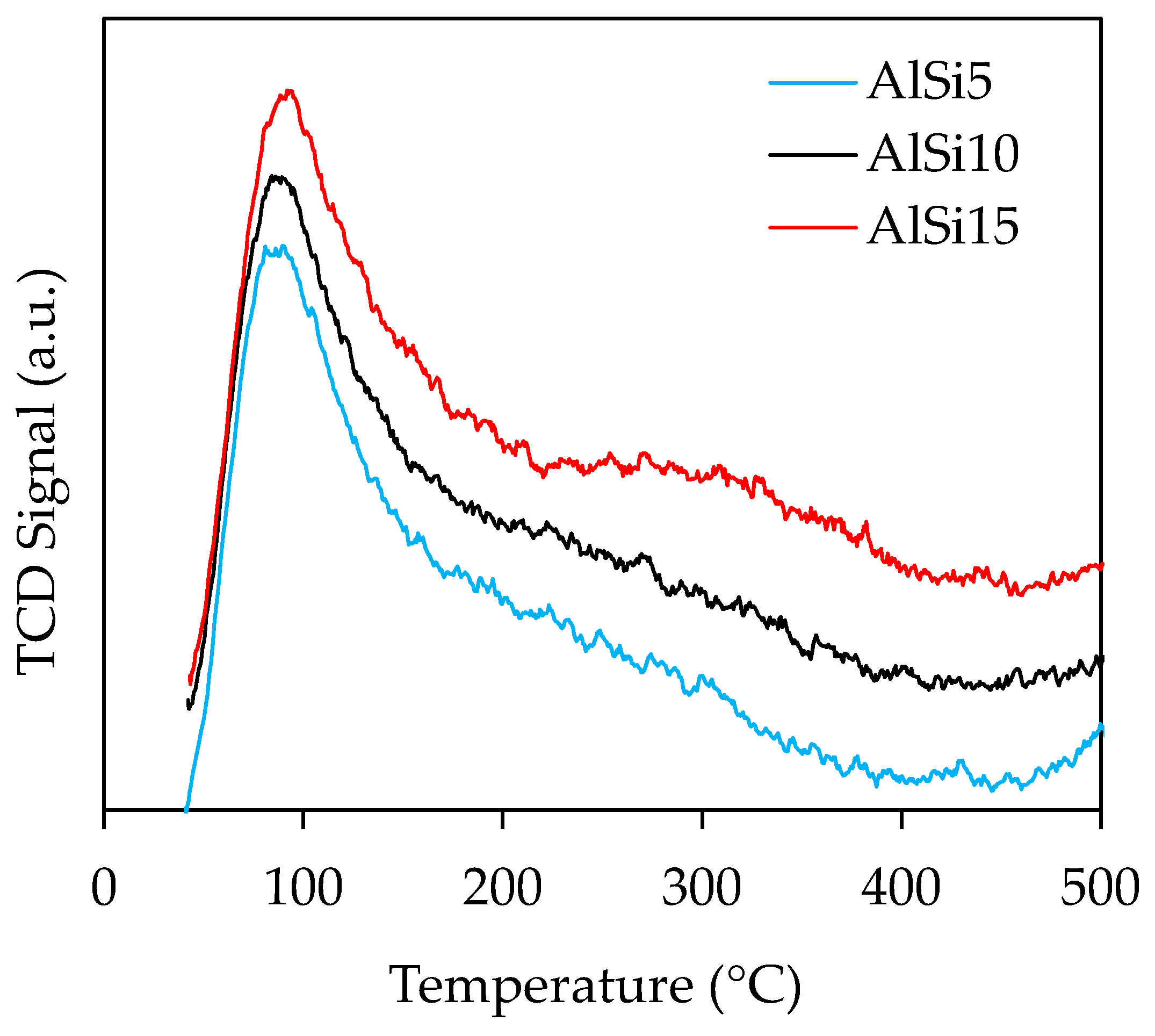

Figure 3. NH3-TPD results for powder samples AlSi5, AlSi10 and AlSi15.
Figure 4. (a) Photography of a monolith used in this study and (b) schematic representation of the main geometrical parameters of the ceramic monoliths.

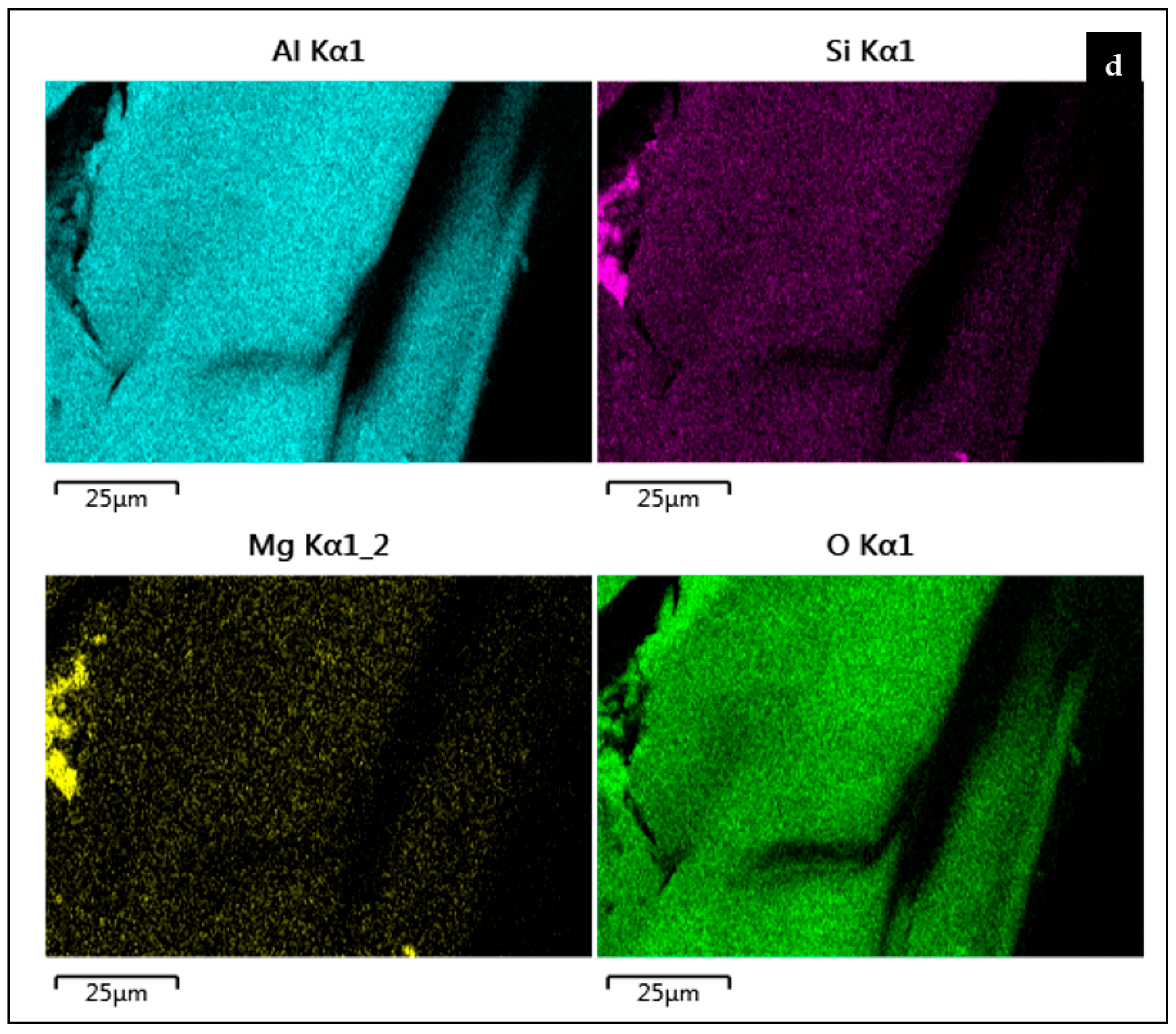

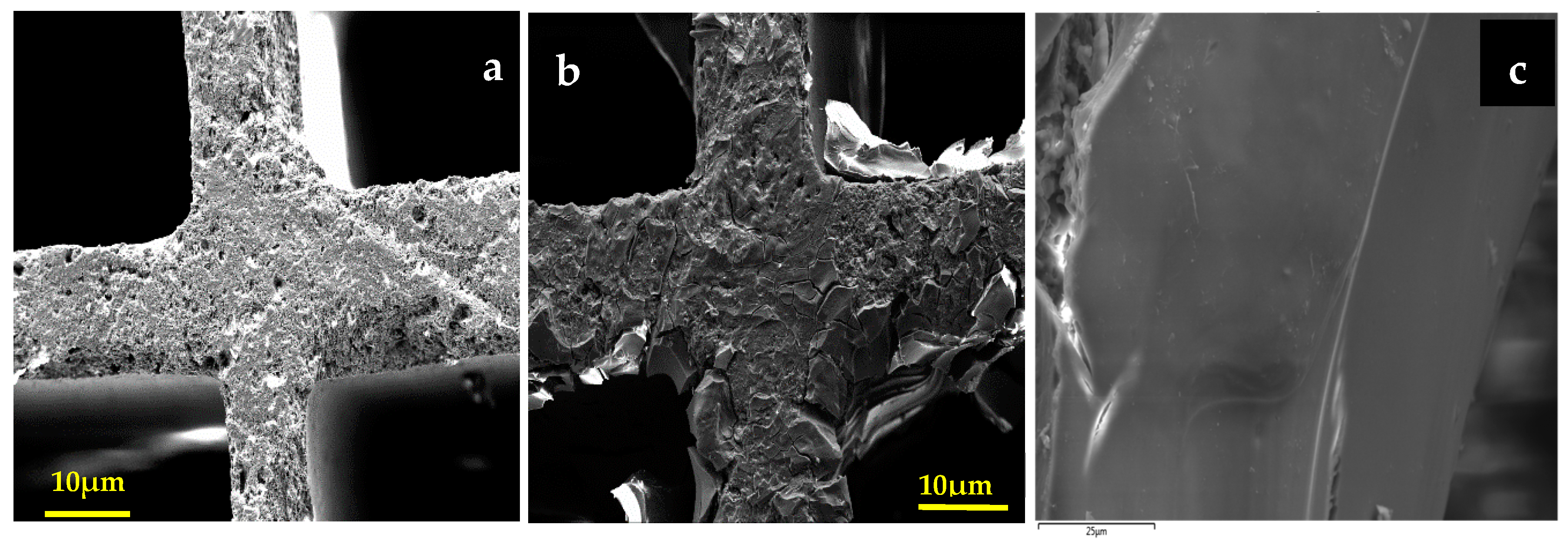

Figure 5. FESEM images taken from the substrate (a) and washcoated monoliths (b) and position of EDS area and (d) is the EDS mapping image of coated monolith (c).
Figure 6. Light-off curves for DCM oxidation over monolith catalysts with 200 cpsi. (Experimental conditions: DCM 500 ppm, GHSV 30,556 h−1 (1.2 L min−1), H2O 1.5 vol %) In the Figure 200M is the cordierite substrate alone and 200Mx (x = 5, 10, 15) is the coated monolith where x is the loading of silica on alumina.

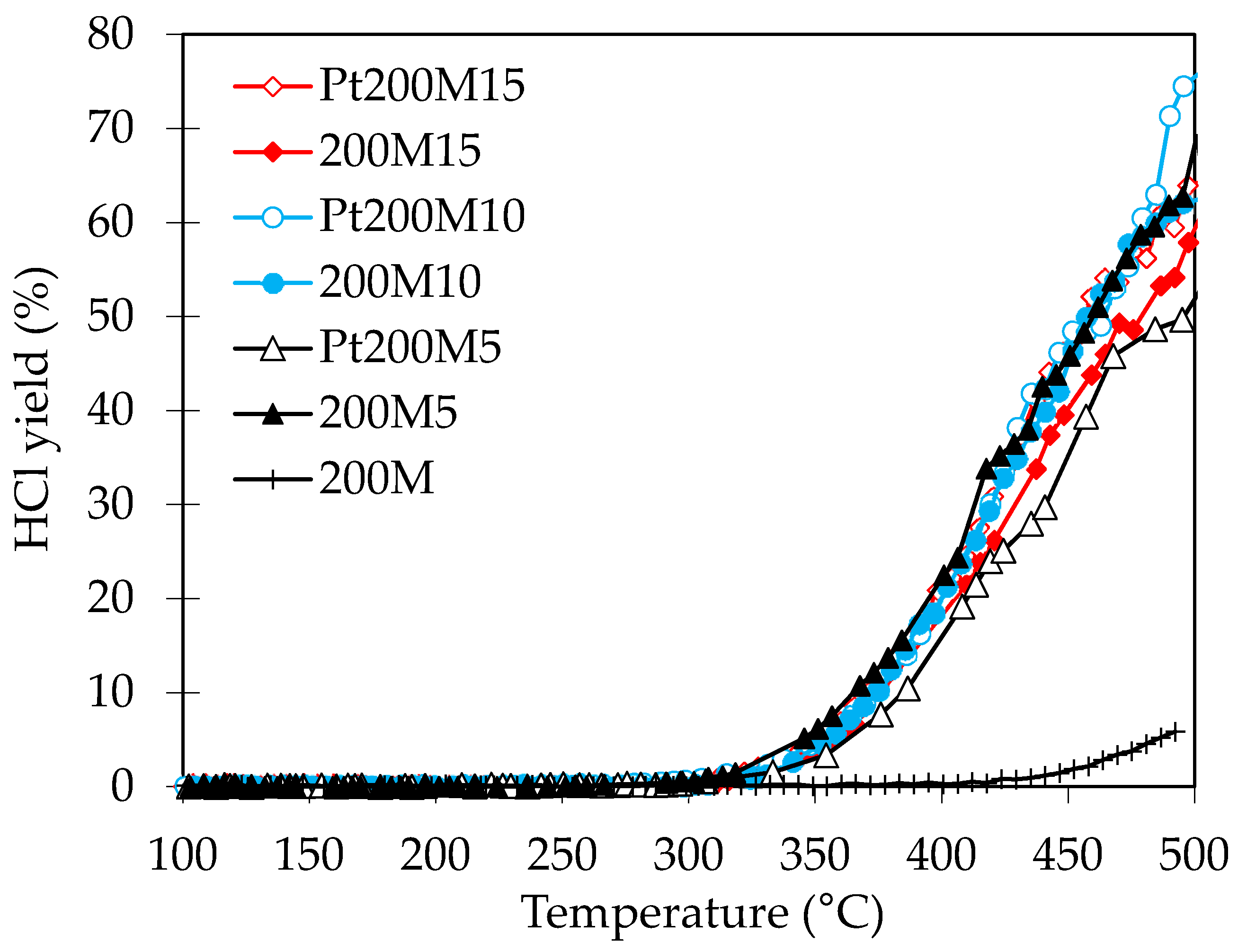

Figure 7. HCl yield over 200Mx monoliths. The same experimental conditions were used as in Figure 6.

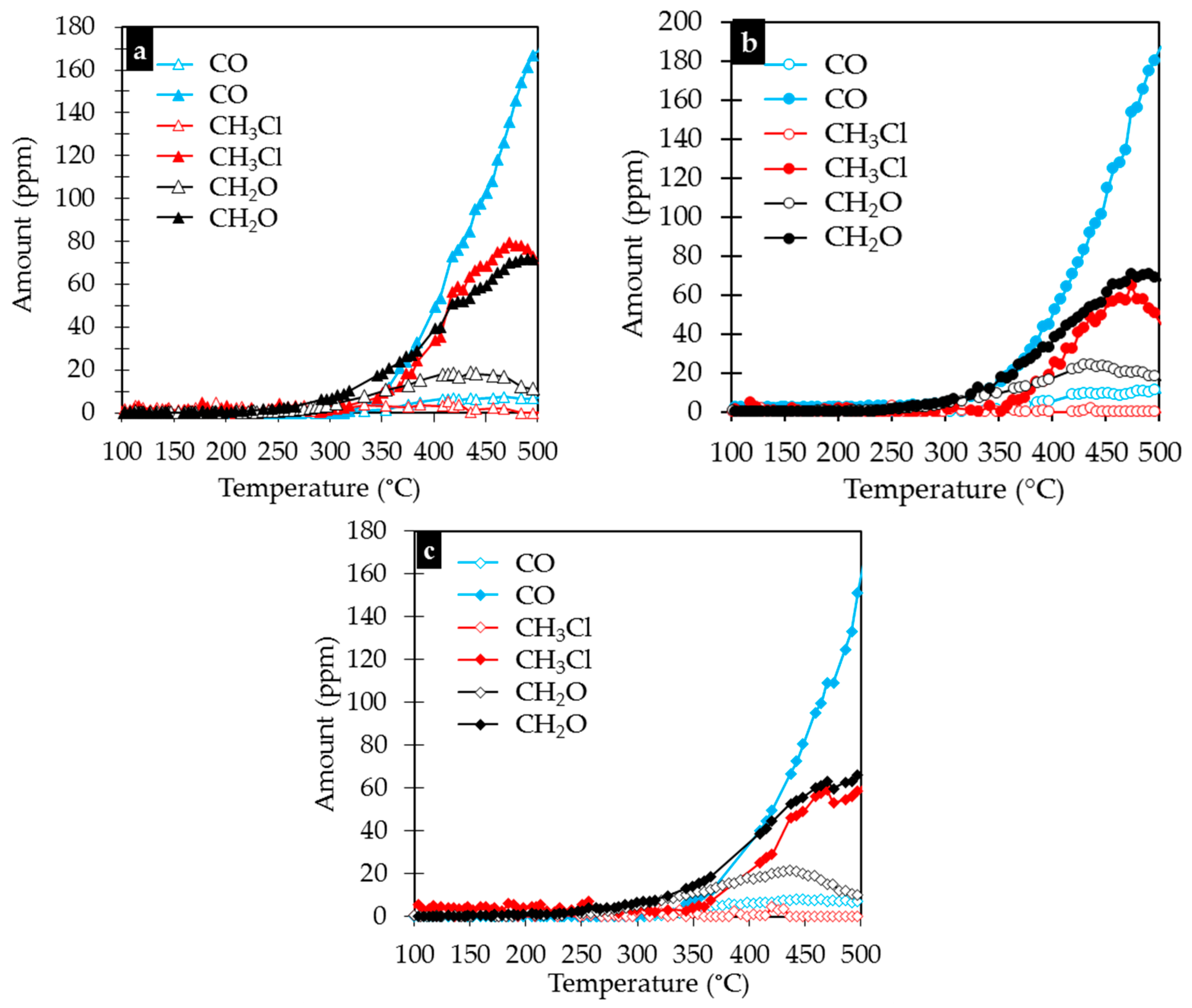

Figure 8. Byproduct formation over coated monoliths (a) 200M5; (b) 200M10 and (c) 200M15 based catalysts, open symbols are for Pt-containing 200Mx and closed symbols are for 200Mx. The same experimental conditions were used as in Figure 6.

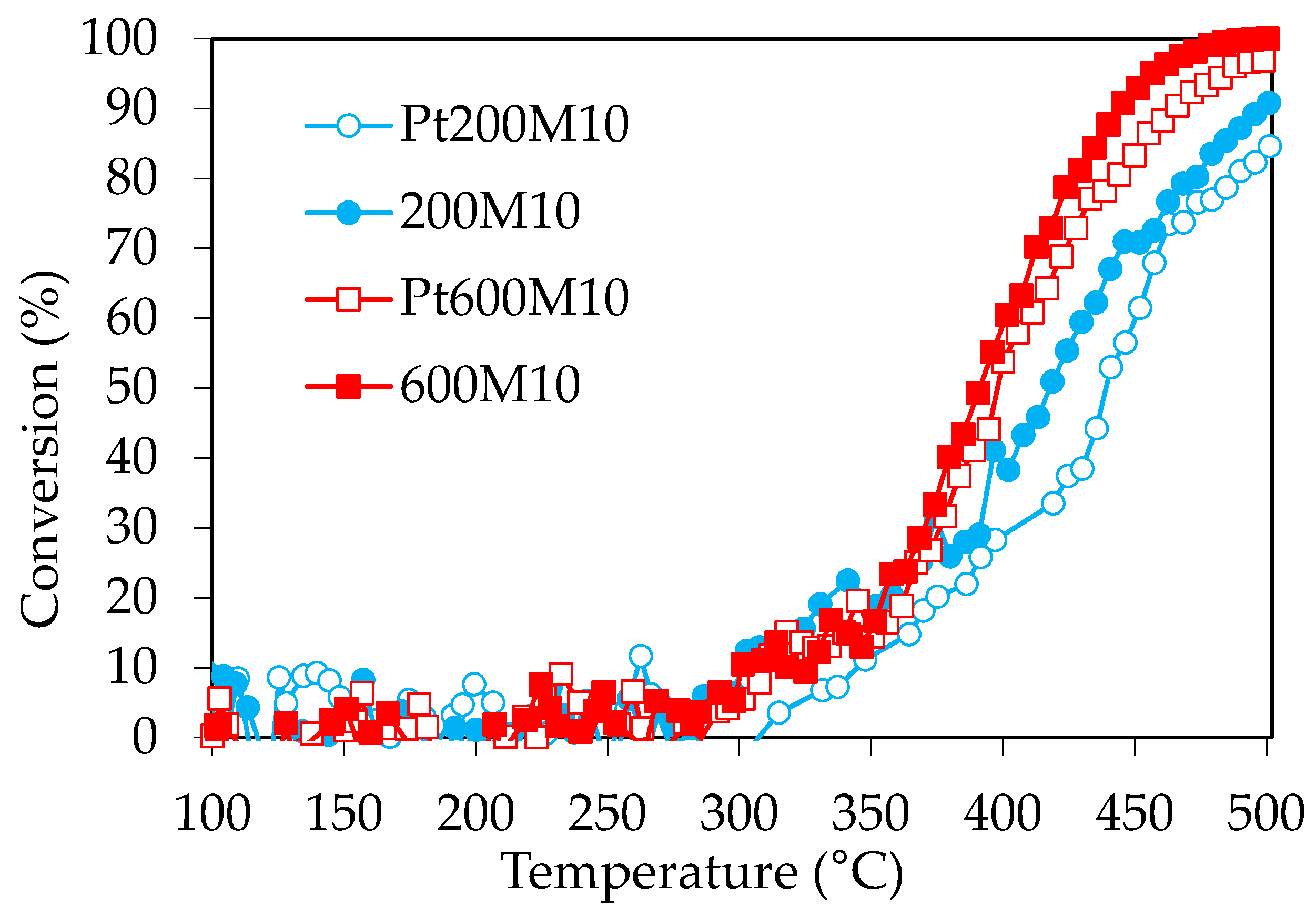

Figure 9. Comparison of DCM oxidation between 200M and M600 monoliths coated with AlSi10, with (open symbols) or without (closed symbols) Pt. 200M and 600M are meaning monoliths with 200 and 600 cpsi, respectively. The same experimental conditions were used as in Figure 6.

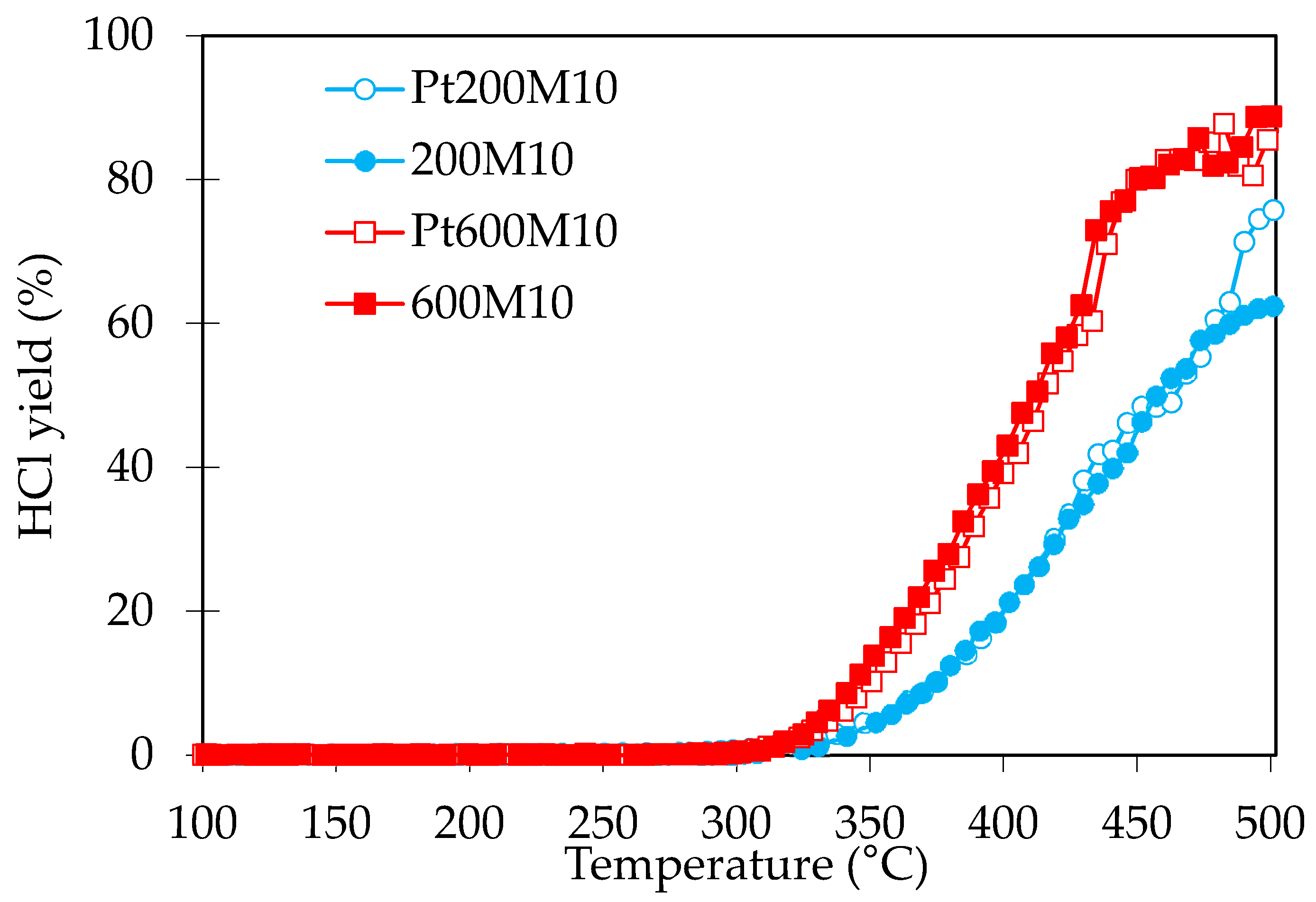

Figure 10. Comparison of HCl yield between coated monoliths (200M and 600M10) with AlSi10 in presence of Pt (open symbols) or not (closed symbols). The same experimental conditions were used as in Figure 6.

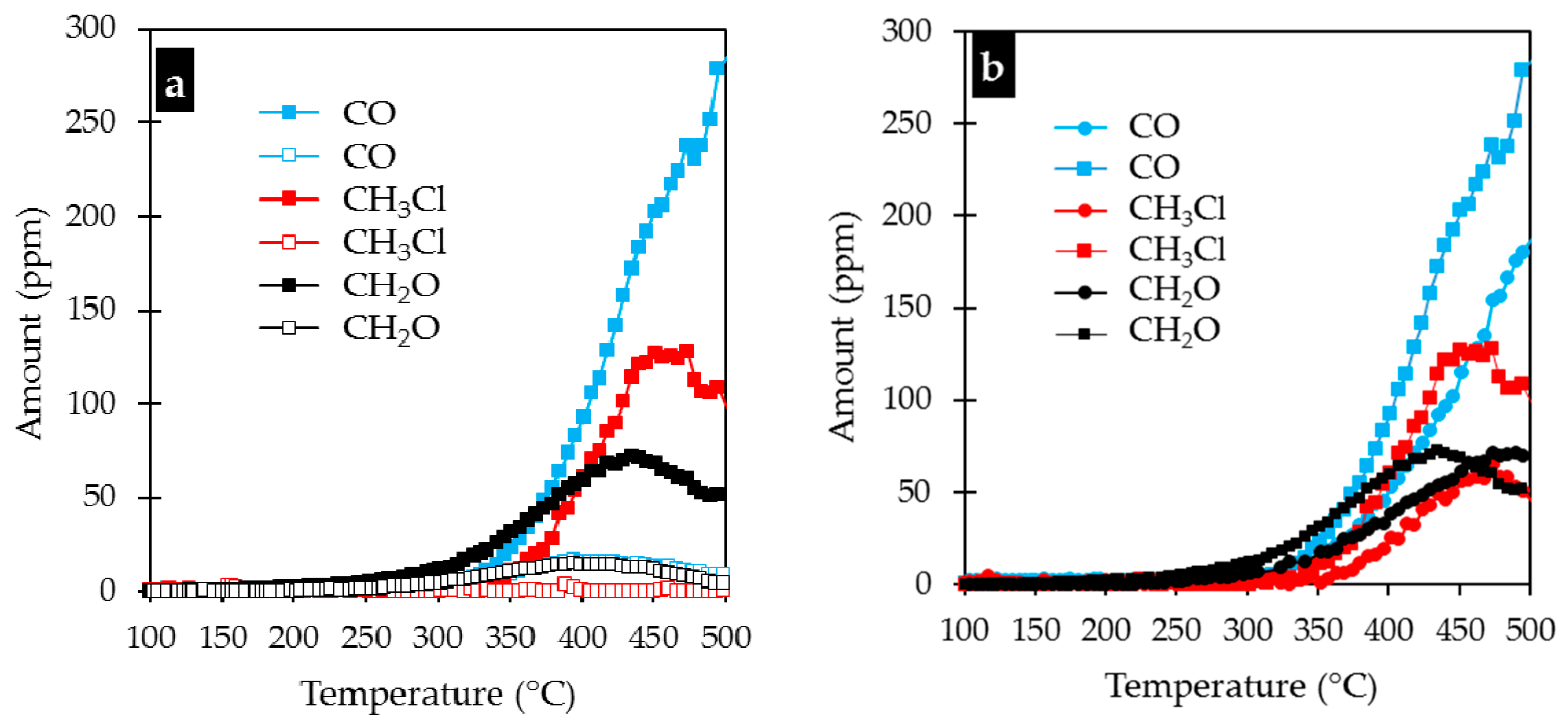

Figure 11. By-products formation (a) over 600M10 (Open symbols are used for Pt-containing 600M10 and closed are symbols for 600M10) and (b) comparison between 200M10 (●) and 600M10 (■). The same experimental conditions were used as in Figure 6.
