Article

Modification to L-H Kinetics Model and Its Application in the Investigation on Photodegradation of Gaseous Benzene by Nitrogen-Doped TiO2

School of Materials Science and Engineering, University of Science and Technology Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Catalysts 2018, 8(8), 326; https://doi.org/10.3390/catal8080326
Submission received: 11 July 2018 / Revised: 3 August 2018 / Accepted: 6 August 2018 / Published: 9 August 2018
(This article belongs to the Special Issue Emerging Trends in TiO2 Photocatalysis and Applications)

Abstract

:
In this paper, the Langmuir-Hinshelwood (L-H) model has been used to investigate the kinetics of photodegradation of gaseous benzene by nitrogen-doped TiO2 (N-TiO2) at 25 °C under visible light irradiation. Experimental results show that the photoreaction coefficient kpm increased from 3.992 × 10−6 mol·kg−1·s−1 to 11.55 × 10−6 mol·kg−1·s−1 along with increasing illumination intensity. However, the adsorption equilibrium constant KL decreased from 1139 to 597 m3·mol−1 when the illumination intensity increased from 36.7 × 104 lx to 75.1 × 104 lx, whereas it was 2761 m3·mol−1 in the absence of light. This is contrary to the fact that KL should be a constant if the temperature was fixed. This phenomenon can be attributed to the breaking of the adsorption-desorption equilibrium by photocatalytically decomposition. To compensate for the disequilibrium of the adsorption-desorption process, photoreaction coefficient kpm was introduced to the expression of KL and the compensation form was denoted as Km. KL is an indicator of the adsorption capacity of TiO2 while Km is only an indicator of the coverage ratio of TiO2 surface. The modified L-H model has been experimentally verified so it is expected to be used to predict the kinetics of the photocatalytic degradation of gaseous benzene.

1. Introduction

Gaseous benzene released from paints, artificial panel or furniture is threatening to human health, particularly for children. However, the gaseous benzene in indoor air is difficult remedy with traditional methods due to its low concentration (ppm or ppb level) [1,2,3]. However, TiO2 can decompose gaseous benzene under ultraviolet light irradiation, thus it has attracted growing attention [4,5,6,7,8]. In fact, the photodegradation of gaseous benzene by TiO2 photocatalyst is a heterogeneous reaction occurring at a gas-solid interface, and the reaction rate is strongly affected by the environmental factors, particularly illumination intensity [9,10,11]. So the kinetic study of photocatalytic reaction is important for revealing the effect of these factors on the photocatalytic reaction rate.
The heterogeneous reaction includes two consecutive steps. Firstly, the reactants are adsorbed on the surface of the photocatalysts and secondly, the photocatalytic reaction commences. Generally, the adsorption rate is slower than the photocatalytic reaction rate. So the overall photocatalytic reaction rate is mainly dominated by the adsorption rate. Furthermore, the adsorption rate can be equivalently expressed using the coverage ratio of the adsorbed reactants on the surface of the photocatalysts [12,13,14,15]. So the photocatalytic reaction rate r can be expressed as Equation (1) [16,17,18], which is widely known as the original L-H model.
r = d c d t = k p θ
where c is the concentration of the reactant, t is the photocatalytic reaction time, θ is the coverage ratio of pollutants on the TiO2 surface, kp is photoreaction coefficient.
According to Langmuir adsorption theory, the coverage ratio is related to adsorption capacity and the concentration of the reactant. KL was defined as adsorption equilibrium constant to measure the adsorption capacity of TiO2 and coverage ratio θ can be expressed as Equation (2) according to adsorption theory [19].
θ = K L c 1 + K L c
Input θ from Equation (2) to Equation (1), the photoreaction coefficient r can be expressed as Equation (3) [20,21,22],
r = k p K L c 1 + K L c
Equation (3) is the much known expression of L-H model and has been widely used in investigating the kinetics of photocatalytic reactions. Lin et al. [23] studied the photocatalytic degradation pathway of dimethyl sulfide. They used original and derivative L-H models to study the kinetics under different temperatures and found that temperature can enhance photocatalytic activity. Dhada et al. [24] investigated the photocatalytic degradation of benzene by TiO2 under sunshine and UV light. They found that UV light can promote photocatalytic reaction than visible light due to its higher energy of the photons. Cheng et al. [25] studied the photocatalytic degradation of benzene. They found that higher temperature, illumination intensity and humidity can promote the reaction rate greatly.
The works mentioned above are focused in revealing the effect of environmental factors such as illumination intensity, the amount of the photocatalyst and some processing parameters on the photodegradation ratio. However, the effect of illumination intensity on adsorption equilibrium coefficient of gaseous pollutant was neglected in most articles. In liquid phase photocatalysis, some authors have reported their research on the effect of the illumination intensity on both the photoreaction coefficient and the adsorption coefficient [26,27,28,29]. Du [30] found that the value of the adsorption coefficient calculated from the L-H model was illumination intensity-dependent in photodegradation of liquid dimethyl phthalate (DMP).
Coincidentally, it has also been found that the adsorption coefficient has been affected by light intensity in the gaseous photocatalytic reactions [31,32]. Brosillon [31] studied the kinetic model of photocatalytic degradation of butyric acid, and they found that the adsorption coefficient KR can be expressed as Equation (4)
K R = ( k r L H C R a d s 0 + k d 1 + k d 2 I ) K k d 1 + k d 2 I
where krLH is the reaction rate of the reaction between ·OH and reactants, kd1, k′d2 is the decomposition rate of ·OH in the routes of ·OH → OH + h+ and ·OH + e → OH, I is the light intensity, K is the adsorption constant without light irradiation. Their results indicate that the adsorption coefficient in gas photocatalytic reaction is a function of light intensity, which is not reasonable as the adsorption coefficient should be a constant under a fixed temperature. And, the parameter krLH, kd1, k′d2 are difficult to calculate as the concentration of ·OH is difficult to accurately measure [33] during the process of photocatalytic degradation of benzene and its concentration changes during the progression of the photocatalytic reaction. So this model is not applicable to predict the concentration of the reactant at different reaction times under different illumination intensities. He [32] investigated the degradation of benzene by mesoporous TiO2 and also found that the adsorption coefficient could be affected by light intensity. They attributed it to the decrease of available active sites as the increased photo-induced radicals will occupy more of the active sites under higher illumination intensity. However, the effect of photocatalytic decomposition of the adsorbed benzene by the increased radicals on the adsorption coefficient was not considered. So, it’s necessary to accurately describe the relationship between the adsorption coefficient and the illumination intensity in gaseous photocatalytic reactions.
In the present work, the effect of illumination intensity on photoreaction coefficient kpm and adsorption equilibrium coefficient has been studied under a constant 25 °C. Photoreaction coefficient was introduced as the modification to KL and the compensation Km was used to replace KL in the original L-H model. The modified L-H model can reveal the interaction between the adsorption, desorption and photo-oxidation process. The results showed that the Km and kpm can be obtained under different illumination intensity at 25 °C, thus the concentration at different reaction times can be predicted.

2. Results and Discussion

2.1. Characterization of the N-TiO2 Photocatalysts

The N-TiO2 catalysts were characterized by X-ray diffraction (XRD), Transmission electron microscopy (TEM), UV-Vis spectra (UV-Vis) and X-ray photoelectron spectroscopy (XPS) and the results were illustrated in Figure 1. Figure 1a shows the XRD patterns of N-TiO2. It is clear that all the diffraction peaks were indexed to that of anatase TiO2 (JCPDS no. 21-1272). The crystal size calculated by Scherrer’s Equation was also around 10.2 nm. Figure 1b shows the morphology of the N-TiO2 powders. It can be found that the prepared sample was composed of spherical TiO2 and the size was ranged from 9 to 12 nm, which is in consistent with the calculated result. The light absorption spectrum was measured by UV-Vis spectrum and was shown in Figure 1c. It is well known that the bandgap of pristine anatase is 3.2 eV, while the light absorption has been extended into the ranged of 400 to 600 nm of as-prepared N-TiO2. And its bandgap energy was 2.9 eV shown in the inset of Figure 1c calculated by using the method in other works [34,35]. The chemical state of N1s was also investigated by XPS and the result was shown in Figure 1d. Only one peak located at 399.9 eV can be found, which can be attributed to the interstitial doping of nitrogen into TiO2 lattice with Ti–O–N bond [36].

2.2. Kinetic Study of Photocatalytic Degradation of Benzene under Different Illumination Intensity

Figure 2 shows the variation of benzene concentration with photocatalytic degradation time under different illumination intensities. It shows that the concentration of benzene remained almost unchanged during the first hour without light irradiation, indicating that adsorption and desorption processes of benzene on TiO2 surface have reached equilibrium, thus the decrease of benzene after illumination can be ascribed to the photocatalytic degradation process. When it was illuminated for 4 h under different illumination intensity of 36.7 × 104, 46.9 × 104, 61.7 × 104 and 75.1 × 104 lx, the removal ratio of benzene was 72.1%, 84%, 90% and 92.4%, respectively. The removal ratio increased dramatically under higher illumination intensity, indicating that illumination intensity can promote the photocatalytic degradation performance.
During the photocatalytic degradation process, the amount of degraded benzene per unit time can be calculated by Equation (5).
Δ n = r V = d c d t V
where Δn is the amount of degraded benzene per unit time, r is the photocatalytic degradation rate, V is the volume of the reactor, c is concentration of benzene and t is photocatalytic degradation time. The detailed form of r is shown by original L-H model in Equation (3) [32,37], so after inputting r from Equation (3) to Equation (5), we can get
Δ n = d c d t V = k p K L c 1 + K L c
In Equation (6), kp is the photoreaction coefficient of the whole reaction system and is related to the mass of the catalysts. So the photocatalytic degradation rate coefficient per unit mass kpm can be expressed in Equation (7)
k p m = k p m
Input kpm from Equation (7) into Equation (6), then we can get
d c d t V = m k p m K L c 1 + K L c
So the relationship between dc and dt can be expressed in Equation (9)
V m k p m 1 + K L c K L c d c = d t
The relationship between c and t can be obtained after making integration to Equation (9), that is
V k p m m c 0 c 1 + K L c K L c d c = 0 t d t
The result of Equation is
t = V m k p m [ ( c 0 c ) + 1 K L ( ln c 0 ln c ) ]
After rearranging in terms of 1/(c0c), the linear form of Equation (11) is obtained.
ln ( c 0 / c ) c 0 c = m V k p m K L t c 0 c K L
In Equation (12), it can be found that ln(c0/c)/(c0c) and t/(c0c) is a linear relationship, and the slope and intercept of the line is mkpmKL/V and KL respectively.
Figure 3 shows the plots of ln(c0/c)/(c0c) vs. t/(c0c) under different illumination intensity. According to the obtained slopes and intercepts, the values of kpm and KL were calculated and summarized in Table 1. And the standard deviation R2 for each case were also listed in Table 1.
It can be seen from Table 1 that kpm was calculated as 3.992 × 10−6, 5.371 × 10−6, 8.589 × 10−6, 11.55 × 10−6 mol·kg−1·s−1 corresponding to the illumination intensity of 36.7 × 104, 46.9 × 104, 61.7 × 104, and 75.1 × 104 lx, respectively. And kpm increased greatly with increases in illumination intensity, which means that the photodegradation rate of benzene can be significantly promoted by increasing the illumination intensity in our experiment conditions. It’s reasonable that the increased illumination intensity means more photon irradiated on TiO2 surface, that can produce more ·OH, which is the main radical in photocatalytic reaction. According to other works [32], photoreaction rate coefficient kpm depends on illumination intensity in a power law
k p m = α I n
The value of intensity coefficient α and exponent n was 2.24 × 10−14 and 1.482 obtained by using the results in Table 1.
And the value of adsorption constant KL was decreased from 1139 m3·mol−1 to 597 m3·mol−1 when the illumination intensity was increased from 36.7 × 104 lx to 75.1 × 104 lx. That is, KL varied with the variation of the illumination intensity. However, the adsorption constant KL is related to the temperature and should be a constant as the temperature of the reactor was carefully maintained at 25 °C according to Langmuir adsorption theory. So the obtained results are inconsistent with the basic fact that the KL should be kept unchanged if the temperature was fixed for a certain adsorption-desorption balance, which shows that original L-H model cannot be used to describe the photocatalysis processes accurately.
Generally, it is widely recognized that the photocatalytic degradation of gaseous chemicals mainly includes two steps, gas adsorption on the surface of the photocatalyst and photodegradation. After the gas chemicals were adsorbed on the surface of the photocatalyst, certain amount of the adsorbed molecules were decomposed by photocatalytic degradation.
However, the original L-H model only considers the adsorption and desorption equilibrium of the gas molecules on the surface of the photocatalyst. So the amount of the adsorbed benzene molecules Δna and lost desorbed benzene molecules Δnd of N-TiO2 surface per unit time can be defined as Equation (14) and Equation (15) respectively [38].
Δ n a = k a c ( 1 θ ) S
Δ n d = k d θ S
where ka and kd is adsorption and desorption constant of benzene and is all thermodynamic constant.
When adsorption and desorption process reach equilibrium, there is Δna = Δnd, and the detailed form is shown in Equation (16).
k a c ( 1 θ ) S = k d θ S
So coverage ratio θ and adsorption equilibrium constant KL can be obtained [19]
θ = k a c k d + k a c = k a k d c 1 + k a k d c
K L = k a k d
KL is thermodynamically constant due to ka and kd being thermodynamic constants, and is an indication of adsorption ability of the catalysts. While in photocatalytic reaction, the degradation process would cause the decrease of benzene on TiO2 surface, which is equivalent to the increase in the desorption rate of benzene molecules. So the equilibrium between adsorption and desorption process would be broken. However, adsorption equilibrium constant KL is only related to ka and kd in Equation (18), which make it impossible to reveal the effect of degradation process on the equilibrium. Therefore, original L-H model based on Langmuir adsorption theory is not entirely suitable for the photocatalytic degradation of benzene and necessary modification should be applied to original L-H model for better understanding kinetics of the photocatalysis process.

2.3. Modication to the L-H Model and Kinetic Results under Different Illumination Intensity

In the photocatalytic reaction, there are three processes: Adsorption, desorption and the photocatalytic degradation process. The photocatalytic degradation process will cause decrease of benzene molecules on interface, so the amount of lost benzene molecules Δnb is the sum of desorbed and photocatalytic degraded benzene molecules per unit time.
Δ n b = k d θ S + k p m θ S
Combing Equation (13) and (18), the coverage ratio θ becomes
θ = k a c k d + k p m + k a c = k a k d + k p m c 1 + k a k d + k p m c = K m c 1 + K m c
K m = k a k d + k p m = k d k d + k p m k a k d = k d k d + k p m K L
ka/(kd + kpm) can be defined as coverage coefficient Km in Equation (21). The coverage coefficient Km is a function of ka, kd and kpm, so Km is not thermodynamic constant due to kpm is photodynamic. The value of Km is equal to that of KL while there is no light due to kpm is zero without irradiation. And the value of kpm will increase greatly under high illumination intensity, thus will result in a decrease of Km, which is in accordance with the experimental results in Table 1.
The original L-H model can be modified by using Km to replace KL in Equation (13) and (14) there is
t = V m k p m [ ( c 0 c ) + 1 K m ( ln c 0 ln c ) ]
ln ( c 0 / c ) c 0 c = m V k p m K m t 1 c 0 c K m
The expression form of Equation (23) is similar to that of original L-H model except coverage coefficient Km and equilibrium coefficient KL. KL in original L-H model is an indicator of adsorption capacity of TiO2, while Km is the indicator of the amount of benzene on TiO2 surface. The parameters kpm and Km can be obtained through the plots of ln(c0/c)/(c0c) vs. t/(c0c) which were shown in Figure 4a and the results were listed in Table 2. And after taking reciprocal on both sides of Equation (21), the linear relationship exists between 1/Km and kpm can be found in Equation (24) and was shown in Figure 4b. Then the values of ka, kd and KL can also be obtained and summarized in Table 2. The value of KL in modified L-H model is 2629 m3·mol−1 under different illumination intensity at 25 °C, which is consistent with Langmuir adsorption theory. The value of ka and kd is constant in a given temperature at 25 °C and the relationship of kpm and I is revealed in Equation (14), thus Km under different illumination intensity can be obtained by Equation (21). Therefore, the concentration c at different photocatalytic reaction time t under different illumination intensity I can be predicted from Equation (22)
1 K m = k p m k a + k d k a

2.4. The Adsorption Equilibrium Constant KL Obtained by Using Adsorption Theory

In fact, the adsorption equilibrium constant KL is thermodynamically constant and can be used to evaluate the adsorption ability. In Langmuir adsorption theory, the adsorption equilibrium constant KL without light irradiation can be obtained as follow [39,40,41]:
c 0 ( c T c 0 ) V = c 0 c m V + 1 K L c m V
where cT is total concentration of benzene filled into the reactor, c0 is initial concentration of gaseous benzene after adsorption equilibrium, cm is the maximum concentration that can be adsorbed by N-TiO2. It is obvious that there is a linear relationship between c0/(cT − c0)V and c0 in Equation (25). By filling different volume of benzene into reactor, cT and c0 can be measured after adsorption equilibrium and were summarized in Table 3. The plot of c0/(cT − c0)V vs. c0/cmV was shown in Figure 5. The slope and intercept of the linear is 1/cmV and 1/KLcmV, respectively. The value of KL was 2761 m3·mol−1, which is an indicator of the adsorption ability of benzene of N-TiO2 at 25 °C.

2.5. Verification of the Modified L-H Model

To verify the modified L-H model, the photodegradation of benzene under the illumination intensity of 23.8 × 104 lx was carried out by fixing other conditions except the initial concentration of benzene was 14.81 ppm. In this case, the calculated kpm and Km is 2.101 × 10−6 mol·kg−1·s−1 mol and 1645 m3·mol−1 respectively. By inputting the values of kpm and Km into Equation (22), the predicted concentration variation of benzene vs. irradiation time was obtained, which is shown in Figure 6 (denoted with the black solid line). The experimentally measured concentration of the benzene was denoted with red solid squares in Figure 6. It is clearly seen that the theoretical prediction shows very good agreement with the experimental results. So the modified L-H model can be used to predict benzene concentration under different illumination intensities at a constant temperature.

3. Materials and Methods

3.1. Preparation and Characterization of Samples

Nanocrystalline N-TiO2 powders were prepared by hydrothermal method following the route used in our previous work [42]. The phase of the nano powders was determined by X-ray diffraction (XRD) with Cu Kα source in the 2θ ranging from 20 to 80°. The morphology of N-TiO2 was characterized by Transmission electron microscopy (TEM, Hitachi, Jeol 200CX, Tokyo, Japan). UV-Vis spectra of the as-prepared sample was measured by Pgeneral UV-1901 instrument. The valence state of N was characterized by X-ray photoelectron spectroscopy (XPS, Thermo Fisher Scientic, Escalab 250, Waltham, MA, USA). Then the N-TiO2 catalysts were dispersed into alcohol with ultrasonic wave of 50 kHz by an ultrasonicato (S6103, Aladdin, Shanghai, China) for two hours. After dispersing, the suspension was spray-coated on the surface of a SiO2 glass substrate (5 cm × 5 cm) and the amount of coated N-TiO2 catalysts was 30 mg. The N-TiO2 coated glass was dried in air under 60 °C for 2 h.

3.2. Photocatalytic Reaction System

The schematic setup of the photocatalytic reaction system is illustrated in Figure 7. The cylindrical reactor with 15 cm in height and 10 cm in diameter was made of 316 L stainless steel. The temperature of the reactor were maintained at 25 °C by a bath circulator. A xenon lamp with a cut-off filter of 420 nm was used as the visible light illumination source. The illumination intensity could be adjusted at the range of 0 to 80 × 104 lx. A quartz window was mounted on the reactor for light irradiation. A gas chromatography (GC-2014, Shimadzu, Kyoto, Japan) was connected to the reactor to measure the concentrations of charged benzene in the reactor. The gas chromatography was equipped with Rtx-wax capillary column (Shimadzu) with 60 m in length, 0.53 mm in internal diameter and 1.0 μm in thickness.

3.3. Photocatalytic Reaction Procedures

The N-TiO2 loaded glass was put into the photocatalytic reaction chamber. After a leakage check, the reactor was pumped to a vacuum of 0.1 atmosphere pressure, then the reactor was irradiated for 24 h under 254 nm ultraviolet light to clean the possible pollutants that may be adsorbed on the surface of the photocatalysts and the reactor as well. After a certain volume of benzene was charged/flushed into the reactor, clean air (N2:O2 = 80%:20%) was flushed into the reactor until the inner pressure was balanced with the atmospheric pressure. The concentration of benzene was set at 30 ppm as much as possible. Then the reactor was kept in dark for 60 min to reach the balance of adsorption-desorption. After that, the xenon lamp was turned on to make the irradiation through the quartz window, while the illumination intensity was adjusted at 36.7 × 104, 46.9 × 104, 61.7 × 104 and 75.1 × 104 lx by adjusting the distance between the light source and the sample. The concentration of the benzene in the reactor was measured and recorded every 30 min. The temperature of the reactor was maintained at 25 °C by a bath circulator.

4. Conclusions

The L-H model has been used to investigate the kinetics of photodegradation of gaseous benzene by N-TiO2 at 25 °C under visible light irradiation. Experimental data indicates that the adsorption equilibrium constant KL calculated according to the L-H model decreased from 1139 to 597 m3·mol−1 when the illumination intensity was increased from 36.7 × 104 lx to 75.1 × 104 lx, whereas it was 2761 m3·mol−1 when in absence of light. This is contrary to the fact that KL should be a constant if the reaction temperature was fixed. The benzene molecules adsorbed on the surface of the N-TiO2 were dynamically photodegraded by the photocatalyst and thus the equilibrium of adsorption-desorption was broken would account for that. Photoreaction coefficient kpm was introduced in the L-H model to compensate the disequilibrium of the adsorption-desorption caused by photodecomposition. Experiment result shows that kpm is proportional to the light intensity I1.482. As a result, the new parameter Km (ka/(kd + kpm)) is closely related to the light intensity. Therefore, the concentration variation of benzene c vs irradiation time t under different light intensity I can be predicted.

Author Contributions

In this paper, P.S., J.Z. and W.L. designed the experiments; P.S., J.Z. and W.L. performed the experiments; P.S., J.Z., W.L. and Q.W. analyzed the data; the manuscript was written by P.S. and edited by W.C.

Funding

This research was funded by the National Key Research and Development Plan of China [Grant Nos. 2016YFC0700901, 2016YFC0700607].

Acknowledgments

This work is financially supported by the National Key Research and Development Plan of China [Grant Nos. 2016YFC0700901, 2016YFC0700607].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sui, H.; Zhang, T.; Cui, J.; Li, X.; Crittenden, J.; Li, X.; He, L. Novel off-gas treatment technology to remove volatile organic compounds with high concentration. Ind. Eng. Chem. Res. 2016, 55, 2594–2603. [Google Scholar] [CrossRef]
  2. Jiang, N.; Hui, C.-X.; Li, J.; Lu, N.; Shang, K.-F.; Wu, Y.; Mizuno, A. Improved performance of parallel surface/packed-bed discharge reactor for indoor VOCs decomposition: Optimization of the reactor structure. J. Phys. D Appl. Phys. 2015, 48, 40. [Google Scholar] [CrossRef]
  3. Ye, C.Z.; Ariya, P.A. Co-adsorption of gaseous benzene, toluene, ethylbenzene, m-xylene (btex) and SO2 on recyclable Fe3O4 nanoparticles at 0–101% relative humidities. J. Environ. Sci. 2015, 31, 164–174. [Google Scholar] [CrossRef] [PubMed]
  4. Zeng, L.; Lu, Z.; Li, M.; Yang, J.; Song, W.; Zeng, D.; Xie, C. A modular calcination method to prepare modified N-doped TiO2 nanoparticle with high photocatalytic activity. Appl. Catal. B Environ. 2016, 183, 308–316. [Google Scholar] [CrossRef]
  5. Ren, L.; Mao, M.; Li, Y.; Lan, L.; Zhang, Z.; Zhao, X. Novel photothermocatalytic synergetic effect leads to high catalytic activity and excellent durability of anatase TiO2 nanosheets with dominant {001} facets for benzene abatement. Appl. Catal. B Environ. 2016, 198, 303–310. [Google Scholar] [CrossRef]
  6. Yadav, H.M.; Kim, J.-S. Solvothermal synthesis of anatase TiO2-graphene oxide nanocomposites and their photocatalytic performance. J. Alloys Compd. 2016, 688, 123–129. [Google Scholar] [CrossRef]
  7. Fujimoto, T.M.; Ponczek, M.; Rochetto, U.L.; Landers, R.; Tomaz, E. Photocatalytic oxidation of selected gas-phase VOCs using UV light, TiO2, and TiO2/Pd. Environ. Sci. Pollut. Res. 2017, 24, 6390–6396. [Google Scholar] [CrossRef] [PubMed]
  8. Wongaree, M.; Chiarakorn, S.; Chuangchote, S.; Sagawa, T. Photocatalytic performance of electrospun CNT/TiO2 nanofibers in a simulated air purifier under visible light irradiation. Environ. Sci. Pollut. Res. 2016, 23, 21395–21406. [Google Scholar] [CrossRef] [PubMed]
  9. Sabbaghi, S.; Mohammadi, M.; Ebadi, H. Photocatalytic degradation of benzene wastewater using PANI-TiO2 nanocomposite under UV and solar light radiation. J. Environ. Eng. 2016, 142, 05015003. [Google Scholar] [CrossRef]
  10. Fang, J.; Chen, Z.; Zheng, Q.; Li, D. Photocatalytic decomposition of benzene enhanced by the heating effect of light: Improving solar energy utilization with photothermocatalytic synergy. Catal. Sci. Technol. 2017, 7, 3303–3311. [Google Scholar] [CrossRef]
  11. Lan, L.; Li, Y.; Zeng, M.; Mao, M.; Ren, L.; Yang, Y.; Liu, H.; Yun, L.; Zhao, X. Efficient UV-Vis-Infrared light-driven catalytic abatement of benzene on amorphous manganese oxide supported on anatase TiO2 nanosheet with dominant {001} facets promoted by a photothermocatalytic synergetic effect. Appl. Catal. B Environ. 2017, 203, 494–504. [Google Scholar] [CrossRef]
  12. Melián, E.P.; Díaz, O.G.; Araña, J.; Rodríguez, J.M.D.; Rendón, E.T.; Melián, J.A.H. Kinetics and adsorption comparative study on the photocatalytic degradation of o-, m- and p-cresol. Catal. Today 2007, 129, 256–262. [Google Scholar] [CrossRef] [Green Version]
  13. Chen, M.; Bao, C.; Cun, T.; Huang, Q. One-pot synthesis of ZnO/oligoaniline nanocomposites with improved removal of organic dyes in water: Effect of adsorption on photocatalytic degradation. Mater. Res. Bull. 2017, 95, 459–467. [Google Scholar] [CrossRef]
  14. Zhi, Y.; Li, Y.; Zhang, Q.; Wang, H. Zno nanoparticles immobilized on flaky layered double hydroxides as photocatalysts with enhanced adsorptivity for removal of acid red g. Langmuir 2010, 26, 15546–15553. [Google Scholar] [CrossRef] [PubMed]
  15. Dong, W.; Lee, C.W.; Lu, X.; Sun, Y.; Hua, W.; Zhuang, G.; Zhang, S.; Chen, J.; Hou, H.; Zhao, D. Synchronous role of coupled adsorption and photocatalytic oxidation on ordered mesoporous anatase TiO2-SiO2 nanocomposites generating excellent degradation activity of rhb dye. Appl. Catal. B Environ. 2010, 95, 197–207. [Google Scholar] [CrossRef]
  16. Kim, S.B.; Hong, S.C. Kinetic study for photocatalytic degradation of volatile organic compounds in air using thin film TiO2 photocatalyst. Appl. Catal. B Environ. 2002, 35, 305–315. [Google Scholar] [CrossRef]
  17. Golshan, M.; Zare, M.; Goudarzi, G.; Abtahi, M.; Babaei, A.A. Fe3O4@hap-enhanced photocatalytic degradation of Acid Red73 in aqueous suspension: Optimization, kinetic, and mechanism studies. Mater. Res. Bull. 2017, 91, 59–67. [Google Scholar] [CrossRef]
  18. Deng, X.-Q.; Liu, J.-L.; Li, X.-S.; Zhu, B.; Zhu, X.; Zhu, A.-M. Kinetic study on visible-light photocatalytic removal of formaldehyde from air over plasmonic Au/TiO2. Catal. Today 2017, 281, 630–635. [Google Scholar] [CrossRef]
  19. Langmuir, I. The constitution and fundamental properties of solids and liquids. Part I. Solids. J. Am. Chem. Soc. 1916, 38, 2221–2295. [Google Scholar] [CrossRef]
  20. Liu, P.; Yu, X.; Wang, F.; Zhang, W.; Yang, L.; Liu, Y. Degradation of formaldehyde and benzene by TiO2 photocatalytic cement based materials. J. Wuhan Univ. Technol.-Mater. Sci. Ed. 2017, 32, 391–396. [Google Scholar] [CrossRef]
  21. Yuzawa, H.; Aoki, M.; Otake, K.; Hattori, T.; Itoh, H.; Yoshida, H. Reaction mechanism of aromatic ring hydroxylation by water over platinum-loaded titanium oxide photocatalyst. J. Phys. Chem. C 2012, 116, 25376–25387. [Google Scholar] [CrossRef]
  22. Einaga, H.; Mochiduki, K.; Teraoka, Y. Photocatalytic oxidation processes for toluene oxidation over TiO2 catalysts. Catalysts 2013, 3, 219. [Google Scholar] [CrossRef]
  23. Lin, Y.-H.; Hsueh, H.-T.; Chang, C.-W.; Chu, H. The visible light-driven photodegradation of dimethyl sulfide on S-doped TiO2: Characterization, kinetics, and reaction pathways. Appl. Catal. B Environ. 2016, 199, 1–10. [Google Scholar] [CrossRef]
  24. Dhada, I.; Nagar, P.K.; Sharma, M. Photo-catalytic oxidation of individual and mixture of benzene, toluene and p-xylene. Int. J. Environ. Sci. Technol. 2016, 13, 39–46. [Google Scholar] [CrossRef]
  25. Cheng, L.; Kang, Y.; Li, G. Effect factors of benzene adsorption and degradation by nano-TiO2 immobilized on diatomite. J. Nanomaterials 2012, 2012, 6. [Google Scholar] [CrossRef]
  26. Ollis, D.F. Kinetics of liquid phase photocatalyzed reactions:  An illuminating approach. J. Phys. Chem. B 2005, 109, 2439–2444. [Google Scholar] [CrossRef] [PubMed]
  27. Xu, Y.; Langford, C.H. Variation of langmuir adsorption constant determined for TiO2-photocatalyzed degradation of acetophenone under different light intensity. J. Photochem. Photobiol. A Chem. 2000, 133, 67–71. [Google Scholar] [CrossRef]
  28. Giovannetti, R.; Rommozzi, E.; D’Amato, C.; Zannotti, M. Kinetic model for simultaneous adsorption/photodegradation process of alizarin red s in water solution by nano-TiO2 under visible light. Catalysts 2016, 6, 84. [Google Scholar] [CrossRef]
  29. Silva, C.G.; Faria, J.L. Effect of key operational parameters on the photocatalytic oxidation of phenol by nanocrystalline sol-gel TiO2 under uv irradiation. J. Mol. Catal. A Chem. 2009, 305, 147–154. [Google Scholar] [CrossRef]
  30. Du, E.; Zhang, Y.X.; Zheng, L. Photocatalytic degradation of dimethyl phthalate in aqueous TiO2 suspension: A modified langmuir–hinshelwood model. React. Kinet. Catal. Lett. 2009, 97, 83–90. [Google Scholar] [CrossRef]
  31. Brosillon, S.; Lhomme, L.; Vallet, C.; Bouzaza, A.; Wolbert, D. Gas phase photocatalysis and liquid phase photocatalysis: Interdependence and influence of substrate concentration and photon flow on degradation reaction kinetics. Appl. Catal. B Environ. 2008, 78, 232–241. [Google Scholar] [CrossRef]
  32. He, F.; Li, J.; Li, T.; Li, G. Solvothermal synthesis of mesoporous TiO2: The effect of morphology, size and calcination progress on photocatalytic activity in the degradation of gaseous benzene. Chem. Eng. J. 2014, 237, 312–321. [Google Scholar] [CrossRef]
  33. Soltani, T.; Lee, B.-K. Novel and facile synthesis of Ba-doped BiFeO3 nanoparticles and enhancement of their magnetic and photocatalytic activities for complete degradation of benzene in aqueous solution. J. Hazard. Mater. 2016, 316, 122–133. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, S.-H.; Hsiao, Y.-C.; Chiu, Y.-J.; Tseng, Y.-H. A simple route in fabricating carbon-modified titania films with glucose and their visible-light-responsive photocatalytic activity. Catalysts 2018, 8, 178. [Google Scholar] [CrossRef]
  35. Li, C.X.; Jin, H.Z.; Yang, Z.Z.; Yang, X.; Dong, Q.Z.; Li, T.T. Preparation and photocatalytic properties of mesporous RGO/TiO2 composites. J. Inorg. Mater. 2017, 32, 357–364. [Google Scholar]
  36. Xu, J.; Liu, Q.; Lin, S.; Cao, W. One-step synthesis of nanocrystalline N-doped TiO2 powders and their photocatalytic activity under visible light irradiation. Res. Chem. Intermed. 2013, 39, 1655–1664. [Google Scholar] [CrossRef]
  37. Wang, J.; Ruan, H.; Li, W.; Li, D.; Hu, Y.; Chen, J.; Shao, Y.; Zheng, Y. Highly efficient oxidation of gaseous benzene on novel Ag3VO4/TiO2 nanocomposite photocatalysts under visible and simulated solar light irradiation. J. Phys. Chem. C 2012, 116, 13935–13943. [Google Scholar] [CrossRef]
  38. Cong, Y.; Zhang, J.; Chen, F.; Anpo, M.; He, D. Preparation, photocatalytic activity, and mechanism of nano- TiO2 co-doped with nitrogen and iron (iii). J. Phys. Chem. C 2007, 111, 10618–10623. [Google Scholar] [CrossRef]
  39. Foo, K.Y.; Hameed, B.H. Insights into the modeling of adsorption isotherm systems. Chem. Eng. J. 2010, 156, 2–10. [Google Scholar] [CrossRef]
  40. Wei, D.; Li, S.; Fang, L.; Zhang, Y. Effect of environmental factors on enhanced adsorption and photocatalytic regeneration of molecular imprinted TiO2 polymers for fluoroquinolones. Environ. Sci. Pollut. Res. 2018, 25, 6729–6738. [Google Scholar] [CrossRef] [PubMed]
  41. Li, Z.; Kim, J.K.; Chaudhari, V.; Mayadevi, S.; Campos, L.C. Degradation of metaldehyde in water by nanoparticle catalysts and powdered activated carbon. Environ. Sci. Pollut. Res. 2017, 24, 17861–17873. [Google Scholar] [CrossRef] [PubMed]
  42. Xu, J.; Sun, P.; Zhang, X.; Jiang, P.; Cao, W.; Chen, P.; Jin, H. Synthesis of N-doped TiO2 with different nitrogen concentrations by mild hydrothermal method. Mater. Manuf. Processes 2014, 29, 1162–1167. [Google Scholar] [CrossRef]

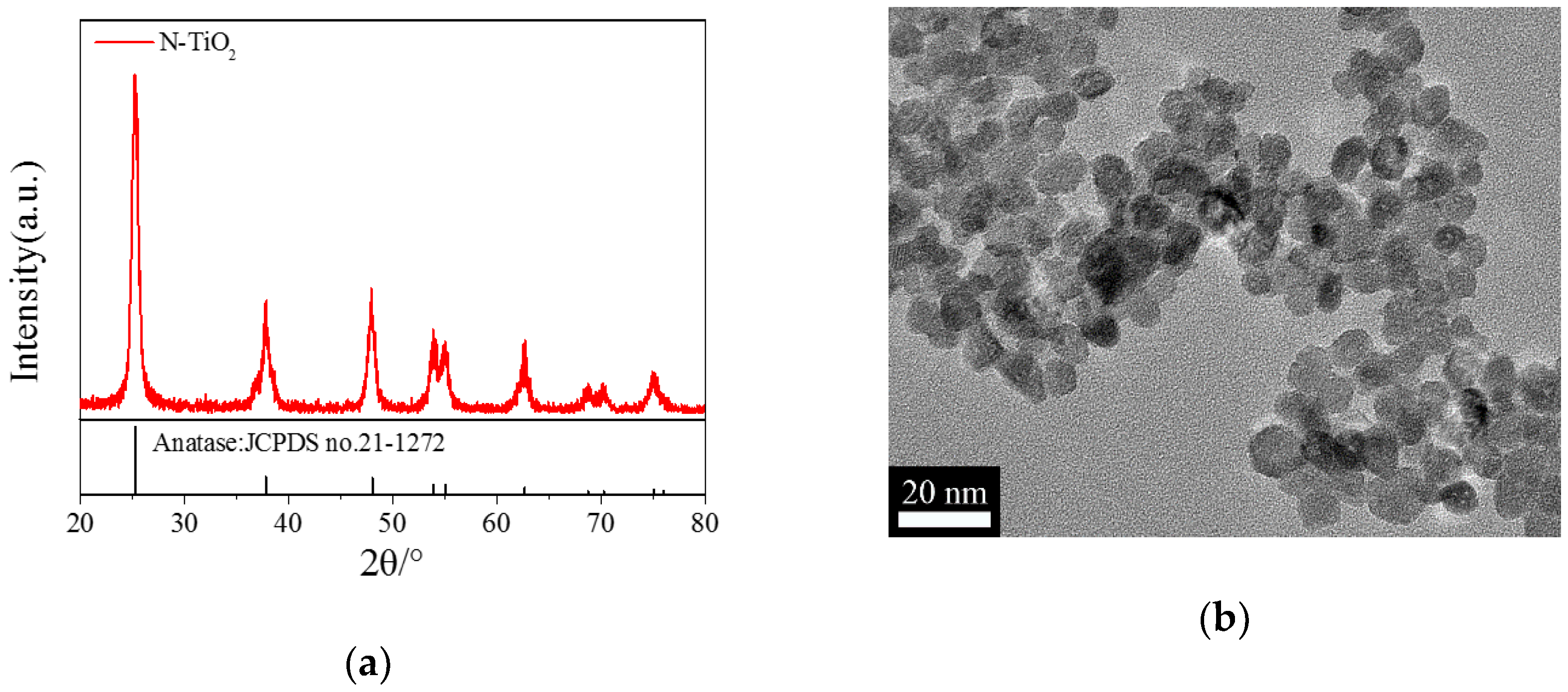

Figure 1. Characterization of N-TiO2 catalysts (a) XRD patterns, (b) TEM image, (c) UV-Vis spectrum, (d) N1s binding energy peak.
Figure 1. Characterization of N-TiO2 catalysts (a) XRD patterns, (b) TEM image, (c) UV-Vis spectrum, (d) N1s binding energy peak.
Catalysts 08 00326 g001aCatalysts 08 00326 g001b

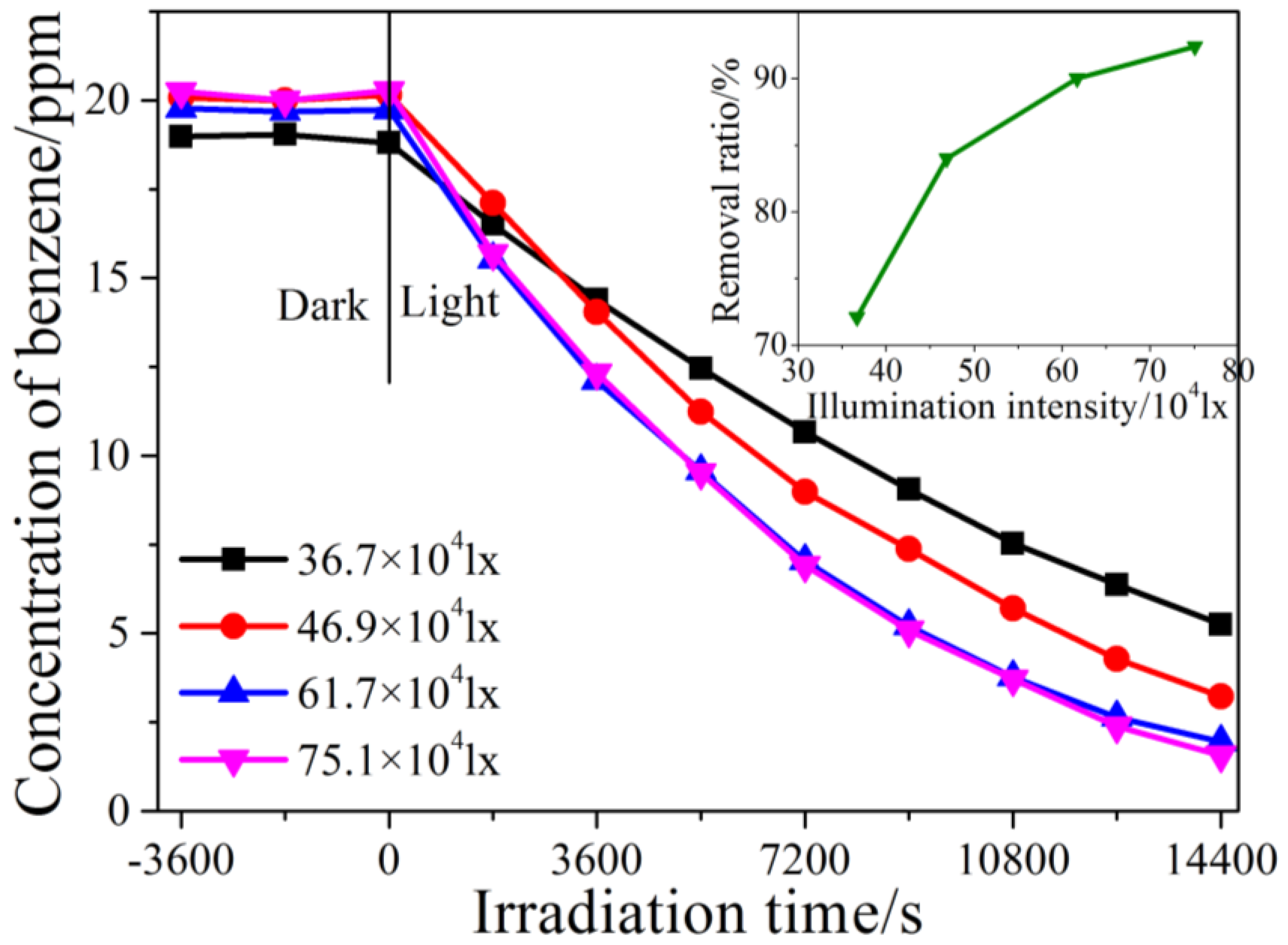

Figure 2. Variation of benzene concentration vs. photocatalytic degradation time under different illumination intensity.
Figure 2. Variation of benzene concentration vs. photocatalytic degradation time under different illumination intensity.
Catalysts 08 00326 g002

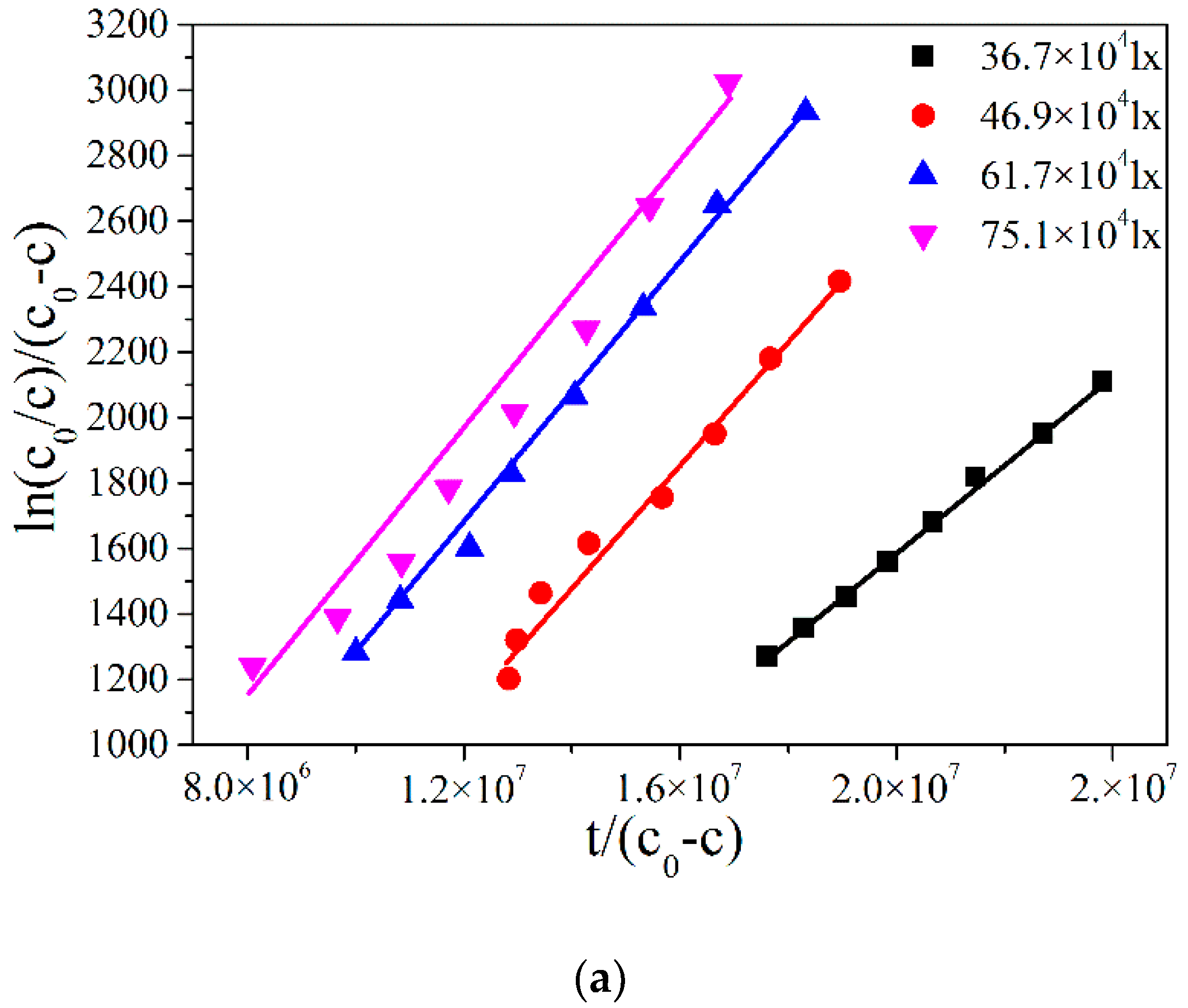

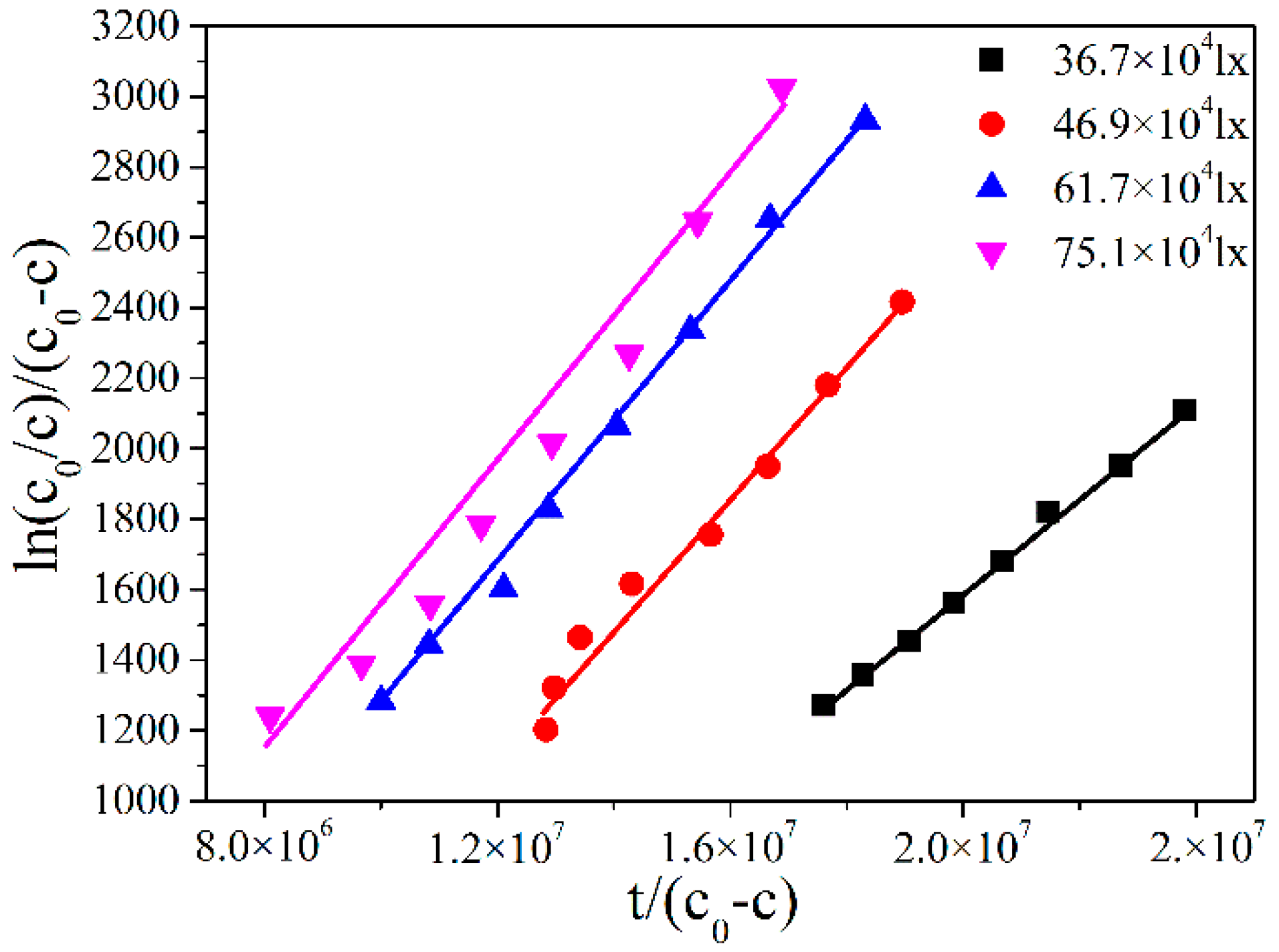

Figure 3. Plots of ln(c0/c)/(c0c) vs. t/(c0c) under different illumination intensity. (solid points: experimental results; solid line(curve): fitted results).
Figure 3. Plots of ln(c0/c)/(c0c) vs. t/(c0c) under different illumination intensity. (solid points: experimental results; solid line(curve): fitted results).
Catalysts 08 00326 g003

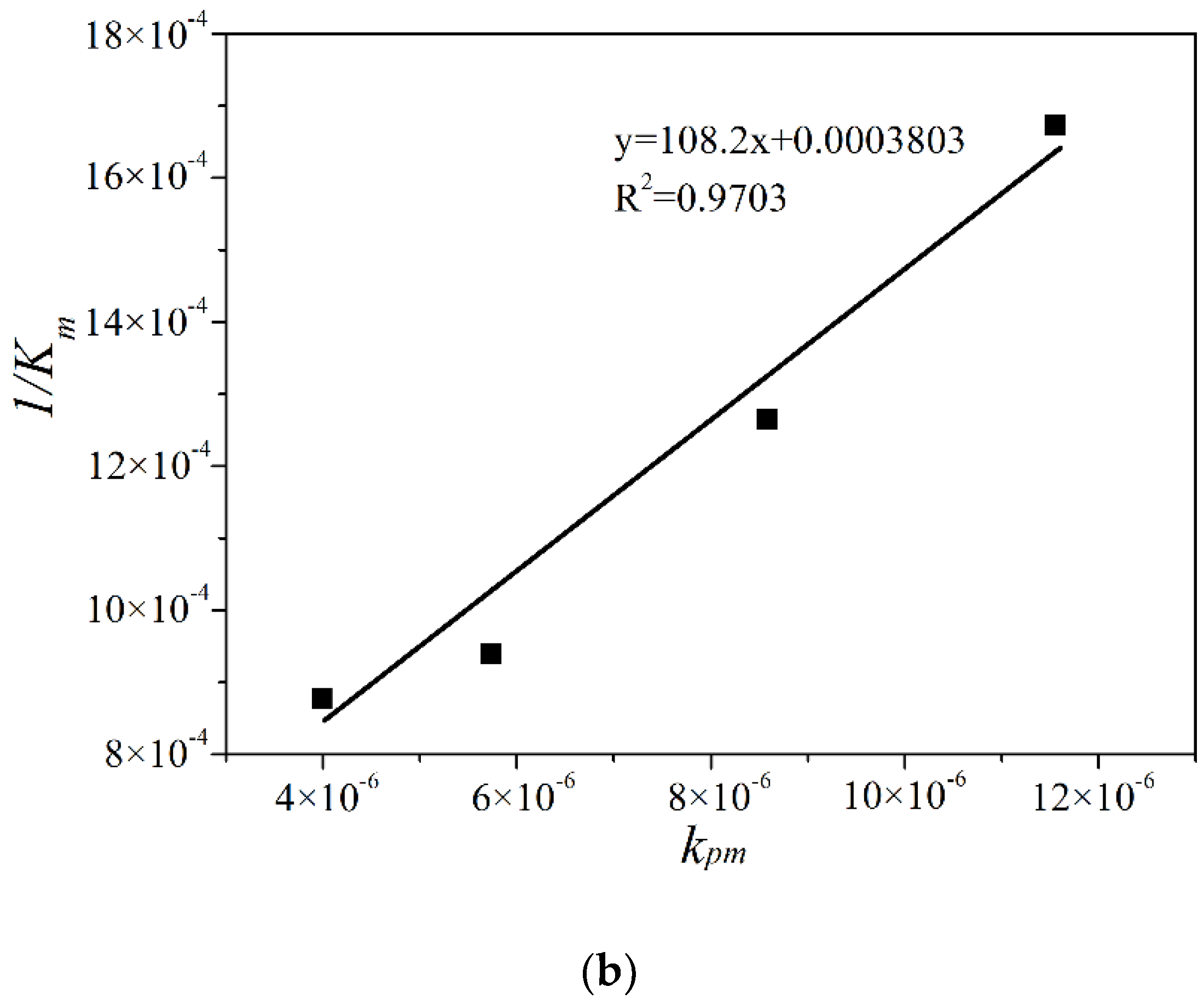

Figure 4. The relationship of the kinetic parameters in modified L-H model (a) The linear of ln(c0/c)/(c0c) vs. t/(c0c), (b) The linear of 1/Km vs. kpm (solid points: experimental results; solid line(curve): Fitted results).
Figure 4. The relationship of the kinetic parameters in modified L-H model (a) The linear of ln(c0/c)/(c0c) vs. t/(c0c), (b) The linear of 1/Km vs. kpm (solid points: experimental results; solid line(curve): Fitted results).
Catalysts 08 00326 g004aCatalysts 08 00326 g004b

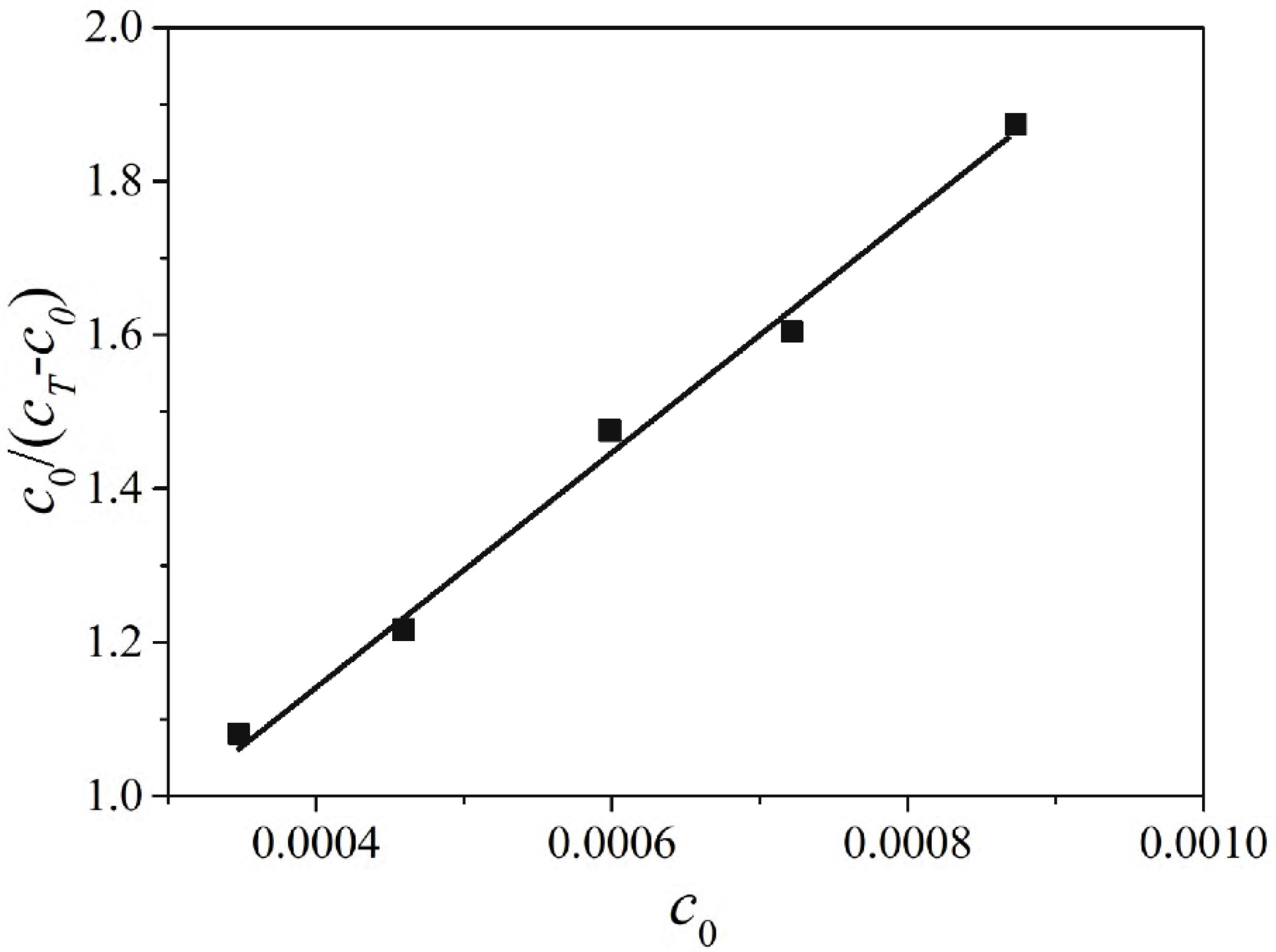

Figure 5. Linear relationship between c0/(cT − c0) and c0 (solid points: experimental results; solid line(curve): fitted results).
Figure 5. Linear relationship between c0/(cT − c0) and c0 (solid points: experimental results; solid line(curve): fitted results).
Catalysts 08 00326 g005

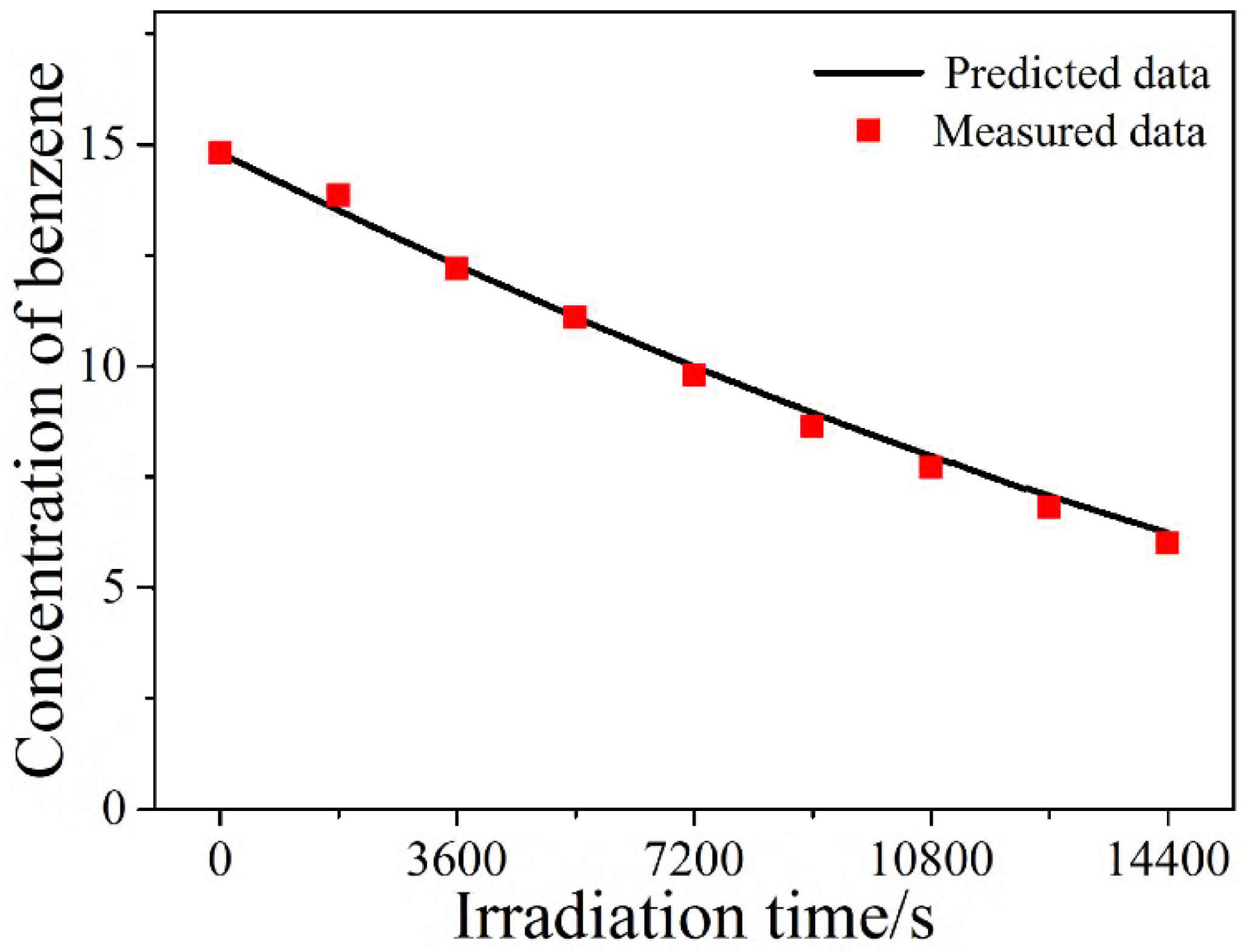

Figure 6. The predicted and measured concentration of benzene vs. time.
Figure 6. The predicted and measured concentration of benzene vs. time.
Catalysts 08 00326 g006

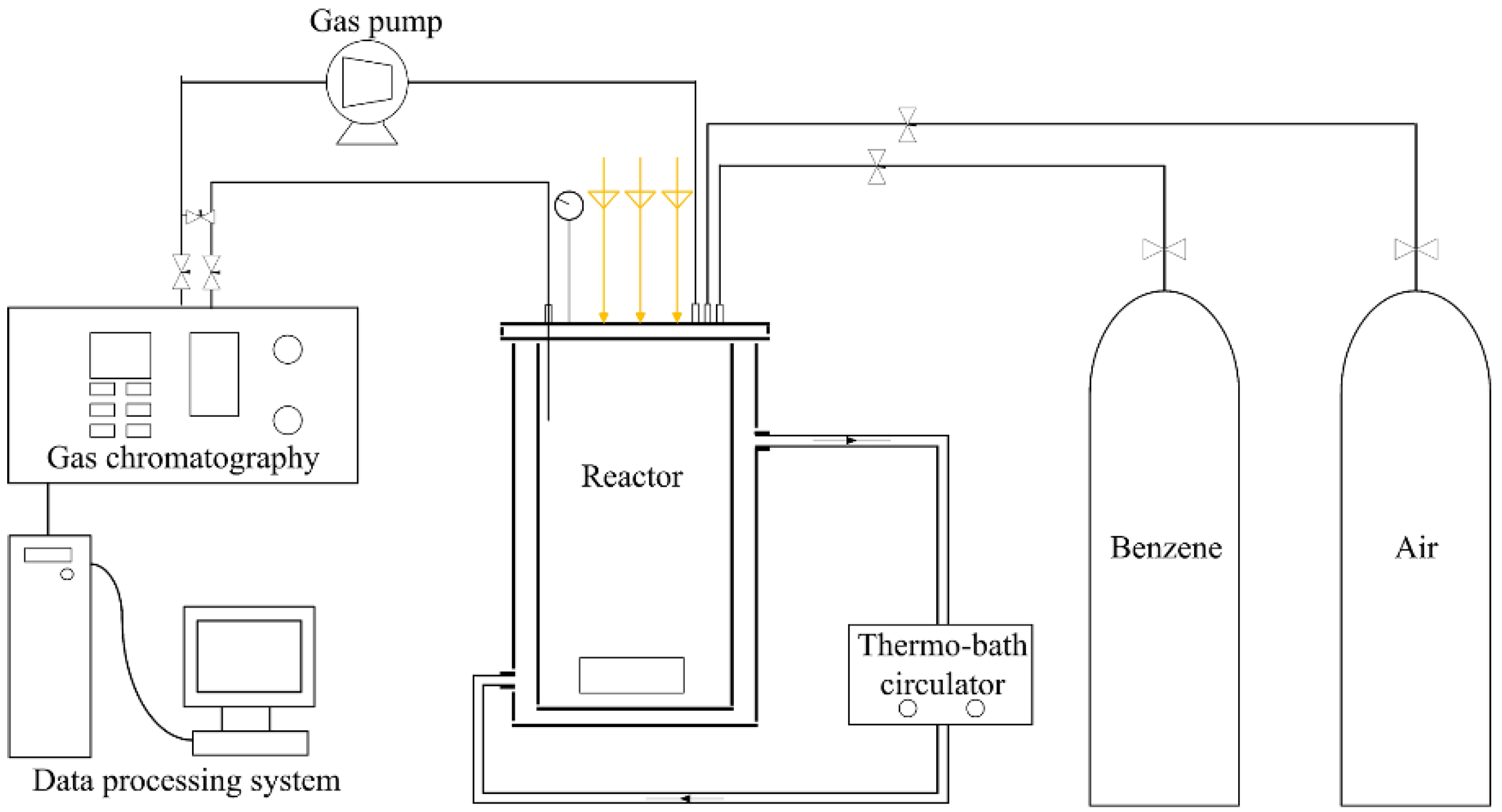

Figure 7. Schematic illustration of the photocatalytic reaction.
Figure 7. Schematic illustration of the photocatalytic reaction.
Catalysts 08 00326 g007
Table 1. Calculated Kpm and KL under different illumination intensity using the original L-H model.
Table 1. Calculated Kpm and KL under different illumination intensity using the original L-H model.
Illumination Intensity/104 lxkpm/
10−6 mol·kg−1·s−1
KL/
m3·mol−1
R2
36.73.99211390.9981
46.95.73110640.9847
61.78.5897910.9961
75.111.555970.9674
Table 2. Results of modified L-H model under different illumination intensity.
Table 2. Results of modified L-H model under different illumination intensity.
Illumination Intensity/104 lxPhotoreaction Coefficient kpm/10−6 mol·kg−1·s−1Coverage Coefficient Km/m3·mol−1Adsorption Constant ka/m3·kg−1·−1Desorption Constant kd/mol·kg−1·s−1Adsorption Equilibrium Constant KL/m3·mol−1
36.73.99211399.242 × 10−33.514 × 10−62629
46.95.7311064
61.78.589791
75.111.55597
Table 3. Concentration of benzene before and after adsorption equilibrium at 25 °C.
Table 3. Concentration of benzene before and after adsorption equilibrium at 25 °C.
Total Concentration Filled into the Reactor ct/ppmInitial Concentration after Adsorption Equilibrium c0/ppm
157.79
18.7510.29
22.513.41
26.2516.17
3019.56
