Integration of a Droplet-Based Microfluidic System and Silicon Nanoribbon FET Sensor

Afrasiabi, Roodabeh; Soderberg, Lovisa M.; Joensson, Haakan N.; Björk, Per; Andersson Svahn, Helene; Linnros, Jan

doi:10.3390/mi7080134

Submit to this Journal Review for this Journal Edit a Special Issue

Article Menu

...

Open AccessFeature PaperArticle

Integration of a Droplet-Based Microfluidic System and Silicon Nanoribbon FET Sensor

^1,†,

^2,†

^2,*,

³,

Helene Andersson Svahn

² and

Jan Linnros

Materials and Nano Physics, School of Information and Communication Technology, KTH Royal Institute of Technology, SE-164 40 Kista, Sweden

Division of Proteomics and Nanobiotechnology, Science for Life Laboratory, KTH Royal Institute of Technology, SE-171 65 Solna, Sweden

Acreo Swedish ICT AB, SE-164 40 Kista, Sweden

Author to whom correspondence should be addressed.

^†

These authors contributed equally to the work.

Academic Editors: Andrew J. deMello and Xavier Casadevall i Solvas

Micromachines 2016, 7(8), 134; https://doi.org/10.3390/mi7080134

Received: 5 July 2016 / Revised: 27 July 2016 / Accepted: 29 July 2016 / Published: 5 August 2016

(This article belongs to the Special Issue Droplet Microfluidics: Techniques and Technologies, Volume II)

View Full-Text Download PDF

Browse Figures

Citation Export

Abstract

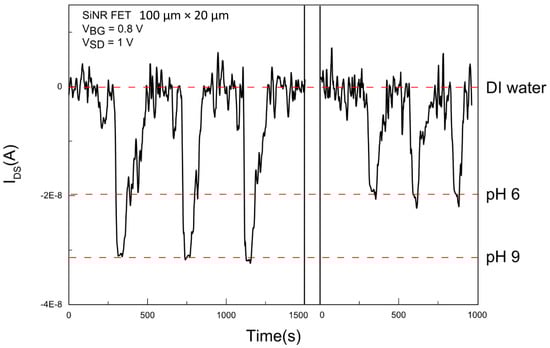

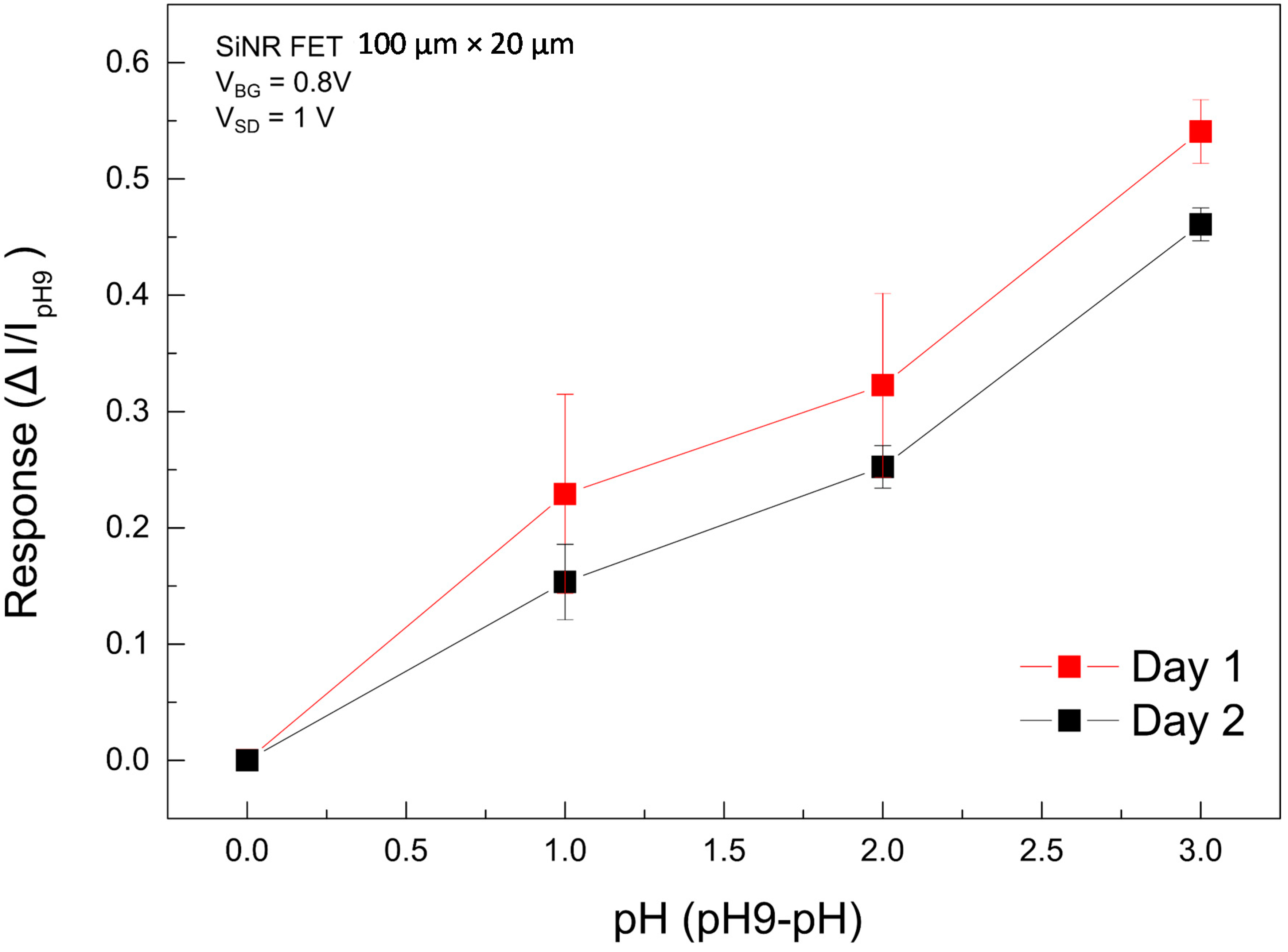

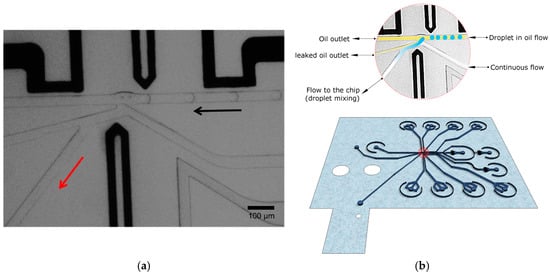

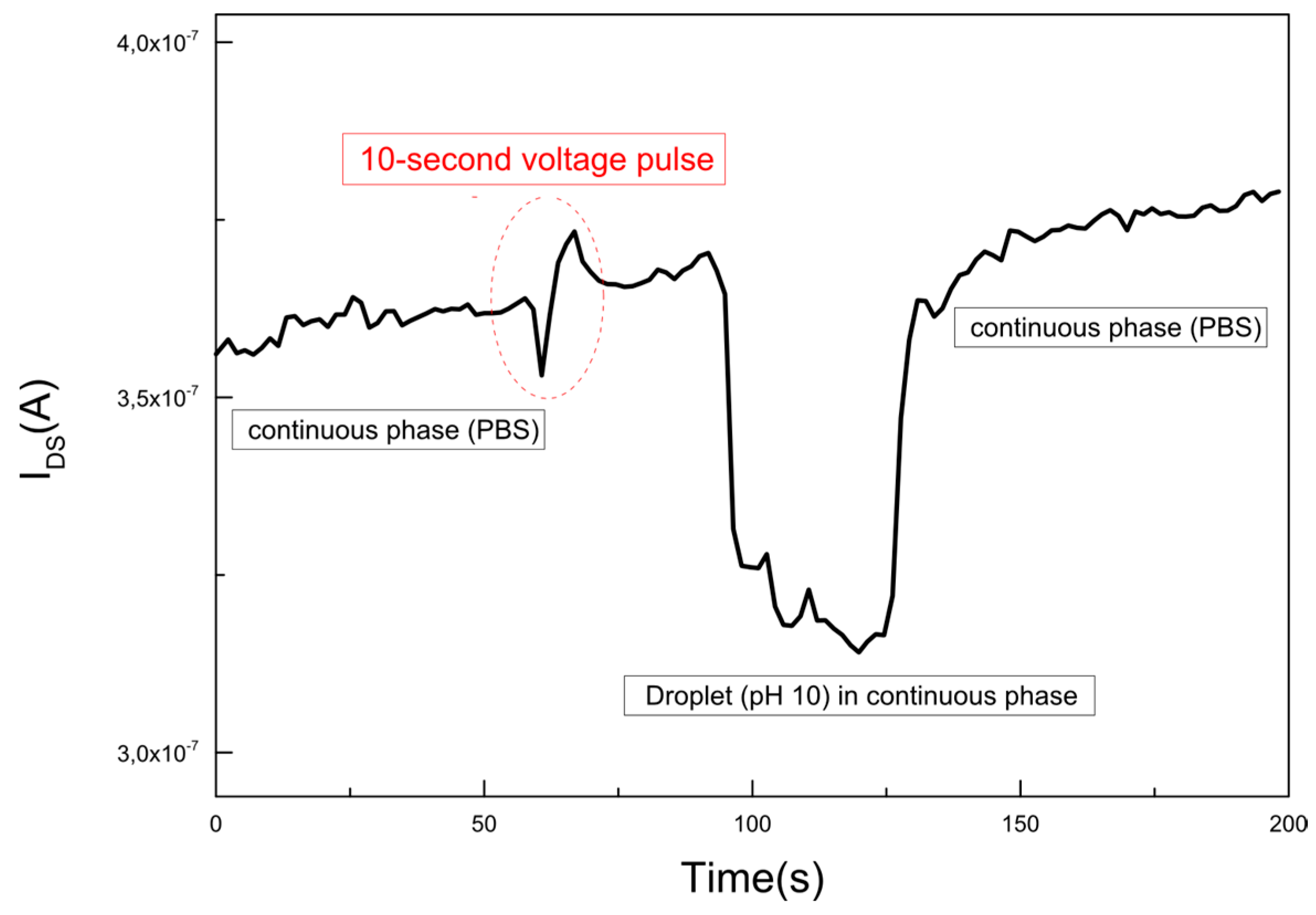

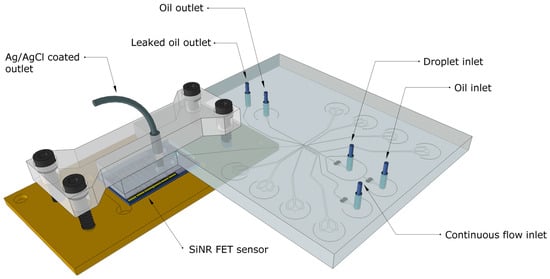

We present a novel microfluidic system that integrates droplet microfluidics with a silicon nanoribbon field-effect transistor (SiNR FET), and utilize this integrated system to sense differences in pH. The device allows for selective droplet transfer to a continuous water phase, actuated by dielectrophoresis, and subsequent detection of the pH level in the retrieved droplets by SiNR FETs on an electrical sensor chip. The integrated microfluidic system demonstrates a label-free detection method for droplet microfluidics, presenting an alternative to optical fluorescence detection. In this work, we were able to differentiate between droplet trains of one pH-unit difference. The pH-based detection method in our integrated system has the potential to be utilized in the detection of biochemical reactions that induce a pH-shift in the droplets. View Full-Text

Keywords: NanoFET; silicon nanoribbon; droplet microfluidics; pH measurement
