Powder Filling and Sintering of 3D In-chip Solenoid Coils with High Aspect Ratio Structure

1
National Key Laboratory of Science and Technology on Aero Engines Aero-Thermodynamics, Beihang University, Beijing 100191, China
2
Microsystems Technology Laboratories, Massachusetts Institute of Technology, Boston, MA 02139, USA
*
Author to whom correspondence should be addressed.
Micromachines 2020, 11(3), 328; https://doi.org/10.3390/mi11030328
Received: 21 February 2020 / Revised: 18 March 2020 / Accepted: 19 March 2020 / Published: 22 March 2020

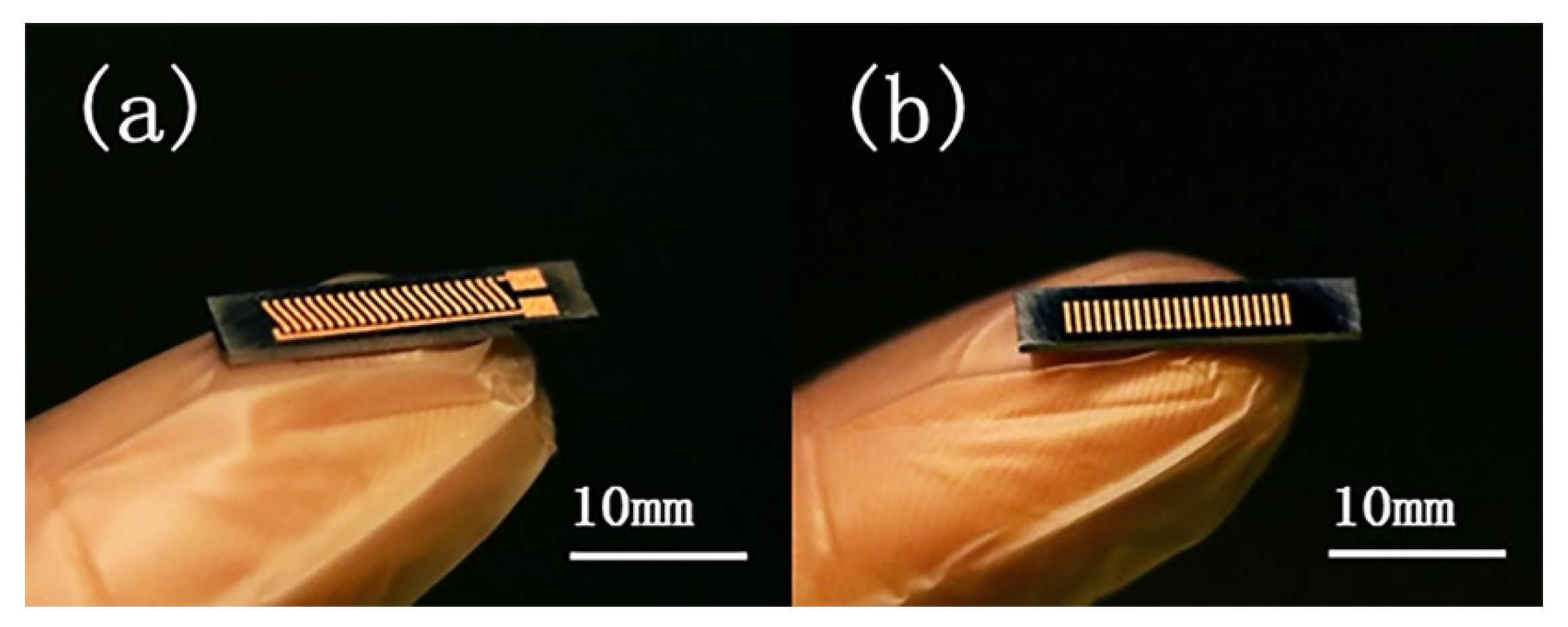

In this study, a 3D coil embedded in a silicon substrate including densely distributed through-silicon vias (TSVs) was fabricated via a rapid metal powder sintering process. The filling and sintering methods for microdevices were evaluated, and the effects of powder types were compared. The parameters influencing the properties and processing speed were analyzed. The results showed that the pre-alloyed powder exhibited the best uniformity and stability when the experiment used two or more types of powders to avoid the segregation effect. The smaller the particle diameter, the better the inductive performance will be. The entire structure can be sintered near the melting point of the alloy, and increasing the temperature increases strength, while resulting in low resistivity. Finally, an 800-µm-high coil was fabricated. This process does not need surface metallization and seed layer formation. The forming process involves only sintering instead of slowly growing copper with a tiny current. Therefore, this process has advantages, such as a process time of 7 h, corresponding to an 84% reduction compared to current electroplating processes (45 h), and a 543% efficiency improvement. Thus, this process is more efficient, controllable, stable, and suitable for mass production of devices with flexible dimensions. View Full-Text
Keywords: through-silicon-vias (TSVs); three-dimensional (3D) solenoid coils; microelectromechanical system (MEMS); powder filling; metal powder sintering through-silicon-vias (TSVs); three-dimensional (3D) solenoid coils; microelectromechanical system (MEMS); powder filling; metal powder sintering
Show Figures

Figure 1

MDPI and ACS Style

Huang, Y.; Li, H.; Sun, J.; Zhai, Y.; Li, H.; Xu, T. Powder Filling and Sintering of 3D In-chip Solenoid Coils with High Aspect Ratio Structure. Micromachines 2020, 11, 328.
