Calibration of a Field-Scale Soil and Water Assessment Tool (SWAT) Model with Field Placement of Best Management Practices in Alger Creek, Michigan

Merriman, Katherine R.; Russell, Amy M.; Rachol, Cynthia M.; Daggupati, Prasad; Srinivasan, Raghavan; Hayhurst, Brett A.; Stuntebeck, Todd D.

doi:10.3390/su10030851

Submit to this Journal Review for this Journal Edit a Special Issue

Article Menu

...

Open AccessEditor’s ChoiceArticle

Calibration of a Field-Scale Soil and Water Assessment Tool (SWAT) Model with Field Placement of Best Management Practices in Alger Creek, Michigan

Katherine R. Merriman

^1,*

³,

⁴

⁵

and

Todd D. Stuntebeck

⁶

U.S. Geological Survey Central Midwest Water Science Center, Urbana, IL 61801, USA

U.S. Geological Survey Upper Midwest Water Science Center, Lansing, MI 48911, USA

School of Engineering, University of Guelph, Guelph, ON N1G 2W1, Canada

⁴

Spatial Science Laboratory, Ecosystem Science and Management Department, Texas A & M University, College Station, TX 77843, USA

⁵

U.S. Geological Survey New York Water Science Center, Ithaca, NY 14850, USA

⁶

U.S. Geological Survey Upper Midwest Water Science Center, Middleton, WI 53562, USA

Author to whom correspondence should be addressed.

Sustainability 2018, 10(3), 851; https://doi.org/10.3390/su10030851

Received: 20 February 2018 / Revised: 13 March 2018 / Accepted: 15 March 2018 / Published: 16 March 2018

(This article belongs to the Special Issue Selected Papers on Sustainable Water Resources Management from the 2017 and 2018 International SWAT (Soil and Water Assessment Tool) Conference)

View Full-Text Download PDF

Browse Figures

Citation Export

Abstract

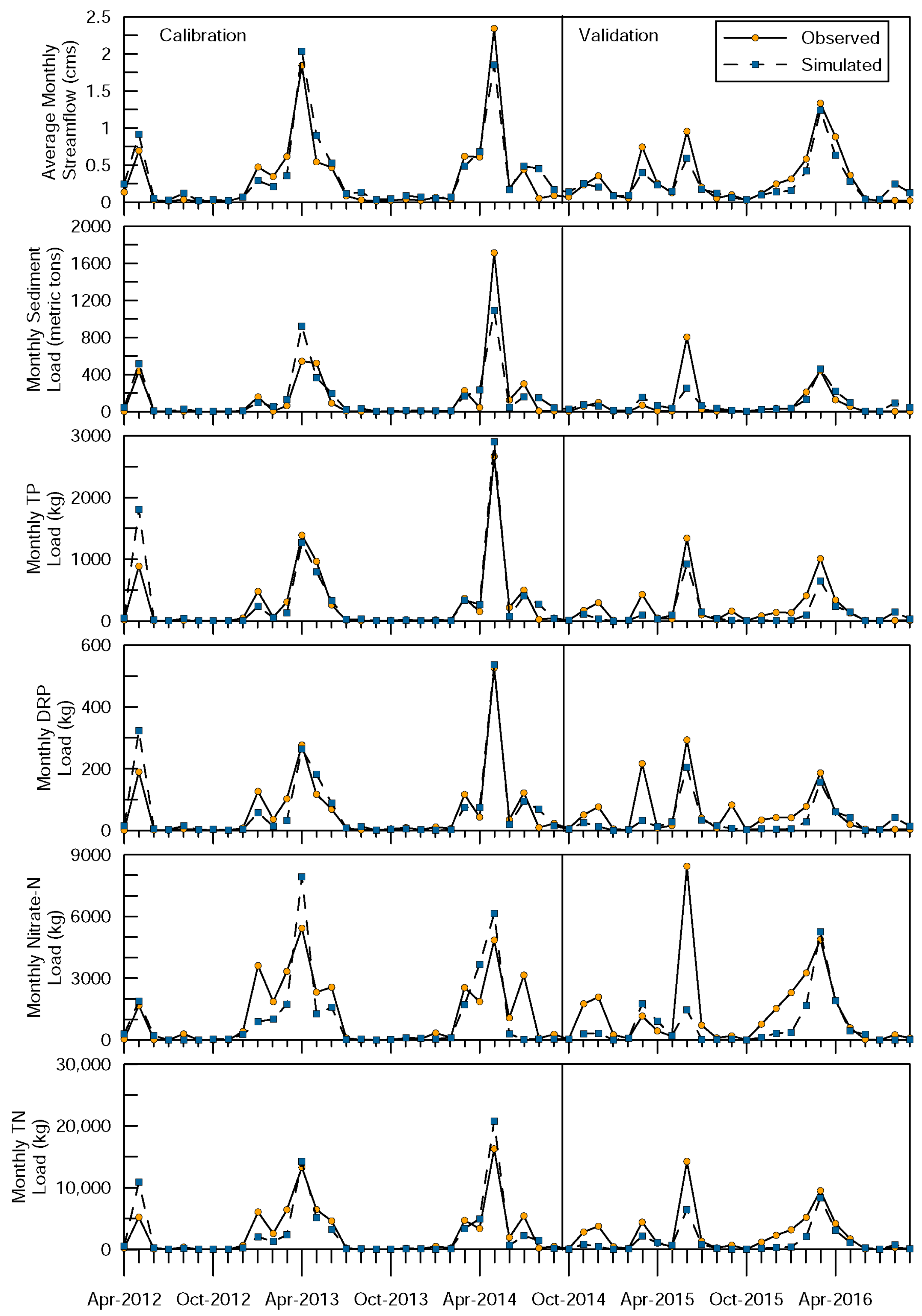

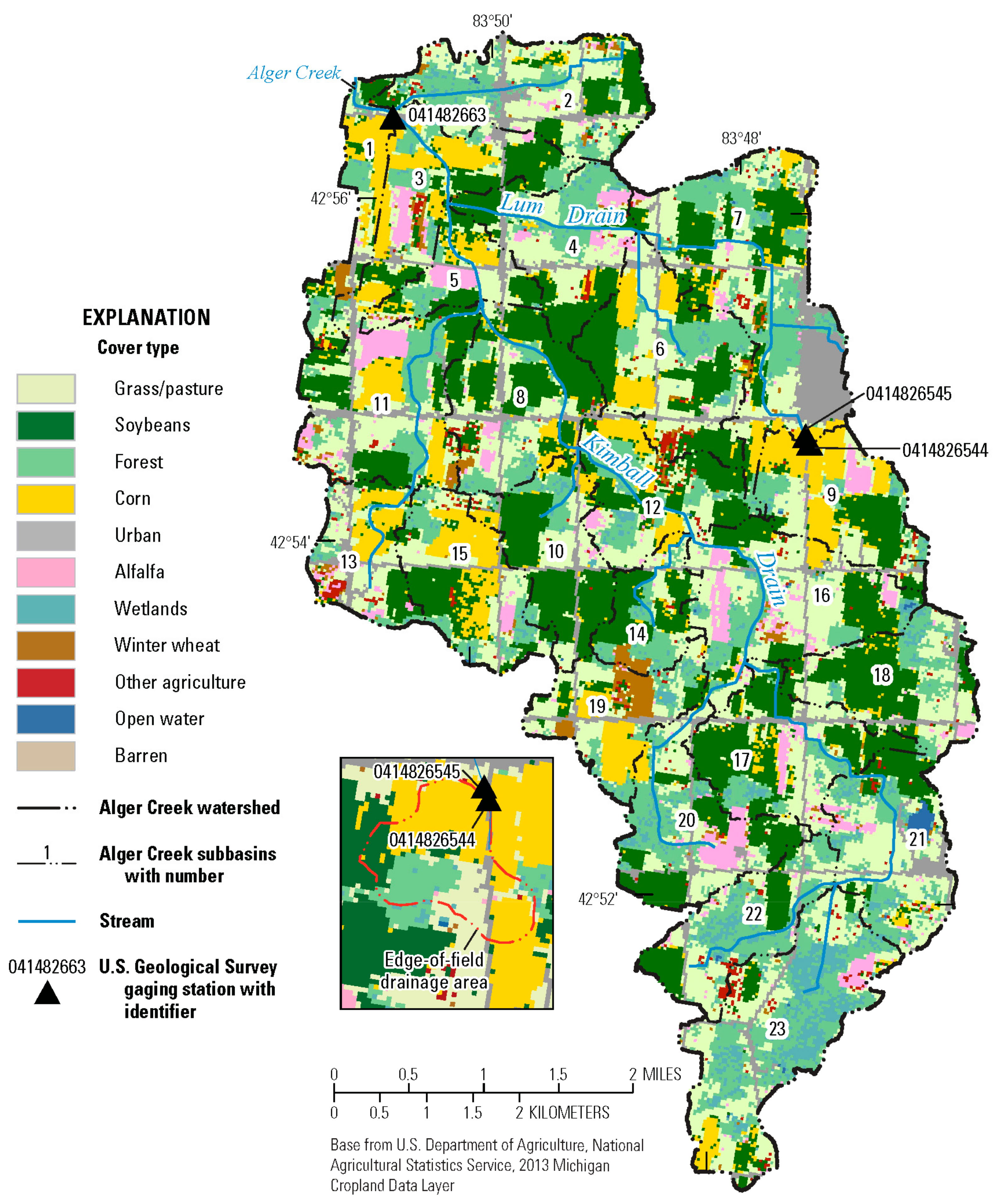

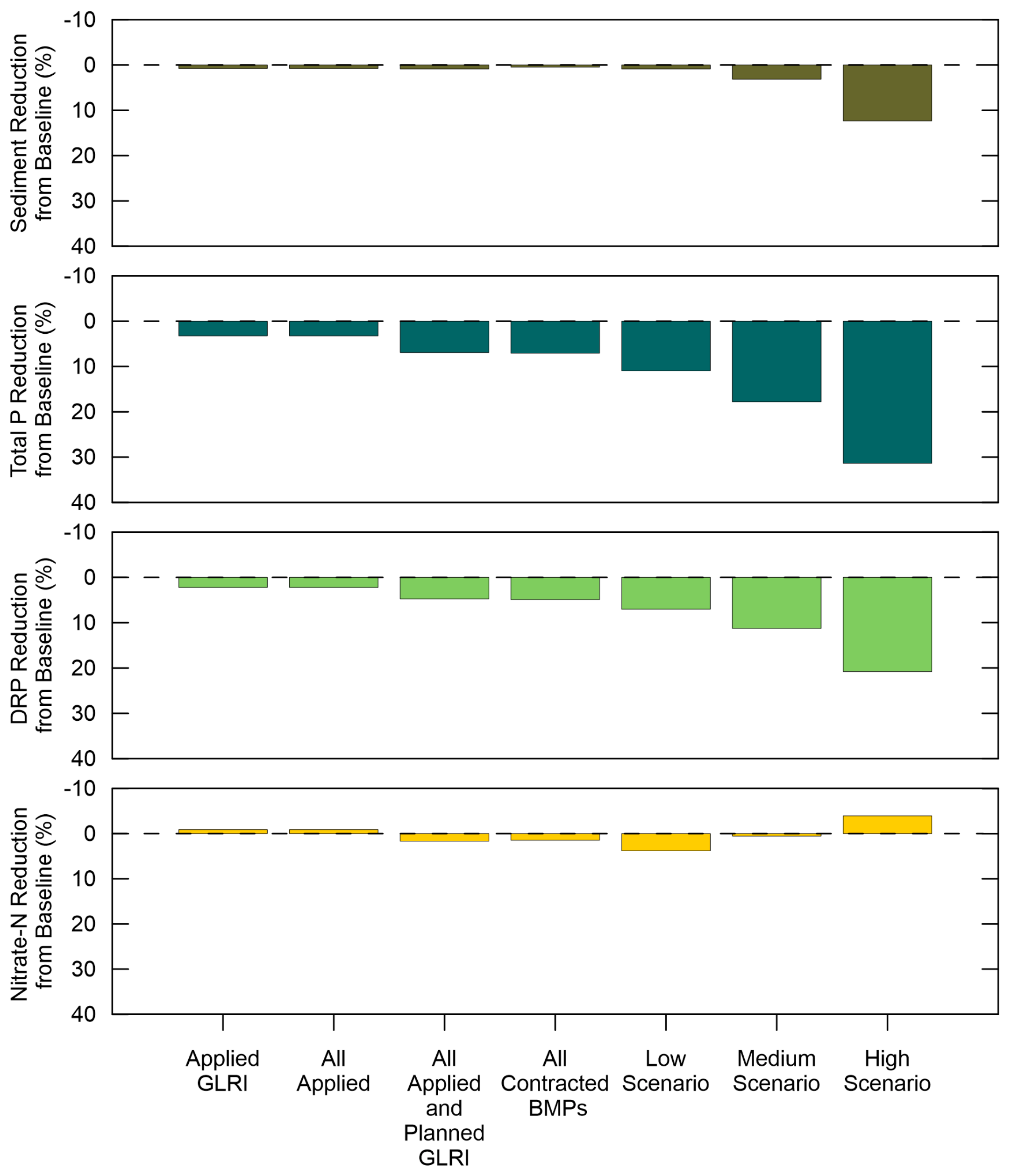

Subwatersheds within the Great Lakes “Priority Watersheds” were targeted by the Great Lakes Restoration Initiative (GLRI) to determine the effectiveness of the various best management practices (BMPs) from the U.S. Department of Agriculture-Natural Resources Conservation Service National Conservation Planning (NCP) Database. A Soil and Water Assessment Tool (SWAT) model is created for Alger Creek, a 50 km² tributary watershed to the Saginaw River in Michigan. Monthly calibration yielded very good Nash–Sutcliffe efficiency (NSE) ratings for flow, sediment, total phosphorus (TP), dissolved reactive phosphorus (DRP), and total nitrogen (TN) (0.90, 0.79, 0.87, 0.88, and 0.77, respectively), and satisfactory NSE rating for nitrate (0.51). Two-year validation results in at least satisfactory NSE ratings for flow, sediment, TP, DRP, and TN (0.83, 0.54, 0.73, 0.53, and 0.60, respectively), and unsatisfactory NSE rating for nitrate (0.28). The model estimates the effect of BMPs at the field and watershed scales. At the field-scale, the most effective single practice at reducing sediment, TP, and DRP is no-tillage followed by cover crops (CC); CC are the most effective single practice at reducing nitrate. The most effective BMP combinations include filter strips, which can have a sizable effect on reducing sediment and phosphorus loads. At the watershed scale, model results indicate current NCP BMPs result in minimal sediment and nutrient reductions (<10%). View Full-Text

Keywords: best management practices (BMPs), Soil and Water Assessment Tool (SWAT), nutrients; field-scale; Great Lakes Restoration Initiative (GLRI), edge-of-field (EOF)

▼ Show Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited

Supplementary Material

Externally hosted supplementary file 1
Doi: https://doi.org/10.5066/F7ST7P39
Description: Komiskey, M. J.; Rachol, C. M.; Stuntebeck, T.; Hayhurst, B.; Toussant, C.; Dobrowolski, E. Daily loads of nutrients, sediment, and chloride at Great Lakes Restoration Initiative USGS edge-of-field and tile stations: U.S. Geological Survey data release. 2018, doi:https://doi.org/10.5066/F7ST7P39.
