A Miniaturized Antenna with Negative Index Metamaterial Based on Modified SRR and CLS Unit Cell for UWB Microwave Imaging Applications

by
Md. Moinul Islam
1,*,
Mohammad Tariqul Islam
2,
Md. Samsuzzaman
2,
Mohammad Rashed Iqbal Faruque
1,
Norbahiah Misran
2 and
Mohd Fais Mansor
2
1
Space Science Centre (ANGKASA), Research Centre Building, Universiti Kebangsaan Malaysia, 43600 UKM, Bangi, Selangor, Malaysia
2
Department of Electrical, Electronic and Systems Engineering, Faculty of Engineering and Built Environment, Universiti Kebangsaan Malaysia, 43600 UKM, Bangi, Selangor, Malaysia
*
Author to whom correspondence should be addressed.
Academic Editor: Jordi Sort
Materials 2015, 8(2), 392-407; https://doi.org/10.3390/ma8020392
Received: 17 October 2014 / Accepted: 12 January 2015 / Published: 23 January 2015
View Full-Text Download PDF
Browse Figures

Abstract

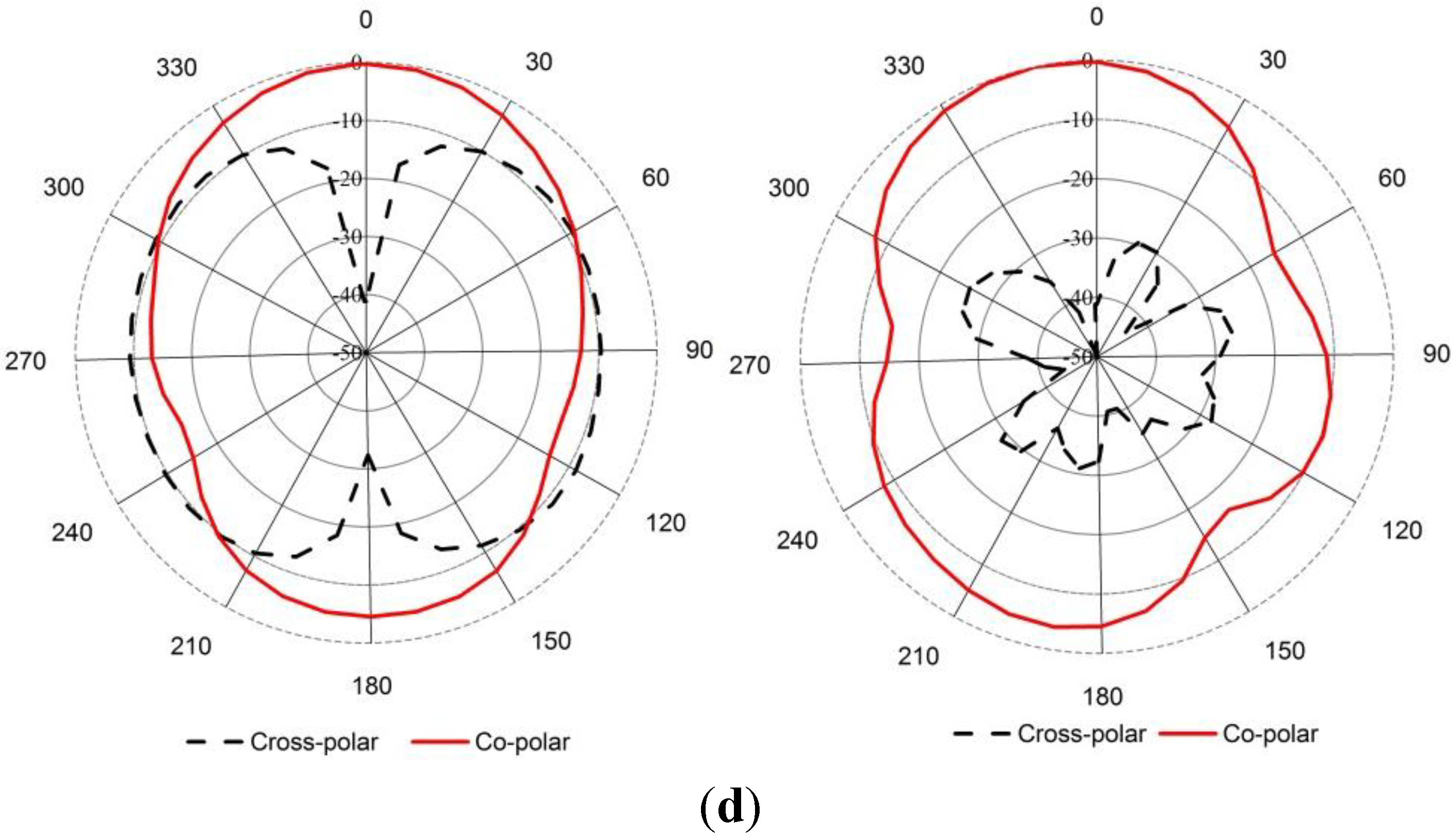

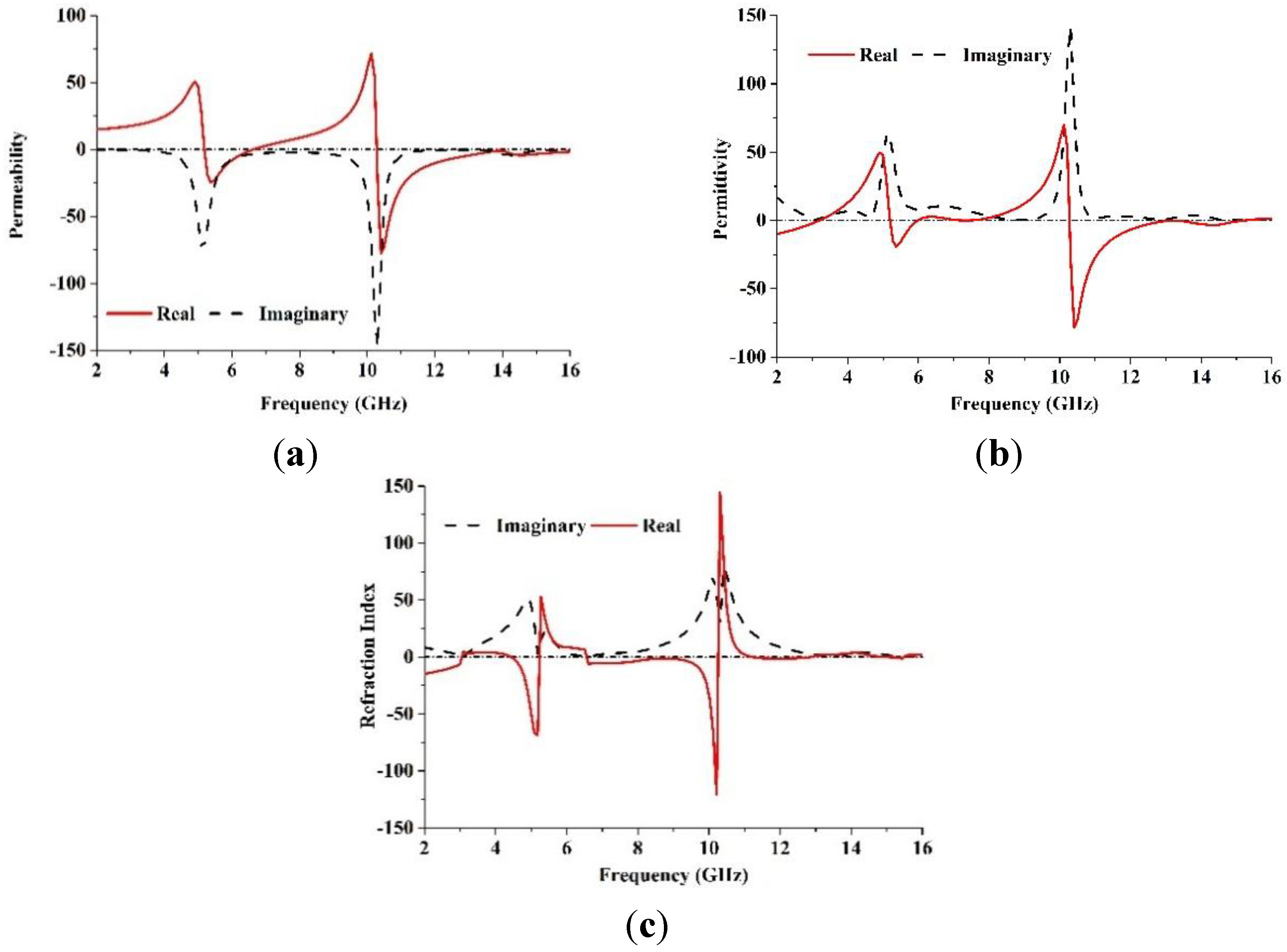

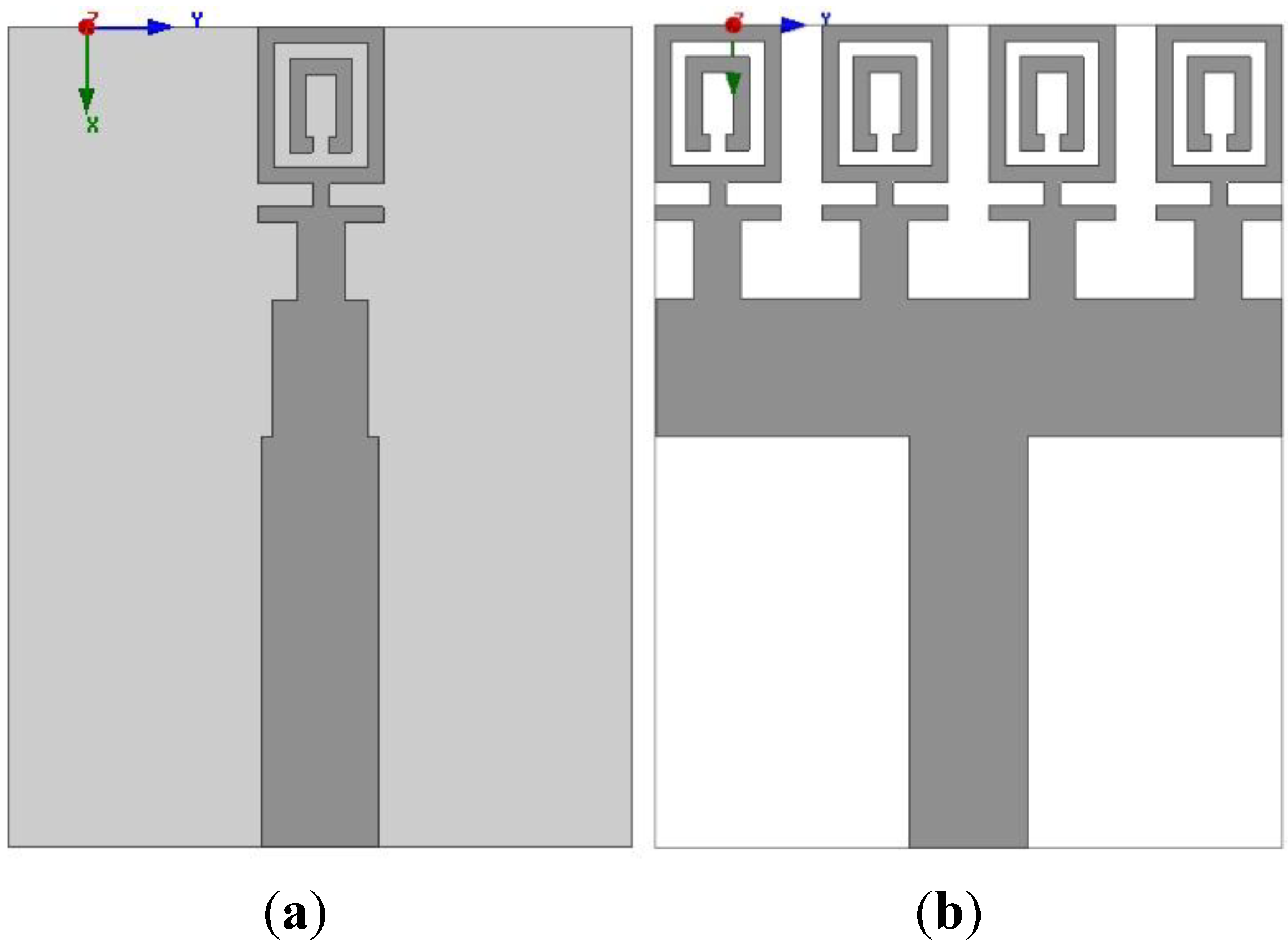

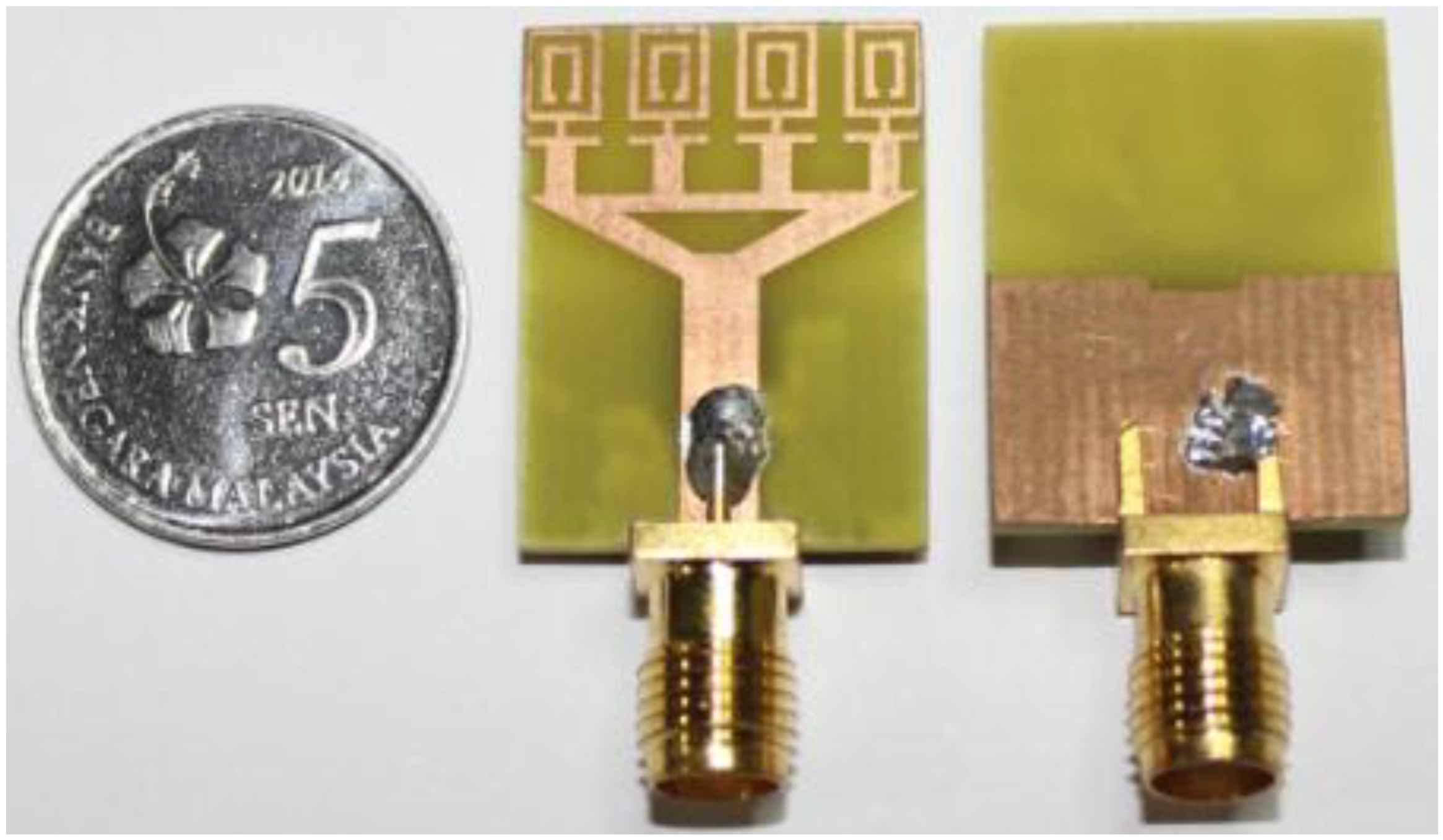

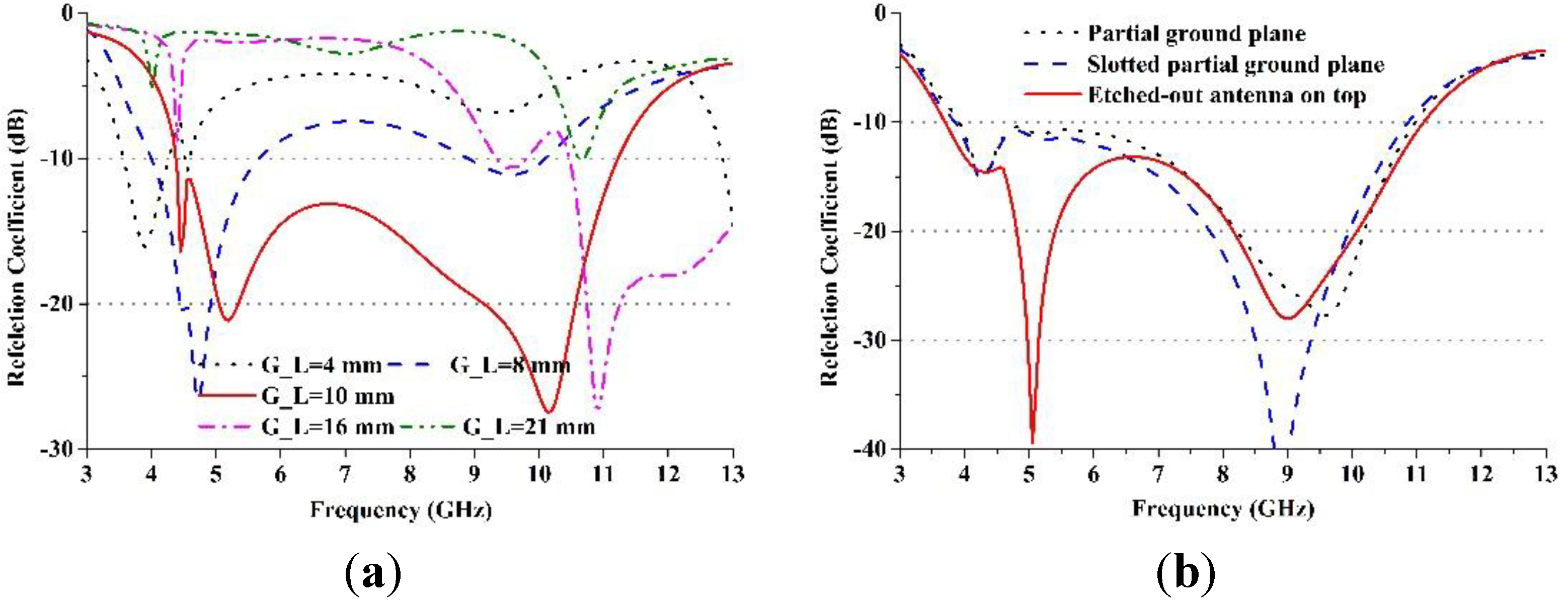

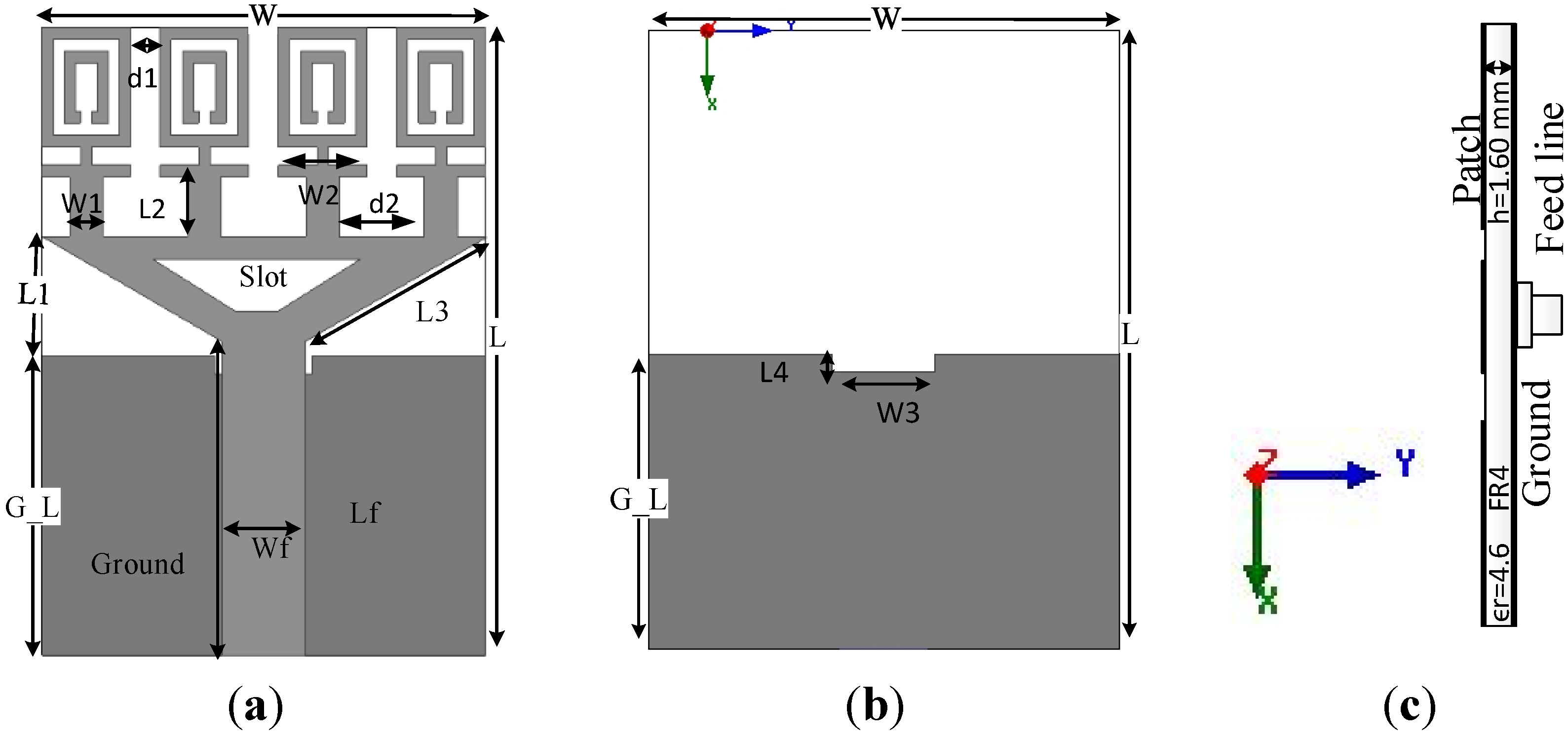

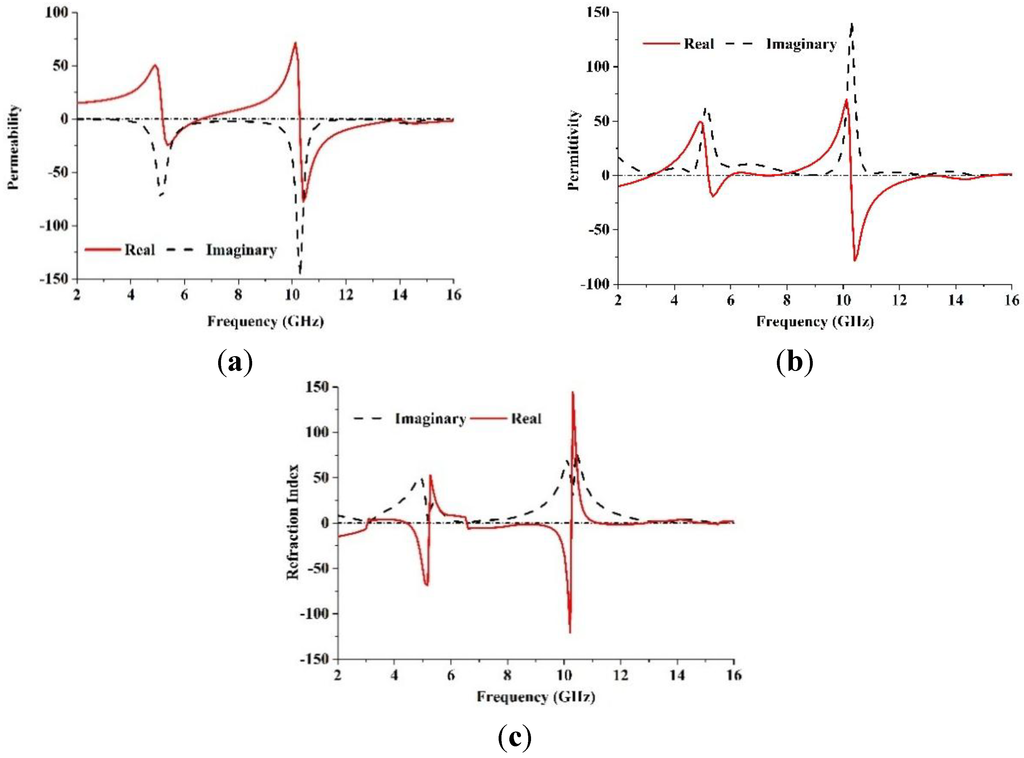

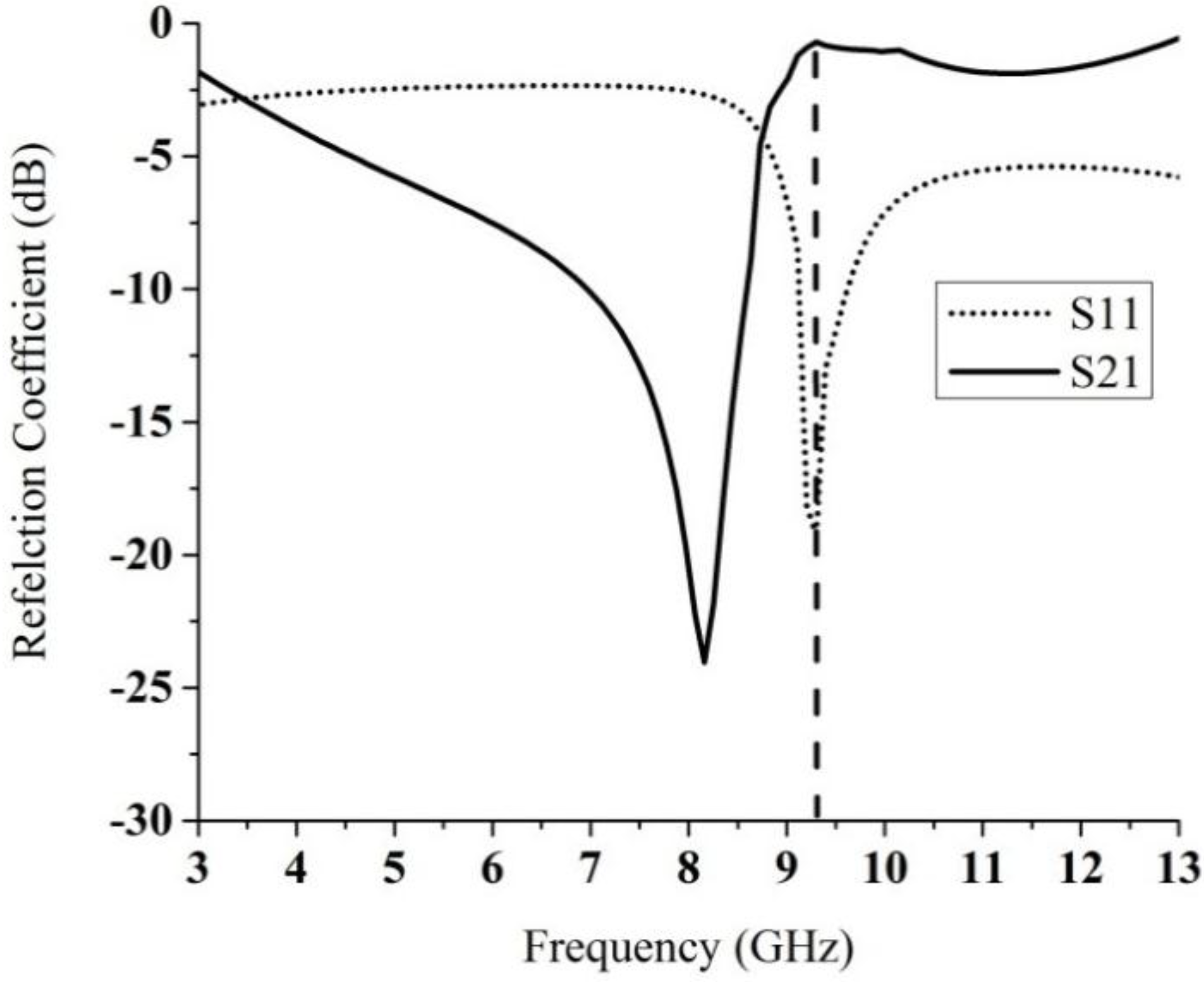

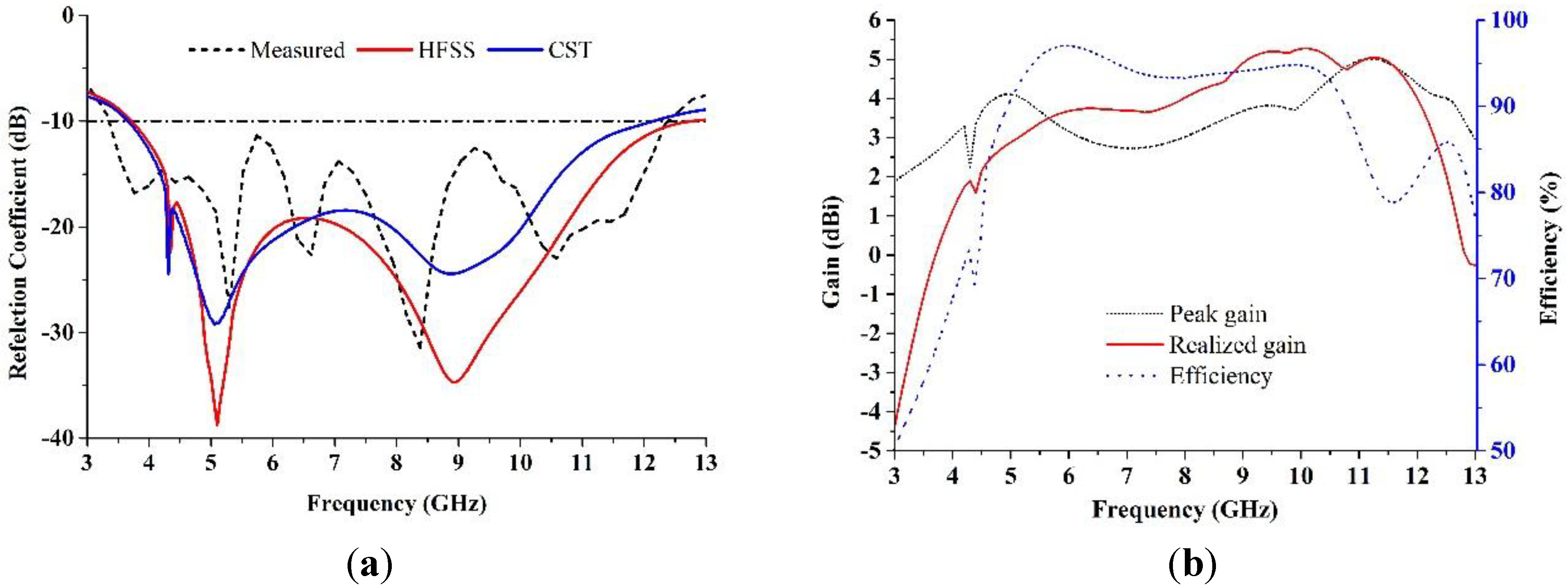

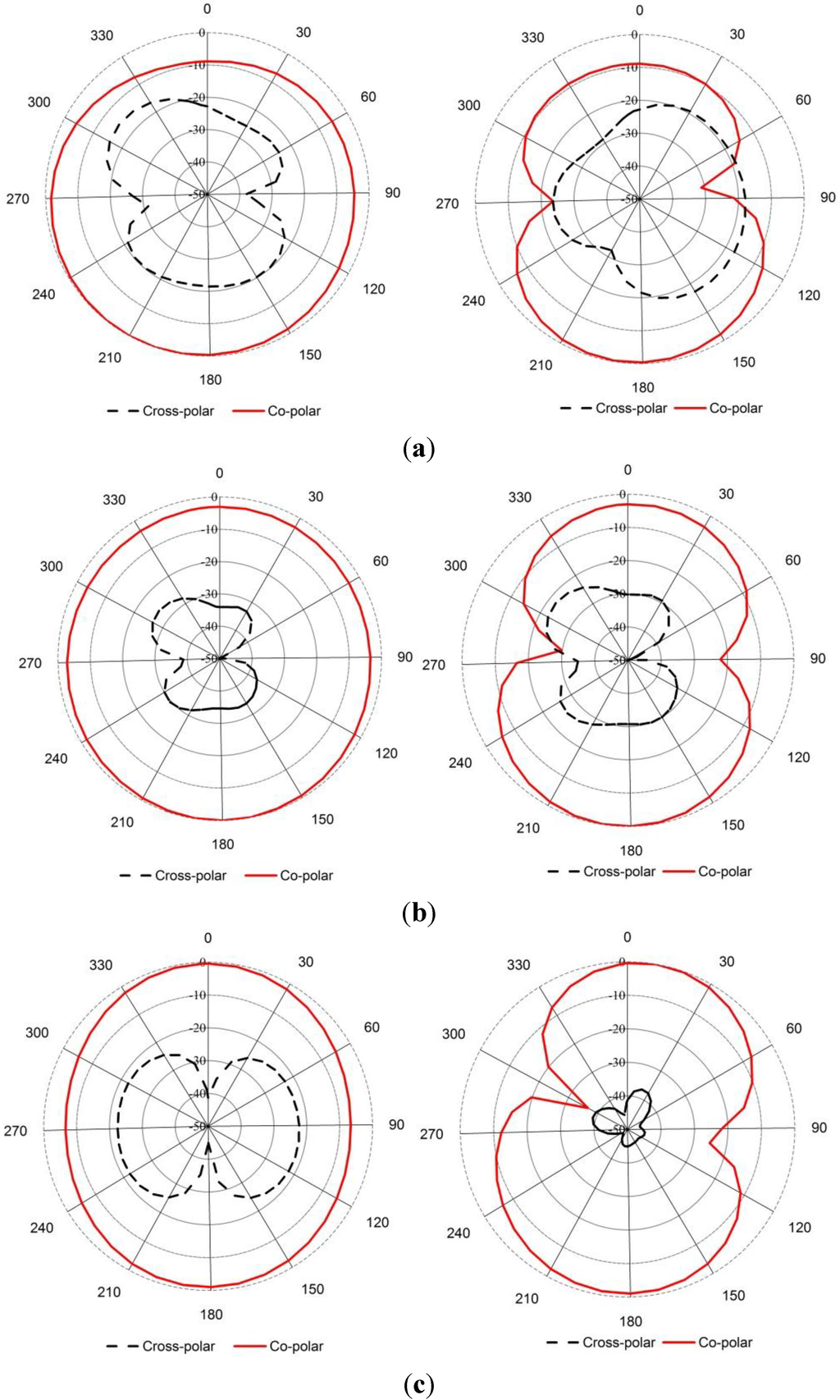

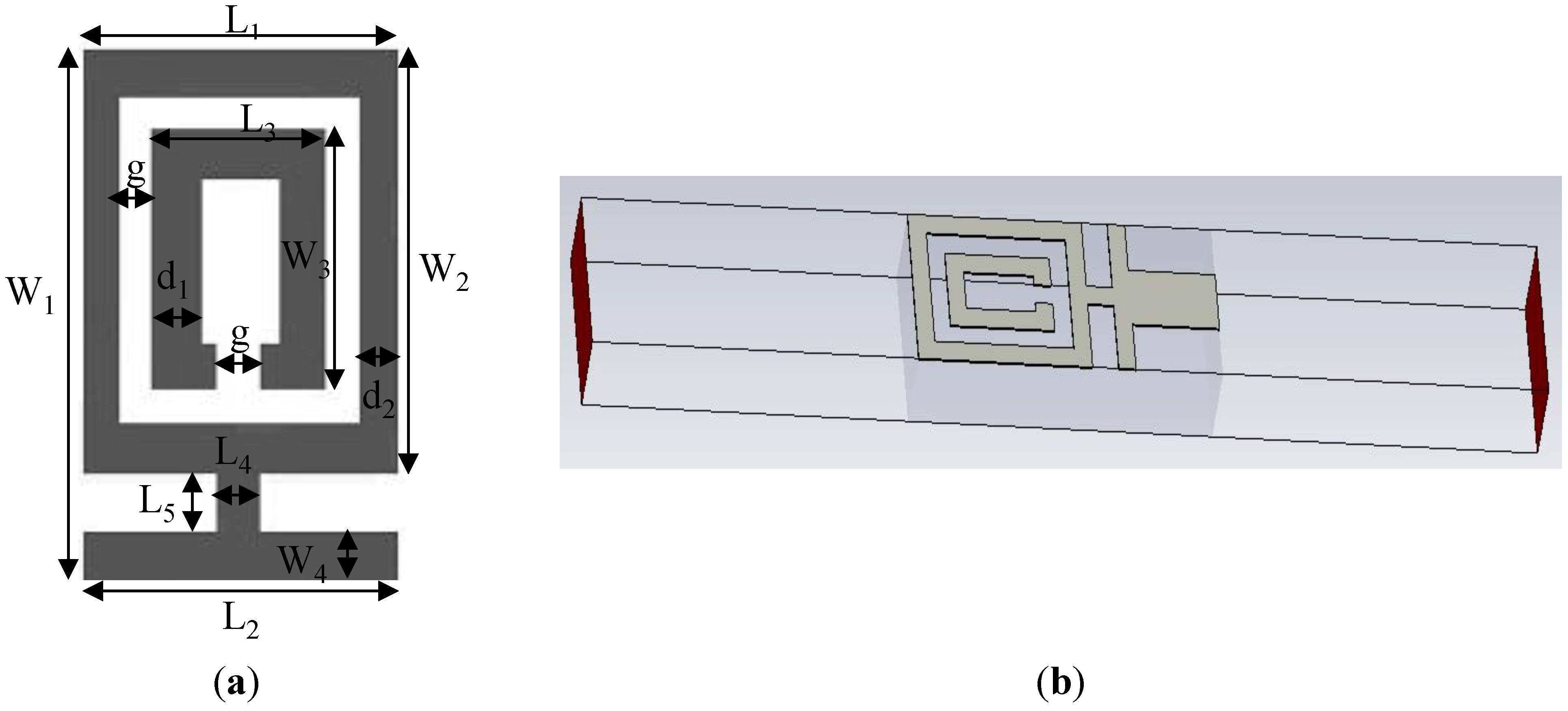

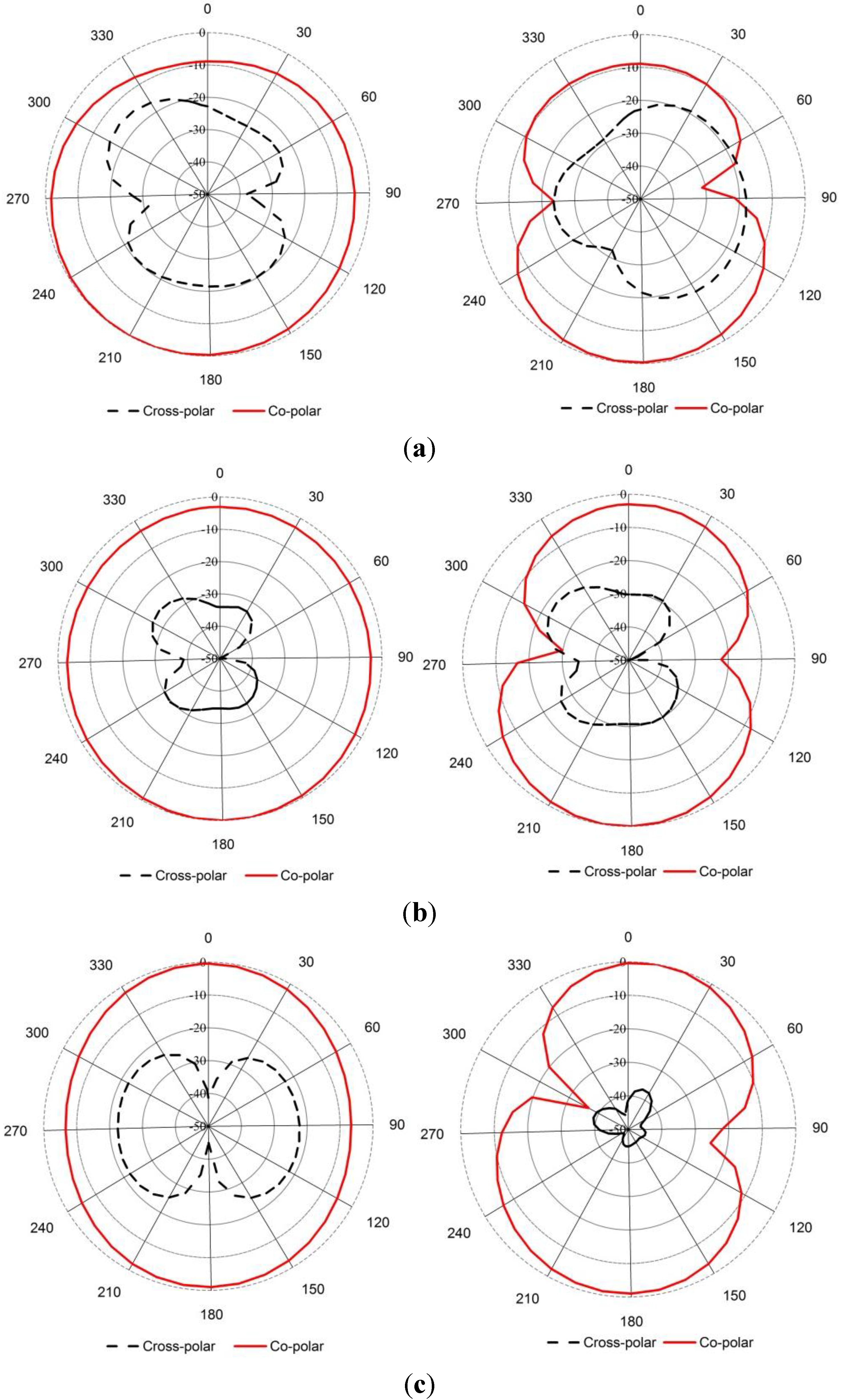

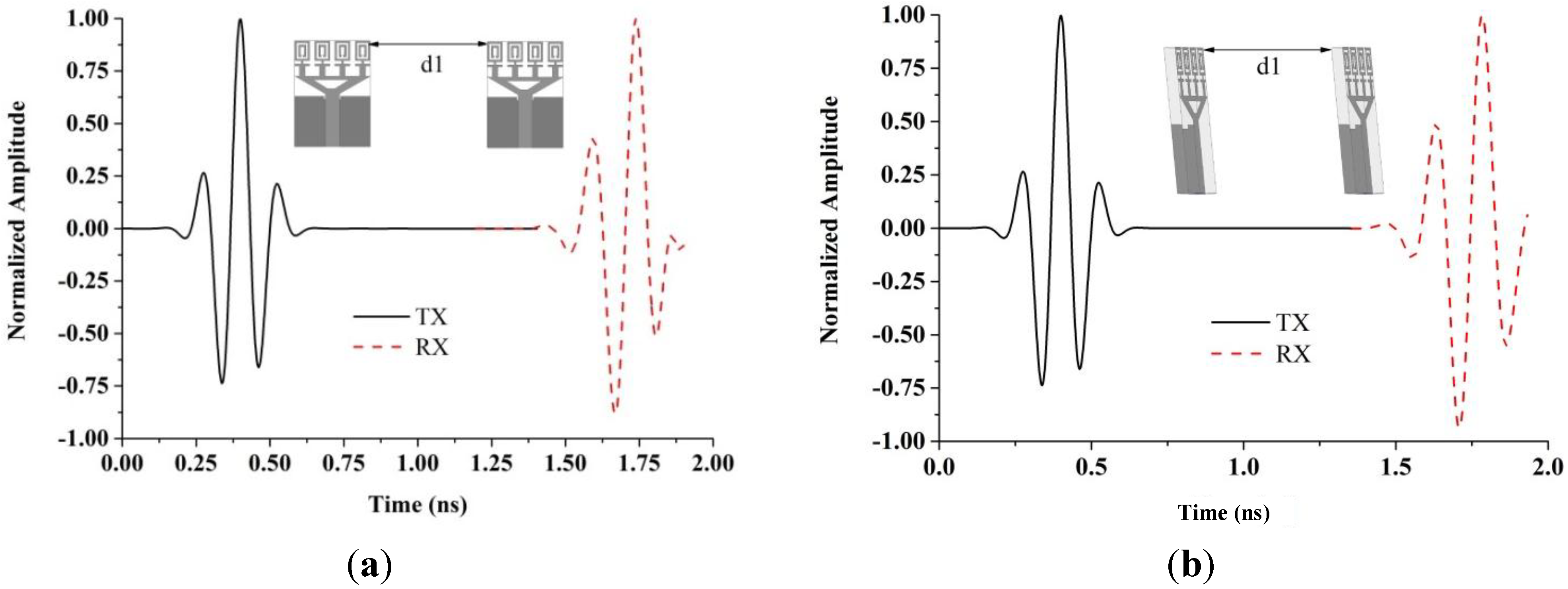

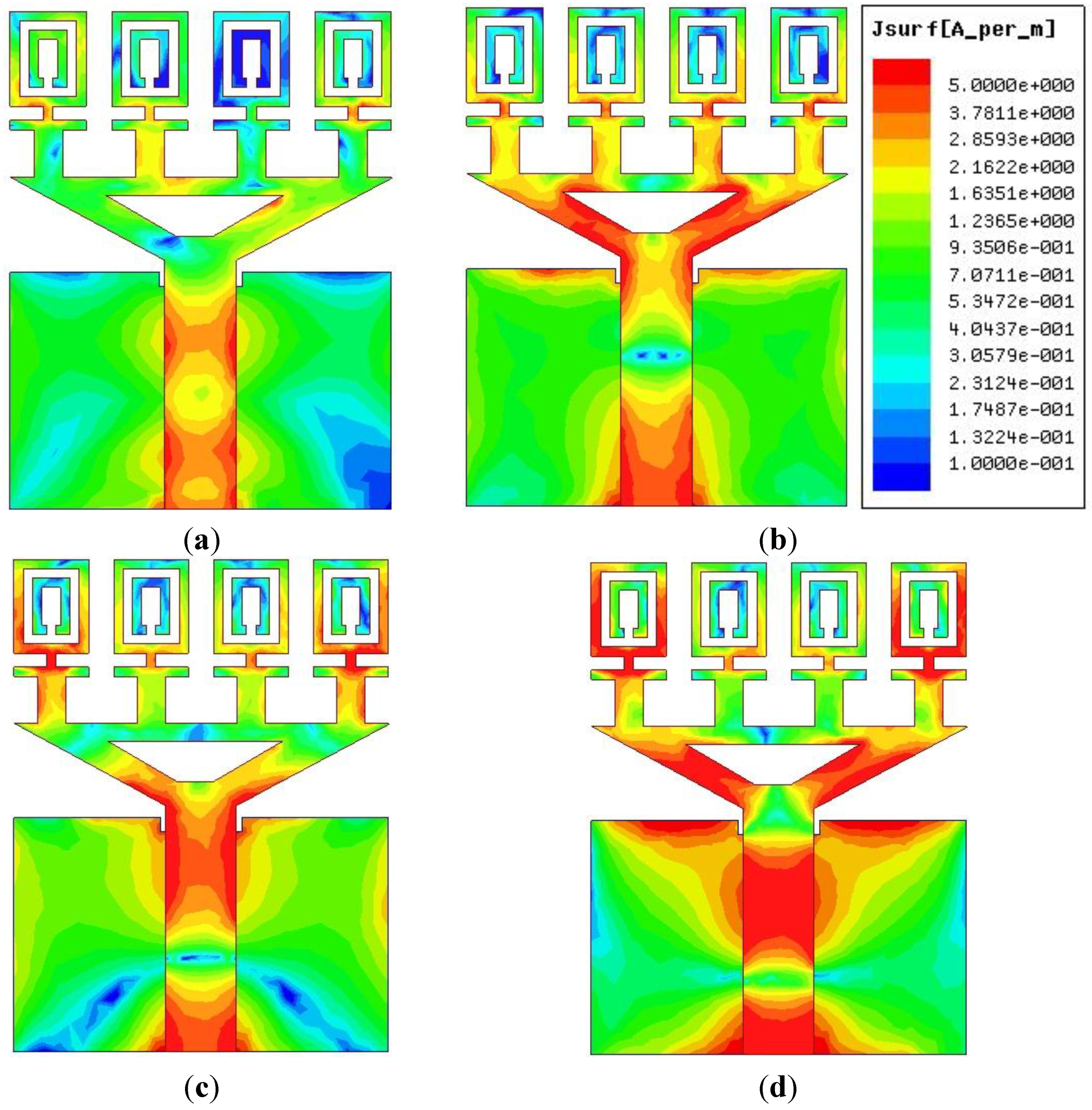

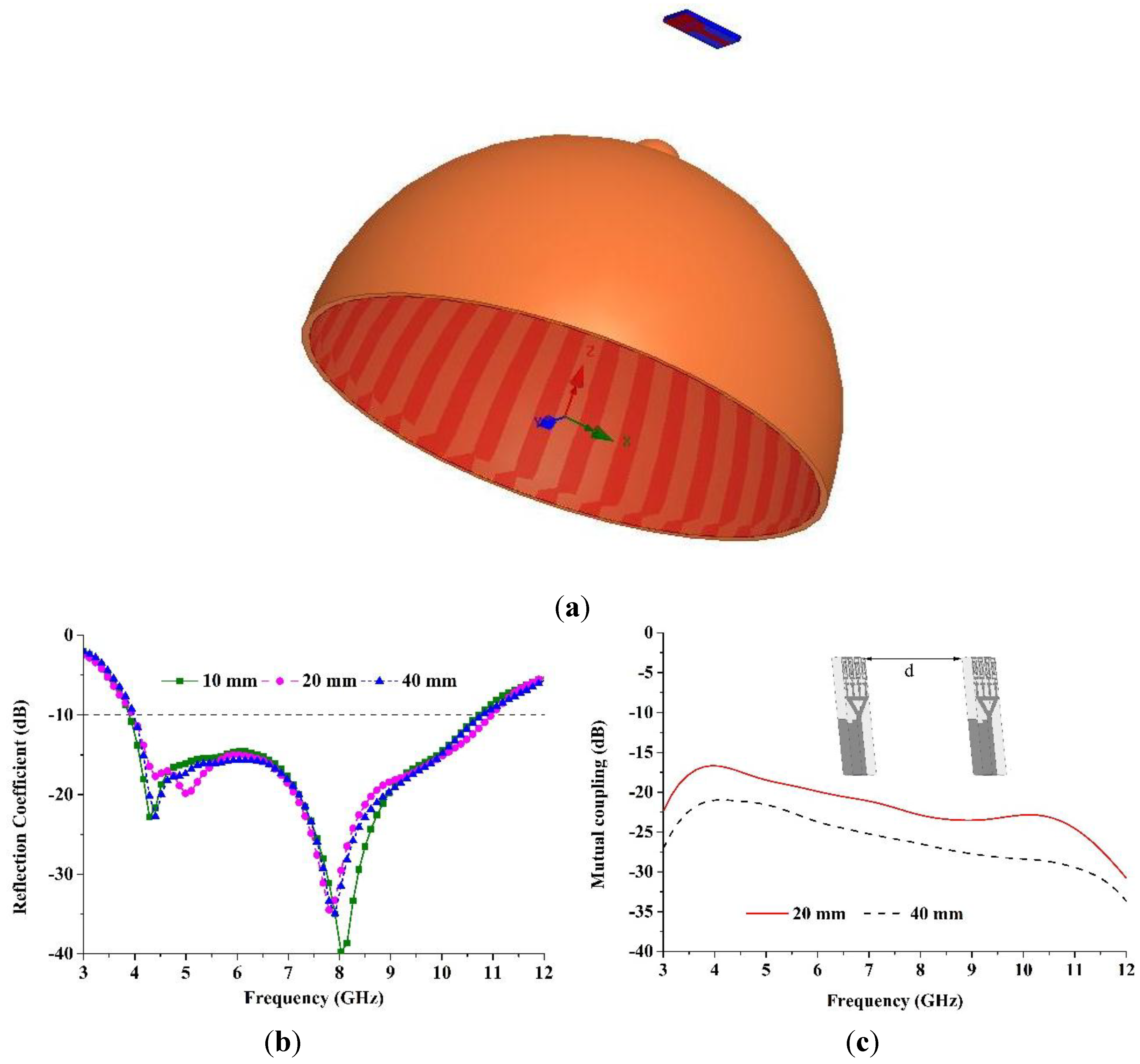

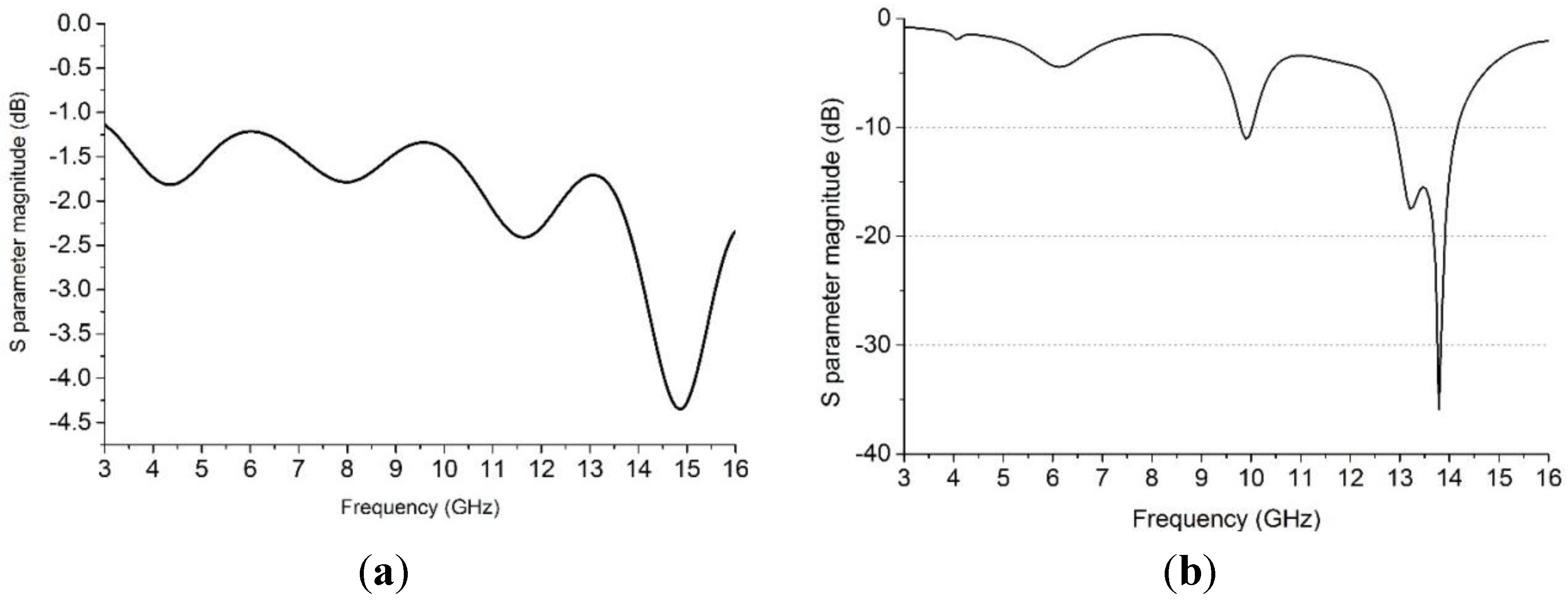

A miniaturized antenna employing a negative index metamaterial with modified split-ring resonator (SRR) and capacitance-loaded strip (CLS) unit cells is presented for Ultra wideband (UWB) microwave imaging applications. Four left-handed (LH) metamaterial (MTM) unit cells are located along one axis of the antenna as the radiating element. Each left-handed metamaterial unit cell combines a modified split-ring resonator (SRR) with a capacitance-loaded strip (CLS) to obtain a design architecture that simultaneously exhibits both negative permittivity and negative permeability, which ensures a stable negative refractive index to improve the antenna performance for microwave imaging. The antenna structure, with dimension of 16 × 21 × 1.6 mm3, is printed on a low dielectric FR4 material with a slotted ground plane and a microstrip feed. The measured reflection coefficient demonstrates that this antenna attains 114.5% bandwidth covering the frequency band of 3.4–12.5 GHz for a voltage standing wave ratio of less than 2 with a maximum gain of 5.16 dBi at 10.15 GHz. There is a stable harmony between the simulated and measured results that indicate improved nearly omni-directional radiation characteristics within the operational frequency band. The stable surface current distribution, negative refractive index characteristic, considerable gain and radiation properties make this proposed negative index metamaterial antenna optimal for UWB microwave imaging applications. View Full-Text
Keywords: microwave imaging; metamaterial; negative index; UWB microwave imaging; metamaterial; negative index; UWB
►▼ Show Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
