Materials 2014, 7(7), 5069-5108; https://doi.org/10.3390/ma7075069

Review
The Influence of Ziegler-Natta and Metallocene Catalysts on Polyolefin Structure, Properties, and Processing Ability
1
Department of Chemical Engineering, Faculty of Engineering, University of Malaya, 50603 Kuala Lumpur, Malaysia
2
Energy Futures Lab, Electrical Engineering Building, Imperial College London, South Kensington, London SW7 2AZ, UK
3
Institute for Technical, Macromolecular Chemistry, University of Hamburg, Bundesstr. 45, D-20146 Hamburg, Germany
4
Process and Energy Department, Delft University of Technology, Leeghwaterstraat 44, 2628 CA Delft, The Netherlands
5
Nanotechnology and Catalysis Research Center (NANOCEN), University of Malaya, 50603 Kuala Lumpur, Malaysia
*
Author to whom correspondence should be addressed.
Received: 6 April 2014; in revised form: 16 June 2014 / Accepted: 25 June 2014 / Published: 9 July 2014

Abstract

:
50 years ago, Karl Ziegler and Giulio Natta were awarded the Nobel Prize for their discovery of the catalytic polymerization of ethylene and propylene using titanium compounds and aluminum-alkyls as co-catalysts. Polyolefins have grown to become one of the biggest of all produced polymers. New metallocene/methylaluminoxane (MAO) catalysts open the possibility to synthesize polymers with highly defined microstructure, tacticity, and steroregularity, as well as long-chain branched, or blocky copolymers with excellent properties. This improvement in polymerization is possible due to the single active sites available on the metallocene catalysts in contrast to their traditional counterparts. Moreover, these catalysts, half titanocenes/MAO, zirconocenes, and other single site catalysts can control various important parameters, such as co-monomer distribution, molecular weight, molecular weight distribution, molecular architecture, stereo-specificity, degree of linearity, and branching of the polymer. However, in most cases research in this area has reduced academia as olefin polymerization has seen significant advancements in the industries. Therefore, this paper aims to further motivate interest in polyolefin research in academia by highlighting promising and open areas for the future.
Keywords:
polyolefin; Ziegler-Natta catalyst; methylaluminoxane; metallocene; co-catalysts

1. Introduction

One of the most important discoveries in chemistry and in the chemical industries in the last century is that of the Ziegler-Natta catalysts for the polymerization of olefins [1,2,3]. A catalyst is used to reduce the activation energy for the polymerization process thereby speeding up the reaction and allowing it to proceed even under mild conditions. In 1953, Karl Ziegler discovered the catalyst based on titanium tetrachloride (TiCl4) and diethylaluminium chloride [(C2H5)2AlCl] as a co-catalyst for the polymerization of ethylene [4,5] into high molecular weight HDPE (high density polyethylene) at room temperature (Figure 1 shows a photo of the original equipment employed by Ziegler) [3,4,5,6,7]. Furthermore, this catalyst was utilized by Giulio Natta to polymerize propylene into crystalline PP (polypropylene) [8]. Karl Ziegler and Giulio Natta became Nobel Laureates 50 years ago, in 1963, for their respective discoveries in the field of polymers [9]. The discovery of Ziegler-Natta catalysts gave a new dimension to the world of polymers. For more than five decades remarkable progress in catalytic olefin polymerization simplified polyolefin production by eliminating deactivation, solvents, and polymer-purification steps. It seemed that catalyst design, polymer reaction engineering, and polymer process technologies were being pushed forward to produce novel polyolefin materials to meet the demands of highly diversified industries [4,10].
Ziegler-Natta catalysts are the most popular ones employed within the global polymerization industry for the production of PP [11,12]. On the basis of solubility, the Ziegler-Natta catalyst has been categorized into two major classes:
(i)
Heterogeneous catalysts: These are industry-dominating catalysts that are based on titanium compounds (and sometimes vanadium-based) and used for polymerization reactions, usually in combination with organo-aluminum compounds like tri-ethylaluminium (TEA=Al(C2H5)3) as co-catalysts [3,13].
(ii)
Homogeneous catalysts: These are the second broad class of catalysts and are based on complexes of Ti, Zr, or Hf. They are generally used in combination with a range of different organo-aluminum co-catalysts known as metallocene/methylaluminoxane (MAO). Traditionally, they include metallocenes but also feature multi-dentate oxygen- and nitrogen-based ligands [14,15].
Heterogeneous Ziegler-Natta catalysts are composed of titanium tetrachloride which is supported on magnesium chloride by means of tri-ethylaluminium (AlEt3) or AlEt2Cl as co-catalysts [5,8,16]. To improve the stereo control of the propylene polymerization process, Lewis bases such as ethyl benzoate, silanes, or other donors are added [3]. Since heterogeneous catalysts are complex systems with different active sites, the polymer structure is influenced only to a limited extent.
Figure 1. The original equipment used by Karl Ziegler for discovering his catalyst and co-catalyst systems for the polymerization of ethylene to high-density polyethylene (HDPE).
Figure 1. The original equipment used by Karl Ziegler for discovering his catalyst and co-catalyst systems for the polymerization of ethylene to high-density polyethylene (HDPE).
Materials 07 05069 g001
In the early 1970s, new catalysts containing magnesium compounds (such as magnesium chloride or magnesium alkoxide, in conjunction with either TiCl4 or TiCl3) were designed that improved the activity of Ziegler-Natta catalysts and trialkylaluminium co-catalysts by at least one or two orders of magnitude [3]. Catalyst efficiencies of 100 to 1000 kg polymer per gram of titanium were reported. These magnesium/titanium-based catalysts were designated as second-generation Ziegler-Natta catalysts. Due to their very high activities, the residual catalysts did not need to be removed from the polymers and, consequently, catalyst removal steps were no longer necessary as part of the manufacturing process.
Figure 2 represents the mechanism for the catalysis of polyolefins [17]. The treatment of a toluene solution and zirconocene dichloride (or ZrCp2Cl2) (1) with MAO (methylaluminoxane) results in a rapid initial ligand exchange reaction that firstly generates the mono-methyl complex Cp2ZrCH3Cl (2). Note that Cp2 refers to cyclopentadienyl. Based on solid-state XPS and 13C-NMR studies, as well as investigations on Cp2Zr(CH3)2/MAO solutions, researchers show that an excess of MAO leads to the generation of Cp2ZrMe2 (4), and the catalytically active ion-paired species [Cp2ZrCH3]+ (5) along with the counter ion [X-Al(Me)O]n (X = Cl, Me) [3]. The cation Cp2ZrCH3+ (5) in the presence of ethylene results in a π-complex (6) that in turn gives the insertion product (7) (n = 1) as the first intermediate of the polymerization process. This is followed by a step-by-step insertion of ethylene achieving the cationic alkyl zirconocene (7) (n = 2, 3... n). β-Elimination gives the uneven chain polymer containing a terminal C=C double bond (8). The cationic zirconocene hydride (9) commences the polymerization reaction that is catalyzed by a zirconocene cation to give an even chain polymer (10). For further details, the reader is referred to the publication by Santos [17].
Figure 2. Proposed mechanism of Ziegler-Natta polymerization of C2H4 using a homogenous catalyst ZrCp2Cl2/MAO (Cp = cyclopentadienyl; Zr = zirconium; MAO = methylalumoxane), reprinted with permission from [17], copyright 2011 the Brazilian Chemical Society.
Figure 2. Proposed mechanism of Ziegler-Natta polymerization of C2H4 using a homogenous catalyst ZrCp2Cl2/MAO (Cp = cyclopentadienyl; Zr = zirconium; MAO = methylalumoxane), reprinted with permission from [17], copyright 2011 the Brazilian Chemical Society.
Materials 07 05069 g002
The upsurge in the interest for the synthesis of polyolefins is due to their versatile applications from daily life to high performance engineering applications as represented in Figure 3 [2]. PP (polypropylene) is similar to PE (polyethylene) but has the methyl group (–CH3) attached to alternate carbon atoms of the chain. PP’s molecular weight typically lies within 50,000 to 200,000 g·mol−1. Table 1 provides some of the physical properties of PE and PP [3].

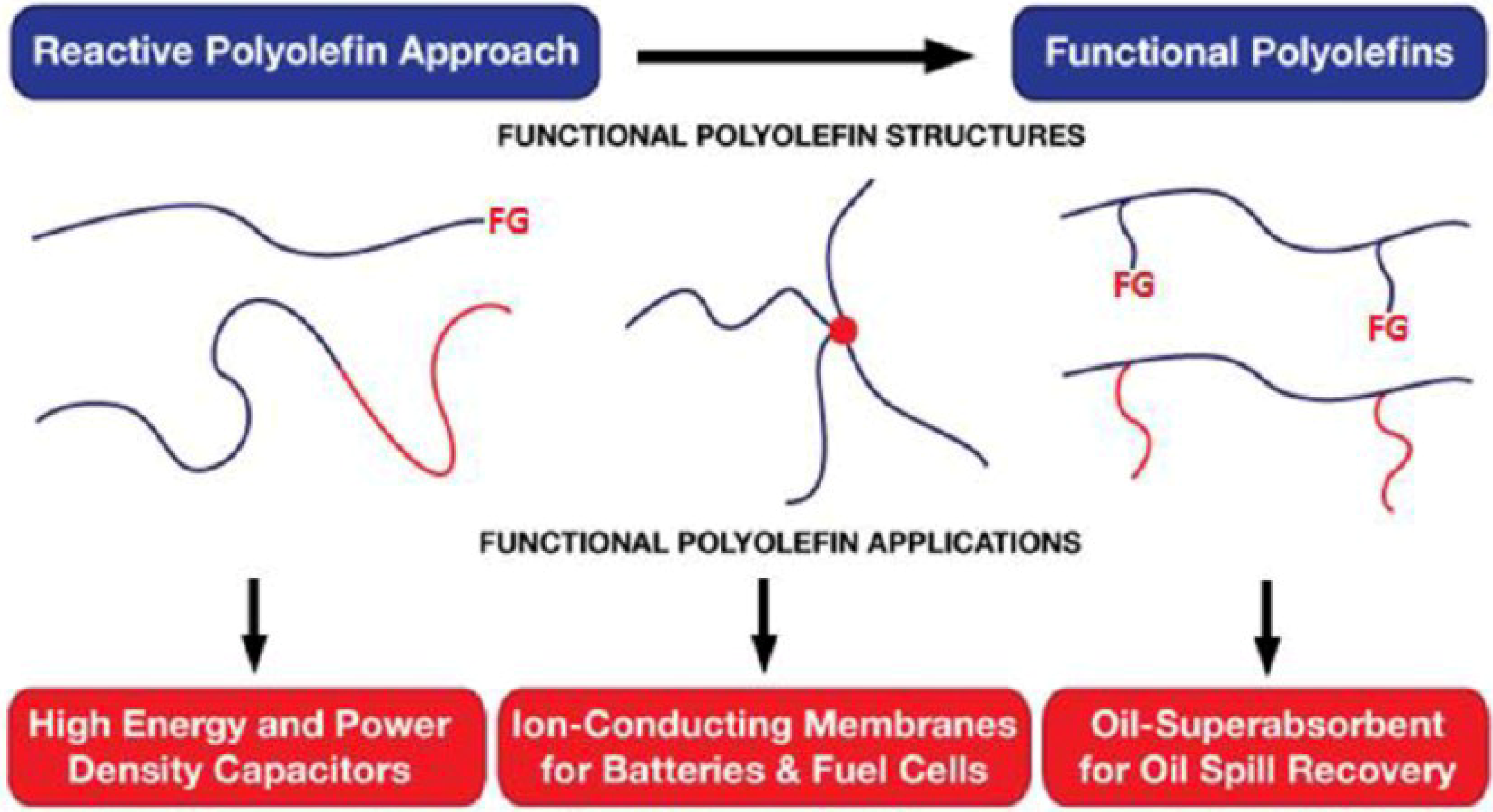

Figure 3. Functional polyolefins for energy applications. Adapted with permission from [2]. Copyright 2013 ACS.
Figure 3. Functional polyolefins for energy applications. Adapted with permission from [2]. Copyright 2013 ACS.
Materials 07 05069 g003
Table 1. Physical properties of polyethylene (PE) and polypropylene (PP), reprinted with permission from [3]. Copyright 2013 World Scientific.
Table 1. Physical properties of polyethylene (PE) and polypropylene (PP), reprinted with permission from [3]. Copyright 2013 World Scientific.
No.PropertiesPolyethylenePolypropylene
1Density0.92–0.950.9–0.91
2Young Modulus (GPa)0.3–1.01.4
3Glass Transition Temperature (°C)−125–−80−20
4Limiting oxygen index (LOI) (%)1817
5Melting temperature (°C)112–134160
6Specific Heat Capacity: Conventional (J/kg·K)1750–24001900
7Specific Heat Capacity: Volumetric (10 J/m·K)1600–22001700
8Speed of sound (10 m/s)18–3234–39
9Stiffness to weight ratio: Tensile (MN-m/kg)0.32–1.0 1.2–1.5
10Stiffness to weight ratio: Tensile, Ultimate (KN-m/kg)7.6–5225–39
11Tensile Strength: Ultimate (MPa)7–4923–36
12Thermal Conductivity Ambient (W/m·K)0.36–0.450.15
The world’s consumption of low-density polyethylene (LDPE), high-density polyethylene (HDPE), linear low-density polyethylene (LLDPE), and PP was greater than 100 million tons in 2006 and reached a total of 131 million metric tons in 2012 (37% of PE and 25% of PP, as shown in Figure 4) [18]. This significant increase occurred due to the polyolefins inherent properties and wide range of applications. Such polyolefins could be recycled mechanically or by incineration that did not result in any toxic discharges. However, their incapability of decomposing under natural conditions caused a great deal of environmental concern for their packaging uses. Since they constitute a considerable percentage of domestic garbage, polyolefins tend to fill up landfill sites by a significant amount. Therefore, some research activities are focusing on sustainable polyolefin production that can save on energy and raw material consumption for future generations [19,20,21].

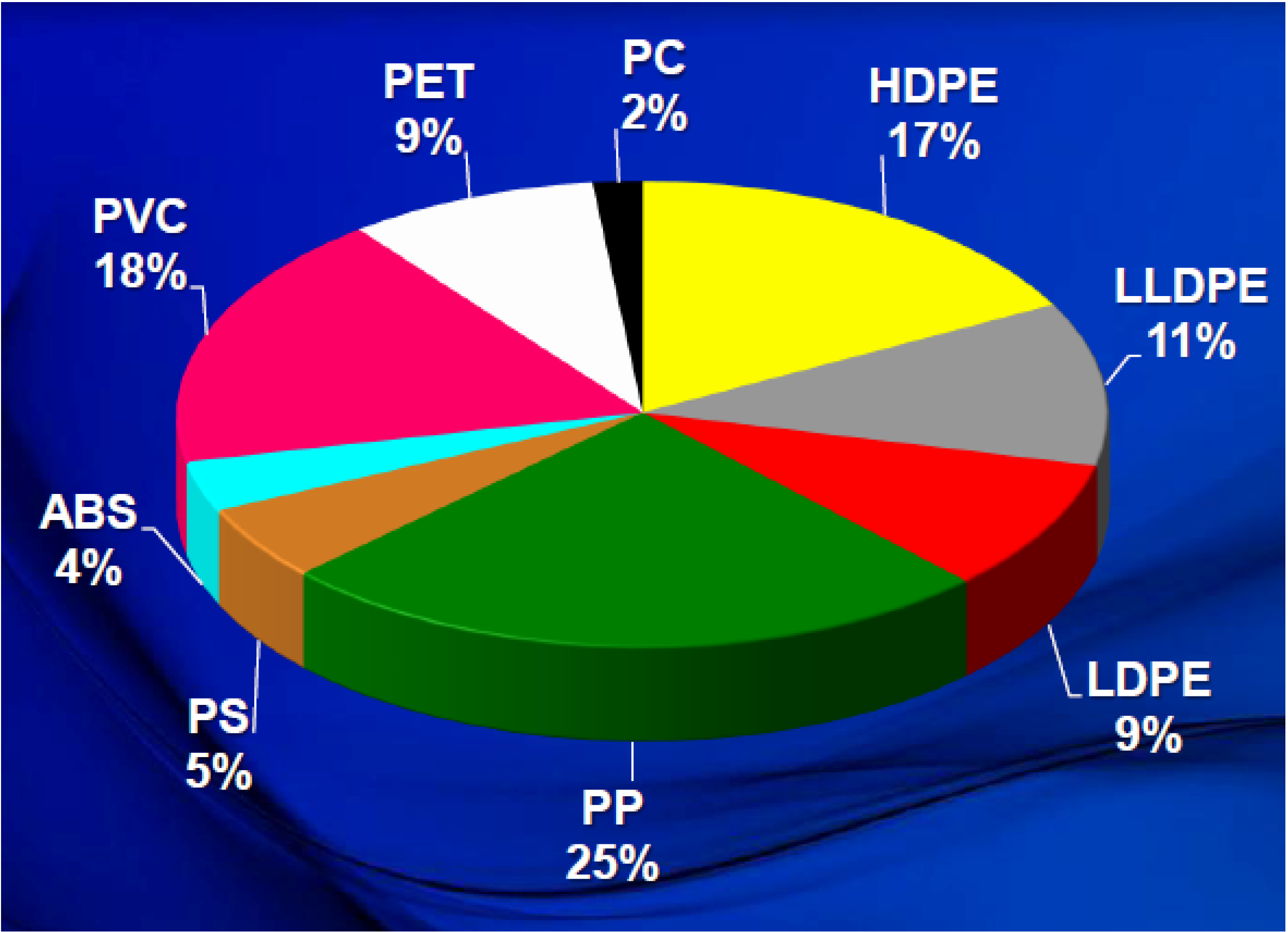

Figure 4. A pie chart showing that polyethylene is the most widely used polymer worldwide (the 2012 total for world polymer demand is 211 million metric tons), reprinted with permission from [18]. Copyright 2012 IHS Inc.
Figure 4. A pie chart showing that polyethylene is the most widely used polymer worldwide (the 2012 total for world polymer demand is 211 million metric tons), reprinted with permission from [18]. Copyright 2012 IHS Inc.
Materials 07 05069 g004
This paper provides an overview of the catalytic polymerization of both ethylene and propylene. This is followed by a detailed discussion of the catalyst and co-catalyst systems employed for polymerization (commencing with Ziegler-Natta catalysts and leading to zirconocene, MAO, and titanocene co-catalyst systems). Unfortunately, the amount of publications in this field is declining because sufficient research infrastructure is not present in academic research institutes. Greater research is being conducted by industries and this paper aims to restore the interest in polyolefins within academic institutions.

2. Polyethylene and Polypropylene

PE is the most popular and widely used polymer to date [22]. The formation of PE occurs by the polymerization of the ethylene monomer in an insertion reaction. Despite the simple structure of PE, its manufacturing route is quite complex with different types of synthetic procedures [3]. Due to some of its peculiarities, it is considered as a unique polymer having high crystallization rate and chain flexibility, which are mostly derived from its perfect chain structure [23]. Therefore, it is not available in an amorphous state and most of its properties are derived by extrapolating from those of semi crystalline samples. The properties of different forms of PE can vary as a consequence of structural changes resulting from the polymerization technique.
In general, LLDPE and HDPE are conventionally synthesized via the catalytic ethylene polymerization reaction at low temperatures and pressures, as compared to the LDPE manufacturing route [24]. In particular, LLDPEs prepared via Ziegler-Natta catalysis have more uneven co-monomer distributions, whereas, a reverse trend is observed for those synthesized by metallocene catalysts. Such differences in co-monomer distributions are mainly attributed to the difference in the available active sites in the two catalysts that manifests itself in the rheological and mechanical properties of the polymers as well as their melt miscibility. However, polymer density can be controlled by the ethylene/co-monomer molar ratio, temperature, and the catalyst type. The ability to crystallize the substance is affected by its molecular weight, concentration of branches, and their distribution along the backbone of the co-polymer [25]. In order to understand the crystallization behavior of the branched molecules, more homogeneous fractions of the co-polymer are required [3]. The processing ability and the properties of the final product depend strongly on the branching of the polymer. The microstructure of the three classes of PE is shown schematically in Figure 5 [3].
The macroscopic properties of polyolefins strongly depend on the chain structure and therefore, the quality of PE in both molten and solid state could be tuned by the presence of side chains of various lengths and quantities [26]. This dependence is caused by steric hindrances of the side chains that affect primarily the polymer’s crystalline nature [15,27]. Generally agreed models also suppose that the side chains are incorporated in the amorphous phase and only a small portion of the side-chain atoms are located inside crystalline regions, where they create packing errors [28]. Kaminsky and co-workers also suggested that in some cases these short chains, namely those based on rather long co-monomers, can crystallize and possibly create separated aggregates [29].

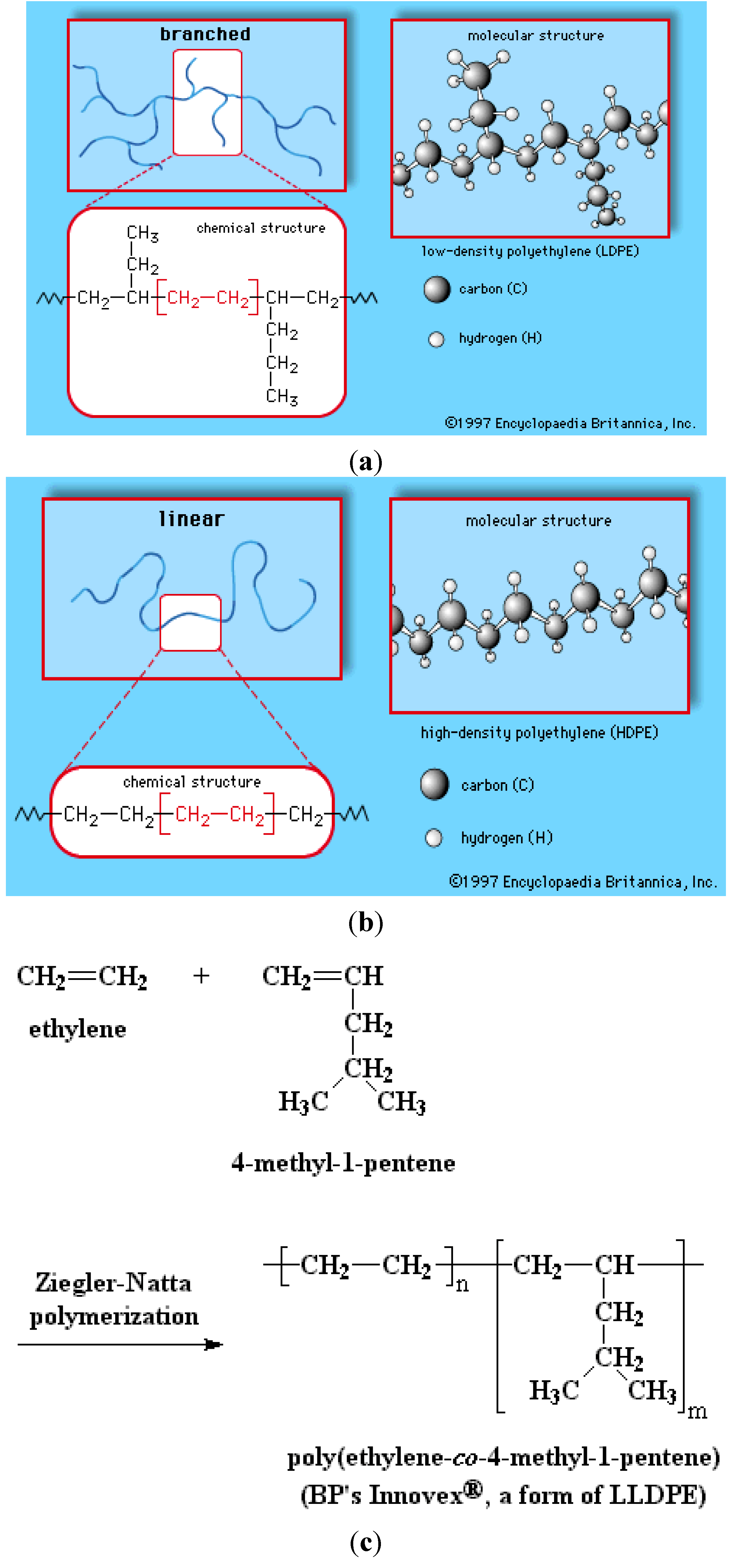

Figure 5. General representations of various polyethylene variants. (a) LDPE; (b) HDPE; and (c) LLDPE. Obtained with permission from MAG Recycling Services Pty Ltd. [30] and the University of Southern Mississippi [31].
Figure 5. General representations of various polyethylene variants. (a) LDPE; (b) HDPE; and (c) LLDPE. Obtained with permission from MAG Recycling Services Pty Ltd. [30] and the University of Southern Mississippi [31].
Materials 07 05069 g005
A large fraction of HDPE is produced using catalysts developed by the Phillips Petroleum Company, which are CrO3 supported on SiO2–Al2O3. These and other supported transition metal oxide catalysts were discovered in Phillips’ and Standard Oil’s laboratories respectively at about the same time as the Ziegler catalyst. Apart from HDPE, various LLDPEs are commercially produced using the supported Ziegler catalysts. These catalysts account for about 90% of the world’s production while the rest of the 10% are handled by metallocene catalysts [32,33,34,35].
This leads to a brief discussion on mono-modal and multimodal PEs as these have significant differences in their properties [3]. Multimodal means that two or more peak molecular weights can be seen by gel permeation chromatography (GPC). For example, a bimodal PE means that two peak molecular weights can be identified. Multimodal PE can be transformed into articles by injection molding, blow molding, rotational molding, and film extrusion. One of the advantages of multimodal PE over mono-modal PE is its easier and faster processing with reduced energy requirement and increased output. In addition, multimodal PEs show less flow disturbances in thermal processing.
Basically, all known polymerization technologies (slurry, gas phase, or solution) can be operated in a series of reactors in order to achieve multimodal PEs [36,37,38,39,40,41,42]. Examples are Hostalen (Lyondell-Basell) for the combination of slurry reactors and Unipol II (Dow) for the gas-phase technology. However, there are also combinations of different technologies such as Borstar (Borealis), which is an amalgamation of slurry and gas phases [43,44]. With all these technologies, bimodal molecular weight distributions (MWDs) can be produced, as illustrated in Figure 6 [45]. The vertical axis in this figure is the derivative of the cumulative weight fraction with respect to log Mw. The principal motivations for doing this are to improve performance in several regards, such as application properties (mechanical and rheological) [46,47,48,49], polymer morphology [39,50,51,52,53,54], and catalyst yield [54].
Figure 6. Illustration of a typical uni-modal (dashed) and two different bimodal molecular weight distributions (MWDs), reprinted with permission from [45]. Copyright 2012 Wiley.
Figure 6. Illustration of a typical uni-modal (dashed) and two different bimodal molecular weight distributions (MWDs), reprinted with permission from [45]. Copyright 2012 Wiley.
Materials 07 05069 g006
As an important material, PP has been widely used in many different fields including chemical, optical, and medical sectors [55,56,57,58]. The manufacture of PP is a billion-dollar business, which has seen about 5% annual growth rate in consumption in recent years. PP is synthesized using propylene in the presence of a catalyst and a co-catalyst (usually Al alkyls) at both laboratory and industrial scales [55,56,57,58,59]. Table 2 represents a historical timeline of the 20th century milestones in polyolefin production.
Table 2. Timeline showing the historical progress in the polymerization process of olefin—milestones are represented until the late 20th century.
Table 2. Timeline showing the historical progress in the polymerization process of olefin—milestones are represented until the late 20th century.
YearProgress in olefin polymerization process
1951Hogan and Banks synthesizes crystalline polypropylene using chromium-NiO catalyst supported on silica alumina. (Subsequently, in 1983, the US patent office awards the patent to them for having substantial crystalline polypropylene content.)
1953Karl Ziegler polymerizes ethene into high MW-HDPE (high density polyethylene) with the discovery of the catalyst based on titanium tetrachloride, and diethylaluminium chloride as co-catalyst.
1954Giulio Natta, utilizes the catalyst suggested by Ziegler to produce PP.
Ziegler and Natta are both awarded the Nobel Prize for Chemistry 1963 in recognition of their work on the Ziegler-Natta catalyst.
1957Commercial production of PP commence in Italy, Germany, and USA.
Natta and Breslow, independently discover metallocene catalyst to catalyze olefin polymerization with conventional co-catalyst (Al alkyls).
1961–1980PP is used for manufacturing various products like fibers, fabrics, upholstery, nonwoven fabrics, and others on a commercial scale.
19732nd generation Ziegler Natta catalysts introduced with TiCl3 purple phases at lower temperatures.
1975–19783rd generation catalysts supported on MgCl2 commercialized by many companies.
1977–1980Kaminsky and Sinn discover high activity metallocene single-site catalysts (SSCs) using methylaluminoxane (MAO) as co-catalyst.
1984Ewen at the Exxon Company (USA) demonstrate that appropriate titanocenes render partially isotactic polypropylene.
1991Fourth generation Ziegler Natta catalysts based on aluminium-oxane activated metallocene complexes used.
1995–1998Brookhart and co-workers discover non-metallocene SSC based primarily on chelated late transition metals.
Brintzinger and co-workers report on the synthesis of chiral bridged (“ansa”) metallocenes for homogeneous stereospecific 1-olefin polymerization [59].
Exxon Mobil and other companies commercialize PP using SSC.
1997Montel (or Lyondell Basell) commercialize PP based on 5th generation Ziegler-Natta catalyst that use 1.3-diethers, and succinated as donors.
In coordination polymerization, generally a polyolefin is produced by multiple insertions of olefins into a metal-carbon bond in different ways. The regiochemistry of insertion (the catalyst regioselectivity and the regioregularity of the polymer) is determined by either primary or secondary olefin insertion into a metal-carbon bond, while the choice of the olefin enantioface selectivity determines the stereochemistry of each insertion (the catalyst stereoselectivity). The catalyst stereoselectivity (and the stereoregularity or tacticity of the polymer) is defined by the stereochemical relation between the stereogenic carbon atoms in the polymer chain, because any olefin insertion forms a new stereogenic center [60].
Since propylene is an asymmetrical monomer, PP can be produced with different stereochemical configurations. Figure 7a,b shows the polymerization of propylene and PP’s different forms, i.e., isotactic, hemi-isotactic, syndiotactic, and atactic [58,61,62,63,64,65]. The structure is based on the type of metal catalyst with tunable properties and selectivities [61,66,67,68,69]. From a commercial viewpoint, isotactic PP has a more ordered structure and therefore higher melting point, heats of fusion, and crystallinity in comparison to its atactic or syndiotactic forms.
Figure 7. (a) Two-dimensional representation of linear PP that results from the arrangement of monomer units along the polymer chain during the polymerization process; and (b) portions of linear PP with different orientations of pendant methyl groups along the polymer backbone, reprinted with permissions from [58]. Copyright 2011 RSC.
Figure 7. (a) Two-dimensional representation of linear PP that results from the arrangement of monomer units along the polymer chain during the polymerization process; and (b) portions of linear PP with different orientations of pendant methyl groups along the polymer backbone, reprinted with permissions from [58]. Copyright 2011 RSC.
Materials 07 05069 g007
The drawback when using Ziegler-Natta isotactic PPs lies in the fact that some structural parameters are almost impossible to study separately; for example molecular weight and tacticity are strongly coupled in these polymers [70]. In fact, isotactic Ziegler-Natta PPs can be considered as a mixture of very different types of chains: short atactic chains are present even in most isotactic commercial PPs [28]. Obtaining isotactic PP of varying molecular weight, while keeping isotacticity approximately constant, is not possible. Thus, evaluating the separated effect of molecular weight and tacticity and tacticity distribution appears almost impossible [70]. However, metallocene PPs are more homogeneous both in molecular weight, in tacticity, and tacticity distributions; chains resemble one another much more than when using Ziegler-Natta catalysts because of the presence of only one active center in metallocene catalysts [66].
While in metallocene PPs, the distribution of stereo defects is homogeneous, in their Ziegler-Natta counterparts the formation of stereo blocks takes place [70]. As a consequence of the homogeneous distribution of stereo defects, predominantly isotactic PPs synthesized using metallocene catalysts have shorter average isotactic sequences than Ziegler-Natta PPs with the same average of stereo defects; these possess no isotactoid or “atactic” blocks in their chains [28]. This structural difference is large enough to expect very different behavior from metallocene PPs as compared to Ziegler-Natta PPs in some properties. As a consequence of the different configurational structure, for the same tacticity, metallocene PPs show a lower melting point than Ziegler-Natta ones, and this difference is largely due to the lower isotacticity of the polymer [70]. In addition, large molecular weights are more difficult to obtain in metallocene polyolefins. Due to these features the applications of these newer polyolefins have been significant in the elastomeric, low tacticity types than in the high isotactic, high-melting point ones [71].
Out of several PP manufacturing processes, the gas-phase has acquired much interest as it is cost effective and also involves less consumption of raw materials and utilities [69]. However, catalysts are required to control the molecular weight of polymers, molecular weight distribution, copolymerization ratio, as well as the regio- and stereo-selectivities within the context of designer polymers. The development of such catalysts is a challenge to the polymer industry. To meet this challenge, clarification of the relationship between the structure of the active site and the catalyst performance on the basis of a precise and quantitative understanding of the polymerization mechanism of the catalyst α-TiCl3/Al(C2H5)3 is reported by Shiga [19].
A simple process flow diagram for the gas-phase olefin polymerization process is shown in Figure 8 [56]. The feed gas stream provides monomer, hydrogen, and nitrogen, and at the same time agitates and fluidizes the reactor bed (not shown in Figure 8 but a more detailed diagram of the reactor with various control loops is given elsewhere [69]) through the distributor and also removes the heat of the polymerization reaction. Polymerization occurs in the fluidized bed in the presence of Ziegler-Natta catalyst and triethyl aluminum co-catalyst. The unreacted gas exits the top of the reactor and is then compressed and cooled before being fed back into the bottom of the fluidized bed. The polymer production rate in this system is limited by heat removal from the circulating gas since the polymerization reaction is highly exothermic [69]. To maintain acceptable polymer production rate, which is an important goal for industry, it is necessary to keep the bed temperature above the dew point of the reactants to avoid gas condensation and below the melting point of the polymer to prevent particle melting, agglomeration, and consequent reactor shut down. For these reasons, process stabilization for propylene polymerization in a fluidized bed reactor is a challenging problem to be addressed through an efficient control system design.
In recent times, mathematical modeling and control of gas phase propylene polymerization have been reported in the literature to address the aforementioned issue [55,56,69]. Besides this, not much work, however, has been done on this topic until now due to many factors, such as the high non-linearity of the process dynamics involving complicated reaction mechanisms, complex flow characteristics of gas and solids, various heat and mass transfer mechanisms, and the interaction between the process control loops.
Figure 8. A process flow diagram representing the polymerization process of olefin in a gas-phase fluidized bed reactor.
Figure 8. A process flow diagram representing the polymerization process of olefin in a gas-phase fluidized bed reactor.
Materials 07 05069 g008

3. Role and Type of Catalysts

Since the discovery of PP, a wide variety of different catalysts have been designed and developed, leading to tailored polymers of entirely different structures, and applications by controlling polymer tacticity, molar mass, and molar mass distribution [72]. As defined earlier, a catalyst is used to reduce the activation energy for the polymerization process thereby speeding up the reaction and allowing it to proceed even under mild conditions. For instance, in the absence of the catalyst, ethylene does not undergo polymerization in mild conditions and requires high-energy particle collisions to react. Hence, the proportion of different structures formed is dependent on the relative rates of their formation [73].
In the PP industry, Ziegler-Natta catalysts play a vital role in production; however, to date the working mechanism of Ziegler-Natta systems have not been understood completely. An understanding of this behavior would help in designing and developing catalysts with desirable properties. Studies by Ronkko and co-workers [74] reveal that polymerization and fragmentation behavior of catalysts is dependent on the type of catalyst and nature of the catalyst support [75,76]. The catalyst should have (i) high porosity to allow good reactant diffusion; (ii) high mechanical strength to withstand thermal or chemical shocks while simultaneously possessing the ability to break up during polymerization; (iii) the ability to undergo fragmentation to yield desirable polymer content without having large contaminated fragments in the final product; and (iv) a decent distribution of active sites to ensure an even allotment of the final polymer product [75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92].
LLDPE could be produced using Ziegler-Natta catalysts that results in a blend of copolymers with each active site giving random distributions [17,36,93]. Metallocene catalysts, although result in random distributions, can sometimes provide regular co-monomer distributions, especially when the metallocene supramolecular structure enables tailoring of the macromolecular configuration [7,15,29,94,95,96].
Kaminsky showed that a co-catalyst system based on zirconocene (homogeneous Ziegler-Natta catalysts based on complexes of Zr, and used in combination with different organo-aluminum co-catalysts) and MAO is very active for the copolymerization of ethylene and oct-1-ene [94,97]. This zirconocene/MAO co-catalyst was used to prepare several ethylene-α-olefin copolymers in which oct-1-ene, dodec-1-ene, octadec-1-ene, and hexacos-1-ene were used as co-monomers. Obtained LLDPEs had regular side-chain distributions along the main chain and their properties were the subject of several studies [32,33,98,99].
It has been reported that bridged (metallocene) type complexes show better co-monomer incorporation than the non-bridged (un-bridged) analogs in ethylene/α-olefin co-polymerization [100,101], although both steric and electronic factors affect the catalytic activity and molecular weight of resultant polymers in ethylene polymerization by means of substituted zirconocenes. The reason for this is that the bridged metallocenes possess a rather large coordination space compared to the non-bridged analogs, allowing better accessibility for the bulky α-olefins (Scheme 1) [100,101,102,103,104]. Linked half-titanocenes containing amide ligands, such as [Me2Si(C5Me4)(NtBu)]TiCl2[104], so called “constrained geometry catalysts (CGC)”, have also been known to exhibit efficient co-monomer incorporation (Scheme 1) [105,106,107,108,109,110]. Constrained geometry catalyst technology (CGCT) is based on homogeneous, single-site catalysts (SSCs) that allow for property design and optimization, and are capable of preparing homogeneous polyolefin copolymers [87]. The catalyst technology is based on a constrained geometry ligand attached to a transition-metal catalyst center. The strong Lewis acid systems are used to activate the catalyst, i.e., to act as co-catalysts. The catalyst activity is based on Group 4 (IV) transition metals (e.g., titanium), which are covalently bonded to mono-cyclo-pentadienyl groups bridged with a hetero atom. As a result of bonding in the three components, a constrained cyclic structure is formed with the transition metal center. Besides tailoring of molecular structures, steps are taken to produce cost-effective efficient systems.

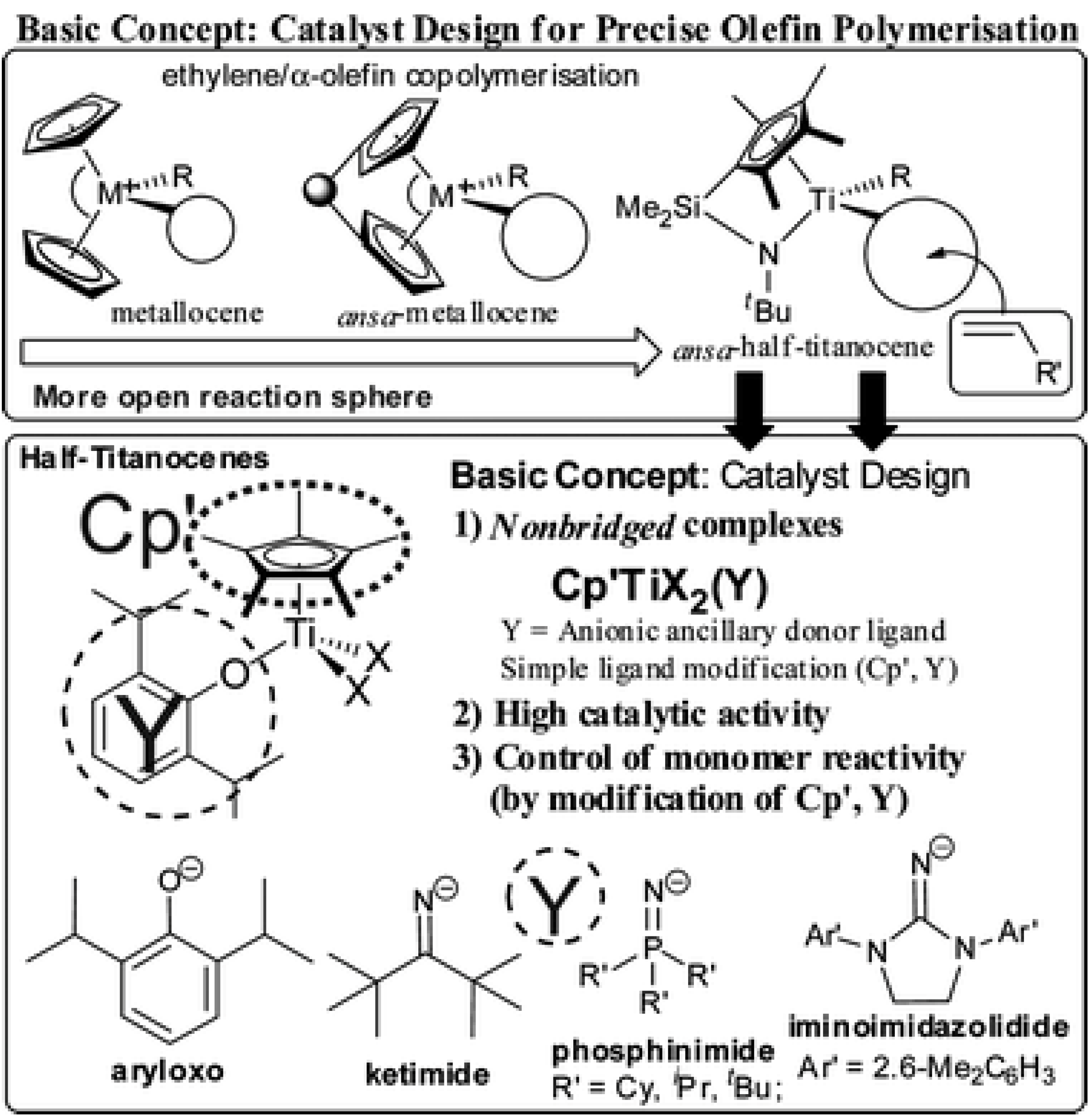

Scheme 1. Basic proposed concept for the catalyst design and selected examples for half-titanocenes as effective catalyst precursors for olefin polymerization, reprinted with permission from [3]. Copyright 2013 World Scientific.
Scheme 1. Basic proposed concept for the catalyst design and selected examples for half-titanocenes as effective catalyst precursors for olefin polymerization, reprinted with permission from [3]. Copyright 2013 World Scientific.
Materials 07 05069 g010
The efficiency of α-olefin in ethylene/α-olefin co-polymerization, that can be evaluated by using rE (reactivity ratio of ethylene) values under similar conditions, increases in the order: ZrCp2Cl2 < rac-Me2Si[benz(e)Ind]2ZrCl2 < [Me2Si(C5Me4)(NtBu)]Ti–Cl2 (where Cp = cyclopentadienyl, Me = methyl, tBu = tert-butyl, rac = racemic “diads” of chiral centers of the polymer, benz = benzene, ind = indenyl ligand) [103]. Further discussion on this topic is given in Section 3.3 and the reader is also referred to the survey written by Cano and Kunz [107] for more details.
Zirconocenes, as Kaminsky and others have shown, are 10–100 times more active than titanocenes and the classical Ziegler catalyst (activities are up to 875,000 kg PP mol−1·Zr−1·h−1) [7,111,112]. The activity of the former is also maintained at nearly the same level for several days. In addition, titanocenes cannot be used at higher temperatures and for longer polymerization times because the titanium (IV) is then reduced to the inactive titanium (III). Hafnocenes are about 10 times less active than titanocenes but produce PE with a higher molecular weight. Under the condition that every zirconocene complex forms a polymerization active site [113] the most active zirconocene produces about 15,000 polymer chains per hour at a polymerization temperature of 90 °C [112]. Further details on this, as well as activators, are given in Section 3.4.
The ansa zirconocene [En(THind)2]ZrCl2 exists in three structures as illustrated earlier by Kaminsky [112]. The rotation of the indenyl rings is hindered by the CH2–CH2–bridge. Beside the racemic mixture of the R and the S form, a meso form is possible. In the case of [En(THind)2]ZrCl2only traces of the meso form are obtained, which can be eliminated by recrystallization of the complexes. The meso form has no symmetry and produces therefore atactic PP similar to the un-bridged ZrCp2Cl2/MAO catalyst [61,62,114,115].
According to Shiga, the crystal structure of TiCl3 plays an important role in stereospecific polymerization of propylene [19]. Four crystalline modifications of TiCl3 have been reported [116]: α-, γ-, δ-forms (violet), and the β-form (brown). The layer structure of violet TiCl3 produces highly isotactic PP, whereas β-TiCl3 being fiber-shaped, gives a low yield of atactic PP. The mode of stacking of the common bi-dimensional TiCl3 sheets in layer structures leads to the difference in these three forms of violet TiCl3. The α-form of TiCl3 is specified by the layers that exhibit hexagonal close-packing of the chlorine atoms, whereas cubic close-packing has been found in γ-forms of TiCl3. However, in the case of δ-TiCl3, the mode of stacking of the structural layers is given by some statistical average of the modes of packing in the α- and γ-forms. The δ-form of TiCl3 is obtained by grinding α- or γ- TiCl3 [16,117]. Boor reported that δ-TiCl3 is used in the production of PP due to its high catalytic activity [118]. Keii reported on the effects of grinding α-TiCl3 on the polymerization of propylene [119]. The rate of propagation was proportional to the specific surface area of the TiCl3 under steady-state conditions, provided that the “true” specific surface area was evaluated by treating the TiCl3 with solvent in order to allow it to de-agglomerate.

3.1. Kinetic Study of Olefin Polymerization in General

Heterogeneous Phillips and Ziegler-Natta catalysts generally contain multiple types of active siteswhich results in the production of polymers having broad and, sometimes multimodal, microstructural distributions. Metallocene catalysts contain a single type of active site that is employed to produce polyethylene and polypropylene with entirely different microstructures from those produced by Ziegler-Natta and Phillips catalysts. Polyethylene and polypropylene produced by metallocene catalysts have uniform microstructures, with narrow molecular weight distribution and chemical composition distribution.
The general olefin polymerization (polyethylene and polypropylene) mechanisms that are acceptable for homopolymerization and copolymerzation by coordination polymerization with either Ziegler-Natta, Phillips or Metallocene catalysts are given below. Details of the kinetic model are reported by Soares [120].
(1) Elementary chemical reactions of olefin homopolymerization system.
Initiation Materials 07 05069 i001(1)
Propagation Materials 07 05069 i002(2)
Transfer Materials 07 05069 i003 β-hydride (3)
Materials 07 05069 i004 to hydrogen (4)
Materials 07 05069 i005 to monomer (5)
Materials 07 05069 i006 to cocatalyst (6)
Deactivation Materials 07 05069 i007(7)
Materials 07 05069 i008(8)
Poisoning Materials 07 05069 i009(9)
(2) Elementary chemical reactions of olefin copolymerization system.
Initiation Materials 07 05069 i010(10)
Materials 07 05069 i011(11)
Propagation Materials 07 05069 i012(12)
Materials 07 05069 i013(13)
Materials 07 05069 i014(14)
Materials 07 05069 i015(15)
Transfer Materials 07 05069 i016 β-hydride(16)
Materials 07 05069 i017 β-hydride(17)
Materials 07 05069 i018 to hydrogen(18)
Materials 07 05069 i019 to hydrogen(19)
Materials 07 05069 i020 to monomer(20)
Materials 07 05069 i021 to monomer(21)
Materials 07 05069 i022 to monomer(22)
Materials 07 05069 i023 to monomer(23)
Materials 07 05069 i024 to cocatalyst(24)
Materials 07 05069 i025  to cocatalyst(25)
Deactivation Materials 07 05069 i026  Deactivation(26)
Materials 07 05069 i027  Deactivation(27)
Materials 07 05069 i028  Deactivation(28)
Poisoning Materials 07 05069 i029  Poisoning(29)
Materials 07 05069 i030  Poisoning(30)

3.2. Electron Donors

Organic electron donors, such as esters, ethers, and alkoxysilanes, are widely used in catalyst preparation and polymerization processes, which play key roles in enhancing isotacticity and regulating molecular weight distribution of the PP products [121,122,123]. The electron donor added in the process of catalyst preparation is called the internal electron donor (Di), and the electron donor added in the polymerization process is called the external electron donor (De). In recent decades, the most commonly used catalyst in PP production contains phthalate as Di and alkoxysilane as De [123]. With such catalysts, PP with high isotacticity and controllable molecular weight can be produced at a very high catalytic efficiency [124].
Since the discovery of TiCl4/Di/MgCl2–AlR3/De type propylene polymerization catalysts in the early 1980s, great efforts have been paid to disclosing and understanding the mechanism of electron donor effects, with an aim of further improving the chain structure of PP by applying new Di/De combinations [125,126,127,128,129,130,131,132,133,134,135,136]. The main role of Di has been proposed to control the amount and spatial distribution of TiCl4 adsorbed on the MgCl2 crystallite surface [123]. When TiCl4/Di/MgCl2 type catalysts are treated with an AlR3/De mixture, most of Di molecules in the catalyst are quickly replaced by De, implying that the De plays more important roles in the polymerization system. The effects of De on stereoselectivity of active centers have been ascribed to reversible adsorption of donor on metal atoms (Mg or Ti) neighboring the central Ti metal of the active center. Busico et al. [137] have proposed a three-site model to explain the effects of De on catalyst efficiency and polymer stereoregularity. In this model, successive adsorption of De on the catalyst changes the stereochemical environment of the active center, turning aspecific centers into isospecific ones. A modified three-site model has been proposed by Liu and co-workers [138]. The mechanism of donor effects has also been studied based on investigation of the polymerization kinetics, including the effects of donor on the number and propagation rate constant of active centers [123]. Terano et al. [139] have investigated the effects of both Di and De on the number and propagation rate constants of different types of active centers based on stopped-flow polymerization experiments. By using a 14CO tagging method, Wang et al. [140] have compared the number and propagation rate constants of active centers of a series of catalysts containing different Di and De. According to this literature, addition of an external donor in the propylene polymerization system with MgCl2-supported Ziegler-Natta catalysts causes a decrease in the number of active centers ([C*]/[Ti]) and increase in the chain propagation rate constant (kp). These results suggest that deactivation of a part of active centers and properties alteration of the remaining active centers happen in parallel when De is added [123]. However, because the changes of the active center’s number and propagation rate constant with De/Ti molar ratio have not been experimentally determined, a detailed evaluation of the donor effects and quantitative comparisons between different external donors have seen limited investigations.
On the other hand, many theoretical studies on the mechanism of donor effects have been reported in the past ten years, using density functional theory (DFT) calculations as the main tool. Researchers, using DFT calculations, demonstrate that De molecules can coordinate on lateral cuts of MgCl2 crystallites in the catalyst [141,142,143,144,145,146]. Adsorption of the donor molecule on the adjacent positions of active sites increases their stereospecificity and changes their intrinsic activity. However, these conclusions are to be confirmed by more experimental evidence [123].
Fu and co-workers have developed a new method of counting active centers in propylene or ethylene polymerization with Ziegler-Natta catalysts, using 2-thiophenecarbonyl chloride (TPCC) as a quenching agent [147,148,149]. The method enables the determination of the number of active centers efficiently. Alkoxysilanes are widely used as De in industrial production of isotactic PP with TiCl4/Di/MgCl2 type Ziegler-Natta catalysts containing di-ester type Di. Previous studies show that the size of alkyl groups in alkoxysilane influences the catalyst activity, as well as the microstructure and the molecular weight characteristics of the PP product [127]. However, influence of De structure on the active center distribution is scarcely reported [123].

3.3. The Contribution of Metallocene-Related and Group 4 Ziegler-Natta Catalysts to the Advancement in Olefin Polymerization Processes

The strategy to develop metallocene-related catalysts has been put forth by high activity and tunable stereo- and regio-selectivity of metallocene-based olefin polymerization catalysts [59,64,150]. Sinn and co-workers introduced the activation of small amounts of water on the system Cp2MtX2/AlMe3 (X = Cl or alkyl group) and the subsequent controlled synthesis of MAO [151]. This provided organometallic and polymer chemists with a potent co-catalyst able to activate group 4 metallocenes (and a large number of other transition metal complexes, too) towards the polymerization of virtually any 1-olefins, as well as several cyclic olefins [65]. Over the past 30 years, these homogenous SSCs have dominated the literature due to a greater understanding of the mechanism of polymerization of ethylene leading to opportunities for designing and developing improved classes of catalysts [64,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178]. However, the activity of Cp2-MtX2/MAO catalysts was moderate with propylene and, more importantly, did not produce stereo-regular polymers [65]. Very low molecular weight, atactic oils were obtained in all cases instead.
Grubbs and Coates demonstrate the insertion mechanism for olefin polymerization for group 4 Ziegler-Natta catalysts [152], which occur by the coordination of an olefin to a vacant site followed by migratory insertion of the coordinated olefin into the growing polymer chain (Scheme 2) [153,154,155,156]. α-olefin insertions into metal-alkyl bonds occur predominately with primary (1,2) regio-chemistry both for Ziegler-Natta catalysts and metallocenes and the un-substituted alkene carbon becomes bound to the metal. The results obtained by Grubbs and Coates [152] are in agreement with theoretical observations [157,158,159]. Although, small amounts (<1%) of regio-errors are commonly observed in PPs synthesized using metallocene catalysts, especially with iso-specific zirconocenes [65,152], the lower catalytic activity and molecular weights of the polymers obtained through competing chain-release processes occur as a result of 2,1-insertions [161,162]. The rate of insertion is slow due to the higher barrier to olefin insertion into the more-bulky secondary metal-alkyl species, which are in competition with β-hydride elimination and chain-end isomerization (1,3-insertion); this increases with chain growth.

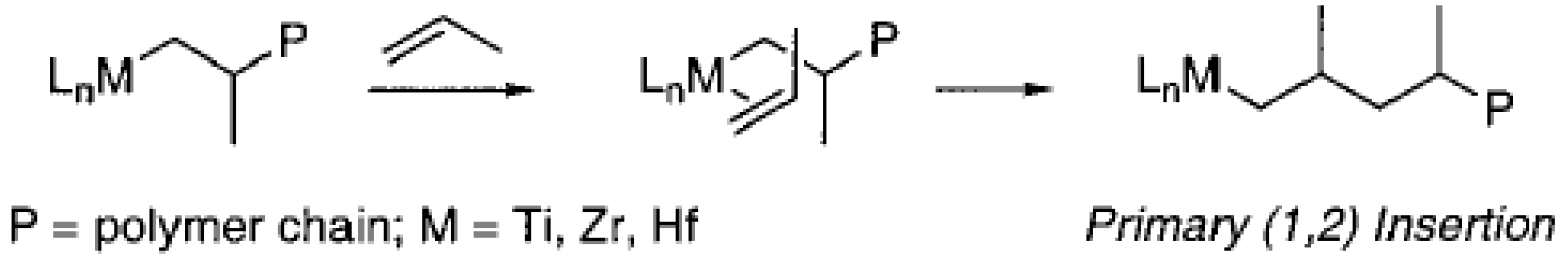

Scheme 2. Insertion mechanism for olefin polymerization for Group 4 Ziegler-Natta catalysts, reprinted with permissions form [160], Copyright 2002 ACS.
Scheme 2. Insertion mechanism for olefin polymerization for Group 4 Ziegler-Natta catalysts, reprinted with permissions form [160], Copyright 2002 ACS.
Materials 07 05069 g011
Hustad and co-workers have successfully proposed the secondary insertion of propylene in a group 4 catalyst system using bis(phenoxyimine)-based titanium catalysts [160]. In summary, the authors have discovered a highly unusual mechanism for the catalyst system that consists of both primary and secondary Ti-alkyl chains. The 2,1-insertion of propylene into a secondary titanium-alkyl (Ti-alkyl) is the dominant mechanism, whereas, insertions into the primary Ti-alkyl proceed with random regio-chemistry; end group analysis reveal that insertions into Ti-hydride are exclusively primary. Both heterogeneous titanium catalysts [69,163] and titanium-based metallocenes [67] produce ethylene-propylene copolymers (EPs) with high fractions of odd-numbered methylene sequences (n = 1, 3, 5) as a result of the highly regio-regular primary propylene insertion; resonances corresponding to the even-numbered sequences of length (two and four) are not observed (Ψ2 = Ψ4 ≈ 0). On the other hand, EPs synthesized using vanadium catalysts contain higher fractions of even-numbered methylene sequences (Ψ2 = 0.14, Ψ4 = 0.08) due to a high number of propylene inversions [164,165,166,167,168,169].
It has been observed that with the exception of Group 4, catalysts based on other metals such as vanadium [170,171], nickel [172,173], palladium [173], and iron [174,175] have also been reported to polymerize α-olefins by a secondary insertion mechanism (Scheme 3). Wu and Li [171], as well as Pellecchia and co-workers [172], have reported syndiotactic-specific polymerization with vanadium and nickel, respectively, while other workers have discussed about isotactic PP from iron-based catalysts [174,175,176].
Scheme 3. Polymerization of α-olefins by a secondary insertion mechanism, reprinted with permissions form [160], Copyright 2002 ACS.
Scheme 3. Polymerization of α-olefins by a secondary insertion mechanism, reprinted with permissions form [160], Copyright 2002 ACS.
Materials 07 05069 g012
Hustad and co-workers [160] discovered a new family of catalysts while exploring the non-metallocene species for stereo-selective α-olefin polymerization of propylene (Scheme 4) [178,179]. The same authors reported upon the formation of complexes that were capable of catalyzing the highly syndio-specific and controlled polymerization of propylene as well as synthesizing ethylene and propylene-based block copolymers [180]. Scheme 5 refers to the metallocenes that gave PPs with characteristic end groups resulting from chain-release reactions, primarily β-hydride and/or β-methyl transfer [161]. In processes that competed with chain growth, these catalysts participated in different types of chain release, generating a free polymer chain along with an active metal-hydride or metal-alkyl species capable of propagating a new polymer chain [160].
Scheme 4. Stereo-selective α-olefin polymerization of propylene, reprinted with permission form [160], Copyright 1996 ACS.
Scheme 4. Stereo-selective α-olefin polymerization of propylene, reprinted with permission form [160], Copyright 1996 ACS.
Materials 07 05069 g013
Scheme 5. Metallocenes that yield PPs with characteristic end groups resulting from chain-release reactions, reprinted with permission form [160], Copyright 2002 ACS.
Scheme 5. Metallocenes that yield PPs with characteristic end groups resulting from chain-release reactions, reprinted with permission form [160], Copyright 2002 ACS.
Materials 07 05069 g014
The metal-hydride or metal-methyl species produced by chain release in olefin polymerizations are capable of growing a new polymer chain. For metallocene catalysts, primary insertions into metal-hydrides produce n-propyl initiated PP (Scheme 6) [65], whereas, those inserted into the metal-methyl species are responsible for isobutyl end groups. The PPs produced from the iron-based catalyst contain saturated end groups; this generates n-butyl initiated PP due to the unusual secondary insertion mechanism (Scheme 6) [180]. Scheme 7 represents the initiation, propagation, and chain release for propylene polymerization by the phenoxyimine-based catalyst system. The primary insertion into Ti-hydride initiates the reaction producing n-propyl species. However, chain propagation reactions of propylene on the Ti-alkyl species can be considered as four distinct processes: (a) primary insertion into a primary metal-alkyl; (b) secondary insertion into a primary metal-alkyl; (c) primary insertion into a secondary metal-alkyl; and (d) secondary insertion into a secondary metal-alkyl species. The processes represented in (a) and (b) are important only in the initial stages of polymerization and occur in almost equal proportions, while process (c) accounts for ca. 1% of total propylene enchainment. Despite the specific nature of insertion into the primary Ti-alkyl species, statistics reveal that a secondary titanium-alkyl compound could be generated, after which propagation becomes exclusively secondary as for process (d). The chain release then occurs exclusively by β-hydride transfer from the terminal methyl species, giving PP with allylic end groups [65,160]. It has been observed that metallocenes do not undergo this type of chain transfer, whereas, they act as the major source of termination when applied with iron-based catalysts.
Scheme 6. n-butyl initiated PP formation due to an unusual secondary insertion mechanism, reprinted with permission form [65,160], Copyright 2002 ACS and 2013 RSC.
Scheme 6. n-butyl initiated PP formation due to an unusual secondary insertion mechanism, reprinted with permission form [65,160], Copyright 2002 ACS and 2013 RSC.
Materials 07 05069 g015
Yu and co-workers [85] have recently investigated the chain-transfer reactions of TiCl4/MgCl2–AlEt3 catalyzed propylene polymerization under conditions of severely starved monomer supply with suppressed chain transfer to the co-catalyst system. Besides 1-propen-2-yl (vinylidene) end group formation by β-H transfer after primary (1,2-) insertion, 1-propen-3-yl (allyl) end group formation by β-Me (β-methyl) transfer after 1,2-insertion and 2-buten-4-yl formation by β-H transfer after secondary (2,1-) insertion were also detected in the polymeric product by 1H-NMR analysis [181]. The monomer dependencies of the chain-transfer reactions were also studied [182]. On account of the uni-molecular nature of β-H transfer after a secondary insertion procedure, the content of 2-buten-4-yl end group, which is too low to be detected during PP formation under conventional conditions, was found to increase markedly in the product of the monomer-starved polymerization process [85].
Scheme 7. The initiation, propagation, and chain release reactions for propylene polymerization by the phenoxyimine-based catalyst system, reprinted with permission form [160], Copyright 2002 ACS.
Scheme 7. The initiation, propagation, and chain release reactions for propylene polymerization by the phenoxyimine-based catalyst system, reprinted with permission form [160], Copyright 2002 ACS.
Materials 07 05069 g016

3.4. Olefin Polymerization by Half-Titanocenes Containing Aryloxy Ligands

It has long been known that the ligand modification is very important in order for metal catalyzed olefin polymerization to proceed with remarkable activities [183,184]. For example, as shown in Table 3 and Table 4, both substituents on cyclopentadienyl (Cp' and the * denotes a radical) and aryloxo ligands affect the activity for ethylene polymerization [185,186,187,188]. Cp*TiCl2(O-2,6-iPr2C6H3), where iPr represents iso-propylene, exhibits notable activities, and the activity by Cp'TiCl2(O-2,6-iPr2C6H3) increases in the order: Cp' = Cp* ≫ 1,3-tBu2C5H3 > 1,3-Me2C5H3, tBuC5H4≫ Cp (Table 3).
Table 3. Effect of cyclopentadienyl fragment (Cp') on the activity of olefin polymerization by Cp'TiCl2(O-2,6-iPr2C6H3)–MAO catalyst systems a [186]. Copyright 2011 RSC.
Table 3. Effect of cyclopentadienyl fragment (Cp') on the activity of olefin polymerization by Cp'TiCl2(O-2,6-iPr2C6H3)–MAO catalyst systems a [186]. Copyright 2011 RSC.
Cp' (μmol)OlefinActivity bTON c10−4Mw dMw/Mn d
Cp (18.3)Ethylene772,750
Cp (5.0)1-Hexene623700.68
tBuC5H4 (15.1)Ethylene2589,2005.992.1
tBuC5H4 (5.0)1-Hexene905328.041.6
tBuC5H4 (5.0)1-Octene1255588.251.9
1,3-Me2C5H2 (24.2)Ethylene2157,6601.752.5
1,3-Me2C5H2 (5.0)1-Hexene1841,0908.731.9
1,3-tBu2C5H2 (5.0)Ethylene65323,30064.96.8
1,3-tBu2C5H2 (5.0)1-Hexene261522.161.6
1,3-tBu2C5H2 (5.0)1-octene381681.751.5
Cp* (6.5)Ethylene2,22079,10045.95.0
Cp* (1.0)1-Hexene7284,33069.41.6
Cp* (1.0)1-Octene9704,32049.51.8
Cp* (1.0)1-Decene10363,69041.71.7
a Cited from [185,187]. Conditions: ethylene 4 atm., 60 °C, 1 h, toluene 300 mL, [Ph3C][B(C6F5)4]/AliBu3/Ti = 1/500/1 (molar ratio); α-olefin 5 mL, catalyst 2 μmol·mL−1 toluene, MAO white solid, 25 °C, 30 min. b Activity in kg-polymer mol−1·Ti−1·h−1. c TON (turnover numbers) = molar amount of olefin reacted per mol-Ti. d By GPC vs. polystyrene standards.
Table 4. Effect of aryloxo substituents toward the activity of ethylene polymerization by Cp*TiCl2(O-2-R1-4-R2-6-R3-C6H2)–MAO catalyst systems a.
Table 4. Effect of aryloxo substituents toward the activity of ethylene polymerization by Cp*TiCl2(O-2-R1-4-R2-6-R3-C6H2)–MAO catalyst systems a.
R1, R2, R3 (μmol)Activity bTON c10−4Mw dMw/Mn d
iPr, H, iPr (4.2)1,24043,10064.94.7
H, Me, H (13.0)25890
Me, H, Me (4.0)1,00035,7001234.5
tBu, Me, Me (13.0)44615,900
Me, Me, Me (8.4)36913,200
a Cited from [186]. Conditions: ethylene 4 atm., 60 °C, 1 h, toluene 300 mL, MAO (Al/Ti = 1000, molar ratio). b Activity in kg-polymer mol−1·Ti−1·h−1. c TON (turnover numbers) = molar amount of reacted olefin per mol-Ti. d By GPC vs. polystyrene standards.
Similar results have been observed by several workers [188,189,190] for syndiospecific polymerization of styrene using a series of Cp'Ti(OMe)3 complexes. They explain the high activity by assuming that electron-donating substituents stabilize the active sites [189,190]. However, the tBu2Cp analog shows lower catalytic activity in 1-hexene and 1-octene polymerization due to the presence of steric bulk on Cp' [191]. Researchers have also monitored comparable levels of activities between 1-hexene and 1-octene polymerization reactions [192].
A series of half-titanocenes containing phosphinimide ligands of type, Cp'Ti(N=PR3)X2, were employed to explore the effect of the substituents on both Cp' and N=PR3 groups for activity during ethylene polymerization (Table 5) [186,193]. These complexes exhibited remarkable catalytic activities in the presence of MAO, which improved when they were used in combination with [Ph3C][B(C6F5)4]. Substituents on both Cp' and N=PR3 ligands played an essential role during the process and the use of the N=PCy3 ligand was effective.
The tBuC5H4 analogs were more suitable than the Cp analogs, suggesting that electron-donating substituents on Cp' increased the activity [186]. Analogous zirconium complexes were also prepared, but these complexes showed low activities for ethylene polymerization in the presence of MAO [194]; the activities by the Zr analogs improved in the presence of [Ph3C][B(C6F5)4] co-catalysts [195].
DFT (density functional theory) calculations on the polymerization mechanism by a series of catalyst models derived from CpTiMe2(N=PR3) (R = Me, NH2, H, Cl, F) were carried out by Beddie and co-workers [196]. The authors demonstrated the critical role of ion pairing in determining the overall barrier to polymerization and suggested that ligands containing electron-donating substituents could reduce this barrier. The tris-amido-phosphinimide analogs, Cp'TiX2[N=P(NR2)3] (X = Cl, Me), showed notable catalytic activities in the presence of borate-based activators (Table 6) and their activity improved upon increasing the steric bulk [197]. Optimization of steric bulk and electronic characteristics to facilitate ion-pair separation and prolonged catalyst lifetime were, thus, achieved, affording a readily accessible and easily varied family of highly active catalysts [196,197,198].
Table 5. Ethylene polymerization by Cp'TiX2(N=PR3) [4, Cp' = Cp, tBuC5H4 (tBuCp); X = Cl, Me; R = Cy, iPr, tBu]–co-catalyst systems a, reprinted with permissions form [186,193]. Copyright 2011 2013 RSC.
Table 5. Ethylene polymerization by Cp'TiX2(N=PR3) [4, Cp' = Cp, tBuC5H4 (tBuCp); X = Cl, Me; R = Cy, iPr, tBu]–co-catalyst systems a, reprinted with permissions form [186,193]. Copyright 2011 2013 RSC.
ComplexCo-CatalystActivity b10−4Mw cMw/Mn c
CpTiCl2(N=PCy3)MAO420.36 d1.8
33.62.2
CpTiCl2(N=PiPr3)MAO491.87 d2.8
57.92.4
CpTiCl2(N=PtBu3)MAO5008.992.4
CpTiMe2(N=PCy3)Ph3CB(C6F5)423113.52.8
CpTiMe2(N=PiPr3)Ph3CB(C6F5)422516.43.4
CpTiMe2(N=PtBu3)Ph3CB(C6F5)440116.63.4
tBuCpTiCl2(N=PCy3)MAO460.74 d2.1
89.43.4
tBuCpTiCl2(N=PiPr3)MAO160.76 d1.9
912.5
tBuCpTiCl2(N=PtBu3)MAO8816.542.4
tBuCpTiMe2(N=PCy3)Ph3CB(C6F5)41807317.5
tBuCpTiMe2(N=PiPr3)Ph3CB(C6F5)4119325.99.9
tBuCpTiMe2(N=PtBu3)Ph3CB(C6F5)4129632.112.3
[Me2Si(C5Me4)(NtBu)]TiCl2MAO630
a Cited from [191]. Conditions: catalyst 0.01–0.03 mmol, toluene, ethylene 1 atm., 25 °C, 0.5–3 min, MAO (Al/Ti = 500, molar ratio) or Ph3CB(C6F5)4 (B/Ti = 2). b Activity in kg-polymer per mol-Ti·h−1. c GPC data vs. polyethylene standards. d Bimodal molecular weight distributions.
Table 6. Ethylene polymerization by Cp'TiX2[NP(NR1R2)3] (5)–co-catalyst systems a, reprinted with permission form [186]. Copyright 2011 RSC.
Table 6. Ethylene polymerization by Cp'TiX2[NP(NR1R2)3] (5)–co-catalyst systems a, reprinted with permission form [186]. Copyright 2011 RSC.
Pre-catalyst (μmol·L−1)Co-Catalystt/minActivity b10−4Mn cMw/Mn c
Cp*TiCl2[N=P(NMe2)3] (100)MAO302182.61.72
Cp*TiCl2[N=P(NEt2)3] (100)MAO30399.011.65
Cp*TiCl2[N=P{N(Me)iPr}3] (50)MAO305612.782.76
Cp*TiCl2[N=P{N(Et)Ph}3] (50)MAO3020012.614.02
CpTiMe2[N=P(NMe2)3] (4)Al/B d102,20031.52.05
CpTiMe2[N=P(NEt2)3] (4)Al/B d103,50039.41.91
CpTiMe2[N=P(NPr2)3] (4)Al/B d105,500
CpTiMe2[N=P(NBu2)3] (4)Al/B d103,600
CpTiMe2[N=P{N(Me)iPr}3] (4)Al/B d103,60038.861.85
CpTiMe2[N=P{N(Et)Ph}3] (4)Al/B d104,20043.251.92
Cp*TiMe2[N=P(NMe2)3] (4)Al/B d104,20014.084.92
Cp*TiMe2[N=P(NEt2)3] (4)Al/B d104,700
Cp*TiMe2[N=P(NPr2)3] (4)Al/B d1010,000
Cp*TiMe2[N=P(NBu2)3] (4)Al/B d106,100
Cp*TiMe2[N=P{N(Me)iPr}3] (4)Al/B d104,90028.812.14
Cp*TiMe2[N=P{N(Et)Ph}3] (4)Al/B d104,20032.462.03
Cp*TiMe2[N=PiPr3] (4)Al/B d105,20049.342.05
CpTiMe2[N=PtBu3] (4)Al/B d105,60043.781.8
Cp2ZrMe2 (4)Al/B d1016,00017.51.89
a Cited from [192]. Conditions: ethylene 2 atm. at 30 °C, toluene 600 mL, stir rate = 1000 rpm, 500 equivalent of MAO or Al/B. b Activity in kg-PE mol−1·Ti−1·h−1·atm−1. c GPC data in o-dichlorobenzene. d Al/B = AliBu3/B(C6F5)3, 2 equiv. of B(C6F5)3; 20 equiv of AliBu3.

4. Conclusions and Future Perspective

In this paper we have given a review of the changes and current state of PE and PP manufacturing processes, including role and types of catalysts and co-catalysts employed over the years. Even though Ziegler-Natta catalysts have been used significantly since their discovery, metallocene catalysts and co-catalyst systems have tended to replace them in recent times. We have reported upon the yields and mechanisms for the production of both PP and PE and have also provided a perspective on future research directions. More laboratory-scale work is recommended to understand the complexity of the polymerization process such that a greater amount of information is obtained for optimization purposes.
From the early 1990s, the polymer industry has been undergoing a strong revolution with the discovery of SSCs. These catalysts have paved the way to synthesizing tailored polymers with desired characteristics. Figure 9 illustrates the significant increase in the demand for PE and PP from 2004 to 2015 [199]. However, the industry has to be more cautious so as to maintain effective consumption of raw materials and utilities for PE and PP productions. The future of PE and PP is focused on the chemical resources available for polyolefins, well-designed copolymerization processes, miscellaneous composite types for the polymer with novel effective compatible compounds, as well as a full LCA (life cycle analysis) of the PE and PP products.
A recent perspective paper on PEs described many reports concerning syntheses of half-titanocenes and their potentials as ethylene polymerization catalysts [187]. We have included some useful tables from that work to highlight the significant contribution made to the scientific community by the authors. However, in most cases researchers have stopped their evaluations, focusing mainly on ethylene polymerization. More information is required concerning the catalytic stability in the reaction mixture, as well as on the electronic and steric effects toward both the activity and the co-monomer incorporation during the polymerization reaction. Complexes of such type may be effective for synthesis of new polyolefins by incorporation of monomers that are not successful as ordinary catalysts; these studies should, thus, be explored in the near future [187].
There are still many possibilities for the synthesis and processing of new types of polyolefin copolymers, especially for polymer blends with other polymers such as polyamides, polyesters, and polynitriles. For these blends polar co-monomers have to be incorporated into the PE or PP chain and more efficient catalysts have to be developed. Other new properties of polyolefins can be reached by means of block copolymers. A combination of single site catalysts is able to form, in a first step, a hard PP block, and in a second step, a soft ethylene/propylene (EP) copolymer. The first success in this field is described in the literature [200]. Similar block copolymers can be obtained by controlled polymerization of olefins [201,202]. For example, di-block copolymers of poly[syndiotactic propylene-b-(ethylene-co-propylene)] have been synthesized with a controlled molecular weight and a narrow molecular weight distribution (Mw/Mn ≈ 1.1) [179]. Later on, bis(phenoxyimine)-titanium dichloride/MAO catalysts were used for the polymerization of 1,5-hexadiene to give a random copolymer with 1,3-methylenecyclopentane (MCP) and 3-vinyltetramethylene (VTM) units [203]. The VTM units in the copolymer have been shown to undergo a cross-metathesis reaction with alkenes catalyzed by a ruthenium carbene for additional functionalization of the copolymer [204].

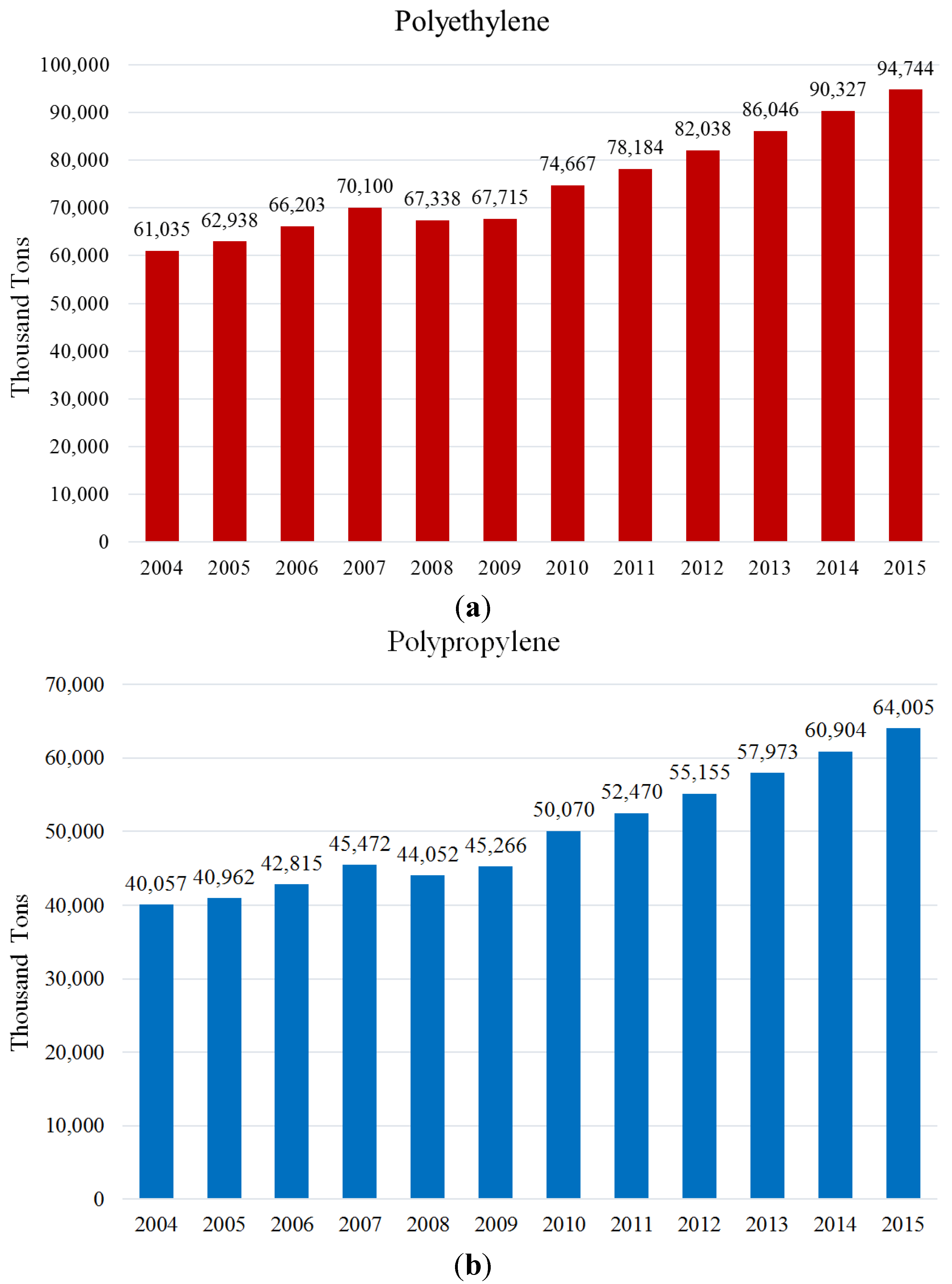

Figure 9. Bar chart representation of the world’s demand for PE (a); and PP (b) from 2004 to 2015, reprinted with permission from [199]. Copyright 2011 Canadian Plastics.
Figure 9. Bar chart representation of the world’s demand for PE (a); and PP (b) from 2004 to 2015, reprinted with permission from [199]. Copyright 2011 Canadian Plastics.
Materials 07 05069 g009
Polyolefin nanocomposites will open up the approach to new classes of materials with special property combinations. The soft polyolefin matrix can be combined with hard inorganic particles, silicate layers, carbon nano fibers, or with carbon nanotubes, with extremely high tensile strengths. A possible means for the preparation of such polyolefin nanocomposites involves the in situ polymerization by metallocene catalysts [205,206]. Late transition metal complexes, which are more stable in water and ionic liquid solvents, can be used for emulsion polymerization, opening new fields of applications for polyolefins [207,208,209,210,211,212,213,214].
More active catalysts and adapted processes have to be developed. These efforts will pave the way for new promising possibilities for the evolution of new fine polyolefins with unique properties by incorporation of new co-monomers and/or by adopting new synthetic strategies. Considering the fact that the area is open to many directions, studies, and development, it would be heartening to observe novel discoveries being reported in the literature by academicians instead of confining majority of the research results within industries [56,57,215,216,217,218,219]. In addition, it may be worthwhile to synthesize polyolefin composites, which contain bio-degradable components that can be used for packaging materials in order to reduce their environmental impacts.

Nomenclature

C*
active site
Cd
deactivated site
Dr
dead polymer of chain length r
H2 hydrogen
the most common chain transfer agent for these systems, except for Phillips catalysts
M
monomer
Al
cocatalyst
I
impurities
Pr
living polymer chain of length r

Acknowledgments

The authors would like to acknowledge the University of Malaya, and the Ministry of Higher Education in Malaysia for supporting this collaborative work via the research grant UM.C/HIR/MOHE/ENG/25. The authors also show their appreciation to Andrew Haslam (Department of Chemical Engineering, Imperial College London) for improving the manuscript significantly. Mohammed Chakrabarti (MHC) is grateful to the European Commission Seventh Framework Programme (Capacities) for funding his stay in Delft via the BRISK grant (PAB P91059). Finally MHC is grateful to Nigel P. Brandon for providing full access to Imperial College facilities.

Author Contributions

All authors contributed to the concept in this review. Ahmad Shamiri, Mohammed H. Chakrabarti and Shah Jahan wrote this paper. Wageeh A. Yehye and Purushothaman V. Aravind edited the paper and Mohd Azlan Hussain gave final approval of the version to be submitted.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. McNaught, A.D.; Wilkinson, A. Compendium of Chemical Terminology; IUPAC Nomenclature Books Series; Blackwell: Oxford, UK, 1997. [Google Scholar]
  2. Chung, T.C.M. Functional Polyolefins for Energy Applications. Macromolecules 2013, 46, 6671–6698. [Google Scholar] [CrossRef]
  3. Mandal, B.M. Fundamentals of Polymerization; World Scientific: Hackensack, NJ, USA, 2013. [Google Scholar]
  4. Albizzati, E.; Galimberti, M. Catalysts for olefins polymerization. Catal. Today 1998, 41, 415–421. [Google Scholar]
  5. Ziegler, K. Organometallic Chemistry; Zeiss, H., Ed.; ACS Monograph 147; Reinhold Publishing Corp.: New York, NY, USA, 1960; Volume 194. [Google Scholar]
  6. Gambarotta, S. Vanadium-based Ziegler–Natta: Challenges, promises, problems. Coord. Chem. Rev. 2003, 237, 229–243. [Google Scholar] [CrossRef]
  7. Kaminsky, W. New polymers by metallocene catalysis. Macromol. Chem. Phys. 1996, 197, 3907–3945. [Google Scholar] [CrossRef]
  8. Natta, G. Kinetic studies of α-olefin polymerization. J. Polym. Sci. 1959, 34, 21–48. [Google Scholar] [CrossRef]
  9. Claverie, J.P.; Schaper, F. Ziegler-Natta catalysis: 50 years after the Nobel Prize. MRS Bull. 2013, 38, 213–218. [Google Scholar] [CrossRef]
  10. Torres, W.; Donini, J.C.; Vlcek, A.A.; Lever, A.B.P. Polymer Films with Tunable Surface Properties: Separation of an Oil-in-Water Emulsion at Poly(3-methylthiophene). Langmuir 1995, 11, 2920–2925. [Google Scholar] [CrossRef]
  11. Fregonese, D.; Mortara, S.; Bresadola, S. Ziegler-Natta MgCl2-supported catalysts: Relationship between titanium oxidation states distribution and activity in olefin polymerization. J. Mol. Catal. A Chem. 2001, 172, 89–95. [Google Scholar] [CrossRef]
  12. Kashiwa, N.J. The discovery and progress of MgCl2-supported TiCl4 catalysts. Polym. Sci. A Polym. Chem. 2004, 42, 1–8. [Google Scholar] [CrossRef]
  13. Natta, G.; Pino, P.; Mazzanti, P. Regular linear head-to-tail polymerizates of certain unsaturated hydrocarbons and filaments comprising said polymerizates. U.S. Patent 3,715,344, 6 February 1973. [Google Scholar]
  14. Kesti, M.R.; Coates, G.W.; Waymouth, R.M. Homogeneous Ziegler-Natta polymerization of functionalized monomers catalyzed by cationic Group IV metallocenes. J. Am. Chem. Soc. 1992, 114, 9679–9680. [Google Scholar] [CrossRef]
  15. Klimke, K.; Parkinson, M.; Piel, C.; Kaminsky, W.; Spiess, H.W.; Wilhelm, M. Optimisation and Application of Polyolefin Branch Quantification by Melt-State 13C-NMR Spectroscopy. Macromol. Chem. Phys. 2006, 207, 382–395. [Google Scholar] [CrossRef]
  16. Kaminsky, W.; Funck, A.; Hähnsen, H. New application for metallocene catalysts in olefin polymerization. Dalton Trans. 2009, 8803–8810. [Google Scholar] [CrossRef]
  17. Santos, L.S. What do We Know about Reaction Mechanism? The Electrospray Ionization Mass Spectrometry Approach. J. Braz. Chem. Soc. 2011, 22, 1827–1840. [Google Scholar] [CrossRef]
  18. Sagel, E. Polyethylene Global Overview. Available online: http://www.ptq.pemex.com/productosyservicios/eventosdescargas/Documents/Foro%20PEMEX%20Petroqu%C3%ADmica/2012/PEMEX%20PE.pdf (accessed on 25 April 2013).
  19. Shiga, A. Theoretical study of heterogeneous Ziegler-Natta catalysts: A comparison between TiCl3 catalysts and MgCl2 supported catalysts by using paired interacting orbitals (PIO) analysis. Macromol. Res. 2010, 18, 956–959. [Google Scholar] [CrossRef]
  20. Ahmad, N.; Mahmood, K. Preparation and distribution measurements for polyethylene single-crystals for various type of sizes. J. Chem. Soc. Pak. 1993, 15, 105–109. [Google Scholar]
  21. Zhang, W.-H.; Chien, S.W.; Hor, T.S.A. Recent advances in metal catalysts with hybrid ligands. Coord. Chem. Rev. 2011, 255, 1991–2024. [Google Scholar] [CrossRef]
  22. Ghasem, N.M.; Ang, W.L.; Hussain, M.A. Dynamics and stability of ethylene polymerization in multizone circulating reactors. Korean J. Chem. Eng. 2009, 26, 603–611. [Google Scholar] [CrossRef]
  23. Cho, K.; Lee, B.H.; Hwang, K.-M.; Lee, H.; Choe, S. Rheological and mechanical properties in polyethylene blends. Polym. Eng. Sci. 1998, 38, 1969–1975. [Google Scholar] [CrossRef]
  24. Aida, T.; Meijer, E.W. Functional Supramolecular Polymers. Science 2012, 335, 813–817. [Google Scholar] [CrossRef]
  25. Korevaar, P.A.; George, S.J.; Markvoort, A.J.; Smulders, M.M.J.; Hilbers, P.A.J.; Schenning, A.P.H.J.; de Greef, T.F.A.; Meijer, E.W. Pathway complexity in supramolecular polymerization. Nature 2012, 481, 492–496. [Google Scholar] [CrossRef]
  26. Kitamaru, R.; Horii, F.; Murayama, K. Phase Structure of Lamellar Crystalline Polyethylene by Solid-state High-Resolution 13C-NMR: Detection of the Crystalline-Amorphous Interphase. Macromolecules 1986, 19, 636–643. [Google Scholar] [CrossRef]
  27. Miroslav, J.; Roman, C.; Petr, P. Morphology of Polyethylene with Regular Side Chains Distribution. In Proceedings of the 4th WSEAS International Conference on Engineering Mechanics, Structures, Engineering Geology, Corfu Island, Greece, 14–16 July 2011.
  28. Janicek, M.; Cermak, R.; Obadal, M.; Piel, C.; Ponizil, P. Ethylene Copolymers with Crystallizable Side Chains. Macromolecules 2011, 44, 6759–6766. [Google Scholar] [CrossRef]
  29. Kaminsky, W.; Piel, C. Tailoring polyolefins by metallocene catalysis: Kinetic and mechanistic aspects. J. Mol. Catal. A Chem. 2004, 213, 15–19. [Google Scholar] [CrossRef]
  30. MAG Recycling Services. Available online: http://www.magrecycling.com.au/RecycledProducts/HDPE.aspx (accessed on 15 January 2013).
  31. University of Southern Mississippi. Available online: http://www.pslc.ws/macrog/pe.htm (accessed on 15 January 2013).
  32. Zhang, J.; Wang, X.; Jin, G.-X. Polymerized metallocene catalysts and late transition metal catalysts for ethylene polymerization. Coord. Chem. Rev. 2006, 250, 95–109. [Google Scholar] [CrossRef]
  33. Piel, C.; Starck, P.; Seppälä, J.V.; Kaminsky, W. Thermal and mechanical analysis of metallocene-catalyzed ethene–α-olefin copolymers: The influence of the length and number of the crystallizing side chains. J. Polym. Sci. A Polym. Chem. 2006, 44, 1600–1612. [Google Scholar] [CrossRef]
  34. Starck, P. Dynamic mechanical thermal analysis on Ziegler-Natta and metallocene type ethylene copolymers. Eur. Polym. J. 1997, 33, 339–348. [Google Scholar] [CrossRef]
  35. Natta, G.; Mazzanti, G.; Valvassori, A.; Sartori, G.; Fiumani, D. Ethylene–propylene copolymerization in the presence of catalysts prepared from vanadium triacetylacetonate. J. Polym. Sci. 1961, 51, 411–427. [Google Scholar] [CrossRef]
  36. Debras, G. Process for Producing Polyethylene Having a Broad Molecular Weight Distribution. WO1995010548 A1, 2 February 1993. [Google Scholar]
  37. Dammert, R.; Heino, E.-L.; Korvenoja, T.; Martinsson, H.-B. A Multimodal Polymer Composition. WO2000037556 A1, 15 May 2000. [Google Scholar]
  38. Zapata, P.A.; Quijada, R.; Lieberwirth, I.; Benavente, R. Polyethylene Nanocomposites Obtained by in Situ Polymerization via a Metallocene Catalyst Supported on Silica Nanospheres. Macromol. React. Eng. 2011, 5, 294–302. [Google Scholar] [CrossRef]
  39. Bianchini, C.; Giambastiani, G.; Rios, I.G.; Mantovani, G.; Meli, A.; Segarra, A.M. Ethylene oligomerization, homopolymerization and copolymerization by iron and cobalt catalysts with 2,6-(bis-organylimino)pyridyl ligands. Coord. Chem. Rev. 2006, 250, 1391–1418. [Google Scholar] [CrossRef]
  40. Kukalyekar, N.; Balzano, L.; Peters, G.W.M.; Rastogi, S.; Chadwick, J.C. Characteristics of Bimodal Polyethylene Prepared via Co-Immobilization of Chromium and Iron Catalysts on an MgCl2-Based Support. Macromol. React. Eng. 2009, 3, 448–454. [Google Scholar] [CrossRef]
  41. Bianchini, C.; Giambastiani, G.; Luconi, L.; Meli, A. Olefin oligomerization, homopolymerization and copolymerization by late transition metals supported by (imino)pyridine ligands. Coord. Chem. Rev. 2010, 254, 431–455. [Google Scholar] [CrossRef]
  42. Alt, F.; Böhm, L.; Enderle, H.; Berthold, J. Bimodal polyethylene—Interplay of catalyst and process. Macromol. Symp. 2001, 163, 135–144. [Google Scholar] [CrossRef]
  43. Chen, X.; Liu, D.; Wang, H. Synthesis of Bimodal Polyethylene Using Ziegler-Natta Catalysts by Multiple H2 Concentration Switching in a Single Slurry Reactor. Macromol. React. Eng. 2010, 4, 342–346. [Google Scholar] [CrossRef]
  44. Fernandes, F.A.N.; Lona, L.M.F. Multizone circulating reactor modeling for gas-phase polymerization.I. Reactor modeling. J. Appl. Polym. Sci. 2004, 93, 1042–1052. [Google Scholar] [CrossRef]
  45. Ruff, M.; Paulik, C. Controlling Polyolefin Properties by In-Reactor Blending, 1–Polymerization Process, Precise Kinetics, and Molecular Properties of UHMW-PE Polymers. Macromol. React. Eng. 2012, 6, 302–317. [Google Scholar] [CrossRef]
  46. Small, B.L.; Brookhart, M.; Bennett, A.M.A. Highly Active Iron and Cobalt Catalysts for the Polymerization of Ethylene. J. Am. Chem. Soc. 1998, 120, 4049–4050. [Google Scholar] [CrossRef]
  47. Wang, Q.; Li, L.; Fan, Z. Polyethylene with bimodal molecular weight distribution synthesized by 2,6-bis(imino)pyridyl complexes of Fe(II) activated with various activators. Eur. Polym. J. 2004, 40, 1881–1886. [Google Scholar] [CrossRef]
  48. Czaja, K.; Król, B. Two-step polymerization of propylene over MgCl2-supported titanium catalyst. Macromol. Chem. Phys. 1998, 199, 451–455. [Google Scholar] [CrossRef]
  49. Pater, J.; Weickert, G.; van Swaaij, W. Propene bulk polymerization kinetics: Role of prepolymerization and hydrogen. AIChE J. 2003, 49, 180–193. [Google Scholar] [CrossRef]
  50. Ibrehem, A.S.; Hussain, M.A.; Ghasem, N.M. Modified mathematical model for gas phase olefin polymerization in fluidized-bed catalytic reactor. Chem. Eng. J. 2009, 149, 353–362. [Google Scholar] [CrossRef]
  51. Monji, M.; Abedi, S.; Pourmahdian, S.; Taromi, F.A. Effect of prepolymerization on propylene polymerization. J. Appl. Polym. Sci. 2009, 112, 1863–1867. [Google Scholar] [CrossRef]
  52. Shan, C.L.P.; Soares, J.B.P.; Penlidis, A. HDPE/LLDPE reactor blends with bimodal microstructures—Part II: Rheological properties. Polymer 2003, 44, 177–185. [Google Scholar] [CrossRef]
  53. Hutchinson, R.A.; Chen, C.M.; Ray, W.H. Polymerization of olefins through heterogeneous catalysis X: Modeling of particle growth and morphology. J. Appl. Polym. Sci. 1992, 44, 1389–1414. [Google Scholar] [CrossRef]
  54. Meier, G.B.; Weickert, G.; van Swaaij, W.P.M. FBR for catalytic propylene polymerization: Controlled mixing and reactor modelling. AIChE J. 2002, 6, 1268–1283. [Google Scholar]
  55. Shamiri, A.; Hussain, M.A.; Mjalli, F.S.; Moustavi, N. Kinetic modeling of propylene homopolymerization in a gas-phase fluidized-bed reactor. Chem. Eng. J. 2010, 161, 240–249. [Google Scholar] [CrossRef]
  56. Shamiri, A.; Hussain, M.A.; Mjalli, F.S.; Moustavi, N. Improved single phase modeling of propylene polymerization in a fluidized bed reactor. Comput. Chem. Eng. 2012, 36, 35–47. [Google Scholar] [CrossRef]
  57. Shamiri, A.; Hussain, M.A.; Mjalli, F.S.; Shafeeyan, M.S.; Mostoufi, N. Experimental and Modeling Analysis of Propylene Polymerization in a Pilot-Scale Fluidized Bed Reactor. Ind. Eng. Chem. Res. 2014, 53, 8694–8705. [Google Scholar] [CrossRef]
  58. Kaminsky, W. Highly active metallocene catalysts for olefin polymerization. J. Chem. Soc. Dalton Trans. 1998, 1413–1418. [Google Scholar] [CrossRef]
  59. Brintzinger, H.H.; Fischer, D.; Mulhaupt, R.; Rieger, B.; Waymouth, R.M. Stereospecific Olefin Polymerization with Chiral Metallocene Catalysts. Angew. Chem. Int. Ed. Engl. 1995, 34, 1143–1170. [Google Scholar] [CrossRef]
  60. Resconi, L.; Cavallo, L.; Fait, A.; Piemontesi, F. Selectivity in Propene Polymerization with Metallocene Catalysts. Chem. Rev. 2000, 100, 1253–1345. [Google Scholar] [CrossRef]
  61. Razavi, A.; Thewalt, U. Site selective ligand modification and tactic variation in polypropylene chains produced with metallocene catalysts. Coord. Chem. Rev. 2006, 250, 155–169. [Google Scholar] [CrossRef]
  62. Chen, E.Y.-X. Coordination Polymerization of Polar Vinyl Monomers by Single-Site Metal Catalysts. Chem. Rev. 2009, 109, 5157–5214. [Google Scholar] [CrossRef]
  63. Kaminsky, W.; Kuelper, K.; Brintzinger, H.H.; Wild, F.R.W.P. Polymerization of Propene and Butene with a Chiral Zirconocene and Methylalumoxane as Cocatalyst. Angew. Chem. Int. Ed. Engl. 1985, 24, 507–508. [Google Scholar] [CrossRef]
  64. Kaminsky, W.; Sinn, H. Methylaluminoxane: Key Component for New Polymerization Catalysts. Adv. Polym. Sci. 2013, 258, 1–28. [Google Scholar] [CrossRef]
  65. Makio, H.; Prasad, A.V.; Terao, H.; Saito, J.; Fujita, T. Isospecific propylene polymerization with in situ generated bis(phenoxy-amine)zirconium and hafnium single site catalysts. Dalton Trans. 2013, 42, 9112–9119. [Google Scholar]
  66. Press, K.; Venditto, V.; Goldberg, I.; Kol, M. Zirconium and hafnium Salalen complexes in isospecific polymerisation of propylene. Dalton Trans. 2013, 42, 9096–9103. [Google Scholar] [CrossRef]
  67. Karger-Kocsis, J. Polypropylene. 2. Copolymers and Blends; Chapman & Hall: London, UK, 1995. [Google Scholar]
  68. Ge, Z.; Chen, T.; Song, Z. Quality prediction for polypropylene production process based on CLGPR model. Control Eng. Pract. 2011, 19, 423–432. [Google Scholar] [CrossRef][Green Version]
  69. Shamiri, A.; Hussain, M.A.; Mjalli, F.S.; Mostoufi, N.; Hajimolana, S. Dynamics and Predictive Control of Gas Phase Propylene Polymerization in Fluidized Bed Reactors. Chin. J. Chem. Eng. 2013, 21, 1015–1029. [Google Scholar] [CrossRef]
  70. Gómez-Elvira, J.M.; Tiemblo, P.; Elvira, M.; Matisova-Rychla, L.; Rychly, J. Relaxations and thermal stability of low molecular weight predominantly isotactic metallocene and Ziegler-Natta polypropylene. Polym. Degrad. Stab. 2004, 85, 873–882. [Google Scholar] [CrossRef]
  71. Datta, S.; Sahnoune, A. Transparent and Translucent Crosslinked Propylenebased Elastomers, and Their Production and Use. WO2005049672A1, 19 May 2005. [Google Scholar]
  72. Kaminsky, W.; Laban, A. Metallocene catalysis. Appl. Catal. A 2001, 222, 47–61. [Google Scholar] [CrossRef]
  73. Nie, Y.; Sun, J.; Yin, W.; Wang, L.; Shi, Z.; Schumann, H. Novel diphenyl thioether-bridged binuclear metallocenes of Ti and Zr for synthesis of polyethylene with broad molecular weight distribution. J. Appl. Polym. Sci. 2011, 120, 3530–3535. [Google Scholar] [CrossRef]
  74. Ronkko, H.-L.; Korpela, T.; Knuuttila, H.; Pakkanen, T.T.; Denifl, P.; Leinonen, T.; Kemell, M.; Leskela, M. Particle growth and fragmentation of solid self-supported Ziegler–Natta-type catalysts in propylene polymerization. J. Mol. Catal. A Chem. 2009, 309, 40–49. [Google Scholar] [CrossRef]
  75. Vyas, P.B.; Kaur, S.; Patil, H.R.; Gupta, V.K. Synthesis of polypropylene with varied microstructure and molecular weights characteristics using supported titanium catalyst system. J. Polym. Res. 2011, 18, 235–239. [Google Scholar] [CrossRef]
  76. Pater, J.T.M.; Weickert, G.; Loos, J.; van Swaaij, W.P.M. High precision prepolymerization of propylene at extremely low reaction rates—Kinetics and morphology. Chem. Eng. Sci. 2001, 56, 4107–4120. [Google Scholar] [CrossRef]
  77. Mayrhofer, L.; Paulik, C. Growth Kinetics Obtained from Single Particle Gas-Phase Ethene Homopolymerization with a Ziegler-Natta Catalyst. Macromol. React. Eng. 2013, 8, 194–200. [Google Scholar] [CrossRef]
  78. Najafi, M.; Parvazinia, M.; Ghoreishy, M.H.R.; Kiparissides, G. Development of a 2D Single Particle Model to Analyze the Effect of Initial Particle Shape and Breakage in Olefin Polymerization. Macromol. React. Eng. 2013, 8, 29–45. [Google Scholar]
  79. Tregubov, A.A.; Zakharov, V.A.; Mikenas, T.B. Supported titanium-magnesium catalysts for ethylene polymerization: A comparative study of catalysts containing isolated and clustered titanium ions in different oxidation states. J. Polym. Sci. A Polym. Chem. 2009, 47, 6362–6372. [Google Scholar] [CrossRef]
  80. Damavandi, S.; Galland, G.B.; Zohuri, G.H.; Sandaroos, R. FI Zr-type catalysts for ethylene polymerization. J. Polym. Res. 2011, 18, 1059–1065. [Google Scholar] [CrossRef]
  81. Dashti, A.; Ramazani, S.A.; Hiraoka, Y.; Kim, S.Y.; Taniike, T.; Terano, M. Kinetic and morphological study of a magnesium ethoxide-based Ziegler-Natta catalyst for propylene polymerization. Polym. Int. 2009, 58, 40–45. [Google Scholar] [CrossRef]
  82. Yang, G.; Hong, M.; Li, Y.; Yu, S. Synthesis of Novel Bis (β-enaminoketonato) titanium Catalyst with High Activity and Excellent Ability to Copolymerize Olefins. Macromol. Chem. Phys. 2012, 213, 2311–2318. [Google Scholar] [CrossRef]
  83. Busico, V. Metal-catalysed olefin polymerisation into the new millennium: A perspective outlook. Dalton Trans. 2009, 41, 8794–8802. [Google Scholar] [CrossRef]
  84. Quadrelli, E.A.; Basset, J.M. On silsesquioxanes’ accuracy as molecular models for silica-grafted complexes in heterogeneous catalysis. Coord. Chem. Rev. 2010, 254, 707–728. [Google Scholar] [CrossRef]
  85. Yu, Y.; Fu, Z.; Fan, Z. Chain transfer reactions of propylene polymerization catalyzed by AlEt3 activated TiCl4/MgCl2 catalyst under very low monomer addition rate. J. Mol. Catal. A Chem. 2012, 363–364, 134–139. [Google Scholar] [CrossRef]
  86. Arlman, E.J.; Cossee, P. Ziegler-Natta catalysis III. Stereospecific polymerization of propene with the catalyst system TiCl3-AlEt3. J. Catal. 1964, 3, 99–104. [Google Scholar] [CrossRef]
  87. Seppälä, J.; Kokko, E.; Lehmus, P.; née Malmberg, A.P.; Hakala, K.; Lipponen, S.; Löfgren, B. Functional Polyolefins through Polymerizations by Using Bis(indenyl) Zirconium Catalysts. Adv. Polym. Sci. 2013, 258, 179–232. [Google Scholar] [CrossRef]
  88. Doi, Y.; Suzuki, S.; Soga, K. Living coordination polymerization of propene with a highly active vanadium-based catalyst. Macromolecules 1986, 19, 2896–2900. [Google Scholar] [CrossRef]
  89. Piers, W.E.; Marwitz, A.J.V.; Mercier, L.G. Mechanistic Aspects of Bond Activation with Perfluoroarylboranes. Inorg. Chem. 2011, 50, 12252–12262. [Google Scholar] [CrossRef]
  90. Pater, J.T.M.; Weickert, G.; van Swaaij, W.P.M. Polymerization of liquid propylene with a fourth-generation Ziegler-Natta catalyst: Influence of temperature, hydrogen, monomer concentration, and prepolymerization method on powder morphology. J. Appl. Polym. Sci. 2003, 87, 1421–1435. [Google Scholar] [CrossRef]
  91. Weickert, G.; Meier, G.B.; Pater, J.T.M.; Westerterp, K.R. The particle as microreactor: Catalytic propylene polymerizations with supported metallocenes and Ziegler-Natta catalysts. Chem. Eng. Sci. 1999, 54, 3291–3296. [Google Scholar] [CrossRef]
  92. Abu-Sharkh, B.; Hussein, I.H. MD simulation of the influence of branch content on collapse and conformation of LLDPE chains crystallizing from highly dilute solutions. Polymer 2002, 43, 6333–6340. [Google Scholar] [CrossRef]
  93. Kaminsky, W.; Sperber, O.; Werner, R. Pentalene substituted metallocene complexes for olefin polymerization. Coord. Chem. Rev. 2006, 250, 110–117. [Google Scholar] [CrossRef]
  94. Kaminsky, W. Zirconocene catalysts for olefin polymerization. Catal. Today 1994, 20, 257–271. [Google Scholar] [CrossRef]
  95. Wang, B. Ansa-metallocene polymerization catalysts: Effects of the bridges on the catalytic activities. Coord. Chem. Rev. 2006, 250, 242–258. [Google Scholar] [CrossRef]
  96. Kaminsky, W. Trends in Polyolefin Chemistry. Macromol. Chem. Phys. 2008, 209, 459–466. [Google Scholar] [CrossRef]
  97. Kaminsky, W.; Hopf, A.; Piel, C. Cs-symmetric hafnocene complexes for synthesis of syndiotactic polypropene. J. Organometal. Chem. 2003, 684, 200–205. [Google Scholar] [CrossRef]
  98. Stadler, F.J.; Piel, C.; Klimke, K.; Kaschta, J.; Parkinson, M.; Wilhelm, M.; Kaminsky, W.; Münstedt, H. Influence of Type and Content of Various Comonomers on Long-Chain Branching of Ethene/α-Olefin Copolymers. Macromolecules 2006, 39, 1474–1482. [Google Scholar] [CrossRef]
  99. Piel, C.; Stadler, F.J.; Kaschta, J.; Rulhoff, S.; Münstedt, H.; Kaminsky, W. Structure-Property Relationships of Linear and Long-Chain Branched Metallocene High-Density Polyethylenes Characterized by Shear Rheology and SEC-MALLS. Macromol. Chem. Phys. 2006, 207, 26–38. [Google Scholar] [CrossRef]
  100. Kakinuki, K.; Fujiki, M.; Nomura, K. Copolymerization of Ethylene with α-Olefins Containing Various Substituents Catalyzed by Half-Titanocenes: Factors Affecting the Monomer Reactivities. Macromolecules 2009, 42, 4585–4595. [Google Scholar] [CrossRef]
  101. Suhm, J.; Heinemann, J.; Wörner, C.; Müller, P.; Stricker, F.; Kressler, J.; Okuda, J.; Mülhaupt, R. Novel polyolefin materials via catalysis and reactive processing. Macromol. Symp. 1998, 129, 1–28. [Google Scholar] [CrossRef]
  102. Soga, K.; Uozumi, T.; Nakamura, S.; Toneri, T.; Teranishi, T.; Sano, T.; Arai, T.; Shiono, T. Structures of polyethylene and copolymers of ethylene with 1-octene and oligoethylene produced with the Cp2ZrCl2 and [(C5Me4)SiMe2N(t-Bu)]TiCl2 catalysts. Macromol. Chem. Phys. 1996, 197, 4237–4251. [Google Scholar] [CrossRef]
  103. Leone, G.; Losio, S.; Piovani, D.; Sommazzi, A.; Ricci, G. Living copolymerization of ethylene with 4-methyl-1-pentene by an α-diimine Ni(II)/Et2AlCl catalyst: Synthesis of diblock copolymers via sequential monomer addition. Polym. Chem. 2012, 3, 1987–1990. [Google Scholar] [CrossRef]
  104. Lee, J.; Kim, Y. Preparation of polyethylene with controlled bimodal molecular weight distribution using zirconium complexes. J. Ind. Eng. Chem. 2012, 18, 429–432. [Google Scholar] [CrossRef]
  105. Nakayama, Y.; Sogo, Y.; Cai, Z.; Shiono, T. Copolymerization of ethylene with 1,1-disubstituted olefins catalyzed by ansa-(fluorenyl)(cyclododecylamido)dimethyltitanium complexes. J. Polym. Sci. A Polym. Chem. 2013, 51, 1223–1229. [Google Scholar] [CrossRef]
  106. Shapiro, P.J.; Cotter, W.D.; Schaefer, W.P.; Labinger, J.A.; Bercaw, J.E. Model Ziegler-Natta alpha-Olefin Polymerization Catalysts Derived from[{(η5-C5Me4)SiMe21-NCMe3)}(PMe3)Sc(µ2-H)]2 and[{(η5-C5Me4)SiMe21-NCMe3)}Sc(µ2-CH2CH2CH3)]2, Synthesis, Structures, and Kinetic and Equilibrium Investigations of the Catalytically Active Species in Solution. J. Am. Chem. Soc. 1994, 116, 4623–4640. [Google Scholar]
  107. Cano, J.; Kunz, K.; Organometal, J. How to synthesize a constrained geometry catalyst (CGC)—A survey. J. Organomet. Chem. 2007, 692, 4411–4423. [Google Scholar] [CrossRef]
  108. Unverhau, K.; Kehr, G.; Fröhlich, R.; Erker, G. Synthesis of [3]ferrocenophane-bridged Cp–amido zirconium complexes and ansa-zirconocene complexes and their use in catalytic polymerisation reactions. Dalton Trans. 2011, 40, 3724–3736. [Google Scholar] [CrossRef]
  109. Stevens, J.C.; Wilson, D.R. Olefin Polymerization Process Using Supported Constrained Geometry Catalysts. U.S. Patent 6,884,857 B1, 26 April 2005. [Google Scholar]
  110. Okuda, J.; Schattenmann, F.J.; Wocadlo, S.; Massa, W. Synthesis and Characterization of Zirconium Complexes Containing a Linked Amido-Fluorenyl Ligand. Organometallics 1995, 14, 789–795. [Google Scholar] [CrossRef]
  111. Spaleck, W.; Aulbach, M.; Bachmann, B.; Küber, F.; Winter, A. Stereospecific metallocene catalysts: Scope and limits of rational catalyst design. Macromol. Symp. 1995, 89, 237–247. [Google Scholar] [CrossRef]
  112. Kaminsky, W. Discovery of Methylaluminoxane as Cocatalyst for Olefin Polymerization. Macromolecules 2012, 45, 3289–3297. [Google Scholar] [CrossRef]
  113. Chien, J.C.W.; Wang, B.P. Metallocene–methylaluminoxane catalysts for olefin polymerizations. IV. Active site determinations and limitation of the 14CO radiolabeling technique. J. Polym. Sci. A Polym. Chem. 1989, 27, 1539–1557. [Google Scholar] [CrossRef]
  114. Kaminsky, W.; Ahlers, A.; Moeller-Lindenhof, N. Asymmetrische Oligomerisation von Propen und 1-Buten mit einem Zirconocen/Aluminoxan-Katalysator. Angew. Chem. 1989, 101, 1304–1306. (in German). [Google Scholar] [CrossRef]
  115. Ewen, J.A.; Amer, J. Mechanisms of stereochemical control in propylene polymerizations with soluble Group 4B metallocene/methylalumoxane catalysts. Chem. Soc. 1984, 106, 6355–6364. [Google Scholar] [CrossRef]
  116. Natta, G.; Corradini, P.; Allegra, G. The different crystalline modifications of TiCl3, a catalyst component for the polymerization of α-olefins. I: α-, β-, γ-TiCl3. II: δ-TiCl3. J. Polym. Sci. 1961, 51, 399–410. [Google Scholar] [CrossRef]
  117. Trementozzi, Q.; Geymer, D.O.; Boyd, T.; Dietrich, H.J. Polymerization of Alpha-Olefins Using a Delta TiCL3 Catalyst. U.S. Patent 3573270 A, 30 March 1971. [Google Scholar]
  118. Boor, J., Jr. Ziegler-Natta Catalysts and Polymerization; Academic Press: New York, NY, USA, 1979. [Google Scholar]
  119. Keii, T. Kinetics of Ziegler-Natta Polymerization; Kodansha: Tokyo, Japan, 1972. [Google Scholar]
  120. Soares, J.B.P. Mathematical modelling of the microstructure of polyolefins made by coordination polymerization: A review. Chem. Eng. Sci. 2001, 56, 4131–4153. [Google Scholar] [CrossRef]
  121. Zhang, H.X.; Lee, Y.J.; Park, J.R.; Lee, D.H.; Yoon, K.B. Control of molecular weight distribution for polypropylene obtained by a commercial Ziegler-Natta catalyst: Effect of a cocatalyst and hydrogen. J. Appl. Polym. Sci. 2011, 120, 101–108. [Google Scholar] [CrossRef]
  122. Lou, J.Q.; Tu, S.T.; Fan, Z.Q. Polypropylene Chain Structure Regulation by Alkoxysilane and Ether Type External Donors in TiCl4/DIBP/MgCl2-AlEt3 Ziegler-Natta Catalyst. Iran. Polym. J. 2010, 19, 927–936. [Google Scholar]
  123. Shen, X.-R.; Fu, Z.-S.; Hu, J.; Wang, Q.; Fan, Z.-Q. Mechanism of Propylene Polymerization with MgCl2-Supported Ziegler-Natta Catalysts Based on Counting of Active Centers: The Role of External Electron Donor. Phys. Chem. C 2013, 117, 15174–15182. [Google Scholar] [CrossRef]
  124. Chadwick, J.C. Polyolefins—Catalyst and Process Innovations and their Impact on Polymer Properties. Macromol. React. Eng. 2009, 3, 428–432. [Google Scholar] [CrossRef]
  125. Andoni, A.; Chadwick, J.C.; Niemantsverdriet, H.J.W.; Thune, P.C. The role of electron donors on lateral surfaces of MgCl2-supported Ziegler-Natta catalysts: Observation by AFM and SEM. J. Catal. 2008, 257, 81–86. [Google Scholar] [CrossRef]
  126. Singh, G.; Kaur, S.; Makwana, U.; Patankar, R.B.; Gupta, V.K. Influence of Internal Donors on the Performance and Structure of MgCl2 Supported Titanium Catalysts for Propylene Polymerization. Macromol. Chem. Phys. 2009, 210, 69–76. [Google Scholar]
  127. Makwana, U.; Naik, D.G.; Singh, G.; Patel, V.; Patil, H.R.; Gupta, V.K. Nature of Phthalates as Internal Donors in High Performance MgCl2 Supported Titanium Catalysts. Catal. Lett. 2009, 131, 624–631. [Google Scholar] [CrossRef]
  128. Kissin, Y.V.; Liu, X.S.; Pollick, D.J.; Brungard, N.L.; Chang, M. Ziegler-Natta catalysts for propylene polymerization: Chemistry of reactions leading to the formation of active centers. J. Mol. Catal. A Chem. 2008, 287, 45–52. [Google Scholar] [CrossRef]
  129. Heikkinen, H.; Liitia, T.; Virkkunen, V.; Leinonen, T.; Helaja, T.; Denifl, P. Solid state 13C-NMR characterisation study on fourth generation Ziegler-Natta catalysts. Solid State Nucl Magn. Reson. 2012, 43–44, 36–41. [Google Scholar]
  130. Lu, L.; Niu, H.; Dong, J.Y. Propylene polymerization over MgCl2-supported TiCl4 catalysts bearing different amounts of a diether internal electron donor: Extrapolation to the role of internal electron donor on active site. J. Appl. Polym. Sci. 2012, 124, 1265–1270. [Google Scholar] [CrossRef]
  131. Alshaiban, A.; Soares, J.B.P. Effect of Hydrogen and External Donor on Propylene Polymerization Kinetics with a 4th-Generation Ziegler-Natta Catalyst. Macromol. React. Eng. 2012, 6, 265–274. [Google Scholar] [CrossRef]
  132. Marques, M.F.V.; da Silva Cardoso, R.; da Silva, M.G. Preparation of MgCl2-supported Ziegler-Natta catalyst systems with new electron donors. Appl. Catal. A 2010, 374, 65–70. [Google Scholar] [CrossRef]
  133. Harding, G.W.; van Reenen, A.J. Polymerisation and structure–property relationships of Ziegler-Natta catalysed isotactic polypropylenes. Eur. Polym. J. 2011, 47, 70–77. [Google Scholar] [CrossRef]
  134. Vestberg, T.; Denifl, P.; Parkinson, M.; Wilen, C.E. Effects of external donors and hydrogen concentration on oligomer formation and chain end distribution in propylene polymerization with Ziegler-Natta catalysts. J. Polym. Sci. Part A Polym. Chem. 2010, 48, 351–358. [Google Scholar]
  135. Thushara, K.S.; Gnanakumar, E.S.; Mathew, R.; Jha, R.K.; Ajithkumar, T.G.; Rajamohanan, P.R.; Sarma, K.; Padmanabhan, S.; Bhaduri, S.; Gopinath, C.S. Toward an Understanding of the Molecular Level Properties of Ziegler-Natta Catalyst Support with and without the Internal Electron Donor. J. Phys. Chem. C 2011, 115, 1952–1960. [Google Scholar] [CrossRef]
  136. Brambilla, L.; Zerbi, G.; Piemontesi, F.; Nascetti, S.; Morini, G. Structure of Donor Molecule 9,9-Bis(Methoxymethyl)-Fluorene in Ziegler-Natta Catalyst by Infrared Spectroscopy and Quantum Chemical Calculation. J. Phys. Chem. C 2010, 114, 11475–11484. [Google Scholar]
  137. Busico, V.; Cipullo, R.; Monaco, G.; Talarico, G.; Vacatello, M.; Chadwick, J.C.; Segre, A.L.; Sudmeijer, O. High-Resolution 13C-NMR Configurational Analysis of Polypropylene Made with MgCl2-Supported Ziegler-Natta Catalysts. 1. The “Model” System MgCl2/TiCl4–2,6-Dimethylpyridine/Al(C2H5)3. Macromolecules 1999, 32, 4173–4182. [Google Scholar] [CrossRef]
  138. Liu, B.P.; Nitta, T.; Nakatani, H.; Terano, M. Precise arguments on the distribution of stereospecific active sites on MgCl2-supported Ziegler-Natta catalysts. Macromol. Symp. 2004, 213, 7–18. [Google Scholar] [CrossRef]
  139. Wang, Q.; Murayama, N.; Liu, B.P.; Terano, M. Effects of Electron Donors on Active Sites Distribution of MgCl2-Supported Ziegler-Natta Catalysts Investigated by Multiple Active Sites Model. Macromol. Chem. Phys. 2005, 206, 961–966. [Google Scholar] [CrossRef]
  140. Bukatov, G.D.; Zakharov, V.A.; Barabanov, A.A. Mechanism of olefin polymerization on supported Ziegler-Natta catalysts based on data on the number of active centers and propagation rate constants. Kinet. Catal. 2005, 46, 166–176. [Google Scholar]
  141. Vanka, K.; Singh, G.; Iyer, D.; Gupta, V.K. DFT Study of Lewis Base Interactions with the MgCl2 Surface in the Ziegler-Natta Catalytic System: Expanding the Role of the Donors. J. Phys. Chem. C 2010, 114, 15771–15781. [Google Scholar] [CrossRef]
  142. Stukalov, D.V.; Zakharov, V.A.; Zilberberg, I.L. Adsorption Species of Ethyl Benzoate in MgCl2-Supported Ziegler-Natta Catalysts. A Density Functional Theory Study. J. Phys. Chem. C 2010, 114, 429–435. [Google Scholar]
  143. Taniike, T.; Terano, M. Coadsorption model for first-principle description of roles of donors in heterogeneous Ziegler-Natta propylene polymerization. J. Catal. 2012, 293, 39–50. [Google Scholar] [CrossRef]
  144. Credendino, R.; Pater, J.T.M.; Liguori, D.; Morini, G.; Cavallo, L. Investigating Alkoxysilane Coverage and Dynamics on the (104) and (110) Surfaces of MgCl2-Supported Ziegler-Natta Catalysts. J. Phys. Chem. C 2012, 116, 22980–22986. [Google Scholar] [CrossRef]
  145. Wondimagegn, T.; Ziegler, T. The Role of External Alkoxysilane Donors on Stereoselectivity and Molecular Weight in MgCl2-Supported Ziegler-Natta Propylene Polymerization: A Density Functional Theory Study. J. Phys. Chem. C 2012, 116, 1027–1033. [Google Scholar] [CrossRef]
  146. Cheng, R.H.; Luo, J.; Liu, Z.; Sun, J.W.; Huang, W.H.; Zhang, M.G.; Yi, J.J.; Liu, B.P. Adsorption of TiCl4 and electron donor on defective MgCl2 surfaces and propylene polymerization over Ziegler-Natta catalyst: A DFT study. Chin. J. Polym. Sci. 2013, 31, 591–600. [Google Scholar] [CrossRef]
  147. Shen, X.R.; Hu, J.; Fu, Z.S.; Lou, J.Q.; Fan, Z.Q. Counting the number of active centers in MgCl2-supported Ziegler-Natta catalysts by quenching with 2-thiophenecarbonyl chloride and study on the initial kinetics of propylene polymerization. Catal. Commun. 2013, 30, 66–69. [Google Scholar] [CrossRef]
  148. Xia, S.J.; Fu, Z.S.; Liu, X.Y.; Fan, Z.Q. Copolymerization of ethylene and 1-hexene with TiCl4/MgCl2 catalysts modified by 2,6-diisopropylphenol. Chin. J. Polym. Sci. 2013, 31, 110–121. [Google Scholar] [CrossRef]
  149. Hu, J.; Han, B.; Shen, X.R.; Fu, Z.S.; Fan, Z.Q. Probing the roles of diethylaluminum chloride in propylene polymerization with MgCl2-supported Ziegler-Natta catalysts. Chin. J. Polym. Sci. 2013, 31, 583–590. [Google Scholar] [CrossRef]
  150. Li, J.; Gao, W.; Wu, Q.; Li, H.; Mu, Y. Synthesis and structures of adamantyl-substituted constrained geometry cyclopentadienyl–phenoxytitanium complexes and their catalytic properties for olefin polymerization. J. Organomet. Chem. 2011, 696, 2499–2506. [Google Scholar] [CrossRef]
  151. Sinn, H.; Kaminsky, W.; Vollmer, H.J.; Woldt, R. “Living Polymers” on Polymerization with Extremely Productive Ziegler Catalysts. Angew. Chem. Int. Ed. Engl. 1980, 19, 390–392. [Google Scholar] [CrossRef]
  152. Grubbs, R.H.; Coates, G.W. α-Agostic Interactions and Olefin Insertion in Metallocene Polymerization Catalysts. Acc. Chem. Res. 1996, 29, 85–93. [Google Scholar] [CrossRef]
  153. Lee, I.M.; Gauthier, W.J.; Ball, J.M.; Iyengar, B.; Collins, S. Electronic effects of Ziegler-Natta polymerization of propylene and ethylene using soluble metallocene catalysts. Organometallics 1992, 11, 2115–2122. [Google Scholar] [CrossRef]
  154. Chapman, A.M.; Haddow, M.F.; Wass, D.F. Cationic Group 4 Metallocene–(o-Phosphanylaryl)oxido Complexes: Synthetic Routes to Transition-Metal Frustrated Lewis Pairs. Eur. J. Inorg. Chem. 2012, 1546–1554. [Google Scholar] [CrossRef]
  155. Berg, D.J.; Barclay, T.; Fei, X. Trivalent lanthanide–alkene complexes: Crystallographic and NMR evidence for coordination of tethered alkenes in the solid state and solution. J. Organomet. Chem. 2010, 695, 2703–2712. [Google Scholar] [CrossRef]
  156. Rocchigiani, L.; Ciancaleoni, G.; Zuccaccia, C.; Macchioni, A. An Integrated NMR and DFT Study on the Single Insertion of α-Olefins into the M[BOND]C Bond of Group 4 Metallaaziridinium Ion Pairs. ChemCatChem. 2013, 5, 519–528. [Google Scholar] [CrossRef]
  157. Rowley, C.N.; Woo, T.K. Counteranion Effects on the Zirconocene Polymerization Catalyst Olefin Complex from QM/MM Molecular Dynamics Simulations. Organometallics 2011, 30, 2071–2074. [Google Scholar] [CrossRef]
  158. Bahri-Laleh, N.; Nekoomanesh-Haghighi, M.; Mirmohammadi, S.A. A DFT study on the effect of hydrogen in ethylene and propylene polymerization using a Ti-based heterogeneous Ziegler-Natta catalyst. J. Organomet. Chem. 2012, 719, 74–79. [Google Scholar] [CrossRef]
  159. Kawamura-Kuribayashi, H.; Koga, N.; Morokuma, K. An ab initio MO and MM study of homogeneous olefin polymerization with silylene-bridged zirconocene catalyst and its regio- and stereoselectivity. J. Am. Chem. Soc. 1992, 114, 8687–8694. [Google Scholar] [CrossRef]
  160. Hustad, P.D.; Tian, J.; Coates, G.W. Mechanism of Propylene Insertion Using Bis(phenoxyimine)-Based Titanium Catalysts: An Unusual Secondary Insertion of Propylene in a Group IV Catalyst System. J. Am. Chem. Soc. 2002, 124, 3614–3621. [Google Scholar] [CrossRef]
  161. Cohen, A.; Coates, G.W.; Kol, M. polymerization by C1-symmetric {ONNO'}-type salan zirconium complexes. J. Polym. Sci. A Polym. Chem. 2013, 51, 593–600. [Google Scholar] [CrossRef]
  162. Resconi, L.; Camurati, I.; Sudmeijer, O. Chain transfer reactions in propylene polymerization with zirconocene catalysts. Top. Catal. 1999, 7, 145–163. [Google Scholar] [CrossRef]
  163. Ray, G.J.; Johnson, P.E.; Knox, J.R. Carbon-13 Nuclear Magnetic Resonance Determination of Monomer Composition and Sequence Distribution in Ethylene-Propylene Copolymers Prepared with a Stereoregular Catalyst System. Macromolecules 1977, 10, 773–778. [Google Scholar] [CrossRef]
  164. Lu, L.; Niu, H.; Dong, J.-Y.; Zhao, X.; Hu, X. Ethylene/propylene copolymerization over three conventional C2-symmetric metallocene catalysts: Correlation between catalyst configuration and copolymer microstructure. J. Appl. Polym. Sci. 2010, 118, 3218–3226. [Google Scholar] [CrossRef]
  165. Nekoomanesh, M.; Zohuri, G.H.; Mortazavi, M.M.; Jamjah, R.; Ahmadjo, S. Structural Analysis of Ethylene/Propylene Copolymer Synthesized Using High Activity Bi-supported Ziegler-Natta Catalyst. Iran. Polym. J. 2005, 14, 793–798. [Google Scholar]
  166. Razavi, A. Syndiotactic Polypropylene: Discovery, Development, and Industrialization via Bridged Metallocene Catalysts. Adv. Polym. Sci. 2013, 258, 43–116. [Google Scholar] [CrossRef]
  167. Vestberg, T.; Parkinson, M.; Fonseca, I.; Wilén, C.-E. Poly (propylene-co-ethylene) produced with a conventional and a self-supported Ziegler-Natta catalyst: Effect of ethylene and hydrogen concentration on activity and polymer structure. J. Appl. Polym. Sci. 2012, 124, 4889–4896. [Google Scholar]
  168. Randall, J.C. Methylene Sequence Distributions and Number Average Sequence Lengths in Ethylene-Propylene Copolymers. Macromolecules 1978, 11, 33–36. [Google Scholar] [CrossRef]
  169. Cheng, H.N. Carbon-13 NMR analysis of ethylene-propylene rubbers. Macromolecules 1984, 17, 1950–1955. [Google Scholar] [CrossRef]
  170. Natta, G.; Pasquon, I.; Zambelli, A. Stereospecific Catalysts for the Head-To-Tail Polymerization of Propylene to a Crystalline Syndiotactic Polymer. J. Am. Chem. Soc. 1962, 84, 1488–1490. [Google Scholar] [CrossRef]
  171. Wu, J.Q.; Li, Y.S. Well-defined vanadium complexes as the catalysts for olefin polymerization. Coord. Chem. Rev. 2011, 255, 2303–2314. [Google Scholar] [CrossRef]
  172. Pellecchia, C.; Zambelli, A.; Mazzeo, M.; Pappalardo, D. Syndiotactic-specific polymerization of propene with Nickel-based catalysts. 3. Polymer end-groups and regiochemistry of propagation. J. Mol. Catal. A Chem. 1998, 128, 229–237. [Google Scholar] [CrossRef]
  173. Makio, H.; Terao, H.A.; Iwashita, T. Fujita, FI Catalysts for Olefin Polymerization—A Comprehensive Treatment. Chem. Rev. 2011, 111, 2363–2449. [Google Scholar] [CrossRef]
  174. Takeuchi, D. Recent progress in olefin polymerization catalyzed by transition metal complexes: New catalysts and new reactions. Dalton Trans. 2010, 39, 311–328. [Google Scholar]
  175. Small, B.L.; Brookhart, M. Polymerization of propylene by a new generation of iron catalysts: Mechanisms of chain initiation, propagation, and termination. Macromolecules 1999, 32, 2120–2130. [Google Scholar]
  176. Britovsek, G.J.P.; Gibson, V.C.; Kimberley, B.S.; Maddox, P.J.; McTavish, S.J.; Solan, G.A.; White, A.J.P.; Williams, D.J. Novel olefin polymerization catalysts based on iron and cobalt. Chem. Commun. 1998, 849–850. [Google Scholar]
  177. Britovsek, G.J.P.; Gibson, V.C.; Wass, D.F. The Search for New-Generation Olefin Polymerization Catalysts: Life beyond Metallocenes. Angew. Chem. Int. Ed. 1999, 38, 428–447. [Google Scholar] [CrossRef]
  178. Tian, J.; Coates, G.W. Development of a Diversity-Based Approach for the Discovery of Stereoselective Polymerization Catalysts: Identification of a Catalyst for the Synthesis of Syndiotactic Polypropylene. Angew. Chem. Int. Ed. 2000, 39, 3626–3629. [Google Scholar] [CrossRef]
  179. Tian, J.; Hustad, P.D.; Coates, G.W. A New Catalyst for Highly Syndiospecific Living Olefin Polymerization: Homopolymers and Block Copolymers from Ethylene and Propylene. J. Am. Chem. Soc. 2001, 123, 5134–5135. [Google Scholar] [CrossRef]
  180. Heurtefeu, B.; Bouilhac, C.; Cloutet, É.; Taton, D.; Deffieux, A.; Cramail, H. Polymer support of “single-site” catalysts for heterogeneous olefin polymerization. Prog. Polym. Sci. 2011, 36, 89–126. [Google Scholar] [CrossRef]
  181. Caporaso, L.; de Rosa, C.; Talarico, G. The relationship between catalyst precursors and chain end groups in homogeneous propene polymerization catalysis. J. Polym. Sci. A Polym. Chem. 2010, 48, 699–708. [Google Scholar] [CrossRef]
  182. Bochmann, M. The Chemistry of Catalyst Activation: The Case of Group 4 Polymerization Catalysts. Organometallics 2010, 29, 4711–4740. [Google Scholar] [CrossRef]
  183. Alley, W.M.; Hamdemir, I.K.; Johnson, K.A.; Finke, R.G. Ziegler-type hydrogenation catalysts made from Group 8–10 transition metal precatalysts and AlR3 cocatalysts: A critical review of the literature. J. Mol. Catal. A Chem. 2010, 315, 1–27. [Google Scholar] [CrossRef]
  184. Laine, A.; Linnolahti, M.; Pakkanen, T.A.; Severn, J.R.; Kokko, E.; Pakkanen, A. Comparative Theoretical Study on Homopolymerization of α-Olefins by Bis(cyclopentadienyl) Zirconocene and Hafnocene: Elemental Propagation and Termination Reactions between Monomers and Metals. Organometallics 2010, 29, 1541–1550. [Google Scholar] [CrossRef]
  185. Nomura, K.; Zhang, S. Design of Vanadium Complex Catalysts for Precise Olefin Polymerization. Chem. Rev. 2011, 111, 2342–2362. [Google Scholar] [CrossRef]
  186. Nomura, K.; Liu, J. Half-titanocenes for precise olefin polymerisation: Effects of ligand substituents and some mechanistic aspects. Dalton Trans. 2011, 40, 7666–7682. [Google Scholar] [CrossRef]
  187. Nomura, K.; Fukuda, H.; Katao, S.; Fujiki, M.; Kim, H.J.; Kim, D.-H.; Saeed, I. Olefin Polymerization by Half-Titanocenes Containing η2-Pyrazolato Ligands–MAO Catalyst Systems. Macromolecules 2011, 44, 1986–1998. [Google Scholar] [CrossRef]
  188. Tomotsu, N.; Ishihara, N.; Newman, T.H.; Malanga, M.T. Syndiospecific polymerization of styrene. J. Mol. Catal. A Chem. 1998, 128, 167–190. [Google Scholar] [CrossRef]
  189. Schellenberg, J.J. Recent transition metal catalysts for syndiotactic polystyrene. Prog. Polym. Sci. 2009, 34, 688–718. [Google Scholar] [CrossRef]
  190. Guo, F.; Nishiura, M.; Koshino, H.; Hou, Z. Cycloterpolymerization of 1,6-Heptadiene with Ethylene and Styrene Catalyzed by a THF-Free Half-Sandwich Scandium Complex. Macromolecules 2011, 44, 6335–6344. [Google Scholar] [CrossRef]
  191. Liu, K.; Wu, Q.; Gao, W.; Mu, Y.; Ye, L. Half-Titanocence Anilide Complexes Cp'TiCl2[N(2,6-R12C6H3)R2]: Synthesis, Structures and Catalytic Properties for Ethylene Polymerization and Copolymerization with 1-Hexene. Eur. J. Inorg. Chem. 2011, 1901–1909. [Google Scholar]
  192. Nomura, K.; Fukuda, H.; Katao, S.; Fujiki, M.; Kim, H.J.; Kim, D.-H.; Zhang, S. Effect of ligand substituents in olefin polymerisation by half-sandwich titanium complexes containing monoanionic iminoimidazolidide ligands–MAO catalyst systems. Dalton Trans. 2011, 40, 7842–7849. [Google Scholar]
  193. Redshaw, C.; Tang, Y. Tridentate ligands and beyond in group IV metal α-olefin homo-/co-polymerization catalysis. Chem. Soc. Rev. 2012, 41, 4484–4510. [Google Scholar]
  194. Delferro, M.; Marks, T.J. Multinuclear Olefin Polymerization Catalysts. Chem. Rev. 2011, 111, 2450–2485. [Google Scholar]
  195. Fink, G. Contributions to the Ziegler-Natta Catalysis: An Anthology. Adv. Polym. Sci. 2013, 257, 1–35. [Google Scholar] [CrossRef]
  196. Beddie, C.; Hollink, E.; Wei, P.; Gauld, J.; Stephan, D.W. Use of Computational and Synthetic Chemistry in Catalyst Design: A New Family of High-Activity Ethylene Polymerization CatalystsBased on Titanium Tris(amino)phosphinimide Complexes. Organometallics 2004, 23, 5240–5251. [Google Scholar] [CrossRef]
  197. Galeski, A.; Bartczak, Z.; Kazmierczak, T.; Slouf, M. Morphology of undeformed and deformed polyethylene lamellar crystals. Polymer 2010, 51, 5780–5787. [Google Scholar] [CrossRef]
  198. Gokmen, M.T.; Du Prez, F.E. Porous polymer particles—A comprehensive guide to synthesis, characterization, functionalization and applications. Prog. Polym. Sci. 2012, 37, 365–405. [Google Scholar] [CrossRef][Green Version]
  199. Callais, P. Outlook for PE and PP Resins. 16th Annual Canadian Plastics Resin Outlook Conference. Available online: http://www.canplastics.com/conference/2011Presentations/5._Peter_Callais (accessed on 6 October 2011).
  200. Arriola, D.J.; Carnahan, E.M.; Hustad, P.D.; Kuhlman, R.L.; Wenzel, TT. Catalytic Production of Olefin Block Copolymers via Chain Shuttling Polymerization. Science 2006, 312, 714–719. [Google Scholar] [CrossRef]
  201. Yoon, J.; Mathers, R.T.; Coates, G.W.; Thomas, E.L. Optically Transparent and High Molecular Weight Polyolefin Block Copolymers toward Self-Assembled Photonic Band Gap Materials. Macromolecules 2006, 39, 1913–1919. [Google Scholar] [CrossRef]
  202. Domski, G.J.; Rose, J.M.; Coates, G.W.; Bolig, A.D.; Brookhart, M. Living alkene polymerization: New methods for the precision synthesis of polyolefins. Prog. Polym. Sci. 2007, 32, 30–92. [Google Scholar] [CrossRef]
  203. Hustad, P.D.; Coates, G.W. Insertion/Isomerization Polymerization of 1,5-Hexadiene:  Synthesis of Functional Propylene Copolymers and Block Copolymers. J. Am. Chem. Soc. 2002, 124, 11578–11579. [Google Scholar] [CrossRef]
  204. Mathers, R.T.; Coates, G.W. Cross metathesis functionalization of polyolefins. Chem. Commun. 2004, 422–423. [Google Scholar] [CrossRef]
  205. Funck, A.; Kaminsky, W. Polypropylene carbon nanotube composites by in situ polymerization. Compos. Sci. Technol. 2007, 67, 906–915. [Google Scholar] [CrossRef]
  206. Kaminsky, W. Metallocene Based Polyolefin Nanocomposites. Materials 2014, 7, 1995–2013. [Google Scholar] [CrossRef]
  207. Collins, S. Polymerization catalysis with transition metal amidinate and related complexes. Coord. Chem. Rev. 2011, 255, 118–138. [Google Scholar] [CrossRef]
  208. Chakrabarti, M.H.; Brandon, N.P.; Hashim, M.A.; Mjalli, F.S.; AlNashef, I.M.; Bahadori, L.; Abdul Manan, N.S.; Hussain, M.A.; Yufit, V. Cyclic Voltammetry of Iron (III) Acetylacetonate in Quaternary Ammonium and Phosphonium Based Deep Eutectic Solvents. Int. J. Electrochem. Sci. 2013, 8, 9652–9676. [Google Scholar]
  209. Yusoff, R.; Aroua, M.K.; Shamiri, A.; Ahmady, A.; Jusoh, N.S.; Asmuni, N.F.; Bong, L.C.; Thee, S.H. Density and Viscosity of Aqueous Mixtures of N-Methyldiethanolamines (MDEA) and Ionic Liquids. J. Chem. Eng. Data 2013, 58, 240–247. [Google Scholar] [CrossRef]
  210. Chakrabarti, M.H.; Mjalli, F.S.; AlNashef, I.M.; Hashim, M.A.; Hussain, M.A.; Bahadori, L.; Low, C.T.J. Prospects of applying ionic liquids and deep eutectic solvents for renewable energy storage by means of redox flow batteries. Renew. Sustain. Energy Rev. 2014, 30, 254–270. [Google Scholar] [CrossRef]
  211. Chakrabarti, M.H.; Brandon, N.P.; Mjalli, F.S.; Bahadori, L.; Al Nashef, I.M.; Hashim, M.A.; Hussain, M.A.; Low, C.T.J.; Yufit, V. Cyclic Voltammetry of Metallic Acetylacetonate Salts in Quaternary Ammonium and Phosphonium Based Deep Eutectic Solvents. J. Solut. Chem. 2013, 42, 2329–2341. [Google Scholar] [CrossRef]
  212. Bahadori, L.; Chakrabarti, M.H.; Mjalli, F.S.; AlNashef, I.M.; Abdul Manan, N.S.; Hashim, M.A. Physicochemical properties of ammonium-based deep eutectic solvents and their electrochemical evaluation using organometallic reference redox systems. Electrochim. Acta 2013, 113, 205–211. [Google Scholar] [CrossRef]
  213. Lu, J.; Yan, F.; Texter, J. Advanced applications of ionic liquids in polymer science. Prog. Polym. Sci. 2009, 34, 431–448. [Google Scholar]
  214. Ibrehem, A.S.; Hussain, M.A.; Ghasem, N.M. Decentralized advanced model predictive controller of fluidized-bed for polymerization process. Iran. J. Chem. Eng. 2012, 31, 91–117. [Google Scholar]
  215. Ho, Y.K.; Shamiri, A.; Mjalli, F.S.; Hussain, M.A. Control of industrial gas phase propylene polymerization in fluidized bed reactors. J. Proc. Control 2012, 22, 947–958. [Google Scholar] [CrossRef]
  216. Shamiri, A.; Hussain, M.A.; Mjalli, F.S.; Moustofi, N.; Shafeeyan, M.S. Dynamic modeling of gas phase propylene homopolymerization in fluidized bed reactors. Chem. Eng. Sci. 2011, 66, 1189–1199. [Google Scholar] [CrossRef]
  217. Shamiri, A.; Hussain, M.A.; Mjalli, F.S.; Moustofi, N. Comparative simulation study of gas-phase propylene polymerization in fluidized bed reactors using Aspen polymers and two phase models. Chem. Ind. Chem. Eng. Q. 2013, 19, 13–24. [Google Scholar] [CrossRef]
  218. Shamiri, A.; Hussain, M.A.; Mjalli, F.S. Two phase dynamic model for gas phase propylene copolymerization in fluidized bed reactor. Defect. Diffus. Forum 2011, 312–315, 1079–1084. [Google Scholar] [CrossRef]
  219. Huang, R.; Xu, X.; Lee, S.; Zhang, Y.; Kim, B.J.; Wu, Q. High Density Polyethylene Composites Reinforced with Hybrid Inorganic Fillers: Morphology, Mechanical and Thermal Expansion Performance. Materials 2013, 6, 4122–4138. [Google Scholar] [CrossRef][Green Version]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
