Article

Evaluation of Retention Force Between PEEK Posts with Different Surface Treatments and Resin Composites for Core Build-Up by a Pull-Out Test—Effect of Thermal Cycling

by
Masaaki Kasahara
*,
Tomoko Someya
,
Hiroki Kagoura
and
Masayuki Hattori
Department of Dental Materials Science, Tokyo Dental College, Tokyo 101-006, Japan
*
Author to whom correspondence should be addressed.
Materials 2026, 19(13), 2694; https://doi.org/10.3390/ma19132694
Submission received: 28 April 2026 / Revised: 17 June 2026 / Accepted: 18 June 2026 / Published: 23 June 2026
(This article belongs to the Special Issue Advanced Materials and Smart Technologies for Dental Implants and Prosthodontics)
Browse Figures
Versions Notes

Abstract

This study evaluated the retention force between milled polyetheretherketone (PEEK) posts with different surface treatments and resin composites for core build-up, and the effect of thermal cycling on the retention force. Four groups of PEEK posts were prepared: untreated group (NT), mechanically treated group with sandblasting (SB), chemically treated group with primer application (AD), and a group combining mechanical and chemical treatments (SB+AD). Pull-out tests were conducted on these groups. The specimens were divided into two subgroups: one stored in a humid environment at 37 °C for one week (TC0) and the other subjected to 10,000 cycles of thermal cycling between 5 °C and 55 °C (TC10,000). Data were analyzed using two-way ANOVA and Tukey’s test. Additionally, the effect of thermal cycling on each group was examined using Student’s t-test. Both surface treatment and thermal cycling factors had statistically significant effects on retention force (p < 0.05). The interaction between these factors was also statistically significant (p < 0.05). The results showed that the retention force of the treated groups was significantly improved compared to the untreated group, with the SB+AD group exhibiting the highest retention force, followed by the SB group and then the AD group. Thermal cycling did not affect the retention force in the NT, SB, and SB+AD groups. These findings suggest that the combination of mechanical and chemical surface treatments is the most effective method for improving the retention force between PEEK posts and resin composites for core build-up. Furthermore, appropriate surface treatment of PEEK posts may influence their long-term durability.

1. Introduction

Teeth treated with endodontic procedures are structurally weakened due to the loss of pulp and root canal treatment [1]. In particular, when the coronal structure is extensively lost, achieving sufficient retention of the restoration to the remaining dentin is often difficult [2,3]. To ensure the long-term survival of such teeth, performing core build-up procedures is recommended [2]. The design of the core build-up and the materials used are known to significantly impact the survival rate of endodontically treated teeth and the stability of subsequent crown restorations [4,5]. Modern core build-up methods are broadly classified into indirect methods, where the post and core are fabricated as a single unit using casting or CAD/CAM, and direct methods, which combine prefabricated posts with resin composite cores. The former method offers advantages such as ensuring precise adaptation to the individual root canal structure of the patient. However, the metals used in casting methods have significantly different elastic moduli compared to teeth, which increases the risk of severe root fractures [6,7]. Additionally, the increased number of visits and additional technical procedures raise concerns about higher costs [8]. In CAD/CAM methods, various materials, such as zirconia and hybrid ceramics, have been used [9], which reportedly reduce the risk of root fractures mentioned earlier [10]. On the other hand, prefabricated posts used in direct methods have a larger cement thickness between the post and the root canal dentin compared to customized posts. This can lead to the formation of pores and microcracks within the cement, causing stress concentration and fractures at the interface [11]. However, previous studies have reported no significant difference in the survival rates of prefabricated posts compared to customized posts [12]. Furthermore, prefabricated posts are adaptable to root canals with undercuts and are easier to remove during retreatment [13], suggesting their continued clinical application in the future. Currently, prefabricated posts are available in stainless steel, titanium, ceramic, and glass fiber-reinforced composite (FRC) materials. Among these, FRC posts combined with resin composite cores fabricated using the direct method are widely used in clinical practice [14]. This is because FRC posts have a lower risk of root fractures [15,16] and provide better aesthetics compared to metal posts. However, FRC posts face challenges in adhesion to the root canal, and post detachment has been reported [15,16]. Additionally, while the elastic modulus of FRC posts (45.7–53.8 GPa) [17] is lower than that of metal posts, it is still more than twice that of dentin (20–25 GPa) [18], which is of concern. In studies evaluating long-term clinical survival rates, it has been reported that the differences in material properties between metal posts and FRC posts do not affect long-term survival rates [12,19]. On the other hand, it has also been reported that differences in elastic modulus increase the risk of root fracture and irreversible failure when using metal posts compared to FRC posts [20,21]. Consequently, post materials that possess excellent esthetics, appropriate mechanical properties, and superior long-term survival rates are highly desired in clinical practice.
Polyetheretherketone (PEEK) is a semi-crystalline thermoplastic polymer with a low elastic modulus and similar flexural strength compared to dentin [22,23]. Furthermore, PEEK is aesthetically superior to metal and has shock-absorbing properties [23]. Due to these advantages, the application of PEEK has been reported across various dental fields, including crown restorative materials, implantology, orthodontics, and prosthodontics [24]. Furthermore, recent studies have increasingly investigated the potential application of PEEK as a post material [24,25,26,27,28]. In silico and in vitro studies have suggested that PEEK posts may be advantageous over other dental posts in terms of stress distribution. Additionally, the combination of prefabricated PEEK posts and resin composite cores has been suggested to be more effective in preventing root fractures compared to the combination of prefabricated FRC posts and resin composite cores [29]. On the other hand, PEEK materials exhibit disadvantages such as chemical inertness, low surface energy, and resistance to surface modification, which hinders reliable bonding to tooth structure or other dental materials [30]. Therefore, to ensure the long-term stability of PEEK posts, it is necessary to consider adhesion between the post and dentin, as well as between the post and resin composite core. Previous studies have evaluated the adhesion between dentin and PEEK posts [4], as well as the adhesion between PEEK and resin composite materials for veneering [31]. These studies have reported that PEEK with surface treatments exhibits certain adhesion properties to dentin and resin composite. However, these previous studies primarily evaluated adhesion to either veneering materials or dentin. Furthermore, while only a few reports have investigated the bond strength between prefabricated PEEK posts and resin composite cores fabricated using the direct method [32], research simulating their long-term clinical use in the oral cavity is still lacking.
The purpose of this study was to investigate the retention force of PEEK posts with different surface treatments and resin composites for core build-up, and the effect of thermal cycling on the retention force. The null hypotheses were that: (1) There would be no significant difference in the retention force between PEEK posts and resin composites for core build-up among the different surface treatments (no treatment, mechanical treatment, chemical treatment, and a combination of mechanical and chemical treatments). (2) Thermal cycling would have no effect on the retention force between the surface-treated PEEK posts and the resin composites.

2. Materials and Methods

2.1. Preparation of Specimens for the Pull-Out Test

The retention force between PEEK posts and resin composites for core build-up was evaluated using a pull-out test. Table 1 shows the PEEK material, surface treatment agents, and resin composite for core build-up used in this study. The PEEK posts used for the pull-out test were milled from CAD/CAM PEEK disks (Shofu PEEK, SHOFU, Kyoto, Japan) and cut into cylindrical shapes with an initial diameter of 1.6 mm and a length of 22 mm. The final length was adjusted to 20 mm.
The prepared PEEK posts were classified into four groups based on the surface treatment method and the presence or absence of thermal cycling tests. Figure 1 shows the flowchart of the experimental procedure. The groups were as follows: 1. untreated group (NT); 2. mechanically treated group (SB) with sandblasting using 50 μm Al2O3 at 0.25 MPa for 10 s from a distance of 10 mm at a 45° angle (HiBlaster Ovaljet, SHOFU, Kyoto, Japan). Subsequently, the treated specimens were cleaned in an ultrasonic bath with distilled water for 15 min and allowed to air-dry; 3. chemically treated group (AD) with primer application (CAD/CAM Resin Adhesive, SHOFU, Kyoto, Japan) followed by air blowing at a low pressure and light curing for 10 s using a light-curing unit (Pencure, Morita, Osaka, Japan); and 4. a group with combined mechanical and chemical treatments (SB+AD). Each group consisted of 20 specimens.
Preparation of the pull-out test specimens was conducted based on previous studies [33]. Briefly, a mold was prepared to place the treated PEEK post at the center of the specimen with 2 mm of the post exposed above the surface. An acrylic ring (inner diameter: 8 mm, height: 2 mm) was then attached to the mold (Figure 2a). The resin composite for core build-up (Clearfil DCcore Automix, Kuraray Noritake Dental, Tokyo, Japan) was filled into the rings. After filling, a glass plate was pressed against the acrylic ring, and the resin was light-cured at four points at a 90-degree angle for 10 s each using a light-curing unit. After curing, the specimens were removed from the mold and light-cured again at four points at a 90-degree angle for 10 s each from the bottom. These specimens were used for the pull-out test (Figure 2b).

2.2. Thermal Cycling

Half of the specimens in each group were stored in a humid environment at 37 °C for one week (n = 10 for each group) (TC0). The remaining half were subjected to 10,000 thermal cycles in an automatic thermal cycling unit (Thermocycling HA-K178, Tokyo Giken, Tokyo, Japan) (n = 10 for each group) (TC10,000). One thermal cycle consisted of alternate immersion in thermostatically controlled water baths at 5 °C and 55 °C for 30 s each [34]. These two temperatures were selected to approximate the minimum and maximum temperatures experienced in the oral cavity [34,35]. Based on previous literature, the dwell time in each bath was set to 30 s, with a transfer time of 3–5 s between the baths [34].

2.3. Pull-Out Test

For the pull-out test, specimen from each group were mounted on a universal testing machine (EZ-Graph, Shimadzu, Kyoto, Japan), and the post portion was gripped with a three-jaw chuck fixture and pulled out vertically from the composite resin portion at a crosshead speed of 0.5 mm/min (Figure 2c). The maximum fracture load obtained was defined as the retention force between the PEEK posts and resin composites.

2.4. Observation After Pull-Out Test

After the pull-out test, the surface of the specimens was examined using a stereomicroscope (Stemi508, Carl Zeiss, Jena, Germany) at 40× magnification and a scanning electron microscope (SEM: TM4000Plus II, Hitachi High Tech, Tokyo, Japan). For SEM analysis, the setting conditions were an acceleration voltage of 15.0 kV. The fracture modes were categorized into two types: adhesive failure (no resin composite adhered to the PEEK post) and mixed failure (combination of adhesive failure at the PEEK-resin composite interface and cohesive failure within the resin composite). Additionally, three specimens from each group were selected after the pull-out test, and the surface elements were analyzed using energy dispersive X-ray spectroscopy (EDS).

2.5. Statistical Analysis

The retention force obtained from the pull-out test was analyzed using statistical software (SPSS version 25, IBM, Armonk, NY, USA). Mean retention force values among the groups were statistically processed using two-way ANOVA and Tukey’s multiple comparison test. Furthermore, the effect of thermal cycling on the retention force within each group was examined using Student’s t-test. The significance level was set at p < 0.05.

3. Results

3.1. Retention Force Between PEEK Posts and Resin Composites

The results of two-way ANOVA conducted on the retention force data are shown in Table 2. Both the “surface treatment” factor and the “thermal cycling” factor had statistically significant effects on the retention force (p < 0.05). The interaction between these factors was also statistically significant (p < 0.05). Figure 3 shows the retention force between PEEK posts and resin composites. The mean retention forces were 9 ± 1 N for the NT group (TC0) and 11 ± 4 N for the NT group (TC10,000); 89 ± 31 N (TC0) and 85 ± 22 N (TC10,000) for the SB group; 52 ± 6 N (TC0) and 25 ± 5 N (TC10,000) for the AD group; and 169 ± 15 N (TC0) and 165 ± 12 N (TC10,000) for the SB+AD group. Significant differences in the retention force were observed among all surface treatments, regardless of the presence or absence of thermal cycling. The retention force was highest in the SB+AD group, followed by the SB group, AD group and the NT group, in that order. Additionally, the AD group showed a significant decrease in the retention force after thermal cycling, while the other groups were not affected by thermal cycling.

3.2. Observation After Pull-Out Test

Figure 4 shows the ratio of fracture modes after the pull-out test. In the NT group, 100% of the specimens exhibited adhesive failure, regardless of the thermal cycling condition (TC0 or TC10,000). In the SB group, mixed failure was observed in 80% of the specimens, regardless of thermal cycling. In contrast, the AD group demonstrated a 50% adhesive failure rate at TC0, which increased to 70% at TC10,000. In the SB+AD group, 100% mixed failure was consistently observed across all specimens. Overall, these results indicate a tendency wherein higher retention forces obtained from the pull-out test are associated with an increased proportion of mixed failures. Typical SEM images and EDS element mapping of the surfaces of specimens in each PEEK-post group after the pull-out test are shown in Figure 5 for TC0 and in Figure 6 for TC10,000. SEM observation revealed that the NT group exhibited a smooth PEEK post surface regardless of thermal cycling. In the SB and SB+AD groups, roughened surfaces induced by sandblasting were observed, with abundant remnants detected across all specimens. Conversely, the AD group showed a mixture of specimens with and without remnants; in particular, a trend toward a minimal amount of remnants was observed in the specimens after thermal cycling. Notably, no fractures of the PEEK posts were observed in any of the specimens.
EDS analysis predominantly detected carbon, oxygen, and titanium on the PEEK surfaces. In the sandblasted specimens, aluminum derived from alumina was detected, while silicon was detected within the remnants. Since silicon is a constituent element of the filler in resin composite, this finding indicates that the remnants originated from the resin composite. These results demonstrate that appropriate pretreatments were performed in the SB and SB+AD groups, thereby maintaining the retention between the PEEK and the resin composite irrespective of thermal cycling. On the other hand, the AD group exhibited a decrease in retentive force due to the influence of thermal cycling.

4. Discussion

The purpose of this study was to compare and evaluate the retention force between PEEK posts with mechanical and chemical surface treatments and resin composites for core build-up, as well as the effects of thermal cycling on the retention force. The results showed that the retention force of the treated groups was significantly higher than that of the untreated group. Regarding the effects of thermal cycling, the group with only chemical treatment showed a significant decrease in the retention force, while the other groups were not affected by thermal cycling. Therefore, (1) the first null hypothesis, that there would be no significant difference in the retention force between PEEK posts and the resin composites among the different surface treatments was rejected. On the other hand, (2) the second null hypothesis, that thermal cycling would have no effect on the retention force between the PEEK posts and the resin composites was partially accepted. Prefabricated posts have various adhesive interfaces with core materials and root dentin. In vitro studies have evaluated the bond strength of these interfaces using shear tests, microtensile tests, pull-out tests, and push-out tests [36]. Recent studies have increasingly used push-out tests for evaluation due to their ability to assess local differences in bond strength [32,36]. However, in this study, the retention force between PEEK posts and resin composites for core build-up was evaluated using a pull-out test. This is because the study focused solely on the overall retention force of the resin composite bonded to the post, rather than local differences in bond strength. Additionally, push-out tests require cutting the specimen during preparation, which may damage or fracture the specimen [37].

4.1. Surface Treatment of PEEK

One of the factors affecting the durability of resin composite core restorations is the strong bond between the core material and the post material [38]. Appropriate surface treatment of the post can improve the bond strength with the resin composite core [32,33,38,39]. However, the PEEK material used in this study is chemically inert, has low surface energy, and is resistant to surface modification [30]. Therefore, it is crucial to consider appropriate surface treatments for PEEK to form a strong and durable bond with resin materials. Effective surface treatments for PEEK include sulfuric acid treatment [4,32,40,41], which has been reported to improve mechanical interlocking by increasing surface roughness through the formation of a porous surface and enhancing chemical bonding by forming sulfonic groups on the PEEK surface. However, using sulfuric acid for chairside treatment is challenging due to its toxicity and the risk of oral tissue damage. On the other hand, sandblasting with alumina particles is widely used in clinical practice to enhance mechanical interlocking. It has been reported that sandblasting increases the surface roughness of PEEK, thereby improving its bond strength [30,31,40,41]. In this study, SEM observations and EDS results confirmed the formation of sandblasted surfaces on PEEK. Furthermore, the retention force between sandblasted PEEK and resin composite was significantly improved compared to untreated PEEK, regardless of thermal cycling, suggesting that sandblasting is effective for surface treatment of PEEK posts. Chemical surface treatment using methyl methacrylate (MMA)-based primers has also been recommended for PEEK. Although the mechanism by which MMA monomers enhance adhesion to PEEK is not yet fully understood, Hata et al. suggested that a semi-interpenetrating polymer network structure forms at the interface between PEEK and MMA monomers, contributing to improved adhesion [42]. This structure consists of polymer blends at the molecular level, where MMA molecules penetrate the PEEK polymer chains and polymerize into linear polymers, creating mechanical interlocking at the interface. Huang et al. reported that MMA improves the wettability of the PEEK surface, which they attributed to the formation of polar groups (e.g., carbonyl groups) on the PEEK surface [43]. Additionally, the primer used in this study contained urethane dimethacrylate (UDMA), which enhances fluidity, allowing better penetration into the PEEK surface. UDMA also improves physical properties through its urethane bonds, further enhancing adhesion [43]. These effects likely contributed to the retention force between PEEK and resin composites for core build-up in this study. The results of this study suggest that the combination of mechanical and chemical surface treatments is most effective in improving the retention force between PEEK posts and resin composites for core build-up. This is likely due to the optimal adhesion performance achieved by the deep penetration of low-viscosity MMA and UDMA-containing monomers into the rough surface created by appropriate sandblasting. Furthermore, previous studies have shown that combining mechanical and chemical treatments for polyaryl ether polymers like PEEK yields synergistic effects compared to using either treatment alone [38,43,44,45], supporting the findings of this study. In contrast, the retention force significantly decreased after thermal cycling in the group receiving only chemical pretreatment. This indicates that the primer was the most affected by thermal cycling among the materials used in this study. It has been previously suggested that thermal expansion induced by thermal cycling promotes water penetration into the bonding interface, resulting in resin failure [46]. This phenomenon is particularly attributed to water sorption and monomer elution from UDMA [46]. The present study exhibited a trend consistent with this existing knowledge. However, as other factors—such as stress induced by mismatched coefficients of thermal expansion between the materials or hydrolysis at the bonding interface—may also play a role, further investigation is necessary.

4.2. Effects of Thermal Cycling

The results of this study indicate that, except for the group with only chemical treatment, the effects of thermal cycling on the retention force between PEEK posts and resin composites for core build-up were minimal. PEEK possesses highly stable chemical and physical properties due to the presence of ketone and aryl groups [47,48], resulting in lower solubility and water absorption compared to other dental polymers [47,48,49]. Additionally, PEEK has lower thermal conductivity compared to metals and fiber posts, which minimizes thermal stress on adhesive interfaces and suggests its potential for long-term use [25].
In this study, the thermal cycling test involved 10,000 cycles, equivalent to approximately one year of use in the oral cavity [33,50]. Furthermore, in the clinical oral environment, it is necessary to consider not only degradation due to temperature changes but also stresses generated by mastication and occlusal forces. Altitinchi et al. investigated the fatigue resistance of metal, zirconia, and fiber posts by combining thermal cycling with a mastication simulation [51]. They reported that metal and zirconia posts exhibited significantly higher fatigue resistance than fiber posts. They discussed that this outcome was due to the high-strength post materials being better able to withstand the prolonged stress of 1.2 million cycles and the relatively large occlusal forces equivalent to those on premolars. Conversely, studies evaluating fracture resistance under static loading tests have shown that PEEK and other low-elastic-modulus materials exhibit excellent fracture resistance [29]. Therefore, further evaluations involving a greater number of thermal cycles and mastication simulations are required to fully elucidate the long-term stability of PEEK posts and resin composite cores.

4.3. Retention Force Between PEEK and Resin Composites for Core Build-Up

In this study, the maximum retention force between PEEK posts and resin composites for core build-up was achieved with the combination of mechanical and chemical surface treatments, with an average value of 169 ± 15 N. Under the same experimental conditions, studies evaluating the retention force between FRC posts and resin composites reported values ranging from 250 N to 310 N [33]. Therefore, in terms of the retention force with resin composites for core build-up, PEEK posts may be inferior to FRC posts. Furthermore, Singh et al. reported that the clinically required retention force is approximately 200 N or higher under masticatory loading [52]. Therefore, within the limitations of the present study, it was suggested that the retention force between the PEEK post and the resin composites obtained with the tested surface treatments might fall below the clinically acceptable threshold.
On the other hand, although the experimental methods and surface treatment conditions differed, studies evaluating the bond strength between resin composites and PEEK or FRC posts using push-out tests have reported that sandblasted PEEK posts exceed the bond strength of FRC posts [53]. Therefore, further research is needed to determine the optimal surface treatment method for achieving long-term retention between PEEK posts and resin composites for core build-up. Another factor to consider is the light intensity of the curing lamp used in this study, which was approximately 650 mW/cm2. Considering that contemporary LED light-curing units typically feature an output intensity of around 1000 mW/cm2 [54], this lower intensity could potentially affect the mechanical properties of the core build-up resin composite. On the other hand, it has been reported that the minimum acceptable irradiance required for clinical success is 300 mW/cm2 [54]. Moreover, since the core build-up resin composite used in this study is a dual-cure material, this light intensity of 650 mW/cm2 is considered sufficient to achieve adequate initial polymerization.

4.4. Limitation

As a limitation of this study, a pull-out test was utilized to focus solely on the retention force between the PEEK post and the composite resin core material. However, the retention of the post to the root canal dentin is as crucially important as its bond to the core material. Therefore, future studies need to incorporate a push-out test to evaluate site-specific local variations in bond strength, alongside exploring the fabrication of integrated specimens that encompass the core, post, and dentin complex. Moreover, aging in the oral cavity was evaluated exclusively through thermal cycling in the present study. To more accurately simulate clinical conditions, the mechanical stresses induced by masticatory and occlusal forces should be considered, necessitating the combined application of chewing simulation alongside thermal cycling. Additionally, the 10,000 cycles employed in this study correspond to approximately one year of intraoral use. To investigate the long-term behavior further, a greater number of cycles should be examined in future studies.

5. Conclusions

  • The retention force between PEEK posts and resin composites for core build-up varies significantly depending on the surface treatment method. The group with combined mechanical surface treatment (sandblasting) and chemical surface treatment (primer application) shows the highest retention force.
  • After conducting thermal cycling tests simulating one year of use in the oral cavity, none of the groups was affected by thermal cycling, except for the group with only chemical surface treatment.
  • Within the limitations of this study, the retention force of the PEEK post with a 2 mm bonding interface was 169 ± 15 N, which was lower than that of the FRC post.

Author Contributions

Conceptualization, M.K. and T.S.; methodology, M.K. and T.S.; data curation, M.K. and T.S.; resources, M.K.; investigation, M.K., T.S. and H.K.; formal analysis, H.K.; writing—original draft preparation, M.K.; writing—review and editing, M.H.; visualization, M.K.; project administration, M.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by JSPS KAKENHI Grant Number 24K13033.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors have no conflict of interest with respect to this study.

References

  1. Assif, D.; Gorfil, C. Biomechanical considerations in restoring endodontically treated teeth. J. Prosthet. Dent. 1994, 71, 565–567. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  2. Naumann, M.; Schmitter, M.; Frankenberger, R.; Krastl, G. “Ferrule Comes First. Post Is Second!” Fake News and Alternative Facts? A Systematic Review. J. Endod. 2018, 44, 212–219. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  3. Vogler, J.A.H.; Stummer, A.L.; Walther, K.A.; Wöstmann, B.; Rehmann, P. Survival of teeth treated with post and core—A retrospective study of more than 1000 cases with observation periods up to 18 years. J. Dent. 2023, 138, 104723. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  4. Benli, M.; Gümüş, B.E.; Kahraman, Y.; Huck, O.; Özcan, M. Surface characterization and bonding properties of milled polyetheretherketone dental posts. Odontology 2020, 108, 596–606. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  5. Madfa, A.A.; Abdul Kadir, M.R.; Kashani, J.; Saidin, S.; Sulaiman, E.; Marhazlinda, J.; Rahbari, R.; Abdullah, B.J.J.; Abdullah, H.; Abu Kasim, N.H. Stress distributions in maxillary central incisors restored with various types of post materials and designs. Med. Eng. Phys. 2014, 36, 962–967. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  6. Fraga, R.C.; Chaves, B.T.; Mello, G.S.; Siqueira, J.F., Jr. Fracture resistance of endodontically treated roots after restoration. J. Oral Rehabil. 1998, 25, 809–813. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  7. Ukon, S.; Moroi, H.; Okimoto, K.; Fujita, M.; Ishikawa, M.; Terada, Y.; Satoh, H. Influence of different elastic moduli of dowel and core on stress distribution in root. Dent. Mater. J. 2000, 19, 50–64. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  8. Hendi, A.R.; Moharrami, A.; Siadat, H.; Hajmiragha, H.; Alikhasi, M. The effect of conventional, half-digital, and full-digital fabrication techniques on the retention and apical gap of post and core restorations. J. Prosthet. Dent. 2019, 121, 364.e1–364.e6. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  9. Dimitrova, M.; Vlahova, A.; Kazakova, R. Assessment of CAD/CAM fabrication technologies for post and core restorations—A narrative review. Medicina 2024, 60, 748. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  10. Jrab, B.; Saleh, A.R.; Al-Jadaa, A.; Jurado, C.A.; Saeed, M.H.; Afrashtehfar, K.I. Fracture resistance of CAD/CAM tooth-colored versus cast metal post-and-core restorations in root-filled teeth: An in vitro study. Saudi Dent. J. 2024, 36, 1215–1220. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  11. Fernandes, V.; Silva, A.S.; Carvalho, O.; Henriques, B.; Silva, F.S.; Özcan, M.; Souza, J.C.M. The resin-matrix cement layer thickness resultant from the intracanal fitting of teeth root canal posts: An integrative review. Clin. Oral Investig. 2021, 25, 5595–5612. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  12. Martins, M.D.; Junqueira, R.B.; de Carvalho, R.F.; Lacerda, M.F.L.S.; Faé, D.S.; Lemos, C.A.A. Is a fiber post better than a metal post for the restoration of endodontically treated teeth? A systematic review and meta-analysis. J. Dent. 2021, 112, 103750. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Cormier, C.J.; Burns, D.R.; Moon, P. In vitro comparison of the fracture resistance and failure mode of fiber, ceramic, and conventional post systems at various stages of restoration. J. Prosthodont. 2001, 10, 26–36. [Google Scholar] [CrossRef] [Scilit]
  14. Maroulakos, G.; He, J.; Nagy, W.W. The post-endodontic adhesive interface: Theoretical perspectives and potential flaws. J. Endod. 2018, 44, 363–371. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Dietschi, D.; Duc, O.; Krejci, I.; Sadan, A. Biomechanical considerations for the restoration of endodontically treated teeth: A systematic review of the literature, part II (evaluation of fatigue behavior, interfaces, and in vivo studies). Quintessence Int. 2008, 39, 117–129. [Google Scholar] [PubMed]
  16. Goracci, C.; Ferrari, M. Current perspectives on post systems: A literature review. Aust. Dent. J. 2011, 56, 77–83. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  17. Cheleux, N.; Sharrock, P.J. Mechanical properties of glass fiber-reinforced endodontic posts. Acta Biomater. 2009, 5, 3224–3230. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  18. Kinney, J.H.; Marshall, S.J.; Marshall, G.W. The mechanical properties of human dentin: A critical review and re-evaluation of the dental literature. Crit. Rev. Oral Biol. Med. 2003, 14, 13–29. [Google Scholar] [CrossRef] [Scilit]
  19. Figueiredo, F.E.; Martins-Filho, P.R.; Faria-E-Silva, A.L. Do metal post-retained restorations result in more root fractures than fiber post-retained restorations? A systematic review and meta-analysis. J. Endod. 2015, 41, 309–316. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  20. Tsintsadze, N.; Margvelashvili-Malament, M.; Natto, Z.S.; Ferrari, M. Comparing survival rates of endodontically treated teeth restored either with glass-fiber-reinforced or metal posts: A systematic review and meta-analyses. J. Prosthet. Dent. 2024, 131, 567–578. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  21. Van Landuyt, K.L.; Wouters, E.; Zicari, F.; Debels, E.; Naert, I.; Van Meerbeek, B.; Peumans, M. Randomized controlled trial comparing glass-fiber versus metal posts in single-crowned teeth: 15 Year follow-up. J. Dent. 2025, 156, 105694. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  22. Bathala, L.; Majeti, V.; Rachuri, N.; Singh, N.; Gedela, S. The role of polyether ether ketone (PEEK) in dentistry—A review. J. Med. Life 2019, 12, 5–9. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Teixeira, K.N.; Duque, T.M.; Maia, H.P.; Gonçalves, T. Fracture resistance and failure mode of custom-made post-and-cores of polyetheretherketone and nano-ceramic composite. Oper. Dent. 2020, 45, 506–515. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  24. Zhang, Y.; Zhang, W.; Yang, M.; Li, M.; Zhou, L.; Liu, Y.; Liu, L.; Zheng, Y. Comprehensive review of polyetheretherketone use in dentistry. J. Prosthodont. Res. 2025, 69, 215–232. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Ibrahim, R.O.; Al-Zahawi, A.R.; Sabri, L.A. Mechanical and thermal stress evaluation of PEEK prefabricated post with different head design in endodontically treated tooth: 3D-finite element analysis. Dent. Mater. J. 2021, 40, 508–518. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  26. Yu, H.; Feng, Z.; Wang, L.; Mihcin, S.; Kang, J.; Bai, S.; Zhao, Y. Finite element study of PEEK materials applied in post-retained restorations. Polymers 2022, 14, 3422. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  27. Gontijo, I.G.; Ferretti, M.A.; Caldas, R.A.; Pecorari, V.G.A.; França, F.M.G.; Oliveira, L.K.N.; Aguiar, F.H.B. Biomechanical behavior of weakened roots restored with custom-made post-and-cores of glass fiber and polyetheretherketone. J. Prosthodont. 2023, 32, 807–814. [Google Scholar] [PubMed]
  28. Wang, B.; Huang, M.; Zhang, K.; Xu, Y.; Zhang, X.; Shi, L.; Yan, X. Biomechanical performance of post-and-cores of polyetheretherketone and its composites. BMC Oral Health 2025, 25, 706. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  29. Ishikawa, A.; Takemoto, S.; Someya, T.; Kasahara, M.; Kimura, S.; Kawasaki, T.; Hattori, M.; Sekine, H. Fracture resistance of endodontically treated bovine roots restored with resin abutments and polyetheretherketone. Dent. Mater. J. 2025, 44, 508–518. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  30. Zhou, L.; Qian, Y.; Zhu, Y.; Liu, H.; Gan, K.; Guo, J. The effect of different surface treatments on the bond strength of PEEK composite materials. Dent. Mater. 2014, 30, e209–e215. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  31. Stawarczyk, B.; Taufall, S.; Roos, M.; Schmidlin, P.R.; Lümkemann, N. Bonding of composite resins to PEEK: The influence of adhesive systems and air-abrasion parameters. Clin. Oral Investig. 2018, 22, 763–771. [Google Scholar] [PubMed]
  32. Soliman, T.A.; Raffat-Hussein, E.M.; Ellayeh, M.; Farahat, D.S. Effect of surface treatments on adhesion of milled polyetheretherketone post to different composite resin core build-up materials. J. Clin. Exp. Dent. 2023, 15, e742–e748. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  33. Someya, T.; Kasahara, M.; Takemoto, S.; Hattori, M. Retention force of fiber-reinforced composite resin post on resin composite for core buildup—Effects of fiber orientation, silane treatment and thermal cycling. Dent. Mater. J. 2021, 40, 1264–1269. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  34. Filemban, H.; Bhadila, G.; Wang, X.; Melo, M.A.S.; Oates, T.W.; Hack, G.D.; Lynch, C.D.; Weir, M.D.; Sun, J.; Xu, H.H.K. Effects of thermal cycling on mechanical and antibacterial durability of bioactive low-shrinkage-stress nanocomposite. J. Dent. 2022, 124, 104218. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  35. Eliasson, S.T.; Dahl, J.E. Effect of thermal cycling on temperature changes and bond strength in different test specimens. Biomater. Investig. Dent. 2020, 29, 16–24. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  36. Goracci, C.; Grandini, S.; Bossù, M.; Bertelli, E.; Ferrari, M. Laboratory assessment of the retentive potential of adhesive posts: A review. J. Dent. 2007, 35, 827–835. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  37. Ebert, J.; Leyer, A.; Günther, O.; Lohbauer, U.; Petschelt, A.; Frankenberger, R.; Roggendorf, M.J. B Bond strength of adhesive cements to root canal dentin tested with a novel pull-out approach. J. Endod. 2011, 37, 1558–1561. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  38. Aksornmuang, J.; Foxton, R.M.; Nakajima, M.; Tagami, J. Microtensile bond strength of a dual-cure resin core material to glass and quartz fibre posts. J. Dent. 2004, 32, 443–450. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  39. Kurt, M.; Güler, A.U.; Duran, İ.; Uludamar, A.; İnan, Ö. Effects of different surface treatments on the bond strength of glass fiber-reinforced composite root canal posts to composite core material. J. Dent. Sci. 2012, 7, 20–25. [Google Scholar] [CrossRef] [Scilit]
  40. Luo, C.; Liu, Y.; Peng, B.; Chen, M.; Liu, Z.; Li, Z.; Kuang, H.; Gong, B.; Li, Z.; Sun, H. PEEK for oral applications: Recent advances in mechanical and adhesive properties. Polymers 2023, 15, 386. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  41. Ozdogan, A.; Tosun, B. Effect of different surface roughening treatment on polyether ether ketone and acrylic resin bonding: A pilot study. Dent. Med. Probl. 2024, 61, 249–255. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  42. Hata, K.; Komagata, Y.; Nagamatsu, Y.; Masaki, C.; Hosokawa, R.; Ikeda, H. Bond strength of sandblasted PEEK with dental methyl methacrylate-based cement or composite-based resin cement. Polymers 2023, 15, 1830. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  43. Huang, H.Y.; Feng, S.W.; Chiang, K.Y.; Li, Y.C.; Peng, T.Y.; Nikawa, H. Effects of various functional monomers’ reaction on the surface characteristics and bonding performance of polyetheretherketone. J. Prosthodont. Res. 2024, 68, 319–325. [Google Scholar] [PubMed]
  44. Peng, T.Y.; Shimoe, S.; Fuh, L.J.; Lin, C.K.; Lin, D.J.; Kaku, M. Bonding and thermal cycling performances of two (poly)aryl-ether-ketone (PAEKs) materials to an acrylic denture base resin. Polymers 2021, 13, 543. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  45. Kasahara, M.; Someya, T.; Hattori, M. Effect of surface treatments of polyetherketoneketone as a post material on shear bond strength to root dentin using two types of resin cement. J. Adhes. Dent. 2022, 24, 435–443. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  46. Lai, S.Y.; Wei, C.; Peng, T.Y. Enhancing bonding and durability of polyaryletherketone (PAEK) restorations with nonthermal plasma activation and monomer-based priming. J. Prosthet. Dent. 2026, 135, 166.e1–166.e8. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  47. Alamoush, R.A.; Sung, R.; Satterthwaite, J.D.; Silikas, N. The effect of different storage media on the monomer elution and hardness of CAD/CAM composite blocks. Dent. Mater. 2021, 37, 1202–1213. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  48. Porojan, L.; Toma, F.R.; Bîrdeanu, M.I.; Vasiliu, R.D.; Uțu, I.D.; Matichescu, A. Surface characteristics and color stability of dental PEEK related to water saturation and thermal cycling. Polymers 2022, 14, 2144. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  49. Liebermann, A.; Wimmer, T.; Schmidlin, P.R.; Scherer, H.; Löffler, P.; Roos, M.; Stawarczyk, B. Physicomechanical characterization of polyetheretherketone and current esthetic dental CAD/CAM polymers after aging in different storage media. J. Prosthet. Dent. 2016, 115, 321–328. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  50. Gale, M.S.; Darvell, B.W. Thermal cycling procedures for laboratory testing of dental restorations. J. Dent. 1999, 27, 89–99. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  51. Altitinchi, A.; Hussein, A.; Saemundsson, S.; Clark, W.; Culp, L.; Sulaiman, T.A. Anatomic CAD-CAM post-and-core systems: A mastication simulation study. J. Prosthet. Dent. 2024, 132, 586–591. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  52. Singh, A.; Logani, A.; Shah, N. An ex vivo comparative study on the retention of custom and prefabricated posts. J. Conserv. Dent. 2012, 15, 183–186. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  53. Alanazi, K.K.; Alqahtani, R.; Alqahtani, A.; Alqahtani, A.A.; Almudahi, A.; Al-Mansour, O.A.; Al-Harbi, N.A.; Alqahtani, S.S.A.; Raffat Hussein, E.M.; Soliman, T.A. Adhesion of 3D-printed versus milled resin posts to composite resin core build-up material: Influence of surface treatments. Polymers 2025, 17, 1711. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  54. Jandt, K.D.; Mills, R.W. A brief history of LED photopolymerization. Dent. Mater. 2013, 29, 605–617. [Google Scholar] [CrossRef] [Scilit] [PubMed]
Materials 19 02694 g001

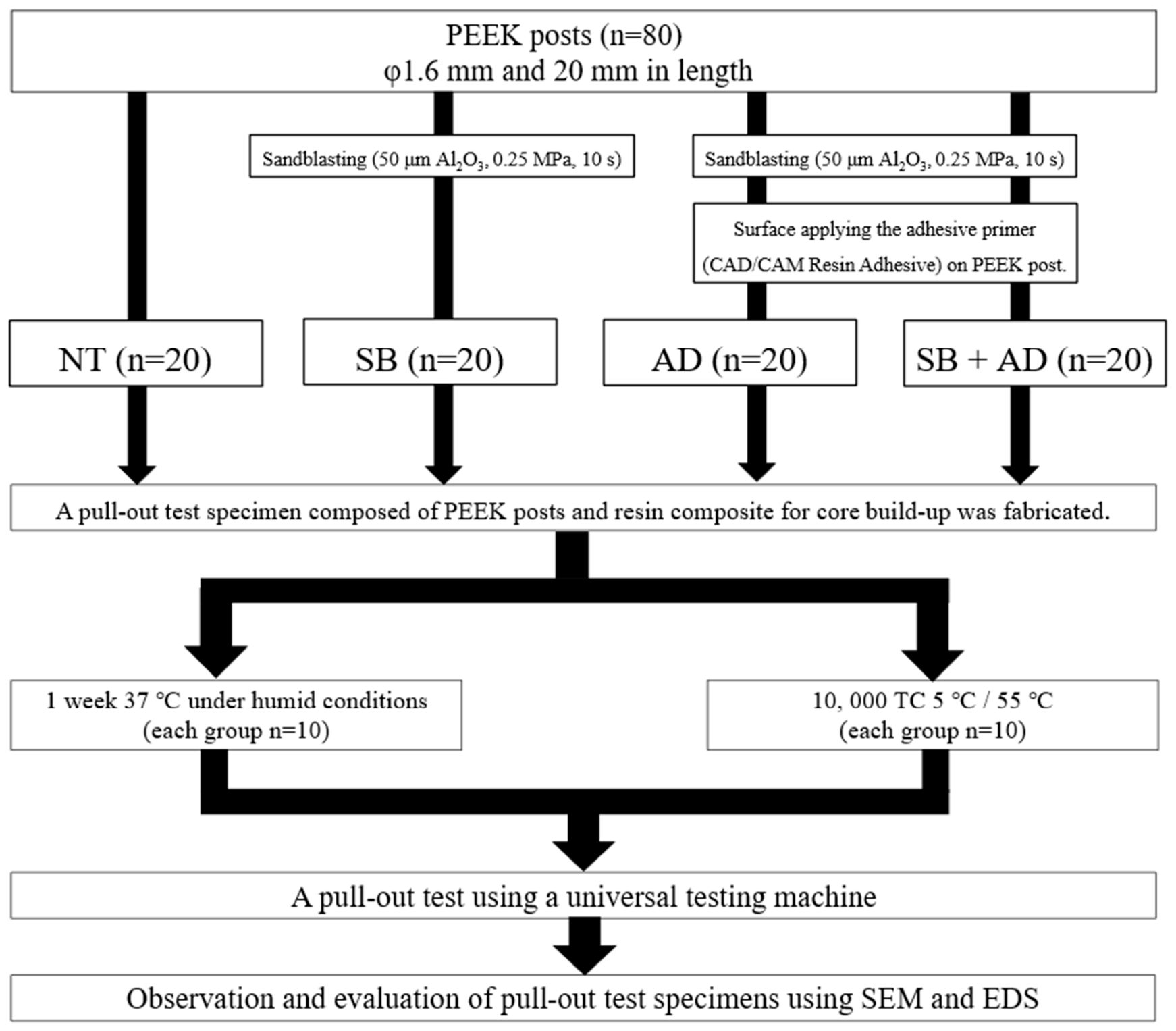

Figure 1. Study design. Study groups: Untreated (NT); Mechanical treatment: sandblasting with 50 μm Al2O3 particles (SB); Chemical treatment: conditioning using adhesive primer (AD); Combined mechanical and chemical treatment: sandblasting with 50 μm Al2O3 particles plus conditioning using adhesive primer (SB+AD).
Figure 1. Study design. Study groups: Untreated (NT); Mechanical treatment: sandblasting with 50 μm Al2O3 particles (SB); Chemical treatment: conditioning using adhesive primer (AD); Combined mechanical and chemical treatment: sandblasting with 50 μm Al2O3 particles plus conditioning using adhesive primer (SB+AD).
Materials 19 02694 g001
Materials 19 02694 g002

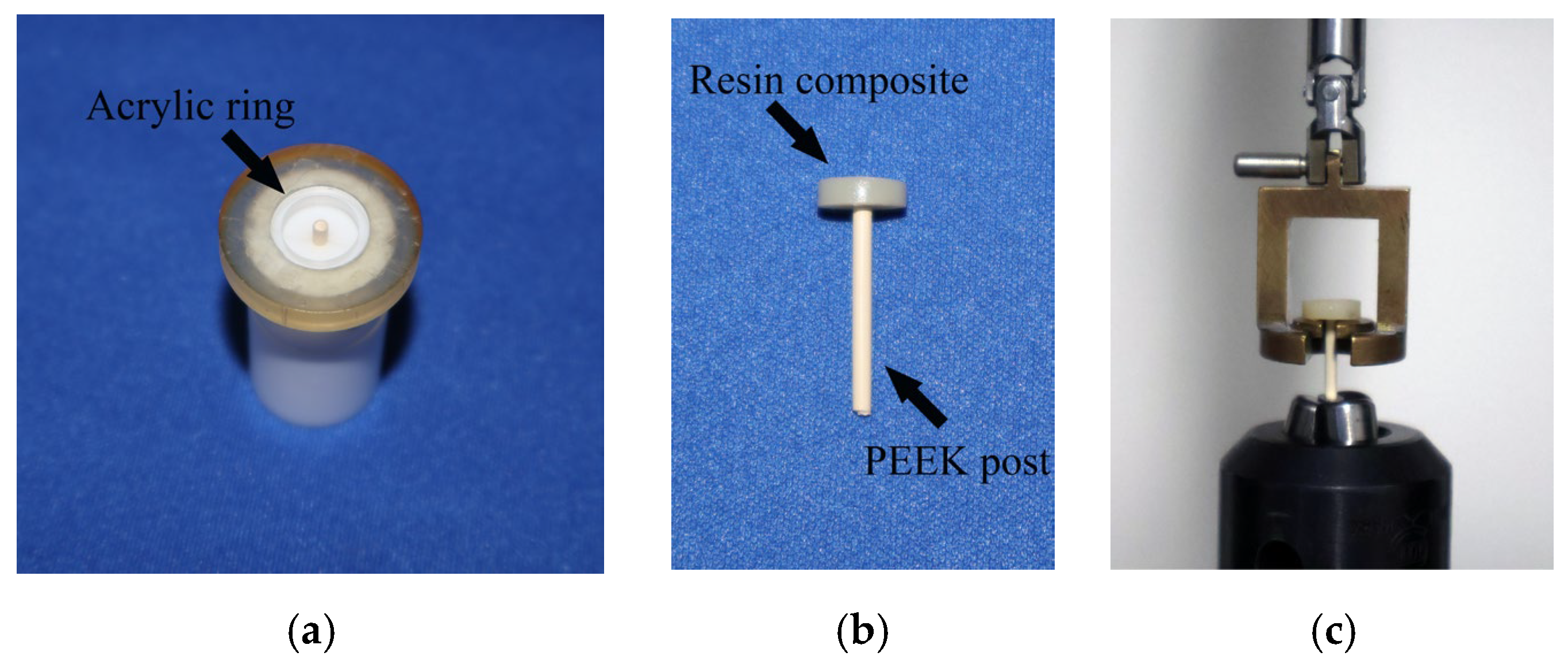

Figure 2. Fabrication of specimens for the pull-out test. (a) PEEK post and acrylic ring placed in mold; (b) PEEK post and resin composite specimen for pull-out test; (c) Specimen during pull-out test.
Figure 2. Fabrication of specimens for the pull-out test. (a) PEEK post and acrylic ring placed in mold; (b) PEEK post and resin composite specimen for pull-out test; (c) Specimen during pull-out test.
Materials 19 02694 g002
Materials 19 02694 g003

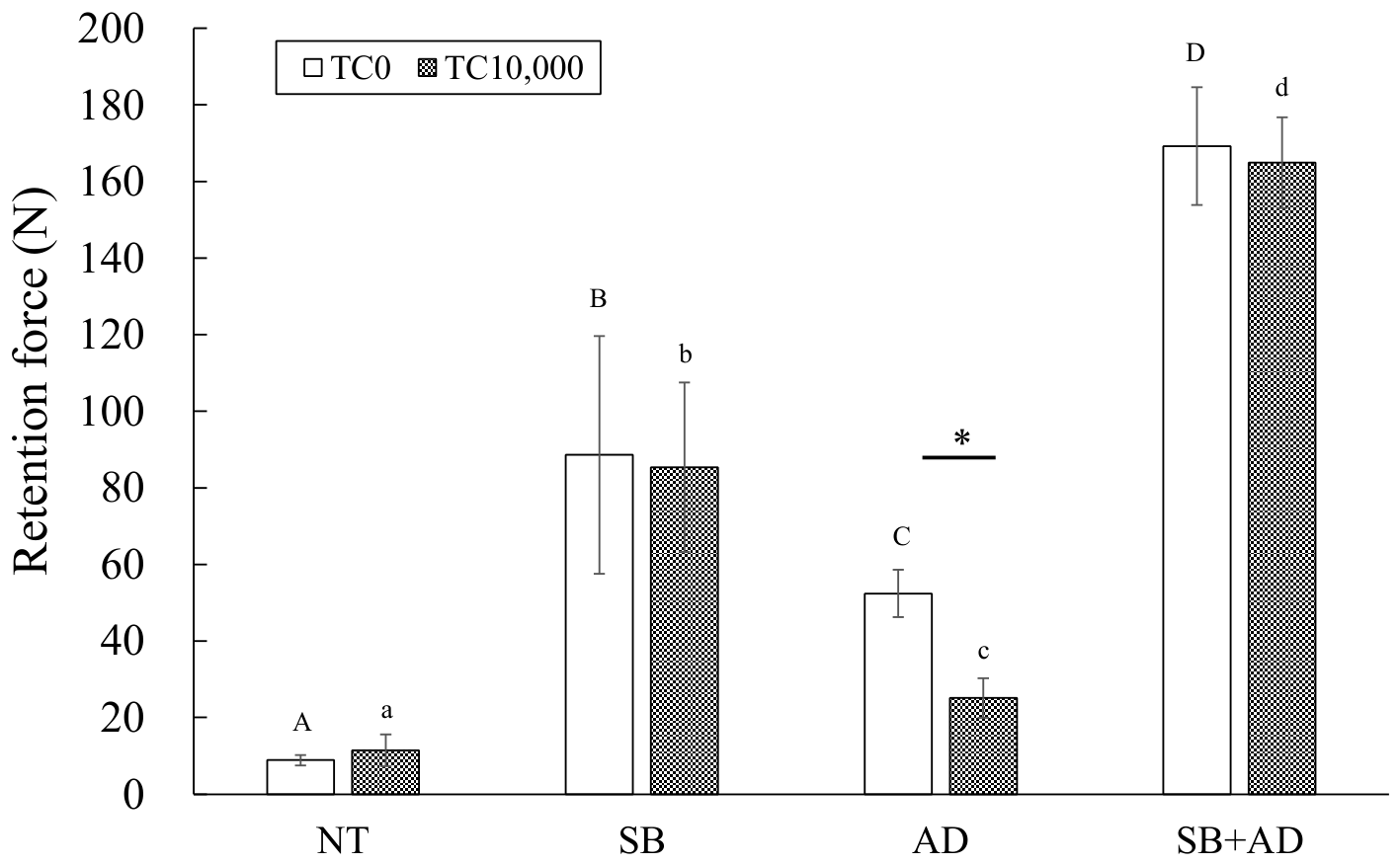

Figure 3. Mean and standard deviations of the retention force of each surface treatment. Different uppercase and lowercase letters represent statistically significant differences between the non-thermal cycling (TC0) and thermal cycling (TC10,000) groups, respectively. Asterisks indicate statistically significant differences among the retention force for the TC0 and TC10,000 groups for the same surface treatment.
Figure 3. Mean and standard deviations of the retention force of each surface treatment. Different uppercase and lowercase letters represent statistically significant differences between the non-thermal cycling (TC0) and thermal cycling (TC10,000) groups, respectively. Asterisks indicate statistically significant differences among the retention force for the TC0 and TC10,000 groups for the same surface treatment.
Materials 19 02694 g003
Materials 19 02694 g004

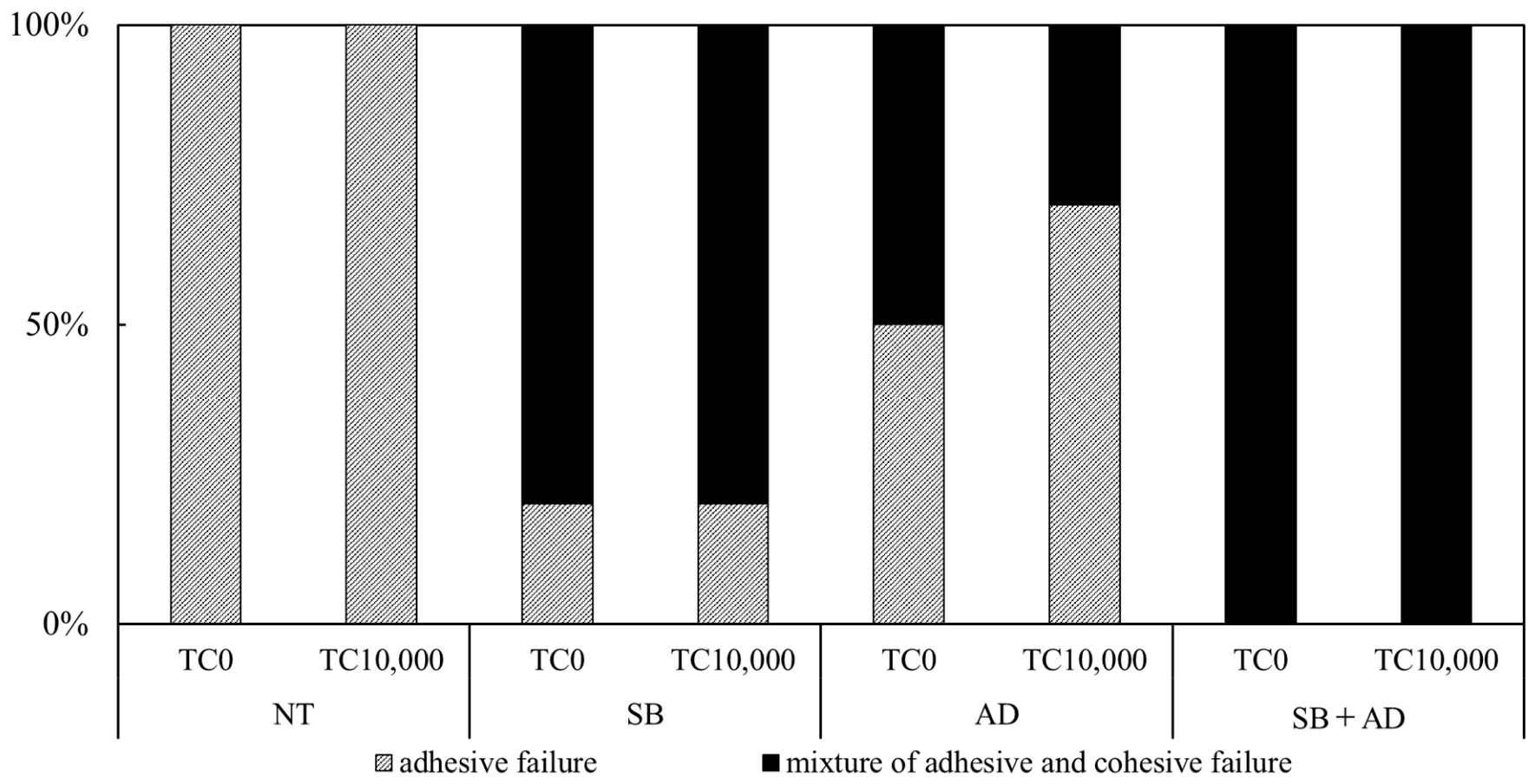

Figure 4. Fracture mode ratio after the pull-out test.
Figure 4. Fracture mode ratio after the pull-out test.
Materials 19 02694 g004
Materials 19 02694 g005
Figure 5. PEEK post surface after the pull-out test without thermal cycling. The upper section of the figure shows SEM images, while the lower section shows mapping images. NT (a1,a2); SB (b1,b2); AD (c1,c2); SB+AD (d1,d2).
Figure 5. PEEK post surface after the pull-out test without thermal cycling. The upper section of the figure shows SEM images, while the lower section shows mapping images. NT (a1,a2); SB (b1,b2); AD (c1,c2); SB+AD (d1,d2).
Materials 19 02694 g005
Materials 19 02694 g006
Figure 6. PEEK post surface after the pull-out test with thermal cycling. The upper section of the figure shows SEM images, while the lower section shows mapping images. NT (a1,a2); SB (b1,b2); AD (c1,c2); SB+AD (d1,d2).
Figure 6. PEEK post surface after the pull-out test with thermal cycling. The upper section of the figure shows SEM images, while the lower section shows mapping images. NT (a1,a2); SB (b1,b2); AD (c1,c2); SB+AD (d1,d2).
Materials 19 02694 g006
Table 1. Materials used in this study.
Table 1. Materials used in this study.
Material TypeProduct (Lot No.)Main ComponentsManufacturer
Polye there therke tone
(PEEK)		SHOFU PEEK (23010602)Poly-ether-ether-ketoneShofu, Kyoto, Japan
Resin composite for core build-upClearfil DCcore Automix (BA0525)Bis-GMA, TEGDMA, Hydrophobic aromatic dimethacrylate, silanated barium glass filler, silanated silica, CQ, BPO, acceleratorsKuraray Noritake Dental, Tokyo, Japan
Adhesive primerCAD/CAM Resin Adhesive (092201)UDMA, MMA, acetone, initiators and others Shofu, Kyoto, Japan
TEGDMA: Triethyleneglycol dimethacrylate; CQ: Camphorquinone; BPO: Benzoyl peroxide; UDMA: Urethane dimethacrylate; MMA: Methyl methacrylate.
Table 2. Results of two-way ANOVA performed for evaluation of the retention force between PEEK and each surface treatment, both with and without thermal cycling.
Table 2. Results of two-way ANOVA performed for evaluation of the retention force between PEEK and each surface treatment, both with and without thermal cycling.
Sum of SquareDfF Valuep Value
Surface treatment282,692.20 3394.090 <0.05
Thermal cycling1305.11 15.458 <0.05
Surface treatment × thermocycling2596.8733.619 <0.05
