Crevice Corrosion Behavior of Alloy 690 in High-Temperature Aerated Chloride Solution

by
Fangqiang Ning
1,2,
Jibo Tan
1,
Ziyu Zhang
1,*,
Xiang Wang
1,
Xinqiang Wu
1,
En-Hou Han
1 and
Wei Ke
1
1
CAS Key Laboratory of Nuclear Materials and Safety Assessment, Liaoning Key Laboratory for Safety and Assessment Technique of Nuclear Materials, Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China
2
School of Materials Science and Engineering, Shandong University of Science and Technology, Qingdao 266590, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(15), 5434; https://doi.org/10.3390/ma15155434
Submission received: 13 July 2022 / Revised: 29 July 2022 / Accepted: 31 July 2022 / Published: 7 August 2022
(This article belongs to the Special Issue Corrosion Behaviors of Metallic Materials in Extreme Environments)
Browse Figures
Versions Notes

Abstract

:
Crevice corrosion behavior of Alloy 690 in high-temperature aerated chloride solution was studied using a self-designed crevice device. The SEM, EDS, XRD, and XPS analyses results indicated that the oxide films outside the crevice consisted of Ni-Cr oxides containing a small amount of hydroxides, and the oxide films on crevice mouth consisted of a (Ni,Fe)(Fe,Cr)2O4 spinel oxides outer layer and a Cr(OH)3 inner layer, and the oxide films inside the crevice consisted of a α-CrOOH outer layer and a Cr(OH)3 inner layer. When crevice corrosion occurred, the hydrolysis of Cr3+ led to the formation of Cr(OH)3 inside the crevice, and caused the pH value of crevice solution to decrease, and Cl− migrated from outside the crevice into inside the crevice due to electrical neutrality principle and accumulation. When the water chemistry inside the crevice reached the critical value of active dissolution of metal, the active dissolution of metal inside the crevice occurred. In addition, (Ni,Fe)(Fe,Cr)2O4 spinel oxides on the crevice mouth were formed by the deposition of metal ions migrated from inside the crevice. The mechanism of crevice corrosion and the formation mechanism of oxide films at different regions were also discussed.

1. Introduction

Nickel-based Alloy 690 is extensively used as steam generator (SG) tube material in nuclear power industries due to its high corrosion resistance [1,2,3,4,5]. However, Alloy 690 is vulnerable to crevice corrosion damage during long-time operation of pressurized water reactors (PWRs) [6,7,8]. Alloy 690 located in the crevices between the SG tube and tube support plate, and the tube sheet or deposits are easily attacked by corrosion [8,9,10,11,12,13,14]. The enrichment of aggressive impurity ions occurs inside the crevice during crevice corrosion. Thus, although the concentration of impurities in the SG feedwater is extremely low, and it can concentrate inside the crevice, producing an aggressive local environment and therefore accelerating corrosion degradation of SG tubes [14,15]. Thus, the crevice corrosion damage of SG tubes has become a key factor affecting the normal operation of PWRs.
Chloride ion (Cl−) is one of the most aggressive ions that can lead to localized corrosion of SG tube materials [10,16,17]. According to the crevice corrosion mechanism, Cl− can migrate into the crevice and concentrate, while the hydrolysis of metal ions inside the crevice leads to a decrease in the pH value of the crevice solution [5,16], which can increase the corrosivity of crevice solution, therefore destroying the passive film of metal and causing crevice corrosion [18,19,20,21,22,23,24,25]. Many researchers have investigated the effects of Cl− on the crevice corrosion behaviors of nickel-based alloys and stainless steels (SSs). Oldfield et al. [18] investigated the crevice corrosion behavior of 316 SS, and they found that the acidification of crevice solution was caused by the hydrolysis of Cr3+; this was due to the hydrolysis equilibrium constant of Cr3+ being smaller than other metal ions. Macdonald et al. [14] investigated the effects of Cl− on crevice corrosion of Alloy 600 in 200 °C water and reported that Cl− can increase the corrosion rate of Alloy 600 inside the crevice, and the crevice corrosion is not obvious in 200 °C water without Cl−. Nevertheless, little work has been carried out to investigate the crevice corrosion behavior of Alloy 690 in high-temperature chloride solutions. Our previous paper [13] investigated the crevice corrosion behaviors of Alloy 690 in 290 °C deaerated chloride solution and found that nodular corrosion occurred inside the crevice. The effect of dissolved oxygen (DO) on corrosion behaviors of nickel-based alloys in high-temperature water has been extensively studied [4,5]. The increase of DO concentration in high-temperature water can promote the corrosion of nickel-based alloys. In addition, M. Eškinja et al. [26] investigated the corrosion behavior of a ferritic steel in CO2 environment using the optimized linear polarization resistance method, and found that iron carbonate (FeCO3) was detected as the main component of the corrosion productions with highest protective performance on the surface of the ferritic steel.
The purpose of the present paper was to clarify the crevice corrosion mechanism of Alloy 690 in high-temperature aerated chloride solution and to find the effective paths to resist crevice corrosion in high-temperature pressurized water, thereby ensuring the safe service of SG tubes in PWRs. In this study, the crevice corrosion behavior of Alloy 690 in high-temperature aerated chloride solution was studied using a self-designed crevice device. The oxide films formed at different regions of the crevice sample of Alloy 690 were characterized and the related mechanism of crevice corrosion was also discussed.

2. Experimental Section

2.1. Materials and Crevice Device

Table 1 shows the chemical composition of Alloy 690 used in the present paper. All crevice samples were gradually abraded to #2000 using emery paper followed by ethanol degreasing. Figure 1 shows the schematic diagram of crevice device that consisted of two Alloy 690 samples: a zirconia bolt and a Alloy 690 nut [5,6]. The use of the crevice apparatus has been described in detail in previous papers [5,6,7,27,28]. The crevice length and crevice width were controlled at 4 mm and 125 μm respectively in the present paper, as shown in Figure 1b.

2.2. Crevice Corrosion Immersion Test

Crevice corrosion immersion test was carried out in a static autoclave made of Hastelloy C276. In fact, the concentration of Cl− in bulk solution ranges from a few ppb to dozens of ppb in PWR secondary circuit, while it would reach hundreds of ppm inside the crevice [6,8,10,15]. In order to accelerate the test, the experimental solution was 0.0002 M (7.1 ppm) sodium chloride (NaCl) solution, which was prepared with deionized water (0.06 μs/cm conductivity) and was aerated. The crevice corrosion immersion test was carried out in 290 °C NaCl solution for 200 h.

2.3. Methodology

After the immersion test, the sample was cleaned carefully with alcohol and dried by hair dryer. The surface appearance of the crevice sample was examined using a Leica S6D stereomicroscope. The micro-morphologies of oxide films were characterized using a scanning electron microscope (FEI XL30 SEM), which was equipped with an Energy Dispersive Spectrometer (EDS). The structures of oxide films were analyzed using a D/Max 2400 X-ray diffraction (XRD) analyzer with Co K alpha radiation (λ = 1.78892 Å). The chemical compositions of oxide films were analyzed by an X-ray photoelectron spectroscopy (ESCALAB 250 XPS). The XPS sputtering area was 2 × 2 mm, and the spectrum was acquired on a 0.5 mm diameter spot [5,29,30,31]. More information about the XPS device and processing XPS data has been detailed in previous work [5,29,30,31].

3. Results

3.1. Surface Appearance

Figure 2 shows the surface appearance of the crevice sample exposed to 290 °C NaCl solution. It was found that active dissolution of the metal occurred inside the crevice (the region indicated by the red arrows), but not outside the crevice. The color and appearance of the oxide films inside and outside the crevice are different, indicating that the crevice corrosion did occur during the immersion test. According to the color of the oxide films, the sample surface was divided into three regions, namely, outside the crevice, crevice mouth, and inside the crevice.
Figure 3 shows the surface morphologies and EDS results of the oxide films formed at different regions of the crevice sample exposed to 290 °C NaCl solution. Although the EDS analysis is a semi-quantitative method, its results can reflect the relative content of various elements in the oxide films. Some oxide clusters deposited on the needle-like and flaky oxides were observed in the region outside the crevice (Figure 3a), and the EDS result (Figure 3b) indicates that these oxide clusters are rich in Ni and Cr. A large amount of vermicular and spherical oxides were densely distributed at crevice mouth (Figure 3c), and the EDS result (Figure 3d) indicated that these oxides are rich in Cr and Fe. In addition, it can be found the oxides formed at the crevice mouth were the most. A large amount of traces of active dissolution of metal was observed in the region inside the crevice (Figure 3e), and the EDS result (Figure 3d) indicated that these oxides are rich in Cr.

3.2. XRD Analysis of Oxide Films

Figure 4 shows the XRD analysis results of the oxide films at different regions of crevice sample exposed to 290 °C NaCl solution. No characteristic peaks of oxides were identified outside the crevice, which may be because the oxide films were very thin. The characteristic peaks of spinel oxides were identified at crevice mouth and the EDS result suggests that the spinel oxides were rich in Fe and Cr, which indicates that the oxide films are mainly Fe-Cr spinel with a little Ni ((Ni,Fe)(Fe,Cr)2O4). Only the characteristic peaks of α-CrOOH with the crystal structure of rhombohedral [32] were identified inside the crevice.

3.3. XPS Analysis of Oxide Films

Figure 5 shows the XPS depth profiles of the oxide films formed at different regions of crevice sample in 290 °C NaCl solution. It should be noted that there was no sputtering into substrate in the three regions. The oxide films formed outside the crevice and on crevice mouth were rich in Ni and Cr (Figure 5a,b), but the Cr content was higher than Ni. The oxide films formed inside the crevice were rich in Cr (Figure 5c). However, the oxide films formed on crevice mouth were mainly Fe-Cr spinel (EDS, XRD), which is inconsistent with the XPS analysis. This may be because the width of the Fe-Cr spinel layer formed on crevice mouth is very small, so the oxide films formed outside and inside the crevice (Figure 5c) were also sputtered during XPS sputtering.
Figure 6 shows the O 1s, Ni 2p3/2 and Cr 2p3/2 core lever spectra outside the crevice of the crevice sample exposed to 290 °C NaCl solution. Because there is a large amount of adsorbed oxygen and carbon on the outmost surface, the data were distorted at 0 s sputtering [5]. The sputtering time was 60 s, 840 s, and 1500 s. Table 2 shows the binding energy of targeted oxides or hydroxides [12,33,34,35,36,37,38,39,40]. The peak of O2− dominated throughout the sputtering progress, indicating that the oxide films were mainly oxides. The peaks of Ni2+OX and Cr3+OX also dominated throughout the sputtering progress, and the peaks of Ni2−OH and Cr3+OH were very weak, indicating that the oxide films were mainly Ni-Cr oxides and contained a little Ni(OH)2 and Cr(OH)3. In addition, it could be found that the intensity of OH- decreased and the intensity of O2− increased with increasing of sputtering time, indicating that the hydroxides mainly exist in the outer layer of the oxide films, while the inner layer of the oxide films are mainly oxides.
Figure 7 shows the O 1s, Ni 2p3/2 and Cr 2p3/2 core lever spectra on crevice mouth of the crevice sample exposed to 290 °C NaCl solution. The peak of O2− dominated throughout the sputtering progress, indicating that the oxide films on crevice mouth were also mainly Ni-Cr oxides. However, the intensities of OH− and Cr3+OH peaks on the crevice mouth were stronger than outside the crevice, indicating the content of Cr(OH)3 formed on crevice mouth was greater than that outside the crevice. In addition, XRD and EDS analyses indicated that the oxide films contain Fe-Cr spinel. Thus, the oxide films formed on crevice mouth consist of Ni-Cr oxides and Fe-Cr spinel and contain some Cr(OH)3.
Figure 8 shows the O 1s and Cr 2p3/2 core lever spectra inside the crevice of the crevice sample exposed to 290 °C NaCl solution. The intensity ratio of O2− to OH− and the intensity ratio of Cr3+OX to Cr3+OH were approximately 1 at 60 s sputtering, indicating that the oxide films on the outmost surface inside the crevice are α-CrOOH, which is consistent with the XRD analysis. The peak of OH− dominated with the sputtering time increasing to 840 s and 1500 s, indicating the oxides beneath α-CrOOH in the oxide films were mainly Cr(OH)3. Thus, the oxide films formed inside the crevice consist of a α-CrOOH outer layer and a Cr(OH)3 inner layer.

4. Discussion

The SEM, EDS, XRD, and XPS analyses results indicate that crevice corrosion did occur in Alloy 690 during the immersion test and the corrosion mechanisms at different regions of the crevice sample are different. In our previous paper, the oxide films formed outside of Alloy 690 crevice sample in 290 °C pure water containing 3 ppm DO consisted of an Ni-Fe spinel outer layer and a porous NiO inner layer [5,7]. This is because Cr-containing oxides in the oxide films are thermodynamically unstable in oxygenated high-temperature water and dissolve, resulting in the formation of the porous NiO layer [41,42,43,44]. However, the oxide films outside the crevice were Cr-rich oxides in the present paper. Many researchers have reported that the mechanism of Cl− promoting metal corrosion is that it can promote the dissolution of Ni and Fe in the metal [10,13,17]. The dissolution rate of Ni and Fe induced by Cl− may be higher than that of Cr induced by high DO concentration, resulting in the oxide films being rich in Cr. The formation mechanism of the oxide films outside the crevice is that the preferential dissolution of Ni and Fe induced by Cl− results in the formation of Cr-rich oxides at initial stage of corrosion. With increasing the immersion time, the Cr-rich oxides layer thickens, and a large amount of dissolved Ni2+ induced by Cl− reacts with the Cr-rich oxides to form Ni-Cr oxides. In addition, a small amount of Ni2+ and Cr3+ hydrolyze to form hydroxides. Eventually, the oxide films outside the crevice consist of mainly Ni-Cr oxides and contain a little Cr(OH)3 and Ni(OH)2.
Metal ions are dissolved from substrate inside the crevice during crevice corrosion. These metal ions cannot quickly diffuse to outside the crevice due to the small crevice width, resulting in the enrichment of metal ions inside the crevice [19,45,46]. The hydrolysis of these metal ions can produce a mass of H+, causing the pH value of crevice solution to decrease. In order to maintain the electrical neutrality of crevice solution, Cl− could migrate from outside the crevice into inside the crevice and accumulates, leading to the concentration of Cl− being higher in crevice solution than bulk solution [21,47,48,49,50]. Thus, the corrosivity of crevice solution increases, promoting the corrosion of metal inside the crevice [21,47,48,49,50]. The crevice solution reaches the critical value of active dissolution of metal, which occurs inside the crevice [18,19]. In addition, the oxygen is depleted inside the crevice, resulting in the corrosion potential of metal being lower inside the crevice than outside the crevice. Thus, the metal inside the crevice acts as an anode while the metal outside the crevice acts as a cathode [18,19,21].
The hydrolysis constant of Cr3+ is smaller than Fe2+ and Ni2+, leading to the formation of Cr(OH)3 inside the crevice, which could be verified by the XPS results (Figure 8). With the development of crevice corrosion, the hydrolysis of Cr3+ produces a large amount of Cr(OH)3, which leads to the pH of crevice solution reaching the critical value of active dissolution of metal, and promotes the dissolution of metal inside the crevice as shown in Figure 2 and Figure 3e. However, XRD and XPS analyses (Figure 4 and Figure 8) indicate that α-CrOOH is present on the outmost surface inside the crevice. Kuang et al. [4] also reported that α-CrOOH was present on Alloy 690 in high-temperature water containing low DO. In the present paper, the α-CrOOH may be converted from Cr(OH)3. Thus, the oxide films inside the crevice consist of a α-CrOOH outer layer and a Cr(OH)3 inner layer.
The dissolved metal ions from substrate inside the crevice diffused gradually out of the crevice with the development of crevice corrosion. When these metal ions diffused to the crevice mouth, they deposited to form a large amount of (Ni,Fe)(Fe,Cr)2O4 spinel oxides (Figure 3 and Figure 4). This is due to the DO concentration on the crevice mouth being close to outside the crevice [20,28]. Thus, the oxides formed on the crevice mouth are the greatest. The structure of spinel oxides is face-centered cubic (FCC), and the spinel oxides (AB2O4) with space group Fd-3m involve two sites, crystallographically distinct: the tetrahedral site A and the octahedral site B [51]. In turn, these oxides formed on crevice mouth could enhance the blocking effect and result in severe crevice corrosion. In addition, the hydrolysis of Cr3+ migrated from the crevice also produced some Cr(OH)3 on the crevice mouth. Eventually, the oxide films on the crevice mouth consisted of a spinel oxides outer layer and a Cr(OH)3 inner layer.
Figure 9 shows the schematic of crevice corrosion of Alloy 690 in 290 °C aerated chloride water. At the initial stage of crevice corrosion, the water chemistry inside and outside the crevice was consistent. The preferential dissolution of Fe and Ni induced by Cl− resulted in the formation of Cr-rich oxides inside and outside the crevice. With the development of crevice corrosion, a large amount of metal ions dissolved from substrate accumulated inside the crevice, and the hydrolysis of Cr3+ caused the acidification of the crevice solution. Meanwhile, Cl− migrates from outside the crevice into inside the crevice and accumulates due to electrical neutrality principle (Figure 9a). In addition, the oxygen is depleted inside the crevice because the oxygen transport is restricted by crevice geometry, resulting in the corrosion potential of the metal being lower inside the crevice than outside the crevice. Thus, the metal inside the crevice acted as an anode while the metal outside the crevice acted as a cathode (Figure 9a). When the water chemistry reached the critical value of active dissolution of metal, the active dissolution of metal occurred inside the crevice and the reduction of oxygen occurred outside the crevice (Figure 9b). In addition, the hydrolysis of Cr3+ inside the crevice resulted in the formation of Cr(OH)3. The dissolved metal ions induced by Cl− inside the crevice diffused to the crevice mouth and deposited to form spinel oxides on the crevice mouth (Figure 9b). With the further development of crevice corrosion, a large amount of Cr(OH)3 was formed inside the crevice and a large amount of spinel oxides was formed on the crevice mouth (Figure 9c). In addition, Cr(OH)3 on the outmost surface inside the crevice was converted to α-CrOOH (Figure 9c). A large amount of deposited spinel oxides on the crevice mouth enhanced the blocking effect and resulted in severe crevice corrosion.

5. Conclusions

Crevice corrosion behavior of Alloy 690 in 290 °C aerated chloride solution was studied using a self-designed crevice device. The following conclusions can be drawn.
(1) The oxide film formed outside the crevice consisted of Ni-Cr oxides containing a small amount of Cr(OH)3 and Ni(OH)2, and the oxide film formed on the crevice mouth consisted of a (Ni,Fe)(Fe,Cr)2O4 spinel oxides outer layer and a Cr(OH)3 inner layer, and the oxide film formed inside the crevice consisted of a α-CrOOH outer layer and a Cr(OH)3 inner layer.
(2) The hydrolysis of Cr3+ led to the formation of Cr(OH)3 inside the crevice, and caused the pH value of crevice solution to decrease, and Cl− migrated from outside the crevice into inside the crevice and accumulated due to the electrical neutrality principle. The water chemistry inside the crevice reached the critical value of active dissolution of metal with the development of crevice corrosion, thereby resulting in the active dissolution of metal inside the crevice.
(3) The metal ions dissolved from substrate diffused from inside the crevice to crevice mouth and deposited to form a large amount of (Ni,Fe)(Fe,Cr)2O4 spinel oxides, which enhances the blocking effect and result in a severe crevice corrosion.

Author Contributions

Conceptualization, F.N. and Z.Z.; Data curation, F.N. and X.W. (Xiang Wang); Formal analysis, F.N.; Funding acquisition, Z.Z. and X.W. (Xinqiang Wu); Investigation, F.N.; Project administration, Z.Z.; Supervision, J.T., X.W. (Xinqiang Wu), E.-H.H. and W.K.; Validation, E.-H.H. and W.K.; Writing—original draft, F.N.; Writing—review & editing, J.T., Z.Z., X.W. (Xiang Wang) and X.W. (Xinqiang Wu). All authors have read and agreed to the published version of the manuscript.

Funding

This work was jointly supported by the National Natural Science Foundation of China [51971230]; the Natural Science Foundation of Liaoning Province of China [2020-BS-005]; and the Innovation Fund of Institute of Metal Research, Chinese Academy of Sciences [SCJJ-2013-ZD-02].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zinkle, S.J.; Was, G.S. Materials challenges in nuclear energy. Acta Mater. 2013, 61, 735–758. [Google Scholar] [CrossRef]
  2. Kuang, W.; Song, M.; Wang, P.; Was, G.S. The oxidation of alloy 690 in simulated pressurized water reactor primary water. Corros. Sci. 2017, 126, 227–237. [Google Scholar] [CrossRef]
  3. Liao, J.; Wu, X.; Tan, J.; Tang, L.; Qian, H.; Xie, Y. Fretting corrosion fatigue of Alloy 690 in high-temperature pure water. Corros. Sci. 2018, 133, 423–431. [Google Scholar] [CrossRef]
  4. Kuang, W.; Wu, X.; Han, E.-H. Influence of dissolved oxygen concentration on the oxide film formed on Alloy 690 in high temperature water. Corros. Sci. 2013, 69, 197–204. [Google Scholar] [CrossRef]
  5. Ning, F.; Wu, X.; Tan, J. Crevice corrosion behavior of Alloy 690 in high-temperature water. J. Nucl. Mater. 2019, 515, 326–337. [Google Scholar] [CrossRef]
  6. Ning, F.; Tan, J.; Zhang, Z.; Wu, X.; Wang, X.; Han, E.-H.; Ke, W. Effects of thiosulfate and dissolved oxygen on crevice corrosion of Alloy 690 in high-temperature chloride solution. J. Mater. Sci. Technol. 2021, 66, 163–176. [Google Scholar] [CrossRef]
  7. Ning, F.; Tan, J.; Wu, X. Effects of 405 stainless steel on crevice corrosion behavior of Alloy 690 in high-temperature pure water. J. Mater. Sci. Technol. 2020, 47, 76–87. [Google Scholar] [CrossRef]
  8. Xia, D.-H.; Sun, Y.-F.; Shen, C.; Chen, X.-Y.; Fan, H.-Q.; Luo, J.-L. A mechanistic study on sulfur-induced passivity degradation on Alloy 800 in simulated alkaline crevice chemistries at temperatures ranging from 21 °C to 300 °C. Corros. Sci. 2015, 100, 504–516. [Google Scholar] [CrossRef]
  9. Xia, D.; Song, S.; Zhu, R.; Behnamian, Y.; Shen, C.; Wang, J.; Luo, J.; Lu, Y. Klimas, A mechanistic study on thiosulfate-enhanced passivity degradation of Alloy 800 in chloride solutions. Electrochim. Acta 2013, 111, 510–525. [Google Scholar] [CrossRef]
  10. Xia, D.-H.; Behnamian, Y.; Luo, J.-L. Review—Factors influencing sulfur induced corrosion on the secondary side in pressurized water reactors (PWRs). J. Electrochem. Soc. 2019, 166, C49–C64. [Google Scholar] [CrossRef]
  11. Sun, Y.; Wu, S.; Xia, D.-H.; Xu, L.; Wang, J.; Song, S.; Fan, H.; Gao, Z.; Zhang, J.; Wu, Z.; et al. Temperature dependence of passivity degradation on UNS N08800 in near neutral crevice chemistries containing thiosulphate. Corros. Sci. 2018, 140, 260–271. [Google Scholar] [CrossRef]
  12. Shen, C.; Xia, D.-H.; Fan, H.-Q.; Behnamian, Y.; Afacan, A.; Klimas, S.J.; Luo, J.-L. Passivation Degradation of Alloy 800 in Boiling Solution Containing Thiosulphate. Electrochim. Acta 2017, 233, 13–25. [Google Scholar] [CrossRef]
  13. Ning, F.; Tan, J.; Zhang, Z.; Wang, X.; Wu, X.; Han, E.-H.; Ke, W. Nodular corrosion inside the crevice of Alloy 690 in deaerated high-temperature chloride solution. Corros. Sci. 2021, 185, 109442. [Google Scholar] [CrossRef]
  14. Abellà, J.; Balachov, I.; Macdonald, D.D.; Millet, P.J. Transport processes in steam generator crevices III. Experimental results. Corros. Sci. 2002, 44, 191–205. [Google Scholar] [CrossRef]
  15. Staehle, R.W.; Gorman, J.A. Quantitative assessment of submodes of stress corrosion cracking on the secondary side of steam generator tubing in pressurized water reactors: Part I. Corrosion 2003, 59, 931–994. [Google Scholar] [CrossRef]
  16. Nishimoto, M.; Ogawa, J.; Muto, I.; Sugawara, Y.; Hara, N. Simultaneous visualization of pH and Cl− distributions inside the crevice of stainless steel. Corros. Sci. 2016, 106, 298–302. [Google Scholar] [CrossRef] [Green Version]
  17. Zhang, B.; Wang, J.; Wu, B.; Guo, X.; Wang, Y.; Chen, D.; Zhang, Y.; Du, K.; Oguzie, E.E.; Ma, X. Unmasking chloride attack on the passive film of metals. Nat. Commun. 2018, 9, 2559. [Google Scholar] [CrossRef]
  18. Oldfield, J.W.; Sutton, W.H. Crevice Corrosion of Stainless Steels I: A Mathematical Model. Br. Corros. J. 1978, 13, 13–22. [Google Scholar] [CrossRef]
  19. Force, B.D.; Pickering, H. A clearer view of how crevice corrosion occurs. JOM 1995, 47, 22–27. [Google Scholar] [CrossRef]
  20. White, S.P.; Weir, G.J.; Laycock, N.J. Calculating chemical concentrations during the initiation of crevice corrosion. Corros. Sci. 2000, 42, 605–629. [Google Scholar] [CrossRef]
  21. Kennell, G.F.; Evitts, R.W.; Heppner, K.L. A critical crevice solution and IR drop crevice corrosion model. Corros. Sci. 2008, 50, 1716–1725. [Google Scholar] [CrossRef]
  22. Alavi, A.; Cottis, R.A. The determination of pH, potential and chloride concentration in corroding crevices on 304 stainless steel and 7475 aluminium alloy. Corros. Sci. 1987, 27, 443–451. [Google Scholar] [CrossRef]
  23. Yeh, C.-P.; Tsai, K.-C.; Huang, J.-Y. Influence of Chloride Concentration on Stress Corrosion Cracking and Crevice Corrosion of Austenitic Stainless Steel in Saline Environments. Materials 2020, 13, 5640. [Google Scholar] [CrossRef] [PubMed]
  24. Hur, D.H.; Han, J.; Choi, J. Molar Ratio Effect of Sodium to Chloride Ions on the Electrochemical Corrosion of Alloy 600 and SA508 in HCl + NaOH Mixtures. Materials 2020, 13, 1970. [Google Scholar] [CrossRef] [Green Version]
  25. Shojaei, E.; Moayed, M.H.; Mirjalili, M.; Pahlavan, S. Proposed stability product criterion for open hemispherical metastable pits formed in the crevices of different aspect ratios (l/d) on 316L stainless steel in 3.5% NaCl solution. Corros. Sci. 2021, 184, 109389. [Google Scholar] [CrossRef]
  26. Eškinja, M.; Moshtaghi, M.; Hönig, S.; Zehethofer, G.; Mori, G. Investigation of the effects of temperature and exposure time on the corrosion behavior of a ferritic steel in CO2 environment using the optimized linear polarization resistance method. Results Mater. 2022, 14, 100282. [Google Scholar] [CrossRef]
  27. Chen, D.; Wu, X.; Han, E.-H.; Sun, H. Oxidation behavior of 304 stainless steel during crevice corrosion in high-temperature pure water. Corrosion 2015, 71, 1213–1223. [Google Scholar] [CrossRef]
  28. Chen, D.; Han, E.-H.; Wu, X. Effects of crevice geometry on corrosion behavior of 304 stainless steel during crevice corrosion in high temperature pure water. Corros. Sci. 2016, 111, 518–530. [Google Scholar] [CrossRef]
  29. Dong, L.; Peng, Q.; Zhang, Z.; Shoji, T.; Han, E.-H.; Ke, W.; Wang, L. Effect of dissolved hydrogen on corrosion of 316NG stainless steel in high temperature water. Nucl. Eng. Des. 2015, 295, 403–414. [Google Scholar] [CrossRef]
  30. Deng, P.; Peng, Q.; Han, E.-H.; Ke, W.; Sun, C.; Jiao, Z. Effect of irradiation on corrosion of 304 nuclear grade stainless steel in simulated PWR primary water. Corros. Sci. 2017, 127, 91–100. [Google Scholar] [CrossRef]
  31. Zhong, X.; Han, E.-H.; Wu, X. Corrosion behavior of Alloy 690 in aerated supercritical water. Corros. Sci. 2013, 66, 369–379. [Google Scholar] [CrossRef]
  32. Mu, P.; Zhang, H.; Lou, T.; Zhou, P.; Shi, H.; Chen, L.; Xu, H. Preparation of chromic oxide green by thermal decomposition of CrOOH with base center orthorhombic structure and trigonal structure. Chin. J. Process Eng. (In Chinese). [CrossRef]
  33. Machet, A.; Galtayries, A.; Marcus, P.; Combrade, P.; Jolivet, P.; Scott, P. XPS study of oxides formed on nickel-base alloys in high-temperature and high-pressure water. Surf. Interface Anal. 2002, 34, 197–200. [Google Scholar] [CrossRef]
  34. Machet, A.; Galtayries, A.; Zanna, S.; Klein, L.; Maurice, V.; Jolivet, P.; Foucault, M.; Combrade, P.; Scott, P.; Marcus, P. XPS and STM study of the growth and structure of passive films in high temperature water on a nickel-base alloy. Electrochim. Acta 2004, 49, 3957–3964. [Google Scholar] [CrossRef]
  35. Marchetti, L.; Miserque, F.; Perrin, S.; Pijolat, M. XPS study of Ni-base alloys oxide films formed in primary conditions of pressurized water reactor. Surf. Interface Anal. 2015, 47, 632–642. [Google Scholar] [CrossRef] [Green Version]
  36. Fujimoto, S.; Kim, W.-S.; Sato, M.; Son, J.-Y.; Machida, M.; Jung, K.-T.; Tsuchiya, H. Characterization of oxide films formed on Alloy 600 and Alloy 690 in simulated PWR primary water by using hard X-ray photoelectron spectroscopy. J. Solid State Electrochem. 2015, 19, 3521–3531. [Google Scholar] [CrossRef]
  37. Duan, Z.; Arjmand, F.; Zhang, L.; Meng, F.; Abe, H. Electrochemical and XPS investigation of the corrosion behavior of Alloy 690 at high-temperature water. J. Solid State Electrochem. 2015, 19, 2265–2273. [Google Scholar] [CrossRef]
  38. Huang, J.; Wu, X.; Han, E.-H. Electrochemical properties and growth mechanism of passive films on Alloy 690 in high-temperature alkaline environments. Corros. Sci. 2010, 52, 3444–3452. [Google Scholar] [CrossRef]
  39. Wang, J.; Li, X.; Huang, F.; Zhang, Z.; Wang, J.; Staehle, R.W. Comparison of corrosion resistance of UNS N06690TT and UNS N08800SN in simulated primary water with various concentrations of dissolved oxygen. Corrosion 2014, 70, 598–614. [Google Scholar] [CrossRef]
  40. Ning, F.; Wang, X.; Yang, Y.; Tan, J.; Zhang, Z.; Jia, D.; Wu, X.; Han, E.-H. Uniform corrosion behavior of FeCrAl alloys in borated and lithiated high temperature water. J. Mater. Sci. Technol. 2021, 70, 136–144. [Google Scholar] [CrossRef]
  41. Kuang, W.; Wu, X.; Han, E.-H.; Rao, J. The mechanism of oxide film formation on Alloy 690 in oxygenated high temperature water. Corros. Sci. 2011, 53, 3853–3860. [Google Scholar] [CrossRef]
  42. Zhang, Z.; Wang, J.; Han, E.-H.; Ke, W. Influence of dissolved oxygen on oxide films of Alloy 690TT with different surface status in simulated primary water. Corros. Sci. 2011, 53, 3623–3635. [Google Scholar] [CrossRef]
  43. Lemire, R.J.; McRae, G.A. The corrosion of Alloy 690 in high-temperature aqueous media–thermodynamic considerations. J. Nucl. Mater. 2001, 294, 141–147. [Google Scholar] [CrossRef]
  44. Beverskog, B.; Puigdomenech, I. Pourbaix diagrams for the ternary system of iron-chromium-nickel. Corrosion 1999, 55, 1077–1087. [Google Scholar] [CrossRef]
  45. Sharland, S.M. A review of the theoretical modelling of crevice and pitting corrosion. Corros. Sci. 1987, 27, 289–323. [Google Scholar] [CrossRef]
  46. Vermilyea, D.A.; Tedmon, C.S., Jr. A Simple Crevice Corrosion Theory. J. Electrochem. Soc. 1970, 117, 437–440. [Google Scholar] [CrossRef]
  47. Sharland, S.M.; Tasker, P.W. A mathematical model of crevice and pitting corrosion-I. The physical model. Corros. Sci. 1988, 28, 603–620. [Google Scholar] [CrossRef]
  48. Song, F.M. Predicting the chemistry, corrosion potential and corrosion rate in a crevice formed between substrate steel and a disbonded permeable coating with a mouth. Corros. Sci. 2012, 55, 107–115. [Google Scholar] [CrossRef]
  49. Tsai, K.-C.; Yeh, C.-P. The Corrosion Susceptibility of 304L Stainless Steel Exposed to Crevice Environments. Materials 2022, 15, 3055. [Google Scholar] [CrossRef]
  50. Mu, J.; Li, Y.; Wang, X. Crevice corrosion behavior of X70 steel in NaCl solution with different pH. Corros. Sci. 2021, 182, 109310. [Google Scholar] [CrossRef]
  51. Liu, X.; Wu, X.; Han, E.-H. Influence of Zn injection on characteristics of oxide film on 304 stainless steel in borated and lithiated high temperature water. Corros. Sci. 2011, 53, 3337–3345. [Google Scholar] [CrossRef]
Materials 15 05434 g001 550

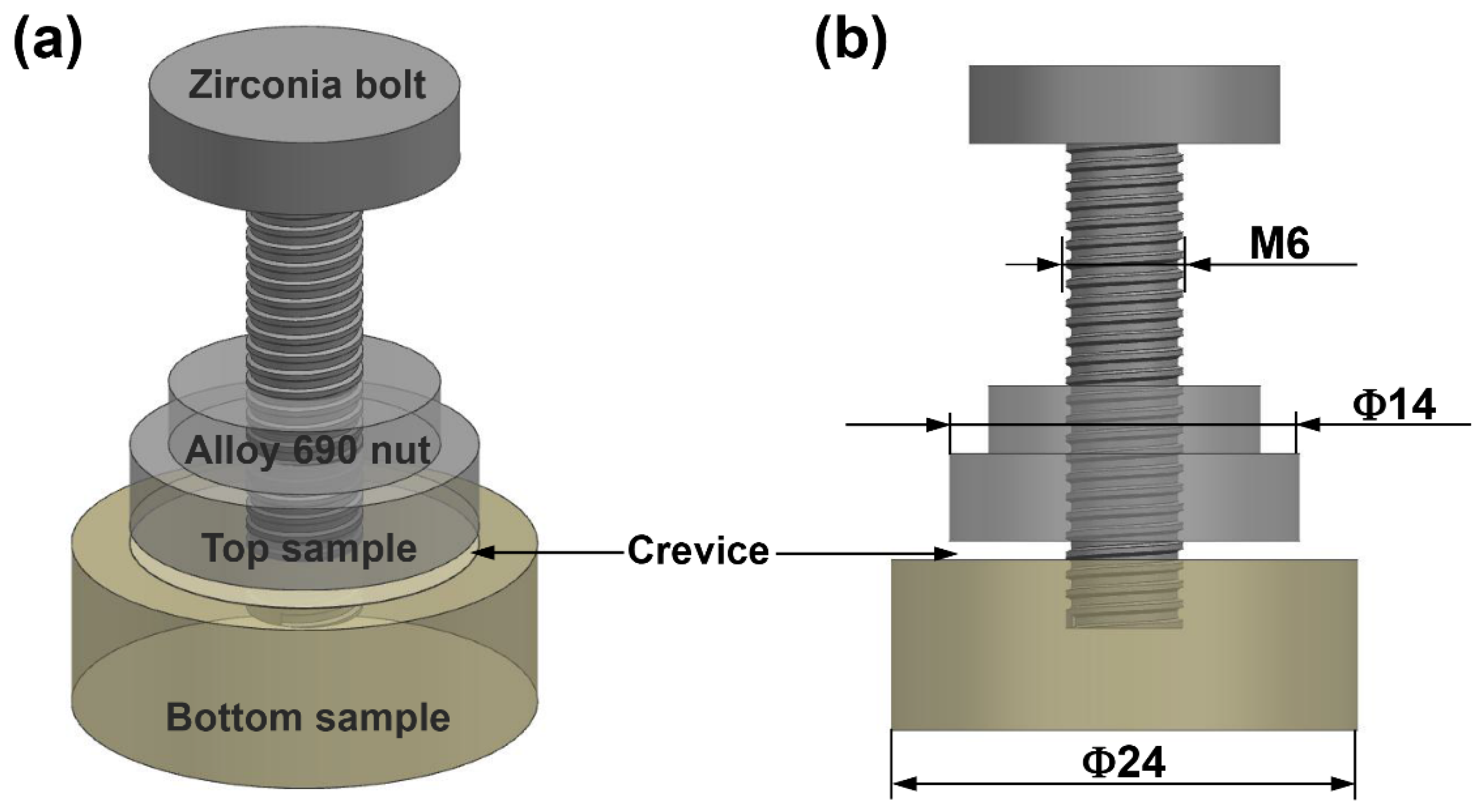

Figure 1. Schematic diagrams of (a) crevice corrosion device and (b) size of the crevice sample [5,6].
Figure 1. Schematic diagrams of (a) crevice corrosion device and (b) size of the crevice sample [5,6].
Materials 15 05434 g001
Materials 15 05434 g002 550
Figure 2. Surface appearance of the crevice sample exposed to 290 °C NaCl solution.
Figure 2. Surface appearance of the crevice sample exposed to 290 °C NaCl solution.
Materials 15 05434 g002
Materials 15 05434 g003 550
Figure 3. Surface morphology and EDS results of the oxide films formed at different regions of the crevice sample exposed to 290 °C NaCl solution: (a,b) outside the crevice, (c,d) crevice mouth, (e,f) inside the crevice.
Figure 3. Surface morphology and EDS results of the oxide films formed at different regions of the crevice sample exposed to 290 °C NaCl solution: (a,b) outside the crevice, (c,d) crevice mouth, (e,f) inside the crevice.
Materials 15 05434 g003
Materials 15 05434 g004 550
Figure 4. XRD analysis results of the oxide films at different regions of crevice sample exposed to 290 °C NaCl solution.
Figure 4. XRD analysis results of the oxide films at different regions of crevice sample exposed to 290 °C NaCl solution.
Materials 15 05434 g004
Materials 15 05434 g005 550

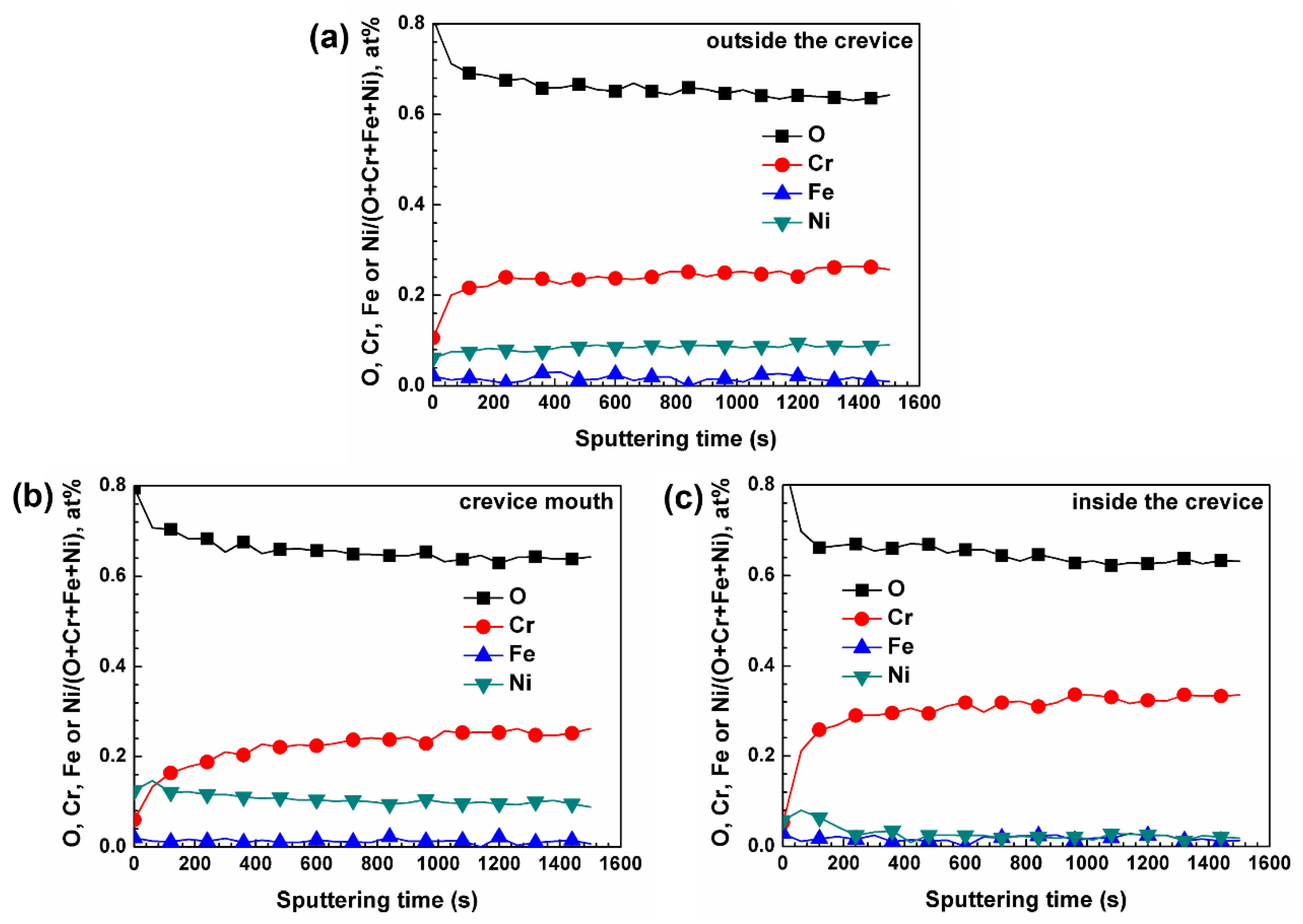

Figure 5. XPS depth profiles of the oxide films formed at different regions of crevice sample exposed to 290 °C NaCl solution: (a) outside the crevice, (b) crevice mouth, (c) inside the crevice.
Figure 5. XPS depth profiles of the oxide films formed at different regions of crevice sample exposed to 290 °C NaCl solution: (a) outside the crevice, (b) crevice mouth, (c) inside the crevice.
Materials 15 05434 g005
Materials 15 05434 g006 550

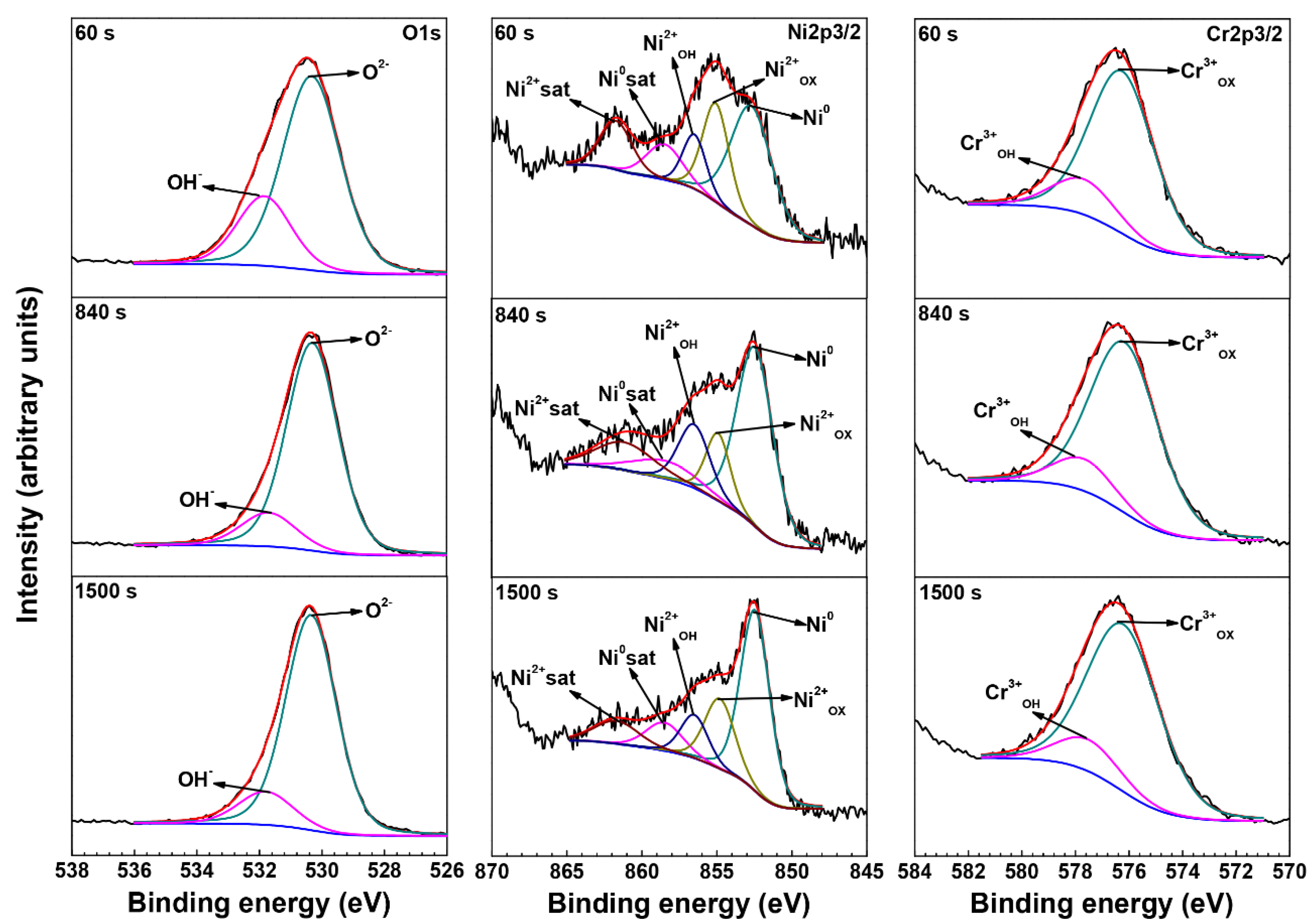

Figure 6. The O 1s, Ni 2p3/2 and Cr 2p3/2 core lever spectra outside the crevice of the crevice sample exposed to 290 °C NaCl solution.
Figure 6. The O 1s, Ni 2p3/2 and Cr 2p3/2 core lever spectra outside the crevice of the crevice sample exposed to 290 °C NaCl solution.
Materials 15 05434 g006
Materials 15 05434 g007 550

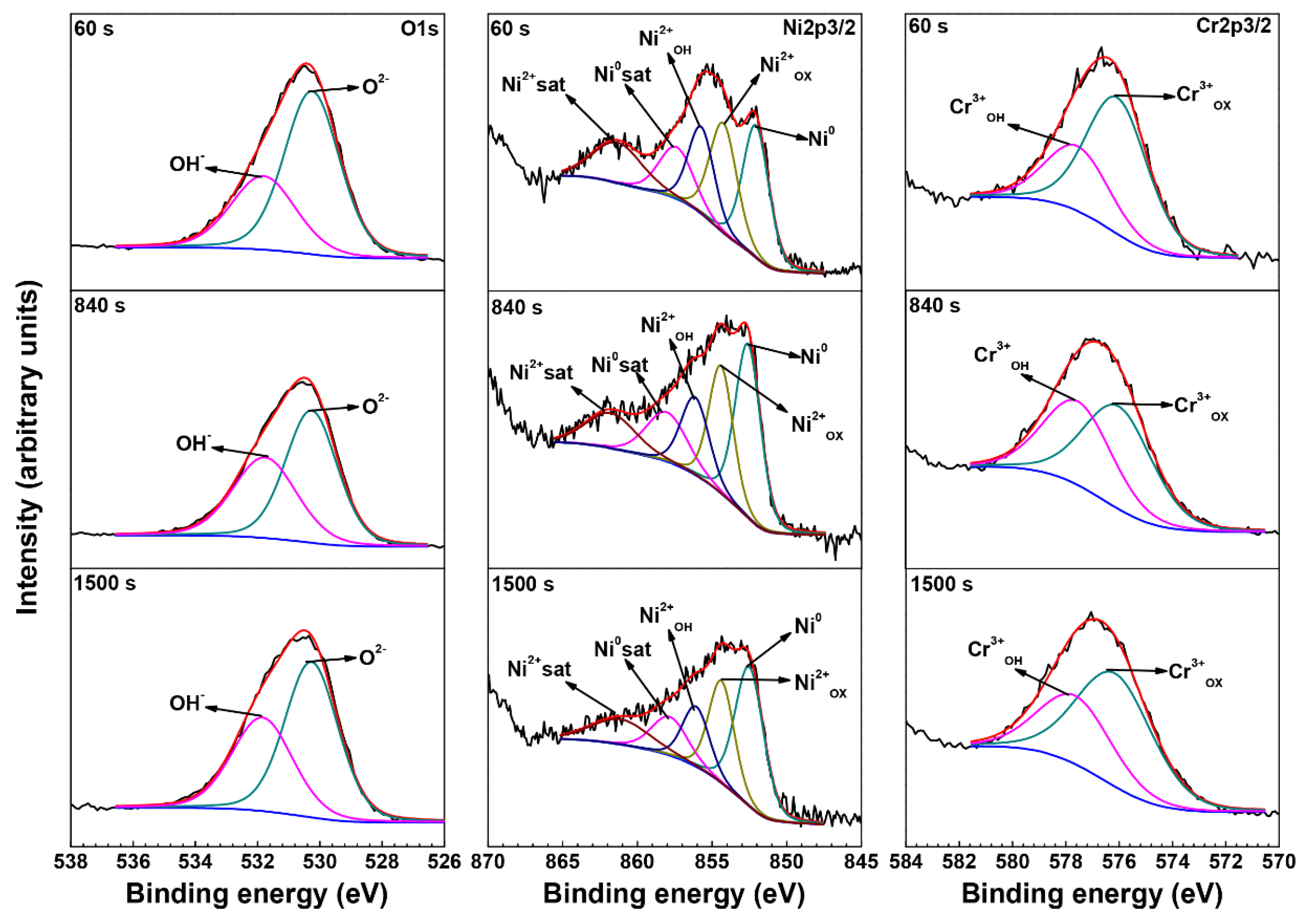

Figure 7. The O 1s, Ni 2p3/2 and Cr 2p3/2 core lever spectra on the crevice mouth of the crevice sample exposed to 290 °C NaCl solution.
Figure 7. The O 1s, Ni 2p3/2 and Cr 2p3/2 core lever spectra on the crevice mouth of the crevice sample exposed to 290 °C NaCl solution.
Materials 15 05434 g007
Materials 15 05434 g008 550

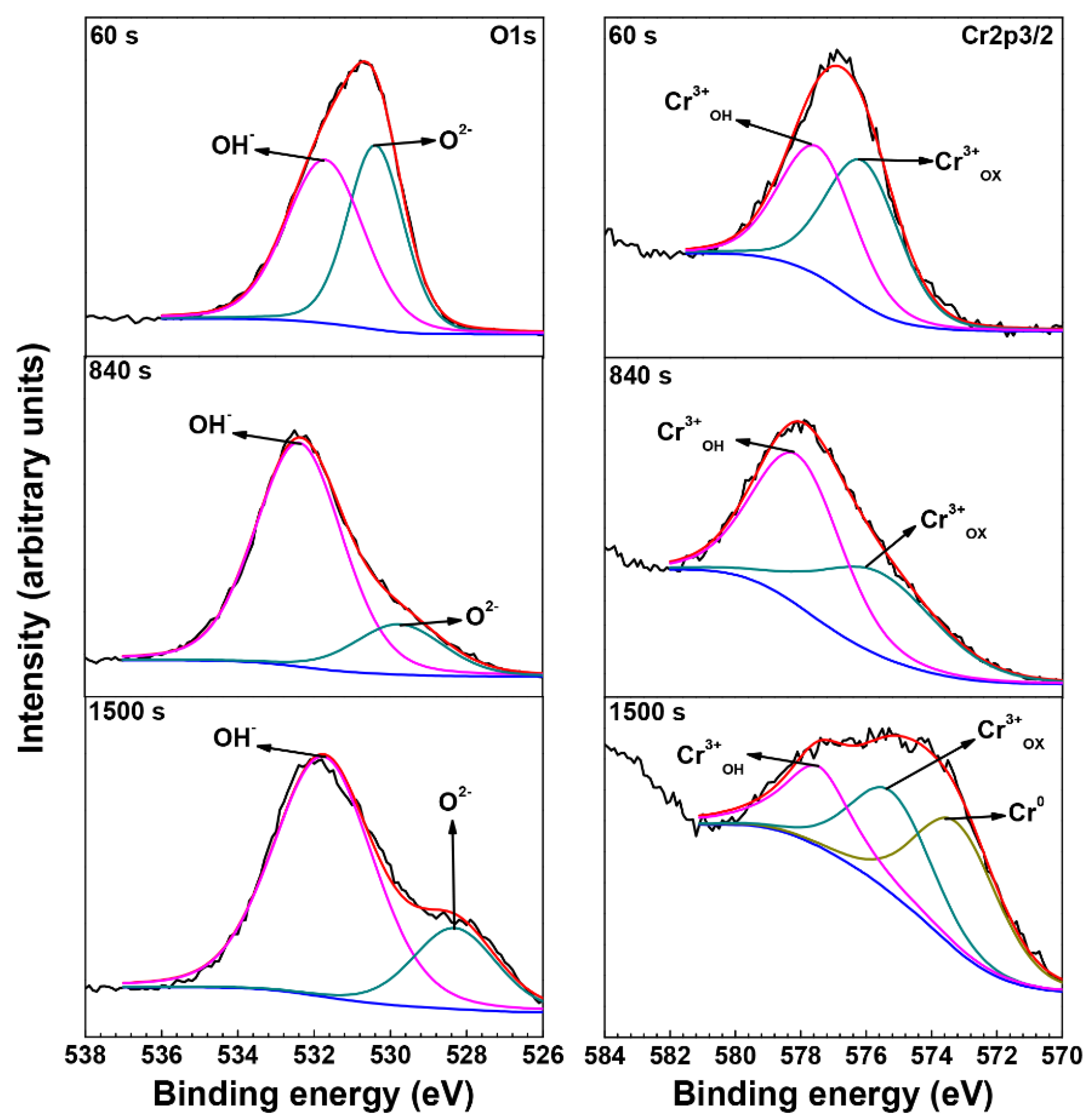

Figure 8. The O 1s and Cr 2p3/2 core lever spectra inside the crevice of the crevice sample exposed to 290 °C NaCl solution.
Figure 8. The O 1s and Cr 2p3/2 core lever spectra inside the crevice of the crevice sample exposed to 290 °C NaCl solution.
Materials 15 05434 g008
Materials 15 05434 g009 550

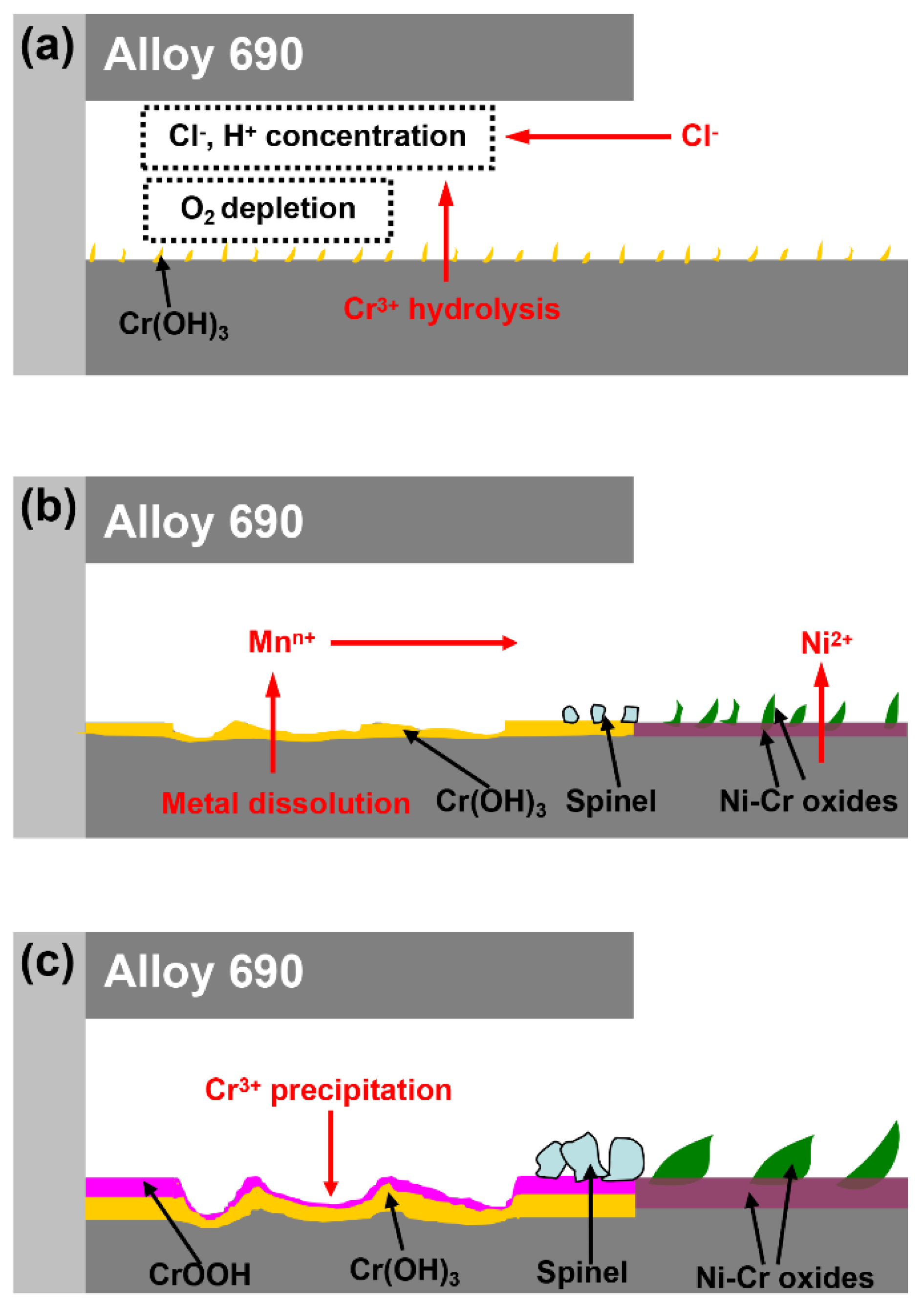

Figure 9. Schematic of crevice corrosion of Alloy 690 exposed to 290 °C NaCl solution. (a) initial stage of crevice corrosion (b) propagative stage of crevice corrosion (c) stable stage of crevice corrosion.
Figure 9. Schematic of crevice corrosion of Alloy 690 exposed to 290 °C NaCl solution. (a) initial stage of crevice corrosion (b) propagative stage of crevice corrosion (c) stable stage of crevice corrosion.
Materials 15 05434 g009
Table
Table 1. Chemical compositions of Alloy 690 (wt. %).
Table 1. Chemical compositions of Alloy 690 (wt. %).
MaterialCNSPMnTiAlSiCuFeCrNi
Alloy 6900.030.0130.0010.0070.2930.2020.2020.2920.0110.6130.0458.3
Table
Table 2. Binding energies of XPS peaks.
Table 2. Binding energies of XPS peaks.
ElementSpeciesBinding Energy (eV)
OO2− (1s)530.3
OH− (1s)531.7
NiNi0 (2p3/2)852.7
Ni0 sat (2p3/2)858.5
Ni2+OX (2p3/2)854.4
Ni2+OH (2p3/2)856.5
Ni2+sat (2p3/2)861.7
CrCr0 (2p3/2)574.3
Cr3+OX (2p3/2)576.1
Cr3+OH (2p3/2)577.6
