Porosity Analysis of Additive Manufactured Parts Using CAQ Technology
2. Materials and Methods

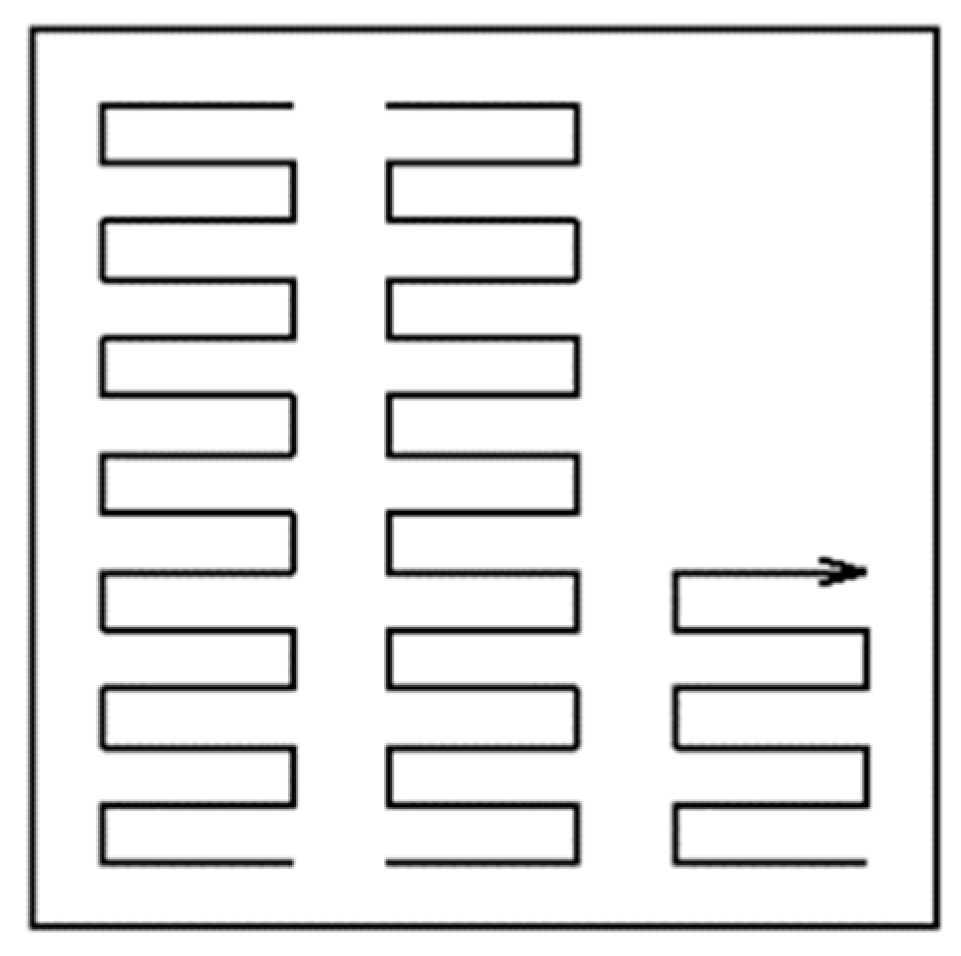

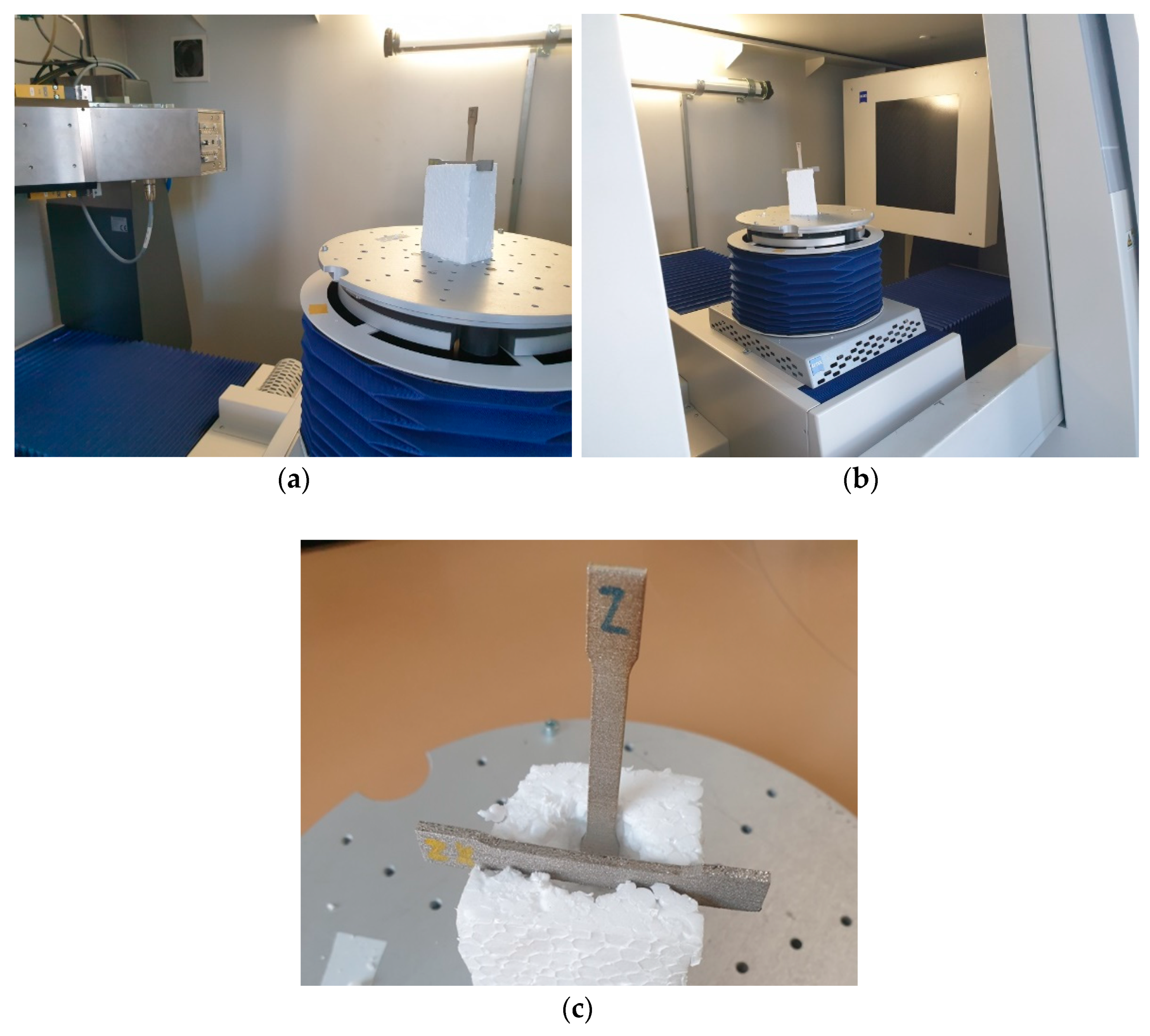

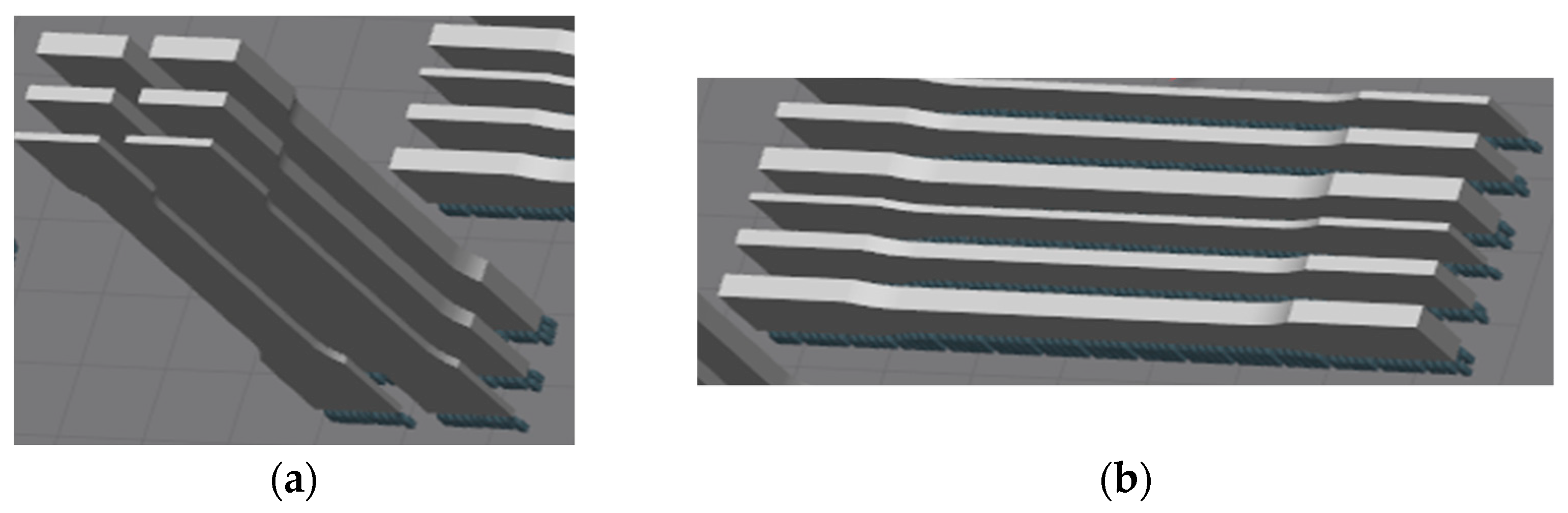

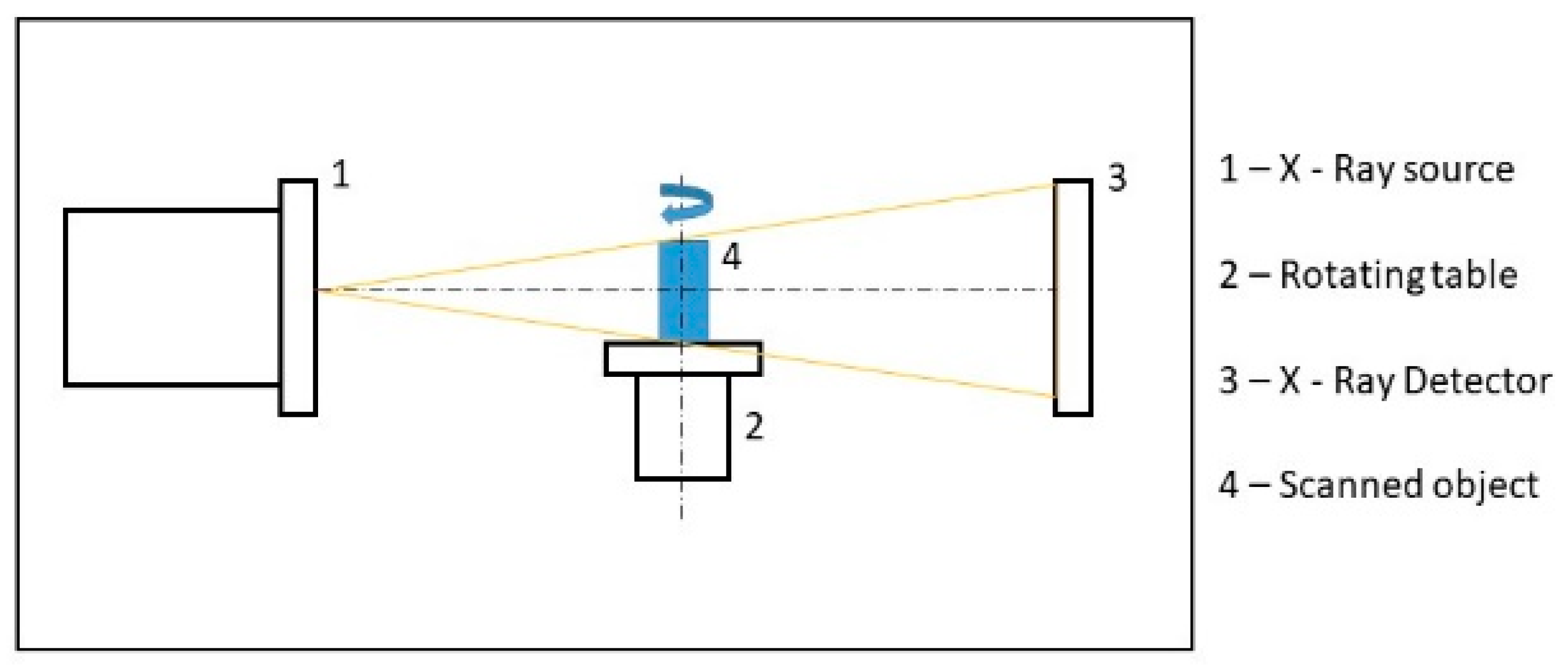

- Voltage: 180 kV
- Current: 900 µA
- Resolution: 1024 × 1024 px
- Voxel size: 119.43 µm
- Nr of projections: 1050
- Integration time: 2000 ms

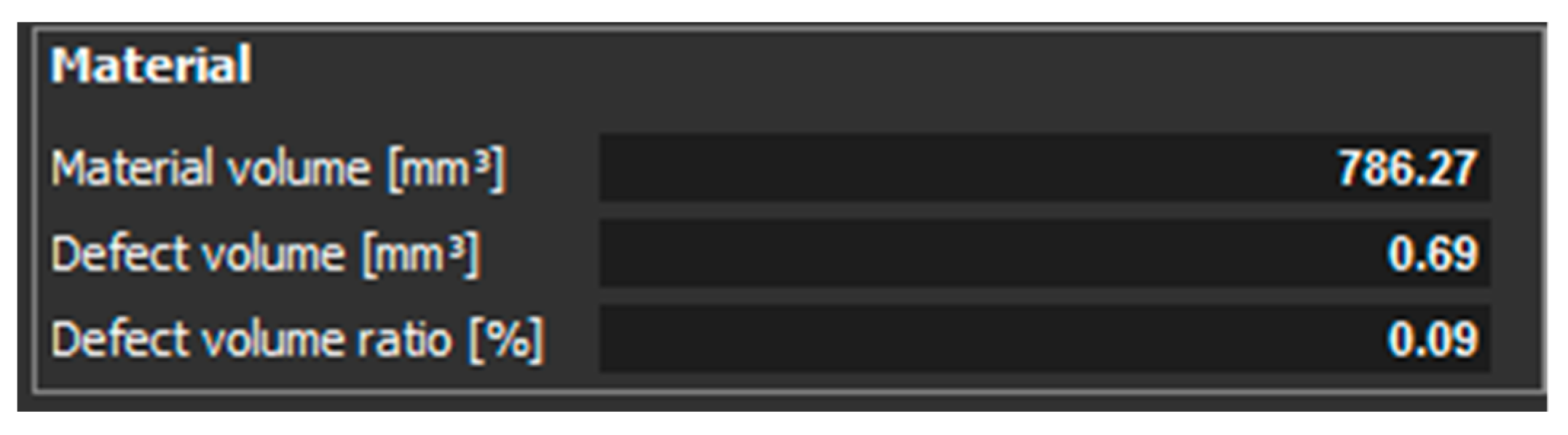

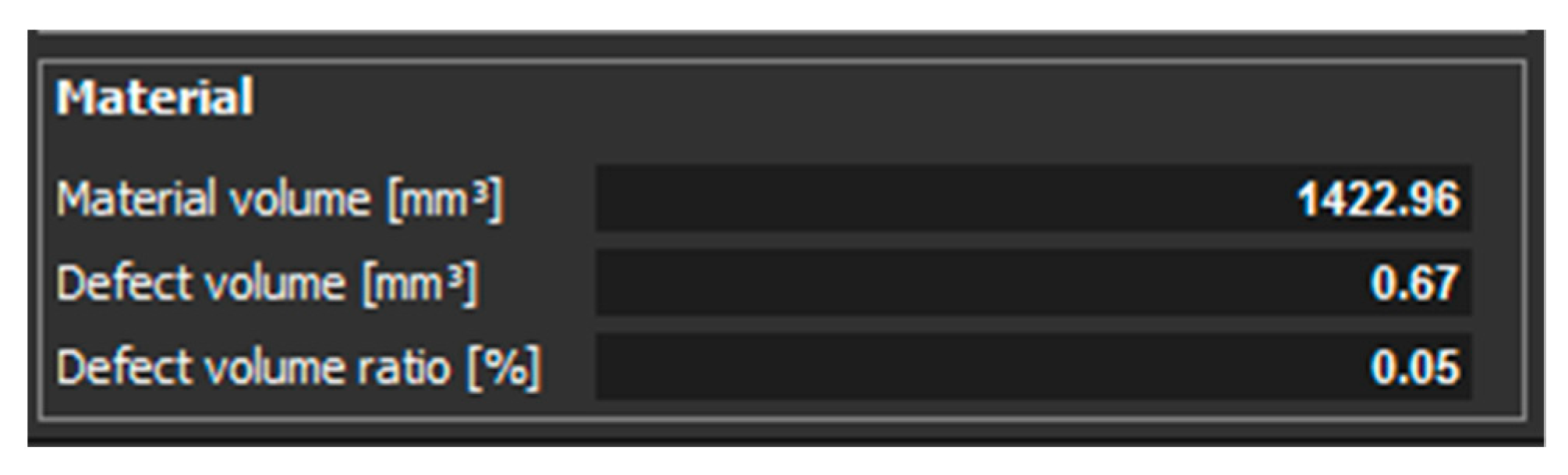

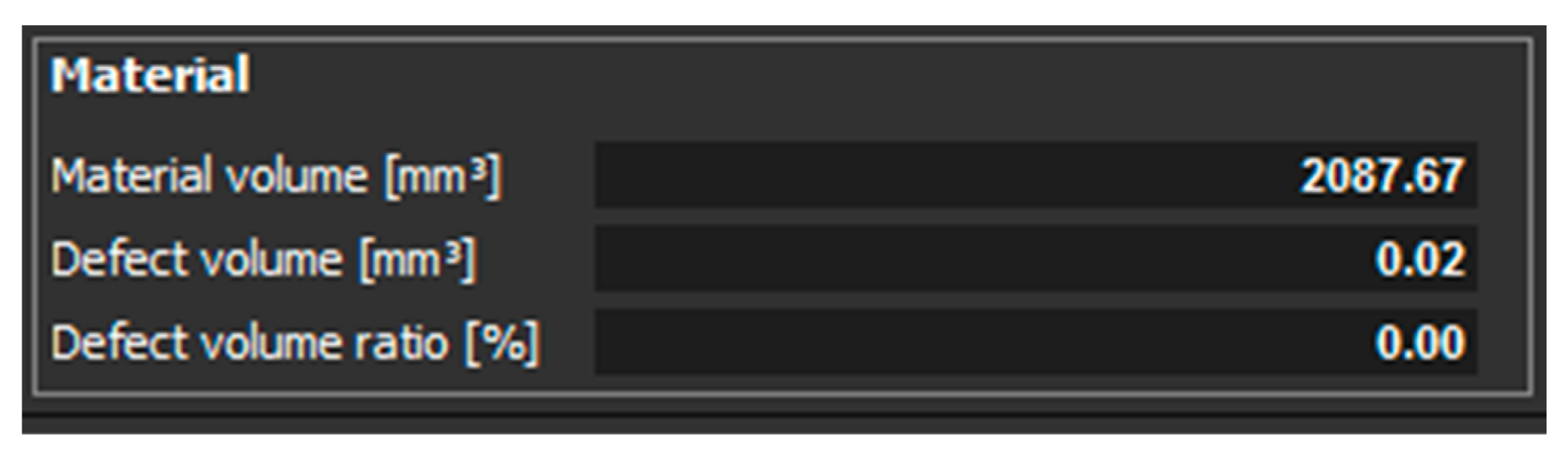

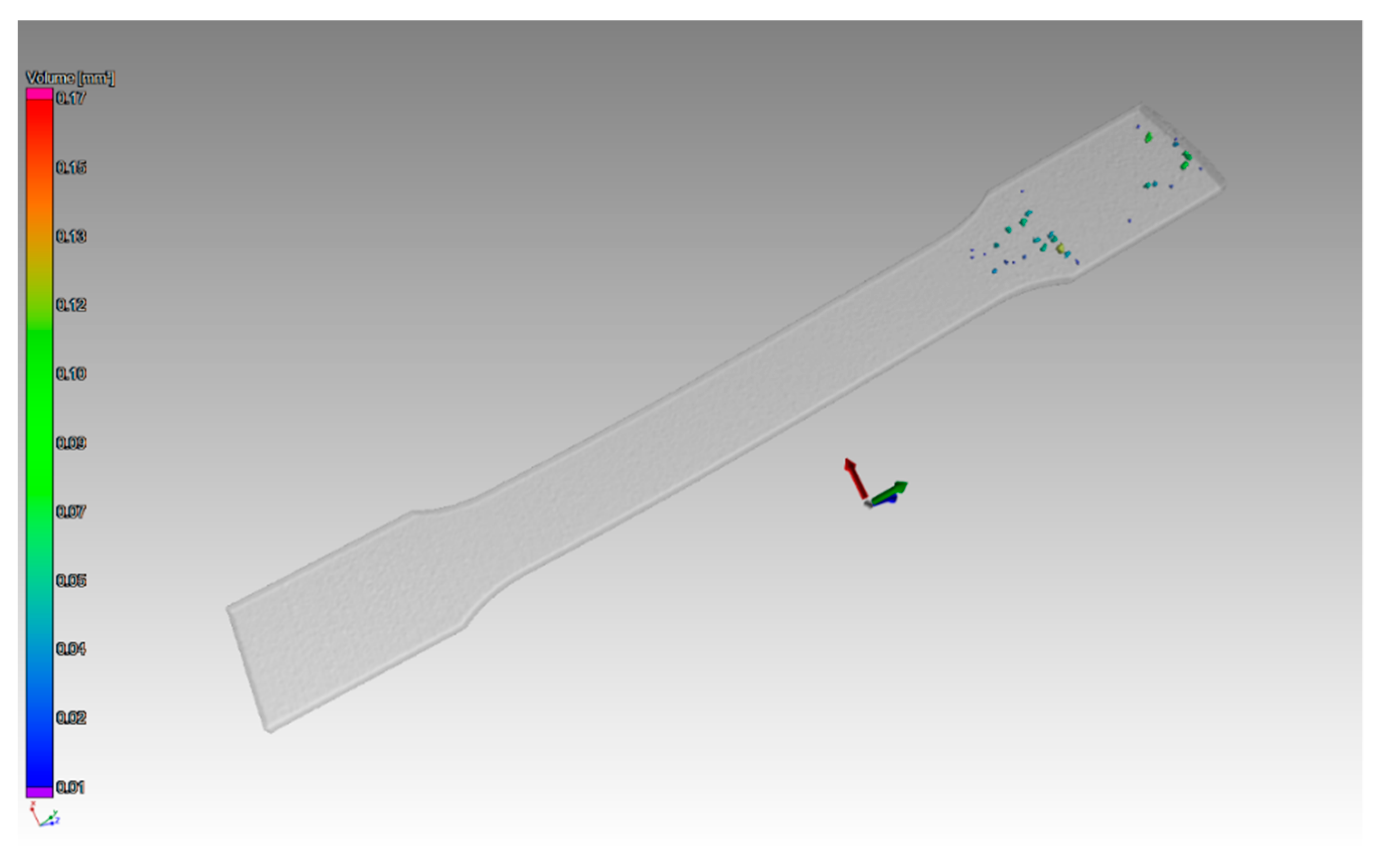

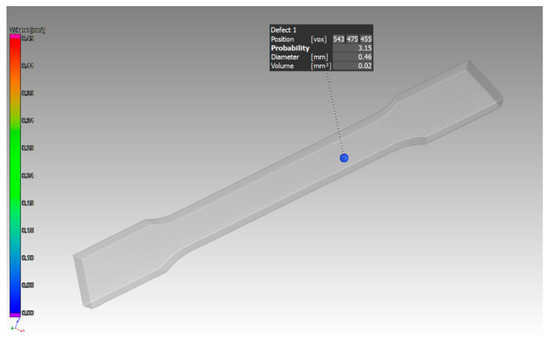

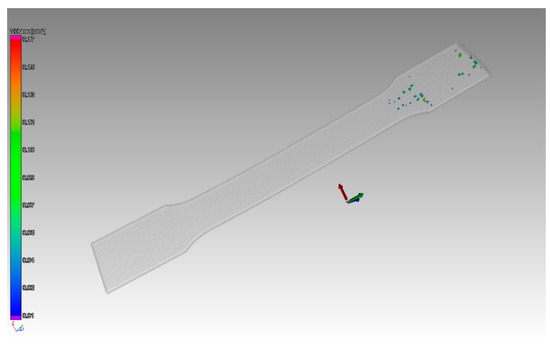

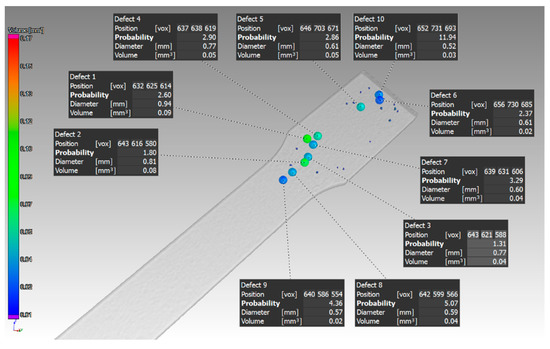

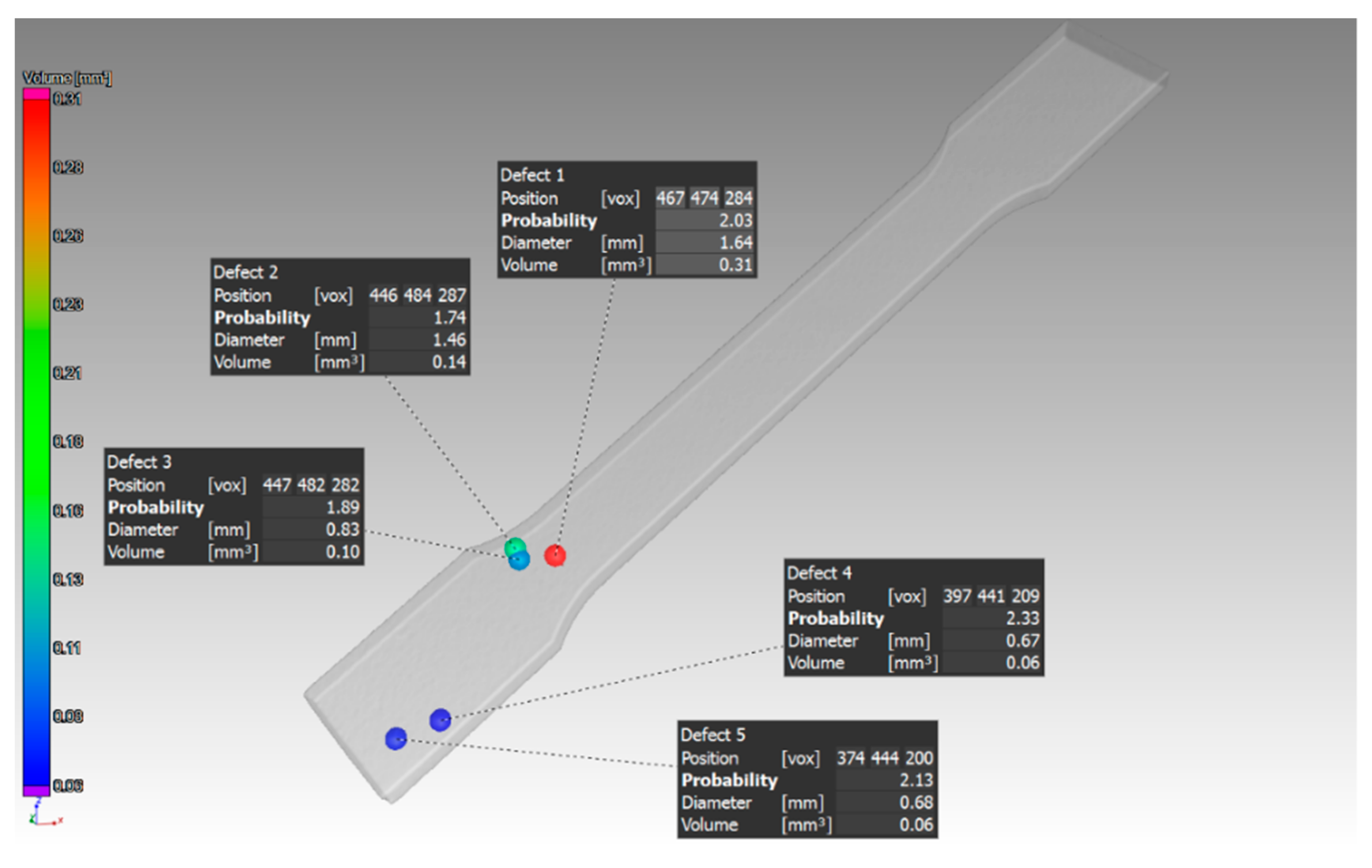

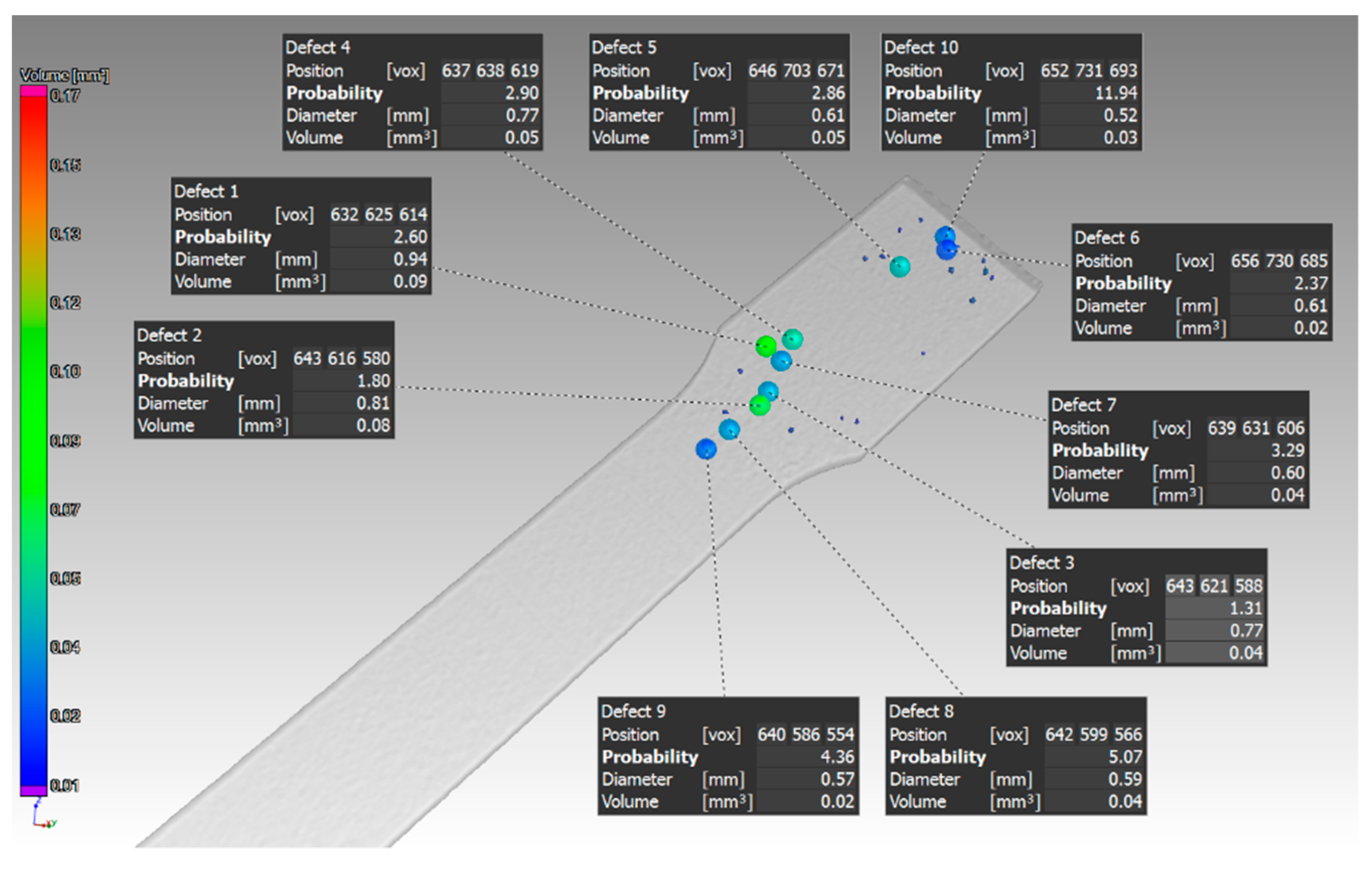

- Orientation of the sample during its production in the Z direction: as the sample thickness increased, the defect volume ratio in the sample volume decreased.sample thickness 1 mm (Defect volume ratio 0.09%),sample thickness 2 mm (Defect volume ratio 0.05%),sample thickness 3 mm (Defect volume ratio 0.00%).

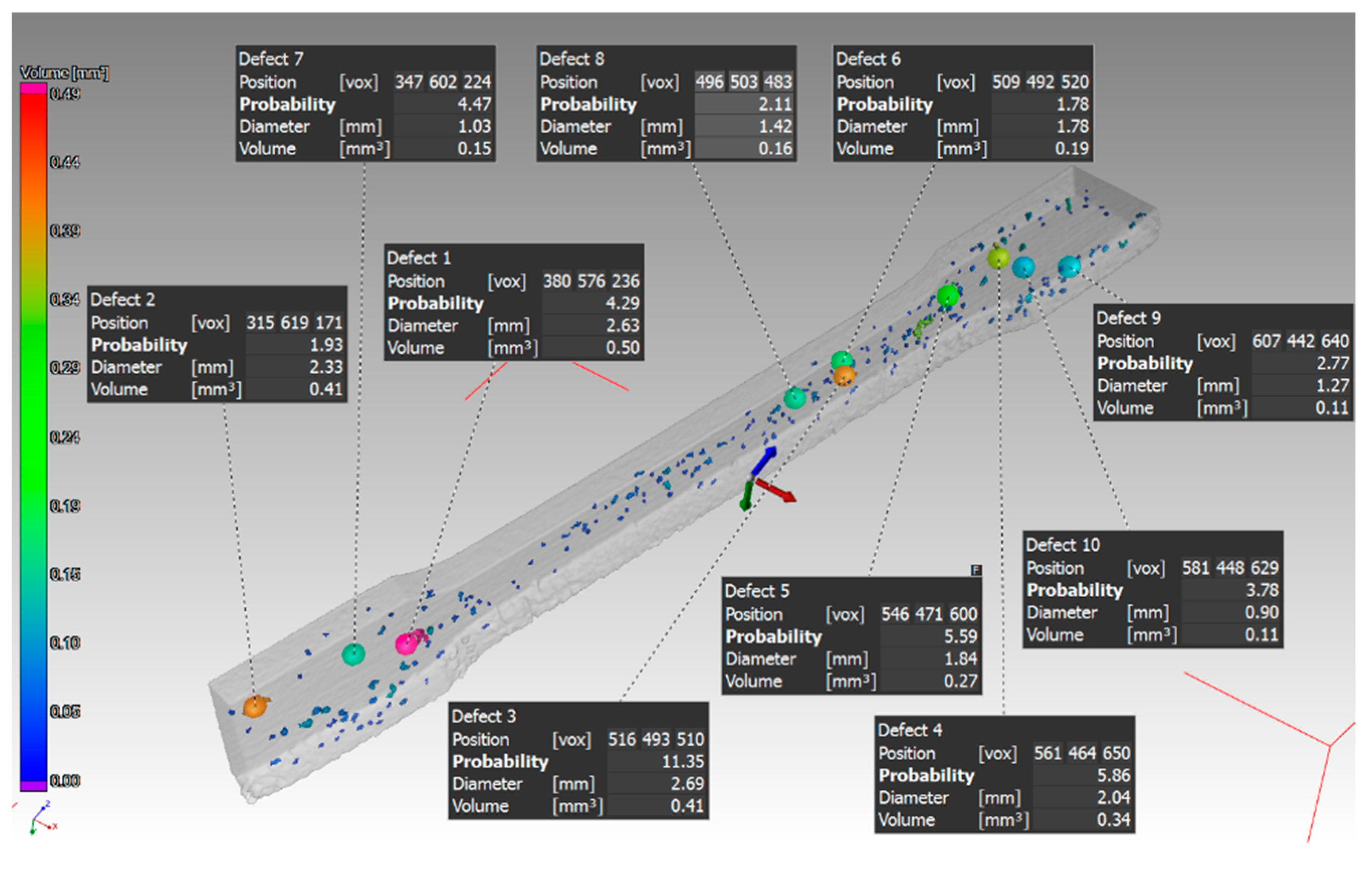

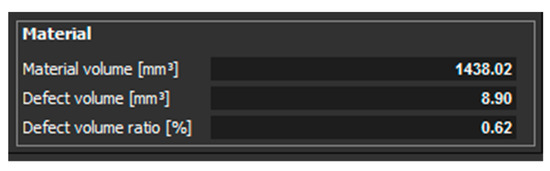

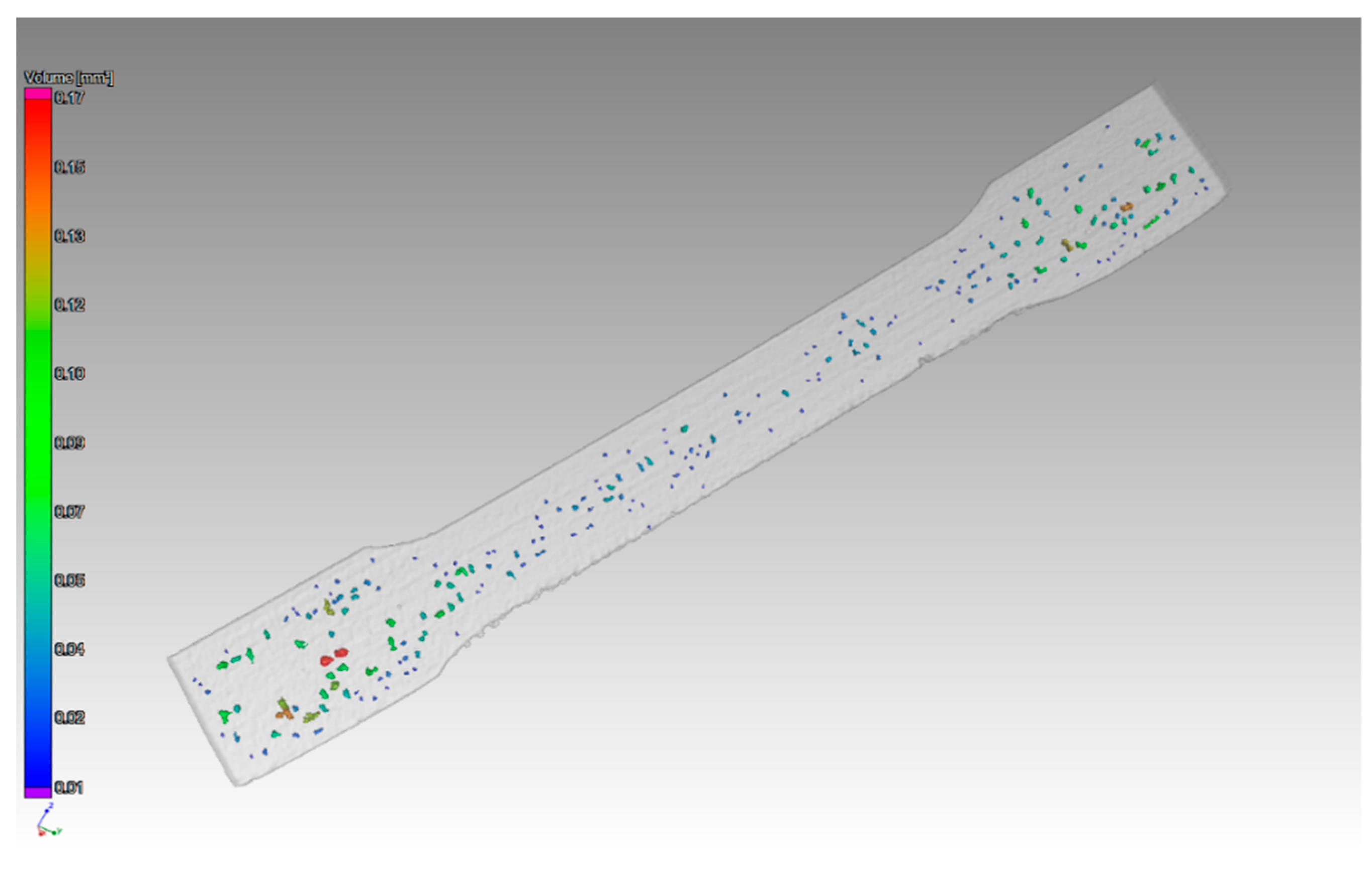

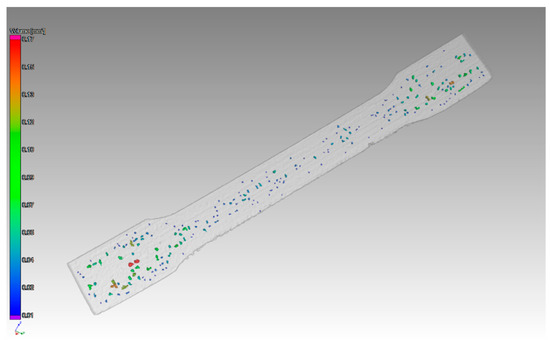

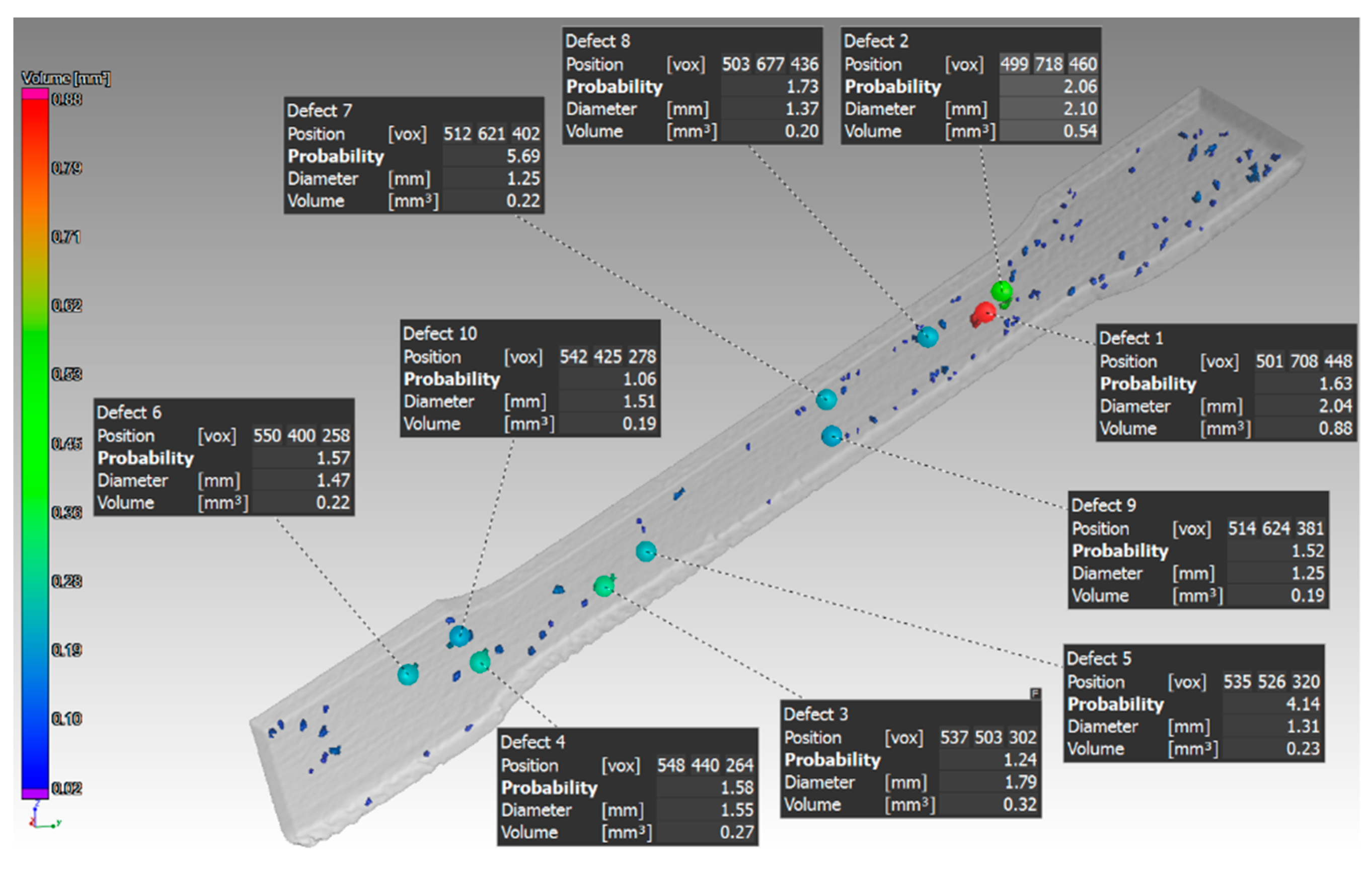

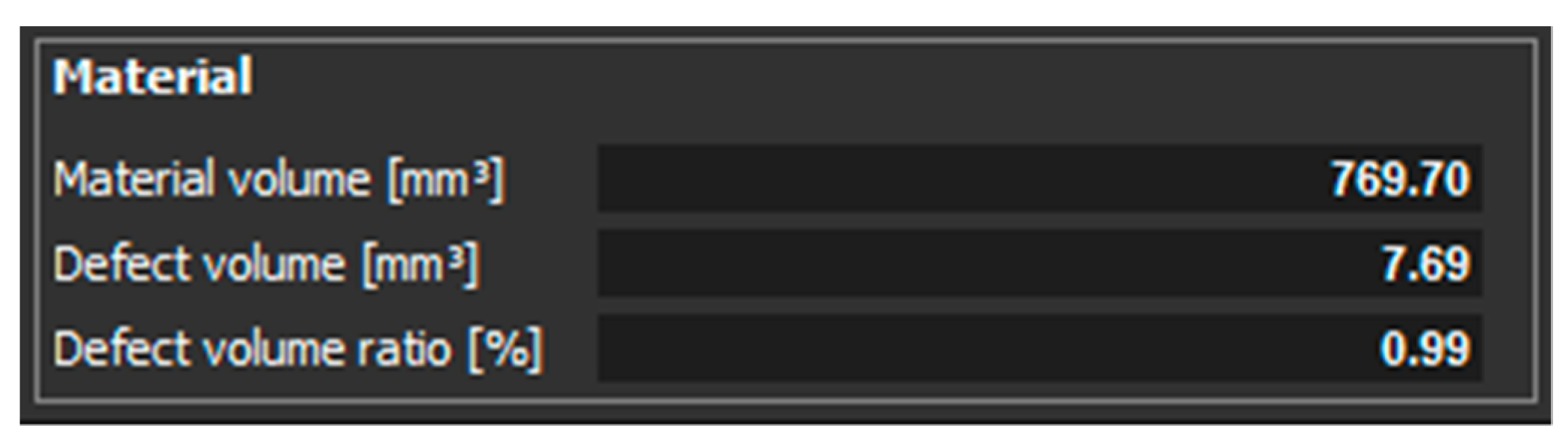

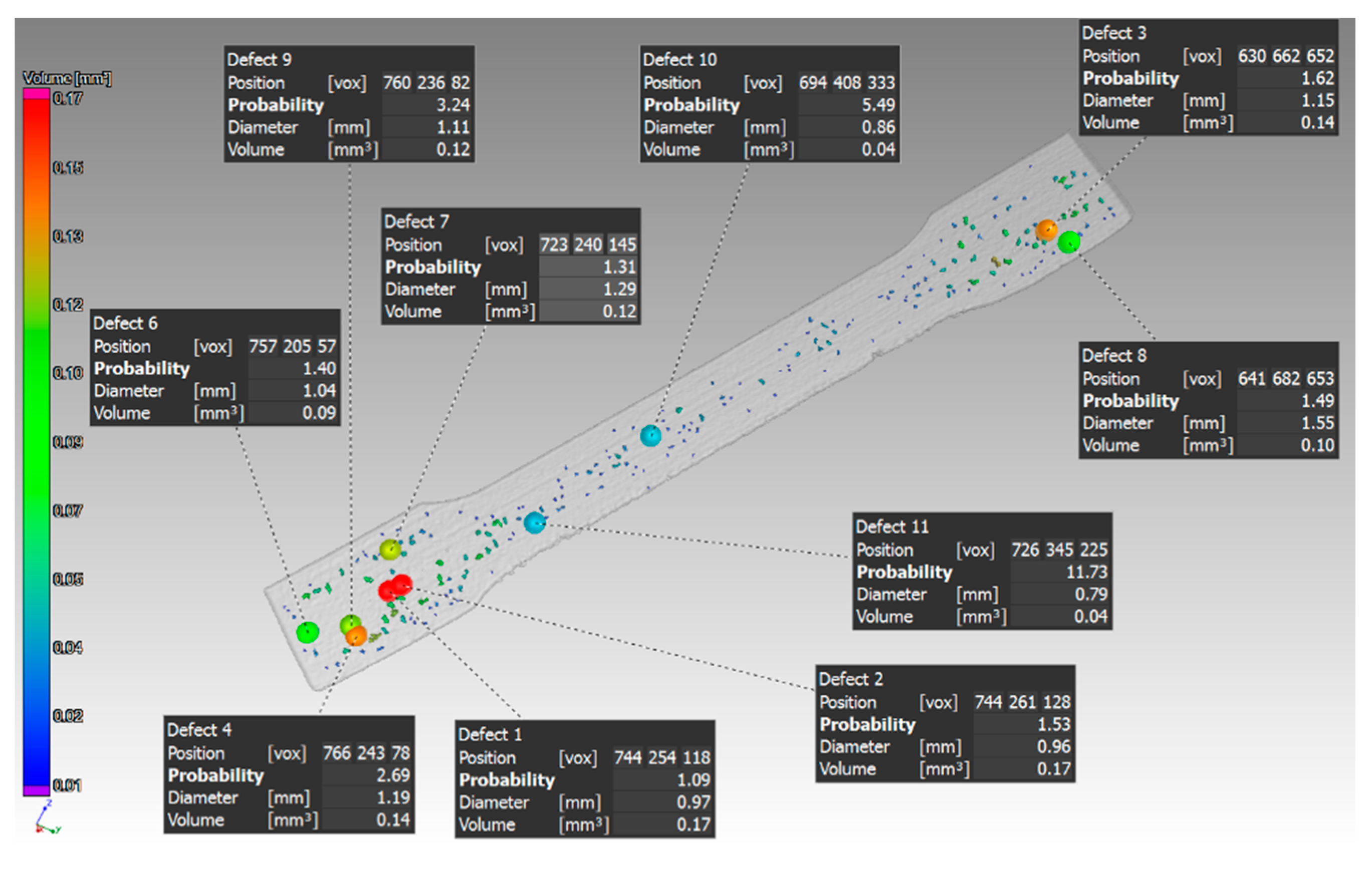

- Orientation of the sample during its production in the XZ: as the sample thickness increased, the defect volume ratio in the sample volume decreased.sample thickness 1 mm (Defect volume ratio 0.99%),sample thickness 2 mm (Defect volume ratio 0.62%),sample thickness 3 mm (Defect volume ratio 0.54%).
