Analysis of Changes in the Microstructure of Geopolymer Mortar after Exposure to High Temperatures

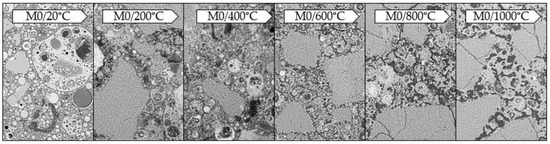

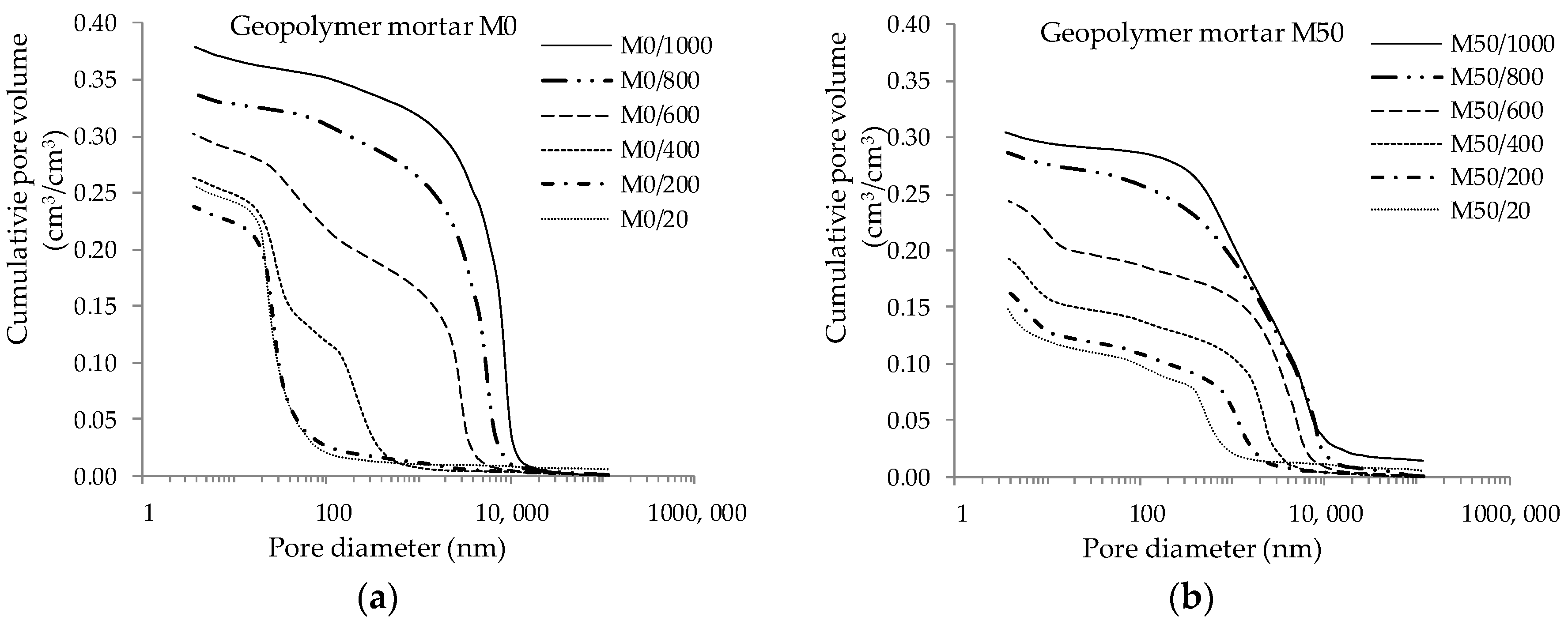

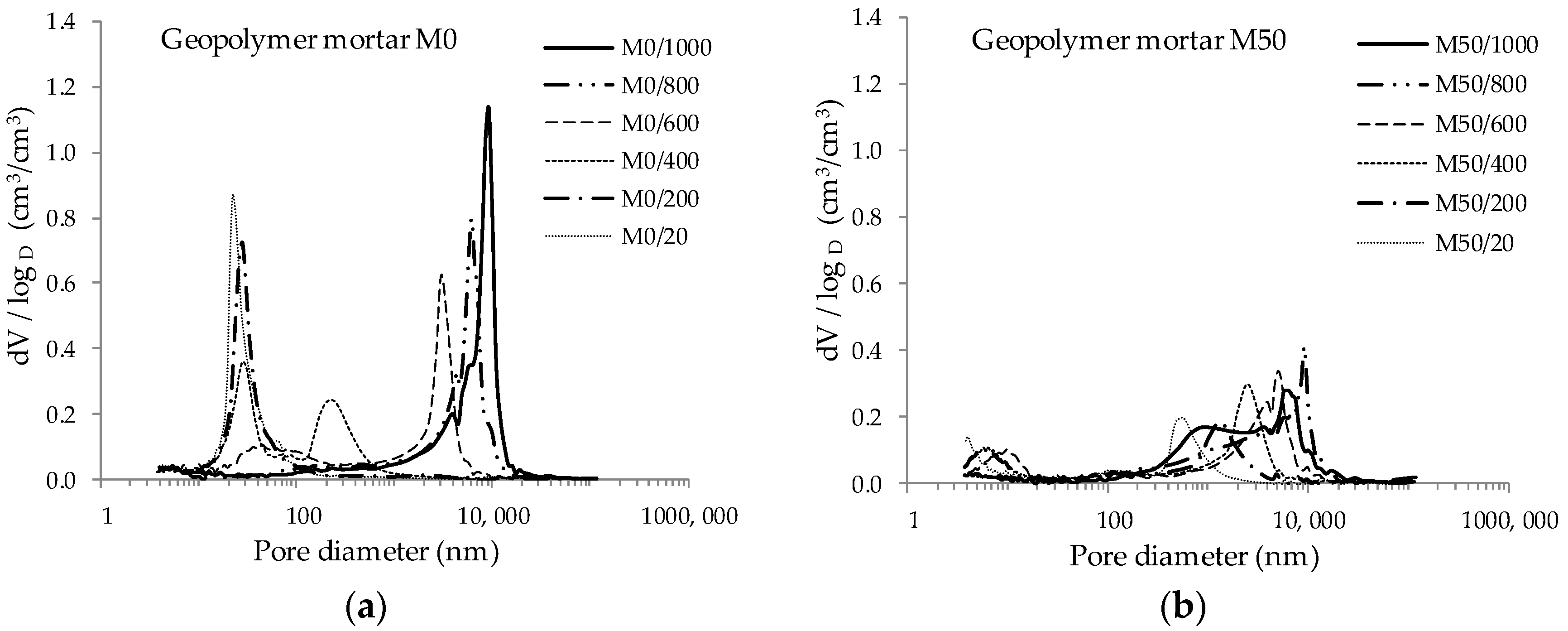

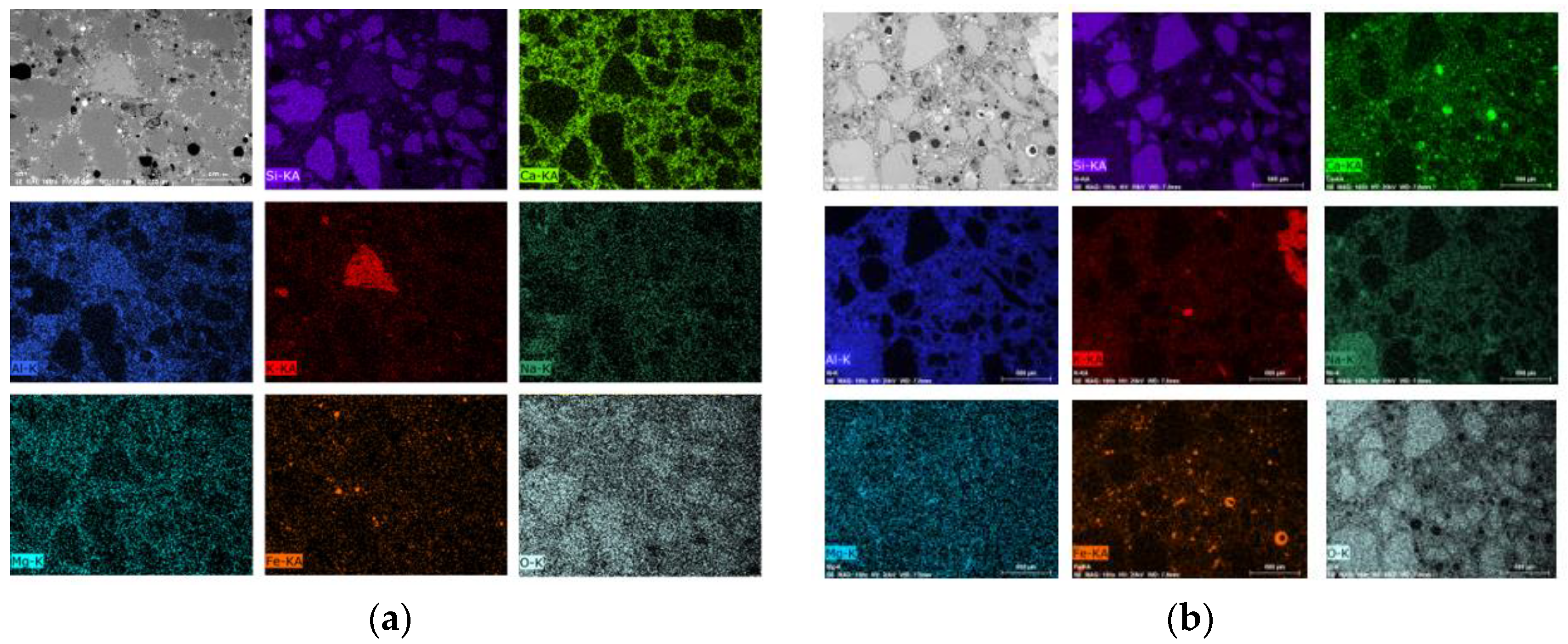

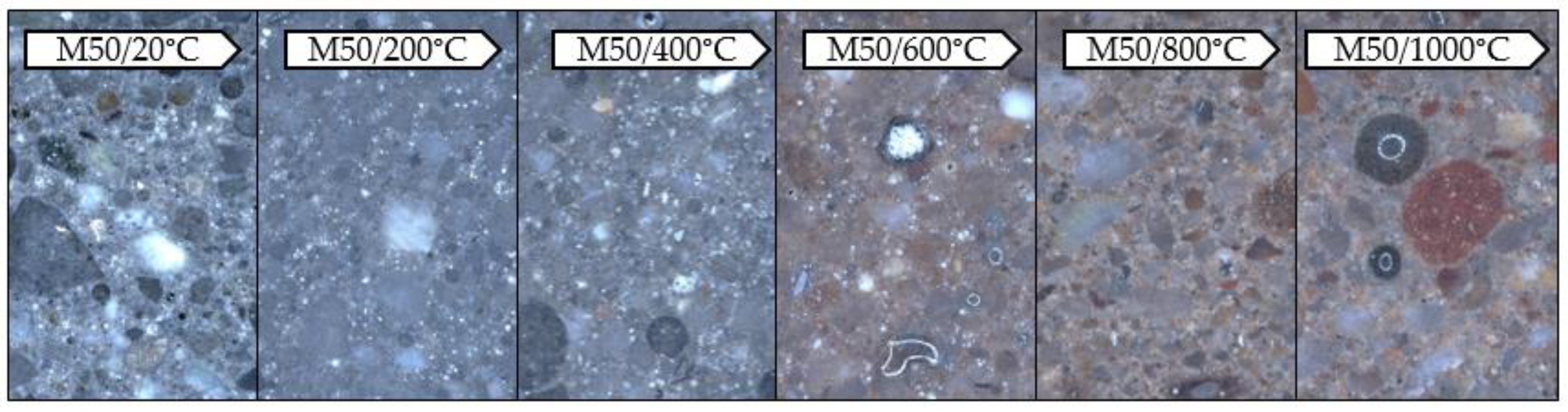

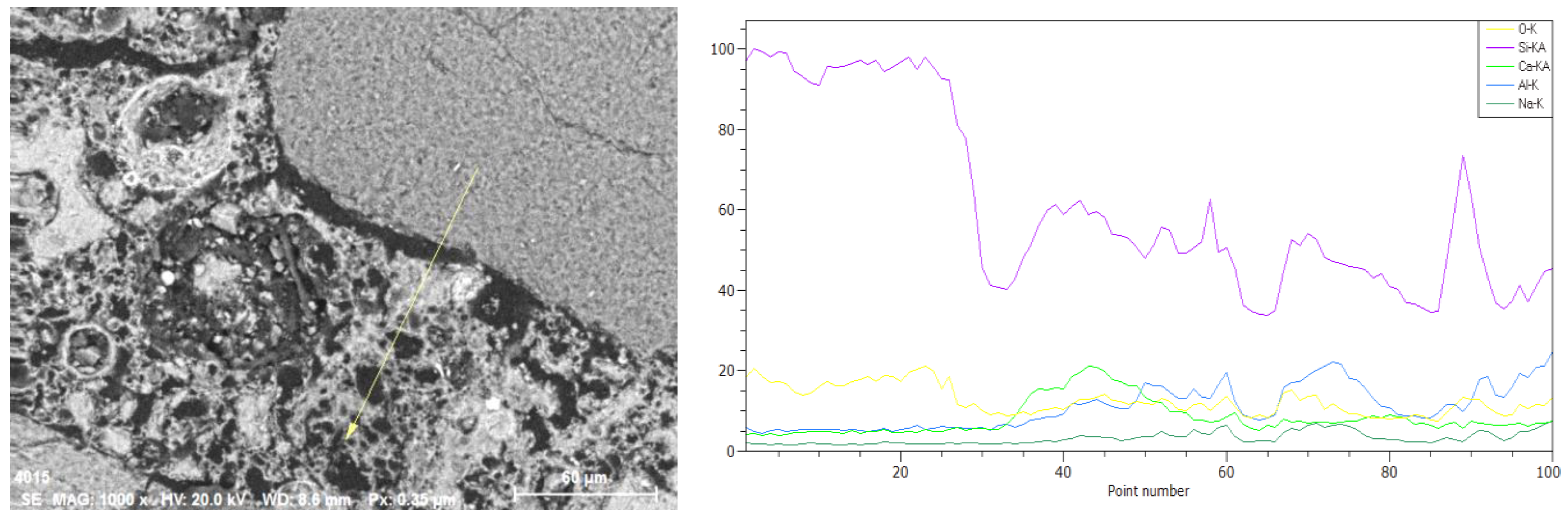

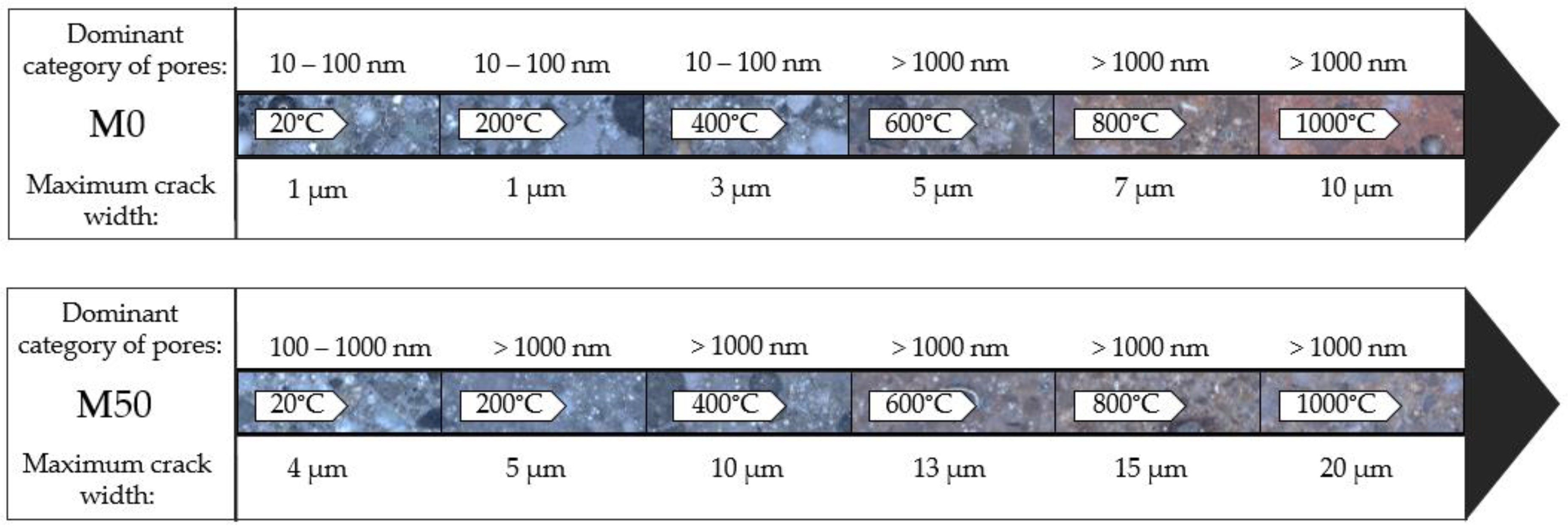

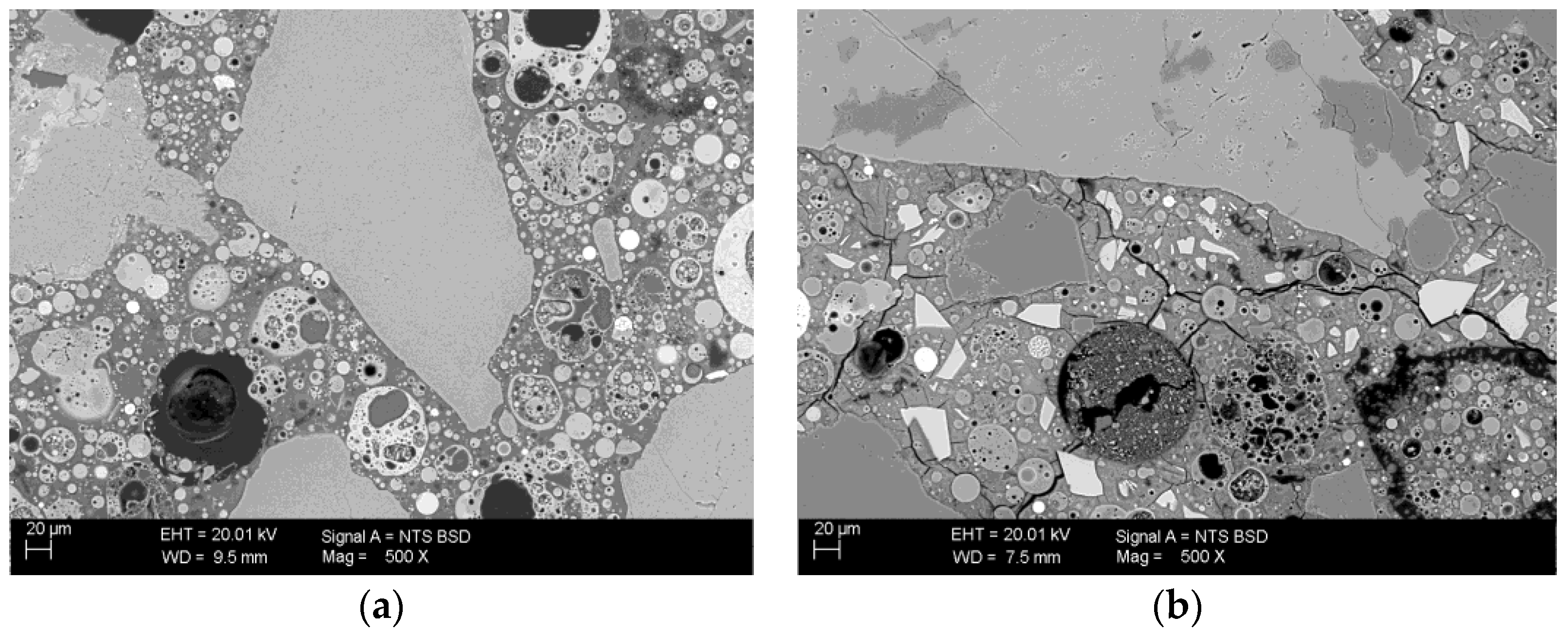

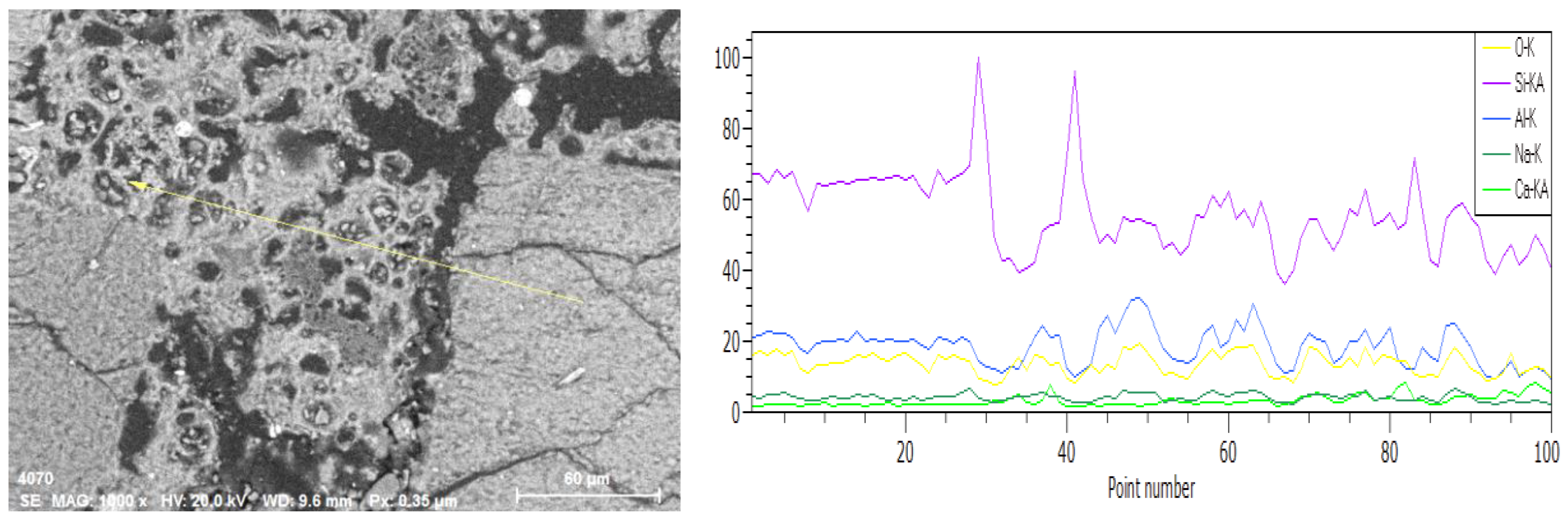

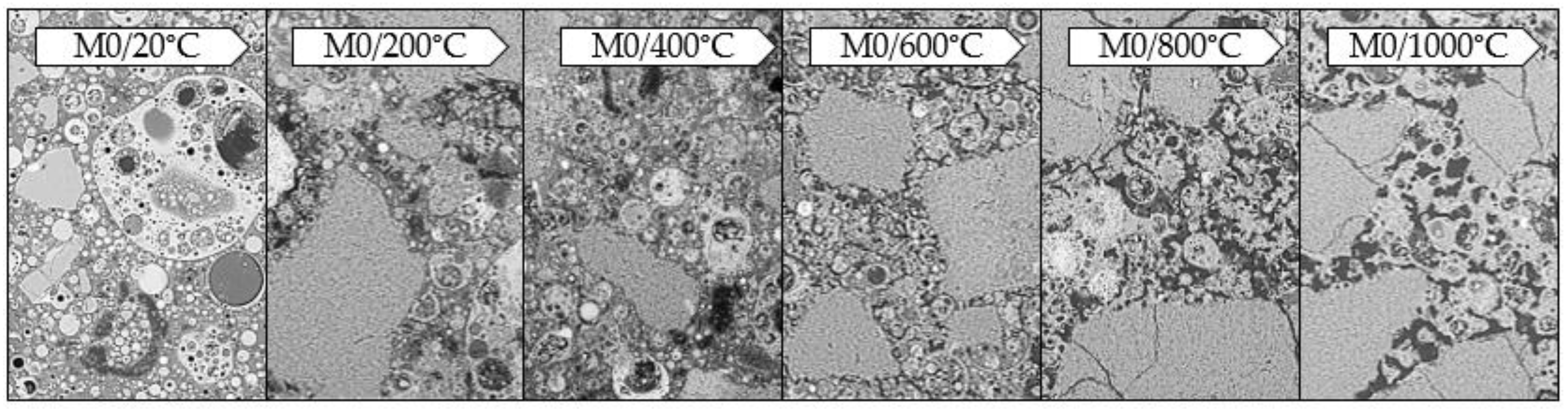

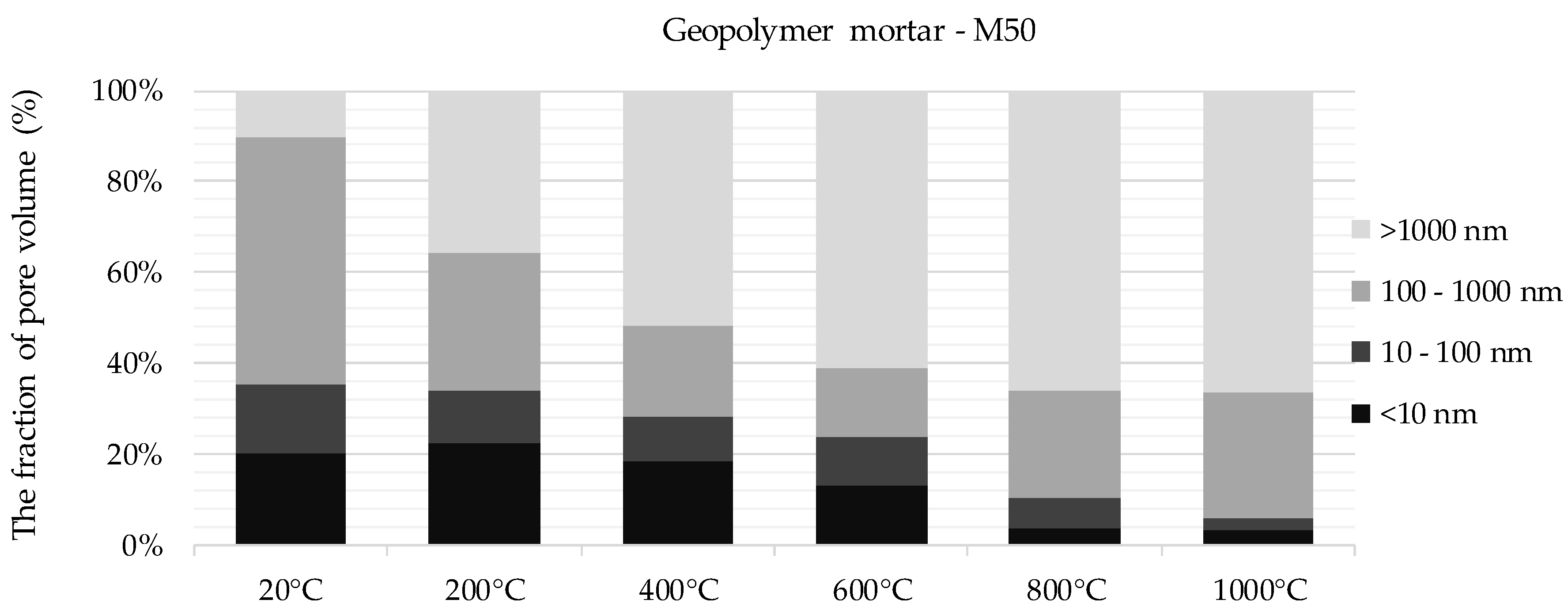

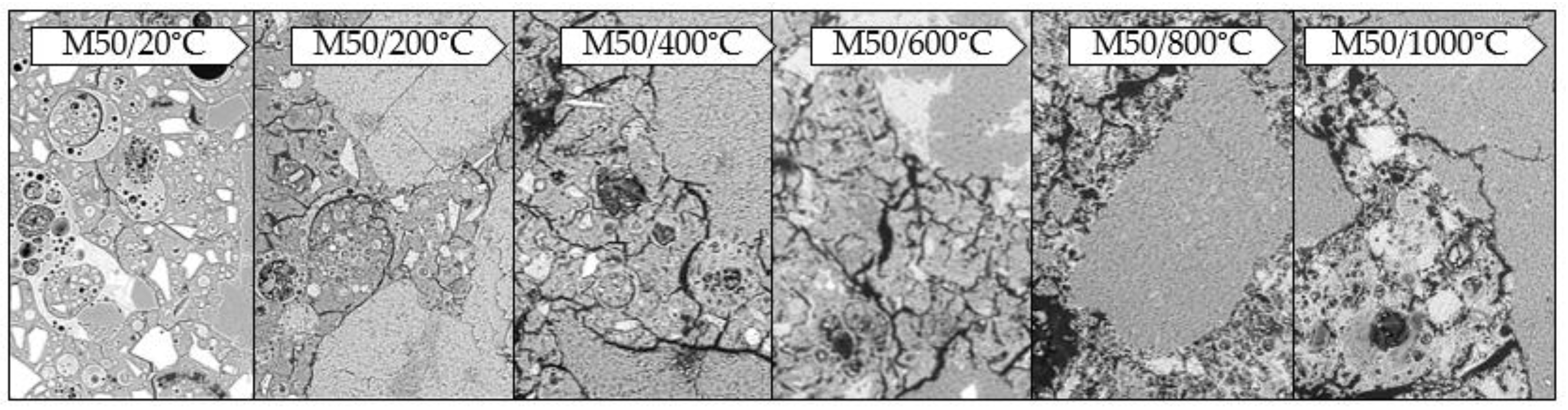

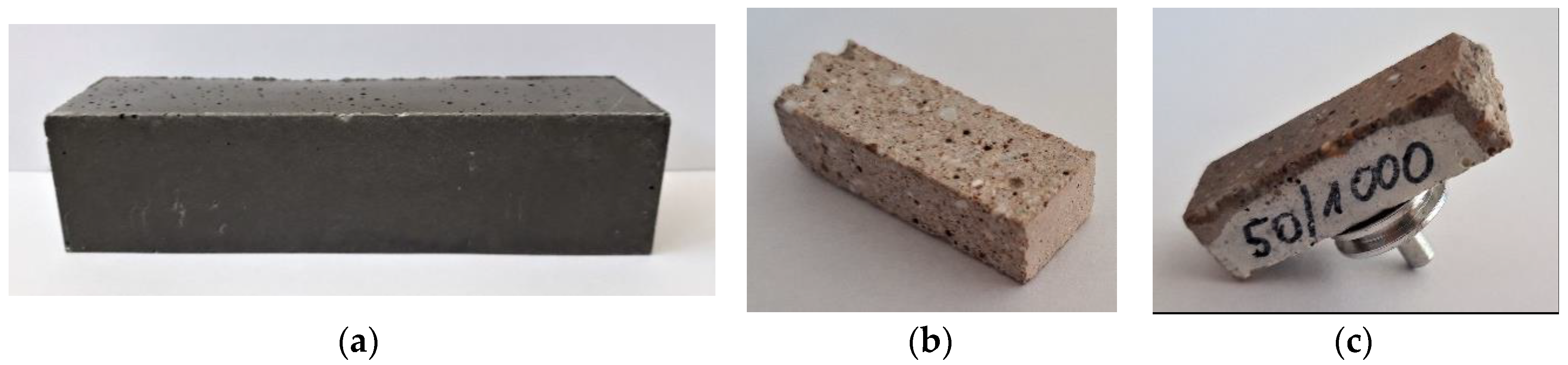

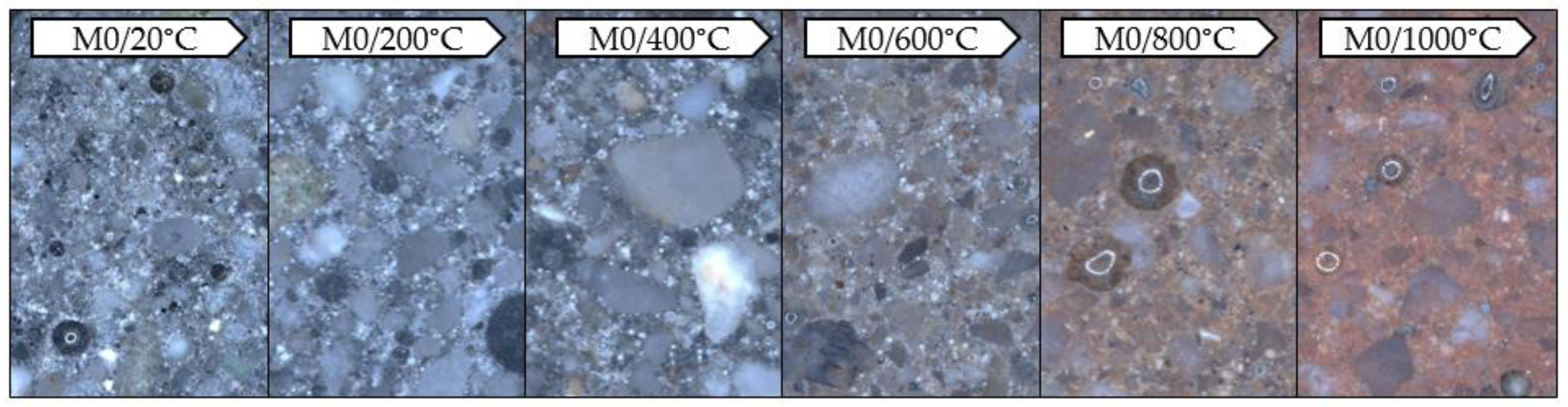

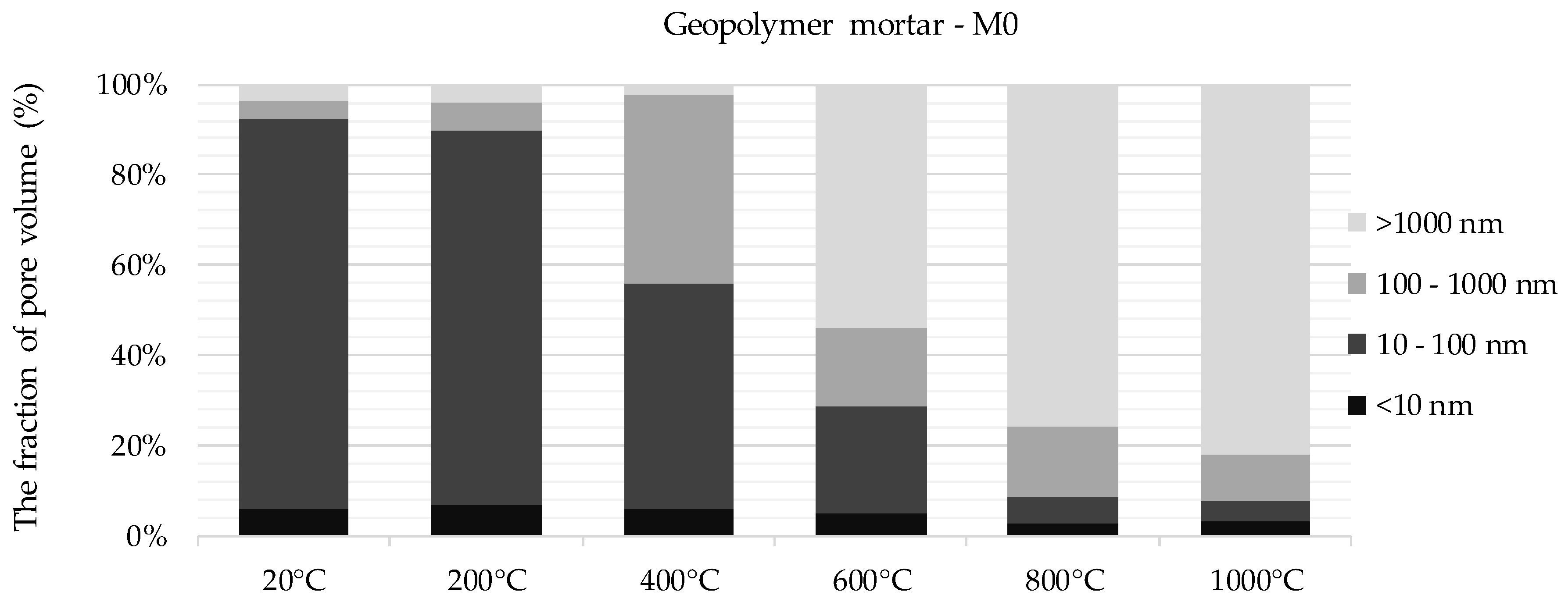

The inorganic structure formed at the stage of setting of the geopolymer binder ensures high durability of the material under high-temperature conditions. However, changes in the microstructure of the material are observed. The purpose of the study was to analyze changes in the structure of geopolymer mortar after exposure to high temperatures T = 200, 400, 600, 800, and 1000 °C. Mortars with a binder based solely on fly ash (FA) and mixed in the 1:1 ratio with a binder containing fly ash and ground granulated blast-furnace slag (GGBFS) were tested. The descriptions of their microstructures were prepared based on digital microscope observations, scanning electron microscope (SEM) observations, EDS (energy dispersive spectroscopy) analysis, and mercury intrusion porosimetry (MIP) porosity test results. Changes in the material due to high temperature were observed. The differences in the microstructure of the samples are also visible in the materials that were not exposed to temperature, which was influenced by the composition of the materials. Porosity increases with increasing annealing temperature. The distribution of individual pores also changes. In both materials, the proportion of pores larger than 1000 nm increases with the temperature increase. Moreover, the number of cracks and their width also increases, reaching 20 µm in the case of GGBFS. Furthermore, the color of geopolymers has changed. The obtained results extend the current state of knowledge in the field of changes in the microstructure of geopolymers subjected to high temperature. View Full-Text
