Synthesis and Characterization of Low-Cost Cresol-Based Benzoxazine Resins as Potential Binders in Abrasive Composites
Abstract
:1. Introduction
2. Materials and Methods

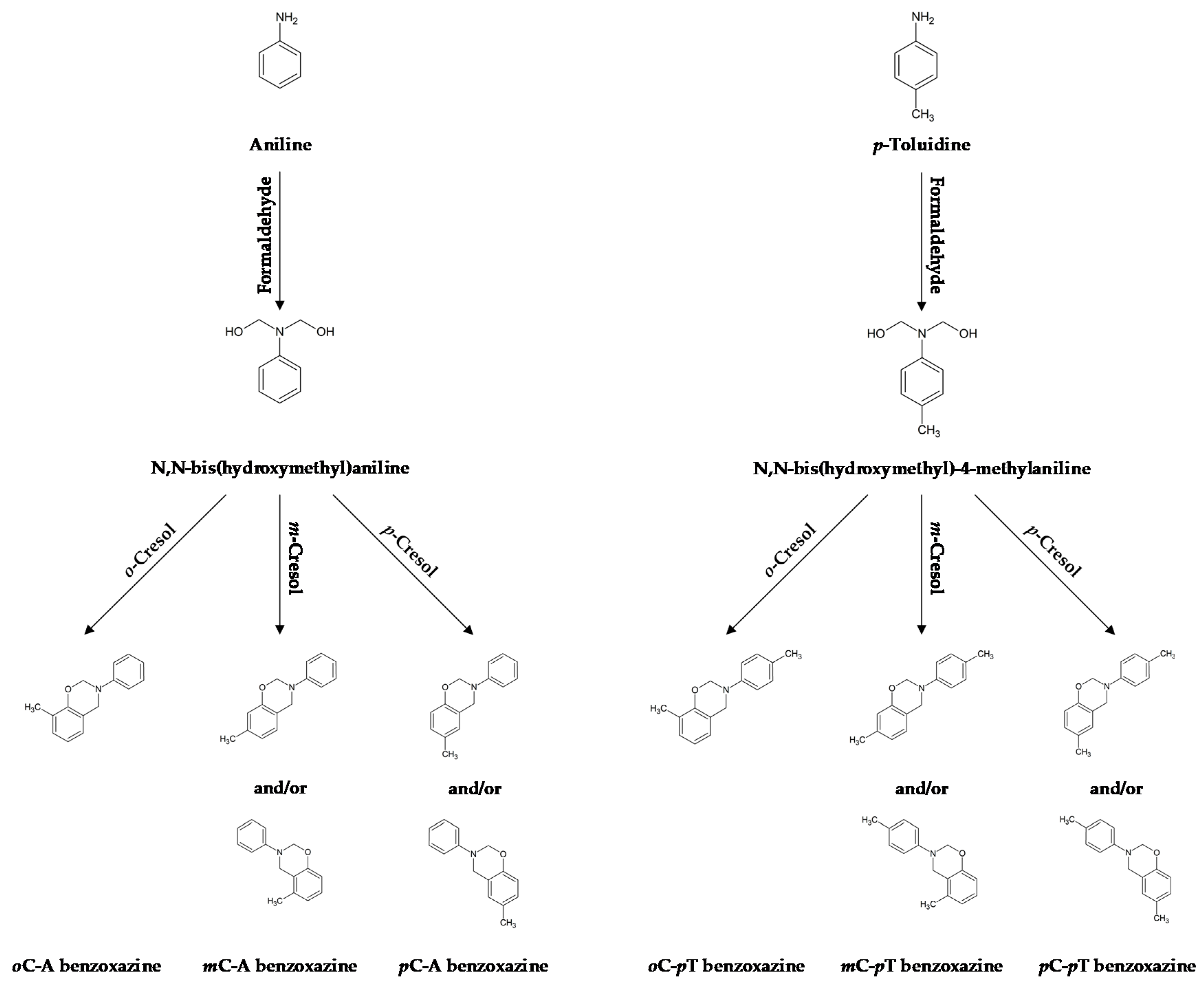

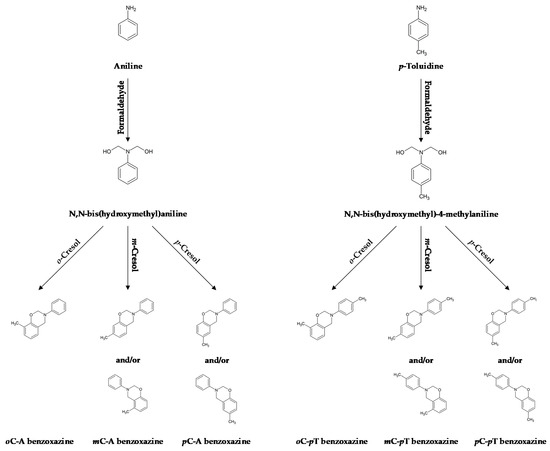

2.1. Synthesis of Cresol-Based Benzoxazines
2.2. Characteristics of Products
2.2.1. Fourier Transform Infrared Spectroscopy
2.2.2. Nuclear Magnetic Resonance
2.2.3. Differential Scanning Calorimetry
2.2.4. Thermogravimetric Analysis
2.2.5. Headspace Coupled with Gas Chromatography Analysis
2.3. Composite Preparation for Abrasion Tests
2.4. Abrasion Tests
3. Results and Discussion
3.1. Fourier Transform Infrared Spectroscopy
3.2. Nuclear Magnetic Resonance
3.3. Differential Scanning Calorimetry
3.4. Thermogravimetric Analysis
3.5. Abrasion Tests
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Conflicts of Interest
References
- Malkin, S.; Guo, C. Grinding Technology: Theory and Application of Machining with Abrasives, 2nd ed.; Industrial Press Inc.: New York, NY, USA, 2008; ISBN 978-0831132477. [Google Scholar]
- Bhushan, B. Modern Tribology Handbook; CRC Press: Boca Raton, FL, USA, 2000; ISBN 978-0849384035. [Google Scholar]
- Jackson, M.J.; Davim, J.P. Machining with Abrasives; Springer: New York, NY, USA, 2011; ISBN 978-1441973023. [Google Scholar]
- Jacobs, F.B. Abrasives and Abrasive Wheels, Their Nature, Manufacture and Use: A Complete Treatise on the Manufacture and Practical Use of Abrasives, Abrasive Wheels and Grinding Operations; Forgotten Books: London, UK, 2017; ISBN 978-0331571110. [Google Scholar]
- Pilato, L. Phenolic Resins: A Century of Progress, 1st ed.; Springer: Berlin/Heidelberg, Germany, 2010; ISBN 978-3642047145. [Google Scholar]
- Marinescu, I.D.; Hitchiner, M.; Uhlmann, E.; Rowe, W.B.; Inasaki, I. Handbook of Machining with Grinding Wheels, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2016; ISBN 978-1482206685. [Google Scholar]
- Gardziella, A.; Pilato, L.A.; Knop, A. Phenolic Resins: Chemistry, Applications, Standardization, Safety and Ecology, 2nd ed.; Springer: Berlin, Germany, 2000; ISBN 978-3662041017. [Google Scholar]
- Klapiszewski, Ł.; Jamrozik, A.; Strzemiecka, B.; Koltsov, I.; Borek, B.; Matykiewicz, D.; Voelkel, A.; Jesionowski, T. Characteristics of multifunctional, eco-friendly lignin-Al2O3 hybrid fillers and their influence on the properties of composites for abrasive tools. Molecules 2017, 22, 1920. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Strzemiecka, B.; Klapiszewski, Ł.; Jamrozik, A.; Szalaty, T.J.; Matykiewicz, D.; Sterzyński, T.; Voelkel, A.; Jesionowski, T. Physicochemical characterization of functional lignin–silica hybrid fillers for potential application in abrasive tools. Materials 2016, 9, 517. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jamrozik, A.; Klapiszewski, Ł.; Strzemiecka, B.; Voelkel, A.; Jesionowski, T. Additives for Abrasive Materials. In Abrasive Technology—Characteristics and Applications; Rudawska, A., Ed.; IntechOpen: Basel, Switzerland, 2018. [Google Scholar] [CrossRef] [Green Version]
- Guo, J.; Jiang, Y.; Hu, X.; Xu, Z. Compounds and metal leaching from composite products made from fiberglass-resin portion of printed circuit board waste. Environ. Sci. Technol. 2012, 46, 1028–1034. [Google Scholar] [CrossRef] [PubMed]
- He, Z.; Zhang, Y.; Wei, W. Formaldehyde and VOC emissions at different manufacturing stages of wood based panels. Build. Environ. 2012, 47, 197–204. [Google Scholar] [CrossRef]
- Ishida, H.; Froimowicz, P. Advanced and Emerging Polybenzoxazine Science and Technology; Elsevier: Amsterdam, The Netherlands, 2017; ISBN 978-0128041703. [Google Scholar]
- Ghosh, N.N.; Kiskan, B.; Yagci, Y. Polybenzoxazines-New high performance thermosetting resins: Synthesis and properties. Prog. Polym. Sci. 2007, 32, 1344–1391. [Google Scholar] [CrossRef]
- Yagci, Y.; Kiskan, B.; Ghosh, N.N. Recent advancement on polybenzoxazine—a newly developed high performance thermoset. J. Polym. Sci. Part A Polym. Chem. 2009, 47, 5565–5576. [Google Scholar] [CrossRef]
- Tavernier, R.; Granado, L.; Foyer, G.; David, G.; Caillol, S. Formaldehyde-free polybenzoxazines for high performance thermosets. Macromolecules 2020, 53, 2557–2567. [Google Scholar] [CrossRef]
- Lyu, Y.; Ishida, H. Natural-sourced benzoxazine resins, homopolymers, blends and composites: A review of their synthesis, manufacturing and applications. Prog. Polym. Sci. 2019, 99, 101168. [Google Scholar] [CrossRef]
- Rimdusit, S.; Tiptipakorn, S.; Jubsilp, C.; Takeichi, T. Polybenzoxazine alloys and blends: Some unique properties and applications. React. Funct. Polym. 2013, 73, 369–380. [Google Scholar] [CrossRef]
- Li, H.; Xu, J.; Zeng, K.; Li, Y.; Li, C.Z.G. Synthesis and characterization of siloxane-containing benzoxazines with high thermal stability. High Perform. Polym. 2020, 32, 268–275. [Google Scholar] [CrossRef]
- Ishida, H.; Agag, T. Handbook of Benzoxazine Resins; Elsevier: Amsterdam, The Netherlands, 2011; ISBN 978-0444537911. [Google Scholar]
- Takeichi, T.; Saito, Y.; Agag, T.; Muto, H.; Kawauchi, T. High-performance polymer alloys of polybenzoxazine and bismaleimide. Polymer 2009, 49, 1173–1179. [Google Scholar] [CrossRef]
- Deliballi, Z.; Kiskan, B.; Yagci, Y. Advanced polymers from simple benzoxazines and phenols by ring-opening addition reactions. Macromolecules 2020, 53, 2354–2361. [Google Scholar] [CrossRef]
- Reghunadhan Nair, C.P. Advances in addition-cure phenolic resins. Prog. Polym. Sci. 2004, 29, 401–498. [Google Scholar] [CrossRef]
- Zhang, K.; Han, L.; Froimowicz, P.; Ishida, H. Synthesis, polymerization kinetics and thermal properties of para-methylol functional benzoxazine. React. Funct. Polym. 2018, 129, 23–28. [Google Scholar] [CrossRef]
- Zhang, K.; Liu, Y.; Evans, C.J.; Yang, S. Easily processable thermosets with outstanding performance via smart twisted small-molecule benzoxazines. Macromol. Rapid Commun. 2020, 41, 1900625. [Google Scholar] [CrossRef]
- Zhang, K.; Han, M.; Han, L.; Ishida, H. Resveratrol-based tri-functional benzoxazines: Synthesis, characterization, polymerization, and thermal and flame retardant properties. Eur. Polym. J. 2019, 116, 526–533. [Google Scholar] [CrossRef]
- Ghouti, H.A.; Zegaoui, A.; Derradji, M.; Zu, L.; Cai, W.; Wang, J.; Dayo, A.Q.; Liu, W. Structural and mechanical characteristics of silane-modified PIPD/basalt hybrid fiber-reinforced polybenzoxazine composites. Mater. Chem. Phys. 2019, 237, 121850. [Google Scholar] [CrossRef]
- Zhang, K.; Wang, F.; Pang, Y.; Liang, W.; Wang, Z. High residual mechanical properties at elevated temperatures of bamboo/glass reinforced-polybenzoxazine hybrid composite. Polym. Eng. Sci. 2019, 59, 1818–1829. [Google Scholar] [CrossRef]
- Barile, C.; Casavola, C.; De Cillis, F. Mechanical comparison of new composite materials for aerospace applications. Compos. Part B 2019, 162, 122–128. [Google Scholar] [CrossRef]
- Kobzara, Y.L.; Tkachenkoa, I.M.; Bliznyukb, V.N.; Shevchenkoa, V.V. Fluorinated polybenzoxazines as advanced phenolic resins for leading-edge applications. React. Funct. Polym. 2018, 133, 71–92. [Google Scholar] [CrossRef]
- Yang, R.; Han, M.; Hao, B.; Zhang, K. Biobased high-performance tri-furan functional bis-benzoxazine resin derived from renewable guaiacol, furfural and furfurylamine. Eur. Polym. J. 2020, 131, 109706. [Google Scholar] [CrossRef]
- Latha, G.; Hariharan, A.; Prabunathan, P.; Alagar, M. Cardanol-imidazole based benzoxazine blends and bio-silica reinforced composites with enhanced surface, thermal and dielectric properties. J. Polym. Environ. 2020, 28, 918–933. [Google Scholar] [CrossRef]
- Agag, T.; Jin, L.; Ishida, H. A new synthetic approach for difficult benzoxazines: Preparation and polymerization of 4,4′-diaminodiphenyl sulfone-based benzoxazine monomer. Polymer 2009, 50, 5940–5944. [Google Scholar] [CrossRef]
- Bai, Y.; Yang, P.; Song, Y.; Zhu, R.; Gu, Y. Effect of hydrogen bonds on the polymerization of benzoxazines: Influence and control. RSC Adv. 2016, 6, 45630–45635. [Google Scholar] [CrossRef]
- Takeichi, T.; Nakamura, K.; Agag, T.; Muto, H. Synthesis of cresol-based benzoxazine monomers containing allil groups and the properties of the polymers the refrom. Des. Monomers Polym. 2004, 7, 727–740. [Google Scholar] [CrossRef]
- Herman, D.; Markul, J. Influence of microstructures of binder and abrasivegrain on selected operational properties of ceramic grinding wheels made of alumina. Int. J. Mach. Tools Manuf. 2003, 44, 511–522. [Google Scholar] [CrossRef]
- Irani, R.A.; Bauer, R.J.; Warkentin, A. A review of cutting fluid application in the grinding process. Int. J. Mach. Tools Manuf. 2005, 45, 1696–1705. [Google Scholar] [CrossRef]
- Lavrinenko, V.I. Current advances in the development of abrasive tools and investigation of diamond abrasive machining processes (materials science approach). Review. J. Superhard Mater. 2018, 40, 348–354. [Google Scholar] [CrossRef]
- Linke, B.S. Review on grinding tool wear with regard to sustainability. J. Manuf. Sci. Eng. 2015, 137, 060801. [Google Scholar] [CrossRef]
- Linke, B.S. Sustainability concerns in the life cycle of bonded grinding tools. CIRP J. Manuf. Sci. Technol. 2014, 7, 258–263. [Google Scholar] [CrossRef] [Green Version]
Benzoxazine | Substrates | ||
---|---|---|---|
Cresol | Amine | Aldehyde | |
oC-A | o-Cresol | Aniline | Formaldehyde |
mC-A | m-Cresol | ||
pC-A | p-Cresol | ||
oC-pT | o-Cresol | p-Toluidine | |
mC-pT | m-Cresol | ||
pC-pT | p-Cresol |

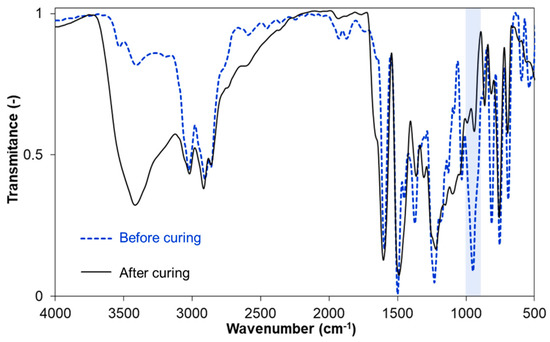

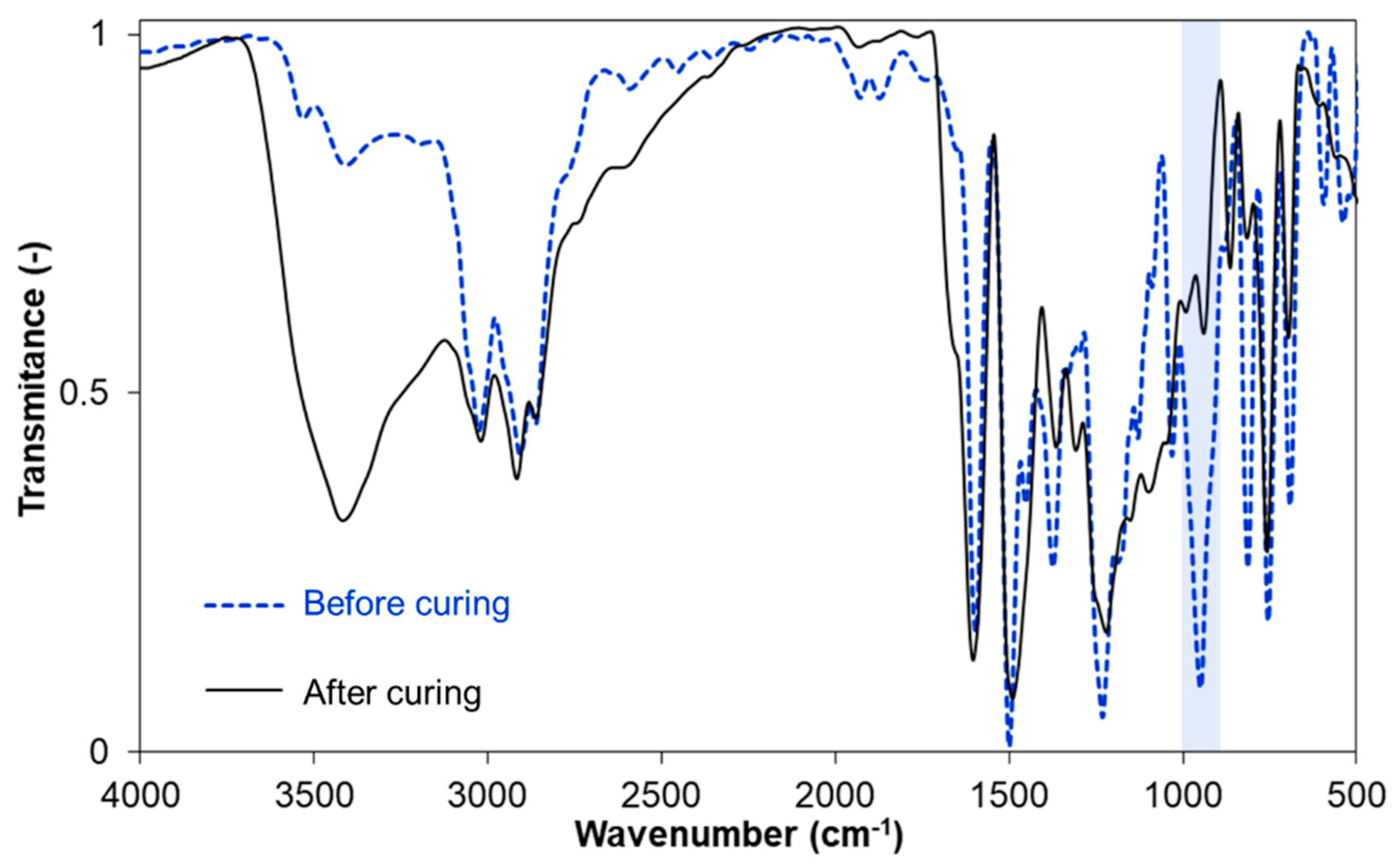

Wavenumber (cm−1) | Vibrations | |||||
---|---|---|---|---|---|---|
oC-A | mC-A | pC-A | oC-pT | mC-pT | pC-pT | |
690 | 690 | 690 | 657 | 763 | 663 | bending C–Har. |
757 | 752 | 752 | 754 | 736 | ||
943 | 950 | 945 | 939 | 946 | 941 | –O–C–N– |
1217 | 1247 | 1228 | 1242 | 1253 | 1220 | stretching C–O–C |
1480 | 1498 | 1496 | 1467 | 1512 | 1498 | stretching C=Car. |
1608 | 1589 | 1585 | 1602 | 1585 | 1612 | |
2893 | 2893 | 2900 | 2914 | 2904 | 2912 | stretching C–Halif. |
3040 | 3062 | 3004 | 3070 | 3014 | 3014 | stretching C–Har. |

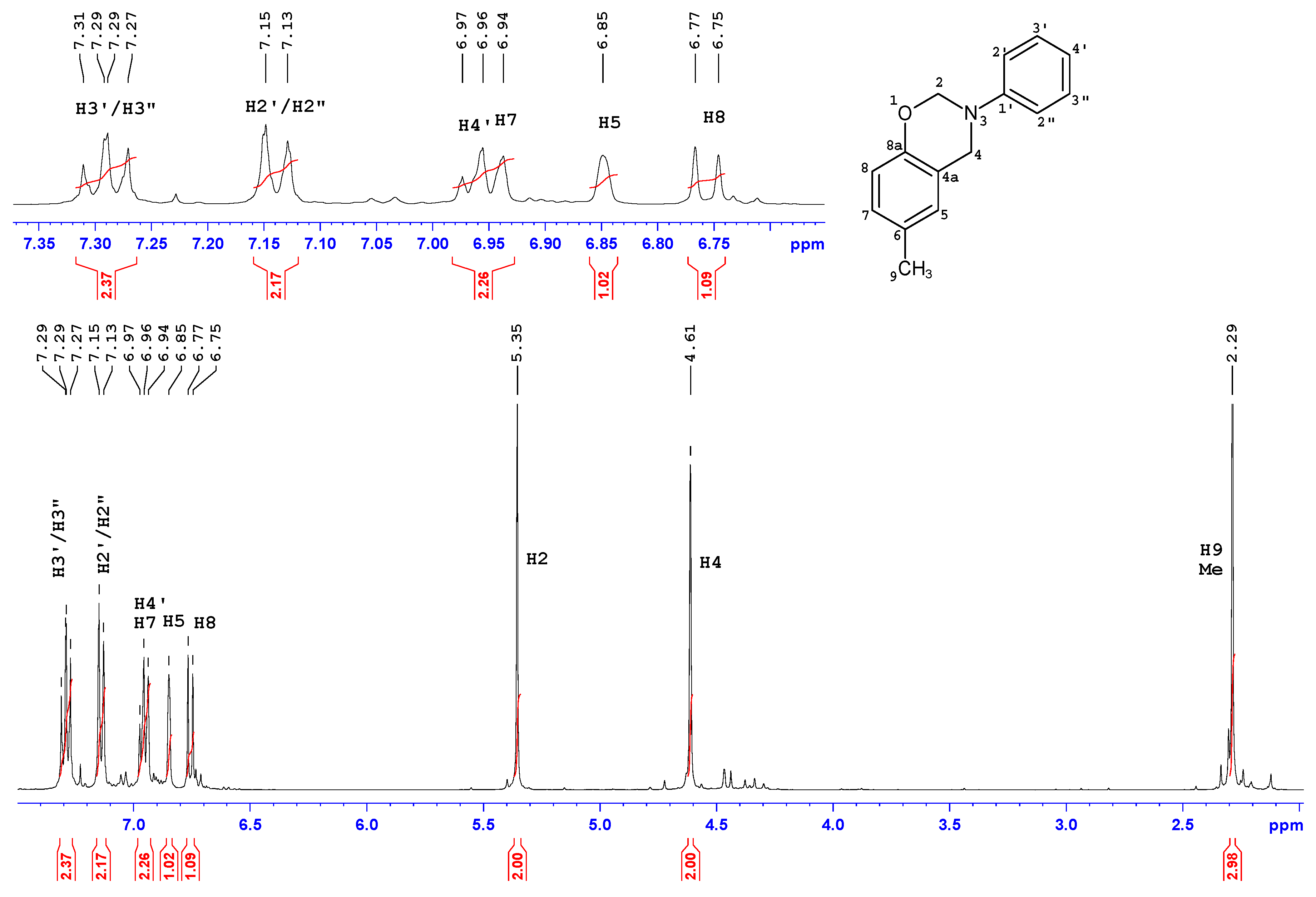

Chemical Shift (ppm) | Hydrogen Atoms Corresponding to Individual Chemical Shifts | |||||
---|---|---|---|---|---|---|
oC-A | mC-A | pC-A | oC-pT | mC-pT | pC-pT | |
2.33 | 2.35 | 2.32 | 2.26; 2.34 | 2.30; (x2) | 2.29; 2.31 | isolated -CH3 groups |
4.69 | 4.66 | 4.64 | 4.64 | 4.59 | 4.59 | methylene bridge from oxazine ring Ar-CH2-N- |
5.46 | 5.41 | 5.38 | 5.41 | 5.35 | 5.34 | methylene bridge from oxazine ring -O-CH2-N- |
6.87–7.37 | 6.74–7.36 | 6.78–7.26 | 6.85–7.15 | 6.60–7.11 | 6.74–7.12 | signals from protons of aromatic rings |

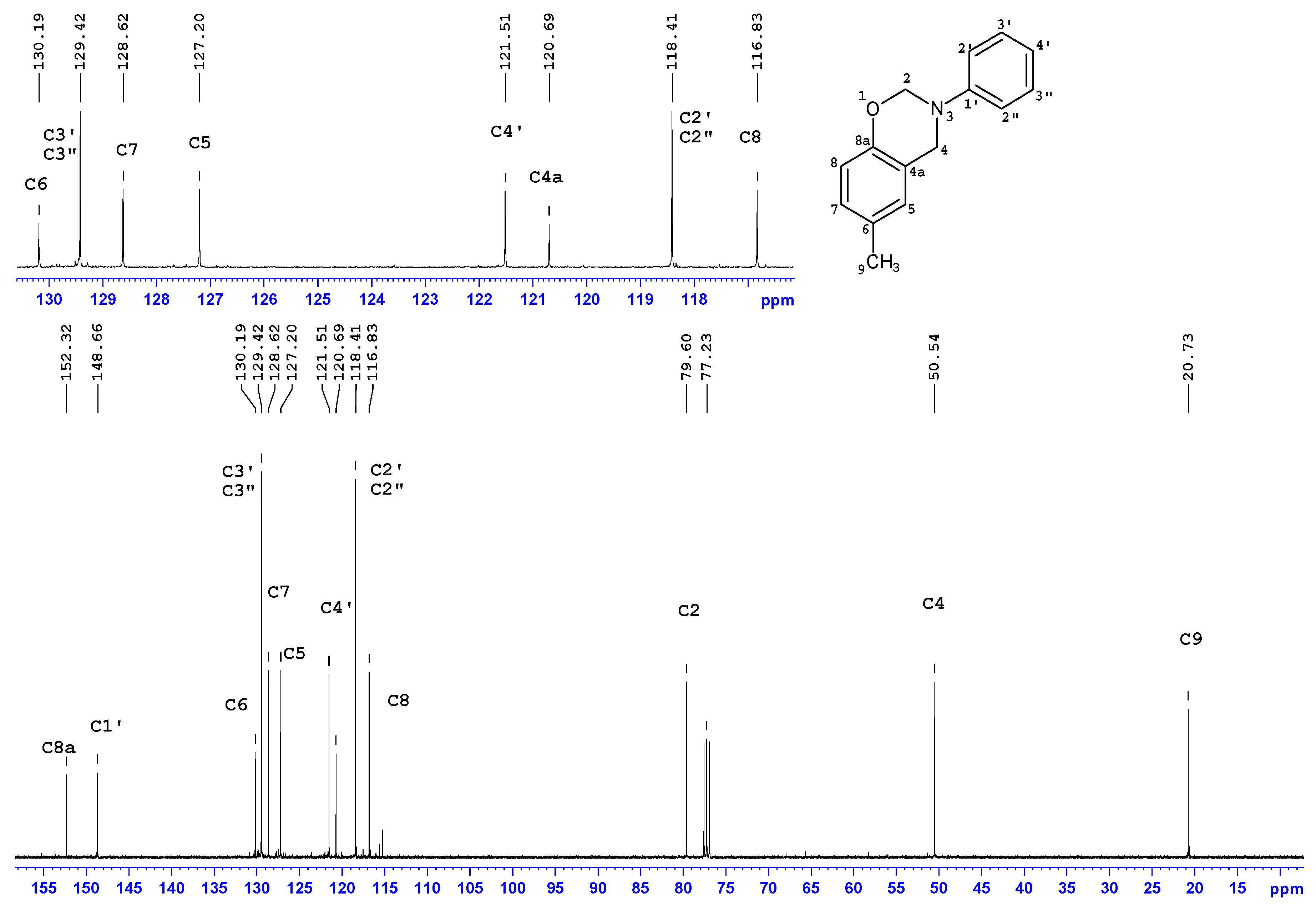

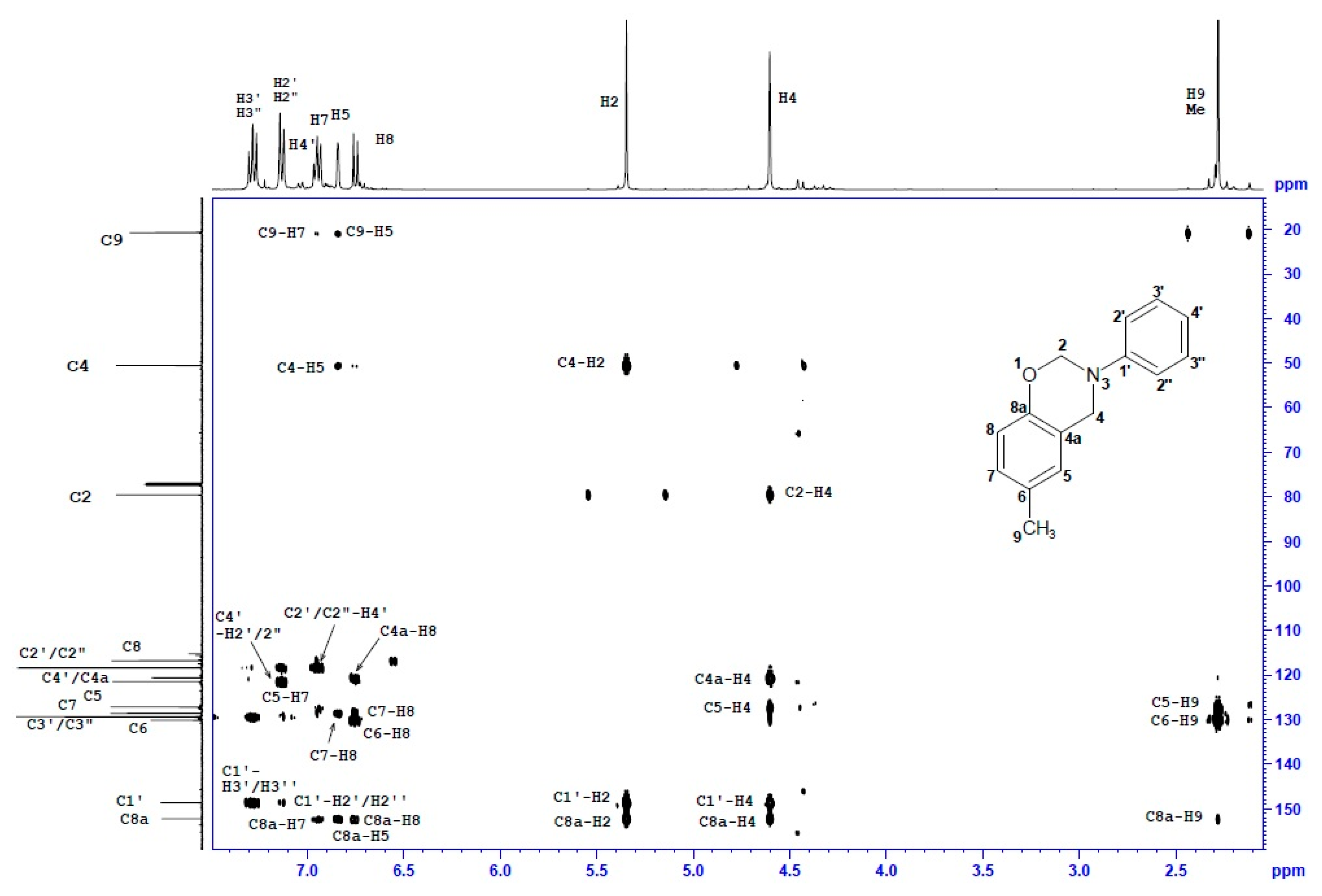

Chemical Shift (ppm) | Carbon Atoms Corresponding to Individual Chemical Shifts | |||||
---|---|---|---|---|---|---|
oC-A | mC-A | pC-A | oC-pT | mC-pT | pC-pT | |
15.7 | 21.2 | 20.6 | 15.7; 20.6 | 20.5; 21.1 | 20.6; 20.7 | (s) isolated -CH3 groups from cresol and p-toluidine molecule |
50.4 | 50.2 | 50.5 | 50.7 | 50.4 | 50.7 | (s) methylene bridge from oxazine ring Ar-CH2-N- |
79.4 | 79.4 | 79.5 | 80.0 | 79.9 | 80.1 | (s) methylene bridge from oxazine ring -O-CH2-N- |
118.2–152.6 | 117.3–154.2 | 116.7–152.2 | 118.6–152.7 | 117.2–154.1 | 116.7–152.2 | (m) signals from protons of aromatic rings |

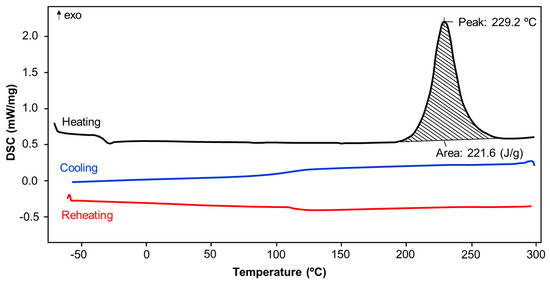

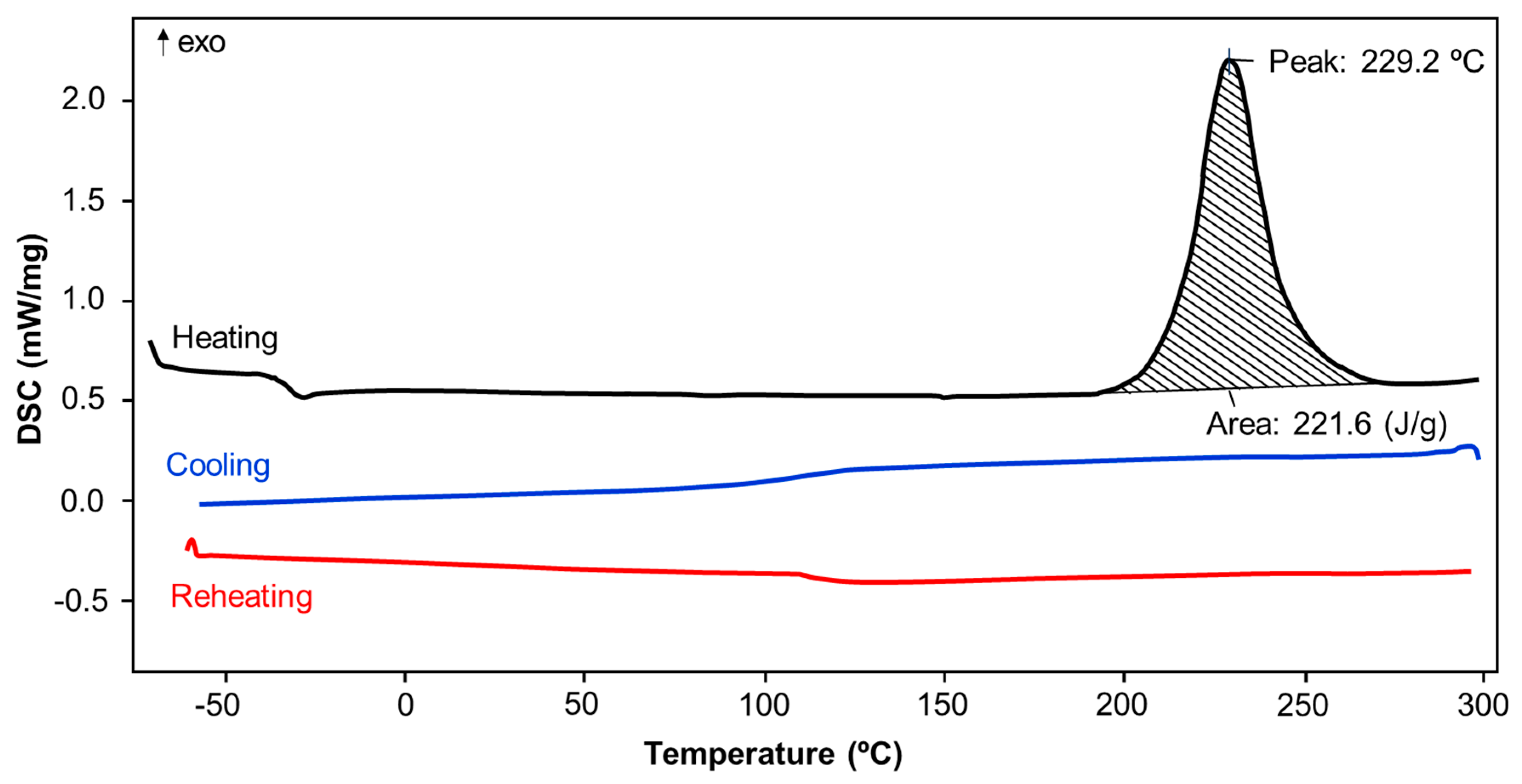

Analyzed Benzoxazine | Characteristic Heat Effect | |||||
---|---|---|---|---|---|---|
oC-A | mC-A | pC-A | oC-pT | mC-pT | pC-pT | |
240 | 209 | 210 | 235 | 238 | 202 | Onset temperature (°C) |
256 | 222 | 229 | 256 | 247 | 224 | Maximum peak temperature (°C) |
155.1 | 287.8 | 221.6 | 143.2 | 272.4 | 216.7 | Polymerization enthalpy (J/g) |

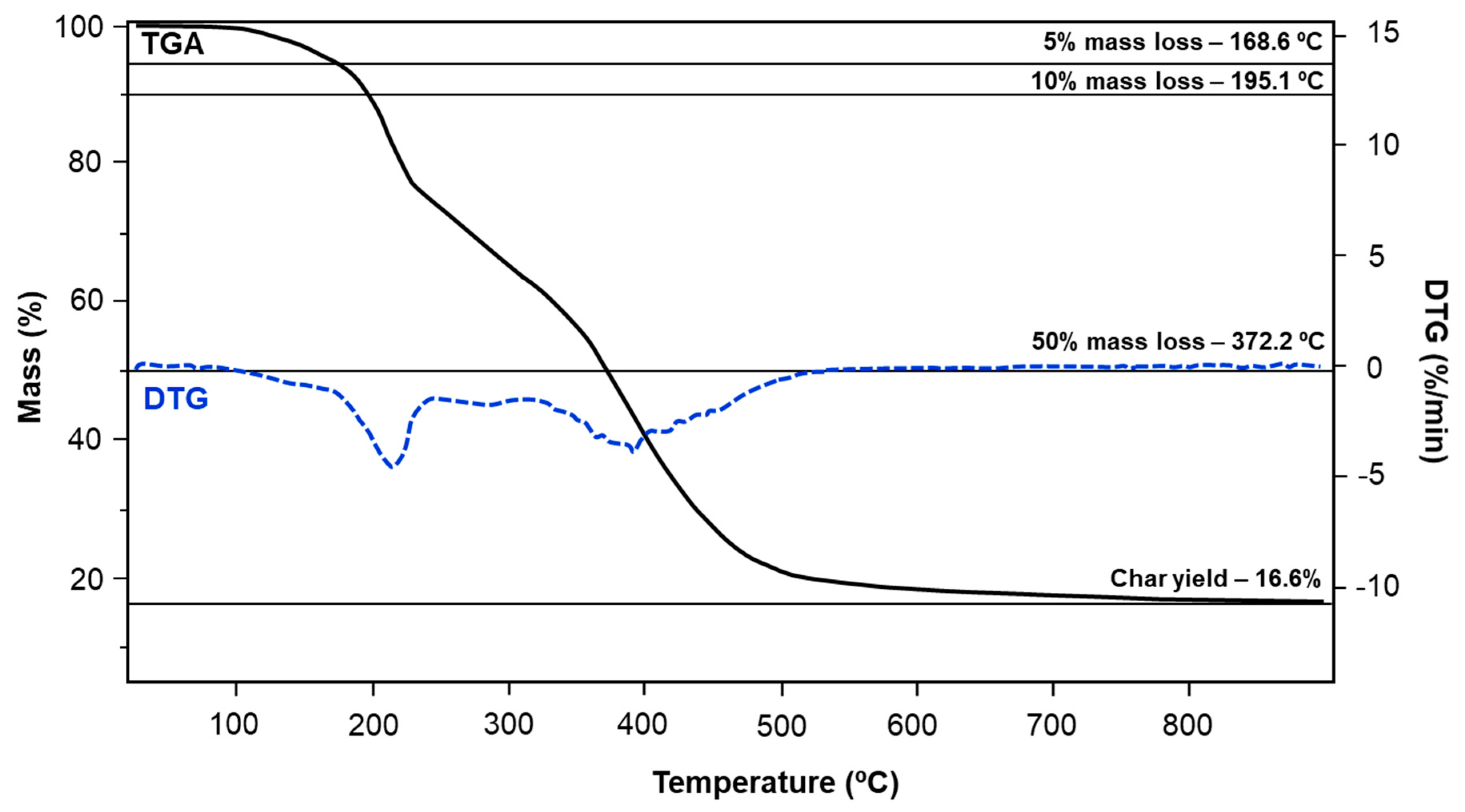

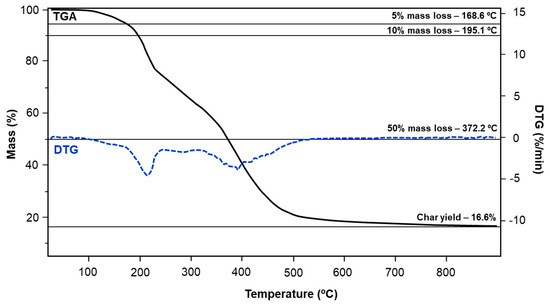

TGA Characteristic Temperatures of Benzoxazines | Specific Stages of TGA Analysis | |||||
---|---|---|---|---|---|---|
oC-A | mC-A | pC-A | oC-pT | mC-pT | pC-pT | |
166.1 | 156.0 | 168.6 | 147.8 | 189.4 | 145.4 | 5% mass loss (°C) |
192.3 | 194.5 | 195.1 | 187.7 | 208.8 | 180.7 | 10% mass loss (°C) |
243.7 | 378.7 | 372.2 | 240.1 | 380.4 | 342.5 | 50% mass loss (°C) |
10.5 | 21.2 | 16.6 | 8.4 | 18.8 | 10.9 | Char yield (900 °C) (%) |
oC-A | mC-A | pC-A | oC-pT | mC-pT | pC-pT | Resole (180 °C) | |
---|---|---|---|---|---|---|---|
Total VOC (mass %) | 4.0 ± 0.3 | 6.9 ± 0.4 | 4.1 ± 0.4 | 3.9 ± 0.2 | 2.9 ± 0.5 | 3.9 ± 0.3 | 12.7 ± 0.6 |
Sample | V (g/min) | V (mm/min) | MRR (g/min) | |||
---|---|---|---|---|---|---|
Value | ± | Value | ± | Value | ± | |
oC-A | 6.14 | 1.77 | 15.42 | 4.24 | 0.11 | 0.03 |
mC-A | 2.26 | 0.73 | 5.72 | 3.38 | 0.17 | 0.02 |
pC-A | 5.06 | 0.83 | 13.56 | 2.38 | 0.14 | 0.01 |
oC-pT | unable to test because of too brittle sample | |||||
mC-pT | unable to test because of too brittle sample | |||||
pC-pT | unable to test because of too brittle sample | |||||
Reference sample | 0.71 | 0.02 | 4.86 | 0.77 | 0.22 | 0.04 |
