Materials 2017, 10(10), 1205; https://doi.org/10.3390/ma10101205

Article
Nucleation/Growth Mechanisms and Morphological Evolution of Porous MnO2 Coating Deposited on Graphite for Supercapacitor
School of Materials Engineering, Shanghai University of Engineering Science, Shanghai 201620, China
*
Author to whom correspondence should be addressed.
Received: 6 September 2017 / Accepted: 16 October 2017 / Published: 19 October 2017

Abstract

:
The nucleation and growth mechanisms of porous MnO2 coating deposited on graphite in MnSO4 solution were investigated in detail by cyclic voltammetry, chronoamperometry and scanning electron microscopy. The electrochemical properties of honeycomb-like MnO2 were evaluated by cycle voltammetry and galvanostatic charge-discharge. Results indicated that MnO2 was synthesized by the following steps: M n 2 + M n 3 + + e , M n 3 + + 2 H 2 O M n O O H + 3 H + , and M n O O H M n O 2 + H + + e . The deposition of MnO2 was divided into four stages. A short incubation period (approximately 1.5 s) was observed, prior to nucleation. The decreasing trend of the current slowed as time increased due to nucleation and MnO2 growth in the second stage. A huge number of nuclei were formed by instantaneous nucleation, and these nuclei grew and connected with one another at an exceedingly short time (0.5 s). In the third stage, the gaps in-between initial graphite flakes were filled with MnO2 until the morphology of the flakes gradually became similar to that of the MnO2-deposited layer. In the fourth stage, the graphite electrode was covered completely with a thick and dense layer of MnO2 deposits. All MnO2 electrodes at different deposition times obtained nearly the same specific capacitance of approximately 186 F/g, thus indicating that the specific capacitance of the electrodes is not related with deposition time.
Keywords:
MnO2; coating; electrodeposition; nucleation and growth; morphological evolution

1. Introduction

The supercapacitor, which is a new type of energy storage device that lies between traditional capacitors and batteries, has caused increasing concern due to its high power density, long cycle life, and wide operating temperature. Supercapacitors can be divided into two types according to storage mechanism: electric double layer capacitors and Faraday pseudocapacitors. Faraday pseudocapacitors have higher theoretical capacitance than double-layer capacitors [1]. Many electrode materials are utilized in supercapacitors, such as carbon [2,3,4], conducting polymers [5,6,7], and metal oxides [8,9,10,11]. MnO2 is one of the most attractive metal oxide electrode materials because of its abundance, low cost, environmental friendliness, and high theoretical capacitance of approximately 1380 F/g [12,13,14,15].
MnO2 is prepared by many techniques such as sol-gel [16,17], hydrothermal synthesis [18], precipitation [19], electrodeposition [20,21,22], and other methods [23]. MnO2 is synthesized in the form of powder except through electrodeposition and thus cannot be directly used as electrodes unless mixed with conductive materials (carbon black or acetylene black) and binders (polytetrafluoroethylene) in certain proportions [16,18]. A small amount of water or ethanol may be added to attain a homogenous mixture. Then, the rubber-like mixture is rolled into a film or a thin sheet or directly pressed onto a substrate, such as nickel foam, titanium mesh and stainless steel grid. Reddy et al. [16] synthesized MnO2 powder by sol-gel, in which the powder was mixed with carbon black (23 wt.%) and PTFE (polytetrafluoroethylene) binder (9 wt.%) before being mounted on Ti mesh to obtain the electrode. Their cyclic voltammetry (CV) test indicated that the maximum specific capacitance of the electrode was 130 F/g. Xu et al. [18] prepared α-MnO2 hollow spheres and hollow urchins via a simple hydrothermal process. The electrodes were fabricated by pressing mixtures containing MnO2 powder, acetylene black (15 wt.%), PTFE (5 wt.%), and distilled water onto nickel foams. The charge−discharge measurement showed that the largest specific capacitance of these electrodes was 167 F/g. Toupin et al. [19] synthesized α-MnO2 by coprecipitation. The paste was formed by mixing as-synthesized MnO2 powder (80 wt.%), acetylene black (7.5 wt.%), graphite (7.5 wt.%), PTFE (5 wt.%), and ethanol and pressing this mixture onto stainless steel grids to obtain the MnO2 electrodes. The average specific capacitance value of these electrodes was 166 F/g, as determined by CV. The abovementioned routes for MnO2 electrode preparation are comparatively complicated, comprising at least three steps, namely, MnO2 synthesis, paste preparation, and electrode assembly. Moreover, additives decrease electrode conductivity [20], and the repeatability of electrodes under these methods is difficult to control. These issues can be solved by electrodeposition. MnO2 electrodes can be obtained by directly depositing MnO2 onto substrates without conductive binder. Moreover, the applied current or potential or other parameters can be adjusted to precisely control the mass and morphology of the deposit layer, thereby enhancing the electrochemical properties of the electrode. Thus, electrodeposition has been widely used for MnO2 electrode acquisition. Chou et al. [24] obtained MnO2 electrodes by electrodepositing MnO2 nanowires onto a carbon nanotube paper, and a charge–discharge test showed that their specific capacitance was as high as 167.5 F/g. Babakhani et al. [25] prepared porous MnO2 with 1–1.5 μm diameter rods on pieces of Au-coated Si in dilute solution (0.01 M MnSO4 and 0.01 M Mn (CH3COO)2) via anodic deposition. The largest specific capacitance value of these MnO2 electrodes was nearly 185 F/g by CV. Aghazad et al. [26] synthesized MnO2 on a steel substrate in Mn(NO3)2 6H2O via cathodic electrodeposition; the capacitive behavior was excellent such that specific capacitance was as high as 235.5 F/g. Present investigations on MnO2 electrodes prepared by electrodeposition focus on the influence of deposition parameters (e.g., electrolyte composition, pH value, deposition time and overpotential) on electrochemical performance. Only a few studies have investigated the nucleation and growth mechanisms of MnO2 deposits [1,27]. However, a clear understanding of these mechanisms offers theoretical guidance that can optimize deposition parameters, thereby improving electrochemical performance.
In this study, porous MnO2 coatings were prepared on a graphite flake with MnSO4 electrolytes by potentiostatic deposition. The effect of deposition time on specific capacitance was investigated in Na2SO4 aqueous solution by CV and galvanostatic charge/discharge. The electrochemical oxidation process, nucleation/growth mechanism and morphological evolution of MnO2 were determined by CV, chronoamperometry and scanning electron microscopy (SEM).

2. Experimental

In this work, MnO2 was deposited directly onto a graphite flake (Beijing Electrical Carbon Factory, Beijing, China). These substrates (25 mm height, 10 mm width and 1 mm thickness) were degreased with acetone solution in an ultrasonic bath, and then placed in 0.1 M HCl solution at room temperature for 10 min. The graphite substrates were rinsed several times with deionized water and dried at room temperature. Finally, the substrates were weighted using a Sartorius BSA124S electronic balance (0.1 mg, Sartorius, Beijing, China).
The oxidation of Mn2+ in 0.14 M MnSO4 solution was investigated by CV on an electrochemical workstation system (CHI 660E) with a conventional three−electrode system at room temperature. A pretreated graphite flake and another that is larger than the pretreated one (25 mm height, 20 mm width and 1 mm thickness) were used as the working and the counter electrodes, respectively. The two electrodes (10 mm height) were immersed into the solution, between which a 15 mm distance was controlled. A saturated calomel electrode (SCE) was used as the reference electrode. The potential was swept from −0.2 V to 1.8 V and decreased to −0.2 V at a rate of 10 mV/s. Chronoamperometry was applied on the basis of the CV results to investigate the nucleation/growth mechanisms of MnO2 at certain appropriate potentials (1.3 V to 2.0 V) for 60 s.
To clearly observe the morphological evolution of MnO2 at different times, it was deposited at different times (0 s to 10 min) at a potential of 2.0 V. Then, the morphologies of MnO2 were studied by a Hitachi SU8010 SEM (Hitachi Limited, Tokyo, Japan). The phase constituents of the products deposited at 2 s and 10 min were identified using a PANalytical X’ Pert Pro X-ray diffractometer (XRD, PANalytical, Eindhoven, The Netherlands) with Cu Kα radiation (λ = 0.1540560 nm). X-ray photoelectron spectroscopy (XPS, Shimadzu/Kratos, Kyoto, Japan) was used to identify the chemical states of the elements in the products deposited at different times (2, 5, 8, 9, 20, 30, 40, and 60 s) at a potential of 2 V. XPS spectra were acquired with a Kratos Axis Ultra spectrometer using a monochromatic Al Kα source. The energy step sizes of 1 and 0.1 eV were selected for the survey and narrow-scan spectra, respectively. The binding energy scale was calibrated according to the C1s peak (at 284.8 eV) for the adventitious carbon on the analyzed sample surface.
The MnO2 electrodes that required electrochemical testing were weighted again after electrodeposition. The weight of graphite was subtracted to obtain the weight of MnO2. The electrochemical properties of the MnO2 deposited at different times (1, 2, 5, and 10 min) and those of the graphite without MnO2 were evaluated by CV and galvanostatic charge–discharge on an electrochemical workstation (CHI 600E, CH Instruments Ins, Shanghai, China). A 0.5 M Na2SO4 aqueous solution was selected as the supporting electrolyte. The scanning potential of CV ranged from −0.2 V to 0.8 V at a scan rate of 5 mV/s. Galvanostatic charge–discharge was performed in the potential range of −0.2 V to 0.8 V at a current density of 1 A/g.

3. Results and Discussion

3.1. Synthesis of MnO2

Figure 1 shows typical CV curves with two pairs of redox peaks on a graphite flake working electrode in 0.14 M MnSO4 solution at varying scan rates of 5, 10, and 20 mV/s. When the scan rate is raised from 5 mV/s to 20 mV/s, the oxidation peaks move to a high oxidation potential and the reduction peaks are at the low potentials because oxidation and reduction processes deviate from the equilibrium state with increasing scan rate. During oxidation scanning, two oxidation peaks are observed. The first peak, which is at 0.5 V to 0.6 V is not noticeable; however, the second peak, which has a peak potential of approximately 1.2 V to 1.6 V is remarkably clear, thus indicating that the electrodeposition of MnO2 undergoes two oxidation processes. First, Mn2+ is oxidized to Mn3+ as described in reaction (1), which has been confirmed by previous studies [1,27,28]. Subsequently, Mn3+ is transformed into MnO2 by two paths (Figure 2), the choice of which is closely related to the acidic concentration in the electrolyte. Metastable Mn3+ ions are changed into MnOOH by reaction (2) in path 1 and precipitated on the electrode surface. Consequently, a porous layer composed of the intermediate MnOOH forms on the electrode surface. As an electronically resistive layer, MnOOH retards the diffusion of Mn2+ toward the electrode surface, which determines the deposition rate of MnO2. Then, MnOOH is oxidized to MnO2 by reaction (3) in path 1. Being in a highly concentrated acidic electrolyte, Mn3+ is stable and has sufficient time to exist and react with another Mn3+ to form Mn2+ and Mn4+ by reaction (2) in path 2. Then, MnO2 can then be rapidly formed on the electrode surface by the hydrolysis reaction of Mn4+ (reaction (3) in path 2). The two formation mechanisms of MnO2 appear different; however, they may perform mutually to result in the formation of MnO2. With the increase in acidic concentration, MnO2 prefers to be formed by path 2. The MnSO4 solution used in this experiment is low−concentration acidic electrolyte. Therefore, hydrolysis (path 1) dominates the formation of MnO2 with an accompanying disproportionation reaction (path 2).
During reduction scanning, the first reduction peak is less pronounced than the second and appears at approximately 1.45 V to 1.5 V; the second peak, which is sharper than the first, is at 0.4 V to 0.7 V. These two reduction peaks are attributed to the reduction of the deposited MnO2 to intermediate product MnOOH and that of MnOOH to soluble Mn2+ ions, which can be described by Equations (1) and (2).
M n O 2 + H + + e M n O O H ,
M n O O H + 3 H + + e M n 2 + + 2 H 2 O ,

3.2. Nucleation and Growth Mechanism

Chronoamperometry was conducted to explore the nucleation and growth mechanisms of MnO2 at different step potentials during the initial electrodeposition stage (60 s). As shown in Figure 3, a transient current is generated when the potential of 1.3 V is applied. Subsequently, the reaction is controlled by the diffusion of active ions because the electroactive species around the electrode are consumed rapidly over time. Consequently, the current gradually decrease over time. This declining trend of the current divides the process into four stages. The current drops sharply in the first stage (t < 1.5 s). In this stage, a large number of ions migrates toward the electrode and participates in the reaction occurring on the electrode surface, thereby seriously diluting active species. The current subject of the diffusion control drops quickly. Then the current significantly deviates from the original downward trend and decreases slowly overtime in the second stage (1.5 s < t < 13 s). Even a slight bump on this curve can be observed in this stage, especially at a high potential. The change in the second stage demonstrates the characteristics of the nucleation and growth of a new phase. As shown in Figure 1, MnO2 can be deposited at a potential of approximately 1.3 V. The increases in surface area of the electrode that arise from the nucleation and growth of MnO2 cause the increase in current. However, this resulting increase in current cannot compensate for the reduction in current caused by the diffusion control. Therefore, the current still decreases with time. Meanwhile, the surface area of the electrode, which increases slowly and tends to be stable, prolongs the time. The diffusion control dominates over the electrode reaction, thus causing the rapid decrease in current (t > 13 s) in the third stage. When the potential exceeds 1.5 V, a fourth stage can be observed, in which the current maintains an invariable value. It is closely related to the low conductivity of MnO2, as analyzed in the succeeding section.
Under planar, semi−infinite diffusion limited conditions, the relationship between current and time can be described by a Cottrell equation [29] as follows:
i t = n F A D 1 / 2 C ( π t ) 1 / 2 ,
where it is the current under the diffusion-controlled process (A), n is the number of electrons transferred in the redox reaction, F is the Faraday constant, A is the surface area of the electrode (m2), D is the diffusion coefficient (m2/s), and C is the Mn2+ concentration in the bulk electrolyte (mol/m3).
In this system, n, F, D, and C are intrinsic parameters that are fixed in the response of current with time. However, the surface area (A) may change due to the nucleation, growth and connection of nuclei. In the first stage, the effect of the oxidation of Mn2+ to MnO2 on the surface area of the electrode is assumed to be negligible due to the short reaction time (<1.5 s). A can also be considered a constant. On the basis of these assumptions, the data obtained in the first stage are fitted into a curve, which can be precisely expressed by a Cottrell equation. Similarly, the data obtained in the third stage are also expressed by a Cottrell equation. The data obtained at the potentials of 1.3 V and 2.0 V are selected to describe the fitting process. As shown in Figure 4 and Figure 5, the fitting results are as follows:
  • The potential is 1.3 V:
  • The first stage (Fitting curve 1): i t   =   0.01298 t 1 / 2 , n F A D 1 / 2 C π = 0.01298
  • The third stage (Fitting curve 2): i t = 0.05658 t 1 / 2 , n F A D 1 / 2 C π = 0.05658
  • The potential is 2.0 V:
  • The first stage (Fitting curve 1): i t   =   0.02928 t 1 / 2 , n F A D 1 / 2 C π = 0.02928
  • The third stage (Fitting curve 2):   i t = 0.1911 t 1 / 2 , n F A D 1 / 2 C π = 0.1911
The experiment data are in good agreement with a Cottrell equation. Except A, the parameters remain constant throughout the deposition in the first and third stages. Therefore the ratio of the two coefficients in the two equations can reflect the change in active surface area. As shown in Table 1, the surface area of the electrode shows a threefold increase after the deposition of MnO2, thus indicating that a porous MnO2 layer is formed on the surface of the electrode. The porous layer with large surface area contributes to the enhancement of the charge storage.
With the increase in step voltage, some noticeable changes can be observed. (i) The curves in the second stage demonstrate an increasingly upward trend, and the duration is shortened; (ii) The decline in current is intensified with time in the third stage, and the duration is also shortened; (iii) When the applied potential is higher than 1.5 V, the fourth stage, in which the current maintains a constant value, can be clearly observed.
The deposition rate strongly depends on the potential. An increase in potential enhances the nucleation and growth rate. Therefore, the characteristics of nucleation and growth in the second stage become increasingly apparent with increasing potential. The increased nucleation and growth rate mean that a big surface area can be obtained in a short time. The increased deposition rate accelerates the reduction in surface area that results from the connection of nuclei. Moreover, the reaction is controlled by the diffusion of active species around the electrode. The combined effects of the above mentioned factors cause a violent decline in current with increasing potential. Over time, a layer of MnO2 with a comparatively stable surface area forms on the electrode surface, thus shielding the entire electrode surface and reducing the drive force for the migration and oxidation of Mn2+ with its poor electronic conductivity. That is, the reaction is not controlled by the diffusion of ions. Consequently, the current tends to be stable. The duration in the third stage is closely related to the final surface area of MnO2. The denser the formed MnO2, the shorter the duration of the third stage. As shown in Table 1, the active area ratios before and after the deposition of MnO2 decreases with increasing potential, thereby indicating that denser MnO2 forms at higher potentials. This finding explains the shortened duration with increasing potential in the third stage.
Instantaneous nucleation and progressive nucleation are the two significant nucleation processes. In the instantaneous process, nuclei are formed at nearly the same time and the growth of nuclei is dominant in the subsequent reactions. In progressive nucleation, nuclei are constantly formed not only on the substrate surface but also on previously formed nuclei during the entire deposition, accompanied with the sustained growth of nuclei. Instantaneous nucleation achieves better crystalline quality than progressive nucleation [30]. Hills deduced two equations about the relationship between current and time for judging the nucleation process on the surface of the electrode.
For instantaneous nucleation:
i ( t ) = z F N o π ( 2 D C ) 3 / 2 M 1 / 2 ρ 1 / 2 t 1 / 2 ,
for progressive nucleation:
i ( t ) = 2 z F K n N o π ( 2 D C ) 3 / 2 M 1 / 2 3 ρ 1 / 2 t 3 / 2 ,
where z is the valence number, N0 is the initial nucleation number, D is the diffusion coefficient for the deposited ions (cm2/s), C is the bulk concentration of the deposited ions (mol/cm3), M is the atomic weight of the deposits (g/mol), ρ is the density of the deposits (g/cm3), Kn is the nucleation constant, i(t) is the corresponding current when time is t (A), and t is the polarization time (s).
The above equations show that the current exhibits a linear relationship with t1/2 and t3/2 under instantaneous nucleation and progressive nucleation, respectively (Figure 6 and Figure 7, respectively). The experiment data in the second stage (Figure 3) are selected for exploring the nucleation mechanism. The results indicate that good linearity can be obtained in i versus t1/2 and t3/2 at all potentials. However, the theoretical curves cannot be plotted because many parameters, such as N0 and C, in Equations (4) and (5) cannot be obtained. Consequently, the nucleation mechanism cannot be confirmed precisely by comparing the theoretical and experimental curves.
Scharifker–Hills (SH) model was used to investigate the nuclear mechanism as parameters can be crossed out effectively by normalizing i and t to the peak current im and peak time tm, respectively.
For instantaneous nucleation:
( i / i m ) 2 = 1.9542 t / t m { 1 exp [ 1.2564 ( t / t m ) ] } 2 ,
For progressive nucleation:
( i / i m ) 2 = 1.2254 t / t m { 1 exp [ 2.3367 ( t / t m ) ] } 2 ,
A short incubation time (t0) occurs prior to nucleation, thus possibly interfering with the theoretical curve. Thus, t0 is subtracted to obtain correct the normalization curve, and t and tm are redefined by   t = t t 0 and t m = t m t 0 . The two theoretical curves for instantaneous and progressive nucleation and the eight experimental curves for the different potentials are shown in Figure 8. Experimental data obtained in the second stage seriously deviate from the theoretical curves due to factors that are mainly connected to the change in current over time. As shown in Figure 3, the current slowly increases with time and no obvious current peaks are apparent at the second stage. These findings might have resulted from the low potential, low Mn2+ concentration and weak MnO2 conductivity. Data obtained in the third stage agree with the instantaneous nucleation model. Results further indicate that instantaneous nucleation dominates the MnO2 nucleation process.

3.3. Morphological Evolution of MnO2

Chronoamperometry was used to indirectly investigate MnO2 nucleation and growth, in particular, by analyzing current–time response at different potentials. To fully understand the deposition process, SEM was used to observe the morphological evolution of MnO2 deposited at 2 V at different times. On the basis of the analysis of the chronoamperometry data, SEM images are also divided into three groups corresponding to three stages. Figure 9 shows the morphologies of the deposited MnO2 in the initial stages (0, 2 and 5 s). Prior to MnO2 deposition, the initial graphite electrode comprises several flakes in different directions (Figure 9(a1)). Many gaps can be observed clearly among them, and the whole surface looks rough. White patterns are found on the surfaces of the flakes in high-resolution SEM images, thus revealing that the surfaces of the flakes are not level (Figure 9(a2)). These morphological characteristics contribute to the heterogeneous nucleation due to the high specific surface area. When the deposition time is set to 2 s, the morphology of the electrode is similar to that before the deposition (Figure 9(b1)). However, a thin and dense layer of deposits can be found on the surfaces of the flakes upon close examination. Except for a few scattered zones with a radius of approximately 50 nm, the zones are nearly covered with the deposits. CV and chronoamperometry data confirm that the deposits are MnO2. Figure 9(b2) further reveals that the deposits comprise fine equiaxed grains with a size of approximately 20 nm. Moreover, the grain boundaries look brighter than the grains, resulting in the formation of a honeycomb-like structure. According to imaging theory of secondary electron, the grain boundaries protrude from the surface of the deposited layer.
Chronoamperometry results indicate that nucleation occurs at approximately 1.5 s (Figure 3). Then, nuclei grow and connect over time, thus finally resulting in the formation of a dense layer of MnO2. However, the two above steps are completed in a short time (approximately 0.5 s) in this experiment (Figure 9(b2)). A large number of nuclei is formed in nearly every zone of all the graphite flakes exposed to the electrolyte due to the rough surfaces of those flakes (Figure 9(a2)). These nuclei are expected to grow omnidirectionally along the three-dimensional directions parallel and perpendicular to the flake surface. The number of nuclei is too large, thereby reducing the space for lateral growth. After an exceedingly short time, the lateral growth is stopped as the grains are connected with one another, thus resulting in the formation of a dense layer of MnO2. Then, the vertical growth of grains becomes predominant. Compared with the grains, grain boundaries are preferred growth sites due to their high energy. Consequently, flaky MnO2 with honeycomb-like structure grows along the grain boundaries. However, the grain boundaries will not always grow in preference to the grains. If the grain boundaries lengthen, the electronic resistance between growth sites and substrate will be increased in the vertical direction due to the poor electronic conductivity of MnO2. This increased resistance causes a reduction in the overpotential on the grain boundaries. The deposition rate of MnO2 in the grain boundaries will be gradually reduced to even less than that of the grains over time. Depending on the interplay of the two changes in energy for MnO2 growth and electronic conductivity of MnO2, grains and grain boundaries compete with each other, thus resulting in an increasing quantity of MnO2 deposited on the electrode. As shown in Figure 9(c1), the morphology of the electrode after 5 s is significantly different from those (0 and 2 s). Many gaps that formed on the original graphite flakes are now filled with MnO2 such that the entire surface looks relatively leveled. Moreover, compared with the other zones, the edges of the graphite sheets are covered with a thicker layer of MnO2 due to the edge effect. The charge density on the electrode edge is higher than that in the other zones and is proportional to the electric field strength. Therefore, an increasing number of particles tends to be deposited around the electrode edge under a strong electric field. During the deposition, the growth rates in different zones vary. Some zones with high growth rates become spherical particles, which may connect with one another, thus forming strip-like particles.
Two durations (8 and 9 s) are selected for the deposition of MnO2 in the third stage (Figure 4). In Figure 10, the gaps among the graphite flakes are less and the surface is more leveled than those in Figure 9(c1). The initial surface is barely distinguishable, especially at 9 s, when the electrode has been thoroughly covered with a thick layer of MnO2. Meanwhile, a large number of spherical particles and elongated strips can still be seen (Figure 10(a2,b2)).
When the deposition time is further prolonged in the fourth stage, the morphology of MnO2 exhibits a significant change (Figure 11). Certain spherical and strip-like particles further connect with one another to form big block-like particles. New gaps begin to form among different particles due to their different growth rates. With increased deposition time, the ions in the electrolyte become difficult to diffuse into the gaps, thus accelerating the formation of gaps. Meanwhile, fine particles may be swallowed by coarse particles. The morphology of the electrode exhibits nearly no change at 20, 30 and 40 s.
Observation of the MnO2 deposited at different times can reasonably explain the change in current with time (Figure 3). No evident current peaks are observed in the second stage, and this finding is attributed to the instantaneous nucleation and initial morphological characteristic of the electrode. Numerous nuclei form on the rough surfaces of the graphite flakes and connect with one another in an exceedingly short time, thus leaving insufficient time for the current to respond. Meanwhile, MnO2 has poor electronic conductivity, thereby reducing the deposition rate and prevents the current from increasing. With increased deposition time, many gas among the flakes are filled with MnO2, thereby significantly reducing the areas. The current is decreased correspondingly at the third stage. The increase in electronic conductivity of the deposited layer further restrains the current. The surface area in the third stage does not significantly change due to the gaps in the original graphite flakes filled with MnO2 deposits. When the electrode is covered with a thick layer of MnO2 with high electronic resistance, the deposition rate is significantly decreased and the process is not controlled by the diffusion of ions. The current remains nearly constant in the fourth stage.
When the deposition potential is constant, the deposition process of MnO2 (including nucleation and growth) changes constantly with the deposition time due to the changes in the deposition environment around the substrate (including deposit thickness, pH, and concentration of active Mn2+). The thicker the deposit layer, the lower the deposition rate, which results from the poor conductivity of MnO2. The concentration polarization resulting from the depletion of Mn2+ around the graphite substrate can also lead to a decrease in deposition rate. Besides the two factors, pH is the other significant factor that affects the deposition process of MnO2. According to the synthetic paths of MnO2 (Figure 2), a large number of H+ is generated during the formation of MnO2. Therefore, a low concentration of H+ (higher pH) is beneficial to producing MnO2. High pH values will result in the formation of a large number of nuclei, thereby causing an increasing size of substrate surface zone to be covered by MnO2. That is, a continuous coating is expected at high pH values. However, an increasing quantity of H+ is generated and rich in the solution close to the substrate surface with increasing deposition time, thus inhibiting the formation and decreasing the deposition rate of MnO2. Moreover, pH value is closely related to the electrostatic interaction between the graphite substrate and MnO2, which also has a non–negligible effect on the deposition process [31]. The iso−electric point of graphite is approximately 5.0 [32], whereas that of MnO2 is approximately 3.6 [33], which means that MnO2 precipitates more easily on the surface of the graphite substrate when the pH value of the solution ranges from 3.6 to 5.0. Prior to the deposition of MnO2, the pH value of the solution is approximately 3.2. The pH value further decreases along the deposition of MnO2 due to the increase in concentration of H+. That is, a repulsive force nearly appears between the graphite substrate and MnO2 during deposition. Compared with the driving force resulting from the overpotential applied to the graphite substrate, the repulsive force is low enough for MnO2 to still be deposited.

3.4. XRD and XPS Results

Figure 12 shows the XRD patterns of the graphite substrate when bare and when covered with MnO2 deposited at maximum and minimum deposition times (2 s and 10 min). The patterns of the three samples are similar. Five strong diffraction peaks associated with the graphite substrate (JCPDS card no. 00-001-0640) can be clearly seen, thus indicating that the graphite from the substrate is the main phase before and after the deposition of MnO2. When the deposition time is short (2 s), MnO2 cannot be detected from the pattern. When the time is increased to 10 min, a broadened peak with low intensity can be observed at approximately 37° (marked by arrows). The weak peak can be identified from the contribution of the deposited MnO2 [34].
XPS was used to identify the deposit formed on the electrode surface. The XPS survey spectrum of the deposit (60 s) (Figure 13) shows that the deposit is mainly composed of three elements (Mn, O, C). C may be coming from the substrate, and the deposit can be confirmed as MnO2. Narrow spectrum was also conducted to determine the chemical valence state of Mn in the deposit. Figure 13 also shows that all Mn2p spectra consist of two strong peaks, corresponding to Mn2p3/2 and Mn2p1/2 with bonding energies of 642.2 eV and 653.8 eV, respectively. They are agree with those of Mn4+ in MnO2, thus suggesting that Mn2+ ions in the electrolyte are oxidized into MnO2 during deposition.
In addition, the XPS spectra of the deposits at different deposition times (2, 5, 8, 9, 20, 30, 40, and 60 s) were tested (Figure 14). Two strong peaks can be clearly seen in each spectrum, and their bonding energies exhibit nearly no change with the increase in deposition time. The analysis of the bonding energies of Mn2p3/2 and Mn2p1/2, proves the existence of MnO2, thereby indicating that the phase constituents of the deposits do not change with increasing deposition time. It can be also found that MnO2 was deposited on the graphite substrate by the instantaneous nucleation model in an extremely short time (2 s).

3.5. Electrochemical Performance

Figure 15 shows the CV curves of the graphite and the MnO2 electrode at different deposition times (1, 2, 5, and 10 min) in a potential range of −0.2 V to 0.8 V. The CV curve of the graphite is nearly an overlapping line whose integral area can be negligible and shows that the capacitance of graphite is small. The other CV profiles are nearly overlapping and present a rectangular shape with good symmetry. A pair of redox peaks are hardly noticeable in each CV curve. The current is nearly constant with the increase in potential, thus suggesting that the MnO2 electrode is charged and discharged at a constant rate. Moreover, both ends of the curves show that the current rises or decreases nearly instantaneously when the scanning direction is changed, thereby indicating that the charging and discharging processes present good dynamic reversibility. These characteristics indicate that all MnO2 electrodes demonstrate an ideal capacitive behavior. As pseudocapacitive electrodes, the MnO2 electrodes exhibit the pseudocapacitive behavior resulting from the surface redox reaction as described in Equation (8) [26,35].
M n O 2 + X + + e M n O O X + ,
where X+ represents H+ or Na+ in the supporting electrolyte. The intercalation and deintercalation of X+ are accompanied by the reduction and oxidation, respectively.
The specific capacitance values can be calculated by integrating the area of the CV curves as follows:
C = 1 m v ( V ) V a V c I ( V ) d V ,
where C is the specific capacitance (F/g), ΔV is the potential range, m is the mass of MnO2 (g), v is the scan rate (V/s), and I(V) is the current response.
The specific capacitance values of 187, 184, 189 and 184 F/g were calculated using Equation (9) at the deposition times of 1, 2, 5, and 10 min, respectively, thus indicating that MnO2-based electrodes have good supercapacitive behavior. Notably, the capacitance values of these MnO2 electrodes are nearly identical. As analyzed above, the deposition rate of MnO2 is low due to the high electric resistance of the thick layer of MnO2, which has poor conductivity. The deposition mass does not significantly change at the four deposition times. Moreover, the morphologies of the MnO2 deposited at the four deposition times are also similar. Therefore, their specific capacitances are approximately the same.
The specific capacitances of these MnO2 electrodes were measured by galvanostatic charge–discharge. As shown in Figure 16, the four charge–discharge curves at the different deposition times exhibit a typical symmetrical triangular shape, thus indicating that the MnO2 electrodes possess good charge−discharge performance and the reversibility.
The specific capacitance values can be calculated as follows:
C = I × t m × V
where I is the applied constant current (A), m is the mass of MnO2, ΔV is the potential window during cycling and Δt is the time of cycle (s).
The specific capacitance values of the different deposition times are 179, 167, 177 and 169 F/g, which suggest the same regularity as that of the result of CV.

4. Conclusions

  • MnO2 was deposited on flaky graphite by electrochemical oxidation in 0.14 M MnSO4. The reaction process could be divided into three steps: M n 2 + M n 3 + + e ; M n 3 + + 2 H 2 O M n O O H + 3 H + ; and M n O O H M n O 2 + H + + e .
  • The deposition of MnO2 proceeded in four stages, as shown by chronoamperometry and SEM observations. After a very short incubation time of approximately 1.5 s (the first stage), a large number of nuclei formed on nearly all graphite flakes by instantaneous nucleation, grew, and connected with one another in a remarkably short time of 0.5 s. MnO2 with a grain size of approximately 20 nm showed a honeycomb-like morphology. As grain boundaries and grains grew coordinately, spherical and strip-like particles formed on some zones, especially on the edges of flakes. The initial morphology of the graphite was still maintained in the second stage. Additional MnO2 was deposited on the graphite surface in the third stage, thus making the initial morphology of the graphite hardly distinguishable. The graphite was completely covered with a thick and dense layer of MnO2 with stable morphology in the fourth stage.
  • Finally, the layer of honeycomb-like MnO2 with large surface area (approximately four times that of the electrode before the deposition) possessed a high specific capacitance (CV: approximately 186 F/g; galvanostatic charge–discharge: approximately 173 F/g. In addition, the specific capacitance had no relationship with the deposition time.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China, China (51471105), “Shu Guang” project of Shanghai Municipal Education Commission and Shanghai Education Development Foundation (12SG44) and “Graduate Innovation” Project of Shanghai University of Engineering Science (16KY0509).

Author Contributions

Jun Li, Wenxin Huang and Yunhe Xu conceived and designed the experiments; Wenxin Huang performed the experiments; Wenxin Huang analyzed the data; and Jun Li and Wenxin Huang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Clark, M.; Ivey, D.G. Nucleation and growth of electrodeposited Mn oxide rods for supercapacitor electrodes. Nanotechnology 2015, 26, 1–9. [Google Scholar] [CrossRef] [PubMed]
  2. Hulicova, D.; Yamashita, J.; Soneda, Y.; Hatori, A.H.; Kodama, M. Supercapacitorsprepared from melamine-based Carbon. Chem. Mater. 2005, 17, 1241–1247. [Google Scholar] [CrossRef]
  3. Yoon, S.; Lee, J.; Hyeon, T.; Oh, S.M. Electric double-layer capacitor performance of a new mesoporous carbon. J. Electrochem. Soc. 2000, 147, 2507–2512. [Google Scholar] [CrossRef]
  4. Zhang, Y.; Sun, X.; Pan, L.; Li, H.; Sun, Z.; Sun, C.; Tay, B.K. Carbon nanotube-zinc oxide electrode and gel polymer electrolyte for electrochemical supercapacitors. J. Alloys Compd. 2009, 480, L17–L19. [Google Scholar] [CrossRef]
  5. Zhou, H.H.; Chen, H.; Luo, S.L.; Lu, G.W.; Wei, W.Z.; Kuang, Y.F. The effect of the polyaniline morphology on the other performance of polyanilinesurpercapacitors. J. Solid State Electr. 2005, 9, 574–578. [Google Scholar] [CrossRef]
  6. Gedela, V.; Puttapati, S.K.; Nagavolu, C. A unique solar radiation exfoliated reduced graphene oxide/polyanilinenanofibers composite electrode material for supercapacitors. Mater. Lett. 2015, 152, 177–180. [Google Scholar] [CrossRef]
  7. Zhao, Y.; Wang, C.A. Extremely facile synthesis of manganese dioxide-polyanilinenano-reticulation with enhanced electrochemical properties. J. Alloys Compd. 2016, 677, 281–287. [Google Scholar] [CrossRef]
  8. Xu, C.; Kang, F.; Li, B.; Du, H. Recent progress on manganese dioxide based supercapacitors. J. Mater. Res. 2010, 25, 1421–1432. [Google Scholar] [CrossRef]
  9. Wang, Y.G.; Xia, Y.Y. Electrochemical capacitance characterization of NiO with ordered mesoporous structure synthesized by template SBA-15. Electrochim. Acta 2006, 51, 3223–3227. [Google Scholar] [CrossRef]
  10. Lin, C.; Ritter, J.A.; Popov, B.N. Characterization of sol-gel-derived cobalt oxide xerogels as electrochemical capacitors. J. Electrochem. Soc. 1998, 145, 4097–4103. [Google Scholar] [CrossRef]
  11. Jow, J.J.; Lai, H.H.; Chen, H.R.; Wang, C.C.; Wu, M.S.; Ling, T.R. Effect of hydrothermal treatment on the performance of RuO2-Ta2O5/Ti electrodes for use in supercapacitors. Electrochim. Acta 2010, 55, 2793–2798. [Google Scholar] [CrossRef]
  12. Hassan, S.; Suzuki, M.; El-Moneim, A.A. Synthesis of MnO2-chitosan nanocomposite by one-step electrodeposition for electrochemical energy storage application. J. Power Sources 2014, 246, 68–73. [Google Scholar] [CrossRef]
  13. Lv, P.; Zhang, P.; Feng, Y.Y.; Li, Y.; Feng, W. High-performance electrochemical capacitors using electrodeposited MnO2 on carbon nanotube array grown on carbon fabric. Electrochim. Acta 2012, 78, 515–523. [Google Scholar] [CrossRef]
  14. Sun, Y.Y.; Zhang, W.H.; Li, D.S.; Gao, L.; Hou, C.L.; Zhang, Y.H.; Liu, Y.Q. Facile synthesis of MnO2/rGO/Ni composite foam with excellent pseudocapacitive behavior for supercapacitors. J. Alloys Compd. 2015, 649, 579–584. [Google Scholar] [CrossRef]
  15. Wang, C.L.; Li, F.T.; Wang, Y.N.; Qu, H.L.; Yi, X.L.; Lu, Y.; Qiu, Y.; Zou, Z.J.; Yu, B.H.; Luo, Y.S. Facile synthesis of nanographene sheet hybrid α-MnO2 nanotube and nanoparticle as high performance electrode materials for supercapacitor. J. Alloys Compd. 2015, 634, 12–18. [Google Scholar] [CrossRef]
  16. Reddy, R.N.; Reddy, R.G. Sol-gel MnO2 as an electrode material for electrochemical capacitors. J. Power Sources 2003, 124, 330–337. [Google Scholar] [CrossRef]
  17. Tang, X.H.; Li, H.J.; Liu, Z.H.; Yang, Z.P.; Wang, Z.L. Preparation and capacitive property of manganese oxide nanobelt bundles with birnessite-type structure. J. Power Sources 2011, 196, 855–859. [Google Scholar] [CrossRef]
  18. Xu, M.W.; Kong, L.B.; Zhou, W.J.; Li, H.L. Hydrothermal synthesis and pseudoca-pacitance properties of α-MnO2 hollow spheres and hollow urchins. J. Phys. Chem. C 2007, 111, 19141–19147. [Google Scholar] [CrossRef]
  19. Toupin, M.; Brousse, T.; Belanger, D. Influence of microstucture on the chargestorage properties of chemically synthesized manganese dioxide. Chem. Mater. 2002, 14, 3946–3952. [Google Scholar] [CrossRef]
  20. Dupont, M.; Hollenkamp, A.F.; Donne, S.W. Electrochemically active surface area effects on the performance of manganese dioxide for electrochemical capacitor applications. Electrochim. Acta 2013, 104, 140–147. [Google Scholar] [CrossRef]
  21. Adelkhani, H.; Ghaemi, M. Characterization of manganese dioxide electrodeposited by pulse and direct current for electrochemical capacitor. J. Alloys Compd. 2010, 493, 175–178. [Google Scholar] [CrossRef]
  22. Wang, G.L.; Wang, W.; Zhao, Y.F.; Shao, G.J.; Liu, T.T.; Ma, Z.P. Pulsed electrodeposition of mesoporous cobalt-doped manganese dioxide as supercapacitor electrode material. Ionics 2014, 20, 243–249. [Google Scholar] [CrossRef]
  23. Yang, D. Pulsed laser deposition of vanadium-doped manganese oxide thin films for supercapacitor applications. J. Power Sources 2011, 196, 8843–8849. [Google Scholar] [CrossRef]
  24. Chou, S.; Wang, J.Z.; Chew, S.Y.; Liu, H.K.; Dou, S.X. Electrodeposition of MnO2 nanowires on carbon nanotube paper as free-standing, flexible electrode for supercapacitors. Electrochem. Commun. 2008, 10, 1724–1727. [Google Scholar] [CrossRef]
  25. Babakhani, B.; Ivey, D.G. Anodic deposition of manganese oxide electrodes with rod-like structure for application as electrochemical capacitors. J. Power Sources 2010, 195, 2110–2117. [Google Scholar] [CrossRef]
  26. Aghazadeh, M.; Maragheh, M.G.; Ganjali, M.R.; Norouzi, P.; Faridbod, F. Electrochemical preparation of MnO2 nanobelts through pulse base-electrogeneration and evaluation of their electrochemical performance. Appl. Surf. Sci. 2016, 364, 141–147. [Google Scholar] [CrossRef]
  27. Dupont, M.F.; Donne, S.W. Nucleation and growth of electrodeposited manganese dioxide for electrochemical capacitors. Electrochimica. Acta 2014, 120, 219–225. [Google Scholar] [CrossRef]
  28. Nijjer, S.; Thonstad, J.; Haarberg, G.M. Oxidation of manganese (II) and reduction of manganese dioxide in sulphuric acid. Electrochim. Acta 2000, 46, 395–399. [Google Scholar] [CrossRef]
  29. Bard, A.J.; Faulkner, L.R. Electrochemical Methods: Fundamentals and Applications, 2nd ed.; John Wiley & Sons, Inc.: New York, NY, USA, 2001; pp. 114–116. [Google Scholar]
  30. Gomez, H.; Riveros, G.; Ramirez, D.; Henriquez, R.; Schrebler, R.; Marotti, R.; Dalchiele, E. Growth and characterization of ZnO nanowire arrays electrodeposited into anodic alumina templates in DMSO solution. J. Solid State Electrochem. 2013, 17, 1257. [Google Scholar] [CrossRef]
  31. NirmalPeiris, T.A.; Senthilarasu, S.; UpulWijayantha, K.G. Enhanced performance of flexible dye-sensitized solar cells: Electrodeposition of Mg(OH)2 on a nanocrystalline TiO2 electrode. J. Phys. Chem. C 2012, 116, 1211–1218. [Google Scholar]
  32. Wang, Z.F.; Pang, Y.H.; Sun, J.L.; Wang, H.Z.; Hong, Y.R. Dispersion of natural flake graphite in water. Ind. Miner. Process. 2002, 11, 1–3. (In Chinese) [Google Scholar] [CrossRef]
  33. Xia, X. The relation between chemical, physical properties and electrochemical activity for manganese dioxides (VIII). Battery Bimonthly 2007, 37, 271–274. [Google Scholar]
  34. JengKuei, C.; Wen Ta, T. Material characterization and electrochemical performance of hydrous manganese oxide electrodes for use in electrochemical pseudocapacitors. J. Electrochem. Soc. 2003, 150, A1333–A1338. [Google Scholar]
  35. Tizfahm, J.; Aghazadeh, M.; Maragheh, M.G.; Ganjali, M.R.; Norouzi, P.; Faridbod, F. Electrochemical preparation and evaluation of the supercapacitive performance of MnO2 nanoworms. Mater. Lett. 2016, 167, 153–156. [Google Scholar] [CrossRef]

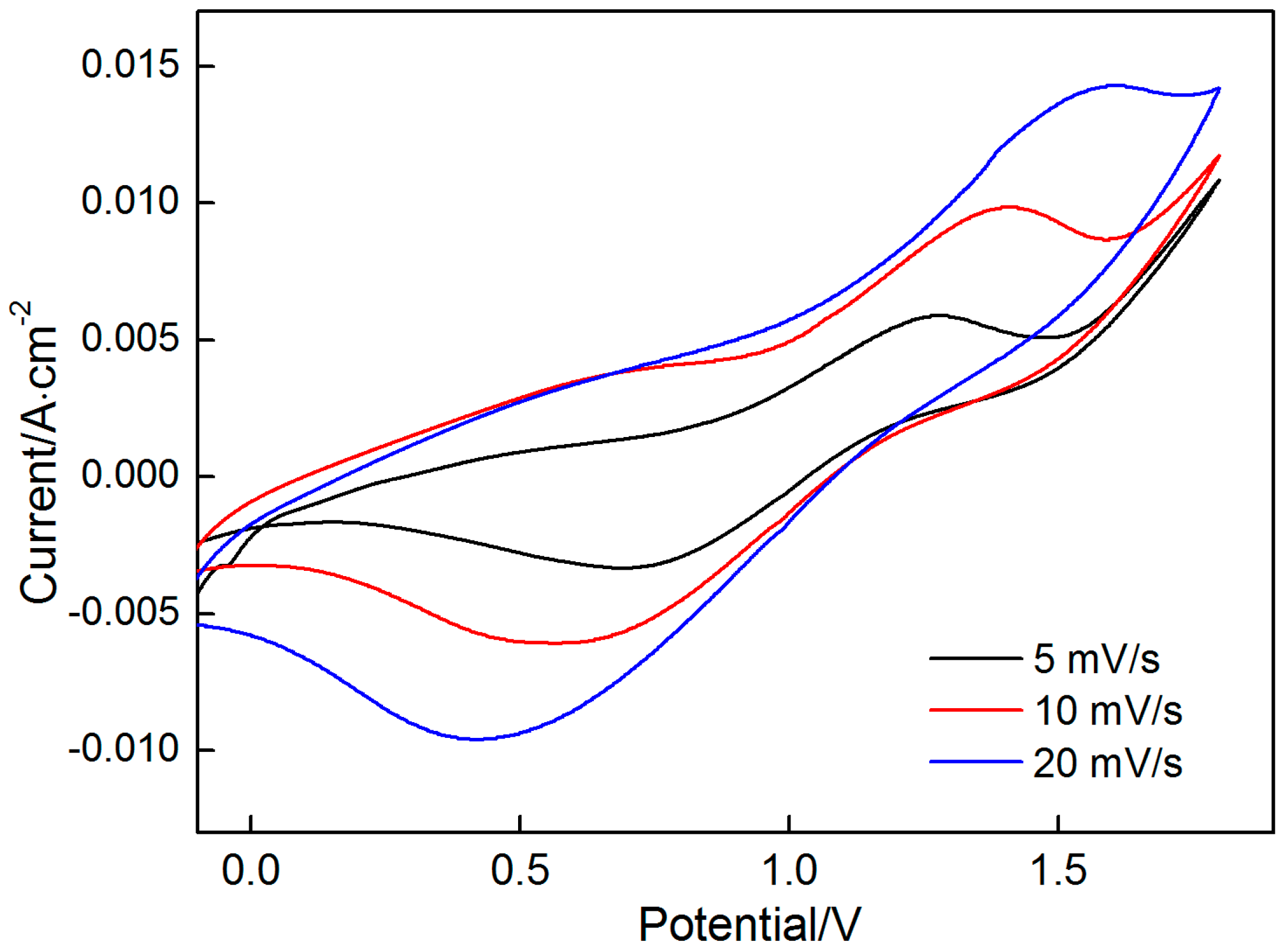

Figure 1. Cyclic voltammograms on graphite flake in 0.14 M MnSO4 electrolyte at varying scan rates of 5, 10, 20 mV/s.
Figure 1. Cyclic voltammograms on graphite flake in 0.14 M MnSO4 electrolyte at varying scan rates of 5, 10, 20 mV/s.
Materials 10 01205 g001

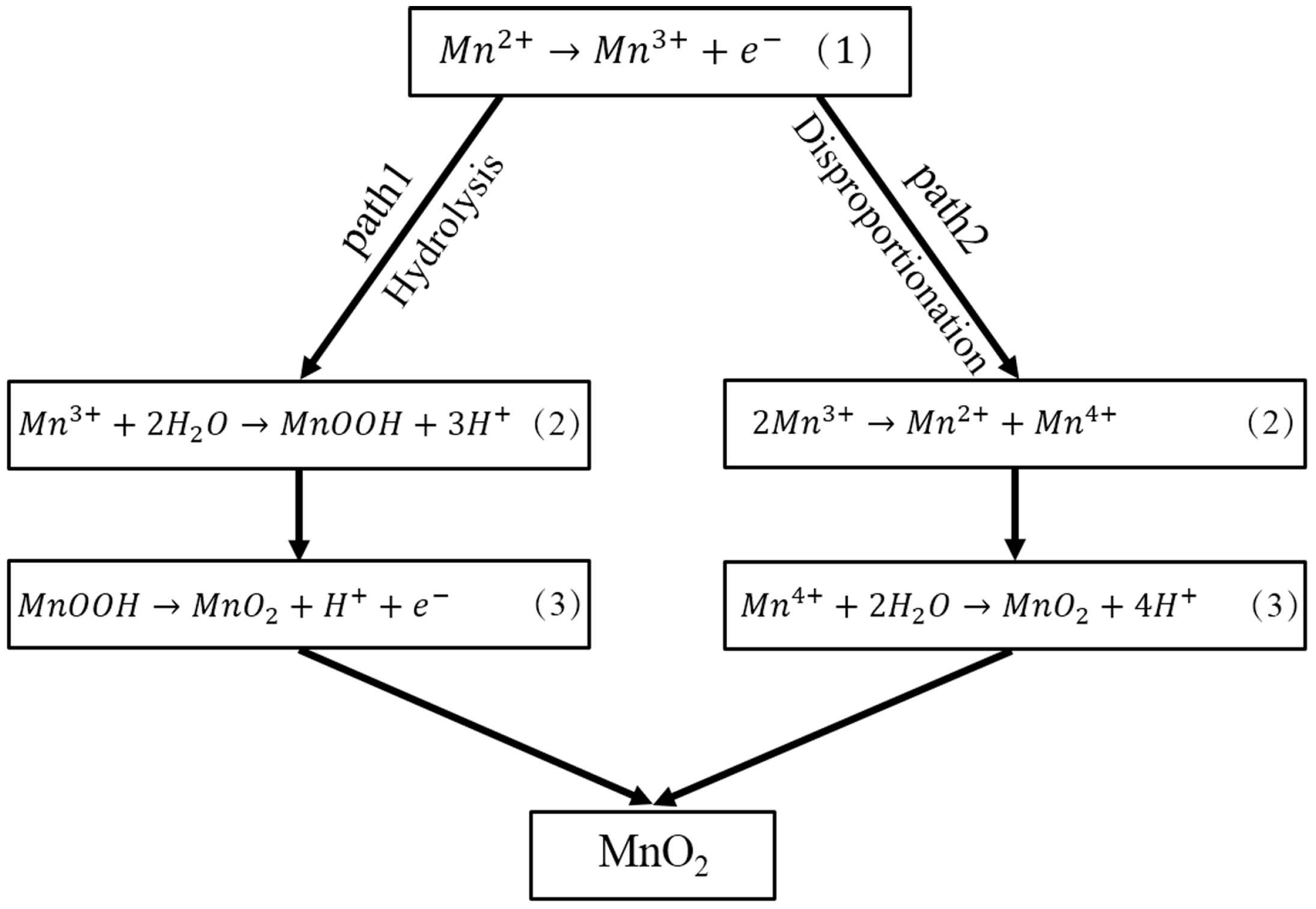

Figure 2. Two synthesis paths of MnO2 in the MnSO4 electrolyte.
Figure 2. Two synthesis paths of MnO2 in the MnSO4 electrolyte.
Materials 10 01205 g002

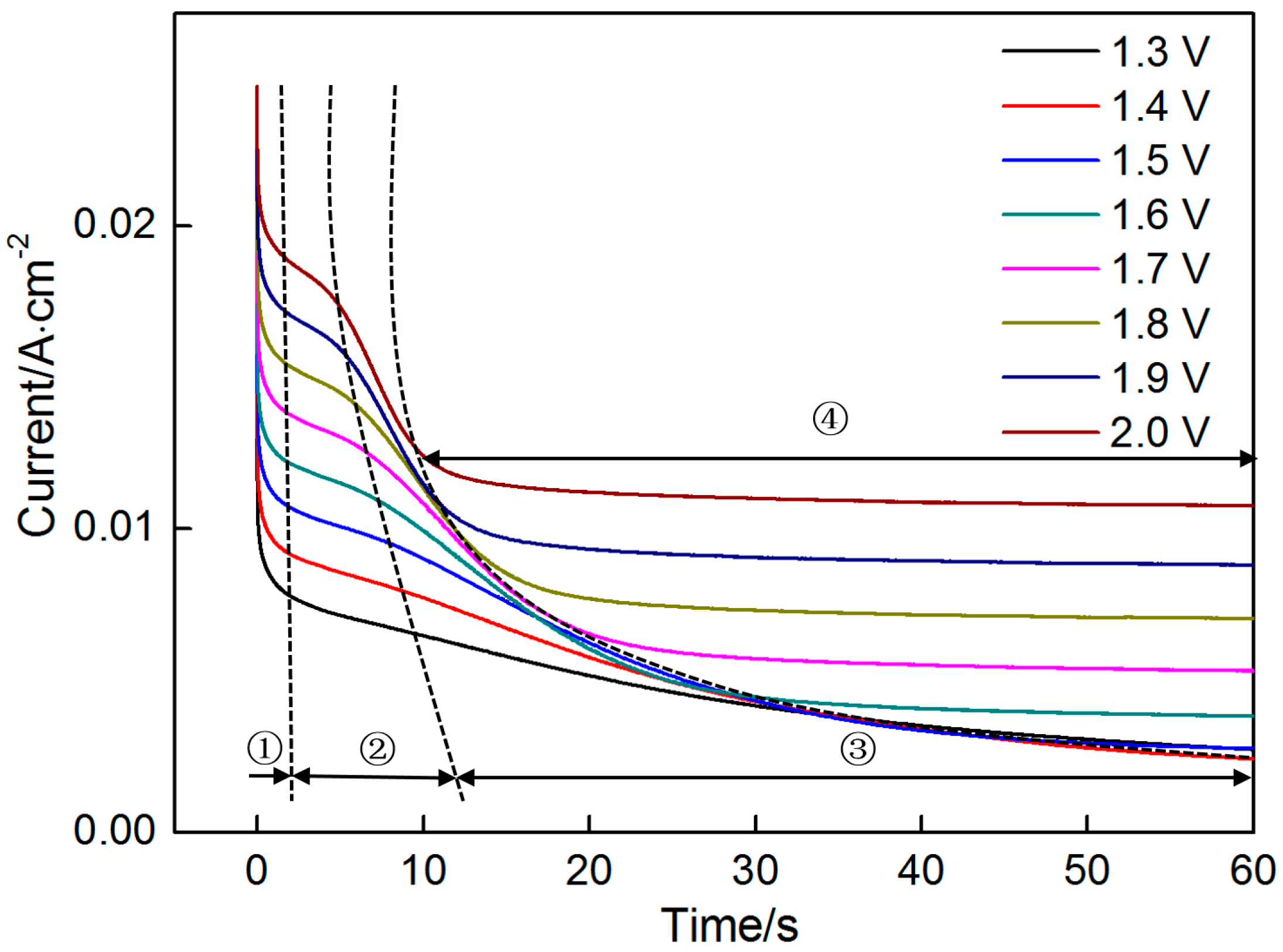

Figure 3. Chronoamperograms recorded on graphite flake in 0.14 M MnSO4 electrolyte at different step potentials ranging from 1.3 V to 2.0 V.
Figure 3. Chronoamperograms recorded on graphite flake in 0.14 M MnSO4 electrolyte at different step potentials ranging from 1.3 V to 2.0 V.
Materials 10 01205 g003
Figure 4. Fitting results in the first and third stages at the potential of 1.3 V.
Figure 4. Fitting results in the first and third stages at the potential of 1.3 V.
Materials 10 01205 g004

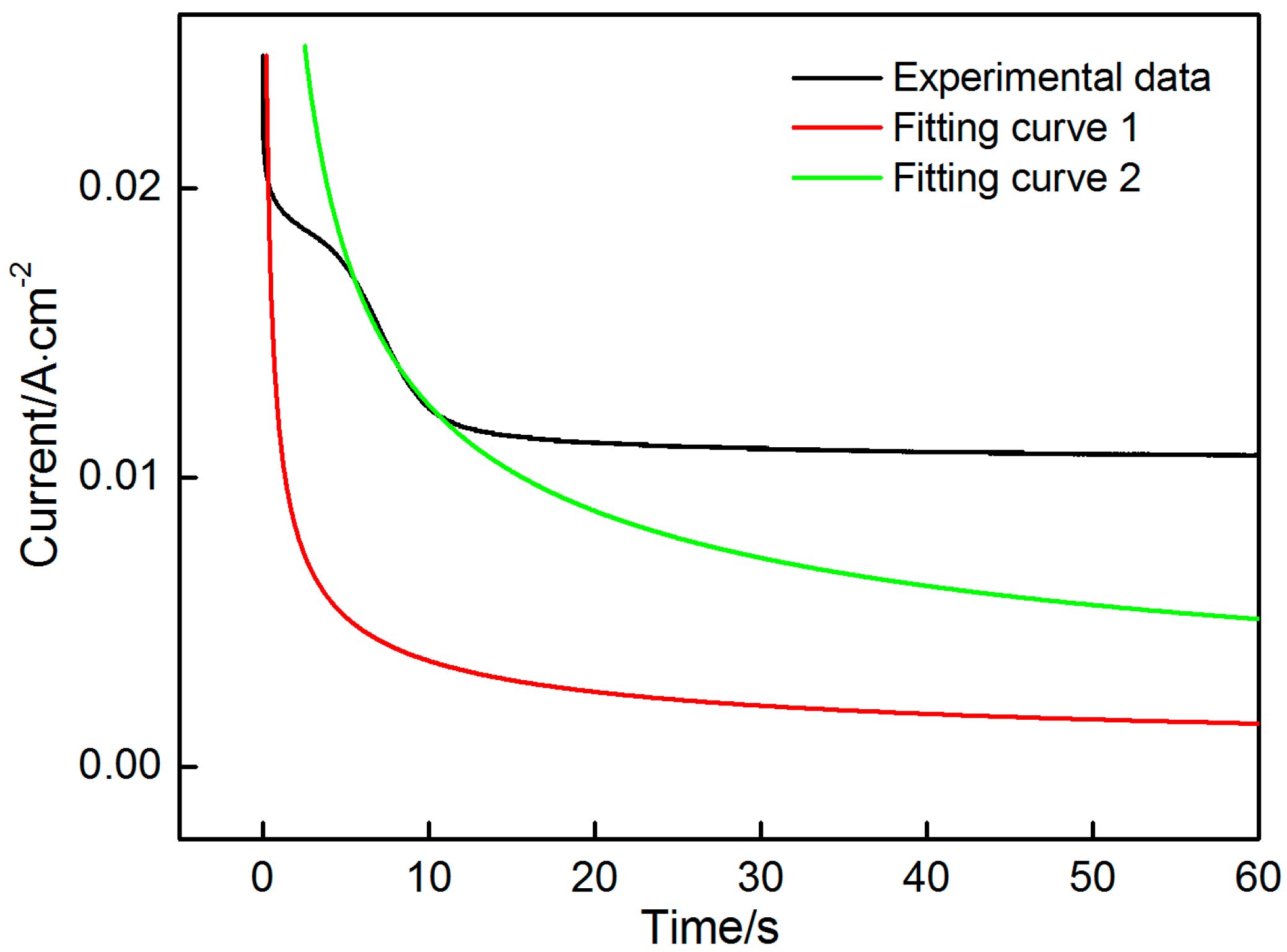

Figure 5. Fitting results in the first and third stages at the potential of 2.0 V.
Figure 5. Fitting results in the first and third stages at the potential of 2.0 V.
Materials 10 01205 g005

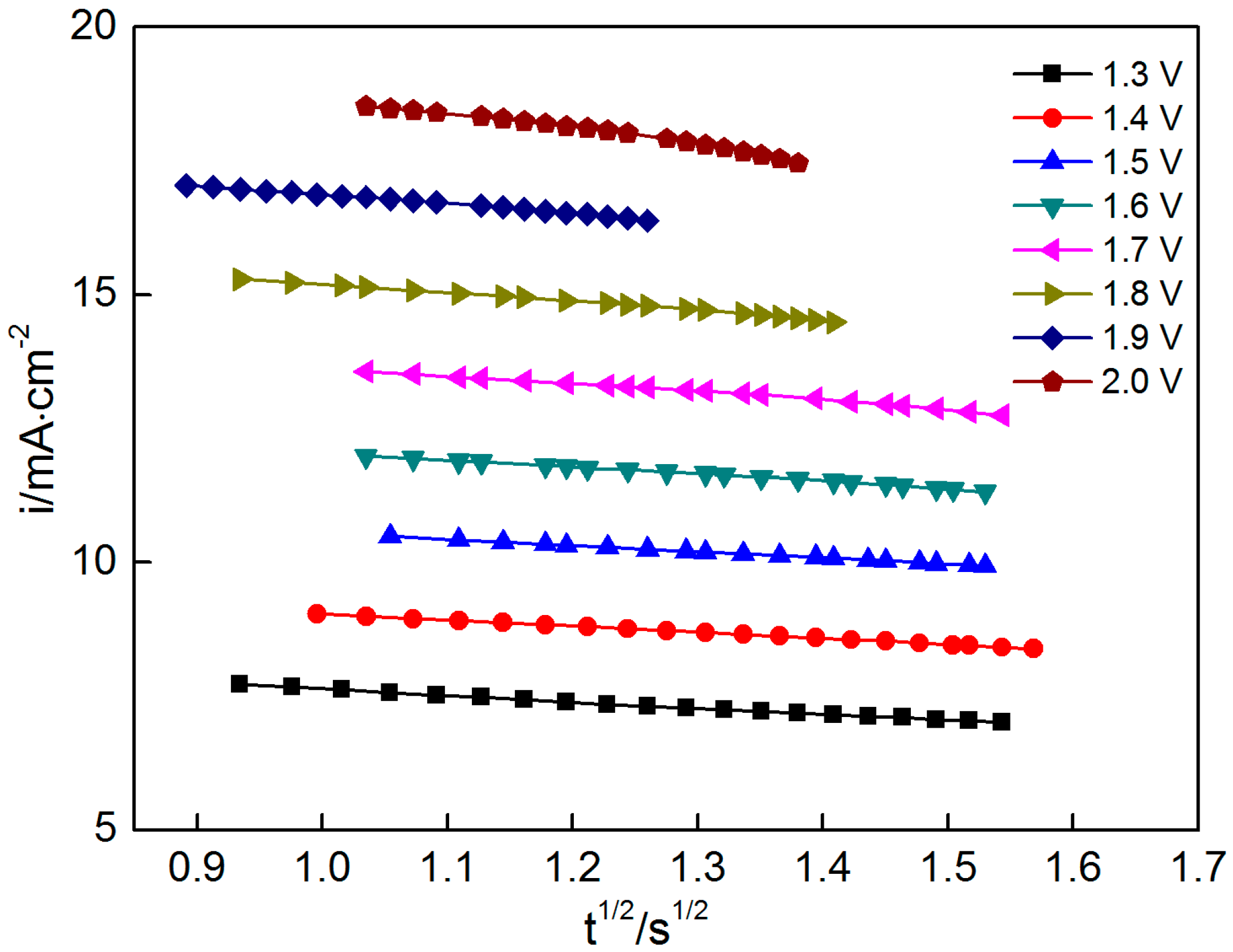

Figure 6. Current i as a function of t1/2 at various potentials ranging from 1.3 V to 2.0 V.
Figure 6. Current i as a function of t1/2 at various potentials ranging from 1.3 V to 2.0 V.
Materials 10 01205 g006

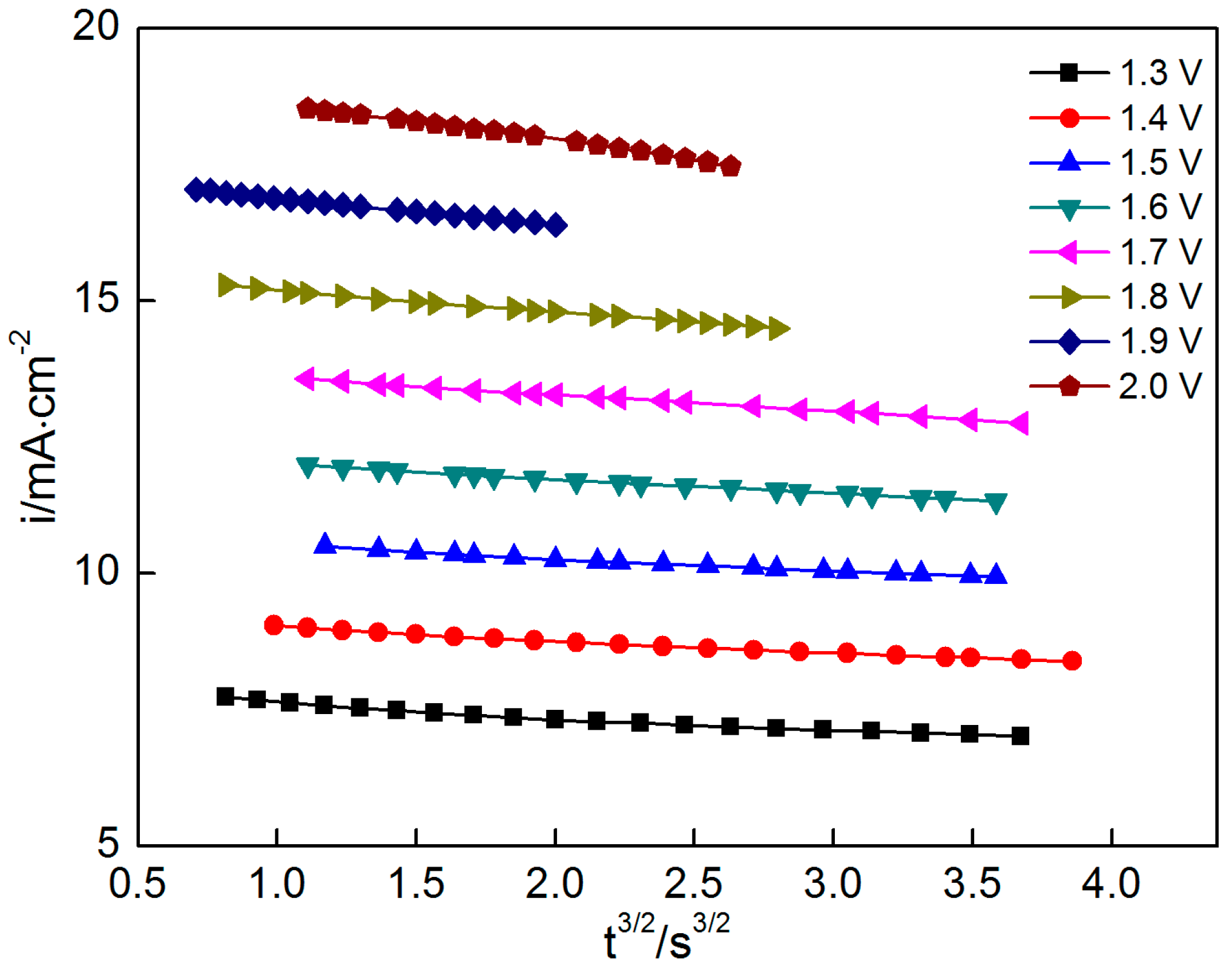

Figure 7. Current i as a function of t3/2 at various potentials ranging from 1.3 V to 2.0 V.
Figure 7. Current i as a function of t3/2 at various potentials ranging from 1.3 V to 2.0 V.
Materials 10 01205 g007

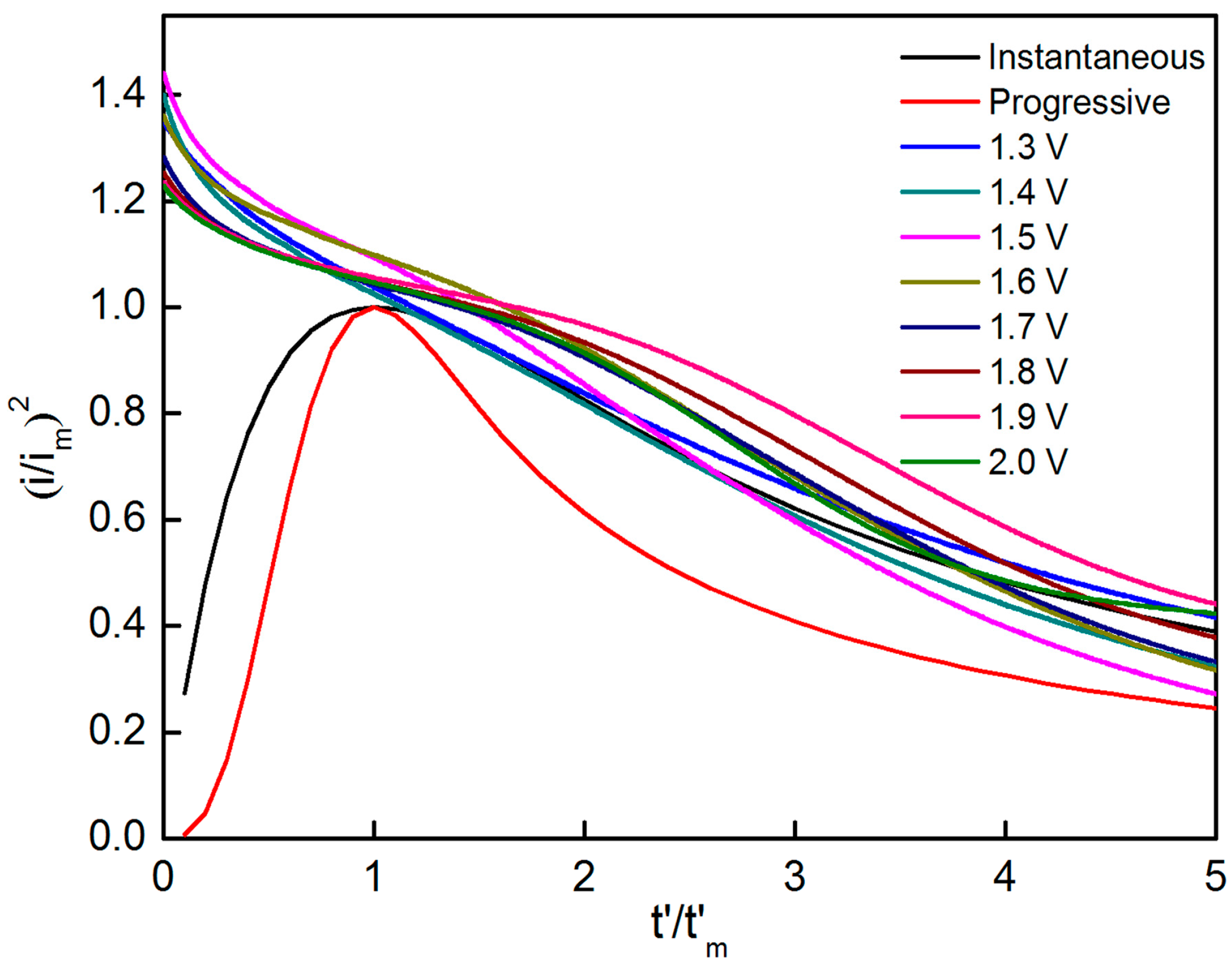

Figure 8. Comparison of dimensionless (i/im)2 vs. t’/t’m plots of nucleation process on graphite flake at various potentials (1.3 V to 2.0 V).
Figure 8. Comparison of dimensionless (i/im)2 vs. t’/t’m plots of nucleation process on graphite flake at various potentials (1.3 V to 2.0 V).
Materials 10 01205 g008
Figure 9. SEM images of the electrode surface at different deposition time. (a) 0 s; (b) 2 s; (c) 5 s.
Figure 9. SEM images of the electrode surface at different deposition time. (a) 0 s; (b) 2 s; (c) 5 s.
Materials 10 01205 g009
Figure 10. SEM images of the electrode surface at different deposition time. (a) 8 s; (b) 9 s.
Figure 10. SEM images of the electrode surface at different deposition time. (a) 8 s; (b) 9 s.
Materials 10 01205 g010
Figure 11. SEM images of the electrode surface at different deposition time. (a) 20 s; (b) 30 s; (c) 40 s.
Figure 11. SEM images of the electrode surface at different deposition time. (a) 20 s; (b) 30 s; (c) 40 s.
Materials 10 01205 g011

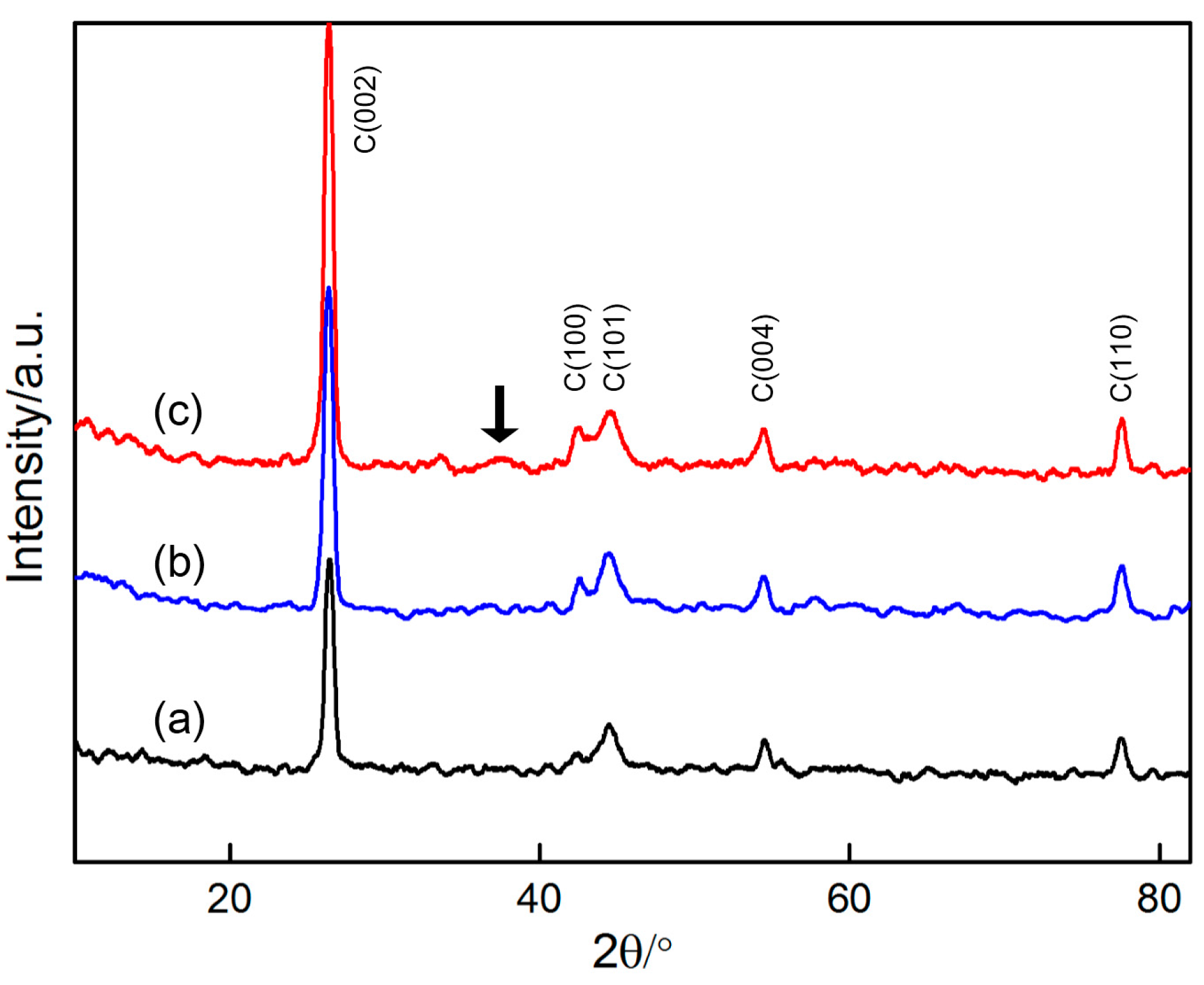

Figure 12. XRD patterns of: (a) graphite substrate; (b) graphite substrate covered with MnO2 (deposited for 2 s); (c) graphite substrate covered with MnO2 (deposited for 10 min).
Figure 12. XRD patterns of: (a) graphite substrate; (b) graphite substrate covered with MnO2 (deposited for 2 s); (c) graphite substrate covered with MnO2 (deposited for 10 min).
Materials 10 01205 g012

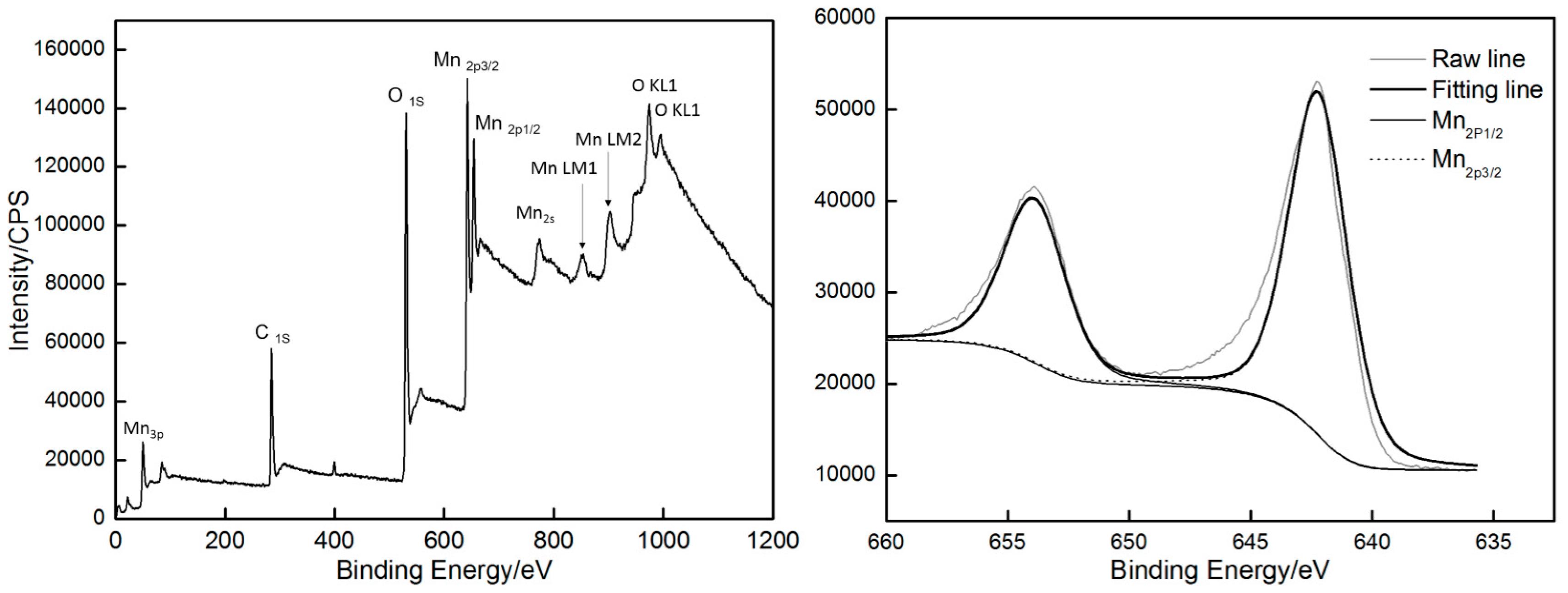

Figure 13. The survey and Mn2p XPS spectrum of the deposit (60 s).
Figure 13. The survey and Mn2p XPS spectrum of the deposit (60 s).
Materials 10 01205 g013

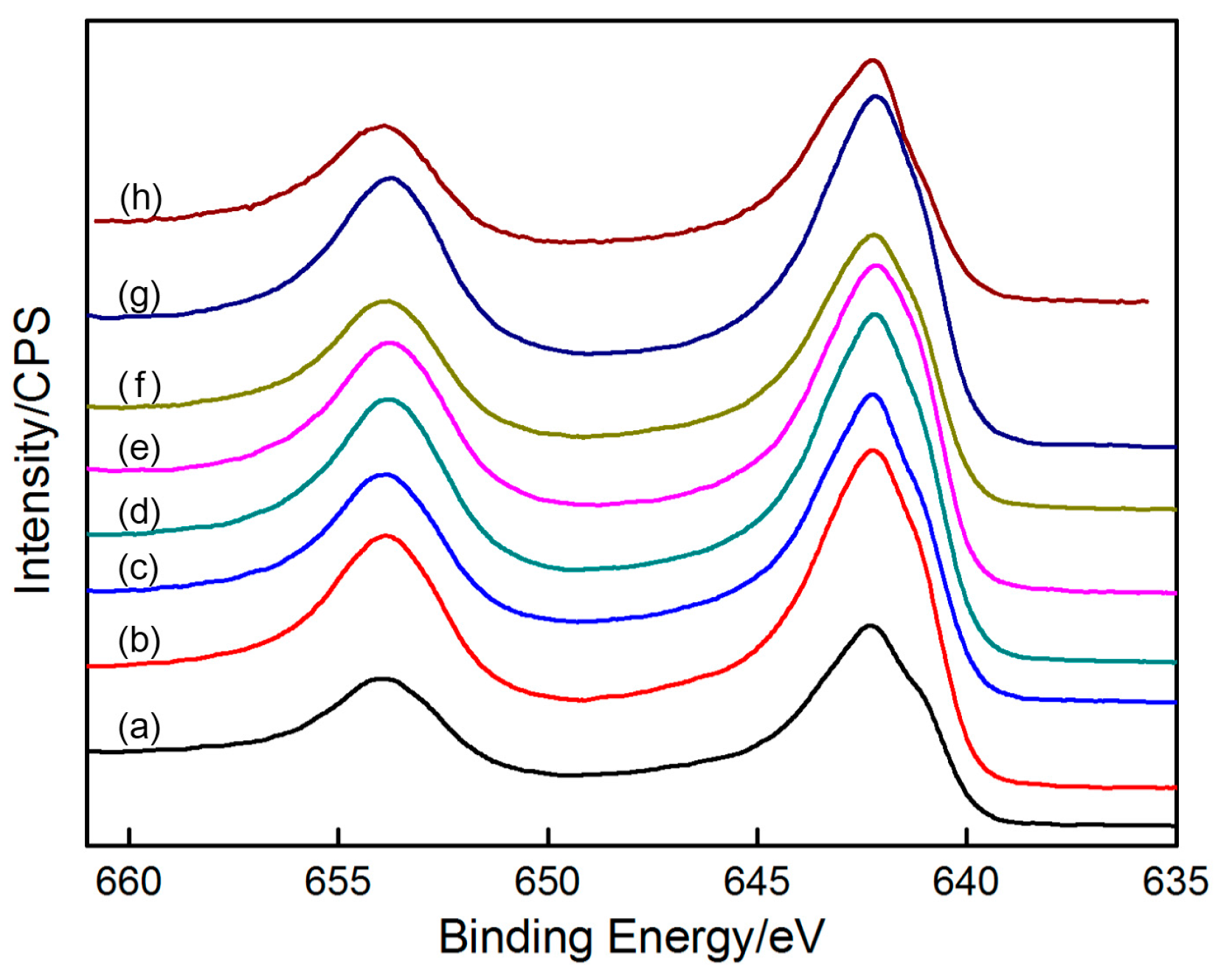

Figure 14. Mn2p spectra of MnO2 deposited for different times: (a) 2 s; (b) 5 s; (c) 8 s; (d) 9 s; (e) 20 s; (f) 30 s; (g) 40 s; (h) 60 s.
Figure 14. Mn2p spectra of MnO2 deposited for different times: (a) 2 s; (b) 5 s; (c) 8 s; (d) 9 s; (e) 20 s; (f) 30 s; (g) 40 s; (h) 60 s.
Materials 10 01205 g014

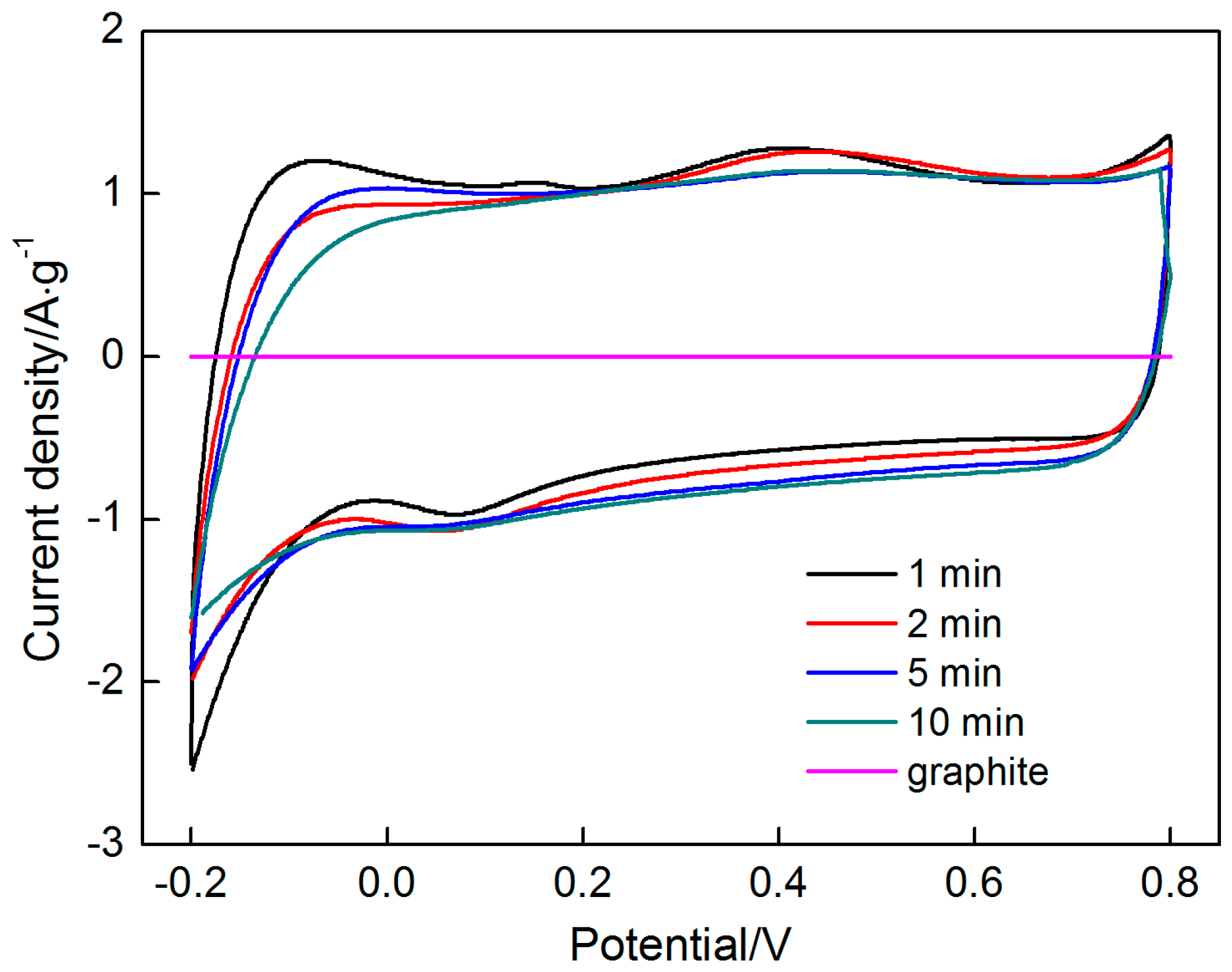

Figure 15. Cyclic voltammograms of graphite and the MnO2-based electrode at different deposition time from 1 min to 10 min.
Figure 15. Cyclic voltammograms of graphite and the MnO2-based electrode at different deposition time from 1 min to 10 min.
Materials 10 01205 g015

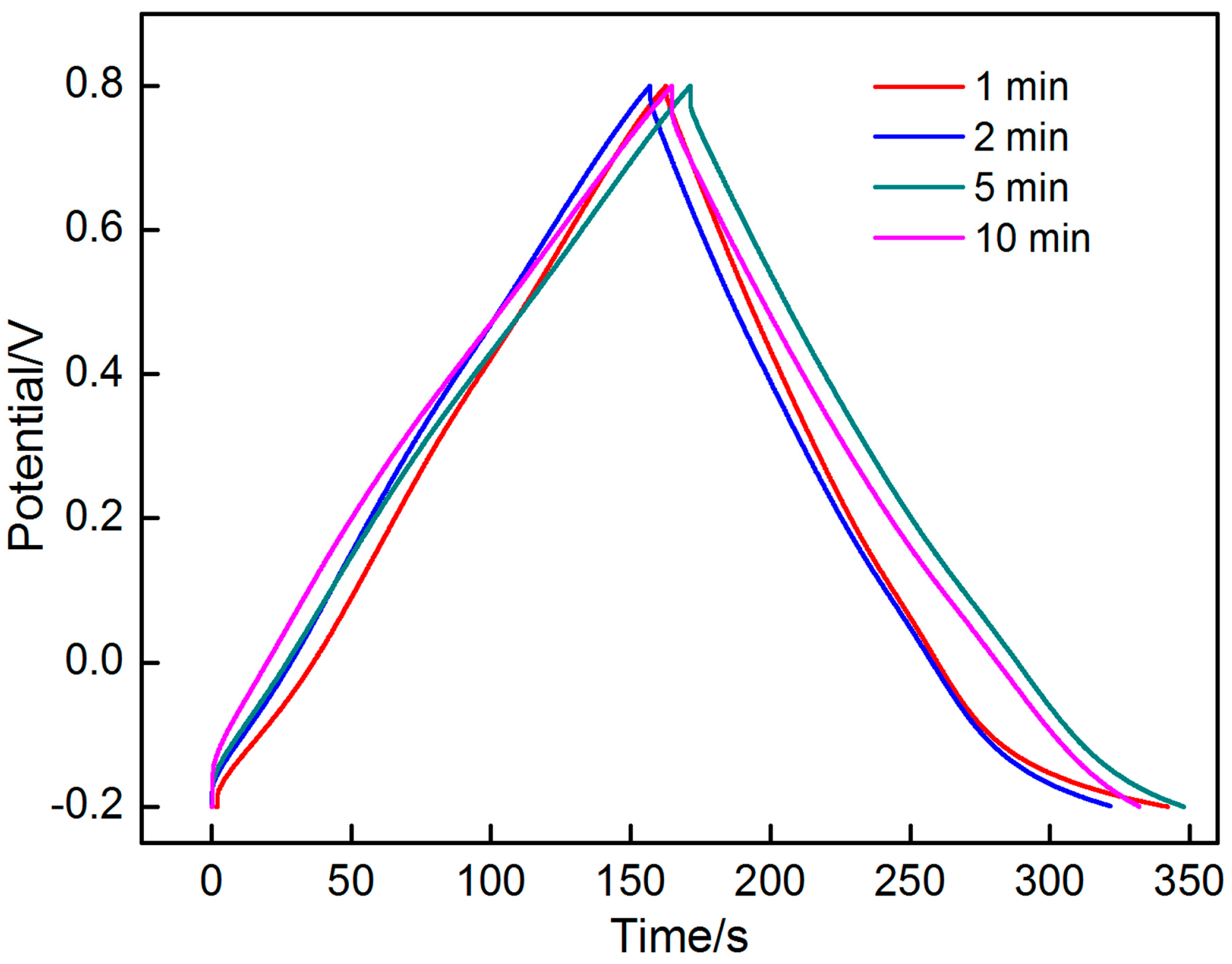

Figure 16. Galvanostatic charge/discharge profiles of the MnO2-based electrode at different deposition time from 1 min to 10 min.
Figure 16. Galvanostatic charge/discharge profiles of the MnO2-based electrode at different deposition time from 1 min to 10 min.
Materials 10 01205 g016
Table 1. Fitting results and active area ratios before and after MnO2 deposition.
Table 1. Fitting results and active area ratios before and after MnO2 deposition.
Potential1.3 V1.4 V1.5 V1.6 V1.7 V1.8 V1.9 V2.0 V
A 1 = n F A D 1 / 2 C π
(Fitting curve 1)
0.01300.01520.01770.01990.02220.02460.02690.0293
A 2 = n F A D 1 / 2 C π
(Fitting curve 2)
0.05660.06470.07110.07800.08140.08750.09320.0998
A2/A14.364.264.023.923.663.563.463.41
