Operational Degradation of Flooded Lead–Acid Storage Under Frequency Containment Reserve: Long-Term Evidence from a Hybrid Multi-Technology BESS

Abstract

Flooded lead–acid batteries continue to operate in utility-scale battery energy storage systems (BESSs), yet their long-term degradation under grid-frequency regulation remains poorly characterized by field evidence. This paper presents an eight-year, multi-indicator degradation analysis of a flooded Ortsfeste Kupferstreckmetall (OCSM) lead–acid string at the M5BAT hybrid BESS facility (RWTH Aachen University), covering five years of active Frequency Containment Reserve (FCR) operation (2017–2021) followed by three years of low-utilization reserve operation (2022–2025). Four complementary health indicators are derived from a shared one-second-resolution operational dataset: DC internal resistance (DCIR), DC and AC round-trip efficiency, coulombic efficiency, and inverter efficiency. Five years of continuous FCR service produced no statistically detectable degradation across any indicator. In contrast, the transition to prolonged high-state-of-charge, low-throughput standby coincided with a pronounced increase in DCIR and a decline of about 14 percentage points in DC round-trip efficiency (from about 88% in the FCR phase to 74.0% in 2024). Consistent trends across all indicators, together with stable inverter efficiency, attribute the observed deterioration to the electrochemical system rather than the power electronics. These findings indicate that prolonged standby operation, rather than active FCR cycling, coincided with the onset of accelerated aging in this flooded lead–acid string. The published open-access dataset provides a valuable basis for future benchmarking and cross-technology comparisons for stationary battery storage.

1. Introduction

The displacement of synchronous generation by variable renewables has sharply increased the demand for fast frequency regulation, a service for which battery energy storage systems (BESSs) are technically well suited [1,2]. Frequency Containment Reserve (FCR)—the fastest and most continuously active balancing product in the European interconnected grid—is among the most commercially attractive BESS applications and imposes a near-continuous partial-state-of-charge (PSoC) duty whose long-term effect on battery health is the subject of this work [1].

A further structural limitation of the existing evidence base is the predominance of simulation-based studies: most investigations of BESS degradation under FCR rely on synthetic power profiles derived from simplified frequency models rather than continuous high-resolution field measurements, limiting the transferability of their degradation predictions to deployed systems [2,3,4]. Although lead–acid batteries historically dominated stationary energy storage and continue to retain a meaningful share of the installed global storage base, particularly in markets characterized by stringent capital cost constraints, established maintenance infrastructures, or intrinsic safety requirements that disfavor lithium-based alternatives [5,6], they remain substantially underrepresented in the FCR degradation literature. The available field evidence primarily concerns valve-regulated (VRLA) batteries operated under float or uninterruptible-power-supply duty, including large-scale reliability surveys of stationary installations [7] and laboratory duty-cycle evaluations spanning frequency-regulation profiles [8]. The few field studies addressing lead–acid storage in FCR applications focus mainly on aggregate system-level availability and capacity metrics rather than applying a multi-metric, physics-grounded indicator framework capable of disentangling concurrent degradation processes [3,9]. Consequently, multi-year, one-second-resolution field studies of BESS under real grid-frequency excitation remain rare across all battery chemistries and are virtually absent for flooded lead–acid technologies.

The value of an eight-year, second-resolution field record extends beyond quantifying how flooded lead–acid ages: it also offers a vantage point from which to ask a strategic question that field data, rather than laboratory cells, are uniquely positioned to inform. Grid storage today rests overwhelmingly on a lithium-ion supply chain concentrated in Asia, with the majority of global lithium refining located in China [10]. Flooded lead–acid sits at the opposite pole, supported by a largely closed, domestic European value chain with collection and recycling rates near 99% [11]. Whether such a supply-chain-sovereign technology can credibly serve modern grid applications hinges on its operational longevity under real service, and it is precisely this question that the present dataset is positioned to examine.

What remains insufficiently characterized by field evidence is how a lead–acid battery actually behaves under the specific FCR operating regime over its extended field operation, and which degradation indicators are practically extractable from a continuous operational data stream. Laboratory studies identify several plausible degradation pathways under PSoC conditions: lead sulfate crystal growth on the negative electrode through incomplete charge cycling [12], electrolyte stratification under low-agitation standby [13], and progressive grid corrosion as a function of cycling and calendar time [14]. Whether these mechanisms produce proportionally measurable field-data signatures under actual FCR service conditions—and which, if any, dominates—is an open empirical question that laboratory cycling protocols and system-level simulations cannot resolve. An equally important but less-studied question is how degradation behaviour shifts when a battery transitions from active FCR cycling to low-utilization standby operation—a transition increasingly common as hybrid BESS installations redistribute load across chemistry types.

The M5BAT (“Modular Multi-Megawatt Medium Voltage Battery Storage”) facility at RWTH Aachen University provides a well-suited dataset to address these questions. The hybrid BESS integrates five distinct battery technologies—including a flooded OCSM lead–acid unit manufactured by Exide Technologies—and the facility has been providing FCR service continuously since April 2017 [3,9,15,16]. The M5BAT monitoring infrastructure captures one-second-resolution data from both the battery management system (BMS, Exide LT series) and the power conversion system controller (BSC) (SMA Solar Technology AG, Niestetal, Germany) for every battery unit simultaneously, yielding an archive that spans DC current, voltage, state of charge, grid frequency, AC energy counters, operating-mode flags, and 55 BMS alarm channels. Critically, the observation period encompasses not only five years of active FCR-primary service but also a subsequent transition in 2022 to low-utilization reserve operation—creating an observational before/after comparison of two fundamentally different operating regimes within the same hardware system.

Building on this dataset, the present paper makes the following contributions:

(i)

It presents a longitudinal, multi-metric degradation analysis of a flooded OCSM lead–acid BESS spanning an eight-year observation window, covering both a FCR-primary phase (2017–2021) and a reserve-operation phase (2022–2025).

(ii)

It characterizes the degradation trajectory across the two operating regimes through four complementary health indicators, i.e., DC internal resistance (DCIR), DC and AC round-trip efficiency, coulombic efficiency, and inverter efficiency, each extracted from distinct measurement pathways to mitigate sensor-specific biases. The analysis reveals that FCR-phase degradation rates were statistically indistinguishable from zero over five years of active service, while the transition to low-utilization reserve operation correlated with a substantial acceleration in internal resistance growth. This finding suggests that FCR-specific PSoC cycling may not be the dominant driver of degradation under the investigated operating conditions.

(iii)

It evaluates which degradation mechanisms are consistent with the multi-indicator observations, explicitly distinguishes what can be inferred from system-level field data from that which would require cell-level postmortem confirmation and identifies the minimum additional measurements that would narrow the mechanistic uncertainty.

Together, these contributions provide the most detailed publicly documented field characterization of a flooded lead–acid BESS under FCR conditions and offer a transferable analytical framework readily adaptable to other BESS chemistries.

The remainder of this paper is organized as follows. Section 2 describes the M5BAT system architecture, the OCSM lead–acid unit, the measurement infrastructure, and the dataset. Section 3 presents the methodology, including data preprocessing, degradation metric definitions, operational mode classification, and the statistical framework. Section 4 presents the results: operational characterization, degradation indicators, and detailed efficiency analysis. Section 5 discusses the findings, evaluates candidate degradation mechanisms, addresses methodological limitations, and derives implications for battery management. Section 6 presents conclusions and recommendations for practice.

2. System Setup and Data Description

This section describes the M5BAT facility and the flooded OCSM lead–acid unit under study, the measurement infrastructure and dataset, and the scientific motivation and scope of the analysis.

2.1. The M5BAT Hybrid Battery Energy Storage System

The M5BAT (“Modular Multi-Megawatt Medium Voltage Battery Storage”) system is a utility-scale hybrid battery energy storage system (BESS) located on the campus of RWTH Aachen University in Aachen, Germany. Erected in 2016 as part of a publicly funded research project and commissioned for continuous Frequency Containment Reserve (FCR) operation in April 2017, M5BAT has since served as one of the most comprehensively instrumented hybrid BESS field laboratories in Central Europe [3,9,15,16]. A comprehensive overview of the prior research conducted on the M5BAT system is provided by the project [17].

The system integrates ten independent battery units across five electrochemical technologies—four lead–acid strings (two flooded OCSM, two valve-regulated OPzV) and six lithium-ion strings (LMO/NMC, LFP, LTO)—with a total installed capacity of approximately 6 MW and 7.5 MWh AC [3,16]. The present study concerns one of the two flooded OCSM lead–acid units; the other technologies are not analyzed within this work.

Architecturally, each battery unit is independently coupled to the medium-voltage network via a dedicated bidirectional power conversion system (PCS, 630 kW rated AC power per unit), with pairs of inverters sharing a transformer before connecting at a 10 kV busbar. Operational dispatch is centralized in a programmable logic controller (PLC) hosting a proprietary energy management system (EMS), which calculates technology-specific real-power setpoints and communicates bidirectionally with each unit’s battery management system (BMS) and battery system controller (BSC) [3]. A site-level data logger captures all bus traffic at a uniform one-second sampling rate, producing a continuous multi-year archive spanning both BMS and BSC channels for every unit simultaneously. Operating at a contracted FCR capacity of up to 3 MW and sustaining system-level availability in excess of 96.5%, M5BAT has accumulated several years of uninterrupted grid service—a temporal depth sufficient to reveal technology-specific degradation trajectories that laboratory cycling campaigns cannot replicate [3].

2.2. The OCSM Lead–Acid Unit Under Investigation

The subject of the present study is one of the two OCSM lead–acid units of M5BAT (designated “Exide1”), manufactured by Exide Technologies (GNB Industrial Power series; Büdingen, Germany). The full technical specifications and case-study premises are listed in Appendix A (

Table A1. Technical specifications of the flooded OCSM lead–acid unit and case-study premises.

Parameter	Value
Manufacturer/product	Exide Technologies, GNB Industrial Power series
Cell technology	Flooded lead–acid, OCSM (Ortsfeste Kupferstreckmetall); tubular positive and copper expanded-grid negative plates
String configuration	300 cells in series, 1 parallel (300S/1P); 299S after 10 August 2023 (defective cell bypassed)
Nominal string voltage	600 V
Rated capacity	1776 Ah at C/3 (about 1066 kWh usable)
Power conversion system	630 kW bidirectional PCS
Installation	Climate-controlled battery hall
Operating regimes	FCR-primary (2017–2021); low-utilization reserve (2022–2025)
Mean state of charge	About 52%

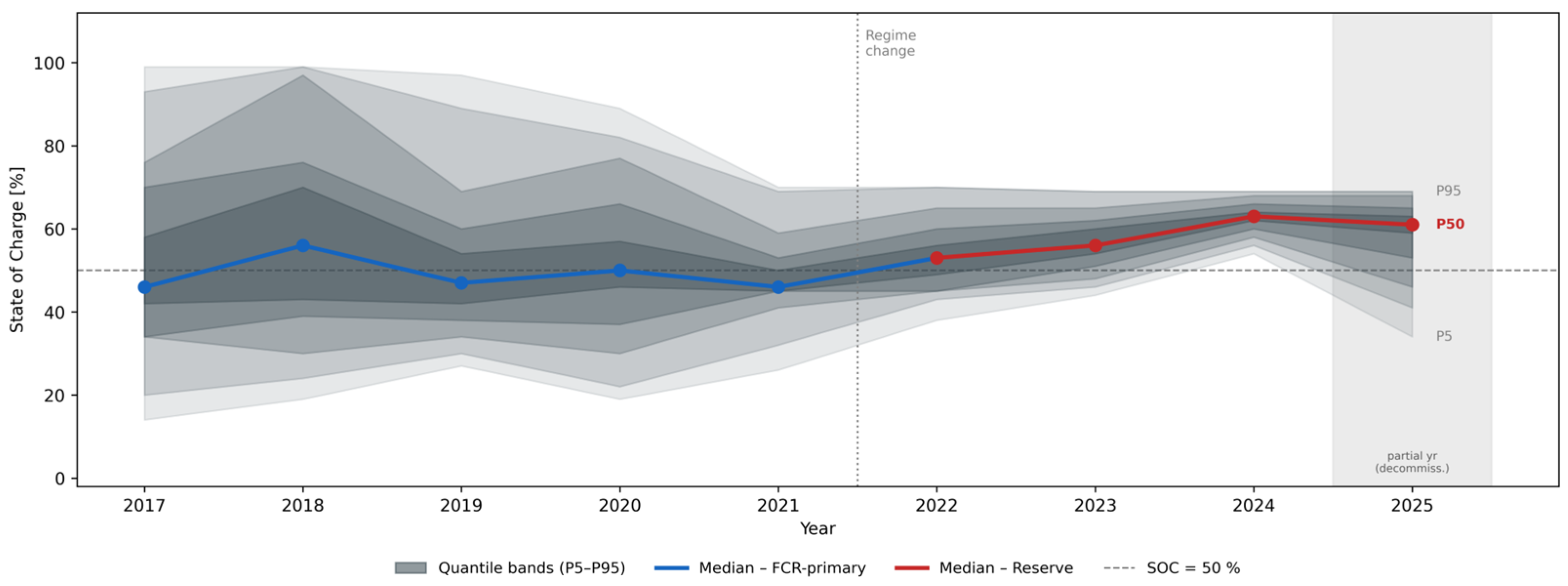

SoC operating range	Predominantly partial-SoC; time at pSoC <50% fell from 42–59% (FCR) to 1.4% (2024)
Depth of discharge	Mostly shallow partial-SoC cycling; fewer than 50 deep-discharge events (SoC < 20%) over the record
Annual throughput	About 248 kAh (2019 peak) down to 19 kAh (2025); cumulative about 1.20 MAh
Equivalent full cycles	About 140 (2019) to 11 (2025) per year
DC round-trip efficiency (RTE)	About 88% (FCR) to 74% (2024)
Coulombic efficiency	About 96–98% (FCR) to 86% (2024)
DC internal resistance	About 55 mΩ (2017) to 92 mΩ (2025), string level
State of health/capacity	Periodic reference capacity tests in the dataset; final test 14 April 2025: ~21% residual capacity
Observation window	April 2017 to mid-2025 (unit decommissioned; planned technology change)

). The unit consists of 300 cells in series (300S/1P; reduced to 299S after a defective cell was bypassed on 10 August 2023), yielding a nominal DC string voltage of 600 V and a rated capacity of 1776 Ah at C/3 discharge (~1066 kWh usable energy), coupled to a 630 kW PCS. OCSM (“Ortsfeste Kupferstreckmetall”) denotes a flooded lead–acid design with tubular positive plates and copper expanded-grid negative plates. The tubular (armoured) positive plates retain the active mass within porous gauntlets, which mechanically suppresses shedding and softening under the repeated shallow partial-state-of-charge (PSoC) cycling characteristic of FCR duty. The copper expanded-grid negative plates lower the grid resistance and the negative-plate overpotential, improving charge acceptance and reducing the local polarization that promotes hard, poorly reversible sulfation. Relative to conventional VRLA or OPzV cells, this combination confers greater tolerance to PSoC operation and provides a mechanistic rationale for the negligible degradation observed during the FCR phase [13,14]. Unlike VRLA designs, the open, vented housing permits water replenishment and equalization charging but requires active maintenance to prevent electrolyte stratification [12,18]. Within the M5BAT EMS, OCSM units receive lower dispatch priority than lithium-ion strings to protect the more cyclic-stress-sensitive chemistry [15].

2.3. Measurement Infrastructure and Dataset

The monitoring infrastructure for the Exide1 unit comprises two complementary subsystems. The BMS records DC-side quantities—string current, terminal voltage, state of charge, and 55 binary warning and alarm flags—at one-second resolution. The BSC simultaneously captures AC-side quantities, including actual and setpoint active and reactive power, grid frequency, cumulative AC energy counters for the charge and discharge half-cycles, FCR operating-mode flags, and battery temperature. Cross-correlation of the DC current signals from the two subsystems yields a Pearson coefficient of r = 0.985; BMS and BSC SoC estimates agree to r = 0.9999 with a mean systematic offset of +0.17 percentage points, and the BMS value is adopted as authoritative due to its more proximal measurement point. An ambient temperature sensor in the BSC returned a constant 0 °C throughout the observation period (hardware failure) and is excluded from all thermally referenced analyses; battery temperature is recorded reliably and used for internal resistance correction. The BMS inter-string voltage imbalance warning flag was active during 72% of all sampled seconds in January 2022, indicating persistent intra-string heterogeneity at that point in the operating history; its mechanistic significance is discussed in Section 5. The complete signal list with original register designations and engineering units is provided in the accompanying dataset codebook. The full dataset spans from commissioning (2017) through May 2025; temporal gaps remain below 3% of the total observation window [3].

2.4. Scientific Motivation and Research Scope

The combination of flooded OCSM chemistry, continuous FCR service, and multi-year observation is scientifically uncommon: published field studies of lead–acid degradation under real FCR are scarce and report aggregate, system-level metrics rather than the FCR-specific electrochemical mechanisms [3,5,6,9]. The OCSM design—flooded electrolyte and expanded-grid negative plates—is especially susceptible to the partial-state-of-charge sulfation inherent to FCR (which holds the cell near 50% SoC for symmetric headroom), yet has not been tracked systematically over its lifetime with independent, physics-grounded metrics.

3. Methodology

The methodological framework is structured around five complementary degradation metrics derived from a shared eight-year operational dataset. The following sections describe the system, data pipeline, metric definitions, and analysis procedures.

3.1. Operational Context and Degradation Mechanisms

The Exide1 unit has been commercially contracted for FCR service in accordance with the ENTSO-E Network Code, which mandates a linear power response proportional to frequency deviation (±200 mHz around 50.0 Hz) with full activation within 30 s [1,9]. This operational regime structurally constrains the battery to continuous partial-state-of-charge (PSoC) operation near 50% SoC to preserve symmetric regulation headroom.

Under PSoC conditions, flooded lead–acid cells accumulate insoluble lead sulfate (PbSO₄) crystals on the active electrode surfaces during repeated incomplete cycling, progressively reducing both electrochemically active area and electrolyte ionic conductivity [12,14]. The practical consequence is a coupled degradation observable across multiple electrical parameters: rising DC internal resistance (DCIR), declining round-trip efficiency, and shrinking charge-acceptance capacity [18]. This multi-metric manifestation motivates the analytical framework developed in Section 3.3, the design of which presupposes no dominant degradation mechanism but instead evaluates empirically which mechanisms are consistent with the observed trajectories.

A significant operational regime change occurred in 2022, when the system transitioned from primary FCR delivery to reserve operation following the commissioning of a co-located lithium-ion BESS. Annual charge throughput declined from ~250,000 Ah a⁻¹ (2018–2019) to below 20,000 Ah a⁻¹ (2025)—a reduction exceeding 90%. This regime shift constitutes a significant confounding factor in long-term trend analysis and is explicitly accounted for in all metric interpretations (Section 3.4).

3.2. Dataset Overview

This section summarizes the operational dataset used throughout the analysis: the raw data sources and their preprocessing, followed by the selection of the signals employed.

3.2.1. Raw Data and Preprocessing

Operational data were recorded at 1-s resolution by two subsystems: the Battery Management System (BMS, Exide LT series) and the power conversion system controller (BSC) (Exide Technologies, Büdingen, Germany (battery) and SMA Solar Technology AG, Niestetal, Germany). Raw exports were quality-filtered, UTC-unified, and deduplicated prior to analysis. Gaps shorter than 5 s were forward-filled; longer gaps were preserved as discontinuities. The resulting archive spans the full commercial operation period from commissioning (2017) through May 2025. The processed dataset is available in a public repository (see Data Availability Statement).

BMS channels are stored in physical units; BSC channels are scaled to physical units during preprocessing. Current sign convention follows the electrical engineering standard: positive current denotes discharge, negative current denotes charging. All signal definitions and scaling factors are documented in the dataset codebook.

3.2.2. Signal Selection

A minimal set of 16 BMS and BSC channels, sampled at 1 s resolution, was sufficient to compute all degradation metrics, the FCR stress profile, and the SoC distribution (

Table 1. Signal set used in all core analyses.

Signal	Source	Unit	Description
soc_pct_bms	BMS	%	State of charge (BMS-internal estimate)
current_A_bms	BMS	A	DC string current
voltage_bat_V_bms	BMS	V	DC string voltage (BMS terminal)
energy_charge_Wh_bms	BMS	Wh	Cumulative charge energy counter (32-bit split)
energy_discharge_Wh_bms	BMS	Wh	Cumulative discharge energy counter (32-bit split)
flag_imbalance_voltage_bms	BMS	–	Cell voltage imbalance/sulfation warning flag
power_ac_kW_bsc	BSC	kW	AC active power (positive = discharge)
frequency_Hz_bsc	BSC	Hz	Grid-frequency measurement
temperature_degC_bsc	BSC	°C	Battery temperature (cabinet sensor)
voltage_bat_V_bsc	BSC	V	DC voltage at battery terminal
current_A_bsc	BSC	A	DC current, battery side (positive = discharge)
voltage_inv_V_bsc	BSC	V	DC voltage at inverter terminal (cable-drop proxy)
energy_charge_kWh_bsc	BSC	kWh	Cumulative AC charge energy counter
energy_discharge_kWh_bsc	BSC	kWh	Cumulative AC discharge energy counter
flag_fcr_active_bsc/flag_standby_bsc…	BSC	–	Operational mode flags (FCR, standby, equalization…)

); the full register mapping is provided in the published dataset (see the Data Availability Statement).

3.3. Degradation Metric Framework

Four complementary metrics are derived from the operational dataset. They differ in the physical phenomenon they capture, the measurement pathway (AC-side energy meters vs. DC-side current/voltage), and the period for which they are computable. Their joint use mitigates sensor-specific biases that would affect any single indicator, consistent with the multi-parameter approach recommended for field-deployed lead–acid degradation analysis [18]. A fifth metric, apparent capacity from full-cycle Coulomb counting, is implemented in the analysis module but not reported as a primary result because fewer than 50 deep discharge events (SoC < 20%) were identified over the eight-year observation period, rendering per-year capacity estimates statistically unstable. All data processing and analysis were performed in Python 3.12 (Python Software Foundation, Wilmington, DE, USA).

3.3.1. DC Internal Resistance—Method A

The DC internal resistance (DCIR) R_int serves as the primary electrochemical proxy for sulfation-induced active surface loss. It is computed from voltage and current transients at polarity transitions (discharge-to-charge and charge-to-discharge) identified in the 1 s data stream using the current-pulse (step) method, i.e., Ohm’s law applied to the coincident voltage and current steps (R = ΔU/ΔI), in line with hybrid pulse power characterization (HPPC) and IEC-type pulse procedures:

$${\mathrm{R}}_{\mathrm{i}\mathrm{n}\mathrm{t}}={\displaystyle \frac{\Delta \mathrm{U}}{\Delta \mathrm{I}}}={\displaystyle \frac{{\mathrm{U}}_{\mathrm{a}\mathrm{f}\mathrm{t}\mathrm{e}\mathrm{r}}-{\mathrm{U}}_{\mathrm{b}\mathrm{e}\mathrm{f}\mathrm{o}\mathrm{r}\mathrm{e}}}{{\mathrm{I}}_{\mathrm{a}\mathrm{f}\mathrm{t}\mathrm{e}\mathrm{r}}-{\mathrm{I}}_{\mathrm{b}\mathrm{e}\mathrm{f}\mathrm{o}\mathrm{r}\mathrm{e}}}}$$

(1)

where U and I are the BSC battery terminal voltage and current, averaged over a 5 s window immediately before and after the polarity change. Pulses with |ΔI| < 10 A are excluded to avoid noise-dominated estimates. All values are reported at string level (300 cells in series); per-cell DCIR is obtained by dividing by the number of series cells (300; 299 after the 10 August 2023 bypass). Transition events are binned into 0.5 h SoC intervals; annual medians and interquartile ranges are computed across all valid pulses in each calendar year. Importantly, this approach exploits naturally occurring polarity transitions detected in the 1 s operational data stream; it does not rely on dedicated laboratory-style current-pulse injections (typically <10 ms at controlled SoC setpoints). The resulting estimates therefore capture in situ string-level resistance under real operating conditions, but carry higher scatter than standardized single-pulse measurements and are not directly comparable to per-cell values obtained from controlled hardware-pulse protocols. The BMS voltage channels, logged at a cadence of roughly 60 s and only for each 3-cell group, cannot resolve this transient: the sampling interval is far longer than the sub-second ohmic response to a current step, and the 3-cell aggregation is neither time-aligned with the current samples nor resolved to the string level. All dynamic DCIR estimation therefore relies on the 1 s, string-level BSC current and voltage channels.

Temperature correction: no explicit normalization was applied. The battery hall is actively climate-controlled with a high air-exchange rate. The mean battery temperature measured from the operational record differs by only about 1 °C between the two regimes, and the reserve phase (mean 22.2 °C) is in fact marginally warmer than the FCR phase (mean 21.1 °C). With a typical lead–acid DCIR coefficient of 0.5–1.0%/°C [13,14], this ΔT ≈ −1.1 °C maps to at most 0.8–1.6% of the observed 35.9 mΩ DCIR increase, and its sign is opposite to that required to explain the rise. Temperature differences between operating regimes therefore cannot account for the observed change.

3.3.2. AC Round-Trip Efficiency—Method B

The AC round-trip efficiency is η_rt,AC = W_AC,out/W_AC,in, the ratio of cumulative AC energy discharged to charged at the grid connection point. Because the on-board AC energy counters were unpopulated before 2022, AC energy is integrated uniformly across the full record from the one-second AC active-power signal i_P_AC (charge = integral of negative power, discharge = integral of positive power); this reproduces the on-board counters to within 1% over their 2022–2025 overlap. Monthly estimates are computed only when Ah throughput exceeds 500 Ah, to avoid SoC-drift artifacts at period boundaries (Section 3.3.3).

3.3.3. DC Round-Trip Efficiency and Coulombic Efficiency—Method C

The DC round-trip efficiency η_rt,DC = Wh_DC,out/Wh_DC,in is computed from the BMS cumulative energy counters (Eges_entlad, Eges_lad) at monthly granularity. The coulombic efficiency η_coul = Ah_out/Ah_in is derived from the BMS current integral. These metrics are likewise available for the full observation period. The same 500 Ah monthly throughput threshold applies.

Note on BMS-reported energy efficiency fields: the BMS data archive contains a pre-computed efficiency field (eta_rt_BMS) which shows values near 100% for 2017–2021. This field reflects a binary BMS flag unrelated to the Faradaic round-trip computation and must not be confused with the η_rt,DC values reported in Section 4, which are computed independently from the counter integrals using the pipeline described above.

3.3.4. Inverter Efficiency—Method D

The inverter efficiency is defined as η_inv = η_rt,AC/η_rt,DC and isolates power-electronic losses from battery chemistry losses. It is computable across the full observation period, since both η_rt,AC and η_rt,DC are now available throughout. A value below the theoretical maximum (~95–97% for modern bidirectional inverters) would indicate inverter aging; stability of η_inv over the reserve phase is used as a consistency check on the η_rt,DC trend.

3.3.5. Cable Resistance

DC cable resistance (R_cable) is estimated as the ratio of the voltage difference between the battery and the inverter terminal to the string current at operating points with |I| > 10 A. The inverter-side voltage signal required for this calculation was unavailable after 2021; R_cable is therefore an auxiliary cross-check for the FCR phase only and is not part of the longitudinal degradation indicator set.

3.3.6. Open-Circuit Voltage

Median cell OCV is estimated from string voltage during rest periods (|I| < 2 A, minimum preceding rest of 30 min). As discussed in Section 5.9, the OCV increase in the reserve phase is primarily attributable to the shift in mean SoC rather than constituting an independent degradation indicator; the metric is therefore not part of the core indicator set but is reported for completeness.

3.4. Operational Mode Classification

Each second is assigned to one of six mutually exclusive operational modes by a priority-ranked evaluation of the BSC opmode flags (

Table 2. Operational mode labels in order of assignment priority. The first matching condition in descending priority order is applied to each minute.

Label	Priority	Condition (Any Flag Active)
stop_failure	1 (highest)	flag_stop_bsc or flag_failure_bsc
equalization	2	flag_cmd_fullcharge_bsc (or battery full-charge request)
test_cycle	3	flag_const_bsc (constant-power mode)
fcr_normal	4	flag_fcr_active_bsc (PQ regulation active)
standby	5	flag_standby_bsc or flag_wait_bsc
unknown	0 (lowest)	No evaluable opmode flag present

), then resampled to 1-min resolution by majority vote to suppress sub-minute flag jitter and run-length-encoded into a compact event table.

The regime change in 2022 is reflected in a structural shift of the mode distribution: the FCR-normal mode fraction collapsed from 17–38% (2017–2021) to below 12% (2022–2025), while standby became the dominant mode. This shift has direct implications for (i) the SoC distribution experienced by the battery (Section 3.3.6), (ii) the availability of current pulses for DCIR estimation (Section 3.3.1), and (iii) the opportunity for equalization charging (see Section 4.1).

3.5. FCR Stress Characterization

FCR performance is characterized by the FCR-active fraction (fraction of time in PQ mode), tracking RMSE (root mean square deviation between measured power and ideal FCR response), and grid-frequency statistics. Annual FCR energy throughput (charge and discharge separately) is derived from the AC energy counters during FCR-active periods. These metrics serve as proxies for electrochemical stress and are used to contextualize the degradation trajectory.

3.6. Statistical Framework—Aggregation and Trend Analysis

All primary metrics are aggregated at monthly granularity; partial months at the observation boundaries are included in annual summaries but excluded from trend regressions. Linear trends are estimated by ordinary least squares (OLS) regression over annual data. To formally characterize the two-phase aging trajectory, piecewise regressions are fitted separately to the FCR phase (2017–2021, n = 5) and the reserve phase (2022–2024, n = 3, excluding the partial year 2025). Confidence intervals on slopes are computed as ±t_{α/2, n − 2} × SE(b) at the 95% level. The reader is cautioned that the reserve-phase segment contains only three annual data points (df = 1), resulting in necessarily wide confidence intervals; the width of these intervals reflects the limited statistical power rather than uncertainty about the direction of the trend, which is confirmed by R² = 0.998.

3.7. Data Availability

The processed one-second-resolution dataset underlying all results in this paper are available in a public repository (see Data Availability Statement). The dataset comprises the signal channels listed in Table 1 with human-readable column designations; the mapping between these designations and the original manufacturer register names is provided in the accompanying dataset codebook. The decision to publish the processed dataset rather than the raw manufacturer exports reflects both data-volume considerations and the aim of maximizing usability for independent replication.

4. Results

This chapter presents the results of the operational characterization, degradation indicator analysis, and detailed efficiency measurements for the M5BAT lead–acid battery string over its eight-year field operation from April 2017 to mid-2025. All results are derived from the one-second-resolution measurement data and analysis procedures described in Section 3.

4.1. Operational Characterization

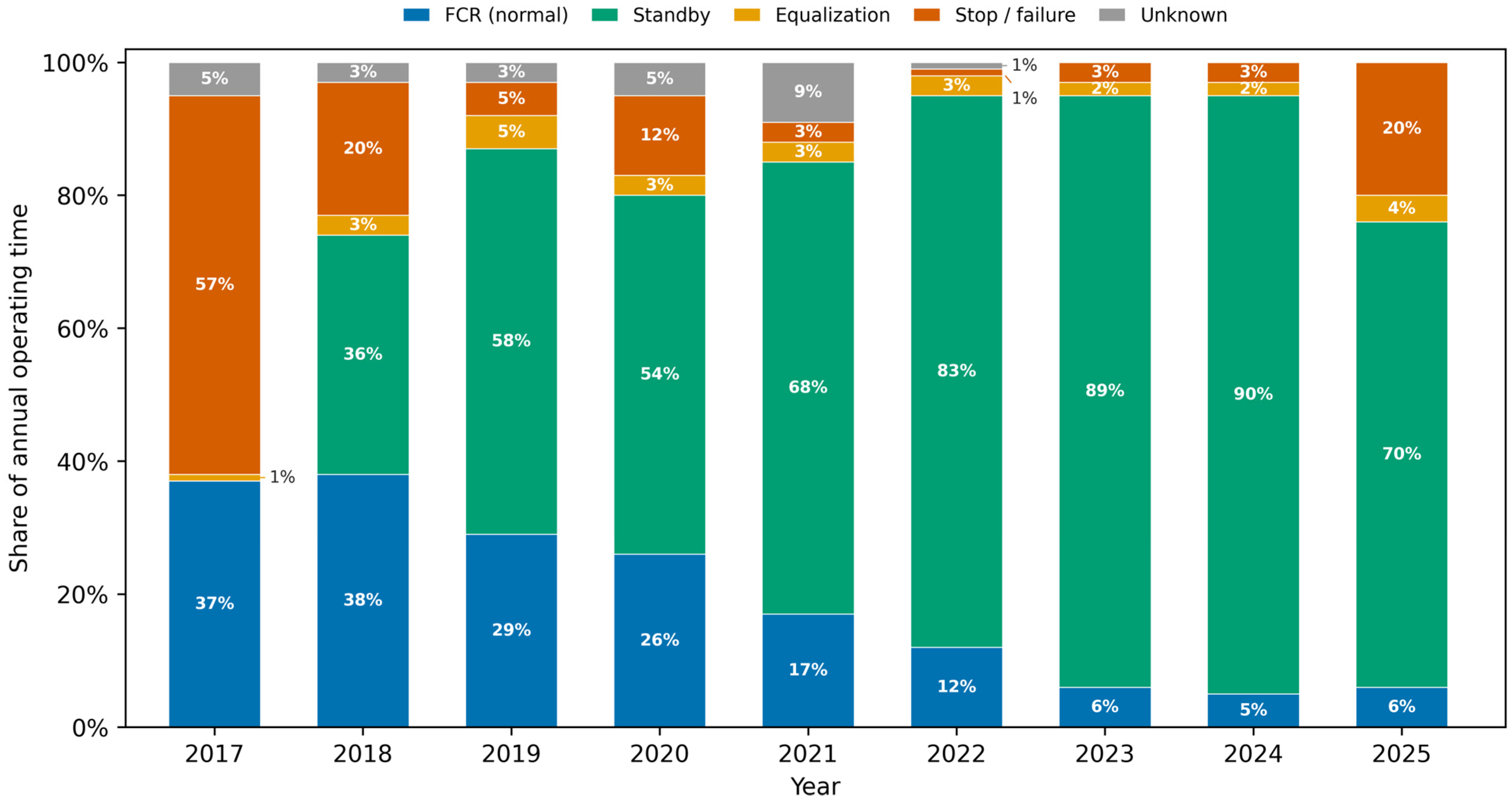

The operational mode classifier assigns each minute of battery activity to one of six mutually exclusive labels based on the inverter control-mode flags (Section 3.4). Figure 1 summarizes the annual fractions of the two most relevant modes—FCR-normal operation and standby—together with equalization charging and stop/failure states.

The most prominent structural change is the regime transition in 2022, when the lead–acid string was reassigned from its primary FCR-service role to a reserve capacity role within the hybrid BESS. In the FCR-primary phase (2017–2021), the FCR-normal fraction ranged from 17–38%, with standby increasing steadily as the system accumulated calendar age. In the reserve phase (2022–2025) the FCR-normal fraction collapsed to below 12%, while standby dominated with 61–90% of annual operating time. This structural shift in utilization is the central confounding variable for all degradation indicators discussed in subsequent sections.

In 2017, 56.6% of the year was classified as stop/failure. This is attributable to the commissioning and initial calibration period; continuous FCR operation did not commence until April 2017. During this commissioning window the plant operated intermittently while the BMS and BSC channels were still being calibrated (sensor offset and gain settings, energy-counter initialization), which inflates the 2017 stop/failure fraction. From 2018 onward the stop/failure fraction drops to below 6% for most years, with a notable spike in 2025 (20.5%, partial year, covering January–May 2025 only). The pronounced drop in stop/failure fraction from 20.2% (2018) to 5.5% (2019) is not attributed to a specific cause in this study; separately, operational records document that a defective cell was bypassed on 10 August 2023: the BMS monitors voltage across groups of three series-connected cells, and a single faulty cell within such a group triggers recurring protection shutdowns. The affected cell had been identified through cell-voltage monitoring as exhibiting markedly elevated internal resistance, and was bypassed to remove it from the active string. This hardware intervention represents a discontinuity in the monitored string configuration and must be borne in mind when comparing absolute DCIR and efficiency values across the pre- and post-bypass periods.

4.2. Battery Degradation Indicators

Four complementary degradation indicators are evaluated: DC internal resistance (DCIR, Method A), DC round-trip efficiency (η_rt,DC) and coulombic efficiency (η_coul) (Method C), inverter efficiency (η_inv) as a stability reference (Method D), and a cross-indicator triangulation (Section 4.2.4). AC round-trip efficiency (η_rt,AC, Method B) is available for the full observation period (reconstructed from AC-power integration before 2022) and is discussed in Section 4.3.

4.2.1. DC Internal Resistance

The median string-level DCIR rose monotonically across the observation period (

Table 3. Annual KPIs for the M5BAT lead–acid string. DCIR values at string level (per-cell values use the active series count: 300 before, 299 after 10 August 2023). R_cable 2017–2021: not available. η_rt,AC and η_inv span the full record (pre-2022 η_rt,AC reconstructed from AC-power integration); 2018 η_inv excluded (string-maintenance artifacts). * Partial year.

Year	Throughput [kAh]	ηcoul [%]	ηrt,DC [%]	ηrt,AC [%]	ηinv [%]	DCIR Med. [mΩ]	DCIR Q25–Q75 [mΩ]	Regime
2017	88.9	97.9	88.3	79.6	90.2	55.6	44–68	FCR-primary
2018	238.9	96.0	85.1	84.7	–	51.8	40–65	FCR-primary
2019	248.2	98.7	88.4	82.6	93.5	54.9	43–67	FCR-primary
2020	165.2	97.7	86.8	79.5	91.6	58.8	46–73	FCR-primary
2021	167.5	96.6	85.0	80.0	94.1	59.7	46–75	FCR-primary
2022	162.2	96.9	84.0	78.6	93.6	65.2	52–79	Reserve
2023	70.5	93.5	80.7	75.5	93.6	79.4	64–95	Reserve
2024	34.9	86.0	74.0	68.2	92.2	91.5	73–108	Reserve
2025 *	18.9	87.4	76.7	70.5	92.0	92.6	75–106	Reserve

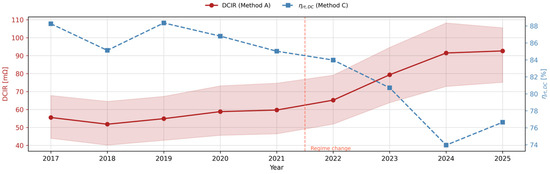

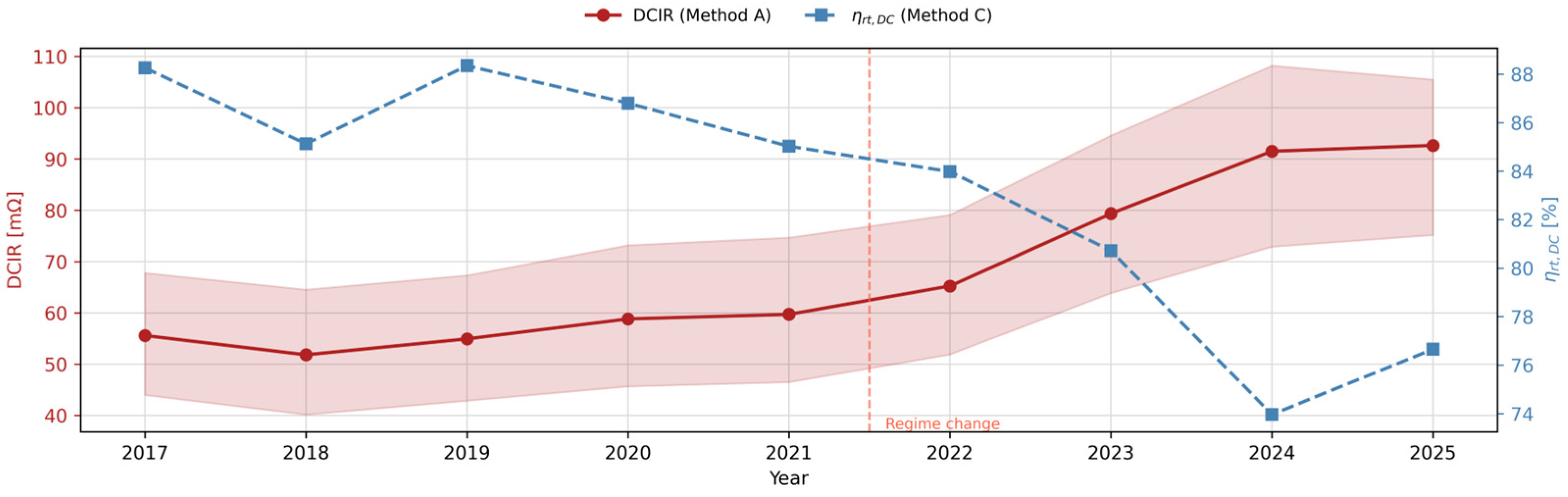

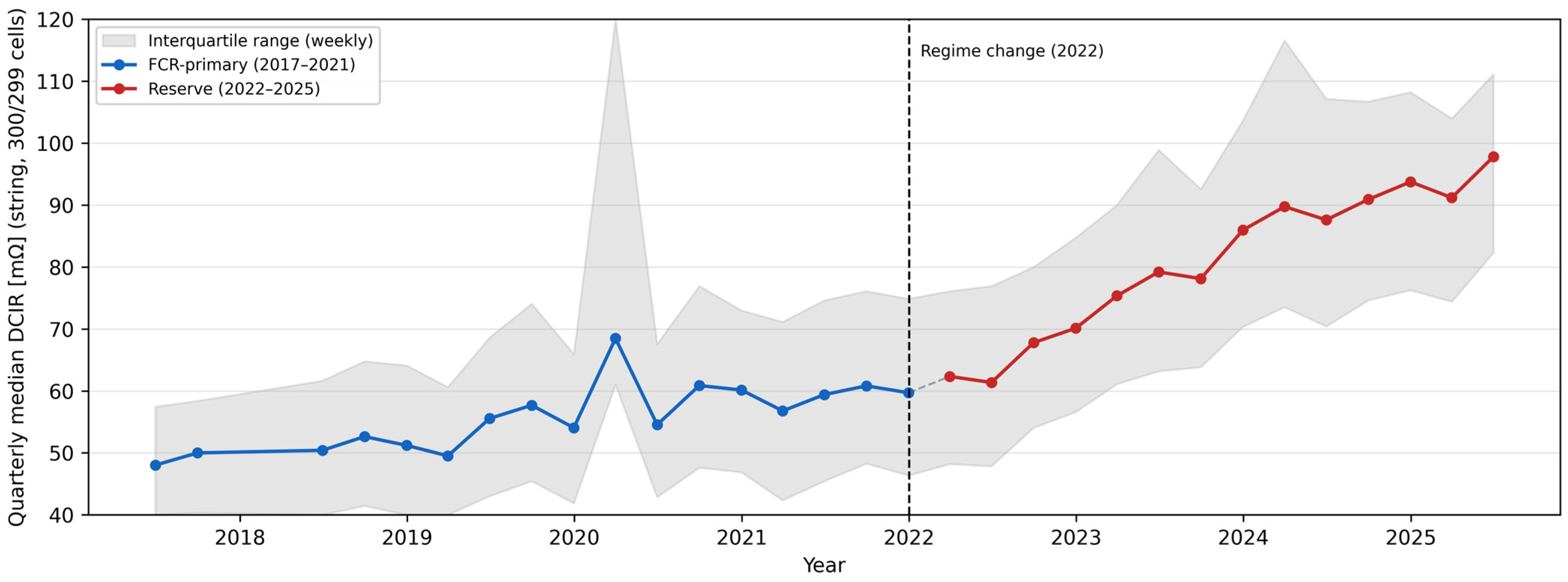

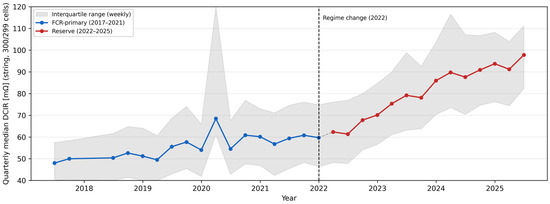

, Figure 2), with the interquartile range widening in parallel, indicating growing cell-to-cell heterogeneity within the string. Per-cell values remain within the range reported for aged stationary lead–acid cells [12,18].

Piecewise regression separates the two operating phases: FCR phase (2017–2021): +1.53 ± 2.40 mΩ/year (R² = 0.578, t = 2.03, not statistically significant at α = 0.05); reserve phase (2022–2024): +13.14 ± 7.41 mΩ/year (R² = 0.998, t = 22.5). The wide CI on the reserve rate reflects the small sample (n = 3, df = 1) rather than uncertainty about the direction of change. The non-significance of the FCR-phase slope indicates that DCIR degradation during active FCR service was statistically indistinguishable from zero—a finding that strengthens the attribution of accelerated degradation to the reserve-regime transition.

The single quarterly outlier in 2017-Q4 (≈550 mΩ) is a measurement artifact arising from incomplete, non-physical current-step estimates in the early operating record; it fails the current-step and data-quality filters (Section 3.3.1) and is excluded from all regression analyses.

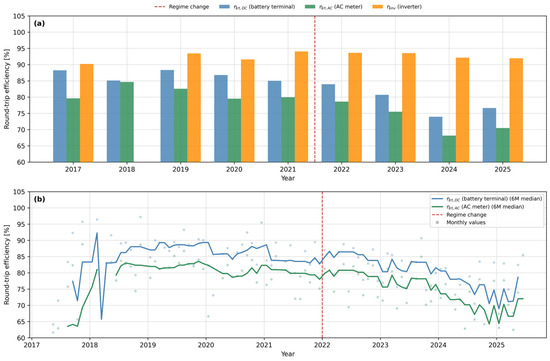

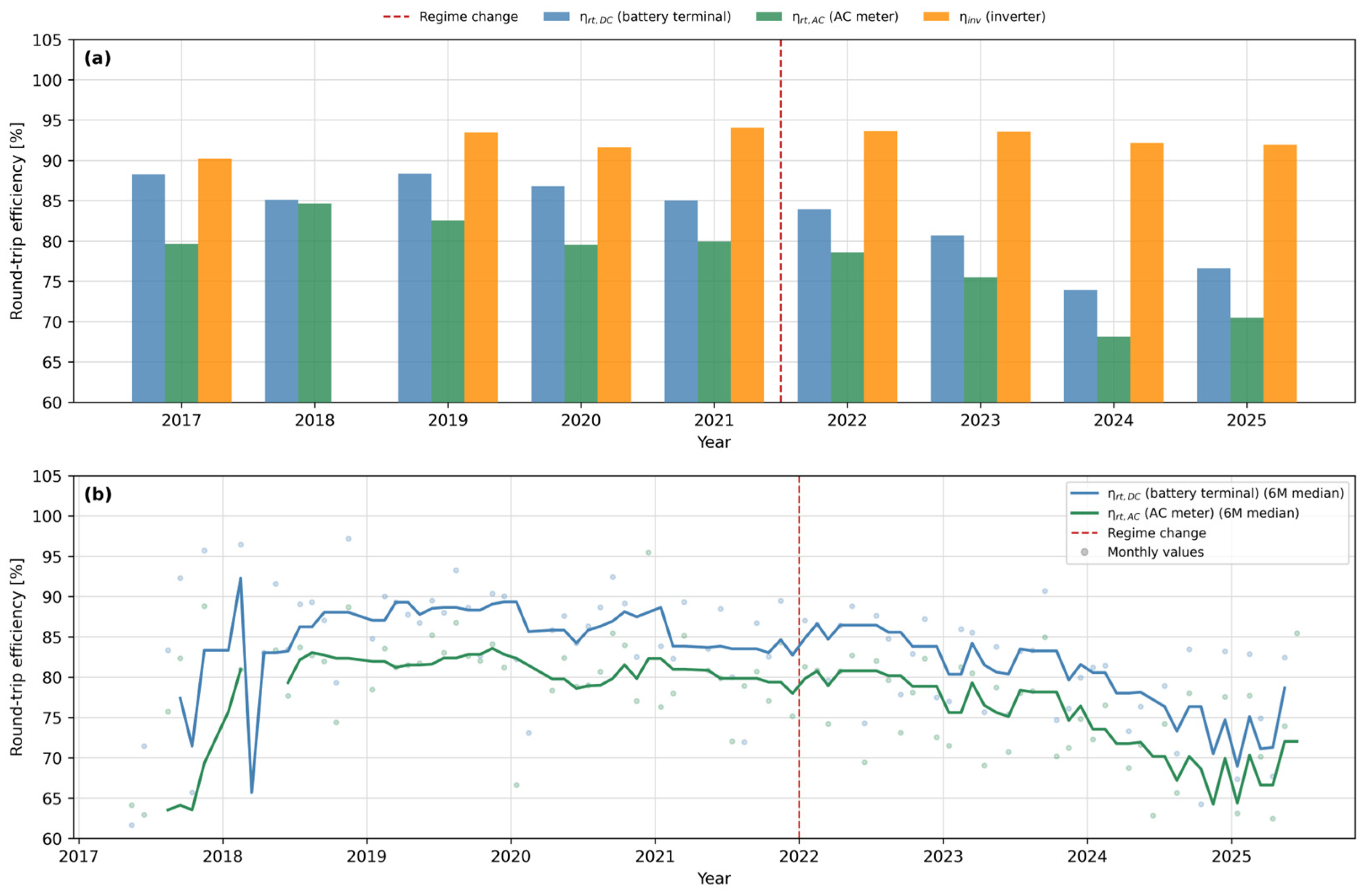

4.2.2. DC Round-Trip Efficiency and Coulombic Efficiency

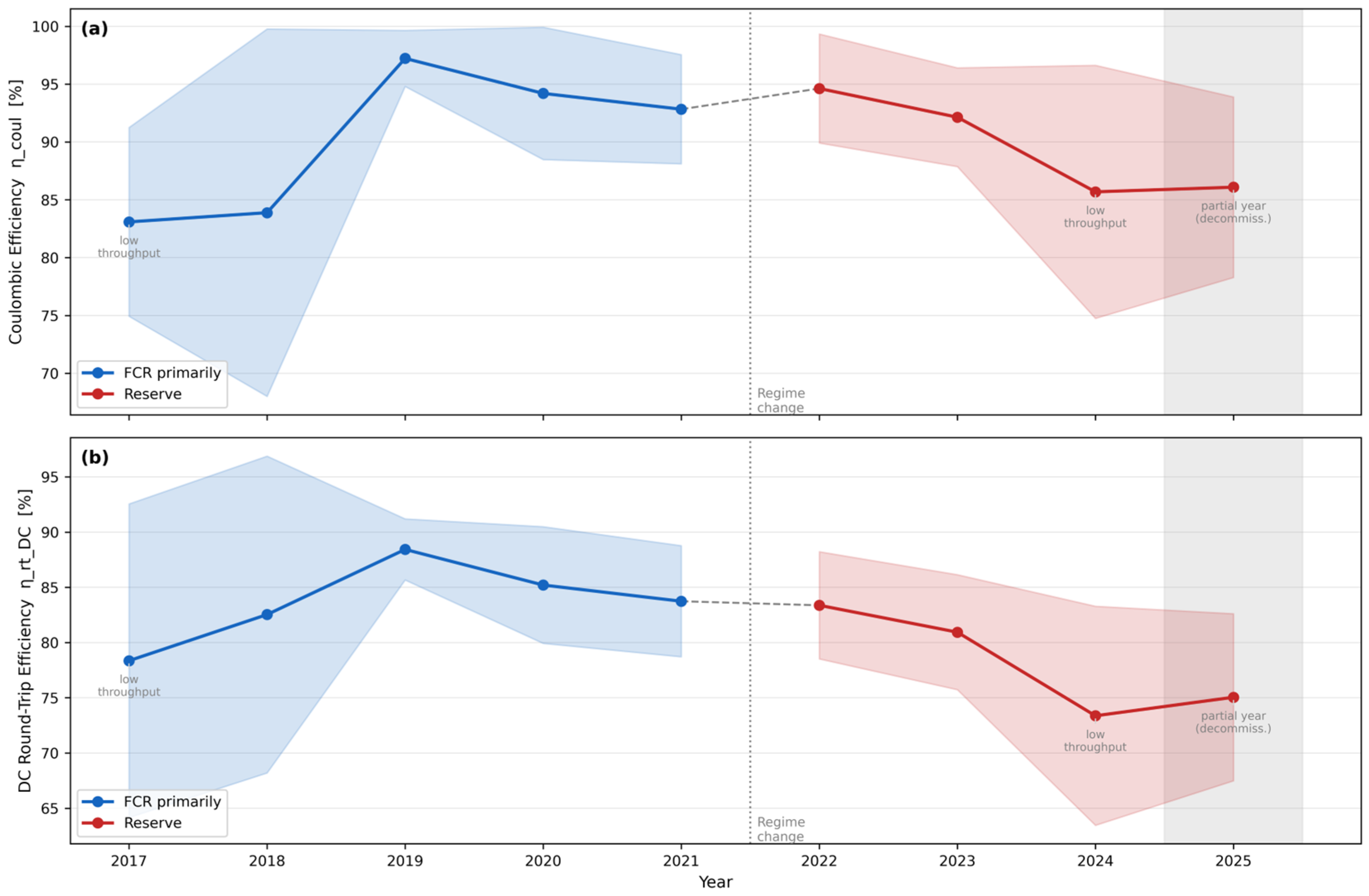

Annual η_rt,DC and η_coul are computed from DC energy integrals at the battery terminals (Section 3.3.3) (Figure 3).

Piecewise regression shows no statistically significant FCR-phase efficiency trend (2017–2021: −0.48 ± 1.66%/year, R² = 0.22), consistent with a stable degradation regime during active FCR service, followed by a steep reserve-phase decline (2022–2024: ≈−5%/year). The decline is directionally consistent across η_rt,DC and η_coul but rests on a single degree of freedom and should be interpreted with caution.

The divergence between η_coul and η_rt,DC—coulombic efficiency declining more slowly than round-trip efficiency—is consistent with rising ohmic losses (captured by DCIR) as the dominant degradation mechanism. The partial-year 2025 data show a slight apparent recovery to η_rt,DC = 76.7%, which may reflect a seasonal temperature effect and should not be interpreted as genuine performance improvement.

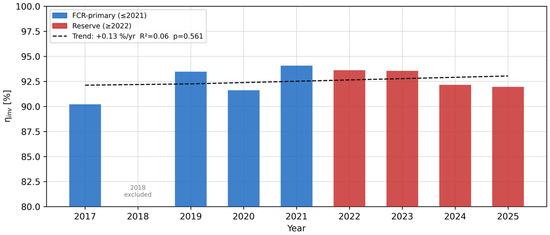

4.2.3. Inverter Efficiency as a Stability Reference

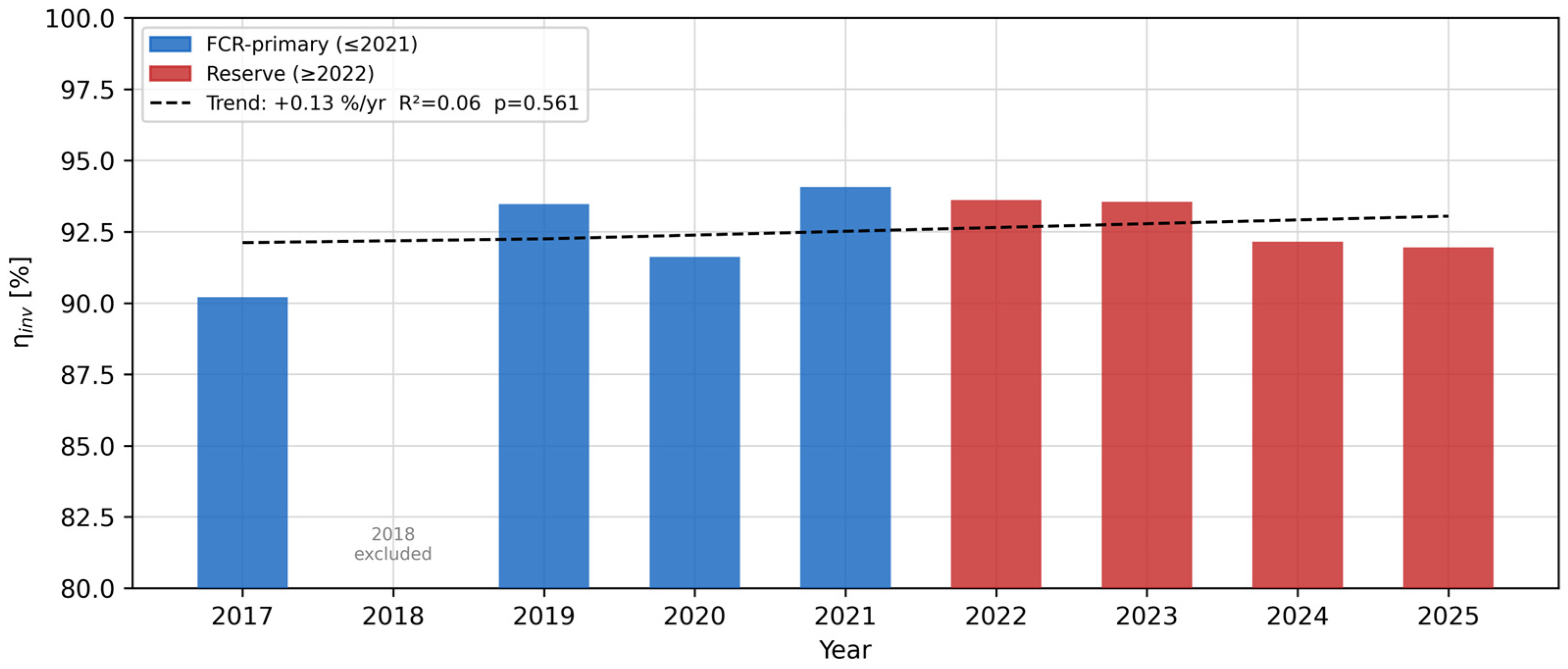

η_inv was 93.3% (2022) and 93.7% (2023), declining modestly to 92.0% (2024) and 90.8% (2025) (Figure 4). The modest decline stands in sharp contrast to the concurrent steep deterioration of η_rt,DC (−10 pp over the same period). This comparison confirms that the bulk of the observed efficiency loss originates in the battery rather than the inverter, and validates DCIR and η_rt,DC as genuine battery degradation indicators rather than artifacts of inverter aging.

4.2.4. Cross-Indicator Triangulation

The Pearson correlation between annual DCIR and η_rt,DC over 2017–2024 is r ≈ −0.98 (Figure 5). The value of this agreement lies in the independence of the two measurement pathways, i.e., pulse-based voltage and current for the resistance versus energy integrals for the efficiency. Both trace the same underlying aging process through unrelated signal chains, not in the magnitude of the coefficient, which for monotonic annual series partly reflects a shared temporal trend. The mirrored trajectories are particularly pronounced post-2022, where DCIR gained approximately 27 mΩ and η_rt,DC lost about 14 percentage points relative to the FCR-phase level (about 10 points over the three reserve years 2022–2024).

4.3. Detailed Efficiency Analysis

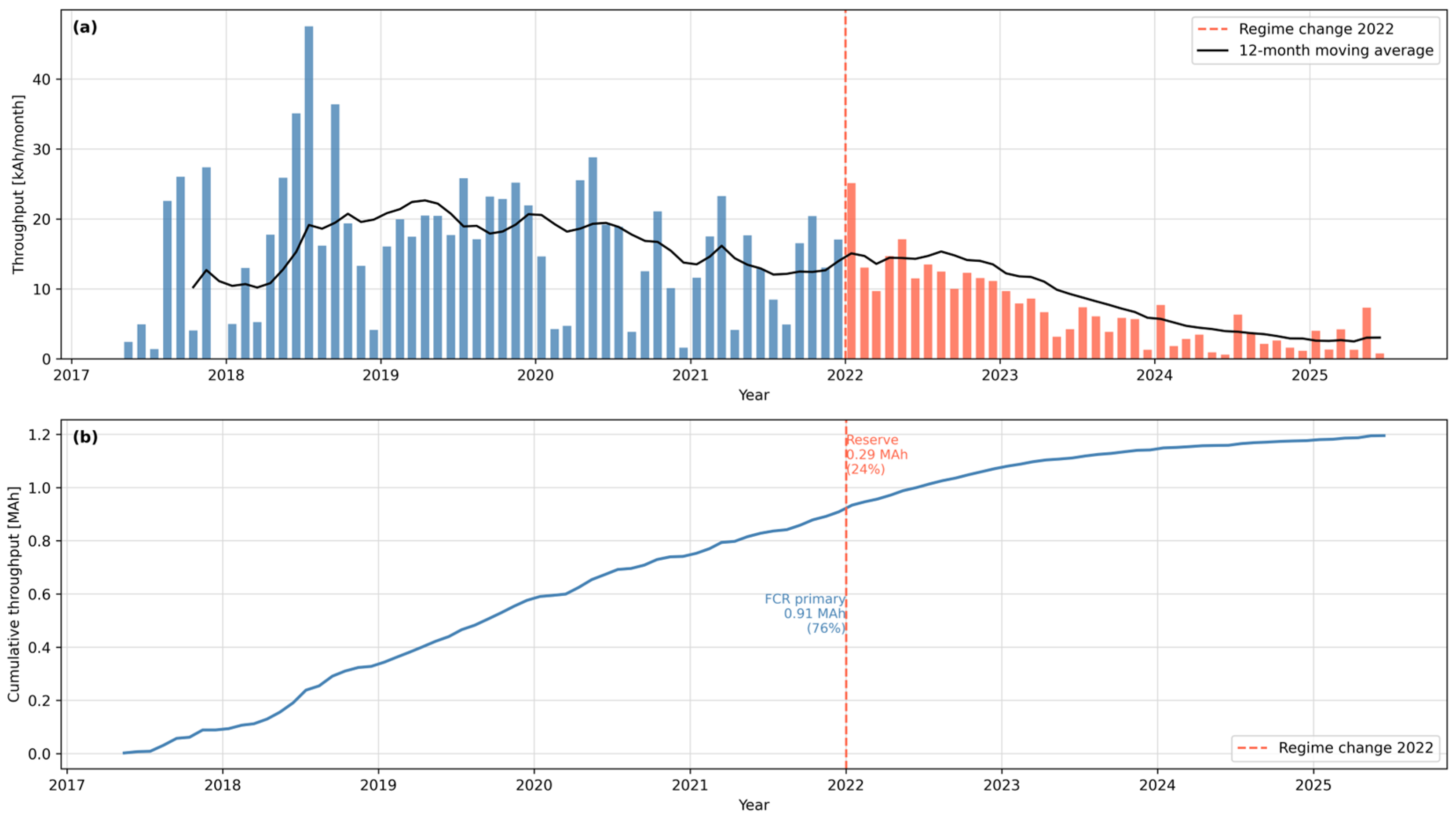

Charge throughput collapsed by roughly 92% from its 2019 peak to 2024–2025 (Table 3) (Figure 6), moving the unit into a low-throughput, high-standby regime associated with accelerated sulfation [14]. Monthly coulombic efficiency remained high (>97%) through the FCR phase and then declined with increasing inter-month scatter from 2022 onward (Figure 7); monthly η_rt,DC held a tight 83–91% band during FCR service before descending steeply (Figure 8), with AC round-trip.

DC cable resistance ranged between 27.2 mΩ (2021) and 32.9 mΩ (2017–2019) during the FCR phase. As the required inverter-side voltage signal was unavailable from 2022 onward, R_cable is not part of the longitudinal indicator set and is reported here only for completeness.

4.4. Regime Comparison

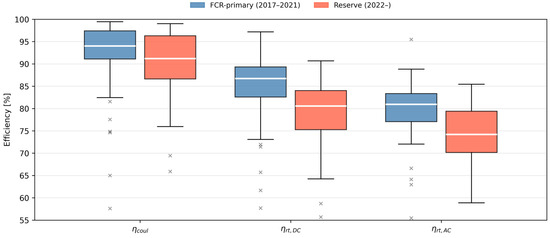

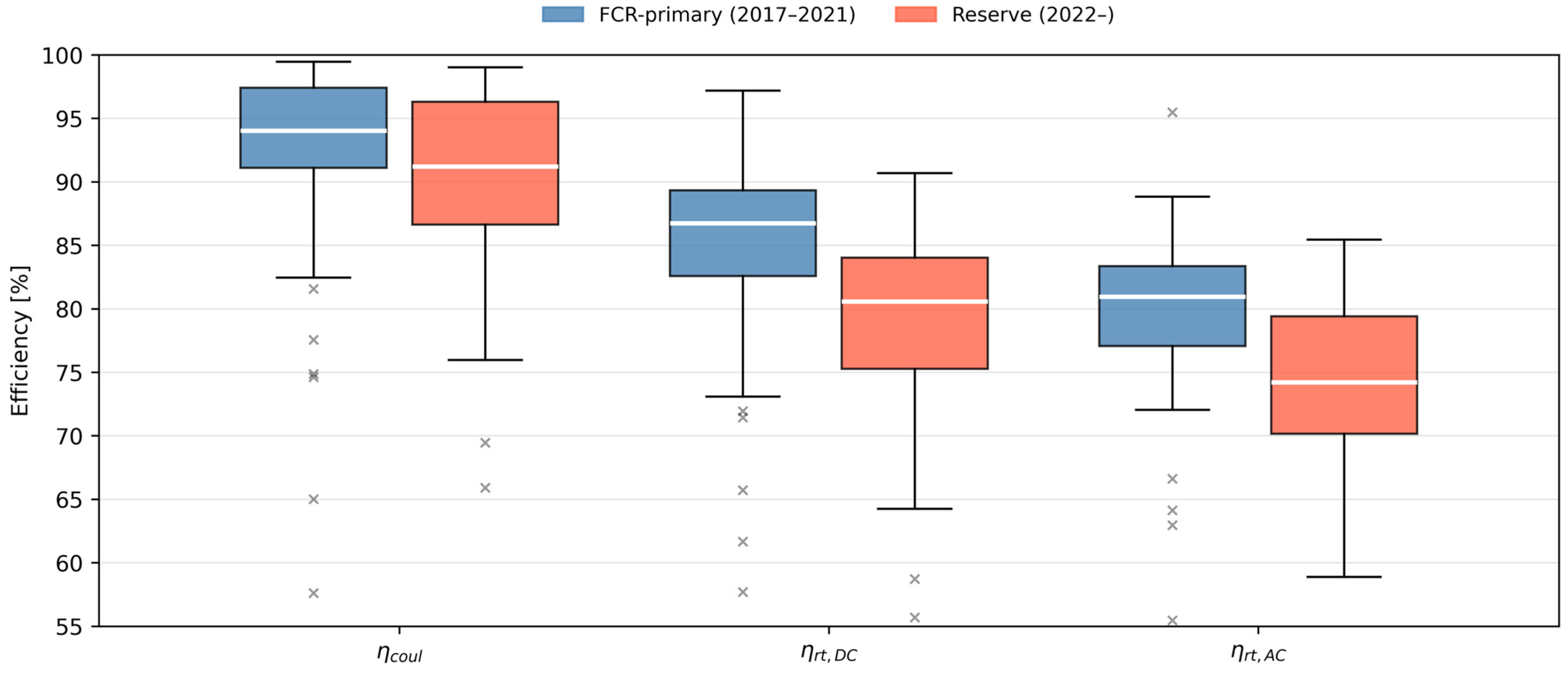

Boxplot comparison confirms that all efficiency metrics deteriorated substantially after the regime change. Median η_rt,DC in the reserve regime (≈80%) is approximately 6 percentage points (median-to-median, Figure 9) below the FCR-primary median (≈86%). Wider interquartile ranges in the reserve phase reflect greater month-to-month variability driven by variable standby duration and temperature seasonality.

4.5. Summary of Annual Key Performance Indicators

Table 3 consolidates all annual KPIs. DCIR values are reported at string level; per-cell values are obtained by dividing by the active series count (300 before, 299 after 10 August 2023). The DCIR Q25–Q75 column provides a measure of intra-string cell heterogeneity; the widening from ±24 mΩ (2017) to ±35 mΩ (2024) indicates increasing cell-to-cell spread. Cells marked ‘–’ indicate unavailable data. The 2025 row is a partial year (January–May). The annual state-of-charge distribution shifted upward after the 2022 transition, with the median rising from about 52% to 63% and the lower quantiles compressing toward the upper SOC range (Figure 10).

The joint trajectory of DCIR and η_rt,DC constitutes the primary degradation signal. Both indicators confirm a two-phase aging pattern characterized by statistically non-significant FCR-phase change rates and a strongly accelerated reserve-phase decline. Mechanistic interpretation is provided in Section 5.

5. Discussion

This chapter interprets the empirical results reported in Section 4 against the paper’s central question: what can an eight-year operational field dataset reveal about the degradation of a lead–acid BESS, and how far can system-level indicators attribute the observed changes to specific mechanisms? The discussion is structured to first present the two primary empirical findings (the primary and secondary findings below), then evaluate the mechanistic possibilities without overstating what the data can prove (Section 5.1, Section 5.2, Section 5.3 and Section 5.4), and finally address validity, statistics, operational implications, and limitations (Section 5.5, Section 5.6, Section 5.7, Section 5.8, Section 5.9, Section 5.10, Section 5.11 and Section 5.12).

Primary finding: no statistically detectable degradation during FCR operation. The most important and probably most counterintuitive result of this study is the relatively negligible effect of the FCR operating modes on degradation. Over five years of continuous FCR-primary service (2017–2021), neither the DCIR growth rate nor the η_rt,DC trend (Section 4.2,

Table 4. Statistically significant full-dataset OLS trends (p < 0.05, annual data n = 9).

Metric	Annual Trend	R2	p-Value
DCIR median (full dataset)	+5.01 ± 2.59 mΩ/year	0.789	0.0004
BMS DC efficiency	−1.79%/year	0.820	0.0008
FCR mode fraction	−4.39 pp/year	0.926	<0.001
FCR active fraction	−4.45%/year	0.957	<0.001
pSoC < 50%	−5.22 pp/year	0.584	0.017
pSoC < 30%	−2.37 pp/year	0.681	0.006
Discharge energy	−14.8 kWh/month/year	0.520	0.028

) is statistically distinguishable from zero at any conventional significance level.

This non-result is substantively meaningful, not merely a power problem. The dataset covers approximately 145 million one-second measurements across the five-year FCR phase (2017–2021). The FCR-phase degradation rates are small not because the data are noisy but because the system genuinely did not degrade measurably during active FCR service. This finding provides field evidence that questions the widespread assumption that FCR-specific PSoC cycling is a primary accelerant of lead–acid degradation. Under the specific operating conditions of M5BAT’s OCSM unit, which benefited from comparatively lower FCR dispatch priority due to the hybrid EMS strategy [15], periodic equalization charging (maintained throughout the observation period), and a mean SoC of approximately 52%, five years of FCR service left no statistically discernible mark on the two primary health indicators. Accordingly, the negligible degradation observed during the FCR phase is conditional on the continued use of this automated periodic equalization regime. The equalization cycles regularly counteract incipient PSoC sulfation. The finding should therefore not be generalized to FCR operation without a comparable equalization protocol.

This contrast is also evident quantitatively. A throughput-based aging model, calibrated to the reserve-phase resistance growth of 13.14 mΩ/year at a mean annual throughput of 71.6 kAh, would predict an FCR-phase resistance growth of approximately 37.6 mΩ/year, obtained by applying the reserve-phase specific rate of about 0.18 mΩ/kAh to the higher mean FCR throughput of 204.9 kAh/year. The predicted rate is approximately 25 times higher than the observed increase of 1.53 mΩ/year, which was not statistically significant.

The two operating regimes therefore show a clear mismatch between throughput and observed aging. The FCR phase had approximately 2.9 times the annual throughput of the reserve phase, while resistance growth was approximately 8.6 times lower. A throughput-only aging model would consequently misrepresent not only the magnitude of the degradation difference but also its direction. For field-oriented lead–acid aging models, throughput should therefore be complemented by explicit terms for calendar aging and high-SoC standby operation. An equalization state could provide a further relevant model variable. This does not mean FCR operation is harmless to lead–acid cells in general; it means that under the specific dispatch and management conditions of this installation, its effect over this time scale was below the detection threshold of string-level monitoring. Systems with higher FCR dispatch fractions, less equalization, or different SoC management strategies may exhibit different behavior. The result is better framed as a data point about operating regime sensitivity than as a universal exoneration of FCR cycling.

Secondary finding: regime transition correlated with strongly accelerated degradation. Following the 2022 transition to low-utilization reserve operation, all indicators shifted simultaneously and substantially: DCIR growth accelerated sharply while η_rt,DC and η_coul both declined steeply (Section 4.5, Table 3). The reserve-phase DCIR slope is much higher than the FCR-phase slope and represents the dominant degradation event in the system’s lifetime to date.

Several factors changed simultaneously at the 2022 boundary: annual Ah throughput fell by more than 50% from the preceding year and continued declining; the fraction of time spent below 50% SoC collapsed from 42% to below 2% by 2024; mean SoC rose into the upper half of its range; the FCR-active fraction dropped from 17% to 12% and continued falling; and the measurement environment changed (the inverter-terminal voltage signal, named voltage_inv_V_bsc, became unavailable). The result is a clean empirical observation—degradation accelerated sharply after 2022—but a multi-factor confound that prevents attribution of the acceleration to any single cause. The discussion of candidate mechanisms that follows (Section 5.1, Section 5.2, Section 5.3 and Section 5.4) is therefore presented explicitly as hypothesis generation, not mechanistic confirmation.

The multi-indicator signature observed from 2022 onward—rising DCIR, falling η_coul, falling η_rt,DC—is consistent with several degradation mechanisms, which are discussed in order of their evidential support from the available data.

5.1. High-SoC, Low-Throughput Standby

The combination most strongly supported by the data is low-throughput, high-SoC standby. First, pSoC <50% fell from 42–59% in the FCR years to 1.4% in 2024: the cell almost never discharged into the lower half of its SoC range and spent most of its time at elevated SoC, where positive-grid corrosion and calendar aging dominate and lead sulfate formed during partial discharge is incompletely reconverted. Second, annual throughput collapsed by roughly 92%, removing the regular deeper cycling that promotes electrode reconditioning. Equalization charging, by contrast, continued at a comparable cadence throughout both regimes (≈2–3% of operating time; Figure 1), so the acceleration occurred despite this countermeasure; whether an adjusted equalization protocol contributed cannot be resolved from the data. These observations are consistent with progressive sulfation and calendar-dominated aging (Pavlov [14], Ruetschi [12]; calendar-aging dominance is also reported for M5BAT by Jacqué et al. [16]) but cannot be confirmed without cell-level evidence such as EIS, acid-density readings, or postmortem plate analysis.

5.2. Calendar Aging and Corrosion

The positive grid of lead–acid cells undergoes progressive oxidation regardless of cycling history, at a rate determined primarily by temperature and electrolyte concentration [12]. Over eight years, calendar-aging-driven grid corrosion is expected to contribute to rising DCIR independently of operating regime. The near-zero FCR-phase DCIR trend does not exclude this mechanism but suggests either that the corrosion rate was below the string-level measurement resolution during active cycling, or that cycling-induced effects (plate flexion, active material mixing) partially mitigated the corrosion signature. Calendar aging becomes a proportionally larger contributor as cycling declines [19], which is consistent with the post-2022 acceleration, but cannot be separated from the sulfation contribution without a controlled experiment.

5.3. Electrolyte Stratification

Flooded lead–acid cells are susceptible to electrolyte stratification under low-utilization conditions, where concentration gradients develop between the upper and lower portions of the cell. Stratification increases local corrosion near the electrolyte surface, reduces effective SoC estimation accuracy, and can accelerate sulfation in the upper plate regions. Although equalization gassing, which mechanically mixes the electrolyte, did continue, the sharply reduced cycling and prolonged high-SoC dwell provide extended resting periods in which stratification can develop [13]. The widening of the annual DCIR interquartile range from 24 mΩ (FCR years) to 35 mΩ (reserve years) is consistent with increasing intra-string heterogeneity, which stratification would promote. However, this is also consistent with accelerating cell-to-cell divergence from any of the above mechanisms.

5.4. What the Data Cannot Distinguish

The three mechanisms described above are not mutually exclusive and likely co-occur. Under prolonged high-SoC standby they are mutually reinforcing: positive-grid corrosion raises local resistance and consumes water, promoting acid stratification, while stratification concentrates acid in the lower plate region and locally accelerates both corrosion and the sulfation of incompletely reconverted lead sulfate, whose stable crystals in turn reduce active surface area and raise polarization. A field-measured DCIR rise is therefore the aggregate signature of a coupled degradation cascade rather than of any single isolated mechanism [12,14]. System-level field data alone, providing DCIR, efficiency, and OCV, cannot distinguish between them because they produce overlapping multi-indicator signatures. The measurements that would narrow the mechanistic uncertainty are: (a) electrochemical impedance spectroscopy (EIS) to separate capacitive, charge-transfer, and diffusion-limited resistance components; (b) electrolyte acid density measurements to directly detect stratification and loss of active material; (c) capacity measurements from controlled full-discharge cycles, including incremental capacity analysis (ICA) and differential voltage analysis (DVA), to quantify capacity fade and resolve electrode-level aging modes independently of DCIR; and (d) postmortem plate analysis to identify sulfate crystal morphology. None of these were available in the operational dataset.

5.5. Coulombic Efficiency: Causal Direction

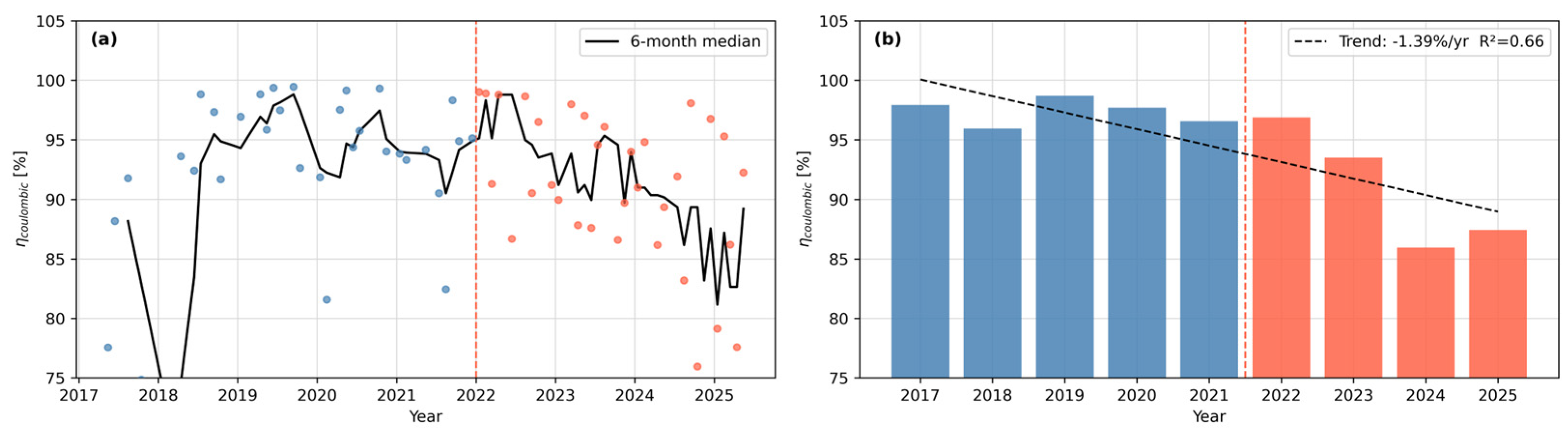

η_coul fell from 98.7% (2019) to 86.0% (2024). The causal pathway connecting electrode degradation to coulombic efficiency loss in lead–acid cells works as follows: rising electrode resistance or reduced active surface area increases polarization during charging → elevated electrode potential promotes parasitic hydrogen and oxygen evolution → a larger fraction of charge current is consumed by gas evolution rather than the Faradaic reaction, reducing η_coul [12]. In this sequence, electrode degradation (from whichever mechanism) is upstream of the η_coul decline. The decline of 12.7 pp in η_coul over five years is therefore consistent with progressive electrode deterioration and does not by itself distinguish sulfation from corrosion or stratification.

5.6. Inverter Efficiency as an Independent Indicator

η_inv (93–94% in 2022–2023, declining to 91% by 2025) remained substantially more stable than η_rt,DC (which declined by >10 pp over the same period). This comparison provides a useful methodological validation: the η_inv cross-check confirms that the η_rt,DC decline is attributable to the battery, not to inverter aging, and bounds the inverter-attributable bias on system-level efficiency metrics to below 3 pp.

5.7. Temperature Effects on DCIR

No temperature correction was applied to the DCIR data. As quantified in Section 3.3.1, the mean battery temperature measured from the operational record differs by only about 1 °C between regimes, with the reserve phase marginally warmer than the FCR phase; the resulting temperature contribution is at most 0.8–1.6% of the observed DCIR increase and is of the opposite sign to the rise. A slightly lower standby temperature can therefore be excluded as the cause of the post-2022 increase, and the regime comparison is unaffected.

5.8. Statistical Robustness and Model Choice

Table 4 summarizes the statistically significant full-dataset OLS trends. All chemistry-specific degradation trends (DCIR, BMS efficiency, pSoC distribution) are significant at p < 0.001–0.028. The FCR-activity trends (R² = 0.926–0.957) are the strongest predictors in the dataset but reflect operational decisions, not battery chemistry.

The full-dataset OLS model conflates the two phases and yields a single slope of +5.01 mΩ/year that underestimates the reserve-phase rate and overestimates the FCR-phase rate. A piecewise model with a structural break at 2022 better represents the physics of the two-regime trajectory. To formally validate this choice, a Chow test [20] was applied to each of the three primary indicators at the hypothesized breakpoint of 2022. The test rejects the null hypothesis of parameter stability for all three: DCIR (F = 83.3, p < 0.001), η_rt,DC (F = 7.2, p = 0.047) and η_coul (F = 12.8, p = 0.018). The structural break at 2022 is therefore statistically established across all core degradation metrics. Bootstrapped 95% confidence intervals (B = 10,000 resamples) on the piecewise OLS slopes confirm the key findings. In the FCR phase, the efficiency trends are statistically indistinguishable from zero: η_rt,DC slope CI [−1.7, +0.8] pp/a and η_coul CI [−1.1, +1.1] pp/a both span zero. In the reserve phase, the slopes are bounded clearly away from zero: η_rt,DC [−6.8, −3.3] pp/a, η_coul [−7.6, −3.4] pp/a, and DCIR [+8.0, +12.1] mΩ/a. The reserve-phase DCIR slope thus has a bootstrap CI that excludes zero despite resting on only three annual data points (df = 1), indicating that the directional evidence is robust to the limited sample size even if the precise magnitude remains uncertain.

As a further robustness check that does not rely on the three annual aggregates, the distributions of higher-resolution indicator values were compared between regimes using the non-parametric Mann-Whitney U test, which makes no distributional assumption and is insensitive to the seasonality that would confound a monthly trend regression. Weekly per-cell DCIR (n = 238 vs. 181) and monthly DC round-trip efficiency (n = 49 vs. 28) both differ highly significantly between the FCR and reserve phases (DCIR median 0.19 → 0.27 mΩ per cell, U = 8270, p < 0.001; η_rt,DC median 86.8% → 81.8%, U = 395, p = 0.002), confirming that the post-2022 shift is detectable well below annual resolution. Monthly coulombic efficiency, the noisiest indicator, shows a smaller distributional shift that does not reach significance (94.1% → 91.2%, p = 0.22), consistent with its lower signal-to-noise ratio. These distribution-level results confirm the Chow test and bootstrap confidence intervals without depending on the limited number of annual data points.

5.9. OCV Interpretation

Median cell OCV rose from 2.045–2.088 V/cell (FCR phase) to 2.080–2.103 V/cell (reserve phase). Two interpretations apply: First, the rising mean SoC in reserve operation (52% → 63%) thermodynamically implies a higher OCV at rest. This is an artifact of the changed operating point, not a degradation signal. Second, electrolyte stratification can produce apparent OCV elevation due to acid concentration gradients [14]. The first interpretation is more frugal and is the primary explanation; the second cannot be excluded but requires acid-density evidence to support. The OCV trend therefore does not add independent mechanistic information beyond what is already conveyed by the SoC distribution data.

5.10. Implications for Battery Management

These field results are consistent with findings from previous studies on lead–acid batteries. Shamim et al. [8] reported from controlled VRLA tests under peak-shaving and frequency-regulation duty cycles that degradation was influenced more strongly by the state-of-charge operating window than by cycling intensity. This is consistent with the present observation that resistance growth coincided with high-SoC standby operation rather than with the higher throughput during FCR operation. Ruetschi [12] and experience from valve-regulated batteries in float service [21] identify positive-grid corrosion at sustained high SoC as an important calendar-driven life-limiting mechanism. This provides a plausible explanation for the behavior observed during the reserve phase. The contribution of the present work lies primarily in the duration and operating context of the field record. It covers eight years at one-second resolution for a full-scale battery string operated under real grid conditions, rather than accelerated laboratory testing of individual cells. Two practical implications follow from these findings. First, operating guidelines and prequalification frameworks for stationary lead–acid batteries in reserve and standby applications should specify active SoC management and periodic cycling in addition to an equalization schedule. Second, DC round-trip efficiency can serve as a low-cost indicator for continuous health monitoring. It can be calculated from standard BMS counters and showed a strong relationship with internal-resistance growth in the investigated system (r ≈ −0.98).

Avoid prolonged high-SoC, low-throughput standby; use periodic cycling and active SoC management even in reserve service. The transition into this regime in 2022 is the operational change most strongly associated with the onset of accelerated degradation. Equalization charging should be maintained as good practice, but on this evidence did not by itself prevent the standby-phase degradation.

Monitor η_rt,DC as a rolling monthly health indicator. It is computable from existing BMS counter signals and tracks internal resistance closely (Section 4.2), providing an actionable degradation metric without additional instrumentation.

Treat regime transitions from active cycling to extended standby as degradation risk events, not purely as operational decisions. For lead–acid chemistry, low-throughput high-SoC standby appears to be a more damaging regime than high-throughput partial-SoC FCR cycling. This is contrary to the common intuition that reserve service is inherently less stressful.

The data further suggest that the choice of maintenance charging protocol is a more decisive determinant of lead–acid longevity than the operating regime per se. A battery held in prolonged standby at elevated SoC is exposed to a more adverse, calendar-dominated electrochemical environment than one actively dispatched for FCR. This is contrary to the common intuition that reserve operation is inherently the less stressful mode. This has a practical corollary: reserve and emergency-power applications, which rarely generate sufficient cycling throughput to drive autonomous electrode reconditioning, may be structurally more susceptible to sulfation than FCR-operated systems with comparable chemistry. Mixed-mode operation, combining periodic market-coupled dispatch with scheduled equalization cycles, may therefore represent a viable strategy for extending service life in low-utilization applications.

More broadly, the results provide implications for technology portfolio decisions in hybrid multi-technology BESS. The OCSM lead–acid unit at M5BAT showed no measurable FCR-induced degradation over several years of operation, indicating that lead–acid technology need not be excluded from such configurations a priori. This result was obtained under an operating strategy in which the lead–acid unit had lower FCR dispatch priority than the co-located lithium-ion units and was subject to active SoC management.

The finding is nevertheless conditional. The battery was still in an early stage of its operational life during the FCR-primary period from 2017 to 2021. The rapid deterioration after 2022 also shows that a stable FCR-phase health record does not imply long-term durability under changing operating conditions. The suitability of lead–acid technology in hybrid BESS therefore depends on maintaining operating and maintenance conditions that avoid prolonged high-SoC standby.

These findings can be considered alongside the established recycling infrastructure for lead–acid batteries and the potential for further cost reductions through improvements in recycling processes [22]. In this context, lead–acid technology may retain a role in hybrid configurations where dispatch and maintenance strategies can be adapted to its specific operating requirements. This consideration becomes more relevant as alternative battery chemistries, including sodium-ion, advance as potential low-cost technologies based on more abundant materials [23]. At the same time, the continued cost reduction of lithium-ion technology [24] limits the relevance of lead–acid technology based on performance or cost alone. Its potential role therefore depends increasingly on factors such as established recycling infrastructure and demonstrated long-term operating behavior. Long-term field datasets such as the one analyzed here are essential for characterizing aging over timescales that cannot be reproduced by laboratory testing alone.

5.11. Strategic and Economic Context

The eight-year observation window above invites a what-if economic question, posed deliberately without assuming any lead–acid system price. For a given storage service, the annualized capital cost per unit of usable energy is (C/D)·CRF(r,T), where C is the installed cost per nominal kWh, D the usable depth of discharge, T the service life, and CRF the capital recovery factor. Equating this across technologies yields a break-even lead–acid cost C_Pb* = C_Li·(D_Pb/D_Li)·[CRF(r,T_Li)/CRF(r,T_Pb)]. With the illustrative TPb = 8 a against a representative lithium-ion service life of 12 a, usable depths of 0.5 and 0.9, and a 6% discount rate, lead–acid reaches capital-cost parity at roughly 40% of the lithium-ion installed cost; for a representative installed lithium-ion cost of 250 €/kWh, this implies a break-even near 100 €/kWh (about 30–55% across the plausible-assumption range;

Table 5. Break-even capital-cost ratio k = C_Pb*/C_Li as a function of usable depth D_Pb and lithium-ion service life T_Li (D_Li = 0.90, r = 6%, T_Pb = 8 a).

DPb\TLi	10 a	12 a	15 a
0.40	0.38	0.33	0.28
0.50	0.47	0.41	0.36
0.60	0.56	0.49	0.43

). Two factors not captured here, namely lead–acid’s lower round-trip efficiency and larger footprint, would lower this threshold and are noted as caveats rather than quantified. This is a scenario, not a cost forecast: the present data establish an eight-year observation window, not an aging-defined service life or the cost outcome.

Taken together with the break-even scenario discussed above, the eight-year observation period indicates that aging alone does not preclude the use of flooded lead–acid batteries for grid services. If installed costs were to fall below approximately 40% of those of lithium-ion systems, the established supply chain and recycling infrastructure could become relevant advantages, provided that no additional aging penalty emerges under comparable operating conditions. This represents a hypothesis for further techno-economic investigation rather than a firm conclusion of the present study.

5.12. Limitations and Future Work

(1)

Temperature correction. Because the battery room is actively climate-controlled (Section 3.3.1), the measured inter-regime battery-temperature difference is only about 1 °C (the reserve phase marginally warmer), which bounds the temperature-attributable DCIR bias below 2% of the observed increase and of opposite sign; a temperature-corrected analysis using the logged signal is identified as future work and does not affect the qualitative findings or regime-comparison conclusions.

(2)

Capacity measurement. The multi-indicator framework of this study is deliberately confined to continuous one-second operational data; dedicated capacity or reference-performance tests are not part of it. Sparse periodic reference capacity tests do exist in the dataset (the final one, on 14 April 2025, indicating about 21% residual capacity) and are used here only as an independent external cross-check: they corroborate the direction and severity of the degradation already captured by the operational indicators and therefore do not alter the conclusions. Because deep-discharge events were infrequent (fewer than 50 over eight years) and were performed under heterogeneous conditions, these tests cannot form a continuous capacity trajectory and are not used as a quantitative indicator; incorporating such reference measurements would extend this study beyond its operational-data scope. Planned future work on charge acceptance (CA) as an early-stage indicator [25] would complement the current DCIR-based framework.

(2b)

C-rate and efficiency comparability. The reserve phase operated at a markedly lower average C-rate than the FCR phase; by the Peukert effect this should improve coulombic and round-trip efficiency independently of aging [14]. Efficiency nonetheless declined (Section 4.2), so the underlying electrochemical degradation is more severe than the raw metrics suggest. No standardized capacity tests are available for a direct C-rate-normalized comparison between regimes.

(3)

Piecewise regression formalization. A Chow test for a structural break at 2022 was implemented and confirms significant parameter instability across all three primary indicators (DCIR: p < 0.001; η_rt,DC: p = 0.047; η_coul: p = 0.018). Bootstrapped 95% CIs (B = 10,000) are reported in Section 5.8; results are discussed there.

(4)

Multi-chemistry comparison. Co-located LFP and NMC strings under the same grid excitation offer a natural control group. A comparative analysis is out of scope here but would isolate chemistry-specific from system-level effects.

(5)

Threshold sensitivity. The annual efficiency metrics are computed from annual energy integrals and are therefore insensitive to the monthly throughput validity threshold: varying it between 300 Ah and 1000 Ah (0.17–0.56 EFC; baseline 0.5 EFC, about 888 Ah) leaves the annual round-trip and coulombic efficiency values unchanged (0.0 percentage-point difference across the reserve years) and alters only the number of monthly points flagged as low-confidence in Figure 7.

(6)

Secondary market utilization at end of first design lifecycle. The finding that FCR operation produced no statistically detectable degradation over five years raises the question of whether a lead–acid BESS that has completed its primary lifecycle in reserve or standby service could subsequently be transitioned to market-coupled FCR operation without disproportionate acceleration of residual degradation—provided that equalization charging is reinstated prior to and throughout the transition. Such a secondary utilization model could, in principle, extend the commercially viable lifetime of an installation beyond its initial design lifetime. The present results constitute a necessary, though not sufficient, condition for this to be feasible; the health state at the point of transition, the minimum acceptable equalization protocol, and the implications for residual capacity would each require quantification. A prospective field study, or a comparative analysis of datasets spanning analogous lifecycle transitions across multiple installations, would be required to evaluate the technical and economic feasibility of this approach.

(7)

Sufficiency of system-level data for degradation monitoring. Individual cell-voltage data at approximately one-minute resolution were available for the full observation period (2017–2022) but were not included in the published dataset, as the analysis demonstrated that they provide no additional quantitative value for the degradation-indicator trends studied here. A statistical analysis of intra-string voltage heterogeneity, quantified as the standard deviation and interquartile range of voltages across the 100 three-cell measurement groups, showed no systematic growth during the FCR phase (2018–2021, σ ≈ 6 mV, stable). This is consistent with the near-zero string-level DCIR trend over the same period. The time resolution of the cell-voltage data (~60 s) was structurally insufficient to resolve the ohmic transient at polarity transitions (characteristic timescale <1 s), thus providing no additional value to the analyses. Cell-voltage surveillance nonetheless retained qualitative diagnostic value: a defective cell exhibiting markedly elevated resistance was identified through this monitoring and bypassed on 10 August 2023, so the limitation established here concerns quantitative per-cell DCIR trending rather than fault detection. These observations carry a positive methodological implication: the multi-indicator framework presented here is derivable exclusively from string-level BMS signals that are standard in commercially deployed BESS installations, without requiring individual cell-level monitoring infrastructure. This makes the approach transferable to any system with one-second BMS logging, independent of the granularity of the cell-voltage instrumentation. Cell-voltage data at one-second resolution would be required for a quantitative per-group DCIR analysis and are identified as a priority for future instrumentation upgrades in comparable field studies.

(8)

Single-system scope and generalizability. All results derive from one battery string, one manufacturer, one cell chemistry, and one site-specific energy-management strategy. This is an in-depth N-of-1 field study: the absolute degradation rates reported here are specific to the Exide OCSM chemistry and the M5BAT dispatch strategy and should not be read as representative values for flooded lead–acid in general. What is structurally transferable is the methodological framework, a reproducible multi-indicator approach derived from operational data, and the qualitative observation that prolonged low-throughput, high-SoC standby can be more detrimental than active partial-SoC cycling. This direction is consistent with VRLA float-service experience, where calendar-driven positive-grid corrosion at sustained high state of charge is the dominant life-limiting mechanism [21], although the absolute rates and the flooded-specific contribution of stratification are not directly transferable. Confirming the generality of these operational thresholds will require replication across multiple strings, chemistries, manufacturers, and management strategies. In particular, cells of nominally identical construction from different manufacturers can exhibit materially different degradation rates, so the quantitative values reported here should be transferred to other products only qualitatively.

6. Conclusions

This study presents an empirical characterization of lead–acid BESS degradation across eight years and two fundamentally different operating regimes, without presupposing a dominant mechanism. The two primary findings are as follows: (1) five years of active FCR service produced no statistically detectable degradation in the primary health indicators—a result that provides field evidence questioning the prevailing assumption that PSoC cycling is the principal aging driver for lead–acid cells in FCR applications; and (2) the subsequent transition to low-utilization reserve operation correlated with a strongly accelerated deterioration across all indicators simultaneously.

Multiple degradation mechanisms, i.e., sulfate crystal growth, calendar aging, grid corrosion, and electrolyte stratification, are consistent with the reserve-phase acceleration and likely co-occur. The available system-level data do not permit definitive attribution to a single mechanism; the measurements that would resolve this ambiguity (EIS, acid density, postmortem analysis) are identified as the primary priorities for follow-on work.

The methodological contribution is a reproducible multi-indicator framework combining DCIR, round-trip efficiency, coulombic efficiency, and inverter efficiency from a shared operational data stream. This approach is transferable to other BESS field datasets and provides a template for system-level degradation monitoring that does not depend on laboratory test infrastructure.

For practitioners, three operational recommendations follow directly from these findings. First, extended high-SoC, low-throughput standby should be avoided or mitigated through periodic cycling and active SoC management; equalization charging should be maintained as good practice but, having continued throughout, did not by itself prevent the post-2022 degradation. Second, DC round-trip efficiency is recommended as a rolling monthly health indicator: it is computable from existing BMS counter signals, correlates tightly with internal resistance (r ≈ −0.98), and requires no additional instrumentation. Third, transitions from active cycling to extended high-SoC standby should be regarded as degradation-risk events rather than purely operational decisions because, contrary to the conventional expectation, low-throughput, high-SoC standby proved more damaging to this flooded lead–acid string than high-throughput partial-SoC FCR cycling.

At the system-design level, these results support a deliberate role for lead–acid chemistry within hybrid multi-technology BESS, provided that dispatch priority, SoC management, and a sustained equalization protocol are tailored to its requirements. This recommendation is explicitly conditional on such management and does not imply comparable durability under arbitrary operating conditions. Methodologically, the multi-indicator framework that combines DC internal resistance, round-trip and coulombic efficiency, and inverter efficiency, all derived from a single one-second operational data stream, is transferable to other BESS field datasets without laboratory test infrastructure. The principal questions for following work are the mechanistic disambiguation that only cell-level diagnostics (electrochemical impedance spectroscopy, acid-density measurement, and postmortem plate analysis) can provide, a temperature-corrected DCIR analysis using the logged battery-temperature signal, and a comparative study across the co-located lithium-ion strings under identical grid excitation to separate chemistry-specific from system-level effects.
