Analysis of Daily Load Patterns Taking into Consideration PEVs Charging Stations in Seoul, South Korea

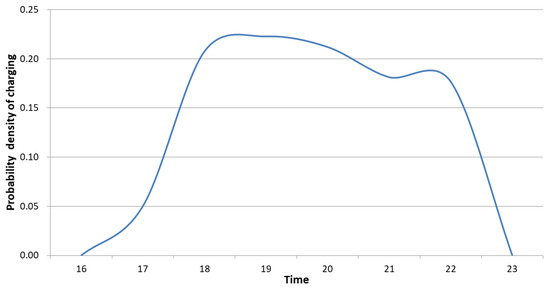

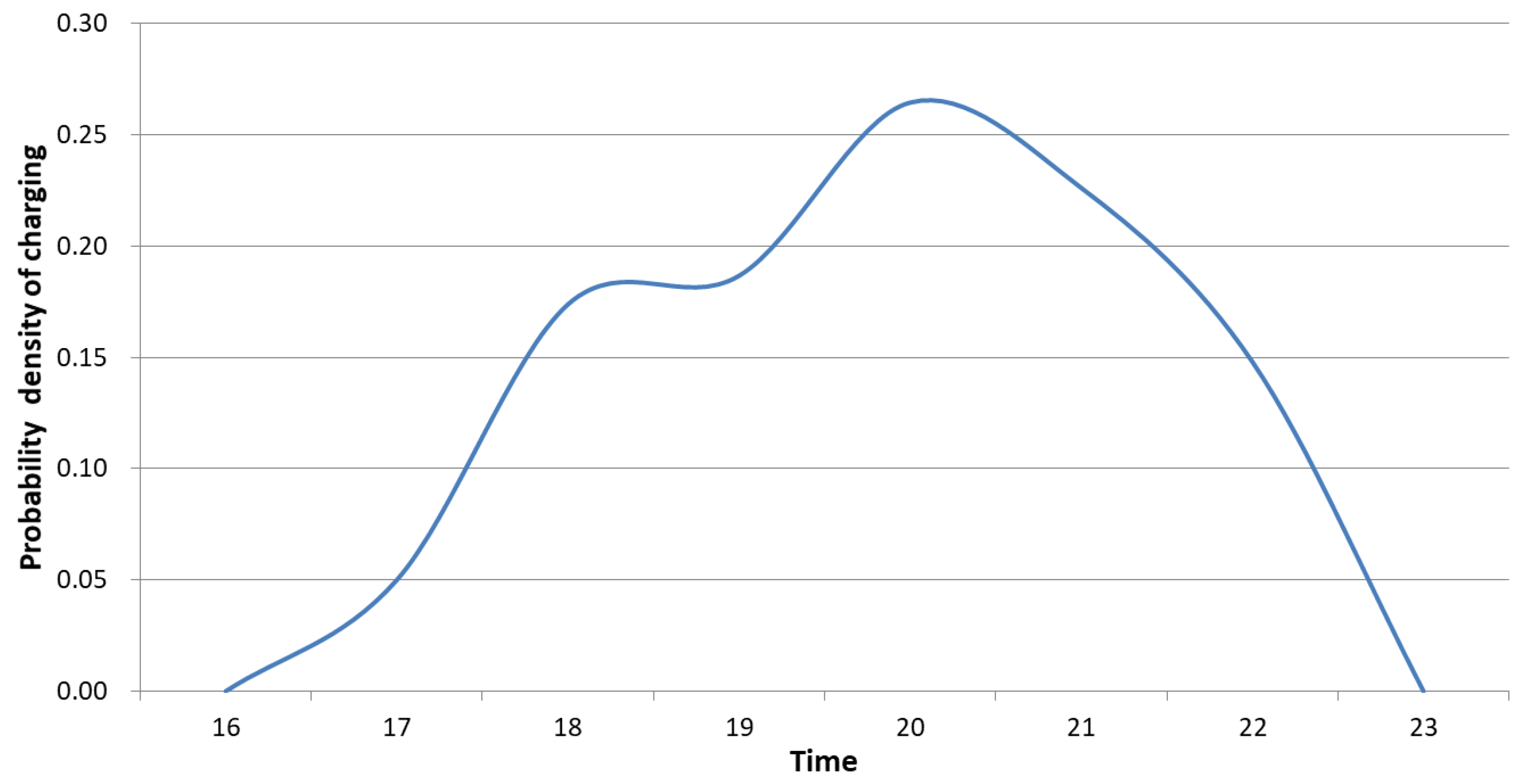

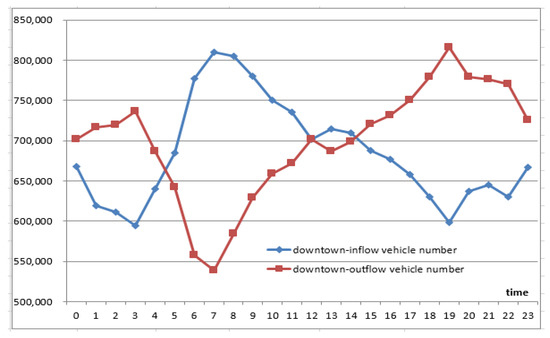

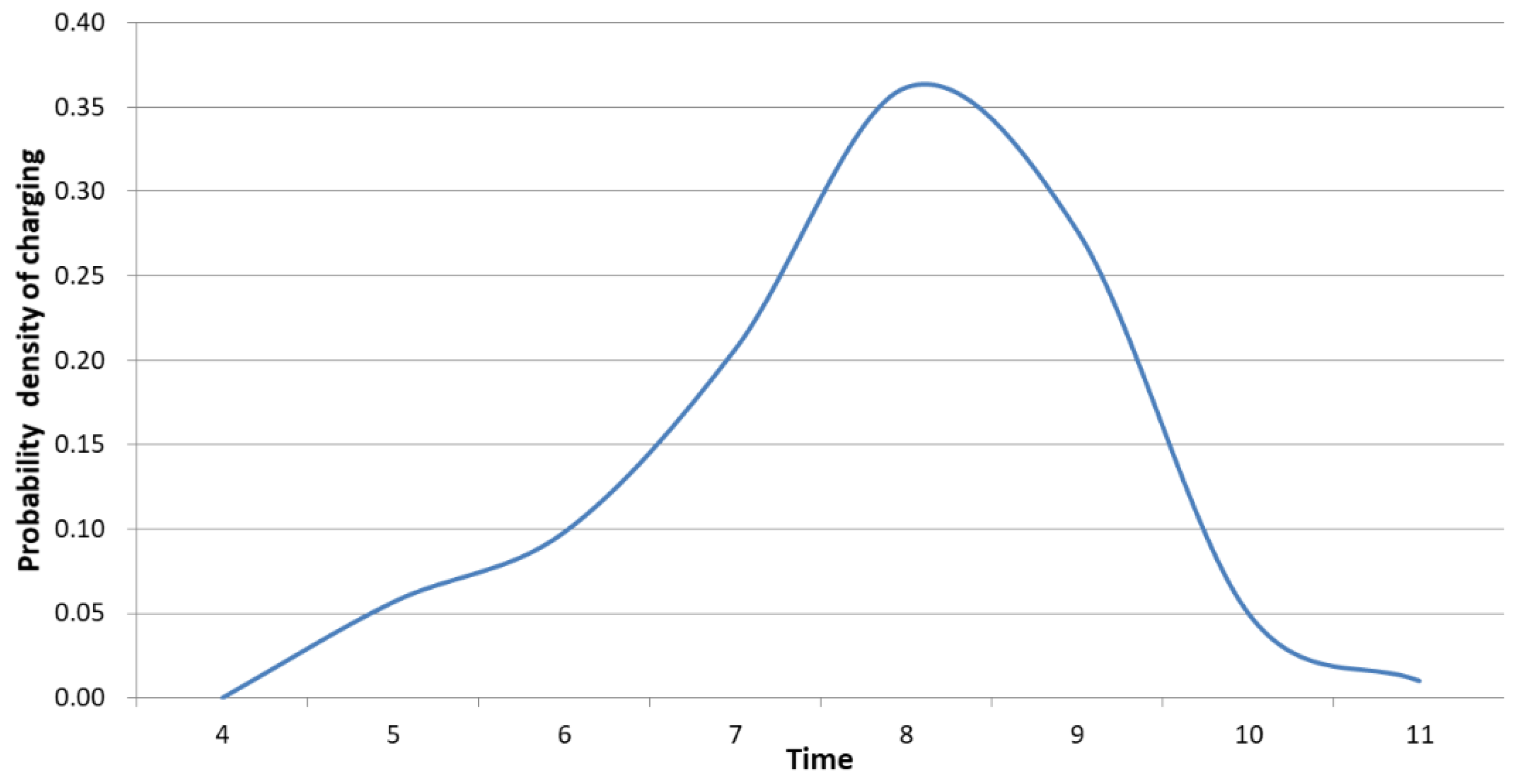

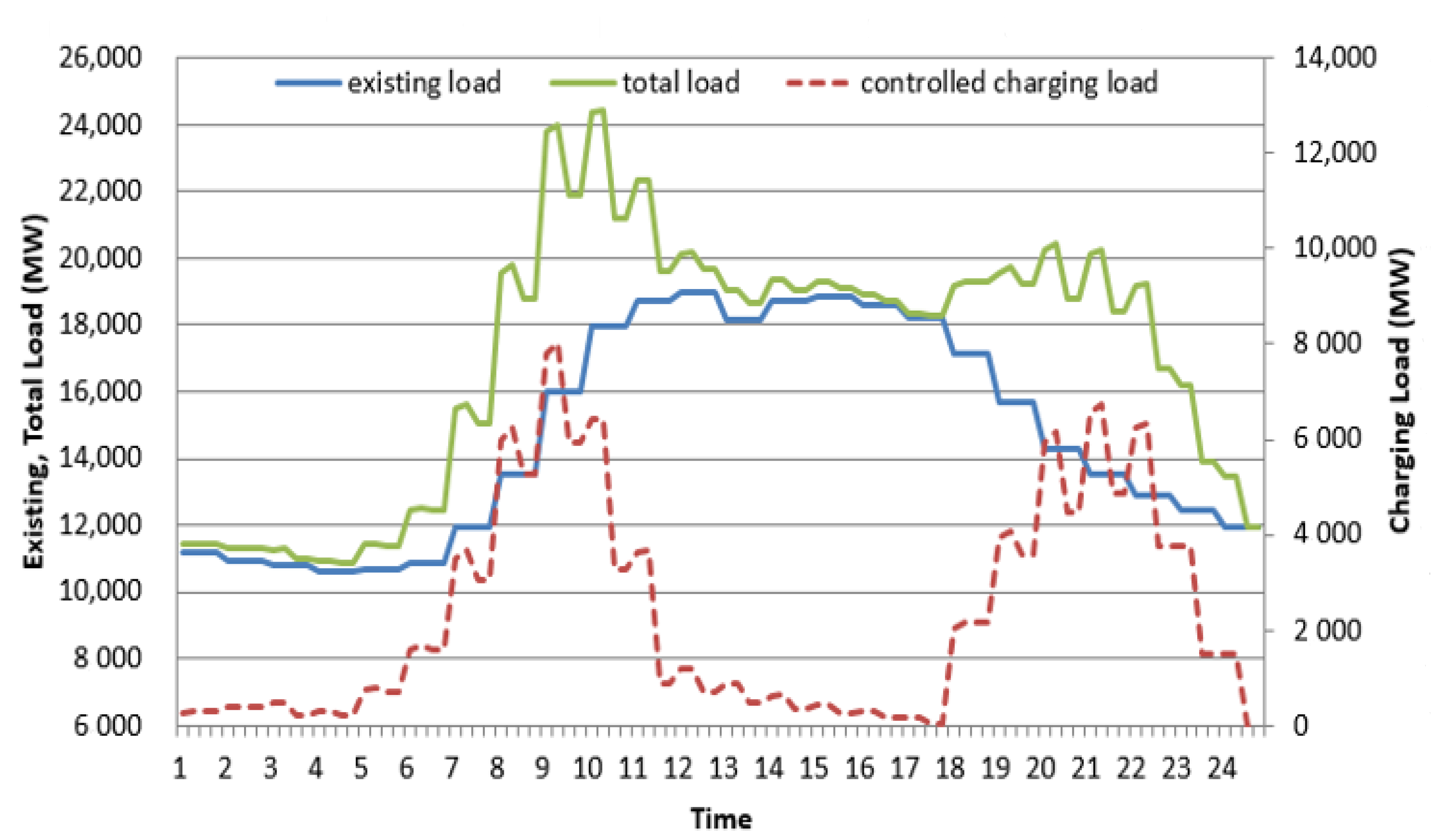

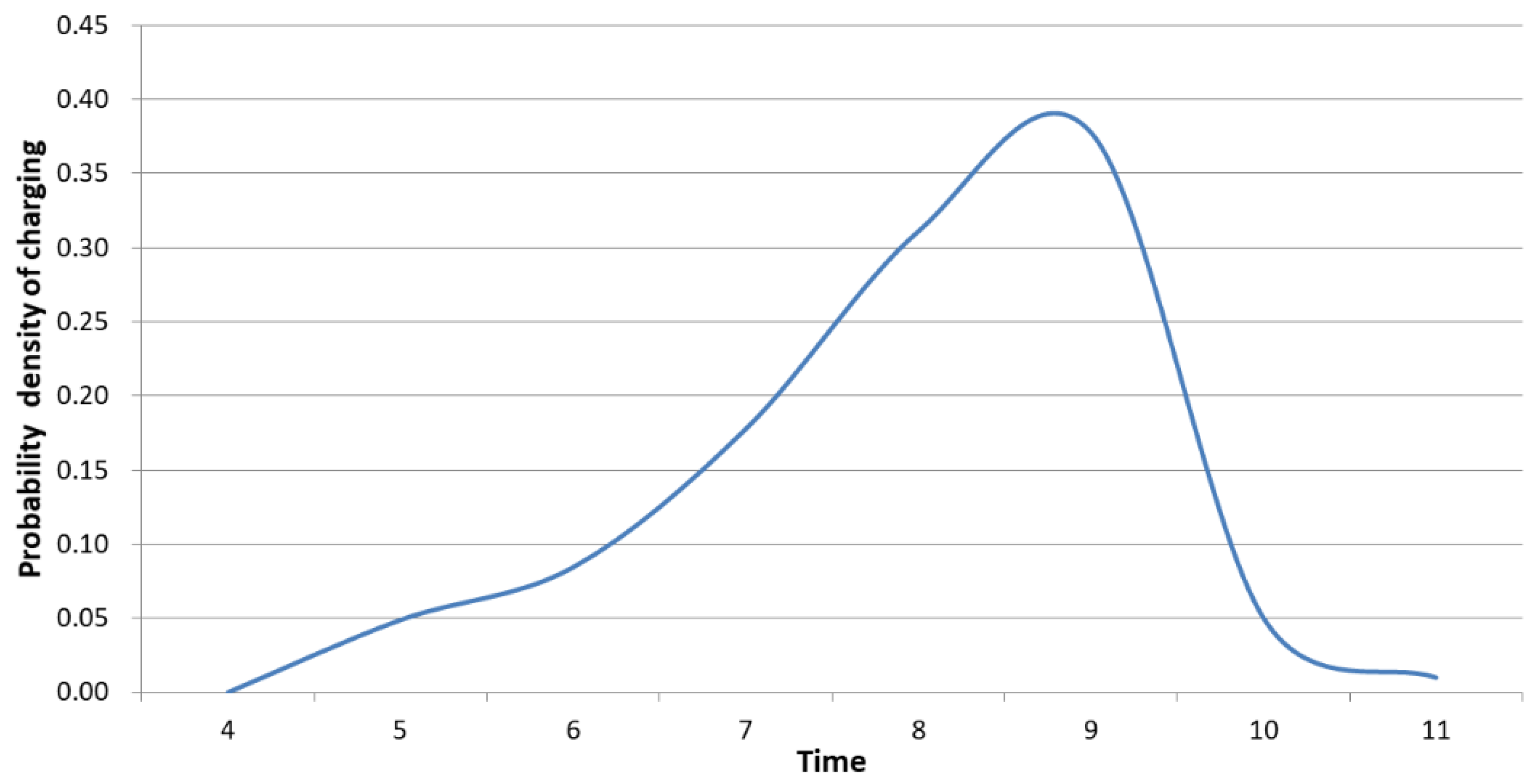

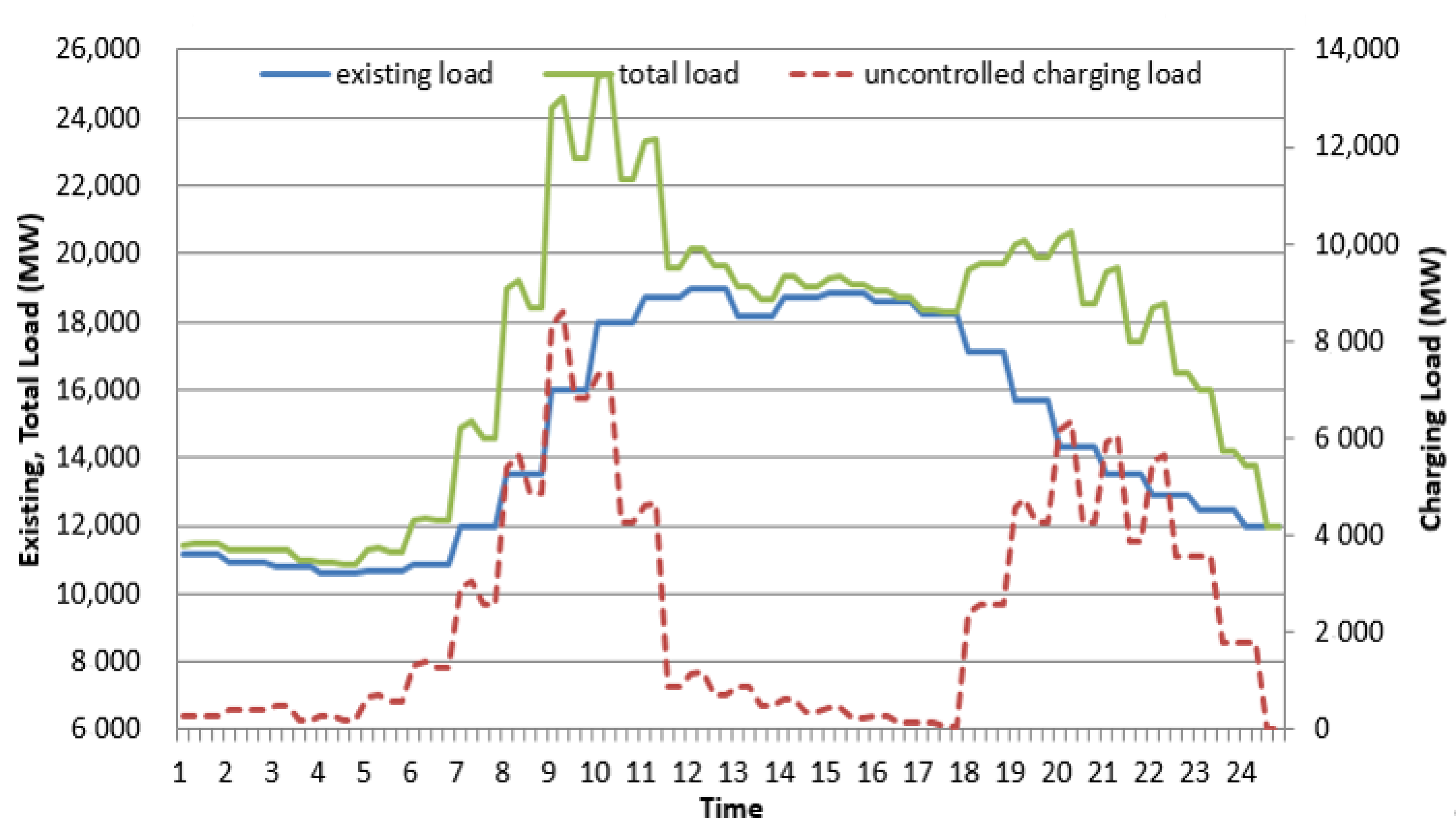

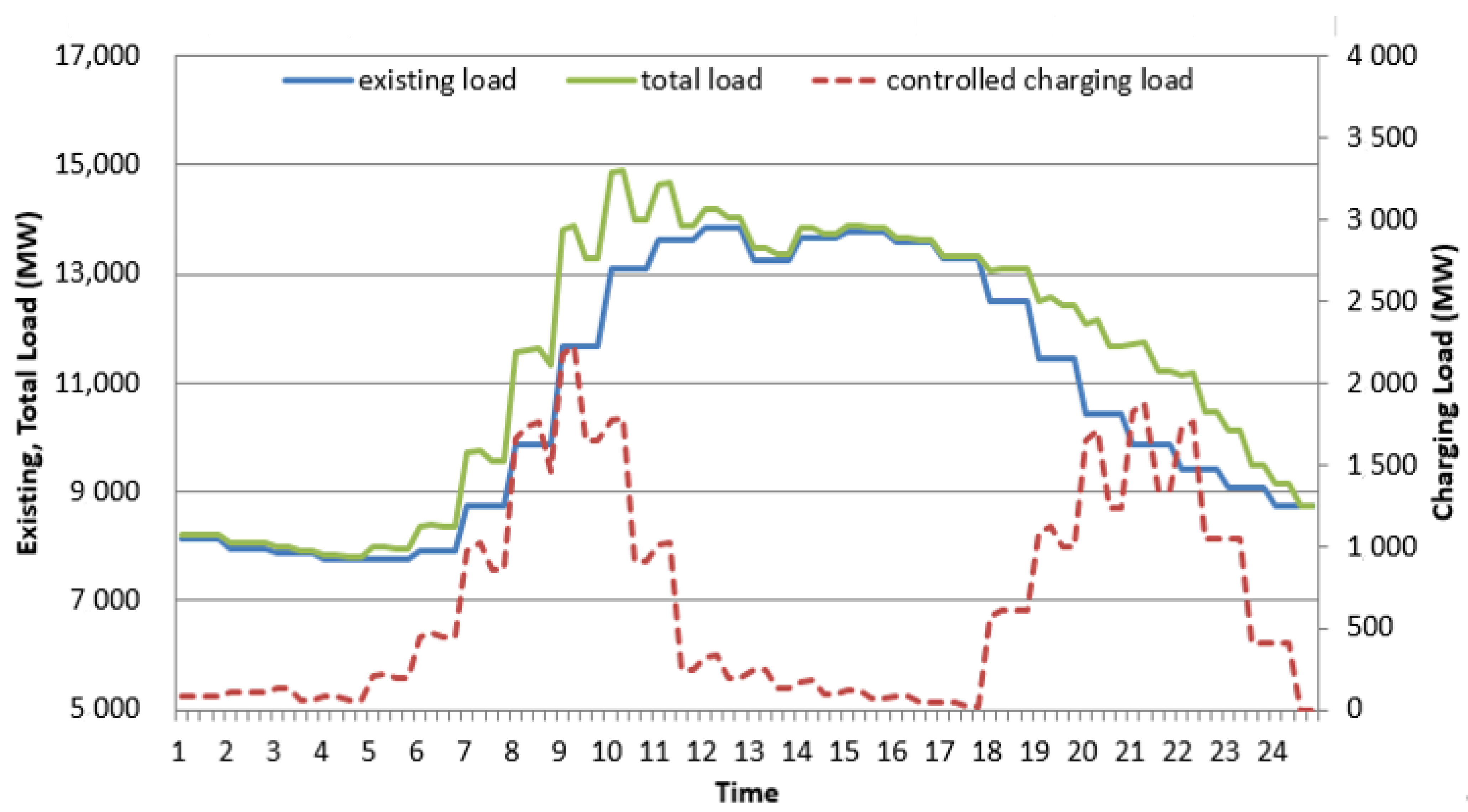

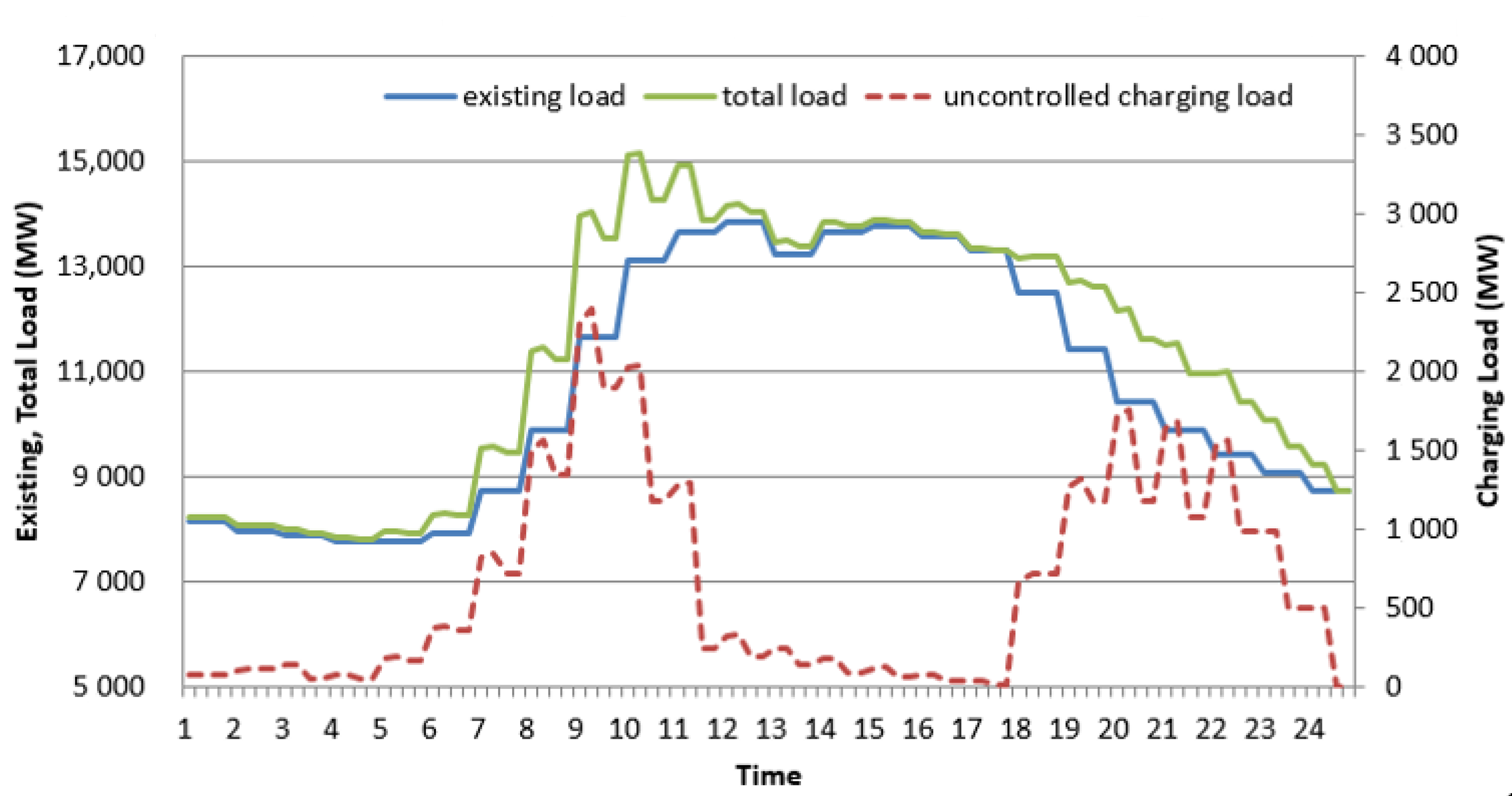

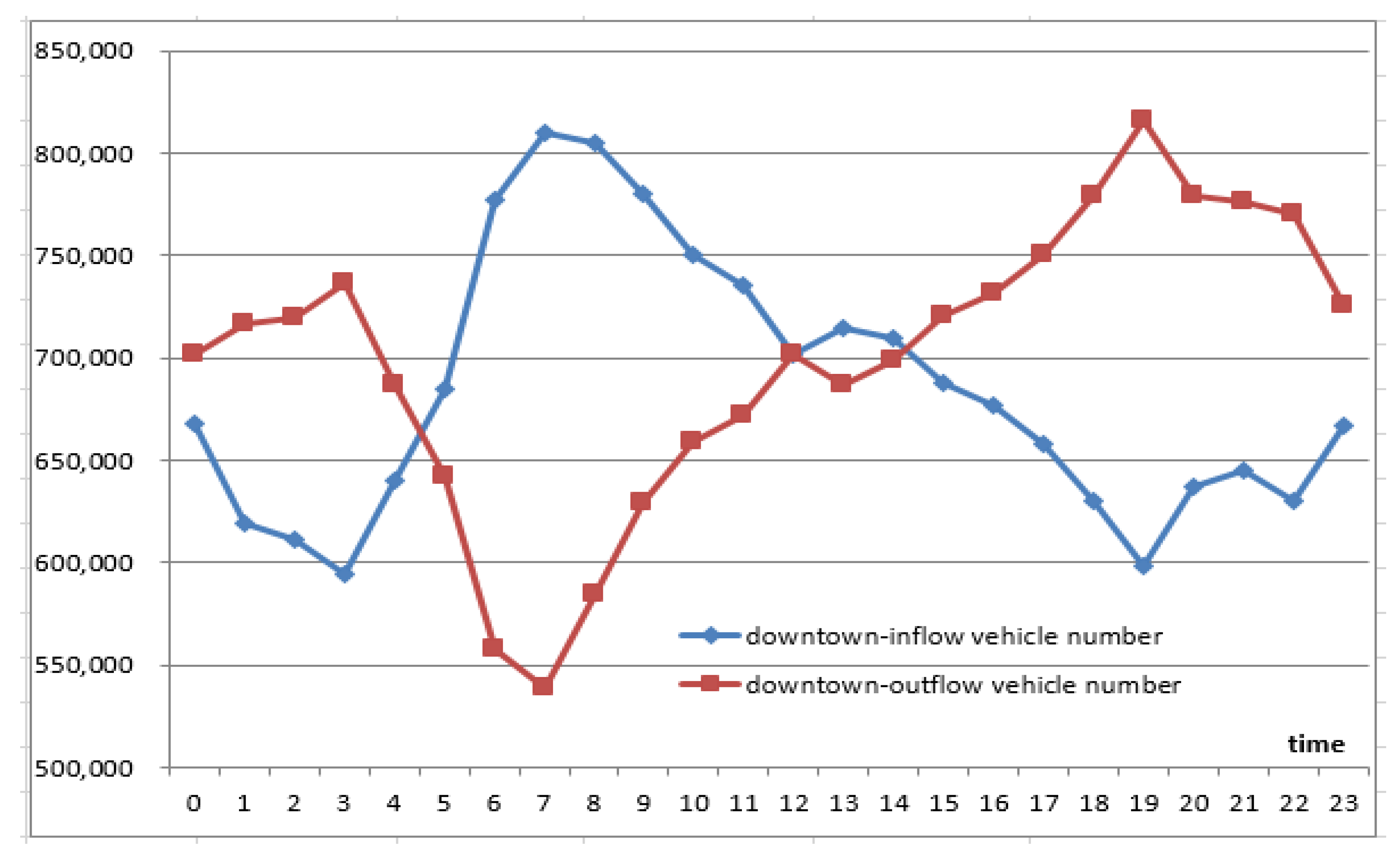

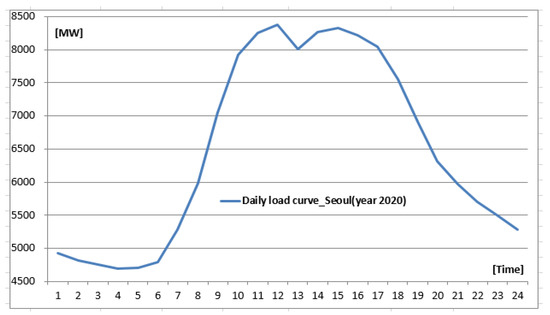

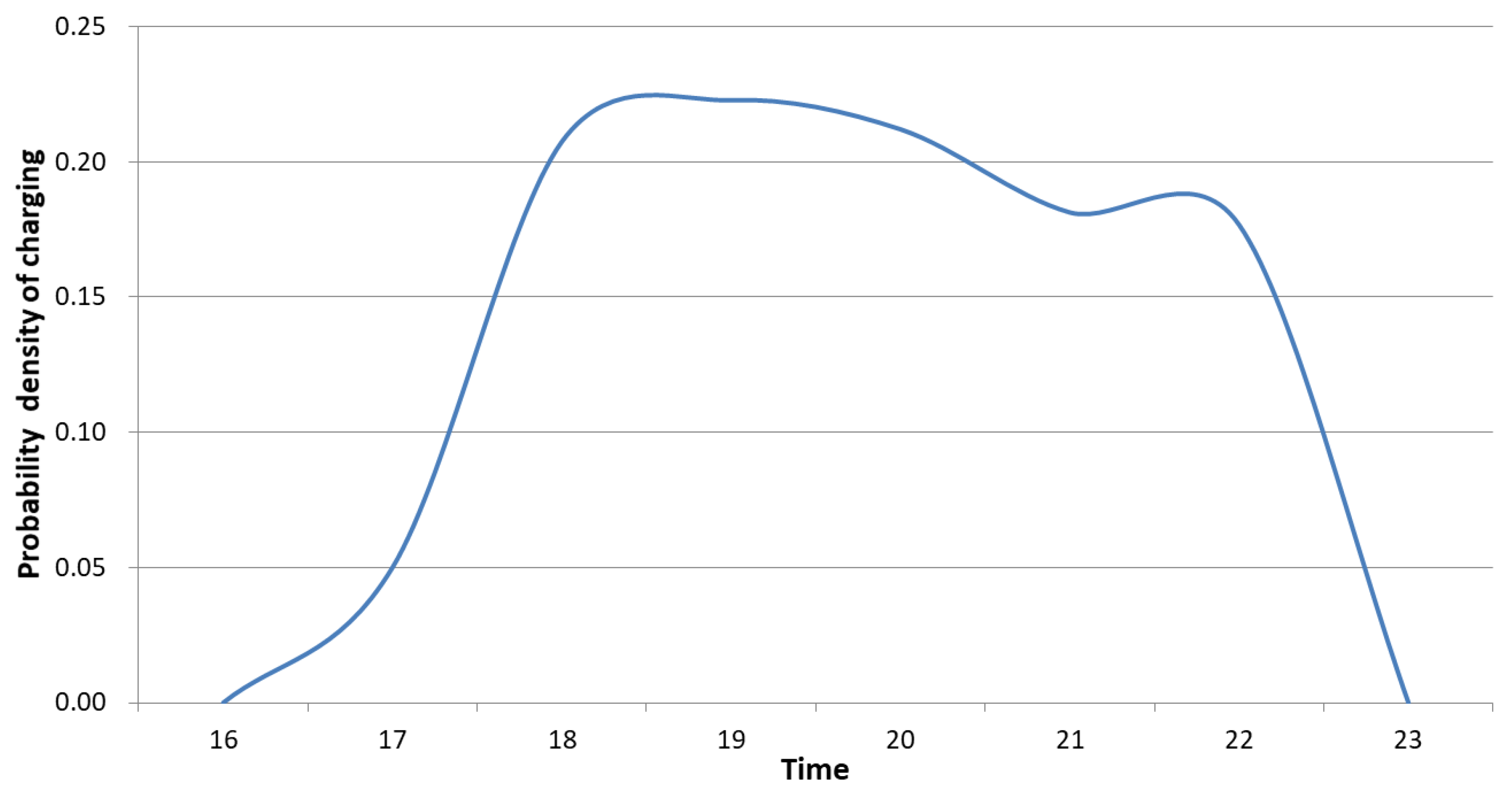

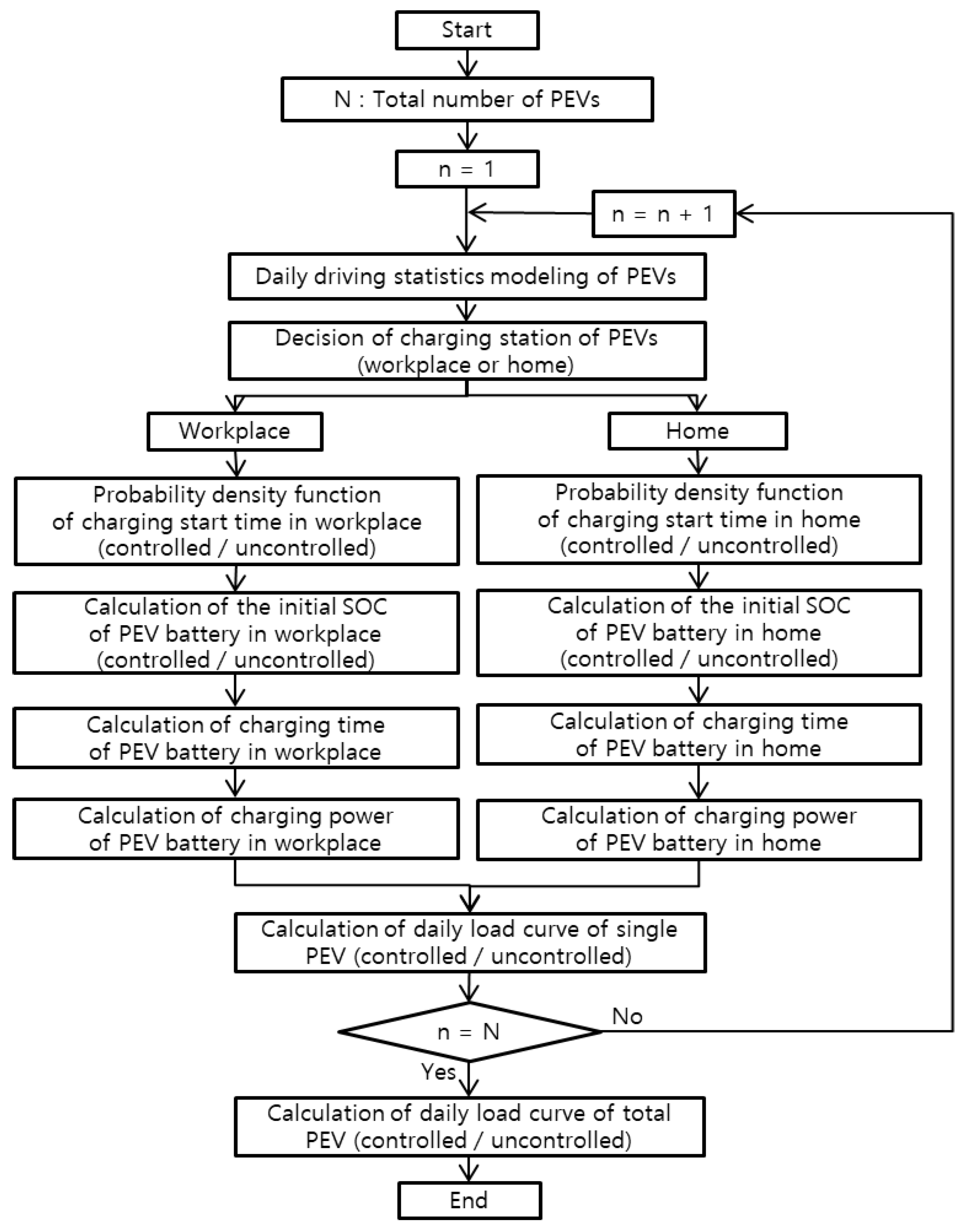

This paper presents a methodology to calculate daily charging load curves in Seoul, South Korea, by taking into account plug-in electric vehicles (PEVs) charging stations, allowing Seoul’s government to determine the PEVs charging effect on the load. In particular, the study calculates the charging power of uncontrolled PEVs charging in terms of the daily operating characteristics of a vehicle traveling between home and workplace, with respect to PEVs charging stations in the city, according to the PEVs’ market share. For the controlled PEVs charging strategy based on morning and afternoon work-to-home and vice versa traffic characteristics and time-of-use (TOU) prices in Seoul, the study calculates daily load patterns of uncontrolled and controlled charging scenarios. After adding the calculated values to the existing load, the study assesses and compares their effects on the power grid. The results are as follows. If by 2030 the share of electric vehicles is 10%, compared to the existing load, the total load increases by about 13% between 9:00 and 11:00 in the morning for the uncontrolled mode and by about 10% for the controlled mode. The total load increases by about 16% between 20:00 and 22:00 for the uncontrolled mode and 17% for the controlled mode. However, if by 2040 the share of electric vehicles is 30%, compared to the existing load, the total load increases by about 35% between 9:00 and 11:00 in the morning for the uncontrolled mode and by about 32% for the controlled mode. Between 20:00 and 22:00, the uncontrolled mode’s total charging load increases by about 35% and the controlled mode’s total load by about 32%. The analysis also demonstrated that it was possible to achieve a significant load-leveling effect in all charging periods for the controlled mode, with the daily load pattern’s average leveling rate increasing by 8% and 13% in 2030 and 2040, respectively, based on the TOU price system compared with the uncontrolled mode. Based on these results, it is possible to determine the PEVs’ hourly charging load effect on the power grid in Seoul and establish a PEVs charging load management plan to prevent the power grid reinforcement and expansion and to satisfy its overload constraint by using an appropriate TOU price plan. View Full-Text
