Effect of Inlet Compound Angle of Backward Injection Film Cooling Hole

Automotive Engineering, Korea National University of Transportation, Chungju 27469, Korea
*
Author to whom correspondence should be addressed.
Energies 2020, 13(4), 808; https://doi.org/10.3390/en13040808 (registering DOI)
Received: 20 January 2020 / Revised: 4 February 2020 / Accepted: 10 February 2020 / Published: 13 February 2020
(This article belongs to the Section Electrical Power and Energy System)

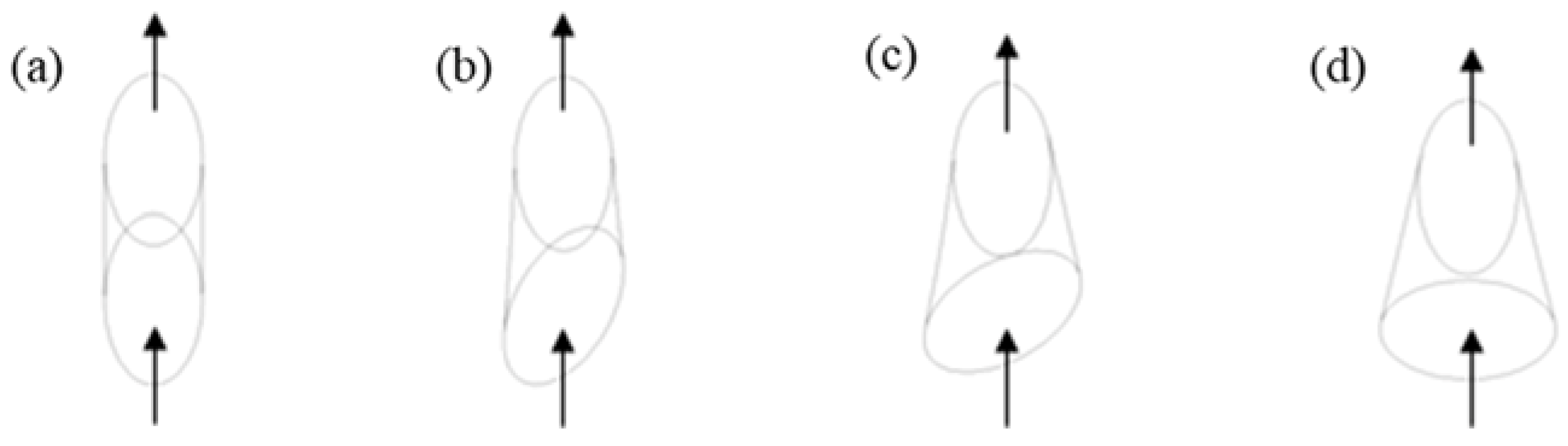

Backward injection film cooling holes were studied to improve film cooling effectiveness using simple cylindrical holes, and this principle was applied to an actual gas turbine. Although film cooling effectiveness was improved using a backward injection film cooling hole, the backward flow of combustion gas from the backward injection cooling hole was one of the major reasons for cracks in the hot components. To prevent cracks and backward flow in the backward injection film cooling hole, this study changed the inlet compound angle of the backward injection film cooling hole. Numerical analysis using CFX v. 17.0 was performed to calculate the flow characteristics and film cooling effectiveness of backward injection film cooling. Aa a result, the effect of the inlet compound angle of the backward injection film cooling hole was confirmed to prevent the backward flow, which increased upon increasing the inlet compound angle. This study shows that the backward flow and cracks in the backward injection film cooling hole can be prevented simply by changing the inlet compound angle. View Full-Text
Keywords: film cooling; compound angle; backward injection; gas turbine film cooling; compound angle; backward injection; gas turbine
Show Figures

Figure 1

MDPI and ACS Style

Jeong, Y.S.; Park, J.S. Effect of Inlet Compound Angle of Backward Injection Film Cooling Hole. Energies 2020, 13, 808.
