1. Introduction
1.1. Research Motivation
The depletion of energy resources and growth of environmental pollution are critical concerns at the turn of the 21st century [
1,
2,
3]. As emission regulations become more stringent in efforts to suppress pollution, many researchers are working on developing a new type of power plant which produces significantly lower emissions: an advanced gas turbine. A stationary gas turbine is a power plant that converts the chemical energy of fuel to mechanical work using combustion to turn a turbine [
4,
5]. This combustor, however, emits CO, CO
2, NO
x, and other atmospheric pollutants [
6,
7,
8]. For this reason, combustor type stationary gas turbines typically employ low NO
x technologies to reduce emissions because low NO
x emission can protect generation of smog upon exposure to sunlight and acid rain [
9]. However, such systems reduce the stability of combustion inside the burner.
In general, the typical combustor in a gas turbine employs a turbulent lean premixed combustion method, as an alternative to the diffusion flame method [
10,
11]. The diffusion flame method generates sharply higher levels of NO
x because of the local high temperature, while the turbulent lean premixed method is more economical as well as having the advantage of low NO
x production [
12]. However, the lean premixed combustion technology has critical issues, including sensitivity to operating characteristics, a small limit of inflammability, a complex combustor structure, and high-level technology [
13]. Thermo-acoustic problems may also occur, largely due to the geometric shape of the combustor structure and chemical reactions during combustion, leading to combustion instability [
14]. Among other reasons, the combustion instability occurs in the combustor chamber due to acoustic oscillations in the chamber, which are produced by interactions between the heating mechanism and pressure oscillations [
15,
16].
Combustion instability is characterized by heat release oscillations, inlet flow perturbations, and flame location, coupled with a continuous increase in pressure oscillation amplitude, and acoustic oscillations in the combustor chamber [
17]. These instabilities are a major obstacle to achieving low-NO
x emissions, and they may lead to serious failure of the entire gas turbine components [
18]. Fatigue failure may occur in the combustor due to acoustic oscillations. Thermal fatigue fracture, low combustion efficiency, and increasing emissions may be produced by the increasing rate of heat transfer to the combustor wall [
19].
For these reasons, an evaluation of combustion instability should be conducted to ensure the durability and performance of the gas turbine. Unfortunately, however, it is very difficult to evaluate combustion instability using an experimental approach, due to the scale of the test bench, the high cost, and the long test period. As a result, a combustion model of the gas turbine that can evaluate the combustion instability in the combustor is needed. Since the amplitude of the combustion instabilities in the combustor chamber can vary in different regions, a segmented approach is needed to analyze the combustion instability in the combustor chamber. The analysis is focused on the premixed flame segment and is based on the linear equation for a perturbed flamefront. Both acoustical stabilization of the hydrodynamic flame instability and excitation of the parametric instability by sound waves are considered, and the limitation for stable/unstable regimes as a function of flame parameters and acoustic frequency/intensity is determined.
1.2. Literature Survey of the Combustion Instability
Combustion instability in the gas turbine is caused by interactions between the heating mechanism and pressure oscillations in the chamber. It is challenging to model combustion instability, because it is difficult to design a combustion instability model with sufficiently high fidelity. Several previous studies have worked on modeling combustion instability in gas turbines. Hathout et al. analyzed combustion stability using periodic fuel injection to determine the stable operating envelop. A heat release model with fluctuations was related to the flame surface area, which was coupled with velocity fluctuations and local flame speed. Conservation of momentum was used to express the correlation between the velocity and pressure. In this way they were able to derive a second-order ordinary differential equation for the pressure oscillation [
20].
Yuan et al. investigated a self-excited high frequency combustion instability in a rocket combustor. The combustion instability was represented by point measurements, Fast Fourier Transform, and instantaneous flowfield contours. A proposed heat flux profile agreed with the experimental data. They also demonstrated acoustic oscillation modes and frequencies using proposed simulations which almost agreed with classic acoustic analysis [
21]. Yuan et al. also simulated a large eddy in a combustion instability in a tri-propellant air heater to predict self-excited transverse oscillations. Mode shapes, Rayleigh index, pressure time histories, and the unsteady response of the injector were found to affect the overall behavior of combustion instability. For this reason, correlations in the overall behavior of the combustion instability were studied in detail. In addition, a proposed new process that is to predict the acoustic oscillation modes and corresponding frequencies by current simulations was identified in the simulation and compared to previous investigations [
21].
Li et al. presented a thermo-acoustic analysis of long flames in combustors using a coupled low-order method. They also expressed the propagation characteristics in the long flame region and validated their analysis with experimental data which measured limit cycle characteristics. That study, however, did not analyze heat-acoustic propagation in the entire combustor and was unable to show the change in operating conditions over time [
22].
Keller et al. investigated thermo-acoustic oscillation in gas turbine combustors. Premixed combustion is widely used in gas turbines; however, it is difficult to stabilize premixed flames, and this is a critical issue in modern combustion technology. For this reason, Keller investigated the influences of a variety of self-excited oscillations that are forced by aerodynamic instabilities. Eventually, they reported that the periodic extinction and vortex rollup mechanisms were dependent on each other [
23].
Lieuwen et al. described an experimental approach of limit cycle oscillations in a gas turbine to understand the effects of characteristics on the limit cycle oscillations and the nonlinear processes. A statistical analysis and limit cycle pressure oscillations were first investigated, and then the role of noise and system oscillations were described. Finally, the importance of the combustor inlet velocity, which determines the amplitude of oscillations, was discussed [
24]. Schuermans et al. proposed transfer functions in a thermo-acoustic modeling approach for a gas turbine. The functions of the frame and burner were derived from the full engine pressure data. The acoustics were compared using acoustic-optical methods. They also implemented the transfer functions in a nonlinear, three-dimensional model of an annular combustion chamber [
25].
Bellucci et al. simulated acoustic pulsations to present a TA3 that is a tool for combustion analysis thermos-acoustic network thermo-acoustic network. The primary multi-burner model was comprised of a hood and combustor. A three-dimensional modal analysis was used to obtain the MIMO that is a system with multi input and multi output transfer function. Since the flame model is based on the time-lag, an s-domain approach was converted to a state space time domain [
26].
The estimated flame segments of triple flames were analyzed by Akkerman et al. [
27]. The combustion instability of an acoustic field was based on the linear equation for an oscillating flame front. They focused on the premixed flame segment approach of triple flames. O’Connor et al. introduced combustion instabilities characterized by heat release rate oscillations and high acoustics in a combustor chamber. They also discussed the fundamentals of thermo-acoustic feedback cycles, combustion control strategies, future design technology, and the research paradigm for combustion instabilities [
28].
1.3. Objective and Outline of This Paper
The lumped combustor model is a system that components can be treated as independent zero-dimensional block. For this reason, the combustion instability process cannot be analyzed in detail by region. Thus, a segmented combustion instability model is needed. Also, the authors added a brief description of the umped system to the text and modified analytical approach model to analytical model.
Nevertheless, only lumped combustor analytical models exist in the previous papers on gas turbine combustors, and this lumped approach cannot assess variations in temperature and density in the combustor x-axial direction. The combustion instability models also used lumped analytical approach models, even though the flame propagates along the x-axial in the combustor. To evaluate the combustion instability along the horizontal direction, a segment analysis of both the combustor and combustion instability is needed.
The previous model by Li et al. [
22] is a useful concept but it is not adequate to assess a segmented instability because it only considers one combustor volume and long flames. To develop a segmented combustor and combustion instability model, a node analysis was used, with further experimental data on the heat release, the frequency spectra of velocity, and pressure perturbations. At each node, the remaining mixture reacts to the next node and responds. So, the temperature and density of the species will move along the nodes. The node method can be used to determine the amplification location of the combustion instability and to derive a method for controlling the safety zone.
The focus of this study was to evaluate the combustor and combustion instability in the combustor under different operating conditions using an analytical approach. Then, the designed lumped combustor model was distributed into ten segments to evaluate the combustor dynamics while the combustor model was operating. Also, since the combustion instability is dependent on the combustor temperature and the density of chemical species, the combustion instability should be distributed to nodes. If one model is designed as a lumped model, it is difficult to understand the characteristics at each position. However, the node method can analyze the combustion characteristics according to the position of the combustor.
In this design, the heat release, pressure perturbations, and thermo-acoustic combustion instability along the horizontal direction in the combustor were distributed to eight nodes.
This paper is structured in the following way. First, the combustor model is briefly introduced, and the segment combustor model is explained in
Section 2. The segment combustion instability modeling approach is explained in
Section 3.

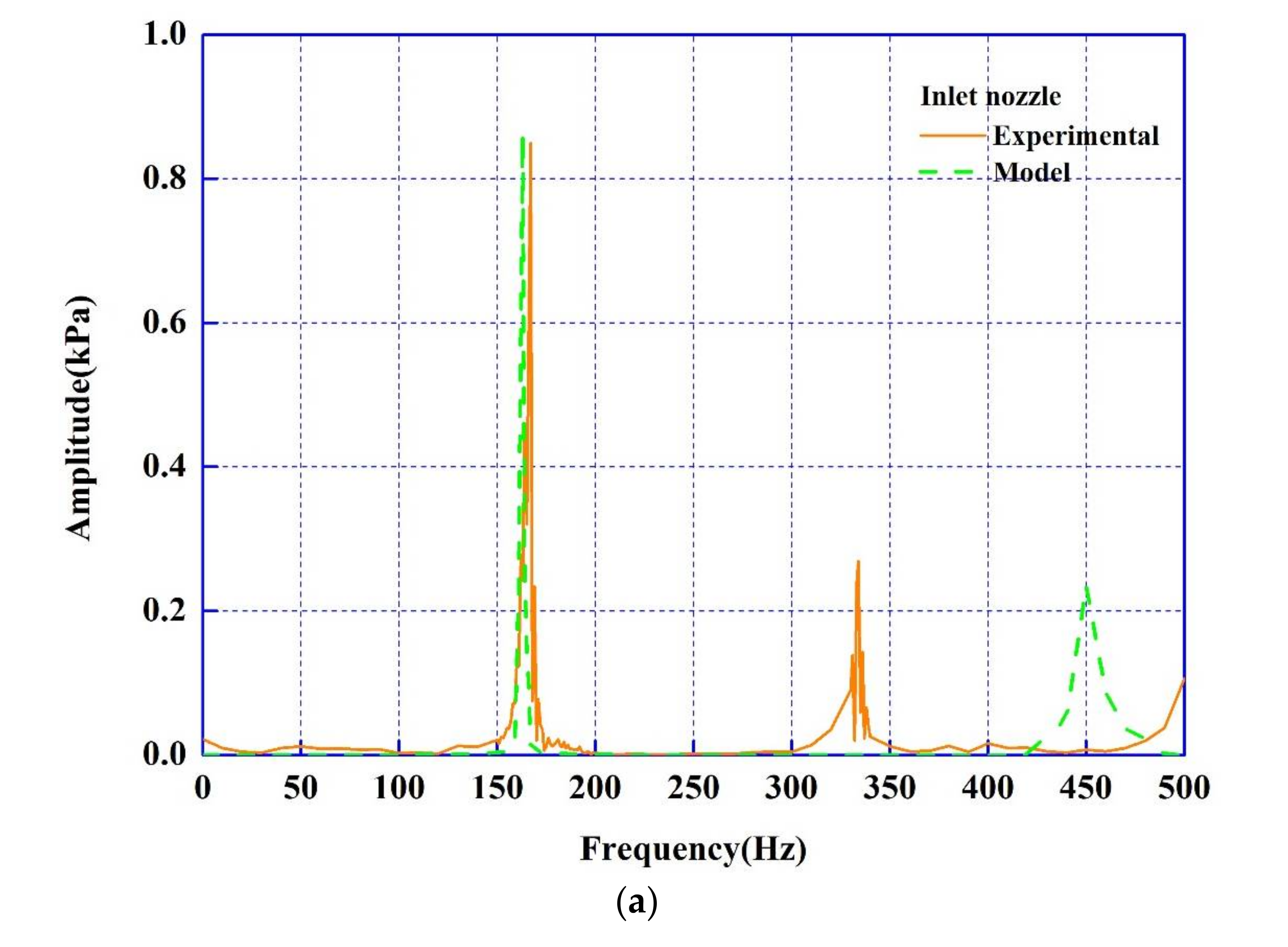

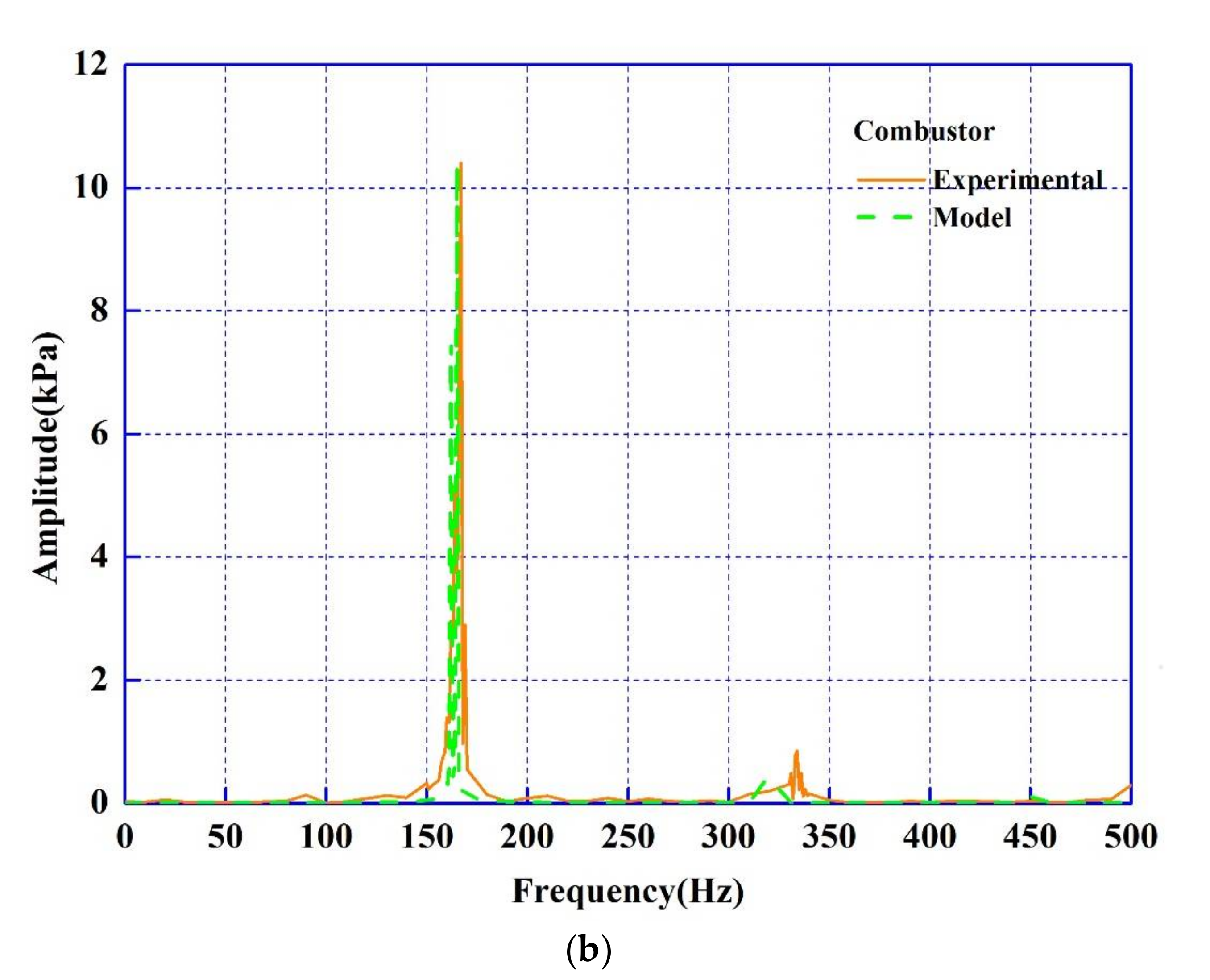

Section 3 also provides the model validation using experimental data. Finally, results and discussion are provided in
Section 4. The conclusions are presented in
Section 5.
2. Quasi Steady State Combustor Modela
2.1. Geometrical Configuration
Simulations were carried out using an accurate configuration and a test bench to validate the combustion model. Most previous combustor models have used the Well Stirred Reactor (WSR) reaction model, which focuses on the transient responses of the flame. The WSR model, however, cannot express a detailed combustion process in a combustor. The WSR model assumes that mixing time is faster than chemical reaction time. Therefore, the physical properties within control volume are uniform, and the characteristics of the flame and the size of instability heat release can be understood. For this reason, in this study, a segmented combustor model was employed to evaluate the detailed combustion process, to ensure the accuracy of the model for each region in the combustor. Another reason for adopting this approach was to apply the thermo-acoustic combustion instability in the combustor model.

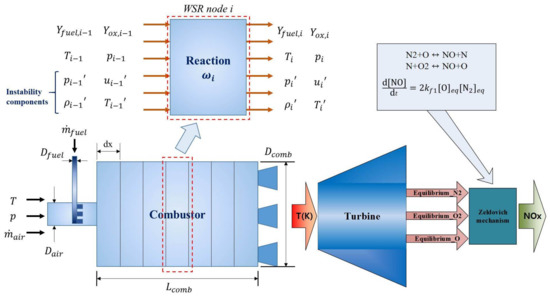

Figure 1 shows the schematic of the overall combustor model used in this study. The segment is divided into ten nodes. This combustor model can be used to evaluate temperature characteristics while the oxidizer and fuel are spreading along the x-axis. The length of the inlet duct is 0.104 m. The length and diameter of combustor are 3.505 m and 0.00508 m respectively.
Table 1 shows the specifications of the combustor model.
2.2. Operating Conditions
The inlet flow condition, including physical properties, and the flow characteristics of oxidizer and fuel streams, are shown
Table 2 and
Table 3. The reactants mass flow rate was 171.42~174.94 g/s, and were injected at a temperature of 700 K. The combustor pressure was 1~20 atm and the equivalence ratio was 0.45~1. The inlet velocity was 10~60 m/s.
2.3. Model Assumptions
The assumptions used to define this analytical combustor model are as follows:
The air-fuel ratio is the same from the fuel injection to the combustion flame.
The heat transfer in control volume of the combustor wall is neglected.
The control volume of node is determined from the equilibrium temperature and steady state exit temperature.
The oxidizer and fuel reaction mechanism is one dimensional.
Product enthalpy is the sum of the enthalpy of formation and sensible enthalpy change.
2.4. Governing Equation for the Combustor
The governing equation for the fully mixed reactor consists of a continuity equation, energy conservation, kinetic equation, and species conservation equation. Since steady state flow is assumed and pressures are constant in this study, the kinetic equation is neglected. Thus, the continuity equation, energy conservation, and chemical species conservation were used in the WSR model.
The boundary condition of the combustor model assumes that the inlet equivalence ratio is constant. The fuel and the oxidant react by the chemical reaction rate, and the remaining mixture is transferred to the next node.
The combustor is modeled by discretization to confirm combustion characteristics according to the position. For this purpose, each node is assumed to be a Well Stirred Reactor (WSR) and modeled to calculate the temperature by adiabatic process.
2.4.1. Continuity Equation
The chemical species conservation equation is in equilibrium with the atomic chemical. The total mass flow rate does not change, even if a product is produced by the reaction of the reactant. Therefore, the continuity equation can be expressed as
The integral continuity equation with WSR volume can be expressed as
Since the total flow rate in the control volume is the difference between the inlet flow rate and the outlet flow rate, the inviscid energy equation is calculated as
If the Mach number is much smaller than 1 (M << 1), Equation (3) is rewritten as follows:
Then, if the physical properties distribution in combustion chamber is uniform, Equation (4) is integrated against the WSR volume as follows:
Here, the internal energy is expressed as
The internal energy equation is rewritten by combining Equation (2):
2.4.2. Energy Conservation
If the specific heat is constant, the enthalpy can be expressed as
The above enthalpy equation is rewritten by combining Equation (7):
The last two terms of the left term can be combined into the continuity equation. Also, this assumes the heat transfer on the surface of a combustion chamber wall, the right term, which means energy loss is neglected. Finally, applying the ideal gas equation, Equation (9) is represented as the following:
As mentioned above, since the pressure is assumed to be constant to simulate steady state combustion, the last term in Equation (10) is zero. The temperature in the combustion chamber over time can be shown through the arranged energy conservation equation.
2.4.3. Chemical Species Conservation
Chemical species conservation is similar to the previously derived continuity equation. The chemical species conservation equation used in the model ignores diffusion because it is assumed to be a Well Stirred Reactor. However, convective terms exist. First, the integral chemical species conservation term can be expressed as
If the distribution of physical properties is uniform, Equation (11) is integrated with WSR volume and can be rewritten as
Equation (12) is rewritten by using the continuity equation, Equation (2):
Thus, the total WSR governing equation can be summarized as follows:
The chemical species conservation equation is categorized with the two following governing equations to capture the variation in the mass fraction rate of the oxidizer and fuel over time. Then, the product is expressed in equilibrium using the characteristics of the mass fraction. Fuel, oxidizer, and products were defined based on species conservation equation. Each species added the product at the node to the difference in the mass fraction of the node’s inlet and outlet.
The dynamic behaviors of the WSR are characterized by the three governing equations presented above. Equation (14) represents the outlet flow rate of the fluid flow. Equation (15) shows the inflow rate and outflow rate of energy, and energy storage in the WSR. Equation (16) express the entry and consumption of each chemical species. In the case of the oxidizer, the consumption term is related to the fuel, because it is consumed proportionally with the fuel consumption ratio that is multiplied by air fuel ratio.
Since each equation has an algebraic relationship that participates in the right side of each other, it is necessary to determine an initial value. The mechanism of the chemical reaction rate used in the chemical species conservation equation was represented using an empirical equation. Westbrook and Dryer proposed and evaluated a single step, dual step, and multi steps overall reaction mechanism for the various changes in the many hydrocarbon compounds. In this study, only single step reaction mechanism was considered. This is because the chemical species of combustion reactants were identified using Cantera and made into a 3D-lookup table. This mechanism can be expressed as

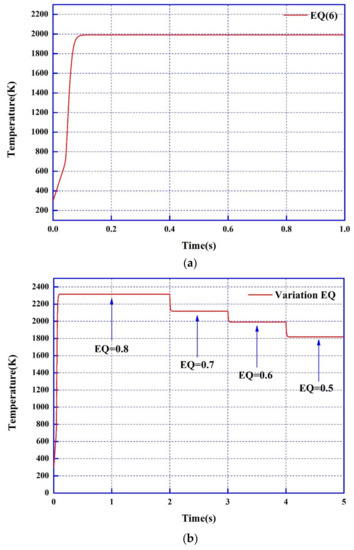

2.4.4. Quasi Steady State Model
In Equation (15), using the enthalpy difference between the inlet and outlet of the control volume, however, has a critical limitation. It is because the effect of temperature variation on the equivalence ratio in the combustion chamber cannot be evaluated. For this reason, to satisfy the quasi steady state, composition data on the equivalence ratio in the exhaust combustion chamber is needed. In this study, a 3-D lookup table of various equivalence ratios of the equilibrium state, which was obtained from the Gas Chromatography test bench, was applied. The inputs are temperature, pressure, and equivalence ratio.

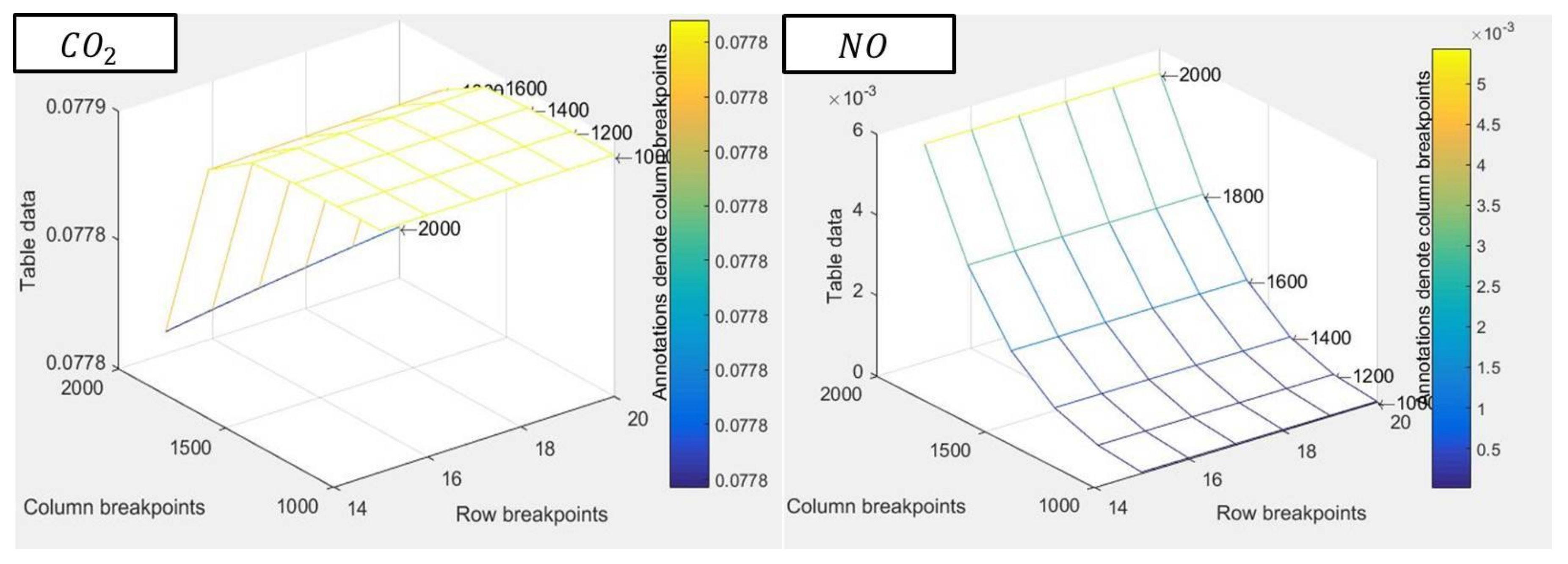

Figure 2 shows the representative lookup table applied in this study.
The chemical composition table was made using the Cantera program and the data of the representative chemical species are shown in

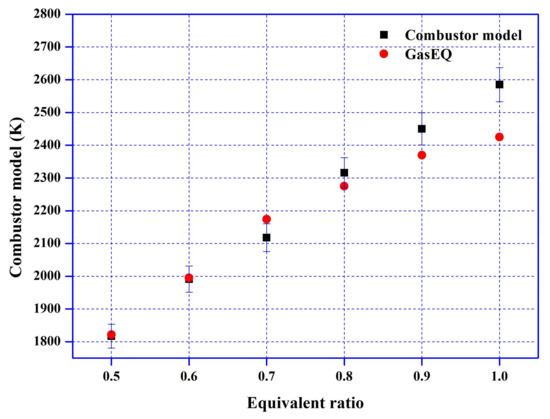

Figure 2. The chemical composition table can be used to analyze the adiabatic flame temperature and chemical composition with change in the inlet conditions of the combustor.
2.4.5. Segment Combustor Model

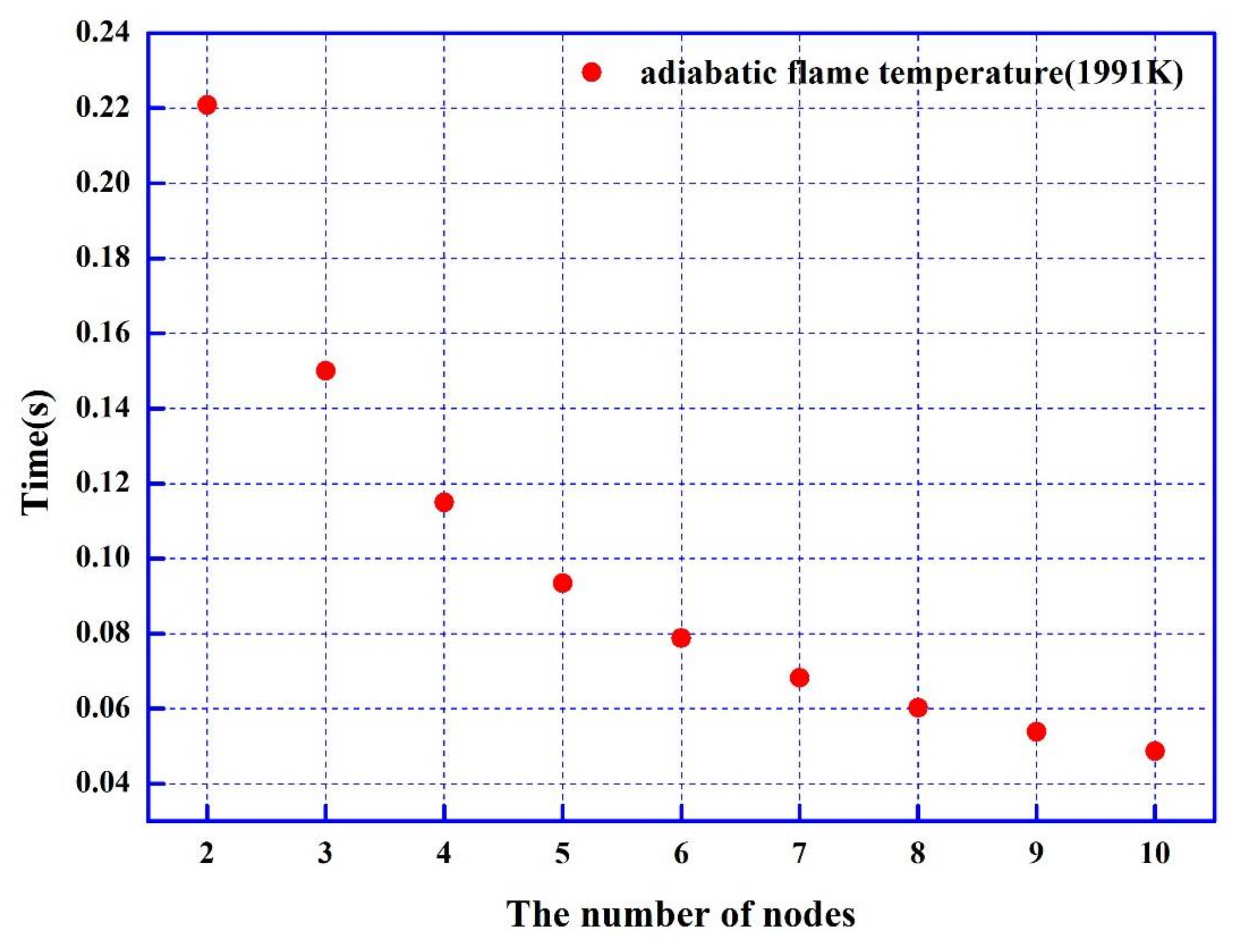

The segment technology is to construct a model with segmented nodes so that physical characteristics can be confirmed in each area. A node is an area of a combustor segmented for modeling.
In the case of a lumped combustor model, the combustion process in combustion chamber with region cannot assess. In the segment combustor model, however, dynamic behaviors such as temperature, chemical species density can be evaluated at each node. Also, the dynamic behaviors can be evaluated along the x-axis, while the oxidizer and fuel are propagating along the x-axis. For this reason, the segment technology was applied in this study, using 10 nodes. Thus, Equations (14)–(16) can be rewritten as

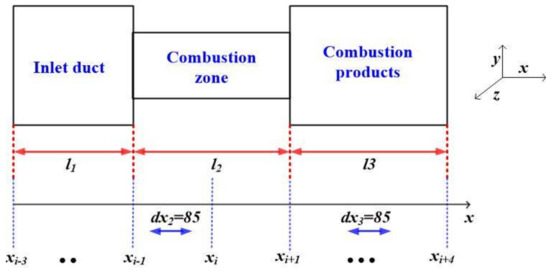

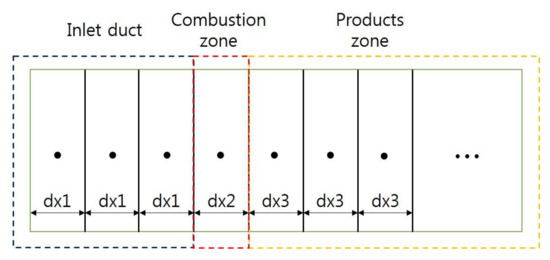

Figure 3 shows a schematic diagram of the segmented combustor model and
Table 4 shows the length of the regions and nodes.
3. Thermo-Acoustic Combustion Instability Model
To establish a combustion instability model for a gas turbine, it is important to understand the conceptual framework of the combustion instability phenomena observed in the gas turbine. In this section, the derivation of this model will be presented. The heat release in the developed combustion instability model was expressed using a simplified n-τ model, so the chemical reaction was neglected. The parameters of the thermo-acoustic combustion instability model are the same as those of the combustor model. This is because the result of the combustor model is used as input to the thermo-acoustic combustion instability model.
In the proposed model, to evaluate the combustion process in detail by region, the combustion process was divided into three regions. For example, the flow stream effect and pressure oscillations are dominant in regions I and III. On the other hand, in region II, heat release, which is caused by chemical reactions, dominates. For these reasons, the thermo-acoustic combustion instability model consisted of three connected regions, as shown in

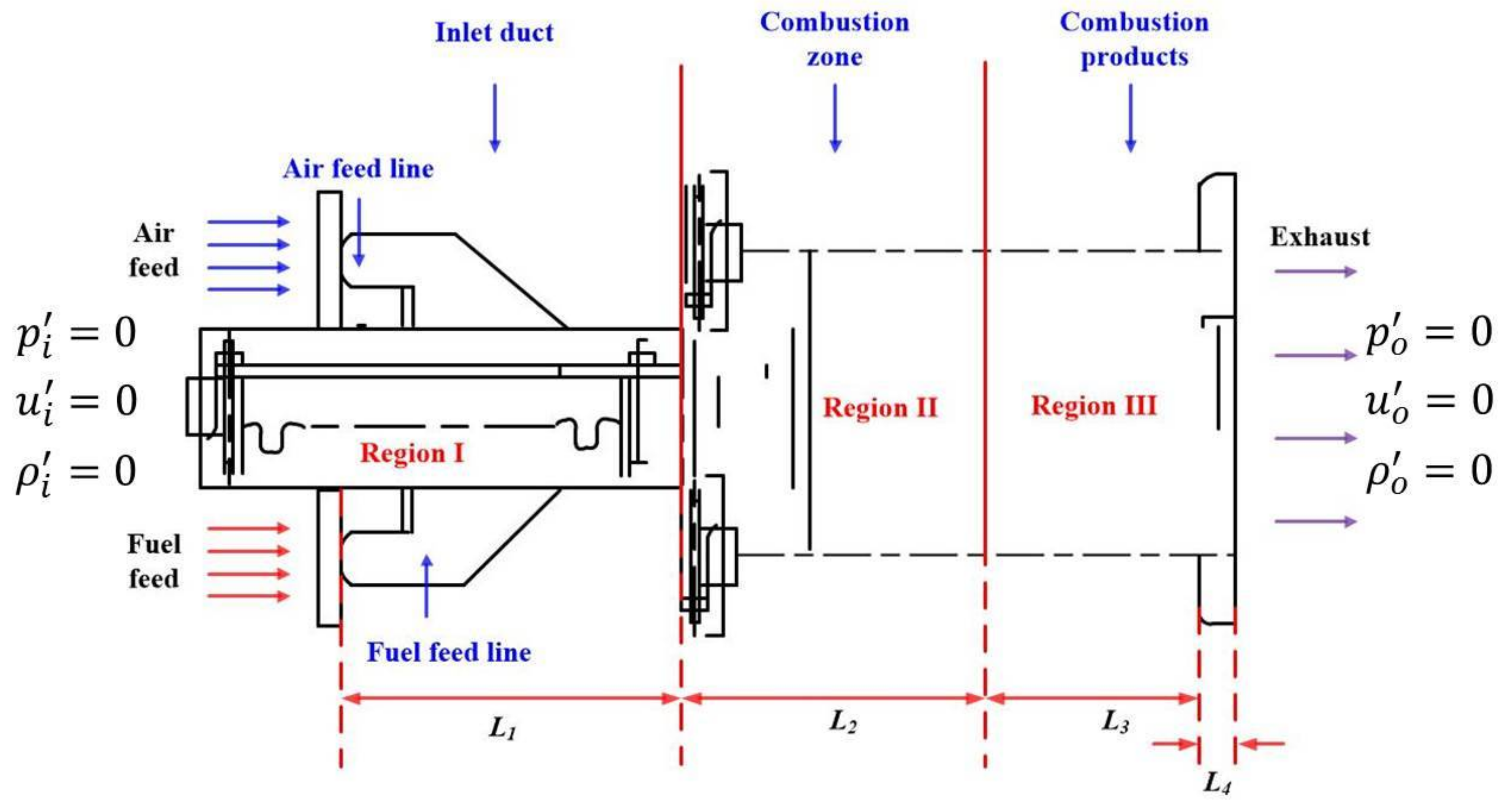

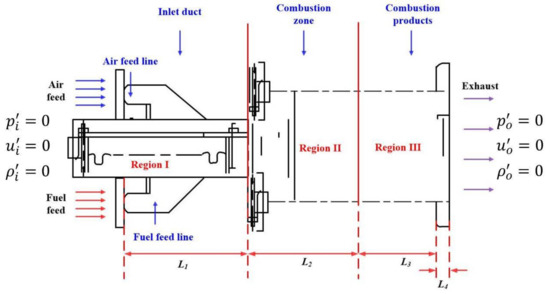

Figure 4. Region I represented the air inlet duct and the fuel supply region, region II was the circulation zone where the combustion takes place, and region III was the product area containing the exhaust gas.
The inlet and outlet of the combustion system have boundary conditions that the perturbation must satisfy. If the inlet is supplied by a large plenum chamber, the pressure perturbation can be modeled by taking p’ = 0. If the outlet is vented to atmosphere or a large plenum chamber, it can be modeled as an open end by taking p’ = 0.
The governing equations in each region are different and discretized to express the combustion instability propagation in the combustor.
The heat release region is set as one node, and the combustion instability is amplified through the boundary condition of the flame surface.
The key assumptions in this model are as follows:
An inviscid, ideal gas.
The mean flow has low Mach number.
The length of the flame is much smaller than the length of the wavelength.
The mean flow fields in regions (1) and (3) are uniform.
The mean flow fields in regions (1) and (3) are isentropic.
The acoustic fields in regions (1) and (3) are one-dimensional.
3.1. Combustion Chamber Wave Equation (I, III Regions)
As mentioned above, the flow stream effect and pressure oscillations are dominant in regions I and III. For this reason, the continuity equation, momentum equation, and energy equation are used in these regions. Also, assumption 6 was applied to derive the wave equation, because turbulence or disturbance is well propagated and appears along the x-axis. In addition, the relationship between the square of the Mach number (
M2) and flame length and acoustic wavelength (
Lflame/λ) was neglected [
29]. Thus, the general governing equation can be defined as
Therefore, the disturbance equations in these regions I and III can be rewritten by combining Equations (25)–(27):
3.2. Combustion Chamber Heat Release Equation (II Region)
Equation (28) requires a relationship between pressure oscillation and heat release rate oscillation. In this study, to model the heat release equation, the following key assumptions are listed:
The chemical reaction rate is faster than the flow rate on the flame plane (Damkohler number is infinite).
The mean flow rate of turbulence levels is not influenced by the heat release term.
The inlet fuel flow rate is various.
The boundary condition at the inlet and outlet is
The boundary conditions at the flame area (x < b and x > b) are and .
Since the chemical reaction rate is faster than the flow rate and choked flow at the inlet of the combustor, the assumption of the model is reasonable. Also, because the model is modeled by the heat release equation ignoring the area of the flame, the assumption (4) is also valid.
Then, the fluctuation in the heat release rate (source term) can be expressed by the
n-τ model [
30]
The velocity perturbation
u’ in the fluctuation in the heat release equation can be calculated as
where
ε is the relative intensity of the fluctuation, and
ϖ is the frequency of the acoustic field. Note that the overall velocity space is given by
.
The interaction index describes the correlation between the perturbation in the velocity and fluctuation of the heat release rate. Thus, the interaction index can be expressed as
Since heat release is related to temperature gradients, mean temperature, and density, an entropy equation should be calculated as follows:
The ideal gas approach can be used to replace entropy. Then Equation (33) can be rewritten as
Equation (33) is rewritten by combining the mass conservation equation.
Equation (28) can be represented by combining a linearized Equation (35), and the entropy equation.
Equation (36) is the heat release equation, the term on the right-side source term, which describes how the unsteady heat addition causes pressure instability.
Unstable heat release in the combustion zone causes acoustic perturbation and acoustic perturbation propagates to the surroundings. The generated acoustic perturbation propagates to the inlet flow, which affects the change of the input flow rate and equivalence ratio. The affected flow again makes a perturbation of the instability mechanism causing unstable heat release.
3.3. Convection Time Delay
In the current model, the time delay was defined by the heat release rate and flame strouhal number:
The convection time delay is independent of the perturbation of velocity. Then, the variable
G is expressed by the flame strouhal number as follows:
where
Su is the laminar burning velocity.
3.4. Segment Combustor Instability Model
The segment model was expressed in a segment form to detect the combustion instability according to the position of the combustor. In addition, it made in the segment model to represent the instability propagation by applying the finite difference method as
Figure 5.

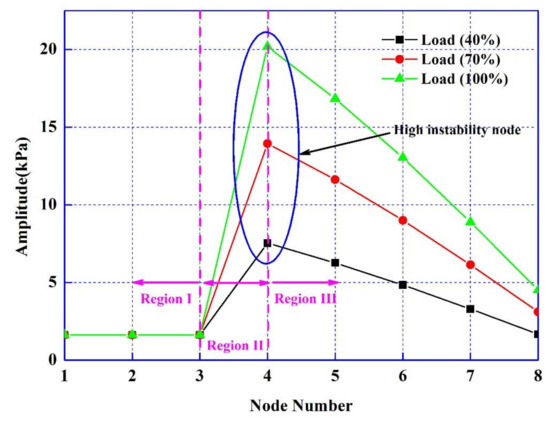

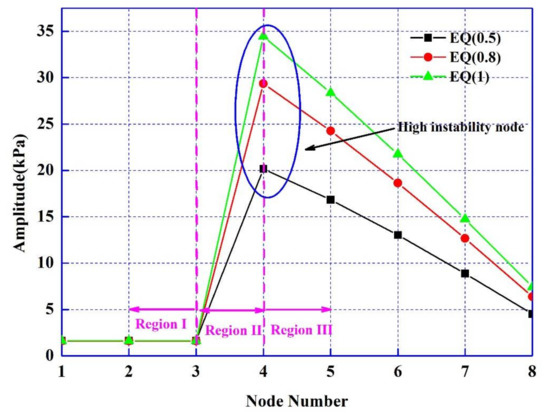

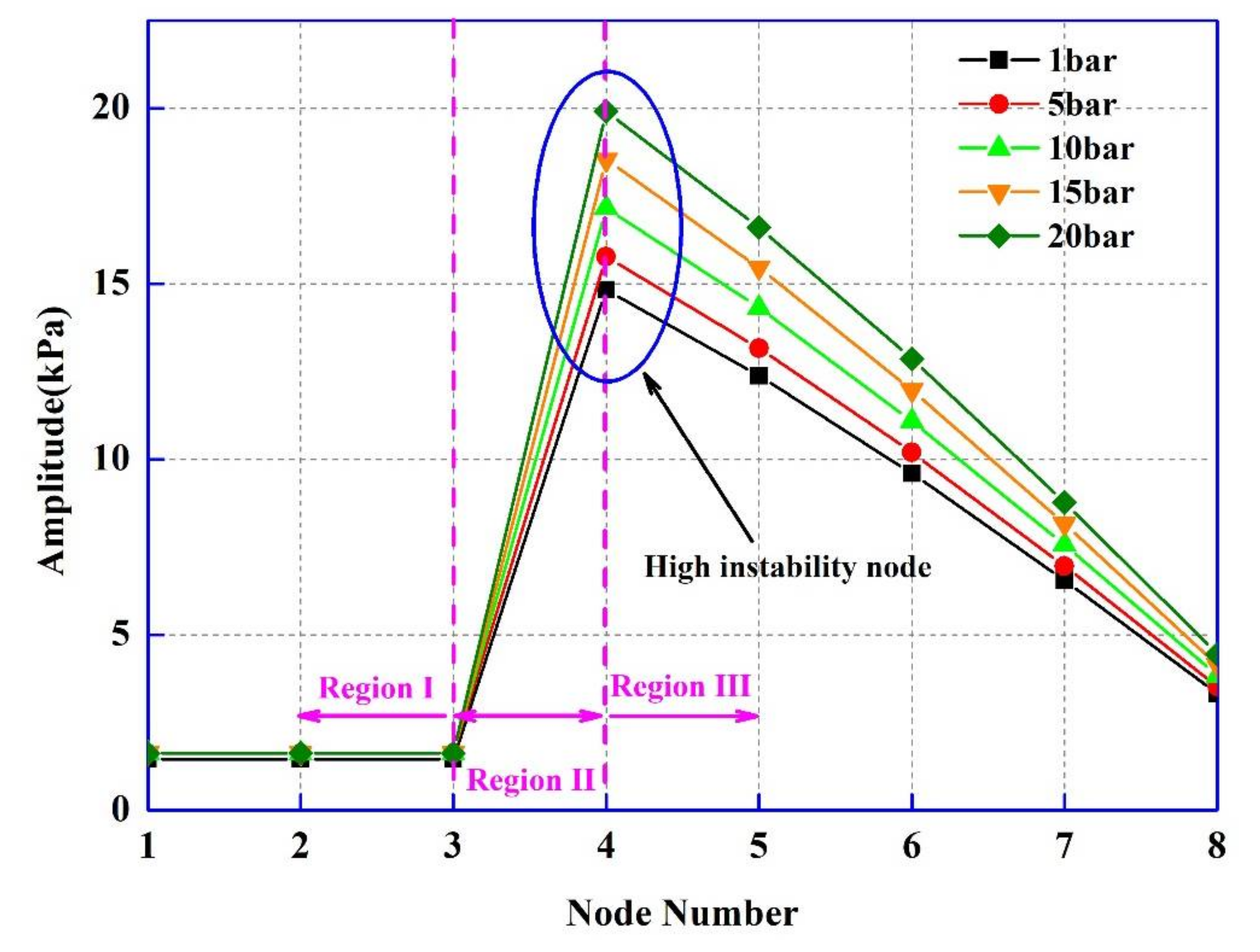

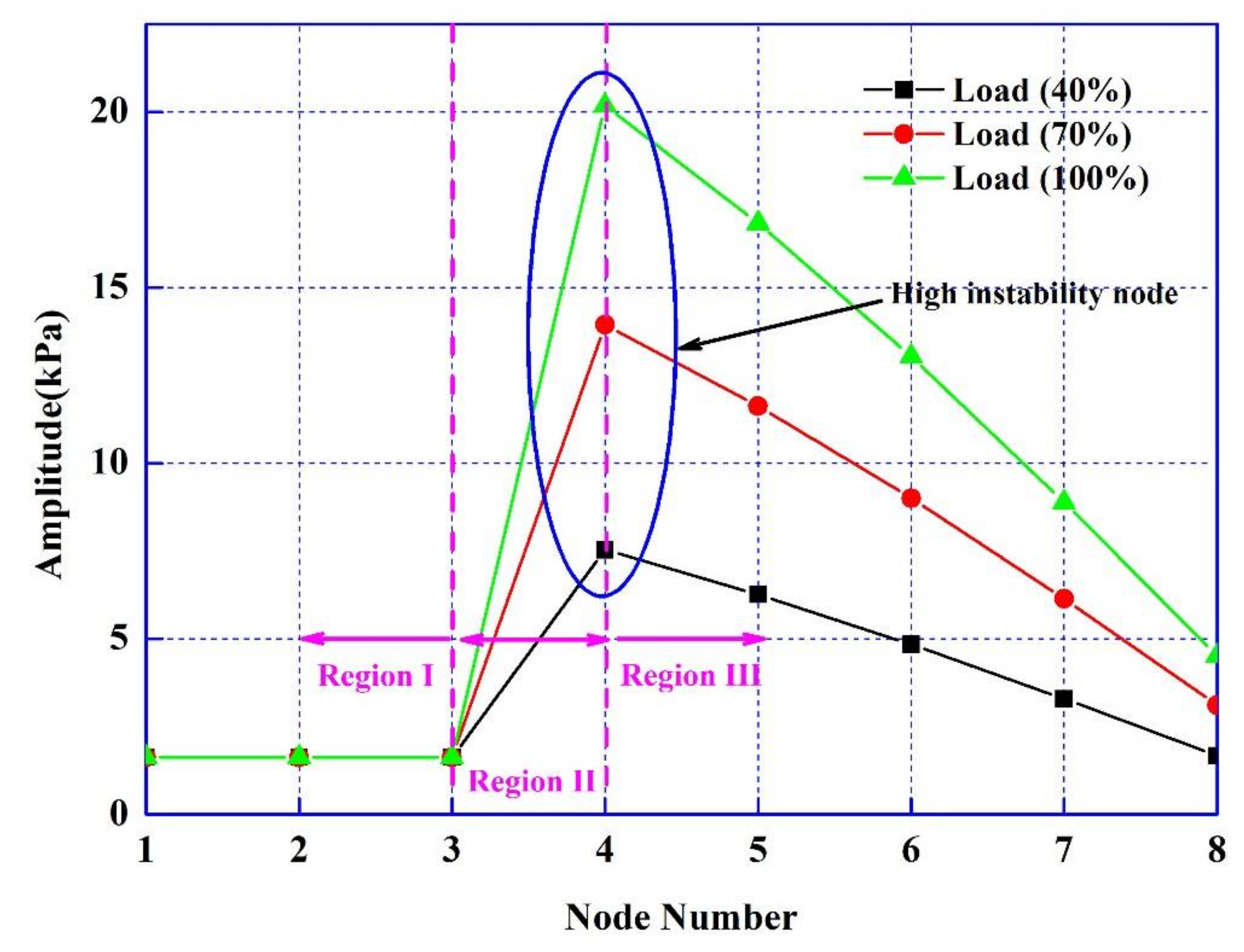

The segment combustion instability can be used to evaluate the effect of the combustion instability at the location of each node.
The dynamic behaviors can be evaluated along the x-axis, while the oxidizer and fuel are propagating along the x-axis. For this reason, the segment technology was applied in this study, and the node number for the combustion instability was 8 nodes. Thus, Equations (25)–(27) can be rewritten as
