Current Spikes Minimization Method for Three-Phase Permanent Magnet Brushless DC Motor with Real-Time Implementation

^{1}

Applied Physics Department, Faculty of Sciences and Techniques Marrakech, Cadi Ayyad University, BP 549, Av Abdelkarim Elkhattabi, Gueliz, Marrakesh 4 000, Morocco

^{2}

Laboratory of Innovative Technologies, Picardie Jules Verne University, 80025 Amiens, France

^{*}

Author to whom correspondence should be addressed.

Received: 10 October 2018 / Accepted: 14 November 2018 / Published: 19 November 2018

## Abstract

**:**

Due to their high efficiency and low cost of maintenance, brushless DC motors (BLDCMs) with trapezoidal electromotive forces (back-EMFs), have become widely used in various applications such as aerospace, electric vehicles, industrial uses, and robotics. However, they suffer from large current ripples and current spikes. In this paper, a new method for minimizing current spikes appearing during BLDCM start-up or sudden set point changes is proposed. The method is based on controlling the MOSFET gates of the motor driver using R-C filters. These filters are placed between the PWM control signal generator and the MOSFET gates to smooth these control signals. The analysis of the proposed method showed that the R-C filter usage affects the BLDCM steady-state performances. To overcome this limitation, the R-C filter circuit was activated only during current spikes detection. The effectiveness of the proposed method was analytically analyzed and then validated through simulation and experimental tests. The obtained results allowed a reduction of 13% in current spikes amplitude.

Keywords:

Brushless DC motors; current ripples; current spikes; modeling; back electromotive force; R-C filter## 1. Introduction

Nowadays, brushless DC motors (BLDCMs) have become a preferable choice due to several advantages such as a high power to weight ratio, a high torque to current ratio, fast response, and above all high efficiency and less maintenance [1]. They are widely used and recommended in areas such as clean and explosive environments (where control induced sparks can cause undesirable damages), food and chemical industries, electric vehicles, and photovoltaic pumping systems [2]. Unlike DC motors, BLDCMs have no brushes, which provides for a long lifetime.

Generally, the BLDCM with trapezoidal electromotive forces (back-EMFs) is the most prevalent type [3], since it does not require complex control, expensive sensors, or high-resolution sensors when compared to brushless AC motors. The latter need a sinusoidal current waveform while BLDCMs require a square current waveform for proper operation [4]. The BLDCM drive control is based on a three-phase half-bridge structure that can be composed of six or four switches [4,5,6].

Torque ripples are considered one of the main drawbacks of the BLDCM. They are generated due to several reasons such as non-ideal form of the back-EMF, cogging, and reluctance torques [7], which have led researchers to investigate and propose several torque ripples reduction methods [3,4,7,8,9,10]. For instance, the analysis of torque ripples caused by the noncommutated phase is addressed in References [3,4], where the PWM_ON_PWM control strategy was implemented. An auxiliary DC voltage source, connected in series with the inverters’ DC bus, was employed for torque ripple reduction in Reference [7]. A novel PWM method was established in Reference [8], where current spikes and current ripples, generated by the unipolar PWM control signals in the braking phases, were respectively source-illustrated and minimized. Optimal duty ratio calculation, to be applied to the incoming and outgoing phases during commutation intervals, was presented in References [9,10]. A current optimizing control method was investigated in Reference [11], where the three-phase current trajectories were set according to the torque reference.

Adding a DC-DC converter in with the three-phase inverter for torque ripple reduction was studied in References [12,13,14,15,16,17,18,19,20]. For instance, a buck converter was the implemented topology in References [12,13], with power factor correction based on PID fuzzy controller in Reference [14]. Other converter topologies were also used, such as a Z-source inverter in Reference [15], an integrated dual output DC-DC converter in Reference [16], and a CUK converter in Reference [17]. A SEPIC (Single Ended Primary Inductor Converter) DC-DC converter was implemented in Reference [18] with a three-level neutral-point-clamped (NPC) inverter. The output voltage of the SEPIC converter was regulated to be equal to four times the back-EMF voltage during the commutation period and was integrated using a switches selection circuit. This study [18] was improved in Reference [19] with a modified SEPIC converter to reduce the number of needed DC-DC converters with the usage of the same selection circuit. This selection circuit was eliminated in Reference [20] to minimize the implemented components. Other works were focused on studying the torque ripple induced from the motor itself, such as in References [21,22], where the torque ripples caused by non-ideal back-EMF were mitigated with pulses time calculation used for switches control.

Another issue regarding the BLDCM control is the current spikes. These spikes may lead to damage to the controller or the motor itself. The traditional all-turn-off current limit logic is the most used method for current limitation. However, the approach may damage the minimized DC link capacitor-based drive systems. In Reference [23], a detailed presentation of this logic with a novel current limitation strategy was presented to eliminate the oversize pumping-up voltage damage.

Based on these motivations, this paper adds further contributions by proposing a method to reduce the current spikes in the start-up and sudden set point changes. With this intention, an R-C filter was placed before the MOSFET gates, and its impact on transient and steady state regimes was analyzed. The proposed method is based on creating a delay in the MOSFET control signals before reaching the threshold voltage (progressive reaching to the threshold voltage). This induces a smooth current flow from the source to the MOSFET’s drain compared to the all-turn-off current limitation technique, where the command of the gate MOSFETs does not change from discrete states. The proposed approach allows lower input power supply use without energy flow interruptions, since the high current demand is reduced. Moreover, complicated or bulky components and sophisticated platforms are not needed for practical implementation. The effectiveness of the proposed method was analytically analyzed and validated through simulation and experimental tests.

The rest of the paper is organized as follows. Section 2 gives details on the brushless DC motor operation, its model equations, and its torque ripple sources. In Section 3, the proposed method to minimize the current spikes is described along with its advantages and motors’ behavior. Finally, simulation and experimental results are presented in Section 4 with and without implementing the proposed technique, followed by conclusions and perspectives in Section 5.

## 2. BLDC Motor Model Equation

The BLDCM is a synchronous motor with a three-phase winding stator and a permanent magnet rotor. Two motor phases are simultaneously conducting, which means that the gate drive signals are applied to two of the inverters’ MOSFETs at the same time. Knowing which MOSFETs must be conducting is determined using Hall effect sensor signals denoted by H

_{a}, H_{b}, and H_{c}. These signal combinations give an image of the rotor position.Different simulation models of the BLDCM were proposed in References [24,25,26,27]. Some authors presented a global modeling using inverter mathematical equations [28], whereas others were based on motor equations [29,30].

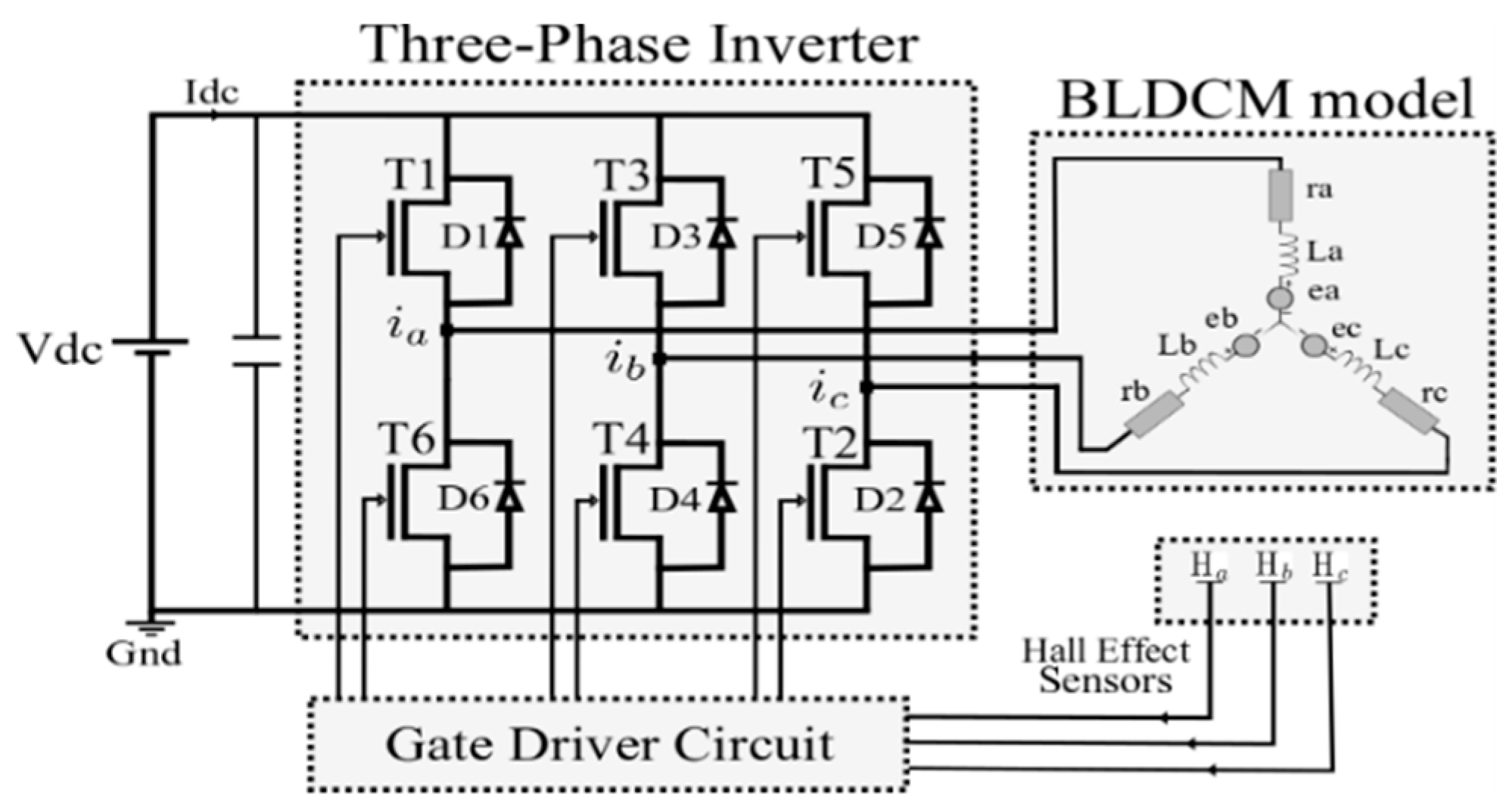

The BLDCM phase can be modeled as a resistance in series with an inductor and a back-EMF, as shown in Figure 1. Figure 2 depicts the phase current waveforms, Hall effect sensor combinations (numbered as sectors), and the inverters’ conducting MOSFETs.

The model equations of the BLDC motor are presented as follows [24,25,26,27,28,29,30]:
where ${V}_{an},{V}_{bn}$, and ${V}_{cn}$ are the stator winding phase voltages; ${r}_{a},{r}_{b},$ and ${r}_{c}$ are the stator winding resistances; ${L}_{a},{L}_{b},$ and ${L}_{c}$ are the phase inductances; ${i}_{a},{i}_{b},$ and ${i}_{c}$ are the phase currents; and ${e}_{a},{e}_{b},$ and ${e}_{c}$ are the back-EMFs.

$$\left[\begin{array}{c}{V}_{an}\\ {V}_{bn}\\ {V}_{cn}\end{array}\right]=\left[\begin{array}{ccc}{r}_{a}& 0& 0\\ 0& {r}_{b}& 0\\ 0& 0& {r}_{c}\end{array}\right]\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{ccc}{L}_{a}& 0& 0\\ 0& {L}_{b}& 0\\ 0& 0& {L}_{c}\end{array}\right]\frac{d}{dt}\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{c}{e}_{a}\\ {e}_{b}\\ {e}_{c}\end{array}\right],$$

The electromagnetic torque and the motor motion are given respectively by Equations (2) and (3):
where $W$ is the rotor angular velocity, $B$ is the viscous friction coefficient, $J$ is the moment of inertia, and ${T}_{L}$ is the load torque.

$${T}_{e}=\frac{{E}_{a}{i}_{a}+{E}_{b}{i}_{b}+{E}_{c}{i}_{c}}{W},$$

$$\frac{dW}{dt}=\frac{1}{J}\left({T}_{e}-{T}_{L}-BW\right),$$

In Figure 2, the transition from sector 2 to sector 3 induced an electromagnetic torque expressed by the following Equation (4) [11,14]:
where E is the flap-top value of the back-EMF.

$${T}_{e}=\frac{2\ast E\ast {i}_{c}}{W},$$

Based on Equation (4), it could be understood that the electromagnetic torque was proportional to the noncommutated phase current during the commutation period. However, in practice, current shapes are not like those presented in Figure 2. There is a “dead time” between each commutation from one sector to another. This is due to the difference between the MOSFET rise and fall times. More details about such differences can be found in Reference [10].

## 3. Analysis of R-C Filter Implementation

Depending on the MOSFET features, the current flow from the drain to the source depends on the gate voltage ${V}_{gs}$.

For the BLDCM, the PWM mode is generally preferred for speed variation where the duty ratio is an image of an analogue signal. Using digital-to-analogue conversions, the duty ratio is calculated, and the appropriate PWM signal is delivered to the MOSFET gate to control the input voltage ${V}_{dc}$, which refers also to input current control.

The PWM signal is a succession of discrete states for well-chosen times. In the proposed control method, the discrete states transitions were avoided by adding an R-C filter between the PWM generator and the gate of the MOSFETs, which allowed smooth transients in the changing parts. This changing mode is explained in Figure 3a.

The encountered problem in this mode of control was the delay time added in the passage portions toward zero (${t}_{2}^{\prime}$). For the normal BLDCM control, this time equaled the fall MOSFET’s time that can be achieved by adding a diode in parallel with the resistance, as shown in Figure 3b. The diode allowed the ability to discharge the capacitor quickly through the creation of a connection with the ground delivered by the PWM block.

In order to present the detailed impacts of the proposed control method on the motor performance, two current commutation cases must be distinguished, the upper-bridge current commutation and the lower-bridge current commutation. Detailed equations with the equivalent inverter schematic in both cases are presented as follows.

#### 3.1. Lower-Bridge Current Commutation

At the lower-bridge current commutation, the analysis was done when switching off the MOSFET ${T}_{6}$ and switching on the MOSFET ${T}_{4}$. Figure 4 shows the MOSFET states before, during, and after the commutation interval for this case. A 100% duty ratio was chosen for simplification purposes.

The voltage equations can be written as:

$$\left[\begin{array}{c}0\\ 0\\ {V}_{dc}\end{array}\right]=\left[\begin{array}{ccc}r& 0& 0\\ 0& r& 0\\ 0& 0& r\end{array}\right]\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{ccc}L& 0& 0\\ 0& L& 0\\ 0& 0& L\end{array}\right]\frac{d}{dt}\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{c}{E}_{a}\\ {E}_{b}\\ {E}_{c}\end{array}\right]+\left[\begin{array}{c}{V}_{n}\\ {V}_{n}\\ {V}_{n}\end{array}\right],$$

$$\left[\begin{array}{c}{V}_{dc}\\ 0\\ {V}_{dc}\end{array}\right]=\left[\begin{array}{ccc}r& 0& 0\\ 0& r& 0\\ 0& 0& r\end{array}\right]\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{ccc}L& 0& 0\\ 0& L& 0\\ 0& 0& L\end{array}\right]\frac{d}{dt}\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{c}{E}_{a}\\ {E}_{b}\\ {E}_{c}\end{array}\right]+\left[\begin{array}{c}{V}_{n}\\ {V}_{n}\\ {V}_{n}\end{array}\right],$$

$$\left[\begin{array}{c}0\\ 0\\ {V}_{dc}\end{array}\right]=\left[\begin{array}{ccc}r& 0& 0\\ 0& r& 0\\ 0& 0& r\end{array}\right]\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{ccc}L& 0& 0\\ 0& L& 0\\ 0& 0& L\end{array}\right]\frac{d}{dt}\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{c}{E}_{a}\\ {E}_{b}\\ {E}_{c}\end{array}\right]+\left[\begin{array}{c}{V}_{n}\\ {V}_{n}\\ {V}_{n}\end{array}\right].$$

In this case, ${E}_{c}=-{E}_{b}={K}_{e}W,$ and ${E}_{a}=\frac{6}{\pi}{K}_{e}{W}^{2}t-12{K}_{e}W$ [30].

The motor phase currents were calculated and are presented as follows:

$$r{i}_{a}+L\frac{d{i}_{a}}{dt}=-\frac{1}{3}\left[-{V}_{dc}-24{k}_{e}W\right]-\frac{4}{\pi}{K}_{e}{W}^{2}t,$$

$$r{i}_{b}+L\frac{d{i}_{b}}{dt}=\frac{1}{3}\left[-2{V}_{dc}-9{k}_{e}W\right]+\frac{2}{\pi}{K}_{e}{W}^{2}t,$$

$$r{i}_{c}+L\frac{d{i}_{c}}{dt}=\frac{1}{3}\left[{V}_{dc}-15{k}_{e}W\right]+\frac{2}{\pi}{K}_{e}{W}^{2}t.$$

Using Equation (11), the inverse Laplace transform, and the initial value of the phase currents ${i}_{a}\left(0\right)=-{i}_{c}\left(0\right)={i}_{0}$ and ${i}_{b}\left(0\right)=0$, the resulting phase currents equations are expressed as Equations (12)–(14):

$${i}_{a}+{i}_{b}+{i}_{c}=0,$$

$${i}_{a}\left(t\right)=\frac{-\left[-{V}_{dc}-24{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)+\frac{L{i}_{0}}{r}{e}^{-\left(\frac{r}{L}t\right)}-\frac{4{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right),$$

$${i}_{b}\left(t\right)=\frac{-\left[2{V}_{dc}+9{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)+\frac{2{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right),$$

$${i}_{c}\left(t\right)=\frac{\left[{V}_{dc}-15{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)-\frac{L{i}_{0}}{r}{e}^{-\left(\frac{r}{L}t\right)}+\frac{2{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right).$$

In this case, when using the R-C filter, the equations of the motor phase currents remained the same.

#### 3.2. Upper-Bridge Current Commutation

During the upper-bridge current commutation, the analysis was done when switching off the MOSFET ${T}_{1}$ and switching on the MOSFET ${T}_{3}$. Figure 5 presents the MOSFET states before, during, and after the commutation interval for the upper-bridge current commutation.

The voltage equations can be written as:

$$\left[\begin{array}{c}{V}_{dc}\\ 0\\ 0\end{array}\right]=\left[\begin{array}{ccc}r& 0& 0\\ 0& r& 0\\ 0& 0& r\end{array}\right]\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{ccc}L& 0& 0\\ 0& L& 0\\ 0& 0& L\end{array}\right]\frac{d}{dt}\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{c}{E}_{a}\\ {E}_{b}\\ {E}_{c}\end{array}\right]+\left[\begin{array}{c}{V}_{n}\\ {V}_{n}\\ {V}_{n}\end{array}\right],$$

$$\left[\begin{array}{c}0\\ {V}_{dc}\\ 0\end{array}\right]=\left[\begin{array}{ccc}r& 0& 0\\ 0& r& 0\\ 0& 0& r\end{array}\right]\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{ccc}L& 0& 0\\ 0& L& 0\\ 0& 0& L\end{array}\right]\frac{d}{dt}\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{c}{E}_{a}\\ {E}_{b}\\ {E}_{c}\end{array}\right]+\left[\begin{array}{c}{V}_{n}\\ {V}_{n}\\ {V}_{n}\end{array}\right],$$

$$\left[\begin{array}{c}0\\ {V}_{dc}\\ 0\end{array}\right]=\left[\begin{array}{ccc}r& 0& 0\\ 0& r& 0\\ 0& 0& r\end{array}\right]\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{ccc}L& 0& 0\\ 0& L& 0\\ 0& 0& L\end{array}\right]\frac{d}{dt}\left[\begin{array}{c}{i}_{a}\\ {i}_{b}\\ {i}_{c}\end{array}\right]+\left[\begin{array}{c}{E}_{a}\\ {E}_{b}\\ {E}_{c}\end{array}\right]+\left[\begin{array}{c}{V}_{n}\\ {V}_{n}\\ {V}_{n}\end{array}\right].$$

In this case, ${E}_{b}=-{E}_{c}={K}_{e}W$ and ${E}_{a}=-\frac{6}{\pi}{K}_{e}{W}^{2}t+6{K}_{e}W$ [30]. The motor phase currents are:

$$r{i}_{a}+L\frac{d{i}_{a}}{dt}=-\frac{1}{3}\left[{V}_{dc}+12{k}_{e}W\right]+\frac{4}{\pi}{K}_{e}{W}^{2}t,$$

$$r{i}_{b}+L\frac{d{i}_{b}}{dt}=\frac{1}{3}\left[2{V}_{dc}+3{k}_{e}W\right]-\frac{2}{\pi}{K}_{e}{W}^{2}t,$$

$$r{i}_{c}+L\frac{d{i}_{c}}{dt}=\frac{1}{3}\left[-{V}_{dc}+9{k}_{e}W\right]-\frac{2}{\pi}{K}_{e}{W}^{2}t.$$

Using the inverse Laplace transform and the initial value of the phase currents, ${i}_{c}\left(0\right)=-{i}_{a}\left(0\right)={i}_{0}$ and ${i}_{b}\left(0\right)=0$, the calculated phase currents are expressed as Equations (21)–(23):

$${i}_{a}\left(t\right)=\frac{-\left[{V}_{dc}+12{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)+\frac{L{i}_{0}}{r}{e}^{-\left(\frac{r}{L}t\right)}+\frac{4{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right),$$

$${i}_{b}\left(t\right)=\frac{\left[2{V}_{dc}+3{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)-\frac{2{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right),$$

$${i}_{c}\left(t\right)=\frac{\left[-{V}_{dc}+9{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)-\frac{L{i}_{0}}{r}{e}^{-\left(\frac{r}{L}t\right)}-\frac{2{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right).$$

The motor phase currents, when using the R-C filter, are:

$${i}_{a}\left(t\right)=\frac{-\left[{V}_{dc}+12{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)+\frac{L{i}_{0}}{r}{e}^{-\left(\frac{r}{L}t\right)}+\frac{4{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right)+\left(\frac{{V}_{dc}{\sigma}_{RC}}{3r{\sigma}_{RC}-3L}\left({e}^{-\frac{t}{{\sigma}_{RC}}}-{e}^{-\frac{r}{{\sigma}_{RC}}}\right)\right),$$

$${i}_{b}\left(t\right)=\frac{\left[2{V}_{dc}+3{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)-\frac{2{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right)-\left(\frac{2{V}_{dc}{\sigma}_{RC}}{3r{\sigma}_{RC}-3L}\left({e}^{-\frac{t}{{\sigma}_{RC}}}-{e}^{-\frac{r}{{\sigma}_{RC}}}\right)\right),$$

$${i}_{c}\left(t\right)=\frac{\left[-{V}_{dc}+9{K}_{e}W\right]}{3r}\left(1-{e}^{-\left(\frac{r}{L}\right)t}\right)-\frac{L{i}_{0}}{r}{e}^{-\left(\frac{r}{L}t\right)}-\frac{2{K}_{e}{W}^{2}}{\pi r}\left(t-\frac{L}{r}+\frac{L}{r}{e}^{-\left(\frac{r}{L}t\right)}\right)+\left(\frac{{V}_{dc}{\sigma}_{RC}}{3r{\sigma}_{RC}-3L}\left({e}^{-\frac{t}{{\sigma}_{RC}}}-{e}^{-\frac{r}{{\sigma}_{RC}}}\right)\right).$$

From the reported equations, the difference between upper-bridge and lower-bridge current commutation cases was observed at the incoming connected terminal voltage: When the lower-bridge commutation was activated, the terminal voltage of the incoming commutated phase (phase b) was equal to zero (connected to the ground). The R-C filter on the gate of the MOSFET ${T}_{4}$ did not present any difference because the incoming commutated phase voltage still equaled zero until the total conduction of the MOSFET ${T}_{4}$. In this case, the outgoing commutated phase was connected to the DC link voltage through the freewheeling diode ${D}_{1}$, as shown in Figure 5b, and was not controlled by the gate of the MOSFET ${T}_{1}$. This means that any difference from the normal controlling mode would not appear when the gate of the lower MOSFET ${T}_{4}$ was commutated using the R-C filter. Unlike the upper-bridge current commutation, the terminal voltage of the incoming commutated phase was the DC link voltage. Controlling the gate of the MOSFET ${T}_{3}$ using the R-C filter was the reason for the impact of this on the absorbed current. This was due to the delay added before the total conduction of the MOSFET ${T}_{3}$. This fact proved that the R-C filter impact was more important when it was implemented on the upper-bridge gate’s MOSFETs.

It is worth mentioning that the phase currents equations, when adding the R-C filter, had higher values than without using an R-C filter. This can be seen in the additional “exponential” term added from controlling the gate of the MOSFET ${T}_{3}$ by the R-C filter (Equations (24)–(26)). It should be also emphasized that the R-C filter frequency should be well-chosen. It must be higher than the PWM control signal frequency to allow the motor to work without disturbances.

## 4. Simulation and Experiment Results

The simulation results are presented in Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12 and Figure 13. Figure 6 shows the phases and absorbed currents during motor operation with a 100% duty ratio. The MOSFET control signals are presented in Figure 7. Theses curves corresponded to the case without using the R-C filter and where the R-C filter was activated for C = 0.6 µF and C = 1.5 µF.

Based on the obtained results, one can see that the current spike in the start-up phase without using the R-C filter (27 A) (Figure 6a) had a higher value than the one absorbed when using the R-C filter (19 A) (Figure 6c). This reduction in current spike value was obtained with an R-C filter frequency of 2.6 kHz. Changing the latter to 1 kHz, the current spike was reduced to 9.5 A (Figure 6e). Despite these decreases in current spikes, more current ripples appeared. The noncommutated phase induced a higher current ripple value during the commutation period in a steady state. Compared to the normal control strategy that induced 4.8 A, a 2.6 kHz R-C filter frequency induced a 9.5 A current ripple value, whereas the use of a 1 kHz R-C filter frequency decreased this current ripple to 8.5 A. The obtained results were in accordance with those of the absorbed current shown in Figure 6b,d,f. This confirms the obtained analytical results presented in the previous section, in terms of a higher current value during the commutation interval, when compared to the normal BLDCM control.

The corresponding MOSFET gate signals are illustrated in Figure 7 without using the R-C filter and when implementing the latter with a capacitor value of 0.6 µF and 1.5 µF. The difference is illustrated in the delay time added before the total MOSFET conduction. This R-C filter effect was applied only during front edges. During failing edges, the same signal waveform was applied for normal and R-C filter control methods.

In order to avoid the higher steady state current ripples caused by R-C filter usage, a combination of the two controlling modes, with and without R-C filter, was used. A relays-based selection circuit that allowed for activating or canceling the connection between the PWM block and the R-C filter was utilized. It must be taken into consideration that the proposed schematic must be able to discharge the R-C filter capacitor in nonconduction phases to allow reactivation of the R-C filter effect when renewing. The global schematic is presented in Figure 8.

Relays r1 and r3 were controlled by the same signal, which was the complement to that which ordered the relays r2 and r4. When the relays r1 and r3 were in conduction, the R-C filter effect was activated and connected to the gate of the MOSFET. During the R-C filter deactivation, relays r2 and r4 were in conduction. This combination connected the PWM signal, after the resistance, directly to the gate of the MOSFET and allowed the capacity to discharge by connecting it to the ground.

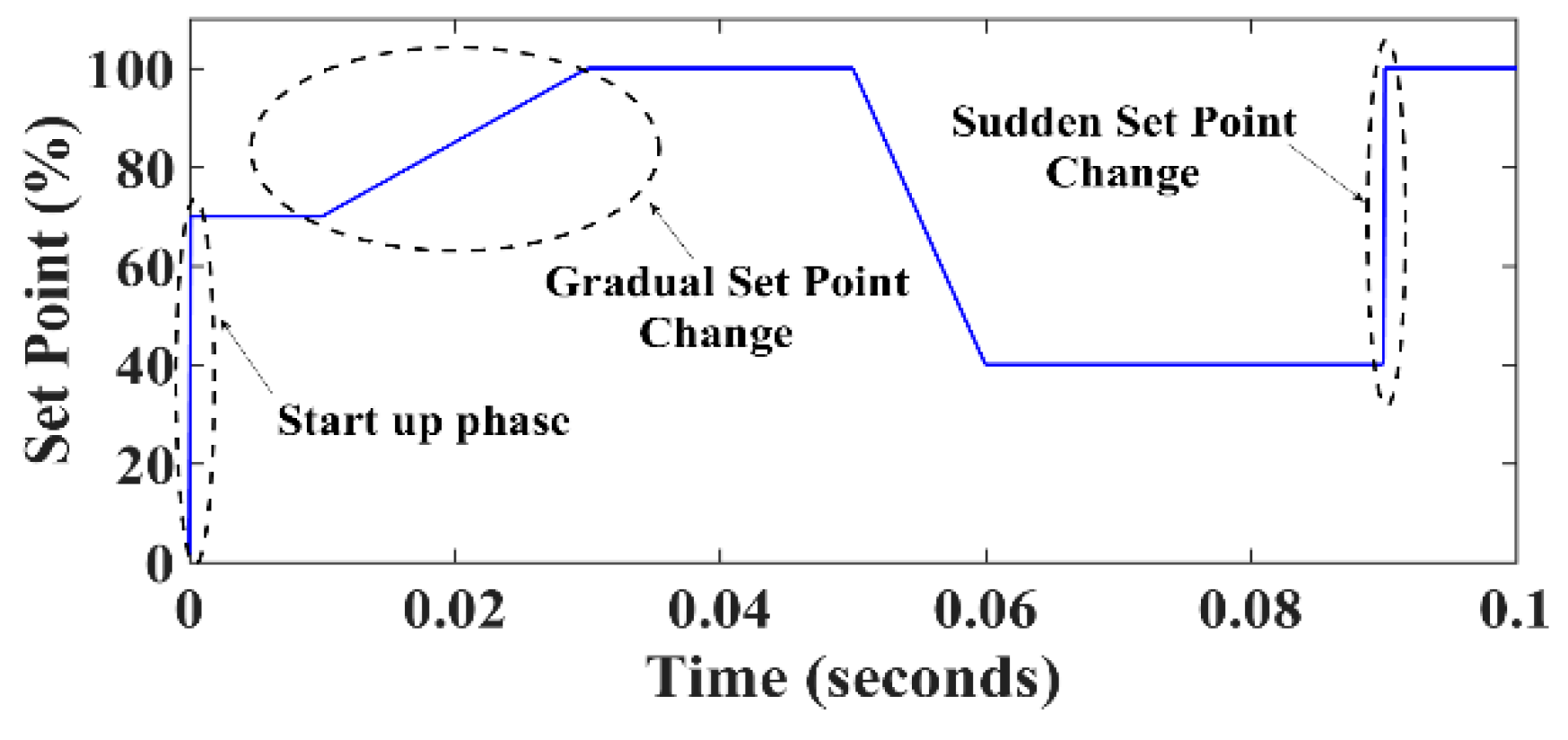

What followed was the activation of the R-C filter in the starting and sudden set point changes. This is explained by what this control method could cause in permanent regimes in terms of current ripple. Sudden changes in the set point were detected by the derivative of the latter and the comparison of it to a certain limit that must not be exceeded, after which the engine would see a significant current spike. Simulation results, using the programmed set point changes profile shown in Figure 9, are illustrated in Figure 10 without using an R-C filter and in Figure 11 with combined “with and without an R-C filter” controls. Figure 12 depicts the gate voltage signal of the R-C filter-controlled MOSFETs. The chosen set point variations, representing the PWM control signal duty ratio, were utilized to test the activation and deactivation of the R-C filter effect. The related simulation signal is presented in Figure 13.

From the reported results, without using an R-C filter control, the peak values of the phase current, and thus the input current, reached 26 A during the start-up phase and 13 A during sudden set point change, as illustrated in Figure 10a,b. However, when implementing the R-C filter with a 0.6 µF capacitor, the current values were reduced to reach 15 A and 11 A during the start-up and sudden set point change, respectively (Figure 11a,b). After changing the capacitor to 1.5 µF, the start-up and sudden set point changes currents were reduced to 11 A and 10 A, respectively (Figure 11c,d).

During gradual set point change, the current waveform did not show any spike, which did not necessitate R-C filter effect activation.

From these results, using relays on the six MOSFETs of the inverter seemed to be a satisfactory way to eliminate current ripples in the permanent regimes. The previous calculations, which explained that the R-C filter impact was important when the latter was implemented on the upper-bridge MOSFETs, may have reduced the number of relays and R-C filters from six to three.

The effectiveness of the proposed method was experimentally proven using the laboratory test rig illustrated in Figure 14. It was made up of an outrunner BLDCM structure with a neodymium magnet rotor, an inverter composed of IRFP260 MOSFETs, IR2110 gate drivers, a potentiometer, and an Arduino Mega2560 board used to generate BLDCM PWM control signals. The relays-based circuit contained three hfd2/003-m-l2-d relays, in addition to the basic components needed for their control (e.g., transistors, diodes). Based on the potentiometer value and Hall effect sensor signals, PWM control signals were provided to the IR2110 gate drivers through the proposed RC-filters and relays-based circuits for the high-bridge-controlled MOSFETs, and directly from the Arduino to the lower-bridge MOSFETs drivers. The potentiometer derivative was calculated and used for R-C filter activation or deactivation as illustrated previously in Figure 8. The IR2110 drivers were chosen due to their capability of isolating the high-power side from the low-power side, which ensured programming and interfacing cards security. The PWM frequency was set to 32 kHz, and a National Instrument card, NI USB-6259, was used to acquire input current waveforms with and without using an R-C filter through an LA 25-NP current sensor.

Figure 15 illustrates the experimental results with and without using an R-C filter during the start-up phase. It can be noticed that current spikes in normal BLDCM control (using the discrete PWM signal only) reached 16.5 A. In contrast, with the proposed method, the absorbed current spikes decreased to 14.3 A due to the induced delay in the MOSFET command before reaching the threshold voltage. These results confirm those illustrated through the first dashed line ellipsis in Figure 11a–d in terms of current spike reduction. It should be mentioned that the experimental results were obtained using a 15 kHz R-C filter frequency, which explains the current spike values difference from those in the simulation. In permanent regimes, the current waveforms are the same for both cases (with and without an R-C filter). The 15 kHz R-C filter frequency was selected to cope with some test rig limitations (such as program execution frequency and acquisition memory saturation), which were also the reason for presenting only start-up phase results. Improving the test rig performance should result in more of a decrease in the current spikes.

As a conclusion, one can see that these experimental results support the simulation and analytical analyses and also prove the effectiveness of the proposed current spikes minimization method.

## 5. Conclusions and Future Work

In this paper, BLDCM current spike limitations during start-up and set point sudden changes were presented by modifying the MOSFET gate control signals. An R-C filter was placed between the PWM signal generator and the MOSFET gate in order to smooth the discrete PWM control signal during transition phases. The proposed method induced more current ripples in the permanent regimes, which imposed a combination of the use of the R-C filter or not. This was achieved using relays-based circuits to activate and deactivate the R-C filter effect. Simulation results were carried out and showed that the proposed method attenuated the current spikes amplitude in both the start-up and sudden set point changes by 40% and 35%, respectively. An experimental test rig was designed to approve such results. In fact, the experimental results showed a decrease in current spikes amplitude during the start-up phase, with a percentage of 13%. This approach is appreciated since it did not require a high power supply and did not cause energy interruptions when using a limited current power supply.

It should be noted that the limitation of the proposed method, apart from higher current ripples during steady states, was the R-C filter frequency, which had to be well-chosen for adequate motor operation. Moreover, relays-based circuits had to be fast enough to respond when current spikes were detected. This fact can be addressed in further works by the use of high-speed switch-based circuits to control R-C filter activation and deactivation, such as MOSFETs. Additionally, basic and in-depth studies concerning the motor and converter efficiency, with and without an R-C filter, will be explored.

## Author Contributions

Conceptualization, M.D., S.D., and A.R.; methodology, M.D. and A.R.; software, M.D.; validation, M.D., S.D., and A.R.; writing—original draft preparation, M.D.; writing—review and editing, M.D., A.R., and S.D.; supervision, S.D. and AR; funding acquisition, S.D. and A.R.

## Funding

This research was funded by the Institute for Research in Solar Energy and New Energy (IRESEN)–VERES Project. Website: http://www.iresen.org/.

## Acknowledgments

This work was supported by the Institute for Research in Solar Energy and New Energy (IRESEN)–VERES Project. The authors acknowledge their support and encouragement in carrying out this college work.

## Conflicts of Interest

The authors declare no potential conflicts of interest with respect to the research, authorship, or publication of this article.

## References

- Chengde, T.; Mingqiao, W.; Baige, Z.; Zuosheng, Y.; Ping, Z. A Novel Sensorless Control Strategy for Brushless Direct Current Motor Based on the Estimation of Line Back Electro-Motive Force. Energies
**2017**, 10, 1384. [Google Scholar] [CrossRef] - Priyadarshi, N.; Padmanaban, S.; Mihet-Popa, L.; Blaabjerg, F.; Azam, F. Maximum Power Point Tracking for Brushless DC Motor-Driven Photovoltaic Pumping Systems Using a Hybrid ANFIS-FLOWER Pollination Optimization Algorithm. Energies
**2018**, 11, 1067. [Google Scholar] [CrossRef] - Wei, K.; Hu, C.S.; Zhang, Z.C. A Novel PWM Scheme to Eliminate the Diode Freewheeling in the Inactive Phase in BLDC Motor. Front. Electr. Electron. Eng. China
**2006**, 1, 194–198. [Google Scholar] [CrossRef] - Meilan, Z.; Zhi, L.; Quan, G.; Zeqing, X.; Huifeng, X. Influence of PWM modes on non-commutation torque ripple in brushless DC motor control system. In Proceedings of the 2013 2nd International Conference on Measurement, Information and Control, Harbin, China, 16–18 August 2013; pp. 1004–1008. [Google Scholar] [CrossRef]
- Ben, R.A.; Masmoudi, A.; Elantably, A. On the analysis and control of a three-switch three-phase inverter-fed brushless DC motor drive. COMPEL—Int. J. Comput. Math. Electr. Electron. Eng.
**2007**, 26, 183–200. [Google Scholar] [CrossRef] - Ni, K.; Hu, Y.; Liu, Y.; Gan, C. Performance Analysis of a Four-Switch Three-Phase Grid-Side Converter with Modulation Simplification in a Doubly-Fed Induction Generator-Based Wind Turbine (DFIG-WT) with Different External Disturbances. Energies
**2017**, 10, 706. [Google Scholar] [CrossRef] - Baby, B.K.; George, S. Torque ripple reduction in BLDC motor with 120 degree conduction inverter. In Proceedings of the 2012 Annual IEEE India Conference (INDICON), Kochi, India, 7–9 December 2012; pp. 1116–1121. [Google Scholar] [CrossRef]
- Kim, H.W.; Shin, H.K.; Mok, H.S.; Lee, Y.K.; Cho, K.Y. Novel PWM Method with Low Ripple Current for Position Control Applications of BLDC Motors. J. Power Electron.
**2011**, 11, 726–733. [Google Scholar] [CrossRef] - Kim, J.; Park, J.; Youn, M.; Moon, G. Torque ripple reduction technique with commutation time control for brushless DC motor. In Proceedings of the 8th International Conference on Power Electronics-ECCE Asia, Jeju, Korea, 30 May–3 June 2011; pp. 1386–1391. [Google Scholar] [CrossRef]
- Wael, A.S.; Dahaman, I.; Basem, A.Z.; Amir, A.; Mohd, S.J.; Anees, A.S. Implementation of PWM Control Strategy for Torque Ripples Reduction in Brushless DC Motors. Electr. Eng.
**2015**, 97, 239–250. [Google Scholar] [CrossRef] - Tan, B.; Hua, Z.; Zhang, L. Chun, F. A New Approach of Minimizing Commutation Torque Ripple for BLDCM. Energies
**2017**, 10, 1735. [Google Scholar] [CrossRef] - Xiaofeng, Z.; Lu, Z. A New BLDC Motor Drives Method Based on BUCK Converter for Torque Ripple Reduction. In Proceedings of the 2006 CES/IEEE 5th International Power Electronics and Motion Control Conference, Shanghai, China, 14–16 August 2006; pp. 1–4. [Google Scholar] [CrossRef]
- Kokawalage, H.R.S.; Madawala, U.K.; Liu, T. Buck converter based model for a brushless DC motor drive without a DC link capacitor. IET Power Electron.
**2015**, 8, 628–635. [Google Scholar] [CrossRef] - Jianli, J. A torque ripple suppression technique for brushless DC motor based on PFC buck converter. IEICE Electron. Express
**2018**, 15, 1–11. [Google Scholar] - Xinmin, L.; Changliang, X.; Yanfei, C.; Wei, C.; Tingna, S. Commutation Torque Ripple Reduction Strategy of Z-Source Inverter Fed Brushless DC Motor. IEEE Trans. Power Electron.
**2016**, 31, 7677–7690. [Google Scholar] [CrossRef] - Ramya, A.; Balaji, M. A new approach for minimizing torque ripple in a BLDC motor drive with a front end IDO dc-dc converter. Turkish J Electr. Eng. Comput. Sci.
**2017**, 25, 2910–2921. [Google Scholar] [CrossRef] - Wei, C.; Yapeng, L.; Xinmin, L.; Tingna, S.; Changliang, X. A Novel Method of Reducing Commutation Torque Ripple for Brushless DC Motor Based on Cuk Converter. Trans. Power Electron.
**2017**, 32, 5497–5508. [Google Scholar] [CrossRef] - Viswanathan, V.; Jeevananthan, S. Approach for Torque Ripple Reduction for Brushless DC Motor Based on Three-Level Neutral-Point-Clamped Inverter with DC–DC Converter. IET Power Electron.
**2015**, 8, 47–55. [Google Scholar] [CrossRef] - Viswanathan, V.; Jeevananthan, S. Commutation Torque Ripple Reduction in the BLDC Motor Using Modified SEPIC and Three-Level NPC Inverter. IEEE Trans. Power Electron.
**2018**, 33, 535–546. [Google Scholar] [CrossRef] - Viswanathan, V.; Jeevananthan, S. Hybrid Converter Topology for Reducing Torque Ripple of BLDC Motor. IET Power Electron.
**2017**, 10, 1572–1587. [Google Scholar] [CrossRef] - Haifeng, L.; Lei, Z.; Wenlong, Q. A New Torque Control Method for Torque Ripple Minimization of BLDC Motors with Un-Ideal Back EMF. IEEE Trans. Power Electron.
**2008**, 23, 950–958. [Google Scholar] [CrossRef] - Jiancheng, F.; Haitao, L.; Bangcheng, H. Torque Ripple Reduction in BLDC Torque Motor with Nonideal Back EMF. IEEE Trans. Power Electron.
**2012**, 27, 4630–4637. [Google Scholar] [CrossRef] - Wei, Y.; Xu, Y.; Zou, J.; Li, Y. Current Limit Strategy for BLDC Motor Drive with Minimized DC-Link Capacitor. IEEE Trans. Ind. Appl.
**2015**, 5, 3907–3913. [Google Scholar] [CrossRef] - Pillay, P.; Krishnan, R. Modeling, Simulation, and Analysis of Permanent-Magnet Motor Drives. Part II: The brushless DC motor drive. IEEE Trans. Ind. Appl.
**1989**, 25. [Google Scholar] [CrossRef] - Li, Y.; Rong, J. The study of new modeling method for permanent magnet brushless DC motor. In Proceedings of the 2011 International Conference on Electronic & Mechanical Engineering and Information Technology, Harbin, China, 12–14 August 2011; pp. 4713–4716. [Google Scholar] [CrossRef]
- Ramasami, S.; Muhammad, K.Z.; Yadaiah, N. Modeling, simulation and analysis of controllers for brushless direct current motor drives. J. Vib. Control
**2013**, 19, 1250–1264. [Google Scholar] [CrossRef] - Varghese, L.; Kuncheria, J.T. Modelling and design of cost efficient novel digital controller for brushless DC motor drive. In Proceedings of the 2014 Annual International Conference on Emerging Research Areas: Magnetics, Machines and Drives (AICERA/iCMMD), Kottayam, India, 24–26 July 2014; pp. 1–5. [Google Scholar] [CrossRef]
- Zhaojun, M.; Rui, C.; Changzhi, S.; Yuejun, A. The mathematical simulation model of brushless dc motor system. In Proceedings of the 2010 International Conference on Computer Application and System Modeling (ICCASM 2010), Taiyuan, China, 22–24 October 2010. [Google Scholar] [CrossRef]
- BYOUNG-KUK, L.; MEHRDAD, E. Advanced Simulation Model for Brushless DC Motor Drives. Electr. Power Compon. Syst.
**2010**, 31, 841–868. [Google Scholar] [CrossRef] - Chuang, H.S.; Ke, Y.; Chuang, Y.C. Analysis of commutation torque ripple using different PWM modes in BLDC motors. In Proceedings of the Conference Record 2009 IEEE Industrial & Commercial Power Systems Technical Conference, Calgary, AB, Canada, 3–7 May 2009; pp. 1–6. [Google Scholar] [CrossRef]

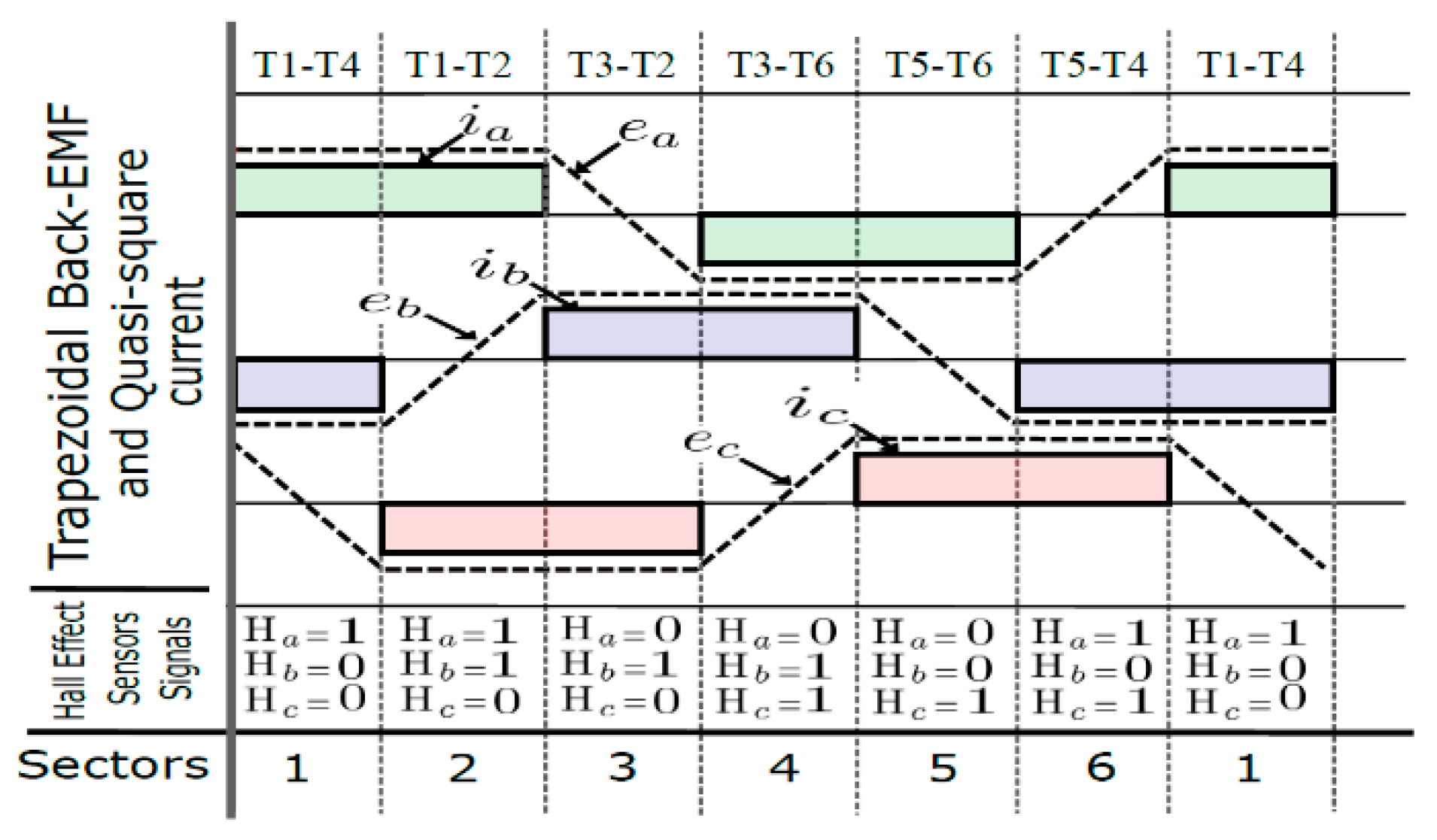

**Figure 2.**Trapezoidal electromotive forces (back-EMFs), phase currents, Hall effect sensor signals, and MOSFET states.

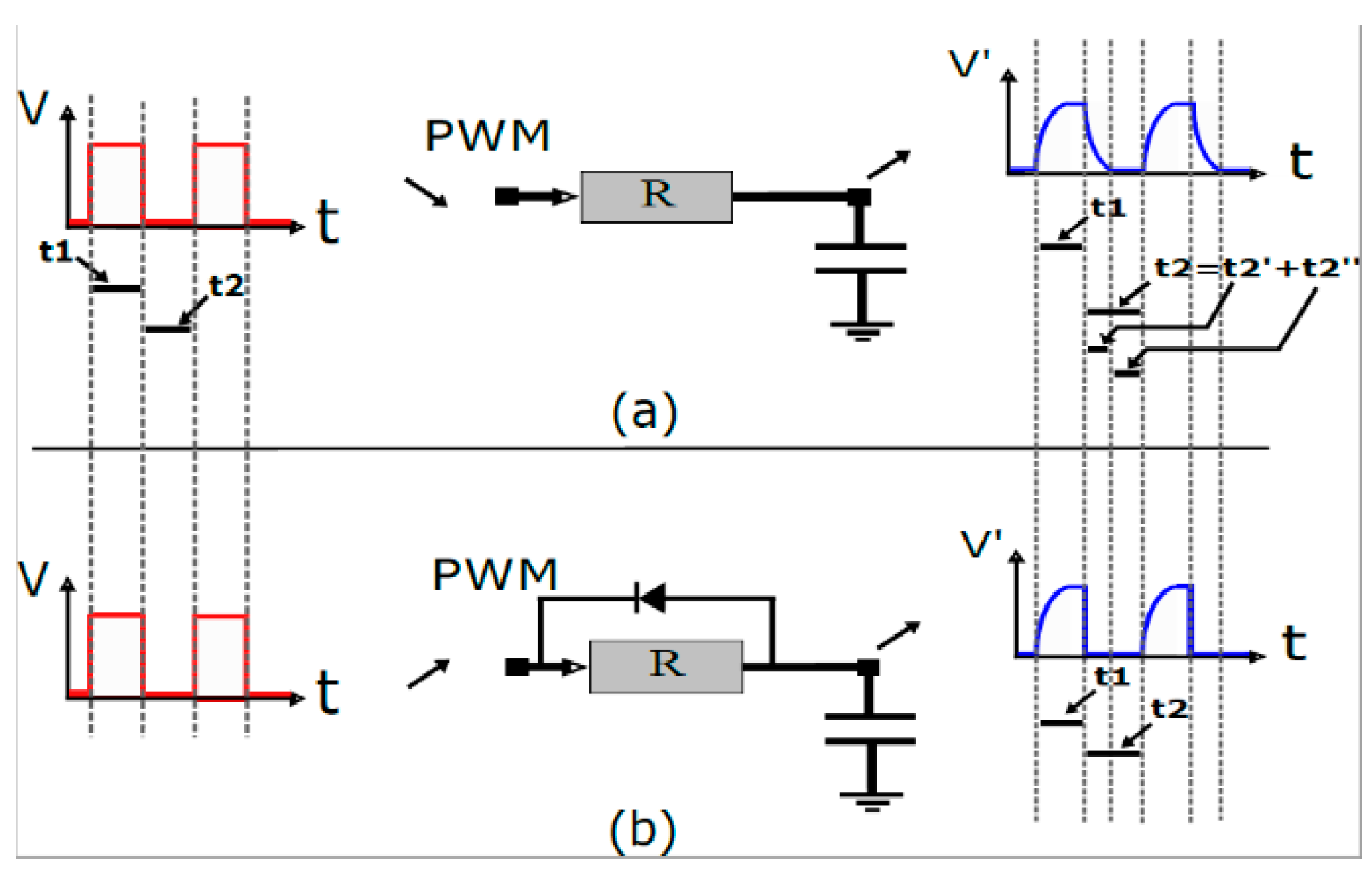

**Figure 3.**PWM signal with R-C filter: (

**a**) R-C filter effect on the PWM signal, and (

**b**) R-C filter with the added diode effect on the PWM signal.

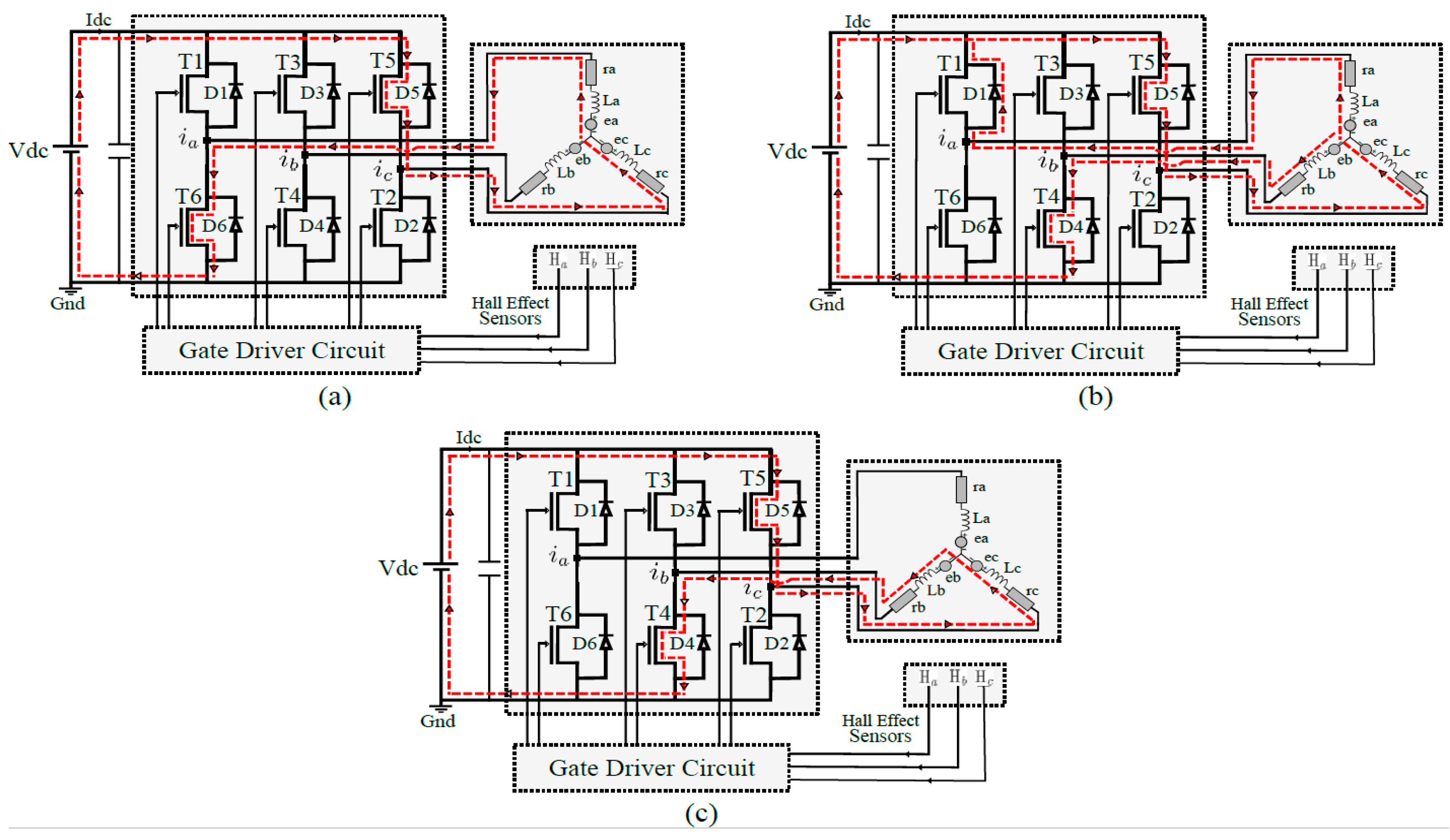

**Figure 4.**MOSFET states for lower-bridge current commutation: (

**a**) Before the commutation interval, (

**b**) during the commutation interval, and (

**c**) after the commutation interval.

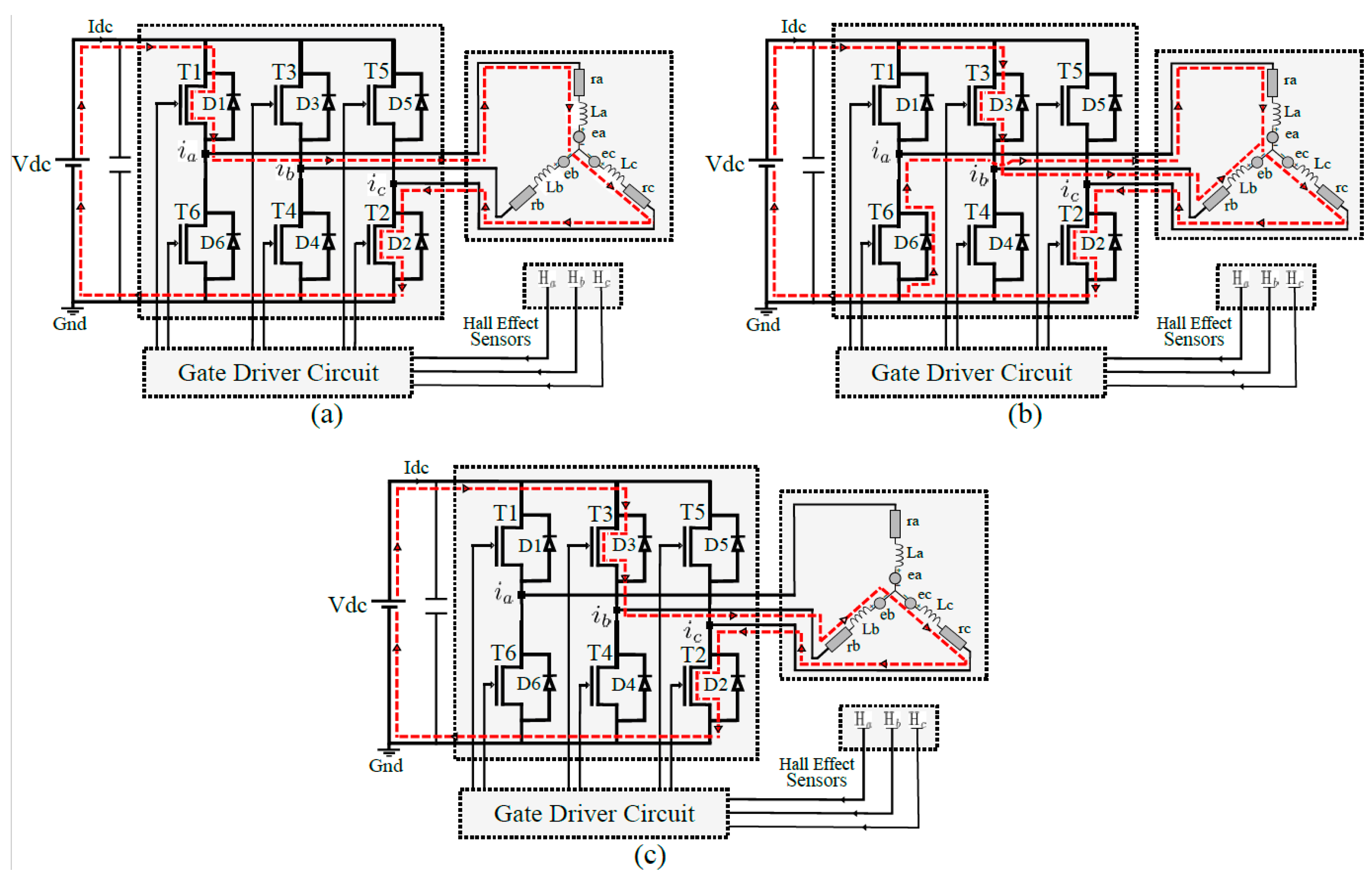

**Figure 5.**MOSFET states for upper-bridge current commutation: (

**a**) Before the commutation interval, (

**b**) during the commutation interval, and (

**c**) after the commutation interval.

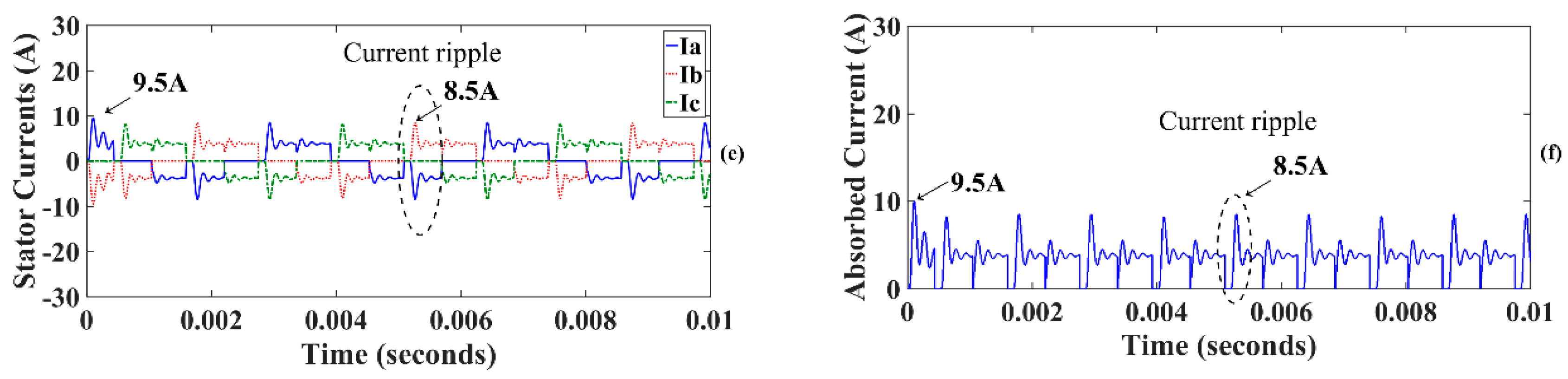

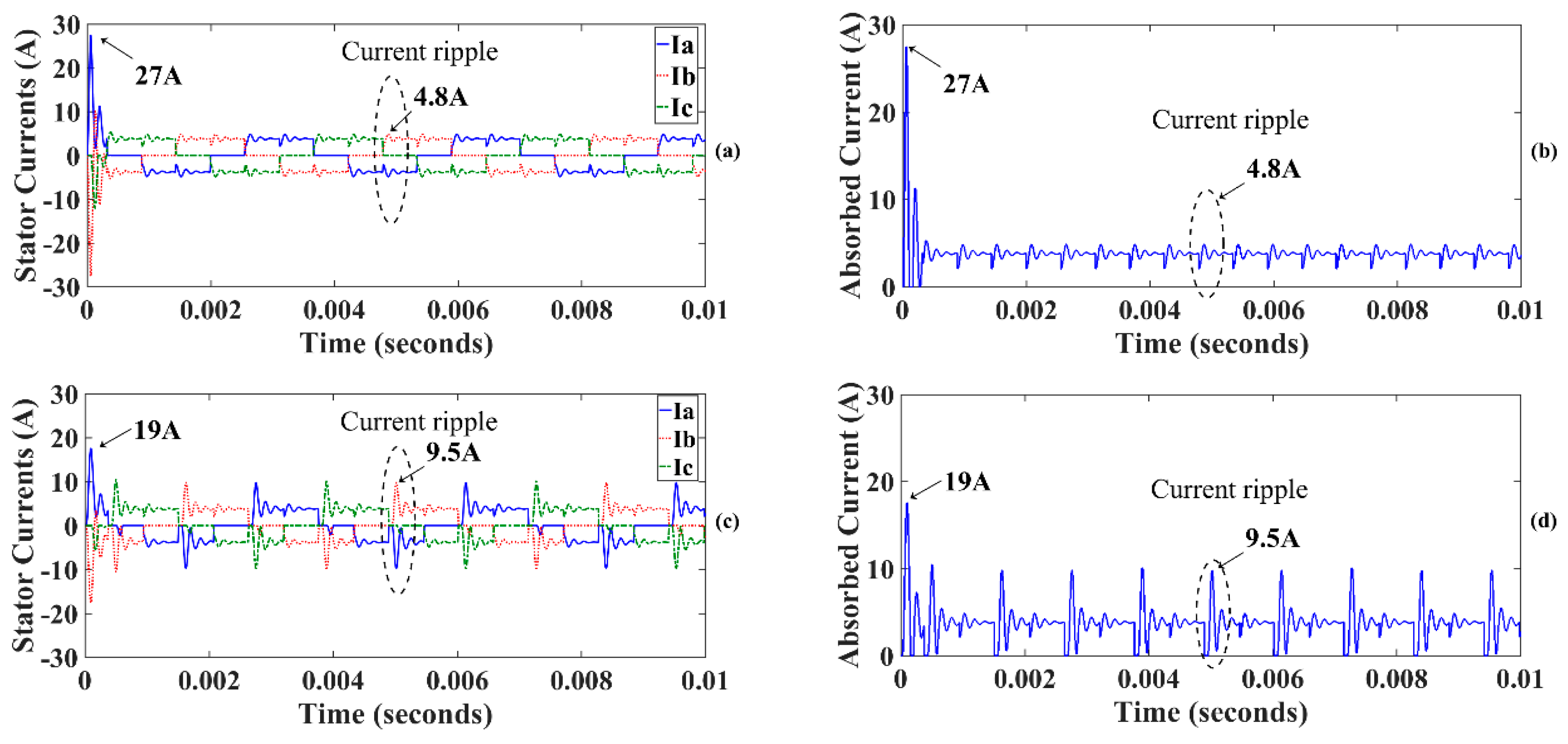

**Figure 6.**Current waveforms: (

**a**) Phase currents without R-C filter, (

**b**) absorbed current without R-C filter, (

**c**) phase currents with R-C filter for C = 0.6 µF, (

**d**) absorbed current with R-C filter for C = 0.6 µF, (

**e**) phase currents with R-C filter for C = 1.5 µF, (

**f**) absorbed current with R-C filter for C = 1.5 µF.

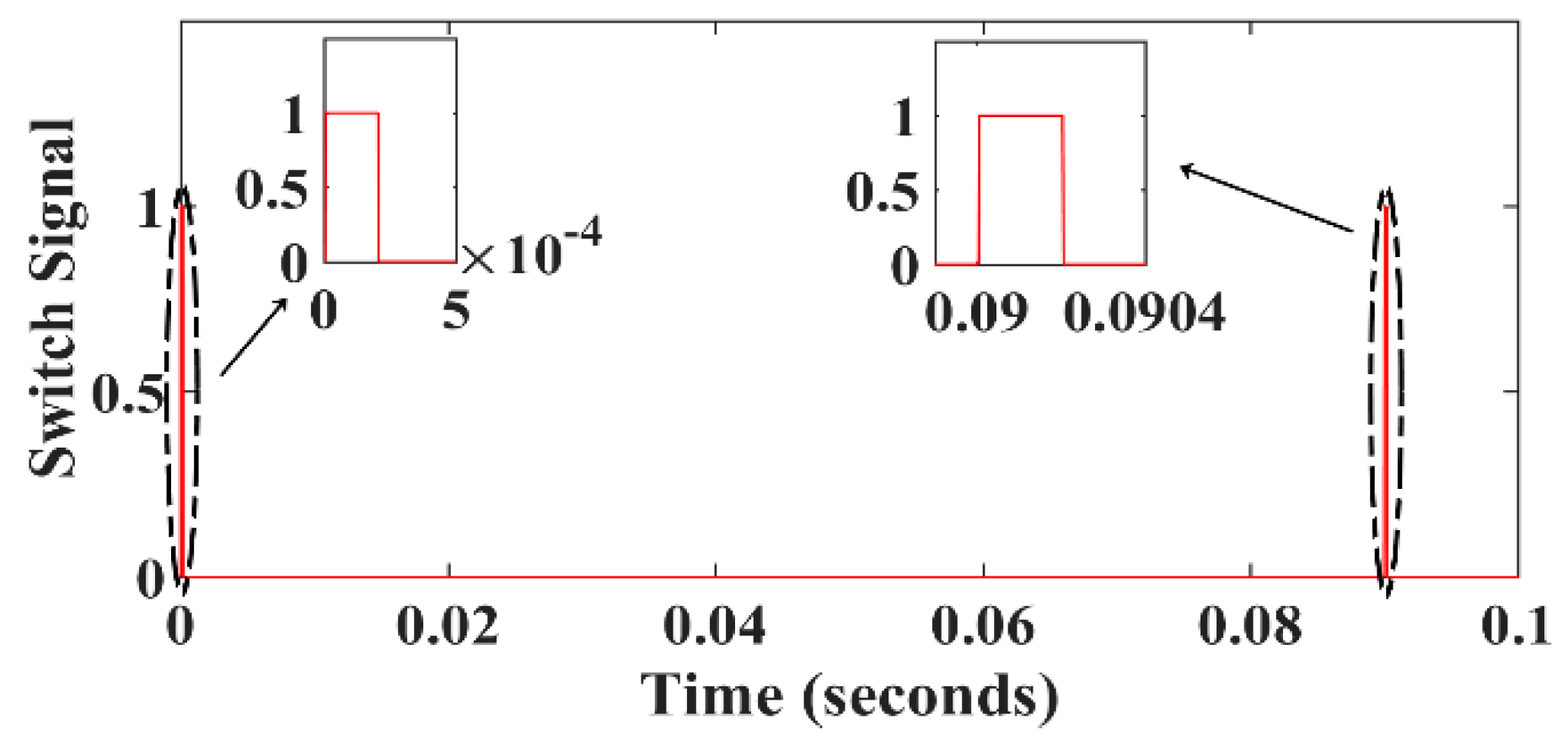

**Figure 7.**Gate control signal without R-C filter, with R-C filter for C = 0.6 µF, and with R-C filter for C = 1.5 µF.

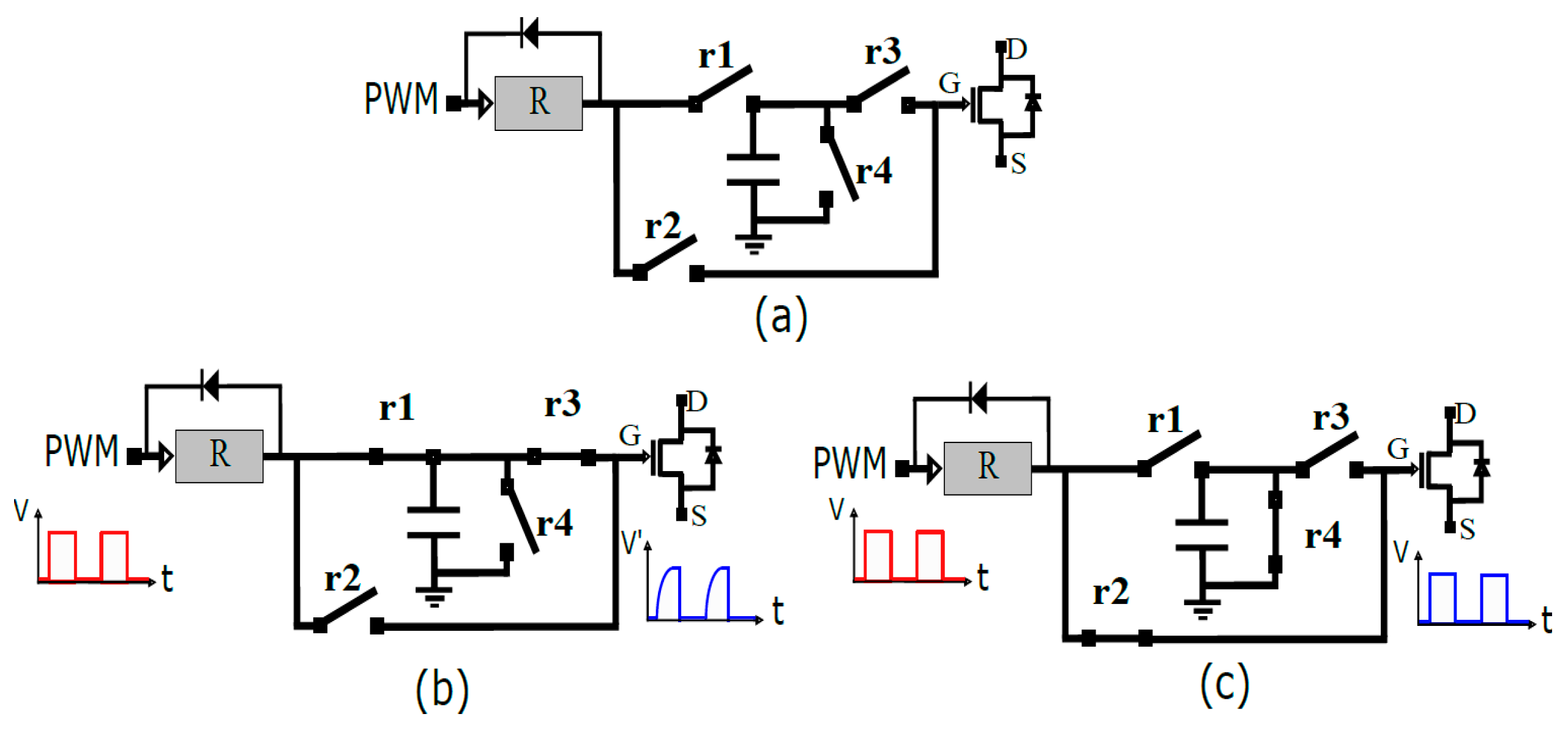

**Figure 8.**Global schematic of the proposed control method: (

**a**) r1, r2, r3, and r4 relays are on; (

**b**) r1 and r3 relays are on to activate the R-C filter effect; (

**c**) r2 and r4 relays are on to deactivate the R-C filter effect.

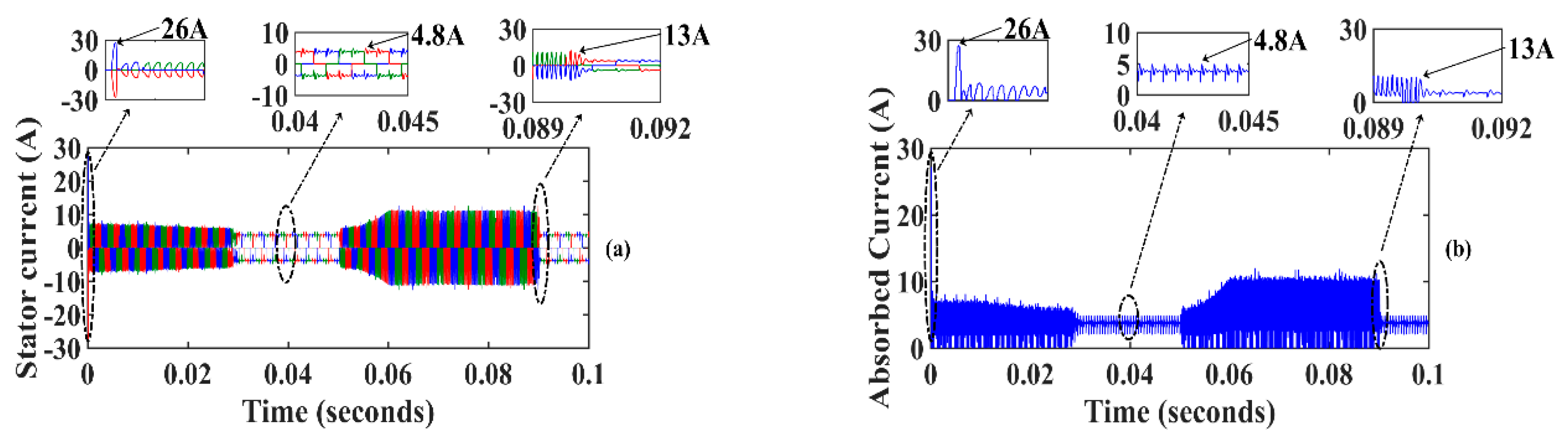

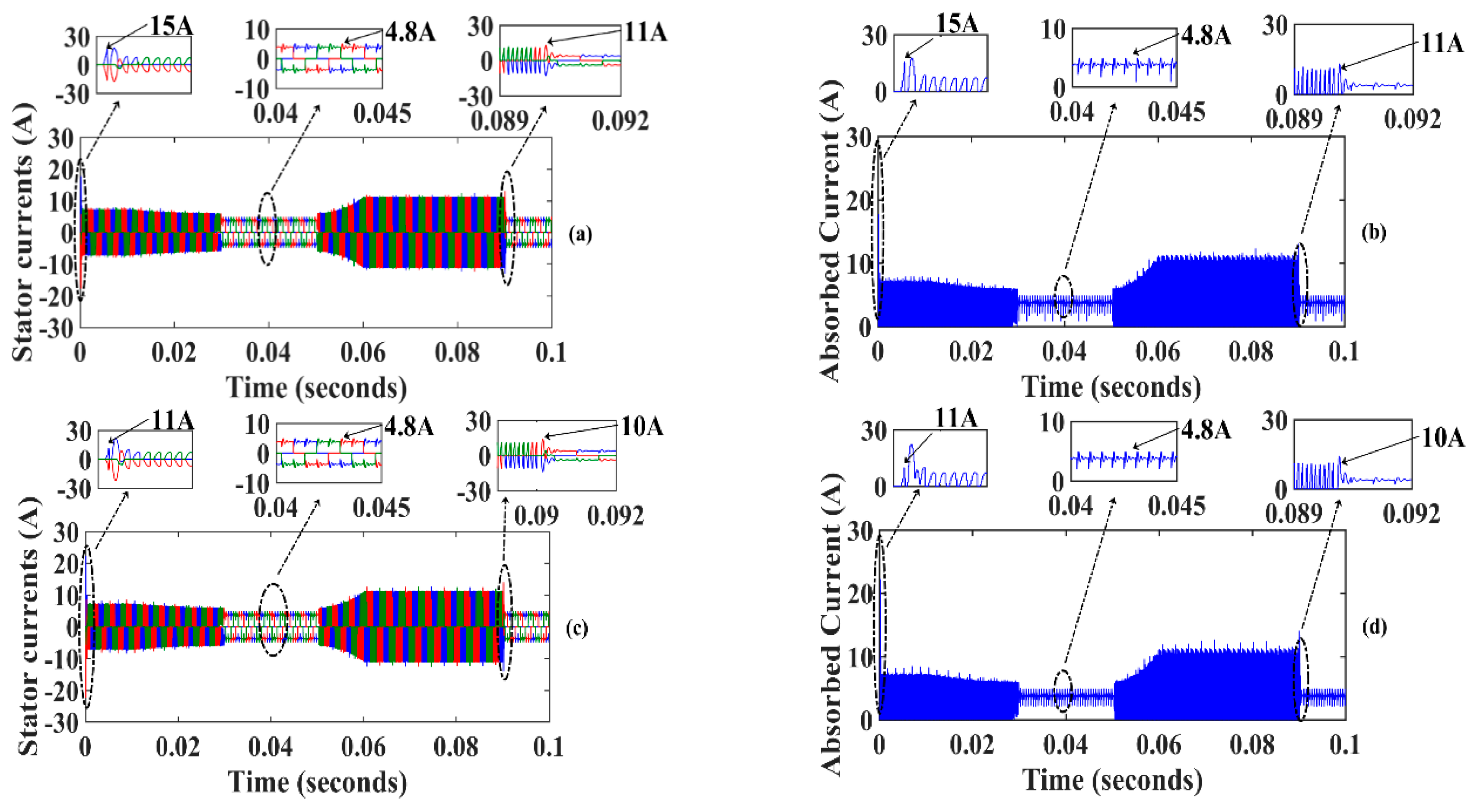

**Figure 11.**Phase and absorbed current waveforms for combined “with and without an R-C filter”: (

**a**,

**b**) C = 0.6 µF, and (

**c**,

**d**) C = 1.5 µF.

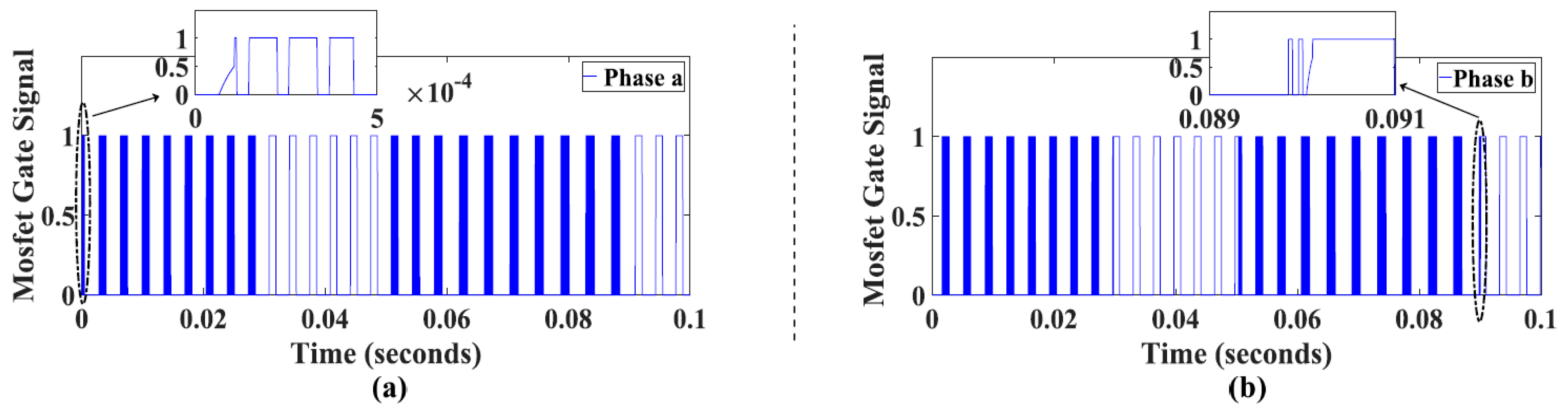

**Figure 12.**Gate control signal for combined “with and without an R-C filter” methods: (a) During start-up phases. (b) During set point change occurrence.

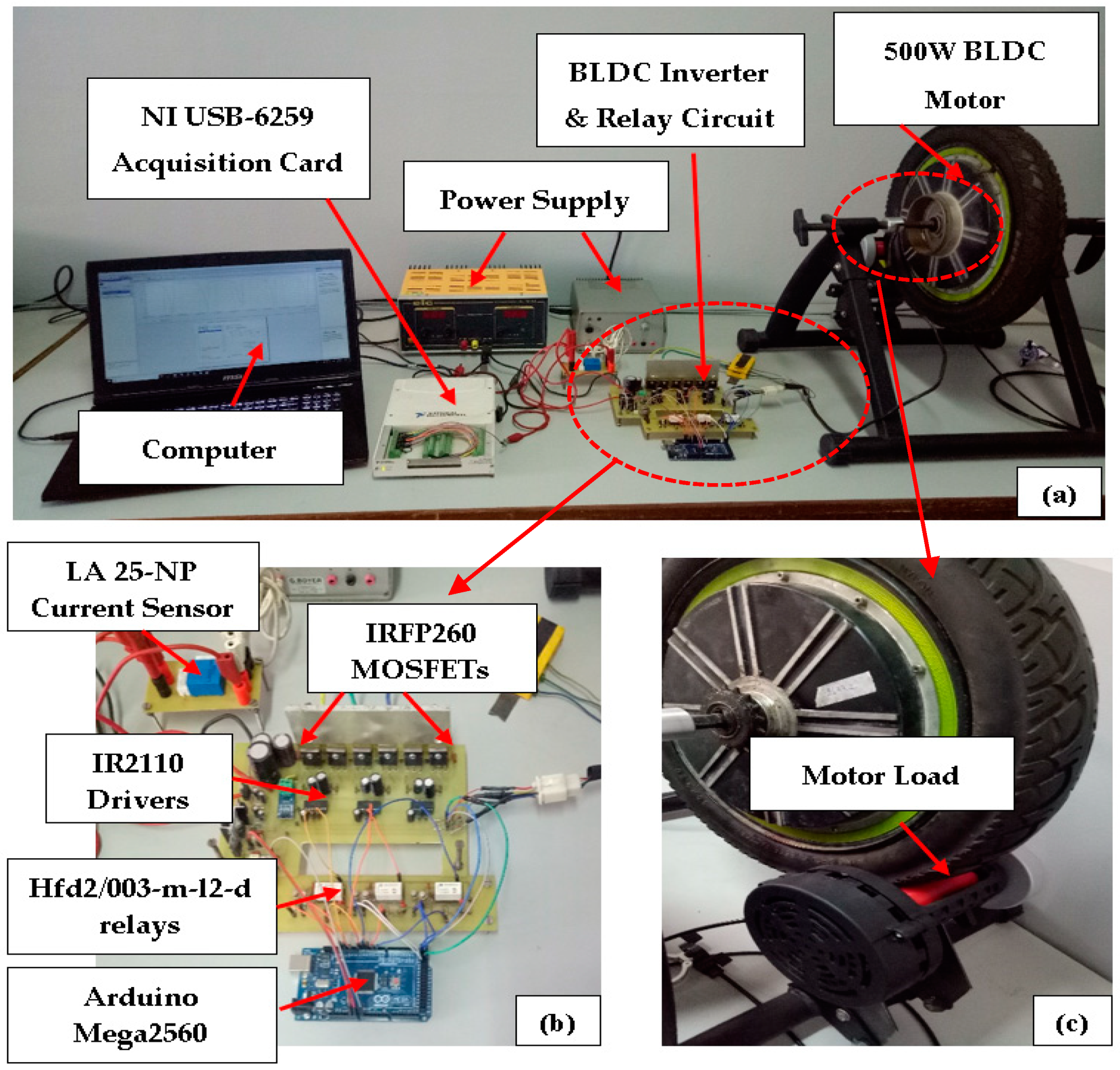

**Figure 14.**Experimental test rig for BLDC motor control: (

**a**) Global test-rig, (

**b**) BLDCM inverter, (

**c**) motor load.

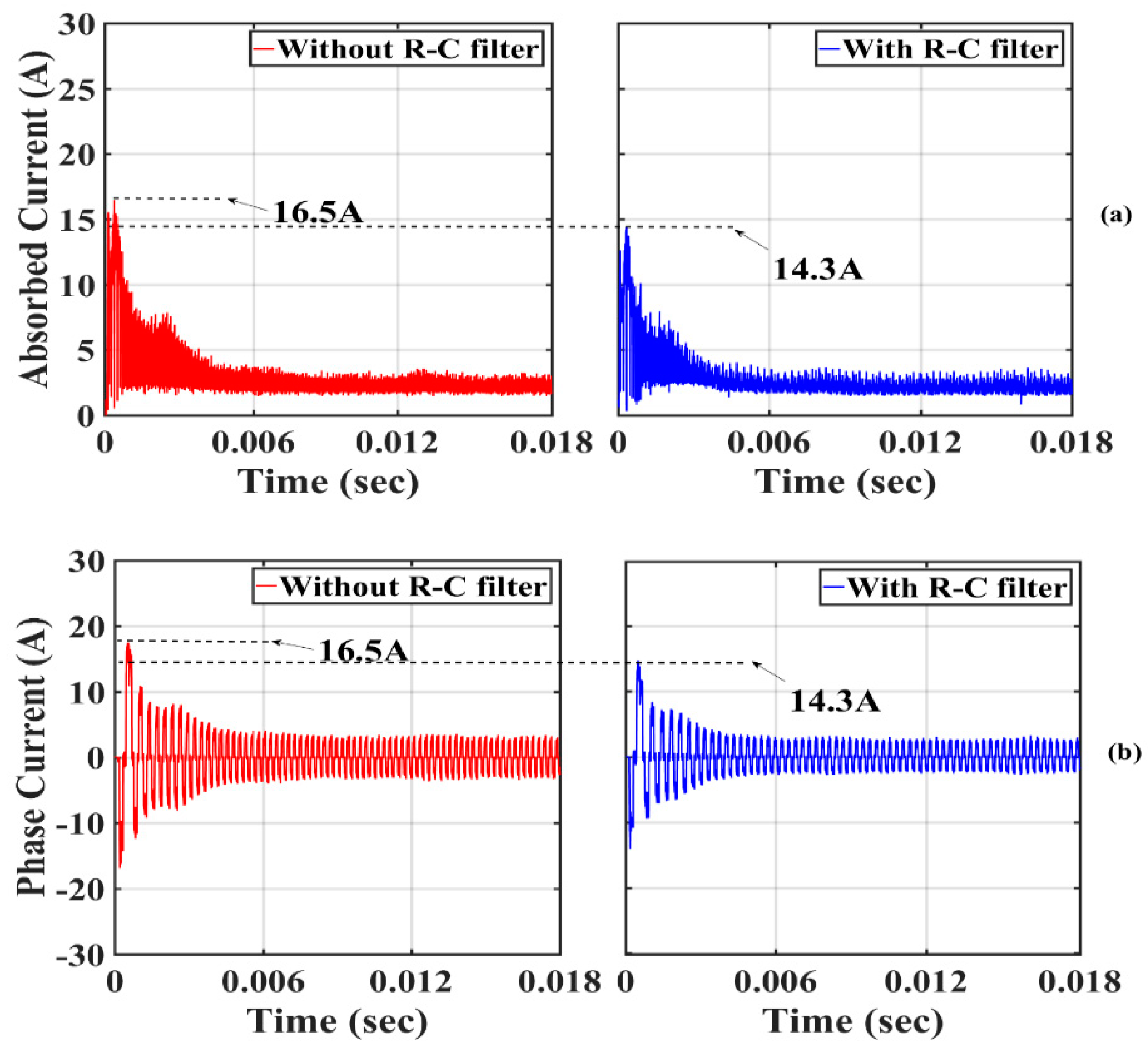

**Figure 15.**Current waveforms with and without an RC filter (R = 100 Ω, C = 0.1 µF): (
