Article

Essential Oils as Antiviral Agents, Potential of Essential Oils to Treat SARS-CoV-2 Infection: An In-Silico Investigation

1
Laboratório de Biotecnologia de Enzimas e Biotransformações, Universidade Federal do Pará, Belém PA 66075-900, Brazil
2
Departamento de Ciências Naturais, Centro de Ciências Sociais e Educação, Universidade do Estado do Pará, Belém PA 66050-540, Brazil
3
Department of Biological Sciences, University of Alabama in Huntsville, Huntsville, AL 35899, USA
4
Department of Chemistry, University of Alabama in Huntsville, Huntsville, AL 35899, USA
5
Aromatic Plant Research Center, 230 N 1200 E, Suite 100, Lehi, UT 84043, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(10), 3426; https://doi.org/10.3390/ijms21103426
Received: 23 April 2020 / Revised: 7 May 2020 / Accepted: 8 May 2020 / Published: 12 May 2020
(This article belongs to the Special Issue Natural Products against Viral Infections II)

Abstract

Essential oils have shown promise as antiviral agents against several pathogenic viruses. In this work we hypothesized that essential oil components may interact with key protein targets of the 2019 severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). A molecular docking analysis was carried out using 171 essential oil components with SARS-CoV-2 main protease (SARS-CoV-2 Mpro), SARS-CoV-2 endoribonucleoase (SARS-CoV-2 Nsp15/NendoU), SARS-CoV-2 ADP-ribose-1″-phosphatase (SARS-CoV-2 ADRP), SARS-CoV-2 RNA-dependent RNA polymerase (SARS-CoV-2 RdRp), the binding domain of the SARS-CoV-2 spike protein (SARS-CoV-2 rS), and human angiotensin−converting enzyme (hACE2). The compound with the best normalized docking score to SARS-CoV-2 Mpro was the sesquiterpene hydrocarbon (E)-β-farnesene. The best docking ligands for SARS−CoV Nsp15/NendoU were (E,E)-α-farnesene, (E)-β-farnesene, and (E,E)−farnesol. (E,E)−Farnesol showed the most exothermic docking to SARS-CoV-2 ADRP. Unfortunately, the docking energies of (E,E)−α-farnesene, (E)-β-farnesene, and (E,E)−farnesol with SARS-CoV-2 targets were relatively weak compared to docking energies with other proteins and are, therefore, unlikely to interact with the virus targets. However, essential oil components may act synergistically, essential oils may potentiate other antiviral agents, or they may provide some relief of COVID-19 symptoms.
Keywords: COVID-19; corona virus; molecular docking; antiviral; essential oils COVID-19; corona virus; molecular docking; antiviral; essential oils

1. Introduction

The 2019 severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) is a newly emerging respiratory illness. The epidemic started in December 2019 in Wuhan, China, and has rapidly spread throughout China and the world and is now a global pandemic. SARS-CoV-2 can be efficiently transmitted among humans and has shown a high degree of morbidity and mortality [1,2]. As of April 20, 2020, the worldwide number of infected individuals was 2,544,792, with as many as 175,694 deaths [3]. There are currently no approved vaccines available for the prevention of SARS-CoV-2 infection and only just recently, remdesivir has received “emergency use authorization” for treatment of COVID-19 in the United States; therefore, there is an urgent demand for potential chemotherapeutic agents to treat this disease.
Essential oils have been screened against several pathogenic viruses (Table 1), including influenza and other respiratory viral infections. Influenza is an infectious respiratory disease caused by one of three types of influenza viruses, type A, type B, or type C [4]. The most significant in terms of human morbidity and mortality is influenza virus type A, which is found in several bird and mammal species [5]. Several different serotypes of influenza type A have caused global flu pandemics [6]: H1N1, which caused the Spanish flu in 1918 (40–50 million deaths worldwide) [7] and the swine flu in 2009 [8]; the Asian flu of 1957–1958 (ca. 1.5 million deaths worldwide) was caused by influenza A H2N2 [8]; serotype H3N2 caused the Hong Kong flu in 1968 [9]; and H5N1, which caused the bird flu in 2004 [10]. Influenza virus type B, however, is largely confined to human hosts [11].
One study evaluated the in vitro antiviral effect against influenza type A (H1N1) of commercial essential oils that included cinnamon (Cinnamomum zeylanicum), bergamot (Citrus bergamia), lemongrass (Cymbopogon flexuosus), thyme (Thymus vulgaris), and lavender (Lavandula angustifolia). The oils were tested in the liquid phase at a concentration of 0.3% and in the vapor phase. The oils of cinnamon, bergamot, thyme, and lemongrass displayed 100% inhibition of H1N1 in the liquid phase, while the inhibition for lavender essential oil was 85%. However, in the vapor phase, 100% inhibition was observed only for cinnamon leaf essential oil after 30 min of exposure. The bergamot, lemongrass, thyme, and lavender essential oils displayed inhibition rates of 95%, 90%, 70%, and 80%, respectively [12].
Cinnamomum zeylanicum leaf oil is characterized by eugenol (75–85%), followed by smaller amounts of linalool (1.6–8.5%), and benzyl benzoate (0.1–8.3%) [13,14,15]. Bergamot oil is rich in limonene (23–55%), linalool (2–37%), and linalyl acetate (12–41%), with lesser quantities of β-pinene (up to 10%) and γ-terpinene (up to 10%) [16,17,18,19,20]. Geranial (48–54%) and neral (29–33%) have been reported as the major components of C. flexuosus, but many chemotypes, cultivars, and variants have been reported for C. flexuosus [21,22].
In the literature, there have been at least 20 different chemotypes identified for thyme essential oil. The “typical” thyme essential oil presents a thymol content of 45% (range 31–50%), with significant concentrations of p-cymene (0.1–26.6%, average = 15.6%) and γ-terpinene (up to 22.8%, average = 9.3%). In addition, there are several other chemotypes of T. vulgaris rich in thymol and/or carvacrol [23]. Thymol has been identified as an anti-influenza agent against influenza type A and parainfluenza type 3 virus [24,25]. Lavandula angustifolia essential oil is rich in linalyl acetate (37.0–43.6%), linalool (19.7–39.1%), geraniol (up to 9.3%), β-caryophyllene (up to 5.1%), terpinen-4-ol (up to 14.9%), lavandulyl acetate (up to 5.5%), and borneol (up to 6.4%) [26,27,28,29].
Another essential oil with notable anti-influenza effects is tea tree, which is extracted from the leaves of Melaleuca alternifolia (Myrtaceae). Commercial tea tree oil is composed of terpinen-4-ol (30–48%), γ-terpinene (10–28%), α-terpinene (5–13%), 1,8-cineole (up to 15%), terpinolene (1.5–5%), p-cymene (0.5–12%), α-pinene (1–6%), and α-terpineol (1.5–8%) [30]. Tea tree oil showed 100% inhibition of influenza type A (H1N1) virus at 0.01% concentration and a median inhibitory concentration (IC50) of 6 μg/mL [31,32]. In addition, 30 min exposure of type A (H11N9) virus to tea tree oil vapor caused 100% inhibition [33]. The tea tree oil components, terpinen-4-ol, terpinolene, and α-terpineol, have shown anti-influenza virus activity against type A (H1N1), with IC50 values of 25, 12, and 250 μg/mL, respectively. α-Terpinene, γ-terpinene, and p-cymene were inactive, however [31].
Avian influenza viruses (H5N1) exhibit both high and low virulence in numerous mammalian species, highlighting the connection between the route of inoculation and virus pathogenicity [34]. Since 2003, there have been over 600 documented cases of human infection with H5N1 viruses, with most cases among young, previously healthy individuals [35]. The essential oils extracted from Citrus reshni leaves and peel (unripe and ripe fruits) were tested against H5N1 virus by plaque reduction assay. The oils showed moderate inhibition of the H5N1 virus at a concentration of 2.5 μL/mL. Sabinene (40.5%), linalool (23.3%), and terpinen-4-ol (8.3%) were the main constituents in the leaf oil while limonene (82.4%, 91.6%) was the main compound in the fruit peel essential oils (unripe and ripe, respectively) [36].
The essential oil of leaves of Fortunella margarita is rich in the sesquiterpenoids β-eudesmol (28.3%), α-muurolene (10.3%), β-gurjunene (10.0%), γ-eudesmol (8.4%), and γ-muurolene (6.6%) while the essential oil extracted from the fruits showed monterpenoids as the main components, α-terpineol (55.5%), carvone (5.7%), and carveol (5.5%). Both samples were tested for antiviral activity against avian influenza (H5N1) virus, and the obtained results revealed that the fruit essential oil was more effective (80% virus inhibition by the MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) assay using Madin−Darby canine kidney (MDCK) cells for virus propagation). The IC50 values obtained for the leaf and fruit essential oils were 38.89 and 6.77 μg/mL, respectively [53].
Dengue fever, a mosquito−borne disease, is caused by dengue virus (DENV) which includes four major serotypes (DENV-1, -2, -3, and -4). Some serotypes cause more severe diseases than others; severe dengue is associated with secondary infections by a different serotype. Dengue disease is a major public health problem in developing tropical countries and has being continuously spreading to new geographical areas [92]. The essential oils of two species of Lippia were assayed against four dengue serotypes (DENV-1, DENV-2, DENV-3, DENV-4) [61]. The IC50 values for Lippia alba oil, rich in carvone (39.7%), limonene (30.6%), and bicyclosesquiphellandrene (8.9%), were between 0.4 and 32.6 μg/mL. However, the Lippia citrodora essential oil, composed of geranial (18.9%), neral (15.6%), limonene (10.7%), and 1,8-cineole (5.0%), showed the best activity, with IC50 values varying from 1.9 to 33.7 μg/mL. No viral inhibitory effect was observed by addition of the essential oil after virus adsorption; the inhibitory effect of the essential oil seemed to cause direct virus inactivation before adsorption on the host cell.
The essential oils of seven aromatic plants from Córdoba, San Luis, and San Juan provinces (Argentina) were screened for cytotoxicity and in vitro inhibitory activity against dengue virus type 2 (DENV−2) [38]. The oils of Jungia polita and Buddleja cordobensis were composed of caryophyllene oxide (9.18%, 32.1%) and β-caryophyllene (8.13%, 16.5%) as the major compounds. However, these oils displayed different IC50 values (86.4 and 39.8 μg/mL, respectively). The other samples were composed mostly of monoterpenes and displayed lower activity, except Pectis odorata oil, which presented limonene (50.2%), neral (27.2%), and geranial (23.6%) as the major compounds and an IC50 value of 39.6 μg/mL. In addition, the essential oils of Artemisia mendozana, rich in camphor (22.4%), artemisole (11.7%), and artemisia alcohol (10.8%); Gailardia megapotamica composed of β-pinene (35.5%), spathulenol (10.7%), and germacrene D (6.8%); and Heterothalamus alienus characterized by β-pinene (35.5%), spathulenol (10.7%), and germacrene D (6.8%), showed an average IC50 value of 130.63 μg/mL.
Yellow fever (YF), caused by yellow fever virus (YFV), has historically been considered one of the most dangerous infectious diseases. YFV is transmitted to humans via mosquitoes of the Haemogogus, Sabethes, and Aedes genera. Annually, there are approximately 80,000–200,000 YFV cases worldwide, with a case fatality rate (CFR) ranging from 20–60% [93,94]. Essential oils of Lippia species and their main compounds have been tested against yellow fever virus (YFV) in Vero cells. The oil of Lippia origanoides showed carvacrol (44.0%), thymol (15.0%), and γ-terpinene (10.0%) as the main compounds and displayed 100% inhibition at a concentration of 11.1 μg/mL [43]. However, in the same study, the oil of L. alba displayed 100% inhibition at a concentration of 100.0 μg/mL. The major compounds were carvone (51.0%), limonene (33.0%), and bicyclosesquiphellandrene (7.0%). The essential oil of L. alba with a similar chemical composition, carvone (39.7%), limonene (30.6%), and bicyclosesquiphellandrene (8.9%), displayed an IC50 value of 4.3 μg/mL against YFV when tested in Vero cells using the MTT assay [62]. The essential oil of L. citriodora, dominated by geranial (18.9%), neral (15.6%), and limonene (10.7%), did not display a statistical difference in comparison to citral, with IC50 values of 19.4 and 17.6 μg/mL, respectively [62].
In addition to essential oils, several individual essential oil components have been screened for antiviral activity (Table 2).
Because of the activities of several essential oils and essential oil components against human pathogenic viruses, we hypothesized that essential oil components may be potentially useful as antiviral agents against SARS-CoV-2. In this work, we carried out a molecular docking analysis of the major components of essential oils that exhibit antiviral activity (Table 1 and Table 2) with known SARS-CoV-2 protein targets.

2. Results and Discussion

Several proteins have been identified for severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), which may serve as potential targets for chemotherapeutic intervention in coronavirus disease 2019 (COVID-19). These protein targets include SARS-CoV-2 main protease (SARS-CoV-2 Mpro), SARS-CoV-2 endoribonucleoase (SARS-CoV-2 Nsp15/NendoU), SARS-CoV-2 ADP−ribose−1″−phosphatase (SARS-CoV-2 ADRP), SARS-CoV-2 RNA-dependent RNA polymerase (SARS-CoV-2 RdRp), the binding domain of the SARS-CoV-2 spike protein (SARS-CoV-2 rS), and human angiotensin−converting enzyme (hACE2). There have already been several molecular docking studies on these macromolecular targets. Several groups have carried out molecular docking of natural product libraries with SARS-CoV-2 Mpro [102,103,104,105]. Additionally, commercially available drugs have also been examined using in silico methods [106,107].
A molecular docking study was carried out with 171 essential oil components with SARS-CoV-2 Mpro (PDB: 5R7Z, 5R80, 5R81, 5R82, 5R83, 5R84, 6LU7, 6M03, and 6Y84), SARS-CoV-2 Nsp15/NendoU (PDB: 6VWW, 6W01, and 6W02), SARS-CoV-2 rS (PDB: 6M0J, 6M17, 6VX1, and 6VW1), and SARS-CoV-2 RdRp (PDB: 6M71). The best docking scores are summarized in Table 3.
The main protease, SARS-CoV-2 Mpro, is a cysteine protease that is essential for processing the polyproteins that are translated from the coronavirus RNA [108]. The substrate binding site of the enzyme is a cleft flanked by Gln189, Met49, Pro168, Glu166 and His41; the active site is Cys145 and His41. The compound with the best normalized docking score to SARS-CoV-2 Mpro was the sesquiterpene hydrocarbon (E)-β-farnesene (DSnorm = −115.4 kJ/mol). Other essential oil components showing good docking scores with SARS-CoV-2 Mpro were (E,E)-α-farnesene (DSnorm = −115.0 kJ/mol), (E,E)-farnesol (DSnorm = −112.4 kJ/mol), and (E)-nerolidol (DSnorm = −110.7 kJ/mol). The sesquiterpene hydrocarbons (E,E)-α-farnesene and (E)-β-farnesene occupy the substrate binding site, flanked by Gln189, Arg188, Met165, His41, and Asp 187 (Figure 1). The lowest-energy docked poses of both (E,E)-farnesol and (E)-nerolidol showed hydrogen bonding of the alcohol moiety to Gln192 and Thr190 and, in the case of (E)-nerolidol, also with GLN189 and ARG188 (Figure 2).
Non-structural protein 15 (Nsp15) of SARS-CoV-2 is an endoribonuclease that preferentially cleaves RNA at uridylate. Furthermore, it has been shown that SARS-CoV Nsp15/NendoU is required for successful viral infection [109]. The best docking ligands for SARS-CoV Nsp15/NendoU are (E,E)-α-farnesene (DSnorm = −107.5 kJ/mol), (E)-β-farnesene (DSnorm = −105.0 kJ/mol), (E,E)-farnesol (DSnorm = −104.6 kJ/mol), and (E)-nerolidol (DSnorm = −101.6 kJ/mol). All of these sesquiterpenoids preferentially docked into a binding site formed by amino acid residues Gln347, Ile328, Val276, Ser274, Thr275, Ser329, Asn74, Asn75, Glu327, and Lys71 (Figure 3). In addition to van der Waals interactions, (E,E)-farnesol showed hydrogen-bonding interactions with Ser329 and Glu327, while (E)-nerolidol hydrogen bonded with Asn75 and Lys71 (Figure 3). Unfortunately, the docking scores for these ligands as well as the scores of the other essential oil components with this protein are too low for it to be considered a viable target (see Table 3).

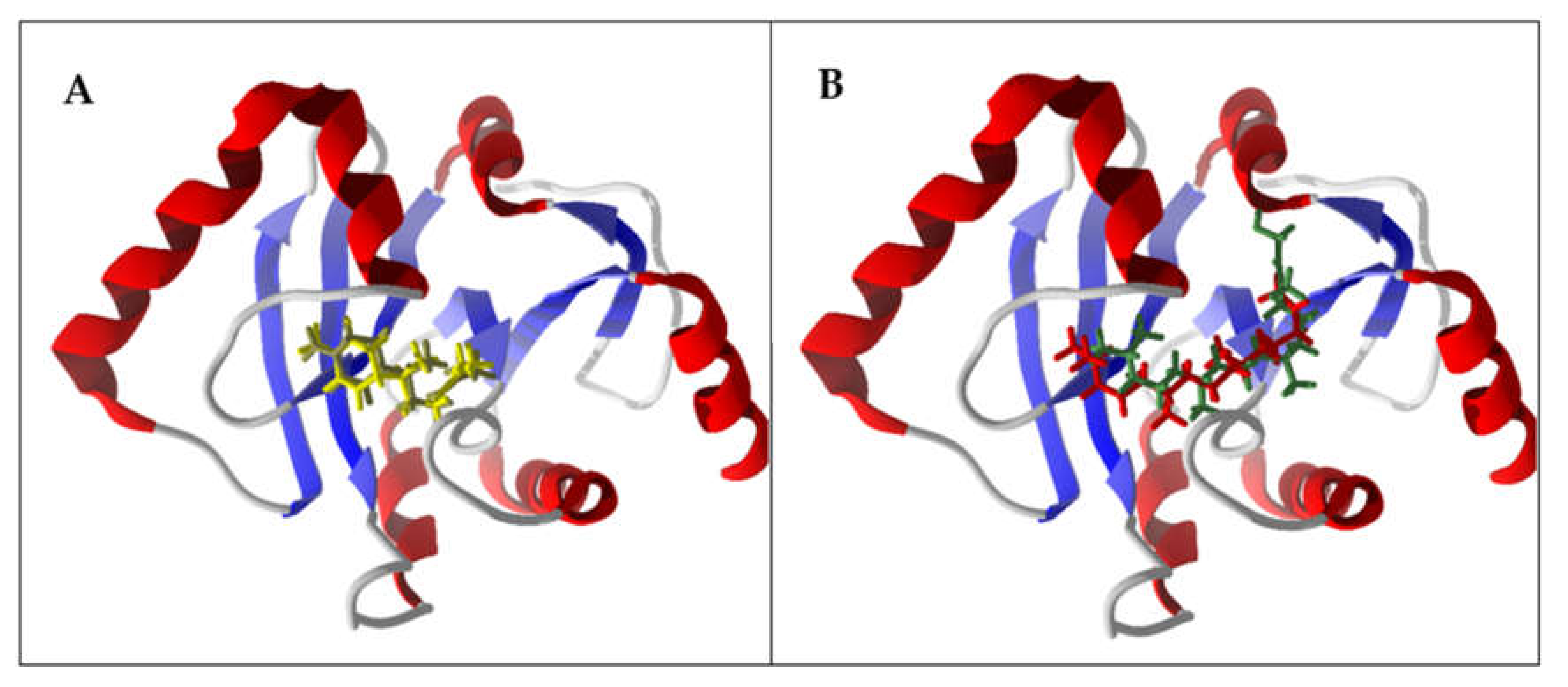

ADP ribose phosphatase (ADRP) serves to convert ADP-ribose 1″-monophosphate (Appr-1″-p) to ADP-ribose (Appr), which serves to regulate virus replication [110]. This enzyme may be dispensable in SARS-CoV-2, however [111]. Nevertheless, (E,E)-farnesol showed the most exothermic docking to SARS-CoV-2 ADRP with DSnorm = −121.4 kJ/mol. The binding site in SARS-CoV-2 ADRP is surrounded by Phe132, Asn40, Ile131, Ala38, and Ala39, with hydrogen-bonded interactions between the ligand alcohol and Asn40 (Figure 4). Additional essential oil components with good docking scores with SARS-CoV-2 ADRP include the sesquiterpene hydrocarbons (E)-β-farnesene (DSnorm = −116.3 kJ/mol), (E,E)-α-farnesene (DSnorm = −114.2 kJ/mol), β-sesquiphellandrene (DSnorm = −115.7 kJ/mol), and α-zingiberene (DSnorm = −115.4 kJ/mol); the diterpenoids phytol (DSnorm = −118.9 kJ/mol) and phytone (DSnorm = −116.9 kJ/mol); and the phenylpropanoid eugenyl acetate (DSnorm = −115.4 kJ/mol). Not surprisingly, β-sesquiphellandrene and α-zingiberene adopted the same docking orientation in the binding site of the enzyme (Figure 5A). Similarly, phytol and phytone occupy the same location in the binding site (Figure 5B).
RNA-dependent RNA polymerase catalyzes RNA replication from an RNA template and is an essential enzyme in RNA viruses. Because these enzymes are crucial in viral replication, they are viable targets in antiviral chemotherapy [112]. Molecular docking of essential oil components with SARS-CoV-2 RdRp showed only weak docking with this enzyme target (Table 3). The ligand with the best docking score was (E,E)-farnesol, with DSnorm = −89.6 kJ/mol.

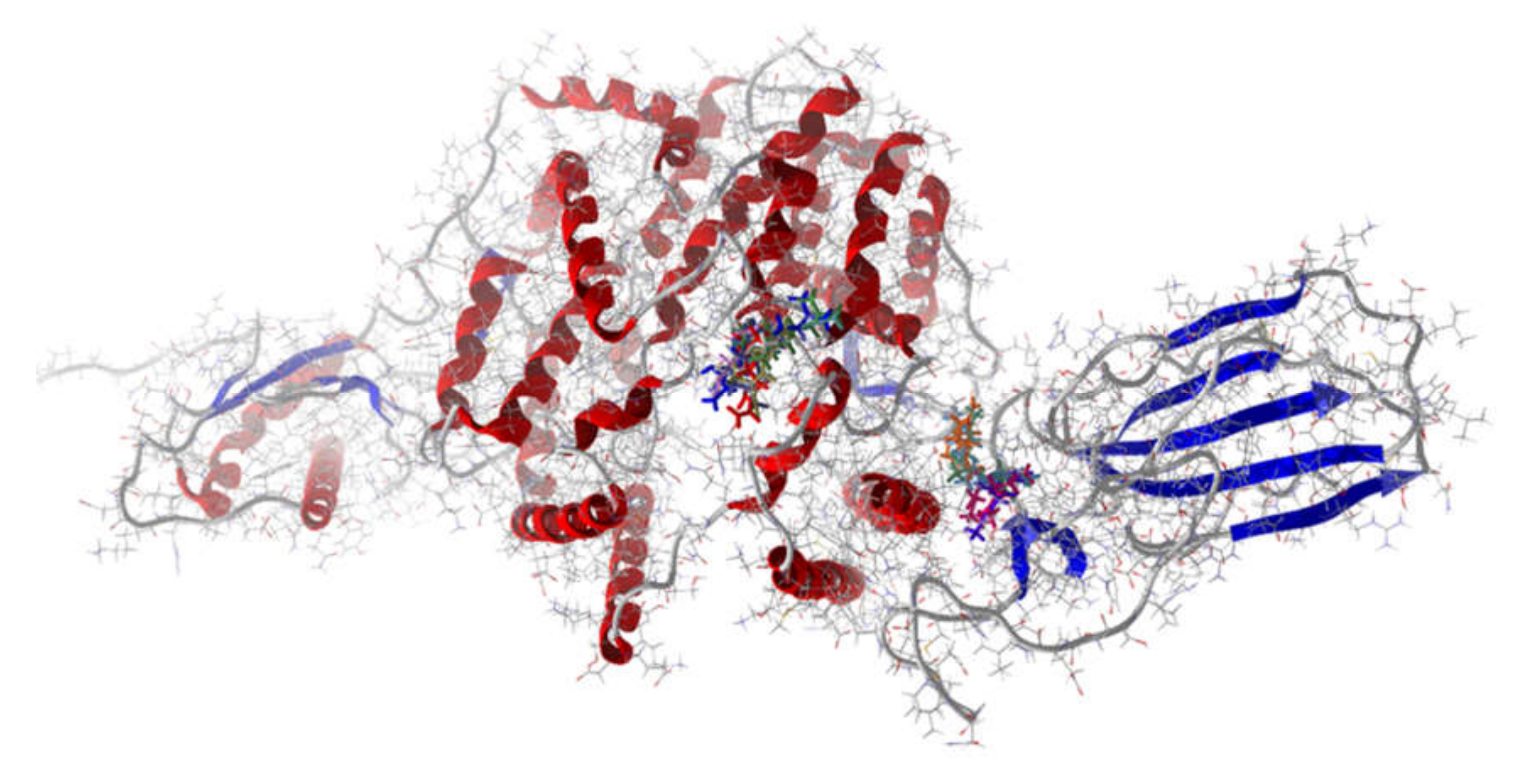

The SARS-CoV-2 spike protein serves to attach to angiotensin-converting enzyme 2 (ACE2) of the human cell to be invaded. The interface between SARS-CoV-2 rS and human ACE2 would be a promising target to prevent binding of SARS-CoV-2 rS to human ACE2 [113,114]. The best docking ligands with human ACE2, i.e., normalized docking scores < -100 kJ/mol (α-bulnesene, eremanthin, (E,E)-α-farnesene, (E)-β-farnesene, (E,E)-farnesol, (E)-nerolidol, β-sesquiphellandrene, and (Z)-spiroether), all show docking preference to a cavity removed from the interaction interface between the SARS-CoV-2 spike protein and ACE2 (Figure 6). This cavity is a pocket surrounded by residues Pro565, Leu95, Val209, Asn210, Leu91, Lys94, Glu208, and Glu564. Because of the remote location of docking with ACE2, it is predicted that interaction of essential oil components with ACE2 will not prevent protein–protein interaction between the SARS-CoV-2 spike protein and human ACE2.
On the other hand, the lowest energy poses of essential oil components showing the strongest docking (<−80 kJ/mol; (E)-cinnamyl acetate, eremanthin, (E,E)-α-farnesene, (E)-β-farnesene, (E,E)-farnesol, and geranyl formate) with the binding domain of the SARS-CoV-2 spike protein do lie at the interface between the SARS-CoV-2 spike protein and human ACE2 (Figure 6). This docking site is a hydrophobic pocket formed by Tyr505, Tyr495, Asn501, Arg403, Tyr453, and Gly502. Unfortunately, the docking energies at this site are too weak and are unlikely, therefore, to disrupt binding between SARS-CoV-2 rS and human ACE2.
In order to compare docking scores of the essential oil components with other proteins, docking was also carried out with six randomly selected non-virus proteins: Bovine odorant binding protein (BtOBP, PDB: 1GT3), cruzain (PDB: 1ME3), torpedo acetylcholinesterase (TcAChE, PDB: 6G1U), Bacillus anthracis nicotinate mononucleotide adenylytransferase (BaNadD, PDB: 3HFJ), Russell’s viper phospholipase A2 (DrPLA2, PDB: 1FV0), and Escherichia coli l-aspartate aminotransferase (EcAspTA, PDB: 2Q7W). Docking scores for these proteins are summarized in Table 4.
The docking results of the essential oil components with the six randomly selected proteins indicate the best docking ligands to SARS-CoV-2 targets (i.e., (E,E)-α-farnesene, (E)-β-farnesene, and (E,E)-farnesol) have better docking energies with other proteins. These three sesquiterpenes have docking energies of −129.8, −122.7, and −133.0 kJ/mol with TcAChE, respectively, and −131.8, −131.8, and −135.6 kJ/mol, respectively, with BaNadD. Indeed, most of the essential oil ligands have better docking properties with one or more of the random proteins compared to the SARS-CoV-2 proteins.
Based on the docking energies of essential oil components with key protein targets of SARS-CoV-2, the individual essential oil components cannot be considered viable chemotherapeutic agents for interaction with the SARS-CoV-2 target proteins. However, essential oils are complex mixtures of compounds and several essential oil components may act synergistically to inhibit the virus. Astani and co-workers have shown, for example, that the antiviral activity (HSV-1) of Eucalyptus oil is much greater than the major component 1,8-cineole, and that tea tree oil has a greater antiviral activity than its components terpinen-4-ol, γ-terpinene, and α-terpinene [52].
Synergistic effects have also been observed between essential oils and synthetic antiviral agents. Civitelli and co-workers observed an antiviral synergism between Mentha suaveolens essential oil and acyclovir on HSV-1 [64]. Likewise, Melissa officinalis essential oil potentiated the activity of oseltamivir against avian influenza virus H9N2 [115]. Furthermore, essential oils are lipophilic and therefore may also serve to disintegrate viral membranes [116].
Outside of antiviral activity, there may be some relief of symptoms of COVID-19 provided by essential oils. For example, linalool [117,118], β-caryophyllene [119,120], and 1,8-cineole [121,122] have both anti-inflammatory and antinociceptive activity; menthol [123,124], camphor [125,126], and thymol [127] have antitussive activities.

3. Materials and Methods

3.1. Bibliographic Search Criteria

The bibliographic research was performed using the databases Google Scholar, Pubmed, Science Direct, Medline, and Scopus. The keywords applied were “antiviral activity” and “essential oils”, “antiviral activity” and “volatile compounds”, and “essential oils” and “respiratory diseases”.

3.2. Ligand Selection

The major components (>5%) of essential oils and pure essential oil components that have been screened against human pathogenic viruses were selected. In the case where enantiomers are known to be natural products, both structures were selected. A total of 171 essential oil components were used in the virtual screening.

3.3. Molecular Docking

Each ligand structure was prepared using Spartan ’18 v. 1.4.4 (Wavefunction, Inc., Irvine, CA, USA). The lowest-energy conformations of the ligands were determined and used as starting structures in the molecular docking. This is particularly important to include all potential conformations in medium-sized rings where interconversion between conformations may be hindered (e.g., bicyclogermacrene, costunolide, curdione, germacrene D, germacrone, and α-humulene). A total of six protein targets of SARS-CoV-2 from the Protein Data Bank (PDB), represented by a total of 17 structures, were used in the molecular docking, including SARS-CoV-2 main protease (PDB: 5R7Z, 5R80, 5R81, 5R82, 5R83, 5R84, 6LU7, 6M03, and 6Y84), SARS-CoV-2 endoribonuclease (PDB: 6VWW), SARS-CoV-2 ADP ribose phosphatase (PDB: 6W01 and 6W02), SARS-CoV-2 RNA-dependent RNA polymerase (PDB: 6M71), SARS-CoV-2 spike protein binding domain (PDB: 6M0J, 6VX1, 6VW1, and 6M17), and the human angiotensin-converting enzyme (PDB: 6M0J, 6VX1, 6VW1, and 6M17). Molecular docking was carried out using Molegro Virtual Docker v. 6.0.1 (Aarhus, Denmark) as previously reported [128,129]. Briefly, a 15-Å radius sphere centered on the binding sites of each protein structure in order to permit each ligand to search. In the case of the spike protein and human ACE2, the docking sphere was located at the interface between the spike protein and ACE2. In one case, ACE2 was removed and docking was carried out with the spike protein, and in the other case, the spike protein was removed and docking was carried out with ACE2. Standard protonation states of each protein, based on neutral pH, were used, and charges were assigned based on standard templates as part of the Molegro Virtual Docker program. Each protein was used as a rigid model without protein relaxation. Flexible-ligand models were used in the docking optimizations. Different orientations of the ligands were searched and ranked based on their “rerank” energy scores. A minimum of 100 runs for each ligand was carried out. In analyzing the docking scores, we accounted for the recognized bias due to molecular weight [130,131,132] using the scheme: DSnorm = 7.2 × Edock/MW, where DSnorm is the normalized docking score, Edock is the MolDock re-rank score, MW is the molecular weight, and 7.2 is a scaling constant to ensure the average DSnorm values are comparable to those of Edock [128]. The best docking results are summarized in Table 1.

4. Conclusions

A molecular docking analysis was carried out using 171 essential oil components with the SARS-CoV-2 main protease (SARS-CoV-2 Mpro), SARS-CoV-2 endoribonucleoase (SARS-CoV-2 Nsp15/NendoU), SARS-CoV-2 ADP-ribose-1″-phosphatase (SARS-CoV-2 ADRP), SARS-CoV-2 RNA-dependent RNA polymerase (SARS-CoV-2 RdRp), the binding domain of the SARS-CoV-2 spike protein (SARS-CoV-2 rS), and human angiotensin-converting enzyme (hACE2). The best docking ligands for the SARS-CoV target proteins were (E,E)-α-farnesene, (E)-β-farnesene, and (E,E)-farnesol. The docking energies were relatively weak, however, and are unlikely to interact with the virus targets. However, essential oil components may act synergistically, essential oils may potentiate other antiviral agents, or they may provide some relief of COVID-19 symptoms.

Author Contributions

Conceptualization, J.K.R.d.S., K.G.B., and W.N.S.; methodology, J.K.R.d.S., K.G.B., and W.N.S.; formal analysis, W.N.S.; investigation, J.K.R.d.S., P.L.B.F., K.G.B., and W.N.S.; data curation, W.N.S.; writing—original draft preparation, J.K.R.d.S. and W.N.S.; writing—review and editing, J.K.R.d.S., P.L.B.F., K.G.B., and W.N.S.; project administration, W.N.S.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

W.N.S. participated in this work as part of the activities of the Aromatic Plant Research Center 237 (APRC, https://aromaticplant.org/).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AdenoAdenovirus
AIVAvian influenza virus
BaNadDBacillus anthracis nicotinate mononucleotide adenylytransferase
BtOBPBovine odorant binding protein
COVID-19Coronavirus disease 2019
Cox B1Coxsackie B1 virus
DENV-1Dengue virus serotype 1
DENV-2Dengue virus serotype 2
DENV-3Dengue virus serotype 3
DENV-4Dengue virus serotype 4
DrPLA2Russell’s viper phospholipase A2
DSnormNormalized docking score
EcAspTAEsherichia coli L-aspartate aminotransferase
ECHO 9Echovirus 9
hACE2Human angiotensin-converting enzyme
HeLaHuman cervical tumor cells
HEp-2Human epithelial type 2 cells
HRSVHuman respiratory syncytial virus
HSV-1Herpes simplex virus 1
HSV-2Herpes simplex virus 2
IC50Median inhibitory concentration
JUNVJunin virus
MDCKMadin-Darby canine kidney cells
MTT3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide
PCRPolymerase chain reaction
PDBProtein data bank
Polio 1Poliomyelitis virus 1
RC-37African green monkey kidney cells
SARS-CoV-22019 severe acute respiratory syndrome coronavirus 2
TcAChETorpedo acetylcholinesterase
VeroAfrican green monkey kidney cells
YFVYellow fever virus
