Fault Diagnosis of Rolling Element Bearings with a Two-Step Scheme Based on Permutation Entropy and Random Forests

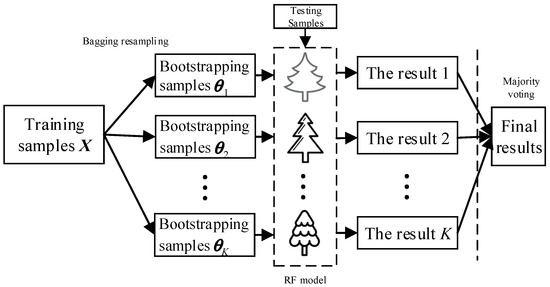

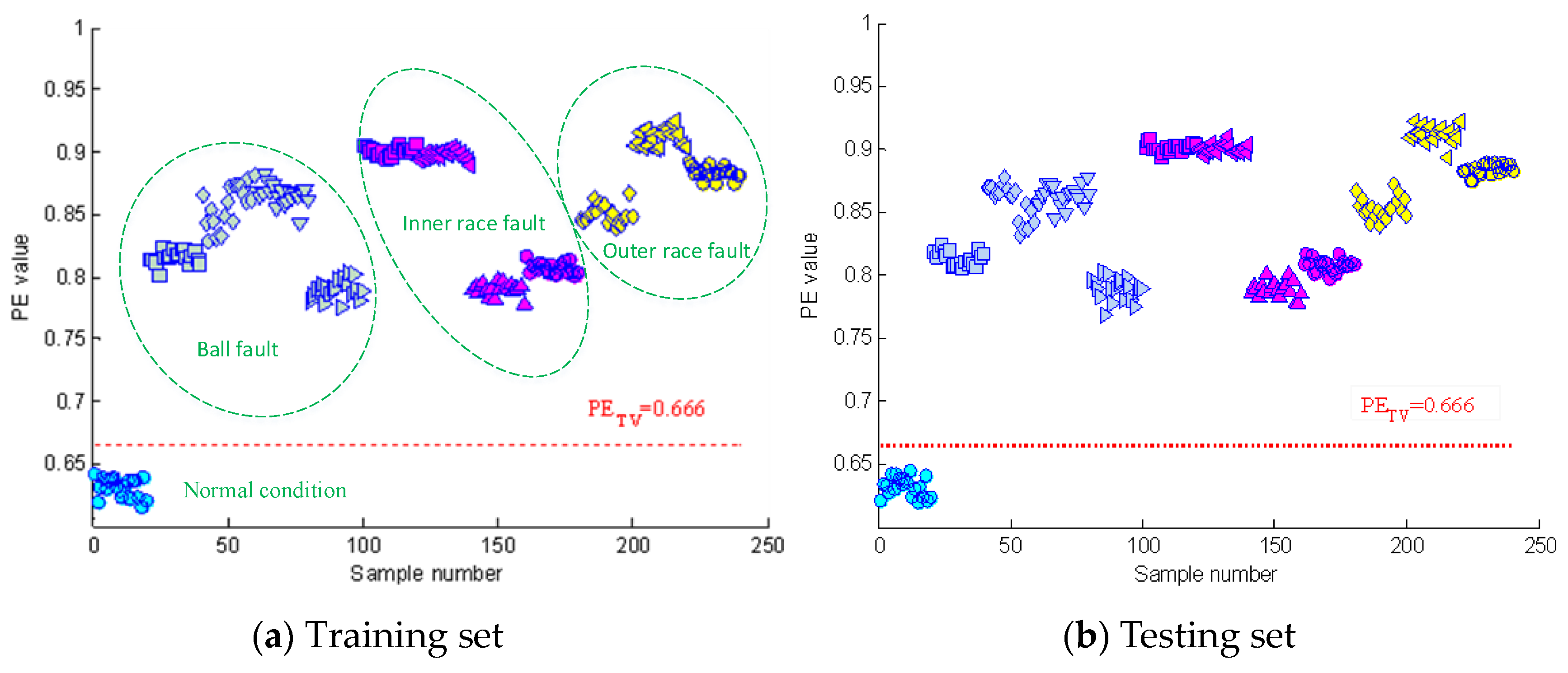

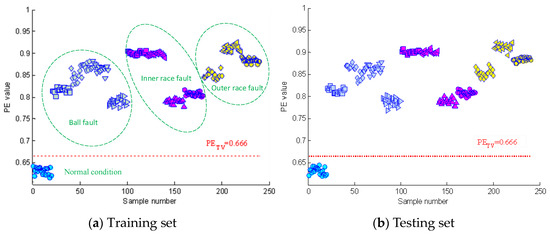

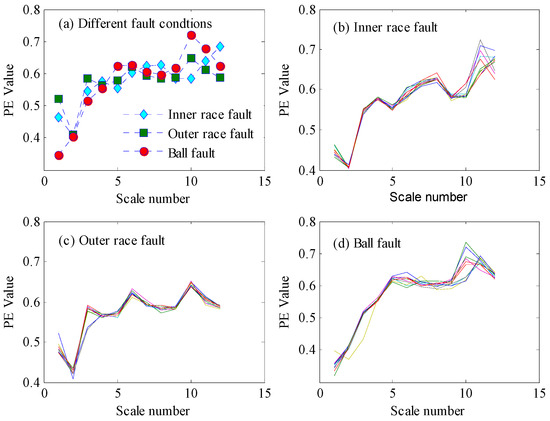

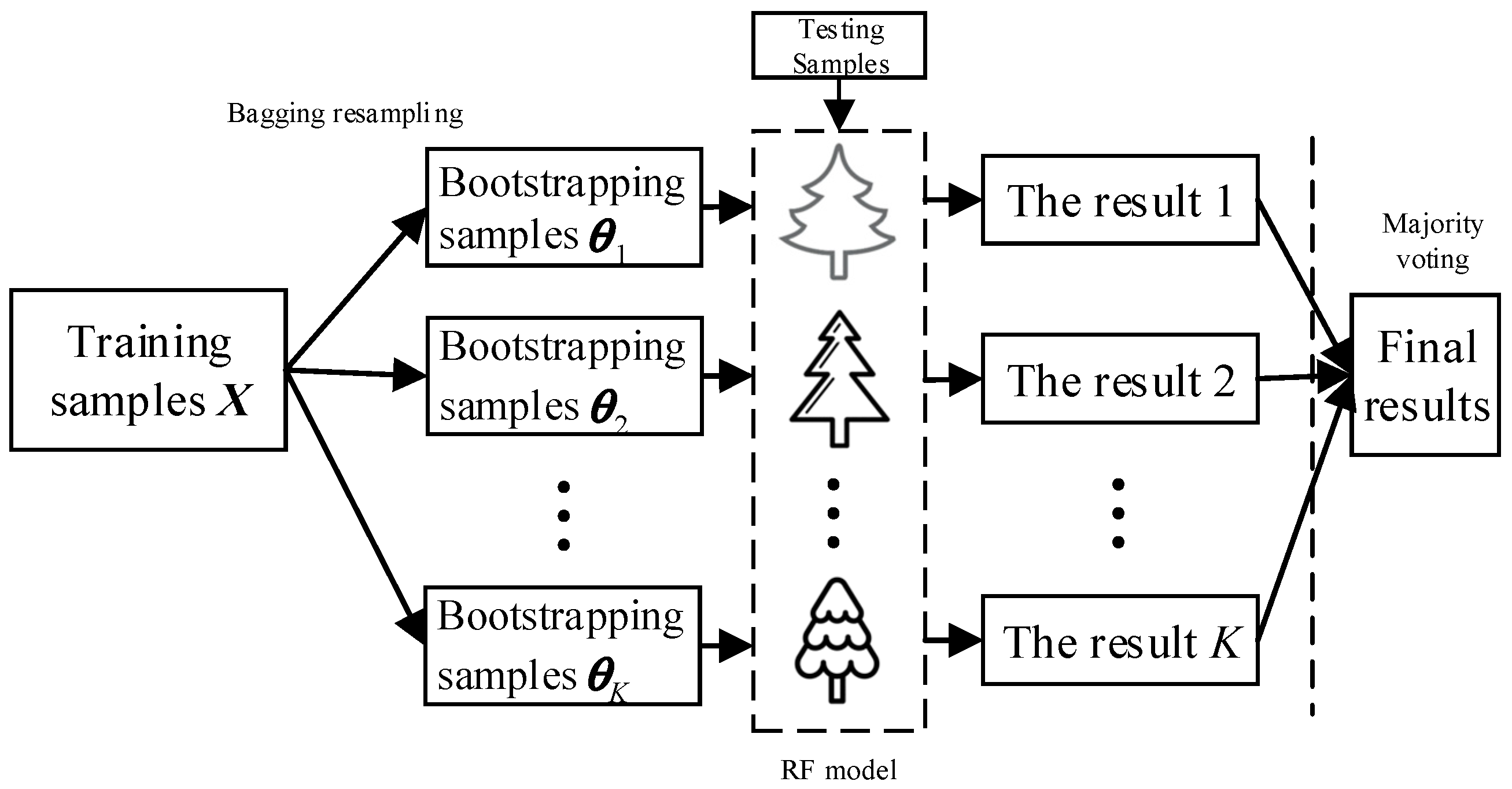

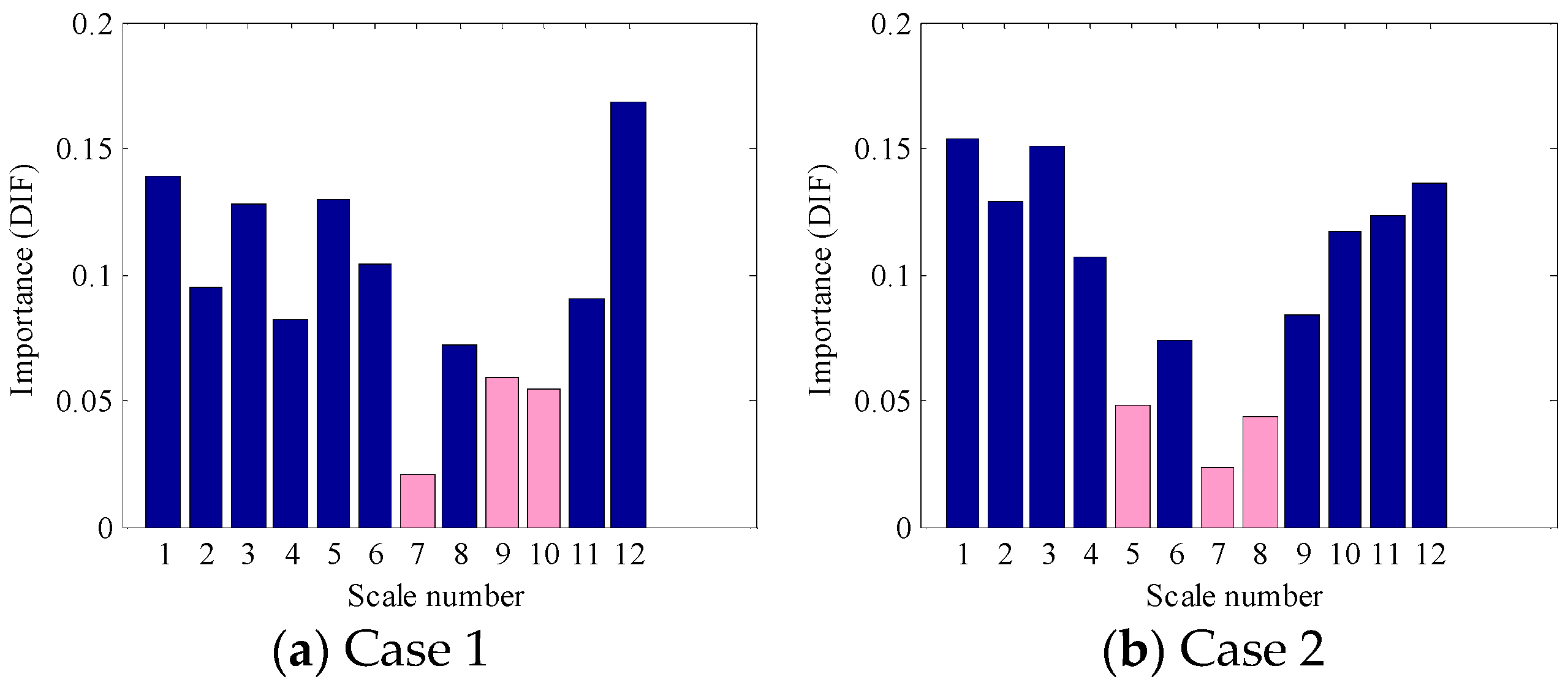

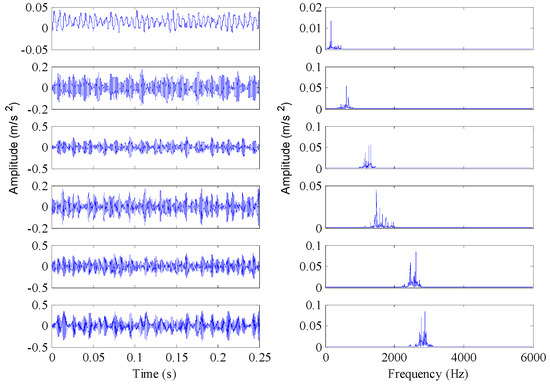

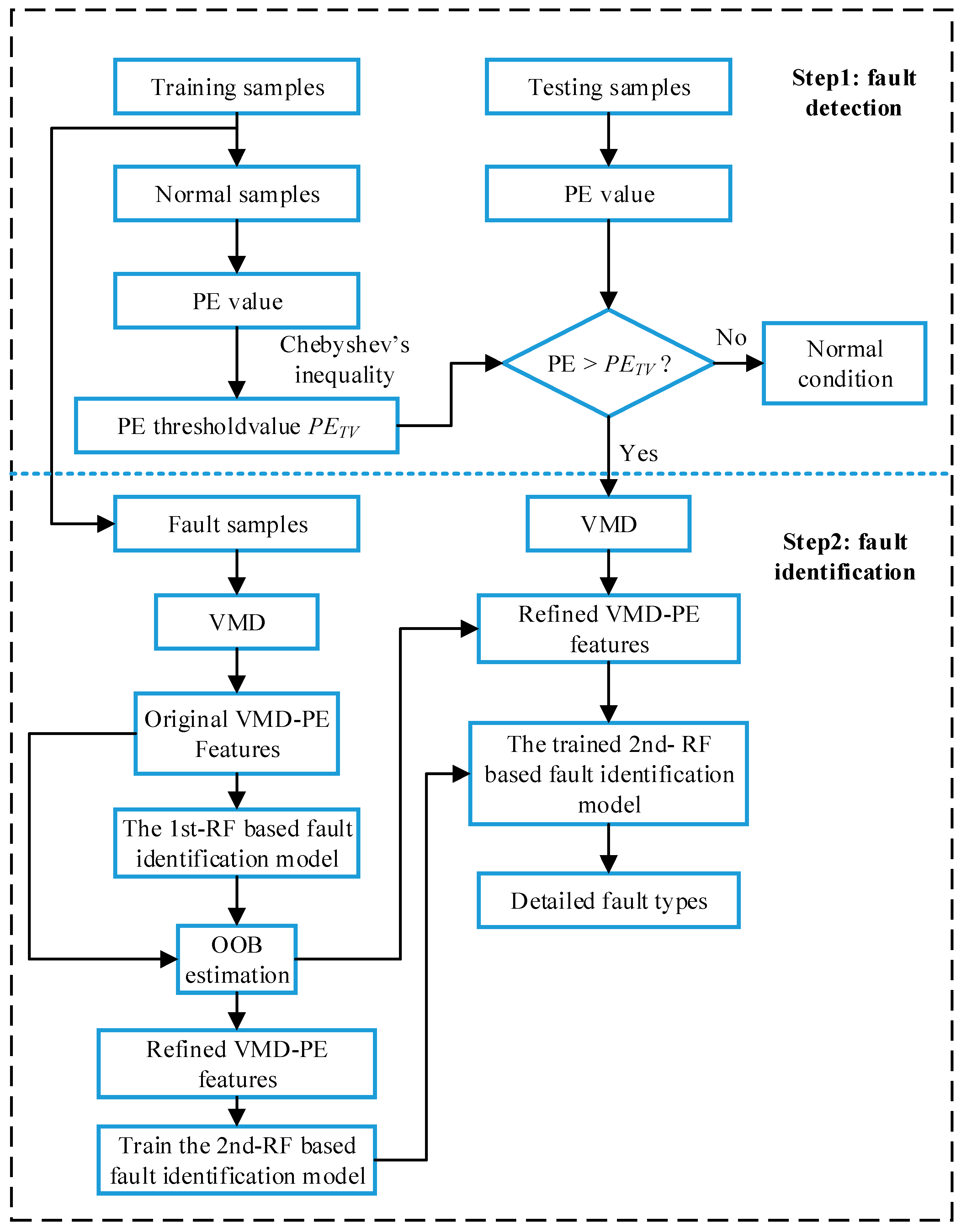

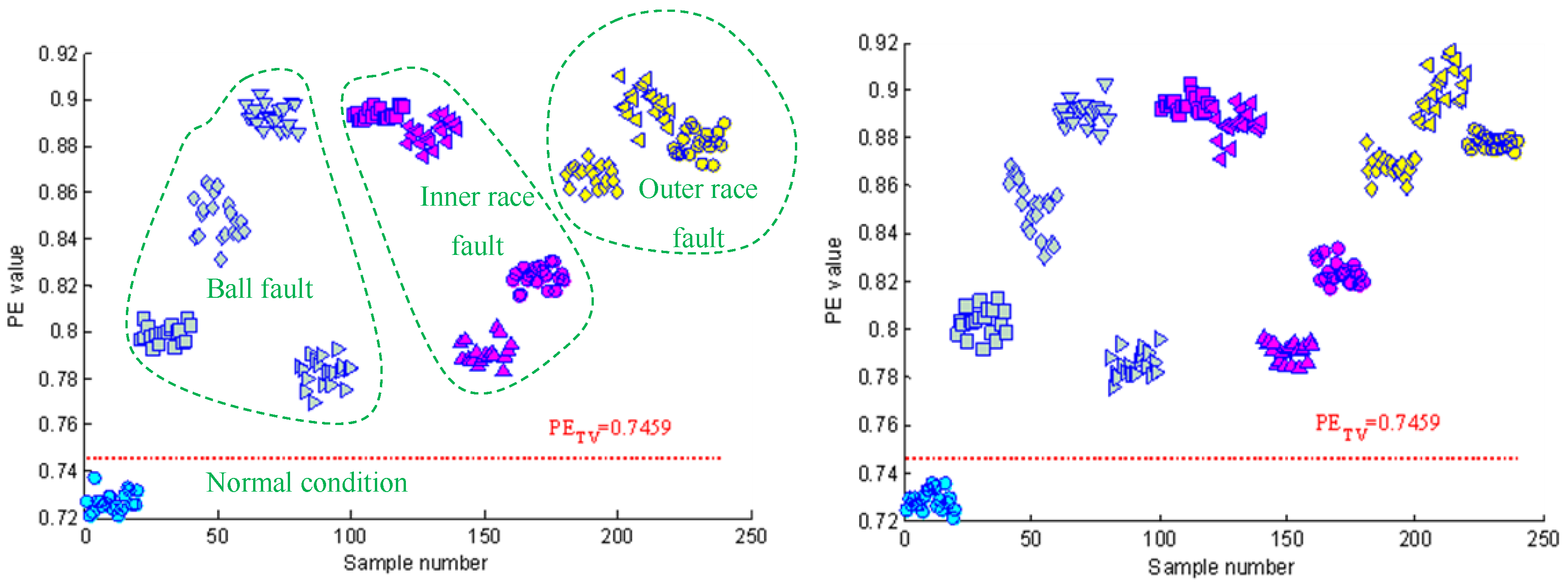

This study presents a two-step fault diagnosis scheme combined with statistical classification and random forests-based classification for rolling element bearings. Considering the inequality of features sensitivity in different diagnosis steps, the proposed method utilizes permutation entropy and variational mode decomposition to depict vibration signals under single scale and multiscale. In the first step, the permutation entropy features on the single scale of original signals are extracted and the statistical classification model based on Chebyshev’s inequality is constructed to detect the faults with a preliminary acquaintance of the bearing condition. In the second step, vibration signals with fault conditions are firstly decomposed into a collection of intrinsic mode functions by using variational mode decomposition and then multiscale permutation entropy features derived from each mono-component are extracted to identify the specific fault types. In order to improve the classification ability of the characteristic data, the out-of-bag estimation of random forests is firstly employed to reelect and refine the original multiscale permutation entropy features. Then the refined features are considered as the input data to train the random forests-based classification model. Finally, the condition data of bearings with different fault conditions are employed to evaluate the performance of the proposed method. The results indicate that the proposed method can effectively identify the working conditions and fault types of rolling element bearings. View Full-Text
