Medicina 2019, 55(6), 272; https://doi.org/10.3390/medicina55060272
ESBL and AmpC β-Lactamases in Clinical Strains of Escherichia coli from Serra da Estrela, Portugal
School of Health, Polytechnic of Porto, 4200 Porto, Portugal
Faculty of Biology, University of Vigo, 36310 Vigo, Spain
Sousa Martins Hospital, ULS Guarda, 6300 Guarda, Portugal
CERNAS—Research Centre for Natural Resources, Environment and Society, College of Agriculture, Polytechnic of Coimbra, 3045 Coimbra, Portugal
i3S—Instituto de Inovação e Investigação em Saúde, University of Porto, 4200 Porto, Portugal
CICS-UBI—Health Sciences Research Centre, University of Beira Interior, 6201 Covilhã, Portugal
Author to whom correspondence should be addressed.
Received: 20 March 2019 / Accepted: 3 June 2019 / Published: 12 June 2019
Background and Objectives: Given the considerable spatial, temporal, and ecological factors, heterogeneity, which affects emergency response, persistence, and dissemination of genetic determinants that confer microorganisms their resistance to antibiotics, several authors claim that antibiotics’ resistance must be perceived as an ecological problem. The aim of this study was to determine the prevalence of broad-spectrum bla genes, not only Extended-spectrum β-lactamases (ESBL) but also AmpC-types, in clinical strains of Escherichia coli isolated from Portugal (in the highest region of the country, Serra da Estrela) to disclose susceptibility profiles among different genotypes, and to compare the distribution of bla genes expressing broad-spectrum enzymes. Materials and Methods: Clinical strains of Escherichia coli presenting resistance to third generation (3G) cephalosporins and susceptibility to inhibition by clavulanic acid were studied by means of phenotypic and molecular profiling techniques for encoding β-lactamases genes. Results: Strains were mainly isolated from hospital populations (97%). Molecular analysis enabled the detection of 49 bla genes, in which 55% (27/49) were identified as blaOXA-1-like, 33% (16/49) as blaCTX-M-group-1, 10% (5/49) as blaTEM, and 2% (1/49) were identified as genes blaCIT (AmpC). Among all blaOXA-1-like detected, about 59% of strains expressed at least another bla gene. Co-production of β-lactamases was observed in 40% of strains, with the co-production of CTX-M group 1 and OXA-1-like occurring as the most frequent. Conclusions: This is the first study using microorganisms isolated from native people from the highest Portuguese mountain regions, showing an unprecedent high prevalence of genes blaOXA-1-like in this country.
Keywords:β-lactamases; ESBL; AmpC; Escherichia coli; resistance mechanisms; Serra da Estrela
The excessive use of antibiotics in recent years has become an emerging problem across many sectors—public health, economic, and social . Associated with large-scale population movements and the development of industrialization, the current excessive use of antibiotics is the major cause of strains developing mechanisms, consequently causing increased morbidity, mortality, and therapeutic costs [2,3,4,5].
Extended-spectrum β-lactamases (ESBLs) have been widely described and their epidemiology and geographic prevalence is the subject of continuous study . Known for their resistance to third generation (3G) cephalosporins, inhibition by clavulanic acid, and plasmid encoding, ESBLs represent a set of various types of enzymes that differ in origin, amino acid sequence, or hydrolytic activity on β-lactams . The most widespread ESBL variants, especially in strains of Escherichia coli, are the TEM-, SHV-, CTX-M-, and OXA-types [7,8,9].
TEM was first discover in 1963 and named after Greek patient, Temionera. Since then, genetic variations of TEM have been described. The first TEM enzyme was named as TEM-1, and nowadays there are over 230 different-TEMs . These enzymes differ in genetic nucleotide missense polymorphisms, thus altering amino acid sequence (Figure 1) and kinetic properties .
During the 1990 decade, the TEM- and SHV-type variants were the most prevalent worldwide, with the exception of South America, where the CTX-M-2 was dominant. In that decade, the spread of the TEM- and SHV-type ESBLs were taking place, mostly by endemic clones, with Klebsiella pneumoniae being the main carrier of blaESBL genes . The ESBL-producing strains were essentially isolated in healthcare-associated infections (HAI), with high frequency in Intensive Care Units (ICU) and low incidence in community-acquired infections (CAI) .
The first epidemiological change began with the spread of the CTX-M-type ESBL . With an extended hydrolytic action and using E. coli as a carrier, this type of ESBL became more frequently noted in several parts of the world and in different settings—both HAI and CAI . However, in the middle of the century there was a drastic change in the epidemiology of ESBL-resistance as a consequence of these variants .
Throughout this decade, the CTX-M-type ESBLs were the most prevalent β-lactamases in most European, Asian, and South American countries, and in some cases they are even considered endemic [14,15,16]. Despite this wide distribution, mostly due to the CTX-M-15 variant, other variants are locally amplified, such as CTX-M-9 and CTX-M-14 in Spain, CTX-M-1 in Italy, CTX-M-5 in Belarus and Russia, and CTX-M-3 in Eastern Countries [2,7]
OXA β-lactamases were described for the first time in a strain of Pseudomonas aeruginosa and showed a low hydrolytic activity on 3G cephalosporins and weak inhibition by clavulanic acid, thus presenting almost no clinical relevance . However, occasional mutations in blaOXA genes have caused variants of these enzymes with ESBL phenotypes, extending their spectrum of activity but maintaining their weak inhibition to clavulanic acid. OXA-1 and OXA-1-like (OXA-1, OXA-4, OXA-30) variants are examples of these enzymes . Despite more than 220 OXA β-lactamases having been described , not all present the ESBL phenotype.
The emerging spread of ESBL-producing strains is currently associated with the production of AmpC β-lactamases. These enzymes are cephalosporinases with inductive activity belonging to the Ambler class C [19,20]. With hydrolytic activity on penicillin and 3G cephalosporins and susceptibility to fourth generation (4G) cephalosporins (cefepime and cefpirome), AmpCs differ from the ESBLs in their hydrolytic action on cephamycins (cefoxitin and cefotetan) and non-susceptibility to clavulanic acid. In contrast to ESBLs, the AmpCs enzymes are only inhibited by cloxacillin or boronic acid [21,22,23].
Originally described as chromosomal β-lactamases, their plasmid encoding is now recognized . AmpCs that are plasmid-mediated are a derivation from the chromosomal enzymes and can co-exist in chromosomal positive strains, such as E. coli, increasing their expression . CMY-1 was discovered in South Korea (1989) and was the first plasmid-mediated AmpC . Since then, many different types of plasmid-mediated AmpCs (CIT, DHA, MOX, EBC, FOX, and ACC) have been described, with the CMY-2 enzyme (CIT-type AmpC) being considered the most widespread variant [23,25,26].
The infections caused by ESBL- and AmpC-producing-strains were initially exclusive to HAI, but now they are also found in CAI .
Another reason for the resistance to β-lactams and to the emerging spread lies in the phenomenon of co-production of β-lactamases. The ability to produce different variants or types of β-lactamases gives the bacteria an extended resistance profile. This fact, along with the difficulty in detecting these phenomena by phenotyping techniques usually applied in hospital laboratories, decreases the viability of the commonly used antibiotherapies, and therefore, allows for the spread of these enzymes [27,28,29].
In Portugal, several studies have been conducted in order to describe the epidemiology, prevalence, and emerging spread of variants, in particular the β-lactamase-producing strains with possibility of resistance. Several Portuguese regions, such as the north and central, have been targeted by these studies [7,9,18,30,31,32,33]. However, due to constant epidemiological changes and to the absence of studies in other regions, this purpose has not yet been completely achieved.
This work aims to assess the prevalence of ESBLs and AmpCs in clinical isolates of E. coli in the region of Serra da Estrela, Portugal. Additionally, it intends to determine the most prevalent bla gene in this region; to provide evidence for the co-production phenomena, as well as its frequency and prevalence, and to compare antibiotic susceptibility profiles among different genotypes and to understand the distribution of bla genes in different settings, nosocomial (HAI), and community environments (CAI).
2. Materials and Methods
2.1. Bacterial Strains
In the present study, strains of E. coli (n = 38) with resistance or low susceptibility to 3G cephalosporins detected in the Service of Clinical Pathology, Sousa Martins Hospital, ULS Guarda, Portugal, from July 2010 to May 2011, were analyzed. These strains were isolated from different biological specimens derived from different settings—HAI and CAI.
2.2. Phenotype Identification and Antibiotics Susceptibility
Bacterial identification and antibiotic susceptibility profiles were determined by the Vitek®2 (bioMérieux®, Marcy-l’Étoile, France) automated system, using the ID GN card (bioMérieux®, Marcy-l’Étoile, France) for identification of Gram-negative susceptibility, and then the AST N151 card (bioMérieux®, Marcy-l’Étoile, France) for Gram-negative susceptibility. The susceptibility to cefoxitin (not evaluated by the AST N151 card) was analyzed using the disk diffusion method (Kirby-Bauer method), according to the standards of the Clinical and Laboratory Standards Institute (CLSI) for the determination of minimum inhibitory concentrations (MIC) . Briefly, the susceptibility to this cephamycin was tested with a cefoxitin disk (30 μg) and confirmed whenever a halo diameter higher than 18 mm was observed. This criterion is mentioned by several authors as a screening method for the detection of AmpC-type β-lactamase producing strains .
The production of ESBLs was evaluated by E-test (bioMérieux®, France): E-test cefotaxime and cefotaxime/clavulanic acid (CT/CTL) and the E-test ceftazidime and ceftazidime/clavulanic acid (TZ/TZL). The production of ESBLs were determined as positive whenever the MIC ratio was equal to or higher than 8 (CT/CTL or TZ/TZL ≥ 8), or if there was a phantom zone or an ellipse deformation, according to the manufacturer’s instructions. Similarly, the screening for AmpC β-lactamases production was determined by E-test (bioMérieux®, Marcy-l’Étoile, France): cefotetan and cefotetan/cloxacillin (CN/CNI).
2.3. Molecular Characterization of bla Genes
A set of three multiplex Polymerase Chain Reaction (PCR) assays and a simple PCR assay was used for the amplification of the most frequent bla genes in E. coli strains, as described by Dallenne et al. (2010) and represented in Table 1 .
The reaction mixture was prepared with 1μL (2ng) of DNA in a total 25μL of master mix with a 1xPCR buffer (10 mM Tris-HCl, pH 8.3/50 mM KCl), 200μM of each dNTP (deoxyribonucleotide triphosphate mix), 1.5 mM MgCl2, a variable concentration of specific primers, and 0.5U of Taq polymerase. The amplification occurred under the following conditions: initial denaturation at 94 °C for 10 min; 30 cycles at 94 °C for 40 s, at 60 °C for 40 s, at 72 °C for 1 min, final elongation at 72 °C for 7 min, and holding temperature at 4 °C.
Amplified products were evaluated by 2% agarose gel containing SYBR green (SYBR® Green I, SigmaAldrich, Spain) electrophoresis, which ran at 80V for 4 h in 1xTAE [4.844 g/L of 2-Amino-2-hydroxymethyl-propane-1,3-diol (TRIS base), 1.21 ml/L of of glacial acetic acid, 0.372 g/L of 2,2’,2’’,2’’’-(Ethane-1,2-diyldinitrilo)tetraacetic acid (EDTA) sodium salt, pH 8.0]. The visualization of the fragments was carried out in the UV transilluminator, where the molecular weight was inferred through a molecular weight marker (100 bp), allowing for the identification of the enzyme.
Phenotypic susceptibility to antimicrobials, as well as molecular characterization of E. coli isolated from the region of Serra da Estrela, Portugal, are shown in Table 1.
3.1. Bacterial Strains
In the present study, 38 strains of E. coli were harvested, isolated, and studied. About 97% (37/38) of strains were isolated from HAI, supporting the literature that highlights the hospital setting as prevailing when referring to multi-resistant bacteria . Only 3% were isolated from CAI. Strains were isolated mainly from urinary infections with a frequency of 68% (26/38), 18% (7/38) from soft tissue and skin infections, 10% (4/38) from respiratory infections, and 3% (1/38) from the bloodstream.
3.2. Phenotype Identification and Antibiotic Susceptibility
The susceptibility to antimicrobial agents was carried out on Vitek®2 (bioMérieux®) and confirmed an extended profile of resistance to several antibiotics. Besides ampicillin (inclusion criterion), all of the strains presented resistance to other β-lactams, in particular cephalotin and cefuroxime (2ndG cephalosporins), cefotaxime, and ceftazidime (3G cephalosporins), and all were susceptible to ertapenem and meropenem, which are carbapenems (Table 2).
Regarding non-β-lactams, antibiotics from all of the strains in the study were susceptible to tigecycline, a tetracycline. Also, 97% (37/38) of the strains evidenced resistance to fluoroquinolones (ciprofloxacin and levofloxacin), 71% (27/38) to aminoglycosides (gentamicin and tobramycin), and only 3% (1/38) to amikacin (data not shown). Of all strains studied, 55% (21/38) were resistant to the combination of trimethoprim/sulfamethoxazole.
Phenotypic production of ESBLs was confirmed by E-test for 97% (37/38) of the strains. The remaining 3% (1/38) correspond to the strain that showed inconclusive results in both E-tests.
Cefoxitin (cephamycin) was used as a screening test for AmpCs producers in combination with E-test. Concerning this antibiotic, 37% of the strains (14/38) were resistant to cefoxitin, while AmpC E-test confirmation gave only one positive result.
3.3. Molecular Characterization of bla Genes
The evaluation of bla genes was performed by multiplex PCR for TEM, SHV and OXA (TSO), CTX-M, and plasmid AmpC. In the 38 strains, 49 bla genes were detected, which indicates the co-production of several bla genes within the same strain.
The detection of bla genes was confirmed in 87% (33/38) of the strains under study. The remaining 13% correspond to isolates that did not amplify any of the studied bla genes (Figure 2).
Concerning the 37 ESBLs producers detected by E-test, 32 were confirmed by PCR, indicating its high sensitivity (97%). Among the 49 bla genes detected, 55% (27/49) were blaOXA-1-like, 33% (16/49) were blaCTX-M group 1, 10% (5/49) were identified as blaTEM, and only one gene, or 2% (1/49), was identified as blaCIT.
The production of OXA-1-like-type ESBL was found in 71% (27/38) of the isolates, and 44% of the time (12/27), at least another bla gene was detected in the same microorganism. Conversely, CTX-M-1 group ESBL was found in 42% (13/38) of the strains, but up to 81% of the time (13/16) in co-production with other types of bla genes.
Among the many bla gene combinations identified in the present study, CTX-M-1 group and OXA-1-like-type ESBLs were predominant, appearing up to 26% of the time (10/38).
The co-production of blaTEM and blaCIT were detected in the same strain E4 (Figure 3). Although this strain gave inconclusive E-test results for ESBL, the result obtained from E-test for AmpC was positive and confirmed by PCR.
The high prevalence of ESBLs and plasmid-mediated AmpCs strains of Enterobacteriaceae is a major concern worldwide . In this study, 38 E. coli strains with reduced susceptibility and high resistance to 3G cephalosporins were evaluated.
About 97% (37/38) of strains isolated in the present study came from health care facilities. According to the literature, hospitals are still a setting in which multi-resistant bacteria are predominant . As mentioned, only one strain was found from a community acquired infection (CAI). Nonetheless, it was found that the patient carrying such a strain was hospitalized afterwards, thus the fact that it could be another healthcare acquired infection (HAI) cannot be excluded.
The resistance to different antibiotics classes has been described in ESBL- and AmpC-producing-strains. Genes conferring resistance to quinolones and aminoglycosides have been extensively reported in the same plasmid harboring bla genes . These resistance profiles confine the therapy choices and allow the spread of multi-drug resistant plasmids . In this study, high resistance to fluoroquinolones (97%, 37/38), to aminoglycosides (71%, 27/38), and to the trimethoprim/sulfamethoxazole (55%, 21/38) were also found. These results are, in general, highest when described in previous studies [14,19], however, they are corroborated by other Portuguese studies [7,9,18,37], suggesting a local resistance profile that may be due to the spread of these multi-drug resistance plasmids in Portugal. Besides this extended resistance profile, all strains exhibited susceptibility to tigecycline. This result may be due to the fact that genes encoding to tetracyclines resistance are less frequently described in plasmid-borne ESBLs and AmpCs than other classes of antibiotic encoding genes [8,17,38].
Regarding β-lactams antibiotics, all strains were resistant to all β-lactams antibiotics tested, with the exception of carbapenems, which were suggestive a priori of the presence of ESBL or AmpC enzymes in such isolates [34,39]. In this study, ESBL E-tests offered a positive result for 97% (37/38) of the strains examined, pointing out a phenotype of ESBLs. These results were confirmed by molecular methods in 32 of the 37 strains, indicating the high sensitivity (97%) of E-tests. Therefore, E-tests are recommended by Clinical and Laboratory Standards Institute (CLSI) and the European Committee on Antimicrobial Susceptibility Testing (EUCAST) for phenotypic detection of ESBLs, and they are widely used in clinical laboratories and research studies [17,34,39,40,41].
However, an inconclusive result (1/38) was found using ESBL E-test. According to Mohanty et al. (2010), this inconclusive result may be due to the co-production of β-lactamases, since the production of AmpCs may mask the ESBLs production in phenotypic tests .
The susceptibility to cefoxitin was applied as a phenotypic screening method for AmpC-type β-lactamase production, as referred to in several studies [21,22,26,42,43]. Resistance to cefoxitin was verified in 37% (14/38) of the strains. Mohanty et al. (2010) and Oteo et al. (2010) reported that ESBL β-lactamases are unable to hydrolyze cephamycins [20,26]. However, Bradford et al. (2001) showed that resistance to cephamycins, similar to cefoxitin, may be found in the presence of ESBL enzymes, but suggests that the loss of an outer membrane porin protein may be the cause . In 2009, Fernandes et al. reported high levels of cefoxitin resistance within strains expressing ESBLs in Portugal .
As mentioned, AmpC E-test used for phenotypic confirmation of AmpC-type β-lactamase production revealed one positive result only. This result was obtained in the same strain (E4) that exhibited an inconclusive result on ESBL E-tests, corroborating the hypothesis of co-production of ESBL and AmpC enzymes. This result was confirmed by molecular methodology for the detection of the blaTEM by TSO multiplex PCR and the blaCIT was by AmpC multiplex PCR (Figure 2). The co-production of these β-lactamases has been reported in sporadic cases, mainly in strains of E. coli and K. pneumoniae . The TEM β-lactamases were considered the most widespread ESBLs until the first 5 years of the last decade by many researchers [9,33,40,44], being substituted with the growing group of CTX-M and plasmid-mediated AmpC β-lactamases, mainly the CMY-2 variant [14,38].
Other cefoxitin-resistant strains that presented a negative result on E-test AmpC did not amplify any blaAmpC genes. Therefore, AmpC E-test exhibited a better performance as a phenotypic detection method for AmpC β-lactamases with 100% sensitivity and 100% specificity compared to the cefoxitin screening method, which yielded results of 100% sensitivity but only 65% specificity. These results are contrary to other studies [35,45]. Polsfuss et al. (2011) reported that although the cefoxitin screening showed a lower specificity (78.7%), it evidenced a higher sensitivity (97.4%) than AmpC E-test (77.4%), proposing a flow chart for AmpC detection with cefoxitin resistance as a screening method and the cefoxitin/cloxacillin combination as a confirming phenotypic assay . The ambiguous results obtained may be due to the lower number of isolates evaluated in this study, requiring further investigation.
Although the phenotypic methods are frequently applied in the workflow of clinical laboratories, the molecular biology methods remain the gold standard for β-lactamase detection and identification, and allow for epidemiological knowledge . The evaluation of bla genes was performed by several multiplex PCR recipes, allowing for the characterization of 87% (33/38) of the strains (Figure 2). In the remaining 13% (5/38), it was not possible to amplify any of the analyzed bla genes. The lack of amplification may be explained by the presence of a possibly new enzyme, due to the high rate of mutations bla genes [36,46].
The molecular methods allowed the identification of a total of 49 bla genes. Approximately 55% (27/49) were blaOXA-1-like, 33% (16/49) were blaCTX-M group 1, and 10% (5/49) were identified as blaTEM. The present work demonstrated a predominance of blaOXA-1-like followed by blaCTX-M group 1, and a decrease of frequency of blaTEM genes. These results were in agreement with those previously reported by other Portuguese studies in concern to the increased occurrence of OXA-1-like and CTX-M ESBLs and the decrease of frequency of the SHV variants (not found at all in the present study) [9,18,37]. However, one of main observations of this study is the predominance of blaOXA-1-like genes at 55% (27/49), which has never been described before in the country. This may come from an epidemiological change or from an endemic phenomenon in the Serra da Estrela region and may require further detailed studies.
The only blaAmpC gene detected was an AmpC-CIT. According to literature, CMY-2 (a CIT variant) is the most frequent AmpC from E. coli . In countries such as the United States and Canada, the CIT-type AmpC has been widely reported in recent years . Baudry et al. reported the presence of the CMY-2 variant in 96% of the AmpC-type β-lactamase E. coli producers . Also, Woodford et al. (2007) described a frequency of 44% of CIT-type AmpC E. coli producers in European countries, such as the United Kingdom and Ireland . In Spain, Oteo et al. (2010) reported the emerging spread of this variant when they found that 71% of the β-lactamases were of the CMY-2-type . The high frequency of CIT-type AmpC worldwide and the geographical proximity between the study country with Spain, where the spread of this variant is emerging, seem to corroborate the discovery of the CIT-producing strain in this study.
Almost half (45%) of the 27 blaOXA-1-like found were detected in co-production with other enzymes. According to the literature, the production of OXA-1-like-type β-lactamases is usually detected in cases of co-production of β-lactamases due to their lower hydrolytic activity [15,18].
The most common combination, found in 26% (10/38) of the strains, was the CTX-M-1 group with OXA-1-like-type (Figure 2). This outcome may be supported by the fact that CTX-M-15 (belonging to CTX-M group 1) was commonly found in co-production with OXA-30 (OXA-1-like variant) . This association has been described by several authors in different countries, such as India, the United Kingdom, Canada, and Portugal .
The distribution of E. coli strains harboring different variants of broad-spectrum and plasmid-mediated β-lactamases, such as ESBL and AmpC, is still a concerning issue in the Portuguese territory. Molecular identification of ESBLs and AmpCs by PCR allows for comprehension of the local epidemiology, but these tests are expensive. Specialized personnel and equipment are required and they are usually implemented for reference or for investigative laboratories. The phenotypic systems applied in this study may be considered a good alternative for molecular detection of ESBL and AmpC β-lactamases. One of the major constraints and criticisms of the present work may be the fact that we do not confirm the identity of the genetic sequence of the amplified genes by means of sequencing methods. Nevertheless, from the point of view of our healthcare ecology, this study improves greatly upon the knowledge, since it is the first time that this population is studied at the genotype level, with a substantial difference having already been found—based only on the categorization of the main enzymes present—comparative to the frequency and type of enzymes that occur in the rest of the country.
In the Serra da Estrela region, a predominance of OXA-1-like enzymes were detected, which may suggest an epidemiological shift of bla genes dissemination, or the existence of an endemic phenomenon in the Serra da Estrela, Portugal.
Conceptualization, R.F.; methodology, R.F., C.P., P.T.-R., and C.T.T.; formal analysis, C.O., P.A., C.T.T., and R.F.; investigation C.O., C.T.T., and R.F.; writing—original draft preparation, C.O. and R.F.; writing—review and editing, C.O., P.A., C.P., C.T.T., P.T.-R., and R.F.; supervision, C.T.T. and R.F.; funding acquisition, R.F.
Rúben Fernandes acknowledges, on the behalf of the authors, the funding entities. R.F. is supported by FCT—Fundação para a Ciência e Tecnologia (REF UID/BIM/04293/2013), and by grants NORTE-01-0145-FEDER-000012, SAICT-POL/24325/2016.
To Hospital Sousa Martins, Local Health Unit of Guarda, EPE, to the School of Health Technology of Porto, Polytechnic Institute of Porto, and to CICS-UBI (Centro de Investigação em Ciências da Saúde—Universidade da Beira Interior) Health Sciences Research Center at the University of Beira Interior. The authors wish to acknowledge António César Pimenta, Rúben Fernandes, and Irina Moreira for their permission to reprint Figure 1 .
Conflicts of Interest
The authors declare no conflict of interest.
- Fernandes, R.; Amador, P.; Prudêncio, C. β-Lactams: chemical structure, mode of action and mechanisms of resistance. Rev. Med. Microbiol. 2013, 24, 7–17. [Google Scholar] [CrossRef]
- Hawkey, P.M.; Jones, A.M. The changing epidemiology of resistance. J. Antimicrob. Chemother. 2009, 64, i3–i10. [Google Scholar] [CrossRef] [PubMed]
- Amador, P.; Duarte, I.M.; Roberto da Costa, R.P.; Fernandes, R.; Prudêncio, C. Characterization of antibiotic resistance in Enterobacteriaceae from agricultural manure and soil in portugal. Soil Sci. 2018, 182, 292–301. [Google Scholar] [CrossRef]
- Amador, P.P.; Fernandes, R.M.; Prudêncio, M.C.; Barreto, M.P.; Duarte, I.M. Antibiotic resistance in wastewater: occurrence and fate of Enterobacteriaceae producers of class a and class c β-lactamases. J. Environ. Sci. Health Part A Toxic Hazard. Substanc. Environ. Eng. 2015, 50, 26–39. [Google Scholar] [CrossRef]
- Cunha, S.; Mendes; Rego, D.; Meireles, D.; Fernandes, R.; Carvalho, A.; Martins da Costa, P. Effect of competitive exclusion in rabbits using an autochthonous probiotic. World Rabbit Sci. 2017, 25, 123–134. [Google Scholar] [CrossRef]
- Coque, T.M.; Baquero, F.; Canton, R. Increasing prevalence of ESBL producing Enterobacteriaceae in Europe. Eurosurveillance 2008, 13, 9044. [Google Scholar]
- Machado, E.; Coque, T.M.; Canton, R.; Baquero, F.; Sousa, J.C.; Peixe, L. Dissemination in Portugal of CTX-M-15-, OXA-1-, and TEM-1-producing Enterobacteriaceae strains containing the aac(6’)-ib-cr gene, which encodes an aminoglycoside- and fluoroquinolone-modifying enzyme. Antimicrob. Agents Chemother. 2006, 50, 3220–3221. [Google Scholar] [CrossRef] [PubMed]
- Cantón, R.; Novais, A.; Valverde, A.; Machado, E.; Peixe, L.; Baquero, F.; Coque, T.M. Prevalence and spread of extended-spectrum β-lactamase-producing Enterobacteriaceae in Europe. Clin. Microbiol. Infect. 2008, 14, 144–153. [Google Scholar] [CrossRef]
- Machado, E.; Coque, T.M.; Cantón, R.; Novais, Â.; Sousa, J.C.; Baquero, F.; Peixe, L. High diversity of extended-spectrum β-lactamases among clinical isolates of Enterobacteriaceae from Portugal. J. Antimicrob. Chemother. 2007, 60, 1370–1374. [Google Scholar] [CrossRef]
- Naas, T.; Oueslati, S.; Bonnin, R.A.; Dabos, M.L.; Zavala, A.; Dortet, L.; Retailleau, P.; Iorga, B.I. Beta-lactamase database (BLDB)—Structure and function. J. Enzyme Inhibit. Med. Chem. 2017, 32, 917–919. [Google Scholar] [CrossRef]
- Pimenta, A.C.; Fernandes, R.; Moreira, I.S. Evolution of drug resistance: insight on TEM β-lactamases structure and activity and β-lactam antibiotics. Mini Rev. Med. Chem. 2014, 14, 111–122. [Google Scholar] [CrossRef] [PubMed]
- Carmeli, Y. Strategies for managing today’s infections. Clin. Microbiol. Infect. 2008, 14, 22–31. [Google Scholar] [CrossRef] [PubMed]
- Livermore, D.M.; Canton, R.; Gniadkowski, M.; Nordmann, P.; Rossolini, G.M.; Arlet, G.; Ayala, J.; Coque, T.M.; Kern-Zdanowicz, I.; Luzzaro, F.; et al. CTX-M: Changing the face of ESBLs in Europe. J. Antimicrob. Chemother. 2007, 59, 165–174. [Google Scholar] [CrossRef] [PubMed]
- Pitout, J.D.D.; Campbell, L.; Church, D.L.; Gregson, D.B.; Laupland, K.B. Molecular characteristics of travel-related extended-spectrum—Lactamase-producing Escherichia coli isolates from the calgary health region. Antimicrob. Agents Chemother. 2009, 53, 2539–2543. [Google Scholar] [CrossRef] [PubMed]
- Kiratisin, P.; Apisarnthanarak, A.; Laesripa, C.; Saifon, P. Molecular characterization and epidemiology of extended-spectrum-β- lactamase-producing Escherichia coli and Klebsiella pneumoniae isolates causing health care-associated infection in Thailand, where the CTX-M family is endemic. Antimicrob. Agents Chemother. 2008, 52, 2818–2824. [Google Scholar] [CrossRef] [PubMed]
- Hawkey, P.M. Prevalence and clonality of extended-spectrum β-lactamases in Asia. Clin. Microbiol. Infect. 2008, 14, 159–165. [Google Scholar] [CrossRef] [PubMed]
- Jones, C.H.; Tuckman, M.; Keeney, D.; Ruzin, A.; Bradford, P.A. Characterization and sequence analysis of extended-spectrum-β- lactamase-encoding genes from Escherichia coli, Klebsiella pneumoniae, and Proteus mirabilis isolates collected during tigecycline phase 3 clinical trials. Antimicrob. Agents Chemother. 2009, 53, 465–475. [Google Scholar] [CrossRef] [PubMed]
- Mendonça, N.; Leitão, J.; Manageiro, V.; Ferreira, E.; Caniça, M. Spread of extended-spectrum β-lactamase CTX-M-producing Escherichia coli clinical isolates in community and nosocomial environments in Portugal. Antimicrob. Agents Chemother. 2007, 51, 1946–1955. [Google Scholar] [CrossRef] [PubMed]
- Qin, X.; Zerr, D.M.; Weissman, S.J.; Englund, J.A.; Denno, D.M.; Klein, E.J.; Tarr, P.I.; Kwong, J.; Stapp, J.R.; Tulloch, L.G.; et al. Prevalence and mechanisms of broad-spectrum -lactam resistance in Enterobacteriaceae: A children’s hospital experience. Antimicrob. Agents Chemother. 2009, 53, 340. [Google Scholar] [CrossRef]
- Mohanty, S.; Gaind, R.; Ranjan, R.; Deb, M. Use of the cefepime-clavulanate ESBL Etest for detection of extended-spectrum beta-lactamases in AmpC co-producing bacteria. J. Infect. Dev. Countr. 2010, 4, 24–29. [Google Scholar]
- Li, Y.; Li, Q.; Du, Y.; Jiang, X.; Tang, J.; Wang, J.; Li, G.; Jiang, Y. Prevalence of plasmid-mediated AmpC β-lactamases in a Chinese University Hospital from 2003 to 2005: First report of CMY-2-type AmpC β-lactamase resistance in China. J. Clin. Microbiol. 2008, 46, 1317–1321. [Google Scholar] [CrossRef] [PubMed]
- Hu, F.; Wu, W.; Ye, X.; Xu, X.; Zhu, D. The molecular characteristics of cefepime-susceptible Escherichia coli and Klebsiella spp. isolates with a positive β-lactamase screening test result but negative confirmation. Eur. J. Clin. Microbiol. Infect. Dis. 2010, 29, 1297–1299. [Google Scholar] [CrossRef] [PubMed]
- Oteo, J.; Cercenado, E.; Fernández-Romero, S.; Saéz, D.; Padilla, B.; Zamora, E.; Cuevas, O.; Bautista, V.; Campos, J. Extended-spectrum-β-lactamase-producing Escherichia coli as a cause of pediatric infections: Report of a neonatal intensive care unit outbreak due to a CTX-M-14-producing strain. Antimicrob. Agents Chemother. 2012, 56, 54–58. [Google Scholar] [CrossRef] [PubMed]
- Alvarez, M.; Tran, J.H.; Chow, N.; Jacoby, G.A. Epidemiology of Conjugative Plasmid-Mediated AmpC β-Lactamases in the United States. Antimicrob. Agents Chemother. 2004, 48, 533–537. [Google Scholar] [CrossRef] [PubMed]
- Jacoby, G.A. AmpC -Lactamases. Clin. Microbiol. Rev. 2009, 22, 161–182. [Google Scholar] [CrossRef]
- Oteo, J.; Cercenado, E.; Cuevas, Ó.; Bautista, V.; Delgado-Iribarren, A.; Orden, B.; Pérez-Vázquez, M.; García-Cobos, S.; Campos, J. AmpC β-lactamases in Escherichia coli: Emergence of CMY-2-producing virulent phylogroup D isolates belonging mainly to STs 57, 115, 354, 393, and 420, and phylogroup B2 isolates belonging to the international clone O25b-ST131. Diagn. Microbiol. Infect. Dis. 2010, 67, 270–276. [Google Scholar] [CrossRef] [PubMed]
- Paterson, D.L.; Bonomo, R.A. Extended-Spectrum -Lactamases: a Clinical Update. Clin. Microbiol. Rev. 2005, 18, 657–686. [Google Scholar] [CrossRef] [PubMed]
- Bajaj, P.; Singh, N.S.; Virdi, J.S. Escherichia coli β-Lactamases: What Really Matters. Front. Microbiol. 2016, 7, 1–14. [Google Scholar] [CrossRef] [PubMed]
- Gupta, V. An update on newer beta-lactamases. Indian J. Med. Res. 2007, 126, 417–427. [Google Scholar]
- Amador, P.; Prudêncio, C.; Vieira, M.; Ferraz, R.; Fonte, R.; Silva, N.; Coelho, P.; Fernandes, R. β-lactamases in the biochemistry and molecular biology laboratory. Biochem. Mol. Biol. Educ. 2009, 37, 301–306. [Google Scholar]
- Meireles, D.; Leite-Martins, L.; Bessa, L.J.; Cunha, S.; Fernandes, R.; de Matos, A.; Manaia, C.M.; Martins da Costa, P. Molecular characterization of quinolone resistance mechanisms and extended-spectrum β-lactamase production in Escherichia coli isolated from dogs. Comp. Immunol. Microbiol. Infect. Dis. 2015, 41, 43–48. [Google Scholar] [CrossRef] [PubMed]
- Fernandes, R.; Vieira, M.; Ferraz, R.; Prudêncio, C. Bloodstream infections caused by multidrug-resistant Enterobacteriaceae: report from two Portuguese hospitals. J. Hosp. Infect. 2008, 70, 93–95. [Google Scholar] [CrossRef] [PubMed]
- Fernandes, R.; Prudêncio, C. Post-surgical wound infections involving Enterobacteriaceae with reduced susceptibility to β-lactams in two Portuguese hospitals. Int. Wound J. 2010, 7, 508–514. [Google Scholar] [CrossRef] [PubMed]
- CLSI Performance Standards for Antimicrobial Susceptibility Testing, 26th ed.; CLSI supplement M100S; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2016.
- Polsfuss, S.; Bloemberg, G.V.; Giger, J.; Meyer, V.; Bottger, E.C.; Hombach, M. Practical Approach for reliable detection of ampc beta-lactamase-producing Enterobacteriaceae. J. Clin. Microbiol. 2011, 49, 2798–2803. [Google Scholar] [CrossRef] [PubMed]
- Dallenne, C.; da Costa, A.; Decré, D.; Favier, C.; Arlet, G. Development of a set of multiplex PCR assays for the detection of genes encoding important β-lactamases in Enterobacteriaceae. J. Antimicrob. Chemother. 2010, 65, 490–495. [Google Scholar] [CrossRef] [PubMed]
- Fernandes, R.; Amador, P.; Oliveira, C.; Prudêncio, C. Molecular characterization of ESBL-producing Enterobacteriaceae in northern Portugal. Sci. World J. 2014, 2014, 782897. [Google Scholar] [CrossRef] [PubMed]
- Baudry, P.J.; Mataseje, L.; Zhanel, G.G.; Hoban, D.J.; Mulvey, M.R. Characterization of plasmids encoding CMY-2 AmpC β-lactamases from Escherichia coli in Canadian intensive care units. Diag. Microbiol. Infect. Dis. 2009, 65, 379–383. [Google Scholar] [CrossRef] [PubMed]
- Shannon, E.; Abu-Ghannam, N. Antibacterial derivatives of marine algae: An Overview of pharmacological mechanisms and applications. Mar. Drugs 2016, 14, 81. [Google Scholar] [CrossRef] [PubMed]
- Bradford, P.A. Extended-spectrum -lactamases in the 21st century: Characterization, epidemiology, and detection of this important resistance threat. Clin. Microbiol. Rev. 2001, 14, 933–951. [Google Scholar] [CrossRef]
- Kaye, K.S.; Pogue, J.M. Infections Caused by Resistant Gram-Negative Bacteria: Epidemiology and Management. Pharmacother. J. Hum. Pharmacol. Drug Therap. 2015, 35, 949–962. [Google Scholar] [CrossRef]
- Manchanda, V. Occurrence and detection of AmpC beta-lactamases among gram-negative clinical isolates using a modified three-dimensional test at Guru Tegh Bahadur Hospital, Delhi, India. J. Antimicrob. Chemother. 2003, 51, 415–418. [Google Scholar] [CrossRef] [PubMed]
- Pandey, A.; Rawat, A.; Handa, S.; Thakuria, B.; Handa, D.; Asthana, A. Evaluation of phenotypic tests for the detection of AmpC beta-lactamase in clinical isolates of Escherichia coli. Indian J. Pathol. Microbiol. 2013, 56, 135. [Google Scholar] [CrossRef] [PubMed]
- Fernandes, R.; Gestoso, Á.; Freitas, J.M.; Santos, P.; Prudêncio, C. High resistance to fourth-generation cephalosporins among clinical isolates of Enterobacteriaceae producing extended-spectrum β-lactamases isolated in Portugal. Int. J. Antimicrob. Agents 2009, 33, 184–185. [Google Scholar] [CrossRef] [PubMed]
- Tan, T.Y.; Ng, L.S.Y.; He, J.; Koh, T.H.; Hsu, L.Y. Evaluation of screening methods to detect plasmid-mediated AmpC in Escherichia coli, Klebsiella pneumoniae, and Proteus mirabilis. Antimicrob. Agents Chemother. 2009, 53, 146–149. [Google Scholar] [CrossRef] [PubMed]
- Pimenta, A.C.; Martins, J.M.; Fernandes, R.; Moreira, I.S. Ligand-induced structural changes in TEM-1 probed by molecular dynamics and relative binding free energy calculations. J. Chem. Inf. Model. 2013, 53. [Google Scholar] [CrossRef] [PubMed]
- Woodford, N.; Reddy, S.; Fagan, E.J.; Hill, R.L.R.; Hopkins, K.L.; Kaufmann, M.E.; Kistler, J.; Palepou, M.F.I.; Pike, R.; Ward, M.E.; et al. Wide geographic spread of diverse acquired AmpC β-lactamases among Escherichia coli and Klebsiella spp. in the UK and Ireland. J. Antimicrob. Chemother. 2007, 59, 102–105. [Google Scholar] [CrossRef] [PubMed]
- Sun, L.; Xu, J.; He, F. Draft genome sequence of an NDM-5, CTX-M-15 and OXA-1 co-producing Escherichia coli ST167 clinical strain isolated from a urine sample. J. Glob. Antimicrob. Resist. 2018, 14, 284–286. [Google Scholar] [CrossRef]
Figure 1. Diagram of the mutations of TEM extended-spectrum β-lactamases, compared to the TEM-1 sequence. Scheme based on available sequences and phenotype in β-Lactamase Data Base (BLDB; permission from authors ).

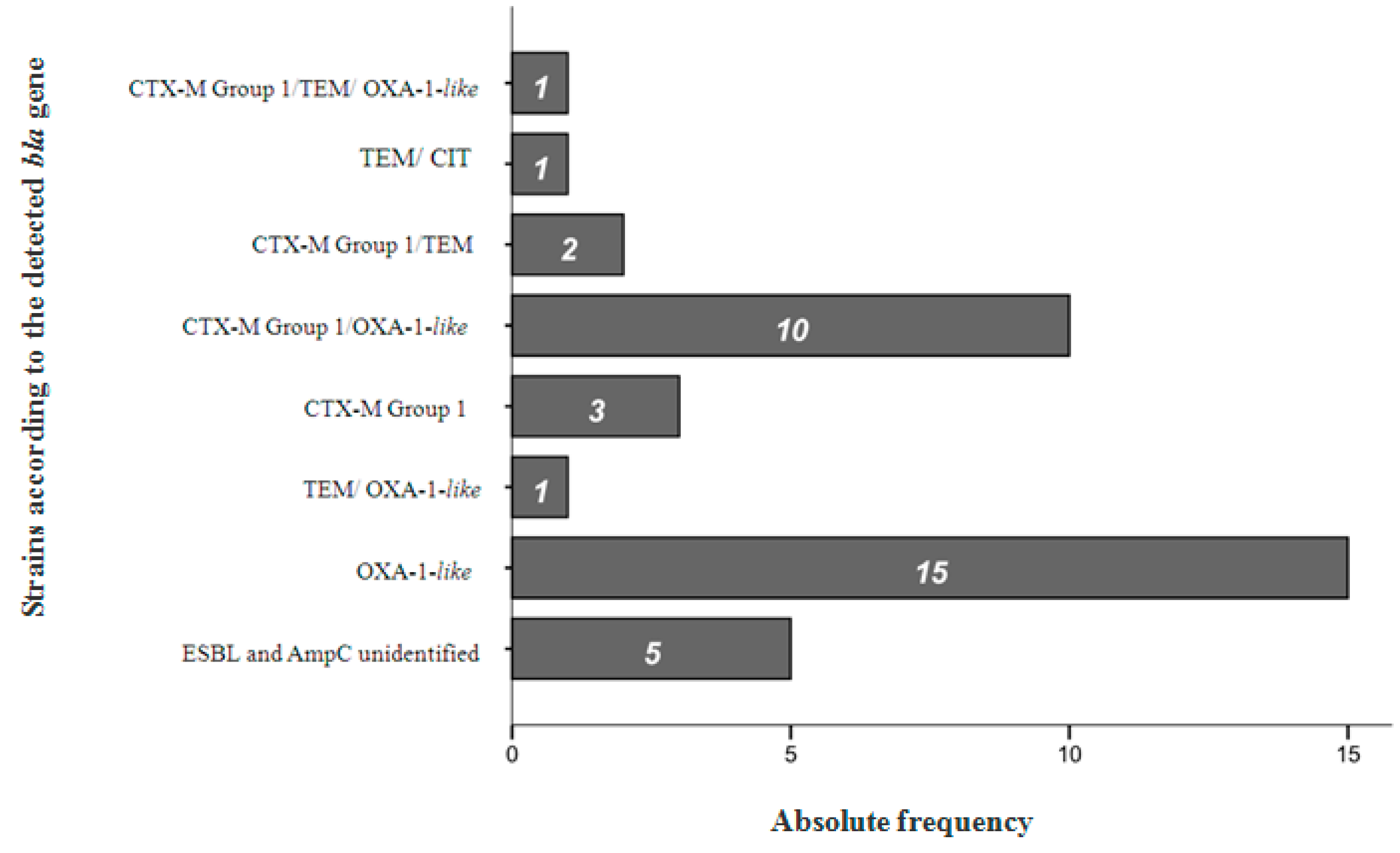

Figure 2. Characterization and frequency of strains sunder study in accordance with the detected bla gene.
Figure 3. Analysis of the amplified AmpC multiplex PCR products by agarose gel electrophoresis. MM = Molecular weight marker; CP1 = FOX positive control; CP2 = ACC positive control; CP3 = EBC positive control; CP4 = CIT positive control; CP5 = MOX positive control; CP6 = DHA positive control; E4—study strain.
Table 1. Sequences of primers used for extended-spectrum β-lactamases (ESBL) and AmpC bla genes in the present study. Adapted from a previous study .
|PCR Multiplex||Targeted β-lactamases||Primer’s Name||Sequence (5′-3′)||Product’s Size (bp)|
|PCR multiplex TSO (TEM, SHV, and OXA-1-like)||TEM variants (including TEM-1 and TEM-2)||MultiTSO-T_for||CATTTCCGTGTCGCCCTTATTC||800|
|SHV variants (including SHV-1)||MultiTSO-S_for||AGCCGCTTGAGCAAATTAAAC||713|
|OXA-1-like variants OXA-1, OXA-4 and OXA-30||MultiTSO-O_for||GGCACCAGATTCAACTTTCAAG||564|
|PCR multiplex CTX-M (CTX-M Group 1, CTX-M Group 2, and CTX-M Group 9)||CTX-M Group 1 variants (including CTX-M-1, CTX-M-3 and CTX-M-15)||MultiCTX-MGrp1_for||TTAGGAARTGTGCCGCTGYAa||688|
|CTX-M Group 2 variants||MultiCTX-MGrp2_for||CGTTAACGGCACGATGAC||404|
|CTX-M Group 9 variants (including CTX-M-9 and CTX-M-14)||MultiCTX-MGrp9_for||TCAAGCCTGCCGATCTGGT||561|
|PCR CTX-M Group 8/25||CTX-M Group 8/25 variants CTX-M-8, CTX-M-25, CTX-M-26, and CTX-M-39 to CTX-M-41||CTX-MGrp8/25_for||AACRCRCAGACGCTCTACa||326|
|PCR multiplex AmpC (ACC, FOX, MOX, DHA, CIT, and EBC)||ACC variants ACC-1 and ACC-2||MultiACC_for||CACCTCCAGCGACTTGTTAC||346|
|FOX variants FOX-1 to FOX-5||MultiFOX_for||CTACAGTGCGGGTGGTTT||162|
|MOX variants MOX-1, MOX-2, CMY-1, CMY-8 to CMY-11, and CMY-19||MultiMOX_for||GCAACAACGACAATCCATCCT||895|
|DHA variants DHA-1 and DHA-2||MultiDHA_for||TGATGGCACAGCAGGATATTC||997|
|CIT variants LAT-1 to LAT-3, BIL-1, CMY-2 to CMY-7, CMY-12 to CMY-18, and CMY-21 to CMY-23||MultiCIT_for||CGAAGAGGCAATGACCAGAC||538|
|EBC variants ACT-1 and MIR-1||MultiEBC_for||CGGTAAAGCCGATGTTGCG||683|
a Y = T or C; R = A or G; PCR—Polymerase chain reaction; bp—base pairs.
Table 2. Phenotypic and molecular characterization of Escherichia coli strains isolated from Serra da Estrela (Portugal) resistant to ampicillin (AMP).
|MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||MIC (mg/L)||ratio||ratio||(mm)||ratio|
|A6||Urine||HAI||≥32||R||4||≤4||>64||R||>64||R||16||R||≤0,5||≤0,25||≤1||≥4||R||≥8||R||≤0,5||≤20||P.Z.||+||>8||+||24||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|B3||Urine||HAI||≥32||R||≥32||R||≥128||R||>64||R||>64||R||≥64||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≤20||P.Z.||+||P.Z.||+||24||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|B7||Respiratory||HAI||≥32||R||16||8||>64||R||>64||R||≥64||R||≤0,5||≤0,25||≤1||≥4||R||≥8||R||≤0,5||≤20||P.Z.||+||P.Z.||+||24||<8||CTX-M Grp1 + TEM||N.D.|
|C1||Urine||HAI||≥32||R||≥32||R||≥128||R||>64||R||>64||R||16||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||>8||+||>8||+||24||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|C2||Urine||HAI||≥32||R||8||≤4||>64||R||>64||R||16||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||>8||+||P.Z.||+||24||<8||CTX-M Grp1 + TEM + OXA-1-like||N.D.|
|C8||Skin and soft tissue||HAI||≥32||R||≥32||R||64||>64||R||>64||R||16||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||>8||+||>8||+||15||+||<8||OXA-1-like||N.D.|
|D2||Skin and soft tissue||HAI||≥32||R||16||32||>64||R||>64||R||≥64||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||1||≥320||R||P.Z.||+||P.Z.||+||15||+||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|D3||Skin and soft tissue||HAI||≥32||R||16||64||>64||R||>64||R||≥64||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≤20||P.Z.||+||P.Z.||+||23||<8||TEM + OXA-1-like||N.D.|
|D4||Skin and soft tissue||HAI||≥32||R||≥32||R||16||>64||R||>64||R||16||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||>8||+||P.Z.||+||17||+||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|D5||Urine||HAI||≥32||R||≥32||R||≥128||R||>64||R||>64||R||≥64||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||>8||+||>8||+||17||+||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|D7||Skin and soft tissue||HAI||≥32||R||≥32||R||≥128||R||>64||R||>64||R||16||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||P.Z.||+||>8||+||17||+||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|D8||Urine||HAI||≥32||R||8||≤4||>64||R||>64||R||16||R||≤0,5||≤0,25||≤1||≥4||R||≥8||R||≤0,5||≥320||R||P.Z.||+||P.Z.||+||25||<8||CTX-M Grp1 + TEM||N.D.|
|D9||Urine||CAI||≥32||R||≥32||R||≥128||R||>64||R||>64||R||16||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||>8||+||>8||+||17||+||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|E2||Skin and soft tissue||HAI||≥32||R||≥32||R||64||>64||R||>64||R||≥64||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||>8||+||>8||+||17||+||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|E3||Urine||HAI||≥32||R||16||16||>64||R||>64||R||16||R||≤0,5||≤0,25||≥16||R||≥4||R||≥8||R||≤0,5||≥320||R||P.Z.||+||>8||+||15||+||<8||CTX-M Grp1 + OXA-1-like||N.D.|
|E4||Skin and soft tissue||HAI||≥32||R||≥32||R||32||>64||R||8||R||16||R||≤0,5||≤0,25||≥16||R||0,5||1||≤0,5||≤20||Inconclusive||Inconclusive||9||+||>8||+||TEM||CIT|
Legend: AMC = amoxicillin/clavulanic acid; AMP = ampicillin; CIP = ciprofloxacin; CN-cefotetan; CNI = cefotetan/cloxacillin; CT = cefotaxime; CTL = cefotaxime/clavulanic acid; CXM = cefuroxime; ERT = ertapenem; FOX = cefoxitin; GEN = gentamicin; LVX = levofloxacin; MEM = meropenem; SXT = trimethoprim/sulfamethoxazole; TZ = ceftazidime; TZL = ceftazidime/clavulanic acid; TZP = piperacillin/tazobactam. R or I-resistant or intermediate susceptibility to the antimicrobial agent or combination; N.D. = not determined; + = positive test; HAI = Healthcare-associated infection; CAI = Community-acquired infection.
