Proceedings 2017, 1(4), 624; doi:10.3390/proceedings1040624

Hysteresis and Material Effects of Printed Strain Gauges Embedded in Organic Coatings

1
Institute for Microelectronics and Microsensors, Johannes Kepler University Linz, Linz, Austria
2
R & D voestalpine Stahl GmbH, Linz, Austria
Presented at the Eurosensors 2017 Conference, Paris, France, 3–6 September 2017.
*
Author to whom correspondence should be addressed.
Published: 17 August 2017
Download PDF [321 KB, uploaded 13 October 2017]

Abstract

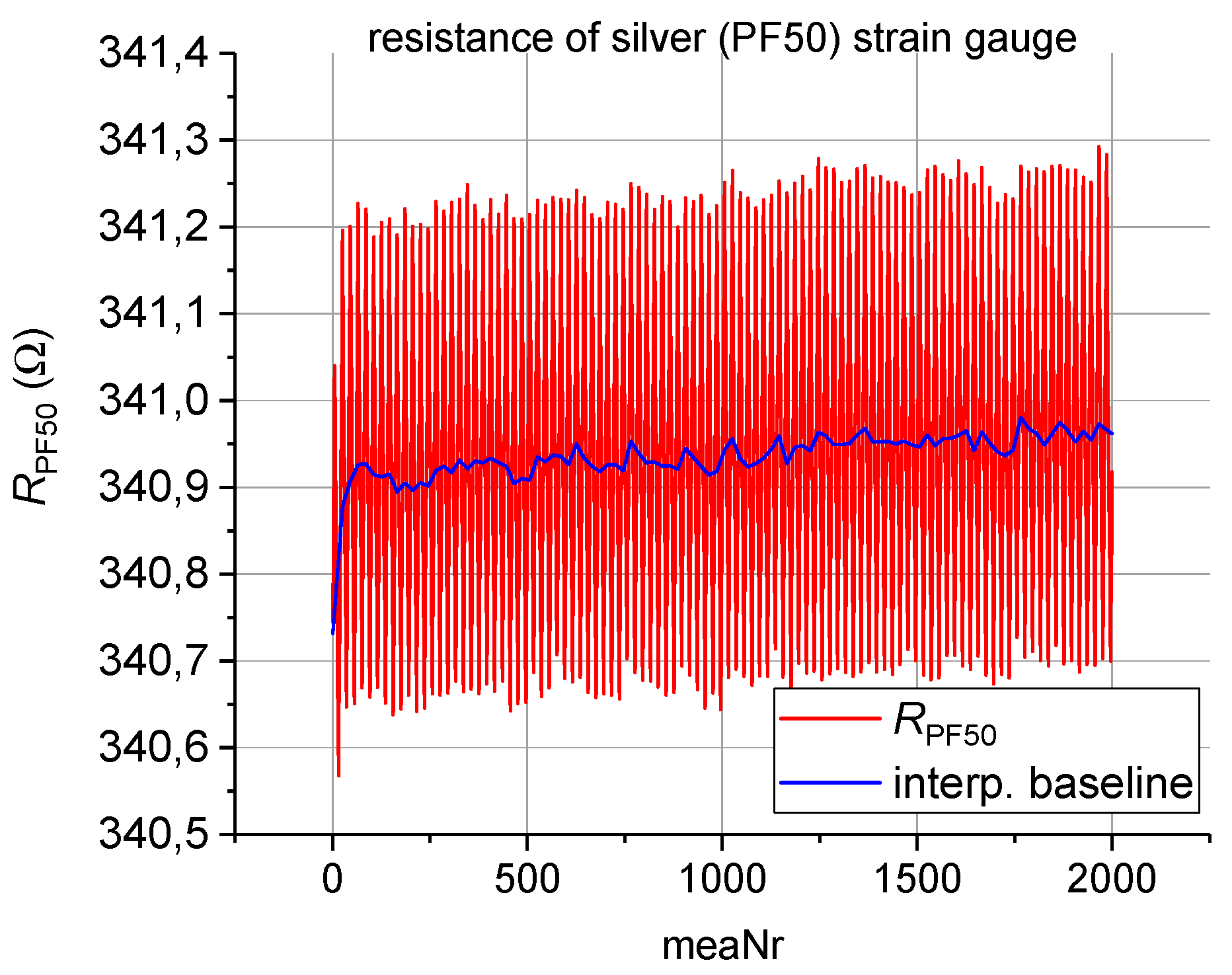

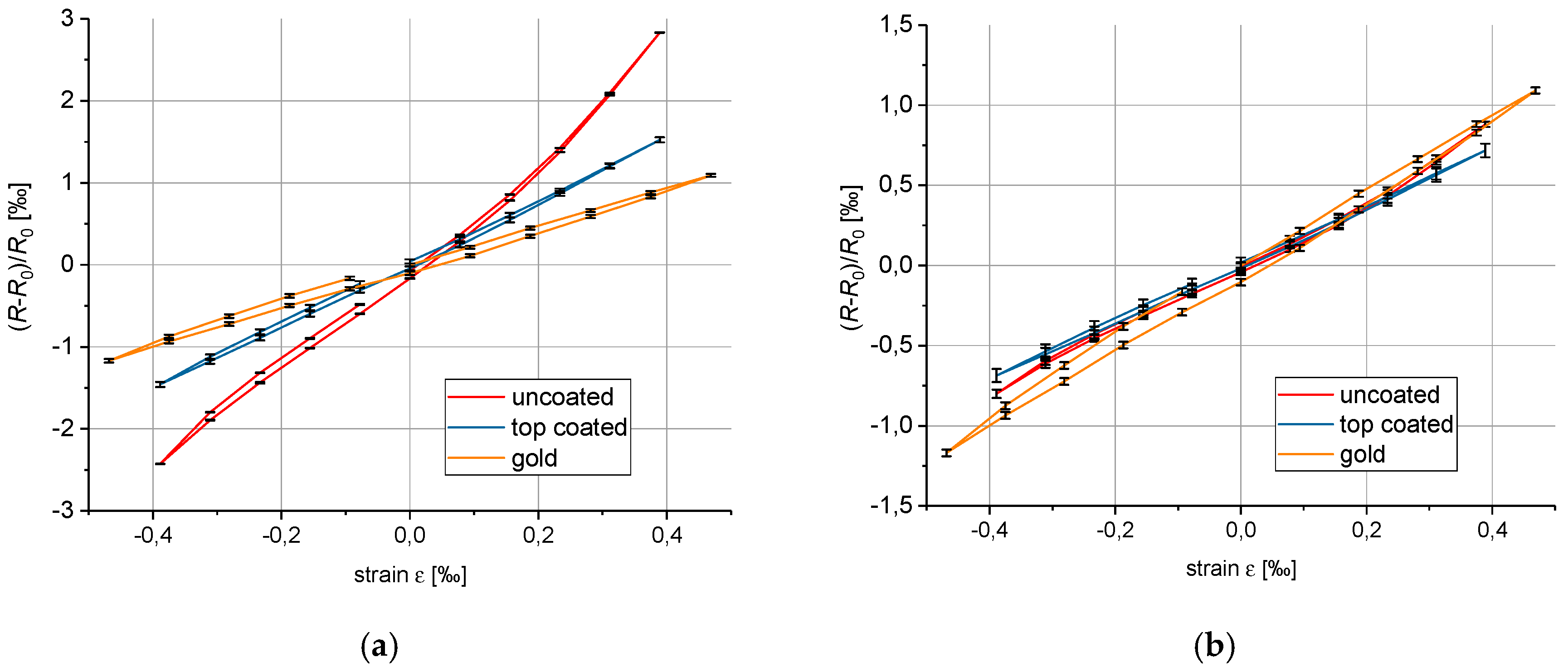

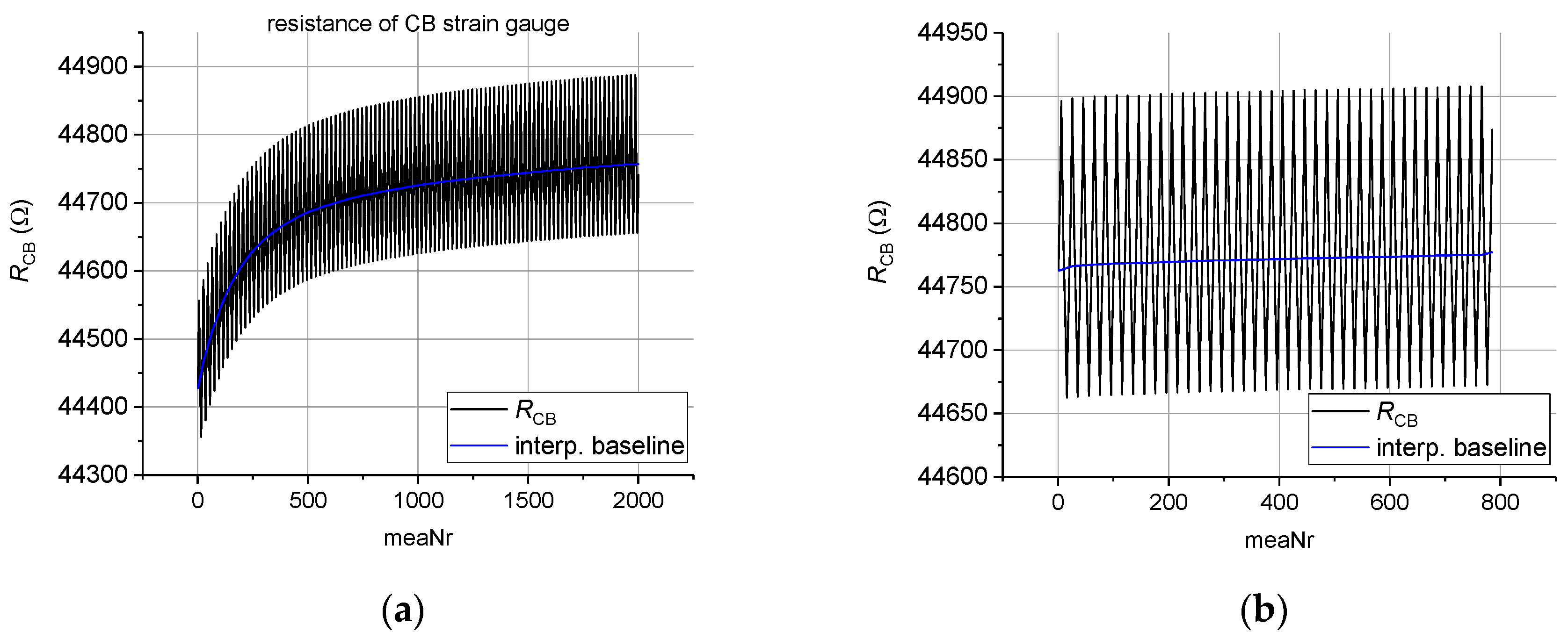

This work reports on the hysteresis behavior and an initial baseline drift of printed strain gauges embedded in organic coating layers on sheet steel that we recently introduced. We subsequently investigated the performance over an extended period of time, which revealed interesting and partially unexpected material properties of printed strain gauges made from silver and carbon. Both silver- and carbon-based strain gauges show a hysteresis behavior of the gauge factor and non-negligible nonlinear characteristics. Furthermore, the carbon-based sensors show a strong initial base line drift within the first 50–100 cycles. All three effects, namely hysteresis, nonlinear gauge factor and initial base line drift, are confirmed within their respective standard deviations.
Keywords: printed sensors; embedded sensors; printed electronics; printed strain gauges; non-linear temperature coefficients printed sensors; embedded sensors; printed electronics; printed strain gauges; non-linear temperature coefficients
