Proceedings 2017, 1(4), 372; doi:10.3390/proceedings1040372

Design, Modeling, and Characterization of a Bionically Inspired Integrated Micro-Flapper for Cooling and Venting Applications

1
Institute for Physics of Electrotechnology, Technical University of Munich, 80333 München, Germany
2
Micromechanical Systems Group, Technical University Ilmenau, 98693 Ilmenau, Germany
3
Fraunhofer-Einrichtung für Mikrosysteme und Festkörper-Technologien EMFT, Munich, Germany
Presented at the Eurosensors 2017 Conference, Paris, France, 3–6 September 2017.
*
Author to whom correspondence should be addressed.
Published: 23 August 2017
Download PDF [536 KB, uploaded 23 August 2017]

Abstract

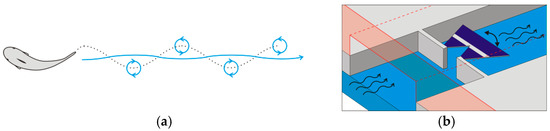

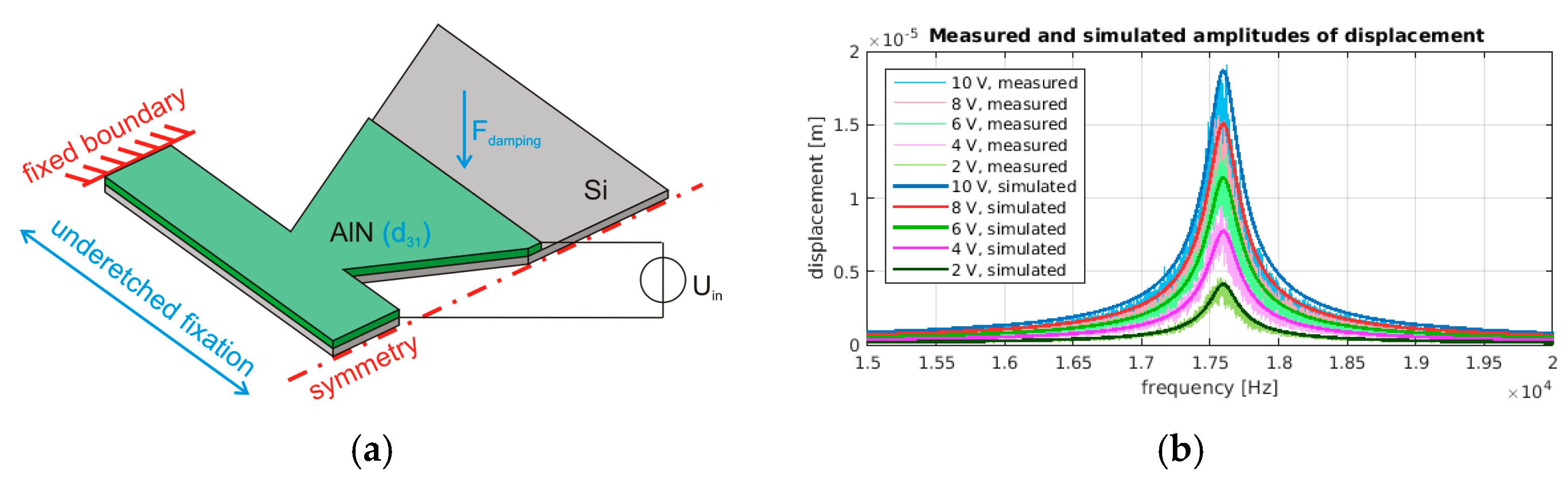

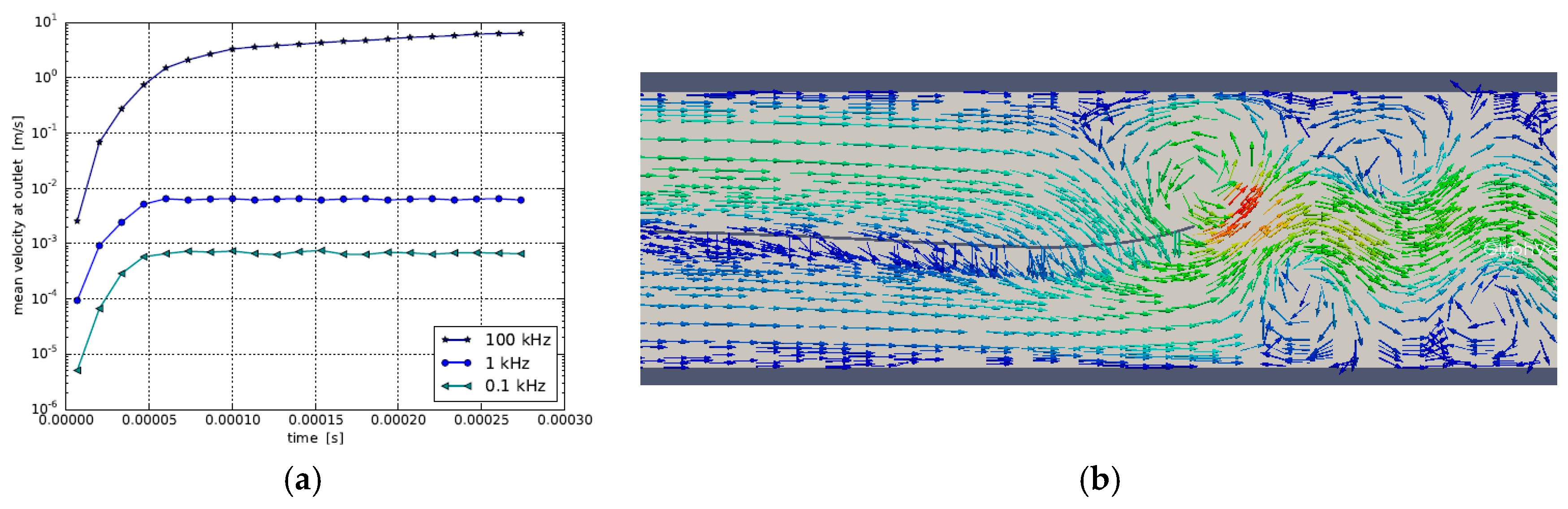

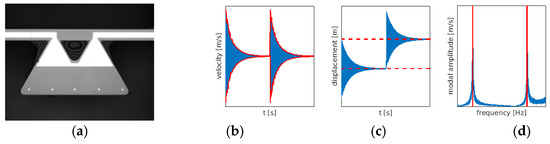

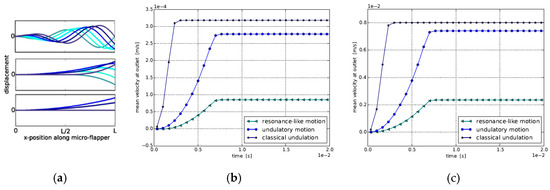

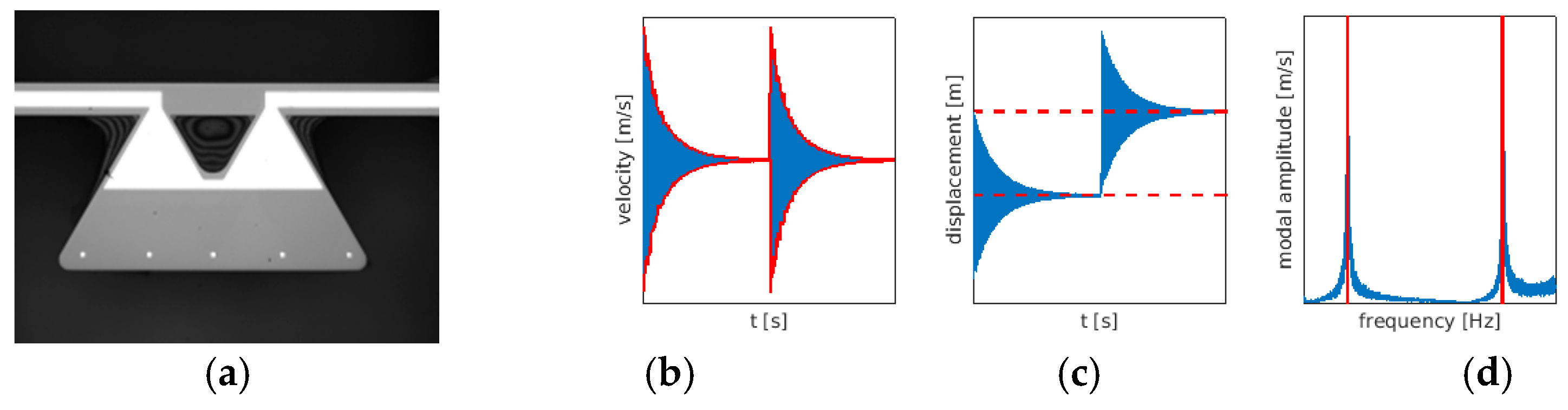

A novel, integrated micromechanical actuator based on the principle of undulatory fish locomotion and intended for efficient on-chip cooling or venting applications is conceived and designed for an aluminum nitride-based thin-film technology applying coupled piezoelectric, mechanical, and fluidic analyses. The results of the investigations prove that an undulatory motion of the fin-like micro-flapper yields a significant higher, directed fluidic net flow compared to resonant-like motion. First prototypes have been manufactured and characterized applying laser Doppler vibrometry (LDV).
Keywords: piezoelectricity; fluidic actuator; laser doppler vibrometry; thin-film technology piezoelectricity; fluidic actuator; laser doppler vibrometry; thin-film technology
