Inventions 2017, 2(3), 13; https://doi.org/10.3390/inventions2030013

Modeling and Analysis of Contact Conditions during NC-Form Grinding of Cutting Edges

Institute for Machine Tools and Factory Management, Technical University Berlin, 10623 Berlin, Germany
*
Author to whom correspondence should be addressed.
Received: 31 May 2017 / Revised: 28 June 2017 / Accepted: 29 June 2017 / Published: 5 July 2017
(This article belongs to the Special Issue Modern Grinding Technology and Systems)
View Full-Text   |   Download PDF [5372 KB, uploaded 5 July 2017]   |

Abstract

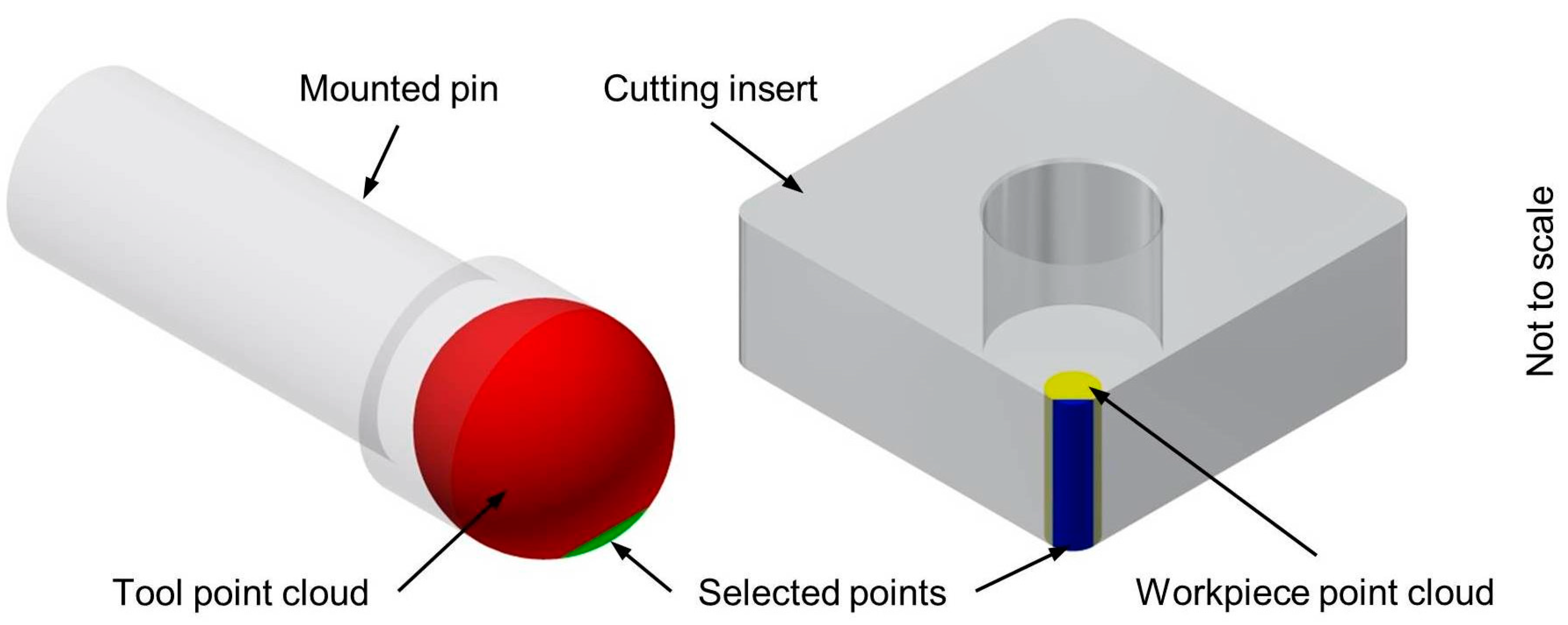

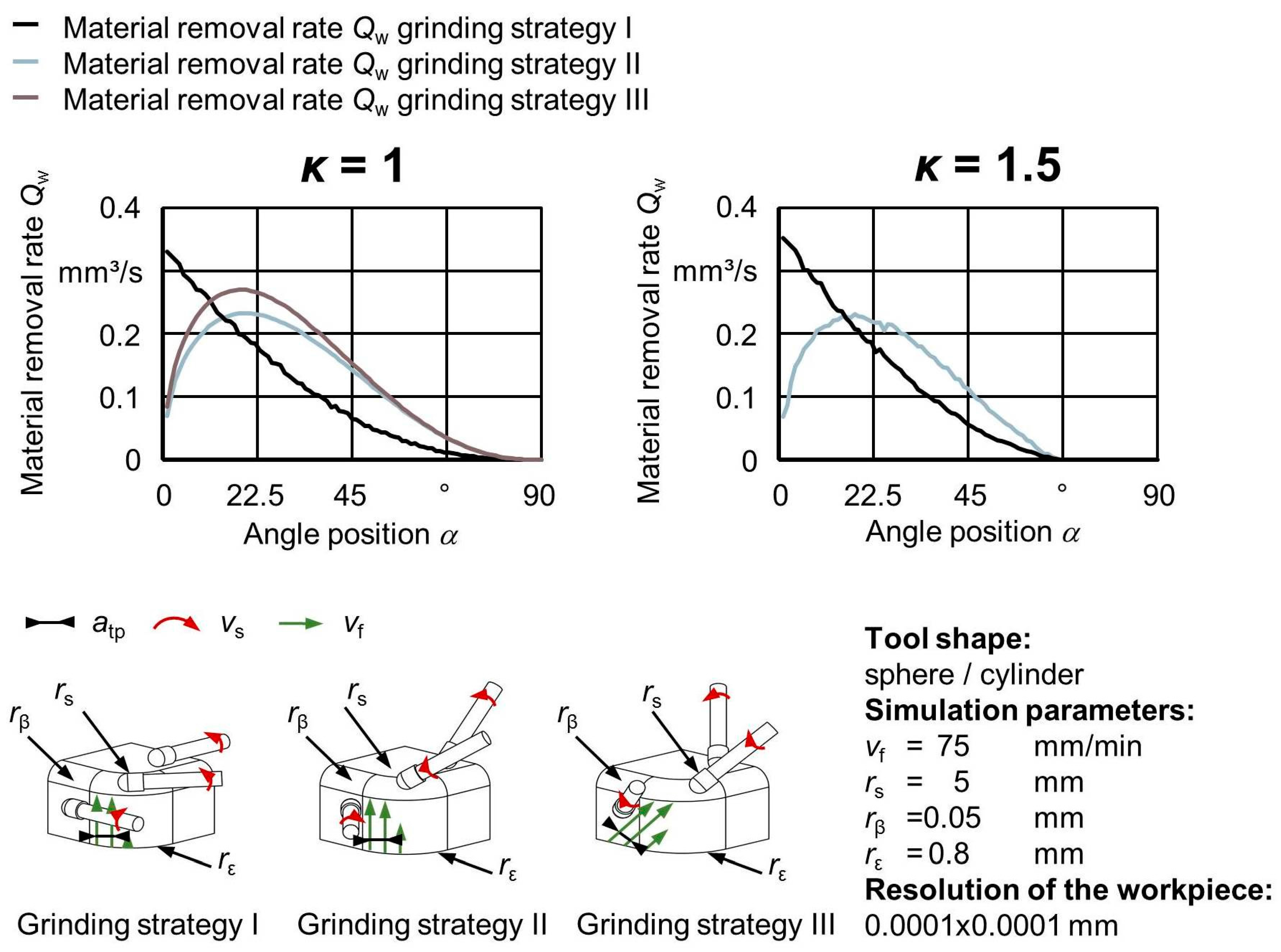

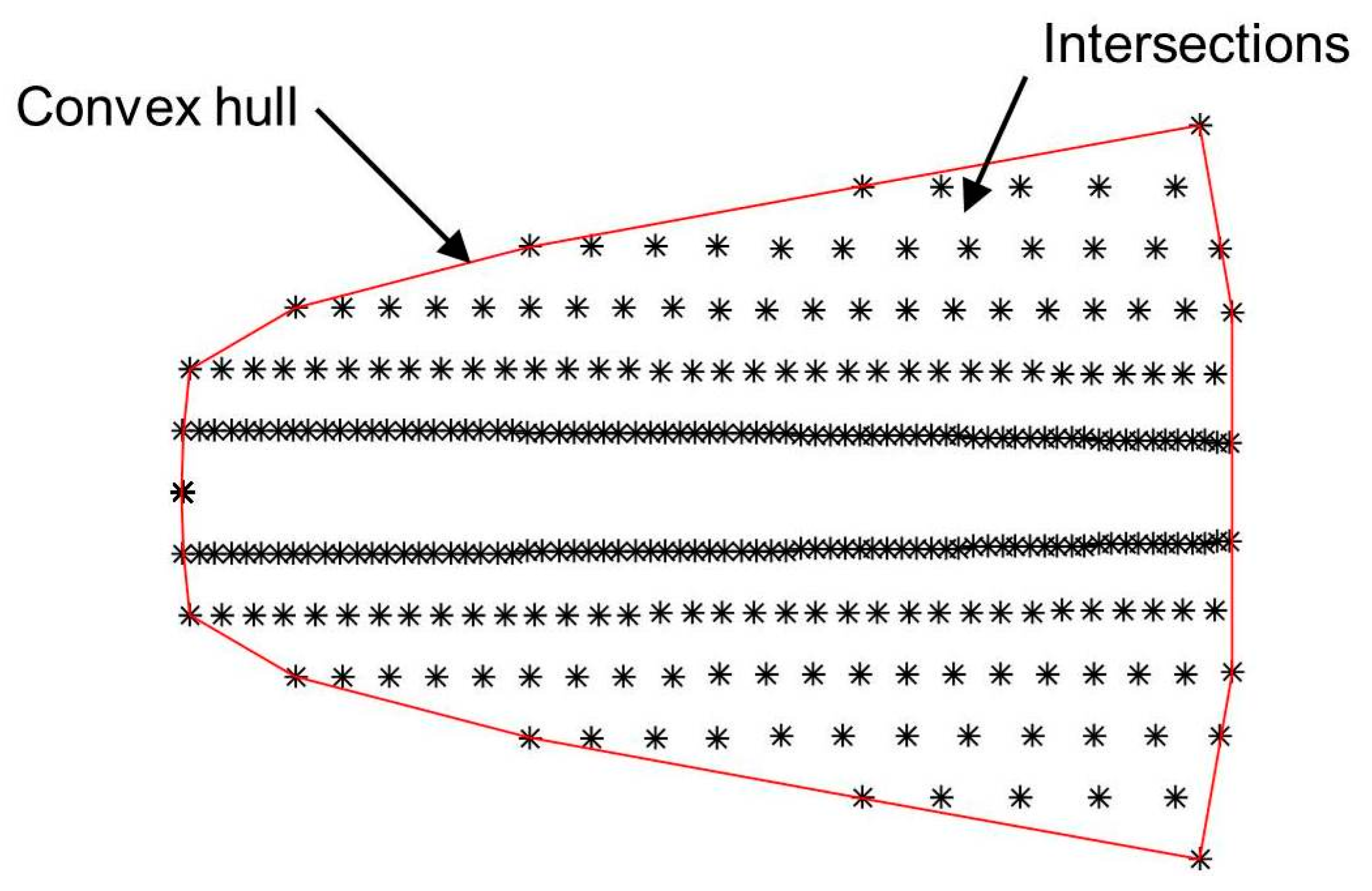

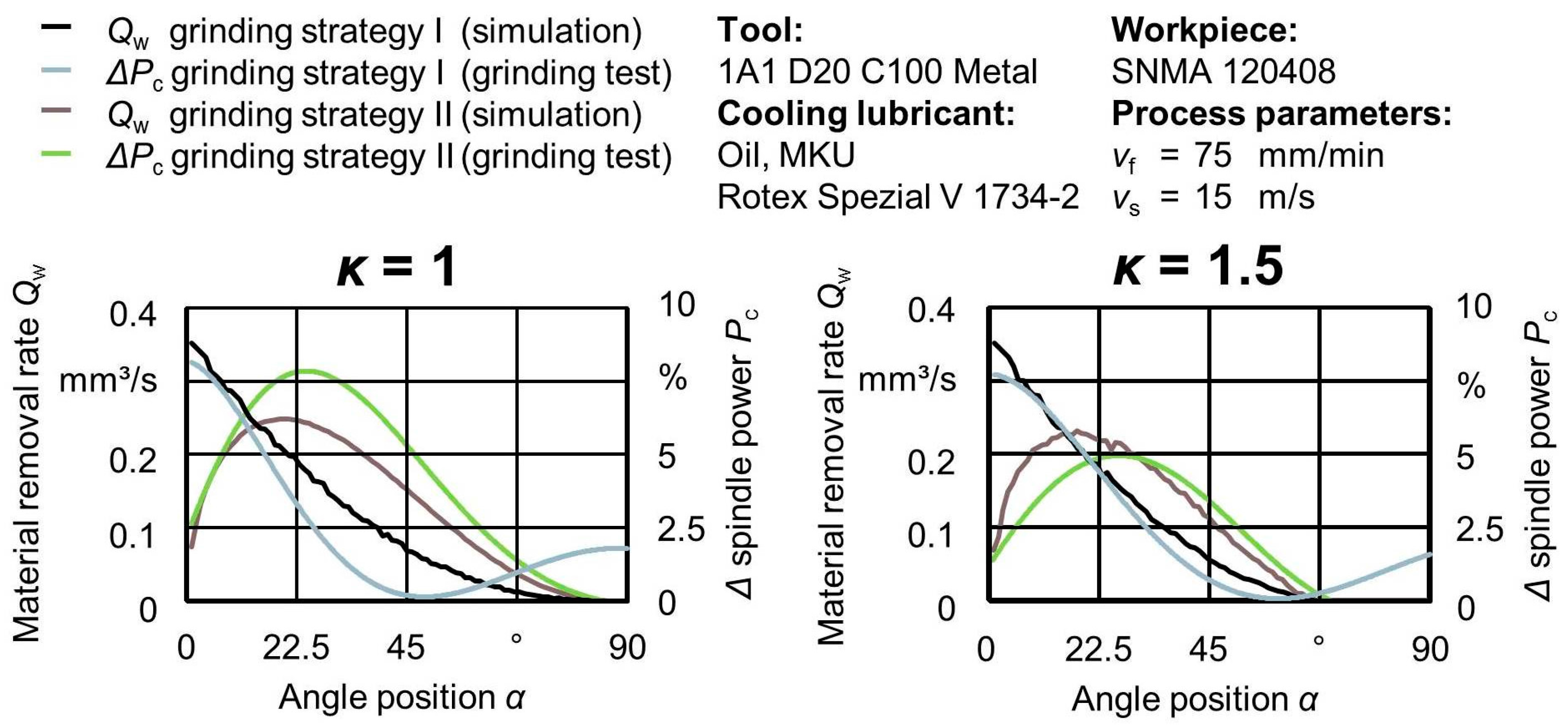

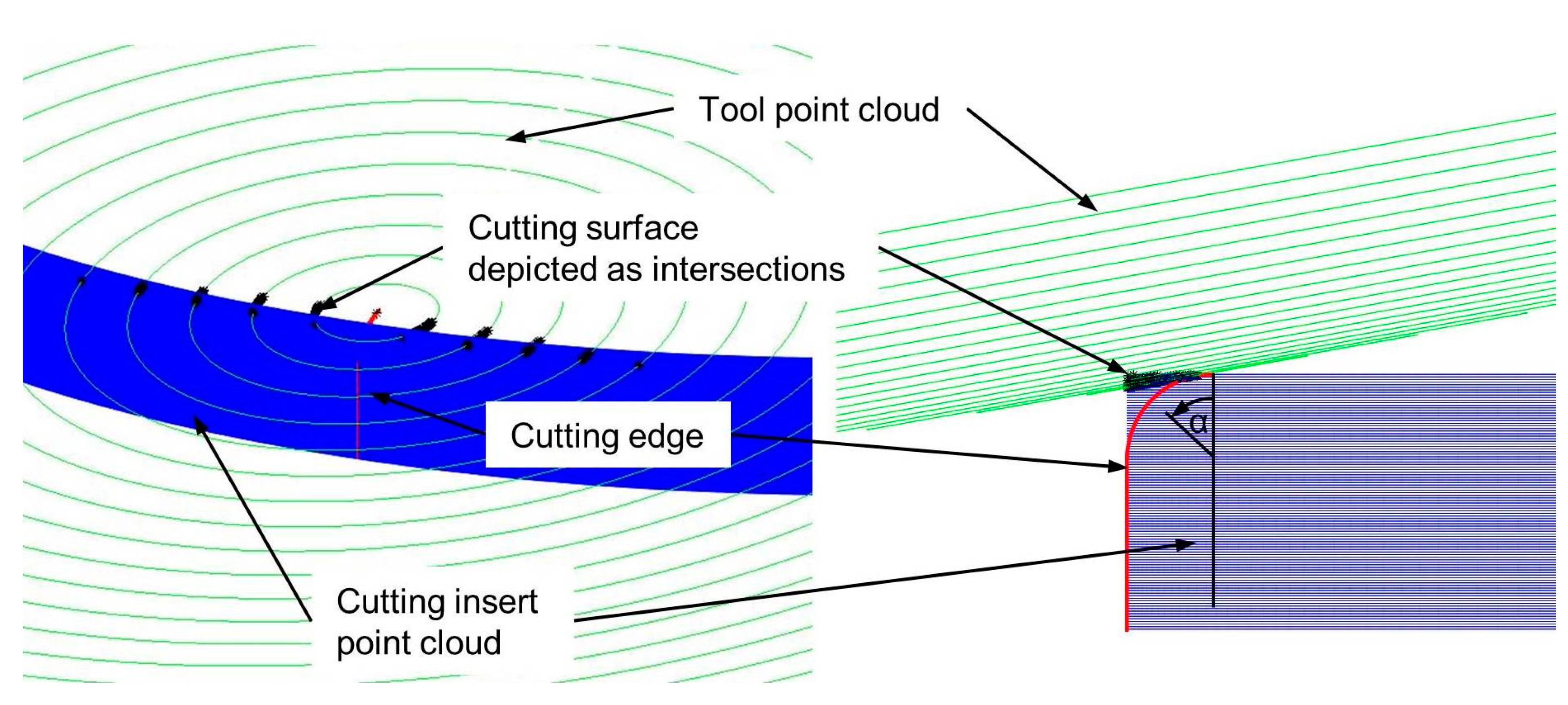

Due to increasing demands on cutting tools, cutting edge preparation is of high priority because of its influence on the tool life. Current cutting edge preparation processes are mostly limited to generating simple roundings on the cutting edge. Multi-axis high precision form grinding processes offer great potential to generate defined cutting edge microgeometries. Knowledge about the relation between grinding strategy and material removal rate can achieve improved work results with regard to higher precision of shape and dimensional accuracy as well as enhanced cutting edge quality. Therefore, a kinematic-geometric model was developed in order to analyze the complex contact conditions during grinding cutting edge microgeometries by using a simulation approach based on the intersection of geometric bodies. The subsequent grinding tests largely validated the utilized simulation approach. View Full-Text
Keywords: NC-form grinding; cutting edge; contact conditions NC-form grinding; cutting edge; contact conditions
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Uhlmann, E.; Bruckhoff, J. Modeling and Analysis of Contact Conditions during NC-Form Grinding of Cutting Edges. Inventions 2017, 2, 13.
