Article

Cellulase Production from Bacillus subtilis SV1 and Its Application Potential for Saccharification of Ionic Liquid Pretreated Pine Needle Biomass under One Pot Consolidated Bioprocess

School of Biotechnology, University of Jammu, Bawe Wali Rakh, Jammu 180006, India
*
Author to whom correspondence should be addressed.
Fermentation 2016, 2(4), 19; https://doi.org/10.3390/fermentation2040019
Submission received: 29 August 2016 / Revised: 3 November 2016 / Accepted: 8 November 2016 / Published: 23 November 2016
(This article belongs to the Special Issue Biofuels and Biochemicals Production)

Abstract

:
Pretreatment is the requisite step for the bioconversion of lignocellulosics. Since most of the pretreatment strategies are cost/energy intensive and environmentally hazardous, there is a need for the development of an environment-friendly pretreatment process. An ionic liquid (IL) based pretreatment approach has recently emerged as the most appropriate one as it can be accomplished under ambient process conditions. However, IL-pretreated biomass needs extensive washing prior to enzymatic saccharification as the enzymes may be inhibited by the residual IL. This necessitated the exploration of IL-stable saccharification enzymes (cellulases). Current study aims at optimizing the bioprocess variables viz. carbon/nitrogen sources, medium pH and fermentation time, by using a Design of Experiments approach for achieving enhanced production of ionic liquid tolerant cellulase from a bacterial isolate Bacillus subtilis SV1. The cellulase production was increased by 1.41-fold as compared to that under unoptimized conditions. IL-stable cellulase was employed for saccharification of IL (1-ethyl-3-methylimidazolium methanesulfonate) pretreated pine needle biomass in a newly designed bioprocess named as “one pot consolidated bioprocess” (OPCB), and a saccharification efficiency of 65.9% was obtained. Consolidated bioprocesses, i.e., OPCB, offer numerous techno-economic advantages over conventional multistep processes, and may potentially pave the way for successful biorefining of biomass to biofuel, and other commercial products.

1. Introduction

Ever-increasing world demand of energy, fast depleting fossil fuel reserves, and climate change issues have motivated investigations for potential renewable sources of energy [1]. Among different alternatives, lignocellulose biomass (LB) may be one of the most appropriate renewable resources for the production of energy/biofuels [2]. LB is composed of cellulose, hemicellulose and lignin in a densely compact form which in fact poses a major hurdle in its conversion into simple fermentable sugars that, in turn, can be used for production of biofuels/chemicals and other commercial products [3]. Extensive pretreatments are required for disrupting the recalcitrance of LB and to make the cellulose accessible to saccharifying enzymes [4,5]. However, most of the pretreatment approaches are expensive, tedious, energy intensive, and need harsh conditions like high temperature, pressure, extreme pH, usage of hazardous chemicals, can cause sugar loss and may produce microbial inhibitors [6] that may be detrimental to the fermentation microorganisms [7]. Therefore, there is a need for development of environmentally-benign pretreatment methods that may be executed under ambient process conditions.
Pretreatment of LB with ionic liquid(s) may represent a relatively novel and efficient approach for reducing recalcitrance of biomass; this approach proposes several merits over the traditional pretreatment methods such as it can be accomplished under ambient process conditions, does not require high temperature/pressure/extremes of pH or harmful chemicals, does not produce inhibitors, does not cause sugar loss, and, finally, it is cost and energy efficient [7,8]. However, the IL-pretreated biomass needs ample washing prior to enzymatic hydrolysis for removal of residual IL as the latter is considered as a strong inhibitor of enzymes that are used for saccharification. However, extensive washing of IL-pretreated biomass leads to loss of sugar, wastage of water and consequential escalated generation of effluent, and this overall undermines the efficacy of ILs as LB pretreatment agents [5]. The washing step could be obviated should the ionic liquid tolerant saccharification enzymes viz. cellulases and others are available. Considering that the techno-economic sustainability and success of the IL based pretreatment approach is substantially determined by the availability of IL-stable cellulases, extensive research attempts are being undertaken for IL-stable cellulases [9]. Several microorganisms have been reported to produce cellulases that are tolerant towards ionic liquids, viz. Bacillus subtilis [4], Paenibacillus tarimensis [10], Pseudoalteromonas sp. [11], and from metagenomic sources [12]. Availability of ionic liquid tolerant cellulases may potentially be used for developing novel consolidated bioprocesses such as “one pot consolidated bioprocess” (OPCB). In OPCB, unit operations like pretreatment and saccharification, or pretreatment, saccharification, and fermentation are executed in a single reaction vessel. OPCB offers several advantages over a conventional multi-operational strategy such as cost effectiveness, high product recovery, and no or minimal sugar loss, among others. [13]. Consolidated bioprocesses may be operated at different levels like pretreatment and enzymatic saccharification of LB or pretreatment, enzymatic saccharification and sugar fermentation in a single vessel, either using single microorganism or microbial consortium [14,15,16].
The high cost of saccharifying enzymes viz. cellulases, xylanases and others is another hurdle for the success of LB-biofuel technology. Microbial sources are generally used for saccharifying enzymes production [17]. High cost is incurred due to usage of expensive carbon/nitrogen sources for growth of microorganisms for enzyme production [5]. The enzyme production cost may be reduced by usage of agro-residues as carbon/nitrogen sources for microbial growth and enzyme production [18,19]. Furthermore, the bioprocess optimization may enhance enzyme yield and overall process economy [20]. Design of Experiments (DoE) based optimization offers several advantages over the conventional one-variable-at-a-time (OVAT) optimization strategy [19]. One of the most commonly used DoE approaches is response surface methodology (RSM). RSM represents an effective and proficient tool for elucidation of processes involving multiple variables [21], and has been used extensively for cellulase production [19,20]. Nonetheless, limited studies have been done on DoE mediated optimization of process variables for producing ionic liquid tolerant cellulases [4,5].
Exploration of new LB resources for potential production of biofuels/chemicals has been a continuous process [6], and pine needle biomass (PNB) may represent an important feedstock [22]. In coniferous forests, accumulation of leaves of pine trees (pine needles) on soil causes multifaceted problems viz. destroys the nutrient dynamics of soil, affects the decomposition/mineralization of organic matter and the flora/fauna of soil; tannins released from pine needles may inhibit the growth of various beneficial soil microbes [5,22,23], and, finally, the dried heaps of pine needles may risk forest fires [22,23]. Pine needles are mainly composed of polysaccharides (cellulose, hemicelluloses) which can be hydrolysed into simple sugars, that in turn may be microbially fermented into valuable products of commercial importance like biofuel, biomaterials, energy, and other products (biorefining) [5,22,23]. Thus, PNB may be exploited as a resource that might help not only mitigate the problems associated with pine needle accumulation but might also realize the “valorization of waste”. Rare reports are available on usage of PNB as feedstock for production of biofuels /chemicals [5].
The current study aimed at DoE-based optimization for the production of IL-stable cellulase from Bacillus subtilis SV1 using agroindustrial residues as substrates, and its prospective for saccharification of PNB through OPCB.

2. Results and Discussion

2.1. Cellulolytic Bacteria

Primary screening showed that all the five bacterial isolates D1, J2, L10, SV1 and SV29 exhibited cellulolytic activity (Figure 1a). Secondary (quantitative) screening indicated that bacterial isolate SV1 produced maximum cellulase (CMCase) titre (2.201 IU/mL ± 0.06) after 72 h of fermentation, and was followed by isolates SV29 (1.574 IU/mL ± 0.035), L10 (1.115 IU/mL ± 0.06), D1 (1.102 IU/mL ± 0.05) and J2 (0.862 IU/mL ± 0.06) (Figure 1b). Of all the five bacterial isolates, D1, L10 and SV29 displayed maximum growth after 72 h, and showed a direct relationship between growth and cellulase production. However, partial association between growth and cellulase production was exhibited by the isolates J2 and SV1 [5] (Figure 1c). The cellulase from all the isolates was also analyzed for its FPase activity from 24 to 72 h. Bacterial isolate SV29 exhibited maximum FPase activity after 72 h (0.233 IU/mL ± 0.0035) (Figure 1d). Microbial cellulases have got vast application potential in various industries [19]. Diverse ecological habitats have been explored for the isolation of several cellulolytic bacteria like Bacillus subtilis MS 54 [19], Bacillus licheniformis K-3 [20], Bacillus subtilis G2 [5], Paenibacillus terrae ME27-1 [24].

2.2. IL Stability of Cellulase

Crude cellulase produced from all the bacterial isolates was examined for its stability/tolerance towards IL 1-ethyl-3-methylimidazolium methanesulfonate (EMIMS, 5%, v/v). Cellulase from SV1 exhibited maximum stability (residual activity, 161.6%) and retained highest activity after 72 h of prolonged exposure to the IL, EMIMS (5%, v/v) followed by SV29 (115%), J2 (54.8%), L10 (53.1%) and D1 (18%) (Figure 2a). The IL-stability of cellulase from bacterial isolate SV1 was further examined with higher concentrations of EMIMS (10%–50%, v/v). The cellulase from bacterial isolate SV1 exhibited 98.12% residual activity in 50% EMIMS after 4 h of incubation while it showed substantial residual activity of 72.9%, 69.52%, 65.71%, and 88.93% in 10%, 20%, 30% and 40% EMIMS, respectively. The enzyme retained 70.14% residual activity even after 48 h of incubation with EMIMS. However, after 72 h of incubation, the activity decreased considerably (Figure 2b). Thus, cellulase of bacterial isolate SV1 exhibited excellent stability towards IL.
The potential of IL-stable cellulases may be exploited for biorefining of LB. IL-stable cellulases have been reported from several microorganisms. B. subtilis I-2 cellulase exhibited high stability (activity retention 93%–98%) after 72 h with 1-ethyl-3-methylimidazolium methanesulfonate (EMIMS) [4]. IL tolerant cellulase from B. subtilis G2 showed 95%–100% stability at 20%–50% 1-ethyl-3-methylimidazolium methanosulfonate after 72 h of exposure [5]. Similarly, activity of cellulase Hu-CBH1 from heat tolerant haloalkalaiphilic archaeon Halorhabdus utahensis remained unchanged or even slightly stimulated in the presence of 20% [EMIM]Ac [9]. Fusarium oxysporum cellulase BN showed quite high and long-term stability in the presence of [Emim][DMP] and [Emim][MtSO4] [15]. Thus, ionic liquid stability of cellulases from different microorganisms varies with different types of ionic liquids (Table 1).

2.3. Identification of IL-stable Cellulase Producing Bacterium

The bacterial isolate SV1 that produced cellulase which exhibited substantial IL-stability was examined on the basis of morphological, microscopic, and 16S rDNA sequence analysis. Bacterial isolate SV1 showed rapid growth on nutrient as well as CMC agar plates, and formed slimy, off-white, irregular colonies (Figure 3a). The bacterial isolate SV1 was Gram-positive, rod shaped (bacillus), and had spore-forming ability. The bacterial isolate SV1 possessed potential capability of hydrolyzing starch, xylan, gelatin, casein and triglycerides (Figure 3b). The phylogenetic study of isolate SV1 based on 16S rDNA sequence analysis showed its highest homology with several other Bacillus subtilis strains available in the GenBank database (Figure 3c,d). Hence, this isolate is one of the strains of Bacillus subtilis, and designated as Bacillus subtilis SV1. The sequence was submitted to GenBank under accession number KU871117.

2.4. DoE Based Optimization of Cultural and Environmental Variables for Cellulase Production

DoE based optimization approach not only surmounts the limitations of the OVAT approach but represents an efficient tool for enhancing product yield by optimization of process variables [17,19]. In the present study, cultural and environmental variables were optimized using response surface methodology (RSM) to boost the production of ionic liquid stable cellulase from B. subtilis SV1. Central composite design (CCD) of RSM was applied for determining the optimum levels of the selected independent variables, i.e., wheat bran (A), spirulina powder (B) and medium pH (C) and incubation time (D), and the interactions between the variables. Based on the design, 30 experimental runs were executed, and the corresponding responses are presented in Table 2. ANOVA was performed (Table 3) and a polynomial equation was obtained (Equation 1) in which cellulase yield (Y, response) is presented as a function of various variables. The polynomial equation obtained after multiple regression analysis was as follows:
Response Y (Cellulase production) = 1.77 + 0.32A + 0.17B + 0.25C + 0.093D + 0.12A2 − 0.025 B2 + 9.688E − 004 C2 − 0.012 D2 + 0.031 AB – 0.13 AC + 0.079 AD − 0.14 BC + 0.081 BD + 0.17 C
The equation shows the variation of response (cellulase yield) as a function of various variables, i.e., wheat bran (A), spirulina powder (B) and medium pH (C) and incubation time (D).
The model F-value of 5.18 implies the model is significant. The chance of getting this high model F-value due to noise is quite low (0.15%). The significance of the model terms is shown by probability > F < 0.05. Probability > F < 0.4714 shows that lack of fit is not significant which in turn implies the strength and sturdiness of the model. Based on p value (p < 0.05), A, B, C, and CD were found to be the significant model terms. A low value of standard deviation (0.30) and high coefficient of determination, R-square (0.8286), point towards robustness of the model that has a reasonably good predictability. Adequate precision of 10.587 indicates an adequate signal for the present results.
The interactive effects of independent variables were investigated by analyzing the 3-D response surface plots. The interaction between wheat bran and pH (AC), and spirulina powder and pH (BC) had a negative impact on the cellulase production (Figure 4a,b) whereas the interaction between medium pH and incubation time (CD) was found to have a positive significance for enzyme production as depicted in the 3-D response plot (Figure 4c). It is obvious from the graph that increasing pH as well as incubation time led to enhanced response (cellulase yield). Figure 4d shows the perturbation plot. Perturbation plot explains the increase or decrease in the response when the value of each variable is changed keeping other variables constant with respect to the chosen reference point. When the variable A (wheat bran) was changed from the reference point, it had the maximum positive effect on the response among all the variables whereas variable D (incubation time) had the least effect on the response. This is also substantiated from the equation generated by the design (Equation I). It showed the maximum value of A (+0.32 A) and the least value of D (+0.093).
The validation of the statistical model was done by using point prediction tool of RSM in which the optimum value of all the four variables, i.e., wheat bran, 3.0 g; spirulina powder, 3 g; medium pH 9 and incubation time, 72 h was determined and the experiment was conducted. The close proximity of observed (CMCase yield of 3.11 IU/mL) and predicted responses (3.10 IU/mL) validated the model. DoE based optimization enhanced cellulase yield by 1.41-fold as compared to that under unoptimized conditions (2.201 IU/mL). One of the major targets for bioprocess development is to achieve enhanced product yield which in turn may contribute substantially towards improving the overall economy of the process; optimization of process variables by DoE, especially the response surface methodology, has quite often been used [18,19]. Though RSM based-optimization of cellulase production has been attempted by several researchers, there are only a few reports on the optimization for production of IL-stable cellulase using RSM. IL-stable cellulase production from Bacillus subtilis I-2 [4] was increased by 4.1 and from B. subtilis G2 [5] was increased by 2.66 fold by sequential RSM based optimization of medium and environmental variables. Similarly, many Bacillus spp. have been reported to yield enhanced cellulase due to RSM mediated optimization of variables [18,19,20,21].

2.5. Some properties of B. subtilis SV1

The B. subtilis SV1 cellulase exhibited activity over a broad temperature range (4–90 °C) with an optimal temperature of 45 °C. The cellulase activity at different pH (4–10) showed its optimal activity at pH 10 indicating its alkaline behavior (Figure 5a,b). Similar to the current results, cellulase from B. aquimaris [25] and Pseudomonas fluorescens, B. subtilis, E. coli and Serratia marscens [26] showed alkaline behavior and showed optimum activity at 40–45 °C [25,26]. The cellulase from B. subtilis G2 showed its optimum activity at 45 °C and pH 7 [5]. The optimal temperature of cellulase from B. subtilis YJ1 was 60 °C and but exhibited a slightly acidic behavior in contrast to the present study [27]. Thermostability of enzyme depends on molecular interactions which impart a high degree of stabilization due to various forces like hydrophobic and electrostatic interactions, hydrogen, disulphide or other covalent bonding [5,19,20]. Deviations from optimum pH may change the native 3-dimensional structure of enzyme which may lead to alterations in substrate/cofactor/coenzyme binding, and hence decrease or cause total loss of activity [5].
Each of the metal ions/additives showed an inhibitory effect on cellulase activity. Among all the metal ions/additives, Fe2+ had least inhibitive effect while Hg2+ had a maximum inihibitory effect on enzyme activity (Figure 5c). Similar to the present study, the activity of cellulase from B. subitlis YJ1 was inhibited by Hg+, Cd2+, Fe2+, Fe3+ and SDS [27]. B. vallismortis RG-07 cellulase was slightly inhibited by Cu2+ and Zn2+ but Hg2+ and Mn2+ strongly inhibited cellulase [28]. The Cu2+ and Co2+ may inhibit cellulase by competing with other cations that might be associated with enzyme resulting in decreased activity. The published reports suggest that Hg+ might cause inhibition of activity due to its interactions/binding with –SH or –COOH group of amino acids, or interactions with tryptophan [28]. Metal ions can have a profound effect on the enzyme activity, and can stimulate or hamper activity by multiple mechanisms [5,19].
Salt tolerance of cellulase has been reported to be very much related with IL-stability of the enzyme [11]. Salt tolerance of cellulase was examined by including different concentrations of NaCl (0.3%–3.3%) in enzyme assay reaction mixture. Though cellulase activity decreased in the presence of NaCl, over a range of NaCl concentrations, enzyme activity remained almost constant (66.4%). The results show that cellulase from B. subtilis SV1 has considerable salt tolerance (halotolerance) (Figure 5d). Contrary to the present study, cellulase from Marinimicrobium sp. LS-A18 retained more than 88% residual activity at 0%–25% NaCl concentrations [29] while cellulase from B. flexus NT showed 70% residual activity at 15% NaCl concentration [30]. Halotolerant cellulases are hypothesized to be good candidates that may exhibit good IL-stability due to their adaptation to high salinity [11,12]. Halotolerant enzymes show structural modification like the prevention of protein aggregates’ formation through electrostatic repulsion due to the presence of too much charged acidic amino acids on the surface imparting stability in ionic liquid [5,11].

2.6. Pretreatment and Enzymatic Saccharification under a One Pot Consolidated Bioprocess

OPCB allows the execution of multiple unit operations in a single vessel, thus enhancing the overall economy of the process [11]. In the present study, OPCB involved the pretreatment of pine needle biomass with IL (EMIMS) followed by in situ enzymatic saccharification of PNB by using IL-stable cellulase from B. subtilis SV1 in a single pot. It is apparent that IL-stability of saccharifying enzymes (cellulase) is mandatory for OPCB. After executing consolidated IL-pretreatment and enzymatic saccharification in one vessel i.e., OPCB, reducing sugar yield was determined to assess the efficacy of the process. Pine needle biomass was pretreated with different IL-concentrations and an increase in sugar yield was observed from 0.149 g/g to 0.200 g/g with the increasing IL concentration from 10% to 50%. The sugar yield in control I was 0.125 g/g (non-pretreated biomass) (Figure 6).
After pretreatment, enzymatic saccharification was carried out using cellulase from B. subtilis SV1 in the same vessel and reducing sugar yield was estimated. A maximum of 0.464 g/g pine needle biomass of reducing sugar yield was observed which was 2.01-fold higher than control II (0.230 g/g pine needle biomass) (Figure 6) at 40% EMIMS concentration. Thus, saccharification efficiency of 65.9% was obtained for PNB under OPCB. From the results, it is inferred that pretreatment resulted in a higher degree of delignification and made cellulose accessible to cellulase and hence yielded higher sugar as compared to the control. OPCB may be commercially vital due to its huge economic benefits [14], but a consolidated process involving application of ionic liquids for LB pretreatment and in situ enzymatic saccharification has scarcely been reported [31]. One pot IL (1-ethyl-3-methylimidazolium acetate, [C2mim][OAc]) pretreatment following the enzymatic saccharification with IL stable cellulase was carried out for switch grass to attain 80% glucose and xylose liberation [31]. Ionic liquid coupled with HCl led to synergistic effects on sugar release from corn stover [32]. Pretreatment of sugarcane bagasse has been effectively done with a combination of ionic liquid and surfactant [33]. Similarly, an enhanced sugar release was observed from eucalyptus, rice straw and grass, but not from pine [34]. Ionic liquid pretreatment of sugarcane bagasse with pure 1,3-dimethylimadazolium dimethyl phosphate gave better results as compared to that obtained with aqueous solution of IL [35]. Pretreatment of rice straw with 20% cholinium lysine IL-water mixtures with subsequent hydrolysis liberated 81% and 48% glucose and xylose yield, respectively [36].

3. Materials and Methods

3.1. Chemicals and Media

Various media, reagents, and chemicals employed in the experiments for current research investigation were of high grade standard and purity, and were procured from suppliers like HiMedia Laboratories, Merck and Co., Ranbaxy Fine Chemicals and Sigma-Aldrich. Ionic liquid 1-ethyl-3-methylimidazolium methanesulfonate used in the current study was purchased from Sigma-Aldrich (St. Louis, MO, USA).

3.2. Cellulase Producing Bacteria

Bacterial isolates used in this study were procured from culture collection of Fermentation Biotechnology Laboratory, School of Biotechnology, University of Jammu (Jammu, India). The isolates were examined primarily for cellulolytic activity by plate assay by using Congo red staining method [5,20]. Congo red stain binds specifically with β-1,4 linked glycosidic linkage in cellulose. Bacterial isolates which produce cellulase cleave β-1,4-glycosidic bonds in carboxymethyl cellulose (CMC) agar, and form a zone of clearance around the colonies. Bacterial isolates exhibiting considerable cellulase activity were subjected to secondary screening.

3.3. Submerged Fermentation for Cellulase Production

Cellulolytic bacterial isolates (D1, J2, L10, SV1 and SV29) selected on the basis of primary screening were subjected to submerged fermentation in shake flasks for production and quantification of cellulase activity. The bacterial isolates were grown under shaking (180 rpm) at 37 °C for 18 h in carboxymethyl cellulose-peptone-yeast extract (CPYE) broth to attain the required cell concentration (A600, 0.9), and then inoculated (2%, v/v) into the CPYE production medium [19]. Submerged fermentation was carried out at 37 °C under shaking (180 rpm). The samples withdrawn at varying time intervals (24, 48, 72 and 96 h) were centrifuged (Eppendorf centrifuge 5804R) at 10,000 × g for 10 min. The supernatant was considered as crude cellulase and assayed for activity. Carboxymethyl cellulase (CMCase, cellulase) and filter paperase (FPase) activities were determined using substrate carboxymethyl cellulose (CMC) and Whatman No. 1 filter paper as substrates, respectively [19]. The amount of reducing sugar released was measured spectrophotometrically (UV-1800, Shimadzu, Japan) by using dinitrosalicylic acid (DNSA) method [37]. One unit (IU) of CMCase and FPase was defined as the amount of enzyme which produced one µmole of glucose equivalent per mL per min under assay conditions. The growth profile of the bacterial isolates was measured spectrophotometrically (A600).

3.4. IL Stability of Bacterial Cellulases

Cellulases produced from bacterial isolates were pre-incubated with IL 1-ethyl-3-methylimidazolium methanesulfonate (EMIMS, 5%, v/v) at room temperature. Samples were withdrawn at various time intervals (1, 2, 3, 4, 24, 48, 72 and 96 h) and examined for residual activity. Cellulase from bacterial isolate that exhibited maximum stability against EMIMS for a prolonged time period was further investigated for its tolerance at higher concentrations of EMIMS i.e., 10%–50%.

3.5. Identification of the Selected Bacterium

Identification of the selected bacterial isolate SV1 that was capable of producing IL stable cellulase was done by studying the cultural, morphological, and microscopic characteristics. The identity of the bacterium was further confirmed by analyzing its 16S rDNA sequence and comparing it with that other sequences available in GenBank (National Center for Biotechnology Information) [5,20]. CMC agar plates were used for the examination of colony morphology of bacterial isolate SV1. Gram staining and endospore staining analysis was done for microscopic examination. The bacterial isolate SV1 was observed for its ability to produce various hydrolytic enzymes viz. lipase, amylase, xylanase, protease, and gelatinase [5,20]. Genomic DNA was extracted (Wizard Genomic DNA Preparation Kit, Promega Co., Madison, WI, USA) and PCR-amplified using universal 16S rDNA primers (forward primer 5′-AGTGTTTGATCCTGGCTCAG-3′, reverse primer 5′-CGGCTACCTTGTTACGACTTT-3′) for 16S rDNA sequence analysis [19]. The amplified product was eluted (Axygen DNA gel extraction kit, Union City, CA, USA) and sequenced (SciGenom Labs Pvt. Ltd., Chennai, India). BLAST analysis of the DNA sequence data was performed for closest homology. The neighbor-joining phylogenetic analysis was carried out with MEGA 6 software. Phylogenetic tree was constructed using MEGA 6 (http://www.megasoftware.net).

3.6. Optimization of Cultural and Environmental Variables for Cellulase Production

Cellulase production from SV1 was enhanced by optimizing the medium components and environmental variables by employing a central composite design of (CCD) of response surface methodology (RSM). The medium variables selected for optimization were crude carbon/nitrogen source viz. wheat bran (A) and spirulina powder (B), and environmental variables were medium pH (C) and incubation time (D). The maximum and minimum range of independent variables was selected based on the already published papers [5]. The variables investigated and full experimental plan are presented in Table 4. A total of 30 experiments were conducted and the results were analyzed using design of expert software version 6.0 (Stat-Ease, Inc., Minneapolis, MN, USA) (Table 5). The three-dimensional (3-D) response surface plots were used to understand the interaction between the variables and to analyze the optimum value of each parameter to maximize cellulase production. The regression equation gave an empirical model that related the measured response to the independent variables of the experiments. The statistical model was then validated in shake-flask experiments for cellulase production under the conditions predicted based on point prediction tool. The response values (Y) were measured as the average of triplicate experiments.

3.7. Some Properties of IL-Stable Cellulase

The cellulase produced under optimized process was used for studying the effect of temperature and pH on the activity. Cellulase activity was assayed at different temperatures (4–90 °C) for deducing the effect of temperature on activity. Similarly, the effect of pH was realized by executing an activity assay at different pH by using buffers (50 mM) of appropriate pH: acetate buffer (pH 4–5), glycine-NaOH buffer (pH 6–8) and phosphate buffer (pH 9–10) [4].
For determining halotolerance of cellulase, an activity assay was executed in the presence of varying concentrations of sodium chloride (0.3%–3.0%).
The cellulase activity was assayed in the presence of several metal ions/additives viz. potassium chloride, ammonium chloride, cobalt chloride, copper chloride, ferrous sulphate, mercuric chloride, magnesium sulphate, lead acetate, sodium dodecylsulphate (SDS), and ethylenediaminetetraacetic acid (EDTA) at a final concentration of 1.66 mM. The activity without metal ion/additive was considered as control.

3.8. Pretreatment and Enzymatic Hydrolysis of PNB Using One Pot Consolidated Bioprocess (OPCB)

3.8.1. Pine Needle Biomass (PNB)

Pine needles used in the study were procured from forest area near Udhampur (Jammu, India). Pine needles were thoroughly washed with tap water and then air dried at 50 °C, and dry matter content between 91% and 94% was obtained. The dried material was ground, and the fraction passing through a 4–5 mm sieve was collected and used for further experiments [23]. The powdered PNB was composed of (dry weight basis) holocellulose (64.12%), pentosan (14.12%) and lignin (27.79%) [23].

3.8.2. One Pot Consolidated Bioprocess

Pretreatment of PNB with 1-ethyl-3-methylimidazolium methanesulfonate (EMIMS) was carried out in order to partially remove lignin and disrupt the crystalline structure of cellulose. An appropriate quantity of dried and ground pine needles biomass was immersed in EMIMS at different concentrations (10%–50%, w/v). The contents were incubated at 70 °C under shaking at 180 rpm for 18 h, and then subjected to enzymatic hydrolysis in situ (same pot) using IL-stable cellulase preparation (at 311 IU/g of PNB). After addition of cellulase preparation the contents were incubated at 37 °C under shaking (180 rpm) for 24 h, following which reducing sugar was assayed. The untreated PNB was considered as control I, and enzymatically hydrolyzed untreated PNB was used as control II.

4. Conclusions

Bacillus subtilis SV1 is capable of utilizing agroindustrial residues as carbon and nitrogen sources for growth and IL-stable cellulase production. DoE based optimization of process variables appreciably enhanced cellulase production (1.41-fold). Furthermore, integration of IL based pretreatment and enzymatic saccharification in a single unit (OPCB) gave excellent results as indicated by saccharification efficiency of PNB. Further research on the molecular basis of IL stability of cellulase, and functional mechanisms of IL mediated reduction of LB recalcitrance, is underway in our laboratory. Process-scale-up and other parameters need further investigation for harnessing the full potential of OPCB to ultimately realize a sustainable, economically viable and highly efficient biorefinery process, i.e., conversion of biomass to biofuel (ethanol, butanol, etc.) and other products of commercial importance.

Acknowledgments

Authors thank Department of Science and Technology (DST, Govt. of India), and Department of Biotechnology (DBT, Govt. of India) for financial support (Research Project Ref. SR/SO/BB-66/2007). Bijender Kumar Bajaj gratefully acknowledges the Commonwealth Scholarship Commission, UK, for providing Commonwealth Fellowship (INCF-2013-45) for ‘Research Stay’ at Institute of Biological, Environmental and Rural Sciences (IBERS), Aberystwyth University, Aberystwyth, UK. Authors thank the Director, School of Biotechnology, University of Jammu, Jammu, for necessary laboratory facilities.

Author Contributions

Bijender Kumar Bajaj conceptualized the research problem; Surbhi Vaid designed the experiments; Parushi Nargotra performed the experiments, and wrote the draft MS; Bijender Kumar Bajaj and Surbhi Vaid corrected the MS, analyzed and interpreted data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mehmood, N.; Husson, E.; Jacquard, C.; Wewetzer, S.; Büchs, J.; Sarazin, C.; Gosselin, I. Impact of two ionic liquids, 1-ethyl-3-methylimidazolium acetate and 1-ethyl-3-methylimidazolium methylphosphonate, on Saccharomyces cerevisiae: Metabolic, physiologic, and morphological investigations. Biotechnol. Biofuels 2015, 8, 8–17. [Google Scholar]
  2. Kumar, R.; Tabatabaei, M.; Karimi, K.; Sárvári-Horváth, I. Recent updates on lignocellulosic biomass derived ethanol: A review. Biofuel. Res. J. 2016, 3, 347–356. [Google Scholar] [CrossRef]
  3. Moreno, A.D.; Ibarra, D.; Mialon, A.; Ballesteros, M. A bacterial laccase for enhancing saccharification and ethanol fermentation of steam-pretreated biomass. Fermentation 2016, 2. [Google Scholar] [CrossRef]
  4. Singh, S.; Sambyal, M.; Vaid, S.; Singh, P.; Bajaj, B.K. Process optimization for production of ionic liquid resistant, thermostable and broad range pH-stable cellulase from Bacillus subtilis I-2. Biocatal. Biotransfor. 2015, 33, 224–233. [Google Scholar] [CrossRef]
  5. Vaid, S.; Bajaj, B.K. Production of ionic liquid tolerant cellulase from Bacillus subtilis G2 using agroindustrial residues with application potential for saccharification of biomass under one pot consolidated bioprocess. Waste Biomass Valor. 2016. [Google Scholar] [CrossRef]
  6. Badgujar, K.C.; Bhanage, B.M. Factors governing dissolution process of lignocellulosic biomass in ionic liquid: Current status, overview and challenges. Bioresour. Technol. 2015, 178, 2–18. [Google Scholar] [CrossRef] [PubMed]
  7. Konda, N.M.; Shi, J.; Singh, S.; Blanch, H.W.; Simmons, B.A.; Klein-Marcuschamer, D. Understanding cost drivers and economic potential of two variants of ionic liquid pretreatment for cellulosic biofuel production. Biotechnol. Biofuels 2014, 7. [Google Scholar] [CrossRef] [PubMed]
  8. Socha, A.M.; Parthasarathi, R.; Shi, J.; Pattathil, S.; Whyte, D.; Bergeron, M.; George, A.; Tran, K.; Stavila, V.; Venkatachalam, S.; et al. Efficient biomass pretreatment using ionic liquids derived from lignin and hemicellulose. Proc. Natl. Acad. Sci. USA 2014, 111, E3587–E3595. [Google Scholar] [CrossRef] [PubMed]
  9. Zhang, T.; Datta, S.; Eichler, J.; Lvanova, N.; Axen, S.D.; Kerfeld, C.A.; Chen, F.; Kyrpides, N.; Hugenholtz, P.; Cheng, J.F.; et al. Identification of a haloalkaliphilic and thermostable cellulase with improved ionic liquid tolerance. Green Chem. 2011, 13, 2083–2090. [Google Scholar] [CrossRef]
  10. Raddadi, N.; Cherif, A.; Daffonchio, D.; Fava, F. Halo-alkalitolerant and thermostable cellulases with improved tolerance to ionic liquids and organic solvents from Paenibacillus tarimensis isolated from the Chott El Fejej, Sahara desert, Tunisia. Bioresour. Technol. 2013, 150, 121–128. [Google Scholar] [CrossRef] [PubMed]
  11. Trivedi, N.; Gupta, V.; Reddy, C.R.K.; Jha, B. Detection of ionic liquid stable cellulase produced by the marine bacterium Pseudoalteromonas sp. isolated from brown alga Sargassum polycystum C. Agardh. Bioresour. Technol. 2013, 132, 313–319. [Google Scholar] [CrossRef] [PubMed]
  12. Ilmberger, N.; Meske, D.; Juergensen, J.; Schulte, M.; Barthen, P.; Rabausch, U.; Angelov, A.; Mientus, M.; Liebl, W.; Schmitz, R.A. Metagenomic cellulases highly tolerant towards the presence of ionic liquids-linking thermostability and halotolerance. Appl. Microbiol. Biotechnol. 2012, 95, 135–146. [Google Scholar] [CrossRef] [PubMed]
  13. Park, J.I.; Steen, E.J.; Burd, H.; Evans, S.S.; Redding-Johnson, A.M.; Batth, T.; Benke, P.I.; D’haeseleer, P.; Sun, N.; Sale, K.L.; et al. A thermophilic ionic liquid-tolerant cellulase cocktail for the production of cellulosic biofuels. PLoS ONE 2012, 7, e37010. [Google Scholar] [CrossRef] [PubMed]
  14. Salehi Jouzani, G.; Taherzadeh, M.J. Advances in consolidated bioprocessing systems for bioethanol and butanol production from biomass: A comprehensive review. Biofuel Res. J. 2015, 5, 152–195. [Google Scholar] [CrossRef]
  15. Xu, J.; Wang, X.; Hu, L.; Xia, J.; Wu, Z.; Xu, N.; Dai, B.; Wu, B. A novel ionic liquid-tolerant Fusarium oxysporum BN secreting ionic liquid-stable cellulase: Consolidated bioprocessing of pretreated lignocellulose containing residual ionic liquid. Bioresour. Technol. 2015, 181, 18–25. [Google Scholar] [CrossRef] [PubMed]
  16. Brethauer, S.; Studer, M.H. Consolidated bioprocessing of lignocellulose by a microbial consortium. Energy Environ. Sci. 2014, 7, 1446–1453. [Google Scholar] [CrossRef]
  17. Premalatha, N.; Gopal, N.O.; Jose, P.A.; Anandham, R.; Kwon, S.W. Optimization of cellulase production by Enhydrobacter sp. ACCA2 and its application in biomass saccharification. Front. Microbiol. 2015, 6. [Google Scholar] [CrossRef] [PubMed]
  18. Sharma, A.; Tewari, R.; Soni, S.K. Application of statistical approach for optimizing cmcase production by Bacillus tequilensiss 28 strain via submerged fermentation using wheat bran as carbon source. Int. J. Biol. Food Vet. Agric. Eng. 2015, 9, 76–86. [Google Scholar]
  19. Sharma, M.; Bajaj, B.K. Cellulase production from Bacillus subtilis MS 54 and its potential for saccharification of biphasic acid-pretreated rice straw. J. Biobased Mater. Bioenerg. 2014, 8, 449–456. [Google Scholar] [CrossRef]
  20. Gupta, M.; Sharma, M.; Singh, S.; Gupta, P.; Bajaj, B.K. Enahnced production of cellulase from Bacillus Licheniformis K-3 with potential saccharification of rice straw. Energy Technol. 2015, 3, 216–224. [Google Scholar] [CrossRef]
  21. Singh, S.; Moholkar, V.S.; Goyal, A. Optimization of carboxymethylcellulose production from Bacillus amyloliquefaciens SS35. 3 Biotech. 2013, 4, 411–424. [Google Scholar] [CrossRef]
  22. Vats, S.; Maurya, D.P.; Jain, A.; Mall, V.; Negi, S. Mathematical model-based optimization of physico-enzymatic hydrolysis of Pinus roxburghii needles for the production of reducing sugars. Indian J. Exp. Biol. 2013, 51, 944–953. [Google Scholar] [PubMed]
  23. Singh, S.; Anu, S.V.; Singh, P.; Bajaj, B.K. Physicochemical pretreatment of pine needle biomass by design of experiments approach for efficient enzymatic saccharification. J. Mater. Environ. Sci. 2016, 7, 2034–2041. [Google Scholar]
  24. Liang, Y.L.; Zhang, Z.; Wu, M.; Wu, Y.; Feng, X.J. Isolation, screening, and identification of cellulolytic bacteria from natural reserves in the subtropical region of China and optimization of cellulase production by Paenibacillus terrae ME27–1. Bio. Med. Res. Int. 2014. [Google Scholar] [CrossRef]
  25. Trivedi, N.; Gupta, V.; Kumar, M.; Kumari, P.; Reddy, C.R.K.; Jha, B. Solvent tolerant marine bacterium Bacillus aquimaris secreting organic solvent stable alkaline cellulase. Chemosphere 2011, 83, 706–712. [Google Scholar] [CrossRef] [PubMed]
  26. Sethi, S.; Datta, A.; Gupta, B.L.; Gupta, S. Optimization of cellulase production from bacteria isolated from soil. ISRN Biotechnol. 2013. [Google Scholar] [CrossRef] [PubMed]
  27. Yin, L.J.; Lin, H.H.; Xiao, Z.R. Purification and characterization of a cellulase from Bacillus subtilis YJ1. J. Mar. Sci. Technol. 2010, 18, 466–471. [Google Scholar]
  28. Gaur, R.; Tiwari, S. Isolation, production, purification and characterization of an organic-solvent-thermostable-alkalophilic cellulase from Bacillus vallismortis RG-07. BMC Biotechnol. 2015, 15, 19–31. [Google Scholar] [CrossRef] [PubMed]
  29. Zhao, K.; Guo, L.Z.; Lu, W.D. Extracellular production of novel halotolerant, thermostable, and alkali-stable carboxymethyl cellulase by marine bacterium Marinimicrobium sp. LS-A18. Appl. Biochem. Biotechnol. 2012, 168, 550–567. [Google Scholar] [CrossRef] [PubMed]
  30. Trivedi, N.; Gupta, V.; Kumar, M.; Kumari, P.; Reddy, C.R.K.; Jha, B. An alkali-halotolerant cellulase from Bacillus flexus isolated from green seaweed Ulva lactuca. Carbohydr. Polym. 2011, 82, 891–897. [Google Scholar] [CrossRef]
  31. Shi, J.; Gladden, J.M.; Sathitsuksanoh, N.; Kambam, P.; Sandoval, L.; Mitra, D.; Zhang, S.; George, A.; Singer, S.W.; Simmonsa, B.A.; et al. One-pot ionic liquid pretreatment and saccharification of switchgrass. Green Chem. 2013, 15, 2579–2589. [Google Scholar] [CrossRef]
  32. Qing, Q.; Hu, R.; He, Y.; Zhang, Y.; Wang, L. Investigation of a novel acid-catalyzed ionic liquid pretreatment method to improve biomass enzymatic hydrolysis conversion. Appl. Microbiol. Biotechnol. 2014, 98, 5275–5286. [Google Scholar] [CrossRef] [PubMed]
  33. Nasirpour, N.; Mousavi, S.M.; Shojaosadati, S.A. A novel surfactant-assisted ionic liquid pretreatment of sugarcane bagasse for enhanced enzymatic hydrolysis. Bioresour. Technol. 2014, 169, 33–37. [Google Scholar] [CrossRef] [PubMed]
  34. An, Y.X.; Zong, M.H.; Wu, H.; Li, N. Pretreatment of lignocellulosic biomass with renewable cholinium ionic liquids: biomass fractionation, enzymatic digestion and ionic liquid reuse. Bioresour. Technol. 2015, 192, 165–171. [Google Scholar] [CrossRef] [PubMed]
  35. Bahrani, S.; Raeissi, S.; Sarshar, M. Experimental investigation of ionic liquid pretreatment of sugarcane bagasse with 1,3-dimethylimadazolium dimethyl phosphate. Bioresour. Technol. 2015, 185, 411–415. [Google Scholar] [CrossRef] [PubMed]
  36. Hou, X.D.; Li, N.; Zong, M.H. Significantly enhancing enzymatic hydrolysis of rice straw after pretreatment using renewable ionic liquid–water mixtures. Bioresour. Technol. 2013, 136, 469–474. [Google Scholar] [CrossRef] [PubMed]
  37. Miller, G.L. Use of dinitrosalicylic acid reagent for determination of reducing sugar. Anal. Chem. 1959, 31, 426–428. [Google Scholar] [CrossRef]

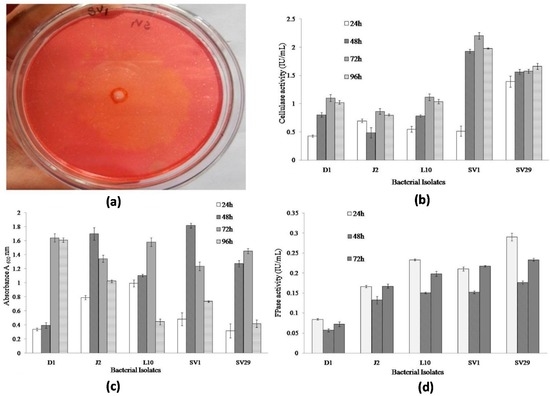

Figure 1. Cellulolytic activity of bacterial isolate SV1 (a); CMCase activity (b); Growth profile (c); and FPase activity (d) of the bacterial isolates under submerged fermentation.
Figure 1. Cellulolytic activity of bacterial isolate SV1 (a); CMCase activity (b); Growth profile (c); and FPase activity (d) of the bacterial isolates under submerged fermentation.
Fermentation 02 00019 g001

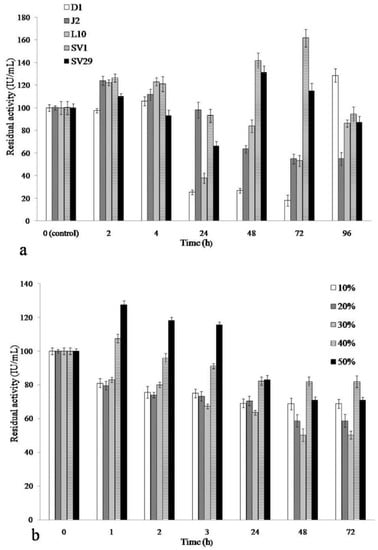

Figure 2. Stability of cellulase from the bacterial isolates against ionic liquid, 1-ethyl-3-methylimidazolium methanosulfonate (a); stability of cellulase of bacterial isolate SV1 at different concentrations of 1-ethyl-3-methylimidazolium methanosulfonate (b).
Figure 2. Stability of cellulase from the bacterial isolates against ionic liquid, 1-ethyl-3-methylimidazolium methanosulfonate (a); stability of cellulase of bacterial isolate SV1 at different concentrations of 1-ethyl-3-methylimidazolium methanosulfonate (b).
Fermentation 02 00019 g002
Figure 3. Identification of bacterial isolate SV1. Plate culture of isolate SV1 on nutrient agar (a); hydrolytic potential of bacterial isolate SV1 (b); PCR-amplified amplicon of 16S rDNA sequence from isolate SV1 (c); phylogenetic homology analysis of 16S rDNA sequence from isolate SV1 (d).
Figure 3. Identification of bacterial isolate SV1. Plate culture of isolate SV1 on nutrient agar (a); hydrolytic potential of bacterial isolate SV1 (b); PCR-amplified amplicon of 16S rDNA sequence from isolate SV1 (c); phylogenetic homology analysis of 16S rDNA sequence from isolate SV1 (d).
Fermentation 02 00019 g003

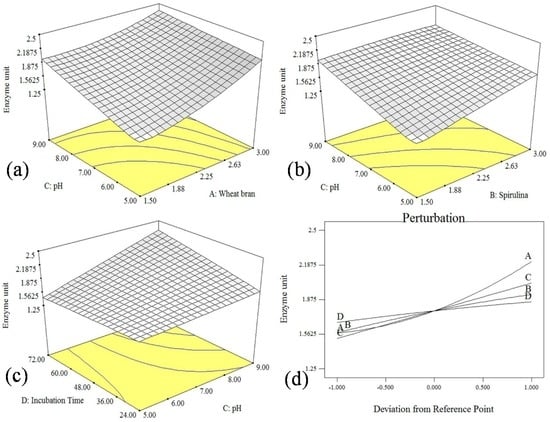

Figure 4. Response surface plots showing the interactions between different variables for cellulase production from B. subtilis SV1, wheat bran and medium pH (a); spirulina powder and pH (b); and pH and incubation time (c); perturbation plot showing effect of individual variables (d).
Figure 4. Response surface plots showing the interactions between different variables for cellulase production from B. subtilis SV1, wheat bran and medium pH (a); spirulina powder and pH (b); and pH and incubation time (c); perturbation plot showing effect of individual variables (d).
Fermentation 02 00019 g004

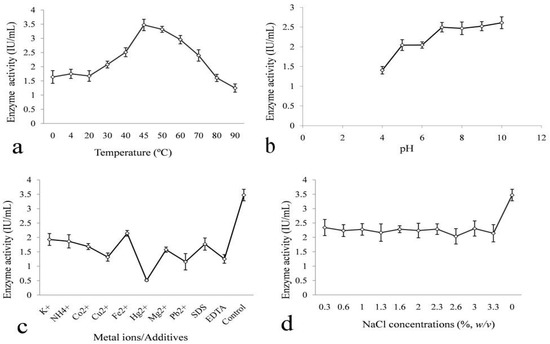

Figure 5. Biochemical properties of cellulase from B. subtilis SV1, effect of temperature (a); pH (b); metal ions/additives (c); and sodium chloride on activity of cellulase (d).
Figure 5. Biochemical properties of cellulase from B. subtilis SV1, effect of temperature (a); pH (b); metal ions/additives (c); and sodium chloride on activity of cellulase (d).
Fermentation 02 00019 g005

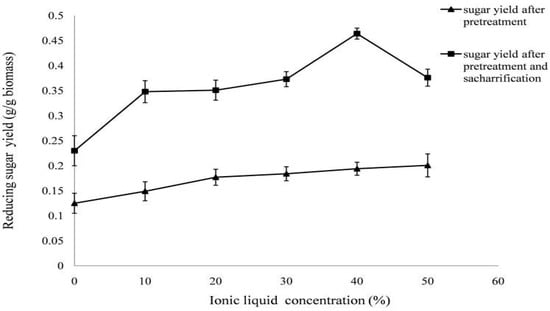

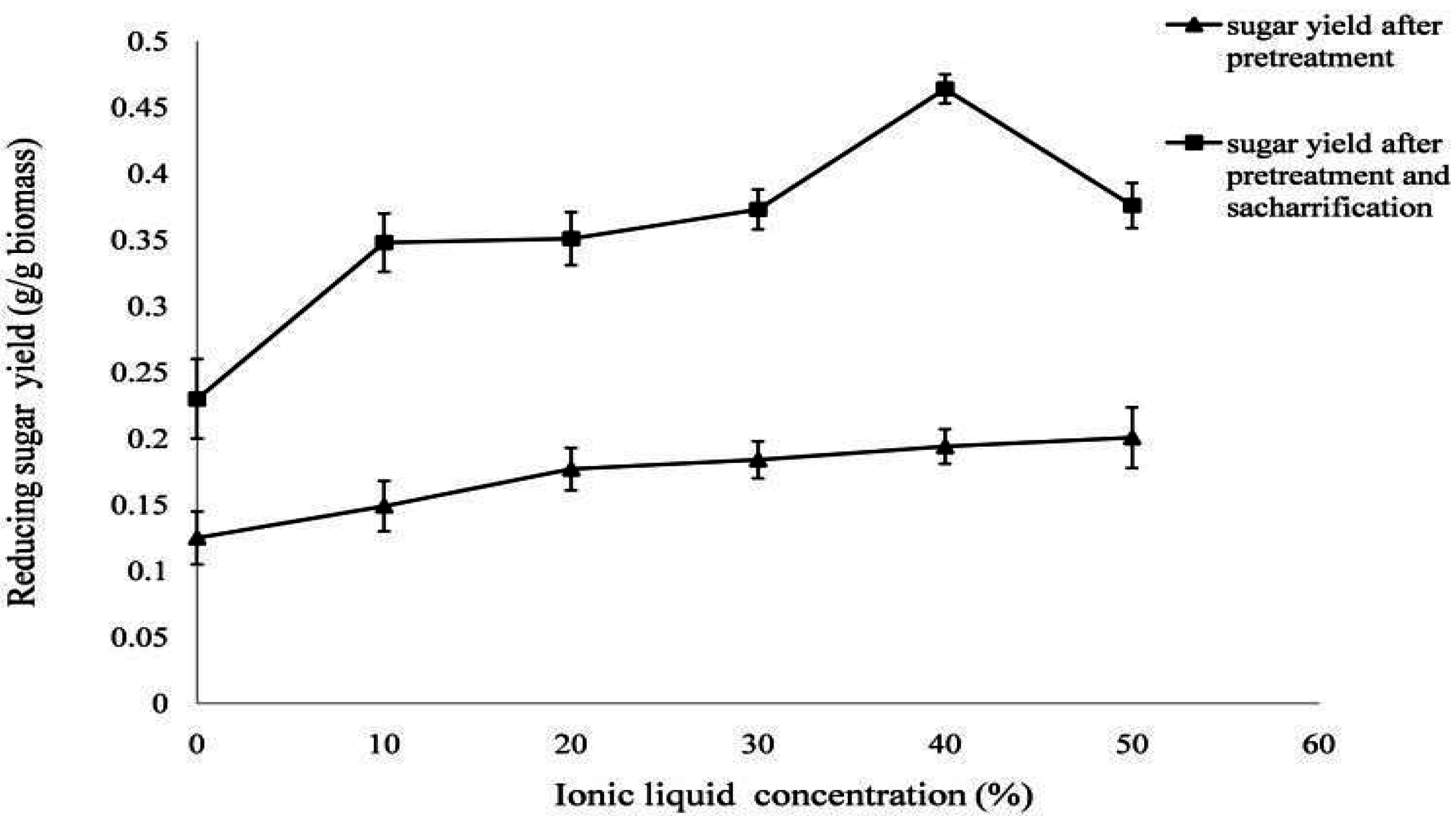

Figure 6. Reducing sugar yield obtained after IL pretreatment and enzymatic saccharification of pine needle biomass using cellulase from B. subtilis SV1 (3.1 IU/mL) under one pot consolidated bioprocess. Control shows sugar yield obtained by direct cellulase treatment, i.e., without IL pretreatment.
Figure 6. Reducing sugar yield obtained after IL pretreatment and enzymatic saccharification of pine needle biomass using cellulase from B. subtilis SV1 (3.1 IU/mL) under one pot consolidated bioprocess. Control shows sugar yield obtained by direct cellulase treatment, i.e., without IL pretreatment.
Fermentation 02 00019 g006
Table 1. Ionic liquid stability of cellulases from different microorganisms.
Table 1. Ionic liquid stability of cellulases from different microorganisms.
MicroorganismIonic Liquid (IL)IL Concentration (%)Stability (Residual/Relative Activity, %)Reference
Bacillus subtilis I-21-ethyl-3-methylimidazolium methanesulfonate1093–984
Bacillus subtilis G21-ethyl-3-methylimidazolium methanesulfonate (EMIMS)20–5095–1005
1-butyl-3-methylimidazolium chloride
1-ethyl-3-methylimidazolium bromide
1-ethyl-3-methylimidazolium acetate
1-butyl-3-methylimidazolium trifluoro methanesulfonate
Halorhabdus utahensis1-Ethyl-3-methylimidazolium acetate ([Emim]Ac)20100 (Remained unchanged)9
1-ethyl-3-methylimidazolium chloride ([Emim]ClSlightly increased
1-butyl-3-methylimidazolium chloride ([Bmim]Cl)Slightly increased
1-allyl-3-methylimidazolium chloride100 (remained unchanged)
Pseudoalteromonas sp.1-ethyl-3-methylimidazolium Methanesulfonate205911
1-ethyl-3-methylimidazolium bromide67
1-ethyl-3-methylimidazolium acetate93.47
1-butyl-1-methylpyrrolidinium trifluromethanesulfonate80.2
1-butyl-3-methylimidazolium trifluoromethanesulfonate74.69
1-butyl-3-methylimidazolium trifluoromethanesulfonate73.2
Fusarium oxysporum BN1-ethyl-3-methyl-imidazolium dimethylphosphate109315
1-ethyl-3-methyl-imidazolium methylphosphonateMore than 84
1-ethyl-3-methylimidazolium PhosphinateMore than 74
Bacillus subtilis SV11-ethyl-3-methylimidazolium methanesulfonate10–5072.9–98.12Present study
Table 2. Experimental and predicted response for CMCase production from B. subtilis SV1 based on RSM-designed experiments for optimization of medium and environmental variables.
Table 2. Experimental and predicted response for CMCase production from B. subtilis SV1 based on RSM-designed experiments for optimization of medium and environmental variables.
RunsExperimental Variables *Response (Enzyme Activity, IU/mL)
Run numberABCDExperimentalPredicted
11.51.55720.660.64
21.53.09721.972.18
32.252.257481.891.77
41.51.59722.312.02
52.252.257481.821.77
61.53.09241.801.66
72.252.257961.851.91
81.51.55241.261.11
92.252.257481.191.77
103.01.59242.051.98
112.253.757481.992.02
123.752.257482.292.91
133.03.09723.042.79
141.53.05721.701.36
152.250.757481.081.33
161.51.59241.981.81
172.252.2511482.252.28
181.53.05241.631.51
193.01.55721.901.64
203.03.05722.212.49
213.03.05242.432.32
223.03.09241.811.95
233.01.59722.252.50
242.252.25701.321.54
252.252.257481.901.77
262.252.253481.021.28
272.252.257481.971.77
283.01.55241.891.80
290.752.257481.261.62
302.252.257481.871.77
*A—Wheat bran (%, w/v), *B—Spirulina powder (%, w/v), *C—pH, *D—Incubation time (h).
Table 3. Results of ANOVA for cellulase production by B. subtilis SV1 based on RSM designed experiments for medium and environmental variables *.
Table 3. Results of ANOVA for cellulase production by B. subtilis SV1 based on RSM designed experiments for medium and environmental variables *.
SourceSum of SquaresDFMean SquaresF ValueProb > FSignificance
Model6.64140.475.180.0015Significant
A2.4912.4927.230.0001Significant
B0.7110.717.780.0138Significant
C1.5011.5016.350.0011Significant
D0.2110.212.260.1533-
A20.4110.414.510.0507-
B20.01710.0170.190.6694-
C22.574 × 10−512.574 × 10−52.813 × 10−40.9868-
D23.727 × 10−313.727 × 10−30.0410.8428-
AB0.01610.0160.170.6859-
AC0.2710.272.970.1051-
AD0.09910.0991.080.3146-
BC0.3010.303.330.0879-
BD0.1110.111.150.3007-
CD0.4510.454.930.0422Significant
Residual1.37150.092 -
Lack of fit0.95100.0951.140.4714Not significant
Pure Error0.4250.084 -
Cor Total8.0129 -
*A—Wheat bran (%, w/v); B—Spirulina powder (%, w/v); C—pH; D—Incubation time (h).
Table 4. Experimental range and levels of the medium and environmental variables used in RSM for cellulase production from B. subtilis SV1.
Table 4. Experimental range and levels of the medium and environmental variables used in RSM for cellulase production from B. subtilis SV1.
Study Type: Response SurfaceExperiments: 30
Initial Design: Central CompositeDesign Model: Quadratic
ResponseNameUnits
YEnzyme activityIU/mLExperimental values
FactorsNameUnitsLowerHigher
AWheat Bran%, w/v1.53
BSpirulina powder%, w/v1.53
CMedium pH-59
DIncubation timeH2472
Table 5. RSM-designed experiments for medium and environmental variables for cellulase production from B. subtilis SV1.
Table 5. RSM-designed experiments for medium and environmental variables for cellulase production from B. subtilis SV1.
RunsExperimental variables *
Run numberABCD
11.51.5572
21.53.0972
32.252.25748
41.51.5972
52.252.25748
61.53.0924
72.252.25796
81.51.5524
92.252.25748
103.01.5924
112.253.75748
123.752.25748
133.03.0972
141.53.0572
152.250.75748
161.51.5924
172.252.251148
181.53.0524
193.01.5572
203.03.0572
213.03.0524
223.03.0924
233.01.5972
242.252.2570
252.252.25748
262.252.25348
272.252.25748
283.01.5524
290.752.25748
302.252.25748
*A—Wheat bran (%, w/v), *B—Spirulina powder (%, w/v), *C—pH, *D—Incubation time (h).

Share and Cite

MDPI and ACS Style

Nargotra, P.; Vaid, S.; Bajaj, B.K. Cellulase Production from Bacillus subtilis SV1 and Its Application Potential for Saccharification of Ionic Liquid Pretreated Pine Needle Biomass under One Pot Consolidated Bioprocess. Fermentation 2016, 2, 19. https://doi.org/10.3390/fermentation2040019

AMA Style

Nargotra P, Vaid S, Bajaj BK. Cellulase Production from Bacillus subtilis SV1 and Its Application Potential for Saccharification of Ionic Liquid Pretreated Pine Needle Biomass under One Pot Consolidated Bioprocess. Fermentation. 2016; 2(4):19. https://doi.org/10.3390/fermentation2040019

Chicago/Turabian Style

Nargotra, Parushi, Surbhi Vaid, and Bijender Kumar Bajaj. 2016. "Cellulase Production from Bacillus subtilis SV1 and Its Application Potential for Saccharification of Ionic Liquid Pretreated Pine Needle Biomass under One Pot Consolidated Bioprocess" Fermentation 2, no. 4: 19. https://doi.org/10.3390/fermentation2040019

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
