Microstructural Study of IF-WS2 Failure Modes
Jamie Cook 1, Steven Rhyans 1,2, Lou Roncase 3, Garth Hobson 1 and Claudia C. Luhrs 1,*
1
Mechanical and Aerospace Engineering Department, Naval Postgraduate School, 700 Dryer Rd., Watkins Hall Rm. 305, Monterey, CA 93943, USA; E-Mails: Jamie.Cook@ssp.navy.mil (J.C.); gvhobson@nps.edu (G.H.)
2
Hartnell College, Salinas, CA 93901, USA; E-Mail: srhyans@gmail.com
3
U.S. Navy’s Weapons Survivability Laboratory (WSL), Naval Air Warfare Center (NAWC), China Lake, CA 93555, USA; E-Mail: raymond.roncase@navy.mil
*
Author to whom correspondence should be addressed; E-Mail: ccluhrs@nps.edu; Tel.: +1-831-656-2568.
Received: 27 March 2014; in revised form: 3 June 2014 / Accepted: 4 June 2014 /
Published: 4 July 2014

Abstract

: This manuscript summarizes the failure mechanisms found in inorganic fullerene-type tungsten disulfide (IF-WS2) nanoparticles treated with diverse pressure loading methods. The approaches utilized to induce failure included: the use of an ultrasonic horn, the buildup of high pressures inside a shock tube which created a shock wave that propagated and impinged in the sample, and impact with military rounds. After treatment, samples were characterized using electron microscopy, powder X-ray diffraction, energy dispersive X-ray spectroscopy, and surface area analysis. The microstructural changes observed in the IF-WS2 particulates as a consequence of the treatments could be categorized in two distinct fracture modes. The most commonly observed was the formation of a crack at the particles surface followed by a phase transformation from the 3D cage-like structures into the 2D layered polymorphs, with subsequent agglomeration of the plate-like sheets to produce larger particle sizes. The secondary mechanism identified was the incipient delamination of IF-WS2. We encountered evidence that the IF-WS2 structure collapse initiated in all cases at the edges and vertices of the polyhedral particles, which acted as stress concentrators, independent of the load application mode or its duration.
Keywords:
IF-WS2; shock absorbing structures; fracture mechanism

1. Introduction

The first inorganic fullerene-like nanoparticles of WS2 were discovered by Tenne et al., working at the Weizmann Institute of Science in 1992 [1]. Using the diffusion-controlled sulfurization of metal oxides, they were able to empirically prove the existence of inorganic compounds based on WS2 with structures that were believed to only exist for carbon-based materials. Shortly thereafter, the discovery of WS2 nanotubes and fullerene-like structures led to the establishment of a new field of inorganic chemistry; one dealing with closed-hollow nanomaterials [2,3,4,5].

Originally, carbon fullerenes, made of concentric layers of carbon, were thought to provide outstanding tribological properties, and under low loads and high velocities they do [6,7]. However, due to their phase transition from graphite to diamond at high temperatures and pressures, they cannot entirely live up to the expectations that their structures suggest [8]. IF-WS2 particles have numerous properties similar to the carbon fullerenes, making them excellent solid lubricants; their extremely small size (in the nanometer scale) gives them the ability to fill imperfections in the lubricated material to effectively smooth the surface and prevent degradation. Due to their spherical shape, IFs are also said to act like nano-ball bearings, feature that allows them to roll rather than slide, performing better than other solid lubricants [4].

Currently, IF-WS2 particulates are recognized for their potential not only as lubricants but also as structural nanocomposites and shock absorbers [9,10,11,12,13,14,15].

The impressive shock absorbing performance of IF-WS2 and IF-MoS2 structures were first reported by Zhu et al. [16,17]. Using uniaxial shockwave pressures up to 30 GPa and studying the microstructural features of samples treated at diverse pressure settings, it was found that these cage-like particulates have superior performance than their carbon counterparts. Those reports also identified a lattice reduction for the samples treated at the higher pressures and provided a glimpse of the material breakage mechanisms. Moreover, those journal articles introduced the concept that smaller, more spherical IF particulates might be less prone to sustain damage than larger particles, a key feature to have in mind when designing highly resistant nanoparticles.

By studying the structural characteristics of a material that has fractured one can understand how materials fail and then make changes to the design and prevent, to a certain extent, the encountered failure modes. Fracture mechanics principles allow us to predict maximum working stress for a given material, establish relationships between materials properties, stress levels, crack producing flaws and conditions for the cracks propagation that ultimately will result in catastrophic breakdown of structures.

Here, we induced the breakage of IF-WS2 particulate structures employing three different setups: (i) the use of an ultrasonic horn operated at diverse amplitudes and periods of time with the sample immersed in a solvent; (ii) pressure waves created inside a shock tube; and (iii) impact with military rounds. The ultrasonic horn was used at diverse amplitudes and treatment times and produced cyclic loading conditions similar to the ones used for fatigue studies of macroscopic objects. The shock tube and the military rounds produced a single uniaxial impact event over only fractions of a second.

The objective of the experiments was to study the microstructural characteristics of the materials postmortem and based on those observations identify failure modes—fracture mechanisms. Then establish relationships between those and the type and duration of each treatment method employed, identifying the most important variables for the particulates failure.

Our results demonstrated that the effects observed when applying pressure loads to the IF-WS2 nanometric particles are a particular case of the more general principles established by fracture mechanics to explain macroscopic crack propagation: stress concentrators at the particle surface play a much larger role in the material failure than the directionality or duration of methods used to apply the loads.

2. Results and Discussion

2.1. Sample Characteristics before Treatment

The IF-WS2 particulates utilized for this study were analyzed by diverse techniques before treatment. TEM analysis showed that the IF nanostructures presented the typical hollow cores and the particles exhibit polyhedral shapes, as seen in Figure 1. The value for the lattice spacing observed varied depending on where the measurement was performed; the faces of the polyhedrons presented an average value of 0.62 nm, while the vertices had an average separation of 0.63 nm. Thus, when the IF particulates do not have a perfect spherical shape the lattice distance seem not to be uniform. Observation by SEM determined that the particle size distribution was between 30 and 420 nm, with an average diameter of 143 nm and only a few particles of more than 500 nm. BET surface area of the sample was determined to be 35 m2/g.

Inorganics 02 00377 g001 200
Figure 1. TEM image of an IF-WS2 particle before treatment.

Click here to enlarge figure

Figure 1. TEM image of an IF-WS2 particle before treatment.
Inorganics 02 00377 g001 1024

2.2. Sample Postmortem Analysis

Before presenting the post treatment sample characteristics, it is worth noting that the diverse methods used to impinge in the sample (each described in the experimental methods section) impart very different levels of energy at very different time scales:

It has been estimated that the use of military rounds of the size used at the velocities recorded provided approximately 2070 Joules in a non-isotropic single event that lasted only fractions of a second. The compressed-gas driven shock tube experiment produced a wave that first impacted in the Kevlar layer located in front of the sample (which was used solely to contain the powder IF-WS2) impacting next the sample in a non-isotropic manner. This single incident also lasted fractions of a second. A pressure sensor located after the Kevlar layer recorded an average pressure of 1742 KPa when using He as the gas, as such, the estimated pressure of the wave that actually reached the sample. In contrast, during the ultrasonic treatment, the particles were completely immersed in a liquid, thus, being subject to isotropic shocks for much longer periods of time (between 3,600 and 10,800 s). The estimated energy conveyed when using a 1200 W ultrasound horn during such periods of time was from 4032 to 12,096 kilojoules respectively. In all cases, only IF-WS2 particulates were tested, no composites are included in this study.

Some research groups have studied the variations in the d002 interlayer spacing in the samples before and after pressure loads using XRD powder data or TEM observations to relate such values to unit cell expansions or contractions [17,18]. Given the dispersion in lattice values noted by TEM studies mentioned above in the untreated samples, the extraction of useful postmortem TEM data could result very complicated. The change in lattice constant for IF-WS2 seen before treatment arises from the differences in curvature between different locations of the polyhedral cage-like spherical or semispherical IF-WS2 nanoparticles. To determine if XRD patterns could provide more reliable data, given that they include information from all the crystal locations and orientations, we performed such analysis for the samples treated by the three loading methods.

The XRD patterns of samples subjected to the diverse treatments are shown in Figure 2. The graph in the upper section of the image shows the peaks encountered between 5° and 70° (2θ), while the bottom image presents only the (002) peak. Specimens treated by ultrasound waves in wet conditions (dispersed in a solvent) and then dried for the analysis, present a (002) reflection that has shifted to higher angles. This alteration in the X-ray pattern indicates a reduction in the cell spacing when compared to the untreated sample. A similar observation was made in references above [17,18]. We believed that such shift could be related not only to a compressed IF cell but to a phase transition from the IF cage structure to a more dense 2D plate-like WS2 arrangement with slightly smaller 00l distance. The width of the (002) XRD peak for ultrasound treated powders in Figure 2 (red line) might suggest the presence of both, IF-WS2 and two-dimensional WS2 in the same powder sample.

The peaks identified with the * symbol do not belong to WS2 but to WO3. The existence of small amounts of WO3 could not be verified by EDS analysis of large portions of the sample by SEM but was clearly identified by TEM of selected locations (uploaded as Figure S1).

By comparison, the samples collected after shock tube tests and military rounds insult show either no change or a slight shift to lower angles. Such result could be interpreted as no modification of the structure or a small expansion in the lattice parameter. We believe, however, that disparity in those results, when compared to the ultrasonic treated sample, might be more related to the experimental constrains faced when collecting the powders than a clear representation of the specimen features. The collection of the section of the sample that was directly exposed to the shockwave or to the impact of the penetrator was difficult; the particles had the tendency to get expelled from the impact site and only some of them remained in the center of the tested specimen or close to the hole left by the round and got recovered. That is, the XRD signal represents the average of all the particles gathered in the postmortem, some of which were not as affected by the event as the ones at the center of the impact location. In the case of ultrasonic treatment, the full sample was contained at all times and all particles were equally affected by the treatment, therefore rendering a powder that presented more uniform features and more reliable data, thus confirming a shift in the d002.

Inorganics 02 00377 g002 200

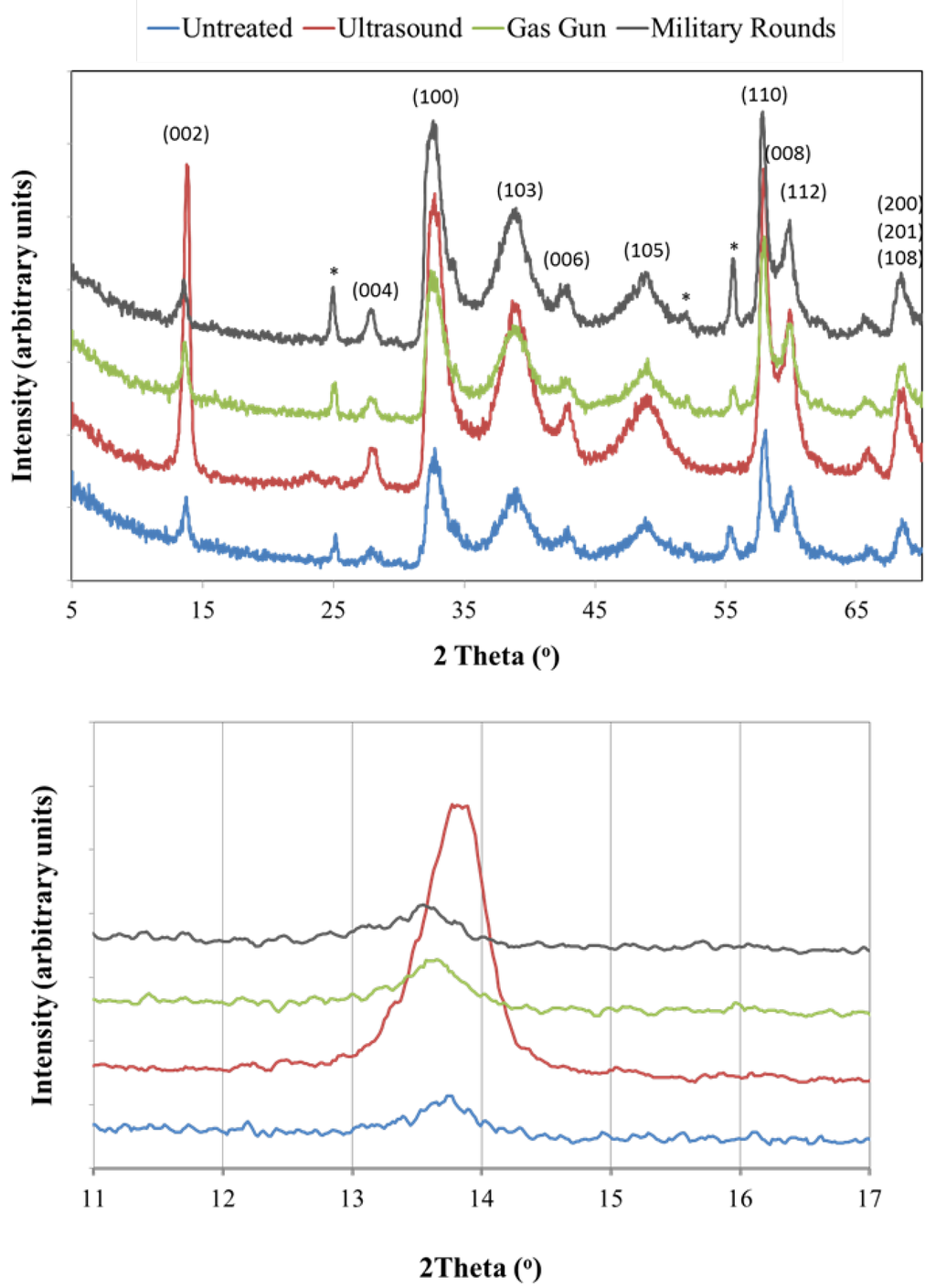

Figure 2. X-ray diffraction analysis of particulates recovered after treatments. Top: reflections observed between 5° and 70°; Bottom: (002) peak for all samples. Only the sample gathered after ultrasonic treatment showed a shift to higher angles. The symbol * identifies a WO3 peak.

Click here to enlarge figure

Figure 2. X-ray diffraction analysis of particulates recovered after treatments. Top: reflections observed between 5° and 70°; Bottom: (002) peak for all samples. Only the sample gathered after ultrasonic treatment showed a shift to higher angles. The symbol * identifies a WO3 peak.
Inorganics 02 00377 g002 1024

The precise effects of applying diverse loading conditions in the specimens’ microstructures were much more evident once the samples were studied by electron microscopy. We were able to conduct the analysis with smaller amounts of sample and use only particulates from affected locations. Figure 3 presents a SEM image of the IF-WS2 particles before (a) and after (b) ultrasonic treatment. The existence of extended layered structures (identified with arrows) along with the original IF polyhedral, semispherical shapes is the most noticeable change. According to particle size distribution measurements (Figure 3c) the average diameter of the particles in the sample after treatment has shifted to larger sizes, 252 nm (blue histogram), and clearly shows a bimodal distribution. Particles between 800 nm and 1 micron, not seen in the untreated sample, are present in the ultrasonic treated specimen. The larger plate-like particulates correspond to the 2D polymorph and no longer present the hollow cage structure of IF-WS2. The appearance of the 2D phase supports the XRD data collected regarding both, the XRD peak shift and its width, and agrees with the initial reports suggesting a lattice compression [17,18]. Notably, the particles did not only collapsed and lose their hollow cores; they also transformed into 2D structures and then suffered an agglomeration mechanism that turned them into much larger, irregular shape units.

Inorganics 02 00377 g003 200
Figure 3. SEM micrographs of (a) untreated particles, (b) samples treated with ultrasonic horn during 3 h at 20% amplitude (17 µpp). Note the appearance of layered particles of much larger dimensions than original spheroids; (c) Particle diameter comparison between the two samples.

Click here to enlarge figure

Figure 3. SEM micrographs of (a) untreated particles, (b) samples treated with ultrasonic horn during 3 h at 20% amplitude (17 µpp). Note the appearance of layered particles of much larger dimensions than original spheroids; (c) Particle diameter comparison between the two samples.
Inorganics 02 00377 g003 1024

Given those observations, we have denominated this transformation or fracture mode as “agglomeration”, since the collapsed particles seem to have larger dimensions after the experiment, implying the agglomeration of many of the original IF spheroids. However, agglomeration is a general term that only refers to the enlargement of the particles and does not completely account for all the complex steps that the particles suffer during this failure mode. Some of the stages we believe are necessary for the 2D polymorphs to acquire the sizes observed imply: (i) an initial crack formed in the surface of the IF particles; (ii) crack propagation towards the core, leading to a complete fracture of the walls; (iii) a structure collapse and disappearance of the hollow cores; (iv) sheets re-arrangement; and (v) new bonds being formed. Moreover, the large sheet-like particles in Figure 3c show little evidence of grain boundaries, which suggests the involvement of a sintering or crystal growth mechanism, rather than simple agglomeration. Some of the flattened sections (Figure 3c) reached even micrometer lengths, far from the 143 nm average diameter in the untreated IF-WS2.

The temperature during the sonication experiments was controlled by an ice bath to prevent solvent evaporation. Nevertheless, given that the particles were exposed to the ultrasonic waves during extended periods of time (up to 10,800 s in some cases) the process seems to have provided enough energy to allow all the steps mentioned above to happen (i–v), followed by crystal growth. The fact that the (002) peak for ultrasound sample, in Figure 2, is much more intense than the one from the untreated specimen supports the idea that more particles with such orientation exist, as is typical of layered structures, fact now verified also by the SEM data.

The study of the ultrasonic sample postmortem by transmission electron microscopy corroborates the existence of both the 2D and 3D (IF) polymorphs. The TEM study of the IF particles that did not collapse presented evidence of crack initiation in the vertices of the polyhedrons. Figure 4 (left) shows one of those cracks, which has not yet propagated through the whole structure. In a similar fashion that surface defects can promote the fracture of macroscopic objects at smaller levels of stress than the ones predicted by theoretical calculations, in IF-WS2 nanostructures the imperfections in the particles’ surfaces act as stress concentrators. No WO3 was identified in the specific particle structure where such observations were made, ruling out its effect in the particle fracture mechanisms.

Inorganics 02 00377 g004 200
Figure 4. Left: TEM micrograph of a particle treated with ultrasonic horn that presents a surface crack. The inset is a magnified version of the area pointed by the arrow; Right: TEM studies corroborated the damage of both, internal and external layers of the IF structures.

Click here to enlarge figure

Figure 4. Left: TEM micrograph of a particle treated with ultrasonic horn that presents a surface crack. The inset is a magnified version of the area pointed by the arrow; Right: TEM studies corroborated the damage of both, internal and external layers of the IF structures.
Inorganics 02 00377 g004 1024

As pointed out in multiple references [19,20,21,22], materials do not fracture while in compression, they fracture in tension. The failure modes observed in samples post ultrasonic treatment present a similar signature as the ones expected from fatigue experiments; they resemble the fracture of materials that have been subjected to a cyclic load which involves the contraction and expansion of the structure. We found evidence of breakage in the surface (crack in Figure 4 left) presumably created during one of the expansion cycles while in tension. However, there is also evidence of some of the sheets breaking inside the particles’ core (Figure 4 right), indicating a similar mechanism occurring but in the opposite direction, pointing to a cyclic load.

The complete breakage of the outer layers in the crack area (in Figure 4 left) seem to happen without extensive plastic deformation, resembling the typical brittle failure. Such feature is observed in many particles and diverse sections of the sample. However, we also identified particles that present a slightly larger separation between the first and second layers of the lattice than the one found for the inner layers. Such a fact can be interpreted as evidence of a very small amount of plastic deformation occurring in the direction perpendicular to the lattice fringes.

Apart from the multiple particles suffering the agglomeration type failure (fracture-agglomeration-phase transformation steps described before), a second mechanism was identified by the observation of the samples by TEM: incipient “delamination”. Indeed, small sections (ca. 10–15 nm) of a few of the IF particles seem to partially separate from the main body of the structure. Figure 4 (right) exemplifies that case, the arrows pointing to sites of partial delamination. A similar exfoliating mechanism has been observed by other groups [17,23]. We did not find evidence of larger sections or complete layers totally separating from the IF spheroids in the ultrasonic treated specimens. The amount of particles presenting partial delamination, when compared to the amount that presented agglomeration, was minimal.

The main difference found between the two failure modes is that agglomeration mechanism destroys the hollow cage structures, generating 2D extended structures, and delamination does not. The main parallelism between them is that both, incipient delamination in the outer layers of the IF structures, and crack formation with propagation towards the particle core are observed in the vicinity of vertices, edges or surface defects.

The fact that the vertices in untreated particulates presented a larger average interlayer distance (0.63 nm) than the faceted sides or walls (0.62 nm) is suspected to have an influence over which failure more (agglomeration vs. delamination) is predominant. However, the difference between such values is so small that more data and a higher resolution instrument might be required to be able to make a definitive correlation.

There is no evidence that suggest that one failure mode represents a first step towards the other. The transformation between the IF particles and the 2D structures in the agglomeration mode seem to start with a crack that advances towards the particle core, feature observed in samples treated in different conditions. The few cases of delamination seen do not exhibit such crack directionality but a separation of only the outer layers. The failure modes do not seem to be associated to particle sizes either. Perfect spherical particles might present a correlation between such since the size will determine the radius of curvature, which is a factor that affects the crack propagation in macroscopic objects.

One of the main limitations we encountered during this study was the lack of a method to quantify the level of damage that the samples suffered. From the SEM images we could estimate the percentage of the sample surface that transformed into larger particles due to the agglomeration mechanism (as in Figure 3). However, multiple images need to be taken to assure that the features observed actually represent the bulk of the sample and the existence of the flat particles underneath the surface layer of the sample could be overlooked. Since the most common failure mechanism observed by large was agglomeration, and only very small sections of the sample delaminated, we contemplated the use of surface area measurements to evaluate the level of damage. Indeed, most particles suffer an enlargement that will produce a surface area reduction (due to the agglomeration mechanism) and only a few of them will have more area exposed (due to delamination).

The surface area data from samples treated with the ultrasonic horn at diverse amplitudes was calculated using the BET methodology and is presented in Figure 5. Samples treated at higher amplitudes or for longer periods of time (not shown) suffer an evident surface area reduction. Both amplitude and time imply more energy being imparted to the particles. The former because the energy transported by a wave is directly proportional to the square of the amplitude of the wave: A high-energy wave is characterized by a high amplitude; a low-energy wave is characterized by a low amplitude. The latter, because energy is calculated directly from the product of the Watts provided by the source and the time of the treatment. The trend towards smaller surface areas in Figure 5 could be correlated to particle agglomeration and the presence of extended 2D layered structures, as the ones seen in the example presented in Figure 3.

Inorganics 02 00377 g005 200

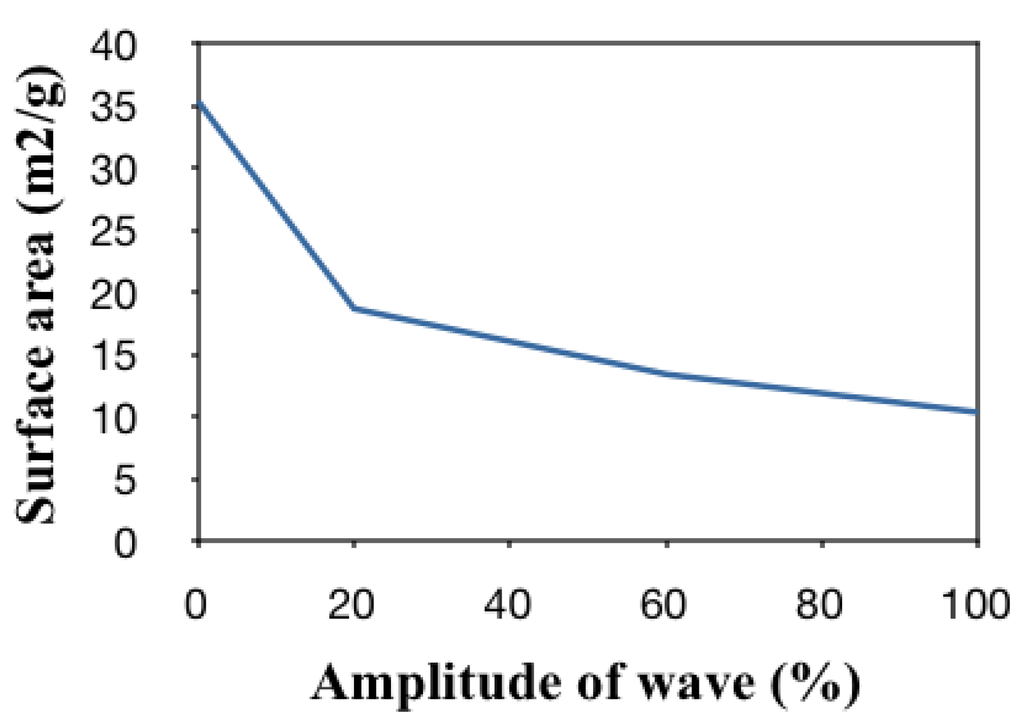

Figure 5. Surface area analysis (m2/g) vs. amplitude found for samples subjected to ultrasonic treatments.

Click here to enlarge figure

Figure 5. Surface area analysis (m2/g) vs. amplitude found for samples subjected to ultrasonic treatments.
Inorganics 02 00377 g005 1024

The BET surface area measurement does not provide a definitive way to evaluate damage when both agglomeration and delamination occur in large extents. However, it provided a way to compare the extent of damage in bulk samples when agglomeration was the dominant mechanism (as in the ultrasound treated samples) without the need for lengthy SEM/TEM analysis.

As previously stated, the study of samples by electron microscopy provided a more definitive proof of the changes that the IF-WS2 structure suffered under load than the shifts observed in the XRD analysis alone. Such was particularly true for the samples subjected to shockwave tests and impacted with military rounds, since smaller amounts of powder could be analyzed and only particulates from insulted regions were collected. See Figure 6.

Inorganics 02 00377 g006 200
Figure 6. Cracks in the vertices of the particles are the only evidence of damage in samples subjected to shock tube tests. No crack propagation or structure collapse was observed. No evidence of delamination was found either.

Click here to enlarge figure

Figure 6. Cracks in the vertices of the particles are the only evidence of damage in samples subjected to shock tube tests. No crack propagation or structure collapse was observed. No evidence of delamination was found either.
Inorganics 02 00377 g006 1024

The evaluation of the samples treated by shockwaves revealed that the damage sustained was less than the one observed for ultrasonic methods, as expected from the low pressures registered by the sensors. The SEM observation of the sample from shock tube revealed that only very small sections of the sample showed agglomeration. TEM images showed crack initiation and Figure 6 exemplifies this feature. The arrows on the image point to two different sites where the crystal structure fractured. The pressures used by shockwaves produced by N2 and by He were not enough to cause the sample to suffer a complete collapse. We did not find evidence of delamination in any of the multiple particles analyzed. Thus, we found no evidence that the agglomeration failure mode is preceded by delamination.

Samples impinged with military rounds suffered a larger level of damage than that observed for shock tube tests. Unfortunately, as stated before, it was difficult to collect large amounts of sample in the circumference left by the penetrator, reason for the XRD and BET data not to be as reliable as the one seen for ultrasonic treatments. Nevertheless, the SEM analysis of the sample provided proof of the same mechanisms described earlier in this article. We found layered structures similar to the ones in Figure 3b; however, in this case the agglomerates reached not only micrometer dimensions in length and width, but also in height. There are regions in the postmortem sample that the IF particles can still be encountered but the agglomerates are much more abundant.

Figure 7 shows both, the more frequently observed agglomeration (left) and an image of the less common delamination (right). Regarding the agglomeration case, once the IF particles fracture at the polyhedron vertices or edges, they collapse, their sheets re-arrange to diminish any spaces in between layers and are added to the larger crystals in a fashion similar to the one observed during crystal growth (Figure 7 center). In Figure 7 left, grain boundaries mark the regions where IF particles have joined the main particle. The letters in the figure represent: (a) matter has completely been incorporated onto the agglomerate and is now part of the surface to which new particles will connect; (b) the grain boundaries of the initial IF particle are still visible within the main body of the agglomerate; (c) a new layer is being formed, some sections of the same present layered structure with sharp edges and others partially conserve the spherical shape; and (d) an IF-WS2 semispherical particle still lays in the surface.

Inorganics 02 00377 g007 200
Figure 7. Sample recovered from impact with military rounds. Note the similarities between regions where IF have been added to an existent layered structure, such as a, b, c, and d (left) with sites proposed by crystal growth theories for addition matter in a surface (center). Particle showing layers that delaminated (right).

Click here to enlarge figure

Figure 7. Sample recovered from impact with military rounds. Note the similarities between regions where IF have been added to an existent layered structure, such as a, b, c, and d (left) with sites proposed by crystal growth theories for addition matter in a surface (center). Particle showing layers that delaminated (right).
Inorganics 02 00377 g007 1024

The angles in the vertices in the polyhedral particles seem to play a similar role than the radius of curvature of the surface or internal cracks have in traditional fracture mechanics analysis. Furthermore, the larger crystal to which other IF are being added present imperfections such as kinks, ledges, steps, etc. Each of those sites represent regions in the sample where dangling bonds exist; those locations are more prone to accept the addition of new matter to reduce the overall surface energy as is usually described by crystal growth theories [24,25]. According to the latter, the thermodynamics of crystal surface formation and transformation is based on the idea that the energy that each atom’s position on a crystal surface is determined by the number of neighboring atoms and the amount of unsatisfied bonds. The numbers in Figure 7 (center) represent: surface atoms, surface vacancies, adatoms, kinks, and steps. Figure 7 (right): this image represents the only instance that we found of what it seems as a complete layer delamination; the outer sheets of the material seem to come apart to reveal an inner particle still intact.

The effect of temperature in the material agglomeration during the military round impact certainly plays a significant role to transform the IF into extended sheet-like WS2 structures. However, given the complexity of the test, no temperature values were recorded and the heat effect will only be subject of further study and discussion in future reports.

Figure 8 summarizes our findings. In the agglomeration mechanism: IF particles are more susceptible to breakage in areas where defects or discontinuities, such as edges and vertices, are located. Those act as stress raisers and are the primary sites where crack initiates, in the outer layers of the cage structures. Once the crack propagates it will reach the hollow cores, which will promote the particles collapse and the transition between the 3D and the 2D WS2 polymorphs. The layered structures will agglomerate to reach micron scale dimensions. The collapse and agglomeration of the IF structures was the main effect identified as a consequence of the application of ultrasonic treatment in diverse conditions and the use of military rounds despite the diverse time scale of each of those methods. Shock waves in the conditions employed only produced surface cracks without the full structure collapse. Agglomeration signature is identified as the predominant mechanism in the experimental conditions used.

Inorganics 02 00377 g008 200

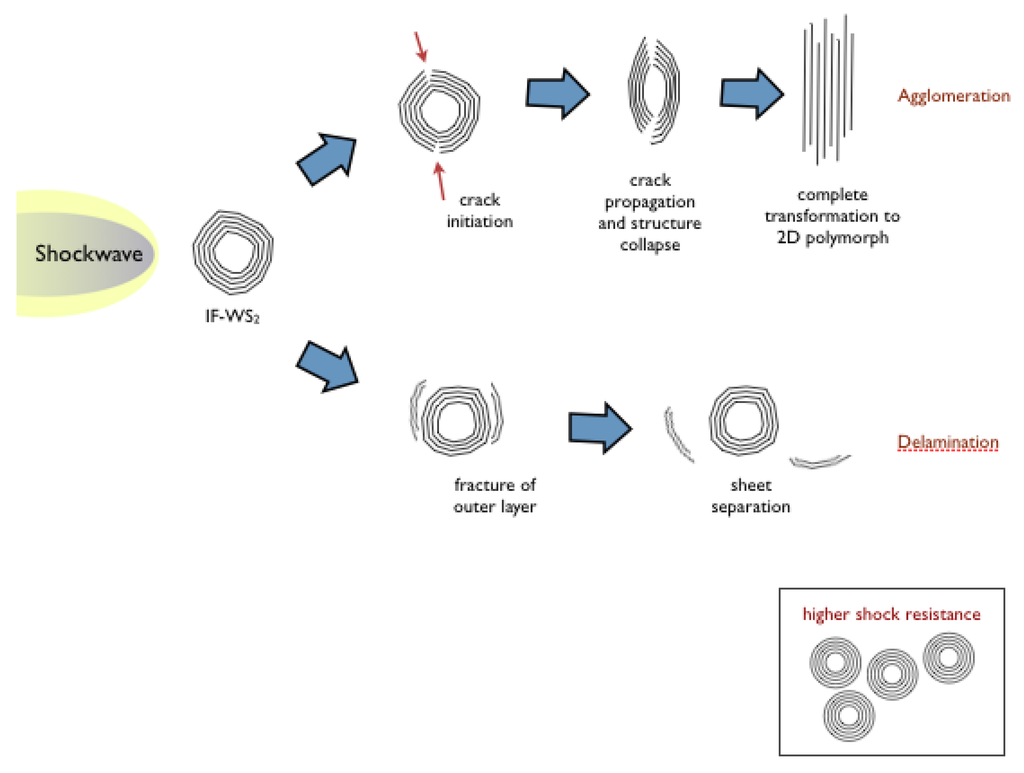

Figure 8. Representation of the two failure modes identified in the IF-WS2 structures.

Click here to enlarge figure

Figure 8. Representation of the two failure modes identified in the IF-WS2 structures.
Inorganics 02 00377 g008 1024

We also identified evidence that suggests that the particles can suffer delamination. The areas in the IF particles surface where this failure mode was identified also correspond to locations where defects or discontinuities are observed. During this failure mode the Van der Waals attraction keeping the layers in the together is broken as a consequence of the shock and small portions of the outer layer come apart, leaving behind sections with a smaller diameter particle but still IF characteristics. The separation between surface layers do not seem to propagate into internal layers. Remarkably, during our experiments we observed incipient delamination in only very few particles treated by sonication. No correlation was found between the extent of this failure mode and times of treatment. We observed only one instance of an almost complete layer separation (Figure 7c).

In sum, all the electron microscopy observations conducted in the postmortem products point to the existence of surface flaws as starting point where agglomeration or delamination take place, independent of the amount energy imparted by the insult, the time of the event or the isotropic or non-isotropic nature of the experiment.

The structure fails by two modes: either as a consequence of the creation of a surface crack and its propagation into the hollow core, followed by the structure collapse and resulting in the transformation into a 2D sheet-like polymorph and the agglomeration of particles into larger bodies, or by delamination of small sections of the sample, which does not completely destroy the IF structure but removes superficial sections, leaving the hollow cores and inner walls intact.

What conditions favor agglomeration over delamination is still subject of study. No link has been found here between the two fracture mechanisms and levels of stress. Crack formation, usually followed by propagation and structure collapse has been identified without evidence of delamination at diverse levels of stress and over a wide range of times of treatment. The interlayer separation and the radius of curvature (given by particle size and existence of faceted structures) are suspected to play a role on which mode dominates however, such has not been clearly demonstrated/quantified.

Studies of brittle fracture demonstrate that the experimental fracture strengths of most materials are lower than the theoretical ones (based on calculations related to atomic bond energies) due to the existence of microscopic flaws that act as stress raisers, amplifying the stress at a given point. The postmortem TEM analyses indicate that the IF-WS2 particles deform and break where structural discontinuities appear: defects and edges in the polyhedral shapes, along the degree of curvature of the particulates, seem to play a critical role on the material resistance to breakage, following a pattern similar to the ones observed in more general fracture mechanics principles. These findings provide evidence that without the stress concentrators in the particle surface, as would be the case if more spherical particles were used, the material should be able to support higher pressure loadings, supporting previous reports [17]. The bottom of Figure 8 shows a schematic representation of how such particles will look like.

No evidence of crack formation or delamination was seen in the more uniform sections of the particle surfaces. These results suggest that IF-WS2 is prone to show a phase transformation into a 2D polymorph and only near spherical particles might show remarkable shock absorption characteristics. Despite finding that the structures have similar failure modes than their carbon counterparts, which can diminish their shock resistance, our findings also point to a solution to the failure: use of defect free (more spherical, not faceted) particulates, supporting previous statements made by Tenne et al. [17].

It is worth noting that the creation of defect free IF-WS2 particles might prove challenging; the use of completely spherical WO3 produced by microwave plasma methods in our labs and reacted with H2S, produced highly faceted IF-WS2, see Figure 9. Different treatment conditions should be developed in order to achieve completely spherical nanoparticles.

Inorganics 02 00377 g009 200
Figure 9. IF-WS2 generated at 900 °C from the WO3 produced using a microwave atmospheric plasma system. Despite the highly spherical nature of the precursor, the IF-WS2 particulates present facets and polyhedral shapes. A few atoms thick 2D WS2 were also observed.

Click here to enlarge figure

Figure 9. IF-WS2 generated at 900 °C from the WO3 produced using a microwave atmospheric plasma system. Despite the highly spherical nature of the precursor, the IF-WS2 particulates present facets and polyhedral shapes. A few atoms thick 2D WS2 were also observed.
Inorganics 02 00377 g009 1024

With failure modes now clearly characterized future research could (a) correlate the cracks observed, the angles at the vertices and the levels of stress used, to generate mathematical expressions that could predict mechanical properties such as fracture toughness for the particular size of IF-WS2 and (b) design nanoparticles against fracture.

3. Experimental Section

Commercially manufactured inorganic fullerene-type tungsten disulfide (IF-WS2) was obtained in the form of a commercial lubricant Nanolub (NanoMaterials Ltd., Ness Ziona, Israel). The sample was washed with ethanol to remove additives; the solvent was separated using an Eppendorf (New York, NY, USA) Model 5418 centrifuge and the IF-WS2 particles dried at room temperature in a desiccator. The sample was studied by XRD and SEM before being subject to treatments and as postmortem.

3.1. Methods Used to Induce Failure

The ultrasonic tester used for this procedure was a Sonomechanics (New York, NY, USA) 1200 W ultrasonic liquid processor shown in Figure 10. The equipment consists of a generator that provides electric signal input to the piezoelectric transducer, a water-cooled barbell horn and a protective enclosure. The samples were placed in a solvent (water or ethanol) and the beaker containing such dispersion was placed in a second beaker, which was filled with iced water and a copper coil that was also circulating cold water to maintain the bath at a constant temperature. The generator produced a constant frequency of 20 kHz at the horn tip; however diverse samples were exposed to the ultrasonic waves during different conditions: the amplitude was varied between 20% and 100% (which correspond to 17 to 81 µpp, respectively) and times of exposure extended from 3600 to 10,800 s.

Inorganics 02 00377 g010 200

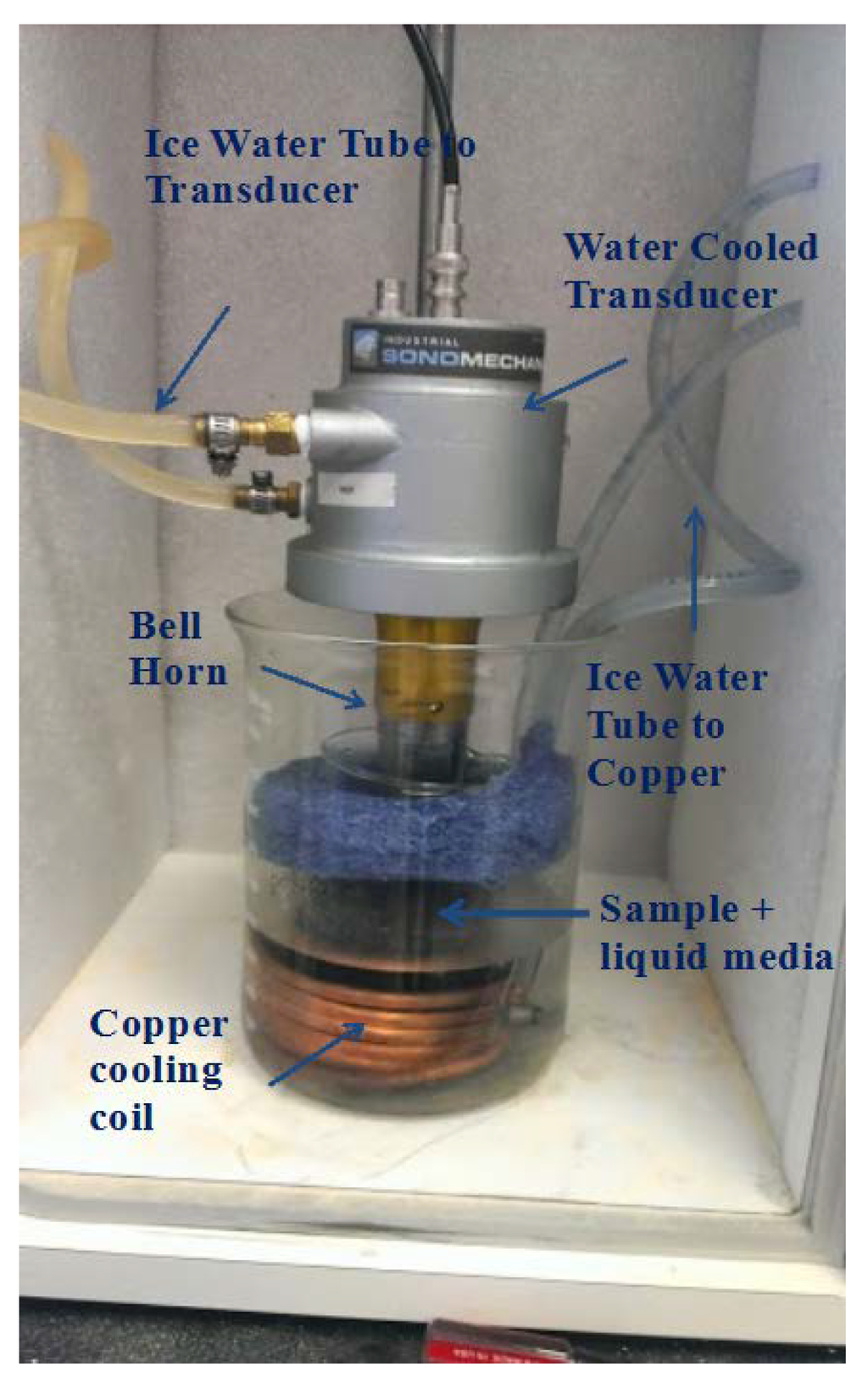

Figure 10. Ultrasonic horn setup. Note that a cooling bath was used to maintain a constant temperature, however the bath that included the cooling coil and the sample in the liquid media were not in contact. The latter were placed in a second beaker. The blue foam was used to keep the inner beaker in place.

Click here to enlarge figure

Figure 10. Ultrasonic horn setup. Note that a cooling bath was used to maintain a constant temperature, however the bath that included the cooling coil and the sample in the liquid media were not in contact. The latter were placed in a second beaker. The blue foam was used to keep the inner beaker in place.
Inorganics 02 00377 g010 1024

A shock tube was used for creating a shock wave that propagated and impinged on the sample. A Kevlar layer was positioned on the surface of the particles to prevent their dispersion inside the shock tube. The system uses a pressurized driver section and evacuated driven section separated by a pair of diaphragms to create a supersonic wave that propagates along the tube and impinges on a test holder at the end of the device. Pressure transducers are located along the tube allow for monitoring of the shock and measuring its speed and strength (pressure sensors 1, 2, and 3 in Figure 11). Detailed theory can be found in [26].

The material to be tested was attached to the holder and bolted onto the end section where pressure transducer cable was connected. The shock tube was then loaded with two heat-treated copper diaphragms 0.025 inches thick scored to a depth of 0.013 inches. Vacuum was then drawn to an absolute pressure of approximately 2 mm Hg in the driven section through the use of a roughing pump. When this was complete, gas was added in a controlled manner until the driven section reached 25 mm Hg. The vacuum gauge was isolated and then disconnected to prevent damage to it during creation of the pressure event. The driver section was then loaded with either Nitrogen or Helium (depending on the desired Mach number) to 720 psig. When the pressure gauge reached 350 psig, the mid-section was isolated. The shock tube was then fired by opening the firing valve. As pressurized gas entered the diaphragm section the pressure differential across the second diaphragm caused it to burst creating a wave through the driven section. The subsequent drop in pressure in the diaphragm section caused the first diaphragm to burst and the formation of a second, faster wave. The second wave overtook the first and the two coalesced into a single wave that traveled along the driven section and to the sample holder.

Inorganics 02 00377 g011 200

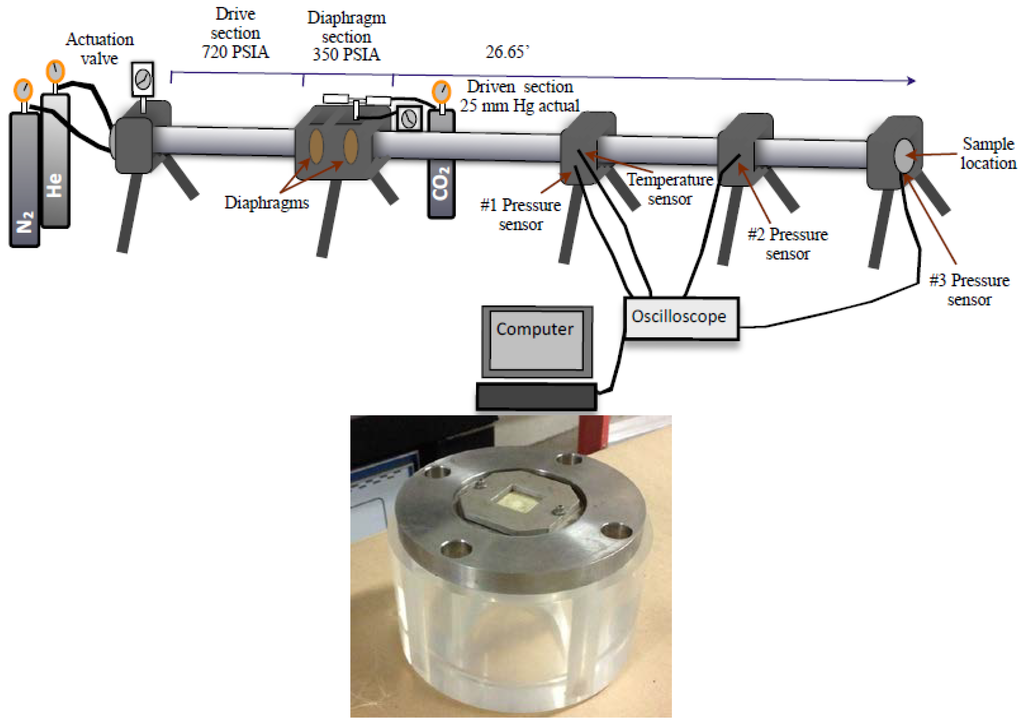

Figure 11. Shock tube setup (top) and image of the sample contained with Kevlar (bottom).

Click here to enlarge figure

Figure 11. Shock tube setup (top) and image of the sample contained with Kevlar (bottom).
Inorganics 02 00377 g011 1024

For the impact with military rounds the IF powder sample was dispersed in between Kevlar layers and the layers introduced into a nylon pouch. The later was then positioned in front of a clay bed and a 7.62 mm NATO round was then fired at it as indicated in Figure 12. The IF-WS2 particles located close to the hole left by the penetrator were then collected and analyzed by the methods described in the next section.

Inorganics 02 00377 g012 200

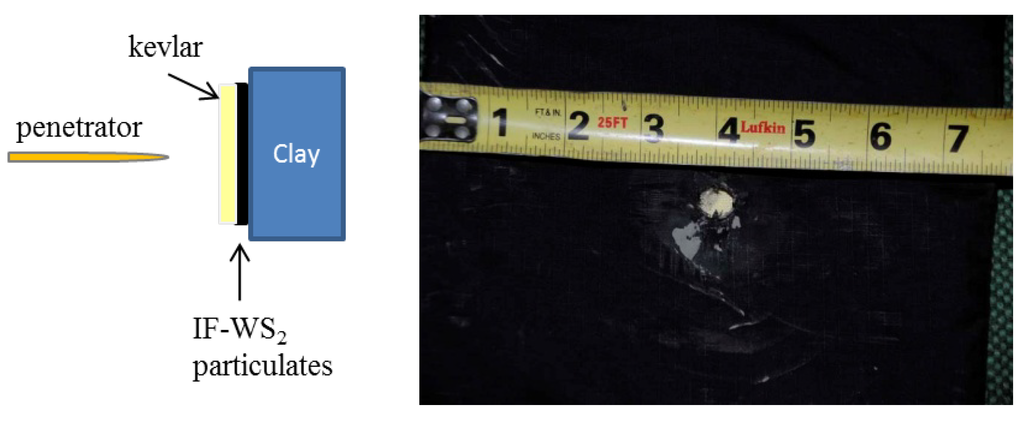

Figure 12. Sample testing setup (left) and orifice left by penetrator in a nylon bag that contained the sample in between Kevlar layers (right).

Click here to enlarge figure

Figure 12. Sample testing setup (left) and orifice left by penetrator in a nylon bag that contained the sample in between Kevlar layers (right).
Inorganics 02 00377 g012 1024

3.2. Methods Used to Characterize Samples

A Philips 1830 PAnalytical X-Ray Diffractometer (Almelo, The Netherlands), using a copper source, Kα of 1.54 Å was employed for the analysis of the crystalline components of the samples. The powders were positioned into a silicon zero background sample holder and the diffraction patterns recorded between 5° and 70° (2θ) with 0.020° step size and one second per step.

A JEOL (Tokyo, Japan) 2010F FASTEM field emission gun scanning transmission electron microscope (STEM/TEM) equipped with Gatan (Pleasanton, CA, USA) GIF image filtering system was used to collect images and electron diffraction patterns. The samples were dispersed in ethanol and a drop of the mixture was allowed to dry in a Holey carbon copper grid. The JEOL 2010F lattice resolution is 0.1 nm.

The microstructural features of the specimens post treatment were analyzed using a Zeiss Neon (Oberkochen, Germany) 40 High Resolution Scanning Electron Microscope (SEM). Images were acquired at diverse magnifications while the microscope was operated between 5 and 20 kV. Energy Dispersive Spectroscopy (EDS) experiments were conducted in conjunction with the SEM using an Apollo 10 silicon drift detector (SDD). Data was collected and analyzed using Genesis Spectrum software (EDAX, Mahwah, NJ, USA).

Brunauer Emmet Teller (BET) surface area analysis was performed employing a Quantachrome (Boynton Beach, FL, USA) Nova 4200 Physisorption analyzer. A degas step was conducted prior to the analysis. The measurements were done using nitrogen atmosphere.

3.3. Attempts to Produce Highly Spherical IF-WS2

Highly spherical WO3 was generated in an atmospheric plasma torch microwave system following procedures previously reported [27,28]. The WO3 sample was then transformed into IF-WS2 by a thermal treatment in a tubular furnace operated at 900 °C for a period of 2 h using H2S atmosphere.

4. Conclusions

The microstructural changes observed in the IF-WS2 particulates as a consequence of treatments with ultrasonic horn, shock tube and military rounds could be categorized in two distinct fracture modes.

The most commonly observed was the phase transformation of the 3D cage-like structures to the 2D layered polymorphs, which involved a crack forming at the particulate surface leading to the structure collapse and subsequent agglomeration of the plate-like sheets, to produce larger particle sizes. Such mechanism dominated the samples’ microstructure for experiments performed using ultrasonic waves and the ones exposed to military rounds. Incipient cracks were identified in shock wave postmortem samples.

A less common secondary mechanism of particle breakage was also identified; the delamination of IF-WS2. However, the later was mainly observed as an incipient process, with only very small sections of the shells separating from the IF main body and the survival of the IF hollow cage characteristics.

The steps required for particle failure by the first mechanism included: (i) an initial crack formed in the surface of the IF particles; (ii) crack propagation towards the core, leading to a complete fracture of the walls; (iii) structure collapse and disappearance of the hollow cores; (iv) sheet re-arrangement; and (v) new bonds being formed, which resulted in an overall agglomeration. We encountered evidence that the IF-WS2 structure collapse initiated at the edges of the polyhedral particles, which acted as stress concentrators, demonstrating that general fracture mechanics concepts can be applied to materials at the nanoscale. Based on those findings and in agreement with previous reports, defect-free perfectly spherical IF-WS2 surfaces are expected to present improved shock absorbing performance than that observed for polyhedral shape IFs.

We found that surface area measurements could be correlated to the extent of particle damage when agglomeration could be recognized as the main effect of the pressure load.

We demonstrated that more irregular particles (faceted) tend to fail at defect sites that act as stress concentrators independently of how energy is delivered: shock being applied in fractions of a second, or over long periods of time, as an isotropic or non-isotropic event, as a single occurrence or by cyclic treatment.

Acknowledgments

This work was conducted with support of the Office of Naval research, Code 30. We appreciate the help that Chris Clay and John Gibson provided to conduct the shock tube tests. We thank Jing Bing from University of New Mexico and JEOL, USA Inc. for facilitating the collection of TEM data. We also thank Alexey Peshkovsky, from Industrial Sonomechanics for guidance using the transducer.

Author Contributions

The findings in this manuscript are part of Jamie Cook’s Master degree thesis work. Claudia C. Luhrs advised the thesis and directed the research. Garth Hobson guided the shock tube tests. Lou Roncase conducted the military round impacts and Steven Rhyans performed a summer internship aiding the team with some of the ultrasonic experiments.

Conflicts of Interest

The authors declare no conflict of interest.
