Plants 2013, 2(3), 521-529; doi:10.3390/plants2030521

Article
New Compounds Induce Brassinosteroid Deficient-like Phenotypes in Rice
Tadashi Matsumoto , Kazuhiro Yamada , Ikuko Iwasaki , Yuko Yoshizawa and Keimei Oh *
Department of Biotechnology, Faculty of Bioresource Sciences, Akita Prefectural University, 241-438, Shimoshinjo Nakano, Akita 010-0195, Japan
*
Author to whom correspondence should be addressed; E-Mail: jmwang@akita-pu.ac.jp; Tel.: +81-18-872-1590; Fax: +81-18-872-1676.
Received: 29 May 2013; in revised form: 5 August 2013 / Accepted: 8 August 2013 /
Published: 13 August 2013

Abstract

: Brassinosteroids (BRs) are steroidal plant hormones with potent plant growth promoting activity. Because BR-deficient mutants of rice exhibit altered plant architecture and important agronomic traits, we conducted a systemic search for specific inhibitors of BR biosynthesis to manipulate the BR levels in plant tissues. Although previous studies have been conducted with BR biosynthesis inhibitors in dicots, little is known regarding the effects of BR biosynthesis inhibition in monocot plants. In this work, we used potent inhibitors of BR biosynthesis in Arabidopsis, and we performed a hydroponic culture of rice seedlings to evaluate the effects of BR biosynthesis inhibition. Among the test compounds, we found that 1-[[2-(4-Chlorophenyl)-4-(phenoxymethyl)-1,3-dioxolan-2-yl]methyl]-1H-1,2,4-triazole (1) is a potent inhibitor that could induce phenotypes in rice seedlings that were similar to those observed in brassinosteroid deficient plants. The IC50 value for the retardation of plant growth in rice seedlings was approximately 1.27 ± 0.43 μM. The IC50 value for reducing the bending angle of the lamina joint was approximately 0.55 ± 0.15 μM.
Keywords:
brassinosteroid biosynthesis inhibitor; plant hormone; azole derivatives

1. Introduction

Plant growth and development are regulated by a complex signal transduction mechanism. Brassinosteroids (BRs) serve as important signal mediators with well-defined functions, including extreme dwarfism, delayed senescence, male sterility, and constitutive photomorphogenesis in the dark [1,2,3]. The use of transgenic techniques to manipulate the endogenous BR content has a remarkable effect on plant growth. Overexpression of DWARF4, an enzyme that catalyses a rate-limiting step in BR biosynthesis, enhances plant growth and seed yield in Arabidopsis [4]. Similarly, transgenic rice plants overexpressing a sterol C-22 hydroxylase that catalyses a key step in BR biosynthesis presented increases in the biomass and seed yields [5], and the available evidence indicates that the disruption of BR biosynthesis may be a means to improving biomass production [6]. Because BRs control several important agronomic traits, such as flowering, plant architecture, seed yield, and stress tolerance [7,8], various efforts have been made to control the BR levels in plant tissues.

As one of the predominant dietary energy sources for humans, rice is the staple food of over half the world’s population. Great efforts have been made to develop new methods for improving the production and quality of rice. Mutant rice plants that are deficient for BR biosynthesis exhibit dwarf phenotypes with erect leaves [6]. These architectural styles of rice plants are beneficial for dense planting due to the increased light capture for photosynthesis and nitrogen storage for grain filling. Thus, manipulating the BR level in rice plants may be a means to improving rice production. An efficient way to manipulate the BR level in rice plants is the use of specific inhibitors of BR biosynthesis. Indeed, it is believed that the use of specific inhibitors has advantages over genetic mutation because inhibitors can be used at different stages of plant growth and development [9]. Moreover, they can be applied to different plant species with great ease. In this context, searching for selective and potent inhibitors of BR biosynthesis represents a useful approach for dissecting the functions of BRs as well as for regulating plant growth and development. We have conducted a systematic search for specific inhibitors of BR biosynthesis. In the previous work, we reported the discovery of a series of triazole derivatives that exhibit highly selective and potent inhibitory activities on BR biosynthesis in Arabidopsis (designated as the YCZ-series; the general structure is shown in Figure 1) [10,11]. Studies on the mechanism of action of this synthetic series on BR biosynthesis suggest that the target sites of the YCZ-series are CYP90s, which are responsible for the hydroxylation of the side chain of campesterol, a precursor of BR biosynthesis [12].

Plants 02 00521 g001 200

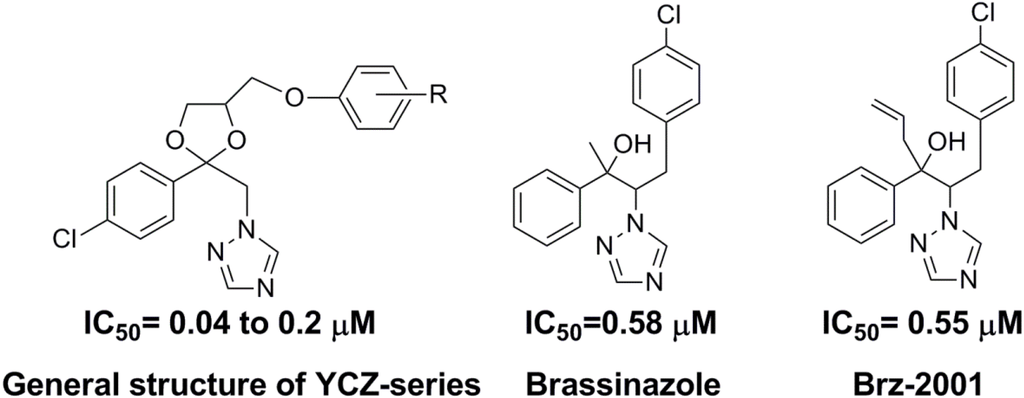

Figure 1. Chemical structures of brassinosteroid biosynthesis inhibitors.

Click here to enlarge figure

Figure 1. Chemical structures of brassinosteroid biosynthesis inhibitors.
Plants 02 00521 g001 1024

The discovery of brassinazole was previously reported by Asami et al. [13,14], and considerable progress has been made using brassinazole on dicot plants to dissect the functions of BR [9]. However, to the best of our knowledge, there has been no report of potent inhibitors of BR biosynthesis in rice plants. As demonstrated for brassinazole and Brz2001 (the structure is shown in Figure 1), even at a concentration of 10 μM, these inhibitors did not exhibit significant biological activity in rice plants [15]. In contrast, the IC50 values of the YCZ-series for Arabidopsis were between 0.04 and 0.5 μM [12], and the IC50 for brassinazole and Brz-2001 were 0.58 and 0.55 μM [12], respectively. This observation indicates that the potency of the YCZ-series as inhibitors of BR biosynthesis in Arabidopsis is stronger than that of brassinazole and/or Brz-2001. Based on these observations, it is worth investigating the ability of the YCZ-series to inhibit BR biosynthesis in monocot plants, such as rice. To explore whether BR biosynthesis inhibitors can induce phenotypes similar to those of mutants that are deficient for BR biosynthesis in rice, we conducted a screen of a compound library of the YCZ-series and evaluated the phenotypes. In this study, we report the discovery of new compounds with the ability to induce a phenotype similar to BR deficiency in rice plants.

2. Results and Discussion

The chemical structures of the compounds are listed in Table 1. In our assays, we used hydroponic methods to culture the rice seedlings and evaluate the biological activity of the analogues of YCZ-series [16]. The common phenotypes of BR deficient mutants of rice plants are characterised by different degrees of dwarfism with erect leaves [6]. We chose plant height as a factor for the evaluation of the biological activity of the test compounds on rice seedlings. Another assay method that is known to be very sensitive to the levels of BR in rice is based on the determination of the bending angle of the lamina joint of the rice seedlings. The rice lamina joint is a tissue that is found between the leaf blade (leaf lamina) and the leaf sheath that acts similar to a hinge to bend the leaf blade. The bending angle of the lamina joint is sensitive to BR [17]. Furthermore, BR biosynthesis-deficient mutants of rice plants exhibit erect leaves with small bending angles of the lamina joint [18,19,20]. Thus, determination of the bending angle of the lamina joint of chemically treated rice plants is a straightforward approach to speculate the effects of the compounds used in this study on BR biosynthesis inhibition.

Table 1. Biological effects of YCZ-series analogues on the growth of rice seedlings.

Click here to display table

Table 1. Biological effects of YCZ-series analogues on the growth of rice seedlings.
Plants 02 00521 i001
No.-R(cm)
Cont17.14 ± 1.08
1Phenyl9.65 ± 0.52
22-chlorophenyl9.83 ± 0.41
33-chlorophenyl15.21 ± 0.25
44-chlorophenyl13.24 ± 0.48
52,3-dichlorophenyl13.15 ± 0.50
62,4-dichlorophenyl10.01 ± 0.43
72,5-dichlorophenyl11.48 ± 0.53
82,6-dichlorophenyl11.09 ± 0.36
93,4-dichlorophenyl14.79 ± 0.42
103,5-dichlorophenyl10.45 ± 0.75

2.1. Structure-Activity Relationships among the YCZ-Series with Regard to the Retardation of the Plant Height in Rice

To identify the chemical substituent on the phenoxy moiety that was responsible for the retardation of the growth of rice seedlings, various substituents were introduced onto the aromatic ring (compounds 1-10). Compound 1, which has no substituent on the phenyl ring, was used as a baseline reference for the structure-activity relationship. The concentrations of all of the test compounds were assigned to be 1 μM, and the plant height was measured. As shown in Table 1, the average plant height of the untreated control was approximately 17.14 ± 1.08 cm. Compound 1 exhibited an inhibitory effect on the growth of rice seedlings, resulting in a plant height of approximately 9.65 ± 0.52 cm. Analogue 2 contained a chlorine atom at position 2 of the phenyl ring and did not show a significant difference compared to compound 1 with regard to the retardation of the plant height. The rice seedlings treated with analogue 2 reached a height of approximately 9.83 ± 0.41 cm. Interestingly, moving the chlorine atom to position 3 or 4 (compound 3 and 4) reduced the inhibitory activity, resulting in seedlings with a plant height of 15.21 ± 0.25 and 13.24 ± 0.48 cm, respectively. Analogues 5 through 10 contain two chlorine atoms with variations in the phenyl ring and exhibited different inhibitory potencies for the retardation of rice seedlings in our assay system. The data shown in Table 1 suggest that the introduction of the mono substituent of the chlorine atom at the meta position of the phenyl ring (compound 3, 5, 9) may have a negative effect on the inhibitory activity of this synthetic series with regard to the retardation of plant height. Compound 1, which has no chlorine substituent on the phenyl ring, is the most potent inhibitor.

To further determine the effect of compound 1 on the plant height in the rice seedlings, we treated rice seedlings with a different concentration of compound 1. As shown in Figure 2A, the retardation of the growth of the rice seedlings treated with compound 1 was dose-dependent, and the IC50 value was approximately 1.27 ± 0.43 μM (Figure 2B). As the compounds in the YCZ-series are selective BR biosynthesis inhibitors that target the CYP90s in Arabidopsis [12], the data obtained here suggest that the ability of compound 1 to induce the dwarf phenotype in rice seedlings is likely due to the inhibition of BR biosynthesis in rice plants.

Plants 02 00521 g002 200

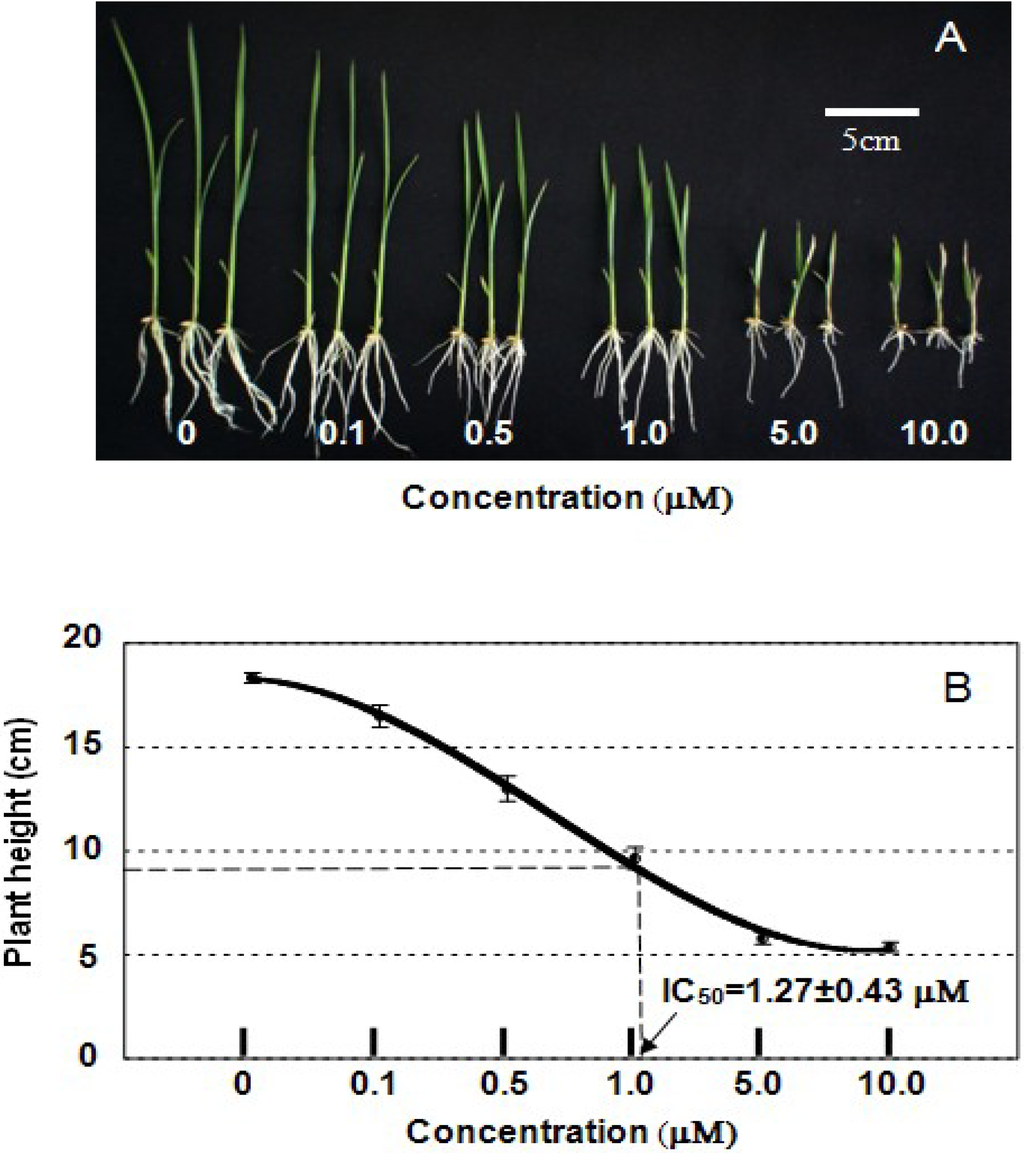

Figure 2. Effects of compound 1 on the height of rice seedlings. (A) The plants were treated with compound 1 at the specified concentration (0–10 μM) and grown under the conditions described in the experimental section for 10 days; (B) Average plant height of seedlings 10 days after treatment (n = 8). Error bars represent SD. The IC50 value of compound 1 for the inhibition of plant height was calculated by defining the plant height of untreated seedlings as 0% inhibition. The experiments were performed at least in duplicate to establish the repeatability.

Click here to enlarge figure

Figure 2. Effects of compound 1 on the height of rice seedlings. (A) The plants were treated with compound 1 at the specified concentration (0–10 μM) and grown under the conditions described in the experimental section for 10 days; (B) Average plant height of seedlings 10 days after treatment (n = 8). Error bars represent SD. The IC50 value of compound 1 for the inhibition of plant height was calculated by defining the plant height of untreated seedlings as 0% inhibition. The experiments were performed at least in duplicate to establish the repeatability.
Plants 02 00521 g002 1024

2.2. Effect of the YCZ-series on the Bending Angle of the Lamina Joint of the Rice

To further confirm the inhibitory effects of the YCZ-series on BR biosynthesis in rice seedlings, the small bending angle of the lamina joint, which is specifically affected in BR-deficient rice plants, was measured. The test compounds were added to the culture medium for a final concentration of 1 μM. We found that the chemical-treated rice seedlings exhibited different characteristics with regard to the bending angle of the lamina joint of rice plants. As shown in Figure 3, the bending angle of the lamina joint of the untreated control was approximately 58.1 ± 7.9 degrees, whereas the bending angle of the lamina joint in the chemical-treated rice plants was reduced to different degrees. With the exception of compounds 3 and 9, the ability of the treatment to reduce the bending angle of the lamina joint was correlated with the reduced plant height of the rice seedlings. Among the test compounds, compound 1 was the most potent inhibitor for reducing the bending angle of the lamina joint, resulting in a bending angle of approximately 26.3 ± 6.0 degrees.

Plants 02 00521 g003 200

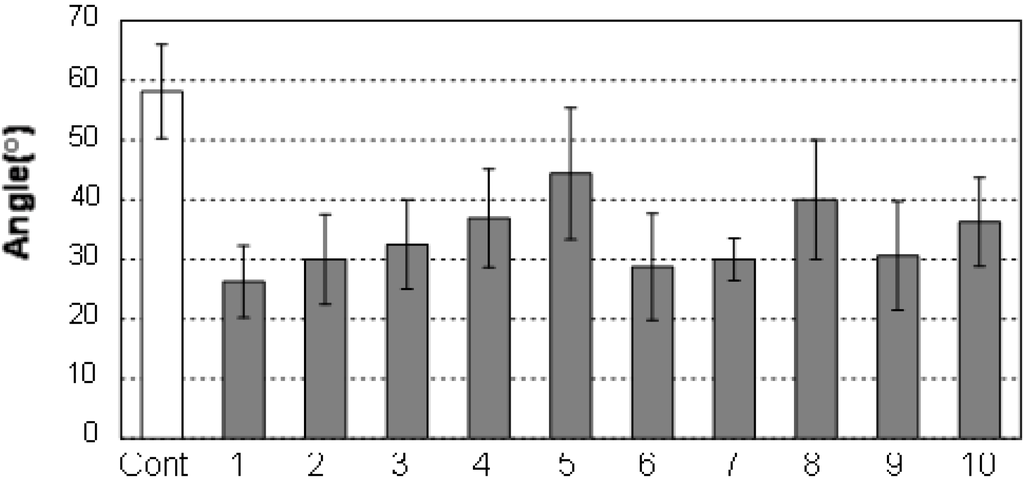

Figure 3. Effects of the YCZ-series on the lamina joint bending angle in rice seedlings. The test compounds were dissolved in the culture medium at a final concentration of 1 μM. The rice seedlings were growth under the conditions described in the experimental section. The lamina joint bending angle of 5-day-old rice seedlings was measured according to a method that has been previously described [17]. The data are the means SD of the results from eight plants. All of the experiments were performed at least in duplicate to establish the repeatability.

Click here to enlarge figure

Figure 3. Effects of the YCZ-series on the lamina joint bending angle in rice seedlings. The test compounds were dissolved in the culture medium at a final concentration of 1 μM. The rice seedlings were growth under the conditions described in the experimental section. The lamina joint bending angle of 5-day-old rice seedlings was measured according to a method that has been previously described [17]. The data are the means SD of the results from eight plants. All of the experiments were performed at least in duplicate to establish the repeatability.
Plants 02 00521 g003 1024

Next, we determined the effects of the concentration of compound 1 on the bending angle of the lamina joint. As shown in Figure 4, the bending angle of the lamina joint of the control was approximately 64.4 ± 5.8 degrees. In the presence of 0.1 μM of compound 1 in the culture medium, the bending angle decreased by 18.1 degrees. The bending angle decreased with an increase in the concentration of compound 1 in a dose-dependent manner. At a concentration of 10 μM of compound 1, the bending angle was reduced to 13.1 ± 2.4 degrees. This result clearly indicates that compound 1 induced a characteristic phenotype of erect leaves, similar to that observed in BR biosynthesis-deficient mutant rice.

Plants 02 00521 g004 200

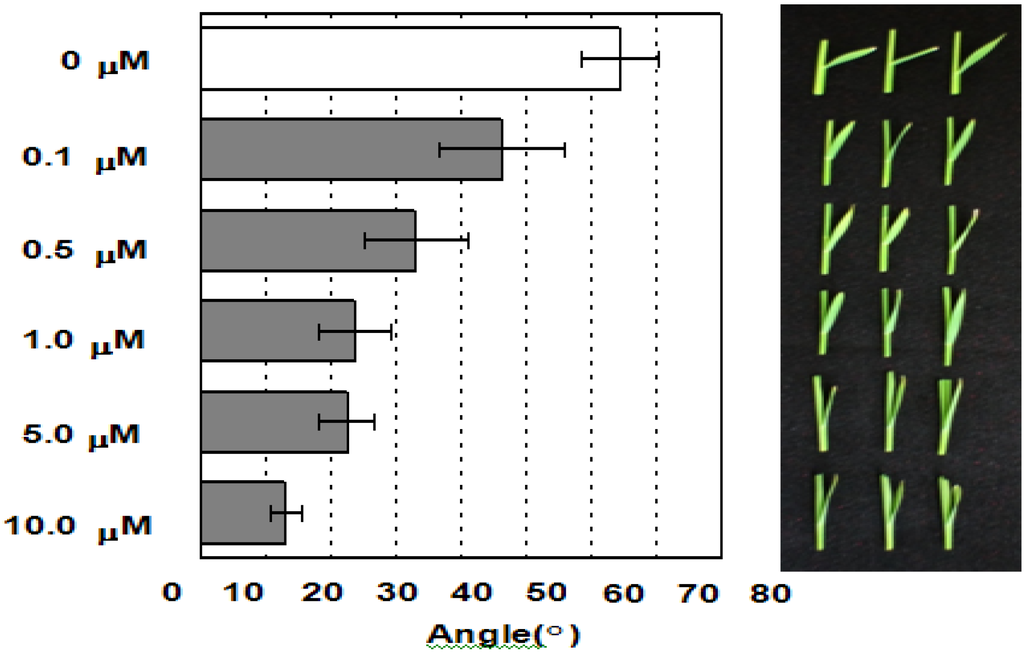

Figure 4. Effects of compound 1 on the lamina joint bending angle in rice seedlings. The average bending angle of the lamina joint was measured (n = 8). Error bars represent SD. The IC50 value of compound 1 for the inhibition of the bending angle of the lamina joint was calculated by defining the bending angle of the lamina joint of untreated seedlings as 0% inhibition. The experiments were performed at least in duplicate to establish the repeatability.

Click here to enlarge figure

Figure 4. Effects of compound 1 on the lamina joint bending angle in rice seedlings. The average bending angle of the lamina joint was measured (n = 8). Error bars represent SD. The IC50 value of compound 1 for the inhibition of the bending angle of the lamina joint was calculated by defining the bending angle of the lamina joint of untreated seedlings as 0% inhibition. The experiments were performed at least in duplicate to establish the repeatability.
Plants 02 00521 g004 1024

The test compounds were dissolved in culture medium at a final concentration of 1 μM. The rice seedlings were grown under the conditions described in the experimental section. The plant heights of 10-day-old rice seedlings were measured. The data are the means ± standard deviation (SD) of the results from the eight plants. All of the experiments were performed at least in duplicate to establish the repeatability.

3. Experimental Section

3.1. Chemicals

The BR biosynthesis inhibitors used in this study were synthesised by a method that has been described previously [10]. Stock solutions of the test compounds were dissolved in DMSO at a concentration of 100 mM and stocked at −30 °C. The other reagents were of the highest grade and purchased from Wako, Pure Chemical Industries, Ltd. (Tokyo, Japan).

3.2. Plant Culture and Growth Conditions

Rice seeds (Oryza sativa L. cv. “Akitakomachi”) were sterilised in a 0.86 mM benomyl solution (a commercially available fungicide purchased from Sumitomo chemical garden products, Tokyo, Japan) for 24 h and washed with distilled water five times. The seeds were cold-treated (4 °C) for three days and then transferred to an incubator at 30 °C for two days to promote simultaneous germination. The germinating seeds were placed on gauze set on top of 200-mL disposable plastic cups (Sunplatec) and stimulated to germinate in distilled water for another three days. Subsequently, the distilled water was replaced with Hoagland’s solution containing several chemicals [16]. The growth conditions were set to 27 °C/25 °C in a 14 h light (Approximately 18,000 Lx)/10 h dark cycle with the humidity at 70%. The plant height of 10-day-old seedlings was measured after treatment with the chemicals. Average plant height was measured from 8 rice seedlings after chemical treatment or without chemical treatment for 10 days. The IC50 value of compound 1 for the inhibition of plant height was calculated by defining the plant height of untreated seedlings as 0% inhibition while the plant height of 0 cm was assigned to be 100% inhibition, and the IC50 value was calculated accordingly. All the experiments were done at least in duplicate to establish the repeatability.

3.3. Lamina Joint Bending Assay

The angle between the lamina and the second leaf sheath in 5-day-old seedlings after treatment with or without chemicals was measured. The second lamina joints were used for the lamina bending assay as described [17].

4. Conclusions

We screened a library of small-molecule inhibitors of BR biosynthesis to evaluate the biological activities of these compounds on rice plants based on the reduction of the plant height and their effects on the bending angle of the lamina joint of the rice plants. We observed that compound 1 exhibited a potent inhibitory effect on plant height in rice. The lamina joint bending assay indicated that these compounds induced erect leaves with a small bending angle at the lamina joint, which is similar to the phenotype of BR biosynthesis deficient mutants of rice. The biological activities of the compounds used in this study are in good agreement with the results of these two assays. Compound 1 is the most potent inhibitor among the analogues used in this study which inhibits BR biosynthesis in rice plants.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Clouse, S.D.; Sasse, J.M. Brassinosteroids: Essential regulators of plant growth and development. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1998, 49, 427–451, doi:10.1146/annurev.arplant.49.1.427.
  2. Altmann, T. Molecular physiology of brassinosteroids revealed by the analysis of mutants. Planta 1999, 208, 1–11, doi:10.1007/s004250050528.
  3. Nakaya, M.; Tsukaya, H.; Murakami, N.; Kato, M. Brassinosteroids control the proliferation of leaf cells of Arabidopsis thaliana. Plant Cell Physiol. 2002, 43, 239–244, doi:10.1093/pcp/pcf024.
  4. Choe, S.; Fujioka, S.; Noguchi, T.; Takatsuto, S.; Yoshida, S.; Feldmann, K.A. Overexpression of DWARF4 in the brassinosteroid biosynthetic pathway results in increased vegetative growth and seed yield in Arabidopsis. Plant J. 2001, 26, 573–582, doi:10.1046/j.1365-313x.2001.01055.x.
  5. Wu, C.Y.; Trieu, A.; Radhakrishnan, P.; Kwok, S.F.; Harris, S.; Zhang, K.; Wang, J.; Wan, J.; Zhai, H.; Takatsuto, S.; et al. Brassinosteroids regulate grain filling in rice. Plant Cell 2008, 20, 2130–2145, doi:10.1105/tpc.107.055087.
  6. Sakamoto, T.; Morinaka, Y.; Ohnishi, T.; Sunohara, H.; Fujioka, S.; Ueguchi-Tanaka, M.; Mizutani, M.; Sakata, K.; Takatsuto, S.; Yoshida, S.; et al. Erect leaves caused by brassinosteroid deficiency increase biomass production and grain yield in Rice. Nat. Biotechnol. 2006, 24, 105–109.
  7. Sasse, J.M. Physiological actions of brassinosteroids: An update. J. Plant Growth Regul. 2003, 22, 276–288, doi:10.1007/s00344-003-0062-3.
  8. Krishna, P. Brassinosteroid-mediated stress responses. J. Plant Growth Regul. 2003, 22, 289–297, doi:10.1007/s00344-003-0058-z.
  9. Wang, Z.Y.; Nakano, T.; Gendron, J.; He, J.; Chen, M.; Vafeados, D.; Yang, Y.; Fujioka, S.; Yoshida, S.; Asami, T.; et al. Nuclear-localized BZR1 mediates brassinosteroid-induced growth and feedback suppression of brassinosteroid biosynthesis. Dev. Cell 2002, 2, 505–513, doi:10.1016/S1534-5807(02)00153-3.
  10. Oh, K.; Yamada, K.; Asami, T.; Yoshizawa, Y. Synthesis of novel brassinosteroid biosynthesis inhibitors based on the ketoconazole scaffold. Bioorg. Med. Chem. Lett. 2012, 22, 1625–1628, doi:10.1016/j.bmcl.2011.12.120.
  11. Yamada, K.; Yoshizawa, Y.; Oh, K. Synthesis of 2RS,4RS-1-[2-Phenyl-4-[2-(2-trifluromethoxy-phenoxy)-ethyl]-1,3-dioxolan-2-yl-methyl]-1H-1,2,4-triazole derivatives as potent inhibitors of brassinosteroid biosynthesis. Molecules 2012, 17, 4460–4473, doi:10.3390/molecules17044460.
  12. Yamada, K.; Yajima, O.; Yoshizawa, Y.; Oh, K. Synthesis and biological evaluation of novel azole derivatives as selsective potent inhibitors of brassinosteroid biosynthesis. Bioorg. Med. Chem. 2013, 21, 2451–2461, doi:10.1016/j.bmc.2013.03.006.
  13. Min, Y.K.; Asami, T.; Fujioka, S.; Murofushi, N.; Yamaguchi, I.; Yoshida, S. New lead compounds for brassinosteroid biosynthesis inhibitors. Bioorg. Med. Chem. Lett. 1999, 9, 425–430, doi:10.1016/S0960-894X(99)00008-6.
  14. Sekimata, K.; Han, S.Y.; Yoneyama, K.; Takeuchi, Y.; Yoshida, S.; Asami, T. A specific and potent inhibitor of brassinosteroid biosynthesis possessing a dioxolane ring. J. Agric. Food Chem. 2002, 50, 3486–3490, doi:10.1021/jf011716w.
  15. Sekimata, K.; Kimura, K.; Kaneko, I.; Nakano, T.; Yoneyama, K.; Takeuchi, Y.; Yoshida, S.; Asami, T. A specific brassinosteroid biosynthesis inhibitor, Brz2001: Evaluation of its effects on Arabidopsis, cress, tobacco, and rice. Planta 2001, 213, 716–721, doi:10.1007/s004250100546.
  16. Hoagland, D.R.; Arnon, D.I. The water-culture method of growing plants without soil. Calif. Agr. Expt. Sta. Circ. 1950, 347, 1–32.
  17. Wada, K.; Marumo, S.; Ikekawa, N.; Morisaki, M.; Mori, K. Brassinolide and Homobrassinolide promotion of lamina inclination of rice seedling. Plant Cell Physiol. 1981, 22, 323–325.
  18. Yamamuro, C.; Ihara, Y.; Wu, X.; Noguchi, T.; Fujioka, S.; Takatsuto, S.; Ashikari, M.; Kitano, H.; Matsuoka, M. Loss of function of a rice brassinosteroid insensitive 1 homolog prevents internode elongation and bending of the lamina joint. Plant Cell 2000, 12, 1591–1605.
  19. Hong, Z.; Ueguchi-Tanaka, M.; Umemura, K.; Uozu, S.; Fujioka, S.; Takatsuto, S.; Yoshida, S.; Ashikari, M.; Kitano, H.; Matsuoka, M. A rice brassinosteroid-deficient mutant, ebisu dwarf (d2), is caused by a loss of function of a new member of cytochrome P450. Plant Cell 2003, 15, 2900–2910, doi:10.1105/tpc.014712.
  20. Tanabe, S.; Ashikari, M.; Fujioka, S.; Takatsuto, S.; Yoshida, S.; Yano, M.; Yoshimura, A.; Kitano, H.; Matsuoka, M.; Fujisawa, Y.; et al. A novel cytochrome P450 is implicated in brassinosteroid biosynthesis via the characterization of rice dwarf mutant, dwarf11, with reduced seed length. Plant Cell 2005, 17, 776–790, doi:10.1105/tpc.104.024950.
