Plants 2013, 2(2), 203-210; doi:10.3390/plants2020203

Short Note
Microsatellite Markers of Willow Species and Characterization of 11 Polymorphic Microsatellites for Salix eriocephala (Salicaceae), a Potential Native Species for Biomass Production in Canada
Aurélien Lauron-Moreau , Frédéric E. Pitre , Luc Brouillet and Michel Labrecque *
Institut de recherche en biologie végétale, Université de Montréal, 4101 Sherbrooke Est, Montréal, QC H1X 2B2, Canada; E-Mails: aurelien.lauron-moreau@umontreal.ca (A.L.-M.); frederic.pitre@umontreal.ca (F.E.P.); luc.brouillet@umontreal.ca (L.B.)
*
Author to whom correspondence should be addressed; E-Mail: michel.labrecque@umontreal.ca; Tel.: +1-514-872-1862; Fax: +1-514-343-2288.
Received: 21 January 2013; in revised form: 8 March 2013 / Accepted: 20 March 2013 /
Published: 27 March 2013

Abstract

: Biomass produced from dedicated plantations constitutes a source of renewable energy and is expected to play an important role in several countries in the coming decades. The cultivation of woody crops such as willows therefore raises several environmental issues. In North America, several native willows are potentially interesting for biomass producers. Willow trees are diverse but few species used for environmental applications have been the object of molecular genetic studies. Based on the sequenced poplar genome, 24 microsatellite markers were assayed on five native North American willow species: Salix amygdaloides, S. discolor, S. eriocephala, S. interior and S. nigra. Polymorphic microsatellite markers were used to characterize the allele data on the shrub Salix eriocephala, a North American species with economic potential. Eleven markers amplified and confirmed the potential of this species. Analysis of samples from six populations in eastern Canada showed that all markers were variable as well as polymorphic in at least one population. The number of alleles per locus ranged from 1 to 9 (mean 2.95) and showed that these microsatellite markers can be used to assess genetic diversity of North American willow species.
Keywords:
allele data; microsatellite markers; Salicaceae; Salix eriocephala; willow

1. Introduction

Genus Salix L. (Salicaceae) includes about 500 species worldwide, concentrated in temperate and cold regions of the Northern Hemisphere. Although it presents greater diversity in areas such as China (around 275 species; [1]), more than 100 species are found in North America [2]. Willow species are cultivated worldwide for the production of biomass and for environmental applications [3] using short-rotation intensive culture (SRIC). Some willow species and cultivars have been favored due to their high biomass yield [4,5]. In North America, most of the cultivars used for biomass production are of exotic origins. The use of native species could represent several advantages to stimulate the deployment of bioenergy plantations. In addition to their higher level of social acceptability, it is believed that native species will be better adapted to the pedoclimatic conditions characterizing North American regions. They are also characterized by a higher genetic diversity within their geographical distribution than introduced cultivars and they could be exploited for diverse applications [6].

The North American willow species, Salix amygdaloides, S. discolor, S. eriocephala, S. interior and S. nigra, have morphological traits that suggest high biomass potential. These shrubs can grow rapidly to 6–8 meters and are widespread in eastern North America [2]. Among these, Salix eriocephala is of particular interest because of its extensive North-South distribution and adaptation to a range of climatic conditions. Knowledge of the genetic diversity of populations is a prerequisite to breeding programs aimed at improving biomass production. At a broader scale, given that half the current range of this species was once covered by Quaternary glaciers, genetic information may provide clues to the species population structure following recolonization of glaciated areas [7]. Barker et al. [8] developed 46 microsatellite markers in Salix, of which 17 were polymorphic (2–22 alleles per locus). Two studies derived microsatellite markers for Salix from the related Populus trichocarpa (Salicaceae) genome [9] to evaluate genetic diversity: Puschenreiter et al. [10] successfully amplified 73% of the Populus SSRs assayed in S. caprea (only 10% were polymorphic), each of which was functional on a variable number of species among the four species assayed; Lin et al. [6] used eight microsatellite markers, from both Populus and the Barker study (PMGC2709, PMGC2889, Karp_SB24, Karp_SB199, Karp_SB493, Karp_W293, Karp_W504 and Karp_W784) to compare the genetic diversity of S. eriocephala to that of S. purpurea (introduced willow) at a regional level.

Here, we assayed 24 microsatellite markers on five willow species and characterized 11 polymorphic microsatellite markers for S. eriocephala in widely distributed populations in eastern Canada. Our objectives were: (1) to determine whether these markers were present in the North American Salix species studied, and (2) to evaluate polymorphisms within the species S. eriocephala.

2. Results and Discussion

In total, twelve microsatellites were amplified with Salix species of this study and five markers were shared in these willows (Table 1). In addition, WPMS_7 amplified in S. amygdaloides, S. discolor, S. interior and S. nigra; ORPM_207 and PMGC_2658 in S. amygdaloides, S. eriocephala and S. nigra; PMGC_2315 in S. amygdaloides, S. eriocephala and S. interior; and WPMS_18 in S. discolor and S. eriocephala. Two markers (ORPM_21 and ORPM_349) were present only in S. eriocephala.

Table Table 1. Characteristics of 24 microsatellite markers used for five willow species, of which 11 successfully amplified for Salix eriocephala. Information on each primer pair includes locus name, expected size (bp) in poplar, forward and reverse sequences, repeat motif, successful amplification with populations of S. amygdaloides (Sa), S.discolor (Sd), S.eriocephala (Se), S. interior (Si) and S. nigra (Sn), and number of cycles (Ca).

Click here to display table

Table 1. Characteristics of 24 microsatellite markers used for five willow species, of which 11 successfully amplified for Salix eriocephala. Information on each primer pair includes locus name, expected size (bp) in poplar, forward and reverse sequences, repeat motif, successful amplification with populations of S. amygdaloides (Sa), S.discolor (Sd), S.eriocephala (Se), S. interior (Si) and S. nigra (Sn), and number of cycles (Ca).
Locus aExpected size (bp) in poplarPrimers sequences (5'–3')Repeat motifSuccessful amplification with populations ofNumber of cycles Ca
SaSdSeSiSn
GCPM_1011221F: ATGAAATAATCGTTTGGTGC(AT)11+ + + + + 27
R: CACCCGAGTTTATCTCACTC
GCPM_1037 123 F: ATGAAATTCGCAAAGTCAGT(TA)11+ + + + + 33
R: AAAAGAGGAAATTACGGTCC
GCPM_1043 154 F: TTTCCATGTAGTATTACTCCTTTCT(AT)21- - - - - 33
R: ATGCGTACCTTAGTGGAAGA
ORPM_16 238 F: GCAGAAACCACTGCTAGATGC(CTT)15- - - - - 33
R: GCTTTGAGGAGGTGTGAGGA
ORPM_21 230 F: GGCTGCAGCACCAGAATAAT(AG)4- - + - - 25
R: TGCATCCAAAATTTTCCTCTTT
ORPM_23 197 F: ATTCCATTTGGCAATCAAGG(AT)6(AG)6- - - - - 33
R: CCCTGAAAGTCACGTCTTCG
ORPM_29 206 F: TGGTGATCCAGTTTTGGTGA(AC)11- - - - - 33
R: GTCCTTGCAAGCCATGAA
ORPM_127 200 F: TCAATGAGGGGTGCCATAAT(TG)8- - - - - 33
R: CTTTCCACTTTTGGCCCTTT
ORPM_203 209 F: CCACCAGGCATGAGATATGA(TA)4(A/T rich region)- - - - - 33
R: TCAAACCGAAAGGTCAACAA
ORPM_206 196 F: CCGTGGCCATTGACTCTTTA(GCT)7- - - - - 33
R: GAACCCATTTGGTGCAAGAT
ORPM_207 199 F: TGCATATTTCACGTGCCTTT(TC)8+ - + - + 25
R: CAAAGTGAGGAAGCGTCAGA
ORPM_349 202 F: GAGCATGAAGCATGAGCAGA(AC)16- - + - - 33
R: TTTTCAGAACCAGGGGAAAA
PMGC_223 170 F: CGATGAGGTTGAAGAAGTCG(CTT)n+ + + + + 25
R: ATATATGTACCGGCACGCCAC
PMGC_2015 160 F: TTTTGGCATTCAAAGACTTGGC(GA)n- - - - - 33
R: AGTTGATTCCATGTCGTGTCC
PMGC_2315 143 F: CTGTGGTATTTGTGCAATGTG(GA)n+ - + + - 33
R: CAACAGAGCAAACTTGAGTCG
PMGC_2392 192 F: AAGAGAGATAGCATCACCAAG(GA)n- - - - - 33
R: TATGTCGAGGAAATCCTTAGC
PMGC_2531 140 F: TAAGAGAATTGGGAGAGCAAC(GA)n- - - - - 33
R: TTTTATCTTTTCCAGTTGTCTAC
PMGC_2610 114 F: AACACGCAAGAACATACATAAG(GA)n- - - - - 33
R: GATTAACATGTTTCGCTACGC
PMGC_2647 129 F: CTCGTTAATTAGAGTCGAATTAG(GA)n- - - - - 33
R: TTGTTATCCACTGCCAGTGC
PMGC_2658 251 F: GCCCTTGAATACCATGAGCG(GA)n+ - + - + 33
R: ACCTTCAGTAGATCAGGTTAGTG
WPMS_7 230 F: ACTAAGGAGAATTGTTGACTAC(GT)24+ + - + + 33
R: TATCTGGTTTCCTCTTATGTG
WPMS_15193F: CAACAAACCATCAATGAAGAAGAC(CCT)n+ + + + + 25
R: AGAGGGTGTTGGGGGTGACTA
WPMS_16 145 F: CTCGTACTATTTCCGATGATGACC(GTC)n+ + + + + 25
R: AGATTATTAGGTGGGCCAAGGACT
WPMS_18 245 F: CTTCACATAGGACATAGCAGCATC(GTG)13- + + - + 33
R: CACCAGAGTCATCACCAGTTATTG

a from The International Populus Genome Consortium; n = unknown; F = forward primer, R = reverse primer; + = amplification, - = no amplification.

For S. eriocephala, population genetic statistics are summarized in Table 2, Table 3, which shows the number of alleles (A), observed (Ho) and expected (He) heterozygosities, p-values for the Hardy-Weinberg Expected test, and details of each population. Eleven of the 24 markers were successfully amplified in the six populations of S. eriocephala (Table 1) and they were single markers. The values of A varied between 1 and 9 (mean 2.95) (Table 2). All 11 markers were polymorphic in at least one population (Table 2). The means of Ho and He ranged from 0.52 to 0.68 and from 0.43 to 0.56, with mean values of 0.59 and 0.48, respectively (Table 3). These results reveal a new set of polymorphic microsatellite markers in which the genetic diversity within the S. eriocephala populations is expressed clearly.

Tuskan et al. [9] using the complete genome of Populus trichocarpa, characterized microsatellites markers and predicted that 30–50% of these might transfer to the related Salix. Puschenreiter et al. [10] successfully amplified 73% of microsatellite markers assayed, 10% of which were polymorphic. Out of 28 Populus loci assayed, Lin et al. [6] used four loci in their willow study that proved polymorphic (no data were available on the percentage that amplified in willow but were monomorphic). Our amplification success of Populus microsatellites was 50% (polymorphic in at least one species), which falls within the range predicted by Tuskan et al. [9]; the difference in the percentage of polymorphic amplified loci in the Puschenreiter et al. [10] study and ours may stem from the fact that the former used less individuals per species to characterize their loci. In Salix eriocephala, Lin et al. [6] obtained a higher number of alleles (8–13 vs. 1–9) for Populus-derived loci, but their population size was much larger than that of populations in our study, which may account for some of the difference. Furthermore, some of our populations were at the extreme northern edge of the species range of S. eriocephala and may have lost genetic diversity while migrating northward after glaciations [7]. In all these studies, a majority of markers amplified and were polymorphic for many species, with a number being variably useful depending on the species.

Table Table 2. Results of initial primer screening in six populations of Salix eriocephala. Two populations (MON and SHE) are part of a provenance trial maintained at the Montreal Botanical Garden (45°33'41'' N, 73°34'7'' W) and four were collected in nature (BEL, BLA, RAD and VDO). The localization of each population is 49°45.456' N, 77°36.921' W (BEL); 45°41.160' N, 73°51.908' W (BLA); 46°94' N, 70°60' W (MON); 53°41.441' N, 78°06.596' W (RAD); 45°71' N, 64°77' W (SHE) and 48°01.770' N, 77°45.937' W (VDO). Data on markers alleles. The range of allele sizes includes 23 bp of M13 sequence.

Click here to display table

Table 2. Results of initial primer screening in six populations of Salix eriocephala. Two populations (MON and SHE) are part of a provenance trial maintained at the Montreal Botanical Garden (45°33'41'' N, 73°34'7'' W) and four were collected in nature (BEL, BLA, RAD and VDO). The localization of each population is 49°45.456' N, 77°36.921' W (BEL); 45°41.160' N, 73°51.908' W (BLA); 46°94' N, 70°60' W (MON); 53°41.441' N, 78°06.596' W (RAD); 45°71' N, 64°77' W (SHE) and 48°01.770' N, 77°45.937' W (VDO). Data on markers alleles. The range of allele sizes includes 23 bp of M13 sequence.
LocusRange of allele sizes (bp)BELBLAMONRADSHEVDOAverage
GCPM_1011207–2293414142.83
GCPM_103793–1883353554.00
ORPM_21201–2291234122.17
ORPM_207186–2214117143.00
ORPM_349127–1332221221.83
PMGC_223181–2193222252.67
PMGC_2315142–1823232132.33
PMGC_2658205–2429658466.33
WPMS_15161–2294225122.67
WPMS_16137–1852333353.17
WPMS_18245–2481121221.50
Table Table 3. Genetic diversity statistics. N = number of individuals sampled in the population.

Click here to display table

Table 3. Genetic diversity statistics. N = number of individuals sampled in the population.
PopulationNAHoHep-HWE
BEL103.180.600.440.51
BLA82.450.680.460.15
MON72.820.640.490.40
RAD123.640.570.430.38
SHE82.090.540.470.46
VDO133.550.520.560.15

A = number of alleles; He = expected heterozygosity; Ho = observed heterozygosity; and p-HWE: p-values for the Hardy-Weinberg Expected test.

3. Experimental Section

Six populations of S. eriocephala were selected to reflect the wide distribution of this species (Table 1 and Figure 1). These populations were collected at Matagami, QC (BEL, 10 trees); Blainville, QC (BAL, 8 trees); Montmagny, QC (MON, 7 trees); Radisson, QC (RAD, 12 trees); Shepody Creek, NB (SHE, 8 trees) and Val d’Or, QC (VDO, 13 trees). Two are part of a provenance trial maintained at the Montreal Botanical Garden, and four were collected in the wild in 2010–2011. For S. amygdaloides, S. discolor, S. interior and S. nigra, we used three populations each from Eastern Canada (Table 1 and Figure 1). The samples of S. amygdaloides were collected at Cobden lake, ON (4 trees); Hanlon Marsh, ON (4 trees); and Richmond Fen, ON (4 trees). The samples of S. discolor were collected at Levis, QC (10 trees); Montmagny, QC (8 trees); and Norton, NB (10 trees). The samples of S. interior were collected at Lafarge Pit, ON (5 trees); Limerick Forest, ON (5 trees); and Long Sault, ON (5 trees). The samples of S. nigra were collected at Gagetown, NB (4 trees); Pembroke, ON (4 trees); and Westmeath, ON (6 trees).

Plants 02 00203 g001 1024

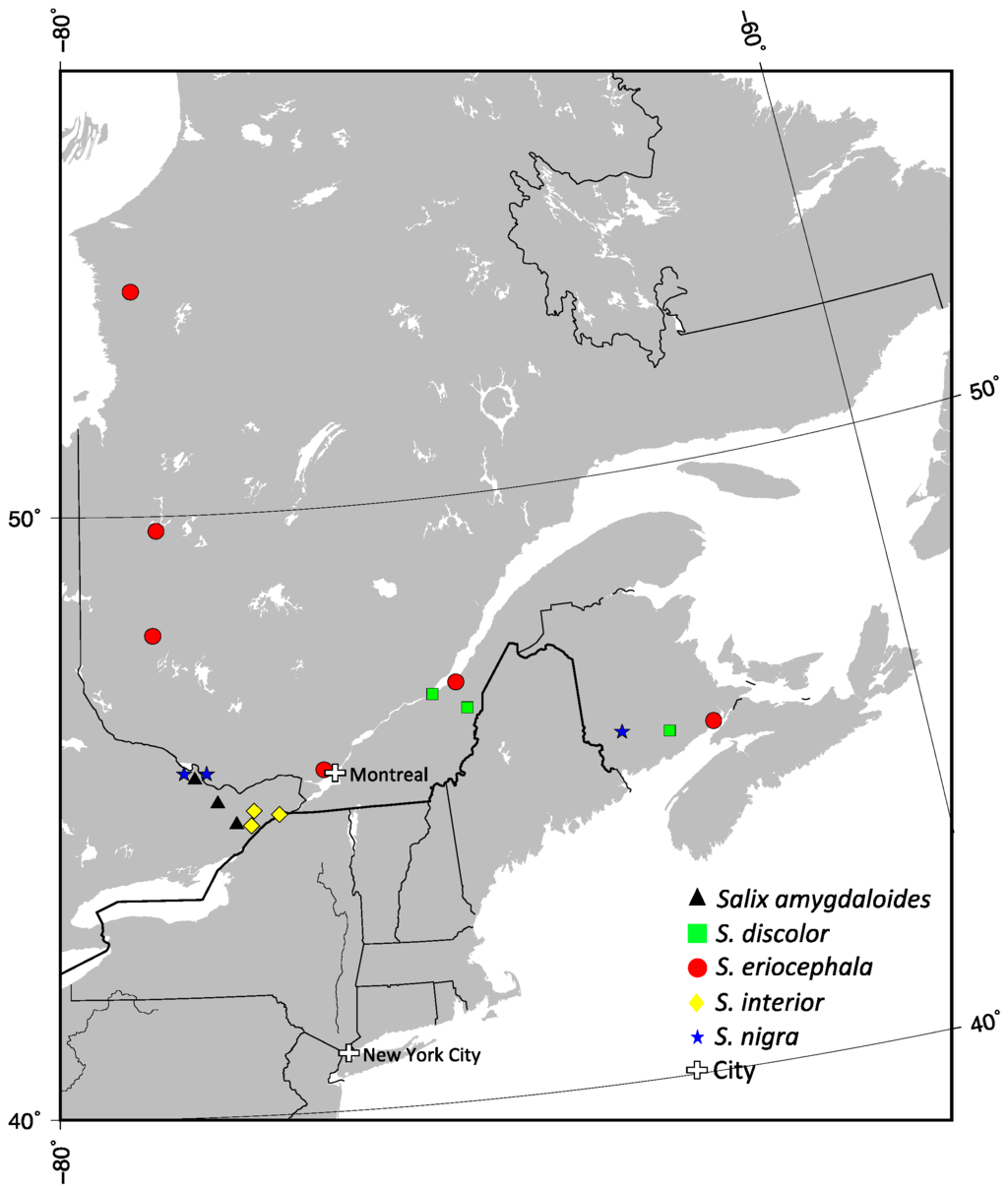

Figure 1. The localization of populations used in this study from Eastern Canada. Triangle for Salix amygdaloides, square for S. discolor, circle for S. eriocephala, lozenge for S. interior and star for S. nigra.

Click here to enlarge figure

Figure 1. The localization of populations used in this study from Eastern Canada. Triangle for Salix amygdaloides, square for S. discolor, circle for S. eriocephala, lozenge for S. interior and star for S. nigra.
Plants 02 00203 g001 1024

Genomic DNA was extracted from 25 mg of leaf material using a modified CTAB method [11]. Leaf tissue was ground for 60 s in a TissueLyser II (QIAGEN) equipped with a 3 mm tungsten ball. 400 μL of 2× CTAB (2% (w/v) hexaldecyltrimethylammonium bromide), 8 μL of mercaptoethanol and 1% (w/v) polyvinylpyrrolidone were added to the powder; the mixture was vortexed and incubated at 65 °C for 90 min. An equal volume of isoamyl alcohol:chloroform (24:1) was then added. Following centrifugation at 4,000 rpm for 30 min at 4 °C, the aqueous phase was collected and the DNA was precipitated by the addition of 2:3 volumes of isopropanol; it was conserved at −20 °C overnight. Then, after centrifugation at 4,000 rpm for 30 min at 4 °C, the pellet was washed with 500 μL of 70% ethanol and centrifuged at 4,000 rpm for 10 min at 4 °C. The DNA pellet was suspended in 100 μL TE (10 mN Tris-HCl pH 8.5, 1 mM EDTA) and stored at −20 °C until analysis.

The International Populus Genome Consortium identified 4,200 Populus SSRs [6,12,13]. A selection of 24 microsatellite markers (Table 1) was initially assayed to visualize the amplifications. The protocol developed by Schuelke [14] was used to amplify the microsatellite regions. This method fluoresces the PCR products at 700 nm or 800 nm for detection by laser. In this protocol, three primers are necessary: a specific forward primer with a M13 tail at its 5' end, a specific reverse primer, and the fluorescent-labeled M13 primer (5'-AGGGTTTTCCCAGTCACGACGTT-3'). PCRs were carried out in a 10 μL solution containing 0.5 μL of genomic DNA (approximately 50 ng), 0.75× of PCR buffer (BIO BASIC), 0.10 μM of forward primer, 0.25 μM of reverse primer, 0.15 μM of fluorescent-labeled M13 primer (Integrated DNA Technologies), 0.25 mM of dNTPs, 2.25 mM of MgCl2, 1 U Taq DNA polymerase (GenScript). An Eppendorf Mastercycler® pro Thermal Cyclers (Eppendorf) under the following cycling parameters: initial denaturation at 94 °C for 3 min followed by 25–33 cycles (Table 1) of 30 s at 94 °C; 30 s at 52 °C, 45 s at 72 °C and followed by a final extension at 72 °C for 5 min was used. The successful amplification was visualized on agarose gel (1%); the results are summarized in Table 1. For S. eriocephala, amplification products were separated on a 6.5% KBPlus Gel Matrix and visualized using a 4,300 DNA Analyzer from LI-COR. The SagaGT v3.2 software was used to calculate band sizes. For each locus, we calculated standard population genetic statistics (Ho, He and p-HWE) using GENEPOP v.4.2 [15,16].

4. Conclusions

In conclusion, we have added 11 new polymorphic microsatellite markers for S. eriocephala. If the loci used by Lin et al. [6] are added, a total of 19 loci have been identified and have shown to be polymorphic in this species. The twelve markers characterized in this study are available for further genetic analyses with S. eriocephala, S. amygdaloides, S. discolor, S. interior and S. nigra. Studies of Salix microsatellites increased the molecular tools available for the investigation of willow species and the knowledge of this genus.

Acknowledgments

The authors wish to thank A. Mosseler, T.J. Pray, and M. Meyer for assistance with sample collection and field surveys. This study was funded by the “Centre de recherche sur les grains” (CEROM) and the “Conseil pour le développement de l’agriculture au Québec” (CDAQ).

Conflict of Interest

The authors declare no conflict of interest.
