ISPRS Int. J. Geo-Inf. 2017, 6(1), 9; doi:10.3390/ijgi6010009

Terrain Extraction in Built-Up Areas from Satellite Stereo-Imagery-Derived Surface Models: A Stratified Object-Based Approach

Department of Geoinformatics—Z_GIS, University of Salzburg, Salzburg 5020, Austria
Current address: Tama Group GmbH, 82152 Martinsried, Germany
Current address: GRID-IT GmbH, 6020 Innsbruck, Austria
*
Author to whom correspondence should be addressed.
Academic Editor: Wolfgang Kainz
Received: 2 November 2016 / Revised: 19 December 2016 / Accepted: 5 January 2017 / Published: 10 January 2017
View Full-Text   |   Download PDF [10594 KB, uploaded 10 January 2017]   |

Abstract

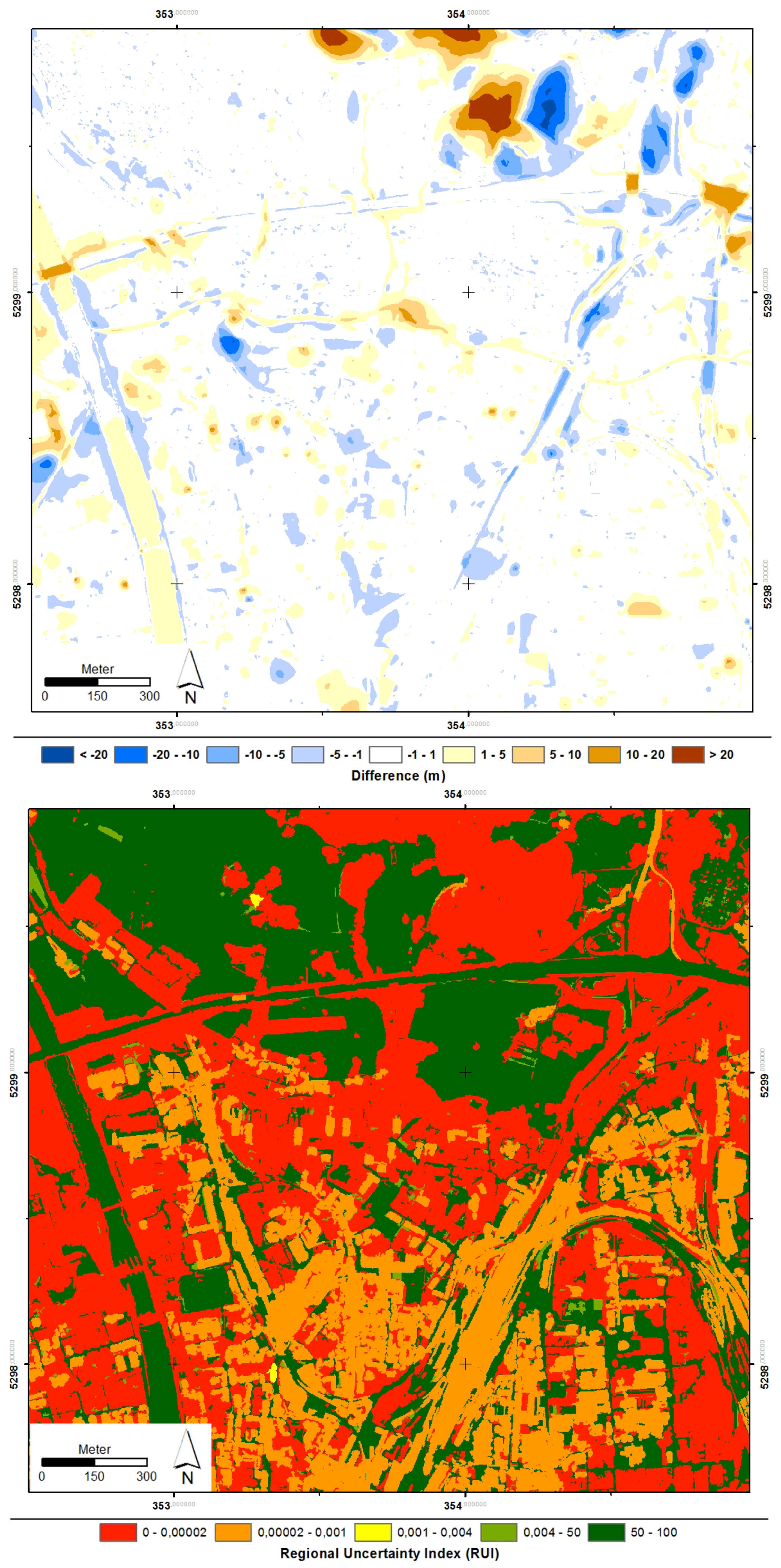

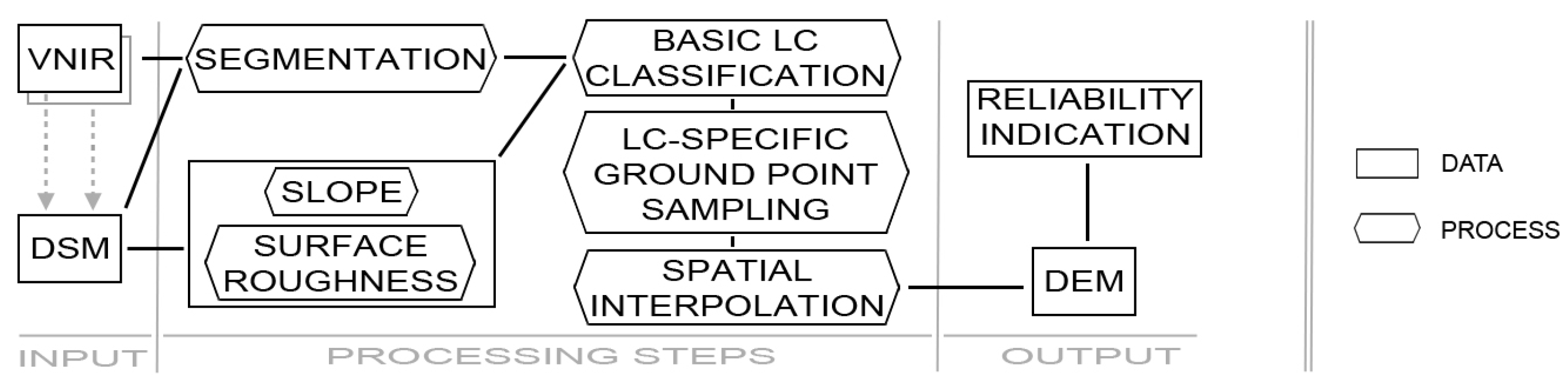

Very high spatial resolution (VHSR) stereo-imagery-derived digital surface models (DSM) can be used to generate digital elevation models (DEM). Filtering algorithms and triangular irregular network (TIN) densification are the most common approaches. Most filter-based techniques focus on image-smoothing. We propose a new approach which makes use of integrated object-based image analysis (OBIA) techniques. An initial land cover classification is followed by stratified land cover ground point sample detection, using object-specific features to enhance the sampling quality. The detected ground point samples serve as the basis for the interpolation of the DEM. A regional uncertainty index (RUI) is calculated to express the quality of the generated DEM in regard to the DSM, based on the number of samples per land cover object. The results of our approach are compared to a high resolution Light Detection and Ranging (LiDAR)-DEM, and a high level of agreement is observed—especially for non-vegetated and scarcely-vegetated areas. Results show that the accuracy of the DEM is highly dependent on the quality of the initial DSM and—in accordance with the RUI—differs between the different land cover classes. View Full-Text
Keywords: object-based image analysis; digital surface model; digital elevation model; stereo-imagery; transformation; automation; urban; built-up object-based image analysis; digital surface model; digital elevation model; stereo-imagery; transformation; automation; urban; built-up
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
