Initial Results of the Precise Orbit Determination for the New-Generation BeiDou Satellites (BeiDou-3) Based on the iGMAS Network

1
State Key Laboratory of Geodesy and Earth’s Dynamics, Institute of Geodesy and Geophysics, Chinese Academy of Sciences, Wuhan 430077, China
2
University of Chinese Academy of Sciences, No. 19A Yuquan Road, Beijing 100049, China
3
The Primary School of Vanke Golden City Attached to Central China Normal University, Wuhan 430065, China
*
Authors to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2016, 5(11), 196; https://doi.org/10.3390/ijgi5110196
Submission received: 26 August 2016 / Revised: 13 October 2016 / Accepted: 23 October 2016 / Published: 27 October 2016
(This article belongs to the Special Issue Recent Advances in Geodesy & Its Applications)

Abstract

:
By August 2016, 5 new-generation BeiDou satellites (BeiDou-3) have successfully been launched. The observations of a very limited number of 9 International GNSS (Global Navigation Satellite System) Monitoring and Assessment Service (iGMAS) stations and 52 Multi-GNSS Experiment (MGEX) stations from 16 July to 14 August 2016 are processed to determine the orbits of BeiDou-3 and BeiDou-2 satellites, respectively. The internal consistency and satellite laser ranging (SLR) validations are conducted for the orbit validation. BeiDou-3 MEO (Medium Earth Orbit) (C33 and C34) have larger root mean square (RMS) values than those BeiDou-3 IGSO (C31 and C32), whereas BeiDou-2 MEO satellites have smaller RMS values than the BeiDou-2 IGSO satellites. Furthermore, BeiDou-3 IGSO and BeiDou-2 satellites have RMS values at identical levels, whereas BeiDou-3 MEO satellites have larger RMS values than the BeiDou-2 MEO satellites. The RMS residuals are approximately 10 cm in the radial component and approximately 25 cm in the along component for BeiDou-3 IGSO satellites. For BeiDou-3 MEO satellites, the RMS residuals are approximately 40 cm in the radial component and approximately 60 cm in the along component. The SLR validation reports that the orbit radial component can reach an accuracy on the level of 1 decimeter and 4 decimeters for BeiDou-3 IGSO and MEO, respectively.

1. Introduction

China is constructing the BeiDou Navigation Satellite System (BDS), which is an important constellation that contributes to the Global Navigation Satellite System (GNSS) and Geodesy community [1]. The deployment of BDS is divided into two phases: the regional system and the global system. Following the completion of the first deployment phase, which involved a constellation of five satellites in geostationary orbit (GEO), five in inclined geosynchronous orbit (IGSO), and four in medium earth orbit (MEO), BDS has been officially providing continuous passive positioning, navigation, and timing services for the Asia-Pacific area since 27 December 2012. In 10 February 2015, according to the news from the Ministry of Transportation, in the 94th meeting of IMO (International Maritime Organization) Maritime Safety Committee, the Navigation Safety Circular of BeiDou Navigation Satellite System was officially approved. As of August 2016, there are 14 BeiDou-2 satellites in operation: five GEO satellites, six IGSO satellites, and three MEO satellites. On 30 March 2015, China’s first New-Generation (BeiDou-3) Navigation satellite was successfully launched, which signaled the beginning of BDS’s expansion from regional to worldwide coverage. By August 2016, five BeiDou-3 satellites, each of which has a new navigation signal system, inter-satellite links, and other test features, have been launched, which brings the satellite navigation system closer to completion. Four BeiDou-3 satellites are now in operation. The status of the BeiDou Navigation Satellite System (updated as of August 2016) is summarized in Table 1 [2].
With the increasing quality requirements for civilian and scientific applications based on the emerging global BDS [3,4,5,6,7,8,9,10,11], achieving a precise orbit determination (POD) for the global BDS constellation has become one of the most challenging issues for the Global Navigation Satellite System (GNSS) community. Several studies have been performed on the POD of BeiDou-2 satellites. Ge et al. [12] presented their results of BeiDou-2 satellites POD using three day arcs and nine solar radiation pressure (SRP) parameters of the Empirical CODE Orbit Model (ECOM) with a regional tracking network. The 3D orbit overlap comparison of GEO and IGSO is 3.3 m and 0.5 m in root mean square (RMS), respectively. Montenbruck et al. [13] reported the initial orbit and clock assessment of the regional BDS navigation satellite system, and the 3D orbit overlap comparison is 1–20 m in RMS. Steigenberger et al. [14] demonstrated several solutions of ECOM parameters for BeiDou non-GEO satellites, and only one ECOM SRP parameter in the direction of the Sun was estimated for BeiDou GEO satellites. The orbit consistency was on a 1–2 decimeter level for the IGSO satellites and on a several-decimeter level for the GEO satellites. Zhao et al. [15] introduced an additional constant acceleration in the along direction to compensate for the insufficiency of the ECOM model for GEO satellites, and the five-parameter ECOM SRP model was used. The 3D orbit overlap comparison accuracy was approximately 1.8 m for GEO and 0.3 m for IGSO and MEO satellites. The satellite laser ranging (SLR) residuals were approximately 0.7 m for GEO C01 and 0.1 m for IGSO C08. Lou et al. [16] engaged the additional constant acceleration in the along direction for GEO satellites and five-parameter ECOM SRP model for non-GEO satellites in their study. The orbit overlap comparison accuracy was approximately 20 cm and several meters for MEO/IGSO and GEO satellites in RMS, respectively. The SLR residuals were better than 10 cm for MEO/IGSO satellites and several decimeters for GEO satellites.
Precise orbits are a basic requirement needed to expand the global scientific application for the BDS global system, but there are difficulties and limitations in the precise orbit determination of BeiDou-3 satellites. Compared to BeiDou-2 satellites, there are fewer and worse distributed tracking stations. Meanwhile, the optimal dynamic model for BeiDou-3 satellite POD, particularly the SRP model, must be further studied. In this study, we aim to precisely determine the orbit of BeiDou-3 satellites based on a tracking network operated by the International GNSS Monitoring and Assessment Service (iGMAS) in China and investigate the achievable accuracy. The paper is organized as follows: in Section 2, the data collection for BeiDou-3 satellites is introduced. In Section 3, the methods and strategies for BeiDou-3 satellite POD are described, and a POD experiment is conducted. The results of the orbit overlap comparison and SLR validation are presented in Section 4. Finally, some conclusions and discussion are provided in Section 5.

2. Data Collection for BeiDou-3 Satellites POD

The BeiDou-3 satellites retain the navigation-signal-transmitting modulation system in deployment phase 1 (i.e., 1561.098 MHz (B1), 1207.140 MHz (B2), and 1268.520 MHz (B3)). Furthermore, BeiDou-3 satellites will include the migration of its civil BeiDou B1 signal from 1561.098 MHz to a frequency centered at 1575.42 MHz, which is identical to the GPS L1 and Galileo E1 civil signals, and its transformation from a quadrature phase shift keying (QPSK) modulation to a multiplexed binary offset carrier (MBOC) modulation similar to the future GPS L1C and Galileo's E1 [17]. Two frequencies of B2 (1176.45 (B2a) and 1207.14 (B2b)) and two frequencies of B3 (1278.75 (B3c) and 1268.52 (B3c)) will be candidates for the migration of civil BeiDou B2 and B3 signals. Because the new signals of BeiDou-3 satellites remain in the internal test stage, observations of old B1, B2, and B3 frequencies were selected for the BeiDou-3 satellite POD in this study.
China is developing the International GNSS Monitoring and Assessment Service (iGMAS) to monitor the nation’s BeiDou satellites and other global navigation satellites to ensure the precise-orbit products of the systems in order to improve the signal availability, reliability, precision, and accuracy. The iGMAS consists of three operational Data Centers (DCs), 12 Analysis Centers (ACs), 18 Tracking Stations (eight domestic, eight overseas, one in the North Pole, and one in the South Pole), one Monitoring and Analysis Center, one Operation Control and Management Center, and one Analysis Center Coordinator. The three DCs are located in Wuhan University, National University of Defense Technology, and the National Time Service Center. The twelve ACs are located in the Institute of Geodesy and Geophysics (IGG), Wuhan University (WHU), Shanghai Astronomical Observatory (SHA), Xi'an Satellite Control Center (XSC), Chang'an University (CHD), Beijing Space Information Relay and Transmission Technology Research Center (TAC), Chinese Academy of Surveying and Mapping (CGS), The PLA Information Engineering University (LSN), Xi’an Research Institute of Surveying and Mapping (XRS), China University of Mining and Technology (CUM), Beijing Aerospace Control Center (BAC), and the National Time Service Center (NTS). The Monitoring and Analysis Center is located in Xi’an Research Institute of Surveying and Mapping. The Operation Control and Management Center and Analysis Center Coordinator are located in Beijing. A continuous tracking network for BeiDou and other GNSS satellites for scientific and engineering applications has been deployed by iGMAS. By August 2016, there are nine iGMAS stations that can track the BeiDou-3 satellites, each with B1 and B3 observations. The Multi-GNSS Experiment (MGEX) was established by the International GNSS Service (IGS) to track, collate, and analyze all available GNSS signals, which include signals from the BeiDou, Galileo, Quasi-Zenith Satellite System (QZSS), Navigation with Indian Constellation/IRNSS (NAVIC) systems, modernized GPS and GLONASS satellites, and any space-based augmentation system (SBAS) of interest. There are only four MGEX stations, roap, stj3, tlsg, and yel2 that can track the BeiDou-3 satellites, although each currently has only B1 observations. In this study, 9 iGMAS stations (cf. Figure 1) were selected for the BeiDou-3 satellite POD, and the station information is listed in Table 2. For comparison, 52 MGEX stations (cf. Figure 1) were selected for BeiDou-2 satellites POD. The observation data of iGMAS and MGEX from 16 July to 14 August 2016 were processed for BeiDou-3 and BeiDou-2 satellite precise-orbit determination, respectively.

3. Methods and Strategies for BeiDou-3 and BeiDou-2 Satellite POD

The routine software package developed by the Analysis Centre at the Institute of Geodesy and Geophysics, Chinese Academy of Sciences has been used to process data for BeiDou-3 and BeiDou-2 satellites in this study. A two-step method is adopted in this study. In the first step, the stations for BeiDou-3 and BeiDou-2 satellite POD are embodied in a GPS POD process using the ionosphere-free linear combination (LC) of L1 and L2 phase observations with IGS rapid products. Then, in the second step, the relative accurate station coordinates (CRDs), earth rotation parameters (ERPs), and zenith tropospheric delays (ZTDs), which were obtained from the GPS POD process, are further fixed in the BeiDou-3 and BeiDou-2 satellite POD process using the ionosphere-free linear combination (LC) of B1 and B3 phase and code observations beginning with the broadcast ephemeris. In the second step, only BeiDou-3- and BeiDou-2-related parameters (i.e., six keplerian elements and five solar radiation parameters (Constants in the D-, Y-, and X-directions and periodic in the X-direction), and pseudo-stochastic orbit parameters are estimated). The BeiDou-3 satellite antenna phase center (PCO) values are provided by the Operation Control Department, and no phase center variation (PCV) values are available. The estimated PCO and PCV for BDS IGSO and MEO satellites by Dilssner et al. [18] are used for BeiDou-2 satellites. However, the PCO and PCV for ground antennas are not available. Important aspects of the selected processing strategy regarding the observation model and force model are listed in Table 3 [19,20].

4. Results

The obtained BeiDou-3 and BeiDou-2 satellite orbits in this study are assessed in terms of both internal consistency and external validation. For internal consistency, overlap comparisons are conducted. For external validation, satellite laser ranging (SLR) observations are used to independently assess the accuracy of the BeiDou-3 satellite orbits.

4.1. Overlap Comparison

For any two adjacent three-day arc solutions shifted by one day, there are 48-h overlap orbits. The last observed day and first middle day of the adjacent solution are compared in this study. Figure 2 shows the overlap comparison algorithm for adjacent orbit solutions of a three-day arc.
The average daily root mean square (RMS) values of the 24-h overlap in the radial, along, and cross-track components for each satellite are shown in Table 4 and Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7. The RMS values for the along component for all BeiDou satellites are the largest among the three components, whereas the radial component has the smallest RMS values. Furthermore, BeiDou-3 MEO satellites (C33 and C34) have larger RMS values than the BeiDou-3 IGSO satellites (C31 and C32), whereas BeiDou-2 MEO satellites have smaller RMS values than the BeiDou-2 IGSO satellites. Furthermore, BeiDou-3 IGSO and BeiDou-2 IGSO satellites have identical RMS values, whereas BeiDou-3 MEO satellites have larger RMS values than the BeiDou-2 MEO satellites. In addition, BeiDou-2 GEO satellites yield significantly large RMS values among all of the BeiDou-2 satellites. BeiDou-3 MEO satellites have inferior POD accuracy compared with BeiDou-2 MEO satellites because the existing tracking network for BeiDou-3 MEO satellites is not well distributed worldwide, which implies that the tracking network does not have a good coverage for global MEO satellites, whereas the regional IGSO satellites are relatively better observed. In addition, the RMS residuals are approximately 10 cm and 25 cm in the radial and along components for BeiDou-3 IGSO satellites, respectively. For BeiDou-3 MEO satellites, the RMS residuals are approximately 40 cm and 60 cm in the radial and along components, respectively. The RMS residuals are approximately 10 cm and 20 cm in the radial and along components for BeiDou-2 IGSO satellites, respectively. For BeiDou-2 MEO satellites, the RMS residuals are approximately 5 cm and 15 cm in the radial and along components, respectively.

4.2. SLR Validation

SLR is a powerful and independent technique that enables the independent validation of satellite orbits [21,22]. The difference between the observed SLR values and the computed distances using BeiDou satellite orbits and SLR reference station coordinates can be used to identify whether there are systematic biases or unexpected errors in the estimated BeiDou satellite orbits.
All BeiDou-3 satellites and some BeiDou-2 satellites are monitored by the International Laser Ranging Service (ILRS) SLR tracking stations. The SLR range observations can be accessed via the File Transfer Protocol (FTP) services provided by the ILRS. For this study, the latest SLR station coordinates and system eccentricities were obtained from the ILRS. The retro-reflector offsets of BeiDou-3 satellites were provided by the Operation Control Department, and those of the BeiDou-2 satellites were obtained from ILRS. There were 12, 29, 45, 10, 114, 36, 12,5 and 104 normal points (NP) available for satellites C31, C32, C33, C34, C01, C08, C10, and C11, respectively, during the study period. These NPs were from the Yarragadee, Monument Peak, Papeete, Changchun, Shanghai, Mount Stromlo, Herstmonceux, and Matera stations (cf. Figure 7). The SLR observations were corrected using the retro-reflector offsets. The mean and RMS of SLR residuals of the middle day for orbit solutions are summarized in Table 5 and illustrated in Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, Figure 13, Figure 14 and Figure 15. The result is generally consistent with the overlap comparison in the radial direction in the orbit determination. The overall RMS values for BeiDou-3 IGSO and MEO are approximately 11 cm and 40 cm, respectively. The overall RMS values for BeiDou-2 IGSO and MEO are approximately 10 cm and 6 cm, respectively. Table 5 illustrates that the mean offsets for BeiDou-3 IGSO and MEO are −4 cm and 15 cm, respectively. Table 5 also shows that the mean offsets for BeiDou-2 IGSO and MEO are −4 cm and 3 cm, respectively. Further, BeiDou-3 MEO satellites have slightly larger overall RMS values and mean offsets than the BeiDou-3 IGSO satellites, whereas BeiDou-2 MEO satellites have slightly smaller overall RMS values and mean offsets than the BeiDou-2 IGSO satellites. In addition, BeiDou-2 GEO satellites yield significantly larger RMS of SLR residuals compared to other BeiDou-2 satellites.

5. Conclusions and Discussion

We processed one month of observations from a very limited number of nine stations in the iGMAS tracking network for the precise orbit determination of BeiDou-3 satellites. For comparison, the observations from 52 MGEX stations were processed for the precise orbit determination of BeiDou-2 satellites. A two-step method was implemented in the routine software package developed by the Analysis Centre at the Institute of Geodesy and Geophysics, Chinese Academy of Sciences. Internal consistency and SLR validations were conducted, and the orbit radial component can reach an accuracy on the level of 1 decimeter and 4 decimeters for BeiDou-3 IGSO and MEO, respectively. The orbit radial component can reach an accuracy on the level of 1 decimeter and 0.5 decimeters for BeiDou-2 IGSO and MEO, respectively.
At present, the orbit determination performance for BeiDou-3 satellites, particularly for global BeiDou-3 MEO satellites, remains inferior to that of BeiDou-2 satellites and other GNSS constellations such as GPS and GLONASS. This problem has been attributed to the lack of a well-distributed worldwide tracking network for BeiDou-3 satellites, particularly MEO satellites. Further efforts may involve two aspects: deployment of a larger global tracking network for BeiDou-3 satellites and more accurate dynamic models for BeiDou-3 satellites.
For BeiDou-3 satellites, a relatively small number of ground tracking stations were deployed. With a larger and more well-distributed global tracking network, which can provide better coverage for all BeiDou-3 satellites, particularly for global MEO satellites, the accuracy of BeiDou-3 satellite POD will be improved. Meanwhile, more ground tracking stations and precise-orbit products will be notably helpful with the SRP modeling for BeiDou-3 satellites in the near future [23].

Acknowledgments

This work was supported by National key Research Program of China “Collaborative Precision Positioning Project” (No. 2016YFB0501900), the National Nature Science Foundation of China (Grant No. 41231064, 41674022, 41304034, and 41574033). We also acknowledge the funding support of the State Key Laboratory of Geodesy and Earth’s Dynamics (Institute of Geodesy and Geophysics, CAS) (No. SKLGED2014-3-1-E). The authors would like to extend their sincere gratitude to iGMAS for providing the observation data. The authors are thankful to the ILRS for providing the BeiDou satellite SLR observation data. The authors are grateful to the IGS Multi-GNSS Experiment (http://mgex.igs.org) for supplying the related information about the BeiDou Navigation Satellite System.

Author Contributions

Bingfeng Tan and Yunbin Yuan provided the initial idea for this study. Bingfeng Tan and Yafei Ning conceived and designed the POD experiments. Bingfeng Tan and Xifeng Liu analyzed the experiment results. Bingfeng Tan and Mingyue Wen wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, Y. Progress, contribution and challenges of compass/BeiDou satellite navigation system. Acta Geod. Cartogr. Sin. 2010, 39, 1–6. [Google Scholar]
  2. The Multi-GNSS Experiment and Pilot Project (MGEX). Available online: http://igs.Org/mgex/status-bds (accessed on 17 October 2016).
  3. Zhang, B.; Teunissen, P.J.; Odijk, D. A novel un-differenced PPP-RTK concept. J. Navig. 2011, 64, 180–191. [Google Scholar] [CrossRef]
  4. Zhang, B.; Yuan, Y.; Chai, Y. QIF-based GPS long-baseline ambiguity resolution with the aid of atmospheric delays determined by PPP. J. Navig. 2016, 69, 1–15. [Google Scholar] [CrossRef]
  5. Ning, Y.; Yuan, Y.; Chai, Y.; Huang, Y. Analysis of the bias on the BeiDou geo multipath combinations. Sensors 2016. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, H.; Yuan, Y.; Li, W.; Li, Y.; Chai, Y. Assessment of three tropospheric delay models (IGGtrop, EGNOS and UNB3m) based on precise point positioning in the Chinese region. Sensors 2016. [Google Scholar] [CrossRef] [PubMed]
  7. Chen, J.; Hu, X.; Tang, C.; Zhou, S.; Guo, R.; Pan, J.; Li, R.; Zhu, L. Orbit Determination and Time Synchronization for New-Generation BeiDou Satellites: Preliminary Results; Science China Press: Beijing, China, 2016. (In Chinese) [Google Scholar]
  8. Chen, Y.; Hu, X.; Zhou, S.; Song, X.; Huang, Y.; Mao, Y.; Huang, C.; Chang, Z.; Wu, S. A new autonomous orbit determination algorithm based on inter-satellite ranging measurements. Sci. Sin-Phys. Mech. Astron. 2015. [Google Scholar] [CrossRef]
  9. Mao, Y.; Hu, X.; Song, X.; Chen, Y.; Jia, X.; Wu, X. Satellite autonomous navigation algorithm analysis based on broadcast ephemeris parameters. Sci. Sin-Phys. Mech. Astron. 2015. [Google Scholar] [CrossRef]
  10. Yang, W.; Gong, H.; Hu, X.; Wei, S.; Guo, W. 2-GEO TWSTFT for BDS ground stations: Confidence interval of clock difference Allan variance. Sci. Sin-Phys. Mech. Astron. 2015. [Google Scholar] [CrossRef]
  11. Zhou, S.; Hu, X.; Liu, L.; Guo, R.; Zhu, L.; Chang, Z.; Tang, C.; Gong, X.; Li, R.; Yu, Y. Applications of two-way satellite time and frequency transfer in the BeiDou navigation satellite system. Sci. Sin-Phys. Mech. Astron. 2016. [Google Scholar] [CrossRef]
  12. Ge, M.; Zhang, H.P.; Jia, X.L.; Song, S.L.; Wickert, J. What is achievable with the current compass constellation. GPS World 2012, 1, 29–34. [Google Scholar]
  13. Montenbruck, O.; Hauschild, A.; Steigenberger, P.; Hugentobler, U.; Teunissen, P.; Nakamura, S. Initial assessment of the compass/BeiDou-2 regional navigation satellite system. GPS Solut. 2013, 17, 211–222. [Google Scholar] [CrossRef]
  14. Steigenberger, P.; Hugentobler, U.; Hauschild, A.; Montenbruck, O. Orbit and clock analysis of compass geo and IGSO satellites. J. Geod. 2013, 87, 515–525. [Google Scholar] [CrossRef]
  15. Zhao, Q.; Guo, J.; Li, M.; Qu, L.; Hu, Z.; Shi, C.; Liu, J. Initial results of precise orbit and clock determination for compass navigation satellite system. J. Geod. 2013, 87, 475–486. [Google Scholar] [CrossRef]
  16. Lou, Y.; Liu, Y.; Shi, C.; Yao, X.; Zheng, F. Precise orbit determination of BeiDou constellation based on bets and MGEX network. Sci. Rep. 2014. [Google Scholar] [CrossRef] [PubMed]
  17. CNSS (Compass/BeiDou Navigation Satellite System)/BDS (BeiDou Navigation System). Available online: https://directory.Eoportal.Org/web/eoportal/satellite-missions/c-missions/cnss (accessed on 17 October 2016).
  18. Dilssner, F.; Springer, T.; Schönemann, E.; Enderle, W. Estimation of satellite antenna phase center corrections for BeiDou. In Proceedings of the IGS workshop 2014, Pasadena, CA, USA, 23–27 June 2014.
  19. Beutler, G.; Jäggi, A.; Hugentobler, U.; Mervart, L. Efficient satellite orbit modelling using pseudo-stochastic parameters. J. Geod. 2006, 80, 353–372. [Google Scholar] [CrossRef]
  20. Dach, R.; Hugentobler, U.; Fridez, P.; Meindl, M. Bernese GPS Software, Version 5.0; Astronomical Institute, University of Bern: Bern, Switzerland, 2007.
  21. Montenbruck, O.; Steigenberger, P.; Kirchner, G. GNSS satellite orbit validation using satellite laser ranging. In Proceedings of the ILRS Workshop 2013, Fujiyoshida, Japan, 9–14 October 2013.
  22. Pearlman, M.R.; Degnan, J.J.; Bosworth, J.M. The international laser ranging service. Adv. Space Res. 2002, 30, 135–143. [Google Scholar] [CrossRef]
  23. Tan, B.; Yuan, Y.; Zhang, B.; Hsu, H.Z.; Ou, J. A new analytical solar radiation pressure model for current beidou satellites: IGGBSPM. Sci. Rep. 2016. [Google Scholar] [CrossRef] [PubMed]

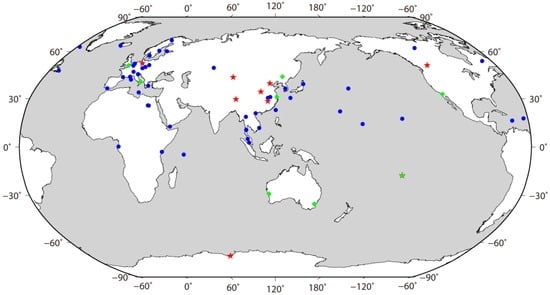

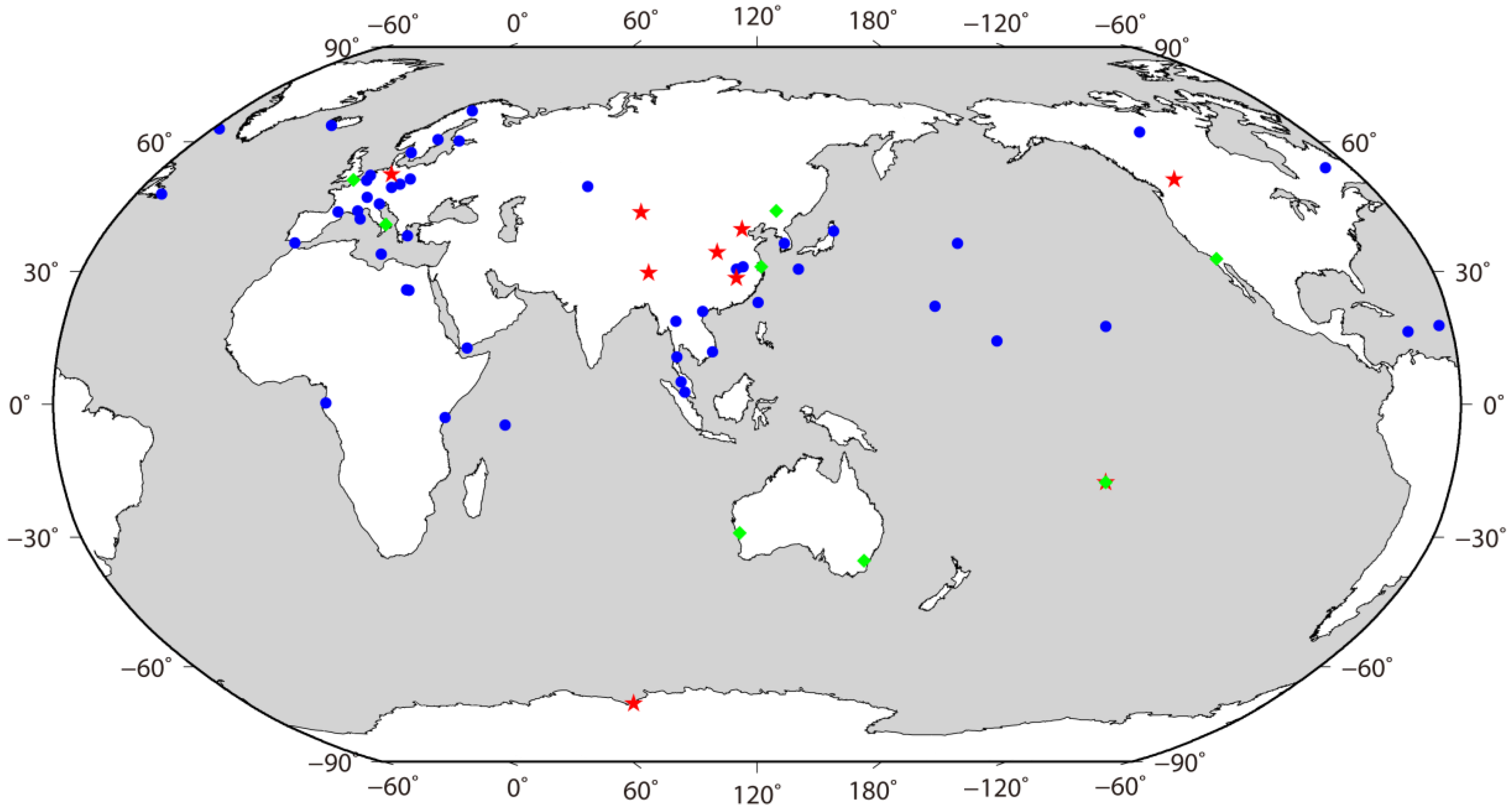

Figure 1. Tracking stations in precise-orbit determination and satellite laser ranging (SLR) validation for BeiDou-2 and BeiDou-3 satellites. The stations are represented by red five-pointed stars, blue circles, and green diamonds for iGMAS, Multi-GNSS Experiment (MGEX), and SLR stations, respectively.
Figure 1. Tracking stations in precise-orbit determination and satellite laser ranging (SLR) validation for BeiDou-2 and BeiDou-3 satellites. The stations are represented by red five-pointed stars, blue circles, and green diamonds for iGMAS, Multi-GNSS Experiment (MGEX), and SLR stations, respectively.
Ijgi 05 00196 g001

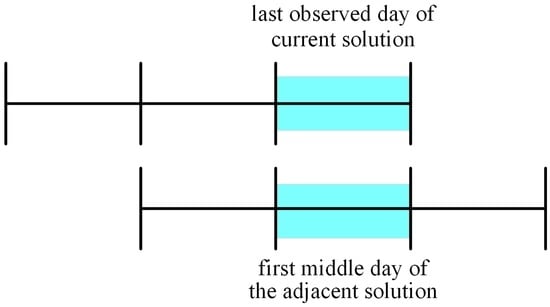

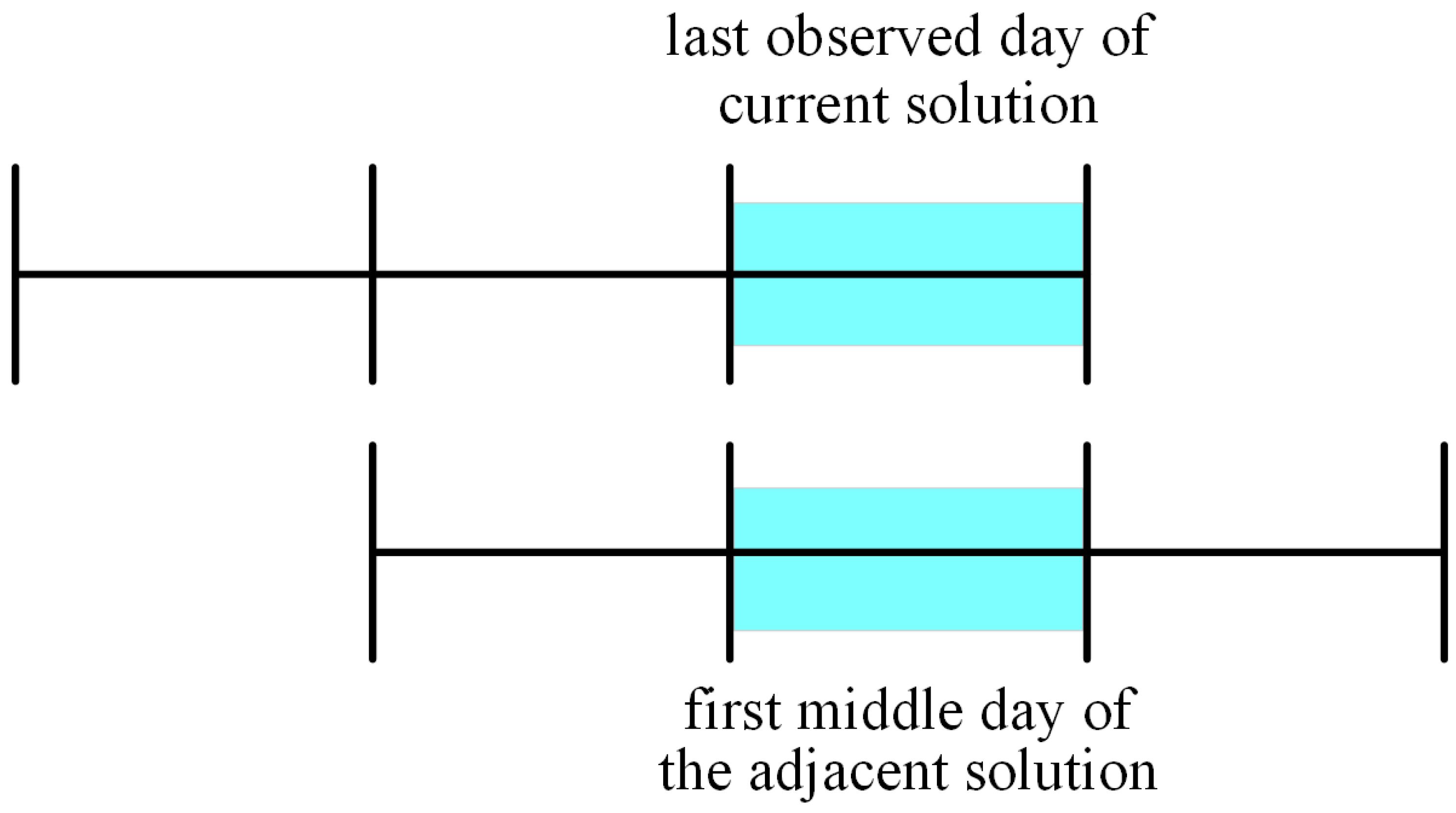

Figure 2. Overlap comparison of BeiDou-3 and BeiDou-2 orbit determination.
Figure 2. Overlap comparison of BeiDou-3 and BeiDou-2 orbit determination.
Ijgi 05 00196 g002

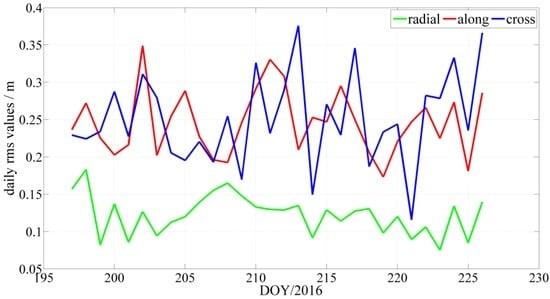

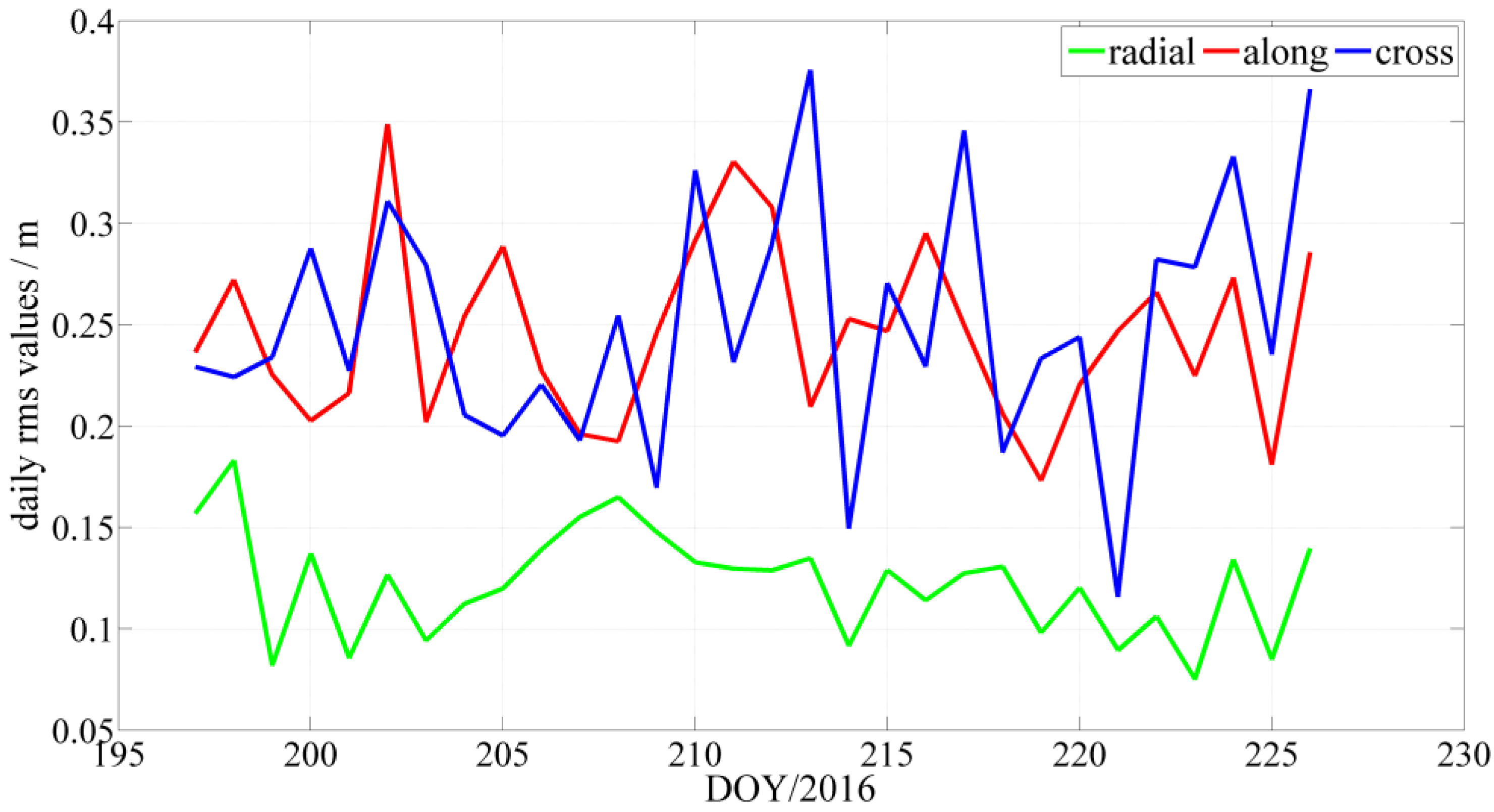

Figure 3. BeiDou C31 satellite overlap comparison in the radial, along, and cross-track components.
Figure 3. BeiDou C31 satellite overlap comparison in the radial, along, and cross-track components.
Ijgi 05 00196 g003

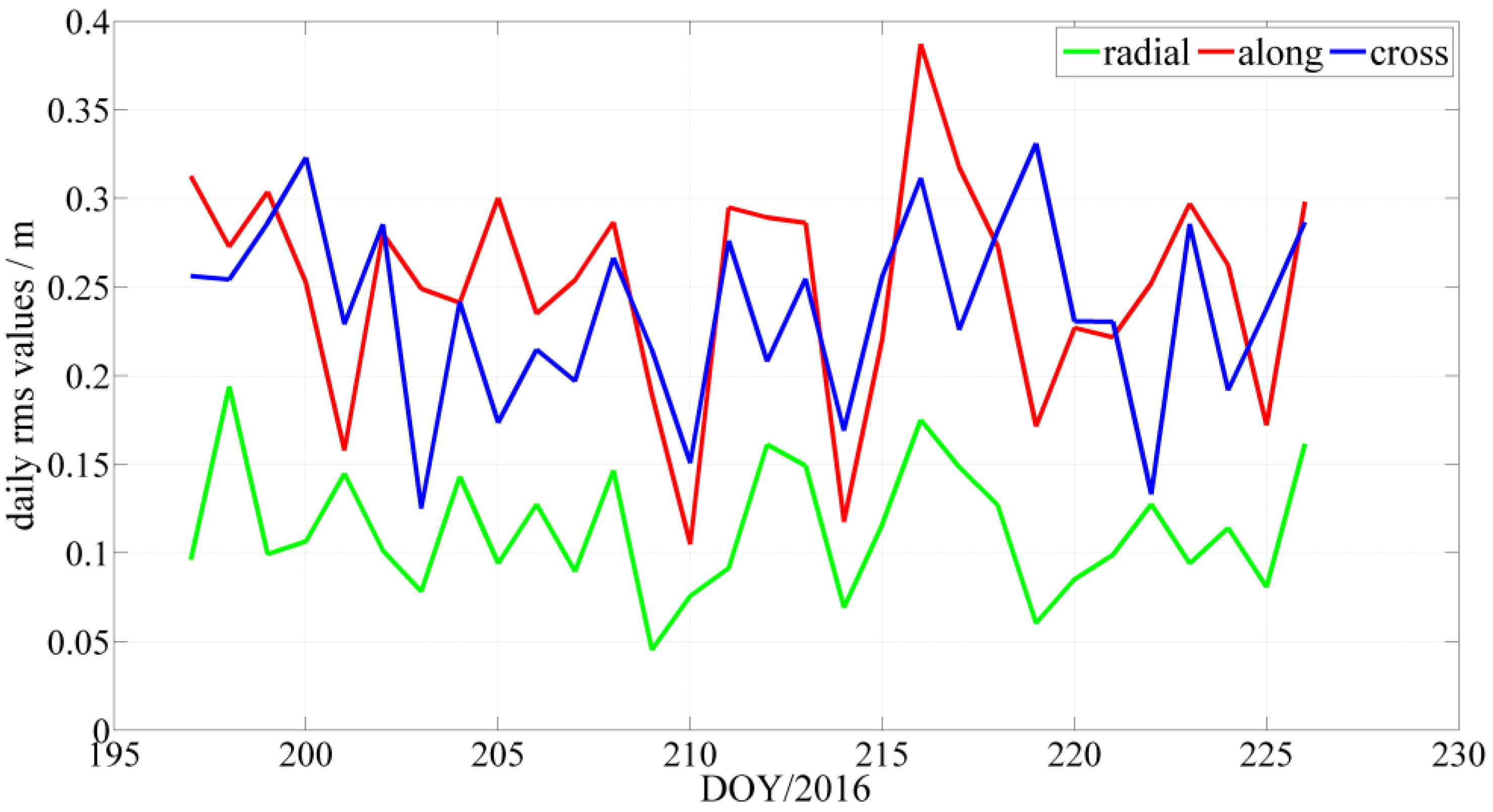

Figure 4. BeiDou C32 satellite overlap comparison in the radial, along, and cross-track components.
Figure 4. BeiDou C32 satellite overlap comparison in the radial, along, and cross-track components.
Ijgi 05 00196 g004

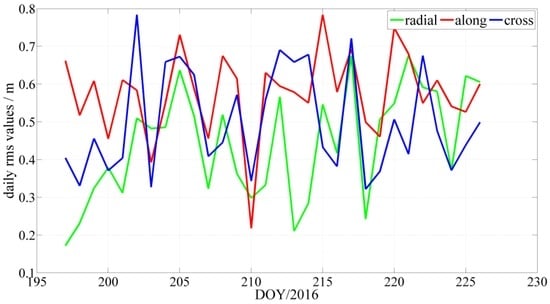

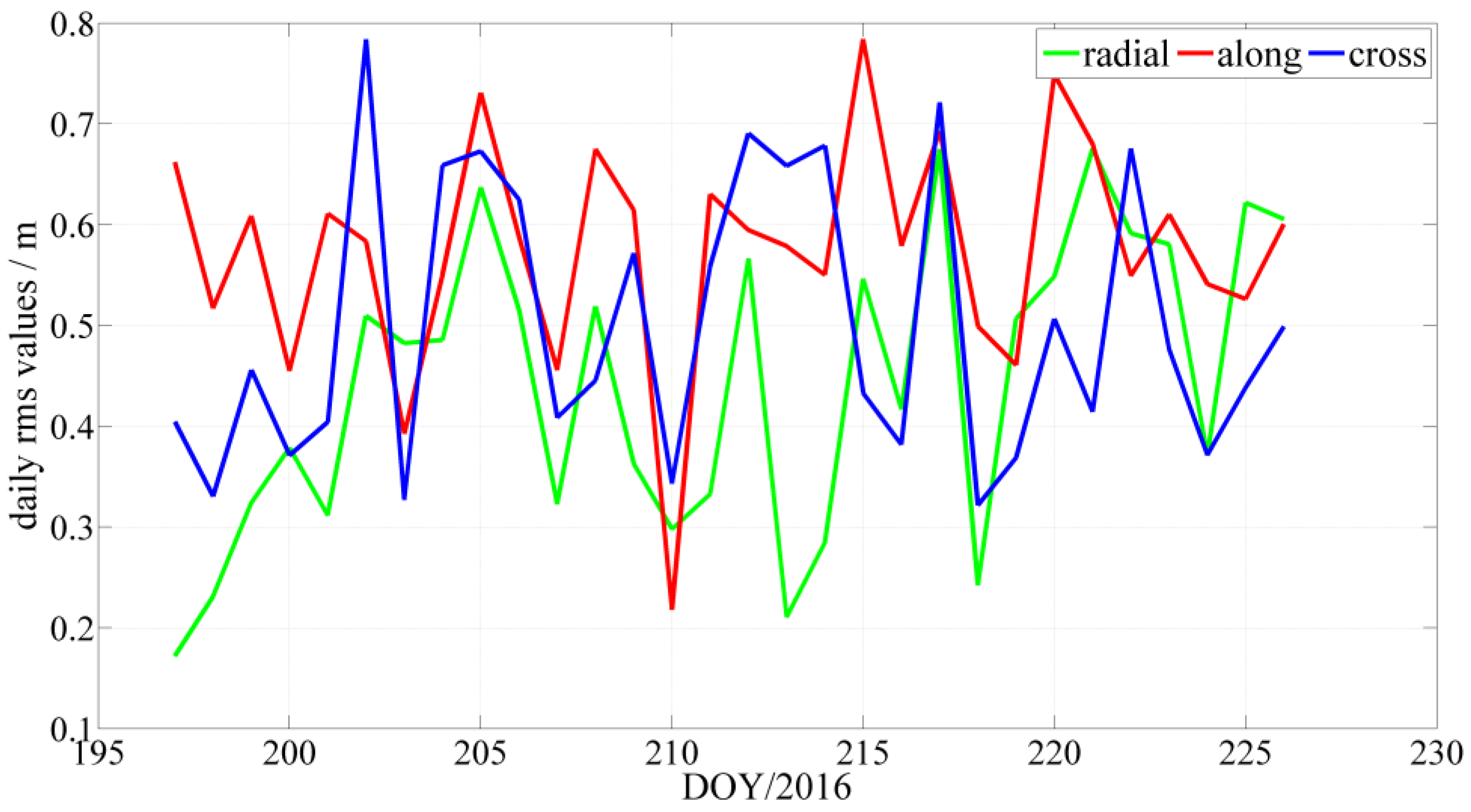

Figure 5. BeiDou C33 satellite overlap comparison in the radial, along, and cross-track components.
Figure 5. BeiDou C33 satellite overlap comparison in the radial, along, and cross-track components.
Ijgi 05 00196 g005

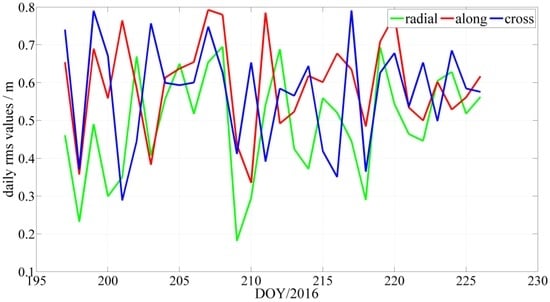

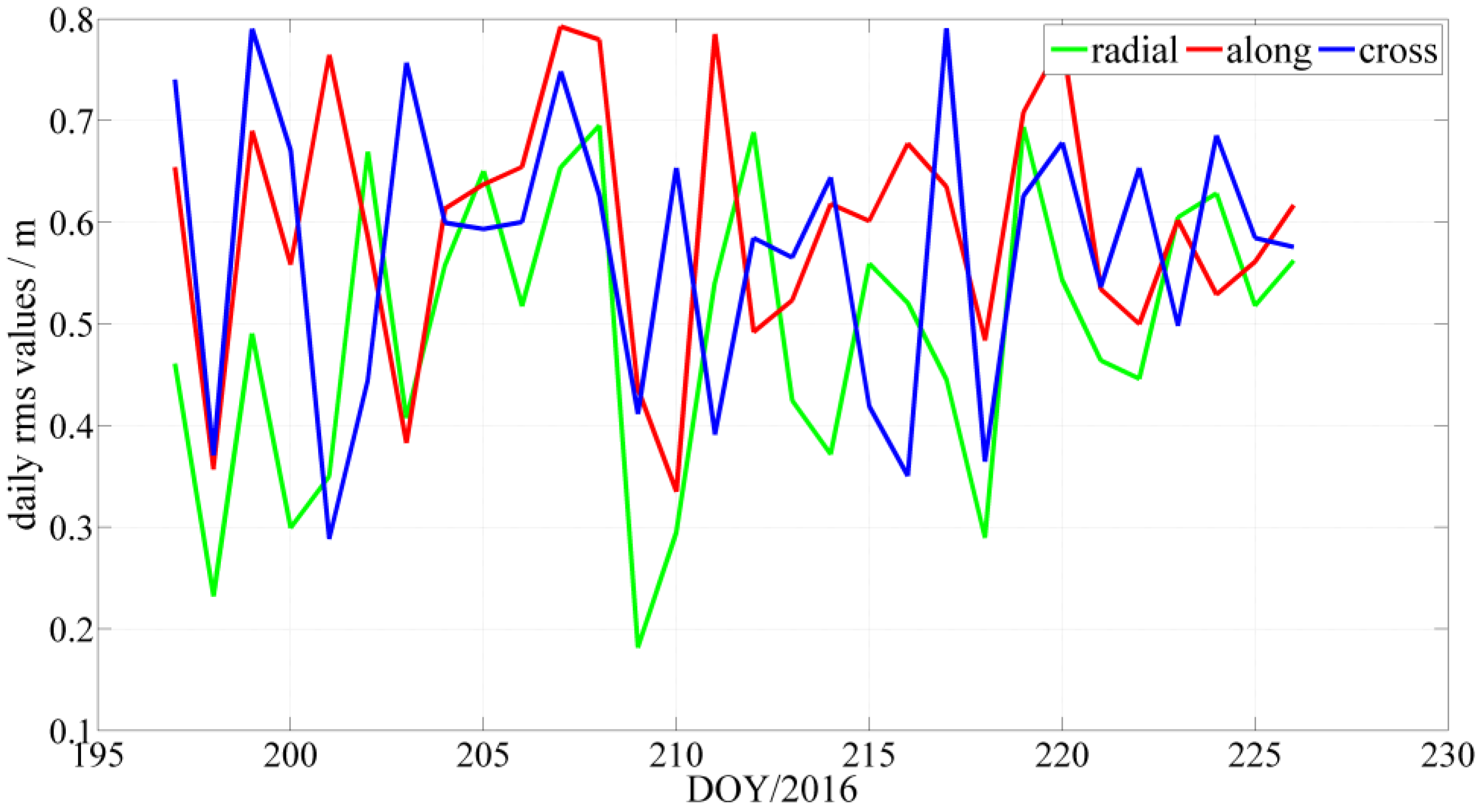

Figure 6. BeiDou C34 satellite overlap comparison in the radial, along, and cross-track components.
Figure 6. BeiDou C34 satellite overlap comparison in the radial, along, and cross-track components.
Ijgi 05 00196 g006

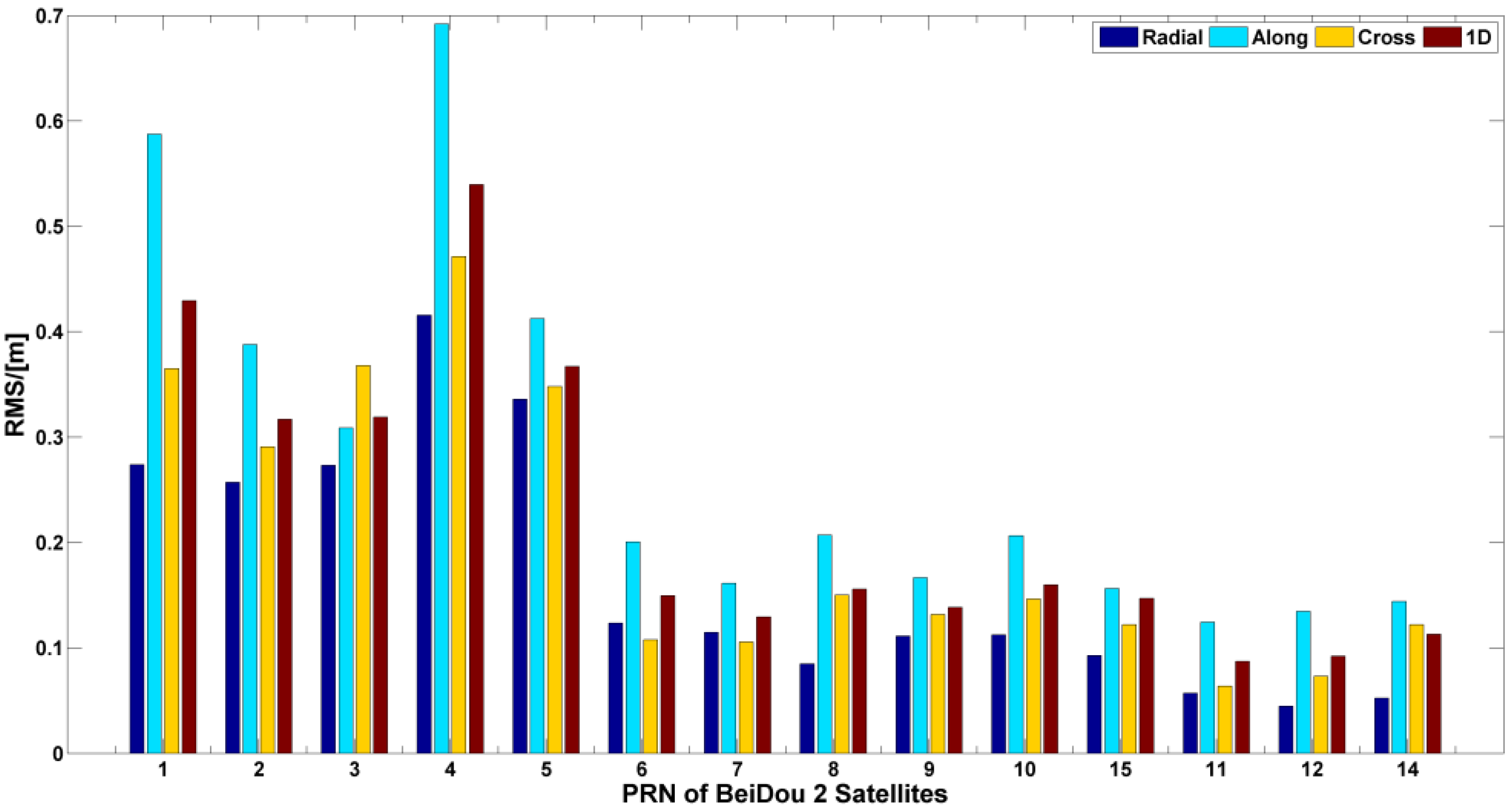

Figure 7. BeiDou-2 satellite overlap comparison in the radial, along, and cross-track components.
Figure 7. BeiDou-2 satellite overlap comparison in the radial, along, and cross-track components.
Ijgi 05 00196 g007

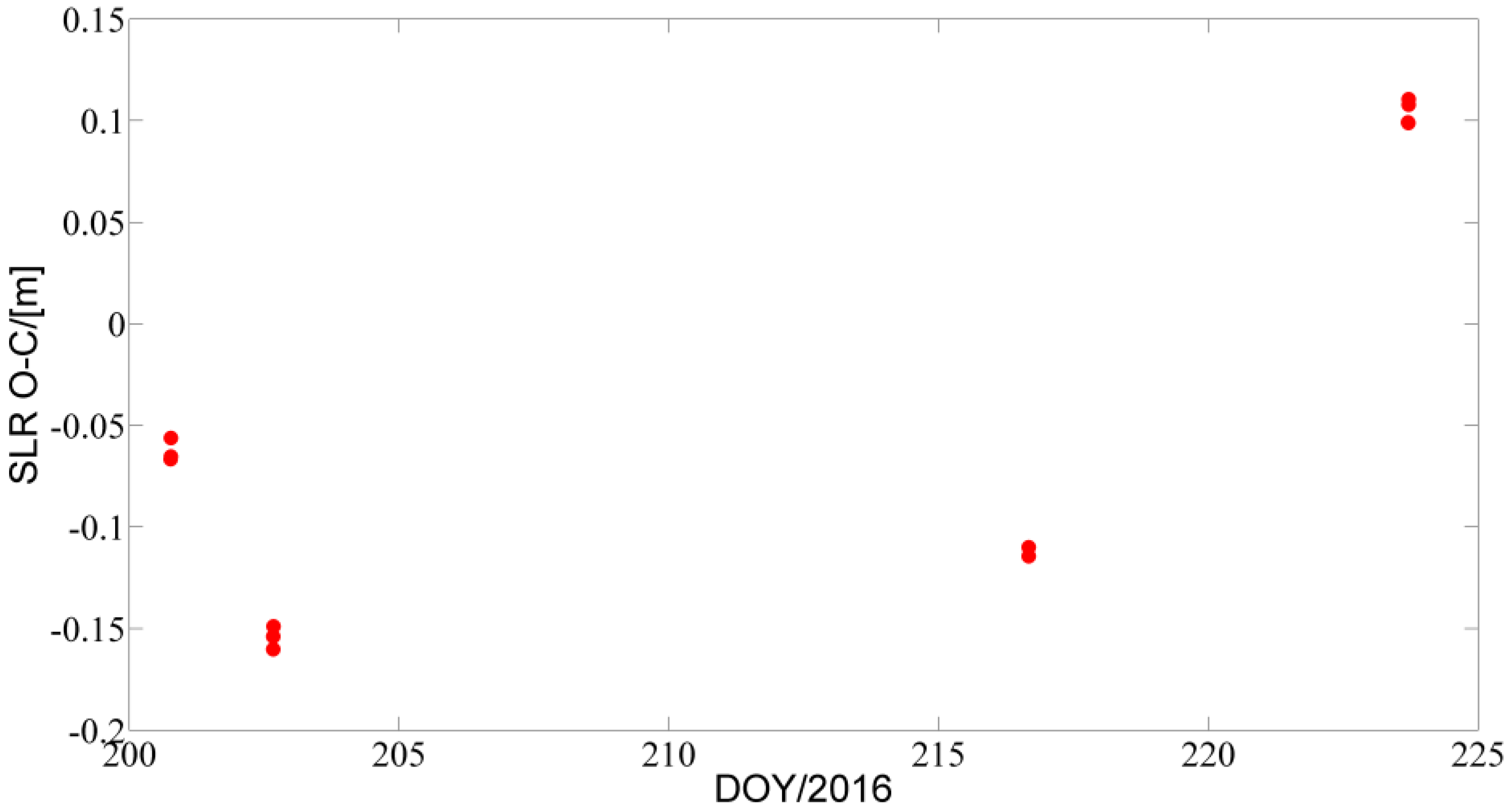

Figure 8. SLR validation for BeiDou-3 C31 satellite.
Figure 8. SLR validation for BeiDou-3 C31 satellite.
Ijgi 05 00196 g008

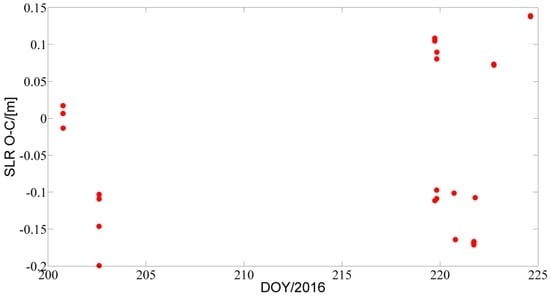

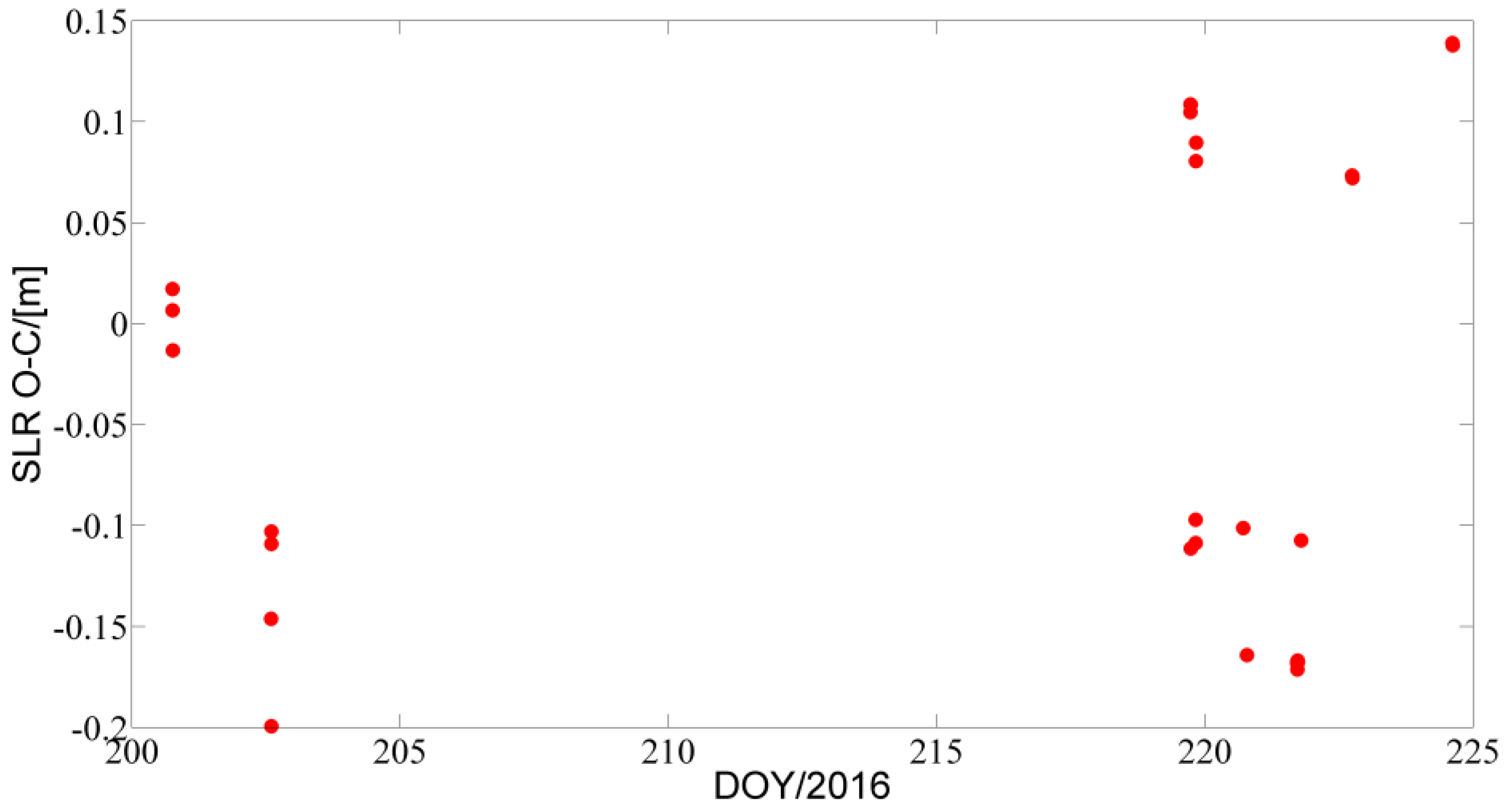

Figure 9. SLR validation for BeiDou-3 C32 satellite.
Figure 9. SLR validation for BeiDou-3 C32 satellite.
Ijgi 05 00196 g009

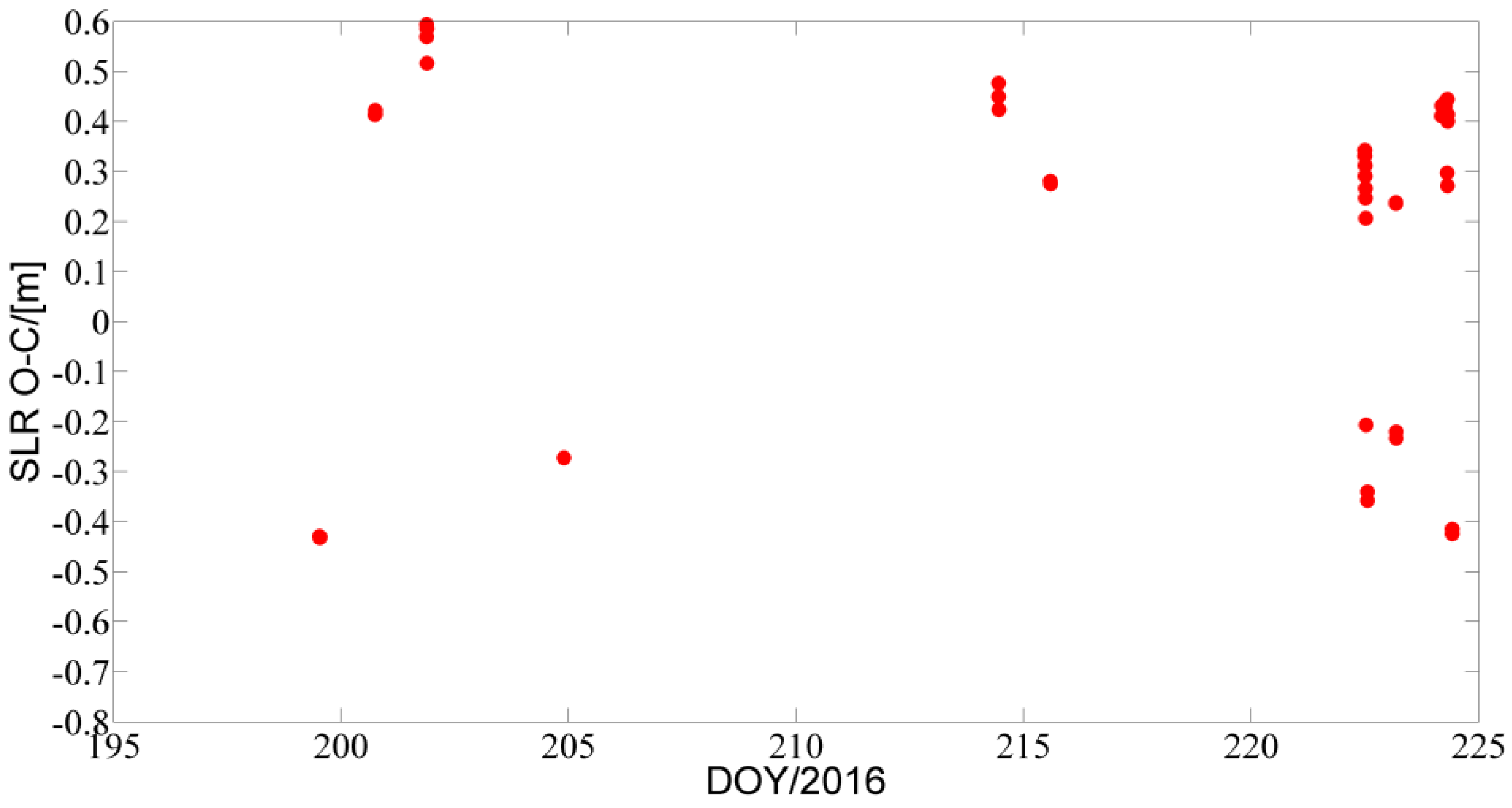

Figure 10. SLR validation for BeiDou-3 C33 satellite.
Figure 10. SLR validation for BeiDou-3 C33 satellite.
Ijgi 05 00196 g010

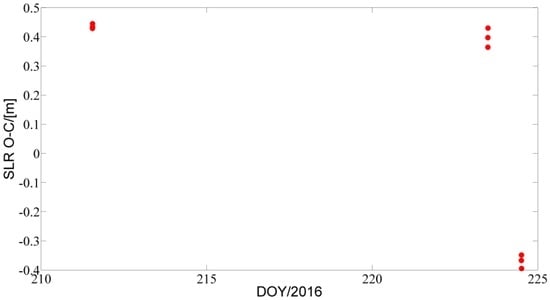

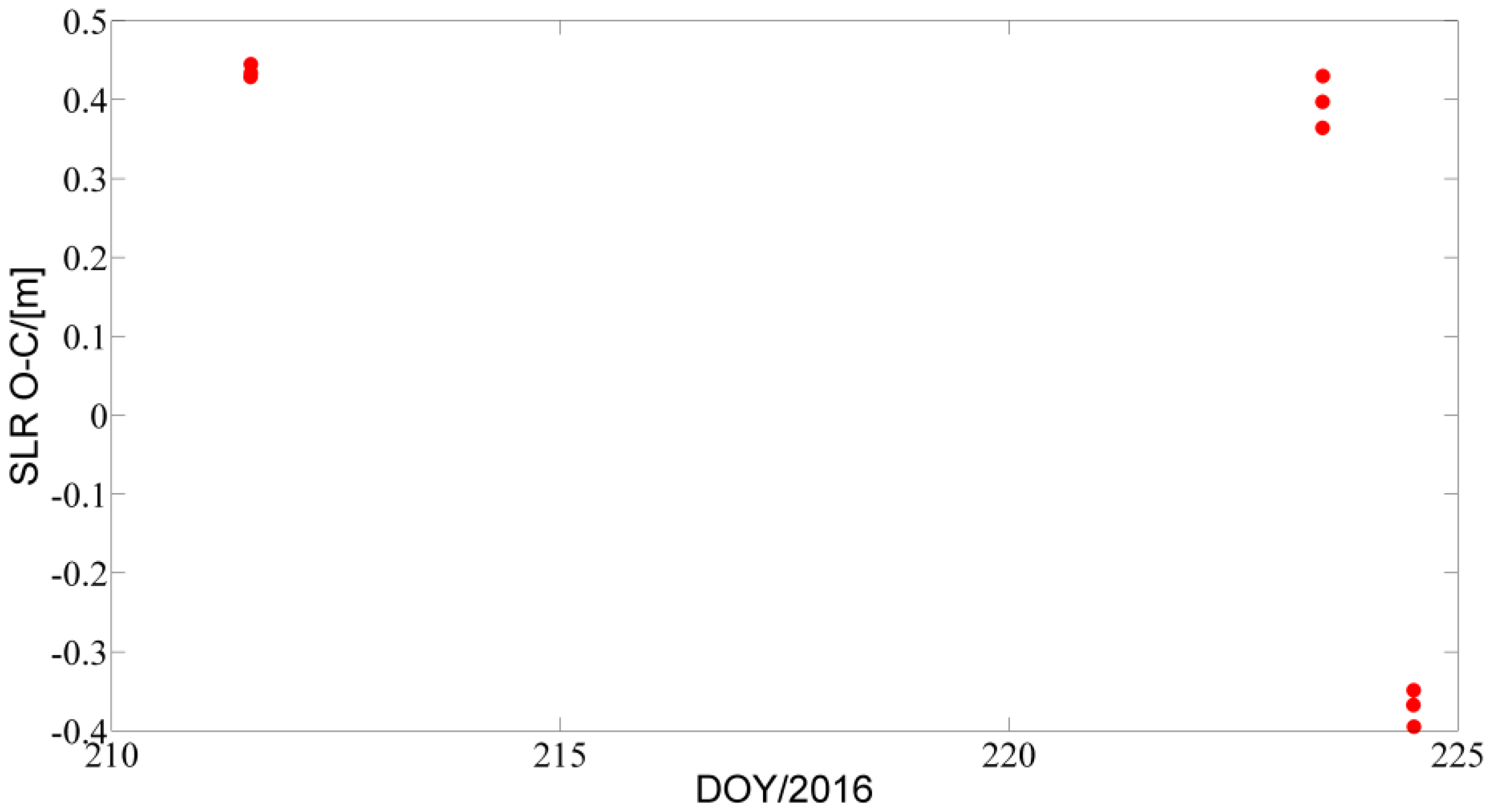

Figure 11. SLR validation for BeiDou-3 C34 satellite.
Figure 11. SLR validation for BeiDou-3 C34 satellite.
Ijgi 05 00196 g011

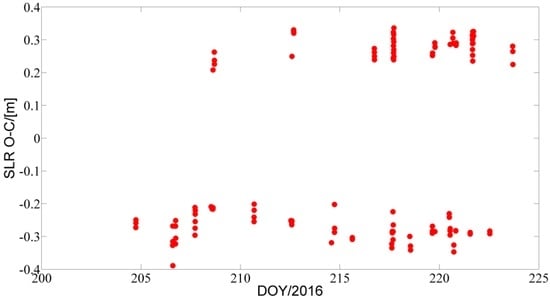

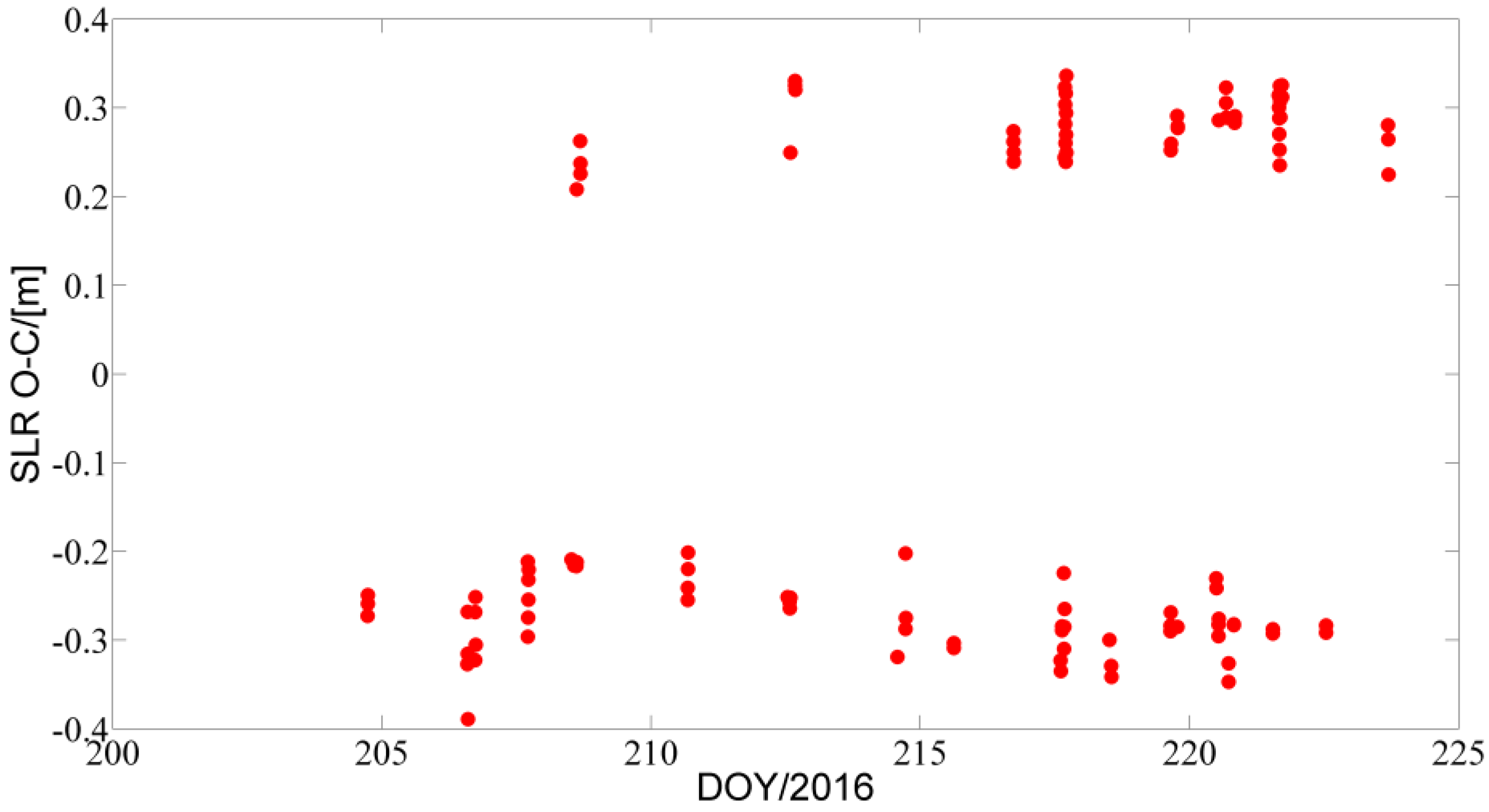

Figure 12. SLR validation for BeiDou-2 C01 satellite.
Figure 12. SLR validation for BeiDou-2 C01 satellite.
Ijgi 05 00196 g012

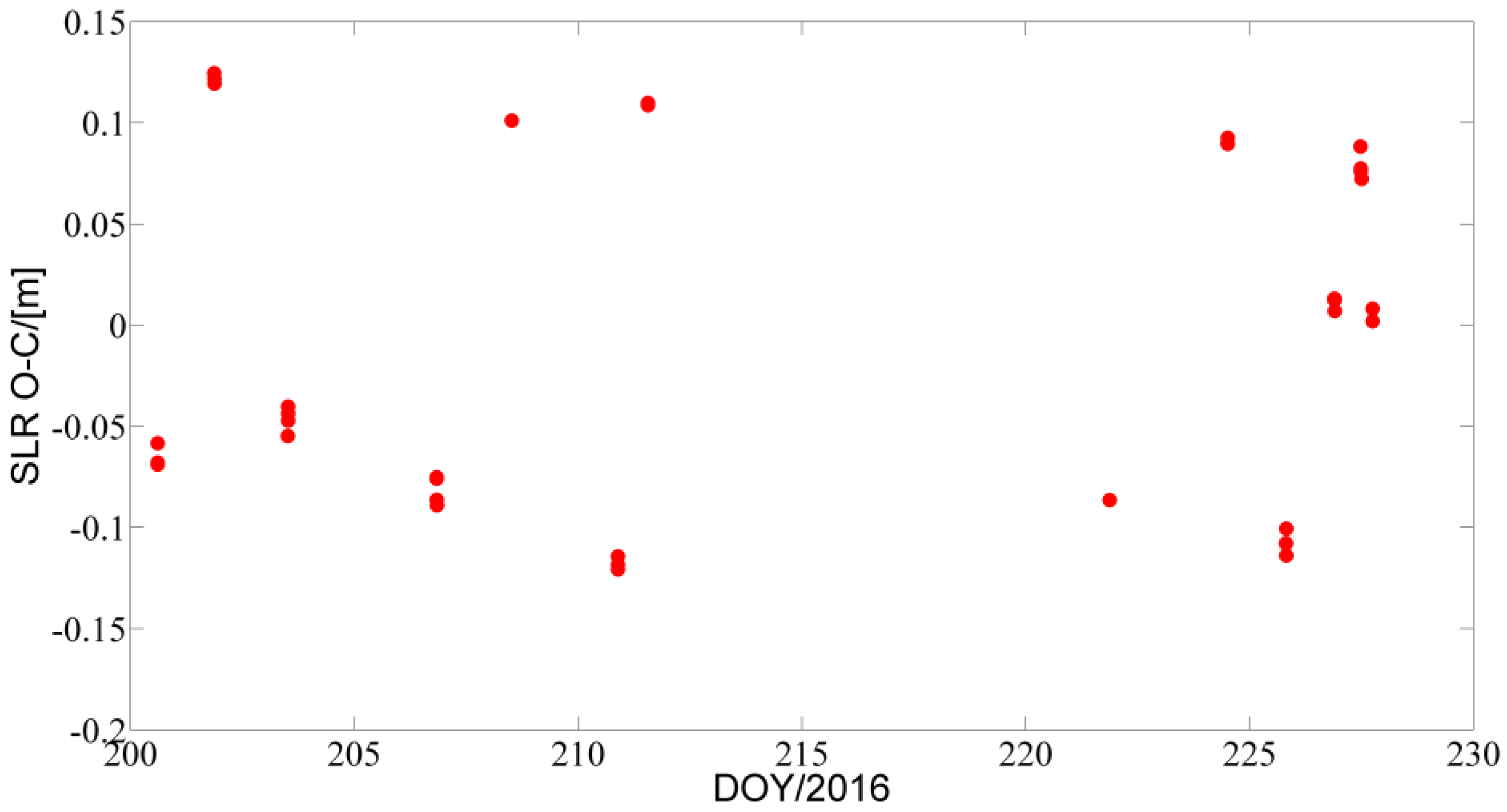

Figure 13. SLR validation for BeiDou-2 C08 satellite.
Figure 13. SLR validation for BeiDou-2 C08 satellite.
Ijgi 05 00196 g013

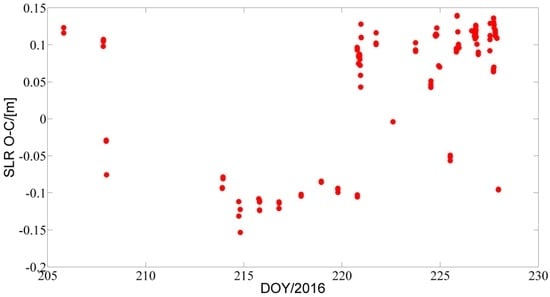

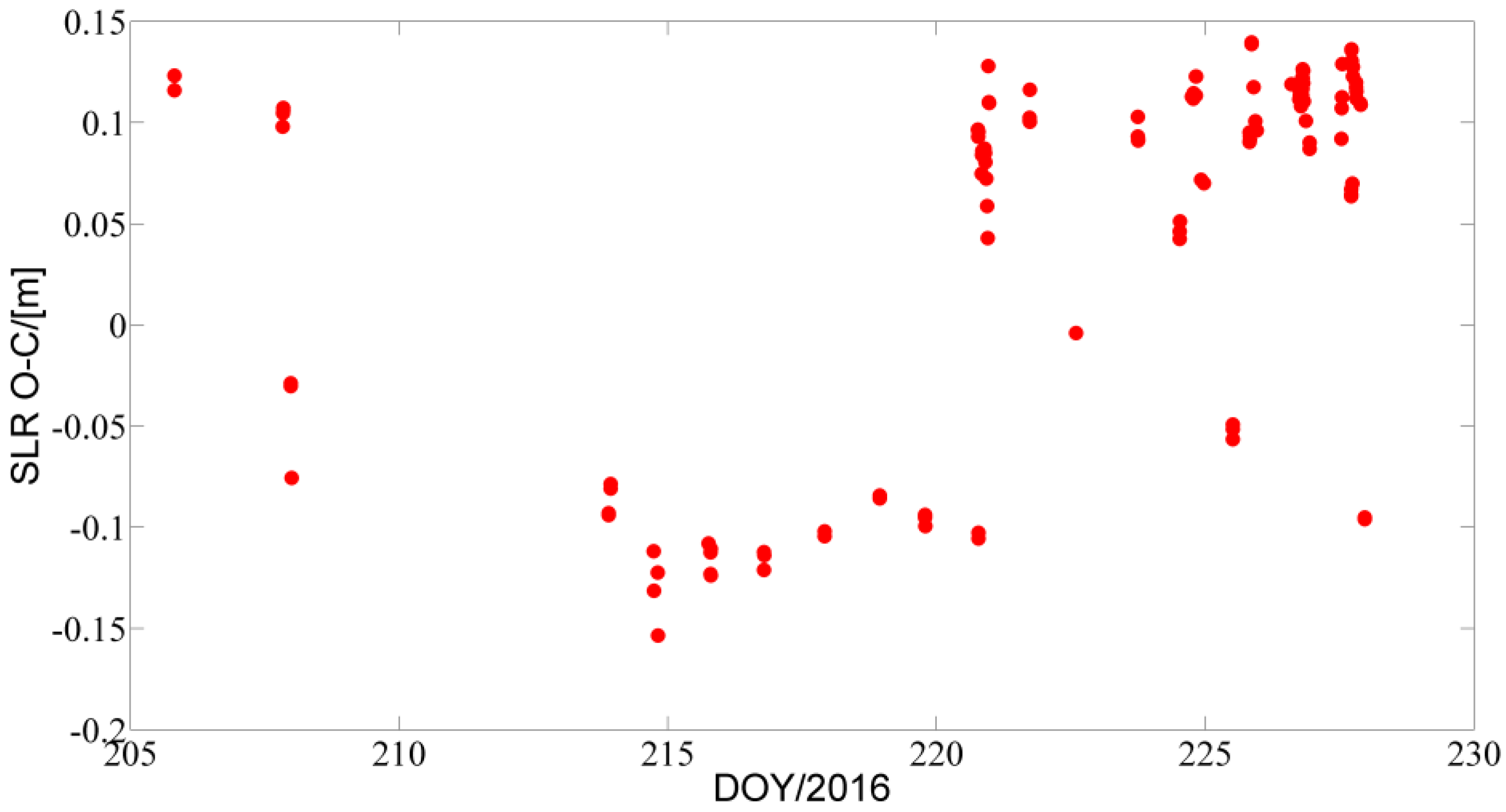

Figure 14. SLR validation for BeiDou-2 C10 satellite.
Figure 14. SLR validation for BeiDou-2 C10 satellite.
Ijgi 05 00196 g014

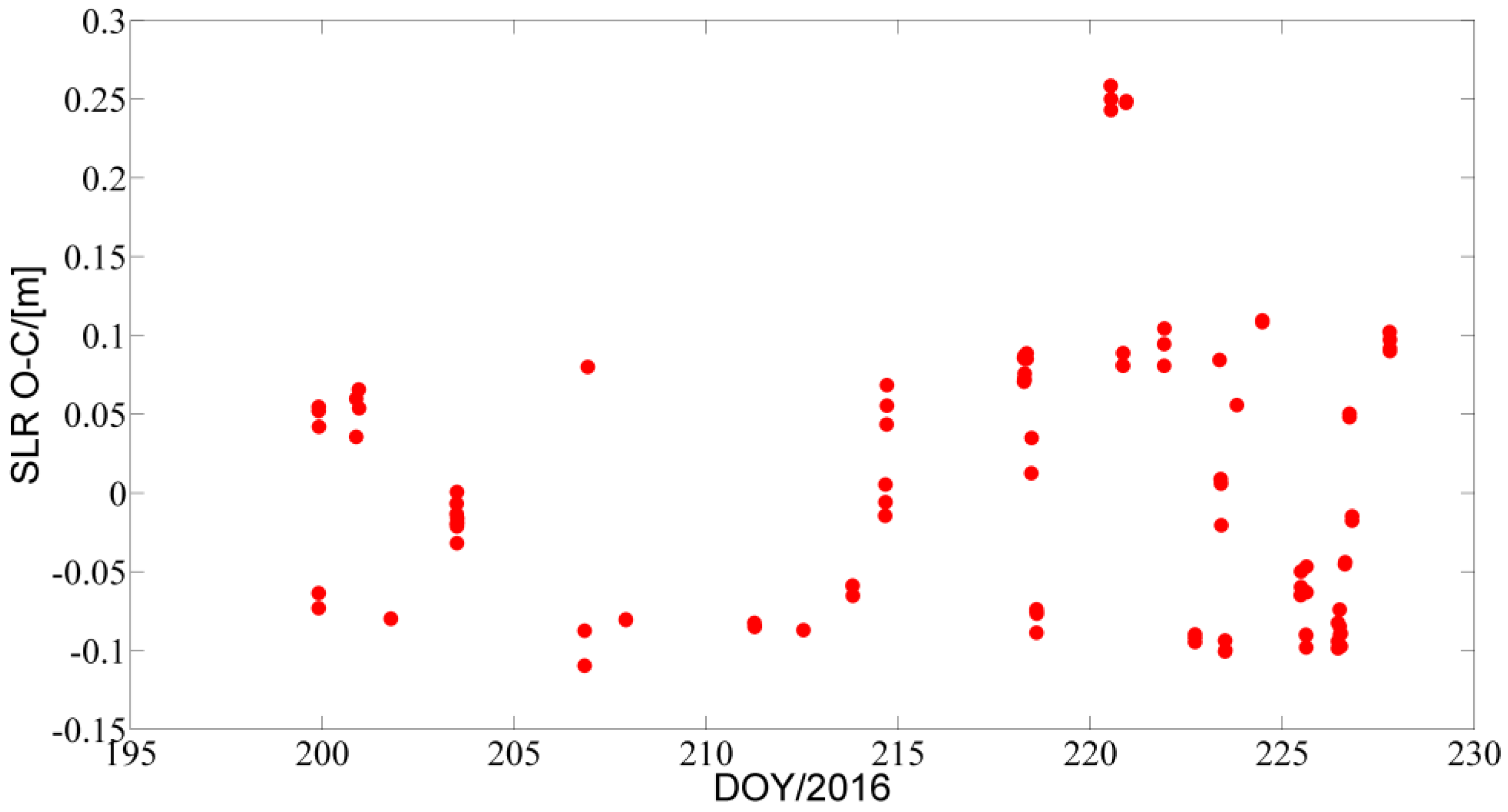

Figure 15. SLR validation for BeiDou-2 C11 satellite.
Figure 15. SLR validation for BeiDou-2 C11 satellite.
Ijgi 05 00196 g015
Table 1. BeiDou navigation satellite system status (as of August 2016).
Table 1. BeiDou navigation satellite system status (as of August 2016).
Beidou-2
SatellitePRNSVNTypeNotesLaunch Date
G01C01C003GEO140.0°E17 January 2010
G02C02C002GEONot in operation15 April 2009
G03C03C004GEO84.0°E2 January 2010
G04C04C006GEO160.0°E1 November 2011
G05C05C011GEO58.75°E25 February 2012
G06C02C016GEO110.5°E25 October 2012
G07C17C017GEOIn orbit test12 June 2016
I01C06C005IGSO122°E1 August 2010
I02C07C007IGSO119°E18 December 2010
I03C08C008IGSO120°E10 April 2011
I04C09C009IGSO96.5°E27 July 2011
I05C10C010IGSO92.5°E2 December 2011
I06C15C017IGSO95°E29 March 2016
M01C30C001MEONot in operation4 April 2007
M03C11C012MEO 30 April 2012
M04C12C013MEO 30 April 2012
M05C13C014MEONot in operation18 September 2012
M06C14C015MEO 18 September 2012
Beidou-3
SatellitePRNSVNTypeNotesLaunch Date
I1-SC31C101IGSO 30 March 2015
M1-SC33C102MEO 25 July 2015
M2-SC34C103MEO 25 July 2015
I2-SC32C104IGSO 29 September 2015
M3-SC35C105MEOIn orbit test1 February 2016
Table 2. Selected tracking stations from the International GNSS (Global Navigation Satellite System) Monitoring and Assessment Service (iGMAS).
Table 2. Selected tracking stations from the International GNSS (Global Navigation Satellite System) Monitoring and Assessment Service (iGMAS).
Station Abb.LocationCountryReceiverAntenna
BJF1BeijingChinaCETC-54 GMR-4011LEIAR25.R4 LEIT
BRCHBraunschweigGermanyCETC-54 GMR-4011LEIAR25.R4 LEIT
CLGYCalgaryCanadaCETC-54 GMR-4011LEIAR25.R4 LEIT
GUA1UrumqiChinaGNSS_GGRRINT-8CH CETD
LHA1LhasaChinaCETC-54 GMR-4011NOV750.R4 NOVS
TAHTTahitiFrance GNSS_GGRRINT-8CH CETD
WUH1WuhanChinaCETC-54 GMR-4011LEIAR25.R4 LEIT
XIA1XianChinaGNSS_GGRRINT-8CH CETD
XHONAntarcticaUnited NationsCETC-54 GMR-4011LEIAR25.R4 LEIT
Table 3. Summary of the precise-orbit determination strategy for BeiDou-3 satellites. ERPs, earth rotation parameters; POD, precise orbit determination; PCO, satellite antenna phase center; PCV, phase center variation, ZTDs, zenith tropospheric delays.
Table 3. Summary of the precise-orbit determination strategy for BeiDou-3 satellites. ERPs, earth rotation parameters; POD, precise orbit determination; PCO, satellite antenna phase center; PCV, phase center variation, ZTDs, zenith tropospheric delays.
StrategyDescribe
ObservationsDouble-differenced ionosphere-free code, and phase combination of B1 and B3 in deployment phase 1
Elevation angle cut-off
Sampling rate30 s
Data spanThree days
Station coordinates and ERPsFixed using estimates from the GPS daily POD process
Weighting4 mm for phase observations, 2 m for code observations and elevation-dependent weighting
Satellite antenna PCO and PCVBeiDou-3: PCO values are given by the Operation Control Department (with authorization), no PCV applied
BeiDou-2: Obtained from Dilssner et al. [18]
SLR retro-reflector offsetsBeiDou-3: Given by the Operation Control Department (with authorization)
BeiDou-2: Obtained from ILRS
Attitude modelBeiDou-3: Yaw-steering attitude mode
BeiDou-2: Yaw-steering and orbit normal attitude mode
Ground antenna PCO and PCVNot applied
TroposphereDry and wet GMF mapping functions; ZTDs estimated for each station at intervals of two hours; GPS daily ZTDs used as a priori values
Precession and nutationIAU 2010 precession and IAU 2010 nutation model
GeopotentialEGM2008 12 × 12
Solid Earth tides, ocean tides and solid Earth pole tidesIERS Conventions 2010
N bodyJPL DE405 ephemeris
Orbital parametersSix orbit elements and five ECOM SRP parameters were estimated:
constants in the D, Y and X directions; periodic terms in the X direction
Pseudo-stochastic orbit parametersEvery 12 h; constrained to 1 × 10−6 m/s in the radial direction, 1 × 10−5 m/s in the along direction, and 1 × 10−8 m/s in the cross-track direction
AmbiguityReal constant value for each ambiguity arc
Table 4. Averaged daily root mean square (RMS) values of 24-h orbit overlap comparison.
Table 4. Averaged daily root mean square (RMS) values of 24-h orbit overlap comparison.
PRN of BeiDou SatellitesRadial (cm)Along(cm)Cross-track (cm)
BeiDou-3 C31 (IGSO)12.5124.9523.82
BeiDou-3 C32 (IGSO)11.8825.8124.32
BeiDou-3 C33 (MEO)40.7558.6751.82
BeiDou-3 C34 (MEO)41.1659.8859.11
BeiDou-2 C01 (GEO)27.3958.7236.49
BeiDou-2 C02 (GEO)25.7238.7929.09
BeiDou-2 C03 (GEO)27.3230.8736.78
BeiDou-2 C04 (GEO)41.5569.1947.12
BeiDou-2 C05 (GEO)33.5841.2534.81
BeiDou-2 C06 (IGSO)12.3520.0510.77
BeiDou-2 C07 (IGSO)11.4616.1210.57
BeiDou-2 C08 (IGSO)8.4920.7115.03
BeiDou-2 C09 (IGSO)11.1216.6713.17
BeiDou-2 C10 (IGSO)11.2320.6514.65
BeiDou-2 C15 (IGSO)9.2615.6312.21
BeiDou-2 C11 (MEO)5.6912.456.37
BeiDou-2 C12 (MEO)4.4613.467.31
BeiDou-2 C14 (MEO)5.2214.4112.19
Table 5. SLR residuals of BeiDou-3 satellites.
Table 5. SLR residuals of BeiDou-3 satellites.
PRN of BeiDou SatellitesMean (cm)RMS (cm)
BeiDou-3 C31 (IGSO)−3.8211.25
BeiDou-3 C32 (IGSO)−3.5111.28
BeiDou-3 C33 (MEO)15.6438.61
BeiDou-3 C34 (MEO)15.4440.26
BeiDou-2 C01 (GEO)−2.6827.98
BeiDou-2 C08 (IGSO)−4.278.51
BeiDou-2 C10 (IGSO)−4.9710.32
BeiDou-2 C11 (MEO)2.925.91
