Spatial Relations Using High Level Concepts
Padraig Corcoran 1,*, Peter Mooney 2 and Michela Bertolotto 1
1
School of Computer Science and Informatics, University College Dublin, Belfield, Dublin 4, Ireland; E-Mail: michela.bertolotto@ucd.ie
2
Department of Computer Science, National University of Ireland Maynooth, Maynooth, Kildare, Ireland; E-Mail: peter.mooney@nuim.ie
*
Author to whom correspondence should be addressed; E-Mail: padraig.corcoran@ucd.ie; Tel.: +353-1716-2894; Fax: +353-1269-7262.
Received: 30 August 2012; in revised form: 28 November 2012 / Accepted: 4 December 2012 /
Published: 13 December 2012

Abstract

: Existing models of spatial relations do not consider that different concepts exist on different levels in a hierarchy and in turn that the spatial relations in a given scene area function of the specific concepts considered. One approach to determining the existence of a particular spatial relation is to compute the corresponding high level concepts explicitly using map generalization before inferring the existence of the spatial relation in question. We explore this idea through the development of a model of the spatial relation “enters” that may exist between a road and a housing estate.
Keywords:
spatial relations; high level concepts; map generalisation

1. Introduction

Murphy [1] defines a concept as the mental representation corresponding to a category. A house is a concept defined by the Merriam-Webster dictionary as a building that serves as living quarters for one or a few families. A housing estate is a higher level concept defined by the Merriam-Webster dictionary as a group of individual dwellings or apartment houses typically of similar design that are usually built and sold or leased by one management. In this work we use the term housing estate to refer to a specific instance of this concept. That is, a housing estate which consists of only detached, semi-detached and terraced residential houses. Housing estates are a commonly occurring structure in many European countries such as Ireland. Most housing estates have one or more corresponding roads which provide access to the houses in questions and are called the access roads for the estate in question. For example consider the scene in Figure 1 which depicts the housing estate Tudor Lawns located in Foxrock Dublin. The grey road corresponds to the access road for the housing estate in question. For a given scene containing a housing estate and a set of roads, the access road for the estate in question may not be stored explicitly but can be derived from implicit information in the scene [2]. For example a visual inspection of Figure 1 suggests that the grey road is the access for the housing estate in question. Deriving certain forms of implicit information from spatial data can be considered a problem of determining the existence of spatial relations. For example the verb enter is commonly used to describe the spatial relation which exists between a housing estate and its corresponding access road. Therefore we say that the grey road enters the housing estate in Figure 1.

Ijgi 01 00333 g001

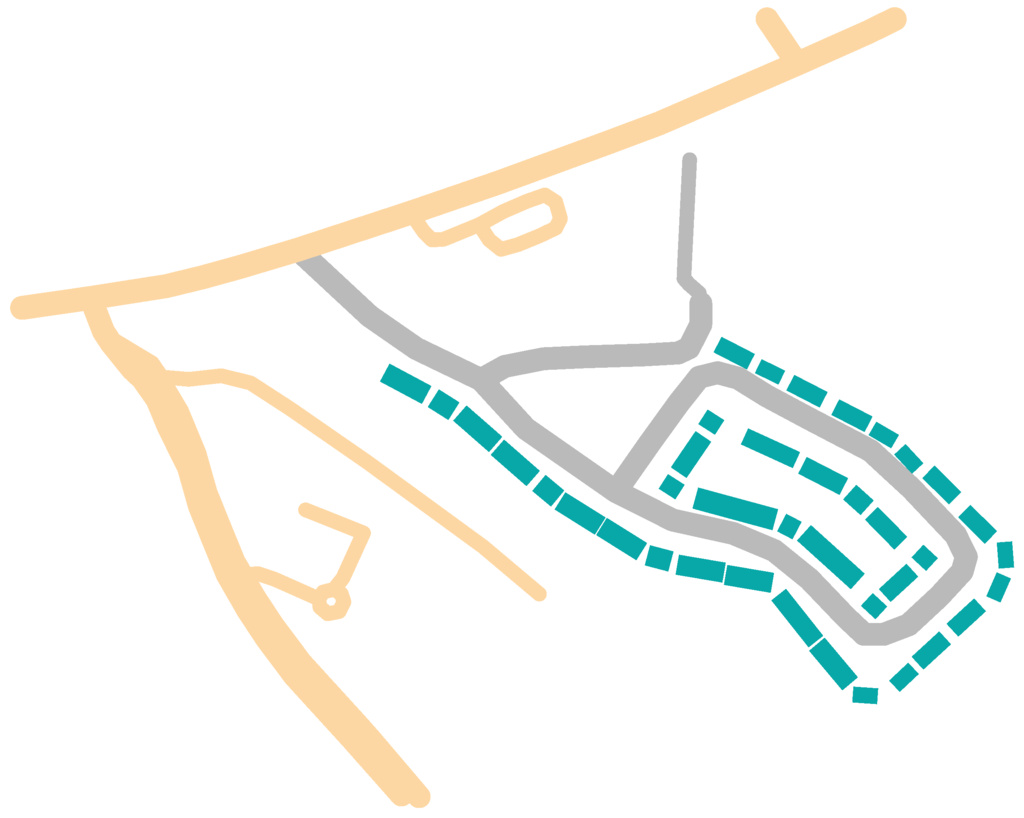

Figure 1. A set of polygons corresponding to houses in a housing estate and a number of lines corresponding to roads are represented. The grey line represents the access road for the housing estate in question. Data taken from OpenStreetMap.

Click here to enlarge figure

Figure 1. A set of polygons corresponding to houses in a housing estate and a number of lines corresponding to roads are represented. The grey line represents the access road for the housing estate in question. Data taken from OpenStreetMap.
Ijgi 01 00333 g001

Our cognitive capacity to infer this spatial relation of enters is a consequence of our ability to represent the spatial information using high level concepts before inferring the existence of the spatial relation in question. That is, representing the individual houses as a higher level housing estate concept before inferring the existence of the spatial relation enters. Despite the huge body of work on modeling spatial relations all existing models do not consider that different concepts may exist on different levels in a hierarchy. A number of authors have previously considered the effect splitting or merging of objects has on spatial relations [3,4,5]. However these works do not consider that different concepts exist on different levels in a hierarchy and in turn that the spatial relations in a given scene are a function of the specific concepts considered. In this work we propose that one may determine the existence of a spatial relation by computing the corresponding high level concepts explicitly using map generalization before inferring the existence of the spatial relation in question. We explore this idea through the development of a model of the spatial relation enters which may exist between a road and a housing estate.

The layout of this paper is as follows. In Section 2 we review related works. In Section 3 we present a model of the spatial relation enters. Section 4 evaluates this model and demonstrates it to be a useful tool for classifying housing estate access roads. Finally in Section 5 we draw conclusions and discuss possible future research directions.

2. Related Work

This section is divided into three parts. In Section 2.1 we briefly review existing methods for deriving implicit information from maps with a specific focus on information relating to buildings. In Section 2.2 we review existing models of spatial relations. Section 2.3 discusses the topic of map generalization.

2.1. Implicit Spatial Information

Implicit information derived from spatial data can be used to support many applications such as map generalisation (where this process is known as data enrichment) [6,7], improving the quality of user generated spatial data [8], matching spatial datasets [9] and updating data [10]. Walter and Luo [2] provide a classification of the different forms of implicit information that can be derived from spatial data. These include map type, single objects, complex objects and regions.

As stated by Luscher et al. [11] building objects are rarely attributed richly in spatial datasets. Consequently many authors have proposed methods for deriving implicit information relating to buildings. Regnault [12], Yan et al. [13], Steinhauer et al. [14] and Qi and Li [15] all proposed methods for the grouping of buildings. Zhang et al. [16] proposed a categorization of building patterns which includes collinear, curvilinear, align-along-road, grid-like and unstructured. The detection of collinear building patterns has been extensively studied [17,18]. Zhang et al. [16] proposed algorithms for detecting align-along-road and unstructured building patterns. Luscher et al. [19] demonstrated that higher level semantics, such as terraced house, can be derived from building alignments and other criteria. Haunert [20] proposed a methodology for detecting symmetries in building footprints.

2.2. Spatial Relations

A spatial relation is a means of modeling a particular property of the spatial relationship which exists between two or more objects. Spatial relations may be categorized as topological, metric and order relations [21]. Topological relations model properties which are invariant under consistent topological transformations such as rotation, translation and scaling [22]. Metric relations model properties concerning distance and direction. Order relations model properties concerning the partial and total order of objects as described by prepositions such as in front of, behind, above, and below [23]. Many spatial relations cannot be classified as exclusively topological, metric or order. Such relations include the align-along-road relation existing between a set of buildings and a road. A number of authors have considered the effect splitting and merging objects has on topological relations [3,4,5].

Research on the topic of spatial relations is motivated by a broad spectrum of possible application areas. Spatial relations can be used to describe constraints which specify a subset of spatial objects. For example, one may specify the subset of objects which fall within a given radius of a point using a metric relation [21]. Spatial relations can also be used as a platform for spatial inference and qualitative spatial reasoning [24]. For example if it is specified using spatial relations that an object Ijgi 01 00333 i002 is contained within an object Ijgi 01 00333 i003 which in turn is contained within an object Ijgi 01 00333 i004, it is straight forward to infer that Ijgi 01 00333 i002 is contained within Ijgi 01 00333 i004. Some spatial relations have a corresponding easily interpretable natural language expression which offers the potential for the linguistic interaction with spatial data [22,25,26]. Other applications of spatial relations include robotics and high-level computer vision [27]. Many sets of spatial relations have been proposed but the most predominant are the intersection models of Egenhofer [28,29] and the Region Connection Calculus (RCC) of Randell et al. [30]. Due to their ubiquitous nature we do not describe these in detail suffice to say that each consists entirely of binary topological relations and both sets are in fact equivalent. A detailed description of both these sets can be found in [31].

As stated by Cohn and Hazarika [24] not all sets of spatial relations are equally useful and the actual set used must be relevant to the task being performed. One of the main goals in the research field of spatial relations is to determine if a single universal set of relations can be defined which is pragmatic with respect to many applications. A promising approach towards achieving this goal proposes to model the aspects of spatial relationships which the human cognition models. This has led to the use of the term cognitively adequate to describe a set of spatial relations which are believed to be an accurate model of these aspects [32,33]. Initial studies focused on the role topological relations play in defining cognitively adequate models. The study of Mark and Egenhofer [34] suggested that topological relations alone, and in particular the intersection models of Egenhofer [28], are sufficient to achieve cognitive adequacy. This lead to the famous expression “topology matters, metric refines” by Egenhofer and Mark [35]. This claim was supported by the works of Clementini et al. [36] and Renz et al. [32] but these authors claimed that a finer level of granularity than the intersection models was necessary to achieve cognitive adequacy. However a study by Shariff et al. [22] suggests that topological relations alone may not be sufficient for cognitive adequacy; the authors propose that a combination of topological and metric relations are necessary. The recent work of Klippel [33] suggests that semantics must also be considered if one wishes to define a set of spatial relations which are cognitively adequate.

Spatial relations may also be categorised as qualitative or non-qualitative relations. Qualitative relations model properties which are of a vague or fuzzy nature and possibly context dependent [37]. Determining the existence of such relations generally requires one to model some aspect of human cognition. Examples of qualitative relations include a relation which indicates if an object is nearly completely contained inside another [27,38] or a relation which indicates if an object is between two others [39,40]. These relations are illustrated in Figure 2(a,b) respectively. The spatial relation indicating if a road entering a housing estate discussed in Section 1 is also a qualitative relation. On the other hand, non-qualitative spatial relations model properties which are not of a vague or fuzzy nature and not context dependent. Such relations have a precise geometrical definition. Examples include binary relations which indicate if two lines intersect or if an object is completely contained inside another [21].

Ijgi 01 00333 g002

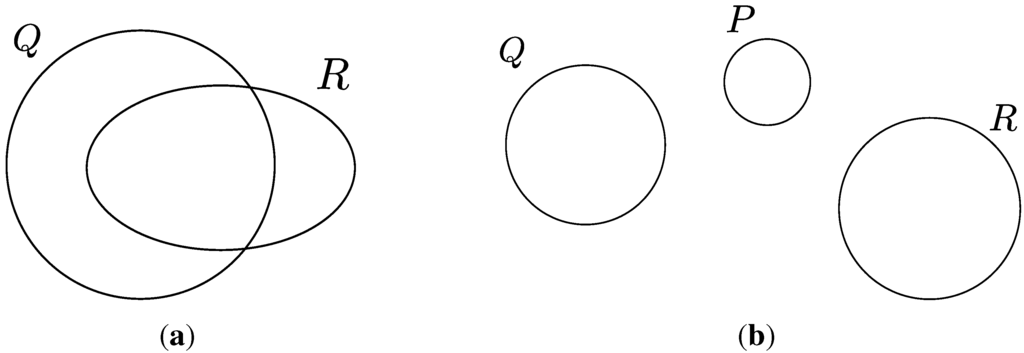

Figure 2. In (a) the object Ijgi 01 00333 i005 is nearly completely contained inside the object Ijgi 01 00333 i006; In (b) the object Ijgi 01 00333 i007 is between the objects Ijgi 01 00333 i006 and Ijgi 01 00333 i005.

Click here to enlarge figure

Figure 2. In (a) the object Ijgi 01 00333 i005 is nearly completely contained inside the object Ijgi 01 00333 i006; In (b) the object Ijgi 01 00333 i007 is between the objects Ijgi 01 00333 i006 and Ijgi 01 00333 i005.
Ijgi 01 00333 g002

2.3. Map Generalisation

The International Cartographic Association defined generalisation as “The selection and simplified representation of detail appropriate to the scale and/or purpose of the map” [41]. Generalisation serves a variety of purposes including the creation and maintenance of spatial data at multiple scales, cartographic visualization at variable scales, and data reduction [42]. There exist many conceptual models, or frameworks, of the generalization process in both the manual and digital domains. An in-depth overview of these can be found in [41,43].

The goal of map generalization is to produce a suitable map representation subject to a set of constraints [44]. Weibel [45] identified Gestalt, semantic, metric and topological as four such constraints. A Gestalt constraint maintains important object shape characteristics. For example many authors have proposed aggregation techniques for buildings which maintain the shape characteristics of rectangularity [46,47] and symmetry [20]. Semantic constraints ensure generalization is performed in a manner which is a function of object semantics. Kieler et al. [48] and Haunert and Wolff [49] propose aggregation techniques which ensure that objects merged predominantly belong to the same class. Metric constraints perform generalization in a manner which is a function of an error function. Finally, a topological constraint attempts to ensure that the generalization process preserves topological relations between objects [44,50].

Map generalization is performed through the application of one or a number of generalization operators. Jones [51] identified eight categories of generalization operators. These are elimination, simplification, typification, exaggeration, enhancement, collapse, aggregation and displacement [50]. In this article we only consider the aggregation operator but a detailed discussion of operators which can be applied to buildings is contained in [52]. Aggregation may be defined as the replacement of a set of objects by a single object [53]. Replacing a set of house objects by a single housing estate object, as described in Section 1, is an example of aggregation. Regnauld [53] proposes that aggregation may be performed using one of the following four strategies. Aggregation with displacement displaces the set of objects until they touch or overlap and then subsequently merges these objects [54]. If the objects in question initially touch no displacement is necessary and they can be simply merged [48,49]. Aggregation by flooding replaces the set of objects in question with a single object of greater spatial extent such as the convex hull. Aggregation by sampling replaces the set of objects with a sub-set; this is also known as typification. Finally aggregation by connecting objects [3,46,55] is by far the most commonly used methodology and is the focus of the research presented here. We now describe in detail how this methodology functions.

Aggregation by connecting objects is generally performed in two steps. The first step of object grouping identifies sets of objects which require merging. The second step of object merging defines a set of connectors which connect the objects in each set; all objects and connectors in each set are then merged. For example consider the scene in Figure 3(a) containing the polygons Ijgi 01 00333 i009 and Ijgi 01 00333 i010. In order to merge these objects we define one possible connector to be the polygon Ijgi 01 00333 i011 which is represented by the grey region in Figure 3(b). The merger of the two polygons is then defined as the union of the polygons and the corresponding connector; the result of which is represented by the polygon Ijgi 01 00333 i011 in Figure 3(c).

Ijgi 01 00333 g003

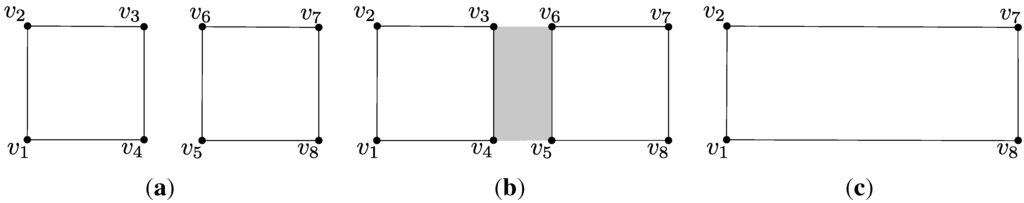

Figure 3. The two polygons in (a) are merged using the connected in (b) to give the result in (c).

Click here to enlarge figure

Figure 3. The two polygons in (a) are merged using the connected in (b) to give the result in (c).
Ijgi 01 00333 g003

Many authors have proposed methodologies which perform both steps of object grouping and merging [13,54,55,56]. Meanwhile some authors propose methodologies which perform a single step. For example Steinhauer et al. [14] and Qi and Li [15] describe techniques for object grouping alone. Methodologies which focus on the task of merging have mainly followed two approaches [53]. The first uses morphological operators (erosion and dilation) and are particularly suited to raster data [57]. The other trend uses the Delaunay triangulation geometrical structure and is suitable for vector data [13,54,55,56]. It should be noted that the aggregation of objects has many applications outside the domain of map generalization such as the generation of a shape, or footprint, from a set of points [58].

3. Proposed Model

As discussed in the introduction existing models of spatial relations do not consider that different concepts exist on different levels in a hierarchy and in turn that the spatial relations in a given scene are a function of the specific concepts considered. We propose that there exists two possible approaches to modeling a particular spatial relation. The first is to model the necessary higher level concepts explicitly using map generalization before inferring the existence of the spatial relation in question. The second approach is to model the necessary higher level concepts implicitly using a set of lower level concepts before inferring the existence of the spatial relation in question. For example, a housing estate may be modeled implicitly by set containing all houses belonging to the estate in question.

In this section we explore the former of these approaches by presenting a model of the spatial relation enters which may exist between a road and a housing estate. The model contains two steps. The first step performs object merging with the goal of creating an object corresponding to a housing estate. This facilitates inference with respect to the spatial relation in question. The second step performs this inference.

3.1. Generalisation Step

The proposed generalisation method performs only the task of object merging and assumes the set of objects which require merging is known a priori. An aggregation by connecting objects approach to merging is used which reduces the task of merging to one of defining a suitable set of connectors between the objects in question. An operator based on the Adapt Merge Operator of Ware et al. [54] is used to define the connectors in question. This choice of operator was motivated by the fact that Ware et al. [54] demonstrated that the Adapt Merge Operator achieves good results when applied to sets of polygons representing buildings. This operator functions as follows.

Ijgi 01 00333 g004

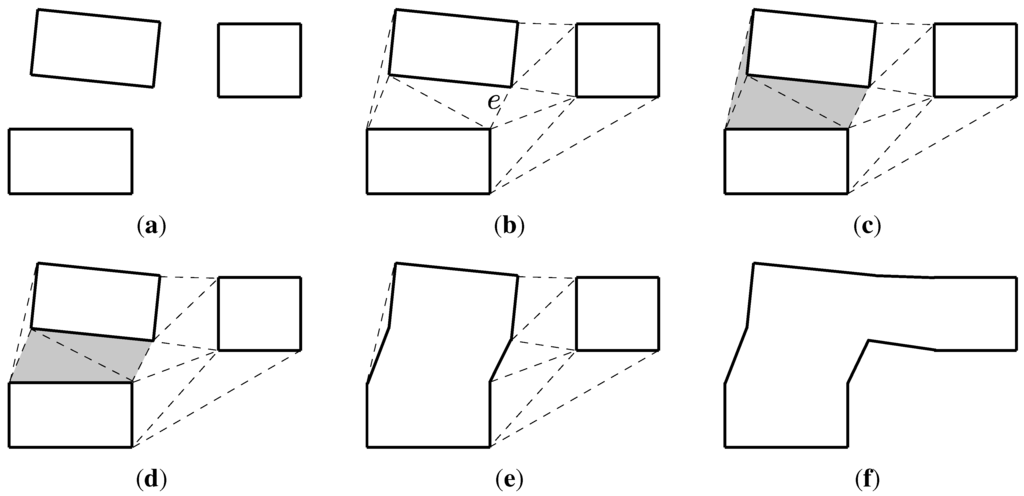

Figure 4. The three polygon in (a) are merged, through steps (b) to (e), to give the result in (f).

Click here to enlarge figure

Figure 4. The three polygon in (a) are merged, through steps (b) to (e), to give the result in (f).
Ijgi 01 00333 g004

Given a set of polygons a constrained Delaunay triangulation is computed and all edges internal to polygons are removed. For example a scene containing three polygons and its corresponding triangulation are displayed in Figure 4(a,b) respectively. Next the shortest edge, denoted Ijgi 01 00333 i014, in this triangulation which connects two different polygons is determined; these polygons correspond to the spatially closest in the scene. In Figure 4(b) the edge Ijgi 01 00333 i014 is labeled. The two polygons adjacent to Ijgi 01 00333 i014 and the corresponding set of connecting triangles are determined. This set of triangle is entitled Ijgi 01 00333 i015. The set Ijgi 01 00333 i015 corresponding to Figure 4(b) contains three triangles and is represented by the grey region in Figure 4(c). Next a subset of Ijgi 01 00333 i015, entitled Ijgi 01 00333 i016, is obtained by removing those triangles which are not adjacent to Ijgi 01 00333 i014 and contain an edge of length greater than Ijgi 01 00333 i017 times the length of Ijgi 01 00333 i014. Ijgi 01 00333 i016 corresponding to Ijgi 01 00333 i015 in Figure 4(c) contains two polygons and is represented by the grey region in Figure 4(d). Ijgi 01 00333 i016 and the two polygons adjacent to Ijgi 01 00333 i014 are then merged to form a single polygon. The result of applying this step to Figure 4(d) is displayed in Figure 4(e). This process of identifying and merging two polygons is then iterated until a single polygon remains. The result of merging the three polygons in Figure 4(a) is displayed in Figure 4(f).

The above merging operator does not prevent the introduction of intersections between the result of merging and other objects in the scene. For example consider the scene in Figure 5(a) which contains three polygons and a single line. The result of merging the three polygons using this method is displayed in Figure 5(b) where an intersection between the merged polygons and line exists.

Ijgi 01 00333 g005

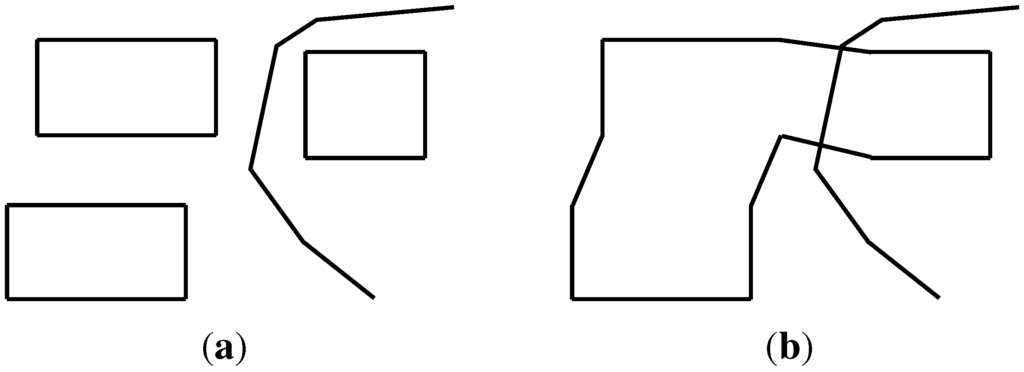

Figure 5. The merging of the polygons in (a) introduces a geometrical intersection with the line as illustrated in (b).

Click here to enlarge figure

Figure 5. The merging of the polygons in (a) introduces a geometrical intersection with the line as illustrated in (b).
Ijgi 01 00333 g005

3.2. Inference Step

In this section we describe the function Ijgi 01 00333 i019 which determines the degree to which a line Ijgi 01 00333 i020, corresponding to a road, enters a polygon Ijgi 01 00333 i021, corresponding to a housing estate. Ijgi 01 00333 i019 is leveraged by another function Ijgi 01 00333 i022 which determines the degree to which a point Ijgi 01 00333 i023, which lies on Ijgi 01 00333 i020, enters Ijgi 01 00333 i021. Ijgi 01 00333 i022 is a product of the functions Ijgi 01 00333 i024 and Ijgi 01 00333 i025 which measure the degree to which Ijgi 01 00333 i023 is surrounded by and close to the centroid of Ijgi 01 00333 i021 respectively. Having studied the spatial relation of enters in depth the authors believe both these attributes play a dominant role in its perception.

In order to compute Ijgi 01 00333 i024 we first generate a set Ijgi 01 00333 i026 of Ijgi 01 00333 i027 rays where Ijgi 01 00333 i028 is a ray with source Ijgi 01 00333 i023 and direction Ijgi 01 00333 i029. For example in Figure 6 the set of rays for each corresponding point Ijgi 01 00333 i023 where Ijgi 01 00333 i030 are illustrated. Let Ijgi 01 00333 i031 be a function which returns a value of Ijgi 01 00333 i032 if Ijgi 01 00333 i028 intersects Ijgi 01 00333 i021 and returns a value of Ijgi 01 00333 i033 otherwise. Ijgi 01 00333 i024 is computed using Equation (1).

Ijgi 01 00333 i034

Ijgi 01 00333 i024 takes values in the interval Ijgi 01 00333 i035. If Ijgi 01 00333 i023 lies inside Ijgi 01 00333 i021, and is completely surrounded by Ijgi 01 00333 i021, Ijgi 01 00333 i024 will evaluate to Ijgi 01 00333 i032; this is the case for the points Ijgi 01 00333 i023 in Figure 6(a,c). If Ijgi 01 00333 i023 does not lie inside Ijgi 01 00333 i021, Ijgi 01 00333 i024 will evaluate to a number less than or equal to Ijgi 01 00333 i032 indicating the degree to which Ijgi 01 00333 i023 is surrounded by Ijgi 01 00333 i021. This is the case for the point Ijgi 01 00333 i023 in Figure 6(b) where Ijgi 01 00333 i022 evaluates to Ijgi 01 00333 i036. In our implementation a value of 720 was assigned to the variable Ijgi 01 00333 i027 which was found to provide a fine enough resolution.

Ijgi 01 00333 g006

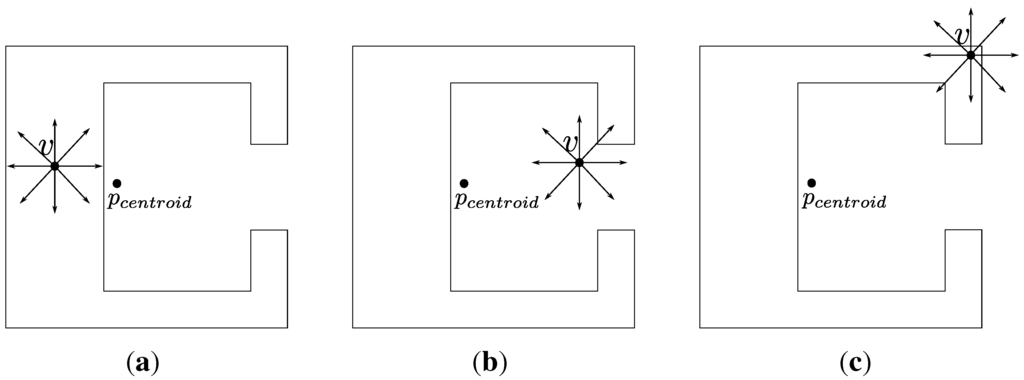

Figure 6. In each figure the set of 8 rays corresponding to a point Ijgi 01 00333 i023 are represented by arrows. Ijgi 01 00333 i037 represents the centroid of each polygon.

Click here to enlarge figure

Figure 6. In each figure the set of 8 rays corresponding to a point Ijgi 01 00333 i023 are represented by arrows. Ijgi 01 00333 i037 represents the centroid of each polygon.
Ijgi 01 00333 g006

In order to compute Ijgi 01 00333 i025 we first compute the centroid, denoted Ijgi 01 00333 i037, of Ijgi 01 00333 i021. Next we compute the maximum distance, denoted Ijgi 01 00333 i038, between Ijgi 01 00333 i037 and a point lying on the boundary of Ijgi 01 00333 i021. This is computed using Equation (2) where Ijgi 01 00333 i039 is the set of vertices representing Ijgi 01 00333 i021.

Ijgi 01 00333 i040

Let Ijgi 01 00333 i041 be the distance between Ijgi 01 00333 i023 and Ijgi 01 00333 i037; that is, Ijgi 01 00333 i042. Ijgi 01 00333 i025 is computed using Equation (3).

Ijgi 01 00333 i043

Ijgi 01 00333 i025 takes values in the interval Ijgi 01 00333 i035. Specifically, if Ijgi 01 00333 i023 is equal to Ijgi 01 00333 i037, Ijgi 01 00333 i025 will evaluate to Ijgi 01 00333 i032. If the distance between Ijgi 01 00333 i023 and Ijgi 01 00333 i037 is less than Ijgi 01 00333 i038, Ijgi 01 00333 i025 will evaluate to a number in the interval Ijgi 01 00333 i035 decreasing with distance from Ijgi 01 00333 i037. Otherwise Ijgi 01 00333 i025 will evaluate to Ijgi 01 00333 i033. For example, Ijgi 01 00333 i025 corresponding to the scene in Figure 6(c) evaluates to a number close to Ijgi 01 00333 i033 because its distance from Ijgi 01 00333 i037 is close to Ijgi 01 00333 i038. Meanwhile, due to the closer proximity of each Ijgi 01 00333 i023 to the centroid of Ijgi 01 00333 i021, Ijgi 01 00333 i025 corresponding to the scenes in Figure 6(a) and (b) evaluates to Ijgi 01 00333 i044 and Ijgi 01 00333 i045 respectively. Having computed Ijgi 01 00333 i024 and Ijgi 01 00333 i025 we finally compute Ijgi 01 00333 i022 using Equation (4).

Ijgi 01 00333 i046

Ijgi 01 00333 i047 takes values in the interval Ijgi 01 00333 i035. Ijgi 01 00333 i047 approaches the value Ijgi 01 00333 i032 as both function Ijgi 01 00333 i024 and Ijgi 01 00333 i025 approach the value Ijgi 01 00333 i032. For example, the Ijgi 01 00333 i022 values corresponding to the scenes in Figure 6(a–c) are 0.71 ( Ijgi 01 00333 i048 ), 0.40 ( Ijgi 01 00333 i049 ) and 0.09 ( Ijgi 01 00333 i050 ) respectively. We now turn our attention to computing the degree to which a line Ijgi 01 00333 i020 enters a polygon Ijgi 01 00333 i021, that is Ijgi 01 00333 i019. Let Ijgi 01 00333 i051 specify that the point Ijgi 01 00333 i023 lies on the line Ijgi 01 00333 i020. Ijgi 01 00333 i019 is defined by Equation (5).

Ijgi 01 00333 i052

Computing Ijgi 01 00333 i019 exactly represents a complex optimization problem for which we do not have a closed form solution. To overcome this difficulty we approximate this function using the following approach. We first select a set of points Ijgi 01 00333 i053 lying on Ijgi 01 00333 i020 where the distance between two consecutive points Ijgi 01 00333 i054 and Ijgi 01 00333 i055, measured in terms of distance along the line, is constant. In our implementation we assigned Ijgi 01 00333 i056 equal to the length of Ijgi 01 00333 i020 measured in meters to give a distance of one meter between consecutive points.

4. Evaluation

In this section we evaluate the model of the spatial relation enters which was presented in Section 3. The remainder of this section is divided into three parts. Section 4.1 describes the data used in the evaluation. Section 4.2 presents a qualitative evaluation of the model. Section 4.3 demonstrates the model may be used to accurately classify housing estate access roads.

Ijgi 01 00333 g007

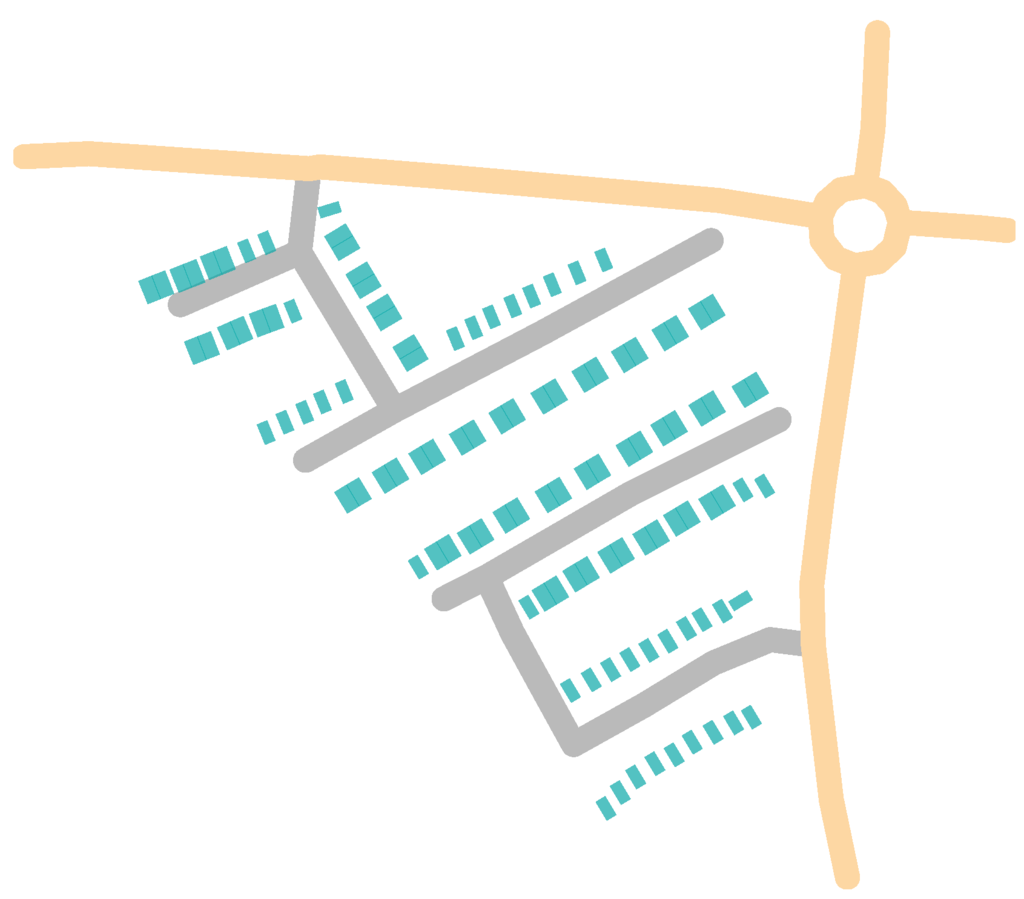

Figure 7. A set of polygons corresponding to houses in a housing estate and a number of lines corresponding to roads are represented. The grey lines represent the access roads for the housing estate in question. Data taken from OpenStreetMap.

Click here to enlarge figure

Figure 7. A set of polygons corresponding to houses in a housing estate and a number of lines corresponding to roads are represented. The grey lines represent the access roads for the housing estate in question. Data taken from OpenStreetMap.
Ijgi 01 00333 g007

4.1. Spatial Data

The data used in this study was taken from OpenStreetMap (OSM) (http://www.openstreetmap.org/). OSM is a form of volunteered geographic information (VGI) [59] which may be defined as the widespread engagement of large numbers of private citizens in the creation of geographical or spatial data. The following set of study areas, each of which is located in Ireland, were selected: Dublin city, Gorey County Wexford, Wexford town, Robertstown Kildare, Kilmeage Kildare, Carlow town. These specific areas were chosen because each is an urban area for which the corresponding OSM representation contains housing estates. A set of sixty scenes containing housing estates were selected. An effort was made to select a set of scenes which contained varied spatial patterns of houses. For each housing estate we identified a corresponding set of access roads and a corresponding set of roads in close proximity to the housing estate. Housing estates and corresponding roads were identified in each scene by visiting the location in question or, if this was not possible, using OSM semantic information and examining the location in question using Google Street View. According to the OSM wiki the correct tag for an access road is highway = residential. Many authors have proposed methods for grouping buildings which could potentially be used to automatically detect housing estates in OSM [12]. Figure 7 displays an example scene contained in our data set. The dataset was randomly divided into twenty scenes which were used for training and forty scenes which were used for testing our model. The result of applying the object merging methodology described in Section 3.1 to the test scenes in Figure 8(a,b) are displayed in Figure 8(c,d) respectively.

Ijgi 01 00333 g008

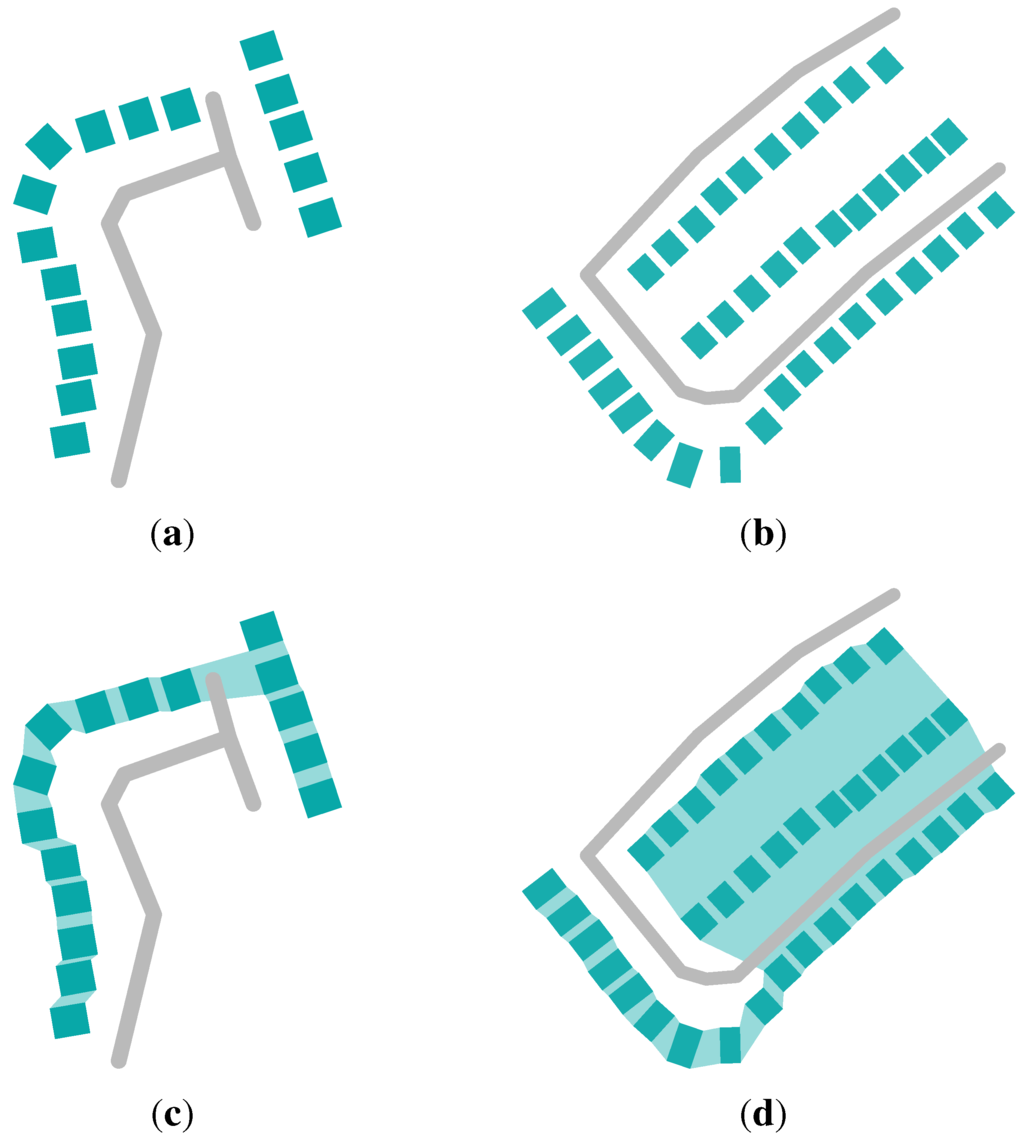

Figure 8. The results of merging the polygons in (a) and (b) are displayed in (c) and (d) respectively.

Click here to enlarge figure

Figure 8. The results of merging the polygons in (a) and (b) are displayed in (c) and (d) respectively.
Ijgi 01 00333 g008

4.2. Qualitative Evaluation

Figure 9 displays a subset of the OSM test scenes with the corresponding Ijgi 01 00333 i019 value listed under each sub-figure. This particular subset was chosen to demonstrate the behavior of the model. It is evident from this figure that, in all those scenes where there is a strong perception that the road enters the housing estate, a high Ijgi 01 00333 i019 value ( Ijgi 01 00333 i057 ) is assigned. Specifically these are the scenes Figure 9(a,c,e,f,i,k). On the other hand it is evident that all those scenes where there is a strong perception that the road does not enter the housing estate a low Ijgi 01 00333 i019 value ( Ijgi 01 00333 i058 ) is assigned. Specifically these are the scenes Figure 9(b,d,g).

Ijgi 01 00333 g009
Figure 9. OSM test scenes with the corresponding Ijgi 01 00333 i019 values.

Click here to enlarge figure

Figure 9. OSM test scenes with the corresponding Ijgi 01 00333 i019 values.
Ijgi 01 00333 g009

Examining Figure 9(h,j,l) we see that the relationship which exists between the housing estate and road could be described as both collinear and enters. Despite this fact the proposed model assigned a significantly high value of Ijgi 01 00333 i019 to each of these scenes. We argue that a scene may exhibit more than a single spatial relation.

Like all qualitative relations, enters may be present with varying degrees. It is unclear whether the proposed model of enters accurately captures the degree to which this spatial relation is present. For example consider the scenes in Figure 9(f,l) which have Ijgi 01 00333 i019 values of Ijgi 01 00333 i060 and Ijgi 01 00333 i061 respectively. Despite a significantly higher value of Ijgi 01 00333 i019 being assigned to Figure 9(l) relative to Figure 9(f), it is not evident that the relation of enters exists to a greater degree in Figure 9(l). This argument could also be applied to Figure 9(b,d). Determining how accurately the proposed model captures the degree to which the relation enters is present in a given scene would require a large scale behavioral study involving human subjects. As such, it is beyond the scope of this paper.

4.3. Access Road Classification

To demonstrate the usefulness of the proposed model we computed the accuracy with which it could classify the roads in the test scenes as access or non-access roads. Classification was performed using a Ijgi 01 00333 i019 threshold of Ijgi 01 00333 i062 which was determined using the training set. That is, a road was classified as an access road if the corresponding Ijgi 01 00333 i019 value was greater than Ijgi 01 00333 i062; otherwise it was classified as a non-access road. On the test set Ijgi 01 00333 i063 classification accuracy was achieved. To demonstrate that Ijgi 01 00333 i019 divides access and non-access roads into statistical significant groups an unbalanced analysis of variance (ANOVA) was performed [60]. It was found that the groups are statistical significant with Ijgi 01 00333 i064.

5. Conclusions

This work represents the first attempt to model spatial relations in the presence of concepts which exist on different levels in a hierarchy. As such we believe it points the direction for future research in this area. Some possible future research directions include the following. Firstly it would be beneficial to consider other spatial relations, besides enters, which are a function of concepts which exist on different levels. As discussed in Section 4.2 modeling the spatial relation of collinear would be useful. The fusion of multiple relations may also require the application of techniques for recognizing spatial patterns so that the correct relation may be applied in a given case [61]. For future work it would be interesting to examine how other generalization operators, besides object merging, can play a role in modeling spatial relations. It would also be interesting to consider spatial relations between other spatial objects besides houses and roads. For example railway stations and railway lines.

In this work we proposed to model higher level concepts by explicitly computing the concepts in question using map generalization. However, as discussed in Section 3, higher level concepts may also be modeled implicitly as a set of lower level concepts. For example, a housing estate may be modeled implicitly by a set containing the corresponding set of houses without explicitly computing their merger. In future work we hope to explore the use of such implicit modeling of higher level concepts. It may be possible that some higher level concepts are more effectively modeled explicitly while others are more effectively modeled implicitly.
