Biomolecules 2013, 3(2), 303-315; doi:10.3390/biom3020303

Review
Sphingosine 1-Phosphate and Cancer: Lessons from Thyroid Cancer Cells
Kid Törnquist 1,2
1
Department of Biosciences, Åbo Akademi University, Tykistökatu 6A, 20520 Turku, Finland; E-Mail: ktornqvi@abo.fi; Tel./Fax: +35-822-154-748
2
The Minerva Foundation Institute for Medical Research, Biomedicum Helsinki, 00270 Helsinki, Finland
Received: 19 April 2013; in revised form: 3 May 2013 / Accepted: 6 May 2013 /
Published: 14 May 2013

Abstract

: Sphingomyelin is found in the cell membrane of all eukaryotic cells, and was for a long time considered merely as a structural component. However, during the last two decades, metabolites of sphingomyelin, especially sphingosine 1-phosphate (S1P), have proven to be physiologically significant regulators of cell function. Through its five different G protein-coupled receptors, S1P regulates a wide array of cellular processes, ranging from stimulating cellular proliferation and migration, to the inhibition of apoptosis and induction of angiogenesis and modulation of cellular calcium homeostasis. Many of the processes regulated by S1P are important for normal cell physiology, but may also induce severe pathological conditions, especially in malignancies like cancer. Thus, understanding S1P signaling mechanisms has been the aim of a multitude of investigations. Great interest has also been shown in understanding the action of sphingosine kinase (SphK), i.e., the kinase phosphorylating sphingosine to S1P, and the interactions between S1P and growth factor signaling. In the present review, we will discuss recent findings regarding the possible importance of S1P and SphK in the etiology of thyroid cancer. Although clinical data is still scarce, our in vitro findings suggest that S1P may function as a “double-edged sword”, as the receptor profile of thyroid cancer cells largely determines whether S1P stimulates or blocks cellular migration. We will also discuss the interactions between S1P- and VEGF-evoked signaling, and the importance of a S1P1-VEGF receptor 2 complex in thyroid cancer cells.
Keywords:
Thyroid; cancer; sphingosine 1-phosphate; sphingosine kinase; HERG; follicular; anaplastic

1. Introduction

Sphingomyelin is produced in cells through de novo synthesis in the endoplasmic reticulum (for a recent review see [1]. However, several intermediates in this pathway are important signaling molecules. Sphingomyelin may be hydrolyzed by sphingomyelinases, producing ceramide. This metabolite can further be hydrolyzed to sphingosine. Both ceramide and sphingosine are important regulators of calcium homeostasis, potassium channel activity and apoptosis, to name a few of their cellular effects [2,3,4,5]. Sphingosine can be phosphorylated to sphingosine 1-phosphate (S1P) by sphingosine kinases, of which two isoforms exist. Of these, sphingosine kinase 1 (SphK1) has been investigated more, but novel information regarding the physiological importance of SphK2 is also gathering. The SphKs are predominantly found in the cytosol of resting cells, but upon stimulation, SphK1 is translocated to the plasma membrane and the endoplasmic reticulum [6]. SphK2 has been found in the nucleus and in close proximity to the mitochondria [6], where the produced S1P may regulate histone function and energy metabolism, respectively [7,8].

S1P can be formed in almost all cell types, but erythrocytes and vascular endothelial cells are especially important producers of S1P that is found in the circulation [9,10], where it is bound to albumin and HDL [11]. The concentration of S1P in the circulation markedly exceeds the EC50 value for binding to its receptors [12]. Most effects of S1P are due to binding to its receptors on the plasma membrane. Five different, G protein-coupled receptors (S1P1–5) have been cloned. These receptors bind to several isoforms of G proteins (Gq/11, Gi or Gs) and the receptors may have a preference for which G protein they bind. However, the palette of both S1P receptors and G proteins of the cell determines the outcome of the stimulation. Interestingly, the receptors may have diametrically different effects on cell function. This is nicely exemplified by S1P1 and S1P2: stimulation of S1P1 usually potently stimulates migration, whereas stimulation of S1P2 has an inhibitory effect on migration. For an extensive review of the different actions of S1P, the reader is referred to several excellent review articles [6,12,13,14,15].

2. Sphingosine 1-Phosphate and the Thyroid

The first studies regarding the effect of sphingomyelin derivatives on the thyroid was performed using the well-characterized rat thyroid FRTL-5 cell model. These studies showed that both sphingosine and sphingosylphosphorylcholine evoked a substantial release of sequestered calcium and entry of extracellular calcium [16]. The mechanism of action could not be clarified, but the possibility that either sphingosine or sphingosylphosphorylcholine was converted to a “metabolite” was suggested by the fact that the calcium response was dependent on temperature. Furthermore, a receptor-mediated mechanism was suggested as the calcium response, in part, was sensitive to pertussis toxin.

When S1P became available, we and other researchers unambiguously showed that in FRTL-5 cells, S1P mobilized sequestered calcium from the ER and that this most probably was due to a receptor-mediated mechanism [17,18]. Okajima et al. [17] also concluded, that S1P mobilized calcium through an inositol 1,4,5-trisphosphate (IP3)-mediated mechanism in these cells. We could not confirm these observations, possibly due to methodological differences. In rat thyroid PCCl3 cells, S1P does slightly increase IP3 formation [19]. However, other reports suggested that S1P mobilized calcium through an IP3-independent mechanism [20], and we could show that intracellular S1P might be involved in releasing intracellular calcium from the FRTL-5 cells [21]. The effect of intracellular S1P on calcium release is still enigmatic, as microinjections of S1P do induce calcium release in HEK-293 cells, although an intracellular calcium-mobilizing receptor for S1P is yet to be found [22].

In addition to mobilizing sequestered calcium, exogenous S1P has been shown to stimulate an increase in the expression of c-fos and DNA synthesis in FRTL-5 cells [18], and also to activate Na+-H+ exchange [23], an important step in activation of proliferation. Furthermore, S1P stimulates the production of hydrogen peroxide by a calcium-dependent mechanism [17]. Interestingly, Kimura et al. showed that stimulating the cells with TNFα inhibited TSH-evoked hydrogen peroxide production in FRTL-5 cells [24]. The effect of TNFα was mimicked by ceramide. As the production of hydrogen peroxide in these cells was dependent on calcium [25], it is possible that TNFα attenuated hydrogen peroxide production by decreasing calcium entry in the cells. We base this suggestion on the fact that our results have shown that TNFα and ceramide potently hampers calcium entry in FRTL-5 cells, probably by blocking a potassium channel and depolarizing the membrane potential, thus decreasing the electrochemical gradient for calcium entry [26].

The receptor profile of FRTL-5 and PCCl3 thyroid cells is identical: both cell lines express only S1P2 and S1P3. As these receptors activate several different G proteins, including Gi [27], they potently inhibit the TSH-evoked activation of adenylate cyclase and cAMP production [17,18,19]. Taken together, the results obtained with rat thyroid cells clearly show that S1P can modulate thyroid function. However, it is important to note that very little is known in regard to the effect of S1P on normal human thyroid cells, except that these cells express all S1P receptors, albeit S1P4 at very low levels, and that S1P induces calcium responses also in primary cultures of normal thyroid cells [28].

3. Sphingosine 1-Phosphate and Thyroid Cancer

The importance of S1P in regulating proliferation, invasion and migration in different types of cancer cells has been the subject of a multitude of investigations. The S1P pathway has been observed to be deregulated in several forms of cancers, including breast, ovary, and different forms of cancer in the gastrointestinal tract. This deregulation occurs at different parts of the pathway and might be due to overexpression of SphK1, deregulated S1P metabolizing enzymes, or mutations or changes in the expression of S1P receptors. For extensive reviews, please see [14,15,29]. In regard to thyroid cancer, only one report on the importance of S1P is available. In a recent report by Guang et al., the expression of SphK1 was shown to be upregulated in thyroid cancer and to correlate with malignancy. Furthermore, the expression of SphK1 correlated significantly with the expression of proliferating cell nuclear antigen (PCNA), indicating that proliferation of thyroid cancer cells is associated with the expression of SphK1 [30]. We have made a preliminary analysis of S1P receptor expression in a small sample of thyroid tumors, but were unable to detect any significant changes in the expression of S1P receptors in cancerous thyroid tissues (Balthasar and Törnquist, unpublished observations).

3.1. Receptor Profile in Thyroid Cancer Cells

In all the human thyroid cancer samples we analyzed, all five S1P receptors were expressed. As the expression was analyzed using qPCR from tissue samples, we cannot exclude that our results are in part due to the existence of receptors also on other cell types than thyroid epithelial cells (Balthasar and Törnquist, unpublished observations). However, to obtain a more reliable picture of receptor expression, we analyzed several thyroid cancer cell lines and human thyroid cells in primary culture. In human primary cultures of thyroid cells, all receptors were expressed, albeit the expression of S1P4 was minimal. Furthermore, most cell lines investigated (including, papillary, follicular and anaplastic thyroid cancer cell lines) expressed abundantly S1P1–3, the receptors that potently modulate migration of cells [28,31].

3.2. Effects on Proliferation and Migration

Several studies have shown, that administration of exogenous S1P may enhance proliferation of both normal and cancer cells [14,27]. In normal human thyroid cells in primary culture and in the normal thyroid Nthy-ori 3-1 cell line, administration of exogenous S1P was without any effects on proliferation [28]; Asghar and Törnquist, unpublished observations). In follicular ML-1 cells, anaplastic FRO and WRO thyroid cancer cells, and in papillary NPA cancer cells, S1P slightly attenuated proliferation [28]. However, as the origin of all but the ML-1 cells was dubious, we investigated some other original thyroid cancer cells lines. In follicular FTC-133 cells, and anaplastic C643 and THJ-16T thyroid cancer cells, S1P was without an effect on proliferation [31]. Thus, although the number of cell lines tested is limited, the effect of S1P on the proliferation of thyroid cancer cells seems minimal.

If S1P had, at most, a very modest effect on proliferation, the effect on migration was much more prominent. In almost all cell lines tested, S1P potently attenuated migration. The inhibitory effect was investigated in detail using anaplastic thyroid cancer C643 cells. In these cells, the inhibitory effect was crucially dependent on the expression of S1P2 and on Rho activity [31], as has been shown also for other types of cancer cells [32]. In addition, S1P inhibited Rac activity [31].

In the follicular thyroid ML-1cancer cell line, on the other hand, administration of exogenous S1P potently stimulated migration. The migratory response was mediated by S1P1 and a pertussis toxin-dependent mechanism. Downstream from the receptor, Rac, PKCα and ERK1/2 were important for S1P-evoked migration, as well as the activation of PI3K and Akt [28,33]. The importance of the PKC-activated pathway was underlined by results showing that direct activation of PKC with the diacylglycerol analogue 1-oleyl-2-acetyl-sn-glycerol (OAG) potently stimulated migration. However, in follicular thyroid FTC-133 cancer cells, which have a receptor profile very similar to the ML-1 cells, S1P potently attenuated migration. Furthermore, the receptor profile in the anaplastic C643 thyroid cancer cell line (in which S1P also inhibited migration) was similar to that in ML-1 cells. This is, in our opinion, a very important and disappointing observation, as it suggests that the S1P receptor profile per se probably cannot be used as a marker for a migratory phenotype of thyroid cancer cells.

3.3. Importance of Sphingosine Kinase

Several studies have suggested that SphK1 may have an oncogenic potential or even be classified as an oncogene (although no mutated forms of SphK have so far been reported). By measuring tumor growth in immunodeficient mice and colony formation in soft agar, it was concluded that SphK might be an oncogene [34]. Furthermore, overexpression of SphK in NIH3T3 cells revealed an enhanced cell cycle transition [35], and expression of SphK was considered a marker of poor prognosis in breast cancer [36], and correlated with malignancy in thyroid cancer [30]. The effect of overexpression of SphK and enhanced production of S1P most probably affected cancer cells by an autocrine effect of S1P (see [37]).

The study by Guan et al. [30] clearly indicated that silencing of SphK1 attenuated the proliferation of several follicular and anaplastic thyroid cancer cell lines. In clinical samples, overexpression of SphK1 correlated significantly with the expression of PCNA, suggesting a strong association between SphK1 overexpression and proliferation of thyroid cancer cells. Furthermore, using thyroid cell lines Guan et al. also observed a decreased β-catenin-TCF/LEF-induced transcriptional activity in SphK1 knock-down cells, resulting in decreased expression of cyclin D-1 and c-myc. Furthermore, they also observed decreased Akt phosphorylation, and dephosphorylation and activation of GSK-3 [30].

In our studies, overexpression of SphK1 in follicular ML-1 and FTC-133 thyroid cancer cells resulted in a decreased proliferation, compared with mock-transduced cells or cells transduced with the inactive G82D mutant of SphK1 [33]. The reason for the difference from the results obtained by Guan et al. is presently not known. One possibility is a different set-up of S1P receptors in the cell lines used in the two studies. Another possibility is that cross talk between S1P receptors and some growth factor receptors (see [38]) resulted in an enhanced proliferative potential in the cells used by Guan et al. [30]. However, the migration of ML-1 cells overexpressing SphK1 was significantly increased. Further investigations showed that this effect was due to autocrine S1P signaling. The migration was attenuated by pretreatment with pertussis toxin, by pharmacologically blocking S1P1 and ERK1/2, by siRNA against PKCα, and finally by blocking the ATP-binding cassette transporter C1 (ABCC1) [33]. Other investigations have shown that ABCC1, and the ATP-binding cassette transporter A1 (ABCA1), both are involved in transporting S1P out of cells, resulting in autocrine S1P signaling [39,40]. Taken together, the results obtained by us and by Guan et al. [30] suggest, that overexpression of SphK and autocrine S1P signaling may be detrimental in the etiology of thyroid cancer.

As is always the case in biology, nothing is as straightforward as it first seems. In the study by Bergelin et al. [33], overexpression of SphK enhanced migration. However, in a study by Asghar et al. [31], pharmacological inhibition of SphK1, on the other hand, enhanced migration of the anaplastic C643 thyroid cancer cells, probably due to decreased autocrine S1P signaling. Addition of exogenous S1P to these cells resulted in a decreased migration. Furthermore, our results showed that in these cells, S1P predominantly activated S1P2. Our results thus indicate that activation of SphK1 may, in some cell types, evoke an anti-migratory effect. We conclude that the receptor profile of the cells, again, may decide the outcome of such an autocrine S1P signaling. Thus, it probably is advisable to proceed with caution before considering the use of SphK-inhibitors in the treatment of thyroid cancer.

3.4. Signaling cross Talk with VEGF

Signaling between G protein-coupled receptors and tyrosine kinase receptors probably is a common mechanism regulating cell fate (see review by Pyne et al. [41]). In an early article, Berk’s group showed cross talk between S1P signaling and EGF on Erk1/2 signaling in bovine aortic endothelial cells [42]. Furthermore, cross-communication between S1P-receptors and both platelet-derived growth factor (PDGF)-, transforming growth factorβ (TGFβ), and insulin-like growth factor receptors have also been shown [43,44,45], suggesting that also the receptors for S1P may participate in cross communication with tyrosine kinase receptors. For further details, the readers are referred to reviews by Lebman and Spiegel [46], and Pyne and Pyne [38].

Signaling between S1P receptors and growth factor receptors can be either sequential or integrative [46,47]. Sequential signaling means that a growth factor binds to and activates its receptor, resulting in the activation of SphK. The produced S1P is then transported out from the cell and activates its own receptor through an autocrine or paracrine mechanism. Integrative signaling, on the other hand, is the result of activation of a complex containing both a growth factor receptor and a S1P receptor. The activation of the complex is most probably bidirectional, meaning that activation of either one receptor will result in activation of the other, and that activation of both receptors is necessary for the activation of downstream signaling pathways [46,47].

Several investigations have shown that thyroid carcinoma cells express receptors for VEGF and that the cells also express and secret VEGF [48,49,50]. Furthermore, S1P and VEGF have been shown to cooperate to regulate cellular functions in several cell types, both normal cells and in malignant cell types. In, e.g., endothelial cells, S1P transactivates and phosphorylates VEGF receptor 2 [42,51]. VEGF, in turn, regulates the expression of S1P1 and S1P3 [52,53,54]. In addition, VEGF may enhance SphK activity and the production of S1P [55].

We thus wanted to investigate whether S1P receptors and receptors for VEGF interacted in ML-1 thyroid cancer cells. In the first study, we showed that ML-1 cells express VEGF receptor 2 (VEGFR2) and constitutively secrete VEGF [56]. Furthermore, S1P stimulated a small, but significant increase in the secretion of VEGF-A. VEGFR2 activity was also of crucial importance for migration, as inhibition of VEGFR2 pharmacologically, or sequestering VEGF with an antibody, clearly decreased both basal and S1P evoked migration. Interestingly, the expression of S1P receptors seemed to be, at least in part, regulated by VEGFR2 activity, as blocking VEGFR2 rapidly decreased the expression of S1P1 but increased the expression of S1P3 [56]. Adding to the complexity was our observation that stimulation of ML-1 cells with S1P, in turn, transiently increased VEGFR2 expression through a mechanism dependent on S1P3, PKCα and ERK1/2 [57].

The above results suggested that S1P receptors and VEGFR2 might function as a complex in regulating ML-1 cell migration. This is strengthened by our observation that S1P, indeed, phosphorylated VEGFR2, and that S1P1 and VEGFR2 colocalized at the plasma membrane, as shown by immunocytochemistry [57]. In addition, several other investigations have shown an intimate relationship between S1P receptors and growth factor receptors, e.g., the PDGFβ-receptor, the EGF-receptor and the IGF receptor this is transactivation through SK [44,58,59].

To further investigate the interactions between VEGFR2 and S1P1, we immunoprecipitated VEGFR2 and showed that S1P1 also was immunoprecipitated. In addition, both ERK1/2 and PKCα was coimmunoprecipitated in the complex [57]. Immunoprecipitation of VEGFR2 also resulted in detectable amounts of S1P 2,3,5 in the complex. When S1P1 was immunoprecipitated, VEGFR2, PKCα and ERK1/2 was coimmunoprecipitated. Thus, at least in ML-1 cells, VEGFR2 and S1P1 are in a complex together with PKCα and ERK1/2, i.e., the signaling molecules important for ML-1 cell migration.

We next investigated by which mechanisms VEGFR2 and S1P1 interacted to regulate ML-1 cell migration. Our investigations showed that treatment of the cells with pertussis toxin (Ptx) or a PKCα/β inhibitor, inhibited VEFG-A-evoked ERK1/2 phosphorylation in a manner similar to that of S1P. Previous investigations have also showed that both IGF and PDGFβ may phosphorylate ERK1/2 by a Ptx-dependent mechanism [44,58]. Furthermore, downregulation of PKCα or PKCβ attenuated both the SEW-2871 (a S1P1 agonist) and VEGF-A-evoked ERK1/2 phosphorylation. Furthermore, both S1P and VEGF-A-evoked haptotaxis was attenuated by Ptx [57]. A schematic presentation of the S1P- and VEGF-evoked signaling in regard to thyroid cancer ML-1 cell migration is presented in Figure 1.

Biomolecules 03 00303 g001 1024

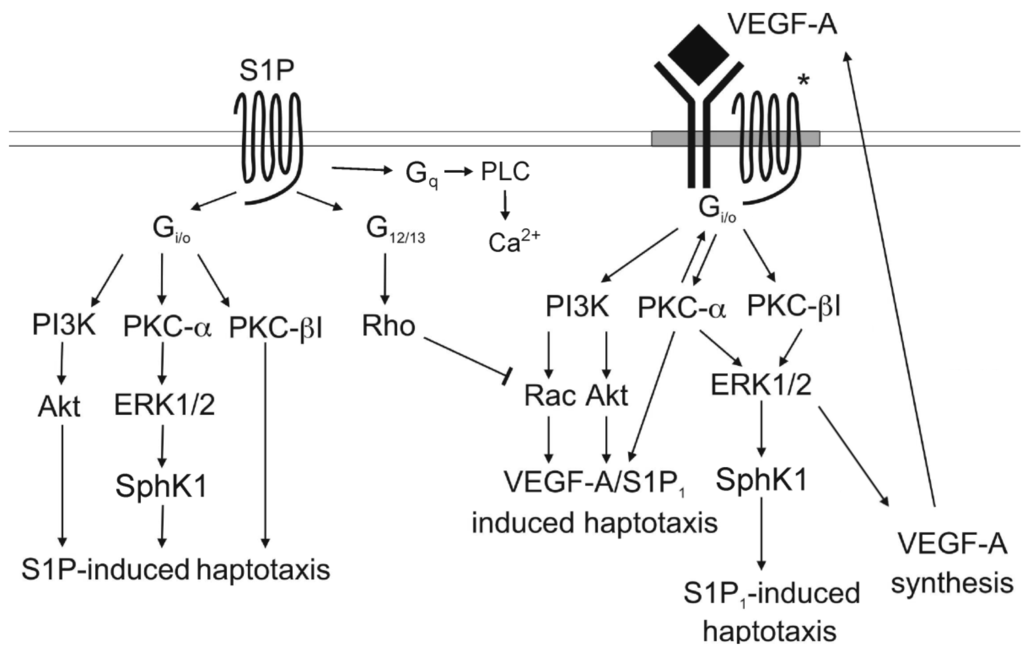

Figure 1. Schematic presentation of the different signaling pathways employed by S1P and VEGF in stimulating migration of follicular ML-1 thyroid cancer cells. The * in the Figure denotes a complex between S1P receptors and VEGF receptor 2.

Click here to enlarge figure

Figure 1. Schematic presentation of the different signaling pathways employed by S1P and VEGF in stimulating migration of follicular ML-1 thyroid cancer cells. The * in the Figure denotes a complex between S1P receptors and VEGF receptor 2.
Biomolecules 03 00303 g001 1024

Thus, S1P1-VEGFR2 cross talk seems to be integrative and bidirectional: both S1P- and SEW-induced ERK1/2 phosphorylation and haptotaxis was inhibited by a VEGFR2 inhibitor, whereas VEGF-A-evoked ERK1/2 phosphorylation and haptotaxis was inhibited by S1P1 siRNA. As thyroid cancer cells also may express receptors for other growth factors, an interesting question is if and how S1P interacts with these receptors, and how such an interaction could modulate either proliferation or migration of thyroid cancer cells.

4. Cross Talk with Ion Channels: HERG

HERG potassium channels have been implicated to participate in the regulation of migration and proliferation of several types of cancer [60,61]. Furthermore, the enhanced expression of HERG has been shown to correlate with a worse prognosis in, e.g., glioblastoma multiforme [62]. As the possible significance of HERG in thyroid cancer has not been evaluated, we investigated this in anaplastic cancer cells. Our data showed that both normal human thyroid cells, as well as thyroid cancer cells, express HERG channels [31]. Interestingly, HERG-like currents did not parallel the channel expression. However, in both anaplastic and follicular cancer cells, inhibition of the HERG channels with E-4031 resulted in a decreased migration of the cells. Interestingly, incubation of the anaplastic C643 thyroid cancer cells with S1P resulted in a transient decrease in the expression of the HERG protein. A similar S1P-evoked reduction in HERG protein expression was seen in HEK cells overexpressing HERG, and in these cells, S1P also decreased migration. The reason for the downregulation is not clear, but could be due to S1P-evoked receptor activation, the activation of phospholipase C and the production of diacylglycerol, resulting in internalization and degradation of HERG channels (see [63]). Whether the link between S1P-receptor signaling and HERG internalization can be of clinical importance is an open question. Another interesting observation is that HERG channel activity may enhance VEGF secretion [62]. As VEGF may activate VEGFR2 through an autocrine mechanism in thyroid cancer cells, enhanced HERG expression or activity could then worsen the prognosis of the disease. This observation may possibly be of clinical significance.

5. Concluding Remarks

The studies described above clearly suggest that SphK1 and S1P may be important in the etiology of thyroid cancer, and in the regulation of both invasion and migration of thyroid cancer cells. However, the fact that migration of thyroid cancer cells of different cancer forms, but with very similar S1P receptor profiles, may either be inhibited or stimulated by S1P, is a matter of concern. This suggests that the receptor profile per se cannot be used as a marker for discerning a more migratory phenotype of cancer cells. Similarly, the observations that overexpression of SphK1 also may either have an inhibitory or stimulatory effect on migration, might be problematic if inhibition of SphK is to be used in clinical settings: the treatment might, in fact, enhance instead of inhibit migration and metastasis of cancer cells. However, the intimate cross-communication between S1P1 and VEGFR2 might prove to be an advantage in the search for an effective treatment for thyroid cancer. Clearly, more investigations are needed to clarify if inhibition of SphK1 or S1P-receptors will be of clinical significance in the treatment of thyroid cancer.

Acknowledgements

The studies emanating from the Author’s laboratory was generously supported by funding from the Academy of Finland, the Sigrid Juselius Foundation, the Liv och Hälsa Foundation, the Magnus Ehrnrooth Foundation, and the Center of Excellence in Cell Stress and Molecular Aging (Åbo Akademi University), which is gratefully acknowledged. Thanks to Dr. Nina Bergelin for allowing me to use Figure 1 and to Ilari Pulli for help with the lay out.

Conflict of Interest

The Author declares no conflict of interest.

References

  1. Breslow, D.K.; Weissman, J.S. Membranes in balance: Mechanisms of sphingolipid homeostasis. Mol. Cell 2010, 40, 267–279, doi:10.1016/j.molcel.2010.10.005.
  2. Szabo, I.; Adams, C.; Gulbins, E. Ion channels and membrane rafts in apoptosis. Pflüegers Arch. 2004, 448, 304–312, doi:10.1007/s00424-004-1259-4.
  3. Hait, N.C.; Oskeritzian, C.A.; Paugh, S.W.; Milstien, S.; Spiegel, S. Sphingosine kinase, sphingosine 1-phosphate, apoptosis and diseases. Biochem. Biophys. Acta 2006, 1758, 2016–2026, doi:10.1016/j.bbamem.2006.08.007.
  4. Beech, D.J. Integration of transient receptor potential canonical channels with lipids. Acta Physiol. (Oxf) 2012, 204, 227–237, doi:10.1111/j.1748-1716.2011.02311.x.
  5. Törnquist, K. Sphingosine 1-phosphate, sphingosine kinase and autocrine calcium signalling in thyroid cells. Acta Physiol. (Oxf) 2012, 204, 151–157, doi:10.1111/j.1748-1716.2011.02265.x.
  6. Pitson, S.M. Regulation of sphingosine kinase and sphingolipid signaling. Trends Biochem. Sci. 2010, 36, 97–107, doi:10.1016/j.tibs.2010.08.001.
  7. Hait, N.C.; Allegood, J.; Maceyka, M.; Strub, G.M.; Harikumar, K.B.; Singh, S.K.; Luo, C.; Marmorstein, R.; Kordula, T.; Milstien, S.; Spiegel, S. Regulation of histone acetylation in the nucleus by sphingosine-1-phosphate. Science 2009, 325, 1254–1257, doi:10.1126/science.1176709.
  8. Strub, G.M.; Paillard, M.; Liang, J.; Gomez, L.; Allegood, J.C.; Hait, N.C.; Maceyka, M.; Price, M.M.; Chen, Q.; Simpson, D.C.; et al. Sphingosine-1-phosphate produced by sphingosine kinase 2 in mitochondria interacts with prohibitin 2 to regulate complex IV assembly and respiration. FASEB J. 2011, 25, 600–612, doi:10.1096/fj.10-167502.
  9. Pappu, R.; Schwab, S.R.; Cornelissan, I.; Pereira, J.P.; Regard, J.B.; Xu, Y.; Camerer, E.; Zheng, Y.-W.; Huang, Y.; Cyster, J.G.; Coughlin, S.H. Promotion of lymphocyte egress into blood and lymph by distinct sources of sphingosine-1-phosphate. Science 2007, 316, 295–298, doi:10.1126/science.1139221.
  10. Venkataraman, K.; Lee, Y.M.; Michaud, J.; Thangada, S.; Ai, Y.; Bonkovsky, H.L.; Parikh, N.S.; Habrukowich, C.; Hla, T. Vasular endothelium as a contributor of plasma sphingosine 1-phosphate. Circ. Res. 2008, 102, 669–679, doi:10.1161/CIRCRESAHA.107.165845.
  11. Murata, N.; Sato, K.; Tomura, H.; Yanagita, M.; Kuwabara, A.; Ui, M.; Okajima, F. Interaction of sphingosine 1-phosphate with plasma components, including lipoproteins, regulates the lipid receptor-mediated actions. Biochem. J. 2000, 352, 809–815, doi:10.1042/0264-6021:3520809.
  12. Takabe, K.; Paugh, S.W.; Milstien, S.; Spiegel, S. “Inside-out” signaling of sphingosine 1-phosphate: Therapeutic implications. Pharmacol. Rev. 2008, 60, 181–195, doi:10.1124/pr.107.07113.
  13. Strub, G.M.; Maceyka, M.; Hait, N.C.; Milstein, S.; Spiegel, S. Extracellular and intracellular actions of sphingosine-1-phosphate. Adv. Exp. Med. Biol. 2010, 688, 141–155.
  14. Pyne, N.J.; Pyne, S. Sphingosine 1-phosphate and cancer. Nat. Rev. Cancer 2010, 10, 489–503, doi:10.1038/nrc2875.
  15. Yester, J.W.; Tizazu, E.; Harikumar, K.B.; Kordula, T. Extracellular and intracellular sphingosine-1-phosphate in cancer. Cancer Metastasis Rev. 2011, 30, 577–597, doi:10.1007/s10555-011-9305-0.
  16. Törnquist, K.; Ekokoski, E. Effect of sphingosine derivatives on calcium fluxes in thyroid FRTL-5 cells. Biochem. J. 1994, 299, 213–218.
  17. Okajima, F.; Tomura, H.; Sho, K.; Kimura, T.; Sato, K.; Im, D.-S.; Akbar, M.; Kondo, Y. Sphingosine 1-phosphate stimulates hydrogen peroxide generation through activation of phospholipase C-Ca2+ system in FRTL-5 thyroid cells: Possible involvement of guanosine triphosphate-binding proteins in the lipid signaling. Endocrinology 1997, 138, 220–229, doi:10.1210/en.138.1.220.
  18. Törnquist, K.; Saarinen, P.; Vainio, M.; Ahlström, M. Sphingosine 1-phosphate mobilizes sequestered calcium, activates calcium entry, and stimulates DNA synthesis in thyroid FRTL-5 cells. Endocrinology 1997, 138, 4049–4057, doi:10.1210/en.138.10.4049.
  19. Björklund, S.; Palmberg, S.; Rask, S.; Westerdahl, A.-C.; Törnquist, K. Effects of sphingosine 1-phosphate on calcium signaling, proliferation, and S1P2 receptor expression in PC Cl3 rat thyroid cells. Mol. Cell. Endocrinol. 2005, 231, 65–74, doi:10.1016/j.mce.2004.12.001.
  20. Mattie, M.; Brooker, G.; Spiegel, S. Sphingosine-1-phosphate, a putative second messenger, mobilizes calcium from internal stores via an inositol trisphosphate-independent pathway. J. Biol. Chem. 1994, 269, 3181–3188.
  21. Högback, S.; Leppimäki, P.; Rudnäs, B.; Björklund, S.; Slotte, J.P.; Törnquist, K. Ceramide 1-phosphate increases intracellular free calcium concentrations in tyroid FRTL-5 cells. Evidence for an effect mediated by inositol 1,4,5-trisphosphate and intracellular sphingosine 1-phosphate. Biochem. J. 2003, 370, 111–119, doi:10.1042/BJ20020970.
  22. Meyer zu Heringdorf, D.; Lass, H.; Alemany, R.; Laser, K.T.; Neumann, E.; Zhang, C.; Schmidt, M.; Rauen, U.; Jakobs, K.H.; van Koppen, C.J. Sphingosine kinase mediated Ca2+ signalling by G-protein-coupled receptors. EMBO J. 1998, 17, 2830–2837, doi:10.1093/emboj/17.10.2830.
  23. Törnquist, K. Sphingosine 1-phosphate activates Na+-H+ exchange in thyroid FRTL-5 cells. Am. J. Physiol. 1997, 272, C1052–C1057.
  24. Kimura, T.; Okajima, F.; Kikuchi, T.; Kuwabara, A.; Tomura, H.; Sho, K.; Kobayashi, I.; Kondo, Y. Inhibition of TSH-induced hydrogen peroxide production by TNFa through a sphingomyelinase signaling pathway. Am. J. Physiol. 1997, 273, E638–E643.
  25. Kimura, T.O.F.; Sho, K.; Kobayashi, I.; Kondo, Y. Thyrotropin-induced hydrogen peroxide production in FRTL-5 thyroid cells is mediated not by adenosine 3',5'-monophosphate, but by Ca2+ signaling followed by phospholipase A2 activation and potentiated by an adenosine derivative. Endocrinology 1995, 136, 116–123, doi:10.1210/en.136.1.116.
  26. Törnquist, K.; Malm, A.-M.; Kronqvist, R.; Pasternack, M.; Björklund, S.; Tuominen, R.; Slotte, J.P. Tumor necrosis factor a, sphingomyelinase and ceramide attenuate store-operated calcium entry in thyroid FRTL-5 cells. J. Biol. Chem. 1999, 274, 9370–9377, doi:10.1074/jbc.274.14.9370.
  27. Spiegel, S.; Milstien, S. Sphingosine-1-phosphate: An enigmatic signalling lipid. Nat. Rev. Mol. Cell Biol. 2003, 4, 397–407, doi:10.1038/nrm1103.
  28. Balthasar, S.; Samulin, J.; Ahlgren, H.; Bergelin, N.; Lundqvist, M.; Toescu, E.C.; Eggo, M.C.; Törnquist, K. Sphingosine 1-phosphate receptor expression profile and regulation of migration in human thyroid cancer cells. Biochem. J. 2006, 398, 547–556, doi:10.1042/BJ20060299.
  29. Maceyka, M.; Harikumar, K.B.; Milstien, S.; Spiegel, S. Sphingosine-1-phosphate signaling and its role in disease. Trends Cell Biol. 2012, 22, 50–60, doi:10.1016/j.tcb.2011.09.003.
  30. Guan, H.; Liu, L.; Cai, J.; Liu, J.; Ye, C.; Li, M.; Li, Y. Sphingosine kinase 1 is overexpressed and promotes proliferation in human thyroid cancer. Mol. Endocrinol. 2011, 25, 1858–1866, doi:10.1210/me.2011-1048.
  31. Asghar, M.Y.; Viitanen, T.; Kemppainen, K.; Törnquist, K. Sphingosine 1-phosphate and human ether-a-go-go-related gene potassium channels modulate migration in human anaplastic thyroid cancer cells. Endoc-Relat. Cancer 2012, 19, 667–680, doi:10.1530/ERC-12-0092.
  32. Takuwa, N.; Du, W.; Kaneko, E.; Okamoto, H.; Yoshioka, K.; Takuwa, Y. Tumor-suppressive sphingosine-1-phosphate receptor-2 counteracting tumor-promoting sphingosine-1-phosphate receptor-1 and sphingosine kinase 1. Am. J. Cancer Res. 2011, 1, 460–481.
  33. Bergelin, N.; Blom, T.; Löf, C.; Alam, C.; Balthasar, S.; Heikkilä, J.; Slotte, J.P.; Hinkkanen, A.; Törnquist, K. Sphingosine kinase as an oncogene: Autocrine sphingosine 1-phosphate enhances ML-1 thyroid carcinoma cell migration by a mechanism dependent on PKC-α and Erk1/2. Endocrinology 2009, 150, 2055–2063.
  34. Xia, P.; Gamble, J.R.; Wang, L.; Pitson, S.M.; Moretti, P.A.; Wattenberg, B.W.; D'Andrea, R.J.; Vadas, M.A. An oncogenic role of sphingosine kinase. Curr. Biol. 2000, 10, 1527–1530, doi:10.1016/S0960-9822(00)00834-4.
  35. Olivera, A.; Kohama, T.; Edsall, L.; Nava, V.; Cuvillier, O.; Poulton, S.; Spiegel, S. Sphingosine kinase expresion increases intracellular sphingosine-1-phosphate and promotes cell growth and survival. J. Cell Biol. 1999, 147, 545–558, doi:10.1083/jcb.147.3.545.
  36. Ruckhäberle, E.; Rody, A.; Engels, K.; Gaetje, R.; von Minckwitz, G.; Schiffmann, S.; Grösch, S.; Geisslinger, G.; Holtrich, U.; Karn, T.; Kaufmann, M. Microarray analysis of altered sphingolipid metabolism reveals prognostic significance of sphingosine kinase 1 in breast cancer. Breast Cancer Res. Treat. 2008, 112, 41–52.
  37. Alvarez, J.; Milstien, S.; Spiegel, S. Autocrine and paracrine roles of sphingosine-1-phosphate. TRENDS Endocrinol. Metab. 2007, 18, 300–307, doi:10.1016/j.tem.2007.07.005.
  38. Pyne, N.J.; Pyne, S. Receptor tyrosine kinase-G-protein-coupled receptor signalling platforms: Out of the shadow? Trends Pharmacol. Sci. 2011, 32, 443–450.
  39. Takabe, K.; Kim, R.H.; Allegood, J.C.; Mitra, P.; Ramachandran, S.; Nagahishi, M.; Harikumar, K.B.; Hait, N.C.; Milstien, S.; Spiegel, S. Estradiol induces export of sphingosine 1-phosphate from breast cancer cells via ABCC1 and ABCG2. J. Biol. Chem. 2010, 285, 10477–10486, doi:10.1074/jbc.M109.064162.
  40. Sato, K.; Malchinkhuu, E.; Horiuchi, Y.; Mogi, C.; Tomura, H.; Tosaka, M.; Yoshimoto, Y.; Kuwabara, A.; Okajima, F. Citical role of ABCA1 transporter in sphingosine 1-phosphate release from astrocytes. J. Neurochem. 2007, 103, 2610–2619.
  41. Pyne, N.J.; Waters, C.; Moughal, N.A.; Sambi, B.S.; Pyne, S. Receptor tyrosine kinase-GPCR signal complexes. Biochem. Soc. Trans. 2003, 31, 1220–1225, doi:10.1042/BST0311220.
  42. Tanimoto, T.; Jin, Z.G.; Berk, B.C. Transactivation of vascular endothelial growth factor (VEGF) receptor Flk1/KFR is invovled in sphingosine 1-phosphate-stimulated phosphorylation of Akt and endothelial nitric-oxide synthase (eNOS). J Biol. Chem. 2002, 277, 42997–43001, doi:10.1074/jbc.M204764200.
  43. Waters, C.; Sambi, B.; Kong, K.C.; Thompson, D.; Pitson, S.M.; Pyne, S.; Pyne, N.J. Sphingosine 1-phosphate and platelet-derived growth factor (PDGF) act via PDGFβ receptor-sphingosine 1-phosphate receptor complex in airway smooth muscle cells. J. Biol. Chem 2003, 278, 6282–6290.
  44. El-Shewy, H.M.; Johnson, K.R.; Lee, M.H.; Jaffa, A.A.; Obeid, L.M.; Luttrell, L.M. Insulin-like growth factors mediate heterotrimeric G protein-dependent Erk1/2 activation by transactivating sphingosine 1-phosphate receptors. J. Biol. Chem. 2006, 281, 31399–31407.
  45. Miller, A.V.; Alvarez, S.E.; Spiege, S.; Lebman, D.A. Sphingosine kinase and sphingosine-1-phosphate are critical for transforming growth factor beta-induced extracellular signal-regulated kinase 1 and 2 activation and promotion of migration and invasion of esophageal cancer cells. Mol. Cell Biol. 2008, 28, 4142–4151, doi:10.1128/MCB.01465-07.
  46. Lebman, D.A.; Spiegel, S. Cross-talk at the crossroads of sphingosine-1-phosphate, growth factors, and cytokine signaling. J. Lipid Res. 2008, 49, 1388–1394, doi:10.1194/jlr.R800008-JLR200.
  47. Pyne, N.J.; Pyne, S. Sphingosine 1-phosphate, lysophosphatidic acid and growth factor signaling and termination. Biochi. Biophys. Acta 2008, 1781, 467–476, doi:10.1016/j.bbalip.2008.05.004.
  48. Turner, H.E.; Harris, A.; Melmed, S.; Wass, J.A.H. Angiogenesis in endocrine tumors. Endocrine Rev. 2003, 24, 600–632, doi:10.1210/er.2002-0008.
  49. Vieira, J.M.; Santos, S.C.R.; Espadinha, C.; Correia, I.; Vag, T.; Casalou, C.; Cavaco, B.M.; Catarino, A.S.; Dias, S.; Leite, V. Expression of vascular endothelial growth factor (VEGF) and its receptors in thyroid carcinomas of follicular origin: A potent autocrine loop. Eur. J. Endocrinol. 2005, 153, 701–709, doi:10.1530/eje.1.02009.
  50. Kim, D.S.; Franklyn, J.A.; Boelaert, K.; Eggo, M.C.; Watkinson, J.C.; McCabe, C.J. Pituitary tumor transforming gene (PTTG) stimulates thyroid cell proliferation via vascular endothelial growth factor/kinesin insert domain receptor/inhibitor of DNA binding-3 autocrine pathway. J. Clin. Endocrinol. Metab. 2006, 91, 4603–4611, doi:10.1210/jc.2006-1291.
  51. Endo, A.; Nagashima, K.-I.; Kurose, H.; Mochizuki, S.; Matsuda, M.; Mochizuki, N. Sphingosine 1-phosphate induces membrane ruffling and increases motility of human umbilical vein endotjelial cells via vascular endothelial growth factor receptor and CRKII. J. Biol. Chem. 2002, 277, 23747–23754.
  52. Igarashi, J.; Erwin, P.A.; Dantas, A.P.V.; Chen, H.; Michel, T. VEGF induces S1P1 receptors in endothelial cells: Implications for cross-talk between sphingolipid and growth factor receptors. Proc. Natl. Acad. Sci. USA 2003, 100, 10664–10669.
  53. Hughes, S.K.; Wacker, B.K.; Kaneda, M.M.; Elbert, D.L. Fluid shear stress modulates cell migration induced by sphingosine 1-phosphate and vascular endothelial growth factor. Ann. Biomed. Eng. 2005, 33, 1004–1014.
  54. Fieber, C.B.; Eldridge, J.; Taha, T.A.; Obeid, L.M.; Muise-Helmericks, R.C. Modulation of total Akt kinase by increased expression of a single isoform: Requirement of the sphingosine-1-phosphate receptor EDG3/S1P3, for the VEGF-dependent expression of Akt3 in primary endothelial cells. Exp. Cell Res. 2006, 312, 1164–1173, doi:10.1016/j.yexcr.2006.01.022.
  55. Shu, X.; Wu, W.; Mosteller, R.D.; Broek, D. Sphingosine kinase mediates vascular endothelial growth factor-induced activation of ras and mitogen-activated protein kinases. Mol. Cell. Biol. 2002, 22, 7758–7768, doi:10.1128/MCB.22.22.7758-7768.2002.
  56. Balthasar, S.; Bergelin, N.; Löf, C.; Vainio, M.; Andersson, S.; Törnquist, K. Interaction between sphingosine 1-phosphate and vascular endothelial growth factor signalling in ML-1 follicular thyroid cancer cells. Endoc-Relat. Cancer 2008, 15, 521–534, doi:10.1677/ERC-07-0253.
  57. Bergelin, N.; Löf, C.; Balthasar, S.; Kalhori, V.; Törnquist, K. S1P1 and VEGFR-2 form a signaling complex with extracellular regulated kinase 1/2 and protein kinase C-α regulating ML-1 thyroid carcinoma cell migration. Endocrinology 2010, 151, 2994–3005, doi:10.1210//en.2009-1387.
  58. Waters, C.M.; Connell, M.C.; Pyne, S.; Pyne, N.J. c-Src is involved in regulating signal transmission from PDGFβ receptor-GPCR(s) complexes in mammalian cells. Cell. Signal. 2005, 17, 263–277, doi:10.1016/j.cellsig.2004.07.011.
  59. Sukocheva, O.; Wadham, C.; Holmes, A.; Albanese, N.; Verrier, E.; Feng, F.; Bernal, A.; Derian, C.K.; Ullrich, A.; Vadas, M.A.; Xia, P. Estrogen transactivates EGFR via the sphingosine 1-phosphate receptor EDG-3: The role of sphingosine kinase-1. J. Cell Biol. 2006, 173, 301–310, doi:10.1083/jcb.200506033.
  60. Arcangeli, A. Ion channels and transporters in cancer. 3. Ion channels in tumor cell-microenvironment cross talk. Am. J. Physiol. Cell Physiol. 2011, 301, C762–C771, doi:10.1152/ajpcell.00113.2011.
  61. Jehle, J.; Schweizer, P.A.; Katus, H.A.; Thomas, D. Novel roles for HERG K+ channels in cell proliferation and apoptosis. Cell Death Dis. 2011, 2, e193, doi:10.1038/cddis.2011.77.
  62. Masi, A.; Bechetti, A.; Restano-Cassulini, R.; Polvani, S.; Hofmann, G.; Buccoliero, A.M.; Paglierani, M.; Pollo, B.; Taddei, G.L.; Gallini, P.; et al. HERG1 channels are overexpressed in glioblastoma multiforme and modulate VEGF secretion in glioblastoma cell lines. Br. J. Cancer 2005, 93, 781–792, doi:10.1038/sj.bjc.6602775.
  63. Ramström, C.; Chapman, H.; Viitanen, T.; Afrasiabi, E.; Fox, H.; Kivelä, J.; Soini, S.; Korhonen, L.; Lindholm, D.; Pasternack, M.; Törnquist, K. Regulation of HERG (KCNH2) potassium channel surface expression by diacylglycerol. Cell. Mol. Life Sci. 2010, 67, 157–169, doi:10.1007/s00018-009-0176-2.
