Article

Analysis of Polarizability Measurements Made with Atom Interferometry

1
Department of Physics, University of Arizona, Tucson, AZ 85721, USA
2
College of Optical Sciences, University of Arizona, Tucson, AZ 85721, USA
*
Author to whom correspondence should be addressed.
Atoms 2016, 4(3), 21; https://doi.org/10.3390/atoms4030021
Submission received: 1 June 2016 / Accepted: 4 July 2016 / Published: 6 July 2016
(This article belongs to the Special Issue Atom Interferometry)

Abstract

:
We present revised measurements of the static electric dipole polarizabilities of K, Rb, and Cs based on atom interferometer experiments presented in [Phys. Rev. A 2015, 92, 052513] but now re-analyzed with new calibrations for the magnitude and geometry of the applied electric field gradient. The resulting polarizability values did not change, but the uncertainties were significantly reduced. Then, we interpret several measurements of alkali metal atomic polarizabilities in terms of atomic oscillator strengths f i k , Einstein coefficients A i k , state lifetimes τ k , transition dipole matrix elements D i k , line strengths S i k , and van der Waals C 6 coefficients. Finally, we combine atom interferometer measurements of polarizabilities with independent measurements of lifetimes and C 6 values in order to quantify the residual contribution to polarizability due to all atomic transitions other than the principal n s - n p J transitions for alkali metal atoms.

Graphical Abstract

1. Introduction

Atomic and molecular interferometry [1,2] has become a precise method for measuring atomic properties such as static polarizabilities [3,4,5,6,7], van der Waals interactions [8,9,10], and tune-out wavelengths [11,12]. Calculating these atomic and molecular properties ab initio is challenging because it requires modeling of quantum many-body systems with relativistic corrections. For example, different methods for calculating polarizabilities yield results that vary by as much as 10% for Cs [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41]. For molecules, the challenges are even greater. Furthermore, determining the uncertainty for an ab initio calculation can be difficult. Polarizability measurements made with matter wave interferometry, and, therefore, have been used to assess which calculation methods are most valid. Testing these calculations is important because similar methods are used to predict atomic scattering cross sections—Feshbach resonances, photoassociation rates, atom-surface van-der Waals C 3 coefficients, atomic parity-violating amplitudes, and atomic clock shifts due to thermal radiation or collisions.
In this manuscript, we first present revised uncertainties on our most recent K, Rb, and Cs static polarizability measurements [3] in Section 2. We then show how to use polarizability measurements for alkali metal atoms [3,4,5,7] as input for semi-empirical calculations of atomic properties such as oscillator strengths, Einstein A coefficients, state lifetimes, transition matrix elements, and line strengths, as we discuss in Section 3.1. We use polarizability measurements to predict van der Waals C 6 coefficients in Section 3.2. To support this analysis, throughout Section 3, we use theoretical values for so-called residual polarizabilities of alkali metal atoms, i.e., the contributions to polarizabilities that come from higher-energy excitations associated with the inner-shell (core) electrons and highly-excited states of the valence electrons. The idea-chart in Figure 1 shows connections between the residual polarizability ( α r ) and several quantities related via Eqnations (1)–(17) that we use to interpret polarizabilities.
Then, in Section 4, we demonstrate an all-experimental method for measuring residual polarizabilities. We do this by using polarizability measurements in combination with independent measurements of lifetimes and van der Waals C 6 coefficients. This serves as a cross-check for some assumptions used in Section 3 that are also used for analysis of atomic parity violation and atomic clocks. Section 4 highlights how atom interferometry measurements shown in Table 1 are sufficiently precise to directly measure the static residual polarizability, α r ( 0 ) , for each of the alkali-metal atoms: Li, Na, K, Rb, and Cs.

2. Revised Uncertainties on Recent Polarizability Measurements

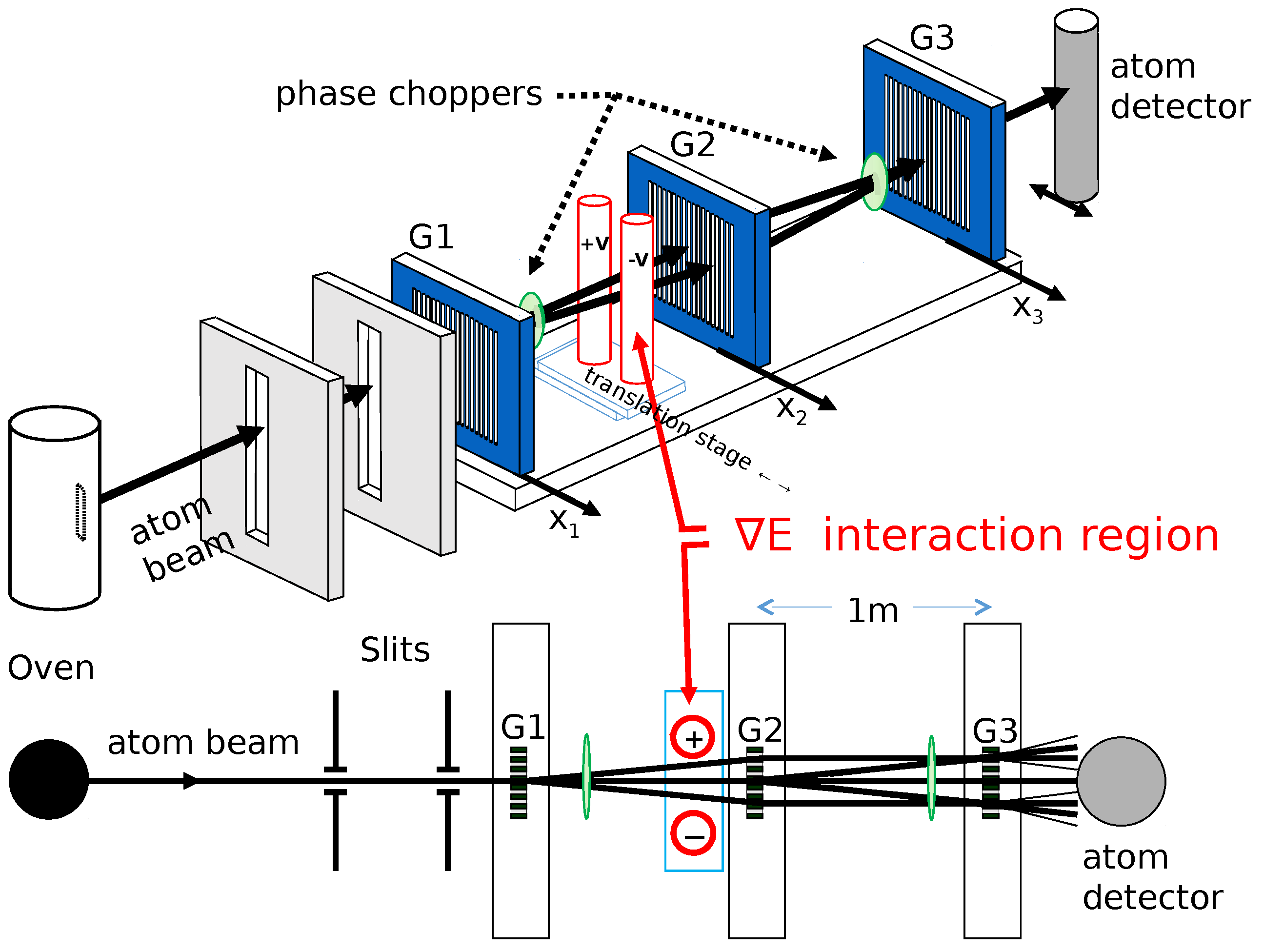

We reduced the uncertainties in our most recent K, Rb, and Cs static polarizability measurements [3] to 0.11% by reducing the total systematic uncertainty from 0.15% to 0.10%. In our experiment, we used static electric field gradients created by cylindrical electrodes, indicated in red in Figure 2, to induce phase shifts in our atom interferometer. These phase shifts depend linearly on static polarizability α ( 0 ) and also depend on various electric field geometry parameters, including the distance a between the electrodes and the square of the voltage V between the electrodes. Therefore, we can use high-precision measurements of those phase shifts together with high-accuracy measurements of the apparatus geometry parameters, including a and V, to report static polarizabilities. In practice, we translate the electrodes in the direction perpendicular to the beamline (see Figure 2) to expose the interferometer to different electric field gradients and measure the phase shift as a function of the electrodes’ position. Figure 3a shows an example of how the induced phase shift changes as we move the electrodes in such a way. The accuracy of our polarizability measurements is limited by how accurately we know the apparatus geometry parameters. For this reason, we reduced the total systematic uncertainty in our measurements by making higher-accuracy measurements of a and V.

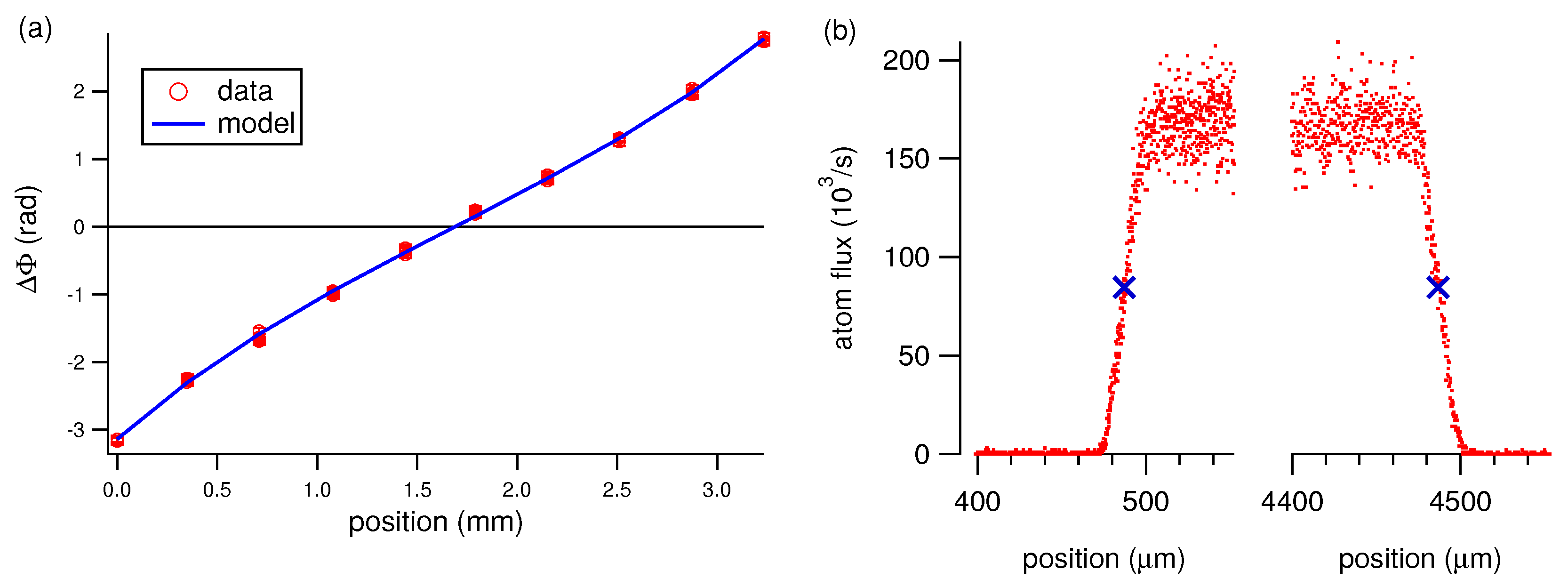

We reduced the systematic uncertainty in our measurements from 0.15% to 0.12% by calibrating the voltage supplies connected to the electrodes to 36 ppm using a Vitrek 4700 high-accuracy voltmeter. Each electrode is held at its respective positive or negative voltage with respect to ground by its own power supply. We concluded that, when we instructed the power supplies to output ± 6 kV, both power supplies were actually supplying ± 6.0026 ( 2 ) kV. Our results agreed with less-accurate calibration measurements of ± 6.003 ( 3 ) we made earlier using a Fluke 287 multimeter and a Fluke 80k-40 high-voltage probe. At normal operating temperatures, our calibration measurements were completely reproducible to within the resolution of the Vitrek 4700.
In the past, we measured the distance a between electrodes to be 1999.9(5) μ m by sweeping the electrodes across the beamline and measuring the lateral positions at which the electrodes eclipsed the beam (see an example of these data in Figure 3b). We found that scatter in our measurements was explained by misalignment of the collimating slits and detector. After correcting for this source of error, we measured the distance between electrodes to be 1999.7(2) μ m, which further reduced our total systematic uncertainty from 0.12% to 0.10%. Our measurements did not change as a function of maximum atom flux, electrodes translation motor speed, atom beam y position or vertical collimation, atom beam velocity, or atomic species.
By themselves, the new values we measured for the electrodes’ voltages and the distance between the electrodes changed our reported polarizabilities by +140 ppm and −140 ppm, respectively. Therefore, the polarizability values that we report are the same as those in [3] but with smaller uncertainties. It is also worth noting that either of the ± 140 ppm changes, by themselves, would still not have been statistically significant. These reduced total uncertainties are shown alongside the previously-reported values in Table 1.

3. Analysis of Atom Interferometry Polarizability Measurements

Table 1 lists polarizability measurements made with atom interferometry. For Li, Na, K, Rb, and Cs, atom interferometry has provided the best available measurements. Polarizability measurements made using other methods are reviewed in [13,42,43,44,45,46].
The original References [3,4,7] show how the polarizability measurements in Table 1 compare to theoretical predictions [13,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41]. In this article, we devote our attention to interpreting the atomic polarizability measurements in Table 1 in a systematic and tutorial manner. In the rest of Section 3, we show how to use these polarizability measurements to predict other atomic properties such as oscillator strengths, lifetimes, matrix elements, line strengths, and van der Waals C 6 coefficients, following procedures described earlier by Derevianko and Porsev [47], Amini and Gould [42], and Mitroy, Safronova, and Clark [13], among others. Then, in Section 4, we use the polarizabilities in Table 1 to provide experimental constraints on the residual polarizabilities, α r , for each of the alkali atoms.

3.1. Reporting Oscillator Strengths, Lifetimes, Matrix Elements, and Line Strengths from Static Polarizabilities

The dynamic polarizability, α ( ω ) , of an atom in state | i can be written as sum over electric-dipole transition matrix elements k | e r | i , Einstein coefficients A i k , oscillator strengths f i k , or line strengths S i k as
α ( ω ) = e 2 m k i f i k ω i k 2 ω 2 ,
α ( ω ) = 2 π ϵ 0 c 3 k i A k i ω i k 2 ω i k 2 ω 2 g k g i ,
α ( ω ) = 2 3 k i | k | e r | i | 2 ω i k ω i k 2 ω 2 ,
α ( ω ) = 1 3 k i S i k ω i k ω i k 2 ω 2 ,
where e and m are the charge and mass of an electron, ω i k = ( E k E i ) / are resonant frequencies for excitation from state | i to state | k , and g k = 2 J k + 1 is the degeneracy of state | k . The squares of electric dipole transition matrix elements | k | e r | i | 2 , or equivalently 3 | k | e x | i | 2 , are related to the reduced dipole matrix elements (denoted with double bars) by | k e r i | 2 = | D i k | 2 = m k , m i | k | e r | i | 2 = | k | e r | i | 2 g i using the Wigner–Eckart theorem. For ground state alkali atoms, line strength S i k = | D i k | 2 .
The expressions for polarizability α ( 0 ) in Equations (1)–(4) each have dimensions of 4 π ϵ 0 times volume, as expected from the definitions p = α E and U = 1 2 α | E | 2 , where p is the induced dipole moment and U is the energy shift (Stark shift) of an atom in an electric field E . When polarizability is reported in units of volume (typically Å 3 or 10 24 cm 3 ), it is implied that one can multiply by 4 π ϵ 0 to get polarizability in SI units. The atomic unit (au) of polarizability, e 2 a 0 2 / E h , is equivalent to a 0 3 × 4 π ϵ 0 , where a 0 is the Bohr radius, and E h is a Hartree. Since ( 4 π ϵ 0 ) = 1 in au, polarizability is naturally expressed in atomic units of volume of a 0 3 (and for reference a 0 3 = 0.148185 Å 3 ).
Since the principal D1 and D2 transitions of alkali metal atoms (denoting the n s - n p 1 / 2 and n s - n p 3 / 2 transitions, respectively, where n = 6 for Cs, n = 5 for Rb, n = 4 for K, n = 3 for Na, and n = 2 for Li), account for over 95% of those atoms’ static polarizabilities [33], it is customary to decompose polarizability as
α ( ω ) = α p ( ω ) + α r ( ω ) ,
where α p ( ω ) represents the contribution from the principal transitions and α r ( ω ) is the residual polarizability due to all other excitations. The residual polarizability itself can be further decomposed as
α r ( ω ) = α v ( ω ) + α core ( ω ) + α c v ( ω ) ,
where α v is due to excitations of the valence electron to higher-energy valence states as well as continuum states, α core is the polariability due to the core electrons, and α c v is due to correlations between core and valence electrons. Sometimes, the notation α tail is used to denote a subset of α v with n > ( n + 3 ) [48], or n > ( n + 5 ) [32], or an even higher cutoff such as n > 26 [40].
Using the decomposition in Equation (5), we can rewrite Equations (1)–(4) for static ( ω = 0 ) polarizabilities:
α ( 0 ) = e 2 m f D 1 ω D 1 2 + f D 2 ω D 2 2 + α r ( 0 ) ,
α ( 0 ) = 2 π ϵ 0 c 3 τ 1 / 2 1 ω D 1 4 + 2 τ 3 / 2 1 ω D 2 4 + α r ( 0 ) ,
α ( 0 ) = 1 3 | D D 1 | 2 ω D 1 + | D D 2 | 2 ω D 2 + α r ( 0 ) ,
α ( 0 ) = 1 3 S D 1 ω D 1 + S D 2 ω D 2 + α r ( 0 ) .
Equation (8) is written in terms of lifetimes τ k 1 = i A k i , rather than Einstein A coefficients because alkali metal atom n p J states decay with a branching ratio of 100% to their respective ground n s 1 / 2 states. To support our analysis of polarizabilites, here in Section 3, we use theoretically calculated values of residual static polarizabilities α r ( 0 ) = 2.04(69) au for Li, α r ( 0 ) = 1.86(12) au for Na, α r ( 0 ) = 6.26(33) au for K, α r ( 0 ) = 10.54(60) au for Rb, all from Safronova et al. [48], and α r ( 0 ) = 16.74(11) au for Cs from Derevianko et al. [47]. Table A1 in Appendix A lists these and several other published values for α core ( 0 ) , α v ( 0 ) , α c v ( 0 ) and α r ( 0 ) . We do not need to consider the hyperfine structure of the n s 1 / 2 , n p 1 / 2 , and n p 3 / 2 levels because the transition frequencies ω D 1 and ω D 2 are defined with respect to the center of gravity of the hyperfine states associated with each fine structure level. Furthermore, hyperfine splitting results in multiple resonance frequencies that are each shifted by less than a few parts in 10 5 , which is insignificant compared to the experimental uncertainties in atomic property measurements discussed throughout this article.
Since ω D 1 and ω D 2 are well known [49], we can further use Equations (7)–(10) to derive expressions for | D i k | 2 , τ k , and f i k in terms of α ( 0 ) , α r ( 0 ) , and a ratio of line strengths R:
f D 1 = α ( 0 ) α r ( 0 ) e 2 m ω D 1 2 1 1 + R ω D 1 ω D 2 ,
f D 2 = α ( 0 ) α r ( 0 ) e 2 m ω D 1 2 R ω D 2 ω D 1 + R ,
τ 1 / 2 = 2 π ϵ 0 c 3 ω D 1 3 α ( 0 ) α r ( 0 ) 1 ω D 1 + R ω D 2 ,
τ 3 / 2 = 2 π ϵ 0 c 3 ω D 2 3 α ( 0 ) α r ( 0 ) 2 R ω D 1 + 2 ω D 2 ,
| D D 1 | 2 = S D 1 = α ( 0 ) α r ( 0 ) 3 1 ω D 1 + R ω D 2 ,
| D D 2 | 2 = S D 2 = α ( 0 ) α r ( 0 ) 3 1 R ω D 1 + 1 ω D 2 ,
where R is defined as
R S D 2 S D 1 = | D D 2 | 2 | D D 1 | 2 = f D 2 f D 1 ω D 1 ω D 2 = 2 τ 1 / 2 τ 3 / 2 ω D 1 ω D 2 3 .
To support our analysis of polarizabilities, we will use R = 2.0000 for Li inferred from [18], R = 1.9994(37) for Na [50], R = 1.9976(13) for K [51], R = 1.99219(3) for Rb [12] , and R = 1.9809(9) for Cs [52]. It is noteworthy that References [11,12,51] determined R experimentally using atom interferometry measurements of tune-out wavelengths.
Table 2 shows principal transition matrix elements, lifetimes, line strengths, and oscillator strengths inferred from experimental polarizability measurements [3,4,5] and theoretical α r ( 0 ) values [47,48] using Equations (11)–(17). Our inferred lifetimes for K, Rb, and Cs are based on α ( 0 ) measurements with 0.11% uncertainty, yet our derived lifetimes have slightly larger uncertainty. In the case of Li, Na, K and Rb, this is because roughly half of the total uncertainty comes from uncertainty in α r ( 0 ) , whereas for Cs, the uncertainties in τ are dominated by contributions from uncertainty in α ( 0 ) . Because there have been many high precision measurements of alkali metal principal transition lifetimes, it is useful to compare our derived lifetimes to those measurements. Our derived K and Rb lifetimes agree well with and have comparable uncertainty to those measured by Volz et al. [50], Wang et al. [53,54], and Simsarian et al. [55]. Because the α ( 0 ) measurements used to derive the Li and Na lifetimes in Table 2 are less precise, our inferred Na lifetimes have about twice the uncertainty (about 0.4%) of measurements by Volz et al. [50], and our inferred Li lifetimes have much greater uncertainty than measurements by Volz et al. [50] and McAlexander et al. [56].

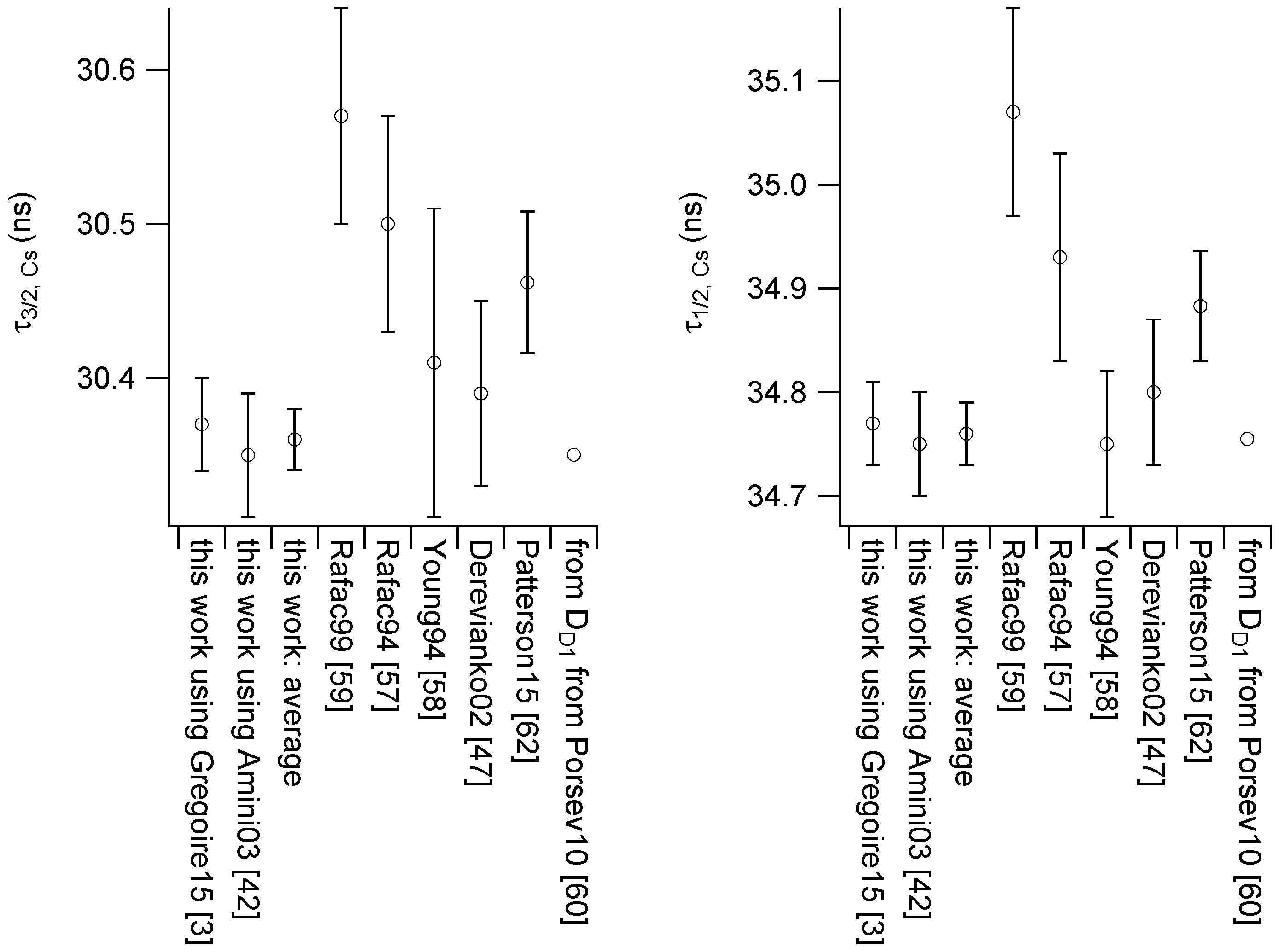

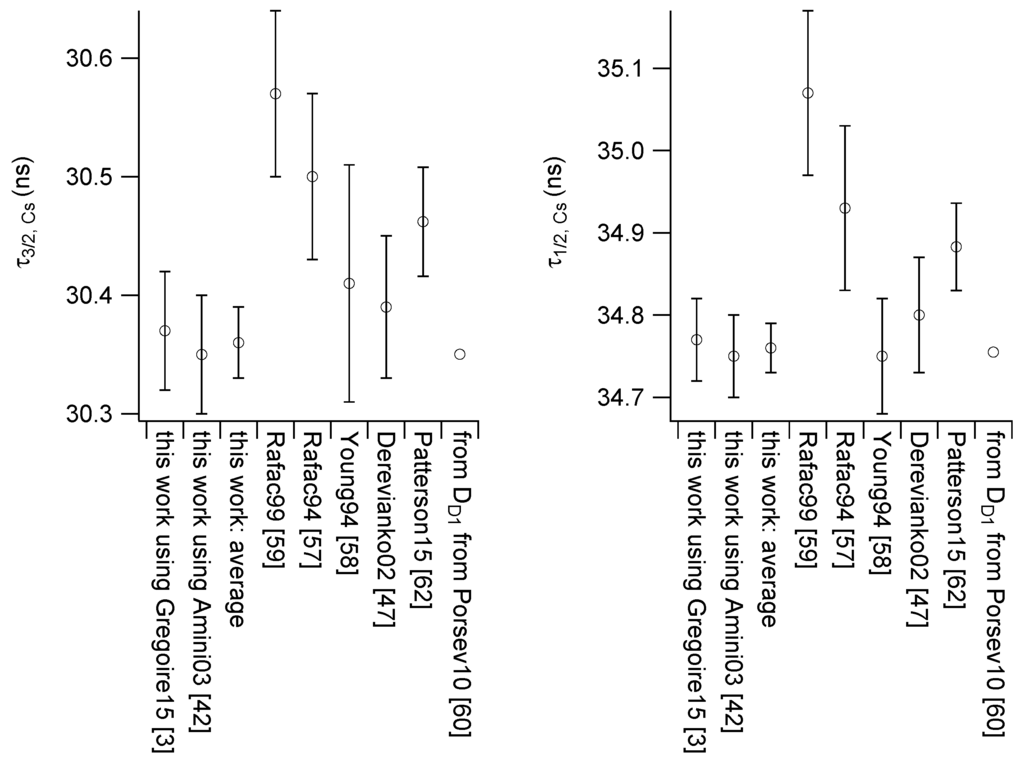

For Cs, the lifetimes we report in Table 2 for this work have an uncertainty of less than 0.15%, which is slightly smaller than the uncertainty of four previous high-precision determinations of the Cs 6 p J state lifetimes [47,57,58,59]. Table 3 and Figure 4 show how our semi-empirical lifetime results are consistent with [47,58] but differ from lifetimes reported in [57,59]. Our results deviate by 1.5σ from τ 1 / 2 found in [57] and by 3σ from τ 1 / 2 in [59], where σ for the deviations here refers to the combined uncertainty (added in quadrature) for the experiments. Comparing the sum of line strengths ( S D 1 + S D 2 ), a quantity that is mostly independent of R, provides a similar conclusion: our results are consistent with [47,58] but differ by two and three σ from [57,59].
Because the two recent measurements of α Cs ( 0 ) by Gregoire et al. [3] and Amini and Gould [42] were made using very different methods, we combine these measurements using a weighted average in order to report a value for τ 6 p 1 / 2 , Cs with even smaller (0.03 ns) uncertainty in Table 3. We note that, due to the uncertainty in R and α r ( 0 ) , the uncertainty in τ 6 p 1 / 2 , Cs would still be 0.01 ns even if the polarizability measurements had no uncertainty.
The Cs | D D 1 | value calculated ab initio by [60] is also consistent with our results for | D D 1 | . Since our results come from independent measurements of α ( 0 ) and R, combined with theoretical values for α r ( 0 ) , the agreement between our result for | D D 1 | with that of Derevianko and Porsev [47,60] adds confidence to their analysis of atomic parity violation [60,61].

3.2. Deriving van der Waals Coefficients from Polarizabilities

Since polarizability determines the strengths of van der Waals (vdW) potentials, we can also use measurements of α ( 0 ) to improve predictions for atom-atom interactions. Two ground-state atoms have a van der Waals interaction potential
U = C 6 r 6 C 8 r 8 C 10 r 10 + . . . ,
where r is the inter-nuclear distance and C 6 , C 8 , and C 10 are dispersion coefficients. For long-range interactions in the absence of retardation (i.e. for a 0 r c / ω D 2 ), the C 6 term is most important. The C 6 coefficient for homo-nuclear atom-atom vdW interactions depends on dynamic polarizability as
C 6 = 3 π 0 α ( i ω ) 2 d ω .
Even though = 1 in au, we write explicitly in Equation (19) to emphasize that the dimensions of C 6 are energy × length 6 .
The London result of C 6 = ( 3 / 4 ) ω 0 α ( 0 ) 2 can be found from Equation (19) by using Equation (1) for α ( i ω ) with a single term in the sum to represent an atom as a single oscillator of frequency ω 0 with static polarizability α ( 0 ) . However, calculating C 6 gets more difficult for atoms with multiple oscillator strengths. In light of this complexity, we instead use the decomposition in Equation (5) to express C 6 as
C 6 = 3 π 0 α p ( i ω ) + α r ( i ω ) 2 d ω = 3 π 0 α p ( i ω ) 2 d ω + 6 π 0 α p ( i ω ) α r ( i ω ) d ω + 3 π 0 α r ( i ω ) 2 d ω .
Because of the cross term, the integration over frequency, and the way α ( i ω ) remains relatively constant until ultraviolet frequencies, α r is significantly more important for C 6 than for α ( 0 ) . Contributions from α r account for 15% of C 6 , whereas α r contributes only 4% to α ( 0 ) for Cs, as pointed out by Derevianko et al. [33].
The fact that C 6 and α ( 0 ) depend on α r in different ways (compare Equations (5) and (20)) suggests that it is possible to determine α r ( 0 ) based on independent measurements of C 6 and α ( 0 ) . We will explore this in Section 4. First, we want to demonstrate how to use experimental α ( 0 ) measurements and theoretical α r ( i ω ) spectra to improve predictions of C 6 coefficients. For this, we begin by factoring α p ( 0 ) out of the α p ( i ω ) term in the integrand of Equation (20) to get
C 6 = 3 π 0 α p ( 0 ) α p ( i ω ) α p ( 0 ) + α r ( i ω ) 2 d ω ,
where the spectral shape function
α p ( i ω ) α p ( 0 ) = 1 ω D 1 2 + ω 2 + R ω D 1 ω D 2 ω D 2 2 + ω 2 1 ω D 1 2 + R ω D 1 ω D 2 3 ,
uses R defined in Equation (17). We are now able to calculate C 6 using our choice of α p ( 0 ) , which we can relate to static polarizability measurements via α p ( 0 ) = α ( 0 ) α r ( 0 ) . The formula for C 6 can then be written as
C 6 = 3 π 0 [ α ( 0 ) α r ( 0 ) ] α p ( i ω ) α p ( 0 ) + α r ( i ω ) 2 d ω .
To use Equation (23) to infer values of C 6 from our static polarizability measurements, one still needs to know α r ( i ω ) and α r ( 0 ) . Derevianko et al. calculated and tabulated values α t a b ( i ω ) in [63] of polarizability for all the alkali atoms, where the principal component α p ( i ω ) was calculated using experimental lifetime measurements by Volz and Schmoranzer [50] for Li, Na, K, and Rb and by Rafac et al. [57] for Cs. Therefore, we know that the residual component α r ( i ω ) of Derevianko et al.’s tabulated values of α t a b ( i ω ) is
α r ( i ω ) = α t a b ( i ω ) 2 π ϵ 0 c 3 τ 1 / 2 1 ω D 1 2 ω D 1 2 ω 2 + 2 τ 3 / 2 1 ω D 2 2 ω D 2 2 ω 2 .

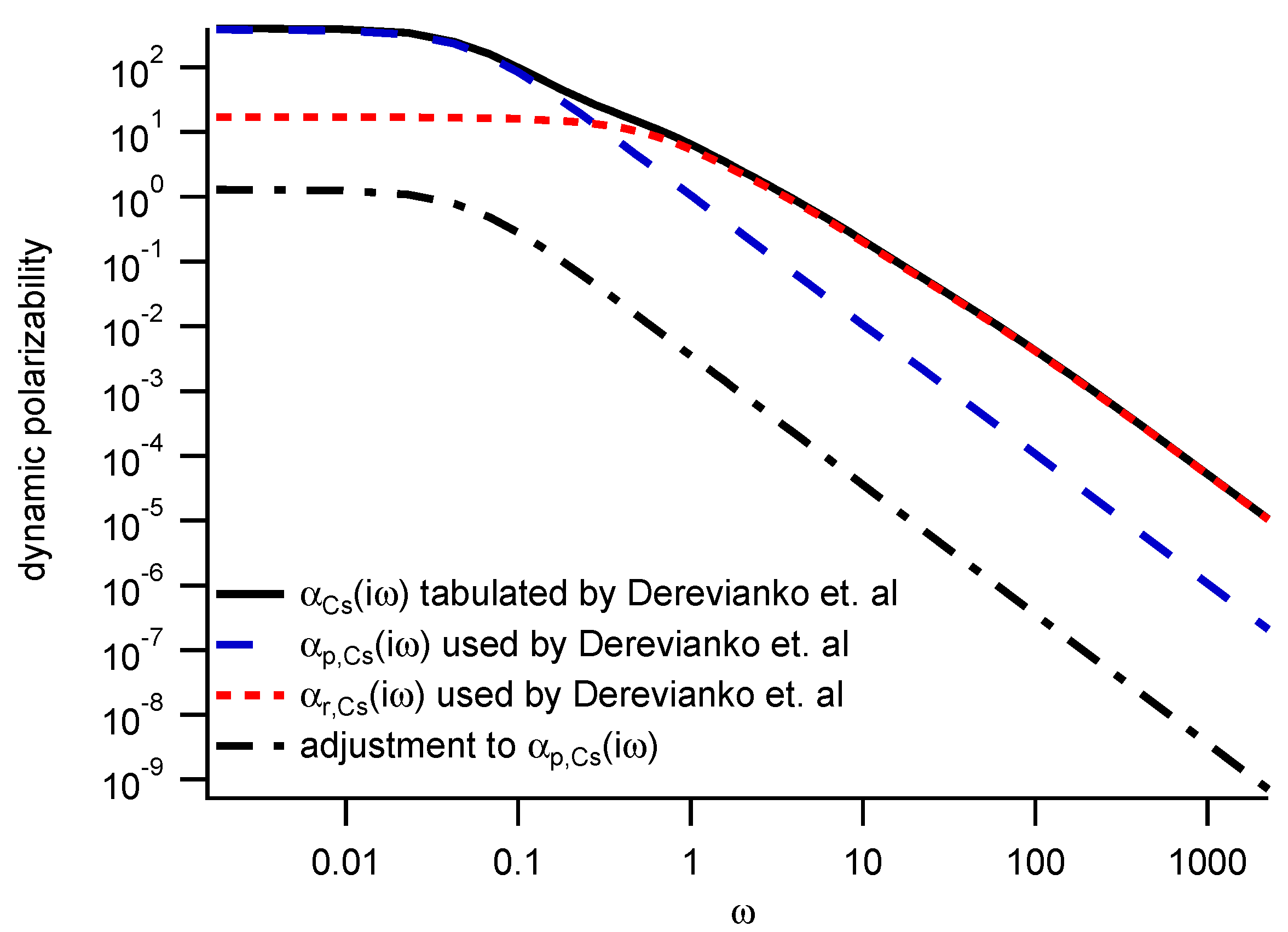

Figure 5 shows an example of how α t a b ( i ω ) for Cs tabulated by Derevianko et al. [63] can be decomposed into principal and residual parts. Figure 5 also shows the small adjustment to α p ( i ω ) that can be recommended based on measurements of α ( 0 ) . In essence, this procedure makes the assumption that any deviation between the measured and the tabulated [63] values of static polarizability are due to an error in the α p part of the tabulated values, and that the α r ( i ω ) component of the tabulated values is correct. To assess the impact of this assumption, we next examine how uncertainty in α r ( i ω ) propagates to uncertainty in C 6 .
Equation (23) shows how C 6 calculations depend on α r ( 0 ) and α r ( i ω ) with opposite signs. This helps explain why uncertainty in α r propagates to uncertainty in C 6 with a somewhat reduced impact. For example, if α r accounts for 15% of C 6 , and α r itself has an uncertainty of 5%, one might naively expect that uncertainty in C 6 due to uncertainty in α r would be 0.75%. However, using Equation (23), one can show that the uncertainty in C 6 is smaller (only 0.48% due to α r ). To explain this, if a theoretical α r is incorrect, say a bit too high, then when we subtract this from the measured α ( 0 ) , we will deduce an α p ( 0 ) that is too small, and the error from this contribution to C 6 has the opposite sign from the error caused by adding back α r ( i ω ) in Equation (23).
We can also rewrite Equation (23) by adding and subtracting the tabulated α p ( i ω ) so that C 6 depends explicitly only on the measured and tabulated (total) polarizabilities:
C 6 = 3 π 0 [ α ( 0 ) α t a b ( 0 ) ] α p ( i ω ) α p ( 0 ) + α t a b ( i ω ) 2 d ω ,
where α t a b ( i ω ) and α t a b ( 0 ) refer to values tabulated by Derevianko et al. This way C 6 does not explicitly depend on α r .
Using Equation (25), or equivalently Equations (23) and (24), our calculated C 6 values for Rb and Cs agree with recent theoretical and experimental C 6 values, as shown in Figure 6. For K, our predicted C 6 is different from that measured by D’Errico et al. using Feshbach resonances by roughly 3σ. Of course, this discrepancy may be at least partly explained by statistical errors in the C 6 and α ( 0 ) measurements for K atoms. In the next section, however, we will explore how an error in the α r ( i ω ) used to construct α t a b ( i ω ) for K could partly explain this discrepancy.

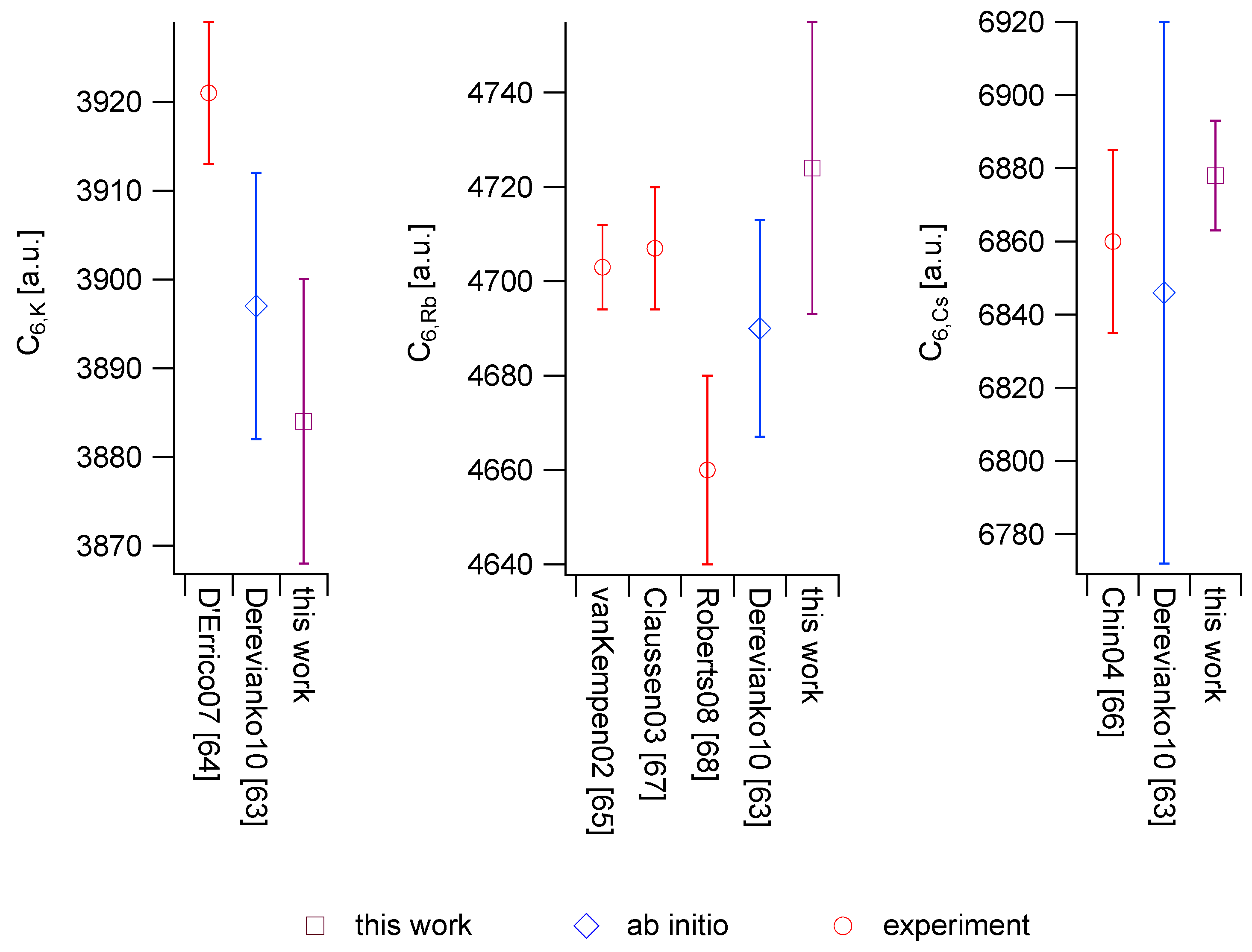

To interpret the C 6 values that we report in Table 4, we compare these semi-empirical results to direct measurements and earlier predictions of C 6 in Figure 6. One sees that the uncertainty of C 6 measurements that we report based on atom interferometry measurements of polarizability are comparable to direct measurements [64,65,66] and slightly more precise than previous semi-empirical predictions [63].

4. Determining Residual Polarizabilities Empirically

4.1. Using Combinations of α ( 0 ) and τ Measurements to Report α r Values

While in Section 3, we demonstrated how to report atomic lifetimes from polarizability measurements and theoretical values for α r ( 0 ) ; here, we invert this procedure and use combinations of α ( 0 ) , τ 1 / 2 , and τ 3 / 2 measurements to place constraints on α r ( 0 ) . For this, we solve Equation () for α r ( 0 ) :
α r ( 0 ) = α ( 0 ) 2 π ϵ 0 c 3 τ 1 / 2 1 ω D 1 4 + 2 τ 3 / 2 1 ω D 2 4 .

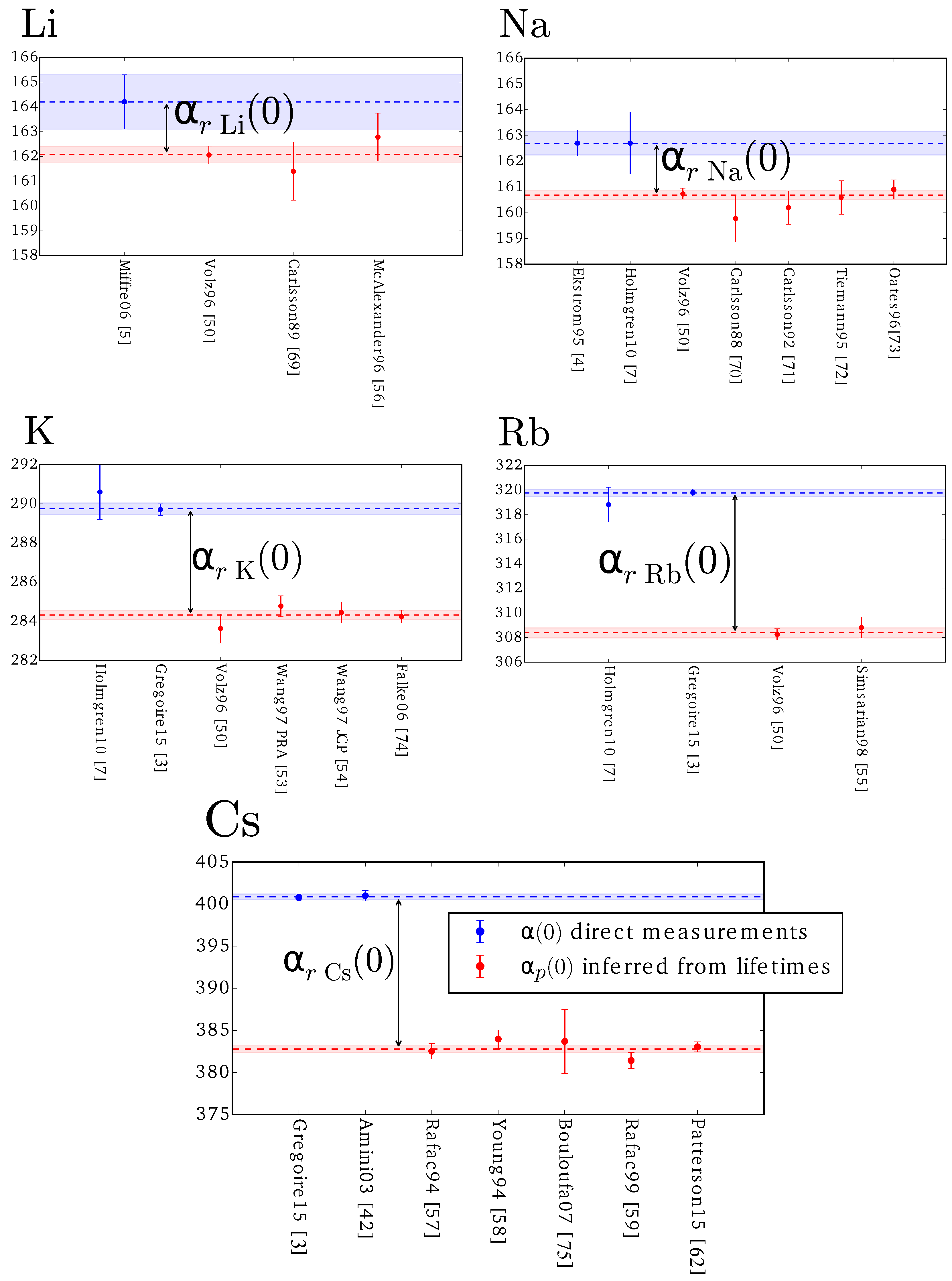

Figure 7 shows the difference between polarizability measurements α ( 0 ) and the inferred contribution to polarizability from the principal transitions α p ( 0 ) based on lifetime measurements. We take the weighted average of α p ( 0 ) based on a collection of available lifetime measurements, and we use the weighted average of the two high-precision α Cs ( 0 ) measurements. We obtain α r , Li ( 0 ) = 2(1), α r , Na ( 0 ) = 2.0(5), α r , K ( 0 ) = 5.4(4), α r , Rb ( 0 ) = 11.4(5), and α r , Cs ( 0 ) = 18.1(5). This analysis shows significantly nonzero α r ( 0 ) values for Li, Na, K, Rb, and Cs based entirely on experimental data.
For Cs, this approach is sufficiently precise to empirically measure α r ( 0 ) with 3% uncertainty, which is similar to the uncertainty of theoretical values [47,48]. The width of the blue and red bands in Figure 7 indicate the contributions to this uncertainty from the atom interferometry polarizability measurements and the uncertainty contributions from lifetime measurements. In order to improve the accuracy of α ( 0 ) reported this way, one would require improvements in both the polarizability measurements and the lifetime measurements.
We can use a similar approach by combining polarizability measurements with ab initio | D i k | calculations. One of the highest-accuracy calculations of | D D 1 | was reported for Cs by Porsev et al. [60] in order to help interpret atomic parity violation experiments. This | D D 1 | can be combined with R [52] using Equations (9) and (17) as
α r ( 0 ) = α ( 0 ) | D D 1 | 2 3 1 ω D 1 + R ω D 2 .
This approach produces a somewhat lower value of α r ( 0 ) = 16.5(4) with about 2.5% uncertainty. We compare the results using lifetimes and this result using the ratio of line strengths (R) and a calculated dipole matrix element with other results in Figure 9 and Table 5 at the end of this section.

4.2. Using Combinations of α ( 0 ) and C 6 Measurements to Report α r Values

Earlier in Section 3.2, we demonstrated how to calculate van der Waals C 6 coefficients from polarizability measurements and assumptions about residual polarizabilities. We can also invert this procedure, and analyze combinations of α ( 0 ) and C 6 measurements in order to place constraints on α r ( 0 ) . For this, we will assume the spectral function α r ( i ω ) / α r ( 0 ) is sufficiently known and simply factor out an overall scale factor for the static residual polarizability from the formula for C 6 Equation (23) as follows:
C 6 = 3 π 0 ( α ( 0 ) α r ( 0 ) ) α p ( i ω ) α p ( 0 ) + α r ( 0 ) α ˜ r ( i ω ) α ˜ r ( 0 ) 2 d ω ,
where α ˜ r ( i ω ) and α ˜ r ( 0 ) refer to values we infer from Equation (24) using values tabulated by Derevianko et al. We then plot predictions for C 6 versus predictions for α ( 0 ) parametric in hypothetical α p ( 0 ) for different values of α r ( 0 ) . This is shown in Figure 8 along with measurements of C 6 (red) and α ( 0 ) (blue). Even on the graph with a large domain (small plots in Figure 8) where one sees the generally quadratic dependence of C 6 on α ( 0 ) , it is evident that a model with α r ( 0 ) = 0 is incompatible with the data. On the expanded region of interest (larger plots in Figure 8), one sees the intersection of C 6 and α ( 0 ) measurements specifies a value of α r ( 0 ) . For Cs, we obtain an α r ( 0 ) = 16.8(8) that is consistent with α r ( 0 ) found from the other two methods we have presented so far in Section 4. This method is valuable because it relies on independent measurements of C 6 and α ( 0 ) to provide an empirical measurement of the size of α r .

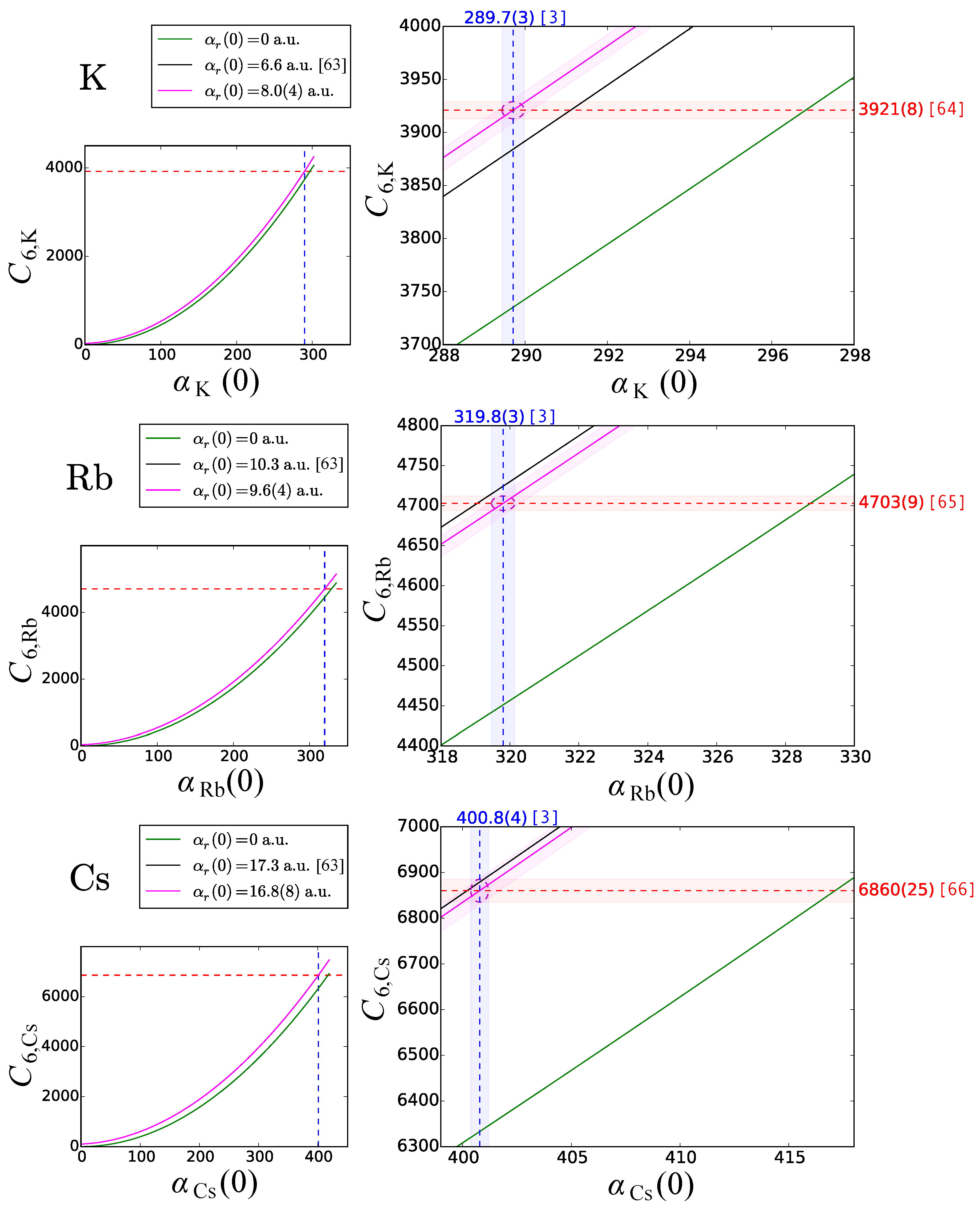

These plots show the values of α r ( 0 ) and the corresponding uncertainties that we would infer using experimental values (and their uncertainties) of α ( 0 ) and C 6 . From these studies, we find a best fit α r ( 0 ) of 8.0(4) for K, 9.6(4) for Rb, and 16.8(8) for Cs. The analysis for K highlights how the discrepancy between D’Errico et al.’s [64] C 6 , K measurement and the C 6 , K that we infer from our α ( 0 ) measurement [3] could be explained in part by error in assumed α K ( 0 ) .

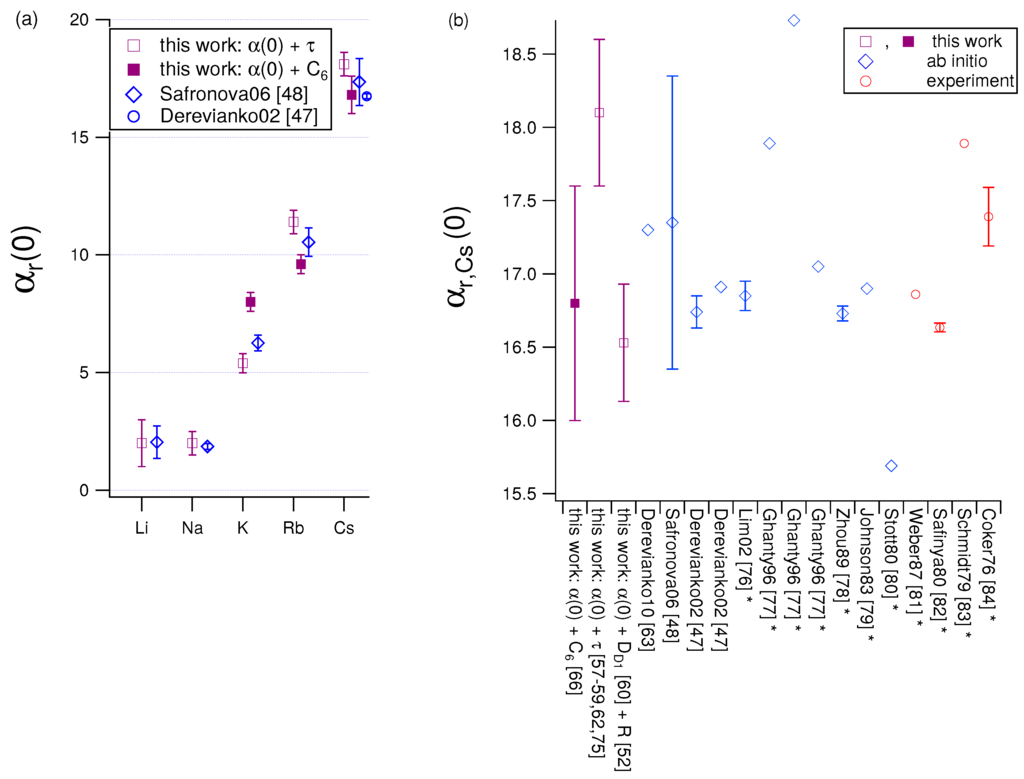

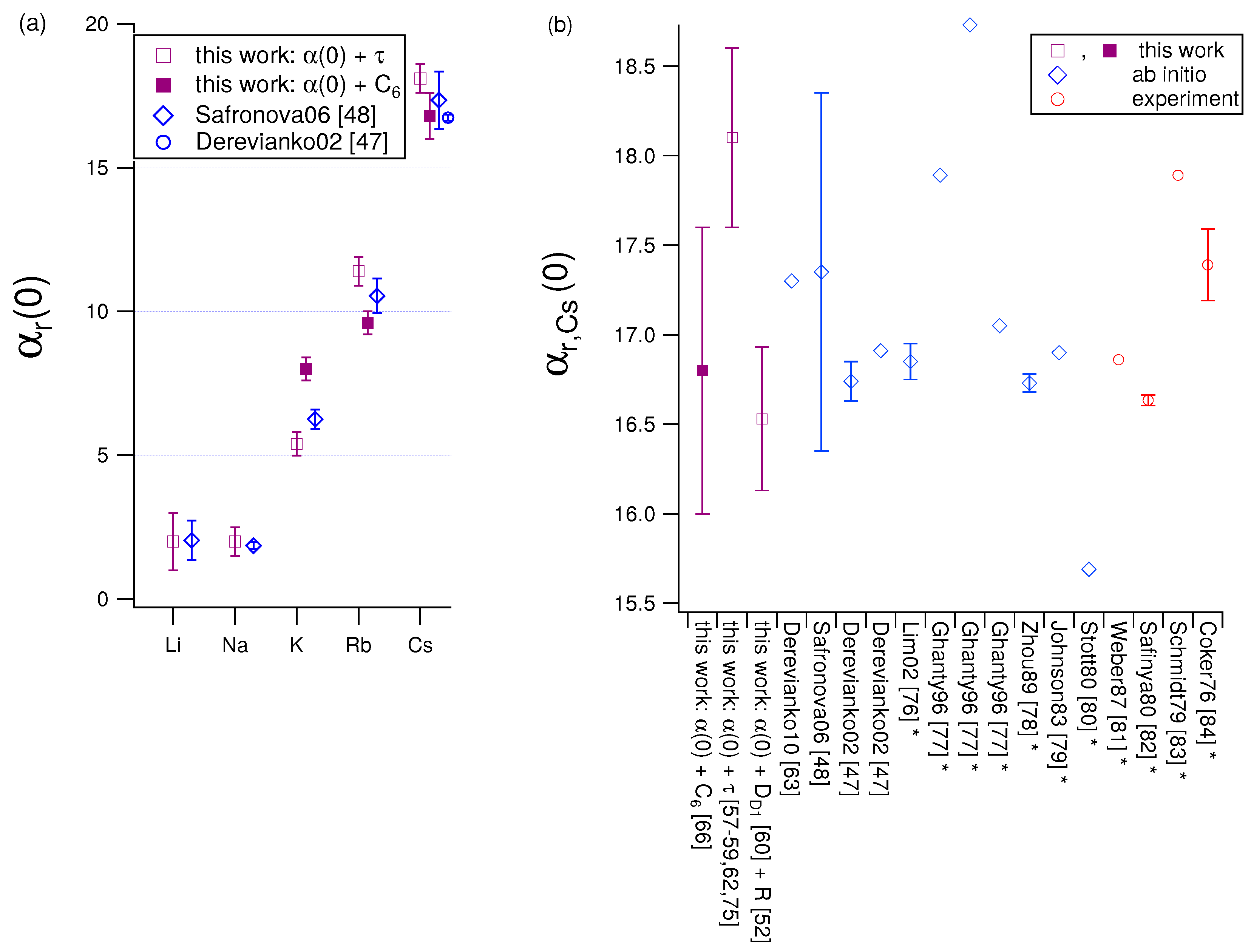

Figure 9a and Table 5 show the α r , Cs ( 0 ) values we inferred from lifetime measurements, van der Waals C 6 coefficients, and Porsev et al.’s calculated | D D 1 , Cs | . Our results are compared to ab initio calculations of α r , Cs ( 0 ) [47,48,63] as well as ab initio calculations of α core , Cs [76,77,78,79,80] to which we added α v + α c v . Also among the comparisons in Figure 9a are measurements of Cs + ionic polarizability [81,82,83,84], which approximates α core , Cs , again adjusted by adding α v + α c v . Figure 9b shows our results alongside the ab initio α r ( 0 ) values calculated by Safronova et al. [48] and Derevianko and Porsev [47] for Li, Na, K, Rb, and Cs.
Figure 9 shows some disagreement between our α ( 0 ) + τ and α ( 0 ) + C 6 methods, especially with regard to K and Rb. There are several possible contributors to such disagreement. While the α ( 0 ) + τ results were based on an average of several, independently-measured lifetimes, both of our methods relied on only one (or, in the case of Cs, two) α ( 0 ) measurements and our α ( 0 ) + C 6 method relied on a single C 6 measurement. Therefore, statistical variation or systematic errors that were not accounted for in those α ( 0 ) or C 6 measurements could have a significant effect on our reported α r ( 0 ) . In addition, it is important to note that our α ( 0 ) + C 6 method relied on a single set of α ( i ω ) calculated using one specific theoretical approach [63], and that there are other theoretical approaches that could lead to different values of α ( i ω ) .
The uncertainties in ab initio α r ( 0 ) predictions by Safronova et al. [48] and Derevianko and Porsev [47] are comparable to or smaller than the uncertainties on our fully-empirical ( α ( 0 ) + τ ) and semi-empirical ( α ( 0 ) + C 6 ) results. This fact, combined with the aforementioned possible contributors to disagreement between our results, suggests that ab initio methods are still the prefered way of obtaining α r ( 0 ) values for use in other analyses. Even so, it is valuable to develop the methods of analysis demonstrated in this paper so that when more accurate α ( 0 ) , τ, and C 6 measurements become available, then α r ( 0 ) can be determined with higher accuracy using these methods.
The theoretical α r ( 0 ) predictions by Safronova et al. [48] have an uncertainty of 6%, which is just slightly larger than the 5% or 3% uncertainties of the experimental α r ( 0 ) determinations that we reported for Cs in Section 4.1 and Section 4.2. However, we acknowledge that there is a 10% deviation between the all-experimental result for α r , Cs ( 0 ) reported in Section 4.1 using α ( 0 ) and τ measurements as compared to the semi-empirical result for α r , Cs ( 0 ) that we reported in Section 4.2 using α ( 0 ) and C 6 measurements combined with the theoretical spectral function α r ( i ω ) / α r ( 0 ) . Furthermore, the uncertainty in the theoretical α r , Cs ( 0 ) prediction by Derevianko and Porsev [47] is significantly smaller, approximately 0.6% (and this was partly verified with independent measurements of α core using Rydberg spectroscopy [78]). Thus, it is possible that ab initio methods are still the preferred way of obtaining α r ( 0 ) values for use in other analyses. Even so, we conclude that it is valuable to develop the methods of analysis demonstrated in this paper so that when more accurate α ( 0 ) , τ, and C 6 measurements become available, then α r ( 0 ) can be determined with higher accuracy using these methods. In the future, combining measurements of α core from Rydberg spectroscopy with higher accuracy measurements of α r ( 0 ) could provide more direct constraints on α v + α c v , and thus α tail .

5. Discussion

In this paper, we reported measurements of the static polarizabilities of K, Rb, and Cs atoms with reduced uncertainties. We made these measurements with an atom interferometer and an electric field gradient using data originally reported in [1]. We described in Section 2 how we reduced the systematic uncertainty in α ( 0 ) measurements from 0.15% to 0.10% by improving the calibration of the electric field. To our knowledge, these are now the most precise measurements of atomic polarizabilities that have been made using any method for K, Rb, and Cs atoms. For Cs in particular, the improvement described in this paper enabled us to report a value of α Cs ( 0 ) with slightly smaller uncertainty than Amini and Gould’s measurement of α Cs ( 0 ) that they obtained using an atomic fountain experiment [42]. Currently, this means that atom interferometer experiments have made the most accurate measurements of atomic polarizabilities for all of the alkali metal atoms Li, Na, K, Rb, and Cs.
In Section 3, we demonstrated how to analyze these measurements of atomic polarizabilities in order to infer oscillator strengths, lifetimes, transition matrix elements, line strengths, and van der Waals C 6 coefficients for all the alkali metal atoms, as we did in Table 2 and Table 4. We referred to the idea chart in Figure 1 to review how these quantities are interrelated, and we described this more explicitly with Equations (1)–(17) and (19)–(25). Building on these interrelationships, we specifically used measurements of static polarizabilities obtained with atom interferometry, empirical ratios of line strengths R (some of which were also obtained with atom interferometry), and theoretical values for residual polarizabilities in order to deduce the lifetimes of excited n p J states for all of the alkali metal atoms with unprecedented accuracy. These methods also allow us to use static polarizability measurements as a semi-empirical benchmark to test ab initio predictions of principal n s - n p J transition matrix elements for alkali metal atoms. Furthermore, we used these methods to test the extent to which measurements of different atomic properties such as lifetimes, branching ratios, line strengths, polarizabilities, and van der Waals interactions agree with one another, as shown in Figure 4 and Figure 6.
Then, in Section 4, we explored new methods to infer residual polarizability α r ( 0 ) values by combining measurements of atomic polarizabilities with independent measurements of lifetimes or C 6 coefficients. This constitutes a novel, all-experimental method to test several theoretical α r ( 0 ) predictions. Using this approach, it is clear that atom interferometry measurements of atomic polarizabilities are sufficiently precise to detect non-zero residual polarizabilities for all of the alkali metal atoms, and can measure α r ( 0 ) with as little as 3% uncertainty for Cs atoms. This procedure also provides a motivation for next generation C 6 , α ( 0 ) , τ, and tune-out wavelength measurements that can be combined with one another to more accurately determine α r ( 0 ) values that are needed in order to test atomic structure calculations that are relevant for interpreting atomic parity violation and atomic clocks.

Acknowledgments

This work is supported by NSF Grant No. 1306308 and an NIST PMG. Maxwell D. Gregoire and Raisa Trubko are grateful for NSF GRFP Grant No. DGE-1143953 for support. Nathan Brooks acknowledges support from the NASA Space Grant Consortium at the University of Arizona.

Author Contributions

Maxwell D. Gregoire performed calibration measurements and data re-analysis described in Section 2. All authors performed the calculations in Section 3. Nathan Brooks performed the calculations in Section 4. Maxwell D. Gregoire and Alexander D. Cronin wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix

Table A1. Contributions to residual polarizability α r ( 0 ) = α v ( 0 ) + α core ( 0 ) + α c v ( 0 ) in atomic units. The quantity α v ( 0 ) is the sum of all the contributions from the valence electron n s - n p J transitions with n > n using Equation (1). This includes α tail ( 0 ) . Values in bold are used to produce the results presented in Table 2.
Table A1. Contributions to residual polarizability α r ( 0 ) = α v ( 0 ) + α core ( 0 ) + α c v ( 0 ) in atomic units. The quantity α v ( 0 ) is the sum of all the contributions from the valence electron n s - n p J transitions with n > n using Equation (1). This includes α tail ( 0 ) . Values in bold are used to produce the results presented in Table 2.
Atom α v ( 0 ) α core ( 0 ) Ref. α cv ( 0 ) α r ( 0 ) Ref.
Li 0.189(9)[79] b 2.04(69)[48]
Li 0.192[85]
Na0.81 a 0.94(5)[79] b
Na 1.00(4)[76] 1.86(12)[48]
K0.72 a 5.46(27)[79] b
K0.90 [40]5.50[40]
K 5.52(4)[76]
K 5.50[86]−0.18 [86]6.26(33)[48]
Rb1.32 a 9.08(45)[79] b
Rb 9.11(4)[76] 10.70(22)[12] c
Rb 9.11(4)[87]−0.30 [87]10.54(60)[48]
Cs1.60 a 15.8(8)[79] b −0.72 [47]17.35(100)[48]
Cs 15.8(1)[76] 16.91[47]
Cs1.81 [47]15.81[47] 16.74(11)[47]
Cs 16.3(2)[84] d
Cs 15.17[88] d
Cs 15.54(3)[82] e
Cs 15.82(3)[89] e
Cs 15.770(3)[81] e
Cs 17.64[77] f
a Calculated using f i k values from NIST [49] for n n transitions with n = n + 1 to n + 5 ; b For α core from [79] we list a fractional uncertainty of 5% as suggested in Reference [87]; c Reference [12] calculated ( α core + α c v ) = 8.71(9) and α r = 10.70 ( 22 ) at ω = 2 π c / 790 nm; d from studies of ions in solid crystals; e from Rydberg spectroscopy data; f A result from DFT calculations.

References

  1. Berman, P. (Ed.) Atom Interferometry; Academic Press: San Diego, CA, USA, 1997.
  2. Cronin, A.D.; Schmiedmayer, J.; Pritchard, D.E. Optics and interferometry with atoms and molecules. Rev. Mod. Phys. 2009, 81, 1051–1129. [Google Scholar] [CrossRef]
  3. Gregoire, M.D.; Hromada, I.; Holmgren, W.F.; Trubko, R.; Cronin, A.D. Measurements of the ground-state polarizabilities of Cs, Rb, and K using atom interferometry. Phys. Rev. A 2015, 92, 052513. [Google Scholar] [CrossRef]
  4. Ekstrom, C.R.; Schmiedmayer, J.; Chapman, M.S.; Hammond, T.D.; Pritchard, D.E. Measurement of the electric polarizability of sodium with an atom interferometer. Phys. Rev. A 1995, 51, 3883–3888. [Google Scholar] [CrossRef] [PubMed]
  5. Miffre, A.; Jacquey, M.; Büchner, M.; Trénec, G.; Vigué, J. Atom interferometry measurement of the electric polarizability of lithium. Eur. Phys. J. D 2006, 38, 353–365. [Google Scholar] [CrossRef]
  6. Berninger, M.; Stefanov, A.; Deachapunya, S.; Arndt, M. Polarizability measurements of a molecule via a near-field matter-wave interferometer. Phys. Rev. A 2007, 76, 013607. [Google Scholar] [CrossRef]
  7. Holmgren, W.F.; Revelle, M.C.; Lonij, V.P.A.; Cronin, A.D. Absolute and ratio measurements of the polarizability of Na, K, and Rb with an atom interferometer. Phys. Rev. A 2010, 81, 053607. [Google Scholar] [CrossRef]
  8. Perreault, J.D.; Cronin, A.D. Observation of atom wave phase shifts induced by van der Waals atom-surface interactions. Phys. Rev. Lett. 2005, 95, 133201. [Google Scholar] [CrossRef] [PubMed]
  9. Lepoutre, S.; Jelassi, H.; Lonij, V.P.A.; Trénec, G.; Büchner, M.; Cronin, A.D.; Vigué, J. Dispersive atom interferometry phase shifts due to atom-surface interactions. Europhys. Lett. 2009, 88, 20002. [Google Scholar] [CrossRef]
  10. Lepoutre, S.; Lonij, V.P.A.; Jelassi, H.; Trenec, G.; Buchner, M.; Cronin, A.D.; Vigue, J.; Trénec, G.; Büchner, M.; Vigué, J. Atom interferometry measurement of the atom-surface van der Waals interaction. Eur. Phys. J. D 2011, 62, 309–325. [Google Scholar] [CrossRef]
  11. Holmgren, W.F.; Trubko, R.; Hromada, I.; Cronin, A.D. Measurement of a wavelength of light for which the energy shift for an atom vanishes. Phys. Rev. Lett. 2012, 109, 243004. [Google Scholar] [CrossRef] [PubMed]
  12. Leonard, R.H.; Fallon, A.J.; Sackett, C.A.; Safronova, M.S. High-precision measurements of the 87RbD-line tune-out wavelength. Phys. Rev. A 2015, 92, 052501. [Google Scholar] [CrossRef]
  13. Mitroy, J.; Safronova, M.S.; Clark, C.W. Theory and applications of atomic and ionic polarizabilities. J. Phys. B 2010, 44, 202001. [Google Scholar] [CrossRef]
  14. Tang, L.Y.; Yan, Z.C.; Shi, T.Y.; Babb, J.F. Nonrelativistic ab initio calculations for 2 2S, 2 2P, and 3 2D lithium isotopes: Applications to polarizabilities and dispersion interactions. Phys. Rev. A 2009, 79, 062712. [Google Scholar] [CrossRef]
  15. Sahoo, B. An ab initio relativistic coupled-cluster theory of dipole and quadrupole polarizabilities: Applications to a few alkali atoms and alkaline earth ions. Chem. Phys. Lett. 2007, 448, 144–149. [Google Scholar] [CrossRef]
  16. Hamonou, L.; Hibbert, A. Static and dynamic polarizabilities of Na-like ions. J. Phys. B Atom. Mol. Opt. Phys. 2007, 40, 3555–3568. [Google Scholar] [CrossRef]
  17. Deiglmayr, J.; Aymar, M.; Wester, R.; Weidemüller, M.; Dulieu, O. Calculations of static dipole polarizabilities of alkali dimers: Prospects for alignment of ultracold molecules. J. Chem. Phys. 2008, 129, 064309. [Google Scholar] [CrossRef] [PubMed]
  18. Johnson, W.; Safronova, U.; Derevianko, A.; Safronova, M. Relativistic many-body calculation of energies, lifetimes, hyperfine constants, and polarizabilities in Li 7. Phys. Rev. A 2008, 77, 022510. [Google Scholar] [CrossRef]
  19. Reinsch, E.A.; Meyer, W. Finite perturbation calculation for the static dipole polarizabilities of the atoms Na through Ca. Phys. Rev. A 1976, 14, 915–918. [Google Scholar] [CrossRef]
  20. Tang, K.T. Upper and lower bounds of two- and three-body dipole, quadrupole, and octupole van der Waals coefficients for hydrogen, noble gas, and alkali atom interactions. J. Chem. Phys. 1976, 64, 3063–3074. [Google Scholar] [CrossRef]
  21. Maeder, F.; Kutzelnigg, W. Natural states of interacting systems and their use for the calculation of intermolecular forces (IV) Calculation of van der Waals coefficients between one-and two-valence-electron atoms in their ground states, as well as of polarizabilities, oscillator strength sums and related quantities, including correlation effects. Chem. Phys. 1979, 42, 95–112. [Google Scholar]
  22. Christiansen, P.A.; Pitzer, K.S. Reliable static electric dipole polarizabilities for heavy elements. Chem. Phys. Lett. 1982, 85, 434–436. [Google Scholar] [CrossRef]
  23. Fuentealba, P. On the reliability of semiempirical pseudopotentials: Dipole polarisability of the alkali atoms. J. Phys. B Atom. Mol. Phys. 1982, 15, L555–L558. [Google Scholar] [CrossRef]
  24. Müller, W.; Flesch, J.; Meyer, W. Treatment of intershell correlation effects in ab initio calculations by use of core polarization potentials. Method and application to alkali and alkaline earth atoms. J. Chem. Phys. 1984, 80, 3297–3310. [Google Scholar] [CrossRef]
  25. Kundu, B.; Ray, D.; Mukherjee, P. Dynamic polarizabilities and Rydberg states of the sodium isoelectronic sequence. Phys. Rev. A 1986, 34, 62–70. [Google Scholar] [CrossRef]
  26. Kello, V.; Sadlej, A.J.; Faegri, K. Electron-correlation and relativistic contributions to atomic dipole polarizabilities: Alkali-metal atoms. Phys. Rev. A 1993, 47, 1715–1725. [Google Scholar] [CrossRef] [PubMed]
  27. Fuentealba, P.; Reyes, O. Atomic softness and the electric dipole polarizability. J. Mol. Struct. THEOCHEM 1993, 282, 65–70. [Google Scholar] [CrossRef]
  28. Marinescu, M.; Sadeghpour, H.; Dalgarno, A. Dispersion coefficients for alkali-metal dimers. Phys. Rev. A 1994, 49, 982–988. [Google Scholar] [CrossRef] [PubMed]
  29. Dolg, M. Fully relativistic pseudopotentials for alkaline atoms: Dirac-Hartree-Fock and configuration interaction calculations of alkaline monohydrides. Theor. Chim. Acta 1996, 93, 141–156. [Google Scholar]
  30. Patil, S.H.; Tang, K.T. Multipolar polarizabilities and two- and three-body dispersion coefficients for alkali isoelectronic sequences. J. Chem. Phys. 1997, 106, 2298–2305. [Google Scholar] [CrossRef]
  31. Lim, I.S.; Pernpointner, M.; Seth, M.; Laerdahl, J.K.; Schwerdtfeger, P.; Neogrady, P.; Urban, M. Relativistic coupled-cluster static dipole polarizabilities of the alkali metals from Li to element 119. Phys. Rev. A 1999, 60, 2822–2828. [Google Scholar] [CrossRef]
  32. Safronova, M.S.; Johnson, W.R.; Derevianko, A. Relativistic many-body calculations of energy levels, hyperfine constants, electric-dipole matrix elements and static polarizabilities for alkali-metal atoms. Phys. Rev. A 1999, 60, 4476–4487. [Google Scholar] [CrossRef]
  33. Derevianko, A.; Johnson, W.R.; Safronova, M.S.; Babb, J.F. High-precision calculations of dispersion coefficients, static dipole polarizabilities, and atom-wall interaction constants for alkali-metal atoms. Phys. Rev. Lett. 1999, 82, 3589–3592. [Google Scholar] [CrossRef]
  34. Magnier, S.; Aubert-Frécon, M. Static dipolar polarizabilities for various electronic states of alkali atoms. J. Quant. Spectrosc. Radiat. Transf. 2002, 75, 121–128. [Google Scholar] [CrossRef]
  35. Mitroy, J.; Bromley, M.W.J. Semiempirical calculation of van der Waals coefficients for alkali-metal and alkaline-earth-metal atoms. Phys. Rev. A 2003, 68, 052714. [Google Scholar] [CrossRef]
  36. Safronova, M.S.; Clark, C.W. Inconsistencies between lifetime and polarizability measurements in Cs. Phys. Rev. A 2004, 69, 040501. [Google Scholar] [CrossRef]
  37. Lim, I.S.; Schwerdtfeger, P.; Metz, B.; Stoll, H. All-electron and relativistic pseudopotential studies for the group 1 element polarizabilities from K to element 119. J. Chem. Phys. 2005, 122, 104103. [Google Scholar] [CrossRef] [PubMed]
  38. Arora, B.; Safronova, M.; Clark, C.W. Determination of electric-dipole matrix elements in K and Rb from Stark shift measurements. Phys. Rev. A 2007, 76, 052516. [Google Scholar] [CrossRef]
  39. Iskrenova-Tchoukova, E.; Safronova, M.S.; Safronova, U.I. High-precision study of Cs polarizabilities. J. Comput. Methods Sci. Eng. 2007, 7, 521–540. [Google Scholar]
  40. Safronova, U.I.; Safronova, M.S. High-accuracy calculation of energies, lifetimes, hyperfine constants, multipole polarizabilities, and blackbody radiation shift in 39K. Phys. Rev. A 2008, 78, 052504. [Google Scholar] [CrossRef]
  41. Safronova, M.S.; Safronova, U.I. Critically evaluated theoretical energies, lifetimes, hyperfine constants, and multipole polarizabilities in 87Rb. Phys. Rev. A 2011, 83, 052508. [Google Scholar] [CrossRef]
  42. Amini, J.M.; Gould, H. High precision measurement of the static dipole polarizability of cesium. Phys. Rev. Lett. 2003, 91, 153001. [Google Scholar] [CrossRef] [PubMed]
  43. Schwerdtfeger, P. Atomic static dipole polarizabilities. In Atoms, Molecules and Clusters in Electric Fields: Theoretical Approaches to the Calculation of Electric Polarizability; World Scientific: Singapore, 2006; pp. 1–32. [Google Scholar]
  44. Schwerdtfeger, P. Table of experimental and calculated static dipole polarizabilities for the electronic ground states of the neutral elements (in atomic units). Available online: http://ctcp.massey.ac.nz/Tablepol2014.pdf (accessed on 1 July 2016).
  45. Gould, H.; Miller, T.M. Recent Developments in the Measurement of Static Electric Dipole Polarizabilities; Elsevier Masson SAS: Issy les Moulineaux, France, 2005; Volume 51, p. 343. [Google Scholar]
  46. Haynes, W.M. CRC Handbook of Chemistry and Physics; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
  47. Derevianko, A.; Porsev, S.G. Determination of lifetimes of 6PJ levels and ground-state polarizability of Cs from the van der Waals coefficient C6. Phys. Rev. A 2002, 65, 053403. [Google Scholar] [CrossRef]
  48. Safronova, M.S.; Arora, B.; Clark, C.W. Frequency-dependent polarizabilities of alkali-metal atoms from ultraviolet through infrared spectral regions. Phys. Rev. A 2006, 73, 022505. [Google Scholar] [CrossRef]
  49. NIST. NIST Atomic Spectra Database. Available online: http://www.nist.gov/pml/data/asd.cfm (accessed on 1 July 2016).
  50. Volz, U.; Schmoranzer, H. Precision lifetime measurements on alkali atoms and on helium by beam-gas-laser spectroscopy. Phys. Scr. 1996, T65, 48. [Google Scholar] [CrossRef]
  51. Trubko, R. Precision tune-out wavelength measurements with an atom interferometer. 2016. in preparation. [Google Scholar]
  52. Rafac, R.J.; Tanner, C.E. Measurement of the ratio of the cesium D-line transition strengths. Phys. Rev. A 1998, 58, 1087–1097. [Google Scholar] [CrossRef]
  53. Wang, H.; Li, J.; Wang, X.T.; Williams, C.J.; Gould, P.L.; Stwalley, W.C. Precise determination of the dipole matrix element and radiative lifetime of the 39K 4p state by photoassociative spectroscopy. Phys. Rev. A 1997, 55, R1569–R1572. [Google Scholar] [CrossRef]
  54. Wang, H.; Gould, P.L.; Stwalley, W.C. Long-range interaction of the 39K(4s) + 39K(4p) asymptote by photoassociative spectroscopy. I. The 0 g i pure long-range state and the long-range potential constants. J. Chem. Phys. 1997, 106, 7899–7912. [Google Scholar] [CrossRef]
  55. Simsarian, J.E.; Orozco, L.A.; Sprouse, G.D.; Zhao, W.Z. Lifetime measurements of the 7p levels of atomic francium. Phys. Rev. A 1998, 57, 2448–2458. [Google Scholar] [CrossRef]
  56. McAlexander, W.I.; Abraham, E.R.I.; Hulet, R.G. Radiative lifetime of the 2P state of lithium. Phys. Rev. A 1996, 54, R5. [Google Scholar] [CrossRef] [PubMed]
  57. Rafac, R.J.; Tanner, C.E.; Livingston, A.E.; Kukla, K.W.; Berry, H.G.; Kurtz, C.A. Precision lifetime measurements of the 6p2P1/2,3/2 states in atomic cesium. 1994, 50, 1976–1979. [Google Scholar]
  58. Young, L.; Hill, W.T.; Sibener, S.J.; Price, S.D.; Tanner, C.E.; Wieman, C.E.; Leone, S.R. Precision lifetime measurements of Cs 6p2P1/2 and 6p2P3/2 levels by single-photon counting. Phys. Rev. A 1994, 50, 2174–2181. [Google Scholar] [CrossRef] [PubMed]
  59. Rafac, R.J.; Tanner, C.E.; Livingston, A.E.; Berry, H.G. Fast-beam laser lifetime measurements of the cesium 6p 2P1/2,3/2 states. Phys. Rev. A 1999, 60, 3648–3662. [Google Scholar] [CrossRef]
  60. Porsev, S.G.; Beloy, K.; Derevianko, A. Precision determination of weak charge of 133Cs from atomic parity violation. Phys. Rev. D 2010, 82, 036008. [Google Scholar] [CrossRef]
  61. Porsev, S.G.; Beloy, K.; Derevianko, A. Precision determination of electroweak coupling from atomic parity violation and implications for particle physics. Phys. Rev. Lett. 2009, 102, 181601. [Google Scholar] [CrossRef] [PubMed]
  62. Patterson, B.M.; Sell, J.F.; Ehrenreich, T.; Gearba, M.A.; Brooke, G.M.; Scoville, J.; Knize, R.J. Lifetime measurement of the cesium 6P3/2 level using ultrafast pump-probe laser pulses. Phys. Rev. A 2015, 91, 012506. [Google Scholar] [CrossRef]
  63. Derevianko, A.; Porsev, S.G.; Babb, J.F. Electric dipole polarizabilities at imaginary frequencies for hydrogen, the alkali-metal, alkaline-earth, and noble gas atoms. At. Data Nucl. Data Tables 2010, 96, 323–331. [Google Scholar] [CrossRef]
  64. D’Errico, C.; Zaccanti, M.; Fattori, M.; Roati, G.; Inguscio, M.; Modugno, G.; Simoni, A. Feshbach resonances in ultracold 39 K. New J. Phys. 2007, 9, 223. [Google Scholar] [CrossRef]
  65. van Kempen, E.G.M.; Kokkelmans, S.J.J.M.F.; Heinzen, D.J.; Verhaar, B.J. Interisotope determination of ultracold rubidium interactions from three high-precision experiments. Phys. Rev. Lett. 2002, 88, 093201. [Google Scholar] [CrossRef] [PubMed]
  66. Chin, C.; Vuletić, V.; Kerman, A.J.; Chu, S.; Tiesinga, E.; Leo, P.J.; Williams, C.J. Precision feshbach spectroscopy of ultracold Cs2. Phys. Rev. A 2004, 70, 032701. [Google Scholar] [CrossRef]
  67. Claussen, N.R.; Kokkelmans, S.J.J.M.F.; Thompson, S.T.; Donley, E.A.; Hodby, E.; Wieman, C.E. Very-high-precision bound-state spectroscopy near a 85Rb Feshbach resonance. Phys. Rev. A 2003, 67, 060701. [Google Scholar] [CrossRef]
  68. Roberts, J.L.; Claussen, N.R.; Burke, J.P.; Greene, C.H.; Cornell, E.A.; Wieman, C.E. Resonant Magnetic Field Control of Elastic Scattering in Cold 85Rb. Phys. Rev. Lett. 1998, 81, 5109–5112. [Google Scholar] [CrossRef]
  69. Carlsson, J.; Sturesson, L. Accurate time-resolved laser spectroscopy on lithium atoms. Z. Phys. D At. Mol. Clust. 1989, 14, 281–287. [Google Scholar] [CrossRef]
  70. Carlsson, J. Accurate time-resolved laser spectroscopy on sodium and bismuth atoms. Z. Phys. D At. Mol. Clust. 1988, 9, 147–151. [Google Scholar] [CrossRef]
  71. Carlsson, J.; Jönsson, P.; Sturesson, L.; Fischer, C.F. Multi-configuration Hartree-Fock calculations and time-resolved laser spectroscopy studies of hyperfine structure constants in sodium. Phys. Scr. 1992, 46, 394. [Google Scholar] [CrossRef]
  72. Tiemann, E.; Knöckel, H.; Richling, H. Long-range interaction at the asymptote 3s + 3p of Na2. Z. Phys. D At. Mol. Clust. 1996, 37, 323–332. [Google Scholar] [CrossRef]
  73. Oates, C.W.; Vogel, K.R.; Hall, J.L. High precision linewidth measurement of laser-cooled atoms: Resolution of the Na 3p2P3/2 lifetime discrepancy. Phys. Rev. Lett. 1996, 76, 2866–2869. [Google Scholar] [CrossRef] [PubMed]
  74. Falke, S.; Sherstov, I.; Tiemann, E.; Lisdat, C. The A1 Σ u + state of K2 up to the dissociation limit. J. Chem. Phys. 2006, 125, 224303. [Google Scholar] [CrossRef] [PubMed]
  75. Bouloufa, N.; Crubellier, A.; Dulieu, O. Reexamination of the 0 g pure long-range state of Cs2: Prediction of missing levels in the photoassociation spectrum. Phys. Rev. A 2007, 75, 052501. [Google Scholar] [CrossRef]
  76. Lim, I.S.; Laerdahl, J.K.; Schwerdtfeger, P. Fully relativistic coupled-cluster static dipole polarizabilities of the positively charged alkali ions from Li+ to 119+. J. Chem. Phys. 2002, 116, 172–178. [Google Scholar] [CrossRef]
  77. Ghanty, T.K.; Ghosh, S.K. A new simple approach to the polarizability of atoms and ions using frontier orbitals from the Kohn-Sham density functional theory. J. Mol. Struct. THEOCHEM 1996, 366, 139–144. [Google Scholar] [CrossRef]
  78. Zhou, H.L.; Norcross, D.W. Improved calculation of the quadratic Stark effect in the 6P3/2 state of Cs. Phys. Rev. A 1989, 40, 5048–5051. [Google Scholar] [CrossRef]
  79. Johnson, W.; Kolb, D.; Huang, K.N. Electric-dipole, quadrupole, and magnetic-dipole susceptibilities and shielding factors for closed-shell ions of the He, Ne, Ar, Ni (Cu+), Kr, Pb, and Xe isoelectronic sequences. At. Data Nucl. Data Tables 1983, 28, 333–340. [Google Scholar] [CrossRef]
  80. Stott, M.J.; Zaremba, E. Linear-response theory within the density-functional formalism: Application to atomic polarizabilities. Phys. Rev. A 1980, 21, 12–23. [Google Scholar] [CrossRef]
  81. Weber, K.H.; Sansonetti, C.J. Accurate energies of nS , nP , nD , nF , and nG levels of neutral cesium. Phys. Rev. A 1987, 35, 4650–4660. [Google Scholar] [CrossRef]
  82. Safinya, K.; Gallagher, T.; Sandner, W. Resonance measurements of f-h and f-i intervals in cesium using selective and delayed field ionization. Phys. Rev. A 1980, 22, 2672–2678. [Google Scholar] [CrossRef]
  83. Schmidt, P.C.; Weiss, A.; Das, T.P. Effect of crystal fields and self-consistency on dipole and quadrupole polarizabilities of closed-shell ions. Phys. Rev. B 1979, 19, 5525–5534. [Google Scholar] [CrossRef]
  84. Coker, H. Empirical free-ion polarizabilities of the alkali metal, alkaline earth metal, and halide ions. J. Phys. Chem. 1976, 80, 2078–2084. [Google Scholar] [CrossRef]
  85. Johnson, W.; Cheng, K. Relativistic configuration-interaction calculation of the polarizabilities of heliumlike ions. Phys. Rev. A 1996, 53, 1375–1378. [Google Scholar] [CrossRef] [PubMed]
  86. Safronova, M.S.; Safronova, U.I.; Clark, C.W. Magic wavelengths for optical cooling and trapping of potassium. Phys. Rev. A 2013, 87, 052504. [Google Scholar] [CrossRef]
  87. Safronova, M.S.; Williams, C.J.; Clark, C.W. Relativistic many-body calculations of electric-dipole matrix elements, lifetimes and polarizabilities in rubidium. 2004, 69, 022509. [Google Scholar] [CrossRef]
  88. Rosseinsky, D.R. An electrostatics framework relating ionization potential (and electron affinity), electronegativity, polarizability, and ionic radius in monatomic species. J. Am. Chem. Soc. 1994, 116, 1063–1066. [Google Scholar] [CrossRef]
  89. Ruff, G.; Safinya, K.; Gallagher, T. Measurements of the n = 15–17 f-g intervals in Cs. Phys. Rev. A 1980, 22, 183–187. [Google Scholar] [CrossRef]

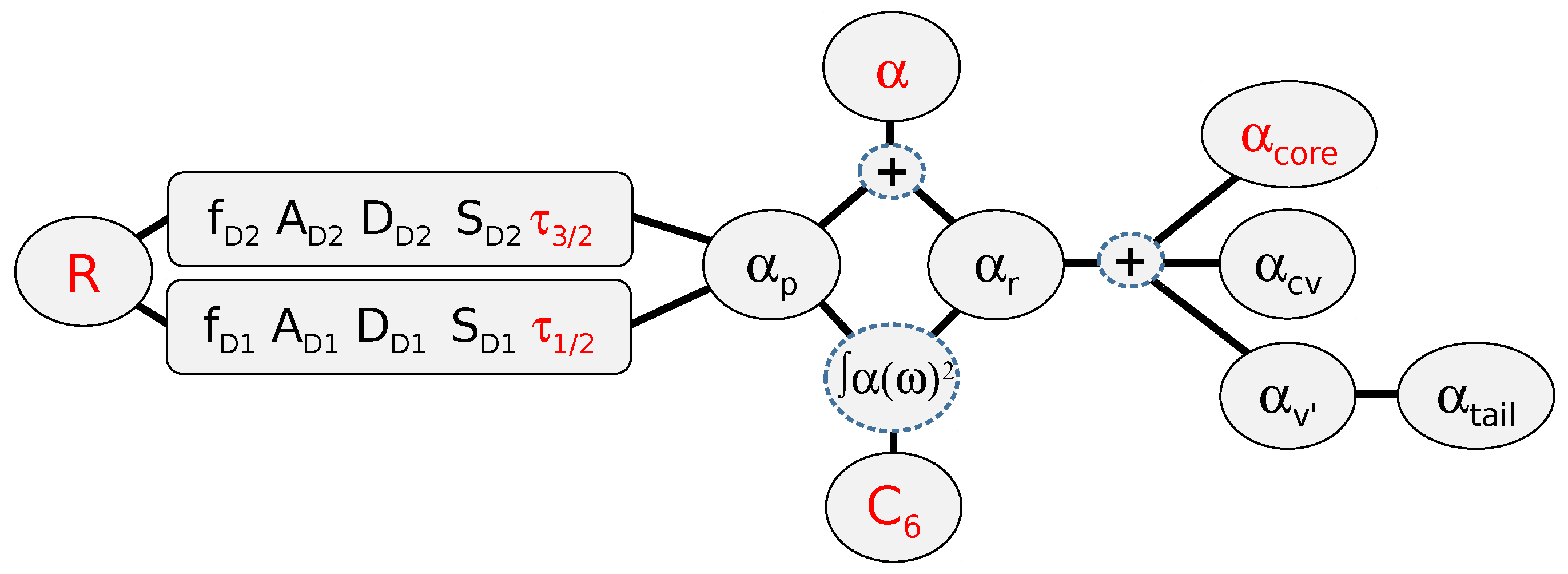

Figure 1. An idea chart showing connections between various quantities defined in Equations (1)–(17) that we relate to static polarizability α ( 0 ) for alkali metal atoms. Quantities in red have been directly measured. In this chart, as well as in this paper, α refers to polarizability in general, while α ( ω ) indicates dynamic (i.e., frequency-dependent) polarizability and α ( 0 ) indicates static polarizability. Polarizability (static or dynamic) can be written as the sum of principal ( α p ) and residual ( α r ) components, and the residual components themselves can be written as the sum of the polarizability of the inner-shell electrons ( α core ), contributions from excitations to higher valence states and continuum states ( α v ), and a core-valence coupling term ( α c v ). The van der Waals C 6 coefficient can be calculated by integrating the square of the dynamic polarizability over all frequencies ω. For alkali atoms, the principal component of polarizability can be written in terms of the oscillator strengths (f), Einstein A coefficients (A), dipole transition matrix elements (D), line strengths (S), or lifetimes τ associated with the atoms’ n s 1 / 2 n p 1 / 2 and n s 1 / 2 n p 3 / 2 transitions (where n = 2 for Li, n = 3 for Na, and so forth), also known as the D 1 and D 2 transitions. Line strength ratios R can be used to relate pairs of f, A, D, S, or τ values.
Figure 1. An idea chart showing connections between various quantities defined in Equations (1)–(17) that we relate to static polarizability α ( 0 ) for alkali metal atoms. Quantities in red have been directly measured. In this chart, as well as in this paper, α refers to polarizability in general, while α ( ω ) indicates dynamic (i.e., frequency-dependent) polarizability and α ( 0 ) indicates static polarizability. Polarizability (static or dynamic) can be written as the sum of principal ( α p ) and residual ( α r ) components, and the residual components themselves can be written as the sum of the polarizability of the inner-shell electrons ( α core ), contributions from excitations to higher valence states and continuum states ( α v ), and a core-valence coupling term ( α c v ). The van der Waals C 6 coefficient can be calculated by integrating the square of the dynamic polarizability over all frequencies ω. For alkali atoms, the principal component of polarizability can be written in terms of the oscillator strengths (f), Einstein A coefficients (A), dipole transition matrix elements (D), line strengths (S), or lifetimes τ associated with the atoms’ n s 1 / 2 n p 1 / 2 and n s 1 / 2 n p 3 / 2 transitions (where n = 2 for Li, n = 3 for Na, and so forth), also known as the D 1 and D 2 transitions. Line strength ratios R can be used to relate pairs of f, A, D, S, or τ values.
Atoms 04 00021 g001
Figure 2. Diagram of the atom interferometer we used to measure the static polarizabilities of K, Rb, and Cs [3]. A pair of cylindrical, oppositely-charged electrodes, indicated in red, induce phase shifts that depend on atoms’ polarizabilities and the gradient of the produced electric field.
Figure 2. Diagram of the atom interferometer we used to measure the static polarizabilities of K, Rb, and Cs [3]. A pair of cylindrical, oppositely-charged electrodes, indicated in red, induce phase shifts that depend on atoms’ polarizabilities and the gradient of the produced electric field.
Atoms 04 00021 g002
Figure 3. (a) Induced phase shift in the interferometer vs the lateral position of the electrodes with respect to the beam; (b) Observed atom beam flux as a function of the electrodes’ lateral position. We use these data to determine the distance between the electrodes.
Figure 3. (a) Induced phase shift in the interferometer vs the lateral position of the electrodes with respect to the beam; (b) Observed atom beam flux as a function of the electrodes’ lateral position. We use these data to determine the distance between the electrodes.
Atoms 04 00021 g003
Figure 4. Comparisons of Cs principal transition lifetimes inferred from polarizability measurements [3,42] and theoretical α r , Cs ( 0 ) [47], direct measurements [57,58,59], semi-empirical values [47], and a combination of Porsev et al.’s calculated | D D 1 | [60] and R [52].
Figure 4. Comparisons of Cs principal transition lifetimes inferred from polarizability measurements [3,42] and theoretical α r , Cs ( 0 ) [47], direct measurements [57,58,59], semi-empirical values [47], and a combination of Porsev et al.’s calculated | D D 1 | [60] and R [52].
Atoms 04 00021 g004
Figure 5. Cesium atom α t a b ( i ω ) tabulated in [63] (black line), and its decomposition into calculated α p ( i ω ) based on τ 1 / 2 and τ 3 / 2 values [50] with Equation (2) (green line) and the residual α r ( i ω ) (red line). The black dotted line represents the adjustment to α p ( i ω ) when we substitute α ( 0 ) measurement into Equation (23). Axes are in atomic units.
Figure 5. Cesium atom α t a b ( i ω ) tabulated in [63] (black line), and its decomposition into calculated α p ( i ω ) based on τ 1 / 2 and τ 3 / 2 values [50] with Equation (2) (green line) and the residual α r ( i ω ) (red line). The black dotted line represents the adjustment to α p ( i ω ) when we substitute α ( 0 ) measurement into Equation (23). Axes are in atomic units.
Atoms 04 00021 g005
Figure 6. Theoretical [63] and experimental [64,65,66,67,68] C 6 values of K, Rb, and Cs from several different sources and the C 6 values determined in this article from polarizability measurements [3]. The experimental C 6 values were all determined from Feshbach resonance data.
Figure 6. Theoretical [63] and experimental [64,65,66,67,68] C 6 values of K, Rb, and Cs from several different sources and the C 6 values determined in this article from polarizability measurements [3]. The experimental C 6 values were all determined from Feshbach resonance data.
Atoms 04 00021 g006
Figure 7. Differences between recent α ( 0 ) measurements [3,4,5,7,42] and an average of α p , Cs values calculated from lifetime measurements [50,53,54,55,56,57,58,59,62,69,70,71,72,73,74,75] and R values [12,18,50,51,52]. The uncertainties on those averages are used to calculate the resulting uncertainties in α r ( 0 ) .
Figure 7. Differences between recent α ( 0 ) measurements [3,4,5,7,42] and an average of α p , Cs values calculated from lifetime measurements [50,53,54,55,56,57,58,59,62,69,70,71,72,73,74,75] and R values [12,18,50,51,52]. The uncertainties on those averages are used to calculate the resulting uncertainties in α r ( 0 ) .
Atoms 04 00021 g007
Figure 8. C 6 vs. α ( 0 ) for small deviations about experimental values of α ( 0 ) [3]. The different curves correspond to different values of α r ( 0 ) : The pink curve corresponds to the value of α r ( 0 ) inferred from experimental measurements of C 6 and α ( 0 ) [3], and the error bands on that curve represent the resulting uncertainty in α r ( 0 ) due to uncertainty in C 6 and α ( 0 ) . The black curve corresponds to the values of α ( i ω ) tabulated by Derevianko et al. [63]. Finally, the green line corresponds to α r ( 0 ) = 0 , and the inset on each plot shows C 6 versus α ( 0 ) for a wider range of α ( 0 ) . For these plots, we used the C 6 , K measurement by D’Errico et al. [64], C 6 , Rb by van Kempen et al. [65], and C 6 , Cs by Chin et al. [66]. In the smaller plots, we can see that C 6 vs. α ( 0 ) is approximately quadratic.
Figure 8. C 6 vs. α ( 0 ) for small deviations about experimental values of α ( 0 ) [3]. The different curves correspond to different values of α r ( 0 ) : The pink curve corresponds to the value of α r ( 0 ) inferred from experimental measurements of C 6 and α ( 0 ) [3], and the error bands on that curve represent the resulting uncertainty in α r ( 0 ) due to uncertainty in C 6 and α ( 0 ) . The black curve corresponds to the values of α ( i ω ) tabulated by Derevianko et al. [63]. Finally, the green line corresponds to α r ( 0 ) = 0 , and the inset on each plot shows C 6 versus α ( 0 ) for a wider range of α ( 0 ) . For these plots, we used the C 6 , K measurement by D’Errico et al. [64], C 6 , Rb by van Kempen et al. [65], and C 6 , Cs by Chin et al. [66]. In the smaller plots, we can see that C 6 vs. α ( 0 ) is approximately quadratic.
Atoms 04 00021 g008
Figure 9. (a) α r ( 0 ) values deduced by combining α ( 0 ) measurements [3,4,5,7,42] with either C 6 measurements [64,65,66] or principal transition lifetime measurements [50,53,54,55,56,57,58,59,62,69,70,71,72,73,74,75] and R values [12,18,50,51,52]. These inferred values are compared to the theoretical α r ( 0 ) values we used elsewhere in this work by Safronova et al. [48] and Derevianko and Porsev [47]; (b) α r , Cs ( 0 ) values deduced by combining measured α Cs ( 0 ) [3] with either measured C 6 , Cs [66], principal transition lifetime [57,58,59,62,75] and R Cs [52] measurements, or α p , Cs ( 0 ) inferred from calculated | D D 1 , Cs | [60] and measured R Cs [52]. These inferred values are compared to several theoretical calculations [47,48,63,76,77,78,79,80] and Cs ion polarizability measurements [81,82,83,84]. The asterisk (*) indicates that the indicated references provided α core values which we converted to α r ( 0 ) values by adding α v + α c v = 1.81 0.72 = 1.09 (in atomic units).
Figure 9. (a) α r ( 0 ) values deduced by combining α ( 0 ) measurements [3,4,5,7,42] with either C 6 measurements [64,65,66] or principal transition lifetime measurements [50,53,54,55,56,57,58,59,62,69,70,71,72,73,74,75] and R values [12,18,50,51,52]. These inferred values are compared to the theoretical α r ( 0 ) values we used elsewhere in this work by Safronova et al. [48] and Derevianko and Porsev [47]; (b) α r , Cs ( 0 ) values deduced by combining measured α Cs ( 0 ) [3] with either measured C 6 , Cs [66], principal transition lifetime [57,58,59,62,75] and R Cs [52] measurements, or α p , Cs ( 0 ) inferred from calculated | D D 1 , Cs | [60] and measured R Cs [52]. These inferred values are compared to several theoretical calculations [47,48,63,76,77,78,79,80] and Cs ion polarizability measurements [81,82,83,84]. The asterisk (*) indicates that the indicated references provided α core values which we converted to α r ( 0 ) values by adding α v + α c v = 1.81 0.72 = 1.09 (in atomic units).
Atoms 04 00021 g009
Table 1. Measurements of static polarizabilities α ( 0 ) made using atom or molecule interferometry. References [4,5] used a septum electrode and references [3,6,7] used electric field gradients to shift the phase of matter wave interference fringes. Results are presented both in Å 3 and atomic units (au). Values we use for analysis in this paper are in bold.
Table 1. Measurements of static polarizabilities α ( 0 ) made using atom or molecule interferometry. References [4,5] used a septum electrode and references [3,6,7] used electric field gradients to shift the phase of matter wave interference fringes. Results are presented both in Å 3 and atomic units (au). Values we use for analysis in this paper are in bold.
Atom or MoleculePolarizabilityRef.Uncertainty
3 )(au)
Li24.33(16)164.2(11)[5]0.66%
Na24.11(8)162.7(5)[4]0.35%
Na24.11(18)162.7(12)[7]0.75%
K43.06(21)290.6(14)[7]0.49%
K42.93(7)289.7(5)[3]0.16%
K42.93(5)289.7(3)this work0.11%
Rb47.24(21)318.8(14)[7]0.44%
Rb47.39(8)319.8(5)[3]0.17%
Rb47.39(5)319.8(3)this work0.11%
Cs59.39(9)400.8(6)[3]0.15%
Cs59.39(6)400.8(4)this work0.11%
C 60 88.9(52)600(35)[6]5.9%
C 70 108.5(65)732(44)[6]6.5%
Table 2. Atomic properties inferred from experimental polarizability measurements made using atom interferometry [3,4,5] and theoretical residual polarizabilities [47,48]. Reduced matrix elements D D 1 = n p 1 / 2 r n s 1 / 2 and D D 2 = n p 3 / 2 r n s 1 / 2 , lifetimes τ n p 1 / 2 and τ n p 3 / 2 , oscillator strengths f, and line strengths S shown here are inferred from measurements of polarizabilities, α ( 0 ) shown in Table 1 using Equations (11)–(16). Subscripts D1 and D2 refer to the n s - n p 1 / 2 and n s - n p 3 / 2 transitions, respectively, where n = 6 for Cs, n = 5 for Rb, n = 4 for K, n = 3 for Na and n = 2 for Li. Uncertainty budget components δ α , δ R , and δ α r come from the uncertainties in α ( 0 ) [3,4,5] (see Table 1), R [12,18,50,51,52], and α r ( 0 ) [47,48] (see Table A1). The resulting uncertainties for D D 1 , D D 2 , τ n p 1 / 2 , τ n p 3 / 2 , f D 1 , f D 2 , S D 1 , and S D 2 are reported presuming possible errors δ α , δ R , and δ α r are uncorrelated. The symbol (-) indicates an uncertainty <1 in the least significant digit.
Table 2. Atomic properties inferred from experimental polarizability measurements made using atom interferometry [3,4,5] and theoretical residual polarizabilities [47,48]. Reduced matrix elements D D 1 = n p 1 / 2 r n s 1 / 2 and D D 2 = n p 3 / 2 r n s 1 / 2 , lifetimes τ n p 1 / 2 and τ n p 3 / 2 , oscillator strengths f, and line strengths S shown here are inferred from measurements of polarizabilities, α ( 0 ) shown in Table 1 using Equations (11)–(16). Subscripts D1 and D2 refer to the n s - n p 1 / 2 and n s - n p 3 / 2 transitions, respectively, where n = 6 for Cs, n = 5 for Rb, n = 4 for K, n = 3 for Na and n = 2 for Li. Uncertainty budget components δ α , δ R , and δ α r come from the uncertainties in α ( 0 ) [3,4,5] (see Table 1), R [12,18,50,51,52], and α r ( 0 ) [47,48] (see Table A1). The resulting uncertainties for D D 1 , D D 2 , τ n p 1 / 2 , τ n p 3 / 2 , f D 1 , f D 2 , S D 1 , and S D 2 are reported presuming possible errors δ α , δ R , and δ α r are uncorrelated. The symbol (-) indicates an uncertainty <1 in the least significant digit.
atom D D 1 (au) δ α δ R δ α r   D D 2 (au) δ α δ R δ α r
Li3.318(13)(11)(-)(7) 4.693(19)(16)(-)(10)
Na3.527(6)(6)(2)(1) 4.987(8)(8)(2)(2)
K4.103(3)(2)(1)(2) 5.799(5)(3)(1)(3)
Rb4.242(5)(2)(-)(4) 5.987(7)(3)(-)(6)
Cs4.508(3)(2)(1)(1) 6.345(3)(3)(-)(1)
atom τ 1 / 2 (ns) δ α δ R δ α r τ 3 / 2 (ns) δ α δ R δ α r
Li27.08(21)(18)(-)(11) 27.08(21)(18)(-)(11)
Na16.28(6)(5)(2)(3) 16.24(5)(5)(1)(1)
K26.78(4)(3)(1)(3) 26.46(4)(3)(1)(3)
Rb27.56(6)(3)(-)(5) 26.16(6)(3)(-)(5)
Cs34.77(4)(4)(1)(1) 30.37(3)(3)(0)(1)
atom f D 1 δ α δ R δ α r   f D 2 δ α δ R δ α r
Li0.2492(20)(17)(-)(11) 0.4985(39)(33)(-)(39)
Na0.3203(12)(11)(4)(2) 0.6410(23)(22)(4)(5)
K0.3320(6)(4)(1)(4) 0.6662(11)(8)(1)(7)
Rb0.3438(8)(4)(-)(7) 0.6978(16)(8)(-)(14)
Cs0.3450(4)(4)(1)(1) 0.7174(8)(8)(1)(2)
atom S D 1 (au) δ α δ R δ α r   S D 2 (au) δ α δ R δ α r
Li11.01(9)(8)(-)(5) 22.02(17)(15)(-)(9)
Na12.44(5)(4)(2)(1) 24.87(8)(8)(2)(2)
K16.83(3)(2)(1)(2) 33.63(5)(4)(1)(4)
Rb17.99(4)(2)(-)(3) 35.85(8)(4)(-)(7)
Cs20.32(2)(2)(1)(1) 40.26(4)(4)(1)(1)
Table 3. Cesium 6 p J lifetimes ( τ J ) from several references, tabulated here for comparison. The τ 2 / 1 and τ 3 / 2 values that we report using α ( 0 ) measured by atom interferometry et al. [3] (combined with values of α r ( 0 ) [60] and R [52]) are reproduced from Table 2. Similar comparisons appear in Table II of [42] and Table I of [62].
Table 3. Cesium 6 p J lifetimes ( τ J ) from several references, tabulated here for comparison. The τ 2 / 1 and τ 3 / 2 values that we report using α ( 0 ) measured by atom interferometry et al. [3] (combined with values of α r ( 0 ) [60] and R [52]) are reproduced from Table 2. Similar comparisons appear in Table II of [42] and Table I of [62].
τ 1 / 2 (ns) τ 3 / 2 (ns)Method and Reference(s)
34.77(4)30.37(3)this work using α ( 0 ) from atom interferometry [3]
34.75(5)30.35(4)this approach using α ( 0 ) from [42]
34.76(3)30.36(2)this approach using α ( 0 ) from both [3] and [42]
35.07(10)30.57(7)Rafac 1999 [59]
34.93(10)30.50(7)Rafac 1994 [57]
34.75(7)30.41(10)Young 1994 [58]
34.80(7)30.39(6)Derevianko 2002 [47]
34.883(53)30.462(46) τ 3 / 2 from [62], combined with R [52] to infer τ 1 / 2
34.75530.3502from D D 1 calculation by [60], combined with R [52] to infer τ 3 / 2
Table 4. Homonuclear van der Waals C 6 coefficients, in atomic units, calculated using experimental static polarizabilities shown in Table 1 and tabulated dynamic polarizabilities from [63]. The two contributions to the uncertainty δ α ( 0 ) and δ α r ( 0 ) for each C 6 value are, respectively, due to the uncertainties in measured α ( 0 ) and uncertainties estimated for Derevianko et al.’s values for α r ( i ω ) used to calculate α t a b ( i ω ) . Derevianko et al. [33] reported uncertainty in α r ( 0 ) by using “an estimated 5% error for the core polarizabilities, and a 10% error for the remaining contributions to α r ( 0 ) ”. Several other authors also estimate 5% or 2% error for α core .
Table 4. Homonuclear van der Waals C 6 coefficients, in atomic units, calculated using experimental static polarizabilities shown in Table 1 and tabulated dynamic polarizabilities from [63]. The two contributions to the uncertainty δ α ( 0 ) and δ α r ( 0 ) for each C 6 value are, respectively, due to the uncertainties in measured α ( 0 ) and uncertainties estimated for Derevianko et al.’s values for α r ( i ω ) used to calculate α t a b ( i ω ) . Derevianko et al. [33] reported uncertainty in α r ( 0 ) by using “an estimated 5% error for the core polarizabilities, and a 10% error for the remaining contributions to α r ( 0 ) ”. Several other authors also estimate 5% or 2% error for α core .
Atom C 6 δ α ( 0 ) δ α r ( 0 )
Li1394(20)187
Na1558(11)101
K3884(16)714
Rb4724(31)1030
Cs6879(15)137
Table 5. α r ( 0 ) values deduced by combining α ( 0 ) measurements [3,4,5,7,42] with either C 6 measurements [64,65,66], principal transition lifetime measurements [50,53,54,55,56,57,58,59,62,69,70,71,72,73,74,75] and R values [12,18,50,51,52], or | D D 1 | [60] and R values [52]. These inferred values are compared to the theoretical α r ( 0 ) values we used elsewhere in this work by Safronova et al. [48] and Derevianko and Porsev [47].
Table 5. α r ( 0 ) values deduced by combining α ( 0 ) measurements [3,4,5,7,42] with either C 6 measurements [64,65,66], principal transition lifetime measurements [50,53,54,55,56,57,58,59,62,69,70,71,72,73,74,75] and R values [12,18,50,51,52], or | D D 1 | [60] and R values [52]. These inferred values are compared to the theoretical α r ( 0 ) values we used elsewhere in this work by Safronova et al. [48] and Derevianko and Porsev [47].
Atom α ( 0 ) + τ [ + R ] α ( 0 ) + C 6 α ( 0 ) + | D D 1 | + R ab initio
Li2(1) 2.04(69) [48]
Na2.0(5) 1.86(12) [48]
K5.4(4)8.0(4) 6.23(33) [48]
Rb11.4(5)9.6(4) 10.54(60) [48]
Cs18.1(5)16.8(8)16.5(4)17.35(100) [48] 16.74(11) [47]

Share and Cite

MDPI and ACS Style

Gregoire, M.D.; Brooks, N.; Trubko, R.; Cronin, A.D. Analysis of Polarizability Measurements Made with Atom Interferometry. Atoms 2016, 4, 21. https://doi.org/10.3390/atoms4030021

AMA Style

Gregoire MD, Brooks N, Trubko R, Cronin AD. Analysis of Polarizability Measurements Made with Atom Interferometry. Atoms. 2016; 4(3):21. https://doi.org/10.3390/atoms4030021

Chicago/Turabian Style

Gregoire, Maxwell D., Nathan Brooks, Raisa Trubko, and Alexander D. Cronin. 2016. "Analysis of Polarizability Measurements Made with Atom Interferometry" Atoms 4, no. 3: 21. https://doi.org/10.3390/atoms4030021

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
