Metabolites 2013, 3(2), 440-462; doi:10.3390/metabo3020440

Article
Small Molecule Identification with MOLGEN and Mass Spectrometry
Markus Meringer 1 and Emma L. Schymanski 2,*
1
DLR: German Aerospace Center, Earth Observation Center (EOC), Münchner Strasse 20, D-82234 Oberpfaffenhofen–Wessling, Germany; E-Mail: markus.meringer@dlr.de
2
Eawag: Swiss Federal Institute of Aquatic Science and Technology, Überlandstrasse 133, CH-8600 Dübendorf, Switzerland
*
Author to whom correspondence should be addressed; E-Mail: emma.schymanski@eawag.ch; Tel.: +41-58-765-5537; Fax: +41-58-765-5826.
Received: 28 March 2013; in revised form: 16 May 2013 / Accepted: 17 May 2013 /
Published: 28 May 2013

Abstract

: This paper details the MOLGEN entries for the 2012 CASMI contest for small molecule identification to demonstrate structure elucidation using structure generation approaches. Different MOLGEN programs were used for different categories, including MOLGEN–MS/MS for Category 1, MOLGEN 3.5 and 5.0 for Category 2 and MOLGEN–MS for Categories 3 and 4. A greater focus is given to Categories 1 and 2, as most CASMI participants entered these categories. The settings used and the reasons behind them are described in detail, while various evaluations are used to put these results into perspective. As one author was also an organiser of CASMI, these submissions were not part of the official CASMI competition, but this paper provides an insight into how unknown identification could be performed using structure generation approaches. The approaches are semi-automated (category dependent) and benefit greatly from user experience. Thus, the results presented and discussed here may be better than those an inexperienced user could obtain with MOLGEN programs.
Keywords:
CASMI; mass spectrometry; MOLGEN; MOLGEN–MS; MOLGEN–MS/MS; small molecule identification; structure generation; structure elucidation

1. Introduction

Mass spectrometry generally provides quite comprehensive information about the identity of an unknown compound, even at very low concentrations and is thus highly sensitive and also selective. The mass to charge ratio (m/z) of the molecular ion, along with isotope patterns and fragment peaks, helps to identify the molecular mass of the analyte and thus the molecular formula. The fragmentation pattern also gives insight into the presence or absence of substructures in the molecule and thus can guide the way to the correct structural formula. However, none of these steps are trivial and multiple solutions typically appear valid. For instance, multiple molecular formulas have the same molecular mass and multiple structural formulas have the same molecular formula and even the same substructures. Dedicated instrumentation and sophisticated algorithms are necessary to collate the information available in order to identify an unknown compound.

The Critical Assessment of Small Molecule Identification (CASMI) contest was initiated in 2012 to enable the comparison of different experimental and computational techniques for small molecule identification on a common set of mass spectrometry data. The four categories of the CASMI contest were suited to different MOLGEN programs.

CASMI Category 1, best molecular formula using high resolution LC–MS/MS data, was ideal for the most recent MOLGEN development, MOLGEN–MS/MS [1]. This command line program accepts the MS and MS/MS data and calculates all molecular formulas matching the restrictions, using the isotope pattern match of the MS data and the number of MS/MS peaks with an assigned subformula to score the molecular formula candidates. The resulting output includes a mass deviation (ppm), the MS match value (MS MV), the MS/MS match value (MS/MS MV) and the combined match value (combMV), a direct multiplication of the MS and MS/MS MVs. Many other options exist for users to control the output, including an existence filter, fuzzy formula and element restriction options, as well as several scoring alternatives.

CASMI Category 2, best (structural) identification using high resolution LC–MS/MS data, was approached using structure generators alone, adding restrictions manually. The versions currently available are MOLGEN 3.5 [2,3] and the newer development, MOLGEN 5.0 [4,5]. Both of these generate structures that match the molecular formula(s) and optional structural restrictions provided by the user, but are implemented differently. MOLGEN 3.5 allows the incorporation of substructure information using macroatoms and “good list” structures to define substructures that are present in the candidates, with “bad list” structures used to exclude certain substructures. Although good list and bad list items may overlap, macroatoms should not overlap each other as these are effectively “building blocks” of the molecule. The definition of macroatoms allows for more efficient generation. In contrast, MOLGEN 5.0 uses a system of “prescribed” and “forbidden” structures, without the definition of macroatoms, but has additional functionality such as definition of atom type restrictions. As no fully-built computer-aided structure elucidation (CASE) system was available for CASMI Category 2, the ranking of candidates was performed using external programs. Of the openly accessible in silico fragmenters, MetFrag (see [6]) was better suited to many candidates than the more computationally intense FiD (see [7]). Both use the bond-disconnection approach, as opposed to the rule-based approach of Mass Frontier [8] and MOLGEN–MS (see below). MOLGEN–QSPR, which is capable of calculating many different molecular properties [9], was used to generate steric energy values for candidate ranking.

CASMI Categories 3 and 4 were suitable for MOLGEN–MS [10], the de novo structure elucidation system for low resolution electron impact mass spectrometry (EI–MS), usually coupled with gas chromatography (GC–MS). For more details, see, e.g., [11,12]. The three classical steps of an automated structure elucidation system proposed in the DENDRAL project [13] (plan–generate–test) are implemented in MOLGEN–MS. In the first step (plan), structural properties are derived from the spectral data using the module MSclass, an integrated implementation of the mass spectral classification software by Varmuza and Werther [14]. In the second step (generate), structures fulfilling the properties from the planning step are generated using the MOLGEN 4.0 [15] kernel. In the third step (test), the generated structures are fragmented in silico according to standard mass spectrometric fragmentation rules and the resulting fragments are compared with the fragments in the experimental spectrum [16]. Ideally, the correct structure should be the best match, but this is rarely the case especially with many candidates. Prior to structure generation with MOLGEN–MS, a similar approach is used to derive the molecular formula. MSclass results provide information about the absence, presence and multiplicities of certain elements. These can be used as input for the molecular formula generator to reduce the number of possible formulas. Generated formulas are then tested against isotope pattern of the molecular and fragment ion peaks in the spectrum. Two modules for molecular formula calculation are available in MOLGEN–MS. The first module, MolForm, fits the molecular formula using the isotope pattern and the restrictions provided. The second module is named ElCoCo (Elemental Composition Computation) and uses the whole spectrum, which provides further information in the case that MolForm is not sufficient. Algorithmic details are described in [11,17,18].

While MOLGEN–MS was built to be a stand-alone, database-independent spectral interpretation interface, the results in [16,19] showed that MOLGEN–MS alone was insufficient for routine structure elucidation. However, enhancing MOLGEN–MS with additional information obtained from the NIST database [20] and calculated properties (where available) greatly increased the chances of successful structure elucidation [19,21]. More recently, the ‘consensus scoring’ approach [22] heralded a change in strategy away from structure ‘filtering’ towards an integrated scoring approach. Structures that satisfied more additional criteria (or properties) with higher match values achieved higher scores than those with lower spectral match values or matching fewer of the additional criteria. These additional criteria included partitioning behaviour, retention behaviour and also steric energy. While many different programs were considered in [22], we restricted the calculations for CASMI to MOLGEN software where possible.

The aim of this article is to demonstrate structure elucidation using the different MOLGEN programs on the CASMI challenges. Thus, the challenges as well as the results of the other participants in the CASMI contest are described as far as necessary, but detailed descriptions were beyond the scope of this article. More extensive details on the challenges can be found in [23], while details about the participants and their results are reviewed in [24].

2. Methods

This section includes the parameters and reasoning used for the CASMI challenges and introduces measures to evaluate the results presented in this article.

2.1. Category 1: Best Molecular Formula with LC–MS/MS

MOLGEN–MS/MS [25] was used to calculate the entries for Category 1. The elements were restricted to C, H, N, O, P and S, as there was no evidence of halogens in any challenge (“el = CHNOPS”). The existence filter (“exist”, which restricts the results to molecular formulas where at least one structural formula is possible) was used, while both odd and even electron ions were allowed to explain MS/MS fragments (“oei”). As all data was quoted to be below 5 ppm accuracy, 5 ppm was used for MS matching (“ppm = 5”) and 10 ppm for MS/MS matching (“acc = 10”) since research shows that these are appropriate settings for Orbitrap MS/MS data [26]. For more details on the parameters see [1,25].

The information provided by the organisers and summarised in the listing below was used to decide whether calculations were performed with positive or negative ionisation. Where multiple MS/MS files were available, they were combined into one file with all peaks present, taking the peak with the highest intensity where multiple peaks were present within 10 ppm.

The exact parameters used were as follows:

Challenges 1, 4–6, 10, 12–15, 17: el = CHNOPS, ppm = 5, acc = 10, oei, exist, ion = +H.

Challenges 2–3: el = CHNOPS, ppm = 5, acc = 10, oei, exist, ion = −H.

Challenge 11: el = CHNOPS, ppm = 5, acc = 10, oei, exist, m = 232.088, ion = −e. Here, m = 232.088 set the mass for M+, and ion mode ‘−e’ corresponds with M+.

Challenge 16: el = CHNOPS, ppm = 5, acc = 10, oei, exist, m = 359.1481 ion = +e. Here, m = 359.1481 was used to set an M+ ion mass, with ion mode +e to obtain the corresponding formulas.

The combined MS and MS/MS MV (combMV) was used to score the candidates, except for Challenge 16, where only the MS/MS MV was used because the MS MV was zero.

The release of the preliminary evaluation in early February 2013 revealed that the parameter chosen for the MS/MS accuracy for Challenges 1–6 was incorrect and that the MS data for Challenges 2, 4 and 6 were unexpectedly outside the 5 ppm error margin given by the organisers. As a result, new entries were submitted for these challenges, using recalibrated data provided only after the close of the competition by the organisers for Challenges 2, 4 and 6 and the original files for Challenges 1, 3 and 5 with 5 ppm error for the MS and 60 ppm error for the MS/MS. All other parameters were left as above. The MS/MS parameter was revised using the correct answer to optimise the parameter selection, as the solutions were released with the preliminary evaluation. The value of 60 ppm was chosen based on the subformula assignment results of MOLGEN-MS/MS, as most “true” MS/MS peaks could be assigned a formula with this error margin, while using a smaller ppm error resulted in some true MS/MS peaks without a formula assigned. For higher accuracy data (5–20 ppm) this parameter selection can also be performed without knowledge of the solution, by investigating the error at which no additional peaks can achieve a subformula for any of the molecular formulas possible.

2.2. Category 2: Best Structure with LC–MS/MS

The submissions for this category required significant manual intervention as there is currently no integrated “MOLGEN” solution for high accuracy MS/MS data. The classifier interpretation and virtual fragmentation systems in MOLGEN–MS cannot be applied directly to high accuracy data without modification since different ionisation techniques and fragmentation pathways are relevant. An expansion to account for accurate mass binning, not unit mass, would also be necessary. Thus, the spectral interpretation was performed manually using prior knowledge and an alternative in silico fragmenter, MetFrag, was used to rank the candidates. Since manual interpretation is a time-consuming process and no specific classifiers for LC-MS/MS spectra exist (as far as the authors are aware), entries were only attempted for challenges where it was considered that the molecular formula and substructure information were (reasonably) certain. Substructure information was obtained from the MOLGEN–MS/MS output (fragments or losses associated with common groups) or from spectral interpretation based on previous experience. In the end, submissions were made for 6 of the 14 challenges where the correct formula was clear and sufficient substructure information was available. Following the release of the evaluation results it was clear that an error had been made in the substructure restrictions for Challenge 17; this was resubmitted following the close of the competition with correct substructures (see Section 3.2 for more details).

Structure generation was performed with MOLGEN 3.5 or MOLGEN 5, with information from the spectral interpretation added as substructures. For MOLGEN 3.5 this information was added as a macroatom or “good list” substructure for substructures considered to be present and as a “bad list” substructure for those suspected to be absent. These substructures were drawn and saved using MOLED [3]. The nitrogen valence was left at the default value of 3 as no evidence of a nitro group was found in the challenges we submitted (these generally give distinct fragmentation patterns). For MOLGEN 5.0 combinations of prescribed and forbidden substructures were used, which were provided as MDL MOL files [27] (other formats are available). Additional features of MOLGEN 5.0 were also used, including the definition of atom states; further details are given in Section 3.2. For all entries, steric energy values were calculated with MOLGEN-QSPR [9]. “M END” lines were added to MOLGEN 3.5 SDF files to avoid compatibility issues. SMILES notation was generated using OpenBabel [28], which was also used to generate SDFs without explicitly-defined aromaticity for Challenge 14. In silico fragmentation was performed using MetFrag [6] with the ionisation settings adjusted according to the information on the CASMI website and from the results of Category 1, with mzabs = 0.001 and mzppm = 10. The results of MetFrag and MOLGEN–QSPR were combined into a “consensus score” given below:

Metabolites 03 00440 i001
where E represents the steric energy and MFScore the MetFrag score. Note for Challenge 17 the command line version of MetFrag was used due to the large number of candidate structures: this version has a slightly different scoring scheme to the web interface.

2.3. Category 3: Best Molecular Formula with GC–MS

MOLGEN–MS [10,29] was used to calculate the entries for Category 3, with additional information from the NIST database included manually. For each challenge, the MSP file from the CASMI website [30] was sent to a NIST library search [20] to obtain substructure information. Following this, the CSV file for each challenge was imported into MOLGEN–MS and the MSclass module was run to obtain the database-independent substructure classifiers complementary to the NIST information. The information from NIST and MSclass was then used to formulate restrictions for the first molecular formula calculation with the MolForm module. The exact information used for the individual challenges is presented below. In MolForm, the formulas are scored according to the deviation between the experimental isotope distribution measured for the M ion and the theoretical distribution calculated for each matching formula. As the smallest deviation represents the closest match, this was adjusted to match the CASMI scoring requirements [31] according to the following:

Metabolites 03 00440 i002
resulting in a score between 0 and 1, where 1 is the best match and 0 the worst.

For two challenges, 11 and 12, the M+· ion was not present and the calculation with MolForm was not possible. In these cases the ElCoCo module was used, which uses the full spectrum to match the formulas, not just the isotope pattern of the M+· ions. Again, the full information is given below. The ElCoCo formulas are given a score between 0% and 100%, the higher the better. These scores were divided by 100 to make them consistent with the score above, although the values are not comparable.

The outputs of MolForm and ElCoCo were saved to a text file through the MOLGEN–MS interface and imported into Excel, where the scoring conversions mentioned above were performed.

The restrictions used, challenge-by-challenge, were as follows (NIST and MOLGEN–MS information combined for simplicity):

Challenge 1: C ≥ 7, O ≥ 2, H unlimited, F, Cl, Br, I, N, P, S, Si = 0. RDB = 6–7.

Challenge 2: C ≥ 7, O ≥ 2, N ≥1, H unlimited, F, Cl, Br, I, P, S, Si = 0. RDB = 7–8.

Challenge 3: O, Cl = 1, C, H unlimited. F, Br, I, N, P, S, Si = 0. RDB = 4.

Challenge 4: O, Cl = 1, C, H unlimited. F, Br, I, N, P, S, Si = 0. RDB = 4.

Challenge 5: Cl = 2, C, H unlimited. F, Br, I, N, P, S, O, Si = 0. RDB = 4.

Challenge 6: C, H unlimited. F, Cl, Br, I, N, P, S, O, Si = 0. RDB = 8. MW = 154. Note: the two highest peaks in the CSV file were removed to improve results; likely impurities.

Challenge 7: O = 1, Cl = 2, C, H unlimited. F, Br, I, N, P, S, Si = 0. RDB = 5.

Challenge 8: C, H unlimited. F, Cl, Br, I, N, P, S, O, Si = 0. RDB = 9.

Challenge 9: O = 1–2, Cl = 1, C, H unlimited. F, Br, I, N, P, S, Si = 0. RDB = 5.

Challenge 10: O = 1, Cl = 3, C, H unlimited. F, Br, I, N, P, S, Si = 0. RDB = 4.

Challenge 11: MW = 257; N = 1, O, S = 2–20, P = 1–20, C, H ≥ 4. F, Br, I, Si = 0.

Challenge 12: MW = 288; C ≥ 6, H ≥ 1, Cl ≥ 5. F, Br, I, N, P, S, O, Si = 0. RDB = 1.

Challenge 13: S = 1–20, C, H unlimited. F, Cl, Br, I, N, P, S, Si = 0.

Challenge 14: C ≥ 1, H ≥ 3, O= 3, P, S ≥ 1. F, Cl, Br, I, N, Si = 0.

Challenge 15: C ≥ 12, H, N ≥ 0, O ≥ 1. F, Cl, Br, I, P, S, Si = 0. RDB = 9.

Challenge 16: C, P, S ≥ 1, H ≥ 3, O = 2, N unlimited. F, Cl, Br, I, Si = 0.

Note: The RDB values (Ring and Double Bond count) were not always used explicitly to restrict the candidates in the entries for Category 3; however they were used to select the formula before moving on to Category 4.

2.4. Category 4: Best Structure with GC–MS

Similarly to Category 3, MOLGEN–MS [10,29] was used to calculate the entries for Category 4, with additional information from the NIST database included manually. The formula calculated as part of Category 3 was used for input into the MolIn module, along with the MOLGEN–MS and NIST classifier information. The classifiers were checked for consistency with the molecular formula. Moving onto the MOLGEN module, all structures were generated fitting the given restrictions. The substructures used are given in Figures A1–A15 in the appendix.

Following structure generation, all structures were fragmented in the MOLGEN–MS module ReNeGe (Reaction Network Generator) to generate the MOLGEN–MS match value for ranking the candidate structures. Following the ranking, the structures (including the match value) were exported as SDF for further processing.

For Challenges 1 and 2, standards were present for the calculation of retention indexes but were not used due to the detailed substructure information available. As such, the only additional information used for candidate selection was the steric energy, calculated with MOLGEN-QSPR [9]. The steric energy was calculated by importing the SDF from MOLGEN–MS, adding hydrogens, calculating the 3D layout with 10 iterations and finally calculating the steric energy index. The resulting value (kcal/mol) was exported as a text file with the structure number. For Challenges 1 and 2, the resulting “consensus score” was

Metabolites 03 00440 i003
where E represents the steric energy and MV the MOLGEN–MS match value.

For Challenges 3–16, partitioning information (log Kow) was given and was incorporated into the candidate selection for these challenges. The log Kow values were calculated with the EPI SuiteTM Kowwin module in batch mode. If the candidate structure had an estimated log Kow within the given range ± 1, this was considered a match (Kow0,1 = 1); if the log Kow was outside this range, it was not considered a match (Kow0,1 = 0). The steric energy was also considered for these challenges as for Challenges 1 and 2. The resulting consensus score for Challenges 3–16 for Category 4 was:

Metabolites 03 00440 i004

2.5. Evaluation Measures and Ranking

Two measures, in addition to the absolute rank, were used to assess the results presented in this article. One of these is the relative ranking position, RRP, which is defined here as

Metabolites 03 00440 i005
where BC, WC and TC are the better, worse and total candidates, respectively. As opposed to the RRP used in CASMI [24], RRP = 0 is best, RRP = 1 is worst and the values are comparable with previous calculations (RRP = 0.273 for MOLGEN-MS, see e.g., [32]). Another measure is the number of possible structures for a given formula. These were generated using MOLGEN 3.5, with atom valences consistent with those used for the CASMI challenges. Generation was restricted to 100,000,000 structures (indicated by >1E8 in the tables when this limit was reached) and an estimate of the percent of all possible structures covered (from MOLGEN 3.5) is provided for these cases.

3. Results and Discussion

3.1. Category 1: Best Molecular Formula with LC–MS/MS

The results for this category are presented in Table 1.

Table Table 1. MOLGEN–MS/MS results for Category 1 (best molecular formula with LC–MS/MS data). Numbers in brackets denote the number of candidates with equal scores, ranks shown are best case absolute ranks. NA is not applicable (i.e., no results). Remaining abbreviations: see text.

Click here to display table

Table 1. MOLGEN–MS/MS results for Category 1 (best molecular formula with LC–MS/MS data). Numbers in brackets denote the number of candidates with equal scores, ranks shown are best case absolute ranks. NA is not applicable (i.e., no results). Remaining abbreviations: see text.
Challenge NumberMolecular FormulaPubChem CIDFormulas EnteredRank with MS MVRank with MS/MS MVRank with combMVRank of Winner
1C18H36N4O11603254121 (38)111
2C28H32O14528066524911 (239)11
3C14H27NO9S34617387590127 (25)141
4C19H17NO4123041781511 (10)11
5C19H23NO4102331011 (13)11
6C21H21NO61977753111 (19)12
10C14H9NO2671031111
11C17H12O10497761 (6)1 (4)1 (4)NA
12C17H16N4O4221491181 (18)1 (4)1 (4)NA
13C19H17OP762931011 (3)11
14C12H9N9861721111
15C12H13NO22145522211 (2)11
16C18H21N3O5 1809161620NA2 (3)2 (3)NA
17C13H13N36838031111

Nine of the 14 entries were “unique” number 1 ranks, specifically Challenges 2, 4–6, 10, 13–15 and 17, while two of the remaining five entries had the correct formula in equal top place with three other formulas (Challenges 11 and 12). These are shown as rank 1 in Table 1, although this was assessed at an absolute rank of 4 in the evaluation performed by the CASMI organisers [24]. For these two challenges, the MS MVs were the same for all candidates due to the non-standard ionisation behaviour and thus all formulas with the same number of fragments matching a subformula had the same score. Not even a more sophisticated weighting of the mass or intensity of the fragments would have helped here as the same peaks were explained for all equally-ranked formulas. The error margin of 60 ppm for the MS/MS was very large and resulted in multiple subformulas for many of the peaks in the earlier challenges, as is apparent in the number of candidates with equal MS/MS MV scores in Table 1.

Only three challenges did not have the correct formula scored the highest: Challenges 1, 3 and 16. Challenge 1 showed a distinct improvement in the ranking with the more appropriate error margins of 60 ppm, with the correct formula ranked 11th and not 23rd in the earlier submission. This improvement is due to the increased subformula assignment for the correct formula. This was the only challenge where the MS MV was not highest for the correct formula; greater accuracy in the MS/MS may have improved this rank further. Challenge 3 was the worst result and the only case where using the combMV worsened the rank of the correct molecule, most likely due to the large errors in the MS/MS. Challenge 16 underwent in-source fragmentation and thus the MS MV was 0 as neither parent ion nor isotope peaks were present. Three formulas, including the correct one, explained the same number of MS/MS peaks, but one incorrect formula explained some additional peaks, improving its ranking above the correct formula. In reality, it would have been very difficult to detect the in-source fragmentation and deduce the correct parent mass; only the fact that the neutral mass of the molecule was given by the organisers enabled the submission of the correct answer. Interestingly, Table 1 shows that the MS MV determined the rank in most cases, although this is not always true (see e.g., [1]).

In the end, eight of the 14 submissions were ranked equally with the CASMI winner, one exceeded the rank of the CASMI winner (Challenge 6, although with the corrected data, unlike the CASMI winner) and results were obtained for three challenges where no winner was declared (i.e., no external participant obtained the correct answer).

3.2. Category 2: Best structure with LC–MS/MS

As this category did not have an integrated MOLGEN solution, submissions were only made for six of the 14 challenges with informative MS and MS/MS spectra. These results are shown in Table 2.

Table 2 clearly shows the reduction in structure numbers from >100,000,000 to below 1500 in all 6 cases and even below 50 in 4 cases. This highlights the critical role that the substructure information plays in identification using structure generation approaches. However, the restrictions for candidate generation were provided manually based on experience. As these challenges were provided by one of the authors (ES), the selection of substructure restrictions was made significantly easier (and consequently also not truly unbiased) due to extensive prior experience with these and similar compounds. Thus, these results may be close to a ‘best case scenario’ for these challenges. Since Challenges 10–17 are relatively small molecules, they are also well suited to structure generation approaches. The lack of experience with mass spectrometry of natural products and plant metabolites as well as the lack of certainty about the correct molecular formula (see the previous section) contributed to the decision not to enter Challenges 1–6. CASMI winners were declared for three of the six challenges in Table 2 and the MOLGEN ranks were surprisingly comparable, especially considering that the winner of Challenges 13 and 15 used spectral libraries [24,33].

Table Table 2. MOLGEN results for Category 2 (best molecular structure for LC–MS/MS). NA is not applicable (i.e. no results).

Click here to display table

Table 2. MOLGEN results for Category 2 (best molecular structure for LC–MS/MS). NA is not applicable (i.e. no results).
Challenge NumberMolecular FormulaPubChem CIDStructures Possible(%)Structures Entered MOLGEN RankMOLGEN RRPRank of Winner
10C14H9NO26710>1E8 (<1%)171630.365NA
11C17H12O104977>1E8 (<1%)830.286NA
13C19H17OP76293>1E8 (<1%)430.6671
14C12H9N98617>1E8 (18%)41220.52512
15C12H13NO22145522>1E8 (1.5%)32260.8061
17C13H13N368380>1E8 (<1%)1295580.044NA

Challenge 10 (C14H9NO2; 1-aminoanthraquinone):

The MS/MS of this compound contained some distinctive fragments and losses. The loss at 105.033 suggested a benzaldehyde substituent, while the losses of water and carbonyl groups combined with the high ring and double bond equivalents (DBE) suggested a stable molecule with carbonyl groups contributing to aromaticity. The lack of NO or NO2 losses indicated that a nitro group was unlikely to be present, while the lack of an NH3 loss appeared to indicate a ring-bound N. A reasonable number of structures were generated by defining two benzaldehyde groups, with one forced to have only one substituent in the ortho-position to allow formation of the aromatic system. As aromatic bridged substances are rare, meta- and para-substitution on one of the aromatic rings could be ruled out, which cut down the number of possible structures dramatically. The resulting substructure restrictions are shown in Figure 1. The resulting number of structures, 171, is many orders of magnitude lower than the number of possible structures for this formula, while the RRP (0.365) is comparable with the RRPs of MOLGEN–MS and Mass Frontier calculated on datasets with less than 200 molecules (0.352–0.393 [12,32]). As some of the fragments observed for this compound result from rearrangement reactions that were not predicted by the in silico fragmentation reactions incorporated in MetFrag (one example is the water loss from a carbonyl group), it is possible that this ranking could be improved in the future, for example by adding an additional in silico fragmentation approach to the consensus score ConScoreCat2.

Challenge 11 (C17H12O; 1-pyrenemethanol):

The MS/MS of this compound contained strong evidence for a stable aromatic compound with only one substituent. The fact that a [M–H]+ oxidation product was detected indicated that the OH group was more likely to be present on a substituent, not in the aromatic ring system. No fragments resulted from the aromatic system and it was concluded from the formula that two 4-ring systems were possible. These were provided to MOLGEN as macroatoms (see Figure 2). As there is no “OR” option for macroatoms and defining such groups as good list structures would lead to prohibitively long calculation times, two MOLGEN runs were merged into one for the CASMI submission. The resulting total number of structures is again many orders of magnitude lower than the total number possible for this molecular formula without restrictions. Eight structures were generated: 5 from the fluoranthene skeleton (Run 1) and 3 from the pyrene skeleton (Run 2), as a result of symmetry and aromaticity. Both runs completed in <0.01 s. The final rank, 3 of 8, was almost by chance; without detailed fragments of the aromatic system, spectra of several isomers or retention times, these eight candidates were essentially equivalent for the MS/MS information given. All candidates had the same MetFrag scores and the ranking is purely influenced by the steric energy calculation, which had little relevance as all candidates are equally likely in a chemical sense.

Metabolites 03 00440 g001 1024
Figure 1. Substructures for Challenge 10. Letters to the bottom left indicate (M) macroatom; (BL) bad list (forbidden) structures. FV = free valence.

Click here to enlarge figure

Figure 1. Substructures for Challenge 10. Letters to the bottom left indicate (M) macroatom; (BL) bad list (forbidden) structures. FV = free valence.
Metabolites 03 00440 g001 1024
Metabolites 03 00440 g002 1024
Figure 2. Substructures for Challenge 11. Letters to the bottom left indicate (M) macroatom; (GL) good list (prescribed); (BL) bad list (forbidden) structures. FV = free valence.

Click here to enlarge figure

Figure 2. Substructures for Challenge 11. Letters to the bottom left indicate (M) macroatom; (GL) good list (prescribed); (BL) bad list (forbidden) structures. FV = free valence.
Metabolites 03 00440 g002 1024

Challenge 13 (C19H17OP; benzyldiphenylphosphine oxide):

The fragmentation patterns arising from this challenge indicated the presence of three aromatic substituents, two phenyl groups and one benzyl or methyl-phenyl group. The remaining part of the formula indicated that it was likely to be a phosphine compound. The corresponding substructure information provided to MOLGEN is shown in Figure 3. Generation was very quick (0.01 s) and resulted in 4 structures after aromatic doublet filtering. Again the final rank of 3 from 4 was almost by chance; all structures had the same MetFrag score so the consensus scoring was influenced purely by very minor differences in steric energy between the structures.

Challenge 14 (C12H9N; 1H-benz[g]indole):

Challenge 14 was measured at very high collision energy and all losses seemed to indicate the break-up of an aromatic system. The loss of CHN implied that nitrogen was part of the aromatic system. However, with 13 heavy (i.e., non-H) atoms, this aromatic system did not strictly adhere to the Hückel aromaticity rule, which leaves one atom with one H more than usual in an aromatic system. A total of 4 aromatic ‘skeletons’ were possible, shown in Figure 4, which makes defining a macroatom with MOLGEN 3.5 very difficult, since the location of the N or the double bonds cannot be defined. Likewise, defining potential good list structures would have meant effectively hand-drawing all possibilities, which is not the point of a structure generator. Even with only 13 heavy atoms, there are too many molecules possible to generate all molecules using a simpler restriction, e.g., adding a benzene ring only.

Metabolites 03 00440 g003 1024

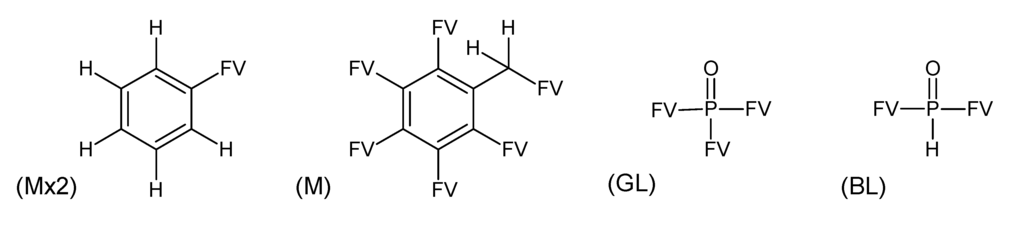

Figure 3. Substructures for Challenge 13. Letters to the bottom left indicate (Mx2) two macroatoms; (M) macroatom; (GL) good list; (BL) bad list structures. FV = free valence.

Click here to enlarge figure

Figure 3. Substructures for Challenge 13. Letters to the bottom left indicate (Mx2) two macroatoms; (M) macroatom; (GL) good list; (BL) bad list structures. FV = free valence.
Metabolites 03 00440 g003 1024
Metabolites 03 00440 g004 1024

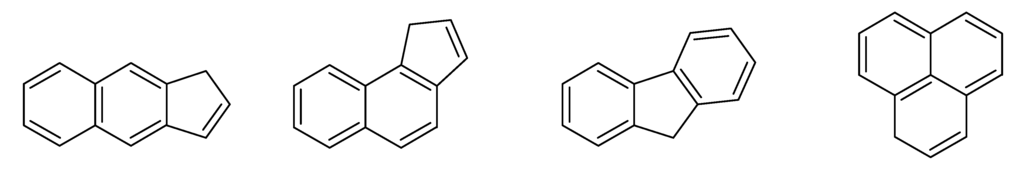

Figure 4. Aromatic skeletons for Challenge 14.

Click here to enlarge figure

Figure 4. Aromatic skeletons for Challenge 14.
Metabolites 03 00440 g004 1024

MOLGEN 5.0 was the more flexible option in this case, with the ability to define atom types and the functionality to generate the molecules with the required restrictions. The following restrictions were used via the command line options:

bondsa 11–12: There are 11 or 12 aromatic bonds, corresponding to two condensed aromatic 6–rings (naphthalene skeleton) or two disjoint aromatic 6–rings.

ringsize 5–13: to avoid rings of size three and four.

badlist badlist2.sdf: a list of 14 ‘bad’ bridged aromatic substructures, see [4,5].

badlist SideChainTerminals.sdf: a badlist of substructures that occur at the end of side chains, including –CH3, =CH2, –NH2 and =NH, to prevent the occurrence of side chains.

These restrictions resulted in the generation of 41 structures, approximately eight orders of magnitude reduction from the total number of structures possible with this formula, but with a significantly higher run-time than for MOLGEN 3.5 for similar sized molecules with well-defined macroatoms. For instance, the two runs in Challenge 11 took <0.01 s each; on the same machine MOLGEN 5.0 took exactly 1 h to complete the generation for Challenge 14. However, the resulting 41 structures were much more useful than trying to get a similar output with MOLGEN 3.5 using manually-defined restrictions. Note: a direct run-time comparison cannot be made here as the appropriate macroatoms cannot be defined for this case. The final ranking of 22 of 41 structures was again a reflection of the similarity of all resulting molecules; the top 25 structures had quite high MetFrag scores and the correct structure is the lowest of these. It is likely that spectral information from several isomers would be needed to rank these candidates properly.

Challenge 15 (C12H13NO2; 1-Isopropyl-5-methyl-1H-indole-2,3-dione):

This challenge required a very restrictive macroatom, which almost involved elucidating the full structure by hand. The loss of a C3H6 group is often an isopropyl substituent, but a propyl substituent could not be ruled out conclusively and thus had to be included in the structure generation. The peak at 91 indicated a methyl-substituted benzene, while the successive loss of water combined with the high DBE and the high collision energies involved in the MS/MS acquisition indicated once again that a stable ring structure with carbonyl groups, not hydroxyl substituents, was likely. The peak at 106 (C7H8N) indicated that an N was attached to the benzene group, as well as a methyl group. This suggested that the two carbonyl groups must be adjacent and provided enough evidence for the indole-dione macroatom, shown in Figure 5 (along with the other restrictions). The resulting 32 isomers, approximately nine orders of magnitude lower than the total number of structures possible for this formula, were generated within 0.02 s. The ranking is 26 out of 32 and the corresponding RRP = 0.806 is much higher (and thus worse) than the average RRP for ranking using in silico fragmentation, even with small structure sets (see above). Although all candidates had relatively high scores, the correct candidate had one of the lowest MetFrag scores (0.839), despite having more peaks explained than other structures. MetFrag cannot explain the water losses resulting from carbonyl groups using the bond-breaking approach, resulting in the lower score. However, by using detailed substructure information and structure generation, the absolute MOLGEN rank of 26 was above the MetFrag result submitted by Ruttkies et al. [34], which had an absolute rank of 316 of 2585 possible candidates retrieved by compound database searching. The rank of 26 was, however, not able to compete with the CASMI winner (see Table 2).

Metabolites 03 00440 g005 1024

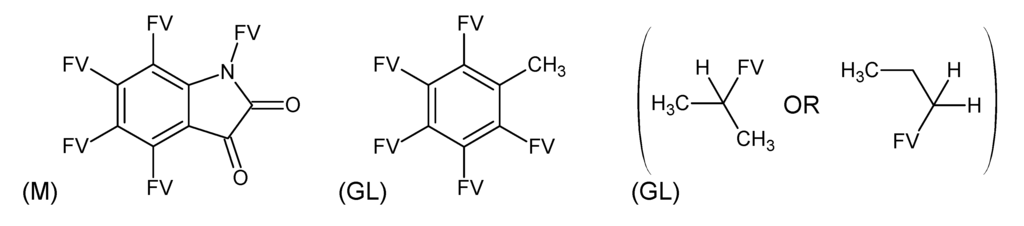

Figure 5. Substructures for Challenge 15. Letters to the bottom left indicate (M) macroatom; (GL) good list; brackets enclose those considered as “or”. FV = free valence.

Click here to enlarge figure

Figure 5. Substructures for Challenge 15. Letters to the bottom left indicate (M) macroatom; (GL) good list; brackets enclose those considered as “or”. FV = free valence.
Metabolites 03 00440 g005 1024

Challenge 17 (C13H13N3; Nitrin):

The first CASMI entry for this challenge did not contain the correct solution despite submitting a solution containing 1590 candidates, demonstrating how easy it is to miss the correct structure if an incorrect substructure is added. In this case several fragments containing C7H8N groups or losses seemed to suggest a methyl substituent, although the lack of a fragment at 91 (C7H7) should have indicated that this was incorrect. As a chance to resubmit entries was offered once the solutions were out, the correct substructure restrictions were used in a resubmitted entry (which was not improved in hindsight apart from removing the incorrect CH3 group). The substructure information used is shown in Figure 6. The presence of the macroatom to the right was justified by the numerous fragments and losses involving a benzene with nitrogen attached, while the NH2 group was also the first loss, indicating that not all Ns were bound within a chain or a ring. Although the peak at 77 was very small, it indicated the presence of an unsubstituted phenyl (C6H5). Being able to define one of the aromatic substituents with fixed Hs instead of free valences was very important to reduce the number of structures and especially bridging structures generated. Despite these restrictions, a total of 1295 structures were generated, which were fragmented using the command line version of MetFrag as this overloaded the web interface. The final rank was 58 of 1295 and the resulting RRP = 0.044 is much lower (and thus better) than the average RRP for MOLGEN-MS of 0.273, indicating an above-average ranking success. The absolute rank was close to the ranks achieved by the other (internal) participants with MetFrag (21) and MetFusion (40) using compound databases, while no external participant submitted the correct answer and thus no CASMI winner was declared for this challenge. The final rank was influenced both by the in silico fragmentation and steric energy calculation.

Metabolites 03 00440 g006 1024

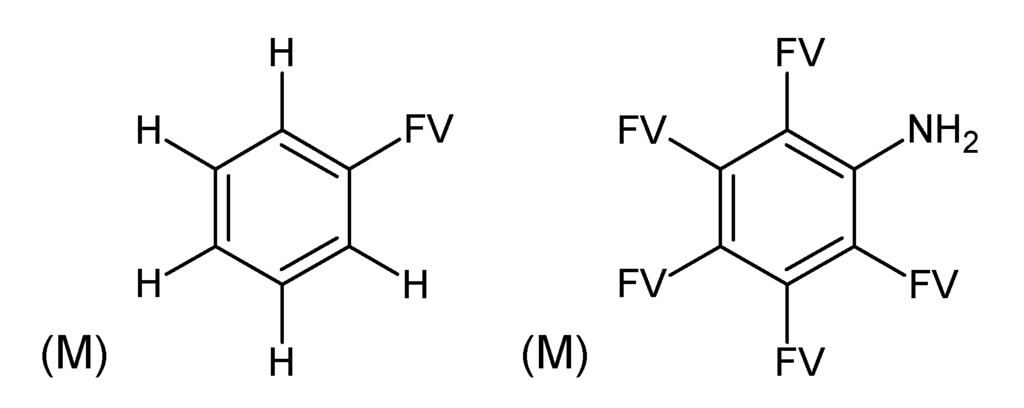

Figure 6. Substructures for Challenge 17. (M) indicates macroatom; FV = free valence.

Click here to enlarge figure

Figure 6. Substructures for Challenge 17. (M) indicates macroatom; FV = free valence.
Metabolites 03 00440 g006 1024

3.3. Category 3: Best Molecular Formula with GC–MS

The next two sections contain the results for the GC–MS data, where the entries were calculated using MOLGEN–MS. The results are summarised in Table 3.

Table Table 3. MOLGEN–MS results for Categories 3 and 4 (best molecular formula and structure for GC–MS). NA is not applicable (i.e., no results, not defined).

Click here to display table

Table 3. MOLGEN–MS results for Categories 3 and 4 (best molecular formula and structure for GC–MS). NA is not applicable (i.e., no results, not defined).
Challenge NumberMolecular FormulaPubChem CIDFormulas EnteredRank of CorrrectPossible StructuresStructures EnteredRank of Correct RRP
1C8H4O36552514,161,9699319(2)0.201
2C8H5NO265502138,484,5718010
3C7H7ClO267991162,643331
4C7H7ClO128231162,643320.5
5C6H4Cl21386681711132331(2)0.25
6C12H1064782137,720,01218750.021
7C7H5ClO2607911507,196310
8C13H10659211>1E8 (40%)9010
9C8H7ClO211402115,160,746331
10C6H3Cl3O211061721119,969620.2
11C6H12NO4PS216412151>1E8 (4%)4510
12C6H6Cl61046851114142111NA
13C3H6S3159595110213131
14C3H9O3PS86861119,05411NA
15C12H8O55111>1E8 (30%)1910
16C3H9PS2O2291658127,77611NA

The only challenge with the formula ranked below first place in Category 3 was Challenge 11, which was calculated using ElCoCo as the M+· ion was not present. Realistically, this challenge was one of those cases where CASE via MS is often unsuccessful because multiple formulas would need to be considered to perform a completely unbiased CASE, which leads to a very high number of candidates and thus a very low chance of success. The remaining challenges were very small molecules and it is not surprising that the formulas were correct with the combined substructure information from NIST and MOLGEN–MS. Since there were no other participants in this category, these results are not discussed in greater detail.

3.4. Category 4: Best Structure with GC–MS

The results for this category show that CASE via MS, even low resolution MS, is certainly achievable in many cases. Although these molecules are quite small, thousands and even hundreds of thousands of structures are possible for the correct formulas, shown in Table 3. The substructure information from MOLGEN–MS and NIST is essential in limiting the number of candidate structures, by several orders of magnitude in most cases. The detailed substructure information used for these calculations are given in Figures A1–A15 in the appendix.

Of the 16 challenges, eight had the correct structure in first place. This high success rate was mainly due to the low number of candidates generated in many of the challenges because of the successful substructure assignments. Of those eight challenges, three (Challenges 12, 14 and 16) had only one candidate, and the RRP is not defined as the total number of candidates must be greater than one for this calculation. For Challenge 7, the correct structure was one of three isomers and the ranking in first place was by chance. Four other challenges had only three isomers possible (Challenges 3, 4, 5 and 9) with the correct structure ranking second (Challenges 4 and 5) or third. The score, based on the fragmentation, log Kow and steric energy, was unable to provide sufficient decision-making strength to separate positional isomers of aromatic compounds. So far, no CASE via MS approach has matched the success of the established MS databases such as NIST, which are typically able to identify common positional isomers correctly. The results for Challenge 10 were similar to those above, with six possible isomers instead of three; the correct one was ranked in second place, also by chance.

The challenges with more structural candidates were more interesting and the additional parameters used in the scoring were valuable in improving the rank of the correct structures. Challenges 2, 8 and 15 had the correct structure in first place with over 10 candidates (80, 90 and 13, respectively) that were not just positional isomers. All three challenges were aromatic systems and as such, the steric energy component of the consensus score was the part that determined the correct rank. Challenge 11 also had the correct candidate in first place, but in this case the partitioning behaviour was the critical factor that separated correct from incorrect; only three of the 45 candidates were within the logKow range given, and the correct candidate had the highest match value of the three. The RRP of these four challenges (2, 8, 11 and 15) is 0 and compares very favourably with the average of 0.273 for MOLGEN–MS. Challenge 6 had the correct candidate fifth of 187 and the RRP = 0.021 is also much lower (and thus better) than the MOLGEN–MS average RRP using fragmentation patterns alone. This was also an aromatic structure where the steric energy assisted in elevating the rank of the correct structure. However, in this case all candidates had very similar match values and there were six candidates with low steric energy. This resulted in the rank of 5th. Although Challenge 1 also had RRP below 0.273, the absolute rank (and thus RRP) could be improved using additional information from partitioning or retention behaviour; the former was not given and we did not incorporate the latter as this is not part of the MOLGEN products per se. Unlike in Challenge 2, the steric energy was not enough to separate the correct candidate from the incorrect structures here. Finally, the poor results for Challenge 13 (RRP = 1, i.e., ranked last) resulted from a quite simple but symmetrical structure with unspecific substructure classifiers. As a result of the symmetry, fewer fragments were predicted for this structure than for the other structural candidates. As the molecules were all similar, the steric energy and partitioning behaviour had no significant effect on the ranking and the match value determined the ranking. This effect was seen quite often in [32], but this has not yet been successfully incorporated into a modified match value.

4. Conclusions and Perspectives

Although the MOLGEN entries would not have won CASMI, even if considered as an official participant, these entries demonstrate that CASE via MS is certainly possible. The success of this approach depends strongly on the retrieval of very good substructure information from the spectrum. While this is automated for GC–MS with MOLGEN–MS, this is not yet the case for high accuracy MS/MS data, although very interesting developments have been made in recent years with interpretation of fragmentation trees (e.g., [35,36]) as well as maximum common substructures (e.g., [37,38]). The results of Category 2, performed by hand here and using experience rather than automated interpretation, provided perhaps a best case scenario for these challenges due to one of the authors’ prior experience with some of these compounds. Unlike some other structure generators that have been used recently for CASE via MS/MS (e.g., [38,39]), the fact that MOLGEN allows overlapping substructures and multiple good list (prescribed) and bad list (forbidden) entries (in MOLGEN terms) is a distinct advantage and is extremely valuable in structure elucidation via MS and MS/MS, where substructure information is often limited.

The maximum common substructure approach is an interesting alternative approach to the “hand-picked” substructures used here and is a good starting point to obtain clues for the identity of an unknown. However, it could be easy to neglect very similar substructures (e.g., positional isomers) that have the same or similar spectra or fragmentation patterns. These oversights could result in a significant underestimation of the number of candidates possible and lead to overly optimistic success rates that do not always represent the real situation accurately. Alternatively, a very small maximum common substructure could be the result, which would not provide sufficient restriction for structure generation. Although one could say for natural products that many of the common groups are known, in reality these are only the metabolites that have been identified so far and hundreds of thousands of metabolites remain unidentified [40]. In the majority of cases, MS/MS databases are still too small to determine conclusively whether positional isomers of a maximum common substructure would have the same fragmentation patterns or not. When using the maximum common substructure approach, caution is needed to “relax” the information in the maximum common substructure to accurately reflect the information one could expect from a mass spectrum.

All in all, the results shown here and in recent publications indicate that CASE via MS and especially HR–MS is certainly plausible and is an area that needs to be pursued actively in current and future research. It would be very interesting for future CASMIs if other research groups using structure generation approaches would participate to allow a real comparison of the results using different approaches and generators, rather than only speculating about advantages and disadvantages of different approaches.

Conflict of Interest

ES was an organiser of CASMI 2012 and participated along with MM as a MOLGEN team to ensure that structure generation approaches were represented in the CASMI special issue. These entries were compiled in as unbiased a way as possible, but prior experience influences the results. These entries were not considered in declaring the winner of the CASMI competition. MM belongs to the MOLGEN development team that distributes the MOLGEN software for a nominal fee. ES does not profit directly from the sales of MOLGEN but collaborates closely with the MOLGEN developers and benefits from special license conditions.

Acknowledgements

Our thanks go to all those involved in the development of the various MOLGEN programs, in particular Ralf Gugisch, Adalbert Kerber, Reinhard Laue and Christoph Rücker, as well as Kurt Varmuza and Wolfgang Werther for the classifier development. Thanks to Steffen Neumann for help with coding and Christoph Ruttkies for providing assistance with MetFrag calculations. ES gratefully acknowledges the EU funding for the Marie Curie Postdoctoral Fellowship (Grant number 299734). Junho Jean and Jennifer Schollée and the peer reviewers provided valuable comments and helped improve the manuscript.

A. Appendix

A.1. Substructures for CASMI Category 4: GC Challenges

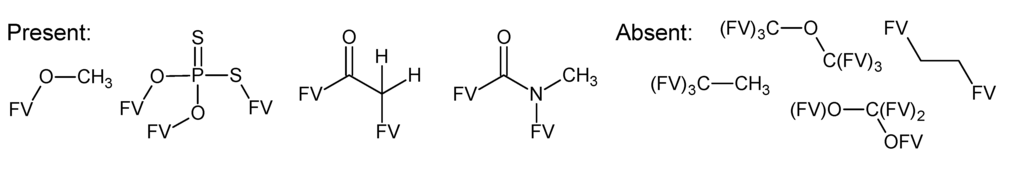

The substructures used for preparing the entries for CASMI Category 4, structure identification using GC–MS, are given in Figures A1–A15.

Metabolites 03 00440 g007 1024

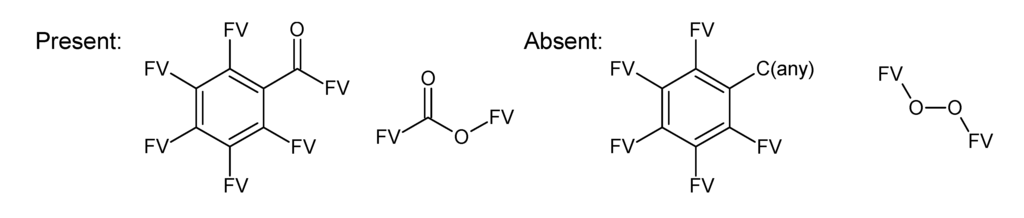

Figure A1. Substructures for GC–MS Challenge 1. FV = free valence.

Click here to enlarge figure

Figure A1. Substructures for GC–MS Challenge 1. FV = free valence.
Metabolites 03 00440 g007 1024
Metabolites 03 00440 g008 1024

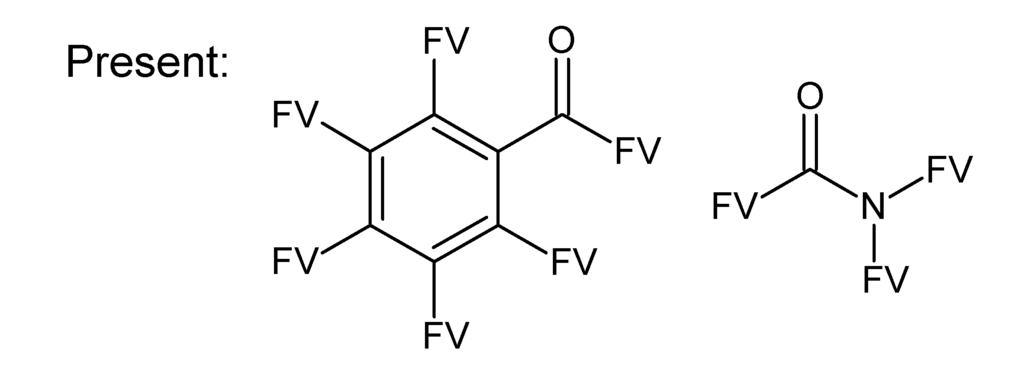

Figure A2. Substructures for GC–MS Challenge 2. FV = free valence.

Click here to enlarge figure

Figure A2. Substructures for GC–MS Challenge 2. FV = free valence.
Metabolites 03 00440 g008 1024
Metabolites 03 00440 g009 1024
Figure A3. Substructures for GC–MS Challenges 3 and 4. FV = free valence.

Click here to enlarge figure

Figure A3. Substructures for GC–MS Challenges 3 and 4. FV = free valence.
Metabolites 03 00440 g009 1024
Metabolites 03 00440 g010 1024

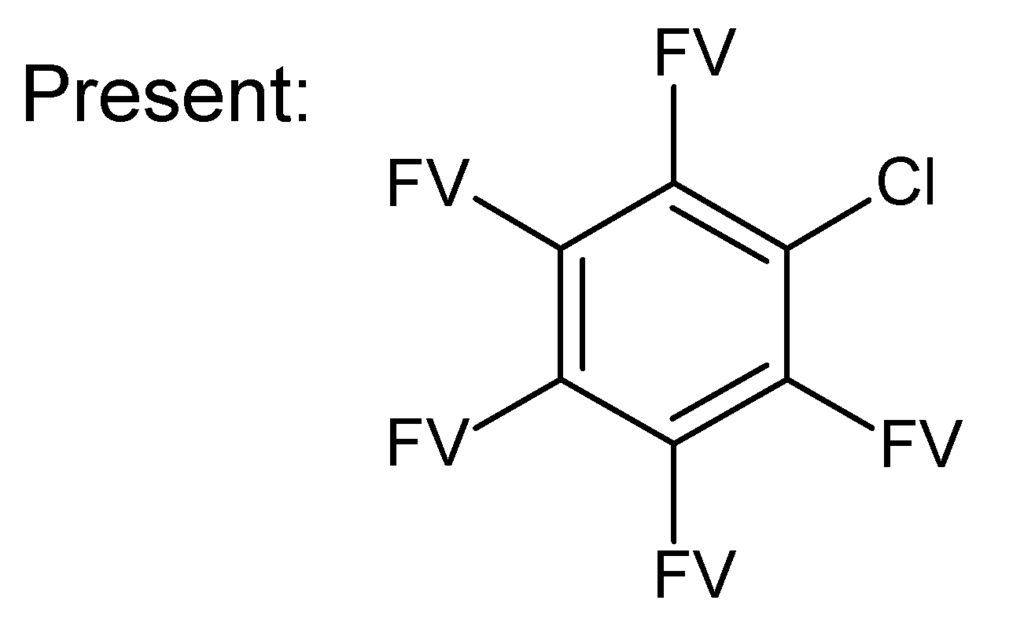

Figure A4. Substructures for GC–MS Challenge 5. FV = free valence.

Click here to enlarge figure

Figure A4. Substructures for GC–MS Challenge 5. FV = free valence.
Metabolites 03 00440 g010 1024
Metabolites 03 00440 g011 1024

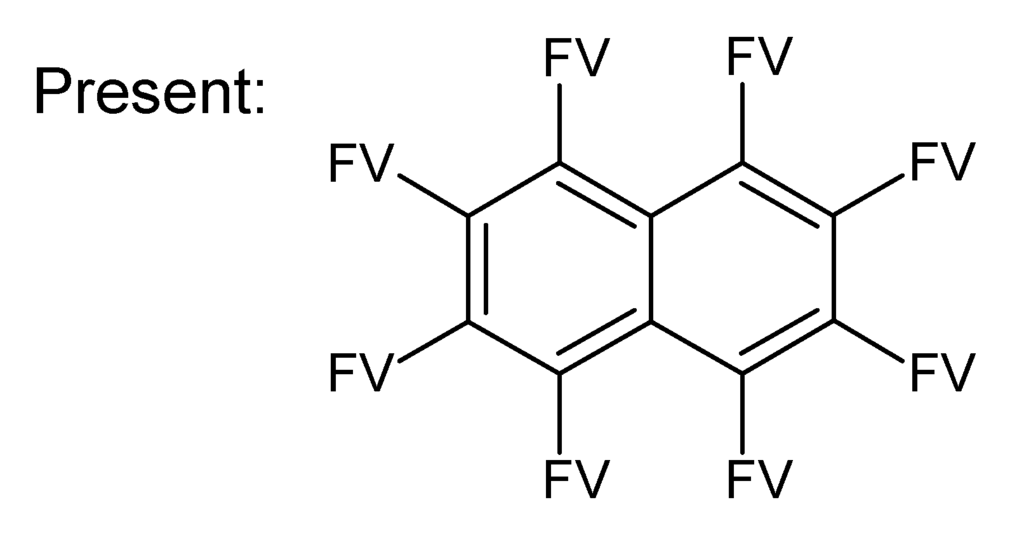

Figure A5. Substructures for GC–MS Challenge 6. FV = free valence.

Click here to enlarge figure

Figure A5. Substructures for GC–MS Challenge 6. FV = free valence.
Metabolites 03 00440 g011 1024
Metabolites 03 00440 g012 1024

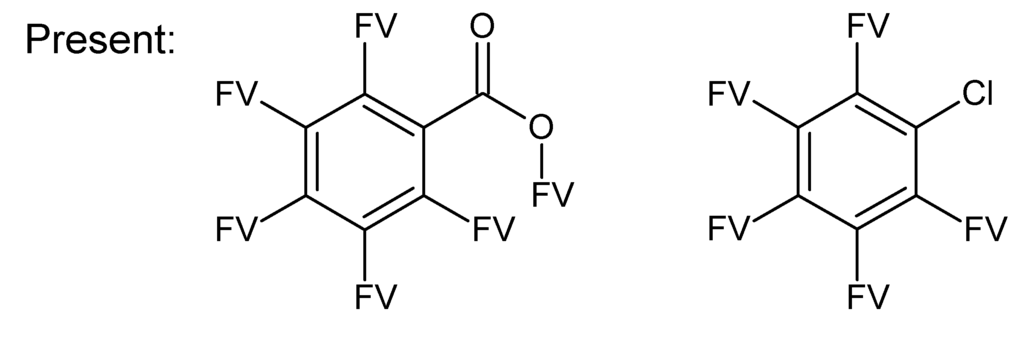

Figure A6. Substructures for GC–MS Challenge 7. FV = free valence.

Click here to enlarge figure

Figure A6. Substructures for GC–MS Challenge 7. FV = free valence.
Metabolites 03 00440 g012 1024
Metabolites 03 00440 g013 1024

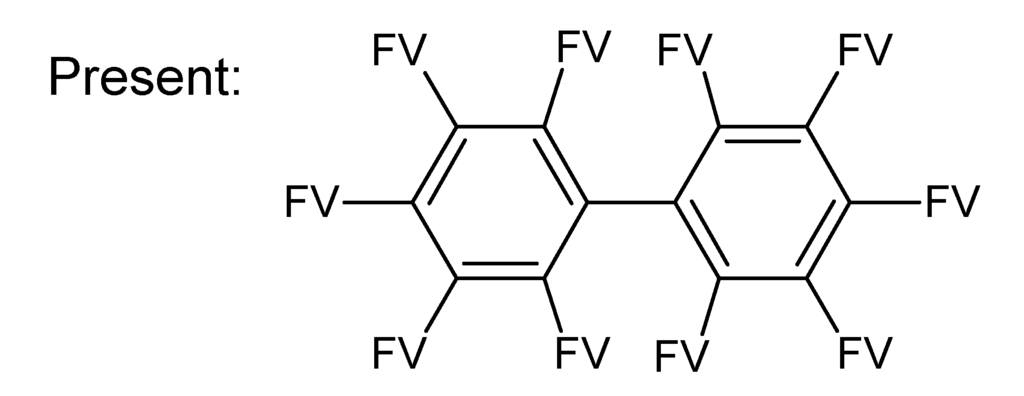

Figure A7. Substructures for GC–MS Challenge 8. FV = free valence.

Click here to enlarge figure

Figure A7. Substructures for GC–MS Challenge 8. FV = free valence.
Metabolites 03 00440 g013 1024
Metabolites 03 00440 g014 1024

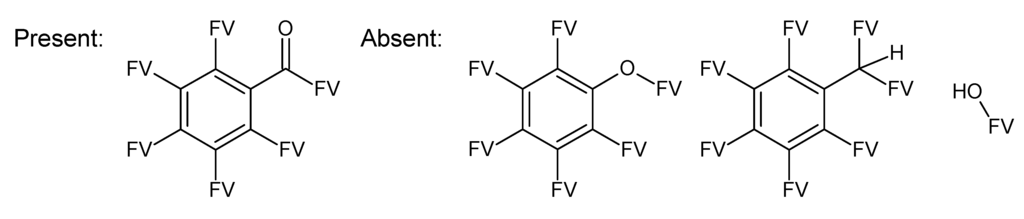

Figure A8. Substructures for GC–MS Challenge 9. FV = free valence.

Click here to enlarge figure

Figure A8. Substructures for GC–MS Challenge 9. FV = free valence.
Metabolites 03 00440 g014 1024
Metabolites 03 00440 g015 1024

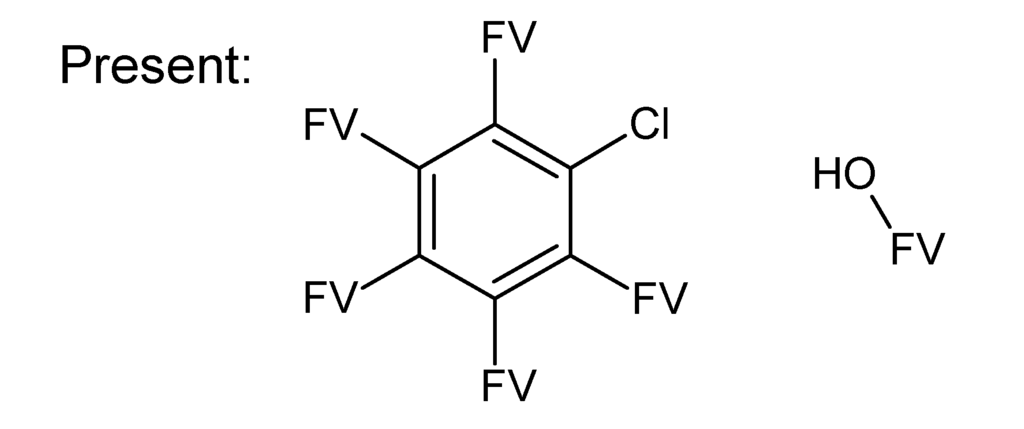

Figure A9. Substructures for GC–MS Challenge 10. FV = free valence.

Click here to enlarge figure

Figure A9. Substructures for GC–MS Challenge 10. FV = free valence.
Metabolites 03 00440 g015 1024
Metabolites 03 00440 g016 1024
Figure A10. Substructures for GC–MS Challenge 11. FV = free valence.

Click here to enlarge figure

Figure A10. Substructures for GC–MS Challenge 11. FV = free valence.
Metabolites 03 00440 g016 1024
Metabolites 03 00440 g017 1024

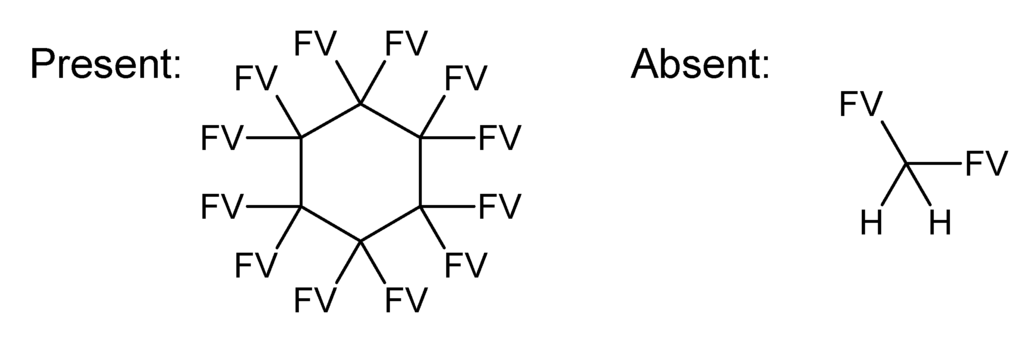

Figure A11. Substructures for GC–MS Challenge 12. FV = free valence.

Click here to enlarge figure

Figure A11. Substructures for GC–MS Challenge 12. FV = free valence.
Metabolites 03 00440 g017 1024
Metabolites 03 00440 g018 1024

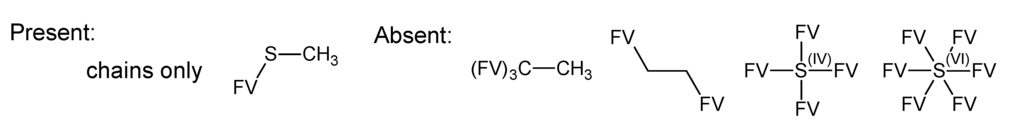

Figure A12. Substructures for GC–MS Challenge 13. FV = free valence.

Click here to enlarge figure

Figure A12. Substructures for GC–MS Challenge 13. FV = free valence.
Metabolites 03 00440 g018 1024
Metabolites 03 00440 g019 1024

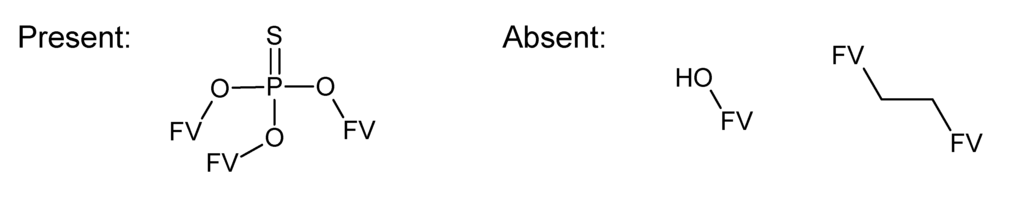

Figure A13. Substructures for GC–MS Challenge 14. FV = free valence.

Click here to enlarge figure

Figure A13. Substructures for GC–MS Challenge 14. FV = free valence.
Metabolites 03 00440 g019 1024
Metabolites 03 00440 g020 1024

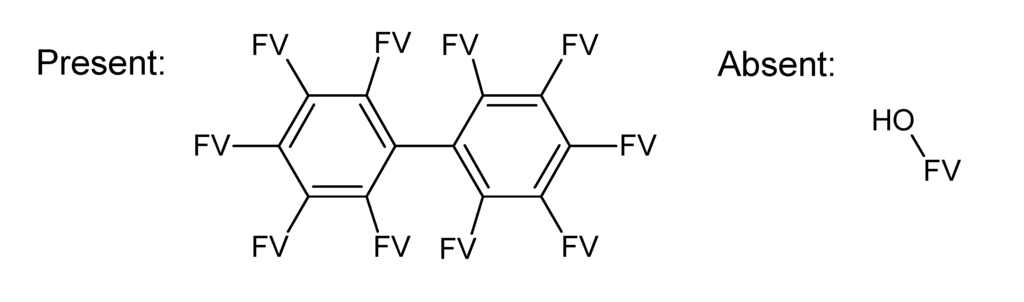

Figure A14. Substructures for GC–MS Challenge 15. FV = free valence.

Click here to enlarge figure

Figure A14. Substructures for GC–MS Challenge 15. FV = free valence.
Metabolites 03 00440 g020 1024
Metabolites 03 00440 g021 1024
Figure A15. Substructures for GC–MS Challenge 16. FV = free valence.

Click here to enlarge figure

Figure A15. Substructures for GC–MS Challenge 16. FV = free valence.
Metabolites 03 00440 g021 1024

References

  1. Meringer, M.; Reinker, S.; Zhang, J.; Muller, A. MS/MS data improves automated determination of molecular formulas by mass spectrometry. MATCH Commun. Math. Comput. Chem. 2011, 65, 259–290. [Google Scholar]
  2. Gugisch, R.; Kerber, A.; Kohnert, A.; Laue, R.; Meringer, M.; Rücker, C.; Wassermann, A. MOLGEN 3.5 Reference Guide. 2009. Available online: http://molgen.de/documents/molgen35.pdf (accessed on 28 February 2013). [Google Scholar]
  3. Benecke, C.; Grüner, T.; Kerber, A.; Laue, R.; Wieland, T. MOLecular structure GENeration with MOLGEN, new features and future developments. Fresenius J. Anal. Chem. 1997, 359, 23–32. [Google Scholar] [CrossRef]
  4. Gugisch, R.; Kerber, A.; Kohnert, A.; Laue, R.; Meringer, M.; Rücker, C.; Wassermann, A. MOLGEN 5.0 Reference Guide. 2009. Available online: http://molgen.de/documents/manual50.pdf (accessed on 28 February 2013). [Google Scholar]
  5. Gugisch, R.; Kerber, A.; Kohnert, A.; Laue, R.; Meringer, M.; Rücker, C.; Wassermann, A. MOLGEN 5.0, a Molecular Structure Generator in Advances in Mathematical Chemistry. In Advances in Mathematical Chemistry; Basak, S.C., Restrepo, G., Villaveces, J.L., Eds.; Bentham Science Publishers: Sharjah, UAE, 2013. in press. [Google Scholar]
  6. Wolf, S.; Schmidt, S.; Müller-Hannemann, M.; Neumann, S. In silico fragmentation for computer assisted identification of metabolite mass spectra. BMC Bioinform. 2010, 11, 148. [Google Scholar] [CrossRef]
  7. Heinonen, M.; Rantanen, A.; Mielikäinen, T.; Kokkonen, J.; Kiuru, J.; Ketola, R.A.; Rousu, J. FiD: A software for ab initio structural identification of product ions from tandem mass spectrometric data. Rapid Commun. Mass Spectrom. 2008, 22, 3043–3052. [Google Scholar] [CrossRef]
  8. HighChem. Mass Frontier Version 6.0; HighChem/Thermo Scientific: Bratislava, Slovakia, 2013. [Google Scholar]
  9. Kerber, A.; Laue, R.; Meringer, M.; Rücker, C. MOLGEN–QSPR, a software package for the search of quantitative structure property relationships. MATCH Commun. Math. Comput. Chem. 2004, 51, 187–204. [Google Scholar]
  10. Kerber, A.; Laue, R.; Meringer, M.; Varmuza, K. MOLGEN–MS: Evaluation of Low Resolution Electron Impact Mass Spectra with MS Classification and Exhaustive Structure Generation. In Advances in Mass Spectrometry; Gelpi, E., Ed.; Wiley: West Sussex, UK, 2001; Volume 15, pp. 939–940. [Google Scholar]
  11. Meringer, M. Mathematical Models for Conbinatorial Chemistry and Molecular Structure Elucidation; (in German). Logos–Verlag Berlin: Berlin, Germany, 2004; p. 390. [Google Scholar]
  12. Schymanski, E.L. Integrated Analytical and Computer Tools for Toxicant Identification in Effect–Directed Analysis. PhD thesis, Faculty for Chemistry and Physics, Technical University Bergakadamie Freiberg and Helmholtz Center for Environmental Research-UFZ, Leipzig, Germany, 2011. [Google Scholar]
  13. Lindsay, R.K.; Buchanan, B.G.; Feigenbaum, E.A.; Lederberg, J. Applications of Artificial Intelligence for Organic Chemistry: The DENDRAL Project; McGraw–Hill: New York, NY, USA, 1980. [Google Scholar]
  14. Varmuza, K.; Werther, W. Mass spectral classifiers for supporting systematic structure elucidation. J. Chem. Inf. Comput. Sci. 1996, 36, 323–333. [Google Scholar] [CrossRef]
  15. Kerber, A.; Laue, R.; Grüner, T.; Meringer, M. MOLGEN 4.0. MATCH Commun. Math. Comput. Chem. 1998, 37, 205–208. [Google Scholar]
  16. Kerber, A.; Meringer, M.; Rücker, C. CASE via MS: Ranking structure candidates by mass spectra. Croatica Chem. Acta 2006, 79, 449–464. [Google Scholar]
  17. Grüner, T.; Kerber, A.; Laue, R.; Liepelt, M.; Meringer, M.; Varmuza, K.; Werther, W. Bestimmung von Summenformeln aus Massenspektren durch Erkennung überlagerter Isotopenmuster. MATCH Commun. Math. Comput. Chem. 1998, 37, 163–177. [Google Scholar]
  18. Kerber, A.; Laue, R.; Meringer, M.; Rücker, C.; Schymanski, E.L. Mathematical Chemistry and Chemoinformatics: Structure Generation, Elucidation and Quantitative Structure-Property Relationships; Walter de Gruyter: Berlin, Germany to appear in 2013. .
  19. Schymanski, E.L.; Meinert, C.; Meringer, M.; Brack, W. The use of MS classifiers and structure generation to assist in the identification of unknowns in effect–directed analysis. Anal. Chim. Acta. 2008, 615, 136–147. [Google Scholar] [CrossRef]
  20. NIST/EPA/NIH. NIST 2011 Mass Spectral Library; National Institute of Standards and Technology, US Secretary of Commerce: Gaithersburg, Maryland, USA, 2011. [Google Scholar]
  21. Schymanski, E.L.; Meringer, M.; Brack, W. Automated strategies to identify compounds on the basis of GC/EI–MS and calculated properties. Anal. Chem. 2011, 83, 903–912. [Google Scholar] [CrossRef]
  22. Schymanski, E.L.; Gallampois, C.M.J.; Krauss, M.; Meringer, M.; Neumann, S.; Schulze, T.; Wolf, S.; Brack, W. Consensus structure elucidation combining GC/EI-MS, structure generation, and calculated properties. Anal. Chem. 2012, 84, 3287–3295. [Google Scholar] [CrossRef]
  23. Schymanski, E.L.; Neumann, S. CASMI: Challenges and solutions. Metabolites Year. in press. [Google Scholar]
  24. Schymanski, E.L.; Neumann, S. CASMI: And the winner is .. Metabolites Year. in press. [Google Scholar]
  25. Meringer, M. MOLGEN–MS/MS Software User Manual. München, Germany, 2011. Available online: http://molgen.de/documents/MolgenMsMs.pdf (accessed on 28 February 2013). [Google Scholar]
  26. Stravs, M.A.; Schymanski, E.L.; Singer, H.P.; Hollender, J. Automatic recalibration and processing of tandem mass spectra using formula annotation. J. Mass Spectrom. 2013, 48, 89–99. [Google Scholar] [CrossRef]
  27. Dalby, A.; Nourse, J.G.; Hounshell, W.D.; Gushurst, A.K.I.; Grier, D.L.; Leland, B.A.; Laufer, J. Description of several chemical structure file formats used by computer programs developed at Molecular Design Limited. J. Chem. Inf. Comput. Sci. 1992, 32, 244–255. [Google Scholar] [CrossRef]
  28. O’Boyle, N.M.; Banck, M.; James, C.A.; Morley, C.; Vandermeersch, T.; Hutchison, G.R. Open Babel: An open chemical toolbox. J. Cheminform. 2011, 3, 1–14. [Google Scholar] [CrossRef]
  29. Grüner, T.; Kerber, A.; Laue, R.; Meringer, M.; Varmuza, K.; Werther, W. MOLGEN–MS version 1.0.1.2. University of Bayreuth, Germany, 2009. Available online: http://www.molgen.de (accessed on 28 February 2013). Trial version available online. [Google Scholar]
  30. Schymanski, E.L.; Neumann, S. Critical Assessment of Small Molecule Identification Contest. 2012. Available online: http://www.casmi-contest.org/challenges-cat3-4.shtml/ (accessed on 24 May 2013). [Google Scholar]
  31. Schymanski, E.L.; Neumann, S. Critical Assessment of Small Molecule Identification Contest Rules. 2012. Available online: http://casmi-contest.org/rules.shtml (accessed on 20 May 2013). [Google Scholar]
  32. Schymanski, E.L.; Meringer, M.; Brack, W. Matching structures to mass spectra using fragmentation patterns: Are the results as good as they look? Anal. Chem. 2009, 81, 3608–3617. [Google Scholar] [CrossRef]
  33. Oberacher, H. Applying tandem mass spectral libraries for solving the CASMI LC/MS challenge 2012. Metabolites 2013, 3, 312–324. [Google Scholar] [CrossRef]
  34. Ruttkies, C.; Gerlich, M.; Neumann, S. Tackling challenging challenges with MetFrag and MetFusion. Metabolites Year. in press. [Google Scholar]
  35. Rasche, F.; Svatos, A.; Maddula, R.K.; Böttcher, C.; Böcker, S. Computing fragmentation trees from tandem mass spectrometry data. Anal. Chem. 2011, 83, 1243–1251. [Google Scholar] [CrossRef]
  36. Sheldon, M.T.; Mistrik, R.; Croley, T.R. Determination of ion structures in structurally related compounds using precursor ion fingerprinting. J. Am. Soc. Mass Spectrom. 2009, 20, 370–376. [Google Scholar] [CrossRef]
  37. Hildebrandt, C.; Wolf, S.; Neumann, S. Database supported candidate search for metabolite identification. J. Integr. Bioinform. 2011. [Google Scholar] [CrossRef]
  38. Peironcely, J.E.; Rojas-Chertó, M.; Tas, A.; Vreeken, R.J.; Reijmers, T.; Coulier, L.; Hankemeier, T. An automated pipeline for de novo metabolite identification using mass spectrometry-based metabolomics. Anal. Chem. 2013, 85, 3576–3583. [Google Scholar] [CrossRef]
  39. Peironcely, J.E.; Rojas-Chertó, M.; Fichera, D.; Reijmers, T.; Coulier, L.; Faulon, J.L.; Hankemeier, T. OMG: Open molecule generator. J. Cheminform. 2012. [Google Scholar] [CrossRef]
  40. Dixon, R.A.; Strack, D. Phytochemistry meets genome analysis, and beyond. Phytochemistry 2003, 62, 815–816. [Google Scholar] [CrossRef]

Supplementary Files

  • Supplementary File 1:

    Supporting Information: (PDF, 128 KB)

  • Metabolites EISSN 2218-1989 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
