Electronics 2017, 6(4), 95; https://doi.org/10.3390/electronics6040095

Electromagnetic Characterisation of Materials by Using Transmission/Reflection (T/R) Devices

Dipartimento di Ingegneria dell’Informazione, Università di Pisa, 56126 Pisa, Italy
*
Author to whom correspondence should be addressed.
Received: 1 October 2017 / Revised: 28 October 2017 / Accepted: 7 November 2017 / Published: 9 November 2017

Abstract

An overview of transmission/reflection-based methods for the electromagnetic characterisation of materials is presented. The paper initially describes the most popular approaches for the characterisation of bulk materials in terms of dielectric permittivity and magnetic permeability. Subsequently, the limitations and the methods aimed at removing the ambiguities deriving from the application of the classical Nicolson–Ross–Weir direct inversion are discussed. The second part of the paper is focused on the characterisation of partially conductive thin sheets in terms of surface impedance via waveguide setups. All the presented measurement techniques are applicable to conventional transmission reflection devices such as coaxial cables or waveguides. View Full-Text
Keywords: dielectric permittivity measurement; magnetic permeability measurement; surface impedance measurement dielectric permittivity measurement; magnetic permeability measurement; surface impedance measurement
Figures

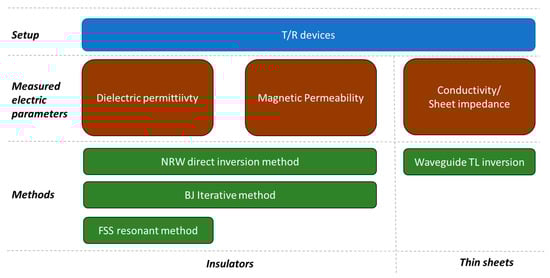

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
