Electronics 2016, 5(2), 15; doi:10.3390/electronics5020015

High-k Dielectric Passivation for GaN Diode with a Field Plate Termination

1
Research Center of Ion Beam Technology, Hosei University, 3-7-2 Kajino-cho, Koganei-shi, Tokyo 184-8584, Japan
2
Engineering Department, Sciocs Company, Ltd., 880 Isagosawa-cho, Hitachi-shi, Hitachi, Ibaraki 319-1418, Japan
3
Research Center for Micro-Nano Technology, Hosei University, 3-11-15 Midori-cho, Koganei-shi, Tokyo 184-0003, Japan
4
Graduate School of Science and Engineering, Hosei University, 3-7-2 Kajino-cho, Koganei-shi, Tokyo 184-8584, Japan
*
Author to whom correspondence should be addressed.
Academic Editor: Farid Medjdoub
Received: 29 January 2016 / Revised: 19 March 2016 / Accepted: 25 March 2016 / Published: 31 March 2016
(This article belongs to the Special Issue Gallium Nitride Electronics)
View Full-Text   |   Download PDF [2085 KB, uploaded 31 March 2016]   |

Abstract

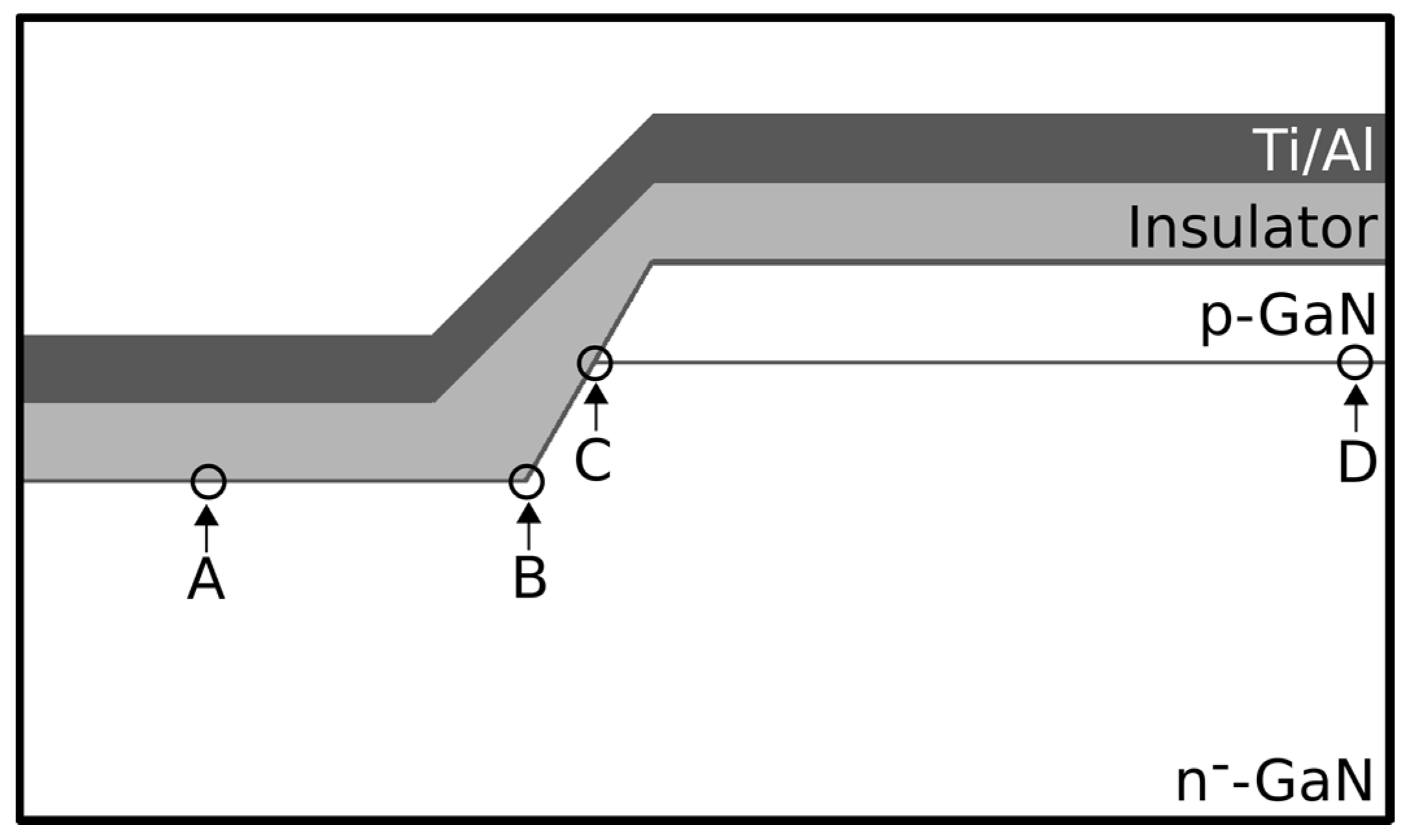

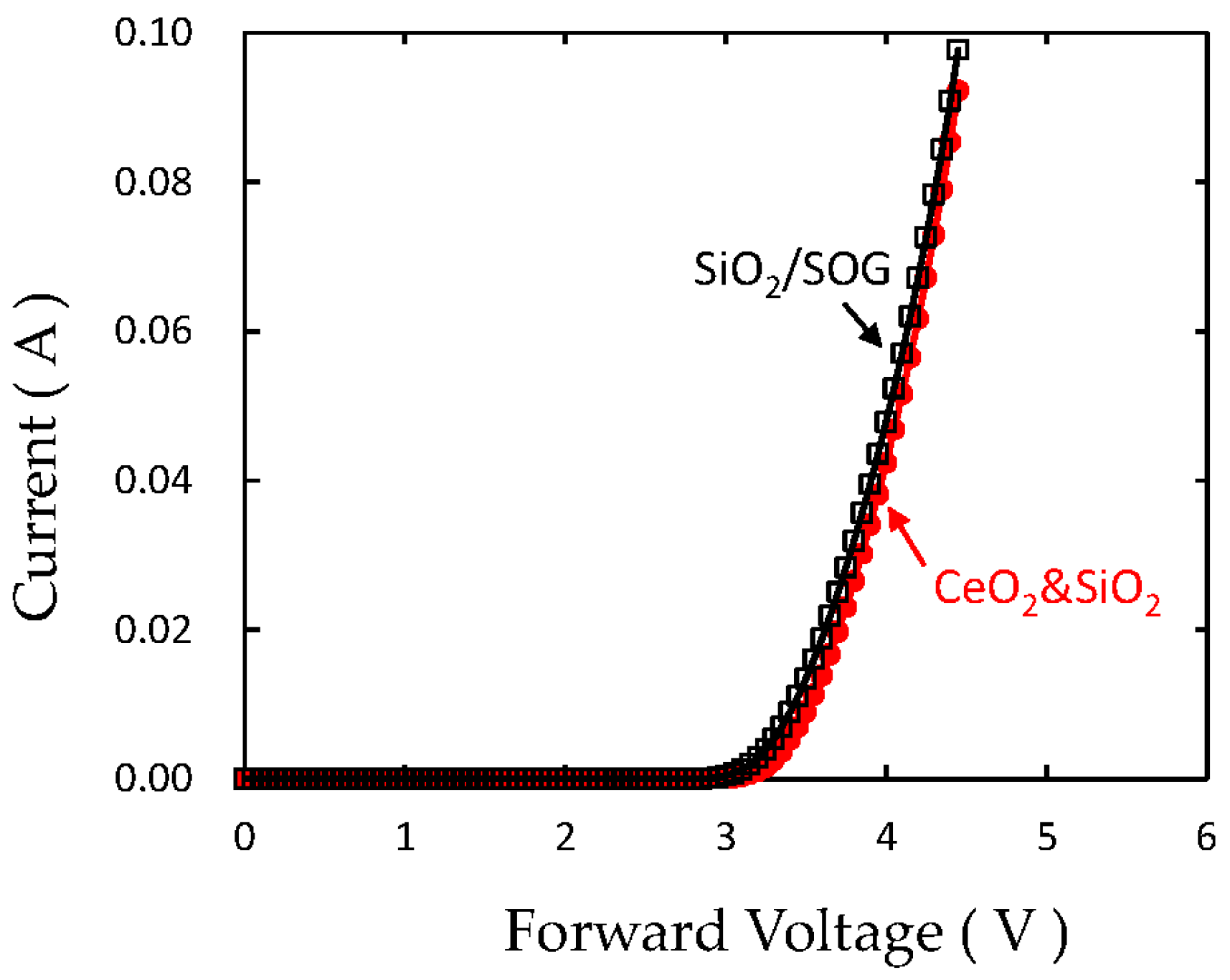

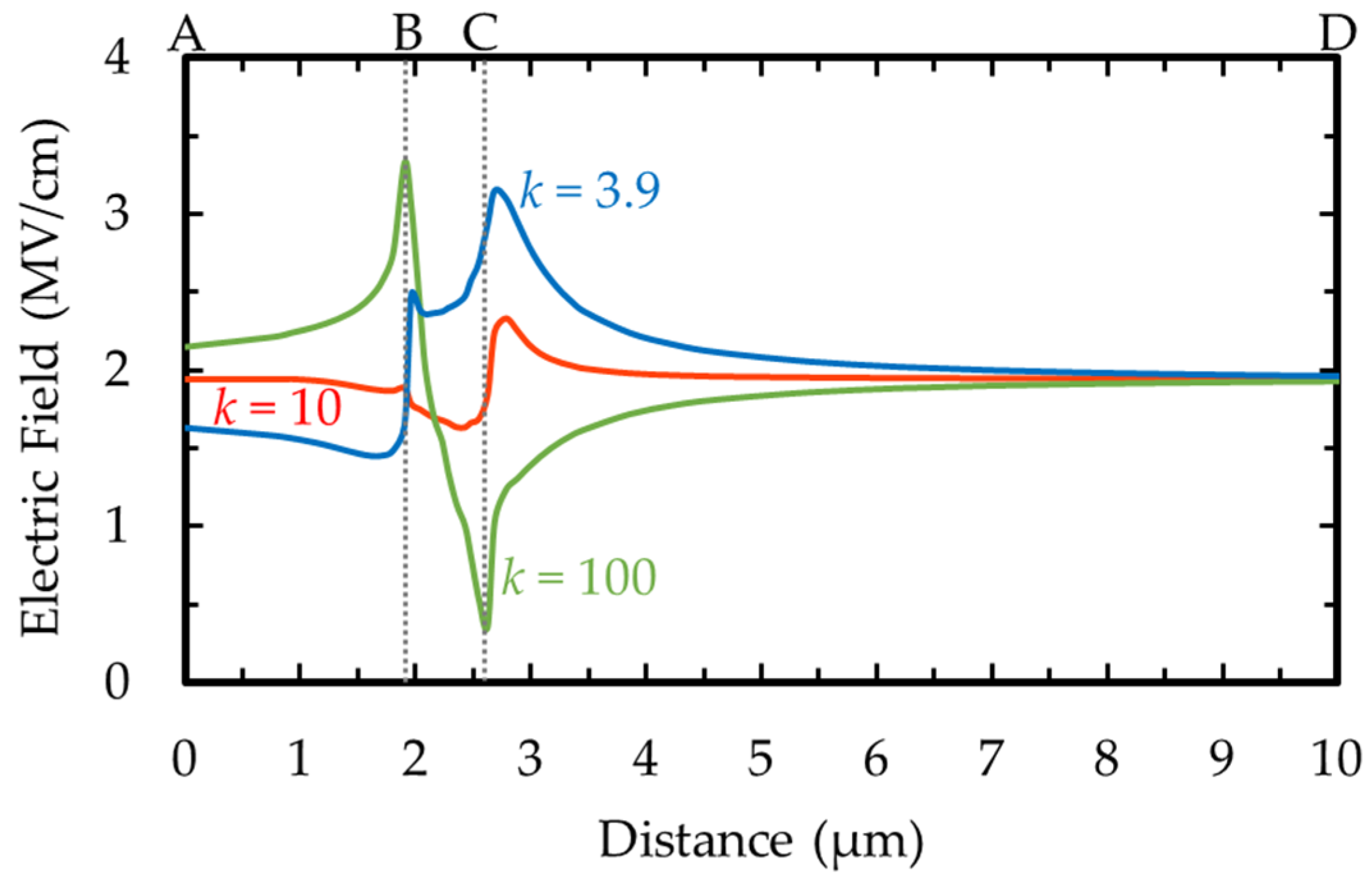

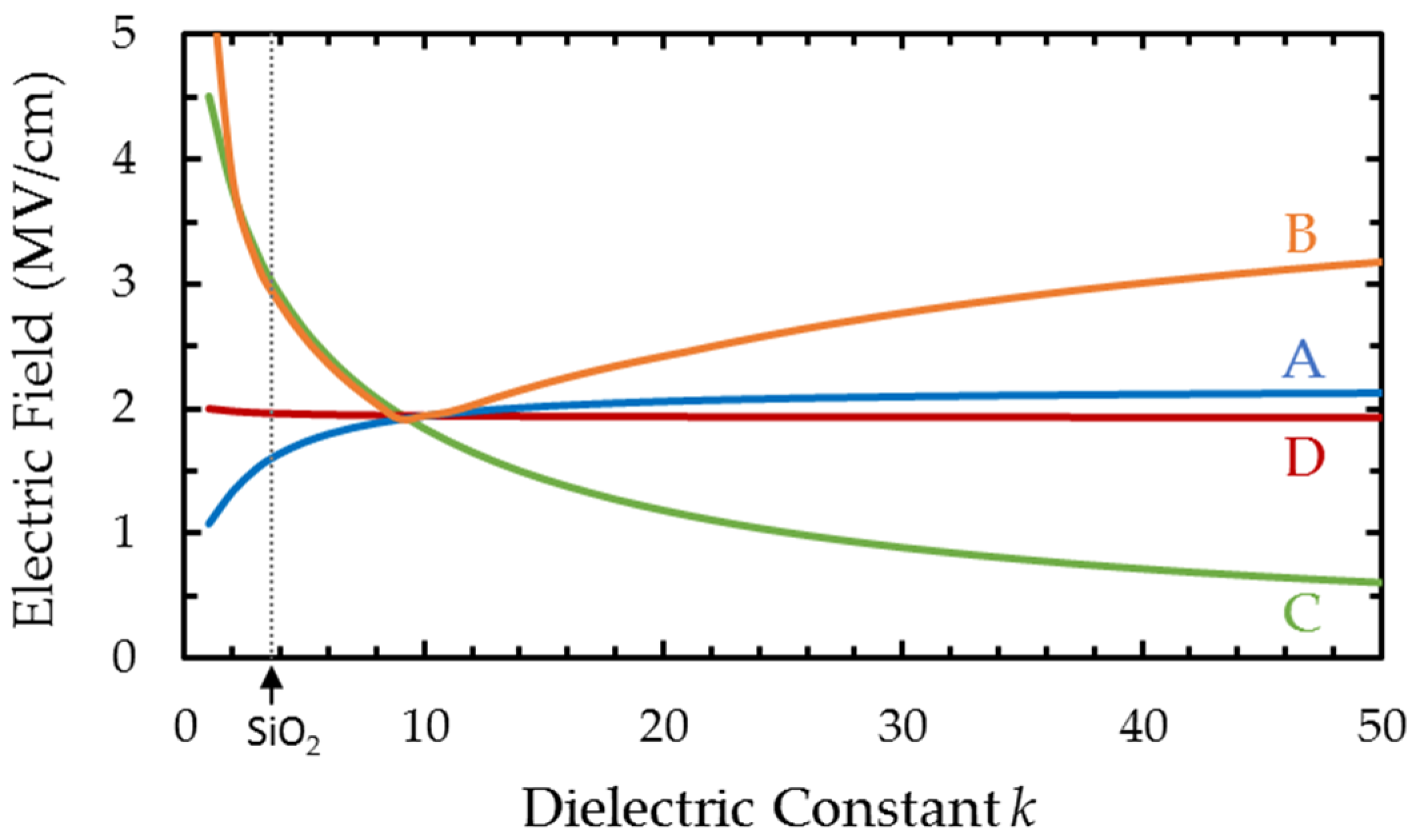

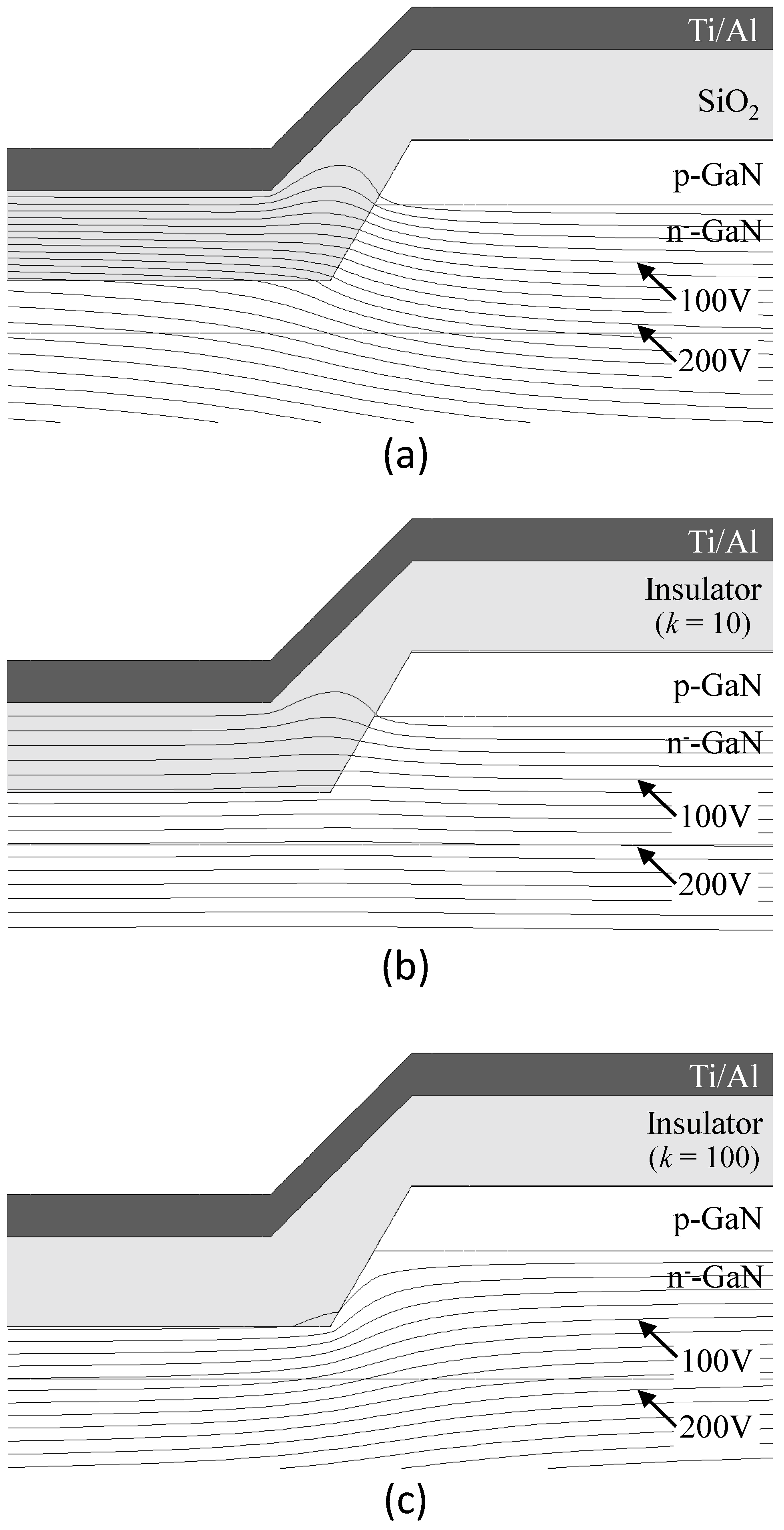

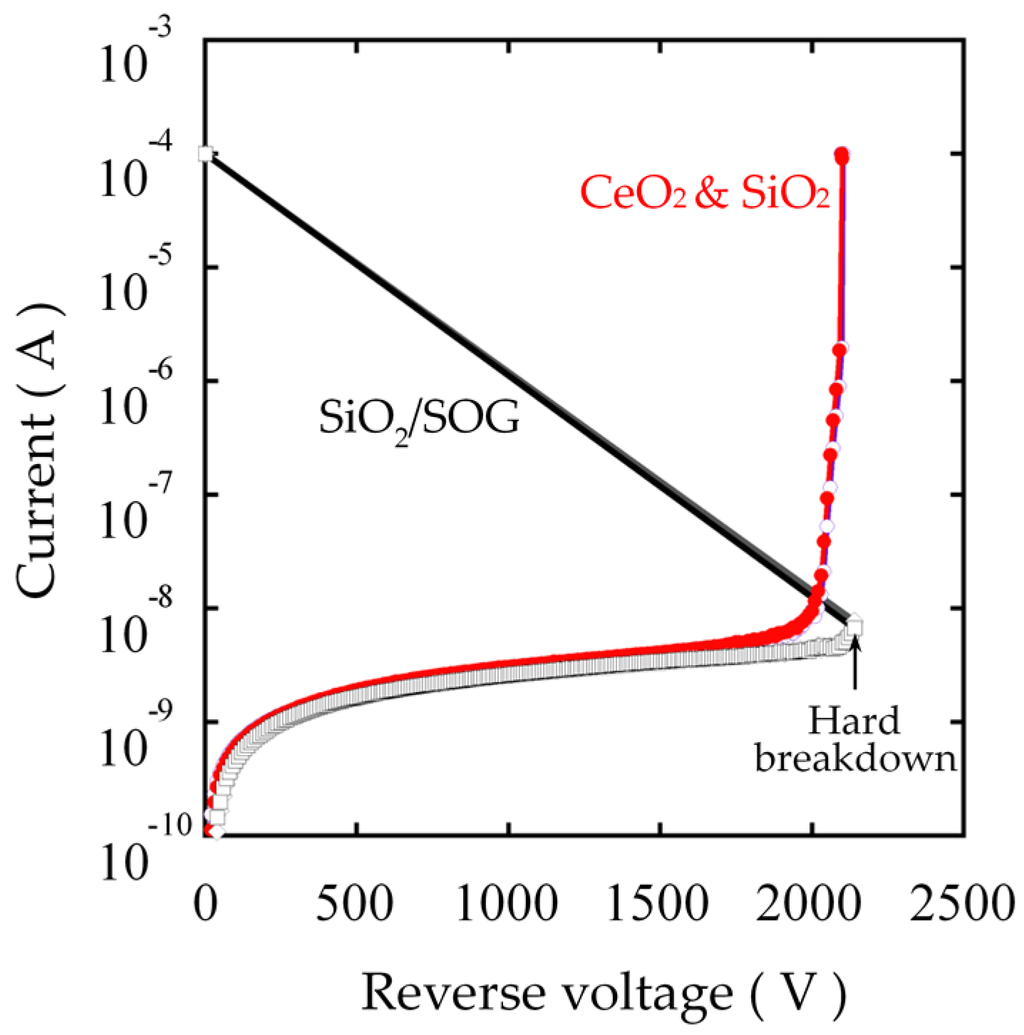

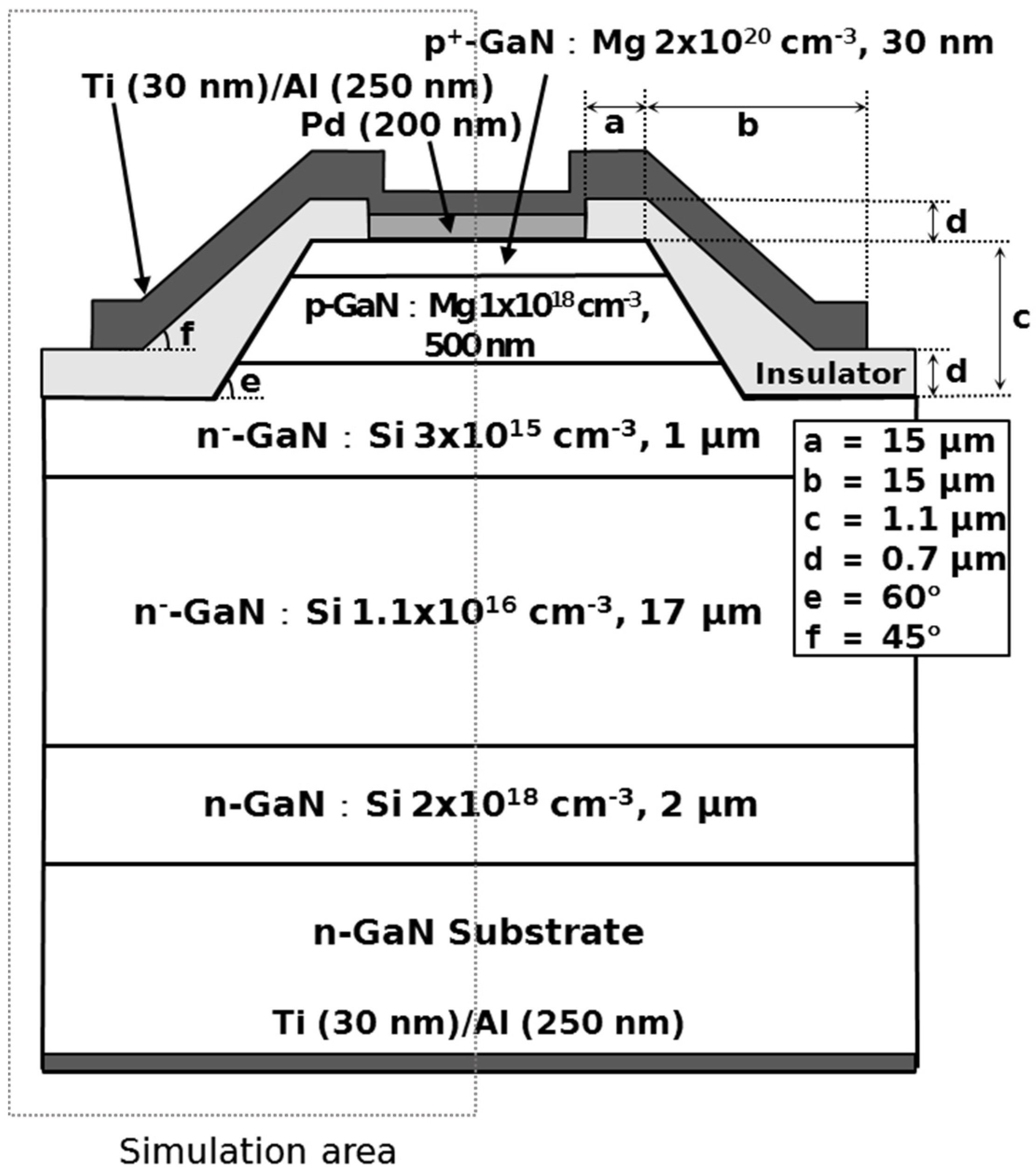

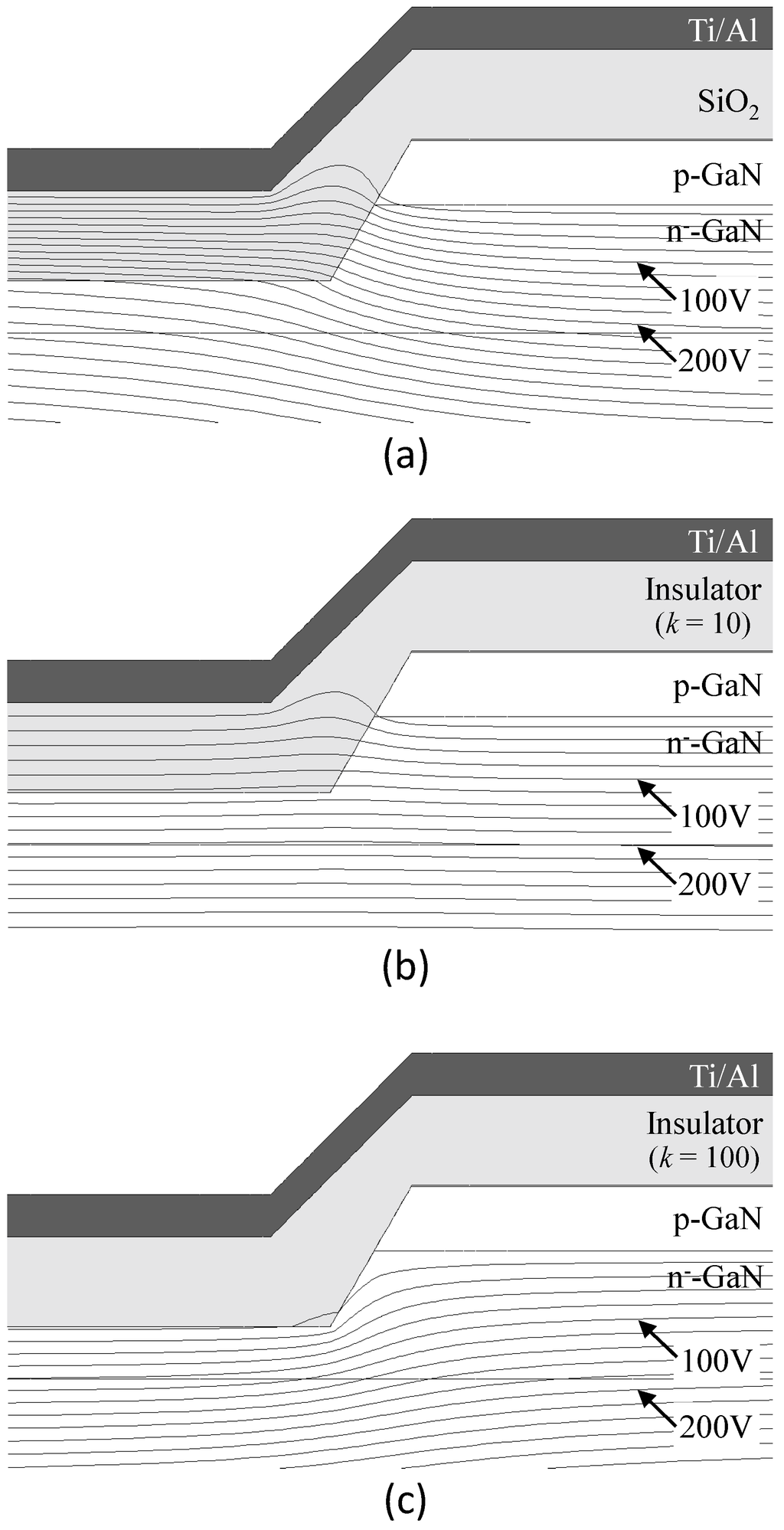

Vertical structured Gallium nitride (GaN) p-n junction diodes with improved breakdown properties have been demonstrated using high-k dielectric passivation underneath the field plate. Simulation results at a reverse voltage of 1 kV showed that the maximum electric field near the mesa-etched p-n junction edges covered with film of dielectric constant k = 10 was reduced to 2.0 MV/cm from 3.0 MV/cm (SiO2 (k = 3.9)). The diodes were fabricated using the high-k mixed oxide of SiO2 and CeO2 with k = 12.3. I–V characteristics of the diode with a field plate showed a breakdown voltage above 2 kV with an increased avalanche resistance. This means that the electric field reduces at the periphery of the mesa-etched p-n junction and is uniformly formed across the whole p-n junction. It is clear that high-k dielectric film passivation and filed plate termination are essential techniques for GaN power devices. View Full-Text
Keywords: GaN; high-k; diode; power semiconductor devices; Cellium oxide GaN; high-k; diode; power semiconductor devices; Cellium oxide
