Electronics 2014, 3(2), 255-265; doi:10.3390/electronics3020255

Review
Anomalous Response in Heteroacene-Based Organic Field Effect Transistors under High Pressure
Ken-ichi Sakai and Jun Takeya
Department of Advanced Materials Science, Graduate School of Frontier Sciences, University of Tokyo, 5-1-5, Kashiwanoha, Kashiwa-shi, Chiba 277-8561, Japan; E-Mails: k-sakai@organicel.k.u-tokyo.ac.jp (K.S.); takeya@k.u-tokyo.ac.jp (J.T.); Tel.: +81-4-7163-3763
Received: 15 February 2014; in revised form: 28 March 2014 / Accepted: 31 March 2014 /
Published: 10 April 2014

Abstract

: Carrier transport properties of organic field effect transistors in dinaphtho[2,3-b:2',3'-f]thieno[3,2-b]thiophene single crystals have been investigated under high pressure. In contrast to the typical pressure effect of monotonic increase in charge transfer rates according to the application of external hydrostatic pressure, it is clarified that the present organic semiconductor devices exhibit nonmonotonic pressure response, such as negative pressure effect. X-ray diffraction analysis under high pressure reveals that on-site molecular orientation and displacement in the heteroacene molecule is assumed to be the origin for the anomalous pressure effects.
Keywords:
organic field effect transistor; pressure effect; carrier transport; x-ray diffraction analysis

1. Introduction

Organic molecular solids, such as organic semiconductors, have been studied intensively due to their considerable scientific and industrial uses. The pristine electronic properties of such material ensures good insulation because of the closed-shell structure of organic molecules, but they can also become electric conducting materials when a charge accumulation layer is formed by the application of an electric field on the surface. The π-electrons, whose interaction is described by weak van-der-Waals interaction, are responsible for the charge transport, in sharp contrast to those in inorganic semiconductors with a well-defined covalent network for charges to transfer. Hence, organic semiconductors have often seemed to provide poor electric conductivity and it appears that the hopping transport mechanism is realized on the basis of localized electronic states. Nevertheless, it has been revealed that some of the organic semiconductor systems show moderate carrier mobility above 1 cm2/Vs [1,2,3,4] and the charge transport mechanism is dominated by a band transport system described by spatially-distributed Bloch waves similar to ordinary metals, but on the verge of self-localization because of the strong molecular fluctuation [5]. From a microscopic viewpoint, the peculiar shape of molecular orbitals in such compounds causes condensation in the corresponding crystal structure at ambient pressure as a result of naïve balance between mutually attracting London force and Coulomb repulsive force. Therefore, considerable impact is expected with the application of external pressure, not only by reducing molecular distance but also by deforming the crystal structure due to freedom of onsite molecular orientation. This is essentially different from inorganic semiconductors composed of atoms which appear as a spherical mass point. Therefore the application of external pressure is expected to induce a striking change in not only simple reduction of intermolecular molecule distance, but also the deformation of the crystal structure due to the freedom of onsite molecular orientation, and the unanticipated pressure response of electronic properties unlike a simple linear increase in charge transfer rate. Looking at the current progress the electronic industry is making in organic semiconductors, this kind of work becomes necessary for the development of flexible and soft-printed organic devices which is subjected to a bending force behaving like pressure.

In this paper we introduce a method of measuring the effect of hydrostatic pressure on charge carrier conductivity in organic semiconductor crystals, introducing the charge with the application of an electric field on the semiconductor surfaces. In addition to the measurement of common transfer characteristics of drain current as a function of gate voltage shown in former pioneering studies [6,7], we performed four-terminal conductivity measurements to exclude extrinsic influences of metal-to-semiconductor contact resistance [8]. In previous studies, carrier mobility μ of hydrocarbons, such as rubrene, pentacene, were shown to exhibit a positive pressure response against external pressure p, and their pressure coefficient, dμ/dp, is extremely larger than used in inorganic semiconductors. Here we focused on the pressure effect of one of heteroacene-based compounds, dinaphtho[2,3-b:2',3'-f]thieno[3,2-b]thiophene (DNTT). It was found that DNTT shows far larger dμ/dp values whose sign can even be negative. The result cannot be explained by the simple model: increase in charge transfer rate with decreasing molecular distance. We note that the pressure effect of molecular solids can be explained by taking into account displacement, rotation and other degrees of freedom originating from molecular shapes. From an x-ray diffraction experiment, we constructed a plausible model of the pressure-induced structural deformation. In combination with the measurement of anisotropic charge transfer and structural studies, a route to study the so-called “structure-property relations” is provided [9].

2. Experimental Section

2.1. Preparation of Single-Crystal Organic Semiconductor

In the present study, platelet-shaped single crystals of DNTT were employed as the channel material. The DNTT single crystals were prepared by the physical vapor transport method [10]. After purification of crude powder samples supplied from Nipponkayaku Co. by vaporizing at 285 °C and coarse crystallization at 213 °C in a two-zone tube furnace under Ar gas flow (>99.999% for gas purity and 200 ccm for flow rate, respectively), the coarse crystals are slowly recrystallized at the same temperature in three days.

2.2. Carrier Transport Measurement under High Pressure

In order to realize stable and reproducible measurement under high pressure, device structure and pressure cells were newly developed. The charge transport measurements are performed by the four-terminal technique at room temperature to obtain the information about intrinsic charge transfer properties of channel material. All the components of the measured devices are fabricated by polymer materials except for electrodes so that nearly homogeneous shrinkage by pressurization is realized. The field-effect transistor devices with the top-contact and bottom-gate structure are fabricated as follows. A patterned gate electrode of 20 nm thickness is vapor-deposited through a shadow mask on a polyethylene naphthalete (PEN) substrate. A gate-insulating layer of CYTOP (Asahi Glass Co., Tokyo, Japan) is formed by spin-coating and subsequent heat treatment at 140 °C for 15 h. A single-crystal DNTT flake with a thickness of less than 1 μm is carefully taken and laminated on the position of the gate electrode. DNTT samples with well-defined crystallographic shape are chosen for experiments so that anisotropic effect of transport properties can be discussed (Figure 1). Then Source-drain electrodes and four voltage terminals are formed by vapor deposition of 2,3,5,6-tetrafluoro-7,7,8,8-tetracyanoquinodimethane and over-deposited gold layers through a shadow mask to the thickness of 1 nm and 20 nm, respectively. Carbon past is used to cover the step edges of electrodes on the periphery of DNTT single crystal. The central channel area is finally shaped into Hall-bar structure by laser etching process and just on the top of the gate electrode. The channel size is 100 μm in width and 150 μm in length, respectively. The distance between adjacent voltage terminals along the channel direction is 50 μm. Whole device structure is illustrated in Figure 2a,b. The device is covered with a-few-μm thick parylene for passivation and the completely and then completely filled in epoxy (STYCAST 1266) for the mechanical stability. The devices are introduced in a standard Cu-Be pressure cell and Fluorinert FC70/77 is used for the pressurizing medium (Figure 2c).

In the present study pressure dependence of the four-terminal carrier mobility at each pressure μ(P) is taken into account for quantitative argue of pressure effect of the charge transport. μ is defined as

Electronics 03 00255 i001
where C is capacitance of the CYTOP gate insulator in a unit area, σ is the four-terminal sheet conductivity and VG is the applied gate voltage. C is modified as a Pressure-variable number C(P) which is identified in our previous study; we estimated dependent carrier mobility under each pressure by precise Hall-effect measurement using rubrene single-crystal Field-Effect-Transistors (FETs), so that C(P) turned out to change by 10% at 0.5 GPa [8]. Carrier mobility is estimated at VG = −100 V, where field-induced carriers are accumulated at the bottom of the conduction band into avoid contribution of trap-involved pressure effect in the subthreshold regions as is investigated in rubrene single-crystal transistors.

Electronics 03 00255 g001 1024
Figure 1. A photograph of a single crystal dinaphtho[2,3-b:2',3'-f]thieno[3,2-b]thiophene (DNTT) platelet. Crystalline direction for the a and b axes are indicated by white arrows [9].

Click here to enlarge figure

Figure 1. A photograph of a single crystal dinaphtho[2,3-b:2',3'-f]thieno[3,2-b]thiophene (DNTT) platelet. Crystalline direction for the a and b axes are indicated by white arrows [9].
Electronics 03 00255 g001 1024
Electronics 03 00255 g002 1024
Figure 2. (a) Side view and (b) top view of device structure; (c) Schematic illustration of pressure cell used for the present measurement.

Click here to enlarge figure

Figure 2. (a) Side view and (b) top view of device structure; (c) Schematic illustration of pressure cell used for the present measurement.
Electronics 03 00255 g002 1024

2.3. Structural Analysis

X-ray diffraction (XRD) experiments were carried out using well-purified DNTT powder by a synchrotron radiation source on the beamline BL10XU at SPring-8 in order to have an idea of change in unit cells in high pressure. The sample is introduced into a diamond anvil cell with the pressure medium (FC70/77). Applied pressure is measured by a simultaneous ruby fluorescence measurement. The wavelength of X-ray is 0.41413 Å. The diffraction patterns were obtained with an imaging plate detector as a function of 2θ (θ is an incident angle of X-ray). Here we should pay attention that deformation of unit cell observed in powder X-ray diffraction experiment is not precisely consistent with that in our transistors. However, they are somehow comparable due to the fact that the anisotropic behavior of lattice constants in rubrene single crystal under high pressure is consistent with that of carrier mobility [11].

3. Results and Discussion

The unit cell of DNTT is monoclinic, meaning that there are four lattice parameters, lattice constants along a, b, and c axes and an angle β, defined as crossing angle of a and c axes. The XRD patterns as a function of 2θ at each pressure point are shown in Figure 3. No disappearance and emergence of peaks in pressurizing process is observed, indicating that there is no structural phase transition up to 2 GPa. Every peak shifts toward larger angle, indicating the overall shrinkage of unit cell. We choose four distinctive peaks assigned to (100), (003), (020) and (111) so that the four lattice parameters can be identified. Note that the result is consistent with the positions of all over visible peaks.

Electronics 03 00255 g003 1024
Figure 3. XRD patterns for pressurized powder DNTT. Red, blue, green and dark arrows indicate (100), (003), (020) and (11-1) reflection peaks, respectively [9].

Click here to enlarge figure

Figure 3. XRD patterns for pressurized powder DNTT. Red, blue, green and dark arrows indicate (100), (003), (020) and (11-1) reflection peaks, respectively [9].
Electronics 03 00255 g003 1024

Figure 4a,b indicate the variations of these parameters as a function of pressure. It was found that the lattice parameters a, c and β shows rapid variation at the lower pressure range (approximately less than 0.2 GPa) and then moves to more moderate pressure dependency at higher pressure range, in contrast to the variation of b showing an almost constant rate. For further discussion consider the molecular rearrangement in the process of pressurization. Figure 4c shows the ratio of compressibility in aa) and bb) directions. Here the compressibility is defined as the differential coefficient estimated from two adjacent measurement points,

Electronics 03 00255 i002
where Pi and Pj are two adjacent pressure points (Pi > Pj). L(Pi) and L(Pj) are the lattice constants evaluated at each pressurized condition and P is the average value between Pi and Pj, defined as (Pi + Pj)/2 for the sake of convenience since lattice constants plotted in present paper are discrete value; therefore x-values of data points in Figure 4a,c are deviated.

Electronics 03 00255 g004 1024

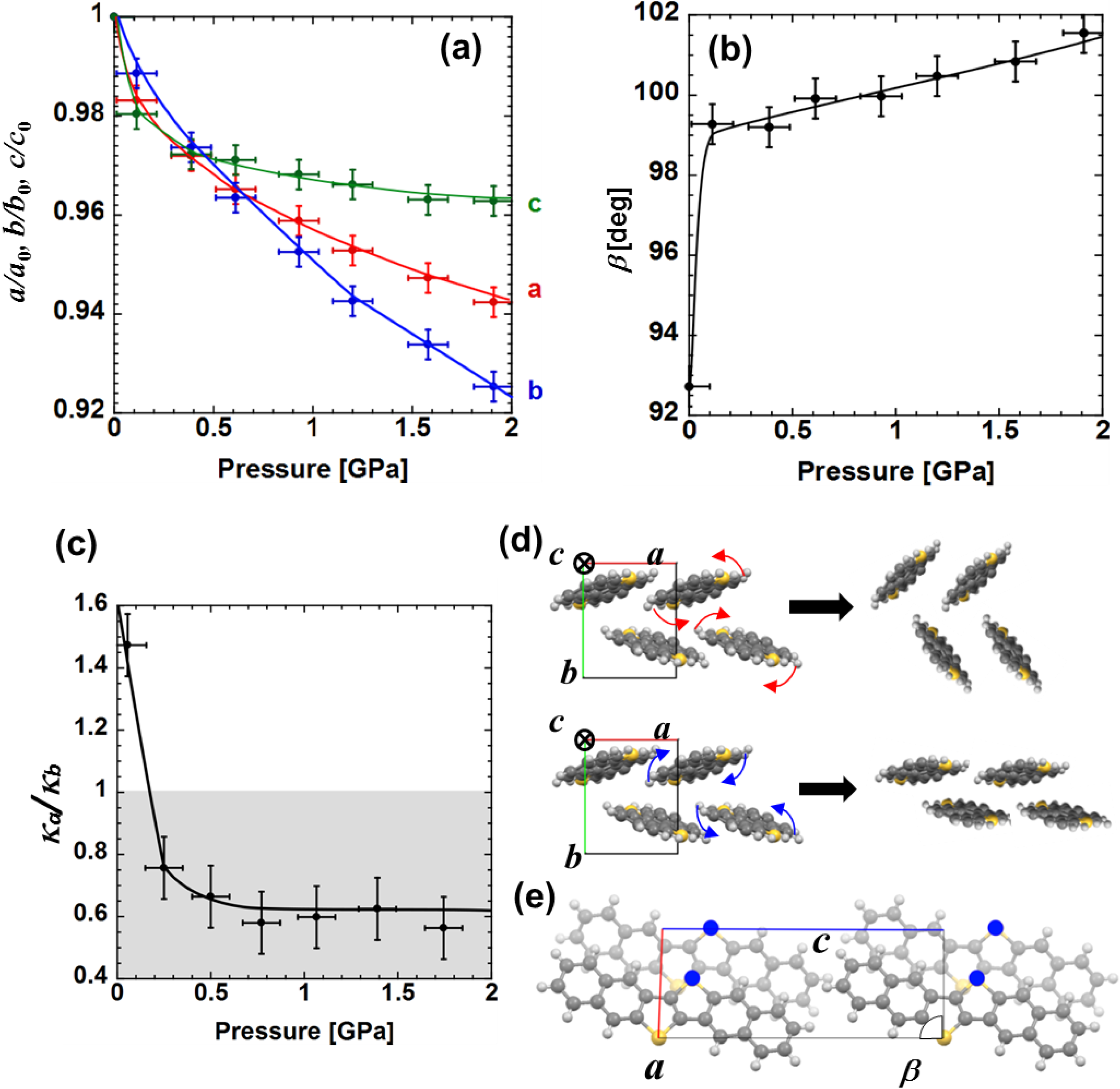

Figure 4. Pressure dependence of (a) lattice constants for three crystallographic directions and (b) β, defined as the intersection angle between a and c axes; (c) Compressibility ratio between a and b axes as a function of applied pressure; (d) Schematic diagram of suggested molecular rearrangement in ab plane. The two pictures depict the molecular rearrangements in case of shrinkage along the a and b directions, respectively. Red and blue arrows indicate the rotation direction; (e) Crystal structure in ac plane. Dark and light molecular images and arrows indicate molecules located on the front and reverse side and corresponding displacement direction in pressurization process, respectively [9].

Click here to enlarge figure

Figure 4. Pressure dependence of (a) lattice constants for three crystallographic directions and (b) β, defined as the intersection angle between a and c axes; (c) Compressibility ratio between a and b axes as a function of applied pressure; (d) Schematic diagram of suggested molecular rearrangement in ab plane. The two pictures depict the molecular rearrangements in case of shrinkage along the a and b directions, respectively. Red and blue arrows indicate the rotation direction; (e) Crystal structure in ac plane. Dark and light molecular images and arrows indicate molecules located on the front and reverse side and corresponding displacement direction in pressurization process, respectively [9].
Electronics 03 00255 g004 1024

Let us focus on the discussion of the pressure effect below approximately 0.2 GPa. Within this pressure range κa/κb is larger than 1, suggesting that the deformation of unit cell in ab plane is dominated by the shrinkage along a-axis. In this case molecules are supposed to be rearranged with concomitant rotation indicated by the curved red arrows in Figure 4d. For a higher pressure range, the unit cell starts to shrink along b-axis since κa/κb < 1, in which the molecules are supposed to start onsite rotation along the opposite direction to that in the lower pressure range (curved blue arrows in Figure 4d). Note that the relationship between the dominant shrinkage direction of unit cell and the corresponding molecular rearrangement mentioned above is consistent with structural change experimentally observed in the oligoacene system, such as anthracene, pentacene and tetracene under high pressure [12,13].

It is noted that similar pressure dependences are shown among a, c and β: drastic change in lower pressure region and the following slow change in higher pressure region (Figure 4d). To approach this experimental result let us take into account the molecular rearrangement in ac plane which is characterized by these three lattice parameters. As an external mechanical force is added intermolecular interaction is enhanced due to the access of nearest-neighbor molecules. The π-electrons tend to be localized on electro-negative sulfur atoms as compared to carbon and hydrogen sites [14], in addition to the effect of spatially large occupation of the 3pz orbitals on sulfur atoms. Therefore it is expected that intermolecular interaction of nearest-neighbor DNTT molecules are highly dominated by effects between sulfur atoms of different molecules. As the interaction between nearest-neighbor sulfur atoms marked by blue circles in Figure 4e becomes large with increasing pressure, the adjacent molecules tend to displace along c-axis to reduce the energy loss of Coulomb repulsion. Because sulfur-to-sulfur interaction is pronounced along a-axis, both c and β parameters exhibit drastic change under relatively low pressure in the region of κa/κb > 1 where shrinkage of a is dominant, while the values are less sensitive to pressure when shrinkage onn the b-axis is dominant at higher pressure. The greater sulfur-to-sulfur interaction along the a-axis than the b-axis is also consistent with higher carrier mobility on the a-axis compared to that along the b-axis. Note that the change in β up to 10° at around 2 GPa contrasts that observed in sulfur-free oligoacenes in which only a few degrees of deviation up to 10 GPa is observed for angles, so called α, β and γ [12,13].

Pressure effects of carrier mobility in DNTT-FETs are measured along two distinctive crystallographic directions, a- and b-axes. Transport and output characters and carrier conductivity as a function of gate voltage are indicated in Figure 5 for each axis. For quantitative discussion of pressure effects on carrier transport properties of DNTT-FETs, let us introduce the increasing rate defined as

Electronics 03 00255 i003
where μ(P) and μ(0) are four-terminal mobility at a certain pressure P and that in the ambient condition. Note that estimated carrier mobility along each axis in ambient conditions is 2.1 cm2/Vs for a-axis and 1.3 cm2/Vs for b-axis respectively. This anisotropic value is in agreement with a previous report [15]. The pressure dependence of carrier mobility is shown in Figure 6 at the drain bias voltage VD of −10 V. In the present study, the reproducibility of carrier mobility against compression and decompression is confirmed. Simultaneous plots of pressure-dependent carrier mobility of rubrene [8] and pentacene [16] devices reveal that carrier transport of DNTT is much more sensitive to pressurization and, furthermore, shows the nonmonotonous pressure response characterized by the appearance of peak and valley at 0.15 GPa on the a-axis and b-axis devices, respectively. Note that this is a quite different feature in contrast to two other hydrocarbon FETs with simple linear responses.

Electronics 03 00255 g005 1024

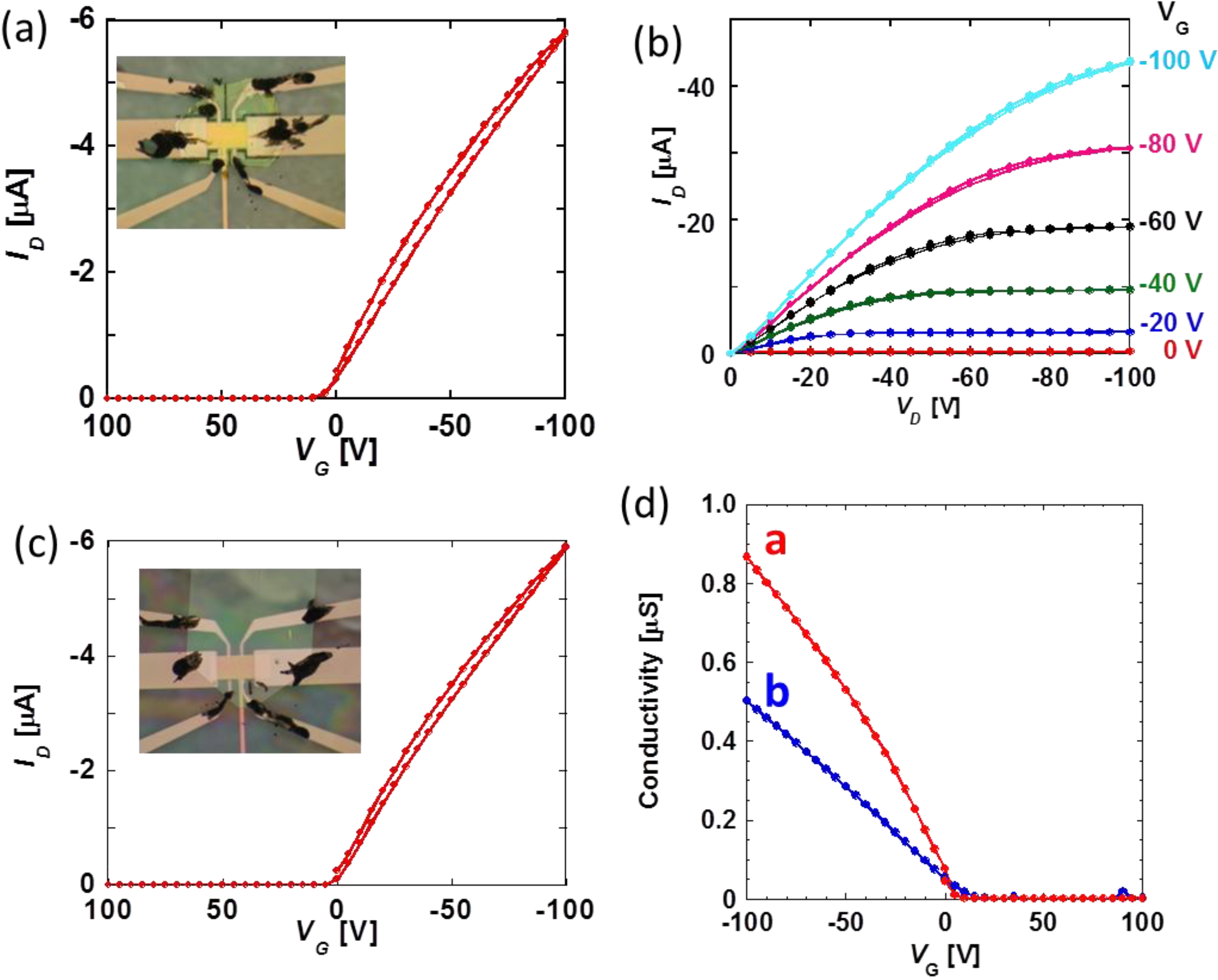

Figure 5. (a) Transport and (b) output properties of DNTT-FET for a-axis conducting direction; (c) transport properties of DNTT-FET for b-axis conducting direction. Photographs for each devices are inserted in (a) and (c); (d) four-terminal conductivity in a and b-axes at ambient condition. The estimated carrier mobility is 2.1 cm2 V−1 s−1 for a-axis and 1.3 cm2 V−1 s−1 for b-axis at VG = −100 V, respectively [9].

Click here to enlarge figure

Figure 5. (a) Transport and (b) output properties of DNTT-FET for a-axis conducting direction; (c) transport properties of DNTT-FET for b-axis conducting direction. Photographs for each devices are inserted in (a) and (c); (d) four-terminal conductivity in a and b-axes at ambient condition. The estimated carrier mobility is 2.1 cm2 V−1 s−1 for a-axis and 1.3 cm2 V−1 s−1 for b-axis at VG = −100 V, respectively [9].
Electronics 03 00255 g005 1024
Electronics 03 00255 g006 1024

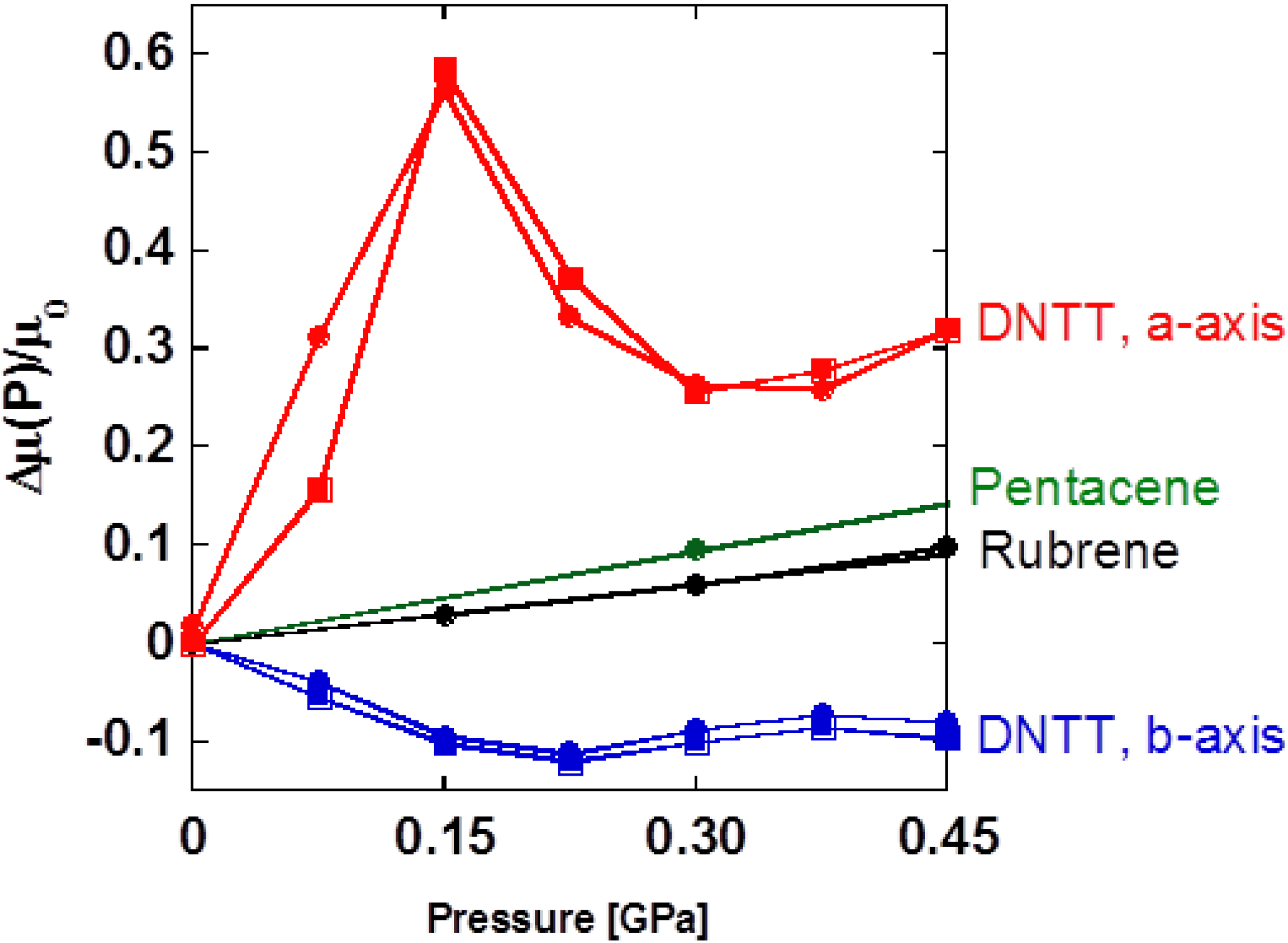

Figure 6. Pressure effect on DNTT-FET for a and b-axes [9]. Those for pentacene [16] and rubrene [8] devices are also plotted for comparison. Open and closed circles indicate the data obtained in compression and decompression processes.

Click here to enlarge figure

Figure 6. Pressure effect on DNTT-FET for a and b-axes [9]. Those for pentacene [16] and rubrene [8] devices are also plotted for comparison. Open and closed circles indicate the data obtained in compression and decompression processes.
Electronics 03 00255 g006 1024

To assist in understanding this phenomenon, it is good to associate this problem with the structural variation by external pressure as shown in Figure 4. The appearance of a peak in Δμ(P)/μ(P) can be taken that the sign of the derivative dμ/dP for each axis is converted at 0.15 GPa, which coincides with the crossover point of κa/κb = 1, representing a simultaneous change in the anisotropic deformation of unit cell at the same pressure. Therefore the anomalous pressure response of carrier mobility on DNTT-FET seems to be connected with the change in molecular arrangement mentioned above. When p < 0.15 GPa, our results suggest that the molecules are likely to rearrange so that face-to-face π–π stacking is enhanced along the a-axis, which leads to the increase in carrier mobility on the a-axis and decrease on the b-axis. In contrast, when p > 0.15 GPa, the structural change has the opposite effect, so that carrier mobility decreases on the a-axis and increases on the b-axis, respectively. Therefore the peak structure results from crossover between the two distinct molecular rotations associated with pressurization. At a higher pressure than 0.30 GPa, a slight increase in carrier mobility on the a-axis can be seen due to the predominance of the normal pressure effect from the increase in density of molecular packing. Note that the contribution of molecular rearrangement is suppressed in the profile of Δμ(P)/μ(P) in this pressure region. We have demonstrated the relationship of carrier transport properties and the structure of DNTT-FETs via their pressure response. However, for further elucidation of structure-property relations of pressure-sensitive organic semiconductors, crystal structure analysis under high pressure should be completed so that we complement the detailed information about the molecular rearrangement. The magnitude of pressure coefficient is up to 3.8 GPa−1 along the a-axis and is extremely large below 0.15 GPa as compared to those of rubrene (0.2 GPa−1) and pentacene (0.4 GPa−1), which is already one order larger than typical values for inorganic materials [17]. In conjunction with the significant contribution of the sulfur-to-sulfur interaction which causes peculiar displacement in the ac plane, the presence of sulfur atoms in DNTT is responsible for the anomalous pressure dependence in carrier mobility, indicating the significant contribution of 3pz orbital on sulfur to the charge transport in the semiconductors and to the device performance. It is highly expected that the more efficient charge transfer on the a-axis is realized in DNTT FETs by pressurization, due to the enhancement of orbital overlap, and especially the presence of more spatially-spread 3pz orbital on sulfur atoms than those for carbon and hydrogen, the main components of rubrene and pentacene.

4. Conclusions

Charge transport properties and structures of DNTT have been investigated under high pressure. The crossover of on-site molecular rotation and simultaneous anisotropic deformation of unit cells have been observed. It is suggested that access to nearest-neighbor sulfur atoms as a result of pressurization is responsible for both in order to suppress the repulsive electrostatic interaction between negatively-charged sulfur atoms. Also, the corresponding pressure effect of charge transport on DNTT-FETs can be well-explained by the structural change, indicating the successful observation of so-called structure-property relations. Furthermore the giant pressure effect with extreme pressure response up to 3.8 GPa−1 is attributed to the widely-distributed 3pz orbital localized on sulfur atoms. Through this study, we have clarified that the presence of sulfur atom plays an important role for the realization of anomalous and giant pressure effect observed. It is noteworthy that nonmonotonous evolution of structural change and charge transport is attributed to the specific molecule-to-molecule interaction due to the peculiar molecular shape, in sharp contrast to the case of inorganic semiconductors which can be seen as assemblies of more symmetric atoms. These experimental observations evidence how heteroelement affects the properties of heteroacene-based molecular compounds. It is demonstrated that investigating pressure effects of organic semiconductors is a powerful method to clarify the relationship between charge transport mechanisms and microscopic molecular alignments. The knowledge obtained will assist in designing new compounds and practical devices, such as flexible and soft printed devices in which a mechanical force is applied in the bending process.

Acknowledgments

Authors thank Y. Okada, T. Uemura, S. Kitaoka and J. Tsurumi for the assistance of device experiment, Y. Ohishi and A. Fujiwara for powder X-ray diffraction experiment at SPring-8 and K. Takimiya and Nippon Kayaku Co., Ltd. for supplying DNTT sample powders. This work is financially supported by Grant-in-Aid for Scientific Research (Grants Nos. 22245032 and 236860050) from MEXT in Japan.

Conflicts of Interest

The authors declare no conflict of interest.
