J. Low Power Electron. Appl. 2018, 8(3), 29; https://doi.org/10.3390/jlpea8030029

An Improved Proposed Single Phase Transformerless Inverter with Leakage Current Elimination and Reactive Power Capability for PV Systems Application

Department of Electrical and Computer Engineering, University of Denver, 2155 East Wesley Avenue, Denver, CO 80208, USA
This paper is an extended version of our paper published in the 2017 IEEE International Conference on Electro Information Technology (EIT), Lincoln, NE, USA, 14–17 May 2017.
*
Author to whom correspondence should be addressed.
Received: 16 July 2018 / Revised: 22 August 2018 / Accepted: 25 August 2018 / Published: 6 September 2018
Full-Text   |   PDF [1238 KB, uploaded 6 September 2018]   |

Abstract

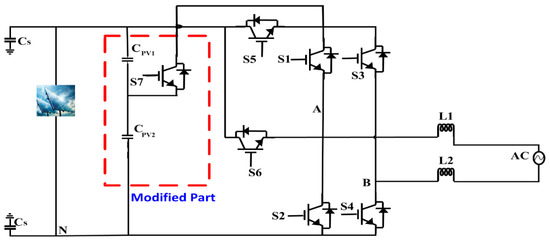

Single-phase transformerless inverters are broadly studied in literature for residential-scale PV applications due to their great advantages in reducing system weight, cost and elevating system efficiency. The design of transformerless inverters is based on the galvanic isolation method to eliminate the generation of leakage current. Unfortunately, the use of the galvanic isolation method alone cannot achieve constant common mode voltage (CMV). Therefore, a complete elimination of leakage current cannot be achieved. In addition, modulation techniques of single-phase transformerless inverters are designed for the application of the unity power factor. Indeed, next-generation PV systems are required to support reactive power to enable connectivity to the utility grid. In this paper, a proposed single-phase transformerless inverter is modified with the clamping method to achieve constant CMV during all inverter operating modes. Furthermore, the modulation technique is modified by creating a new current path in the negative power region. As a result, a bidirectional current path is created in the negative power region to achieve reactive power generation. The simulation results show that the CMV is completely clamped at half the DC link voltage and the leakage current is almost completely eliminated. Furthermore, a reactive power generation is achieved with the modified modulation techniques. Additionally, the total harmonic distortion (THD) of the grid current with the conventional and a modified modulation technique is analyzed. The efficiency of the system is enhanced by using wide-bandgap (WBG) switching devices such as SiC MOSFET. It is observed that the efficiency of the system decreased with reactive power generation due to the bidirectional current path, which leads to increasing conduction losses. View Full-Text
Keywords: transformerless inverter; photovoltaic (PV) power system; reactive power; leakage current; wide-bandgap (WBG); silicon carbide (SiC) transformerless inverter; photovoltaic (PV) power system; reactive power; leakage current; wide-bandgap (WBG); silicon carbide (SiC)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
