J. Low Power Electron. Appl. 2018, 8(2), 14; https://doi.org/10.3390/jlpea8020014

0.45 v and 18 μA/MHz MCU SOC with Advanced Adaptive Dynamic Voltage Control (ADVC)

1
PLSense, Yokneam 2066724, Israel
2
Faculty of Engineering, Bar Ilan University, Ramat Gan 52900, Israel
*
Author to whom correspondence should be addressed.
Received: 9 April 2018 / Revised: 1 May 2018 / Accepted: 2 May 2018 / Published: 9 May 2018
(This article belongs to the Special Issue Selected Papers from IEEE S3S Conference 2017)
View Full-Text   |   Download PDF [4820 KB, uploaded 10 May 2018]   |

Abstract

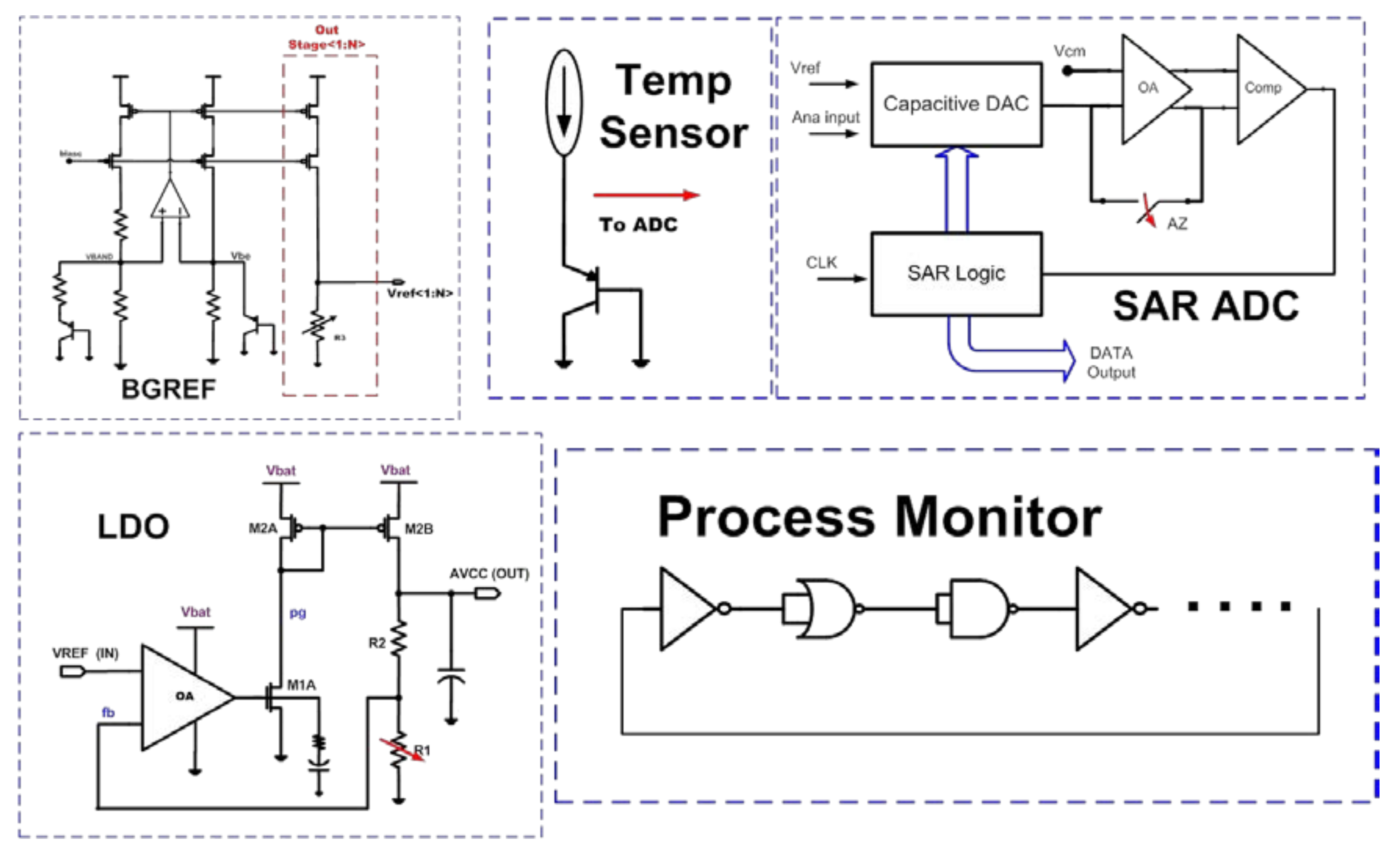

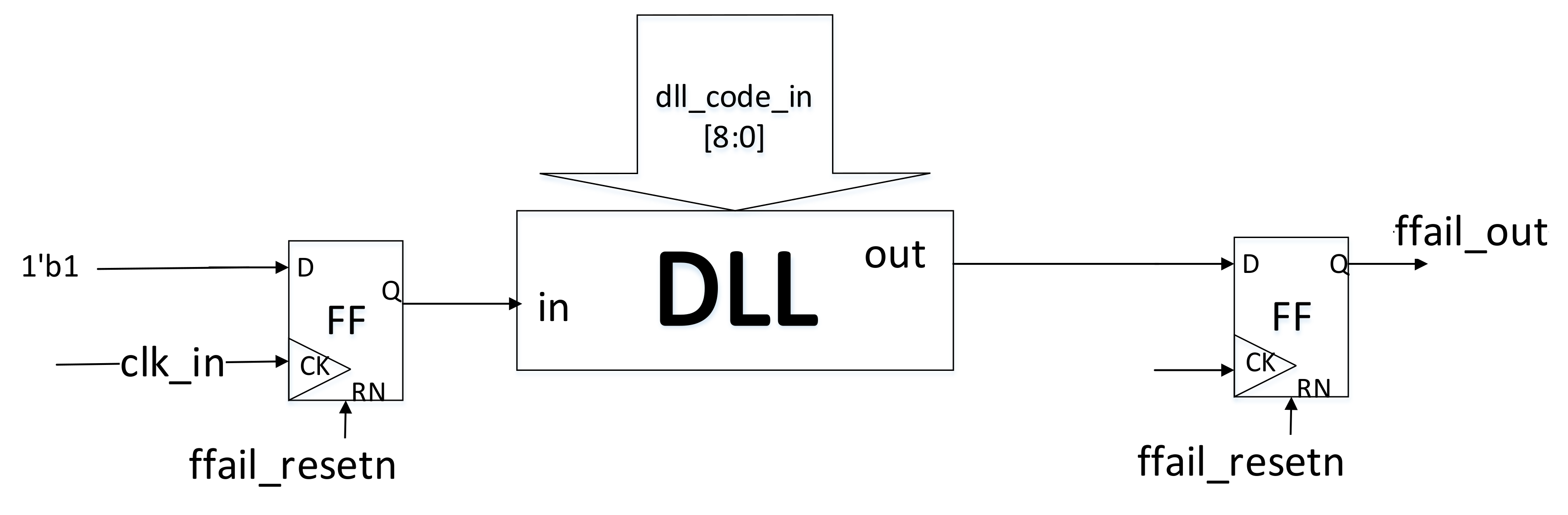

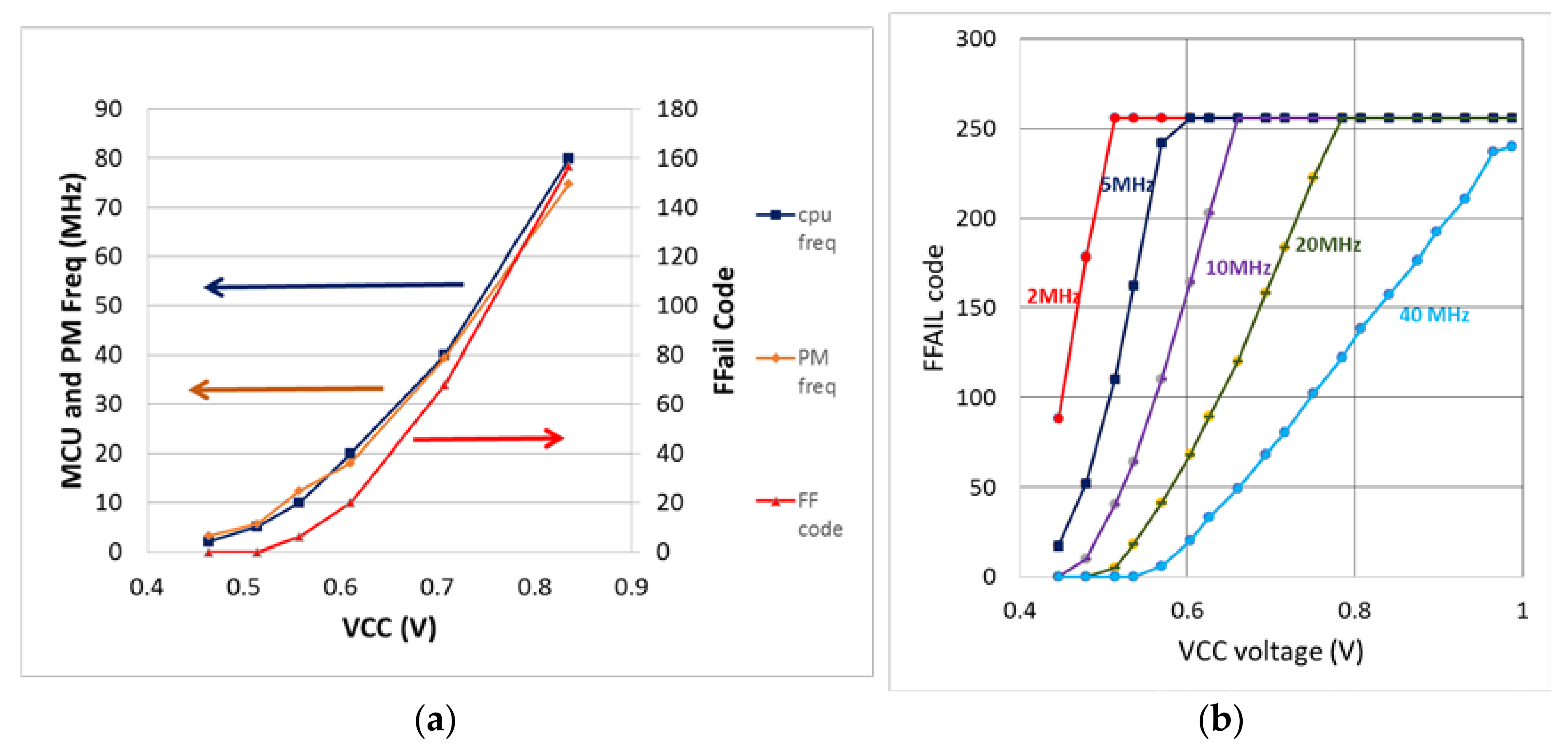

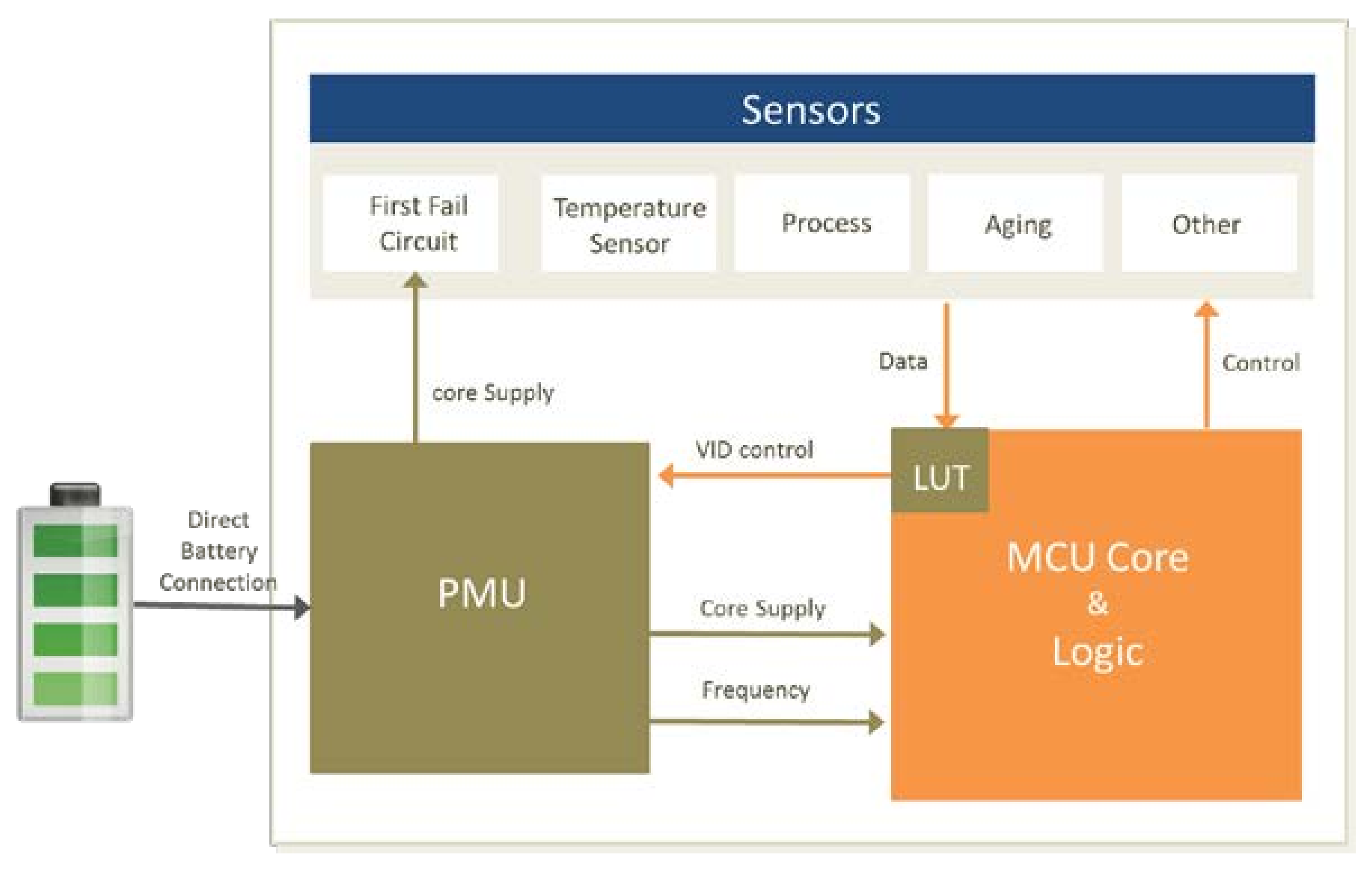

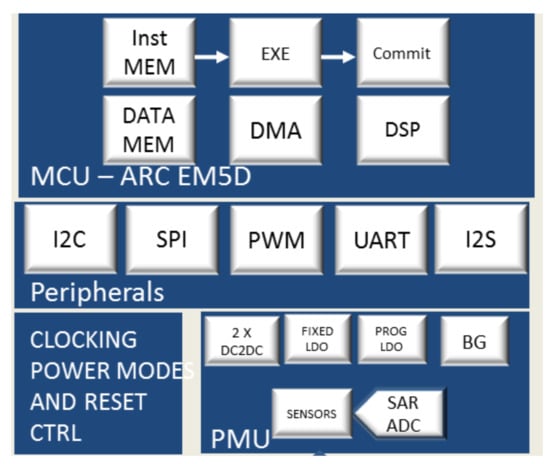

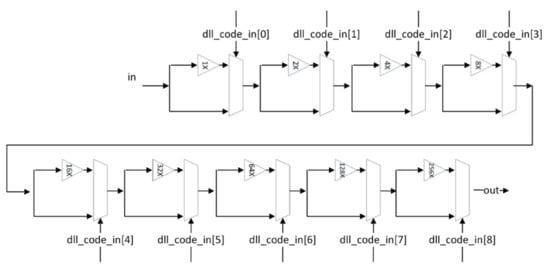

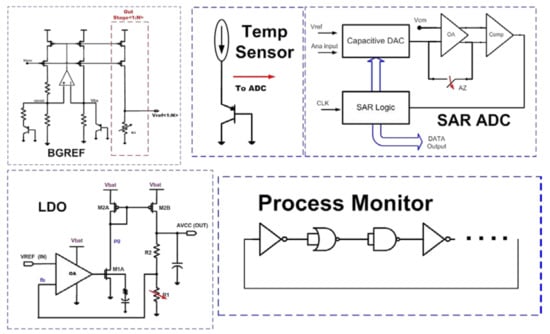

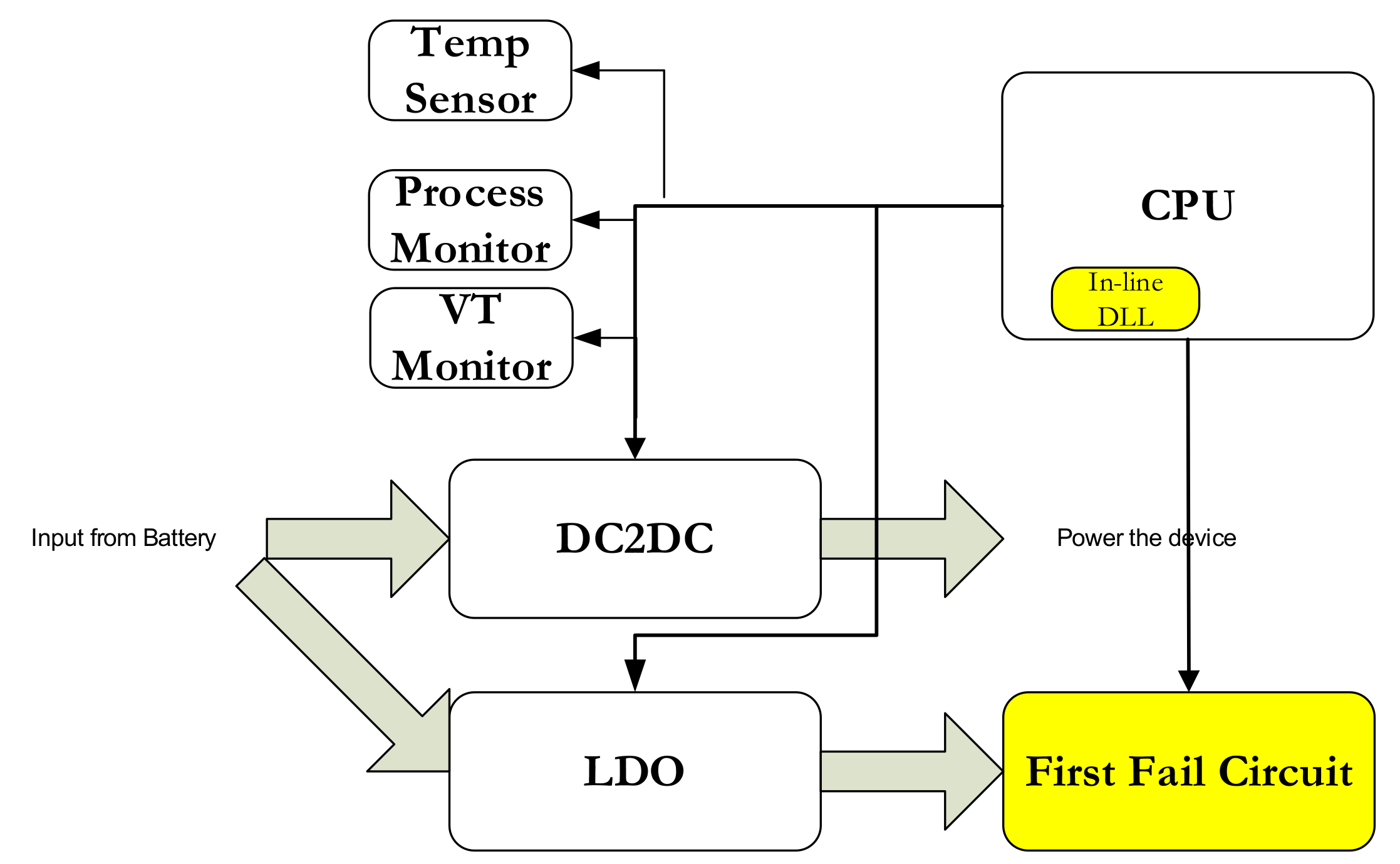

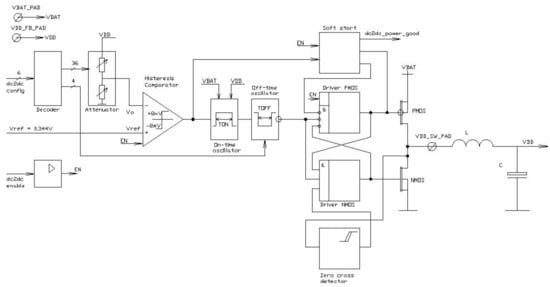

An ultra-low-power MicroController Unit System-on-Chip (MCU SOC) is described with integrated DC to DC power management and Adaptive Dynamic Voltage Control (ADVC) mechanism. The SOC, designed and fabricated in a 40 nm ULP standard CMOS technology, includes the complete Synopsys ARC EM5D core MCU, featuring a full set of DSP instructions and minimizing energy consumption at a wide range of frequencies: 312 K–80 MHz. A number of unique low voltage digital libraries, comprising of approximately 300 logic cells and sequential elements, were used for the MCU SOC design. On-die silicon sensors were utilized to continuously change the operating voltage to optimize power/performance for a given frequency and environmental conditions, and also to resolve yield and life time problems, while operating at low voltages. A First Fail (FFail) mechanism, which can be digitally and linearly controlled with up to 8 bits, detects the failing SOC voltage at a given frequency. The core operates between 0.45–1.1 V volts with a direct battery connection for an input voltage of 1.6–3.6 V. Measurement results show that the peak energy efficiency is 18μW/MHz. A comparison to state-of-the-art commercial SOCs is presented, showing a 3–5× improved current/DMIPS (Dhrystone Million Instructions per second) compared to the next best chip. View Full-Text
Keywords: subthreshold logic; low voltage MCU SOC; adaptive dynamic voltage control (ADVC), first fails circuit subthreshold logic; low voltage MCU SOC; adaptive dynamic voltage control (ADVC), first fails circuit
Figures

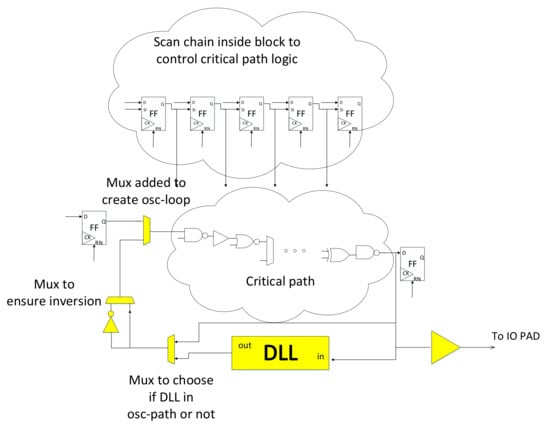

Figure 1
