Beyond an Input/Output Paradigm for Systems: Design Systems by Intrinsic Geometry

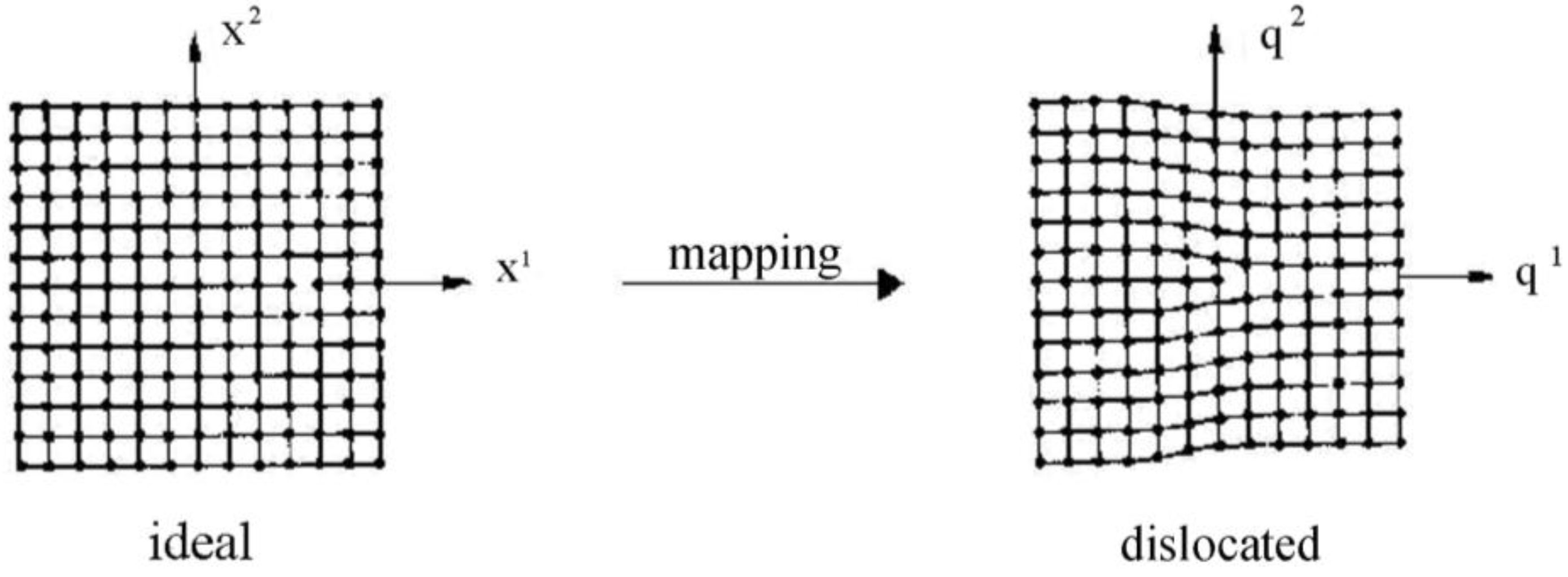

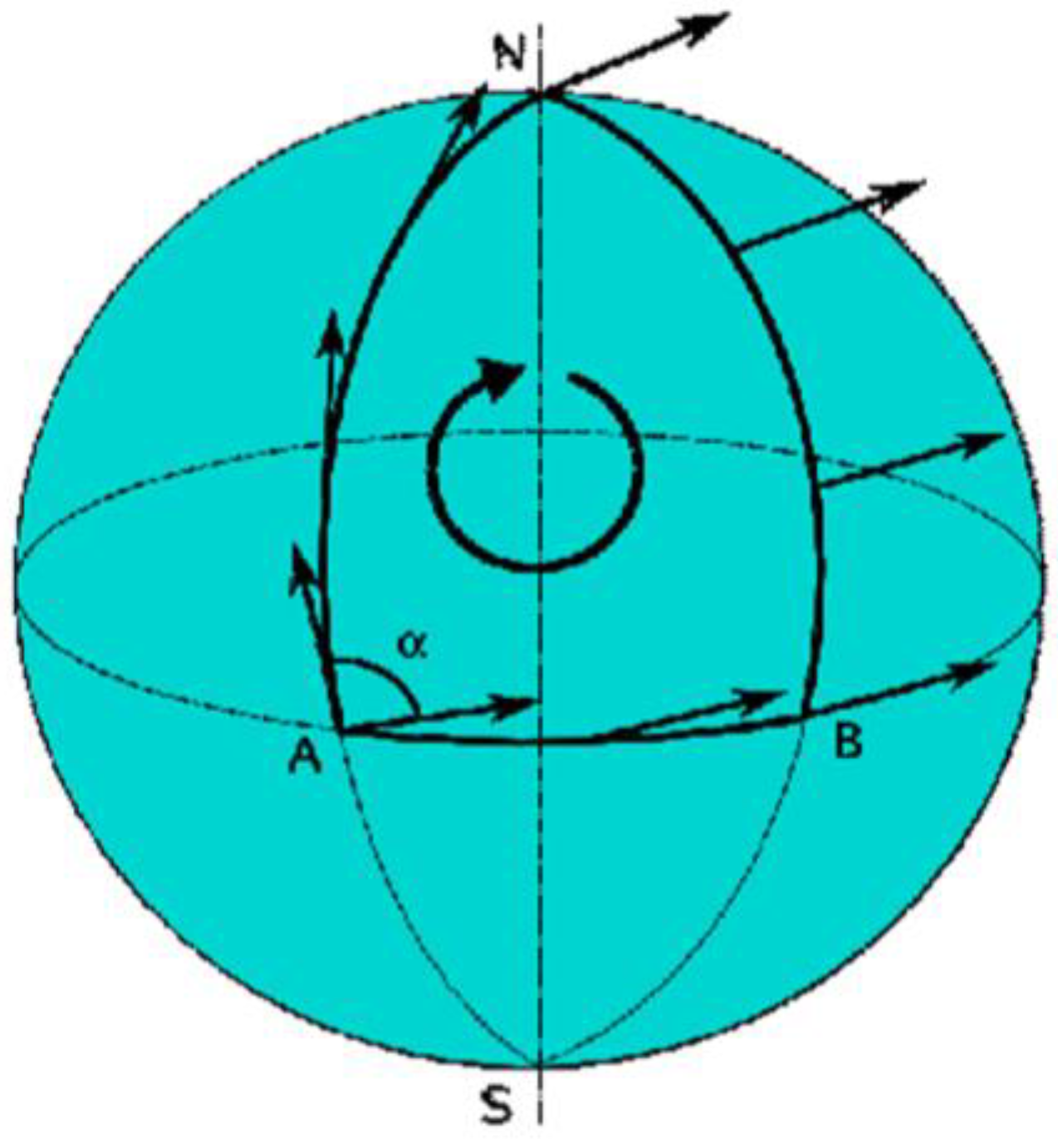

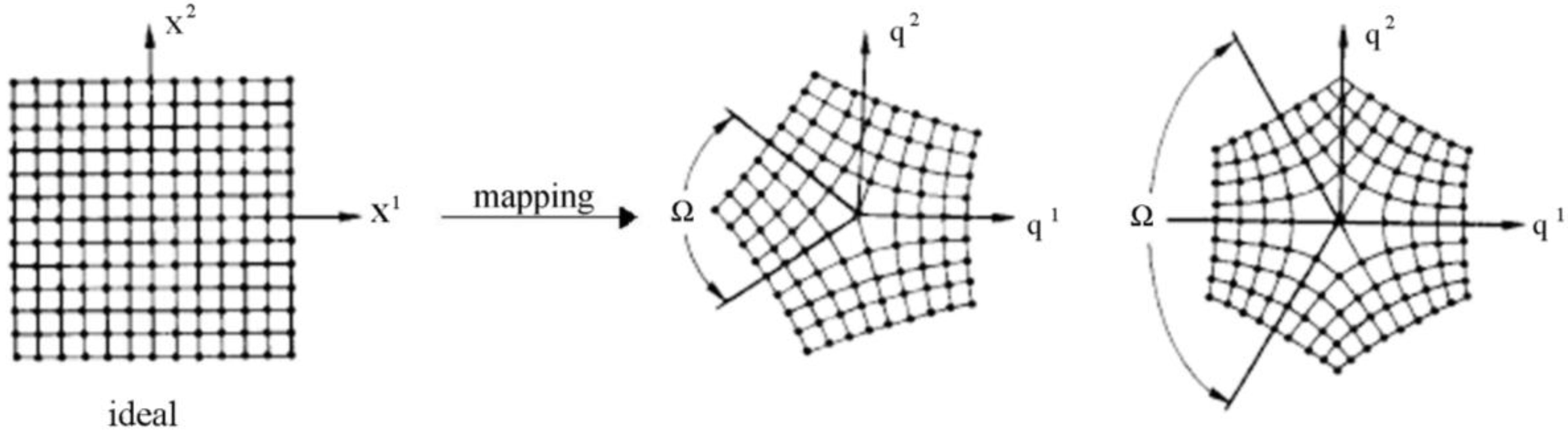

AbstractGiven a stress-free system as a perfect crystal with points or atoms ordered in a three dimensional lattice in the Euclidean reference space, any defect, external force or heterogeneous temperature change in the material connection that induces stress on a previously stress-free configuration changes the equilibrium configuration. A material has stress in a reference which does not agree with the intrinsic geometry of the material in the stress-free state. By stress we mean forces between parts when we separate one part from another (tailing the system), the stress collapses to zero for any part which assumes new configurations. Now the problem is that all the new configurations of the parts are incompatible with each other. This means that close loop in the earlier configuration now is not closed and that the two paths previously joining the same two points now join different points from the same initial point so the final point is path dependent. This phenomenon is formally described by the commutators of derivatives in the new connection of the stress-free parts of the system under the control of external currents. This means that we lose the integrability property of the system and the possibility to generate global coordinates. The incompatible system can be represented by many different local references or Cartan moving Euclidean reference, one for any part of the system that is stress-free. The material under stress when is free assumes an equilibrium configuration or manifold that describes the intrinsic “shape” or geometry of the natural stress—the free state of the material. Therefore, we outline a design system by geometric compensation as a prototypical constructive operation. View Full-Text
