Next Article in Journal / Special Issue
Glass Fibre Strength—A Review with Relation to Composite Recycling
Previous Article in Journal
Global Consumption of Flame Retardants and Related Environmental Concerns: A Study on Possible Mechanical Recycling of Flame Retardant Textiles
Previous Article in Special Issue
The Durability and Performance of Short Fibers for a Newly Developed Alkali-Activated Binder
Article Menu

Export Article

Open AccessArticle
Fibers 2016, 4(2), 17;

Influence of Hygrothermal Aging on Poisson’s Ratio of Thin Injection-Molded Short Glass Fiber-Reinforced PA6

Valeo Schalter und Sensoren GmbH, Bietigheim-Bissingen, Bissingen D-74321, Germany
Polymer Service GmbH Merseburg, Merseburg D-06217, Germany
Center of Engineering Sciences, Martin-Luther-University Halle-Wittenberg, Halle (Saale) D-06099, Germany
Author to whom correspondence should be addressed.
Academic Editor: Edith Maeder
Received: 3 February 2016 / Accepted: 9 May 2016 / Published: 17 May 2016
(This article belongs to the Special Issue Glass Fibers)
View Full-Text   |   Download PDF [2804 KB, uploaded 17 May 2016]   |

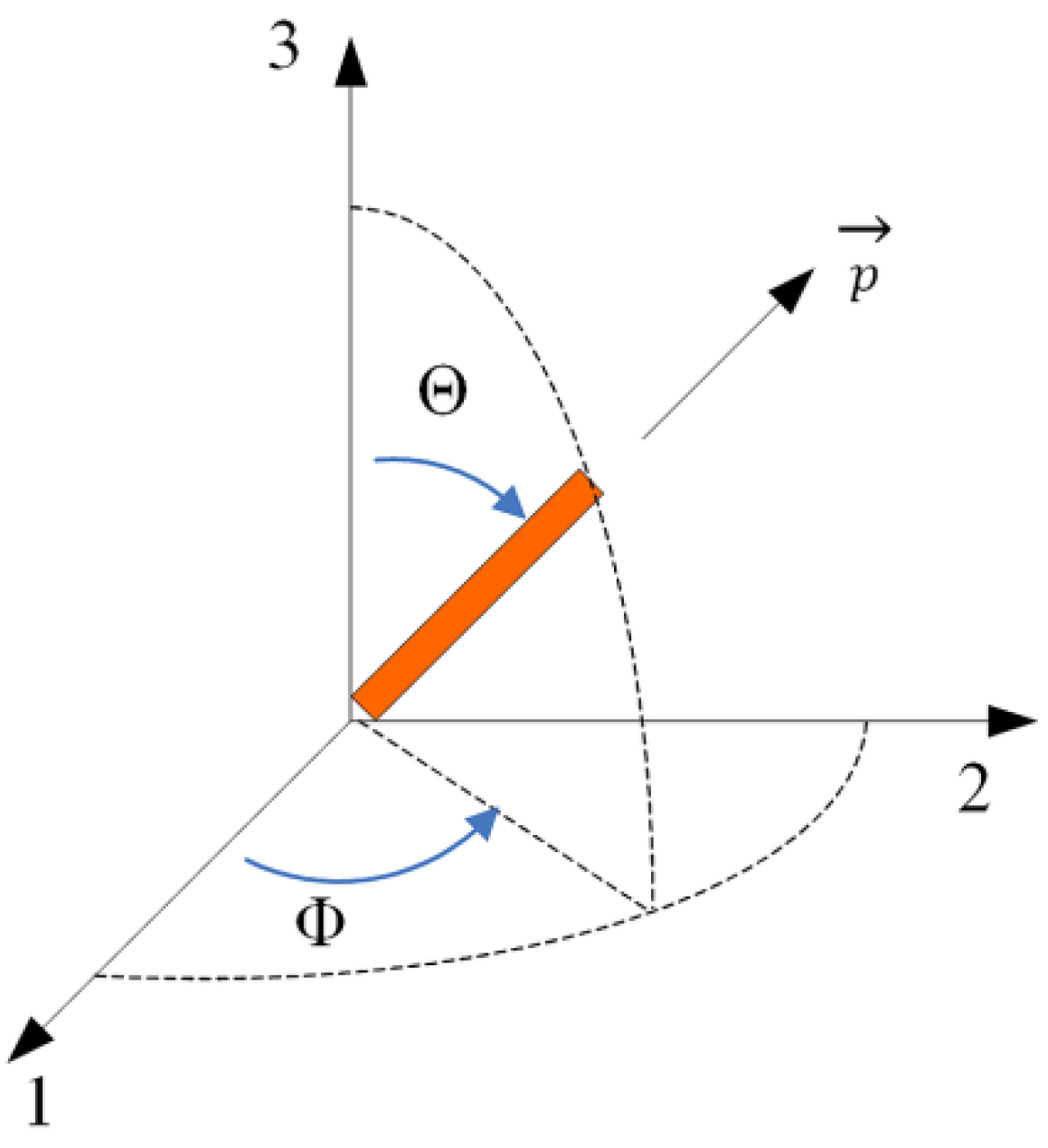

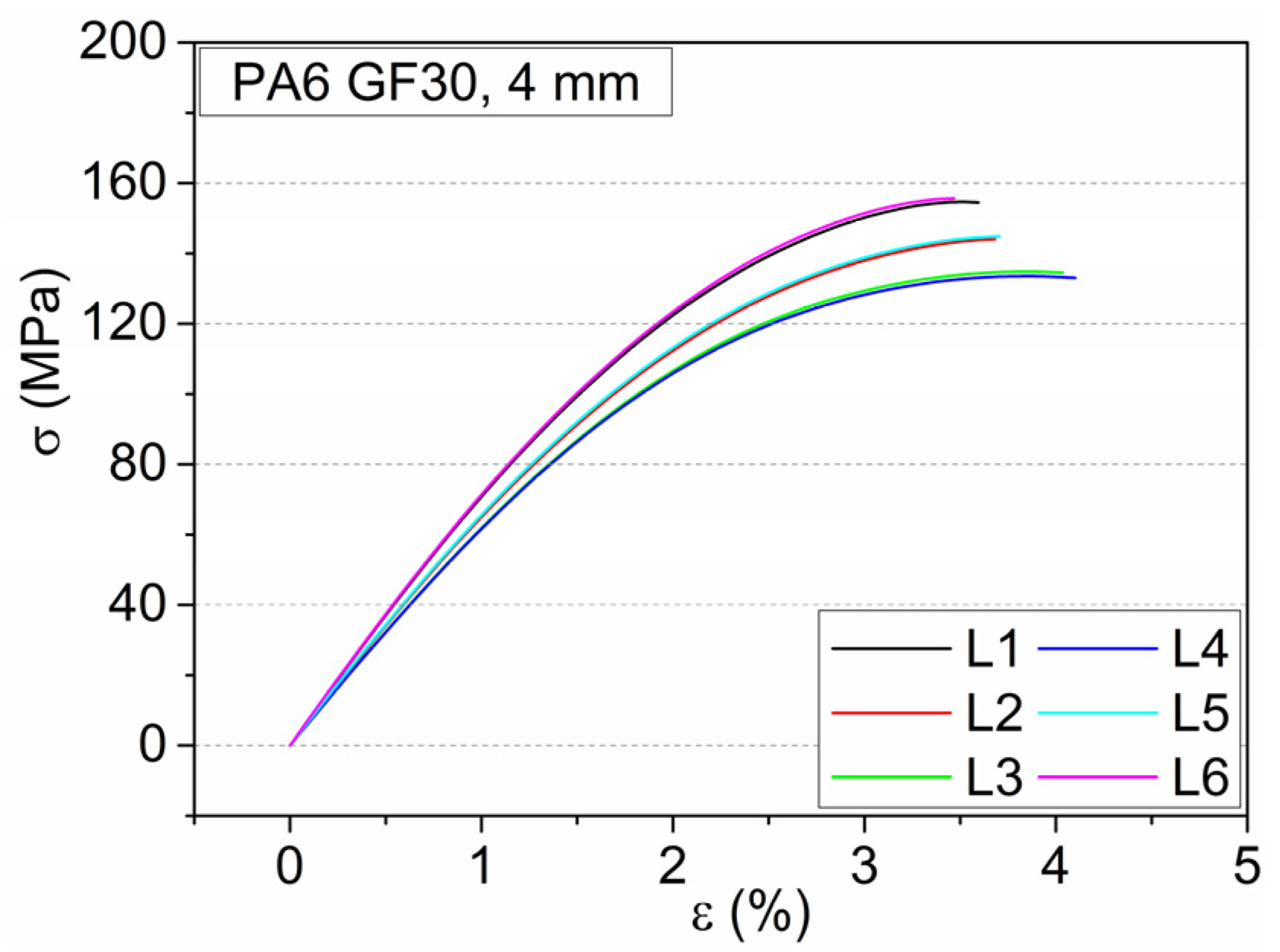

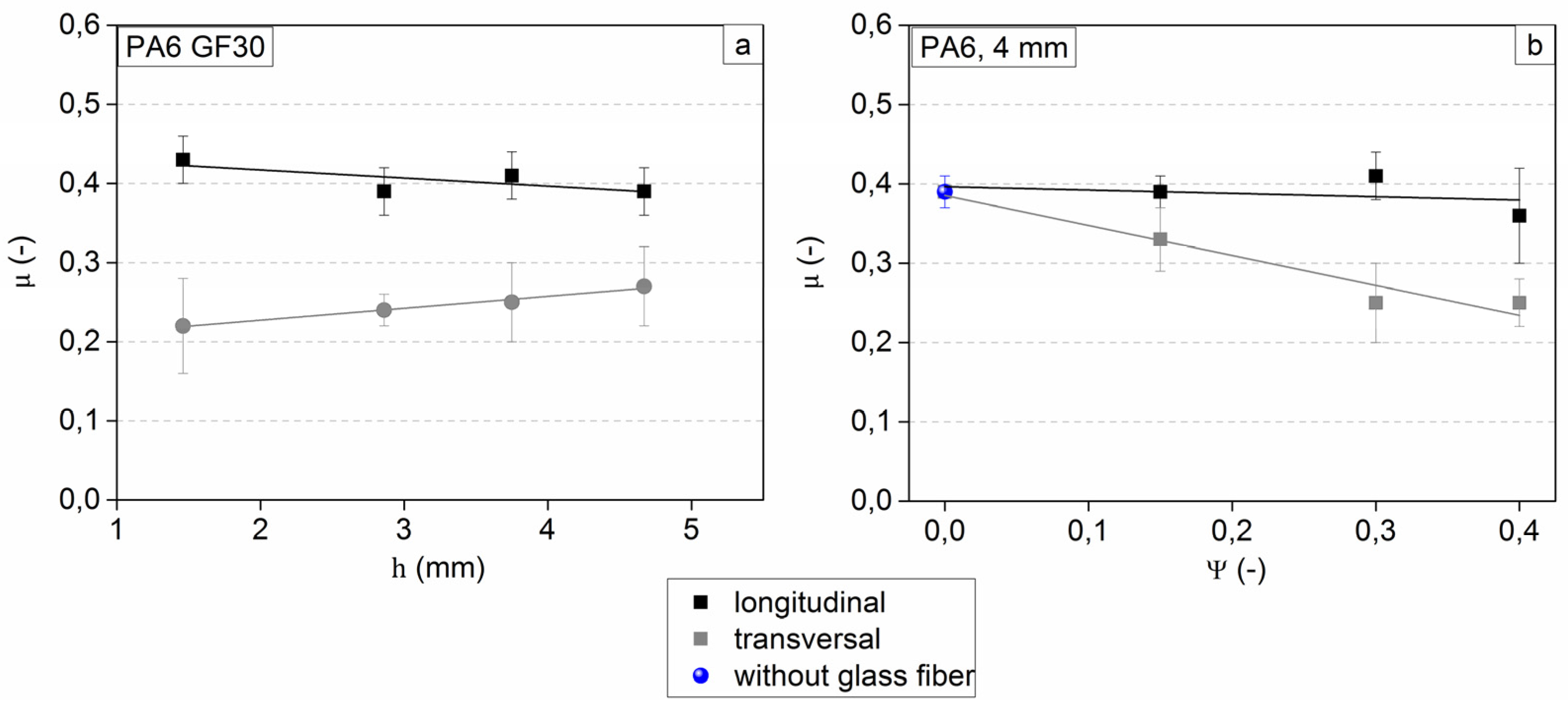

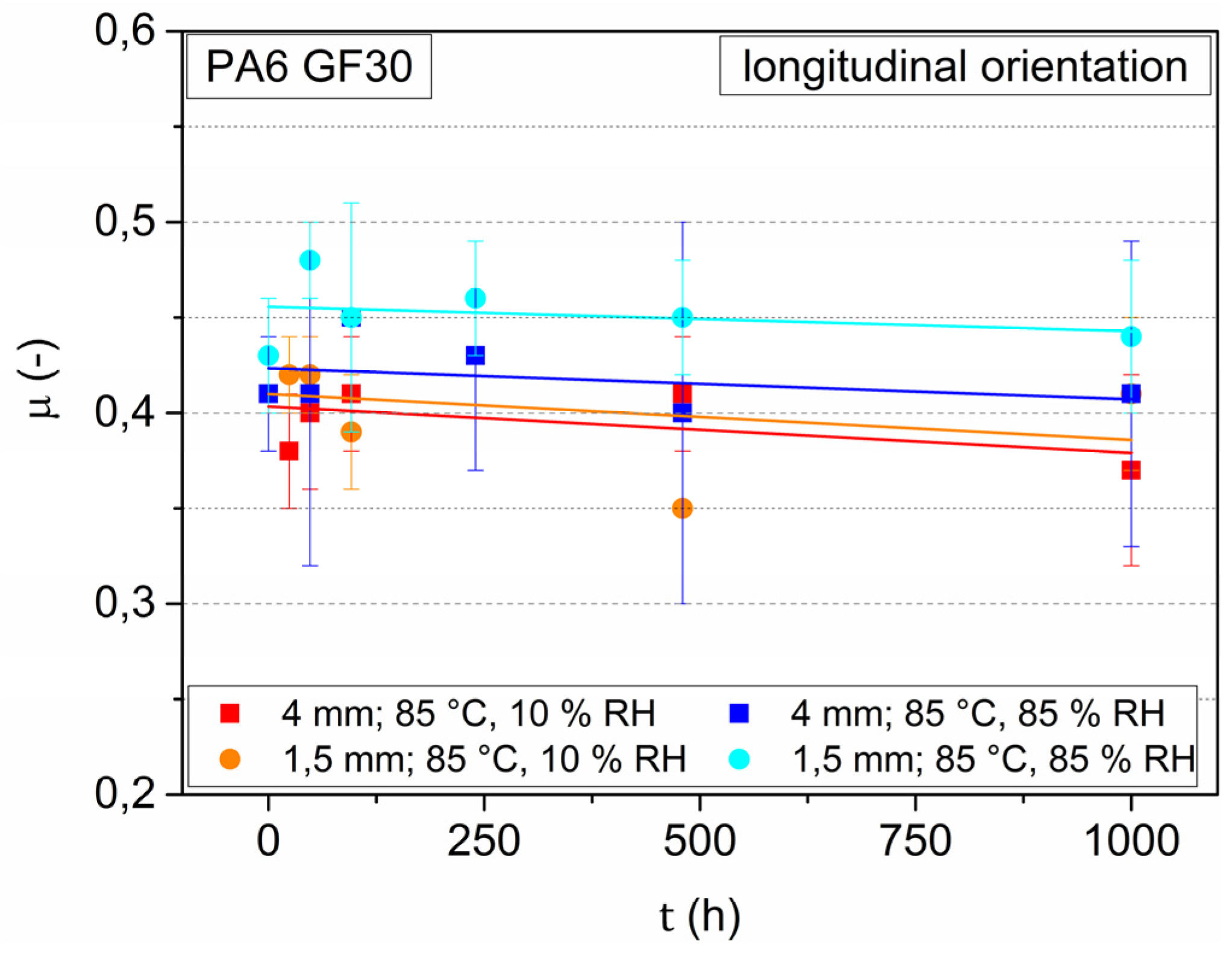

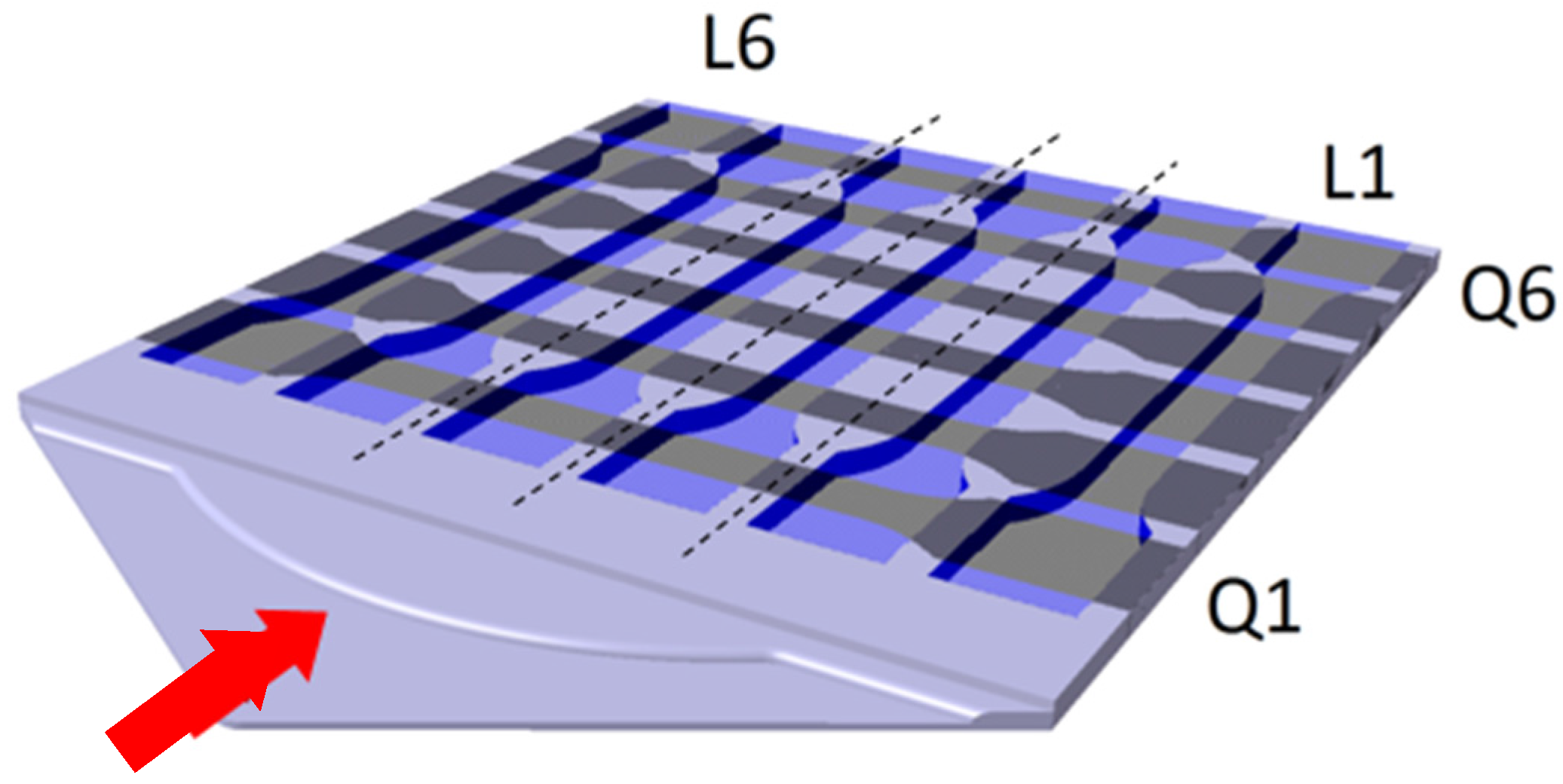

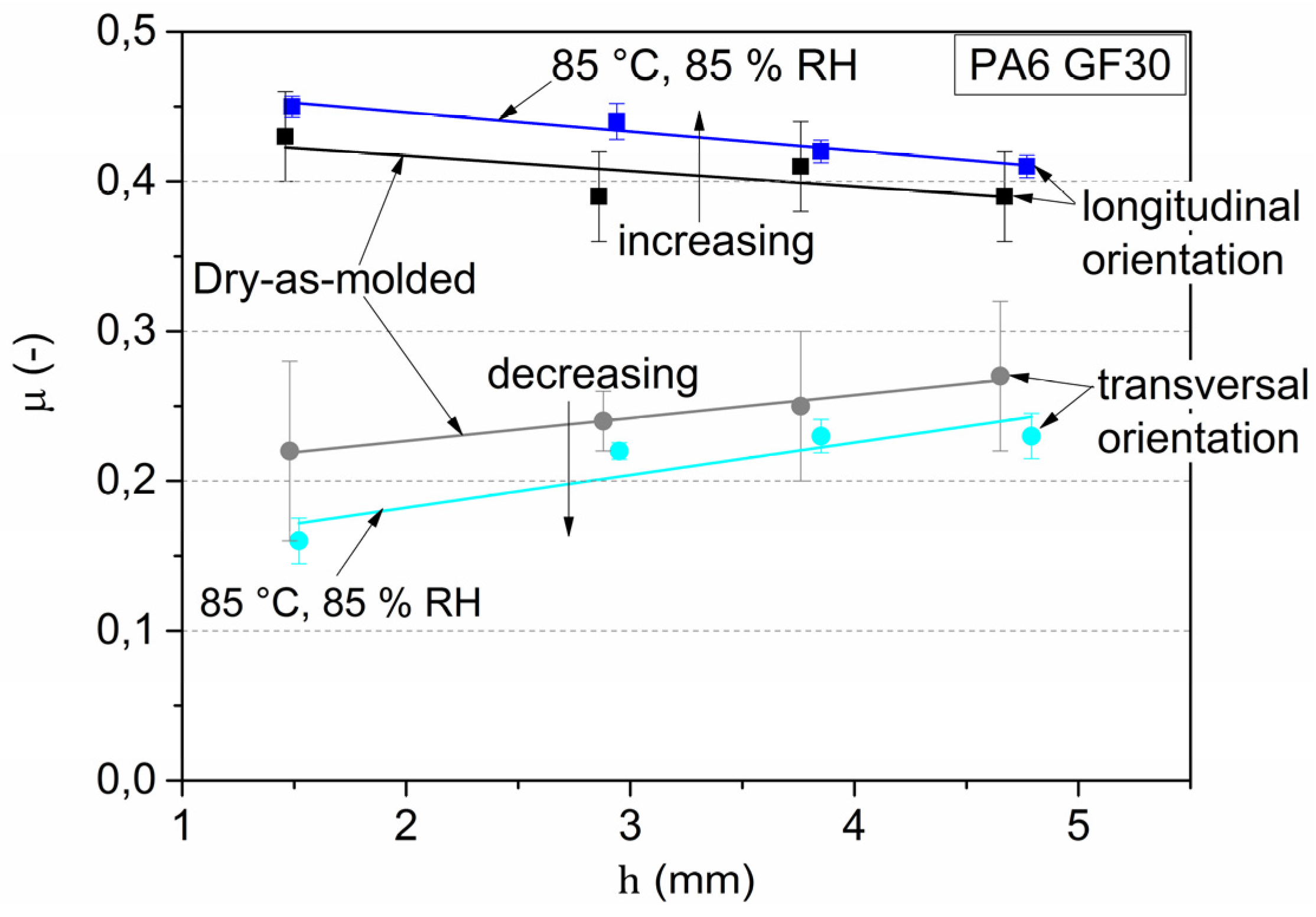

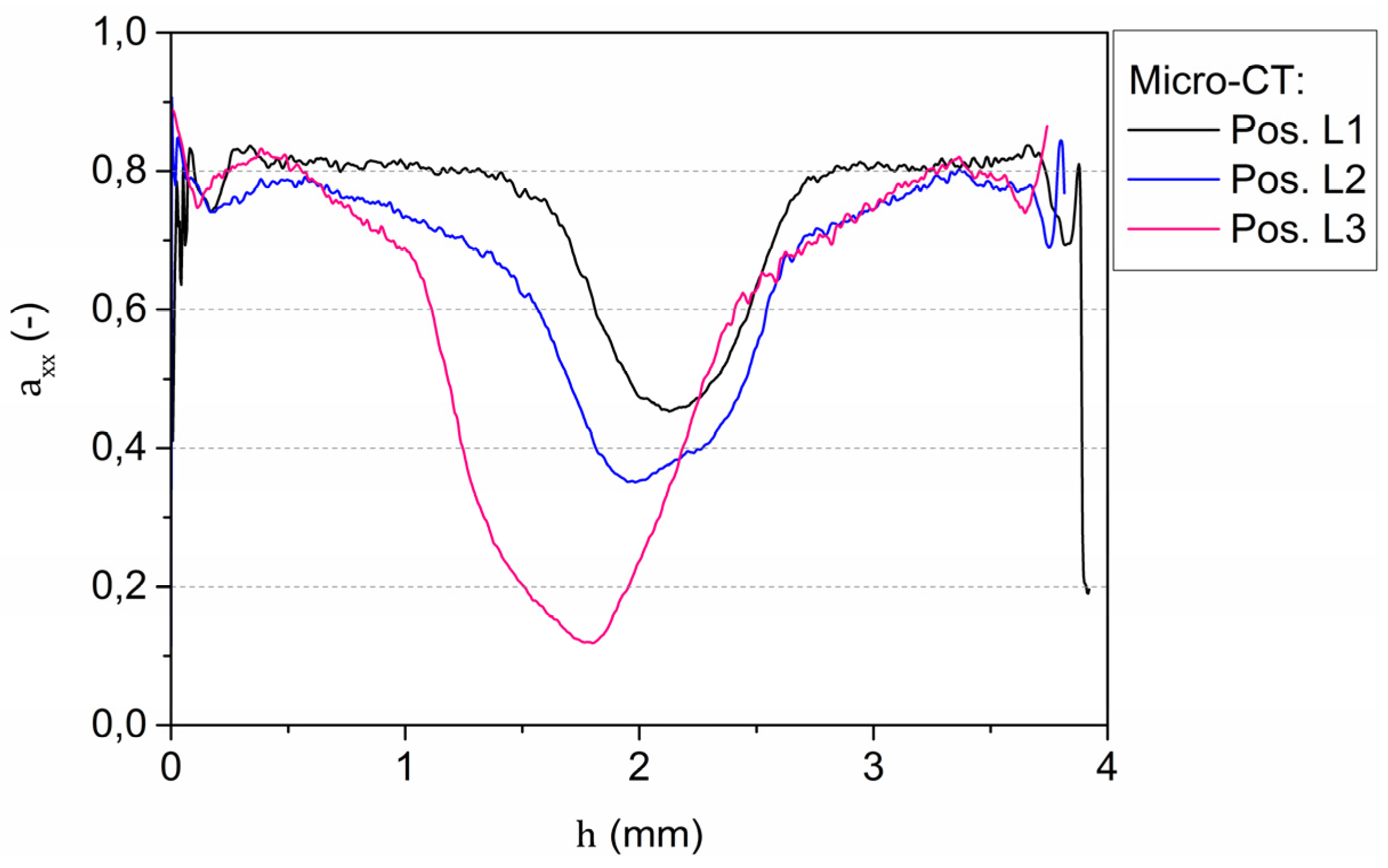

The hygrothermal aging of short glass fiber-reinforced polyamide 6 materials (PA6 GF) represents a major problem, especially in thin-walled components, such as in the automotive sector. In this study, therefore, the thickness and the glass fiber content of PA6 GF materials were varied and the materials were exposed to hygrothermal aging. The temperature and relative humidity were selected in the range from −40 °C up to 85 °C, and from 10% up to 85% relative humidity (RH). In the dry-as-molded state, the determined Poisson’s ratio of the PA6 GF materials was correlated with the fiber orientation based on computer tomography (MicroCT) data and shows a linear dependence with respect to the fiber orientation along and transverse to the flow direction of the injection molding process. With hygrothermal aging, the value of Poisson’s ratio increases in the flow direction in the same way as it decreases perpendicular to the flow direction due to water absorption. View Full-Text
Keywords: polyamide 6; glass fiber; hygrothermal aging; poisson’s ratio polyamide 6; glass fiber; hygrothermal aging; poisson’s ratio

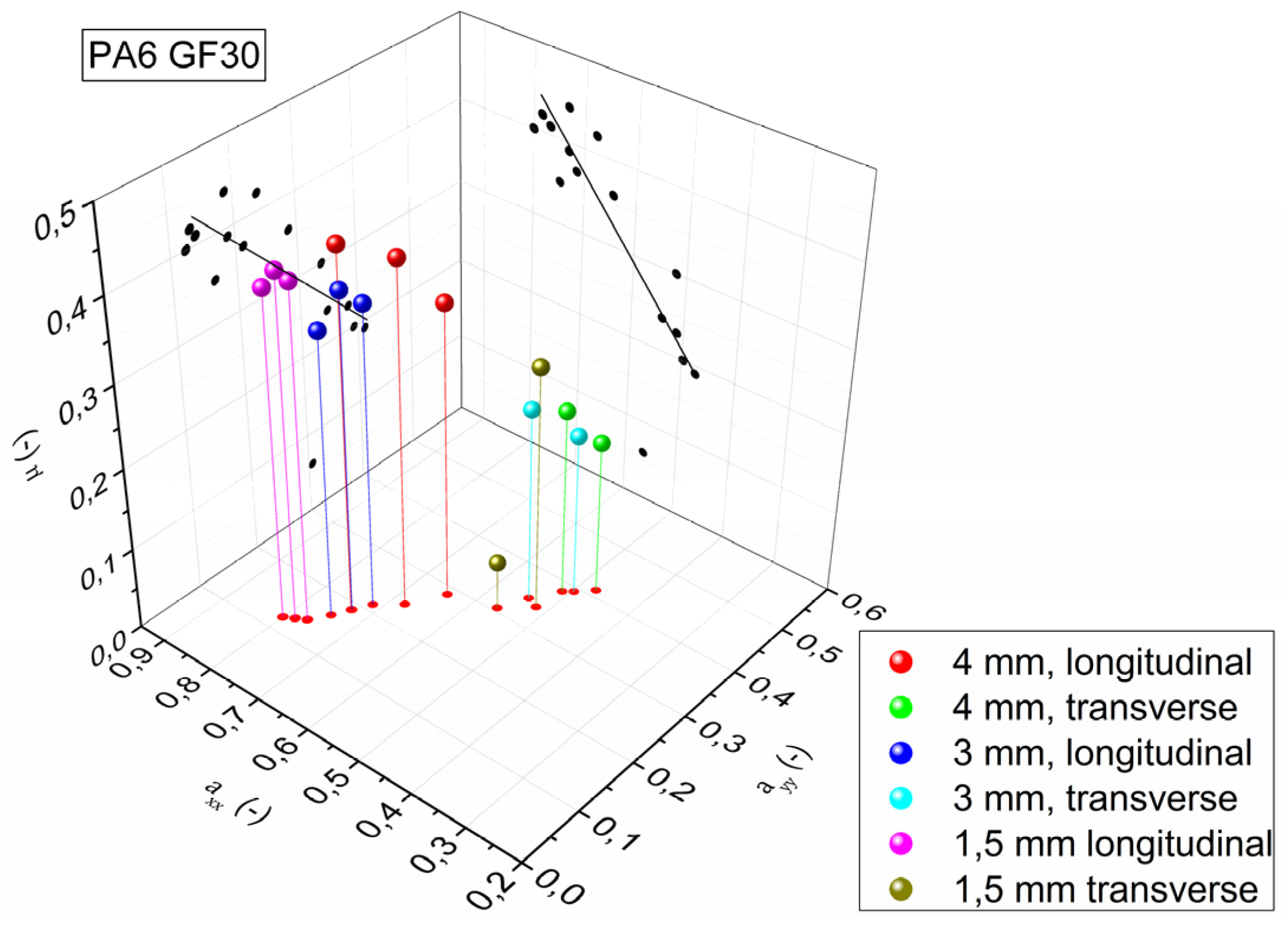

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Illing, T.; Gotzig, H.; Schoßig, M.; Bierögel, C.; Grellmann, W. Influence of Hygrothermal Aging on Poisson’s Ratio of Thin Injection-Molded Short Glass Fiber-Reinforced PA6. Fibers 2016, 4, 17.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Fibers EISSN 2079-6439 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
